SANY SRT95C Off-Highway Truck. Service Manual - page 33

21085079

Flat hanging strip with protection

A230200000757

Flat hanging strip with protection

A230200000767

Flat hanging strip

A230200000768

Flat hanging strip

60002297

One-leg chain sling

60002298

Dual-leg chain sling

A290000002675

Dual-leg chain sling

21003504

Monkey wrench

21084294

Monkey wrench

A260401040007

Monkey wrench

A260401040001

Monkey wrench

A260401040010

Monkey wrench

21084375

Feeler gauge

21007746

Flat spade

A260302010008

Vernier height caliper

A880305010022

Vernier depth caliper

21000872

Dial vernier caliper

23003828

Inside micrometer

A260302010012

Outside micrometer

A260302010013

Outside micrometer

A260302010015

Outside micrometer

A260302010016

Outside micrometer

A260302010017

Outside micrometer

A260302010018

Outside micrometer

A260302010019

Outside micrometer

A260302010020

Outside micrometer

A260301000001

Dial gage

A260309000008

Magnetic force gauge stand

21084880

Stainless steel ruler

A260302050002

Steel ruler

A260302050004

Steel ruler

A260302050013

Steel ruler

A260409000795

Nitrogen inflation tool

A550200000458

Dressmaker shears

21083609

Electrical grinder

A250100000296

Tension spring balance

21083602

Iron sheet shears

21005892

Digital electroprobe

Others

21084584

(K-01) No. 1 tool kit 5

21084280

Terminal block

21014346

Mobile pump station

21026895

Multipurpose screw turning tool

21002059

Diamond file

Accumulator/inflation tool of suspension

cylinder

A260409000795 nitrogen inflation tool

The above components can be assembled
for  inflating  the  front  and  rear  suspension
cylinders.

Glue and sealant

A420300000032  Kesaixin 1277

Others

36.4  List  of  Wearing  Parts  of

SRT95C Mining Truck

Serial No.

Material code

Name of Material

Number

1

A222100000615

Filter, diesel

2

2

21083623

Filter, water

2

3

60013897

Main cartridge of air cleaner

2

4

60216402

Dowm tail mirror

3

5

B222100000595

Filter, engine oil

2

6

60209392

Repair kits of front suspension

cylinder

1

7

B222100000622

Oil-water separator filter core

1

8

60209393

Repair kits of rear suspension

cylinder

1

9

A241100000649

Combination type front steering

light assembly

2

10

60046289

High pressure filter

1

11

A241100000650

Combination type rear steering

light assembly

2

12

60149949

Oil Seal

1

13

60149950

Oil Seal

1

14

60004471

Seal component

2

15

60004470

Lining kit

2

16

60037002

Valve Stem Assy

2

17

60037003

Valve Stem Assy

2

18

60037012

Valve Extension Bar

2

19

60050650

Rearview mirror

2

20

60215480

Oil return filter element

2

21

60141948

Rearview mirror

1

22

60215915

Filter core

1

23

60186788

Filter core

2

24

B230101002023

Dynamic seal assembly

2

25

B230101002024

Dynamic seal assembly

2

26

60209904

Oil suction filter element

1

27

60209906

Oil suction filter element

3

28

60231041

Repair kit of steering cylinder

2

29

60232234

Repair kit of hoisting cylinder

2

30

60211735

Energy storage repair kit

4

Others

31

60197257

Repair kit of filter of lower

pressure pipeline

2

32

60204007

Repair kits of steering control unit

1

33

60004579

Tyre

6

34

A241100000053

Bulb

2

35

60037011

Seal ring

4

36

60013930

Bulb

2

37

21011354

Bulb

2

38

12829446

Locating bushing

16

39

60013932

Bulb

2

40

11123586

Wearing cover sleeve

2

41

21019917

Fuse

5

42

10554209

Spacer

2

43

60014830

Fuse

5

44

12147069

Retainer ring

4

45

21019916

Fuse

5

46

12564516

Wearing cover sleeve

2

47

21019915

Fuse

5

48

12148150

Spacer

2

49

60014829

Fuse

5

50

12568820

Auti-dust cover

8

51

21019914

Fuse

5

52

A222100000615

Filter, diesel

2

53

60144045

Rear Oil Seal

1

Others

36.5 Technical parameters

Engine

Model.....................................Cummins engine



CumminsQST30-C1050

Type......................4 Cycle, water-cooled direct

               injection, Turbocharged/Aftercooled

Gross power

At the rate of 2100 r/min.........................

728kW



（

976hp

）

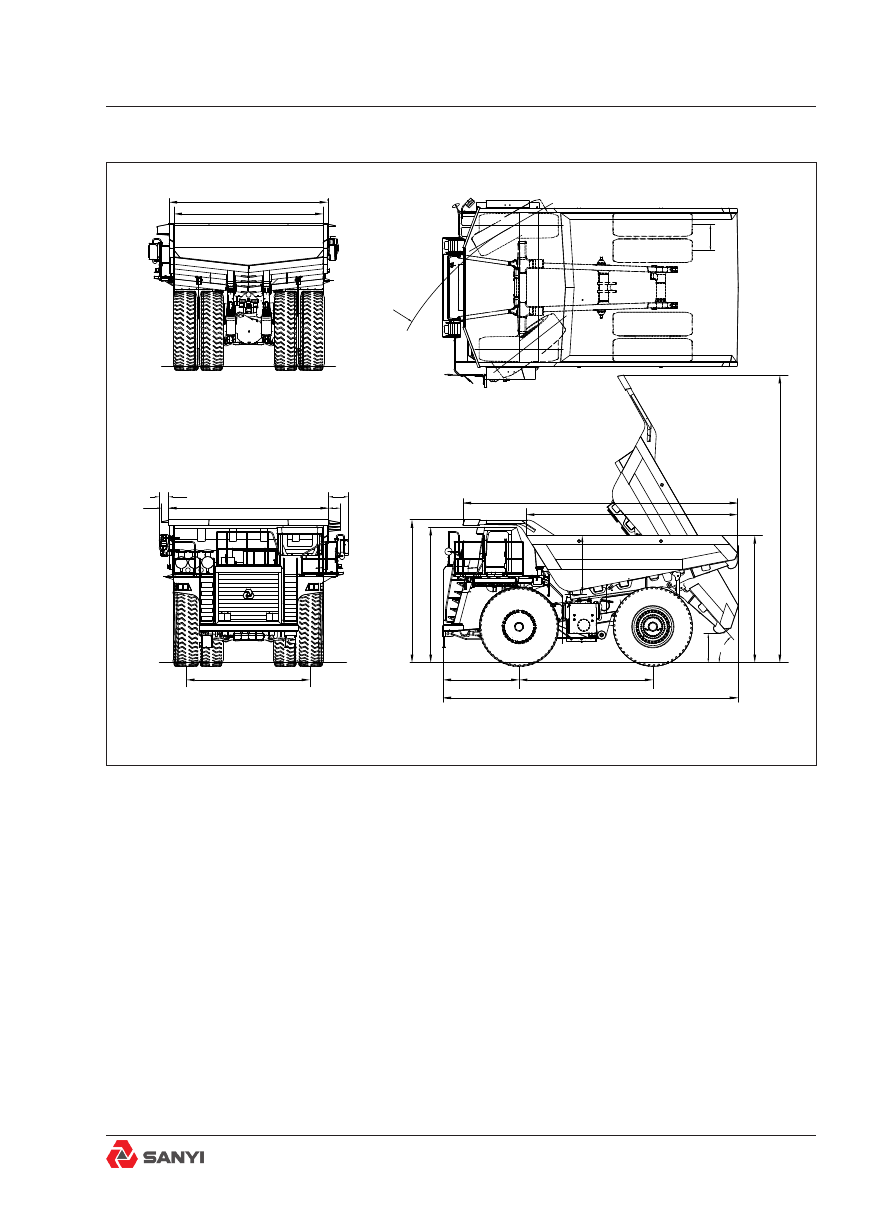

Fig.1 - Machine Dimensions

Technical Parameters

Unit

：

mm

9825

4350

4630

4890

5100

5420

7220

9385

5464

10075

4570

2610

4215

320

680

230

400

2000

12000

49°

1003

900

Net power

At the rate of

2100rpm

……………………………



                                                      728kW

（

976hp

）

Note:

Power ratings to SAE J1995 June 1990;

the engine emission shall comply with TIER
II USA EPA/CARB MOH 40 CFR 89 and EU
non-highway vehicle standard.
Maximum torque

(1300rpm)

…………

4629N

•

m

                                                          (3415 Ib ft

）

Number of Cylinders/Configuration .........

12 /V

Bore x Stroke ........................

φ

140

×

165mm



（

5.51

×

 6.49 in

）

Total Displacement ....................15 L (915 in

3

)

Transmission

Make/model...........................Allison

H8610AR

Automatic electronic control with soft shift
feature.Remote mounted in the frame.
Integral TC 682 torque converter and planetary
gearing. Six speeds forward,  one  reverse.
Automatic converter lockup action in all speed
ranges. Downshift inhibitor. Integral hydraulic
retarder.

Forward
gear

1st

gear

2nd

gear

3rd

gear

4th

gear

5th

gear

6th

gear

Ratio

4.24 2.32 1.69 1.31

1

0.73

km/h

8

14.7 20.1

26

34

47

mile/h

5

9.2

12.5 16.2 21.2 36.2

Reversing gear

R1

Ratio

5.75

km/h

6

mile/h

3.8

Drive axle

Heavy duty axle with single reduction spiral

bevel gear differential, full floating axle shafts,

and planetary reduction at each wheel.

Technical Parameters

Ratios:

Differential.............................................

2.16 : 1

Planetary...............................................

13.75:1

Total reduction.......................................

29.70:1

Suspension

Front:

Macpherson  type  independent

suspension with variable rate ,nitrongen/oil
cylinder for effective absorption of road shocks

Rear:

Variable rate nitrogen/oil cylinders with

A-frame linkage,lateral stabilizer bar .

Maximum strut stroke:

Front.........................................

300mm

（

11.8in

）

Rear.........................................

200mm

（

6.9in

）

Maximum rear axle oscillation.....................±7°

Wheel and tyres

Wheel rim width......................................19.5in
Tyre..................................

27.00-49/

（

48PR

）

E-4

Note:

Under certain working conditions,TKPH

(ton-km/h)capabilities of standard tyres could
be exceeded.consult tyre manufactures for
optimum tyre selection.

Brakes

Service

:

All  hydraulic  brake  system  control.Trans-
mission PTO mounted pressure compensating
piston  pump  provides  hydraulic  pressure
for brake and steering. Independent circuits
front  and  rear.Each  circuit  incorporates  a
accumulator which stores energy to provide
instant braking response.
Front brake circuit pressure........

15.5~15.9MPa

                                                     (2300 lbf/ in

2

)

Rear brake circuit pressure..................5.2MPa
                                                        (750 lbf/in

2

)

Accumulators:

Nitrogen precharge pressure................5.5MPa
                                                        (800 lbf/in

2

)

Front:

Type.............Dry disc with 1 calliper per wheel
Disc diameter...........................

965mm

（

38in

）

Technical Parameters

Pad area,total......................

1960cm

2

（

304in

2

）

Rear:

Type........................Oil cooled, multiple friction

discs,completely sealed from dirt and water.

Braking surface, total.......

91000cm

2

（

14105in

2

）

Parking:

Application of rear brakes by springs in brake
disc pack.Hydraulically released.
Hold-off pressure..................................8.3MPa
                                                      (1200 lbf/in

2

)

Steering system

Independent hydrostatic steering with closed-
centre  steering  valve,  accumulator  and
pressure compensating piston pump.
Accumulator  provides  uniform  steering
regardless of engine speed. In the event of
loss of engine power it provides steering of
approximately two lock-to-lock turns.
A low pressure indicator light warns of system
pressure below 11.5MPa (1660 lbf/in

2

).

Steering meets ISO 5010 and SAE J53.
Steering angle (left /right)..........................±40°

Hoist system

It is set up separately from the power hydraulic
system.Two body hoist cylinders are mounted
between the frame rails. Cylinders are two-
stage with power down in the second stage.
System pressure....................................180bar

                                                     (2610 lbf/in

2

)

Hoist  pump:

Type..................................................Gear type
Capacity at (at 2100 r/min)................

375L/min



Control valve:

Type...............Servo control, neutral gear open
Body raise time..........................................19 s
Body lower time.........................................15 s

Body

Longitudinal  'V'  type  floor  with  integral

Technical Parameters

transverse box-section stiffeners. The body is
exhaust heated and rests on resilient impact
absorption pads.
Body  wear  surfaces  are  high  hardness
abrasion resistant steel.

Plate thicknesses:

Floor.........................................18 mm (0.71 in)
Side...........................................8 mm (0.31 in)
Front lower................................8 mm (0.39 in)
Deluxe operator cabin with integrated ROPS/
FOPS conform to ISO 3471 and SAE Jl040C
Fed86.

Volume:

Struck(SAE std) ..........................42m

3

(55yd

3

)

Heaped 2:1 (SAE std) .................60m

3

(79yd

3

)

Frame

Highly rigid frame with the whole box-shaped
section, which is equipped with anti-twisting
beam, is adopted.  Integral front bumper and
closed-loop crossmember are equipped.  Front
and rear beam, twisting drum, rear mounting
rack  and  bumper  are  made  of  low-carbon
steel.  At the stress concentrated areas, cast
steel parts with high tenacity are used, and in
this way, the frame boasts high tenacity and
stronger impact resistance.

Maintenance service capacities

Description

Maintenance

volume

 L

US gal

Engine crankcase and filters

134

35.4

Transmission and filters

100

26.4

Cooling system

300

79.3

Fuel tank

1030

272.1

Steering hydraulic tank

62

16.4

Steering system

170

44.9

Lifting hydraulic tank

280

74

Technical Parameters

Lifting and brake cooling system

480

126.8

Planetaries  (total)

57

15.1

Differential

61

16.1

Front ride strut (each)

30

8.0

Rear ride strut (each)

21

5.5

Power takeoff

4

1.1

Typical noise levels

Operator ear (ISO 6394)..........................78dB
*Exterior sound rating (ISO 6395) ............89dB
*The  above  result  is  for  the  mode  giving
the  highest  exterior  sound  level  when
measured and operated as per the prescribed
procedures of the standard. Results shown

are for the vehicle in base configuration.

Note:

Noise Level Exposure to the operator

and  bystander  personnel  may  be  higher
depending upon proximity to buildings, rock
piles,  machinery  etc.. The  actual  job  site
Noise Level Exposure must be measured and
applicable regulations complied with in respect
to Employee Hearing Protection.

Vehicle weights (Mass)

Vehicle weights (Mass)

kg

Ib

Chassis, with hoists
Body, standard
Net weight

52000
13000
65000

114000

29000

143000

Rated loading capacity

95000 209000

Maximum gross weight*

160000 352000

Weight distribution

Empty
Loaded

Front

axle

48%
32%

Rear

axle

52%
68%

Technical Parameters

Technical Parameters

Suggestion Feedback Table

 Proponent

 Positon

 Contact

 Manual Name

 Chapter

 Page

 Issues description:

 Suggestion:

 Signature
 (Service Engineer)

 DATE

Note

:

1.If you have any questions or advises during your daily job with manual, please fill this table out

with your points, we will get that perious advises via our service engineer.
2. Copy this table, if you found  another issues out during your daily job with this manual

others

Suggestion Feedback Table

 Proponent

 Positon

 Contact

 Manual Name

 Chapter

 Page

 Issues description:

 Suggestion:

 Signature
 (Service Engineer)

 DATE

Note

:

1.If you have any questions or advises during your daily job with manual, please fill this table out

with your points, we will get that perious advises via our service engineer.
2. Copy this table, if you found  another issues out during your daily job with this manual

Others

Suggestion Feedback Table

 Proponent

 Positon

 Contact

 Manual Name

 Chapter

 Page

 Issues description:

 Suggestion:

 Signature
 (Service Engineer)

 DATE

Note

:

1.If you have any questions or advises during your daily job with manual, please fill this table out

with your points, we will get that perious advises via our service engineer.
2. Copy this table, if you found  another issues out during your daily job with this manual

others

Suggestion Feedback Table

 Proponent

 Positon

 Contact

 Manual Name

 Chapter

 Page

 Issues description:

 Suggestion:

 Signature
 (Service Engineer)

 DATE

Note

:

1.If you have any questions or advises during your daily job with manual, please fill this table out

with your points, we will get that perious advises via our service engineer.
2. Copy this table, if you found  another issues out during your daily job with this manual

Others
