Conversion Table

Method to use the conversion table

The conversion table in section may provide simple number conversion. See the following
example for the detailed method to use the conversion table.

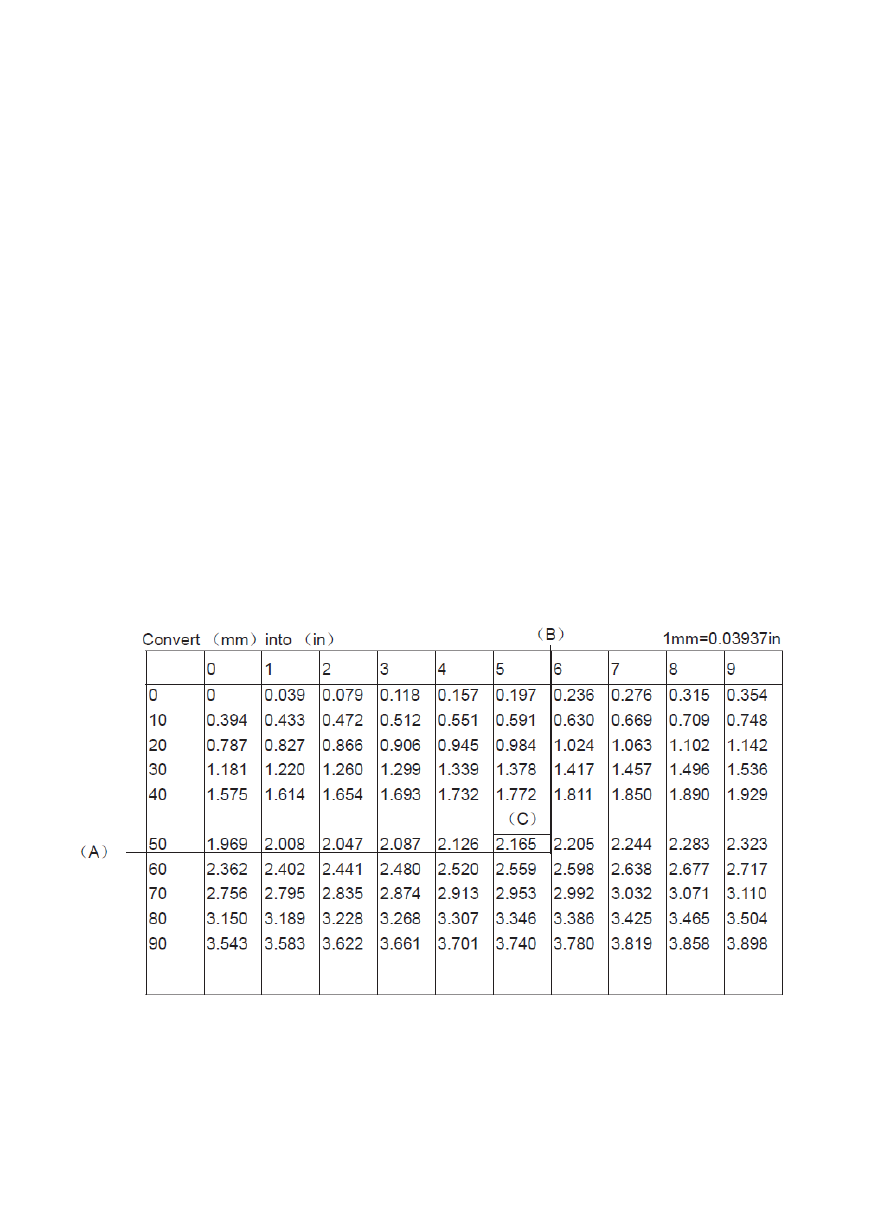

Example: Method to use the conversion table from mm to in.
1. Convert 55mm into in.
(1) At the No. 50 position in the left vertical column, select (A) for instance, and then draw a
horizontal line from (A).
(2) At the No. 5 position in the top transverse row, select (B) for instance, and then draw a vertical
line from (B).
(3) The crossing point of the two lines, (C) for instance, is the converted value from mm to in. So,
55mm=2.165in.
2. Convert 550mm into in.
(1) There is no 550 in the table, divide it by 10 (move the decimal point one digit to the left) to
convert it into 55mm.
(2) Repeat the above procedure to convert 55mm into 2.165in.
(3) Because the original value (550mm) is divided by 10, 2.165in should be multiplied by 10 (move
the decimal point one digit to the right) to return to the original value. Hence, 550mm=21.65in

Measurement units

In  this  Manual,  all  measurement  units  are
metric units.
Relevant  regular  weight  unit  system  is
indicated in braces { }.
Example:

kg { N }
kgm { N·m }
kg/cm

2

{ MPa }

mmHg { kPa }
mmH

2

O { kpa }

HP/r/min { kw/r/min }
g/HPh { g/kwh }

Conversion Table

TABLE OF CONTENTS

PREFACE



1

OVERVIEW



3

1 FRONT WHEEL ASSEMBLY



1-1

2 FRONT AXLE ASSEMBLY



2-1

2.1. Front Axle Assembly

  ..................................................................................... 2-5

2.1.1 Front wheel and installation

  ...................................................................... 2-8

2.1.2 Front brake assembly and installation

  .................................................... 2-14

2.1.3 Steering arm assembly

  ............................................................................. 2-25

2.1.4 Front suspension cylinder

  ........................................................................ 2-26

2.2 Steering Mechanism

  .................................................................................. 2-49

3 REAR AXLE ASSEMBLY AND INSTALLATION



3-1

3.1 Rear Axle Assembly

  ....................................................................................... 3-6

3.1.1 Two stage planetary assembly and axle half

  .......................................... 3-14

3.1.2 Rear wheel and installation

  ...................................................................... 3-25

3.1.3 Main reducer and differential assembly

  .................................................. 3-31

3.1.4 Rear axle housing assembly

  .................................................................... 3-54

3.1.5 Rear brake and installation

  ....................................................................... 3-58

3.2 Rear Axle Mounting Part

  ............................................................................. 3-92

4  REAR WHEEL ASSEMBLY



4-1

4.1 Rear Wheel Assembly

  .................................................................................... 4-1

5 INSTALLATION OF ENGINE



5-1

5.1 Engine and Mounting

  ..................................................................................... 5-1

5.1.1 Engine - power takeoff

  ............................................................................. 5-14

5.2 Installation of Compressor

  ........................................................................ 5-22

6 TRANSMISSION AND MOUNTING



6-1

6.1 Transmission  Mounting

  ............................................................................... 6-1

6.2 Transmission retarder control

  .................................................................. 6-20

Table of Contents

7 FENDER AND PLATFORM MOUNTING



7-1

7.1 Installation of Fender And Platform

  .......................................................... 7-1

8. CAB ACCESSORIES



8-1

8.1 Parts Assembly of Cab

  ................................................................................. 8-6

8.1.1 Body of cab

  .................................................................................................. 8-9

8.1.2 Seat mounting assembly

  .......................................................................... 8-13

8.1.3 Steering column mounting assembly

  ...................................................... 8-17

8.1.4 Accelerograph controller mounting assembly

  ....................................... 8-20

8.1.5 Evaporator assembly

  ................................................................................ 8-22

8.1.6 Harness of cab

  ........................................................................................... 8-26

8.1.7 Switches and instruments

  ........................................................................ 8-29

9  HYDRAULIC STEERING PIPELINE OF OPERATOR’S CAB

  9-1

9.1 Steering Control Unit

  .................................................................................... 9-1

9.2 Steering Valve Group

  ..................................................................................... 9-7

10 OPERATOR’S CAB BRAKE PIPELINE AND JOINT



10-1

10.1 Foot Valve

  ...................................................................................................... 10-1

11 AIR CONDITIONING PIPELINE INSTALLATION



11-1

11.1 Air Conditioning Pipeline Installation

  ...................................................11-1

12 FUEL TANK AND MOUNTING



12-1

12.1 Fuel Tank and Mounting

  ........................................................................... 12-1

13 STEERING PIPELINE AND JOINT



13-1

13.1 Piston Pump

 .................................................................................................. 13-1

13.2 Cushion Valve Block

  .................................................................................. 13-3

13.3 Oil Filter

  .......................................................................................................... 13-5

14 HOSIT PIPELINE AND JOINT



14-1

14.1 Hoist Pump

  .................................................................................................... 14-1

14.2 Hoist Valve

  ..................................................................................................... 14-2

14.3 Balanced Valve Group

  ............................................................................... 14-5

14.4 Power Supply of Pilot Valve Group

  ...................................................... 14-8

14.5 Hoisting Cylinder and Installation

  ...................................................... 14-10

Table of Contents

15 HYDRAULIC OIL TANK ASSEMBLY



15-1

15.1 Hydraulic Oil Tank Assembly

  .................................................................. 15-1

16 BRAKE PIPELINE AND JOINT



16-1

16.1 Brake System Accumulator

  ..................................................................... 16-1

16.2 Brake Valve Group

  ...................................................................................... 16-2

17FRAME AND INSTALLATION



17-1

17.1 Frame and Installation

  ............................................................................... 17-1

18 DRIVELINE INSTALLATION



18-1

18.1 Front Driveline Assembly

  ......................................................................... 18-1

18.2 Rear Driveline Assembly

  .......................................................................... 18-6

19 AIR CLEANER AND MOUNTING



19-1

19.1 Air Cleaner and Mounting

  ........................................................................ 19-1

20 EXHAUST SYSTEM ASSEMBLY



20-1

20.1 Exhaust System Assembly

  ...................................................................... 20-1

21 REAR SUSPENSION SYSTEM



21-1

21.1 Rear Suspension System

  ......................................................................... 21-1

22 RADIATOR GUARD



22-1

22.1 Radiator Guard

  ........................................................................................... 22-1

23 BODY AND MOUNTING



23-1

23.1 Body and Mounting

  .................................................................................... 23-1

24 ILLUMINATION LAMP AND INSTALLATION



24-1

24.1 Illumination Lamp and Installation

  ....................................................... 24-1

25 VEHICLE DETECTING SYSTEM



25-5

25.1 Transmission

  ................................................................................................ 25-6

26 ARRANGEMENT PLAN OF SRT95C



26-4

27 CENTRALIZED LUBRICATION SYSTEM



27-2

27.1 Manual Operation-Centralized Lubrication System

  ........................ 27-2

Table of Contents

27.2 Automatic Centralized Lubrication System (optional configuration)



...................................................................................................................................... 27-4

28 TRANSMISSION OIL FILTER ASSEMBLY



28-1

29 DISC BRAKE COOLING SYSTEM PIPELINE AND JOINT

   29-1

30 BRAKE OIL COOLER AND INSTALLATION



30-1

31 TRANSMISSION COOLING PIPING MOUNTING



31-1

32 RADIATOR AND MOUNTING



32-2

32.1 Radiator and Mounting

  ............................................................................. 32-2

32.2 Condenser Assembly

  ................................................................................ 32-5

32.3 Liquid Accumulator Assembly

  ............................................................... 32-7

33 WATER TANK MOUNTING AND LINES



33-1

34 BATTERY AND INSTALLATION



34-1

35 CABLES AND HARNESSES



35-1

36 OTHERS



36-1

36.1 Lubrication and Maintenance

  ................................................................. 36-1

36.1.1 Lubrication and maintenance

  ................................................................. 36-1

36.1.2 Other maintenance

  .................................................................................. 36-7

36.2 Technical Conditions for Bolts and Nuts

  ......................................... 36-16

36.3 Maintenance Tools

  .................................................................................... 36-22

36.4 List of Wearing Parts of SRT95C Mining Truck

  ............................. 36-27

36.5 Technical parameters

  .............................................................................. 36-29

Table of Contents

1 FRONT WHEEL ASSEMBLY

Description

The front wheel assembly consists of tyre and
rim assembly, rim clamp and nut.
The tyre and rim assembly is designed to be
replaced with a pre-assembled tyre and rim.

Preparation for servicing

warning

Before loosening rim clamps or performing

any service on the tyre or rim components,

to prevent personal injury and property

damage,  completely  deflate  tyre  by

removing the valve cap and core. Insert

a thin wire through the valve to be sure

Front Wheel Assembly

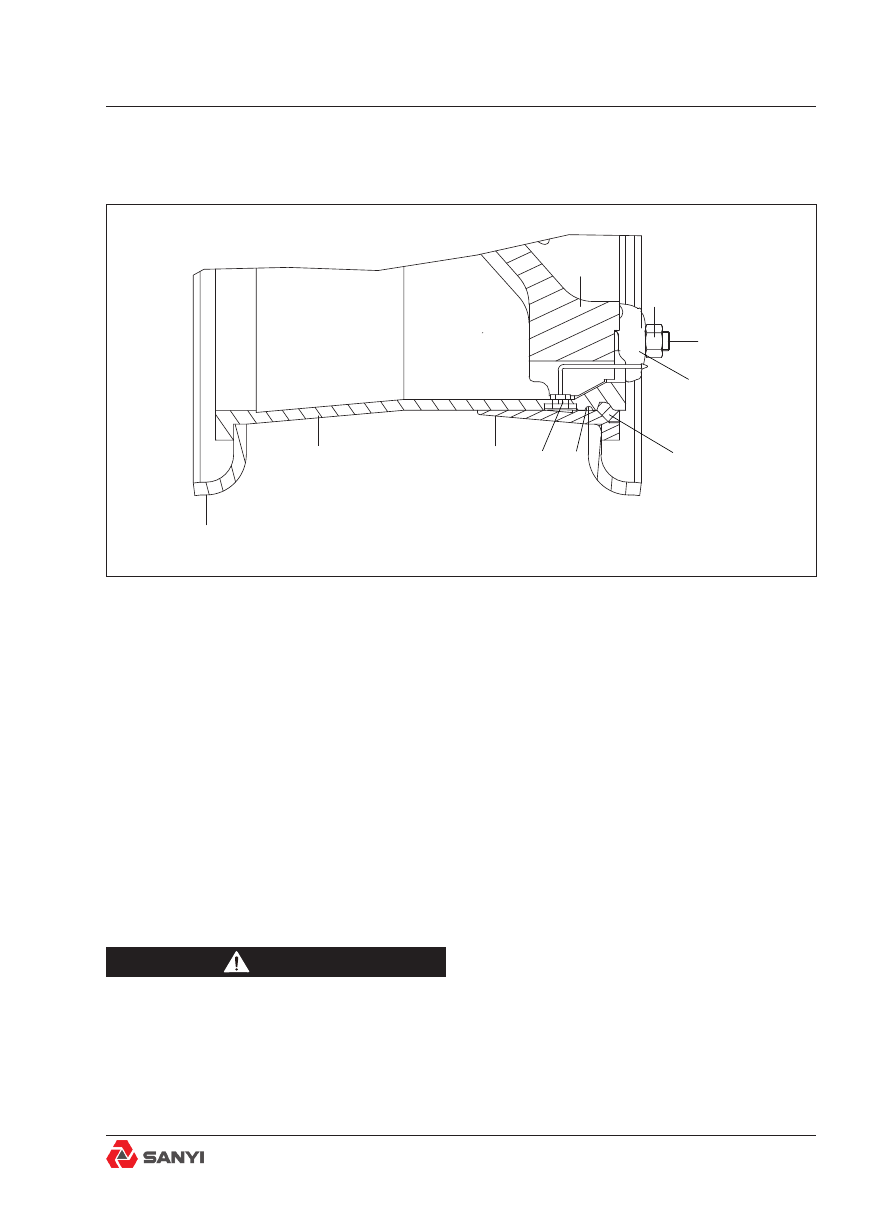

Fig.1 Sectional view of wheel rim assembly

2

3

4

5

6

7

8

9

10

1

1. Flange

6. Lock ring

2. Rim

7. Clamp

3. Bead seat band

8. Nut

4. Valve stem assembly

9. Stud

5. ‘O’ Ring

10. Wheel

the valve is not plugged. Even a flat tyre,

in some cases, will retain sufficient air

pressure to blow off a rim component with

enough force to cause injury or death.

warning

Gases that build up inside an air inflated

tyre mounted on a rim during welding or

heating  of  rim  components  can  ignite,

causing an explosion of the tyre and rim

components. This warning also applies

to Nitrogen gas inflated tyres. Ignition will

not occur in a Nitrogen gas atmosphere;

but the pressure build up from the applied

heat may be sufficient to cause a blowout

severe  enough  to  injure  or  kill.  Never

weld  or  otherwise  apply  heat  on  rim

components with the tyre mounted on the

rim, whether the tyre is inflated or deflated,

to  prevent  injury  or  property  damage

from the potential tyre explosion! Do not

attempt to repair rims or rim components

by welding or heating, even if the tyre is

not mounted on the rim. It is recommended

to  scrap  questionable  rim  parts  unless

specific permission and repair procedures

are  obtained  in  writing  either  from  the

company or the rim manufacturer.

Removing Tyre and Rim Assembly

Numbers in parentheses refer to Fig.1.
If the tyre and rim assembly is to be replaced
with a pre-assembled tyre and rim assembly,
it is not necessary to remove the tyre from
the rim on the truck. The tyre and rim may be
removed from the truck as an assembly, and
transported to a more desirable location for
removing the tyre from the rim.

Front Wheel Assembly

warning

To  prevent  personal  injury  and  property
damage,  be  sure  wheel  blocks,  blocking
materials and lifting equipment are properly

secured and of sufficient capacity to do the job

safely.

1. Place the truck in a flat area, apply parking

brake and shut down the engine.
2. The steering wheel turns for several circles
in the two directions to relieve the pressure in
steering system. Block all wheels, except the
one to be raised. Use wooden blocks 100 mm
x 100 mm (4 in x 4 in) or larger.
3. Support the truck with jack for removal of
tyre, but do not jack up the truck.
4. Completely deflate tyre by removing valve
cap and core. Check valve stem by running a
piece of wire through the stem to make sure it is
not plugged. See warning under 'Preparation
for servicing' .
5. Loosen the nut (8) on the wheel hub. But do
not remove from the stud (9).
6. Jack the truck up only as high as necessary
to remove wheel from truck, and place safety
blocks under the frame.
7. Support the tyre with a chain or rope of

sufficient strength attached to a suitable lifting

device. Remove the nut(8) and clamp(7) from
the wheel stud (9). Lift tyre and rim assembly
clear.

Dismounting Tyre from Rim

Numbers in parentheses refer to Fig.2, unless

otherwise specified.

Note

: The following instructions are applicable

to  use  of  hand  tools.  For  procedures  and
tooling required to dismount the tyre from the
rim, using hydraulic tools, contact the tyre
manufacturer.

1

2 3

B

4

A

C

5

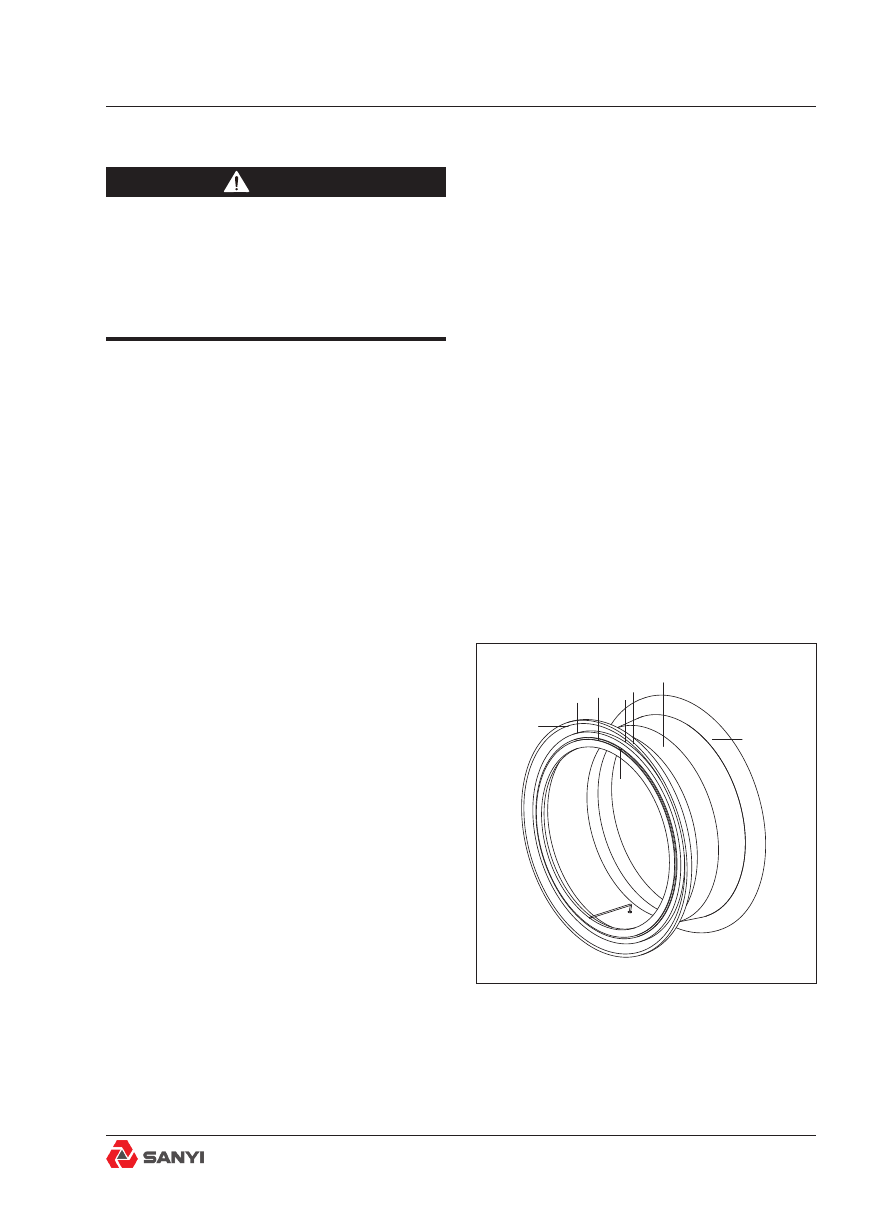

Fig.2 Rim assembly

1. Outer fange

4. Rim

2. Bead seat band

5. Inner flange

3. Lock ring

Front Wheel Assembly

warning

When lifting tyre from rim, be sure the device
is of sufficient capacity and properly secured
to do the job safely.

1.  Completely  deflate  tyre  if  not  done
previously. See warning under 'Preparation for
servicing' . Tape valve threads to protect from
damage, leaving valve end open to avoid any
possibility of trapping air inside the tyre.
2. As shown in Fig.3, break outer tyre bead

loose by placing the flat hooked end of a pry

bar, into one of the breaking slots (C) between

the bead seat band (2) and outer flange (1). A

length of pipe slipped over straight end of bar
will increase leverage. Twist straight end of
bar around toward tyre to break this portion of
bead. Another person may now insert another
pry bar of the same type into the slot between
the bead seat band (2) and outer flange (1),
and with the same twisting action, hold the

space gained with the first pry bar. Move first

pry bar all the way around the wheel, twisting
and following up with second pry bar, until
inner tyre bead is loose.
3. Start bead seat band (2) in away from lock
ring (3) by placing hooked end of pry bar in
groove of rim (4), between ends of lock ring,
and prying up with bar. Using two tools, as in
Step 2, work completely around wheel.
4. Pry lock ring (3) out in same manner by
starting at prying notch (B) in wheel, and work
all the way around wheel with the two pry
bars.
5. Remove and discard the O-ring (5, see
Fig.1).
6. After removing lock ring (3), pry out and
remove bead seat band (2). Outer flange (1)
can be removed now.
7. Similar breaking slots are provided on the
inside of rims. The inner bead on the back

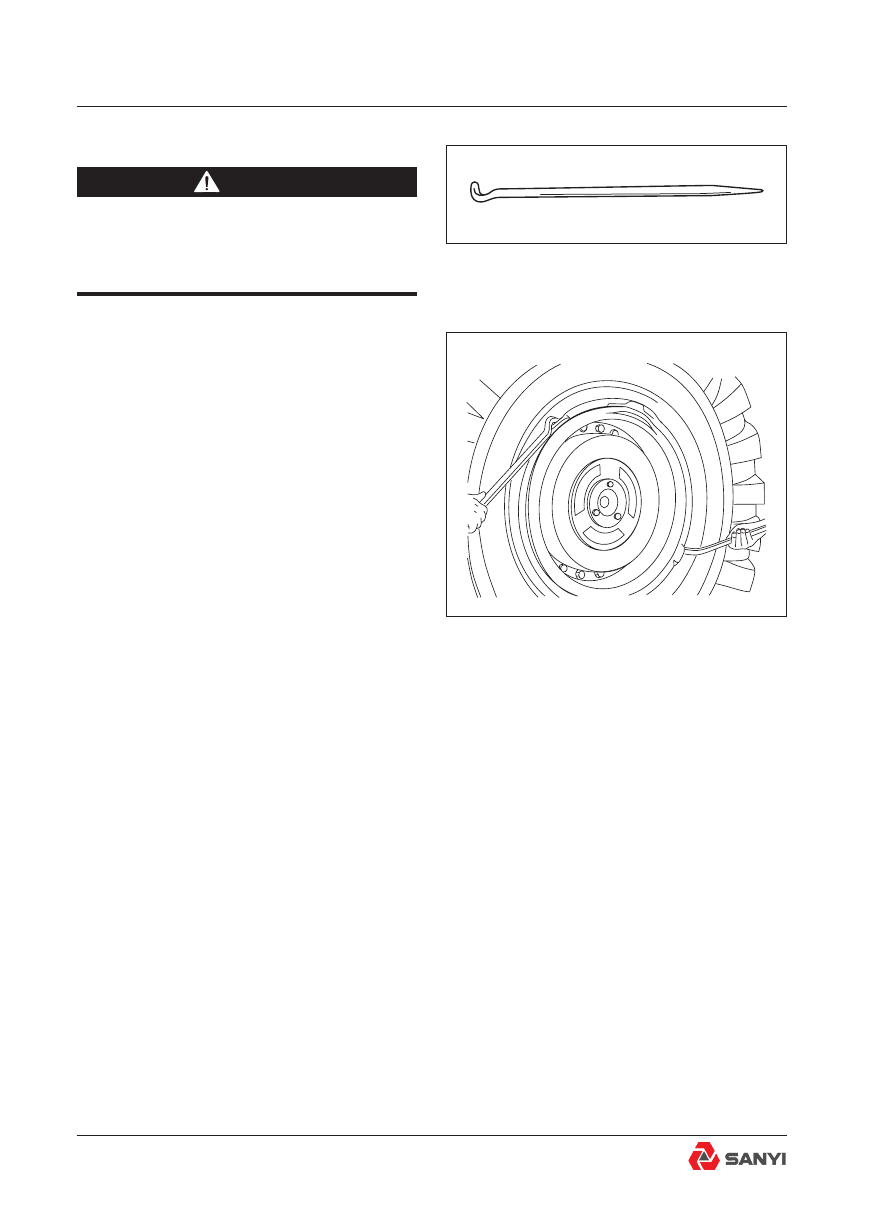

Fig.4 Breaking Typical Tyre Bead Loose

Fig.3 Pry Bar

Front Wheel Assembly

side of the tyre may be broken by using the
same method as in Step 2, for the outer bead.
If the wheel assembly is still on the truck,
another method which can be used is to place
a small jack between the inner flange and
some solid part of the frame. By extending the
jack, pressure is exerted, which forces the tyre
bead off the rim seat. Work around the wheel
until the bead is broken at all points.
8. Use a proper lifting device to lift tyre away
from rim. The dismantling of tyre is completed
in such a way.

Note

: If tyre and rim is on truck, and no lifting

device is available, the tyre can be separated
off the rim as follows: force bottom of tyre
outward as far as possible; lower jack enough
to allow weight of tyre to rest on ground; force
top of tyre out as far as possible; raise jack to
original height and repeat the above until tyre
is off rim.

Inspection

Tyre

Check interior surface of the tyre to determine
its condition. Inspect for cuts or fabric breaks
that have penetrated the tyre body. Inspect
closely for any sharp, pointed objects that may
have penetrated the tyre body but is invisible
from the outside. All dust, dirt, water or other
foreign matter should be cleaned from the
inside of the tyre.
Replace valve core assembly if condition is
questionable.

Rim assembly

Overload, improper tyre inflation, rough terrain,

high speed, accidents, dirt accumulation and
corrosion will reduce service life of rims and
rim  components.  It  is  recommended  that
rims be inspected, as below, not less than at
every tyre change and, as the warranty limit
approaches, consideration be given to rim
replacement.

Front Wheel Assembly

warning

N e v e r   m i x   c o m p o n e n t s   o f   o n e

manufacturer's rims with those of another.

Using the rim base of one manufacturer

with  the  lock  ring  of  another  or  vice

versa is dangerous. The lock ring of one

may not fully engage with the lock ring

groove of the other. Always consult the

rim manufacturer for proper matching and

assembly instructions.

Also,  use  of  damaged,  worn  out,  or

improperly  rim  assemblies  is  a  very

dangerous  practice.  Failure  to  comply

with the above warnings could result in

explosions  from  tyre  pressure  causing

serious  personal  injury  and  property

damage.

1. Clean all rust and dirt from rim parts.
2. Coat parts with primer paint, allow thorough
drying before assembling.
3. Inspect rim assemblies (Fig.2) for bent,
cracked,  distorted,  battered,  and  rusted
parts which may have resulted from abusive
practices  outlined  above.  Replace  any
damaged parts with new parts.
4. Discard 'O' ring and replace with a new one.

Note

: Handle 'O' rings carefully, as damage

will prevent an airtight seal for tyre inflation.

Mounting Tyre on Rim

Numbers in parentheses refer to Fig.2, unless

otherwise specified.

warning

When  lifting  tyre  onto  rim,  be  sure  the

device is of sufficient capacity and properly

secured to do the job safely.

Front Wheel Assembly

1.  If  tubeless  tyre  valve  assembly  was
removed from rim, install this assembly in the
rim valve hole and tighten securely.
2. Whether the rim (4) is on or off the truck,
tyre installations are performed in basically the
same manner. For off-truck installations, lay
the rim on blocks with 'O' ring groove up. The

rim should be just off the floor enough so the

tyre rests on the rim and does not touch the

floor. The blocks should not extend more than

13 mm (0.5 in) beyond the rim base, so they

won’t interfere with inner flange (5).
3. Install the inner flange (5) onto the rim (4).

4. Before assembly of tyre to rim, lubricate
both tyre beads and new 'O' ring (5, Fig.1)
with a thin solution of vegetable base soap
and water. Make sure tyre valve assembly is
securely in place. Lower the tyre onto the rim,

seating tyre firmly against inner flange (5).
5. Install outer flange (1) on rim (4).

6. Install bead seat band (2) on rim (4).
7. Install lock ring (3) in groove of rim (4).

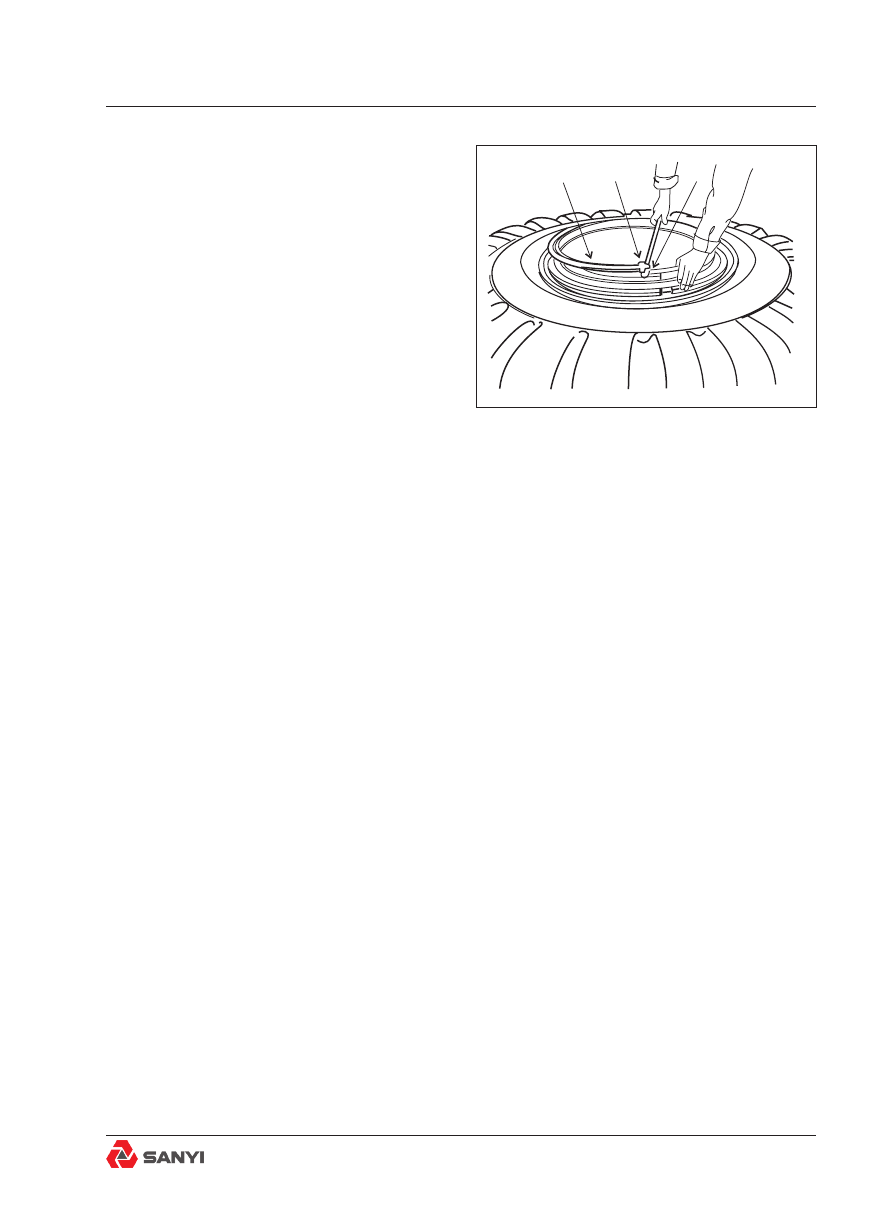

Use pry bar for this operation, as illustrated in
Fig.5.
8.  Force  bead  seat  band  (2)  past  'O'  ring
groove in rim (4) by prying, or with lift truck
forks. Use blocking between the forks and tyre
to prevent tyre damage. Lubricate area of rim
adjacent to 'O' ring groove with a thin solution
of  soap  and  water  or  another  approved
lubricant which is not harmful to rubber. Avoid
using an excessive amount of lubricant. Insert
a new 'O' ring (5, Fig.1) in the groove of the
rim behind the lock ring.
9. Lift tyre upwards to effect a seal between
bead seat band (2) and 'O' ring (5, Fig.1). In
some cases the tyre will automatically spring
out, if this step is neglected,

Mounting tyre and rim assembly on wheel

Numbers in parentheses refer to Fig.1.
1. Support tyre and rim assembly with a chain
or rope sling attached to an overhead lifting
device and slide onto wheel (10) of the truck.

1

2

A

Fig.5 Installation of Lock Ring

Front Wheel Assembly

Side with lock ring (6) and bead seat band (3)
should be facing outward.
2. Install clamps (7) and nuts (8) on studs (9).
Gradually tighten wheel nuts opposite each
other, until all nuts are snug, torque tighten
wheel nuts (8) to 1000 N. M-1300 N. M.
Re-tighten nuts after a few hours operation.

Note

: The fastener torque should be checked

regularly, particularly on new truck or newly-
installed  wheels,  to  maintain  the  required
wheel rim-clamp load. A newly installed wheel
or a new truck should be checked at 30 day

intervals until rim fasteners show no significant

torque loss from the previous check. After
that, a 90 day torque check interval should be
adequate.

warning

Be sure lifting equipment is of sufficient

capacity and properly secured to do the

job safely.

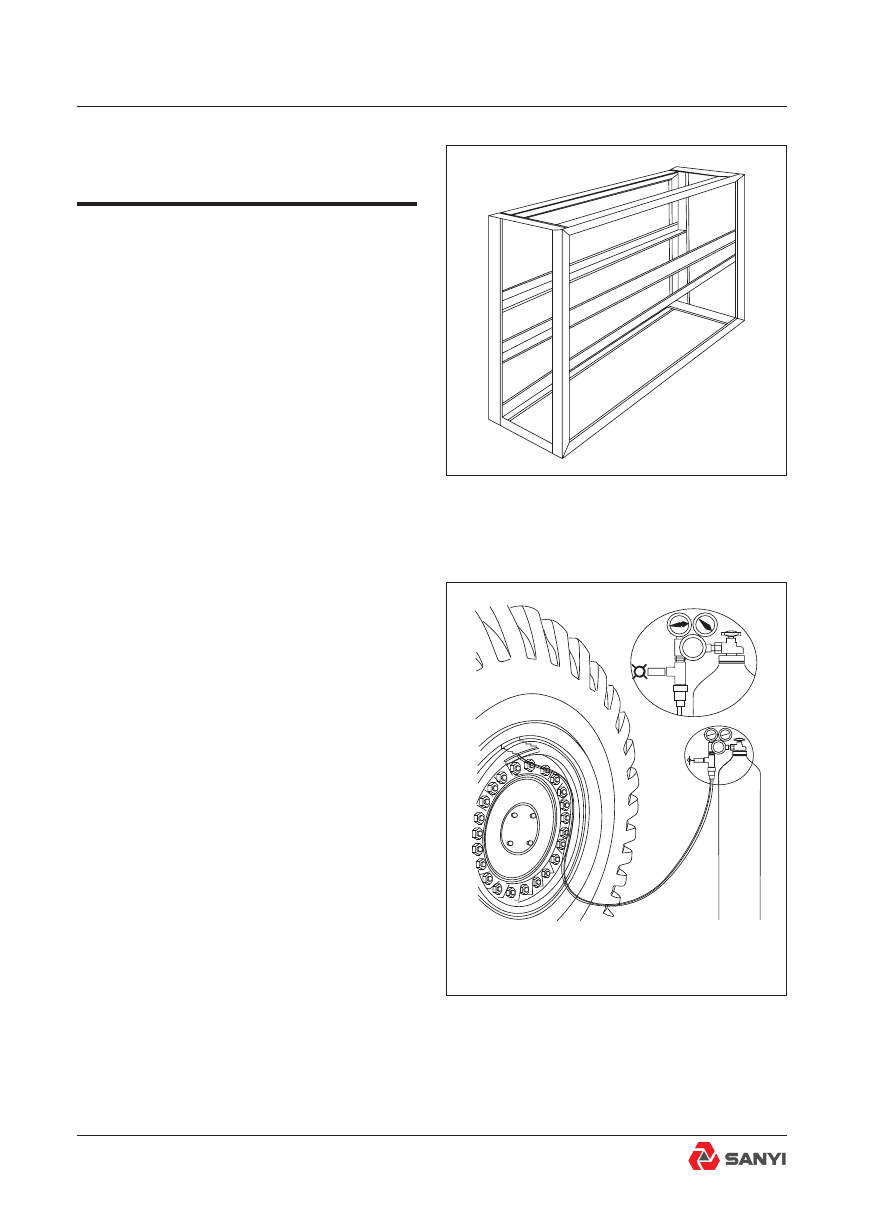

Tyre Inflation

warning

To prevent personal injury and property

damage, the tyre and rim assembly should

be placed in a safety cage before inflating.

If no safety cage is available or tyre is on

the truck, the tyre and rim assembly should

be  wrapped  with  safety  chains  or  with

cables before inflating.

Even with these precautions remember

that air-blast is a potential hazard. Tyre

inflation should be carried out away from

busy working areas.

To prevent personal injury and property

damage, never stand or sit in front of a

mounted tyre during tyre inflation. Use

a clip-on air chuck with a long hose and

stand to one side while the tyre is being

Front Wheel Assembly

inflated.

To prevent personal injury and property

damage, always prevent flammable vapours

that could produce tyre explosions, from

being pumped into tyres during inflation,

by observing the following precautions:

1. Use an air compressor and reservoir

located  inside  a  heated  building,  when

available, so that alcohol, methanol, or

other flammable antifreeze liquids are not

needed in the air tanks to prevent moisture

freezing in the tank and lines in subfreezing

temperatures.

2. Make sure that paints, lacquers, paint

thinners, or similar materials that produce

volatile, flammable vapours are not used or

stored near the air intake of the compressor

that supplies the air for inflating tyres. The

compressor should be isolated from all

such sources of flammable vapours.

3. Be sure to thoroughly flush and blow off

all flammable solvents used for cleaning

the  air  compressor  inlet  screen  before

using the compressor for tyre inflation, or

any other purpose.

4. Do not charge batteries, near the air

inlet of a compressor used for inflating

tyres. Charging batteries produces highly

explosive  hydrogen  gas  which  can  be

readily drawn into a nearby compressor

inlet and pumped into the tyre.

5. Never exceed the specified concentration

of  alcohol  when  adjusting  the  alcohol

vaporiser, or adding alcohol to the auxiliary

air tank, used on machine air systems to

prevent freezing or moisture condensate

in below-freezing temperatures. Excessive

alcohol, added to the air tanks can produce

flammable vapours that will be pumped

into a tyre when this air supply is used for

tyre inflation if the tyre inflation kit is not

equipped with a moisture filter.

6. Another source of hazardous flammable

vapours in tyres is the tyre bead lubricant.

Front Wheel Assembly

Always use bead lubricants that do not

introduce flammable vapours into the tyre.

Inflation

Note

: To prevent moisture corrosion of internal

rim parts, use tyre inflation equipment with an

air filter that removes moisture from the air
supply.
1. If the tyre is off the truck, it should be placed

in a safety cage before inflating. See Fig.6.

2. Inflate all tyres with ratings of 16-ply and
above to 0.52 Mpa to seat beads and seal
'O'  ring,  then  adjust  to  the  recommended
pressure.
3. For recommended operating air pressure,

refer to the chart 'Tyre Inflation Pressures'.

Nitrogen tyre inflation

Note

: All  Warnings  and  procedures  under

'Tyre Inflation' will apply, except for differences

covered by this passage.
In certain enviroN·ments it is recommended
that tyres be inflated with dry nitrogen gas,
and that the resulting oxygen content of the
inflation does not exceed 5%. All machines
whose  tyres  are  factory  inflated  with  dry
nitrogen gas will be identified by a decal on
the body or frame.
Nitrogen gas improves tyre pressure retention,
increases  tyre  life  by  reducing  carcass
oxidation  from  within,  minimizes  rim  rust
and has no detrimental effects on the tyre. It
also reduces the potential of a tyre explosion
because it is an inert gas and will not support
combustion inside the tyre.
The same tyre inflation pressure used for air

inflation should be used for nitrogen inflation.
Tyre valves formerly used with air inflation are

entirely satisfactory for use with nitrogen gas.

Fig.6 Tyre Inflation Safety Cage

Fig.7 Nitrogen Tyre Inflation Kit

Front Wheel Assembly















Content      ..      1      2      3      ..
