New Holland TC21D (Serial Number UF33357 and Above) TC24D (Serial Number UG30001 and Above). Operator's Manual

TO THE OWNER

This manual contains information concerning the adjustment and maintenance of your New Holland TC21D and

TC24D. You have purchased a dependable machine, but only by proper care and operation can you expect to

receive the performance and long service built into this tractor. Please have all operators read this manual care-

fully and keep it available for ready reference.

This machine was designed to power and propel itself. It is intended to pull or carry tractor attachments or load

and move materials when equipped with a front end loader with a variety of buckets. Only attachments recom-

mended and approved by New Holland should be used with your tractor.

Your New Holland dealer will instruct you in the general operation of your tractor. (Refer to the ìDelivery Reportî

at the back of this manual.) Your dealerís staff of factory-trained service technicians will be glad to answer any

questions that may arise regarding the operation of your tractor.

Your New Holland dealer carries a complete line of genuine New Holland service parts. These parts are manufac-

tured and carefully inspected to insure high quality and accurate fitting of any necessary replacement parts. Be

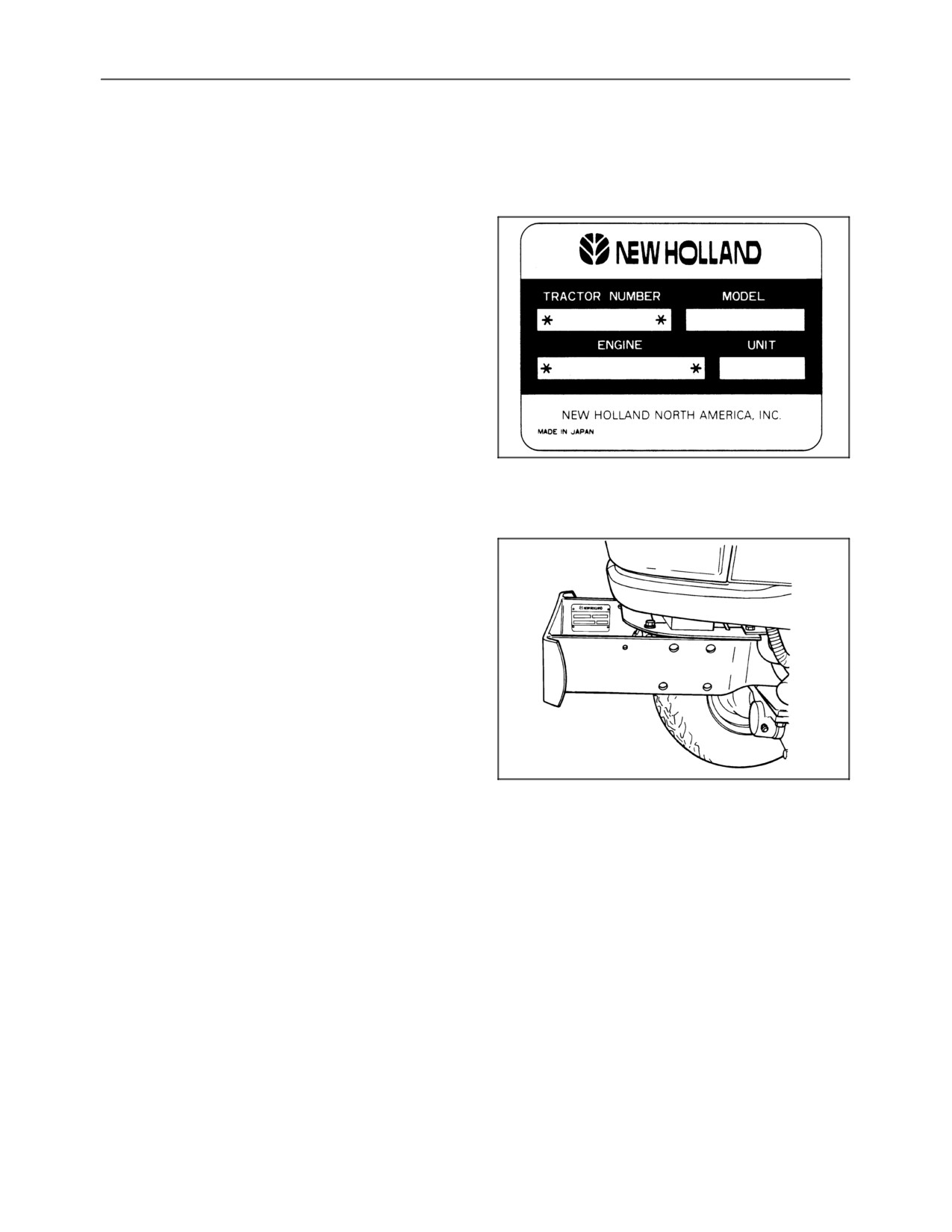

prepared to give your dealer the model and serial number of the engine and tractor, when ordering parts. Locate

these numbers now and record them below. Refer to the ìGeneral Informationî section of this manual for the loca-

tion of the model and serial numbers of your skid steer.

Model

Serial Number

CAUTION

This safety alert symbol indicates important safety messages in this manual. When you see this symbol,

carefully read the message that follows and be alert to the possibility of personal injury or death.

CAUTION

Pictures in this manual may show protective shielding open or removed to better illustrate a particular

feature or adjustment.

Be certain, however, to close or replace all shielding before operating the machine.

IMPROVEMENTS

New Holland North America, Inc. is continually striving to improve its products. We reserve the right to make im-

provements or changes when it becomes practical and possible to do so, without incurring any obligation to make

changes or additions to the equipment sold previously.

0-1

FEDERAL EMISSIONS WARRANTY

(North America Only)

(California ownerís emissions warranty is covered elsewhere)

New Holland warrants that your new 1996 and later heavy-duty off-road diesel engine was designed, built, and equipped to conform to

applicable U.S. Environmental Protection Agency regulations for a period of use of five years or 3,000 hours of operation, whichever occurs

first.

The new model year, class of diesel engine, and emission application determination for your engine are identified on the emission control

information label affixed to the top of your engineís rocker arm cover. The warranty period begins on the date the new equipment is sold to the

first retail purchaser.

Any emission control system parts which are proven defective during normal use will be repaired or replaced during the warranty period. The

warranty repairs and service will be performed by any authorized New Holland dealer at the dealerís place of business, with no charge for parts

or labor (including diagnosis).

As theengineowner, youareresponsibletoperformalltherequiredmaintenancelistedinyour ownerís manual. NewHolland willnot deny an

emission warranty claim solely because you have no record of maintenance; however, a claim may be denied if your failure to perform

maintenance resulted in the failure of a warranted part. Receipts covering regular maintenance should be retained in the event of questions

and these receipts should be passed on to each subsequent owner of the engine.

It is recommended replacement parts used for maintenance or repairs be New Holland Service Parts to maintain the quality originally

designed into your emission certified engine. The use of non-New Holland parts does not invalidate the warranty on other components unless

the use of such parts causes damage to warranted parts.

New Holland wishes to assure the emission control systems warranty is being properly administered. If you believe you have not received the

service entitled to under this warranty, you should contact the nearest New Holland Branch Office for assistance. The address and phone

number of each Branch Office is in your vehicle ownerís manual. If additional assistance or information is needed, contact:

Service Department

New Holland North America, Inc.

500 Diller Avenue

New Holland, PA 17557

(717) 355-1121

Please note that the Emission Warranty does not cover:

1. Systems and parts that were not first installed on the new equipment or engine as original equipment by New Holland.

2. Part malfunctions caused by abuse, misuse, improper adjustment, modification, alteration, tampering, disconnection, improper or

inadequate maintenance, or use of non-recommended fuels and lubricating oils.

3. Accident caused damage, acts of nature, or other events beyond New Hollandís control.

4. Replacement of expendable items made in connection with scheduled maintenance.

5. Parts requiring replacement, inspection or adjustment maintenance intervals for reasons other than being defective.

6. Parts which are not New Holland Service Parts.

7. Loss of time, inconvenience, loss of use of equipment/engine or commercial loss.

8. Equipment with altered or disconnected hourmeter where the hours cannot be determined.

9. Equipment normally operated outside the United States.

10. Non-defective parts replaced by other than New Holland dealers.

Coverage

This emission control system warranty applies to the following emission control parts.

Fuel Injection Pump

Fuel Injectors

Turbocharger

Intake Manifold

Exhaust Manifold

Boost Pressure Tubing-connection to Aneroid Device ON F.I.P.

0-3

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT

(North America Only)

(California Only)

Your Warranty Rights and Obligations

The California Air Resources Board and New Holland are pleased to explain the emission control system warranty on your engine. In California,

new 1997 and later heavy-duty off-road engines from 100 to 150 HP must be designed, built, and equipped to meet the Stateís stringent

anti-smog standards. New Holland must warrant the emission control system on your engine for the periods of time listed below, provided there

has been no abuse, neglect, or improper maintenance of your engine.

Your emission control system includes parts such as the fuel injection system and the air induction system.

Where a warrantable condition exists, New Holland will repair your heavy-duty off-road engine at no cost to you, including diagnosis, parts, and labor.

Manufacturerís Warranty Coverage:

The 1997 and later heavy-duty off-road engines are warranted from the original date of delivery for five years or 3,000 hours of operation,

whichever occurs first. If any emission-related part on your engine is defective, the part will be repaired or replaced by New Holland.

Ownerís Warranty Responsibilities:

D As the heavy-duty off-road engine owner, you are responsible for the performance of the required maintenance listed in your ownerís

manual. New Holland recommends that you retain all receipts covering maintenance on your heavy-duty off-road engine, but New

Holland cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

D As the heavy-duty off-road engine owner, you should, however, be aware that New Holland may deny you warranty coverage if your

heavy-duty off-road engine or a part has failed due to abuse, neglect, improper maintenance, or unapproved modifications.

D Your engine is designed to operate on commercially available diesel fuel only. Use of any other fuel may result in your engine no longer

operating in compliance with Californiaís emissions requirements.

D You are responsible for initiating the warranty process. The ARB suggests that you present your heavy-duty off-road engine to a New

Holland dealer as soon as a problem exists. The warranty repairs should be completed by the dealer as expeditiously as possible.

If you have questions regarding your warranty rights and responsibilities, you should contact your Branch Office at the address and phone

number listed on the Owner Assistance page of your equipments operator manual.

D Priortotheexpirationof thewarranty, youmust givenoticeofany failureof anemissioncontrolwarrantedpart.Suchnoticemust begiven

to New Holland or an authorized dealer, and you must deliver the engine to the repair location.

D You, the owner, are responsible for incidental costs incurred by yourself or your employees as a result of a warrantable failure. Examples

of such costs are communication expenses, meals and lodging.

D The owner is responsible for any business costs or losses, any ìdowntimeî expenses and any ìcargoî damage which result from the

failure of a warranted part. New Holland is not responsible for other incidental or consequential damages, including but not limited to fines,

theft, vandalism or collisions.

Parts covered:

This emission control system warranty applies to the following emission control parts.

Fuel Injection Pump

Fuel Injectors

Turbocharger

Intake Manifold

Exhaust Manifold

Boost Pressure Tubing-connection to Aneroid Device ON F.I.P.

Any replacement part, equivalent in performance and durability, may be used in the performance of any maintenance or repairs and must be

provided without charge to the owner. The use of these parts does not reduce the warranty obligations of New Holland. However, New Holland

recommends the use of new, genuine New Holland service parts or New Holland approved rebuilt parts and assemblies. New Holland also

recommends that the engine be serviced by a New Holland authorized dealer.

New Holland Responsibilities

Warranty work will be provided at no charge to the owner at any authorized dealer, using new genuine New Holland service parts or New

Holland approved rebuilt parts or assemblies..

The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the diagnostic work was

performed at a warranty station.

New Holland is liable for damages to other engine components caused by the failure under warranty of any warranted part.

Warranty Limitations

New Holland is not responsible for failures resulting from abuse or neglect by owner or operator.

New Holland warrants to the ultimate purchaser and each subsequent purchaser that the engine is designed, built, and equipped so as to

conform with all applicable regulations adopted by the Air Resources Board, and that it is free from defects in materials and workmanship which

cause the failure of a warranted part.

Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the

effect of ìrepair or replace as necessaryî is warranted for the warranty period.

Any warranted part which is scheduled for replacement as required maintenance is warranted for the period of time prior to the first scheduled

replacement point for that part.

New Holland is liable for damages to other engine components caused by the failure under warranty of any warranted part.

0-4

PRECAUTIONARY

STATEMENTS

PERSONAL SAFETY

Throughout this manual and on machine decals, you will find precautionary statements

(ìDANGERî,

ìWARNINGî, and ìCAUTIONî) followed by specific instructions. These precautions are intended for the personal

safety of you and those working with you. Please take the time to read them.

DANGER

This word ìDANGERî indicates an immediate hazardous situation that, if not avoided, will result in death

or serious injury. The color associated with Danger is RED.

WARNING

This word ìWARNINGî indicates a potentially hazardous situation that, if not avoided, could result in

death or serious injury. The color associated with Warning is ORANGE.

CAUTION

Thisword ìCAUTIONî indicatesapotentiallyhazardoussituation that, if notavoided, mayresult inminor

or moderate injury. It may also be used to alert against unsafe practices. The color associated with

Caution is YELLOW.

FAILURE TO FOLLOW THE ìDANGERî, ìWARNINGî, AND ìCAUTIONî INSTRUCTIONS MAY RESULT IN

SERIOUS BODILY INJURY OR DEATH.

MACHINE SAFETY

The precautionary statement (ìIMPORTANTî) is followed by specific instructions. This statement is intended for

machine safety.

IMPORTANT: The word ìIMPORTANTî is used to inform the reader of something he needs to know to prevent

minor machine damage if a certain procedure is not followed.

INFORMATION

NOTE: Instructions used to identify and present supplementary information.

0-6

SAFETY

PRECAUTIONARY STATEMENTS

A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help

prevent accidents, read the following precautions before operating this equipment. Equipment should be oper-

ated only by those who are responsible and instructed to do so.

Carefully review the procedures given in this manual with all operators. It is important that all operators be familiar

with and follow safety precautions.

THE TRACTOR

Keep the tractor and equipment, particularly

brakes and steering, maintained in a reliable and

1. Read the Operatorís Manual carefully before

satisfactory condition to ensure your safety and

using the tractor. Lack of operating knowledge

comply with legal requirements.

can lead to accidents.

Keep open flame or cold weather starting aids

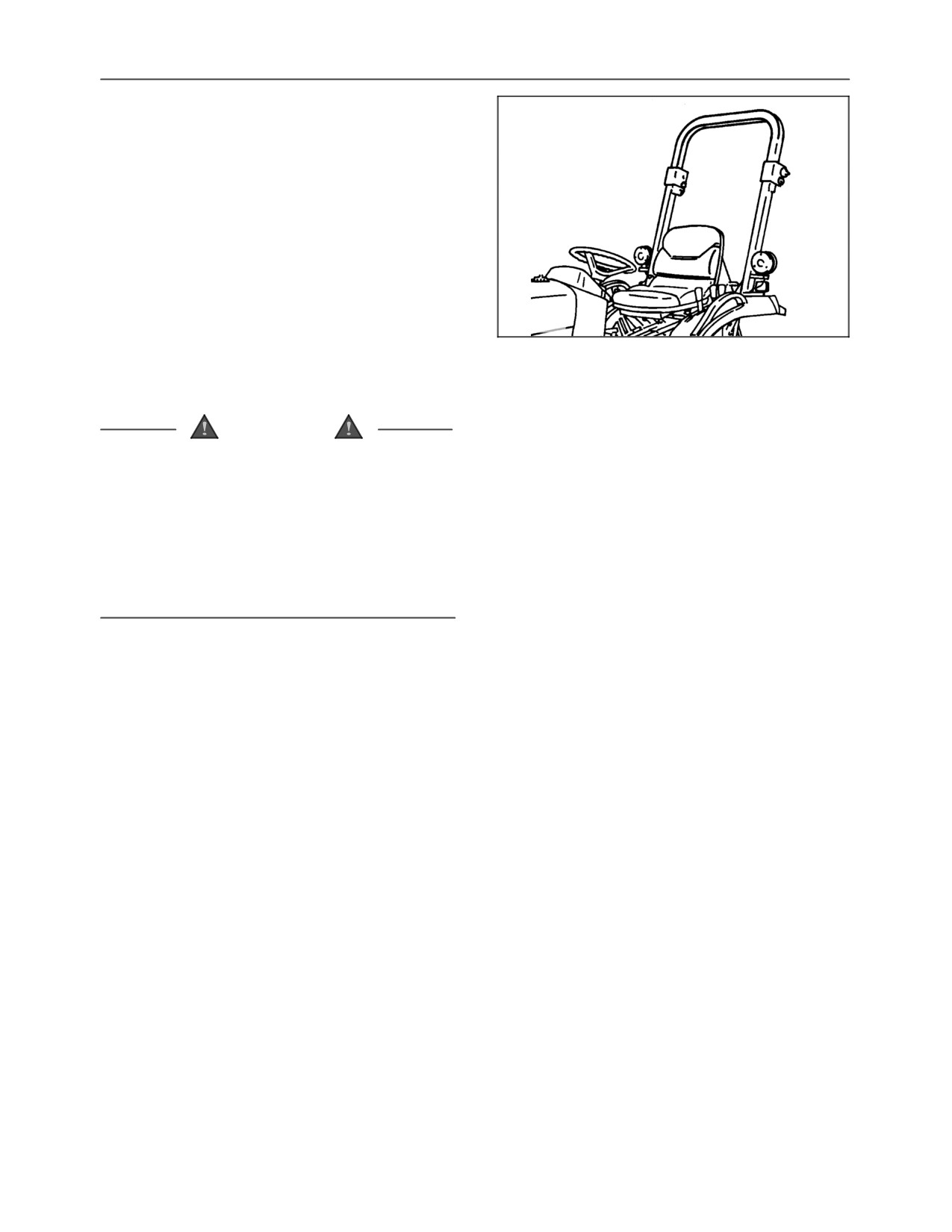

2. Use an approved roll bar and seat belt for safe

away from the battery to prevent fires or

operation. Overturning a tractor without a roll bar

explosions. Use jumper cables according to

can result in death or injury. If your tractor is not

instructions to prevent sparks which could cause

equipped with a roll bar and seat belt, see your

explosion.

New Holland Dealer.

Stop the engine before performing any service

3. Always use the seat belt. The only instance when

on the tractor.

the seat belt should not be used is if the roll bar

has been removed from the tractor.

Escaping hydraulic/diesel fluid under pressure

can penetrate the skin causing serious injury. If

4. If a front end loader is to be installed, always use

fluid is injected into the skin, obtain medical

a FOPS (Falling Object Protective Structure)

attention immediately or gangrene may result.

canopy to avoid injury from falling objects.

• DO NOT use your hand to check for leaks.

5. Use the handholds and step plates when getting

Use a piece of cardboard or paper to search

on and off the tractor to prevent falls. Keep steps

for leaks.

and platform cleared of mud and debris.

• Stop the engine and relieve pressure before

6. Do not permit anyone but the operator to ride on

connecting or disconnecting lines.

the tractor. There is no safe place for extra riders.

• Tighten all connections before starting the

7. Keep all safety decals clean of dirt and grime,

engine or pressurizing lines.

and replace all missing, illegible, or damaged

Do not modify or permit anyone else to modify or

safety decals. See the list of decals in the Decal

alter this tractor or any of its components or

section of this manual.

functions without first consulting a New Holland

Dealer.

SERVICING THE TRACTOR

The fuel oil in the injection system is under high

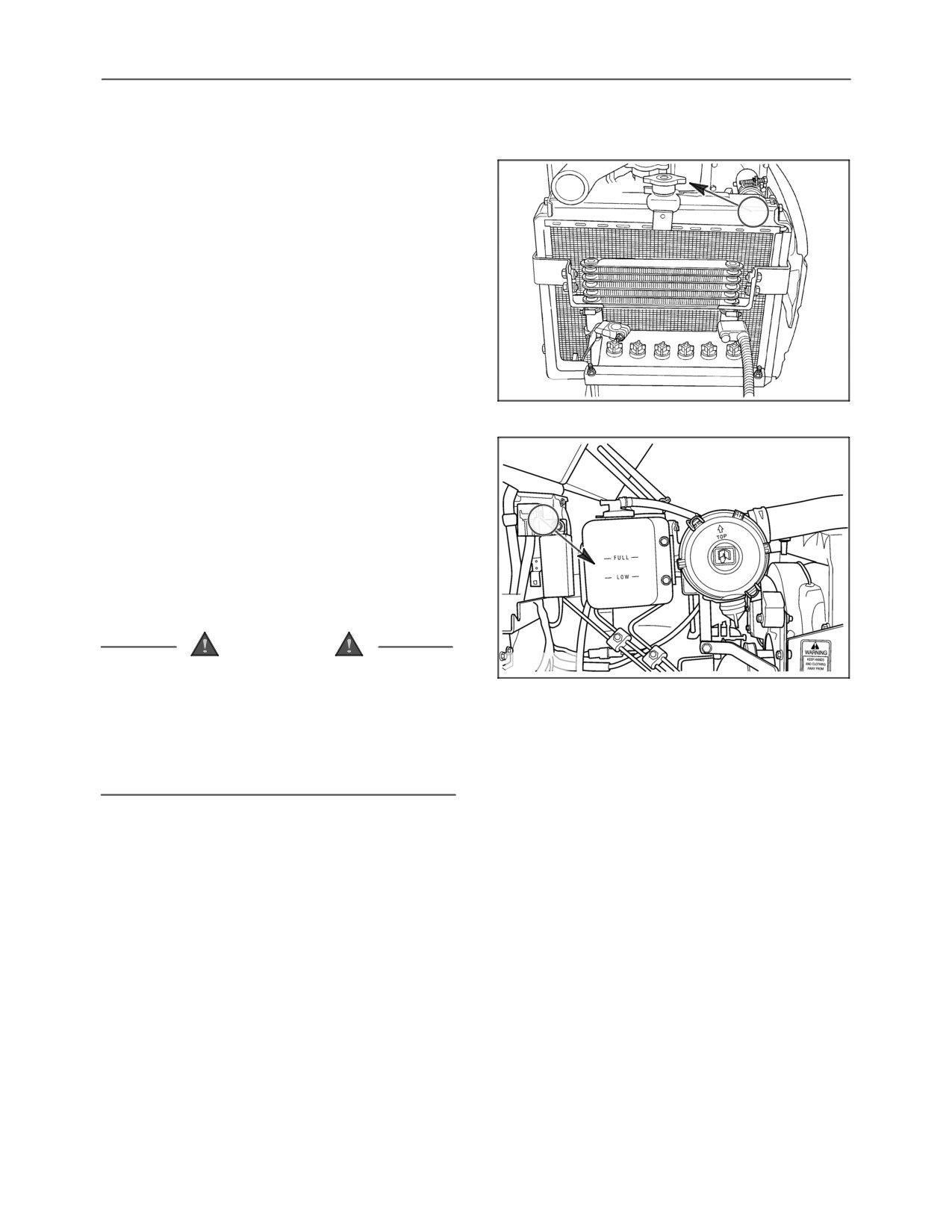

1. The cooling system operates under pressure

pressure and can penetrate the skin. Unqualified

which is controlled by the radiator cap. It is

persons should not remove or attempt to adjust

dangerous to remove the cap while the system is

a pump, injector, nozzle, or any other part of the

hot. Always turn the cap slowly to the first stop

fuel injection system. Failure to follow these

and allow pressure to escape before removing

instructions can result in serious injury.

the cap entirely.

Continuous long-term contact with used engine

2. Keep any type of open flame away from the

oil may cause skin cancer. Avoid prolonged

tractor and do not smoke while refueling. Wait for

contact with used engine oil. Wash skin promptly

the engine to cool before refueling.

with soap and water.

0-7

10. Some components of your tractor, such as

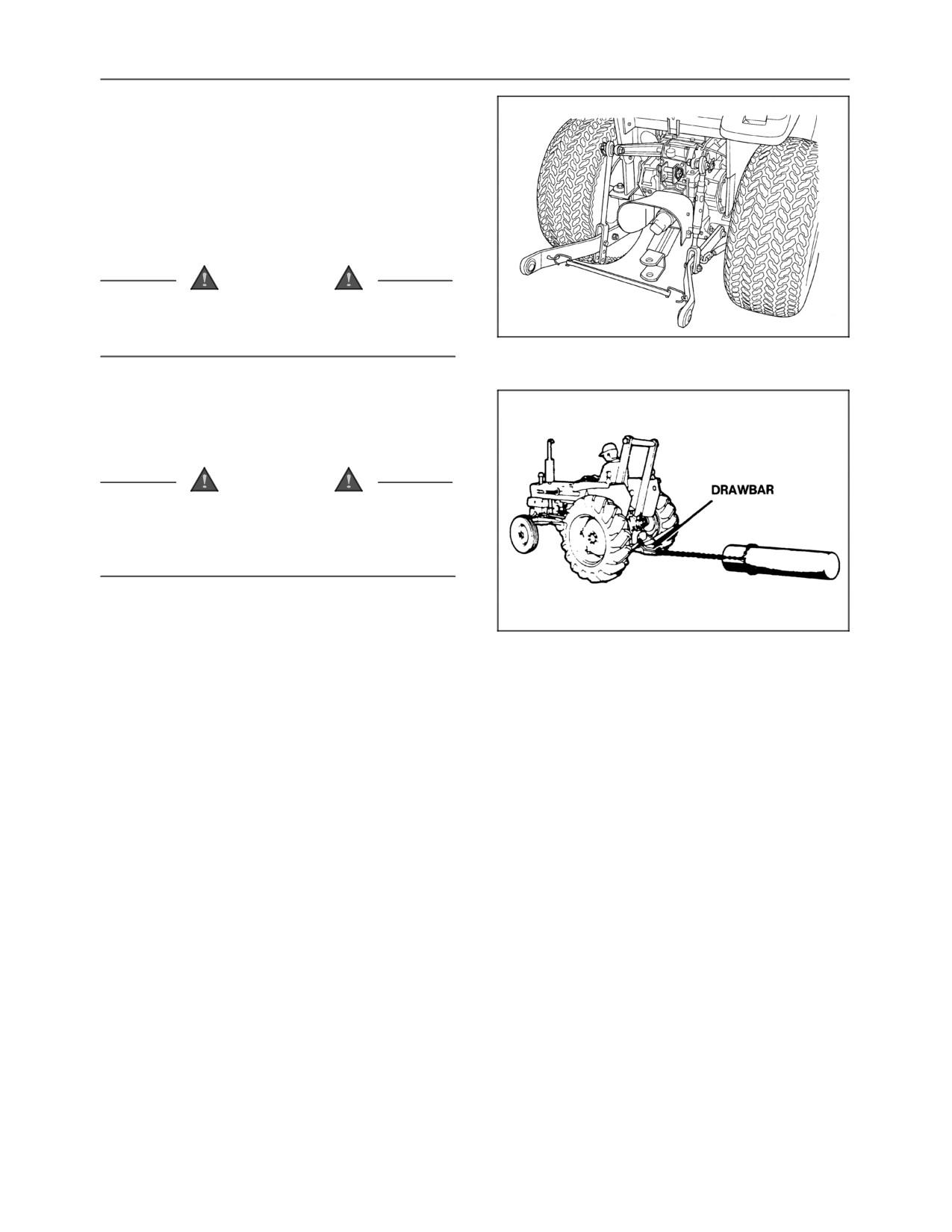

9. Pull only from the drawbar or the lower link

gaskets and friction surfaces

(brake linings,

drawbar in the down position. Use only a drawbar

clutch linings, etc.) may contain asbestos.

pin that locks in place. Pulling from the tractor

Breathing asbestos dust is dangerous to your

rear axle or any point above the axle may cause

health. You are advised to have any mainte-

the tractor to upset.

nance or repair on such components carried out

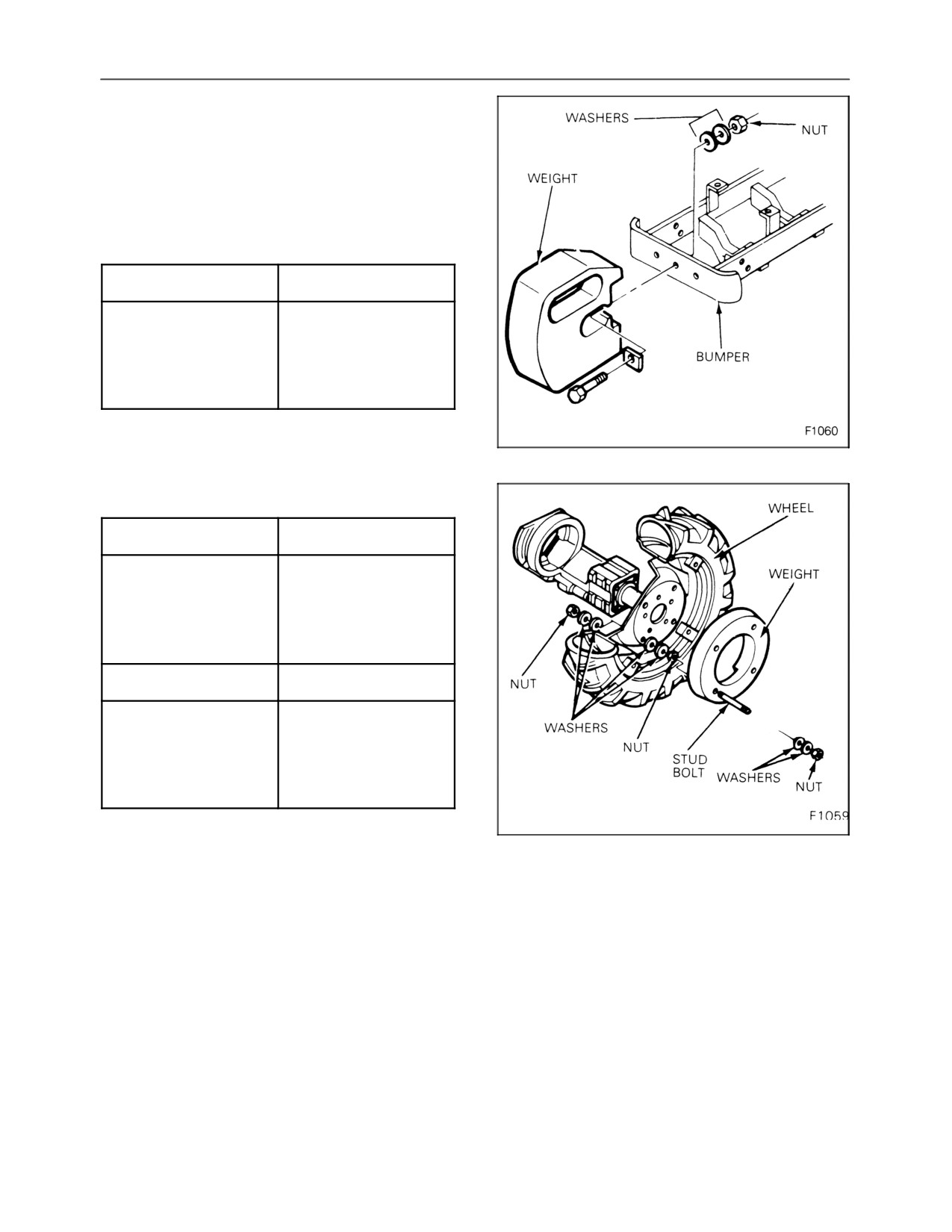

10. If the front end of the tractor tends to rise when

by an authorized New Holland Dealer. However,

heavy implements are attached to the three-

if service operations are to be undertaken on

point hitch, install front end or front wheel

parts that contain asbestos, the essential

weights. Do not operate the tractor with a light

precautions listed below must be observed:

front end.

• Work out of doors or in a well ventilated area.

11. Always set the hydraulic selector lever in position

• Dust found on the tractor or produced during

control when attaching or transporting equip-

work on the tractor should be removed by

ment. Ensure hydraulic couplers are properly

extraction, not by blowing.

mounted and will disconnect safely in case of

• Dust waste should be dampened, placed in

accidental detachment of implement.

a sealed container, and marked to ensure

12. Do not leave equipment in the raised position.

safe disposal.

13. Use the flasher/turn signal lights and SMV signs

• If any cutting, drilling, etc. is attempted on

when traveling on public roads both day and

materials containing asbestos, the item

night (unless prohibited by law).

should be dampened and only hand tools or

low speed power tools used.

14. When operating at night, adjust lights to prevent

blinding oncoming drivers.

OPERATING THE TRACTOR

DRIVING THE TRACTOR

Before starting the tractor, apply the parking

Watch where you are going, especially at row

brake, place the PTO lever in the ìOFFî position,

ends, on roads, around trees and low hanging

the lift control lever in the down position, the

obstacles.

remote control valve levers in the neutral

position, and the transmission in neutral.

To avoid upsets, drive the tractor with care and at

a safe speed. Use extra caution when operating

Always sit in the tractor seat when starting the

over rough ground, when crossing ditches or

engine or operating controls. Do not start the

slopes, and when turning corners.

engine or operate controls while standing beside

the tractor.

To provide two-wheel braking, lock tractor brake

pedals together when transporting on roads.

Do not bypass the neutral start switches. Consult

your New Holland Dealer if your neutral start

Do not coast or free wheel down hills. Use the

controls malfunction. Use jumper cables only in

same gear when going downhill as is used when

the recommended manner. Improper use can

going uphill.

result in tractor runaway.

Any towed vehicle with a total weight exceeding

Avoid accidental contact with the gear shift lever

that of the towing tractor should be equipped with

while the engine is running, as this can cause

brakes for safe operation.

unexpected tractor movement.

If the tractor becomes stuck or the tires become

Before getting off the tractor, disengage the PTO,

frozen to the ground, back up the tractor to

turn the engine off, and apply the parking brake.

prevent upset.

Never get off the tractor while it is in motion.

Always check overhead clearance, especially

Do not park the tractor on a steep incline.

when transporting the tractor.

Do not operate the tractor engine in an enclosed

When operating at night, adjust lights to prevent

building without adequate ventilation. Exhaust

blinding oncoming drivers.

fumes can cause death or illness.

If the power steering or engine ceases operating,

stop the tractor immediately.

0-8

OPERATING THE PTO

6. Wipe up spilled fuel immediately.

1. When operating PTO driven equipment, shut off

7. Always tighten the fuel tank cap securely.

the engine and wait until the PTO stops before

8. If the original fuel tank cap is lost, replace it with

getting off the tractor and disconnecting the

a New Holland approved cap. A non-approved,

equipment.

proprietary cap may not be safe.

2. Do not wear loose clothing when operating the

9. Keep equipment clean and properly maintained.

power take-off or when near rotating equipment.

10. Do not drive equipment near open fires.

3. When operating stationary PTO driven equip-

ment, always place both gear shift levers in

11. Never use fuel for cleaning purposes.

neutral, apply the tractor parking brake, and

12. Arrange fuel purchases so that winter grade fuels

block the rear wheels front and back.

are not held over and used in the spring.

4. To avoid injury, do not clean, adjust, unclog, or

SAFETY FRAME (ROPS)

service PTO driven equipment when the tractor

engine is running.

Your New Holland tractor is equipped with a safety

frame. It must be maintained in a serviceable

5. Ensure the PTO master shield is installed at all

condition. Be careful when driving through doorways

times. Always replace the PTO shield cap when

or working in confined spaces with low headroom.

the PTO is not in use.

UNDER NO CIRCUMSTANCES should you:

DIESEL FUEL

1. UNDER NO CIRCUMSTANCES should gaso-

• modify, drill, or alter the safety frame in any way.

line, alcohol, or blended fuels be added to diesel

Doing so may render you liable to legal prosecu-

fuel. These combinations can create an

tion.

increased fire or explosive hazard. Such blends

• attempt to straighten or weld any part of the main

are more explosive than pure gasoline in a

frame or retaining brackets which have suffered

closed container such as a fuel tank. DO NOT

damage. Doing so may weaken the structure and

USE THESE BLENDS.

endanger your safety.

2. Never remove the fuel cap or refuel with the

• secure any parts on the main frame or attach

engine running or hot.

your safety frame with anything other than the

special high tensile bolts and nuts specified.

3. Do not smoke while refueling or when standing

near fuel.

• attach chains or ropes to the main frame for pull-

ing purposes.

4. Maintain control of the fuel filler pipe nozzle when

• take unnecessary risks even though your safety

filling the tank.

frame affords you the maximum protection pos-

5. Do not fill the fuel tank to capacity. Allow room for

sible.

expansion.

WHEN YOU SEE THIS SYMBOL

IT MEANS:

ATTENTION!

BECOME ALERT!

YOUR SAFETY IS INVOLVED!

0-9

ECOLOGY AND THE ENVIRONMENT

Soil, air, and water are vital factors of agriculture and

Modern oils contain additives. Do not burn

life in general. When legislation does not yet rule the

contaminated fuels and or waste oils in ordinary

treatment of some of the substances which are

heating systems.

required by advanced technology, common sense

Avoid spillage when draining off used engine

should govern the use and disposal of products of a

coolant mixtures, engine, gearbox and hydraulic

chemical and petrochemical nature.

oils, brake fluids, etc. Do not mix drained brake

fluids or fuels with lubricants. Store them safely

The following are recommendations which may be of

until they can be disposed of in a proper way to

assistance:

comply with local legislation and available

resources.

• Become acquainted with and ensure that you

understand the relative legislation applicable to

Modern coolant mixtures, i.e. antifreeze and

your country.

other additives, should be replaced every two

years. They should not be allowed to get into the

• Where no legislation exists, obtain information

soil but should be collected and disposed of

from suppliers of oils, filters, batteries, fuels,

safely.

antifreeze, cleaning agents, etc., with regard to

their effect on man and nature and how to safely

Do not open the air-conditioning system yourself.

store, use and dispose of these substances.

It contains gases which should not be released

Agricultural consultants will, in many cases, be

into the atmosphere. Your dealer or air

able to help you as well.

conditioning specialist has a special extractor for

this purpose and will have to recharge the system

properly.

HELPFUL HINTS

Repair and leaks or defects in the engine cooling

or hydraulic system immediately.

1. Avoid filling tanks using cans or inappropriate

pressurized fuel delivery systems which may

Do not increase the pressure in a pressurized

cause considerable spillage.

circuit as this may lead to a component failure.

2. In general, avoid skin contact with all fuels, oils,

Protect hoses during welding as penetrating

acids, solvents, etc. Most of them contain

weld splatter may burn a hole or weaken them,

substances which may be harmful to your health.

allowing the loss of oils, coolant, etc.

0-16

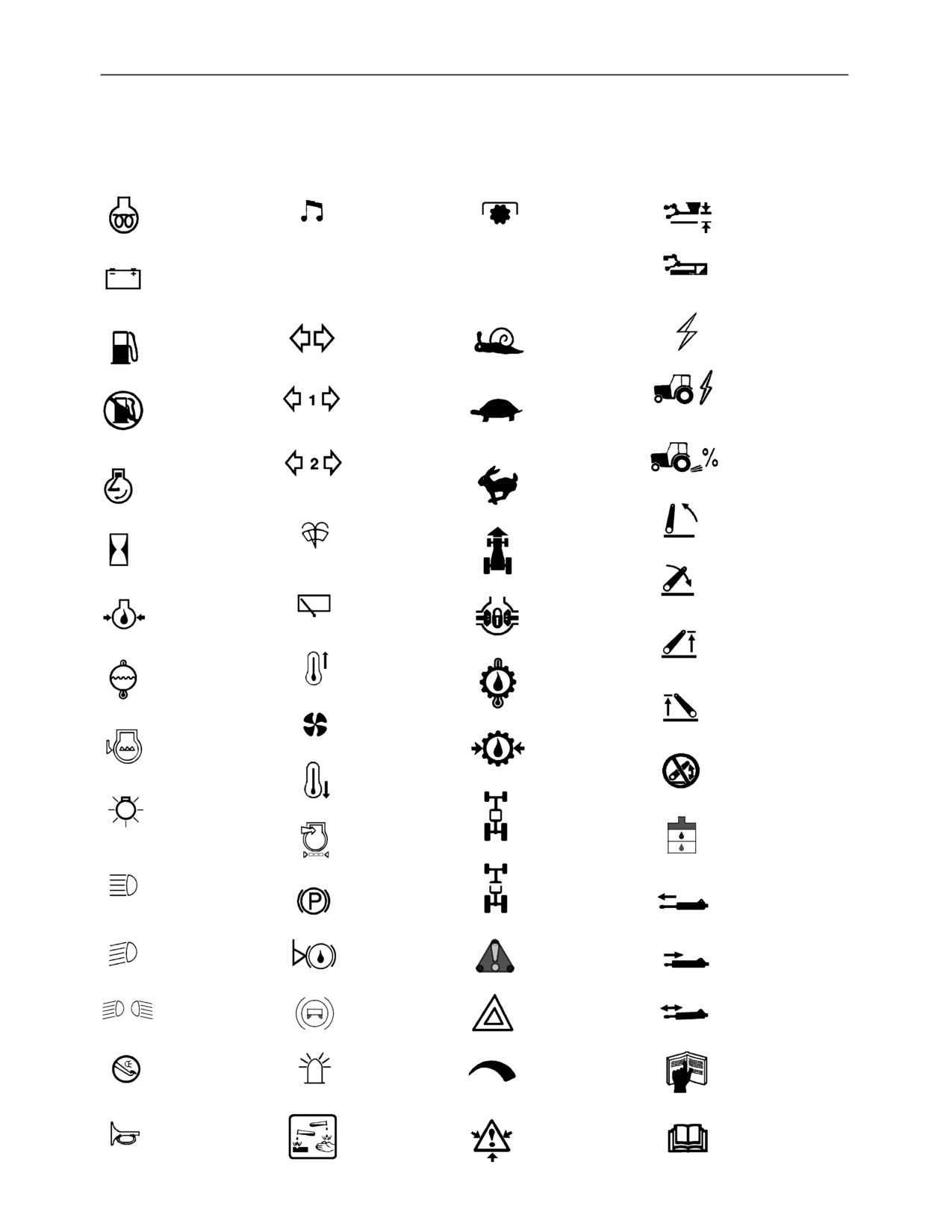

INTERNATIONAL SYMBOLS

As a guide to the operation of your tractor, various universal symbols have been utilized on the instruments, con-

trols, switches, and fuse box. The symbols are shown below with an indication of their meaning.

Thermostart

Position

Radio

P.T.O.

starting aid

Control

Keep alive

Draft

Alternator

Transmission

memory

Control

KAM

charge

in neutral

Accessory

Turn signals

Creeper

socket

Fuel level

gears

Implement

Turn signals

Automatic

Slow or

socket

--one trailer

Fuel shut-off

low setting

%age

Turn signals

slip

Engine speed

--two trailers

Fast or high

(rev/min x 100)

setting

Front wind-

Hitch raise

screen

(rear)

Ground

Hours recorded

wash/wipe

speed

Hitch lower

Rear wind-

(rear)

Engine oil

screen

Differential

pressure

wash/wipe

lock

Hitch height

limit (rear)

Heater temp-

Rear axle

Engine coolant

erature control

oil tem-

temperature

perature

Hitch height

limit (front)

Heater fan

Coolant

Transmission

level

oil pressure

Hitch disabled

Air conditioner

FWD

Tractor lights

Hydraulic and

engaged

Air filter

transmission

blocked

filters

Headlamp

FWD

main beam

Parking

disengaged

Remote

brake

valve extend

Headlamp

Brake fluid

Remote

Warning!

dipped beam

level

valve retract

Trailer

Hazard

Remote

Work lamps

brake

warning lights

valve float

Malfunction!

Stop

Roof

Variable

See Operatorís

lamps

beacon

control

Manual

Warning!

Pressurized!

Malfunction!(alterna

Horn

Corrosive

Open carefully

tive symbol)

substance

0-17

SECTION 1

GENERAL INFORMATION

PLEASE READ CAREFULLY:

For a complete list of the pre-delivery service checks

performed by your dealer, refer to the PRE-DELIV-

ERY SERVICE checklist found at the back of this

manual. Keep one copy as your record of the service

performed. The other copy should be removed from

the manual and kept by your dealer. MAKE SURE

THAT BOTH COPIES ARE COMPLETED AND

THAT YOU AND THE DEALER SIGN BOTH

COPIES.

A PRODUCT IDENTIFICATION PLATE is located on

the right-hand side of the tractor front end. The

numbers on the plate are important in the event your

tractor should require future service. For your

convenience, have your dealer record these

numbers in the appropriate spaces below.

New Holland North America, Inc. is continually

striving to improve its products. We reserve the right

to change prices, specification, or equipment at any

time without notice.

All data given in this book is subject to production

variations. Dimensions and weights are approximate

only, and the illustrations do not necessarily depict

tractors in standard condition. For exact information

about any particular tractor, please consult your New

Holland dealer.

This tractor has been designed for doing light work,

20020255

such as mowing, light tilling, blowing snow, and light

loader work. Do not attempt to use implements that

were not designed for this tractor, as they may cause

damage to the tractor.

1-1

SECTION 1 - GENERAL INFORMATION

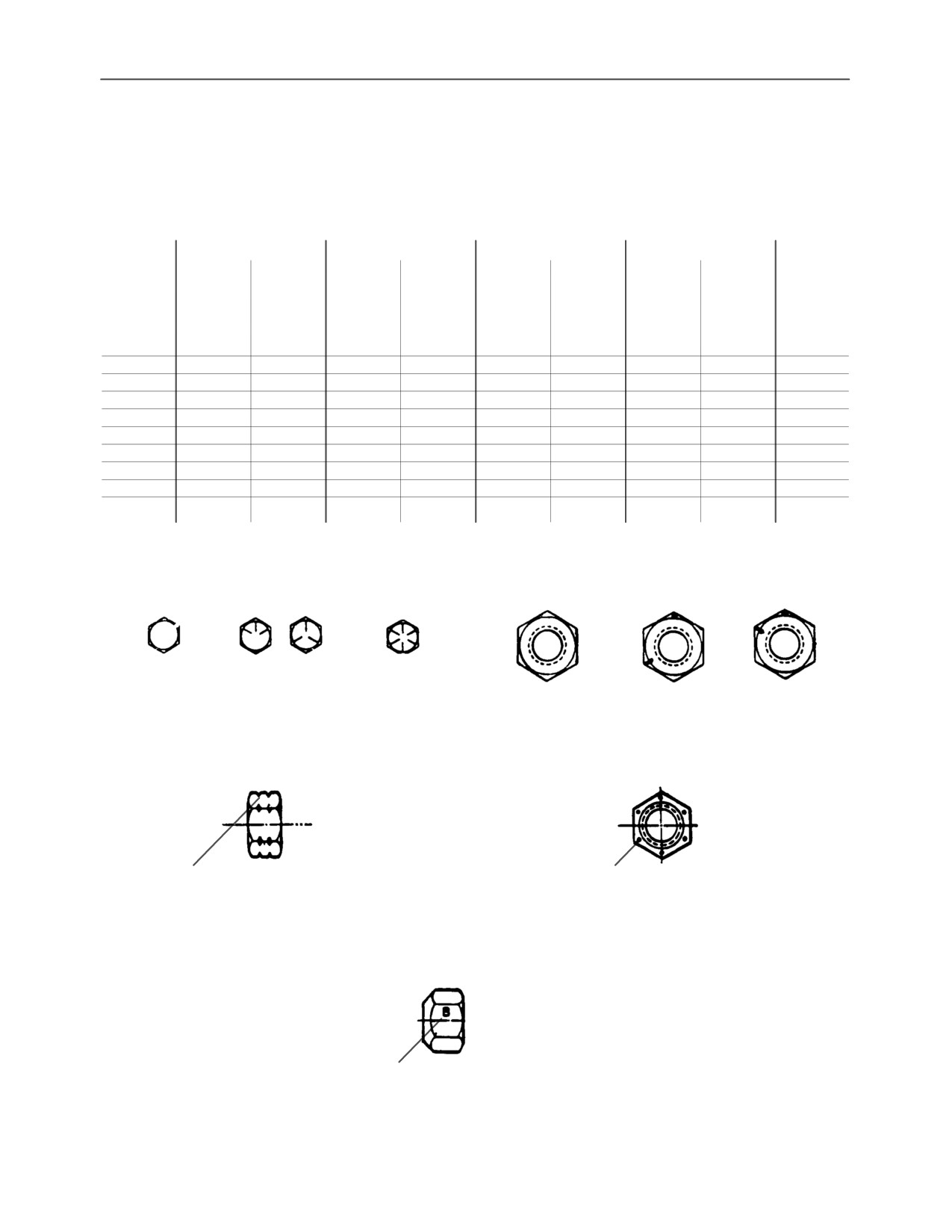

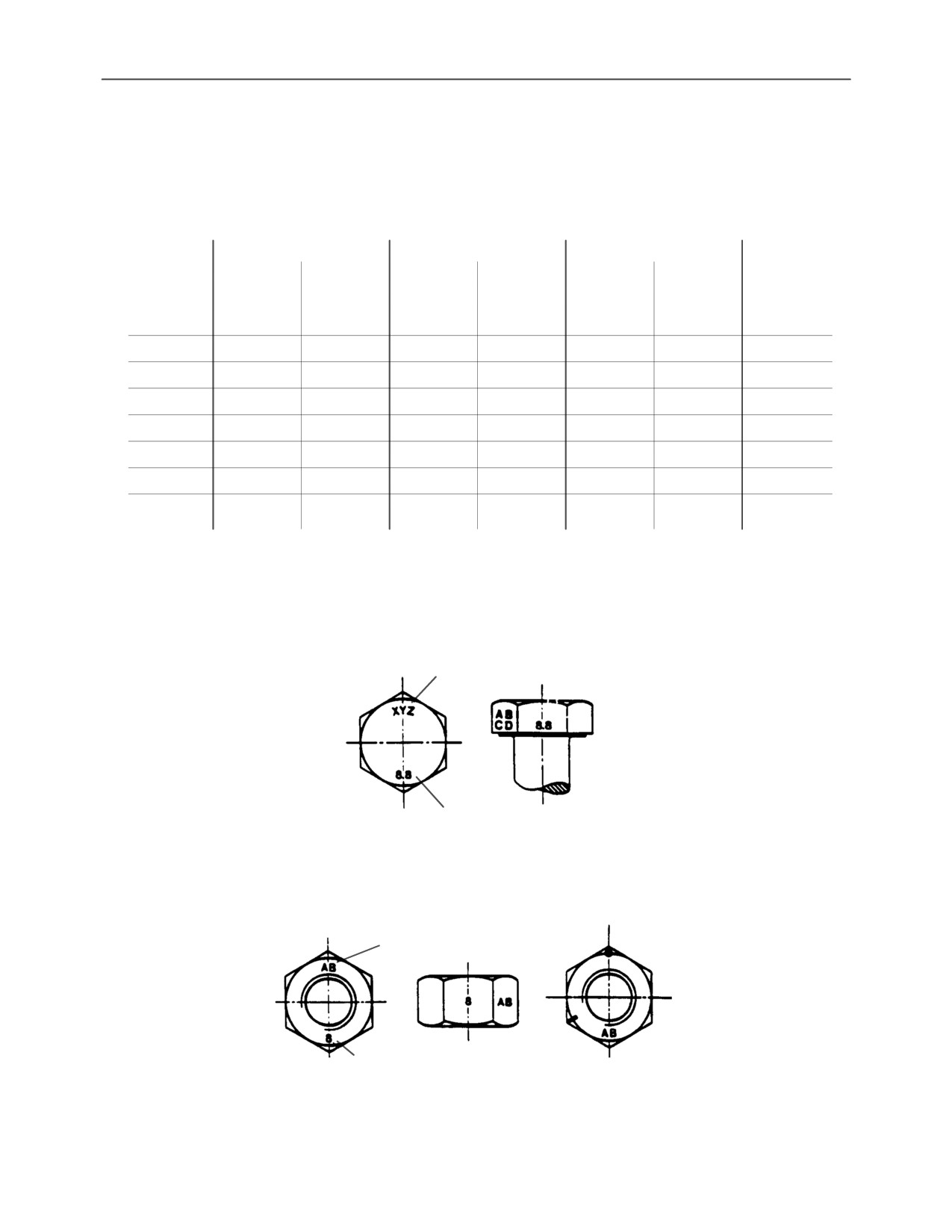

MINIMUM HARDWARE TIGHTENING TORQUES

IN FOOT POUNDS (NEWTON-METERS) FOR NORMAL ASSEMBLY APPLICATIONS

INCH HARDWARE AND LOCKNUTS

SAE GRADE 2

SAE GRADE 5

SAE GRADE 8

LOCKNUTS

NOMINAL UNPLATED PLATED UNPLATED PLATED UNPLATED PLATED

GR.B

GR.C

NOMINAL

SIZE

W/ZnCr

w/GR5

w/GR8

SIZE

PLATED

BOLT

SILVER

GOLD

SILVER

GOLD

SILVER

GOLD

1/4

55* (6.2)

72* (8.1)

86* (9.7)

112* (13)

121* (14)

157* (18)

61* (6.9)

86* (9.8)

1/4

5/16

115* (13)

149* (17)

178* (20)

229* (26)

250* (28)

324* (37)

125* (14)

176* (20)

5/16

3/8

(23)

(30)

(35)

(46)

(50)

(65)

(26)

(35)

3/8

7/16

(37)

(47)

(57)

(73)

(80)

(104)

(41)

(57)

7/16

1/2

(57)

(73)

(87)

(113)

(123)

117

(159)

(61)

(88)

1/2

9/16

(81)

(104)

(125)

120

(163)

130

(176)

169

(229)

(88)

(125)

9/16

5/8

(112)

107

(145)

128

(174)

165

(224)

180

(244)

233

(316)

(122)

127

(172)

5/8

3/4

146

(198)

189

(256)

226

(306)

293

(397)

319

(432)

413

(560)

160

(217)

226

(306)

3/4

7/8

142

(193)

183

(248)

365

(495)

473

(641)

515

(698)

667

(904)

258

(350)

364

(494)

7/8

213

(289)

275

(373)

547

(742)

708

(960)

773

(1048)

1000

(1356)

386

(523)

545

(739)

NOTE: Torque values shown with * are inch pounds.

IDENTIFICATION

CAP SCREWS AND CARRIAGE BOLTS

SAE GRADE 2

SAE GRADE 5

SAE GRADE 8

REGULAR NUTS SAE GRADE 5

SAE GRADE 8

HEX NUTS

LOCKNUTS

GRADE IDENTIFICATION

GRADE A NO NOTCHES

GRADE A NO MARKS

GRADE B ONE CIRCUMFERENTIAL NOTCH

GRADE B THREE MARKS

GRADE C TWO CIRCUMFERENTIAL NOTCHES

GRADE C SIX MARKS

MARKS NEED NOT BE LOCATED

AT CORNERS

GRADE A NO MARK

GRADE B LETTER B

GRADE C LETTER C

GRADE IDENTIFICATION

1-2

SECTION 1 - GENERAL INFORMATION

MINIMUM HARDWARE TIGHTENING TORQUES

IN FOOT POUNDS (NEWTON-METERS) FOR NORMAL ASSEMBLY APPLICATIONS

METRIC HARDWARE AND LOCKNUTS

CLASS 5.8

CLASS 8.8

CLASS 10.9

LOCKNUT

NOMINAL

CL.8

SIZE

UNPLATED PLATED

UNPLATED

PLATED UNPLATED

PLATED

W/CL8.8

W/ZnCr

BOLT

15* (1.7)

19* (2.2)

23* (2.6)

30* (3.4)

33* (3.7)

42* (4.8)

16* (1.8)

51* (5.8)

67* (7.6)

79* (8.9)

102* (12)

115* (13)

150* (17)

56* (6.3)

124* (14)

159* (18)

195* (22)

248* (28)

274* (31)

354* (40)

133* (15)

M10

(28)

(36)

(43)

(56)

(61)

(79)

(30)

M12

(49)

(63)

(75)

(97)

(107)

102

(138)

(53)

M16

(121)

117

(158)

137

(186)

177

(240)

196

(266)

254

(344)

(131)

M20

175

(237)

226

(307)

277

(375)

358

(485)

383

(519)

495

(671)

195

(265)

M24

303

(411)

392

(531)

478

(648)

619

(839)

662

(897)

855

(1160)

338

(458)

NOTE: Torque values shown with * are inch pounds.

IDENTIFICATION

HEX CAP SCREW AND CARRIAGE BOLTS

CLASSES 5.6 AND UP

MANUFACTURERíS IDENTIFICATION

PROPERTY CLASS

HEX NUTS AND LOCKNUTS

CLASSES 05 AND UP

MANUFACTURERíS IDENTIFICATION

PROPERTY CLASS

CLOCK MARKING

1-3

SECTION 2

OPERATION

CONTROLS AND INSTRUMENTS

SEAT, SEAT BELT, AND ROLLOVER

PROTECTIVE STRUCTURE (ROPS)

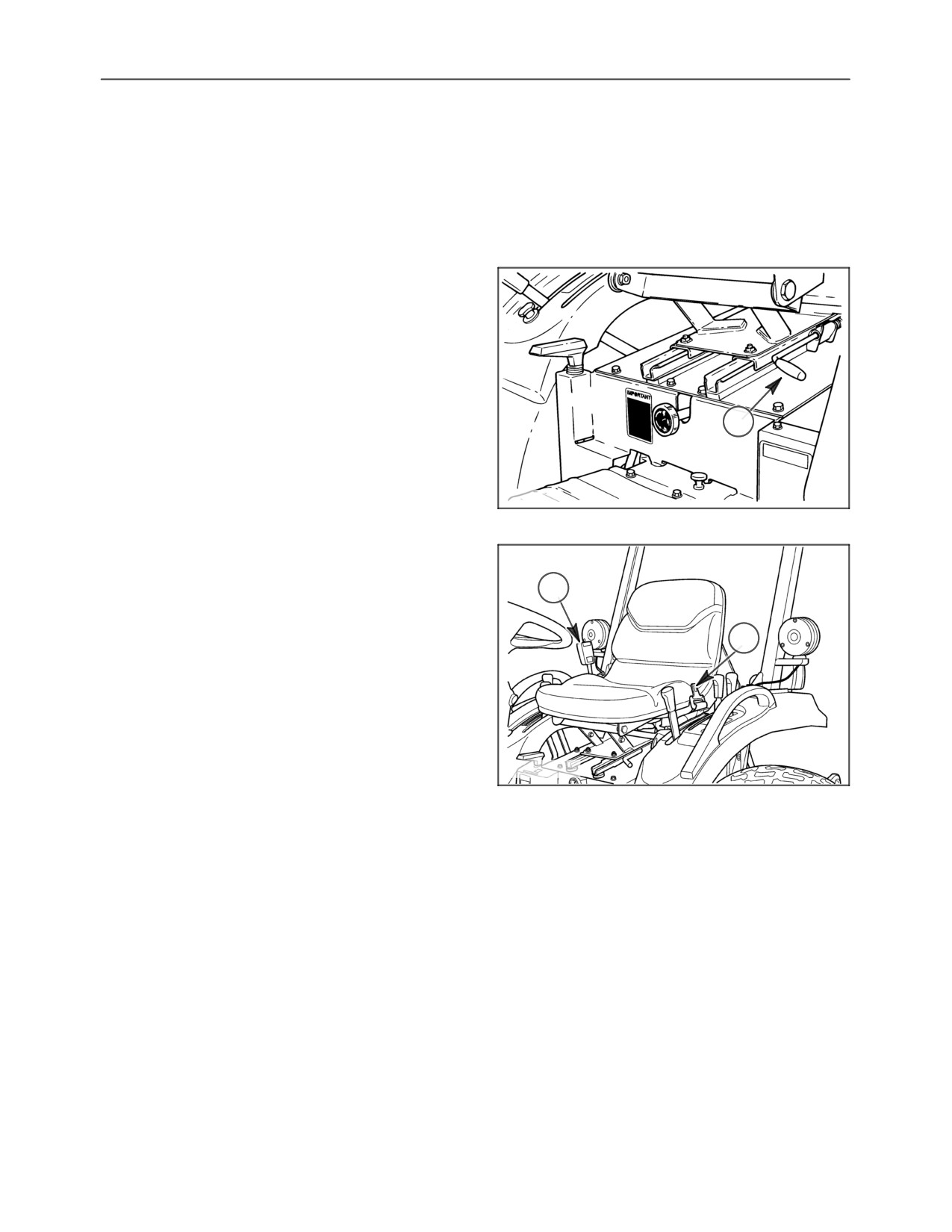

Adjusting the Tractor Seat

Your New Holland tractor is equipped with an

adjustable suspension seat.

To move the seat fore and aft, raise the release lever,

1. Because the seat is on an inclined base, more

effort is required to move the seat rearward than

forward.

19984109

ADJUSTING THE SEAT BELT

The male end of the seat belt, 2, is part of a retraction

mechanism, located on the left side of the seat. To

extend length of seat belt, pull out on male end until

correct length is obtained. To latch belt, insert male

end, 2, into belt latch, 3, located on right side of seat.

Be sure belt is securely latched and belt length is

adjusted correctly for size of operator.

Use soap and water to clean the seat belt if

necessary. Do not use carbon tetrachloride,

naphtha, etc., as these substances will weaken the

webbing. Additionally, do not bleach or redye the

10020238

webbing, as these products will also weaken the

webbing.

Replace the seat belt if it becomes damaged or worn.

2-1

SECTION 2 - OPERATION

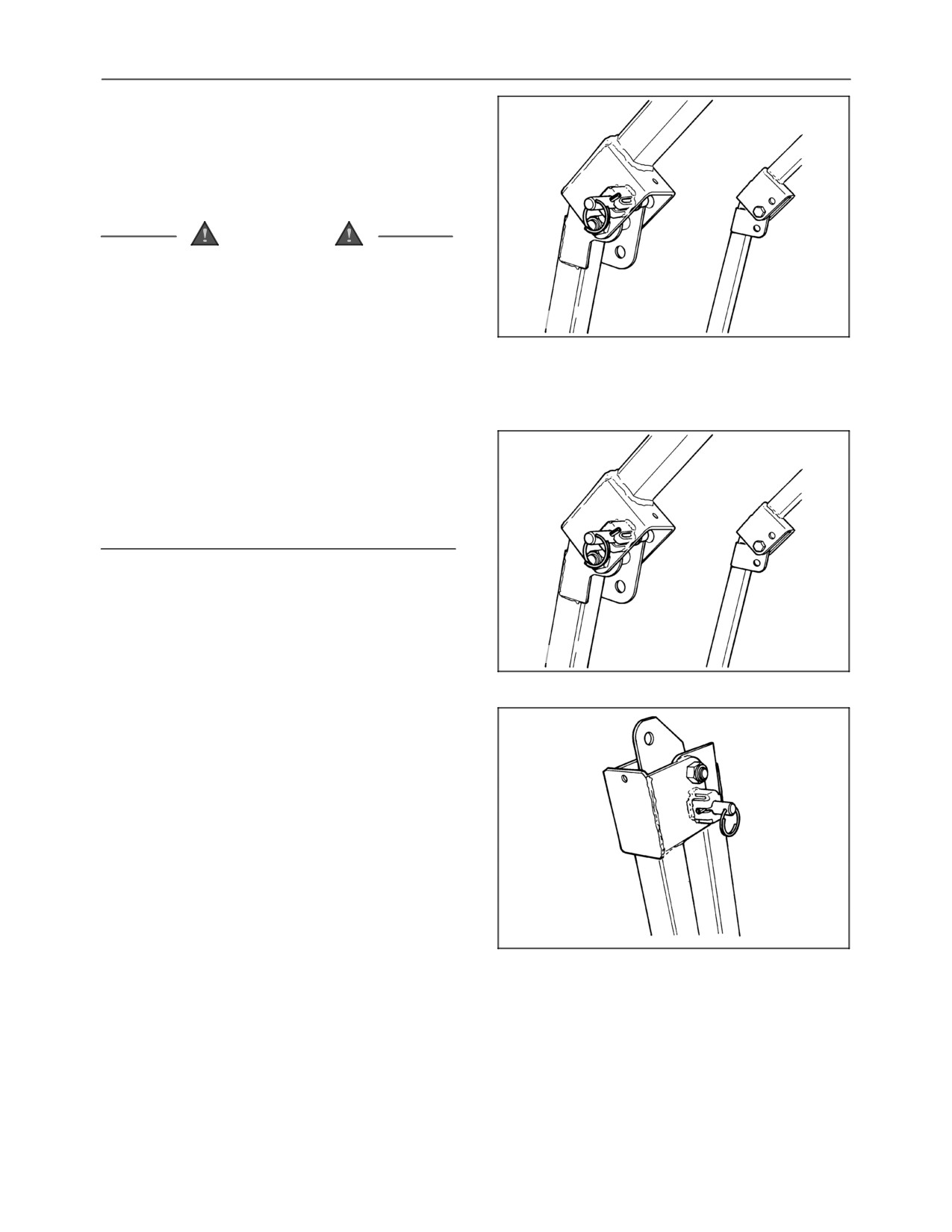

Rollover Protective Structure (ROPS)

A Rollover Protective Structure (ROPS) and seat

belts are standard equipment on this tractor at the

time of factory assembly. If the ROPS was deleted by

the original purchaser or has been removed, it is

recommended that you equip your tractor with a

ROPS and seat belts.

ROPS are effective in reducing injuries in the event

of tractor overturn. Overturning a tractor without a

ROPS installed can result in serious injury or death.

The Rollover Protective Structure and seat belts are

available from your New Holland Dealer.

19984233

Additionally, the safety offered by the ROPS and seat

belt is minimized if your seat belt is not buckled.

Always use your seat belt: it can save your life.

WARNING

Do not operate the tractor with the rollover

protective structure folded as a standard

operating mode. A folded ROPSdoesnotprovide

rollover protection.

Always wear the seat belt when the tractor is

equipped with a ROPS. However, if the ROPS has

been removed from the tractor, or if the ROPS is

in the folded position, the seat belt should not be

used.

2-2

SECTION 2 - OPERATION

19983676

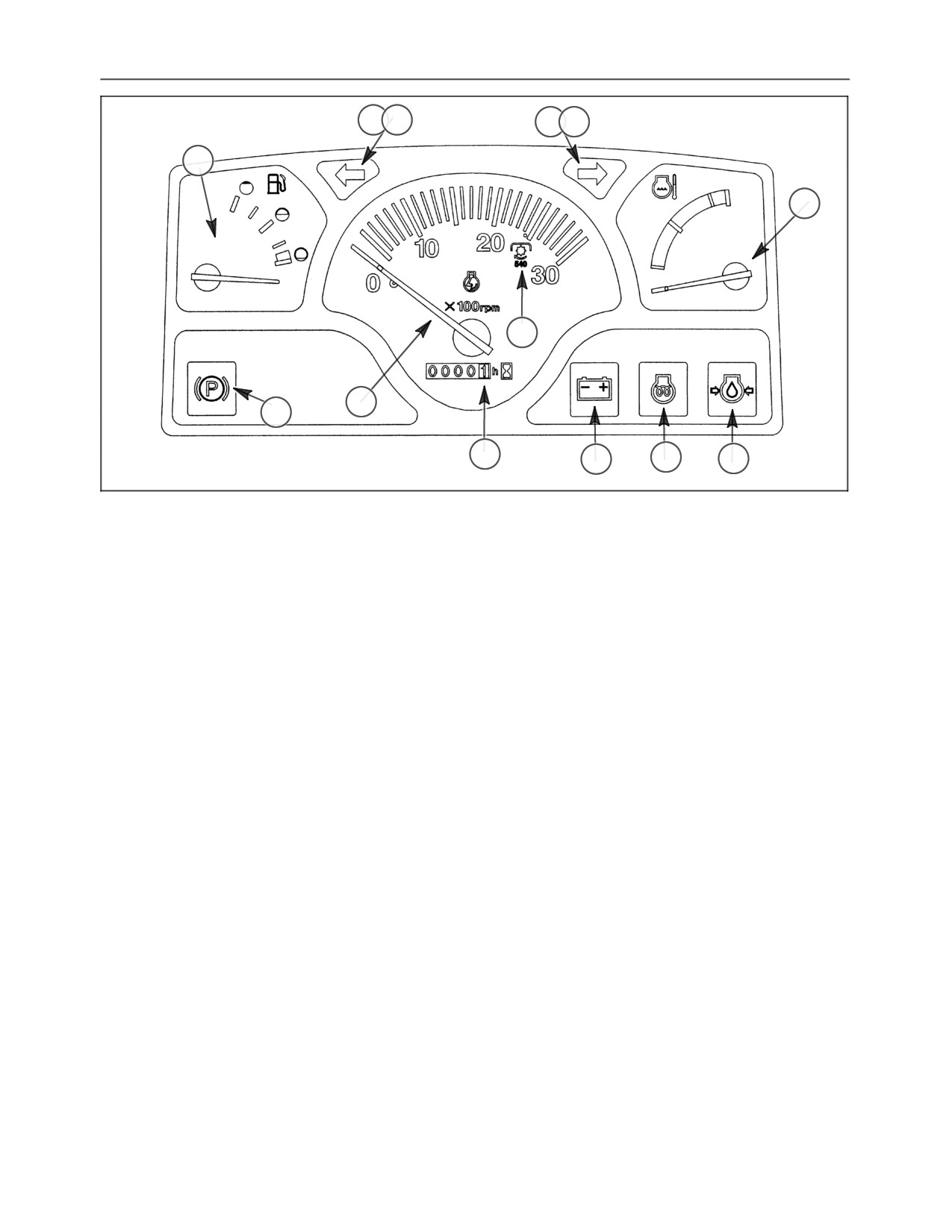

INSTRUMENT PANEL

proof meter as a guide to determine hourly

service and maintenance intervals.

Cold Starting Indicator Lightó Illuminates

when the key switch is turned to the ìHEATî

Fuel GaugeóIndicates the amount of diesel fuel

position. It remains lit for approximately

remaining in the tank. The gauge is activated

seconds when the key is held in position, during

when the key switch is in the ìONî or ìHEATî

which time the glow plugs are heating the

positions. It will register empty with the key switch

precombustion chambers.

in the ìSTOPî position.

Engine Oil Pressure Warning LightóIllumi-

Flasher Warning LightsóOperate when the

nates with the key switch in the ìONî or ìHEATî

flasher switch is turned on, regardless of the key

positions and remains lit for a short period of time

switch position. Use the flasher warning lights

after the engine is started. The light indicates oil

and the SMV emblem when traveling on public

pressure only and goes out when sufficient oil

roads, day or night.

pressure is present at the oil sender. If the bulb

Flasher Turn LightsóOperate when the turn

becomes lit during operation, stop the tractor

signal switch is activated. Rotate the switch

engine immediately and investigate the cause.

counterclockwise for right turns, the right arrow

Battery Charge Warning Lightó Illuminates

will flash. Rotate the switch clockwise for left

when the key switch is in the ìONî or ìHEATî

turns, the left arrow will flash. The key switch has

positions and goes out when the engine is

to be in the ìRUNî position.

started. If this bulb becomes lit during operation,

Temperature GaugeóIndicates coolant tem-

it indicates that the charging system is not

perature. It is activated when the key switch is

operating normally. As the battery can become

turned to the ìONî or ìHEATî positions. The

fully discharged under these conditions, the

gauge will register cold with the key switch in the

problem should be investigated as soon as

ìSTOPî position. If the needle registers in the

possible.

green range of the gauge, this indicates a normal

Proof MeteróRecords the hours and portions of

operating temperature. If the needle moves to

hours that your tractor has been operated based

the red portion of the gauge, this indicates an

on an average engine speed of 1833 RPM.

overheated condition. Stop the tractor engine

Engine speeds below 1833 RPM accumulate

immediately and investigate the cause.

engine hours at a slower rate than clock hours.

TachometeróRegisters engine RPM (Revolu-

Engine speeds above 1833 RPM accumulate

tions Per Minute). The gauge is marked in

engine hours faster than clock hours. Use the

increments of 100 and will return to zero when

the engine is not running.

2-4

SECTION 2 - OPERATION

10. Rear PTO SpeedóDetermined by the position

of the needle on the tachometer. The tachometer

is marked to indicate 540 PTO RPM. Engine

RPM should remain close to this mark while

using the rear PTO; running the engine faster

than this results in a dangerous overspeed

condition.

11. Parking Brake LightóIlluminates if the parking

brake is engaged when the key switch is turned

from the ìOFFî position.

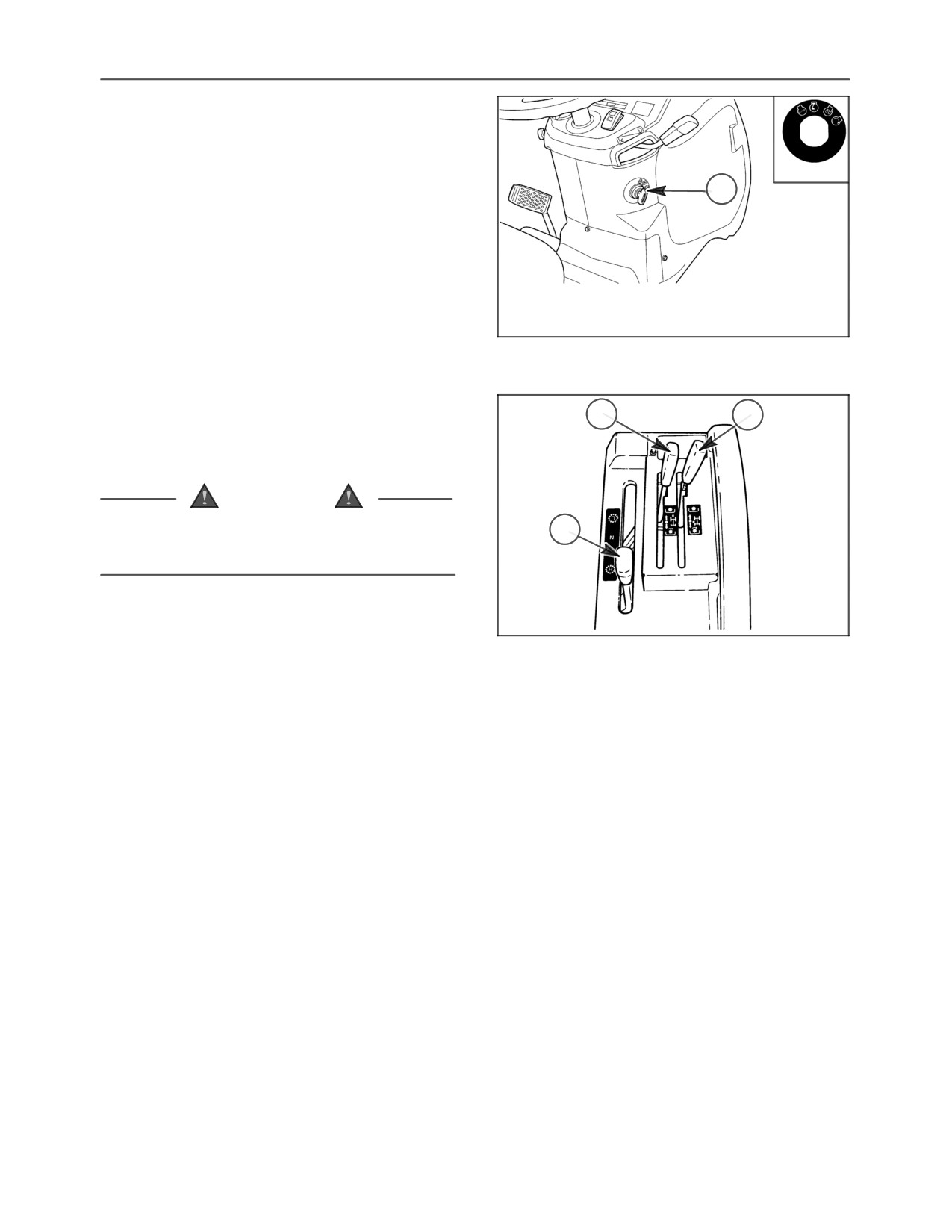

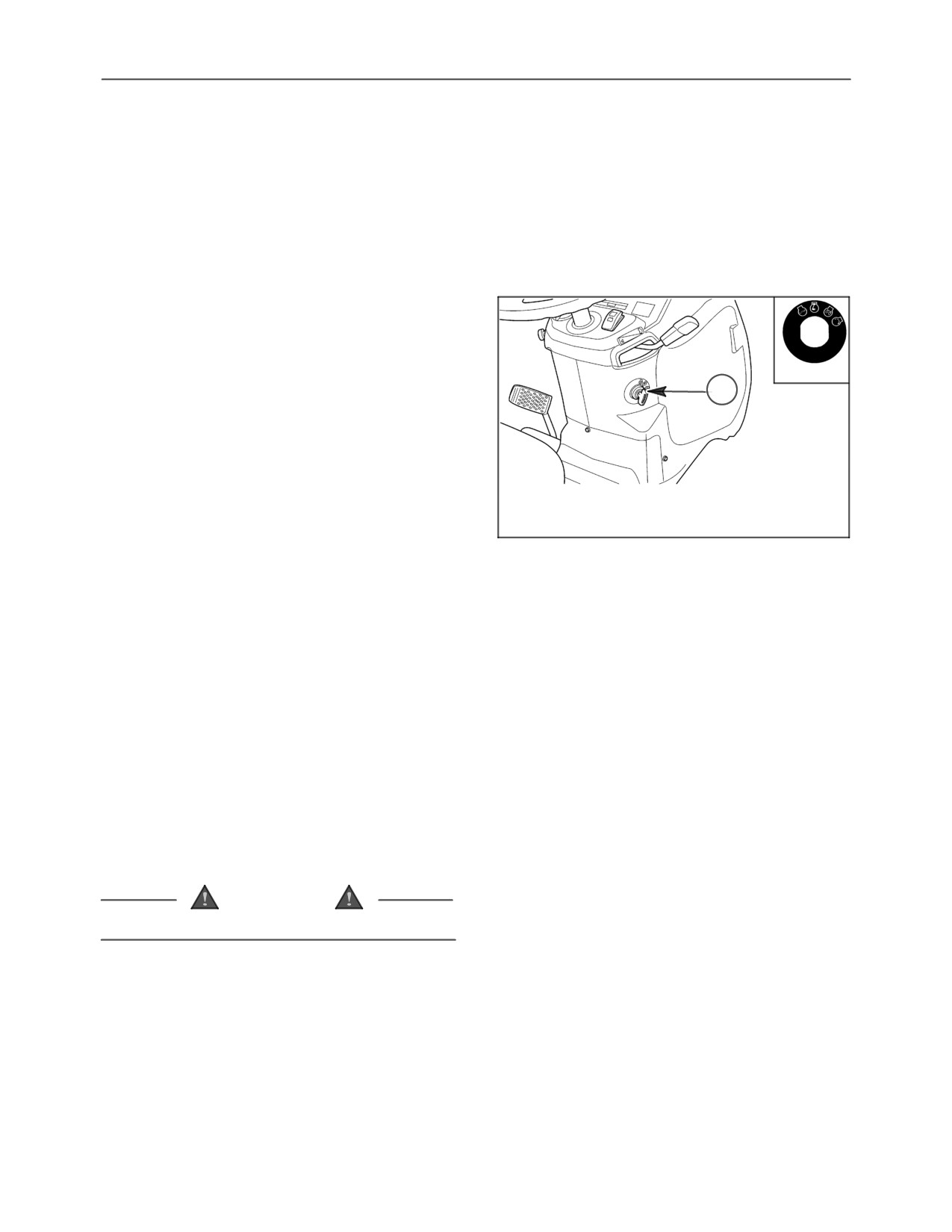

KEY SWITCH

The key switch, 1, is located on the right-hand side

of the console just below the hand throttle. Turning

the key right to the ìONî position activates the

SBA390197280

warning lights and instruments. The pre-heat system

is activated when the key is turned further to the right

to the ìHEATî position, and the engine starts when

the key is turned to the extreme right. The key spring

returns to the ìONî position when released.

10020246

PRE-HEATING THE SYSTEM

Your tractor has a diesel engine. Before starting a

cold engine, the precombustion chambers must be

heated.

To pre-heat the engine, turn the key switch to the

ìHEATî position and hold the key in this position for

approximately 5 seconds. The glow plugs heat the

precombustion chambers during this time, and the

engine will start.

NOTE: When ambient temperatures are colder, a

longer pre-heat time is necessary. Even after the cold

start indicator light has gone out, the glow plugs will

continue to heat if the key is held in the ìHEATî

position.

WARNING

Do not use ether with the thermostat starting aid.

NOTE: A coolant immersion heater is available as a

dealer-installed option. This heater allows for easier

starting in temperatures below

0°F (-17.7°C) by

warming the engine coolant.

2-5

SECTION 2 - OPERATION

STARTING THE ENGINE

The key switch, 1, allows activation of the starter

motor and fuel delivery only when:

SBA390197280

1. The rear PTO, 2, and Mid PTO, 3, (if equipped)

are in the ìOFFî position.

2. The range lever, 4, is in the ìNEUTRALî position.

3. The operator is sitting in the seat OR the parking

brake is engaged.

NOTE: Without theoperator inthe seat or theparking

brake not engaged. The starter motor will be

10020246

activated but the engine will not start, because the

fuel solenoid is not energized and not allowing fuel to

flow to the injection pump.

Always use safe practices when starting your tractor.

Turn the key to the extreme right. Position the hand

throttle forward so that it is one-fourth to one-third

open.

WARNING

Always sit in the operatorís seat when starting

the tractor. Never attempt to start the engine

while standing beside the tractor.

IMPORTANT: Do not engage the starting motor

continuously for more than 30 seconds. Doing so

19983655

may cause starting motor failure.

The engine will shut off in approximately two seconds

if the operator leaves the seat without the parking

brake engaged and without the range lever in the

neutral position.

NOTE: The parking brake MUST be engaged and

the range lever must be in the neutral position to

allow the operator to leave the seat, when the tractor

engine is in operation.

2-6

SECTION 2

- OPERATION

STARTING THE TRACTOR WITH

STOPPING THE ENGINE

JUMPER CABLES

Turn the key switch to the ìOFFî position to stop the

engine.

WARNING

Start the engine only from the operatorís seat. If

BREAK-IN PROCEDURES

safety start switches are bypassed, the engine

can start with the transmission and/or PTO in

Your New Holland tractor will provide long and

dependable service if given proper care during the

gear.

first 50-hour break-in period. During the first 50 hours

of operation:

If you must use jumper cables to start the tractor:

Avoid ìluggingî the engine. Operating in too high

1. Shield your eyes.

a gear under heavy load may cause engine

2. Connect one end of the jumper cable to the

lugging, which is indicated when the engine will

tractor battery positive (+) terminal and the other

not respond to a throttle increase.

to the auxiliary battery positive (+) terminal. Next,

Use the lower gear ratios when pulling heavy

connect one end of the other jumper cable first to

loads and avoid continuous operation at

the auxiliary battery negative (-) terminal, then

constant engine speeds. You will save fuel and

the other end to the tractor starter ground

minimize engine wear by selecting the correct

terminal. Finally, start the tractor by following the

gear ratio for a particular operation. Operating

safe starting procedures outlined under ìStarting

the tractor in low gear with a light load and high

the Engine.î Idle the engine and turn on all

engine speed wastes fuel.

electrical equipment (lights, etc.), then discon-

nect the jumper cables in the reverse order in

Avoid prolonged operation at either high or low

which they were connected. This helps protect

engine speeds without a load on the engine.

the alternator from damage due to extreme load

Check the instruments frequently and keep the

changes.

radiator and oil reservoirs filled to recommended

WARNING

levels. Daily checks include the engine oil level,

radiator coolant, and air cleaner.

Batteries contain sulfuric acid and produce

explosive gases. To prevent personal injury:

After the first 50 hours of use, be sure to perform

the maintenance items listed in the maintenance

• Wear eye and skin protection.

schedule.

• Keep sparks and flame away.

• Ensure there is adequate ventilation while

charging or using the battery.

• Follow the manufacturerís instructions

found on the battery.

2-7

SECTION 2 - OPERATION

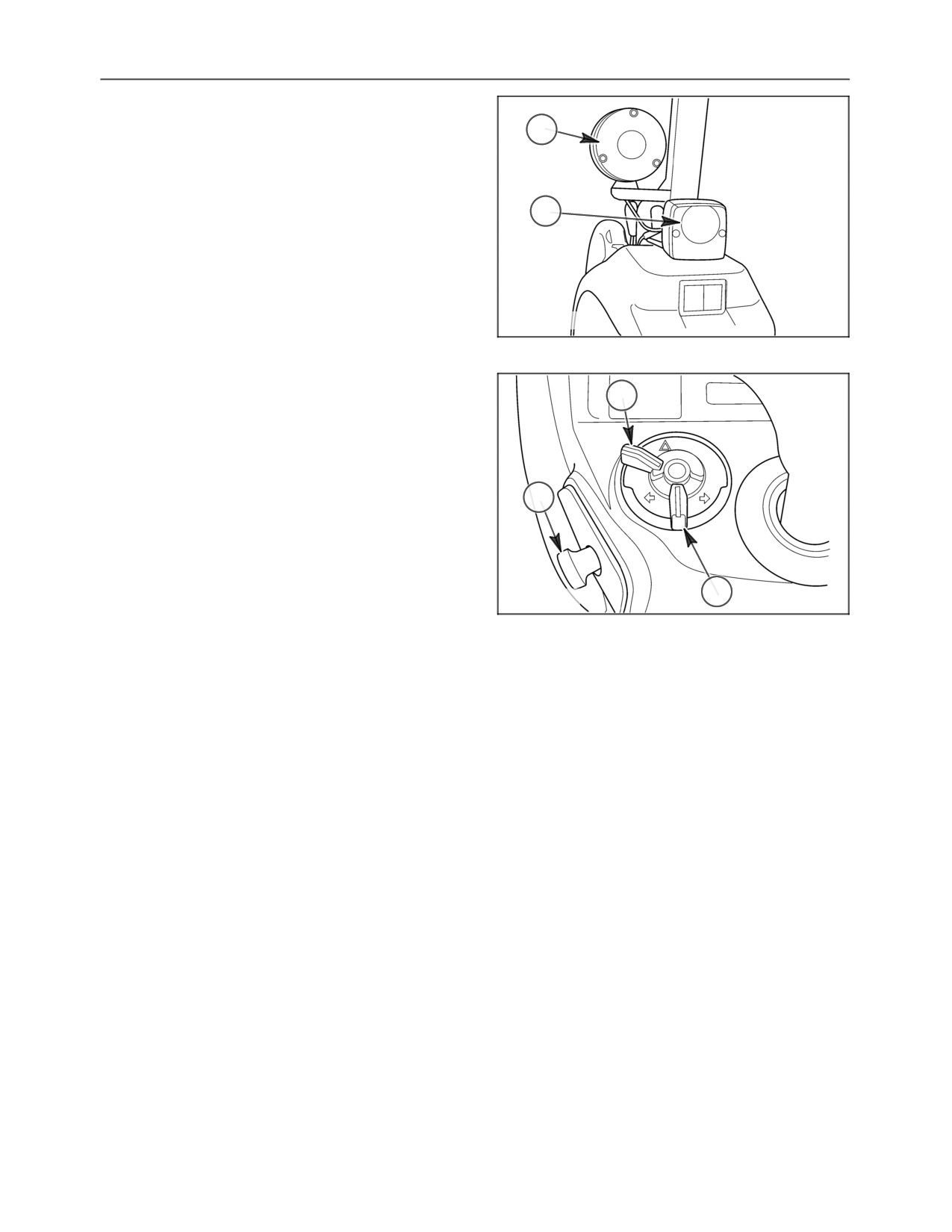

LIGHTING

Your tractor is equipped with:

• Flasher warning lights, 1, Figure 11

• Taillight, 2, Figure 2-9

• Headlights, 3, Figure 13

• Rear work light (optional), 4, Figure 13

10020239

Headlights and Taillights

The four headlight halogen bulbs and the taillight are

turned on and off using push/pull type light switch, 1.

Pull the switch out for the lights to be on, push in for

off position. (Key must be in the ìONî position for the

lights to operate.)

Flasher Warning Lights

The two flasher warning lights are activated by

turning the flasher warning light switch, 2, in the

clockwise direction. For your protection, use the

flasher warning lights and the SMV (Slow Moving

10020249

Vehicle) emblem when traveling on public roads, day

or night.

Flasher Turn Lights (Turn Signals)

The turn signal lights are activated by moving the turn

signal switch, 3, to the right for right turns and to the

left for left turns. The key switch does have to be in

the ACC/RUN position for the turn signal to operate.

When signaling a turn, the designated turn side

amber light and red taillight will flash.

NOTE: If the Flashing Warning (Hazard) lights are

operated at the same time when the turn signal is

activated, the hazard light for the opposite side of

turning direction will stop flashing and illuminate

continuously.

2-8

SECTION 2 - OPERATION

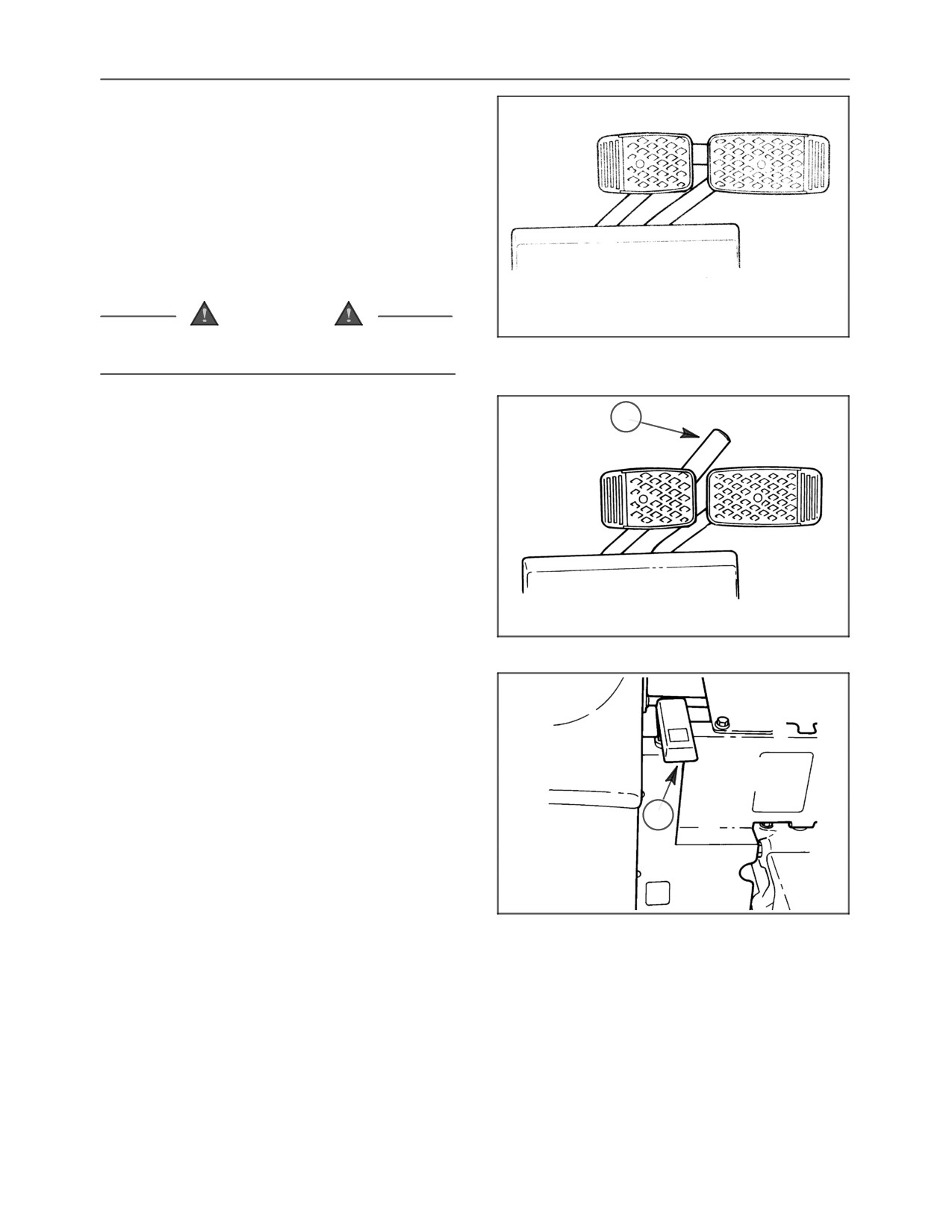

BRAKE CONTROLS

Brake Pedals

The right brake pedal controls the braking action of

the right rear wheel. The left brake pedal controls the

left rear wheel brake.

Depress both pedals simultaneously to stop the

tractor. To assist in making sharp turns at slow speed,

depress the right or left brake pedal as required.

WARNING

19983652

When operating the tractor at high speeds, never

attempt to make sharp turns by using the brakes.

Brake Pedal Lock

The brake pedal lock, 1, is used to secure the brake

pedals together. Lock the pedals together, as shown,

whenever the tractor is operated at high speeds or

when the tractor is used on the highway.

NOTE: Unlock the brake pedals if operating

conditions require independent rear wheel braking

action.

19983653

Parking Brake Control

The parking brake, 1, is used to lock the brake pedals

in the applied position. Use the parking brake

whenever the tractor is parked or when the operator

is out of the seat.

To apply the parking brake:

1. Lock the brake pedals together using the brake

pedal lock.

2. Depress both brake pedals.

3. Pull up on the park brake handle and both brake

19984097

pedals will remain in the applied position.

To release the parking brake:

Depress the brake pedals to release the retainer.

2-10

SECTION 2 - OPERATION

FRONT-WHEEL DRIVE

The front-wheel drive option is controlled by a lever,

1, located on the right-hand control pod.

To engage front-wheel drive, depress the clutch

pedal fully and push the lever fully forward. To

disengage front-wheel drive, depress the clutch

pedal and pull the lever fully rearward.

IMPORTANT: Use front-wheel drive when additional

traction is required while operating on loose soil, in

wet, slippery conditions, or on slopes. For normal

operation on firm soil, level hard surfaces, or when

19981877

roading the unit at high speeds, disengage the

front-wheel drive to maximize tire and driveline life

and to economize on fuel.

HYDROSTATIC TRANSMISSION (H.S.T.) MODEL

H.S.T. FOOT PEDAL

The ground speed of tractors equipped with a

hydrostatic transmission is continuously variable,

from zero to full rated speed in each range. Speed is

controlled by the H.S.T. rocker pedal located on the

right-hand foot platform.

For forward travel, depress the forward pad on the

pedal until the desired ground speed is reached. For

reverse travel, depress the rear pad on the pedal.

Unless the H.S.T. speed cruise control switch, Figure

2-20, is in the engaged position, the transmission

19983654

returns to neutral and the tractor stops when the

pedal is released.

GEAR TRANSMISSION

TRANSMISSION MAIN SHIFT LEVER AND

RANGE LEVER

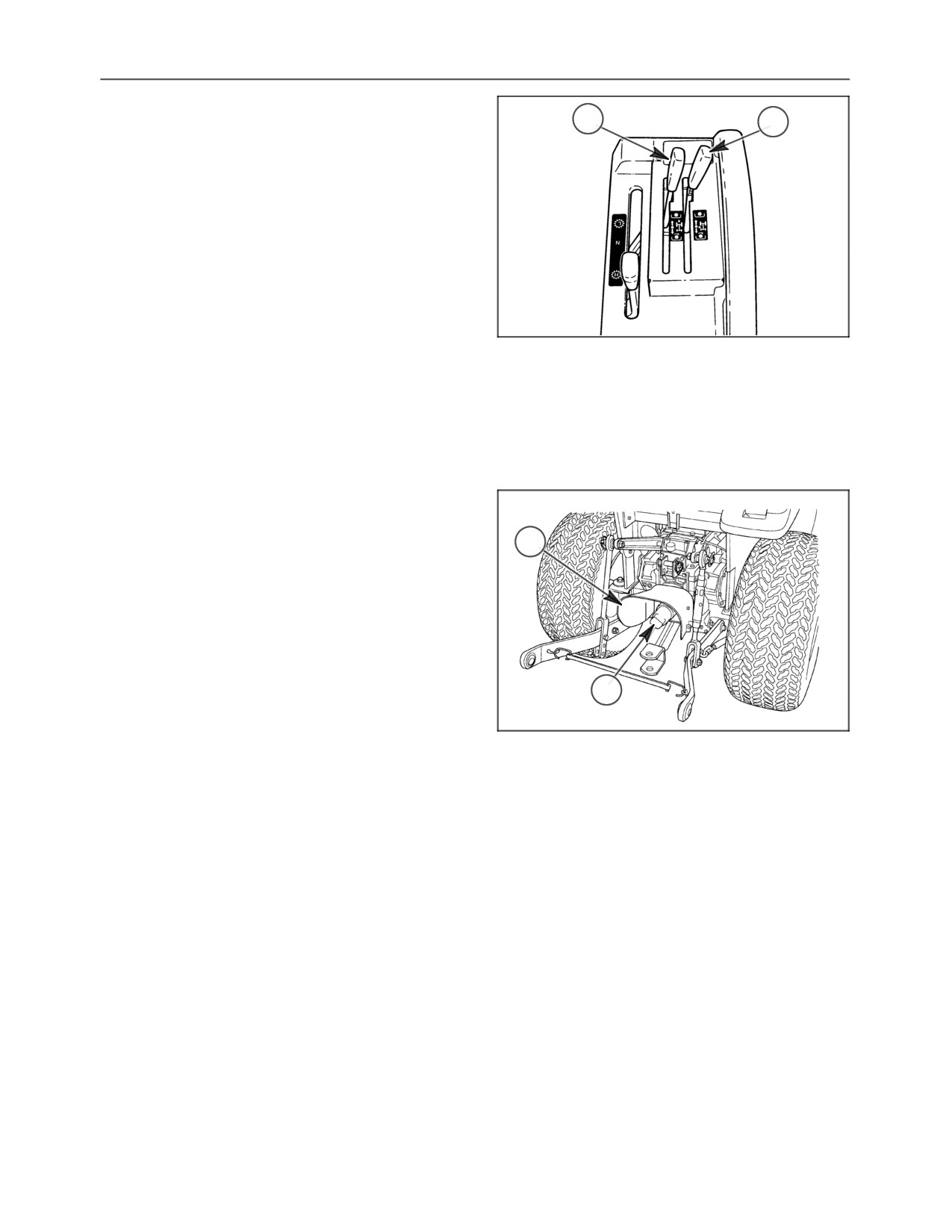

The transmission main shift lever, 1, and range lever,

2, are located on the left-hand control pod. The shift

pattern of the main shift lever is molded into the knob.

The range lever has three ranges and two neutral

positions. Each range has three forward gears and

one reverse gear, providing a total of nine forward

and three reverse speeds.

IMPORTANT: Do not attempt to change gears while

the tractor is moving. The 9 x 3 transmission is not

19981864

synchronized. The clutch pedal must be depressed

and tractor motion stopped to change gear ratios with

the main shift lever or the range shift lever.

2-11

SECTION 2 - OPERATION

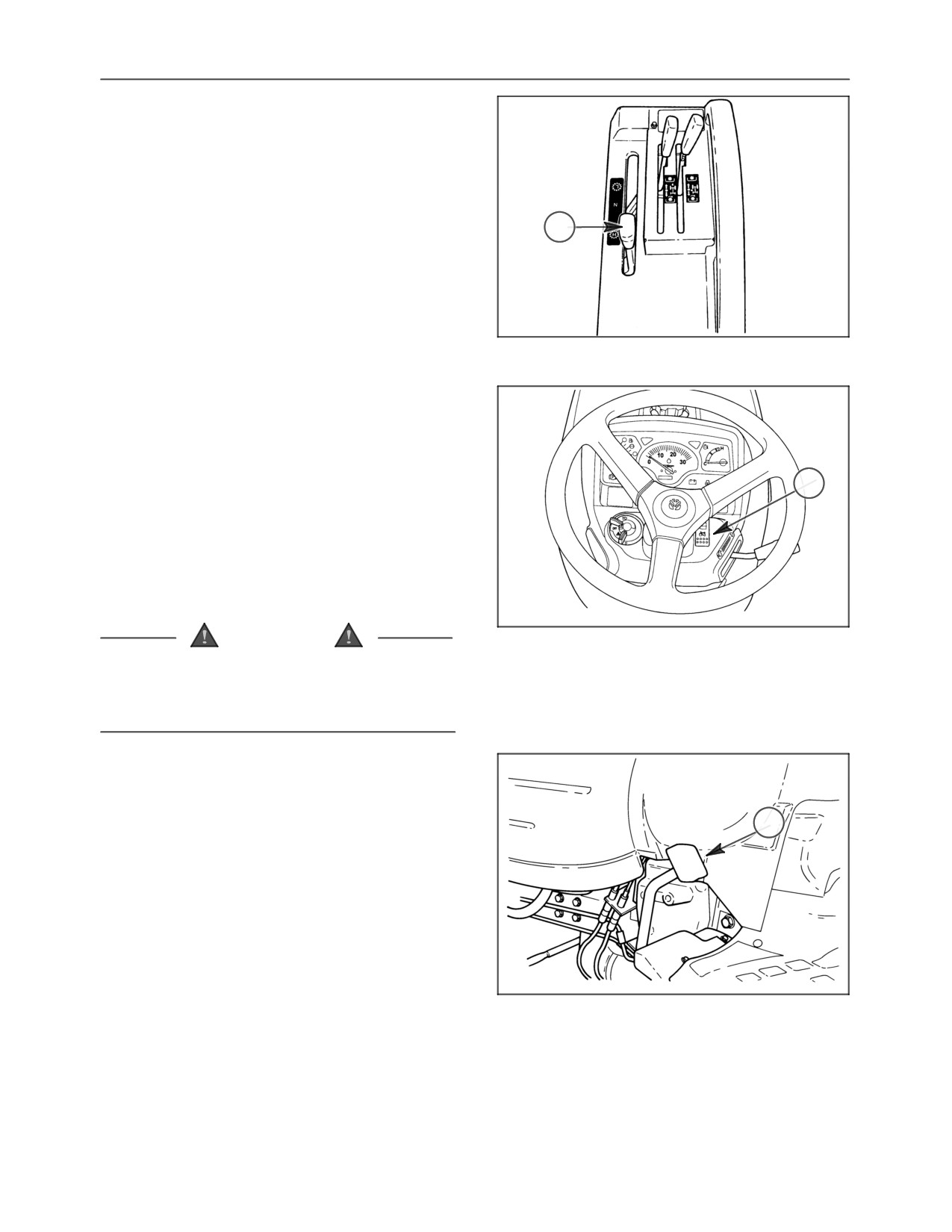

H.S.T. RANGE LEVER

The range selector lever,

1, is located on the

left-hand control pod. It has two speed ranges and

one neutral position.

NOTE: The range selector lever must be in the

neutral position to activate the safety start system

and allow the engine to start.

To select the desired operating range, the H.S.T.

pedal must be in the neutral position and the clutch

pedal depressed.

19983655

IMPORTANT: Never attempt to engage or disen-

gage the range lever when the tractor is in motion.

H.S.T. SPEED CONTROL

The H.S.T. speed control rocker switch, 1, is located

on the right-hand side of the console. It is used to

maintain a constant forward or reverse speed.

When the desired travel speed is reached, depress

the top half of the speed control switch. A green light

will illuminate inside the switch indicating the speed

control is engaged. To disengage the speed control,

depress the bottom half of the switch or depress the

brake pedal. The green light will extinguish,

indicating the speed control is off.

19983663

CAUTION

To avoid personal injury and maintain optimum

control of the tractor, do not use the speed

control at high speeds or when roading the

tractor.

CLUTCH PEDAL (All Models)

The foot operated clutch pedal, 1, is located on the

left-hand foot platform. The pedal controls operation

of a single-stage clutch.

When the clutch pedal is depressed, the tractor stops

moving and the PTO shaft stops rotating. Depress

the pedal fully when changing gear ratios and when

engaging or disengaging front-wheel drive or the rear

PTO or mid PTO.

When starting the tractor, always depress the clutch

pedal to ensure a safe start-up. The clutch pedal

19984096

must be fully depressed to disengage the neutral lock

on the gearshift to allow a range gear change.

2-12

SECTION 2

- OPERATION

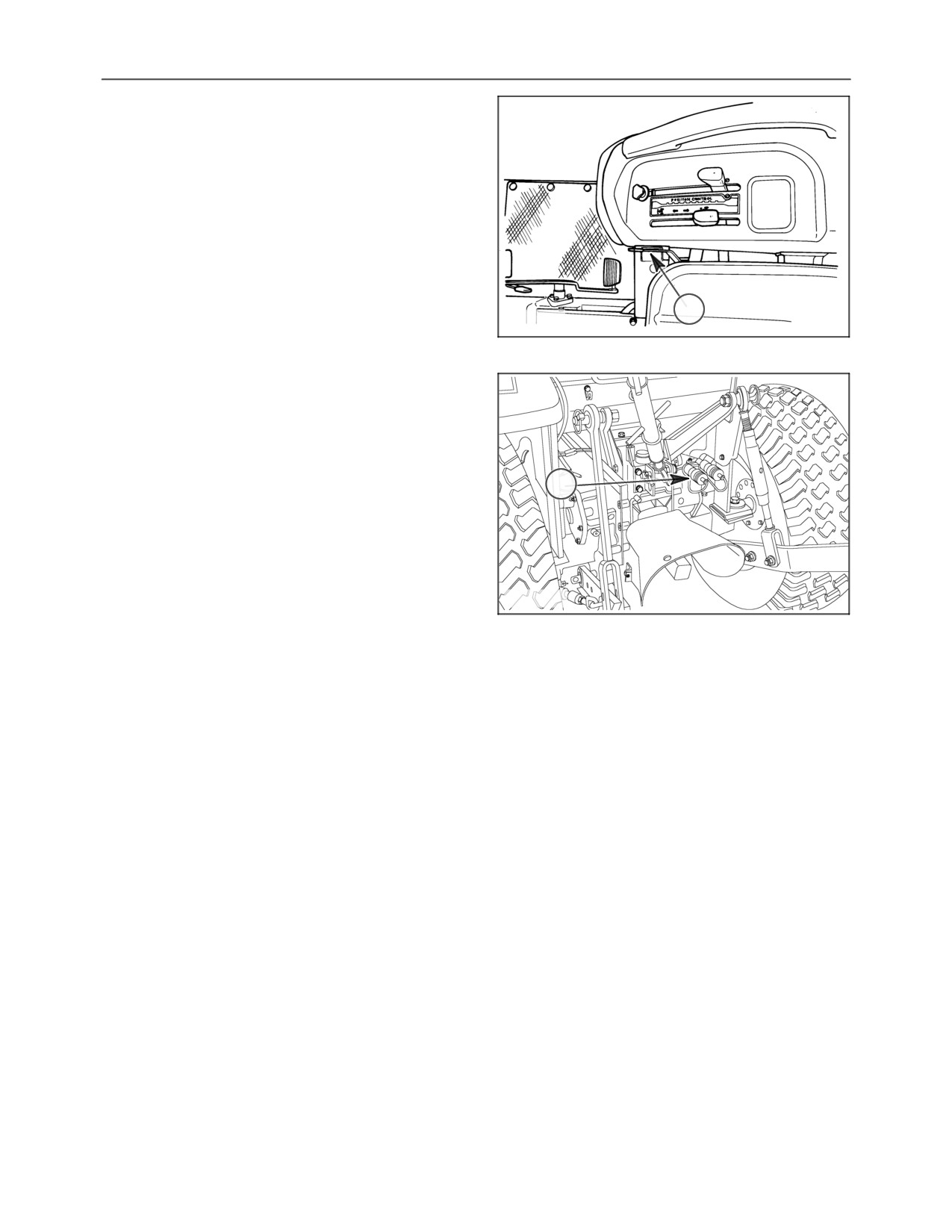

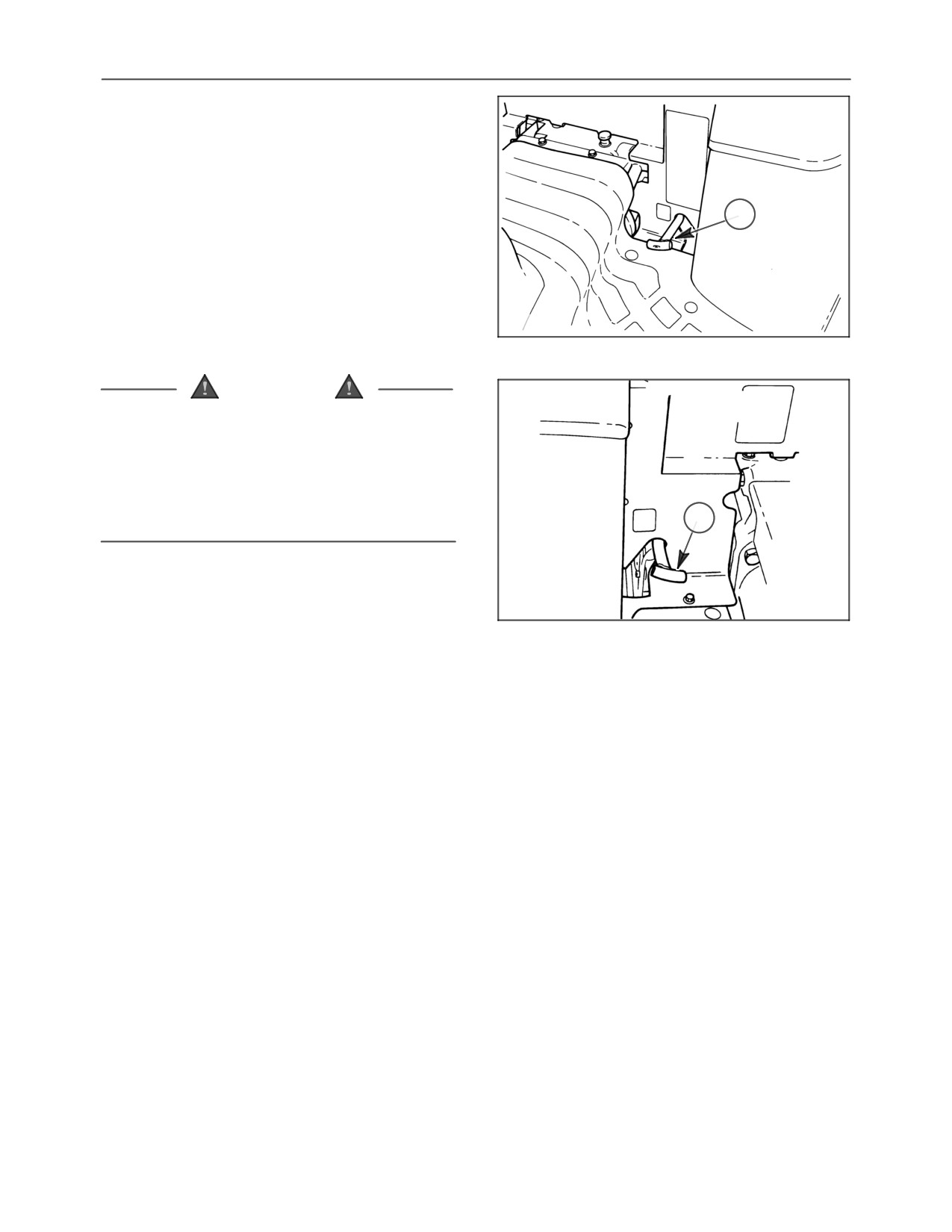

DIFFERENTIAL CONTROL

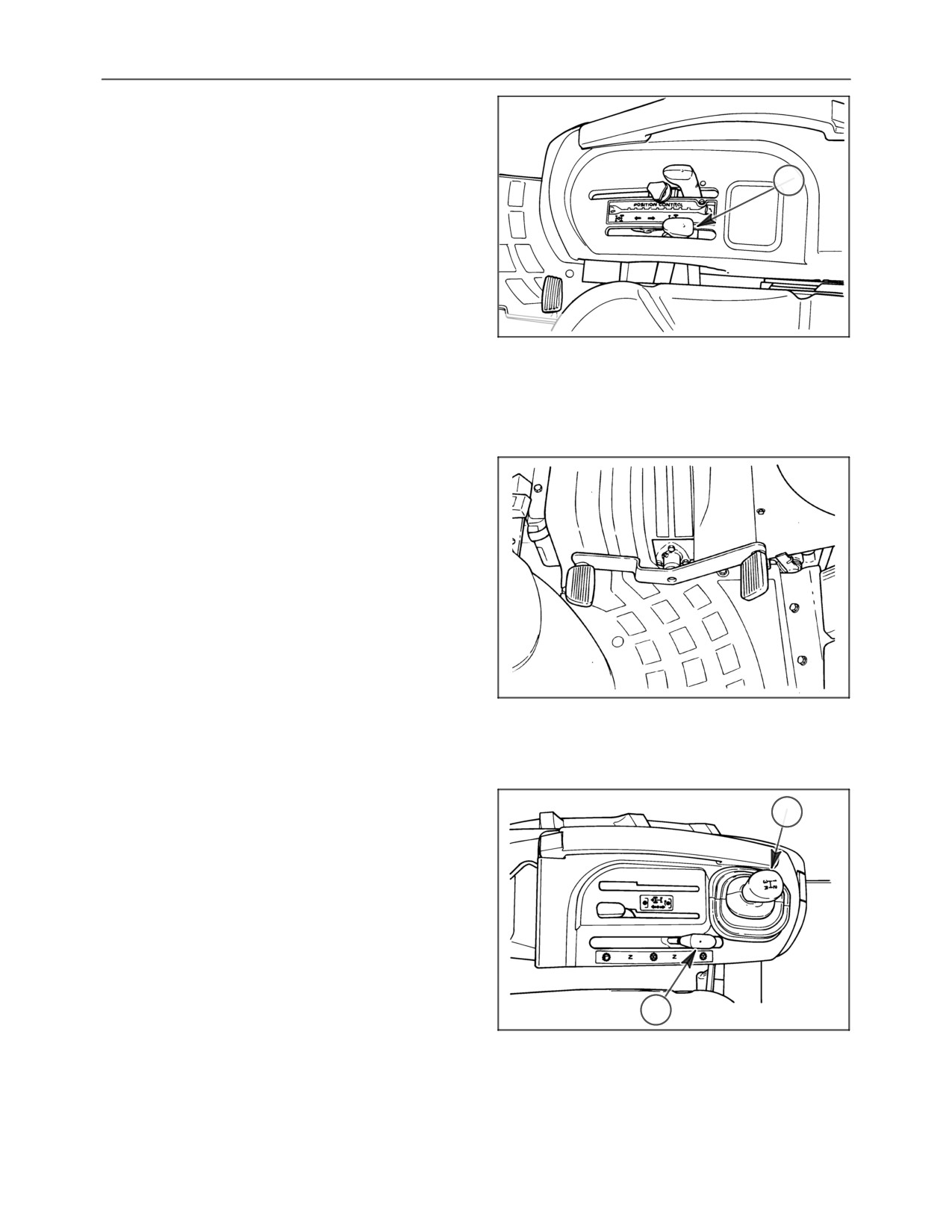

The differential lock pedal,

1, is located on the

left-hand foot platform on HST tractors and

right-hand foot platform on gear tractors. The

differential lock is used to obtain additional traction in

wet or loose soil.

When the differential lock pedal is depressed, both

final drive pinion gear shafts are locked together,

preventing one wheel from rotating independently of

the other.

Whenever one wheel begins to slip in wet or loose

19983658

HST

soil, use the lock to obtain additional traction from the

opposite wheel.

WARNING

Steering the tractor is very difficult with the

differential locked.

Do not engage the differential lock when driving

the tractor on the highway, when ground speed

is above 8 kph (5 mph), or when turning the

tractor. If the lock is engaged when turning, a

loss of steering control will result.

To operate the differential lock, depress and hold the

pedal down until the lock is positively engaged. It is

best to engage the lock while the wheels are turning

GEAR

slowly to minimize shock loads to the driveline. If a

wheel spins at high speed, such as on ice, reduce

engine speed to idle before engaging the lock or

damage may result. Release the pedal to disengage

the differential lock.

NOTE: In some instances, the lock may remain

engaged after the pedal is released. This can occur

if one rear wheel is turning at a faster speed than the

other. The lock can be disengaged in one of two ways

if this occurs.

• Decrease the drawbar pull by raising or

disengaging the implement so that neither wheel

tends to slip.

• Rapidly apply and release a light braking load to

the slipping rear wheel.

2-13

SECTION 2

- OPERATION

OPERATION OF THE POWER TAKE-OFF

5. If the equipment is operating properly, depress

(PTO)

the clutch pedal and shift to the desired operating

gear. Release the pedal gradually to start the

1. Before attaching the PTO, stop the tractor

PTO and tractor in motion.

engine.

6. Control the PTO speed using the throttle. Never

WARNING

operate in an overspeed condition.

To reduce the possibility of personal injury,

7. When making sharp turns with pull-type

comply with the following guidelines before

equipment or with mounted equipment in the fully

attaching or detaching PTO equipment, and

raised position, disengage the rear PTO using

before working on or clearing PTO equipment.

the PTO control lever.

•

Depress the clutch pedal completely and

8. When traveling on highways or for any great

move the transmission range lever to the

distance, disconnect the PTO-driven shaft at the

ìNEUTRALî (N) position.

tractor PTO shaft.

•

Set the parking brake.

9. Reinstall the PTO shaft cap when PTO-driven

•

Disengage the PTO using the PTO control

equipment is disconnected from the tractor, or

lever.

when the PTO is not being used.

•

Remove the PTO cap.

WARNING

•

Wait until the PTO shaft stops turning.

To avoid inadvertent movement of PTO imple-

•

Attach the mounted or drawn equipment.

Make sure the equipment-driven shaft is

ment, disengage the PTO after each use.

properly aligned and locked to the tractor

PTO drive shaft and that the PTO shield is

REAR PTO OPERATION (WITHOUT

down in the guarded position.

OPERATOR IN SEAT)

To operate the rear PTO, without the operator in the

With the PTO disengaged, start the engine. For

seat the following operations must be performed:

mounted equipment, raise and lower the

equipment to ensure there are proper clear-

• Transmission range lever in NEUTRAL position

ances.

• Parking brake in ìONî position

With the transmission in neutral, depress the

clutch pedal completely, then engage the rear

• Mid PTO in ìOFFî position (if equipped)

PTO by moving the PTO control lever forward. To

engage the optional mid PTO, move the mid PTO

• Rear PTO in ìONî position.

forward.

NOTE: The Mid PTO cannot be operated without an

IMPORTANT: The PTO may be damaged if

operator present in seat.

the PTO lever is not moved through its full

range.

IMPORTANT: The engine will shut off in approxi-

mately two seconds if the operator leaves the seat,

Check the PTO-driven equipment for proper

without the parking brake engaged and the range

operation by gradually releasing the clutch pedal

lever in the neutral position.

and increasing engine RPM.

2-15

SECTION 2

- OPERATION

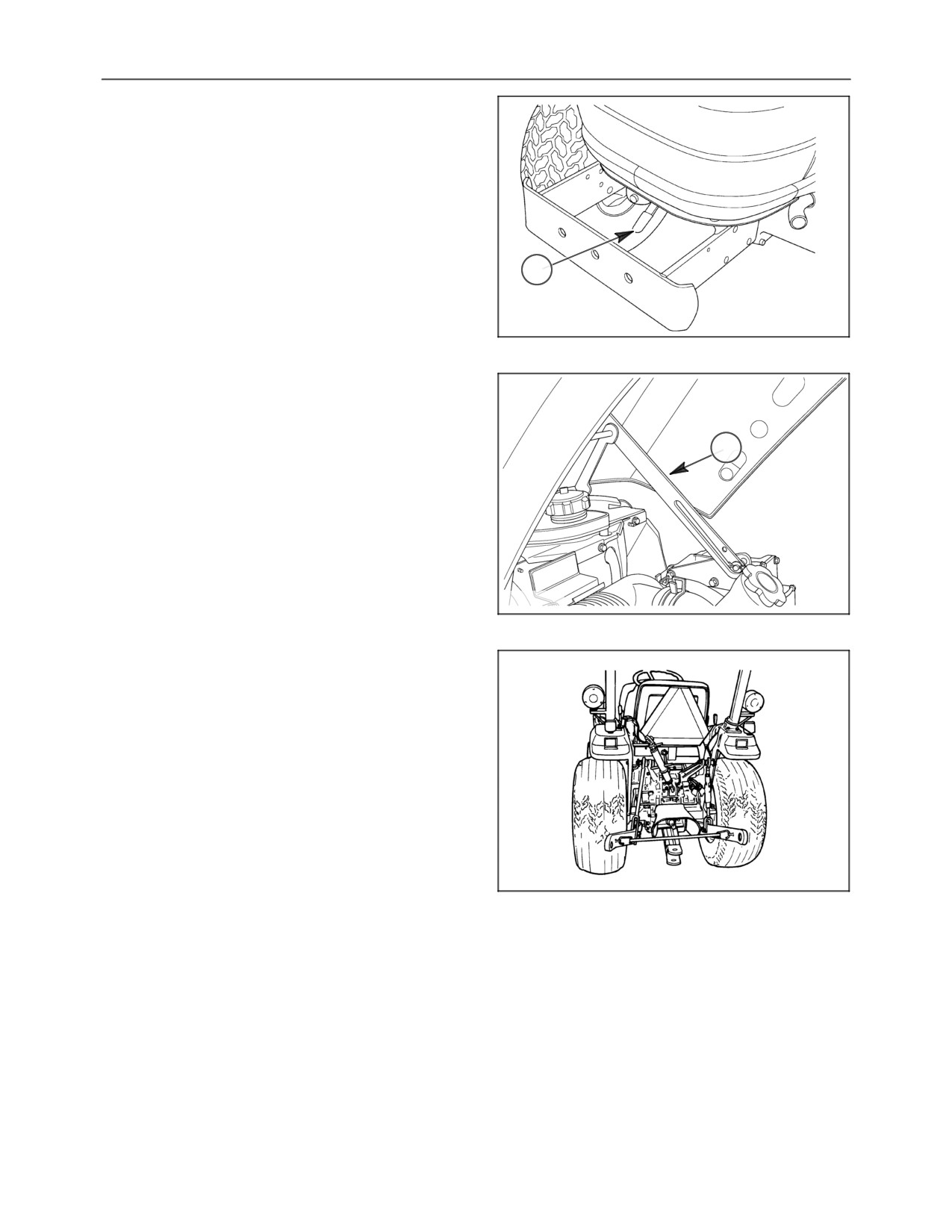

HOOD LATCH

As viewed from the front of the tractor:

1. To raise the hood, move the latch release lever,

1, to the right and lift the hood to its fully raised

position. A support link, 2, will automatically hold

the hood in the fully raised position.

2. To lower the hood, lift up on the hood slightly and

pull the support link towards you, so that the

support pin is no longer in the catch position.

Lower the hood until it is retained by the latch

mechanism.

19983648

IMPORTANT: Do not attempt to lower the hood

without moving the support link. Attempting to force

the hood down can result in bending or breaking of

the hood and support linkage.

NOTE: Keep the latch mechanism free of dirt and

debris so that the latch assembly will operate

properly.

19981245

THREE-POINT LINKAGE

The tractorís three-point linkage is used to attach

three-point mounted equipment which is usually

PTO operated, such as rotary mowers, tillers, flail

mowers, snowblowers, etc. The three linkage points

are the two lower lift arms and the top link.

The standard three-point linkage has easy to adjust

sway bars to control lateral movement of the lift arms.

The height of the right-hand lift arm and the top link

can be adjusted by loosening the jam nut and turning

the level crank pin.

19982082

2-17

SECTION 2 - OPERATION

TRACTOR HYDRAULICS

HYDRAULIC POWER LIFT (H.P.L.)

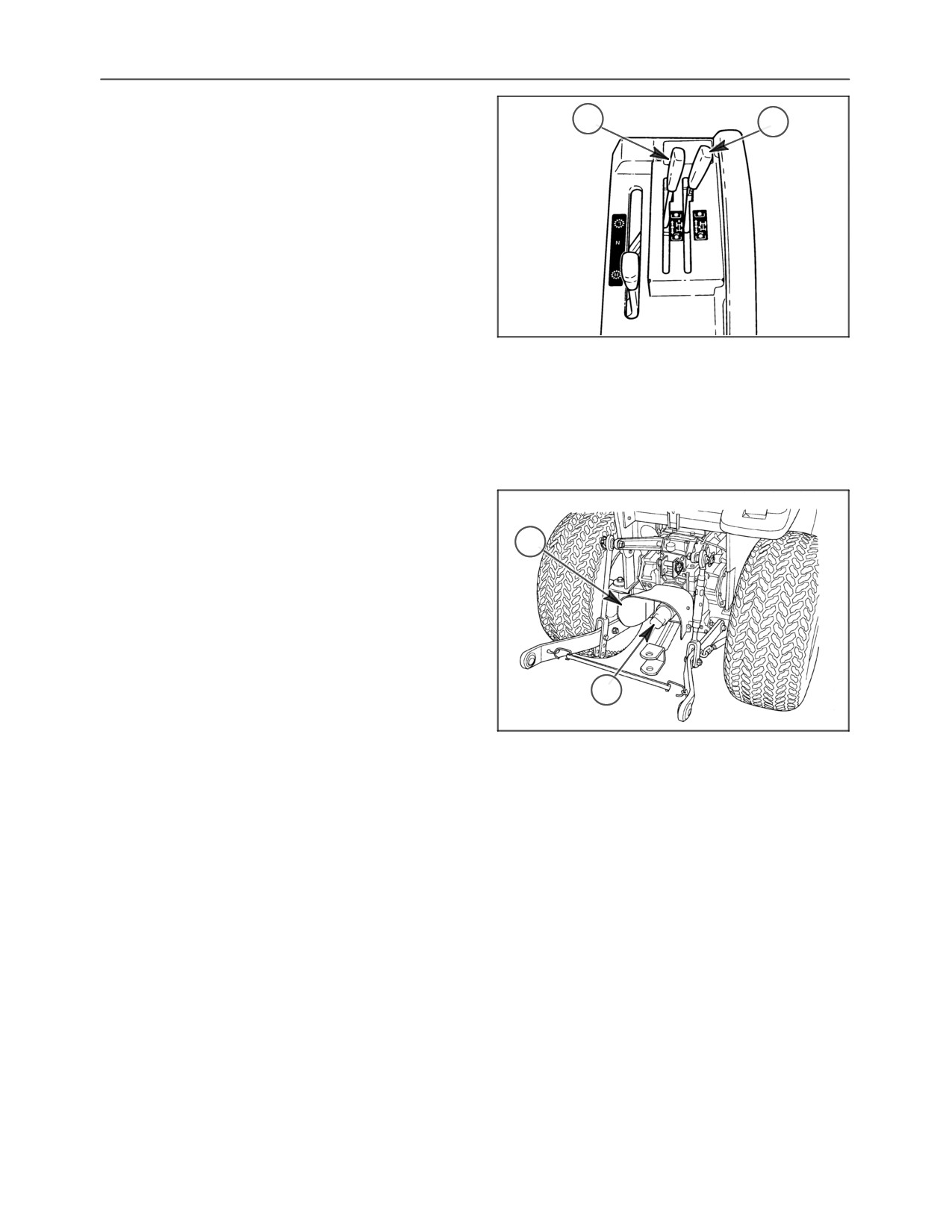

The H.P.L. lever, 1, is located on the right-hand

control pod. The lever controls the position of the two

lift arms.

To lower the lift arms, move the H.P.L. lever forward.

To raise the lift arms, move the lever rearward. An

adjustable stop, 2, is located in this quadrant for

returning the lever to a preset position.

The hydraulic lift system provides accurate, smooth,

and instant hydraulic power for raising a variety of

compatible equipment whenever the engine is

19981877

running. The systemís position control feature

maintains the selected height or depth of three-point

linkage equipment in relation to the tractor. When the

hydraulic lift control lever is moved to a higher or

lower setting in the quadrant, the system repositions

the equipment to a higher or lower position and

maintains the selected position.

WARNING

Make sure the area is clear of people before

lowering equipment.

POSITION CONTROL

Position control provides easy, accurate control of

three-point linkage equipment which operates above

the ground, such as sprayers, rakes, mowers, etc. It

also provides uniform depth when using a blade or

similar equipment on ground level.

When operating in position control, there is a definite

relationship between the position of the control lever

in the quadrant and the position of the equipment.

The lever must be moved to change the position of

the equipment relative to the tractor. The system will

automatically maintain the equipment in the selected

position.

2-18

SECTION 2 - OPERATION

SINGLE-LEVER POSITION ADJUSTMENTS

LINKAGE ADJUSTMENTS

The length of the position control rod is critical and

careful adjustment must be observed for proper

operation. If the control rod is adjusted too short, the

control valve spool will remain in the raised position

when the lift arms have reached their maximum

height and the system relief valve will blow. If the

control rod is too long, the control valve spool will

return to neutral before the lift arms reach their full

height.

The position control rod should be adjusted any time

the link is disconnected for service to the hydraulic

system, or any time the relief valve operation is

noticed while the lift arms are at the full raise position.

ADJUSTMENT PROCEDURE

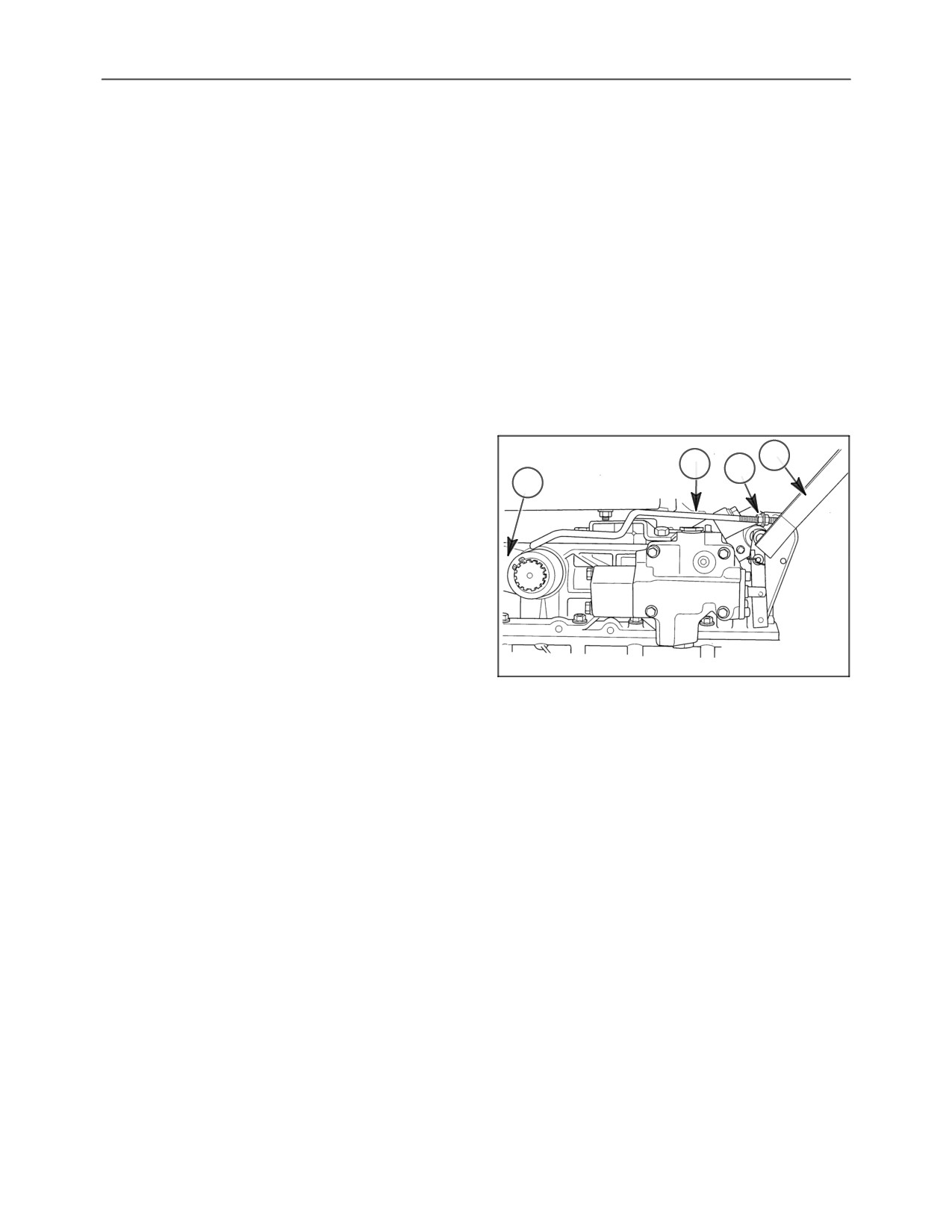

1. Loosen the locknut, 1, on the position control rod,

2, and remove the rod from the lift arm, 3.

2. Set the control lever, 4, to the highest position.

3. Start the engine. The lift arms should raise and

the relief valve should operate.

4. Move the control lever forward until the relief

valve stops operating.

5. Adjust the length of the position control rod to

align the rod with the hole in the lift arms. Then

19981254

extend the rod one additional complete turn.

Install the cotter pin and tighten the nuts.

6. Check the operation. The relief valve should not

operate with the lift arms fully raised.

2-19

SECTION 2 - OPERATION

HYDRAULIC LIFT ROCKER

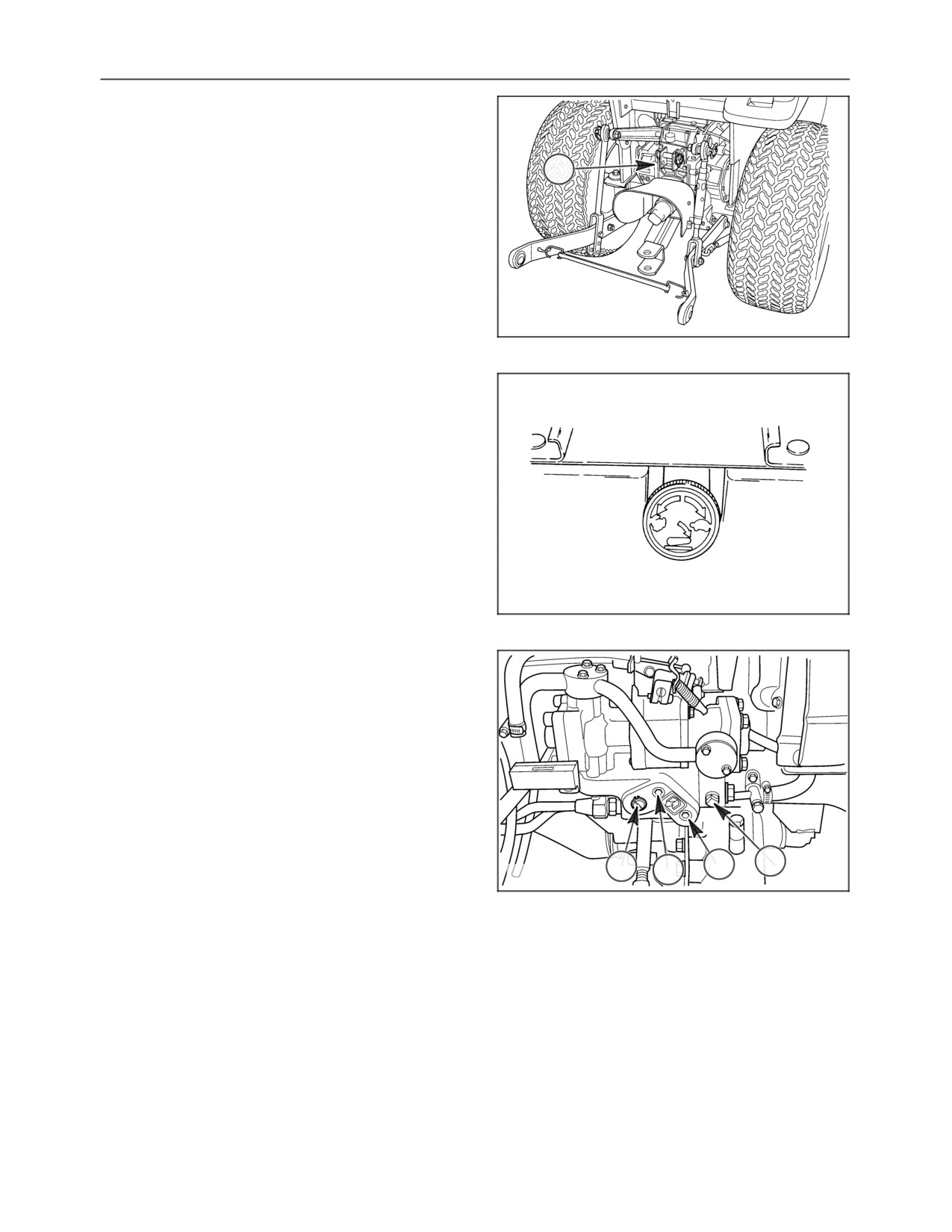

The hydraulic lift rocker,

1, has two holes for

attaching the upper link. Attach the link using the

lower hole for light draft loads, such as mowers.

Attach the link to the top hole for heavier draft loads,

such as ground engaging equipment.

19983659

FLOW CONTROL VALVE

The flow control valve provides an adjustment to

regulate the flow of oil from the lift cylinder. This

allows the operator to slow or increase the rate of

drop of the lower links.

Turn the flow control valve ìINî

(clockwise) to

decrease the rate of drop. Turn the valve ìOUTî

(counterclockwise) to increase the rate of drop.

The flow control valve must be opened before the

hydraulic lift control will lower. If the valve is turned all

the way ìINî (clockwise), the lower links can be raised

to maximum height but cannot be lowered.

HYDRAULIC MANIFOLD BLOCK/

DIVERTER VALVE

The hydraulic manifold block/diverter valve is located

on the right-hand side of the tractor below the engine

oil dipstick. The manifold block supplies hydraulic oil

to optional remote valves to allow for operation of

implements such as front end loaders, blades,

backhoes, etc.

The diverter valve, 1, can be turned with a blade

screwdriver. In this position, 10 oíclock, hydraulic

fluid is directed to the H.P.L. valve and rear remotes

10020252

(optional). When a remote valve is plumbed to the

three ports pressure out, 2, pressure return, 3, and

sump or tank, 4, the diverter valve must be turned

clockwise to 1 oíclock position for hydraulic fluid to

flow to the remote valve and then to the H.P.L. valve

and rear remote valve (optional).

2-20

SECTION 2 - OPERATION

TWO-SPOOL CONTROL VALVE

(OPTIONAL)

The optional two-spool control valve is mounted on

the right side of the clutch housing beside the engine

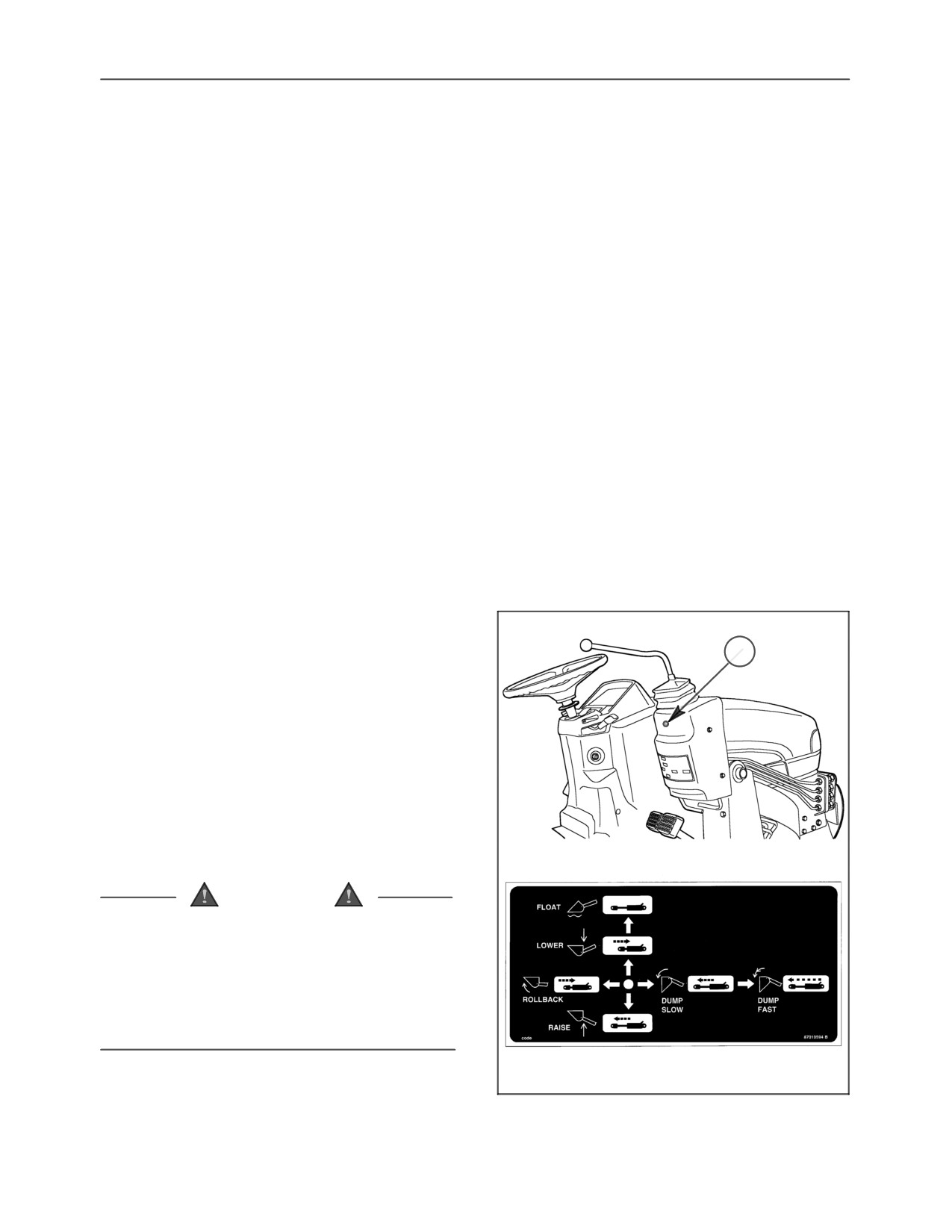

hood. This valve is used mainly for front end loader

operation, but may also be used to operate other

front-mounted implements.

To operate the two-spool valve, pull the control lever

to the rear or push it sideways to the right to extend

the cylinder.

NOTE: When the control lever is pushed right to the

second position, a regenerative feature is activated

and the exhaust oil from one end of the cylinder is

transferred to the other end of the cylinder. When this

feature is used, the cylinder will operate at a faster

rate. This regenerative feature cannot be used with

single-acting cylinders.

Push the control lever forward or pull it sideways to

the left to retract the cylinder. Release the control

lever to stop the cylinder in any position before it is

fully extended. The lever automatically returns to

neutral. Fully forward past the detent position is a

ìFLOATî position which allows a cylinder to extend or

retract freely.

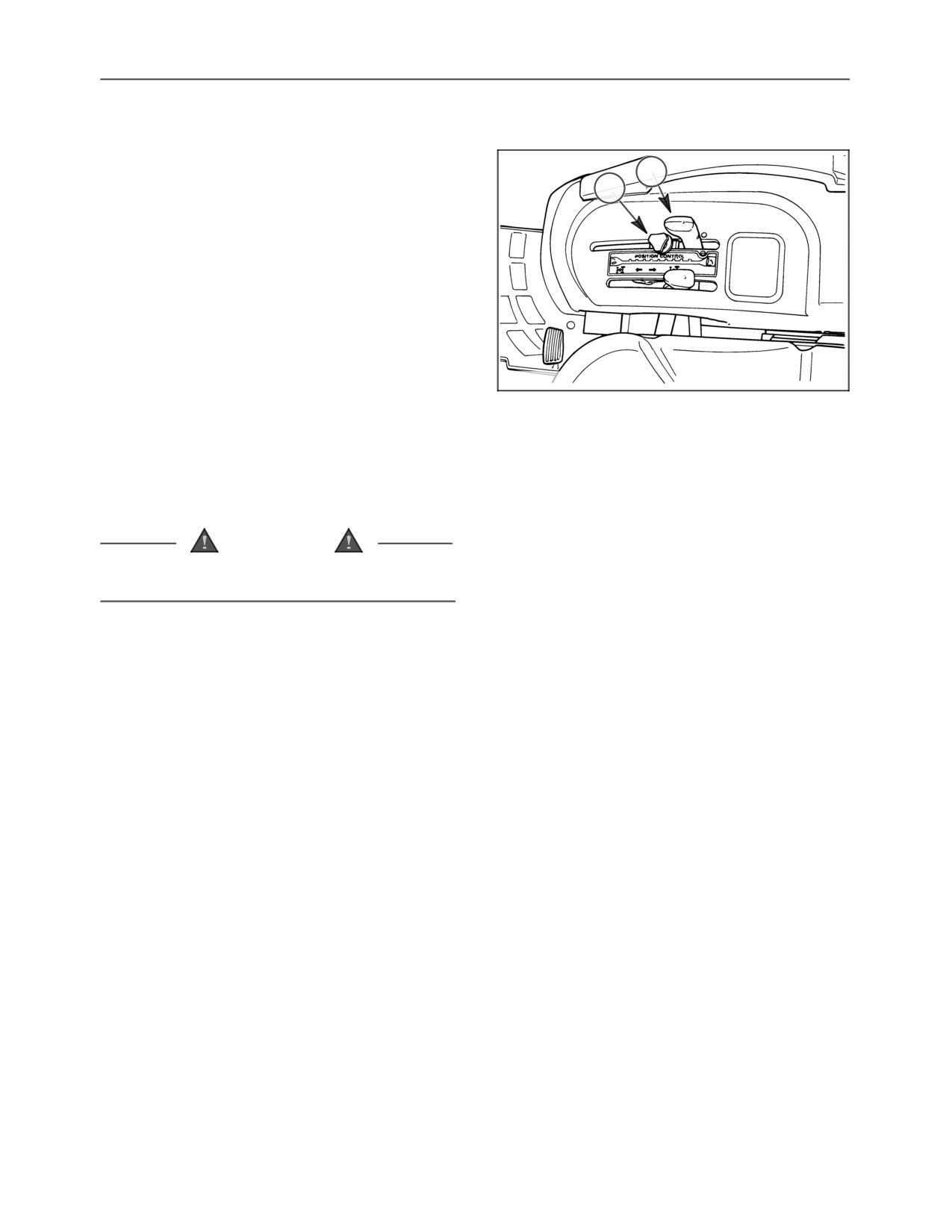

The two spool valve is equipped with a valve lock

feature. The valve lock, mechanically locks the boom

spool linkage in the neutral position, (if loader is

installed), the lock does not affect the bucket spool

linkage. To operate lock, pull and turn the knob, 1, to

release valve lock. To engage lock, turn knob and

release, the lock mechanism is spring loaded to the

engaged position.

NOTE: The valve lock is recommended to be used to

prevent accidental activation of the boom spool

during operation of the tractor. The lock is not

intended and will not prevent leak down of loader

boom during periods of storage.

WARNING

Before disconnecting cylinders or equipment,

make sure that the implement or equipment is

supported securely.

Remote couplers must be properly mounted and

securely fastened to the tractor mounting

bracket for proper functioning of the safety

disconnect feature.

50020263

2-22

SECTION 2

- OPERATION

DRIVING THE TRACTOR

• Reduce speed before turning quickly or applying

brakes. Lock the brake pedals together when

Observe the following precautions when driving the

traveling at high speeds. Brake both wheels

tractor:

simultaneously when making an emergency

• Watch where you are going at all times,

stop.

especially at row ends, on roads, and around

• Never apply the differential lock when turning.

trees.

• Use extreme caution and avoid hard applications

• Keep the tractor in gear when going downhill.

of the tractor brakes when pulling heavy, towed

Use a low gear to maintain control with minimum

loads at road speeds.

braking.

• Any towed vehicle with a total weight exceeding

• If the tractor becomes stuck, back out to prevent

that of the towing tractor should be equipped with

upsetting the unit.

brakes for safe operation.

• Always use the drawbar for pull-type work. Do

• Always sit in the driverís seat while starting or

not pull from any other part of the tractor, since it

driving the tractor. Always wear the seat belt.

may tip backward.

• Always use a Slow Moving Vehicle

(SMV)

• Use headlights as needed. Do not blind the

emblem and turn flasher lights on when traveling

operators of oncoming vehicles.

on public roads.

• Engage the clutch slowly when driving out of a

• Always check overhead clearance, especially

ditch, gully, or up a steep hillside. Immediately

when transporting the tractor.

disengage the clutch if the front wheels should

rise off the ground.

2-23

SECTION 2 - OPERATION

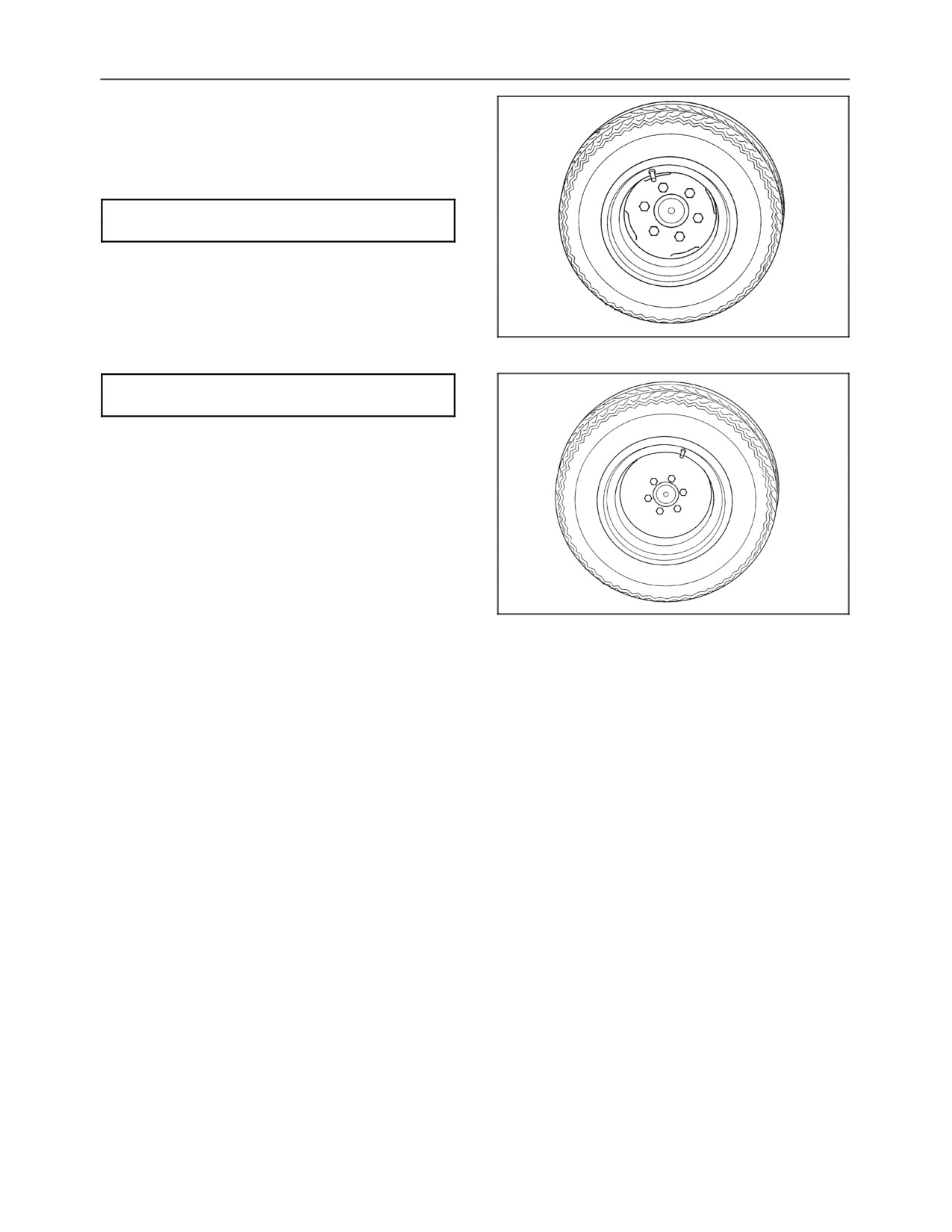

WHEEL TREAD SETTINGS

NOTE: Tread settings are measured from center of tire to center of tire.

Front Wheel Settings

Tire Type

Tractor Model

Setting

NOTE

Agricultural

5-12

820 mm (32.3″)

6-12

Front-Wheel Drive

845 mm (33.3″)

Not Adjustable

Turf

22 x 9.00-12

Front-Wheel Drive

930 mm (36.6″)

Not Adjustable

Industrial (R4)

23 x 8.5-12

Front-Wheel Drive

919 mm (36.2″)

Not Adjustable

IMPORTANT: Never attempt to widen the tread setting by reversing front wheels on a front-wheel drive system.

NOTE: Torque front wheel bolts to 44 - 56 N∙m (33 - 41 ft. lbs.).

Rear Wheel Settings

Tire Type

Tractor Model

Setting

NOTE

Agricultural

8-16

850 mm - 999 mm

(33.5″ - 39.3″)

9.5-16

Front-Wheel Drive

895 mm - 955 mm

Adjustable by switchingó

(35.2″ - 37.6″)

Dish in or dish out

Turf

916 mm-988 mm

Adjustable by switchingó

31 x 13.5-15

Front-Wheel Drive

(36.1″-38.9″)

Dish in or dish out

Industrial

Front-Wheel Drive

900 mm-956 mm

Adjustable by switchingó

R4, 12-16.5

(35.4″-37.6″ )

Dish in or dish out

NOTE: Torque rear wheel bolts to 71 - 84 N∙m (52 - 62 ft. lbs. ).

2-24

SECTION 2

- OPERATION

TRACTOR WEIGHTING

When a mounted implement is raised to the transport

position, the front wheel reaction should be at least

For sufficient traction and maximum performance in

20% of tractor weight.

heavy draft operations, and to counterbalance

rear-mounted equipment, weight should be added to

Add additional front end ballast as required for

the tractor in the form of liquid ballast, cast iron

stability during operation and transport. Tractor front

weights, or a combination of both. Only enough

end ballast may not always maintain satisfactory

weight should be added to provide good traction and

stability if the tractor is operated at high speed on

stability. Adding more weight than is needed results

rough terrain. Reduce tractor speed and exercise

in unnecessary soil compaction, increased rolling

caution under these conditions.

resistance, and higher fuel consumption.

When using front-mounted equipment, add weight to

NOTE: When adding weight to the tractor, tire

the rear axle to maintain good traction and stability.

pressures may need to be increased. Refer to the

Front-mounted equipment varies in weight. Refer to

Tire Inflation Pressure chart found in this manual.

equipment manual for ballasting.

WEIGHTING FOR STABILITY

WEIGHTING LIMITATIONS

Front end ballast may be required for stability and

The weighting limitations that follow are limitations

steering control when weight is transferred from the

only. They do not imply that the tractor should be

front wheels to the rear wheels as an implement is

weighted to attain the weights given. Use only

raised by the tractor three-point hitch.

enough weight to obtain good performance.

As a general guide:

Ballast the tractor

(less implement) so that

approximately one-third of the tractor weight is on the

front wheels. For optimum traction, tractors equipped

with front-wheel drive should be ballasted so that

40-45% of machine weight is on the front wheels.

2-25

SECTION 2 - OPERATION

LIQUID BALLAST (OPTIONAL)

Tires should never be filled beyond 75%. At 75% full,

the liquid will come to the valve stem when the valve

It is a common practice to add weight to the tractor by

stem is at its highest point at the top of the wheel.

filling the rear tires with liquid. A calcium chloride

(CaCl₂) and water solution is recommended due to

its low freezing point and greater density (weight per

TIRE PRESSURE

gallon) than pure water.

Tire pressure must be considered when adding

weights, implements, or attachments to the tractor or

Never exceed the total recommended weight for the

damage to the tractor may occur.

tractor. Because special equipment is required to fill

the tires, consult your New Holland Dealer.

The chart below outlines tire inflation pressures.

FRONT TIRE INFLATION PRESSURES

Tire Type

Tire Size

Inflation Pressure

Agricultural:

FWD

5-12, 4PR, R1

0.6-1.4 bar (8-20 PSI)

6-12, 4PR, R1

Turf:

FWD

22 X 9.00-12, 4PR, R3

0.55-1.4 bar (8-20 PSI)

Industrial (R4) (FWD Only)

23 X 8.50-12, 6PR, R4

1.8 - 2.7 bar (26.1 - 37.7 PSI)

REAR TIRE INFLATION PRESSURES

Agricultural

8x16, 4PR, R1

0.8-1.7 bar (12-24 PSI)

9.5-16, 4PR, R1

0.8-1.4 bar (12-20 PSI)

Turf

31 X 13.5-15, 4PR, R3

0.83-1.4 bar (12-20 PSI)

Industrial (R4)

12-16.5, 6PR, R4

1.8 - 2.7 bar (26.1 - 37.7 PSI)

NOTE: Do not underinflate or overinflate tires. Do not exceed maximum inflation pressure listed.

2-27

SECTION 3

LUBRICATION AND MAINTENANCE

LUBRICATION

Adequate lubrication and maintenance on a regular schedule is vital to maintaining your equipment. To ensure

long service and efficient operation, follow the lubrication and maintenance schedules outlined in this manual.

The use of proper fuels, oils, grease and filters, as well as keeping the systems clean, will also extend machine

and component life.

IMPORTANT: Always use genuine New Holland replacement parts, oils and filters to ensure proper operation,

filtration of engine and hydraulic systems. See your New Holland dealer for additional oil quantities.

RECOMMENDED LUBRICANTS AND COOLANTS

Lubricant

Location Used

Type and Description

Part Number

Quart or

Gallon

Liter

or Tube

Oil

Engine and Pivot Points

SAE 30 API CF--2SJ

9613286

1Qt.

without Grease Fittings,

Chains

SAE 30 API CF--2SJ

9613289

2.5 Gal.

SAE 30 API CF--2SJ

9613366*

5W--30 API SG/CD

9673589DS

1 Qt.

5W--30 API SG/CD

9624590*

10W--30 API SG/CD

9613313

1 Qt.

10W--30 API SG/CD

9613314

2.5 Gal.

10W--30 API SG/CD

9673508DS

5 Gal.

10W--30 API SG/CD

9613358*

10W--30 API SG/CD

9613359*

15W--40 API CF--4

9613290

1 Qt.

15W--40 API CF--4

9673730DS

1 Gal.

15W--40 API CF--4

9613303

2.5 Gal.

15W--40 API CF--4

9613292

5 Gal.

15W--40 API CF--4

9613350*

15W--40 API CF--4

9613351*

Coolant

Engine

ESE--M97B18--D, Ethylene Glycol New Hol-

FGCC2701DS

1 Gal.

land Spec. Coolant Concentrate

Propylene Glycol Concentrate

FGCC2711DS

1 Gal.

Hydraulic Oil

Hydraulic System,

134D ñ ESN--M2C134--D

9624450

2.5 Gal.

Hydrostatic System

New Holland Spec. Hydraulic oil

Front Axle Oil

134D ñ ESN--M2C134--D

9624451

5 Gal.

134D ñ ESN--M2C134--D

9613367*

134D ñ ESN--M2C134--D

9624785*

10 L

Hydraulic Oil

Optional, Multi-Seasonal

F200

86523625DS

1 Qt.

Use, Recommended for

Low Temperatures

F200

86523626DS

5 Gal.

F200

86509446*

20 L

Gear Oil

Gearboxes

80W90 EP Gear Oil API GL5

9613295

1 Qt.

80W90 EP Gear Oil API GL5

9613294

2.5 Gal.

80W90 EP Gear Oil API GL5

9613375*

85W140 EP Gear Oil API GL5

9613297

1 Qt.

85W140 EP Gear Oil API GL5

9613296

2.5 Gal.

85W140 EP Gear Oil API GL5

9613376*

Grease

All Grease Fittings

Lithium base EP high temperature

9861804DS

Tube

Lithium base EP high temperature

9861804CDS*

Tube

Brake Fluid

Mineral Based Oil

1QM6C34A

1 Qt.

86541699DS

* NOTE: Canada Part Numbers ONLY.

3-1

SECTION 3 - LUBRICATION AND MAINTENANCE

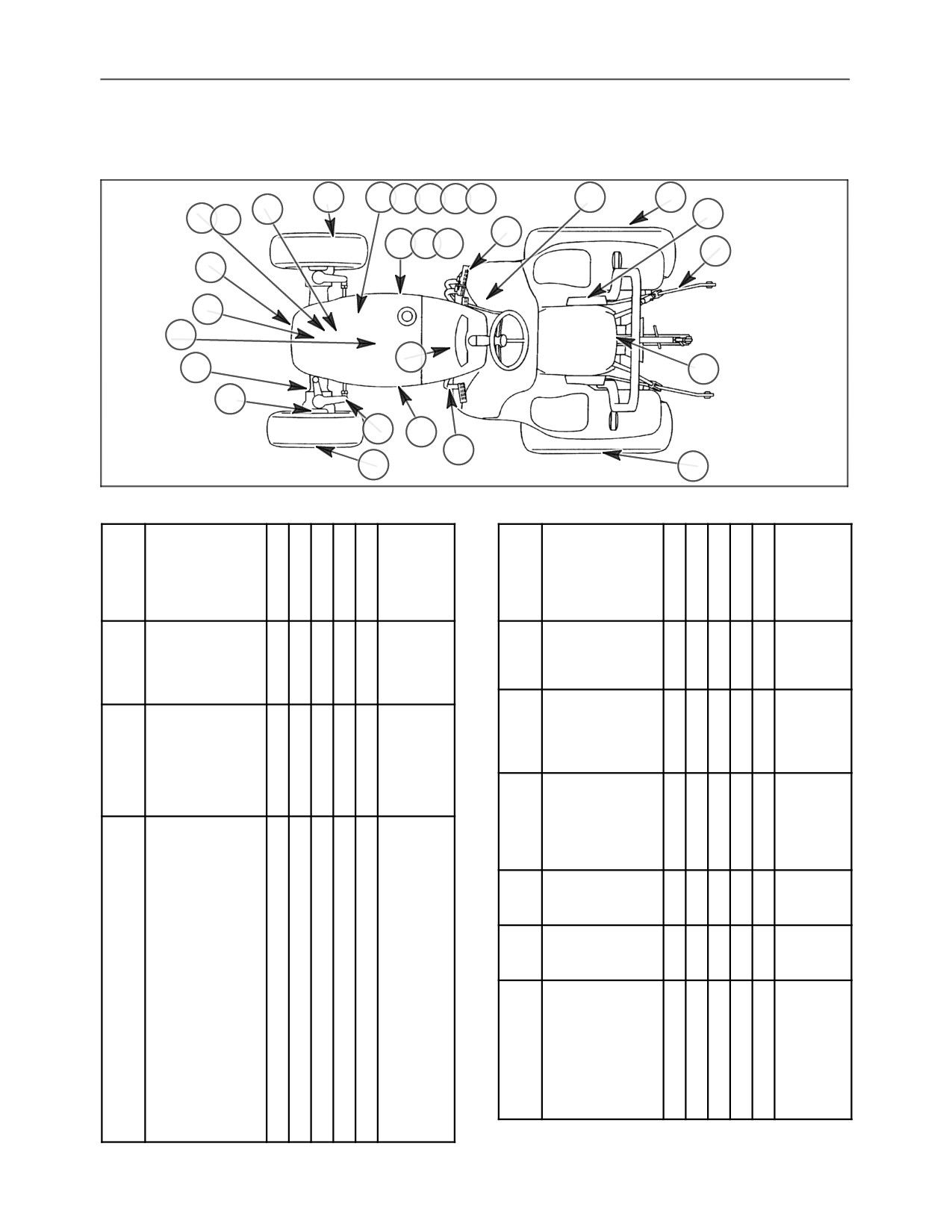

LUBRICATION AND MAINTENANCE CHART

NEW HOLLAND TC21D/24D ó FRONT-WHEEL DRIVE

2 12

3 13

7 11

NO.

LUBRICATION &

SERVICE

NO.

LUBRICATION &

SERVICE

MAINTENANCE

INTER-

MAINTENANCE

INTER-

ITEMS

VALS

ITEMS

VALS

Engine Oil Level

Every

1, 7

Engine Oil & Filter

Every

Air Cleaner

100

Radiator Coolant

Hours or

Element

Hours

Transmission Oil

Daily

Fuel Filter

Level

Brake

Every

Hydraulic Filter

First

Fuel Filter Element

200

H.S.T. Filter

Fan Belt

Hours

1, 7

Engine Oil & Filter

Hours

Wheel Bolt Torque

Tire Pressure

Steering Free Play

Fuel Filter

Transmission Oil

Every

Wheel Bolt Torque

All Fluid Levels

Hydraulic Filter

300

H.S.T. Filter

Hours

Tires

Every

Front Axle Oil

Clutch Pedal

Final Reduction

Battery

Hours

Gear Cases Oil

Fuel Filter

Power Steering Oil

Every

Level

Fuel Injector

600

Valve Clearance

Hours

Fan Belt

Front Axle Oil Level

Air Cleaner

Seasonal

Final Reduction

Element

Gear Cases Oil

Radiator Coolant

Level

Lubrication

Safety Air Filter

Every 3^rd

Fittings:

Element

Primary

Steering Linkage

Element

3-Point Linkage

Change or

Brake Pedal

Every 1000

Power Steering

Hours,

Cylinder

Whichever

Pedal Shaft

Comes

Drive Cover Shaft

First

Pivot Shaft

H.S.T. Pedal Pivot

3-2

SECTION 3 - LUBRICATION AND MAINTENANCE

LUBRICATION FITTINGS

• Sulfur content of the fuel should be no more than

0.5%.

NOTE: After every 50 hours of normal operation,

apply a good quality grease to the lubrication points

• Sediment and water content should not exceed

listed below (refer to the Recommended Lubricants

0.05%.

chart). When operating under extremely dirty

• Minimum cetane number is 40. Low temperature

conditions, lubricate more frequently than every 50

or high altitude operation may require use of fuel

hours.

with a higher cetane number.

• Steering Linkage

• Use properly mixed winter fuel when tempera-

tures are extremely cold. In most areas, diesel

• Front Axle Pivot

fuel is properly blended for summer and winter

grades as ambient temperatures change. In

• Front Wheel Spindles (2WD)

winter, use winter grade diesel fuel only.

Otherwise, the fuel may cloud and block the fuel

• Power Steering Cylinder

system.

• Pedal ShaftóClutch & Brake Pedals

Fuel Usage Safety

•

UNDER NO CIRCUMSTANCES should gaso-

•

3-Point Linkage

line, alcohol, or gasohol be added to diesel fuel.

To lubricate these points:

These combinations can create an increased fire

or explosive hazard.

1. Wipe away all old grease and dirt from the

•

Never remove the fuel cap or refuel the tractor

lubrication fittings to prevent dirt or foreign

while the engine is running or hot.

material from entering as new grease is applied.

•

Never smoke while refueling or anywhere near

2. Use a high pressure grease gun to force in the

fuel.

new grease. Apply pressure until clean grease

•

When filling the tank, maintain control of the

oozes from each lubrication point.

nozzle.

3. Wipe away any excess grease.

•

Do not fill the fuel tank to capacity. Allow room for

DIESEL FUEL

expansion.

• Use clean, quality No. 1-D or No. 2-D fuel (ASTM

•

Wipe up spills immediately.

D975).

•

Always tighten the fuel cap securely.

• Use No. 1-D fuel if the ambient temperature is

•

If the original fuel tank cap is lost, always replace

expected to be lower than 4°C (40°F) or if the

it with a New Holland approved cap. A ìwill-fitî

loader is to be used at an altitude exceeding 1524

cap may not be safe.

m (5000 ft.).

•

Keep equipment properly maintained.

• Use No. 1-2 diesel fuel with a pour point of at

least -12°C (10°F) below the expected ambient

•

Do not drive equipment near open fires.

temperature to prevent fuel flow problems in cold

•

Never use gasoline for cleaning parts.

weather.

• Keep dirt from entering the fuel tank.

3-3

SECTION 3 - LUBRICATION AND MAINTENANCE

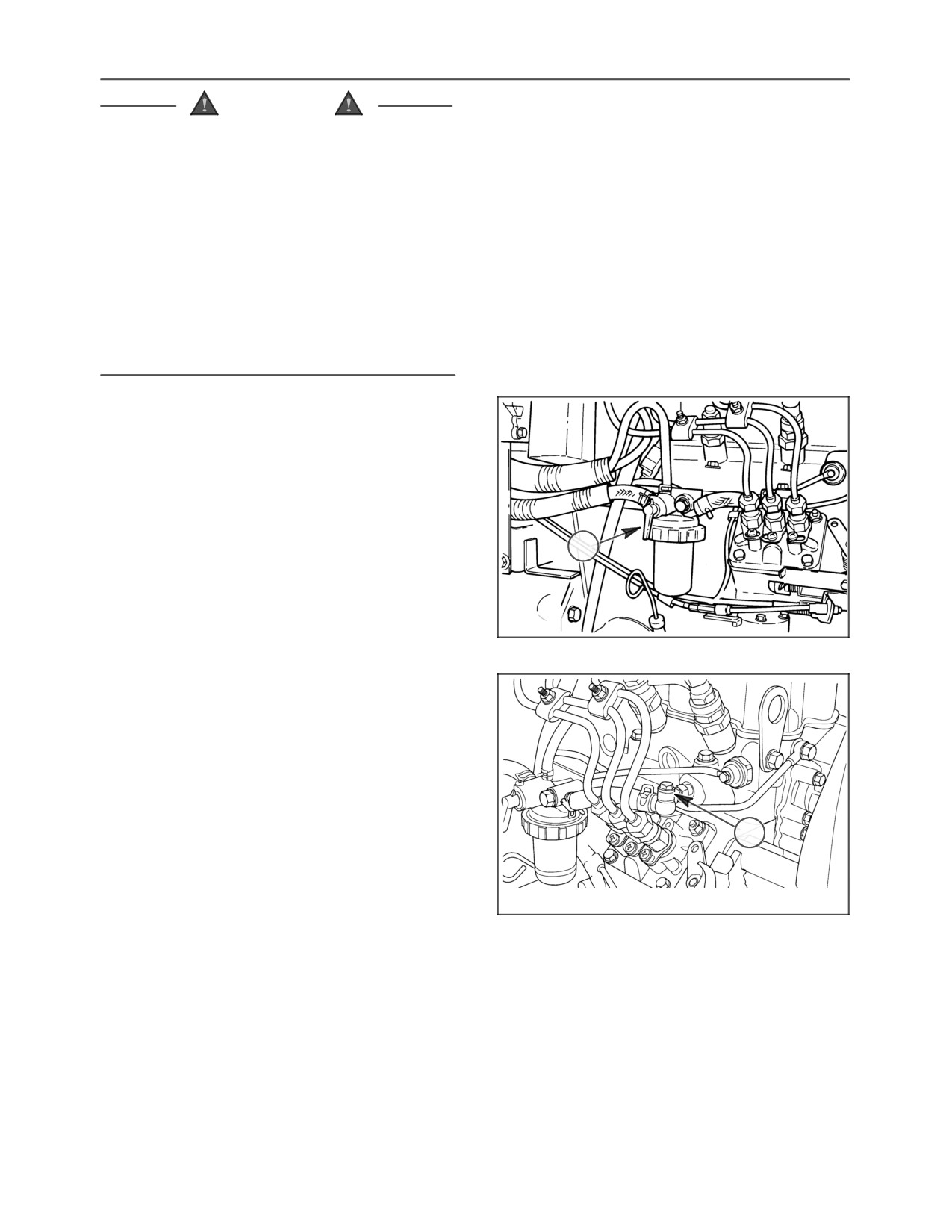

WARNING

Fuel oil in the injection system is under high

pressure and can penetrate the skin. Unqualified

persons should not remove or attempt to adjust

a pump injector, nozzle, or any part of the fuel

injection system.

• Do not use your hand to check for leaks. Use

a piece of cardboard or paper to search for

leaks.

• If any fluid is injected into the skin, obtain

medical attention immediately or gangrene

may result.

Failure to follow these instructions can result in

serious injury.

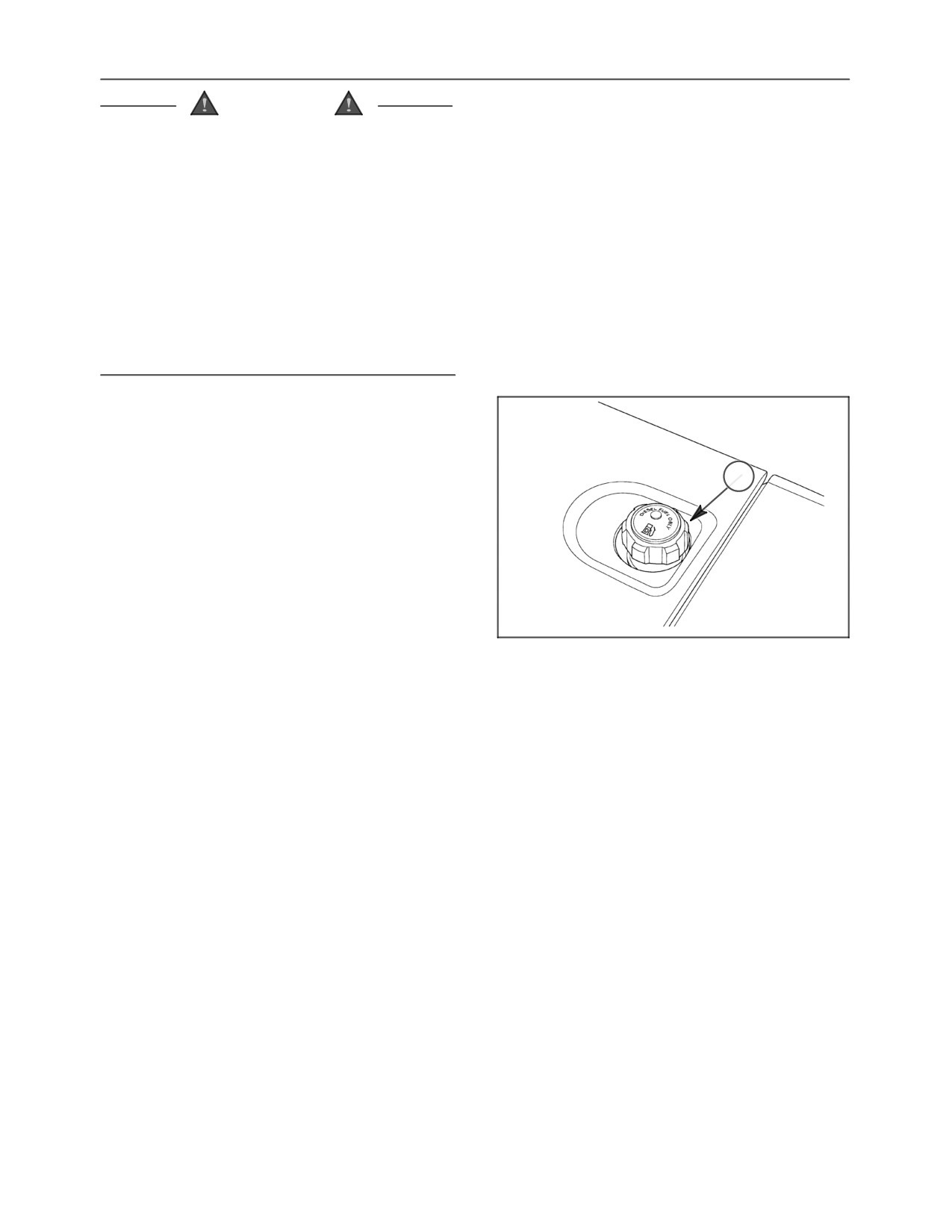

Refueling the Tractor

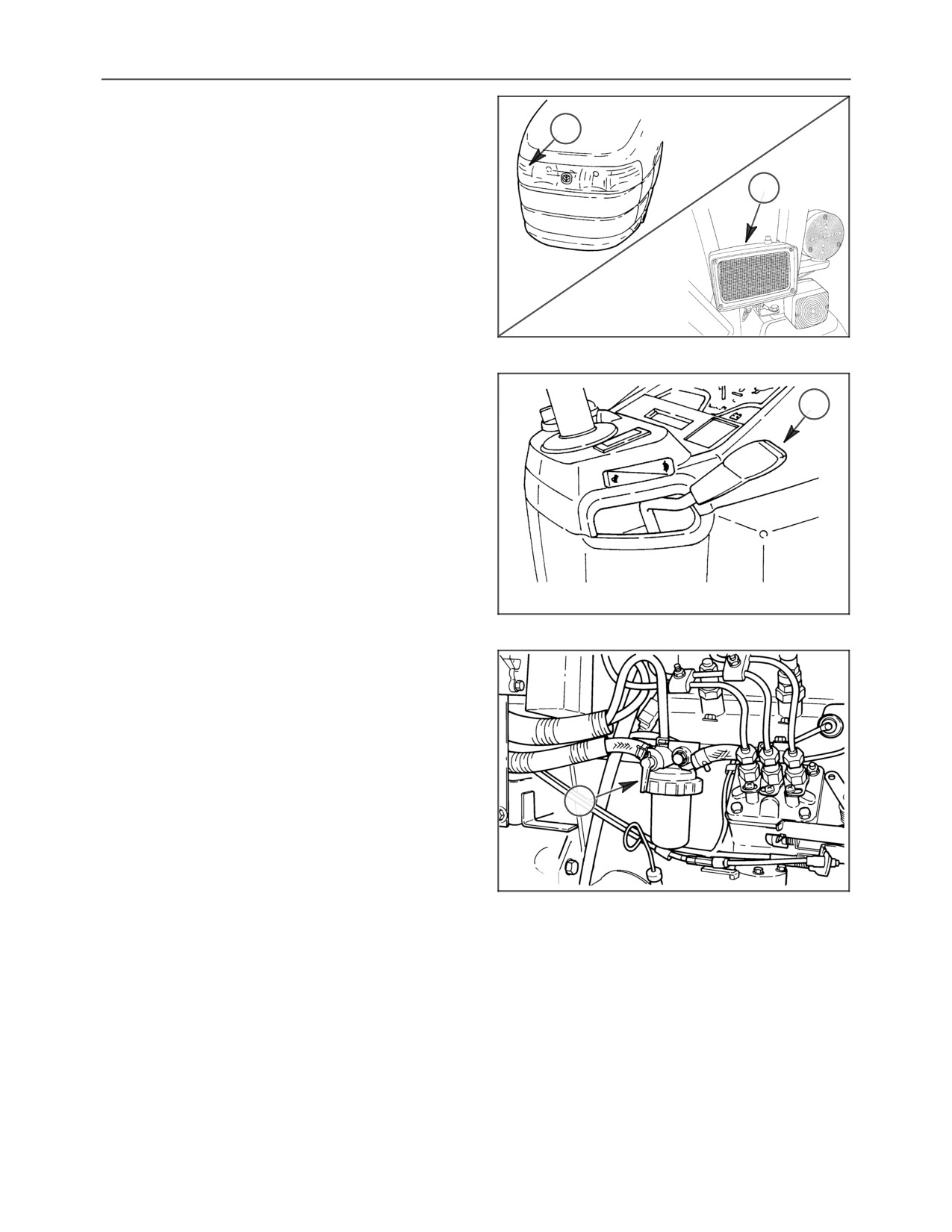

The fuel tank filler cap, 1, is located at the right rear

corner of the tractor hood. Before removing the cap,

wipe all dust and dirt from around the cap to prevent

debris from falling into the tank while filling.

Use an approved fuel container and check the inside

of the container periodically for cleanliness. Fuel tank

capacity is 20L (5.3 gal).

NOTE: The fuel cap is a vented-type. Use only an

approved New Holland replacement cap to prevent

fuel system-related problems.

19983660

If there is no filter on the storage tank or fuel

container, filter the fuel through a 100-mesh or finer

screen when filling the tractor fuel tank. Keep the

tractor tank as full as possible (without filling to

capacity) to minimize condensation.

NOTE: It is a good practice to fill the fuel tank at the

end of each day, as this will reduce overnight

condensation.

3-4

SECTION 3 - LUBRICATION AND MAINTENANCE

FUEL AND LUBRICANT SERVICE PROCEDURES

ENGINE

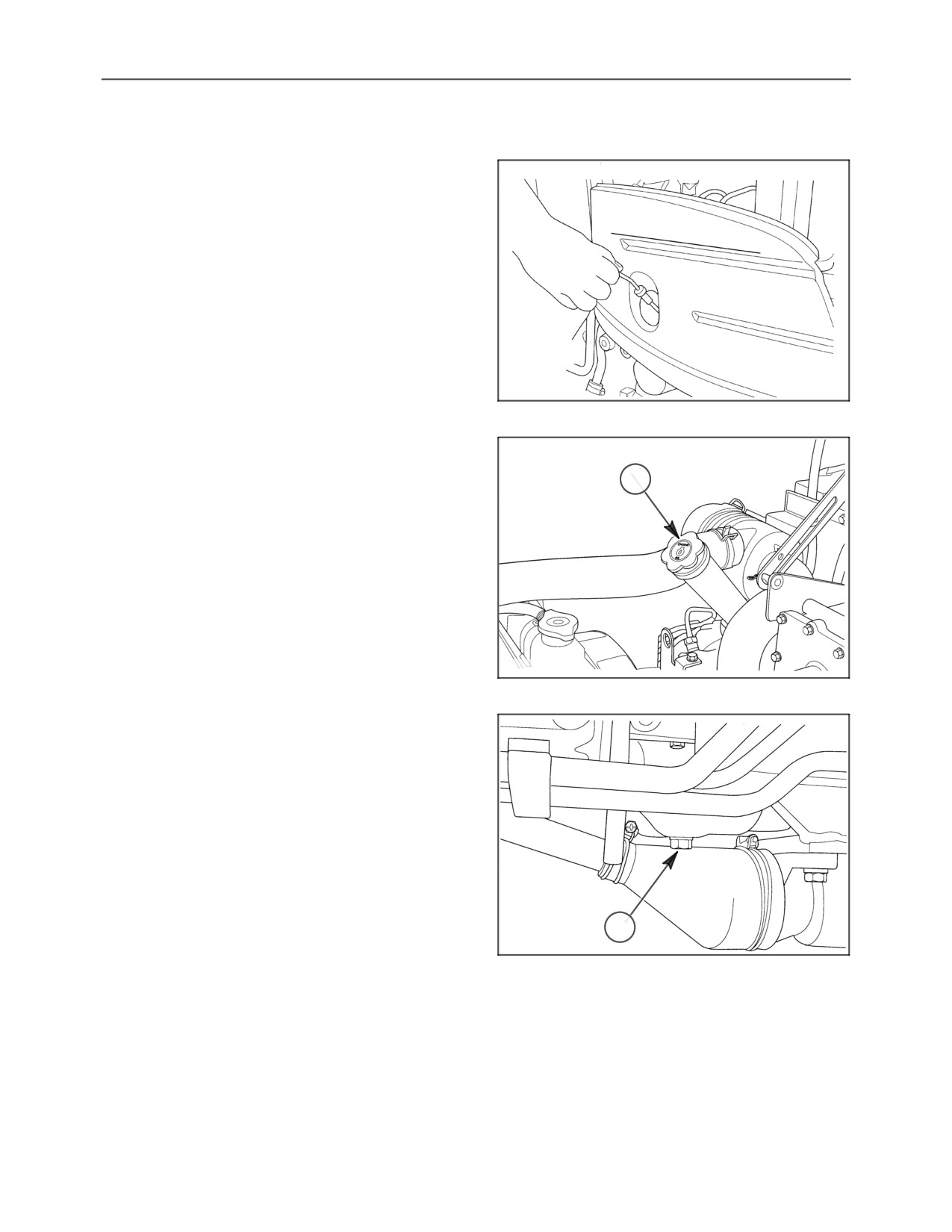

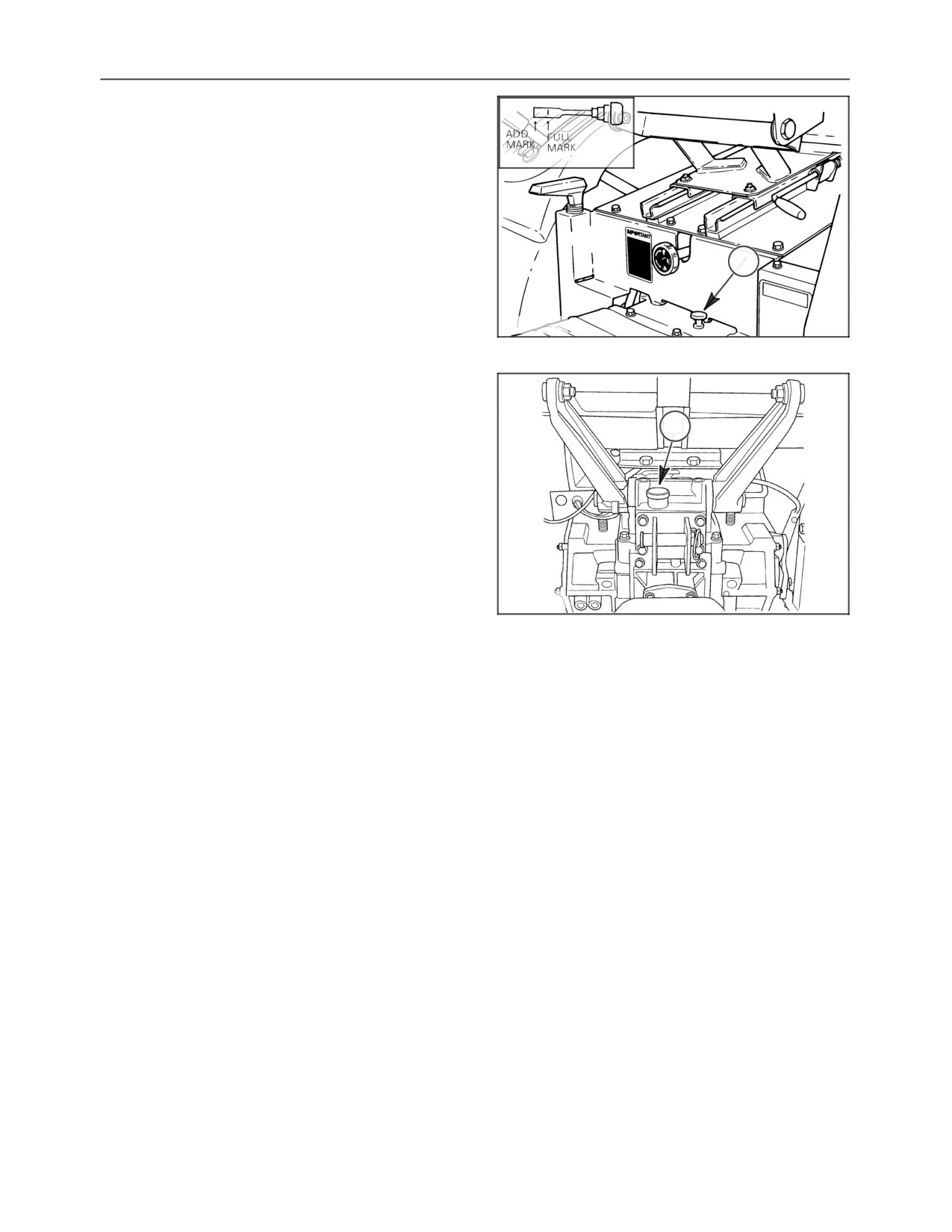

Checking the Engine Oil Level

NOTE: Check the engine oil level daily or after every

10 hours of operation.

1. After the engine has been stopped for a period of

time and with the tractor standing level, check the

oil level using the dipstick.

19984106

2. If the oil level is low, remove the filler cap, 1, and

add oil through the filler hole. Add enough oil so

that the level registers between the two marks on

the dipstick. Do not overfill.

19983667

Changing the Engine Oil

NOTE: Change the engine oil and filter after the first

hours of operation, then every

100

hours

thereafter. If the tractor is operated for extended

periods of time at maximum rated power and speed,

or under other types of continuous, severe operating

conditions, the engine oil and filter should be

changed at 70-hour intervals following the initial oil

change.

To change the engine oil:

1. Place a suitable container beneath the drain

19983668

opening to catch the used oil. With the tractor

engine off but at normal operating temperature,

remove the drain plug, 1. Reinstall the plug after

all of the oil has been drained.

3-5

SECTION 3 - LUBRICATION AND MAINTENANCE

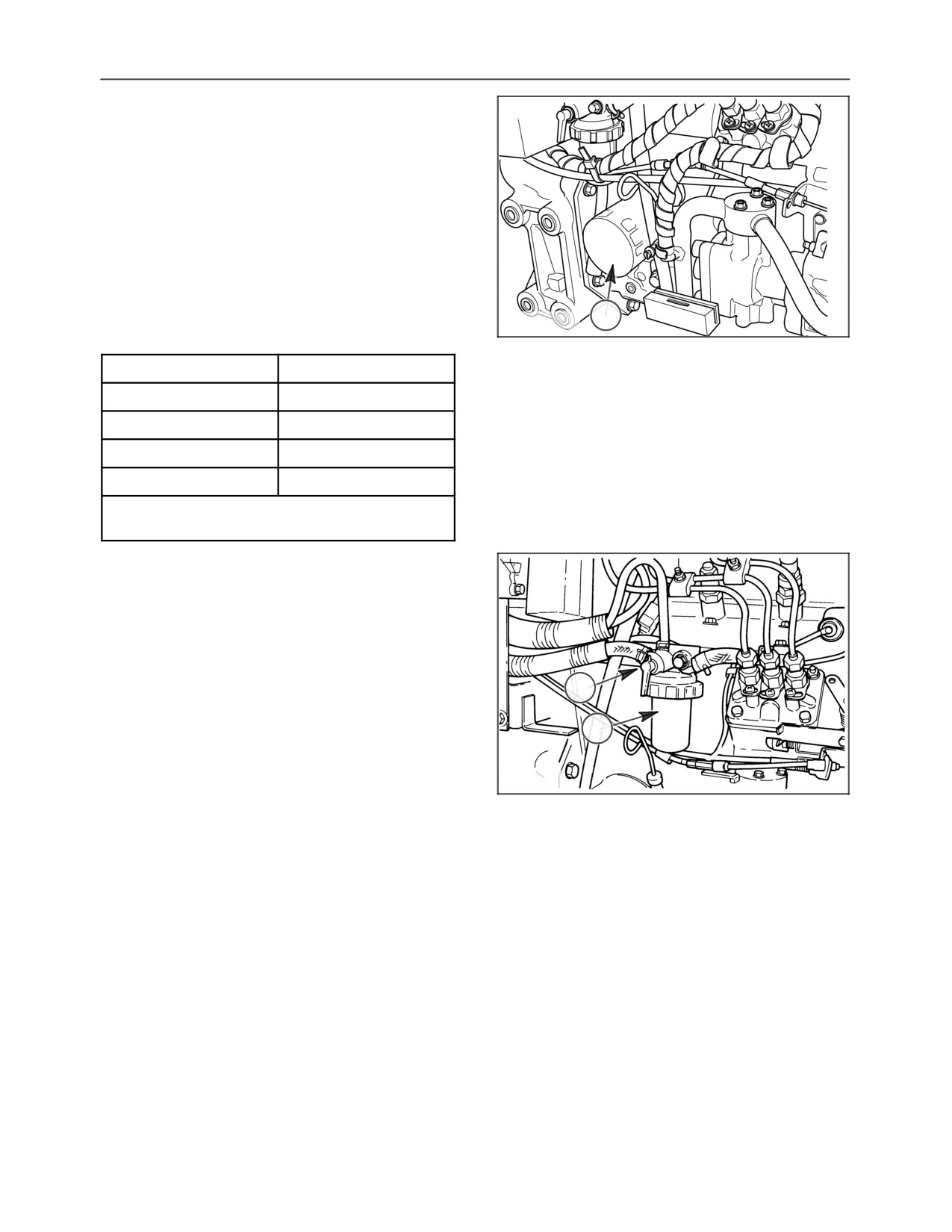

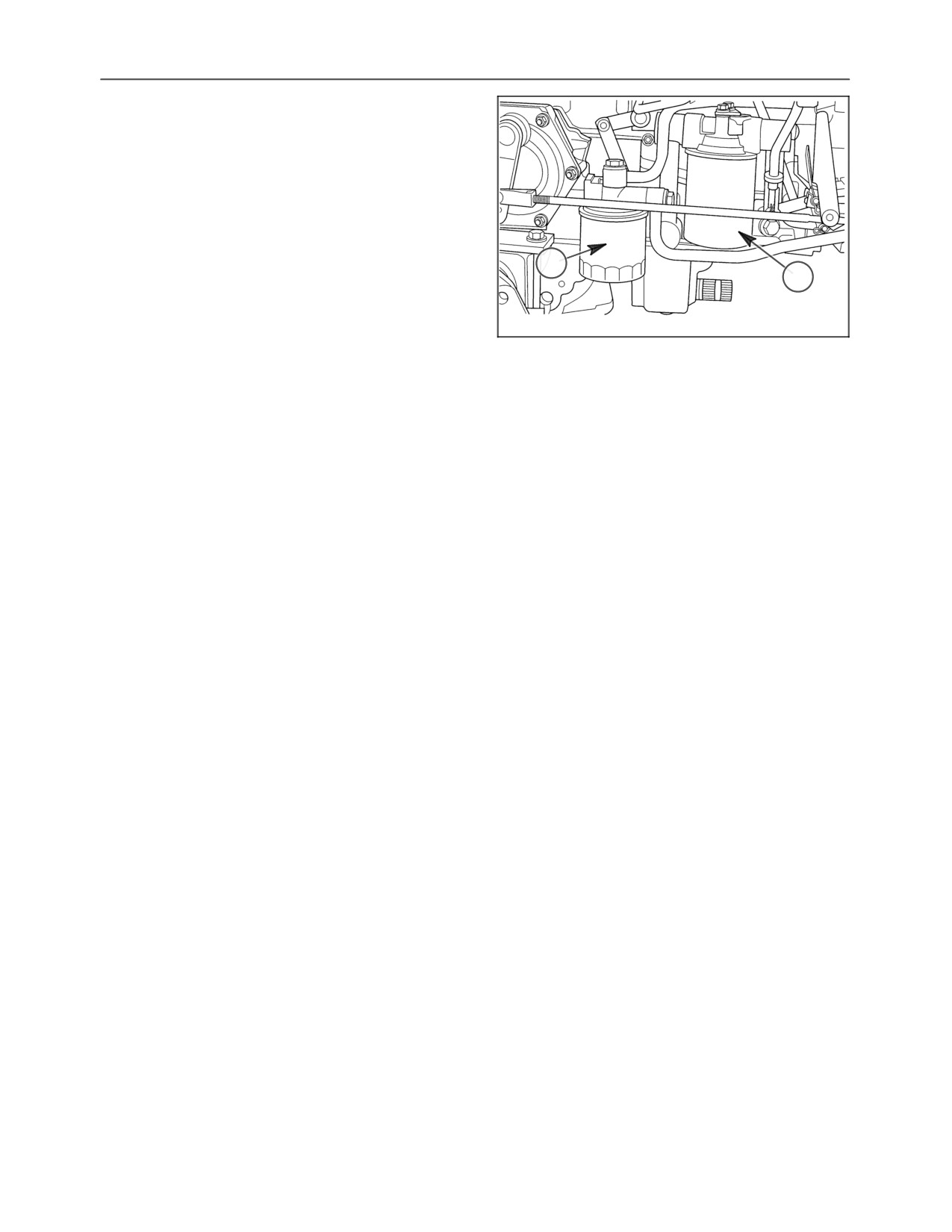

2. Next, place a container below the oil filter, 1, to

catch the used oil and unscrew the oil filter.

Discard the used oil and filter.

3. Coat the gasket on the new filter with a film of

clean oil. Screw the filter into place until the

gasket contacts its mating surface, then turn the

filter approximately three-quarters of a turn by

hand. Do not overtighten.

4. Add the proper type and level of new oil, then

start the engine and check the filter for leaks.

10020241

Recommended Oils

Ambient Temp (°F)

Recommended Oil

+ 40-120°

SAE 30W

+ 10-120°

SAE 15W-40

- 10-120°

SAE 10W-30

- 20-60°

SAE 5W-30

NOTE: Tractors are originally shipped with

10W-30 oil.

FUEL FILTER

Draining the Fuel Filter

NOTE: The fuel filter should be drained after every

100 hours of operation.

1. Make sure there is adequate fuel in the fuel tank

and close the fuel shutoff valve, 1 (the handle

should be pointing to the ìCî position). Remove

the fuel sediment bowl, 2.

19983651

2. Open the fuel shutoff valve until all water has

been removed and only fuel flows from the filter

base.

3. Install the fuel sediment bowl and bleed the

system as outlined in ìBleeding the Fuel

System.î

NOTE: Valve is shown in open position.

3-6

SECTION 3 - LUBRICATION AND MAINTENANCE

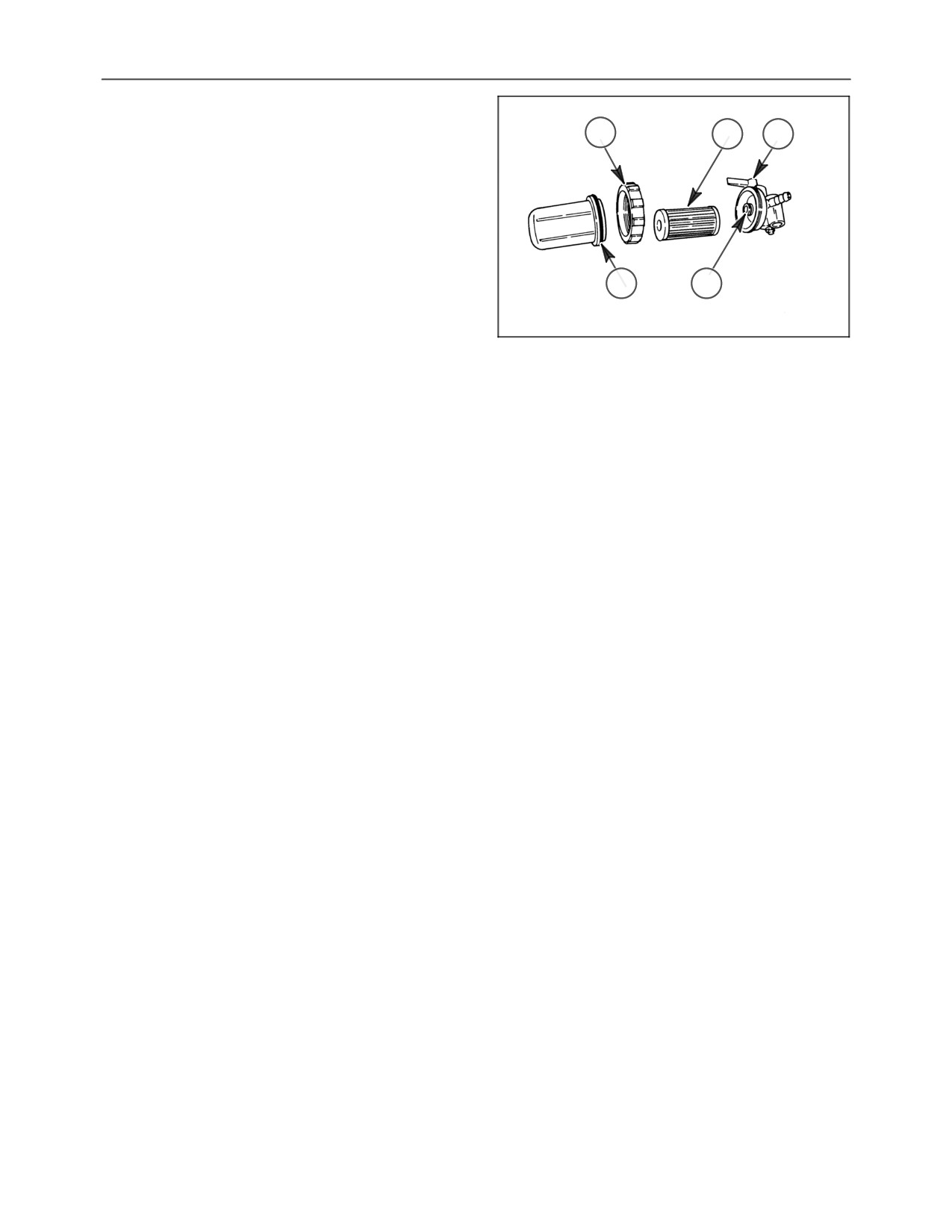

Changing the Fuel Filter

NOTE: Change the diesel fuel filter after the first 50

hours of operation, then following every

200

operating hours thereafter.

1. Close the shutoff valve (the handle should be

pointing to the ìCî position).

2. Remove the sediment bowl by rotating the

retaining nut, 1.

3. Open the fuel shutoff valve, 2, to drain any

remaining water from the tank.

4. Discard the old element, 3, and install a new

element.

5. Inspect the O rings, 4 and 5, and replace if

necessary.

6. Install and securely tighten the sediment bowl.

7. Open the fuel shutoff valve (the handle should be

pointing to the ìOî position), 2, so fuel will flow to

the filter.

8. Bleed the fuel filter and injection pump as

described below in ìBleeding the Fuel System.î

Bleeding the Fuel System

Bleed the fuel system if:

• it has been drained.

• a new filter element has been installed.

• the tractor has run out of fuel.

• the lines leading to or from the filter have been

disconnected.

• the injection pump has been removed and

reinstalled.

3-7

SECTION 3 - LUBRICATION AND MAINTENANCE

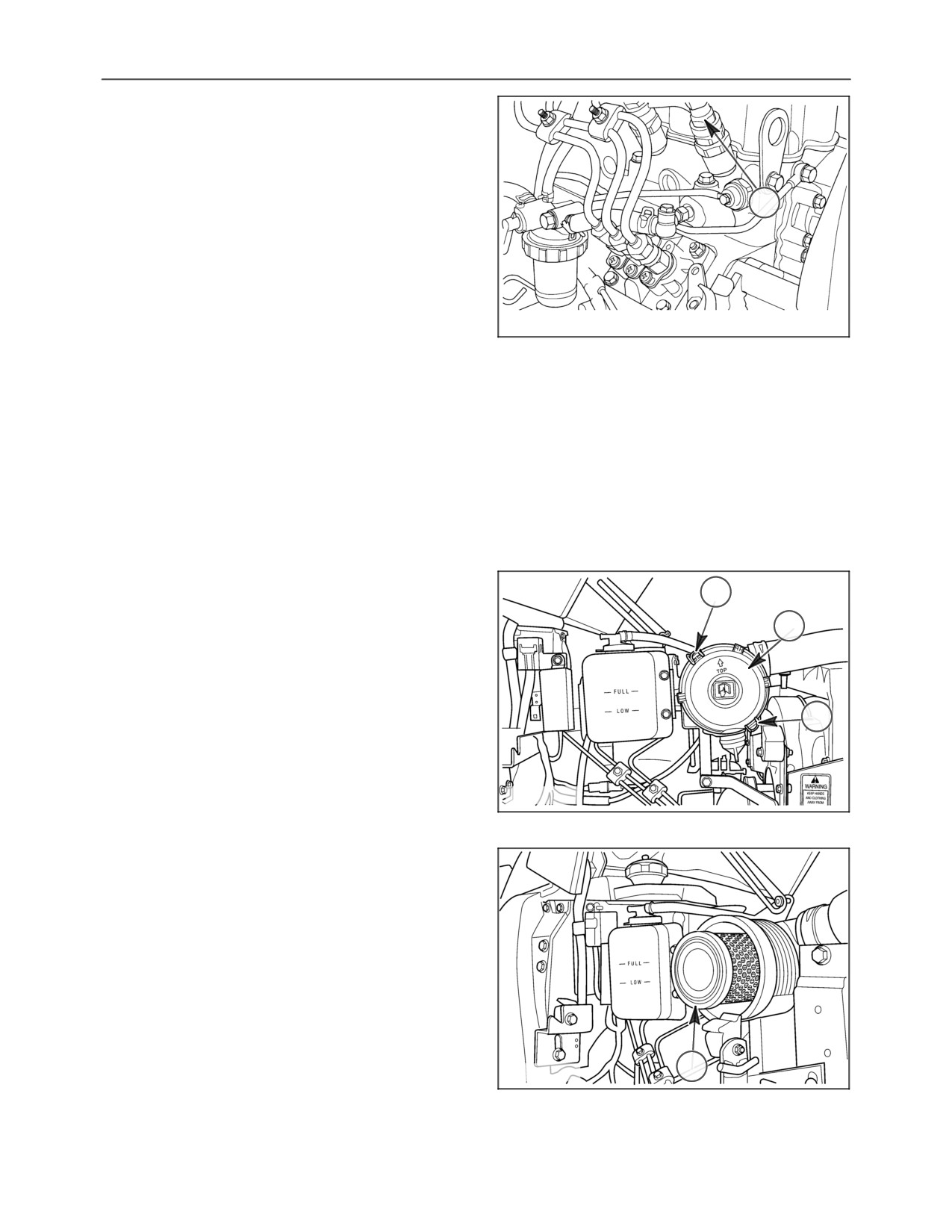

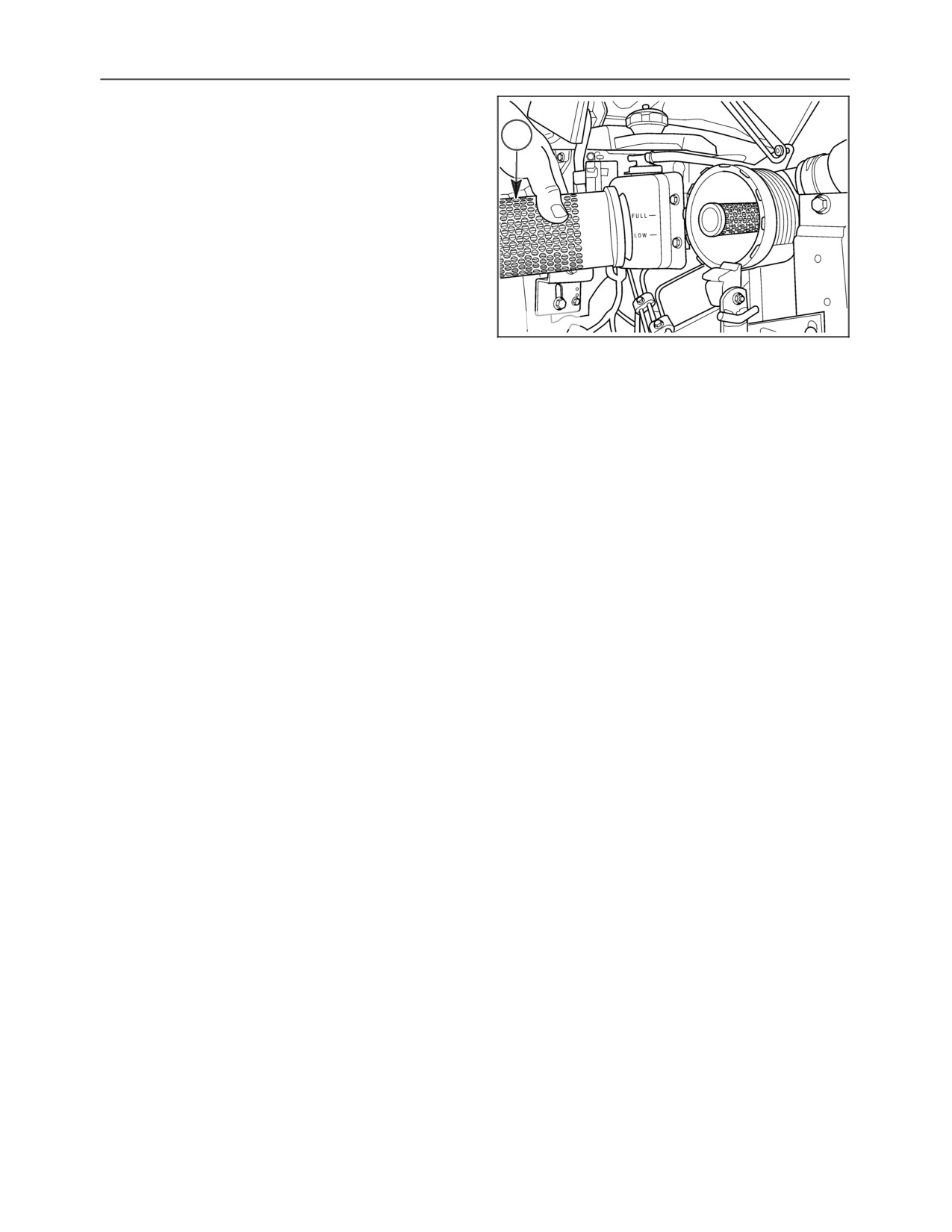

Air Cleaner Primary Element

NOTE: Clean the primary element after every 100

hours of service. Extremely dusty conditions may

require more frequent service intervals.

1. Pull the primary element, 3, from the canister.

Clean any loose dirt from the canister and inspect

the end of the canister for dirt which may prevent

the new element from sealing properly.

2. Clean the primary element using low air pressure

(30 PSI or less). Blow dust from the inside to the

outside of the element (opposite to normal air

10020244

flow through element).

IMPORTANT: Be careful not to rupture the filter

element. Maintain a safe distance between the air

nozzle and the filter element when directing air up

and down the clean air side of the element pleats.

3. After cleaning the element, check the inner

diameter seals for damage. If damage is present,

replace the primary element. Change the

element after six cleanings or once a year.

4. Reinstall the primary element by inserting it into

the canister and pushing on the end of the

element until it is seated against the canister.

NOTE: Place a light inside the element to check for

paper leaks or for bonding of the paper to the end

plate. If any leaks are found, replace the element.

NOTE: If element is not inserted far enough into

canister, the end cap cannot be installed.

5. Place the end cap onto the canister body and

attach spring clamps. Make sure the end cap is

locked in place and not loose.

IMPORTANT: Never tap the element with hard

objects or against a hard surface. This may dent or

break the element end cap seals.

IMPORTANT: Failure to obtain a good seal between

elements and the canister may cause major engine

damage.

3-10

SECTION 3 - LUBRICATION AND MAINTENANCE

Air Cleaner Inner Safety Element

NOTE: For maximum engine protection and air

cleaner service life, install a new inner safety element

every third primary element change or after every

1000 hours of operation, whichever comes first.

The air cleaner inner safety element, 1, cannot be

cleaned. It must be replaced once it becomes

partially clogged. A clogged element will cause an air

restriction resulting in a loss of engine power or

excessive black exhaust smoke.

10020245

NOTE: Conduct a visual inspection of the inner

safety element by placing a light inside the element.

Little or no light will shine through the element if it is

partially clogged.

To remove the inner safety element, pull it out of the

canister body.

To install the new element, push it into the canister

until seated.

IMPORTANT: Clean any dirt from the canister before

installing the inner safety element. Check element

inner diameter seals for damage and replace the

safety element if seal damage is present.

IMPORTANT: Failure to obtain a good seal between

the filter and canister may cause major engine

damage.

3-11

SECTION 3 - LUBRICATION AND MAINTENANCE

GENERAL MAINTENANCE

COOLING SYSTEM

The tractor engine must operate at the correct

temperature to obtain maximum efficiency and

service life. This is dependent on the cooling system.

Always fill the system with a

50/50

solution of

permanent antifreeze and clear water.

Checking the Coolant Level

NOTE: Check the coolant level daily or after every 10

hours of operation. The engine should be cold when

50022452

coolant level is checked.

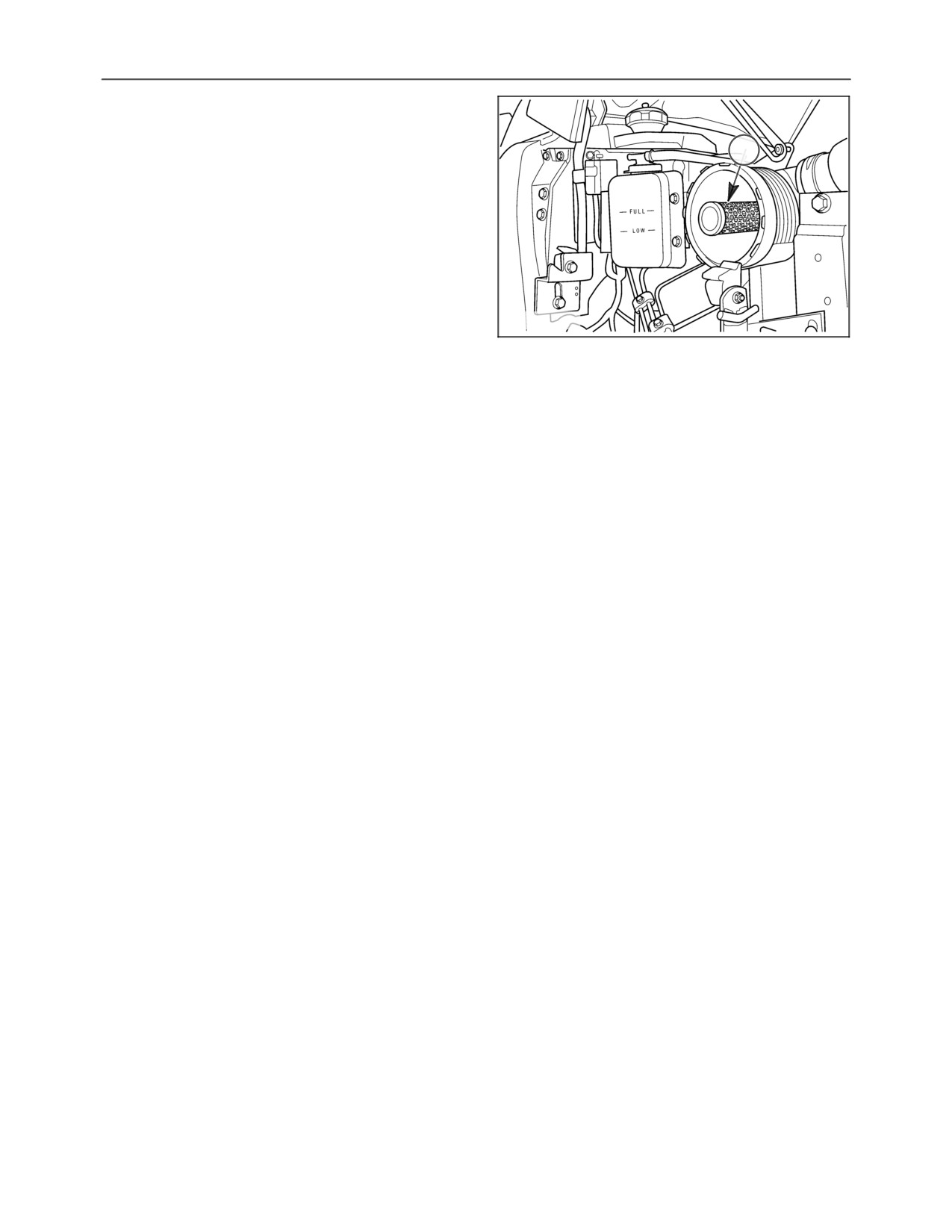

Open the hood, and check the coolant recovery

reservoir located next to the air cleaner. The fluid

should be between the low and the full marks on the

reservoir, 2.

If the coolant recovery reservoir is empty, remove the

radiator cap, 1, and add a 50/50 solution of water and

antifreeze until the radiator is full. Then add the water

antifreeze solution to the coolant recovery reservoir

until it is to the full level.

WARNING

10020242

The cooling system operates under pressure

controlled by the radiator cap. It is dangerous to

remove the cap while the system is hot. Always

cover the cap with a thick cloth and turn it slowly

counterclockwise to the first stop. Allow all

pressure to escape before removing the cap

completely.

If the coolant level is below the low mark on the

reservoir, add a

50/50

solution of water and

antifreeze to the coolant recovery reservoir bringing

the level to the full mark.

Be sure that the radiator fins are clear of chaff and dirt

to allow free air movement.

3-15

SECTION 3 - LUBRICATION AND MAINTENANCE

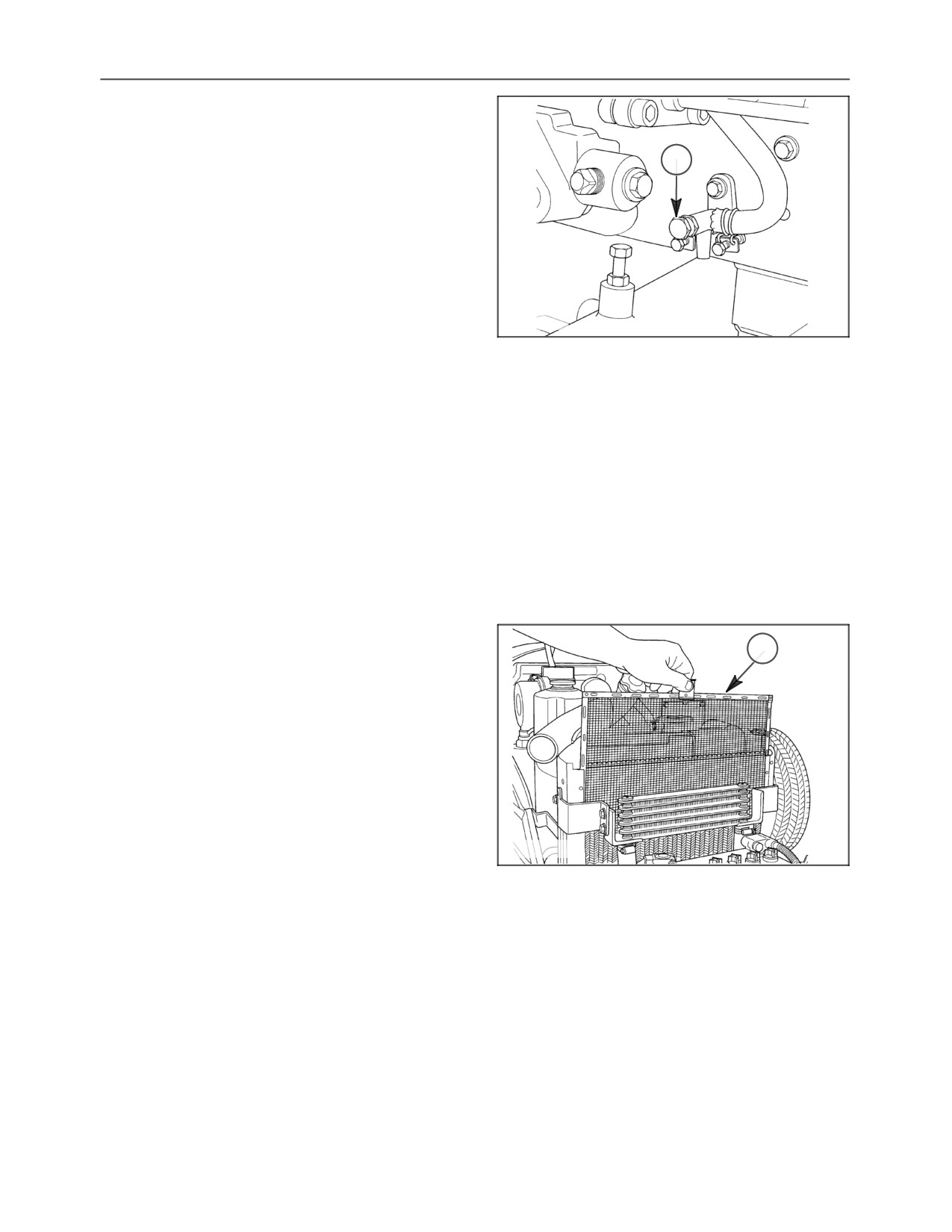

Draining and Flushing the Cooling System

NOTE: Drain and flush the radiator and engine block

every 12 months. Refill with a 50/50 mixture of

permanent antifreeze and clear water.

To drain the cooling system:

Use a suitable receptacle to catch the used

coolant. Remove the radiator cap and open the

drain valve, 1, on the right-hand tractor frame to

drain the radiator and engine block.

After the coolant has drained, place a water hose

19983645

in the radiator filler neck and run water through

the system. When water is flowing from the block

drain valve, start the engine. When the water

flowing from the drain valve is free of

discoloration and sediment, stop the engine and

remove the hose. Allow all water to drain from the

system through the drain valves.

Close the drain valve and slowly refill the system

with a 50/50 solution of permanent antifreeze

and clear water. Fill until the coolant level is

approximately 3.8 cm-5 cm (1-1/2″-2″) below the

bottom of the filler neck. Do not fill beyond this

level.

Clean the radiator cap and cap seal and install

the cap.

Fill the coolant recovery reservoir bringing the

fluid level up until it is between the full and low

marks on the reservoir.

Clean the radiator front screen, 2.

Run the engine until normal operating tempera-

ture is reached, then stop the engine. Recheck

the coolant level when the engine is cold and add

additional coolant as necessary.

IMPORTANT: Never run the engine when the cooling

system is empty. Do not add cold water or cold

antifreeze solution if the engine is hot.

19983646

3-16

SECTION 3 - LUBRICATION AND MAINTENANCE

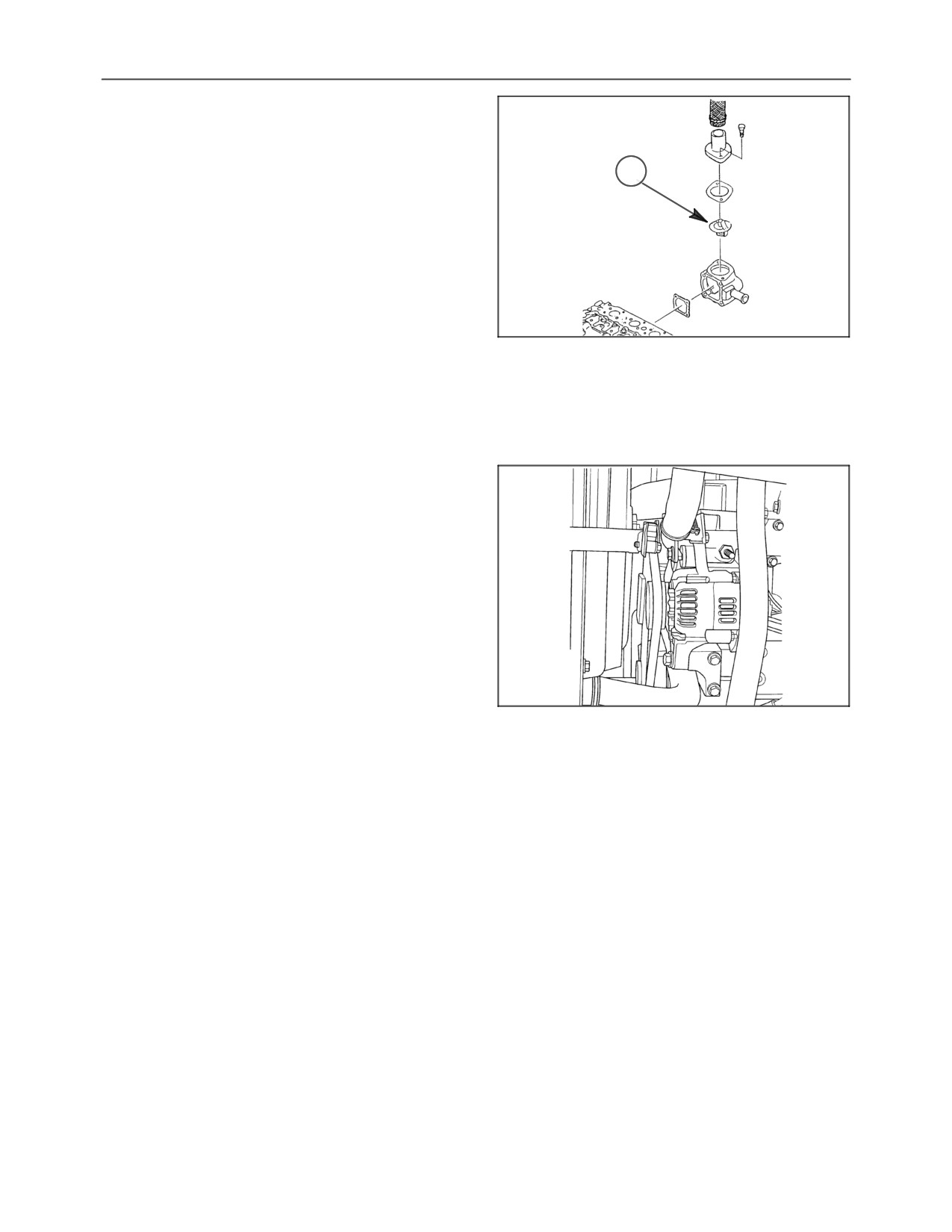

Thermostat

The thermostat is a heat-sensitive valve located in

the coolant outlet connection in the front of the

cylinder head.

When the engine is cold, the thermostat shuts off the

flow of coolant to the radiator, allowing for rapid

engine warm-up. A recirculating bypass allows

coolant to circulate inside the engine whenever the

thermostat shuts off flow to the radiator.

IMPORTANT: Do not attempt to improve cooling by

removing the thermostat. This will cause the engine

to run below normal working temperatures, resulting

in excessive engine wear.

To install a new thermostat, 1, position it in the recess

of the water outlet connection so that the heat

element (spring end) is in the cylinder head of the

engine.

Fan Belt

NOTE: Check the condition of the fan belt after every

50 hours of operation. Check fan belt tension after

every 200 hours of operation.

A belt-driven fan located at the front of the engine

draws air through the fins of the radiator to lower the

temperature of the radiator coolant.

When 9-11 kg (20-25 lbs.) of thumb pressure is

applied midway between the belt pulleys, a correctly

tightened belt will deflect

mm-15

(7/16″-9/16″).

19983638

If the fan belt is slipping, fan efficiency is lowered,

resulting in the engine running too hot. If the belt is

too tight, the life of the alternator bearing will be

shortened. If the fan belt shows signs of cracking or

fraying, install a new one.

3-17

SECTION 3 - LUBRICATION AND MAINTENANCE

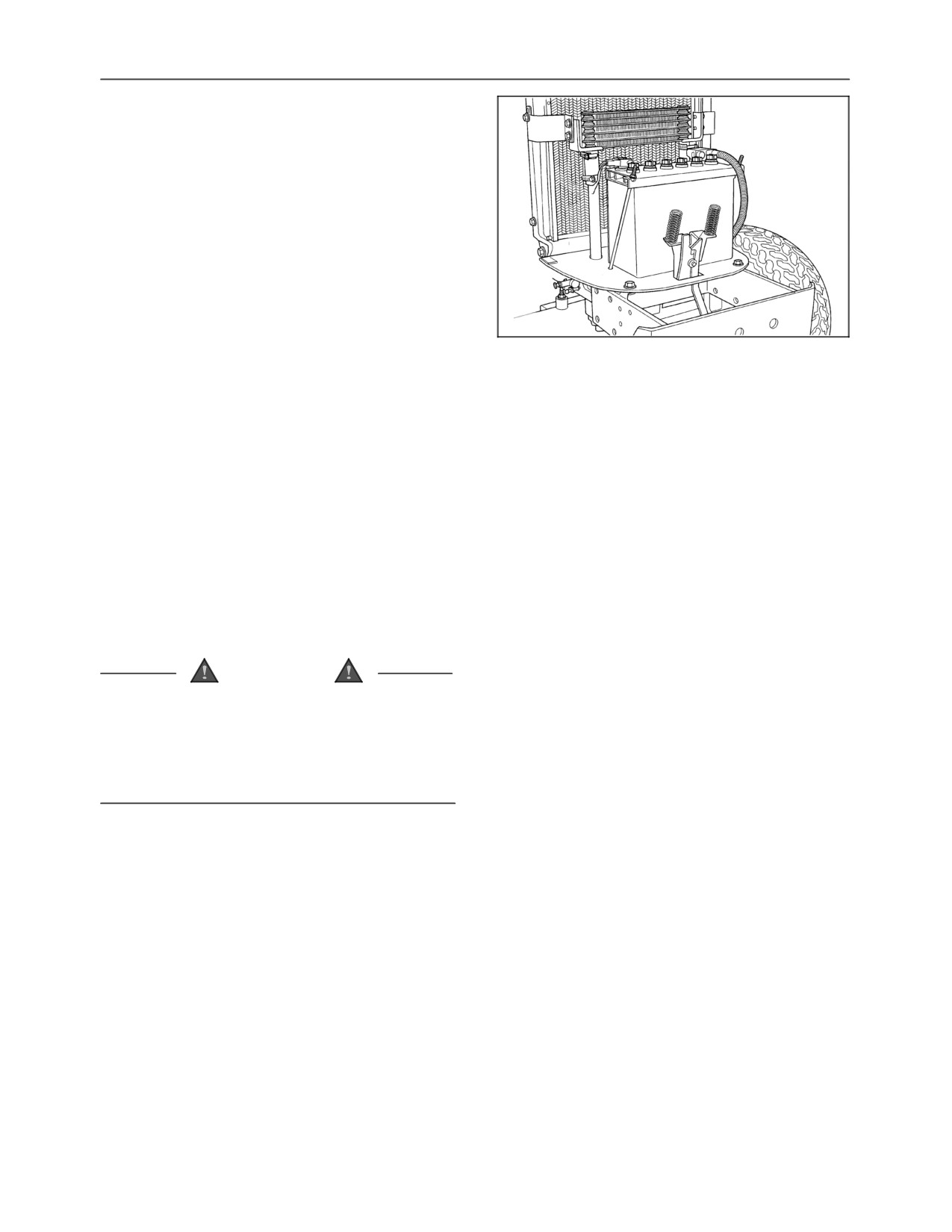

BATTERY

The tractor is equipped with a BCI group 45, 12-volt

battery with a minimum cold cranking ability of 325

amps at -18°C (0°F).

Make sure the battery connections are tight and free

of corrosion. A solution of baking soda and water may

be used to wash the outside surface and terminals of

the battery when necessary. However, make sure the

solution does not get inside the battery. After

cleaning, wash the battery with clean water, then

apply a small amount of petroleum jelly to the

terminals to prevent corrosion.

50022453

In freezing temperatures, a good battery charge

must be maintained. If the battery becomes

discharged or run down, the electrolyte becomes

weak and may freeze, causing damage to the case.

If you must add water, use distilled water. Add the

water just before using the tractor so that the water

will mix with the electrolyte during the charging

process, thus preventing the water from freezing.

To determine the battery charge, check the specific

gravity of the electrolyte.

Checking the Electrolyte Level

NOTE: Check the battery electrolyte level after every

50 hours of operation.

WARNING

Always check the electrolyte level with the

tractor engine off, as an explosive gas is

produced inside the battery when the alternator

is charging. Do not use an exposed flame and do

not smoke when checking the battery electrolyte

level.

To check the battery electrolyte level:

1. Clean the top of the battery, then remove the vent

plugs.

2. Add distilled water if the electrolyte level is low.

The level is correct when the liquid is 6.35 mm

(1/4″) above the plates.

NOTE: Keep distilled water in a nonmetallic

container that is clean and well-covered.

3-20

SECTION 3 - LUBRICATION AND MAINTENANCE

3. Install the vent plug after making sure the vent

holes are not blocked. At below freezing

temperatures, run the engine for a period of time

after adding water, allowing the battery to charge,

which prevents the water from freezing.

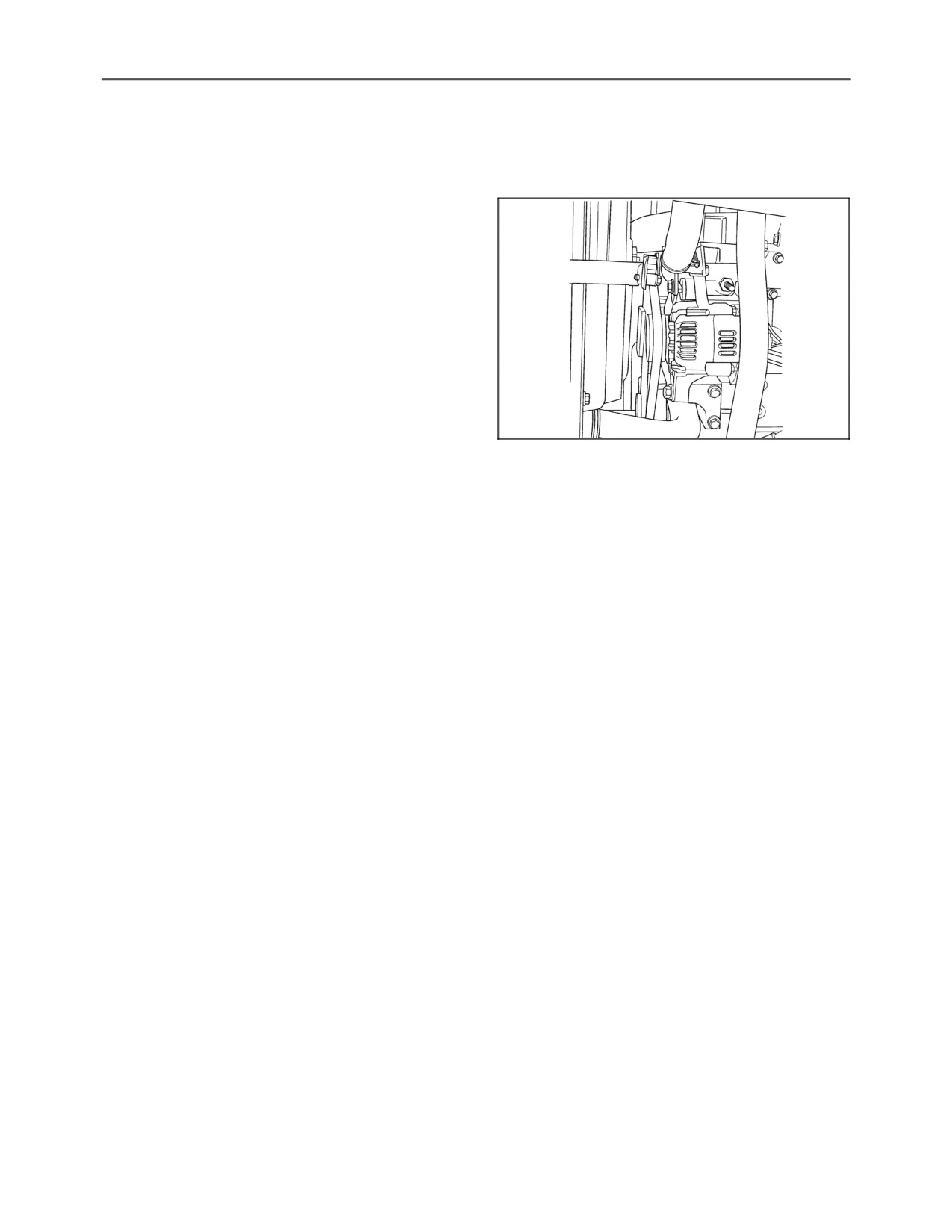

ALTERNATOR

The tractorís 35-amp alternator is belt-driven from

the engine crankshaft pulley. It is important that belt

slippage does not occur, or the charging system will

be affected. To adjust the belt, see the instructions

previously given under the ìFan Beltî section.

Other than belt adjustment, the only alternator

maintenance required is to periodically inspect the

terminals to ensure they are clean and tight. The

alternator cooling fan should also be cleaned

periodically.

19983638

When working on or checking the alternator, adhere

to following precautions or alternator damage may

occur:

• Do not UNDER ANY CIRCUMSTANCES short

the field terminal of the alternator to ground.

• Do not disconnect the alternator output lead or

battery cables while the alternator is operating.

• Do not remove the alternator from the tractor

without first disconnecting the negative

(-)

battery cable. When removing the battery,

disconnect the negative (-) cable first.

• To install a battery, MAKE SURE that the positive

(+) cable is connected first and that the negative

terminal is connected to ground. Reverse

polarity will destroy the rectifier diodes in the

alternator.

If the battery charge warning light illuminates,

indicating that the alternator is not charging the

battery, check the fan belt and the wiring

connections. If these items are in satisfactory

condition and the warning light continues to indicate

no charge, consult your New Holland Dealer.

3-21

SECTION 3 - LUBRICATION AND MAINTENANCE

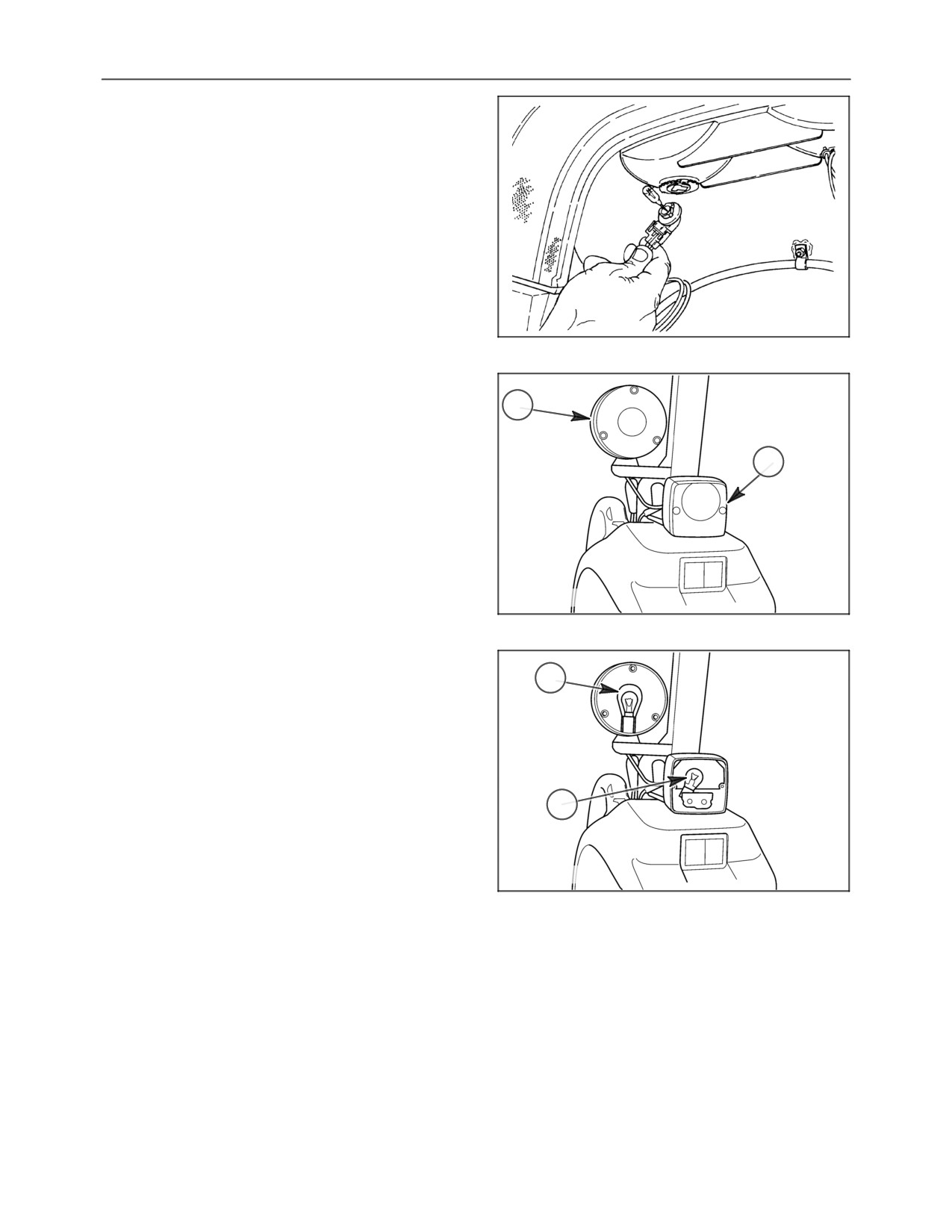

HEAD LAMP

If a head lamp fails to operate, the bulb must be

replaced. To change the bulb:

1. Open the tractor hood.

2. Rotate the socket counterclockwise a quarter

turn and remove the socket from the housing.

3. Remove the bulb assembly from the harness.

4. Place a new bulb in the socket, then reinstall the

socket in the housing.

NOTE: Replace with a halogen bulb, size 894.

TAILLIGHT (1, Figure 36)

To replace taillight bulb:

1. Insert a screwdriver between the lens and light

body and pry the lens from the body.

2. Push down on the bulb and rotate it counterclock-

wise in the socket to remove.

3. Insert a new bulb, 3, into the socket and turn in

a clockwise direction until the bulb is locked into

place.

NOTE: Replace with a 67/10-12-volt bulb.

10020239

FLASHER WARNING LIGHTS (2, Figure 36)

Two flasher warning lights, 2, are present on the

tractor, one attached to the ROPS on each side of the

tractor.

To replace a flasher warning light bulb:

1. Remove the three screws from the rear of the

lens.

2. Pull the lens away from the body.

3. Push in on the bulb,

4, and rotate it

10020240

counterclockwise in the socket to remove.

4. Insert a new bulb into the socket and turn it in a

clockwise direction until the bulb is locked into

place.

NOTE: Replace with a 1156-12-volt bulb.

3-23

SECTION 3 - LUBRICATION AND MAINTENANCE

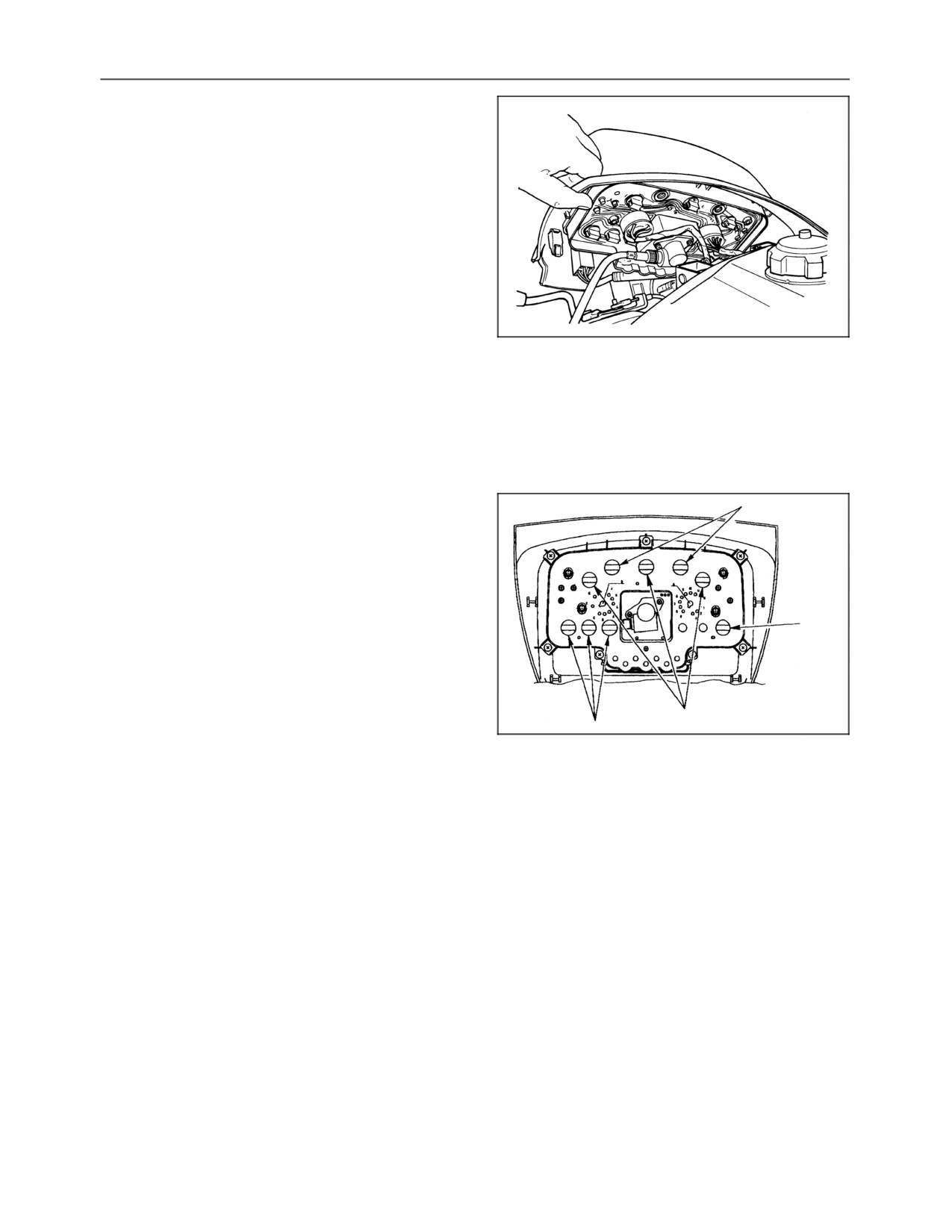

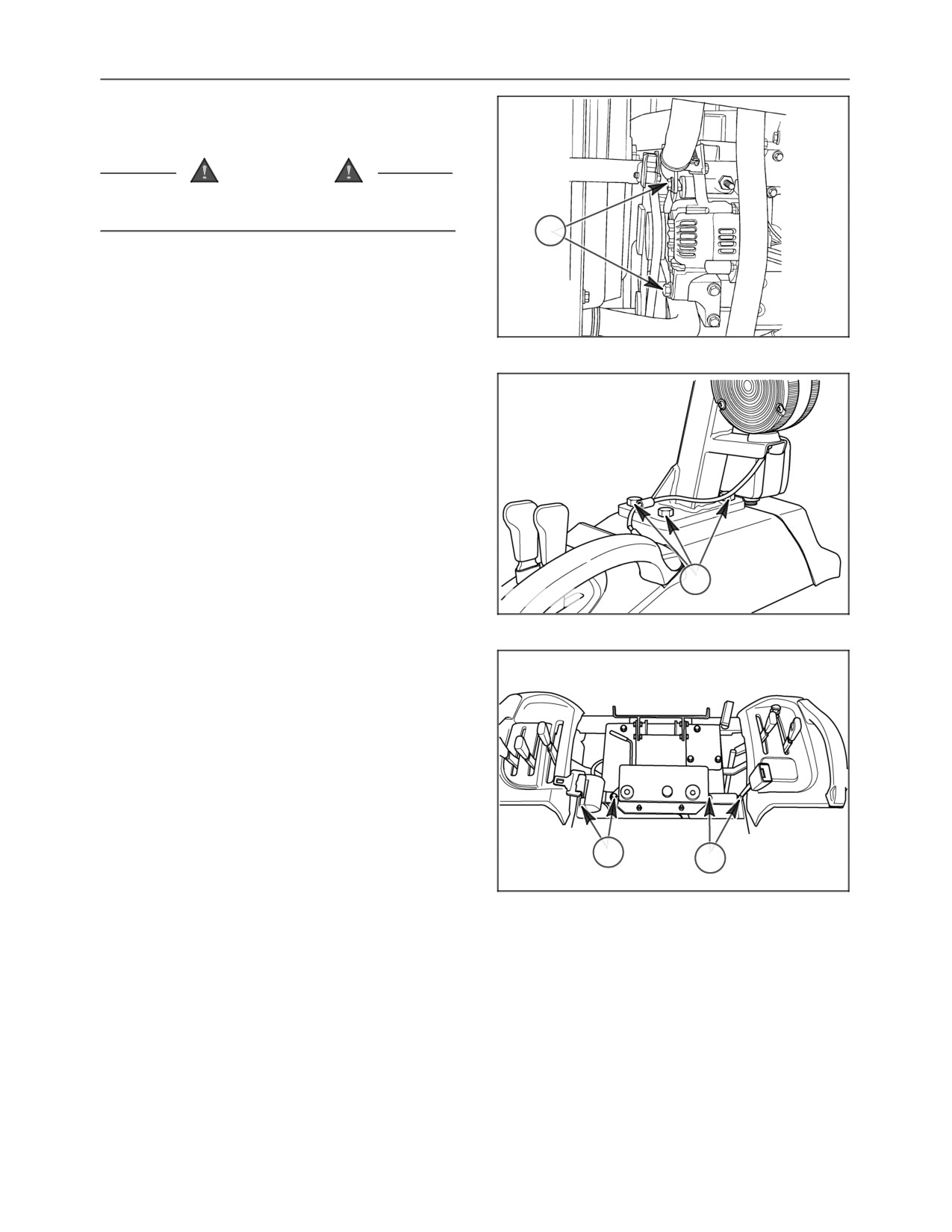

INSTRUMENT LIGHTS

To change a burned out instrument bulb:

1. Move the rubber ring that is around the steering

column up the steering column so that it is tight

against the steering wheel.

2. Remove the rubber plug that is in the hole on the

left side of the dash (the hole that matches the

one where the hand throttle is on the right side).

3. The dash is held to the tractor with simple spring

clips, and can be pulled away from the console

19981879

by simply placing oneís hands in the holes on

each side of the paneling and pulling upward.

4. Once the dash piece, includes the instrument

panel, is separated, the bulbs on the instrument

panel can be accessed.

5. Rotate the bulb assembly counterclockwise a

quarter turn and remove it from the instrument

panel.

6. Remove the burned out bulb and replace with a

3.4W

new bulb. Reinsert the bulb assembly into the

back of the panel and turn it clockwise a quarter

turn.

7. Reassemble the panel.

NOTE: Replace with the appropriate bulb: either a

size 758 1.7W bulb for gauge lights, or a size 124

3.4W

3.4W bulb for indicator lights.

19983859

1.7W

3.4W

3-24

SECTION 3 - LUBRICATION AND MAINTENANCE

TIRES

•

NEVER INFLATE TO OVER 2.4 BAR (35 PSI)

TO SEAT BEADS. If beads have not been seated

NOTE: Check tire pressure after every 50 hours of

by the time pressure reaches 2.4 bar (35 PSI),

operation or weekly.

deflate the assembly, reposition the tire on the

rim, relubricate both tire bead and rim flanges,

Tire inflation pressure affects the amount of weight a

and reinflate. Inflation beyond 2.4 bar (35 PSI)

tire can carry. Check the air pressure in your tractor

with unseated beads may break the bead or rim

tires, then locate the tires in the ìTire Inflation

with explosive force sufficient enough to cause

Pressuresî chart found in this manual. If necessary,

serious injury.

adjust the tire pressure, being careful not to

overinflate or underinflate. Observe the following

•

After seating the beads, adjust inflation pressure

guidelines:

to recommended operating pressure.

• Do not inflate a tire above the maximum pressure

•

Do not inflate a tire unless the rim is mounted on

shown on the tire. If the tire is not marked, do not

the tractor or is secured so that it will not move if

exceed the maximum pressure shown in the Tire

the tire or rim should suddenly fail.

Inflation chart found in this manual.

•

Do not weld, braze, otherwise repair, or use a

• Do not reinflate a tire that has been run flat or

damaged rim.

seriously underinflated until the tire has been

inspected for damage by a qualified person.

•

Never attempt tire repairs on a public road or

highway.

• When checking tire pressure, inspect the tire for

damaged sidewalls and tread cuts. Neglected

•

Use jack stands or other suitable blocking to

damage leads to early tire failure.

support the tractor while repairing tires.

•

Ensure jack has adequate capacity to lift your

WARNING

tractor.

Inflating or servicing tires can be dangerous.

Trained personnel should service and/or mount

•

Place jack on a firm, level surface.

tires whenever possible.

•

Do not place any part of your body beneath the

tractor or start the engine while the tractor is on

If you must inflate or service tires, follow these safety

the jack.

precautions to avoid injury or fatality:

•

Before adding ballast to the tires, refer to

• Make sure the rim is clean and free of rust.

the information in this manual on ìTractor

Weighting.î

• Lubricate both tire beads and rim flanges with

soap solution. Do not use oil or grease.

• Use a clip-on tire chuck with a remote hose and

gauge. This allows the operator to stand clear of

the tire while inflating.

3-25

SECTION 3 - LUBRICATION AND MAINTENANCE

FRONT WHEEL TOE-IN

Front wheel toe-in adjustments were made on your

tractor at the factory. Normally, the wheels maintain

their toe-in; however, an occasional check should be

made.

Checking Toe-In

To check toe-in:

1. With the front wheels in the straight ahead

position, mark the front of the wheels (not the

tires) at wheel hub height.

2. Measure and record the distance between the

front of the wheels at the marks, then push the

tractor forward or backward until the marks are at

wheel hub height on the rear of the wheel.

3. Measure and record the distance between the

marks at the rear of the wheels.

4. The difference between the dimensions re-

corded in step 2 and step 3 should give 0 mm-5

mm (0″-13/64″) toe-in. This means that the

distance between the marks on the wheels

should be 0 mm-5 mm (0″-13/64″) greater when

the marks are at the rear than at the front.

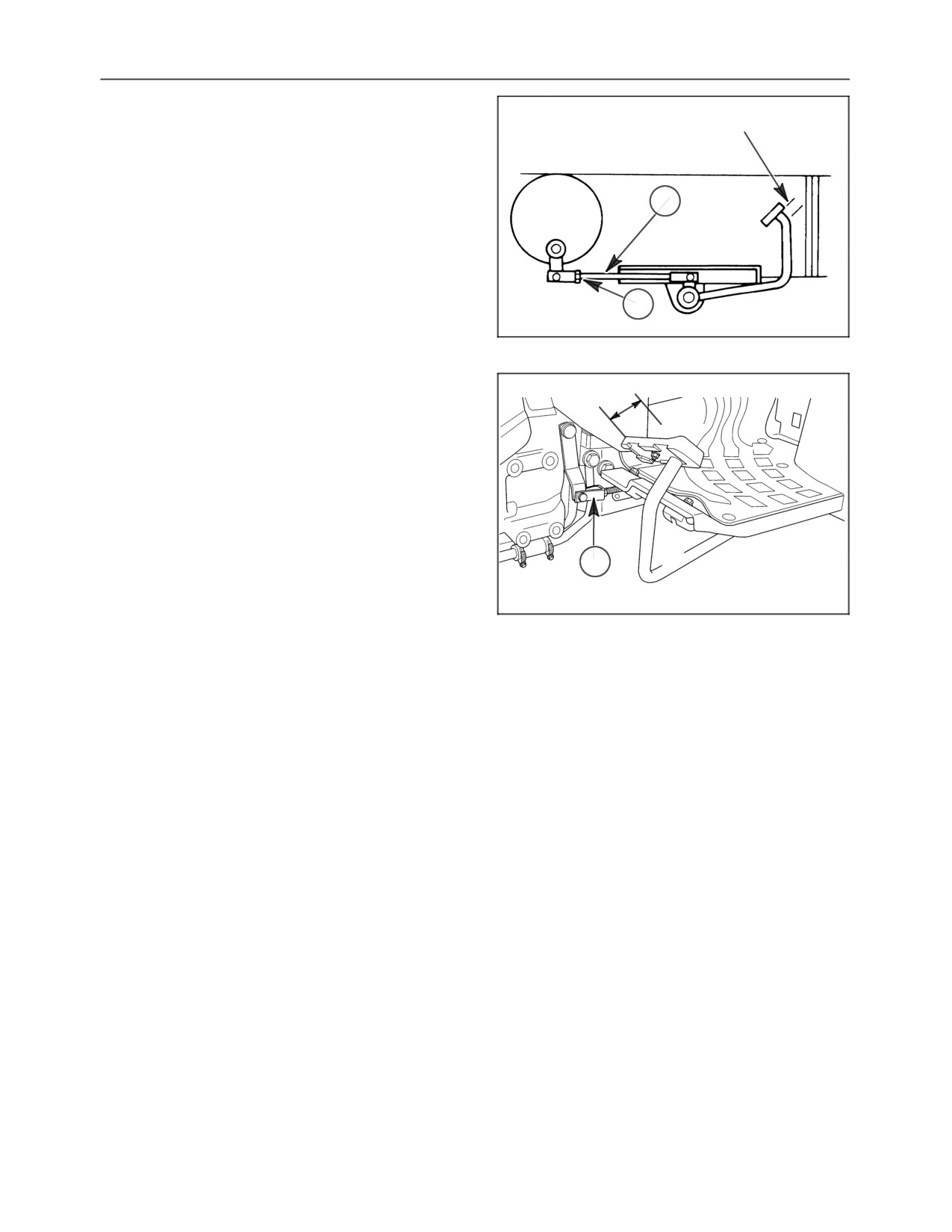

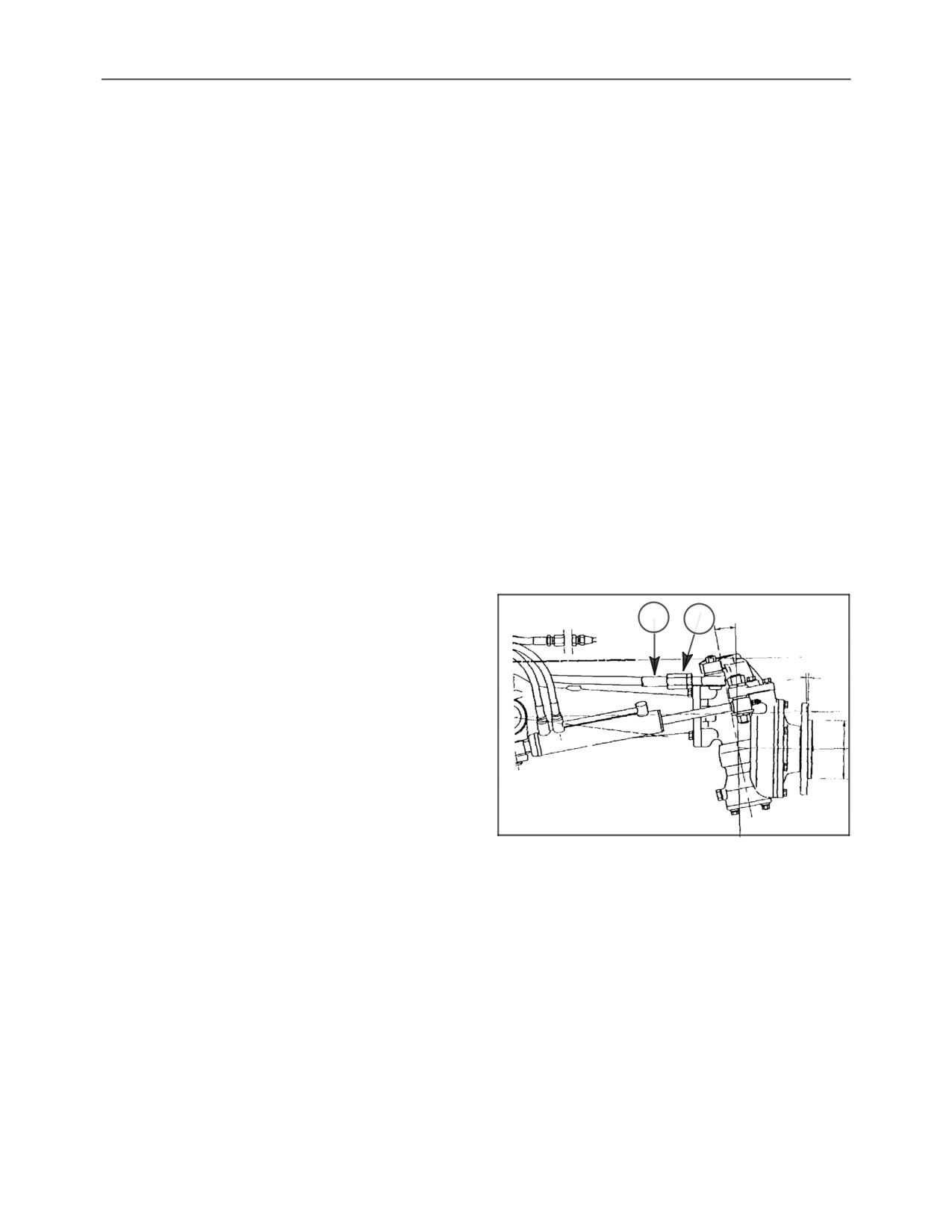

Adjusting Toe-In

If toe-in is not correct, adjust as follows:

1. Loosen the tie rod locknuts, 1.

2. Adjust the tie rod tube assembly, 2, as required

to give 0″-13/64″ (0 mm-5 mm) toe-in.

3. After the correct toe-in is obtained, tighten the tie

rod locknuts.

3-27

SECTION 3 - LUBRICATION AND MAINTENANCE

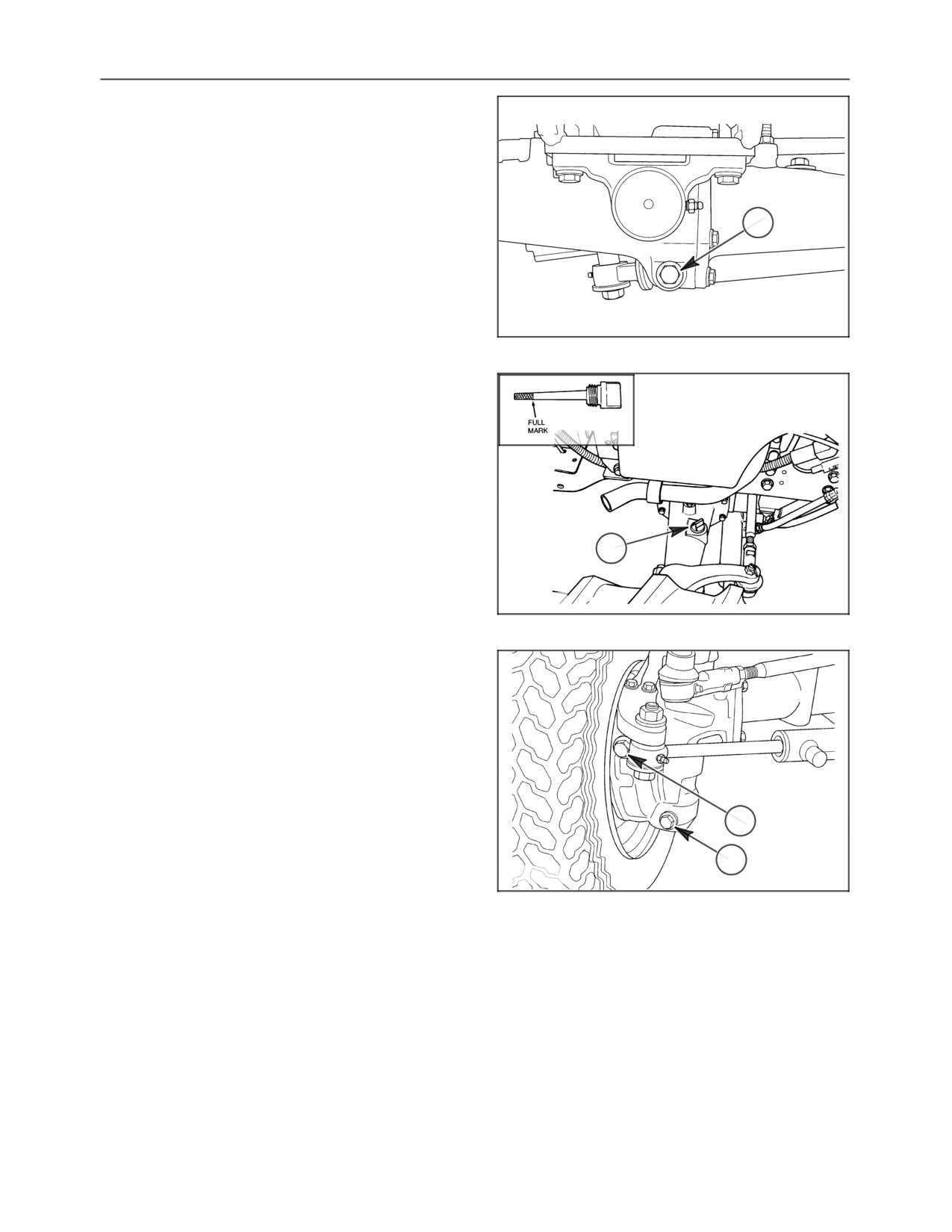

Changing the Front Axle Differential Case and

Final Reduction Gear Case Oil

NOTE: The front axle differential case and final

reduction gear case oil should be changed after

every 300 operating hours.

1. Place a suitable container beneath the oil plug.

With the oil at normal operating temperature,

drain the oil by removing the drain plug, 1, on the

standard FWD axle. After the oil has drained,

reinstall the drain plug and discard the used oil.

19983634

2. Remove the dipstick/filler plug,

3, on the

left-hand side of the axle housing. Fill the axle

with NH 134 hydraulic oil until the oil level is

between the full mark and the lower end of the

dipstick. Reinstall the dipstick/filler plug.

NOTE: Approximate fluid capacity for the differential

axle housing is 1 L (1.06 U.S. qts.).

NOTE: To obtain correct oil level reading, do not

screw dipstick into axle housing when checking oil

level.

19981869

3. Remove the drain plug,

4, from each final

reduction gear case. After the oil has drained,

reinstall each drain plug and discard the used oil.

Remove the filler plug,

5, from each final

reduction gear case and fill with NH 134 hydraulic

oil so that the oil level is at the bottom of the fill

port opening. Reinstall each filler plug.

NOTE: Approximate final reduction gear case fluid

capacity is 0.4 liter (0.38 U.S. qts.) per side.

19983633

3-30

SECTION 3 - LUBRICATION AND MAINTENANCE

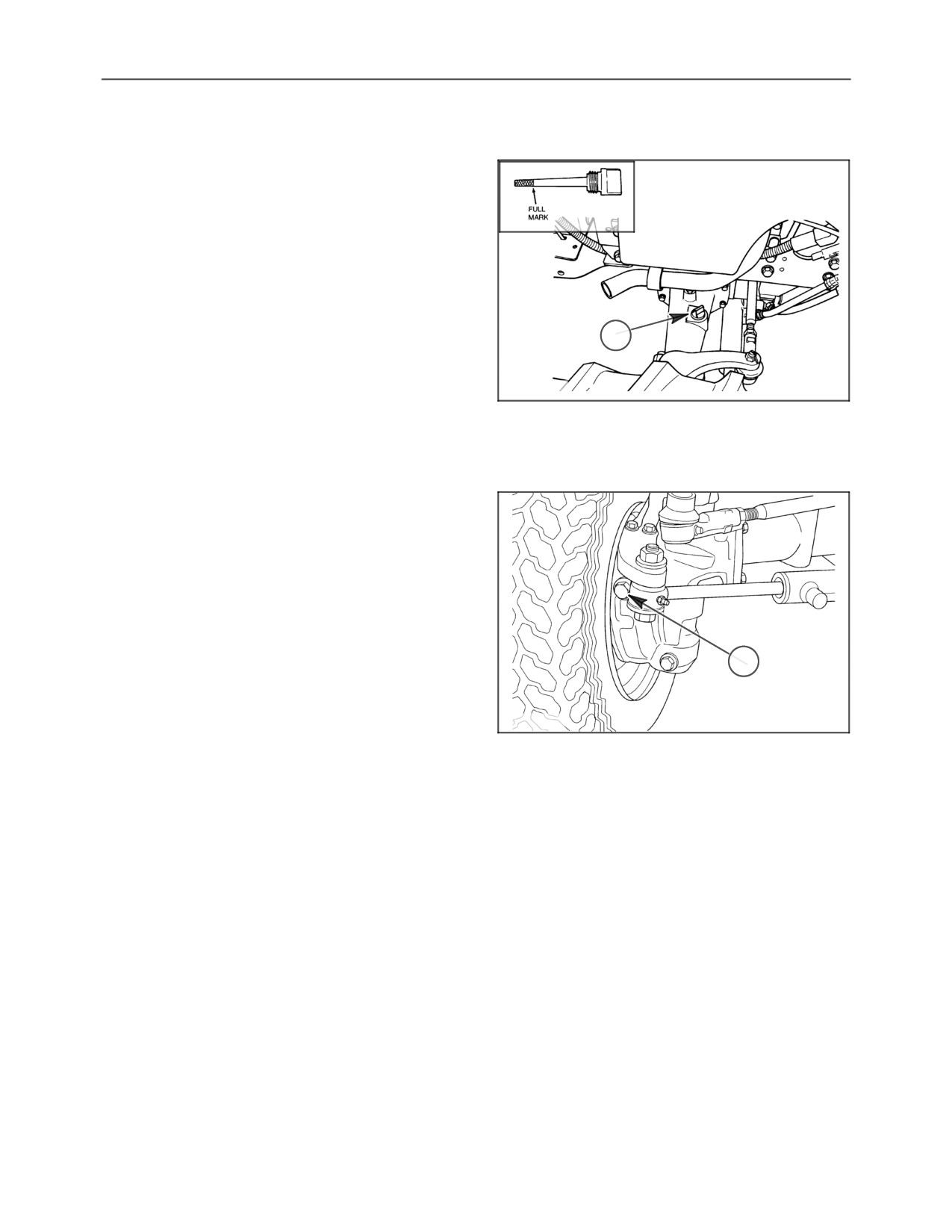

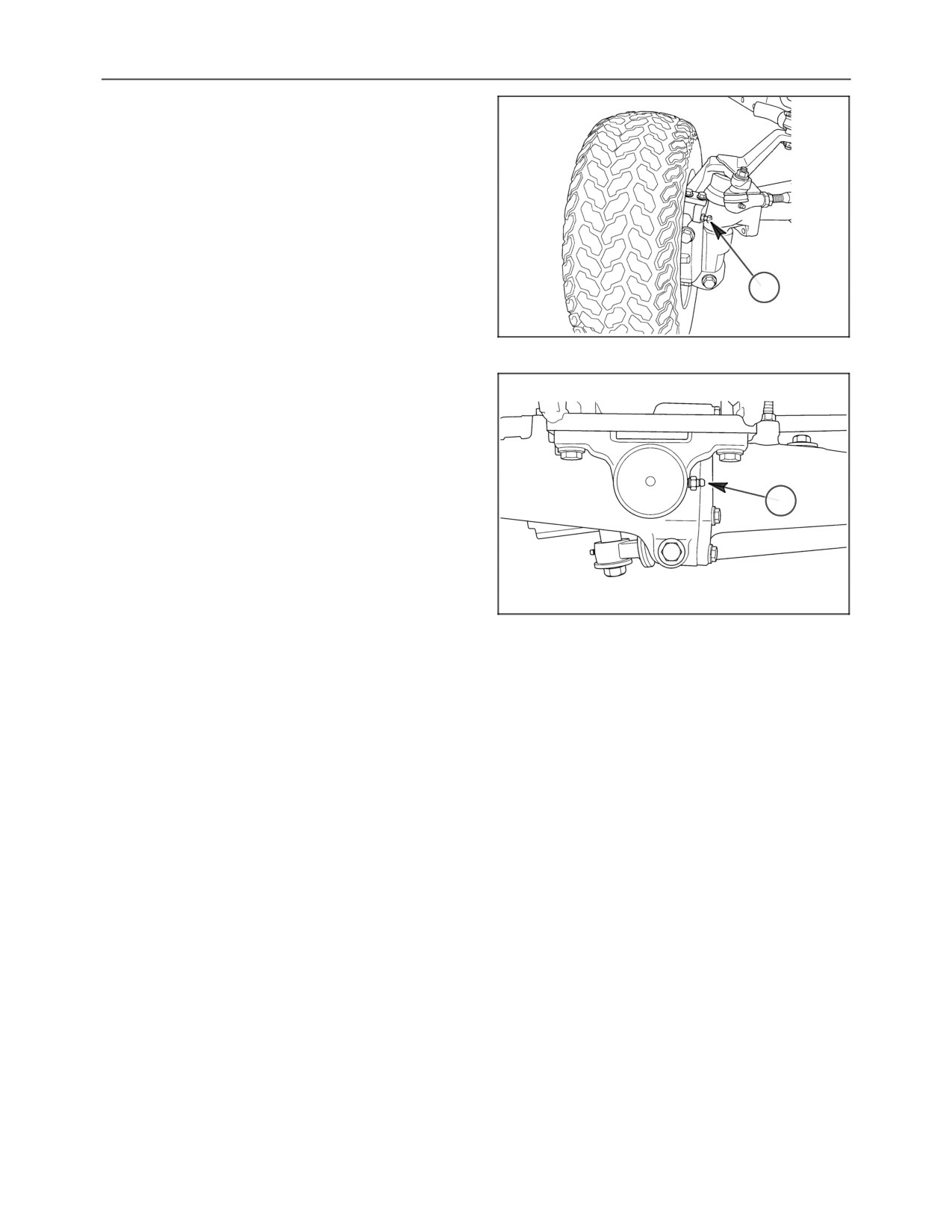

NOTE: Toensurecorrectsteeringoperation, thestop

bolt, 6, should protrude a minimum of 18 mm (0.71″)

from the casing (standard FWD).

19981253

FRONT AXLE PIVOT/STANDARD FWD

AXLE

NOTE: The center housing pivot point, 1, should be

greased after every 50 hours of operation under

normal conditions. Under extremely dirty conditions,

lubrication should be carried out more frequently

than every

hours. Use a good quality,

multipurpose, lithium-base grease.

19983634

TRACTOR STORAGE

Below is a list of protective measures which should

be taken if your tractor is to be stored for an extended

period of time:

1. Thoroughly clean the tractor. Use touch-up paint

where necessary to prevent rust.

2. Check the tractor for worn or damaged parts.

Install new parts as required.

3. Raise the lift arms hydraulically to their fullest

raised position so that the lift piston is in a fully

extended position. This fills the cylinder with oil

and protects the cylinder wall surfaces from

corrosion.

4. Lubricate the tractor.

5. Fill the fuel tank with No. 1 diesel fuel.

IMPORTANT: Do not use No. 2 diesel fuel for winter

storage because of wax separation and setting at low

temperature.

3-31

SECTION 3 - LUBRICATION AND MAINTENANCE

6. Open the drain valve of the radiator and engine

block. Flush the system, close the drain valves,

and fill with a

50/50

solution of permanent

antifreeze and clear water.

7. Remove the battery and clean it thoroughly. Be

sure that it is fully charged and that the electrolyte

is at the proper level. Store the battery in a cool,

dry place above freezing temperature, and

charge it periodically during storage.

8. Place blocking under the tractor axles to remove

the weight from the tires.

9. Cover the exhaust pipe opening.

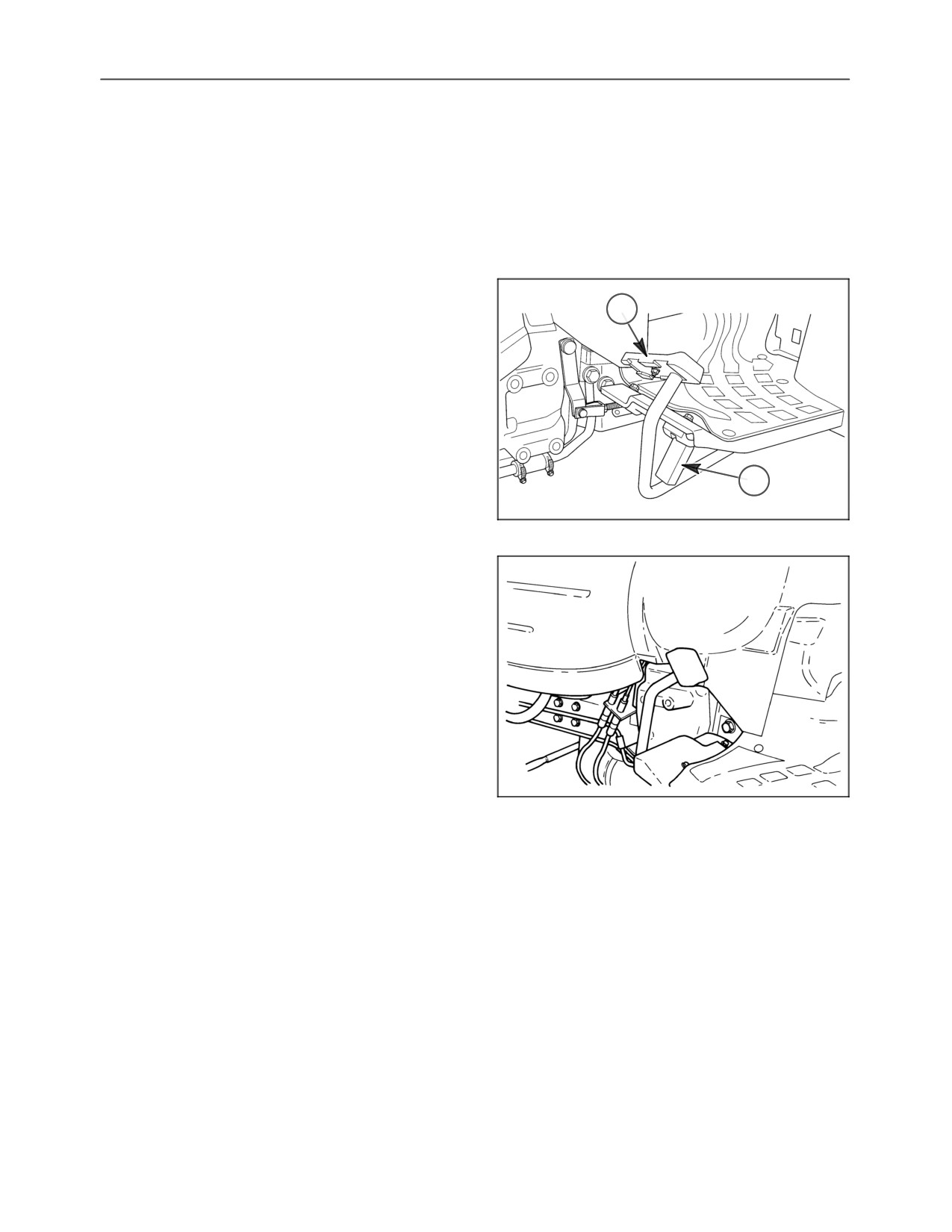

10. Depress the clutch pedal, 1, to separate the

clutch disc from the flywheel. Place pedal spacer,

2, between the clutch pedal and step plate.

19983635

Tractors which have been placed in storage should

be completely serviced in the following manner

before using:

1. Inflate the tires to the recommended pressures

and remove the blocking.

2. Check the oil level in the engine crankcase,

power steering reservoir, the common sump (for

the hydraulic lift, transmission, and rear axle),

and the optional front-wheel drive axle.

3. Install a fully charged battery and remove the

exhaust cover if other than a rain cap.

19984096

4. Check the cooling system for the proper level

(50/50 solution of antifreeze and clear water).

5. Depress the clutch pedal until there is clearance

between the pedal and the pedal spacer.

Remove the pedal spacer from between the

clutch pedal and the step plate.

6. Start the engine and allow it to idle a few minutes.

Ensure the engine is receiving lubrication and

that each control is functioning correctly.

7. Drive the tractor without a load and check to

make sure it is operating satisfactorily.

3-32

SECTION 4

SPECIFICATIONS

Model TC21Dó

Model TC24Dó

Hydrostatic/Gear

ENGINE

Type

Diesel

Engine Gross Horsepower

21.0

24.0

Cylinders

Bore

77 mm (3.03″)

Stroke

72 mm (2.83″)

81 mm (3.19″)

Displacement

1.005 L (61.3 cu. in.)

1.131 L (69.0 cu. in.)

Compression Ratio

23:1

22:5

Firing Order

1-2-3

Low Idle Speed

1100-1200 RPM

Maximum Speed:

High Idle

2800-2850 RPM

Rated

2600 RPM

Valve Clearance (Cold):

Intake

0.20 mm (0.008″)

Exhaust

0.20 mm (0.008″)

CAPACITIES

Fuel Tank

20 liters/

5.3 U.S. gals.

Cooling System

3.5 liters/

3.7 U.S. qts.

Engine Crankcase:

Less Filter

3.0 liters/

3.2 U.S. qts.

With Filter Change

3.3 liters/

3.5 U.S. qts.

Rear Axle & Transmission

16 liters/

(Includes Hydraulics)

4.23 U.S. gals.

Front Axle Final Reduction

0.8 liter/

0.85 U.S. qt. per side

Differential Gear Case

1 liter/

1.06 U.S. qts.

4-1

SECTION 4 - SPECIFICATIONS

Model TC21Dó

Model TC24Dó

Hydrostatic/Gear

COOLING SYSTEM

Type

Pressurized Liquid with

Recirculating Bypass

Water Pump:

Type

Centrifugal

Drive

V-Belt

Belt Deflection

10 mm-15 mm

(7/16″-9/16″) when 9-11 kg (20-25

lbs.) thumb pressure is applied mid-

way between belt pulleys

Fan Diameter

335 mm (13.19″)

Thermostat:

Start to Open

82°C (200°F)

Fully Open

95°C (228.6°F)

Radiator Cap

0.9 bar

(13 PSI)

ELECTRICAL SYSTEM

Alternator

12-volt, heavy-duty, 40 amps

Battery

12-volt, w/ negative ground, 325

cca

12-volt, w/ negative ground, 325

cca

Starting Motor

Solenoid

Pre-Engaged Reduction

FUEL SYSTEM

Fuel Type

Diesel

Type of Fuel to Use if Above 40°F

No. 2-Diesel, Cetane Rating:

Minimum 40

Type of Fuel to Use if Below 40°F

No. 1-Diesel, Cetane Rating:

Minimum 40

Injection Pump:

Type

In-Line

Timing

21° BTDC

24° BTDC

4-2

SECTION 4 - SPECIFICATIONS

Model TC21Dó

Model TC24Dó

Hydrostatic/Gear

CLUTCH

Type

184 mm (7.25″)

Dry Disc, Organic Face

Pedal Free-Travel

19 mm-30 mm

(3/4″-1-3/16″)

BRAKES

Type

Wet Disc

2 Discs per side

134 mm x 94 mm Diameter

(5.27″ x 3.70″)

STEERING

Type

Power

Turns

Lock-to-Lock:

FWD

2.5

Front Wheel Toe-In

0 mm - 5 mm

(0″ - 13/64″)

Turning Radius w/o Brakes:

FWD

2464 mm (97.0″)

POWER TAKE-OFF

Type

Live

Shaft:

Rear PTO

35 mm (1-3/8″)

Mid PTO

25.4 mm (1″)

Engine Speed for 540 RPM

PTO Operation

2388 RPM (Gear)

2503 RPM (HST)

Horsepower PTO Observed

16 HST

18.0 HST

17 Gear

19.5 Gear

HYDRAULIC LIFT SYSTEM

Type

Open Center

Pump Type

Gear

Pump Capacity

18.4 L/min

(4.9 U.S. GPM)

System Relief Valve Setting

130 bar

(1849 PSI)

4-3

SECTION 4 - SPECIFICATIONS

Model TC21Dó

Model TC24Dó

Gear

TRANSMISSION SPEEDS

(From 2600 RPM Engine Speed with AG 9.5-16 Rear Tires)

Gear Position:

1st (Low)

1.16 KPH

(0.72 MPH)

2nd (Low)

1.93 KPH

(1.20 MPH)

3rd (Low)

2.58 KPH

(1.60 MPH)

1st (Mid)

2.77 KPH

(1.72 MPH)

2nd (Mid)

4.59 KPH

(2.85 MPH)

3rd (Mid)

6.16 KPH

(3.83 MPH)

1st (High)

7.23 KPH

(4.49 MPH)

2nd (High)

12.00 KPH

(7.46 MPH)

3rd (High)

16.10 KPH

(10.00 MPH)

Reverse (Low)

2.15 KPH

(1.34 MPH)

Reverse (Mid)

5.13 KPH

(3.19 MPH)

Reverse (High)

13.42 KPH

(8.34 MPH)

Model TC21Dó

Model TC24Dó

Hydrostatic

TRANSMISSION SPEEDS

(From 2600 RPM Engine Speed with Turf 29x12.00-15 Tires)

Gear Position:

Low

0 - 5.71 KPH

(0 - 3.55 MPH)

High

0 - 14.69 KPH

(0 - 9.13 MPH)

(Reverse)

Low

0 - 3.57 KPH

(0 - 2.22 MPH)

High

0 - 9.18 KPH

(0 - 5.70 MPH)

4-4

SECTION 4 - SPECIFICATIONS

Model TC21Dó

Model TC24Dó

Hydrostatic/Gear

CAST IRON WEIGHTS

Front End:

R-4, & Turf Tiresó

. with FWD

(3) weights @ 26 kg (57 lbs.) each

Rear Wheel (per wheel):

R-4 Tires

(1) weight @ 45 kg (100

lbs.)

(1) weight @ 45 kg (100

lbs.)

Turf Tires

N/A

Ag. Tires

(1) weight @ 45 kg (100

lbs.)

(1) weight @ 45 kg (100

lbs.)

DRAWBARS

Fixed/Clevis

Standard

TIRES

FRONT:

Agricultural:

5-12, 4 PR, R1

FWD

6-12, 4PR, R1

Turf:

FWD

22 X 9.00-12, 4PR, R3

Industrial:

FWD

23 X 8.50-12, 6PR, R4

REAR:

8 X 16.00, 4 PR, R1

Agricultural

9.5-16, 4PR, R1

Turf

31 X 13.5-15, 4PR, R3

Industrial

12-16.5, 6PR, R4

WHEEL BOLT TORQUES

Front Wheeló

Disc-to-Hub:

FWD

88 N⋅m (65 ft. lbs.)

Rear Wheeló

Disc-to Rim & Disc-to Axle

122 N⋅m (90 ft. lbs.)

ROPS ATTACHING BOLT TORQUES

ROPS to Rear Axle

54.2 N⋅m (40 ft. lbs.)

Seat Belt

47.4 N⋅m (35 ft. lbs.)

4-5

OWNER COPY

PREDELIVERY SERVICE

Check and Adjust as Required

INOPERATIVE SERVICE CHECKS

2. ____ Seat Belts Installed

1. ____

Tire Pressure

3. ____ ROPS Bolt Torque-74.5 N⋅m (55 ft. lbs.);

Seat Belt Bolt Torque-74.5 N⋅m

2. ____

Air Cleaner Element &

(55 ft. lbs.)

Hose Connections

4. ____ PTO Shield Installed

3. ____

Radiator Coolant Level

5. ____ SMV Emblem Installed

4. ____

Fan Belt Tension

6. ____ Safety Decals Installed

5. ____

Battery Cleanliness, Vent Openings,

Electrolyte Level, & Charge

7. ____ Neutral Start Switches Operation

6. ____

Engine Oil Level

8. ____ Parking Brake & Latch Operation

7. ____

Power Steering Reservoir Oil Level

9. ____ Flashing Lights/Tail Lights Operation

8. ____

Transmission & Rear Axle Oil Level

10.____ Operatorís Manual

9. ____

Front Axle & Final Reduction Gear

OPERATIVE SERVICE CHECKS

Case Oil Level (FWD)

All operating checks are to be performed with tractor at

10.____

Hydraulic Lift Control Adjustment

normal operating temperature.

11.____

Upper Link & Hitch

1. ____ Lights & Instruments for Proper

Operation, & Fuel Shut Down with

12.____

Brake Adjustment & Pedal Equalization

Key Switch OFF

13.____

Clutch Pedal Free Play

2. ____ Fluid & Oil Leaks

14.____

Rear Wheel Bolt Torque -

3. ____ Maximum No-load Speed & Idle

122 N∙m (90 ft. lbs.)

Speed Adjustments

15.____

Front Wheel Bolt Torque -

4. ____ PTO Engagement & Disengagement

88 N∙m (65 ft. lbs.)

____ Clutch Pedal & PTO Lever

16.____

Front Wheel Toe-in

5. Hydraulic System:

____ Selector Lever for Position Control

17.____

Fuel Level

____ Flow Control Operation

18.____

Sheet Metal & Paint Condition

6. ____ FWD-Drive Lever Operation

SAFETY ITEMS CHECKS

7. ____ Operation of H.S.T.

1. ____ ROPS Installed

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

TRACTOR MODEL NO.

INSPECTION PERFORMED

TRACTOR SERIAL NO.

WARRANTY EXPLAINED

Ownerís Signature

Date

Dealerís Signature

Date

4-11

DEALER COPY

PREDELIVERY SERVICE

Check and Adjust as Required

INOPERATIVE SERVICE CHECKS

2. ____ Seat Belts Installed

1. ____

Tire Pressure

3. ____ ROPS Bolt Torque-74.5 N⋅m (55 ft. lbs.);

Seat Belt Bolt Torque-74.5 N⋅m

2. ____

Air Cleaner Element &

(55 ft. lbs.)

Hose Connections

4. ____ PTO Shield Installed

3. ____

Radiator Coolant Level

5. ____ SMV Emblem Installed

4. ____

Fan Belt Tension

6. ____ Safety Decals Installed

5. ____

Battery Cleanliness, Vent Openings,

Electrolyte Level, & Charge

7. ____ Neutral Start Switches Operation

6. ____

Engine Oil Level

8. ____ Parking Brake & Latch Operation

7. ____

Power Steering Reservoir Oil Level

9. ____ Flashing Lights/Tail Lights Operation

8. ____

Transmission & Rear Axle Oil Level

10.____ Operatorís Manual

9. ____

Front Axle & Final Reduction Gear

OPERATIVE SERVICE CHECKS

Case Oil Level (FWD)

All operating checks are to be performed with tractor at

10.____

Hydraulic Lift Control Adjustment

normal operating temperature.

11.____

Upper Link & Hitch

1. ____ Lights & Instruments for Proper

Operation, & Fuel Shut Down with

12.____

Brake Adjustment & Pedal Equalization

Key Switch OFF

13.____

Clutch Pedal Free Play

2. ____ Fluid & Oil Leaks

14.____

Rear Wheel Bolt Torque -

3. ____ Maximum No-load Speed & Idle

122 N∙m (90 ft. lbs.)

Speed Adjustments

15.____

Front Wheel Bolt Torque-

4. ____ PTO Engagement & Disengagement

88 N∙m (65 ft. lbs.)

____ Clutch Pedal & PTO Lever

16.____

Front Wheel Toe-in

Hydraulic System:

____ Selector Lever for Position Control

17.____

Fuel Level

____ Flow Control Operation

18.____

Sheet Metal & Paint Condition

6. ____ FWD-Drive Lever Operation

SAFETY ITEMS CHECKS

7. ____ Operation of H.S.T.

1. ____ ROPS Installed

TRACTOR MODEL NO.

INSPECTION PERFORMED

TRACTOR SERIAL NO.

WARRANTY EXPLAINED

Ownerís Signature

Date

Dealerís Signature

Date

4-13
