FOREWORD

The information printed within this publication includes the latest product information at time of print. The most
recent version of this Service Manual is available in electronic format at www.polarisdealers.com.

This Service Manual is designed primarily for use by certified Indian Motorcycle Master Service Dealer

technicians in a properly equipped shop and should be kept available for reference. All references to left and
right side of the vehicle are from the operator's perspective when seated in a normal riding position.

Some procedures outlined in this manual require a sound knowledge of mechanical theory, tool use, and shop
procedures in order to perform the work safely and correctly. Technicians should read the text and be familiar
with the service procedures before starting any repair. Certain procedures require the use of special tools. Use
only the proper tools as specified. If you have any doubt as to your ability to perform any of the procedures
outlined in this Service Manual, contact an authorized dealer for service.

We value your input and appreciate any assistance you can provide in helping make these publications more
useful. Please provide any feedback you may have regarding this manual. Authorized dealers can submit
feedback using 'Ask Polaris'. Click on 'Ask Polaris', and then click on 'Service Manual / Service Literature
Question'.

Consumers, please provide your feedback in writing to: Indian Motorcycle Company ATTN: Service Publications
Department, 2100 Hwy 55, Medina, MN 55340.

Publication Printed April 2017 (PN 9927618 R03)

2017 Indian Motorcycle (Full-Size)

Service Manual

SAFETY WARNINGS

Throughout this manual, important information is brought to your attention by the following symbols:

WARNING

SAFETY ALERT WARNING indicates a potential hazard that may result in severe injury or death to the operator,
bystander or person(s) inspecting or servicing the vehicle.

CAUTION

SAFETY ALERT CAUTION indicates a potential hazard that may result in minor personal injury or damage to the
vehicle.

CAUTION

CAUTION indicates special precautions that must be taken to avoid vehicle damage or property damage.

NOTE

NOTE provides key information by clarifying instructions.

IMPORTANT

IMPORTANT provides key reminders during disassembly, assembly and inspection of components.

TRADEMARKS

INDIAN MOTORCYCLE ACKNOWLEDGES THE FOLLOWING PRODUCTS MENTIONED IN THIS MANUAL:

LOCTITE®, is a registered trademark of the Henkel Corporation.

DUNLOP®, is a registered trademark of the Dunlop Tire Corporation.

STA-BIL®, is a registered trademark of Gold Eagle.

NYOGEL™, is a trademark of Gold Eagle.

FLUKE ®, is registered trademark of the Fluke Corporation.

XM®, is a registered trademark of XM® Satellite Radio, Inc.

Torx®, is a registered Trademark of Textron.

Garmin®, is a registered trademark of Garmin, Ltd.

Some Indian Motorcycle factory publications can be downloaded from www. polarisindustries. com, purchased
from www.purepolaris.com or by contacting the nearest Indian Motorcycle dealer.

REVISION INDEX

REV

DATE

CHANGES

R01

8/1/2016

Initial release

R02

1/20/2017

Add Roadmaster Classic models

R03

4/2/2017

Add Chieftain Limited and Elite models

2017 Indian Motorcycle (Full-Size)

Service Manual

Chapter Summary

CHAPTER 1:

GENERAL / SPECIFICATIONS

CHAPTER 2:

MAINTENANCE

CHAPTER 3:

ENGINE / COOLING / EXHAUST

CHAPTER 4:

FUEL DELIVERY / EFI

CHAPTER 5:

CLUTCH / PRIMARY / SHIFT

CHAPTER 6:

TRANSMISSION / CRANKSHAFT

CHAPTER 7:

FRAME / BODY

CHAPTER 8:

STEERING / SUSPENSION

1.1

GENERAL / SPECIFICATIONS

CHAPTER 1

GENERAL / SPECIFICATIONS

VEHICLE INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2

MODEL NUMBER DESIGNATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2

ENGINE NUMBER LOCATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2

VEHICLE IDENTIFICATION NUMBER (VIN) DESIGNATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2

VIN LOCATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3

MANUFACTURER LABEL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3

TIRE INFORMATION LABEL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3

GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4

2017 CHIEF CLASSIC

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4

2017 CHIEF DARK HORSE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8

2017 CHIEF VINTAGE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.12

2017 SPRINGFIELD

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.16

2017 CHIEFTAIN

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.20

2017 CHIEFTAIN DARK HORSE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.24

2017 CHIEFTAIN LIMITED

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.28

2017 CHIEFTAIN ELITE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.32

2017 ROADMASTER

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.36

2017 ROADMASTER CLASSIC

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.40

VEHICLE LOADING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.43

GROSS VEHICLE WEIGHT RATING (GVWR)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.43

PUBLICATIONS & TECHNICAL LITERATURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.44

PUBLICATIONS PART NUMBERS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.44

REFINISHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.45

PAINT COLORS BY MODEL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.45

EMMISIONS INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.48

EMISSION CONTROL SYSTEMS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.48

EMISSION SOURCES

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.48

EXHAUST EMISSION CONTROL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.48

NOISE EMISSION CONTROL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.48

CRANKCASE EMISSION CONTROL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.48

EVAPORATIVE EMISSION CONTROL (CALIFORNIA AND INTERNATIONAL MODELS)

. . . . . . . . . . . . . . .1.48

SPECIAL TOOLS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.49

USING SPECIAL TOOLS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.49

TOOL ORDERING INFORMATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.50

SPECIAL TOOLS INDEX

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.50

REFERENCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.54

MASTER TORQUE TABLE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.54

SAE TAP DRILL SIZES

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.57

METRIC TAP DRILL SIZES

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.57

DECIMAL EQUIVALENTS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.58

FAHRENHEIT TO CELSIUS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.59

MEASUREMENT CONVERSION CHART

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.59

1.2

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

VVEEHHIICCLLEE IINNFFOORRM

MAATTIIOONN

MOODDEELL NNUUM

MBBEERR DDEESSIIGGNNAATTIIOONN

Example: N17CCDAAAH

GRP

TYPE

MODEL

LINE

DISP

NET

BRAKE HP

MARKET

CONFIG

COLOR

1st digit

2nd/
3rd
digit

4th digit*

5th digit*

6th digit*

7th digit*

8th digit

9th digit**

10th digit

N=
Indian
Motor-
cycle

17 =
2017

C= Cruiser
M = Midsize
T = Touring

C = Chief
V = Chief
Vintage
C= Chieftain
H = Springfield
R = Roadmaster
B = Roadmaster
Classic

A = Standard
ABS
B = Standard
Non-ABS
C = Classic ABS
D = Dark Horse
ABS
V = Vintage
ABS

A = 1811cc
(111ci) V-Twin

A = Full-size

A = 49 State (49S)
B = 50 State (50S)
C = Canadian (CAN)
E = EU (WVTA)
J = Japan (SVA)
K = Braxil CKD
(BRZ)
X = China (XNA)

A = Thunder Black
B = Springfield Blue
C = Ivory Cream
D = Indian Red /
Thunder Black
E = Indian Red /
Cream
F = Springfield Blue
/ Cream
G = Willow Green /
Cream
H = Black Smoke
R = Indian Red
S = Black Hills
Silver
T = Vogue Silver w/
Blk Graphic
V = Matte Sunset
Red / Matte Black
Z = Unpainted

* = digits that would transfer to 17 digit VIN and are used in digits 4–8 respectively.
** = 9th digit will be used on color / featured versions of models (not including base).
First 3 digits and 9th digit are used in model number only. They are not used with the 17 digit VIN.

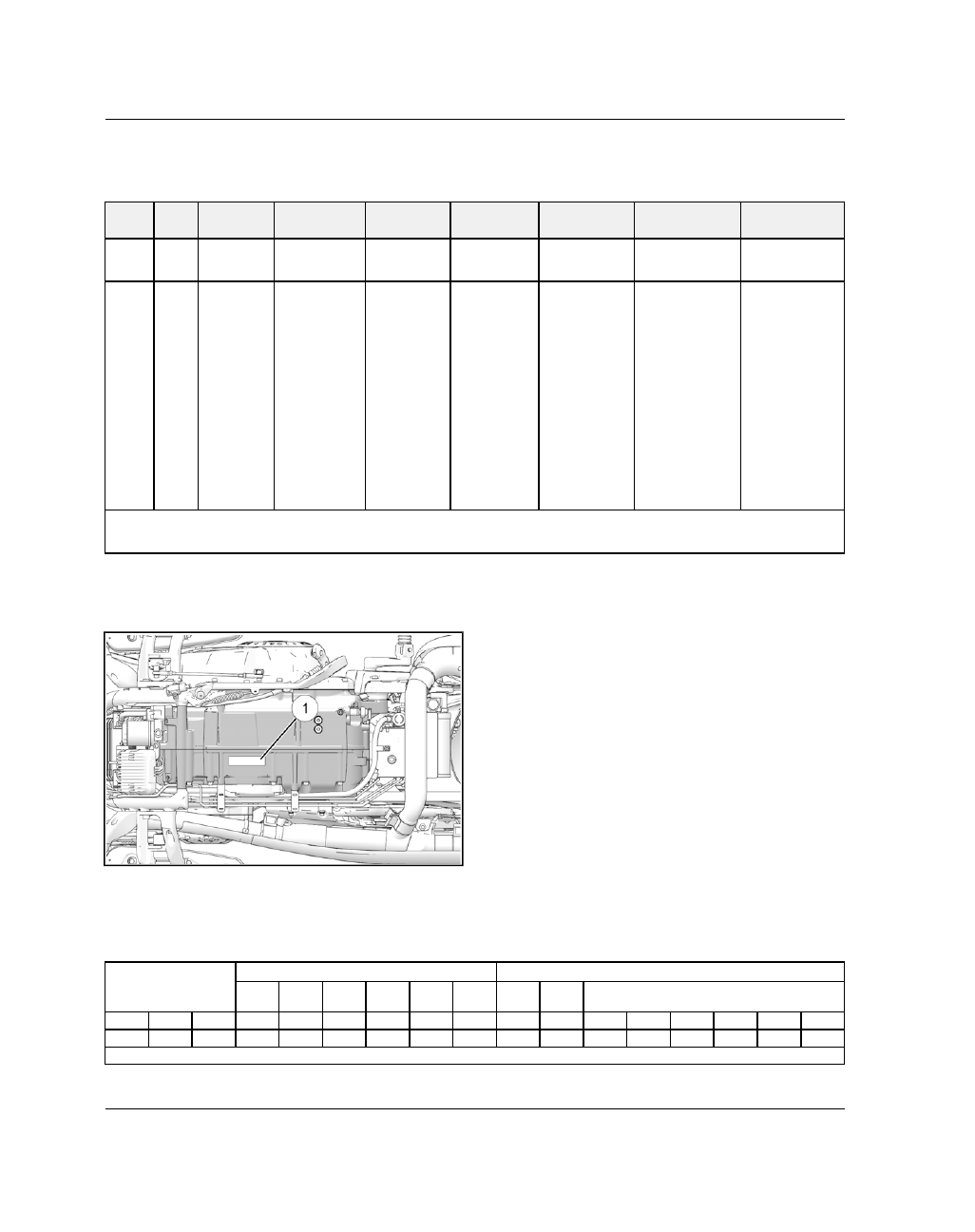

EENNGGIINNEE NNUUM

MBBEERR LLOOCCAATTIIOONN

The engine number

is stamped into the bottom of

the RH engine case.. The stamping identifies the
engine model and serial number.

VVEEHHIICCLLEE IIDDEENNTTIIFFIICCAATTIIOONN NNUUM

MBBEERR ((VVIINN))

DDEESSIIGGNNAATTIIOONN

Example: 56KTCAAA0E3000024

World Mfg. ID

Vehicle Descriptors

Vehicle Identifiers

Chas-
sis

Type

Disp

Series

Check
Digit

MY*

Mfg

Individual Serial No.

* Model Year: H = 2017

GENERAL / SPECIFICATIONS

1.3

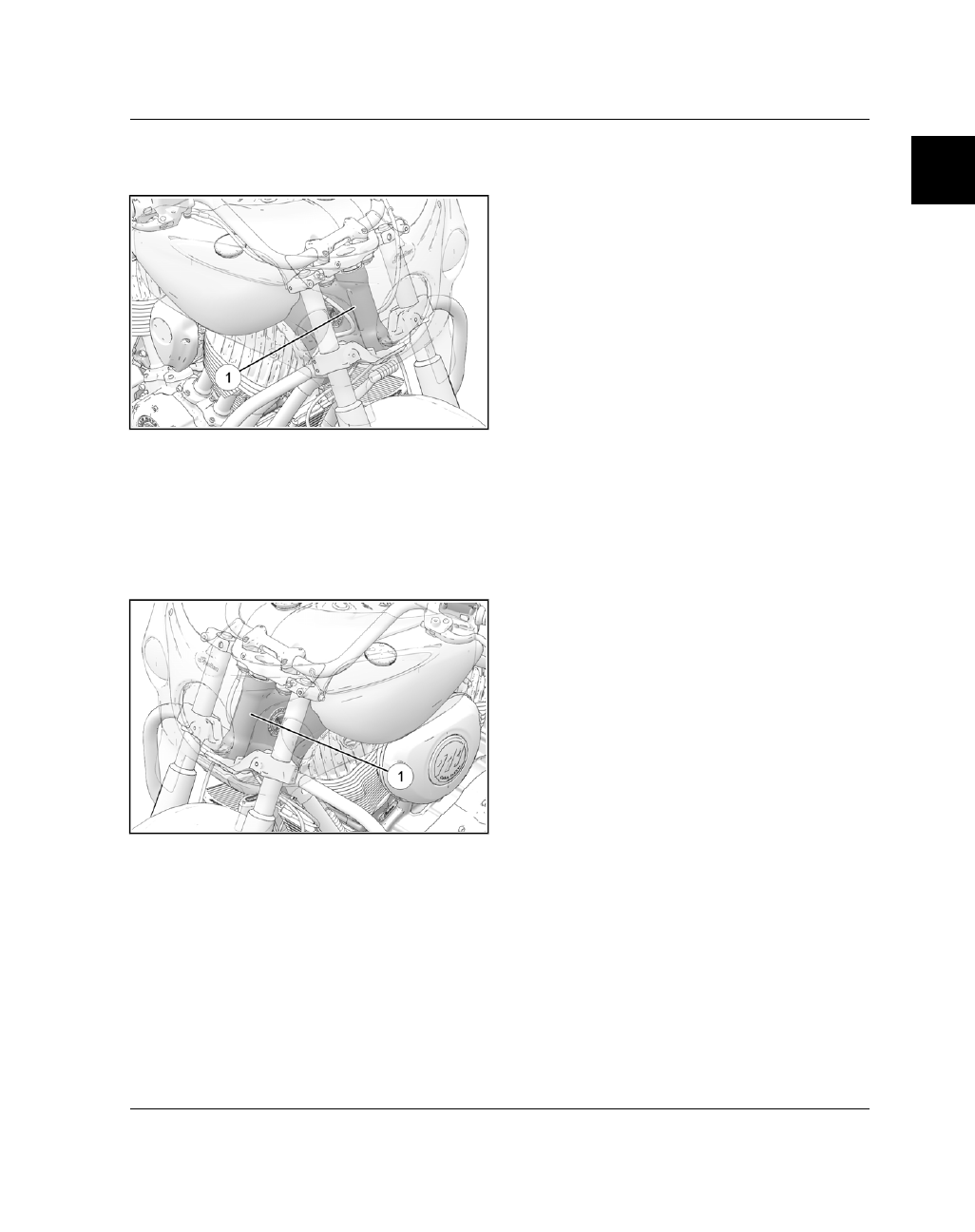

VVIINN LLOOCCAATTIIOONN

The vehicle identification number

is stamped on the

right side of the steering head.

MAANNUUFFAACCTTUURREERR LLAABBEELL

The manufacturer label

located on the left side of

the steering head contains the following information:

Vehicle Identification Number (VIN)

Gross Vehicle Weight Rating (GVWR)

Gross Axle Weight Rating (GAWR)

Tire Type and Load Information.

TTIIRREE IINNFFOORRM

MAATTIIOONN LLAABBEELL

See Manufacturer Label, page 1.3 for tire information.

GENERAL / SPECIFICATIONS

1.4

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

GGEENNEERRAALL SSPPEECCIIFFIICCAATTIIOONNSS

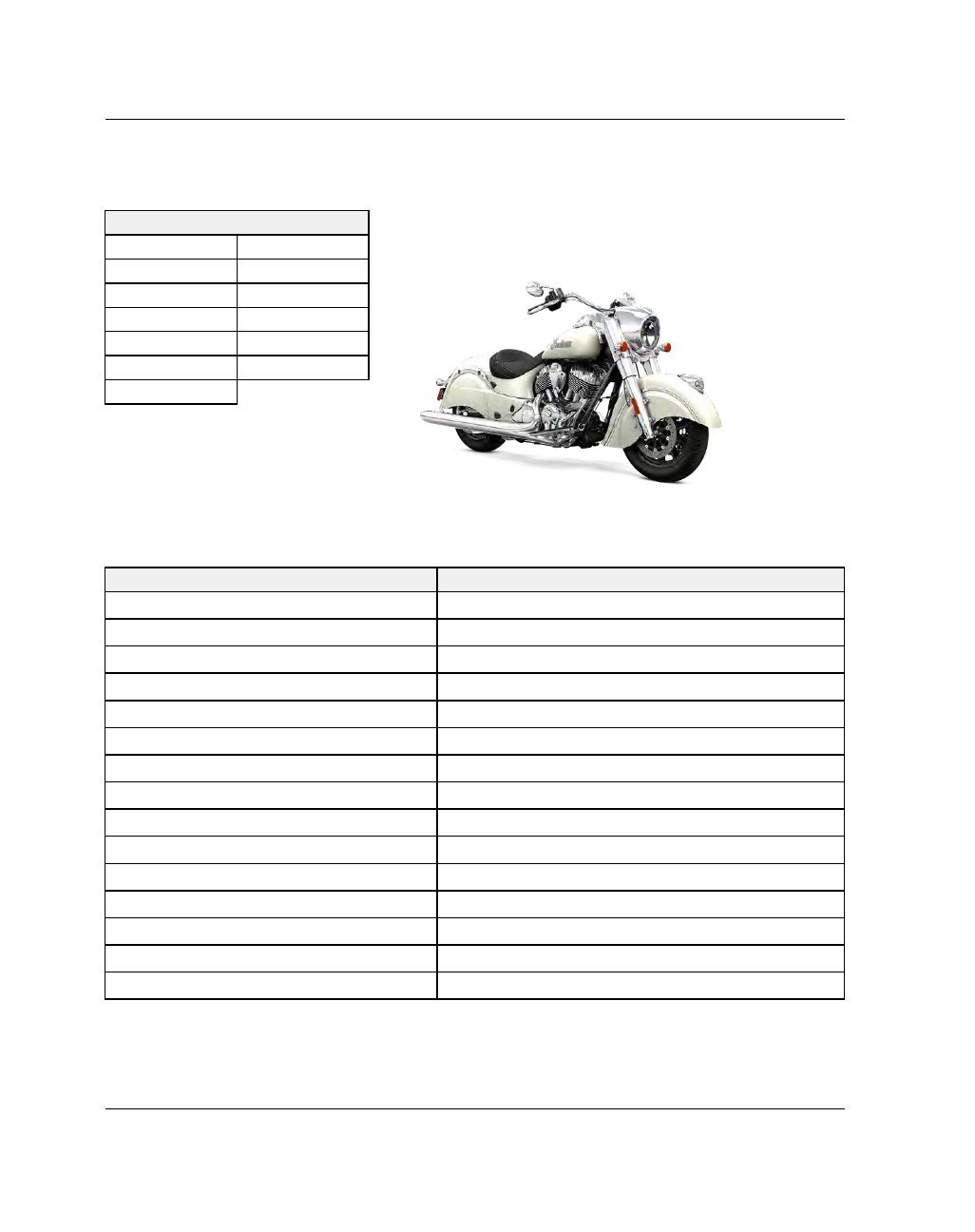

22001177 CCHHIIEEFF CCLLAASSSSIICC

Model Numbers

2017

N17CCCAAAD

N17CCCAACK

N17CCCAAAK

N17CCCAACZ

N17CCCAAAZ

N17CCCAAED

N17CCCAABD

N17CCCAAEK

N17CCCAABK

N17CCCAAKD

N17CCCAABZ

N17CCCAAKK

N17CCCAACD

Chassis

CATEGORY

SPECIFICATION

Dry Weight

751 lbs (341 kg)

Wet Weight

783 lbs (356 kg)

Gross Vehicle Weight Rating

1260 lbs (572 kg)

Gross Axle Weight Rating, Front

485 lbs (220 kg)

Gross Axle Weight Rating, Rear

775 lbs (352 kg)

Maximum Load

477 lbs (216 kg)

Overall Length

103.5 in (2630 mm)

Overall Width

39.4 in (1000 mm)

Overall Height

46.3 in (1176 mm)

Seat Height

26.0 in (660 mm)

Ground Clearance

5.5 in (139.8 mm)

Total Storage Capacity

Passenger Capacity

Wheelbase

68.1 in (1730 mm)

Rake / Trail

29° / 6.1 in (155.0 mm)

GENERAL / SPECIFICATIONS

1.5

Engine

CATEGORY

SPECIFICATION

Engine Number

1205441

Engine Type

Thunder Stroke 111

Engine Configuration

49° OHV Pushrod V-Twin

Engine Wet Weight

297 lbs (134.7 kg)

Engine Displacement

111 cid (1811 cc)

Engine Cooling System

Air / Oil

Compression Ratio

9.5:1

Compression Pressure

90–110 psi (620–758 kPa)

Valve Train

2 Valves per cylinder / Hydraulic Lifters

Bore x Stroke

101 mm x 113 mm

Idle Speed / Fast Idle Speed

800 RPM ± 50 RPM (warm)

Oil Capacity

5.5 qts (5.2 L)

Oil Type

SAE 20W40 (recommended)

Lubrication System

Semi-Dry Sump

Spark Plug Type / Gap

DCPR8E / 0.034 in (0.9 mm)

Exhaust System

Two O2 Sensors (one in each pipe) / Single three-way
catalyst

Fuel System

CATEGORY

SPECIFICATION

Fuel System Type

Electronic Fuel Injection (ME17)

Fuel Delivery

Electronic Fuel Pump (in tank)

Fuel Pressure

58 psi (400 kPa)

Throttle Body Bore Size

2.125 in (54 mm)

Fuel Capacity

5.5 gal (20.8 L)

Fuel Reserve Capacity

1.0 gal (3.8 L)

Fuel Type

91 Octane recommended ((R+M/2) method)

GENERAL / SPECIFICATIONS

1.6

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

Electrical

CATEGORY

SPECIFICATION

Stator Rated Output

710W @ 2000 RPM

Battery

12V / 18 AH / 310 CCA, Sealed Glass Mat

Headlights

H4 12V 60/55W Long Life

Auxiliary Lights

H8 35W

Tail / Brake

LED (non-serviceable)

Turn Signals

LED (non-serviceable)

Starting System

Electric Start

Ignition System

Bosch ME-17 (ECM Controlled)

Instrument Type

Multifunction Instrument Cluster

DC Outlet

Standard 12V (Accessory)

Drivetrain

CATEGORY

SPECIFICATION

Transmission Type

6 Speed Overdrive, Constant Mesh

Clutch Type

Wet, Multi-Plate, Coil Spring

Primary Drive Type

Wet, Gear Drive w/Torque Compensator

Primary Reduction Ratio

1.56:1

Final Drive Type / Ratio

Belt / 2.2:1

Belt Type / Belt Width

24 mm Carbon Fiber Reinforced Belt

Gear Shift Pattern

1 Down, 5 Up

Transmission Gear Ratios:

1st

2.73:1

2nd

1.86:1

3rd

1.38:1

4th

1.10:1

5th

.94:1

6th

.81:1

GENERAL / SPECIFICATIONS

1.7

Suspension

CATEGORY

SPECIFICATION

Front Suspension Type

Conventional Telescopic Fork

Front Travel

4.68 in (11.9 cm)

Front Tube Diameter

46 mm

Rear Shock Type

Single, Monotube Gas with Adjustable Preload

Rear Swingarm Type

Cast Aluminum

Rear Travel

3.7 in (9.4 cm)

Wheels / Brakes

CATEGORY

SPECIFICATION

Front Tire Type / Size

Dunlop Elite 3 – 130/90B16

Front Wheel Type / Size

Cast - 16 in X 3.5 in

Front Tire Air Pressure

36 PSI (248 kPa)

Front Brake, Type

Dual Floating Disc / 4 Piston Calipers

Rear Tire

Dunlop American Elite – 180/65B16

Rear Wheel

Cast - 16 in X 5 in

Rear Tire Air Pressure

40 PSI (276 kPa)

Rear Brake, Type

Single Floating Disc / 2 Piston Caliper

Brake Fluid Type

DOT 4

All specifications are for standard Indian Chief Classic models. Specifications may change with the addition of
custom order options and / or accessories. Indian Motorcycle Company reserves the right without prior notice to
discontinue at any time at its discretion any of the items herein or change specifications or designs without
incurring any obligation to the customer.

GENERAL / SPECIFICATIONS

1.8

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

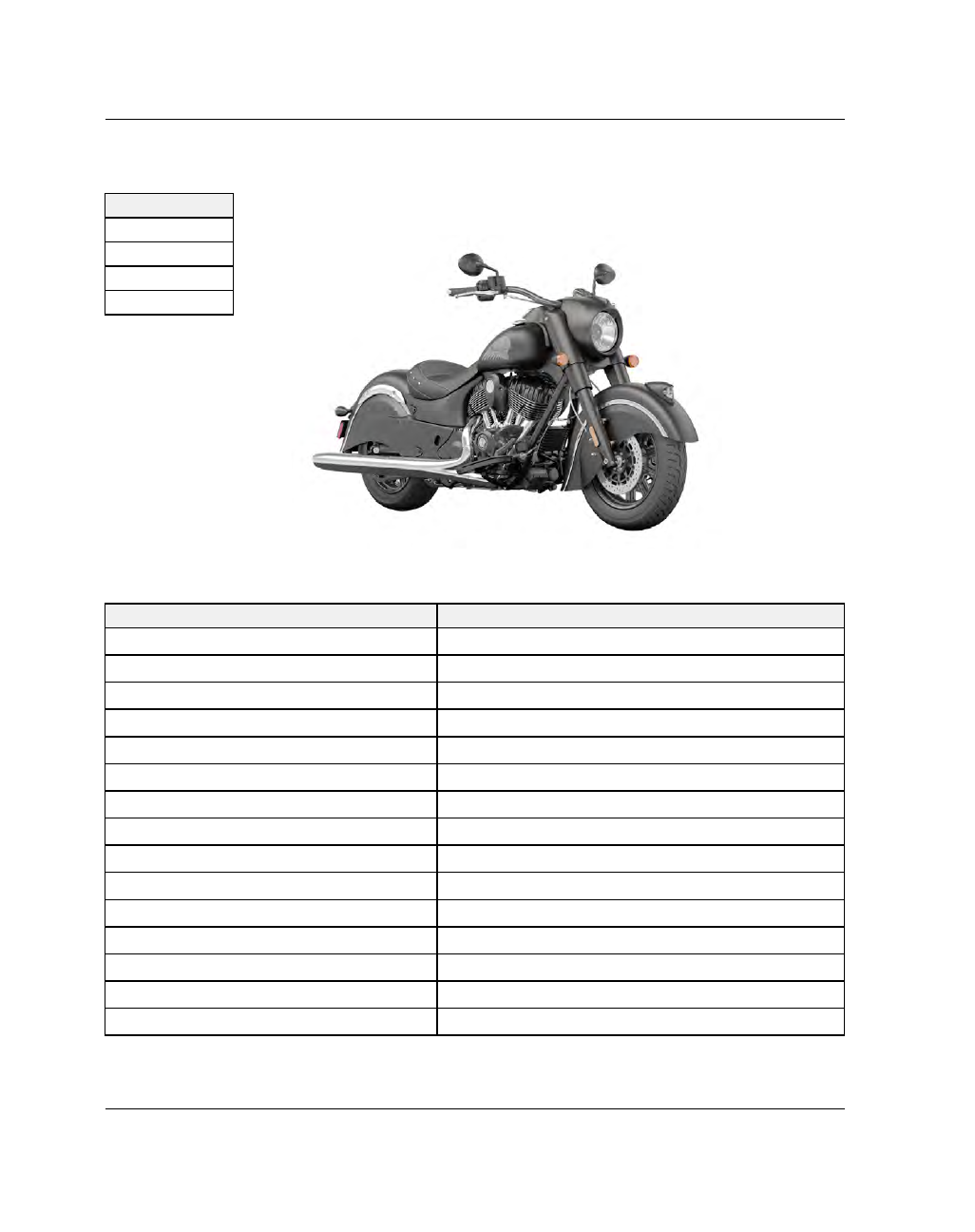

22001177 CCHHIIEEFF DDAARRKK HHOORRSSEE

Model Numbers

2017

N17CCDAAAH

N17CCDAABH

N17CCDAACH

N17CCDAAEH

Chassis

CATEGORY

SPECIFICATION

Dry Weight

751 lbs (341 kg)

Wet Weight

783 lbs (356 kg)

Gross Vehicle Weight Rating

1260 lbs (572 kg)

Gross Axle Weight Rating, Front

485 lbs (220 kg)

Gross Axle Weight Rating, Rear

775 lbs (352 kg)

Maximum Load

477 lbs (216 kg)

Overall Length

103.5 in (2630 mm)

Overall Width

39.4 in (1000 mm)

Overall Height

46.3 in (1176 mm)

Seat Height

26.0 in (660 mm)

Ground Clearance

5.5 in (139.8 mm)

Total Storage Capacity

Passenger Capacity

Wheelbase

68.1 in (1730 mm)

Rake / Trail

29° / 6.1 in (155.0 mm)

GENERAL / SPECIFICATIONS

1.9

Engine

CATEGORY

SPECIFICATION

Engine Number

1205442

Engine Type

Thunder Stroke 111

Engine Configuration

49° OHV Pushrod V-Twin

Engine Wet Weight

297 lbs (134.7 kg)

Engine Displacement

111 cid (1811 cc)

Engine Cooling System

Air / Oil

Compression Ratio

9.5:1

Compression Pressure

90–110 psi (620–758 kPa)

Valve Train

2 Valves per cylinder / Hydraulic Lifters

Bore x Stroke

101 mm x 113 mm

Idle Speed / Fast Idle Spd

800 RPM ± 50 RPM (warm)

Oil Capacity

5.5 qts (5.2 L)

Oil Type

SAE 20W40 (recommended)

Lubrication System

Semi-Dry Sump

Spark Plug Type / Gap

DCPR8E / 0.034 in (0.9 mm)

Exhaust System

Two O2 Sensors (one in each pipe) / Single three-way
catalyst

Fuel System

CATEGORY

SPECIFICATION

Fuel System Type

Electronic Fuel Injection (ME17)

Fuel Delivery

Electronic Fuel Pump (in tank)

Fuel Pressure

58 psi (400 kPa)

Throttle Body Bore Size

2.125 in (54 mm)

Fuel Capacity

5.5 gal (20.8 L)

Fuel Reserve Capacity

1.0 gal (3.8 L)

Fuel Type

91 Octane recommended ((R+M/2) method)

GENERAL / SPECIFICATIONS

1.10

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

Electrical

CATEGORY

SPECIFICATION

Stator Rated Output

610W @ 3500 RPM

Battery

12V / 18 AH / 310 CCA, Sealed Glass Mat

Headlights

H4 12V 60/55W Long Life

Auxiliary Lights

H8 35W

Tail / Brake

LED (non-serviceable)

Turn Signals

LED (non-serviceable)

Starting System

Electric Start

Ignition System

Bosch ME-17 (ECM Controlled)

Instrument Type

Multifunction Instrument Cluster

DC Outlet

Standard 12V (Accessory)

Drivetrain

CATEGORY

SPECIFICATION

Transmission Type

6 Speed Overdrive, Constant Mesh

Clutch Type

Wet, Multi-Plate, Coil Spring

Primary Drive Type

Wet, Gear Drive w/Torque Compensator

Primary Reduction Ratio

1.56:1

Final Drive Type / Ratio

Belt / 2.2:1

Belt Type / Belt Width

24 mm Carbon Fiber Reinforced Belt

Gear Shift Pattern

1 Down, 5 Up

Transmission Gear Ratios:

1st

2.73:1

2nd

1.86:1

3rd

1.38:1

4th

1.10:1

5th

.94:1

6th

.81:1

GENERAL / SPECIFICATIONS

1.11

Suspension

CATEGORY

SPECIFICATION

Front Suspension Type

Conventional Telescopic Fork

Front Travel

4.68 in (11.9 cm)

Front Tube Diameter

46 mm

Rear Shock Type

Single, Monotube Gas with Adjustable Preload

Rear Swingarm Type

Cast Aluminum

Rear Travel

3.7 in (9.4 cm)

Wheels / Brakes

CATEGORY

SPECIFICATION

Front Tire Type / Size

Dunlop Elite 3– 130/90B16

Front Wheel Type / Size

Cast / 16 in X 3.5 in

Front Tire Air Pressure

36 PSI (248 kPa)

Front Brake, Type

Dual Floating Disc / 4 Piston Calipers

Rear Tire

Dunlop American Elite – 180/65B16

Rear Wheel

Cast / 16 in X 5 in

Rear Tire Air Pressure

40 PSI (276 kPa)

Rear Brake, Type

Single Floating Disc / 2 Piston Caliper

Brake Fluid Type

DOT 4

All specifications are for standard Indian Dark Horse models. Specifications may change with the addition of
custom order options and / or accessories. Indian Motorcycle Company reserves the right without prior notice to
discontinue at any time at its discretion any of the items herein or change specifications or designs without
incurring any obligation to the customer.

GENERAL / SPECIFICATIONS

1.12

9927618 R03 - 2017 Indian Motorcycle (Full-Size) Service Manual

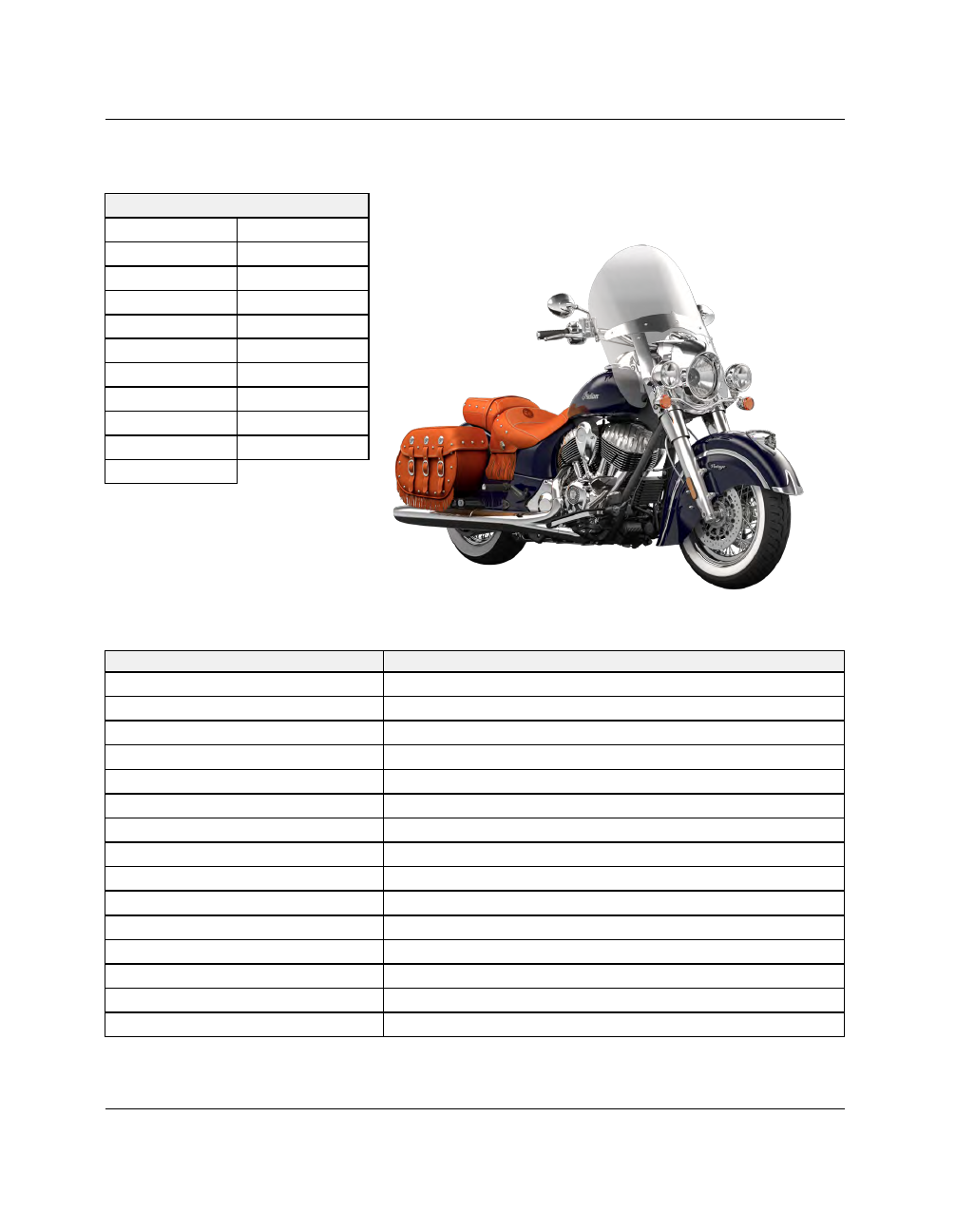

22001177 CCHHIIEEFF VVIINNTTAAGGEE

Model Numbers

2017

N17CCVAAAA

N17CCVAACE

N17CCVAAAE

N17CCVAACF

N17CCVAAAF

N17CCVAACG

N17CCVAAAG

N17CCVAACZ

N17CCVAAAZ

N17CCVAAEA

N17CCVAABA

N17CCVAAEE

N17CCVAABE

N17CCVAAEF

N17CCVAABF

N17CCVAAEG

N17CCVAABG

N17CCVAAKA

N17CCVAABZ

N17CCVAAKE

N17CCVAACA

Chassis

CATEGORY

SPECIFICATION

Dry Weight

824 lbs (374 kg)

Wet Weight

856 lbs (388 kg)

Gross Vehicle Weight Rating

1260 lbs (572 kg)

Gross Axle Weight Rating, Front

485 lbs (220 kg)

Gross Axle Weight Rating, Rear

775 lbs (352 kg)

Maximum Load

404 lbs (183 kg)

Overall Length

103.7 in (2634 mm)

Overall Width

39.4 in (1000 mm)

Overall Height

58.7 in (1490 mm)

Seat Height

26.0 in (660 mm)

Ground Clearance

5.5 in (140 mm)

Total Storage Capacity

15 lbs (6.8 kg)

Passenger Capacity

Wheelbase

68.1 in (1730 mm)

Rake / Trail

29° / 6.1 in (155.0 mm)

GENERAL / SPECIFICATIONS

Content .. 1 2 ..

///////////////////////////////////////
