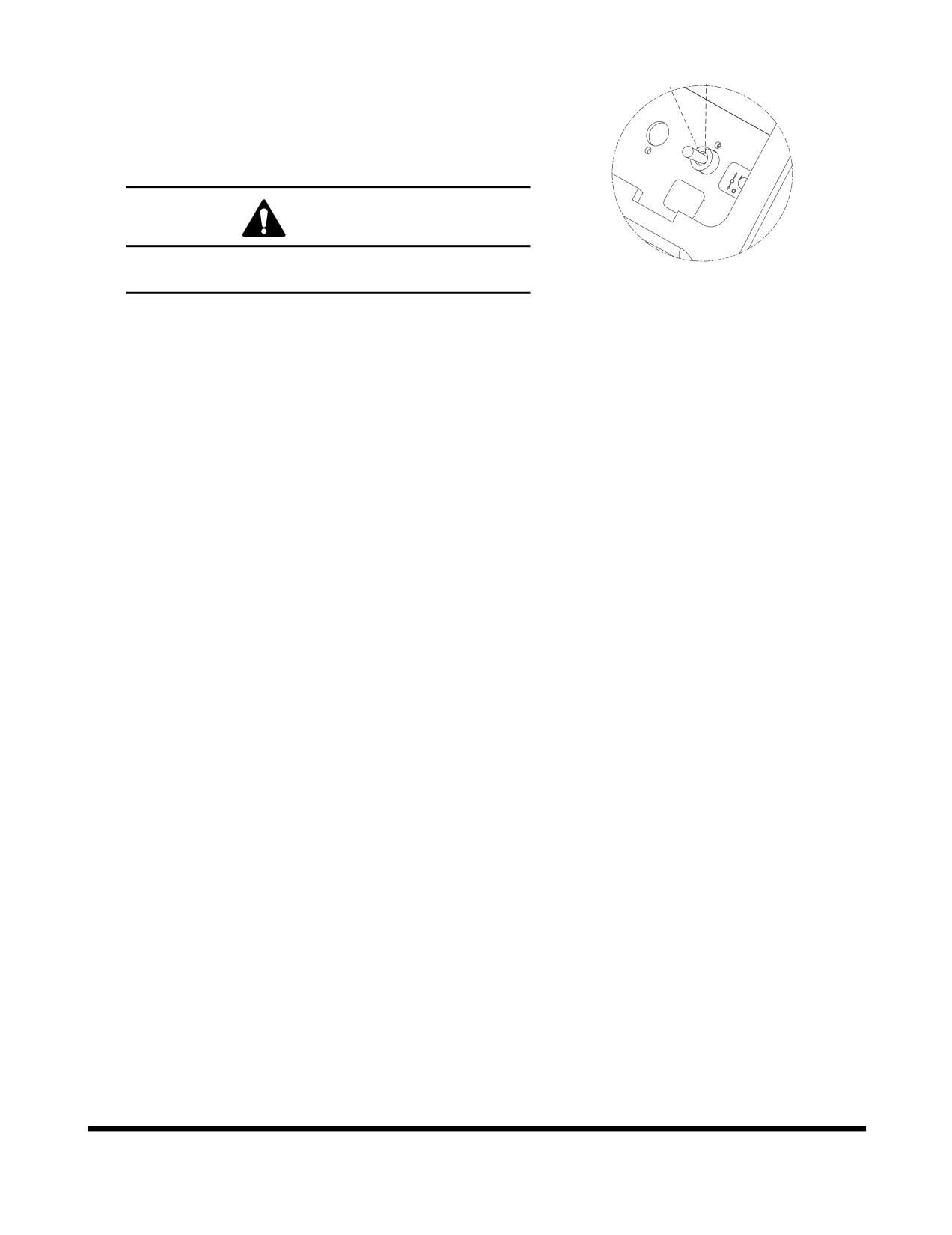

18. Reverse Fan Switch

(Only Use for DX420, 480, 520LC)

This switch is used to clean the front of the radiator by

blowing air out from the engine compartment.

O. In this position, the radiator fan motor draws air into

the engine compartment.

I.

In this position, the radiator fan motor blows air out

from the engine compartment.

NOTE: When working in areas where debris can build

FG016027

up quickly on radiator it is advised to reverse the

Figure 28

fan every fifteen minutes.

NOTE: Pay attention to the engine coolant temperature

gauge. A sudden rise in temperature is an

indicator that the fan may need to be reversed

to clean radiator.

WARNING

There should be no personnel in front of the fan when

it is reversed, to keep them from being injured from

flying materials.

IMPORTANT

1.

Set safety lever on "LOCK" position.

2.

Set reverse fan switch on "I" (ON) position.

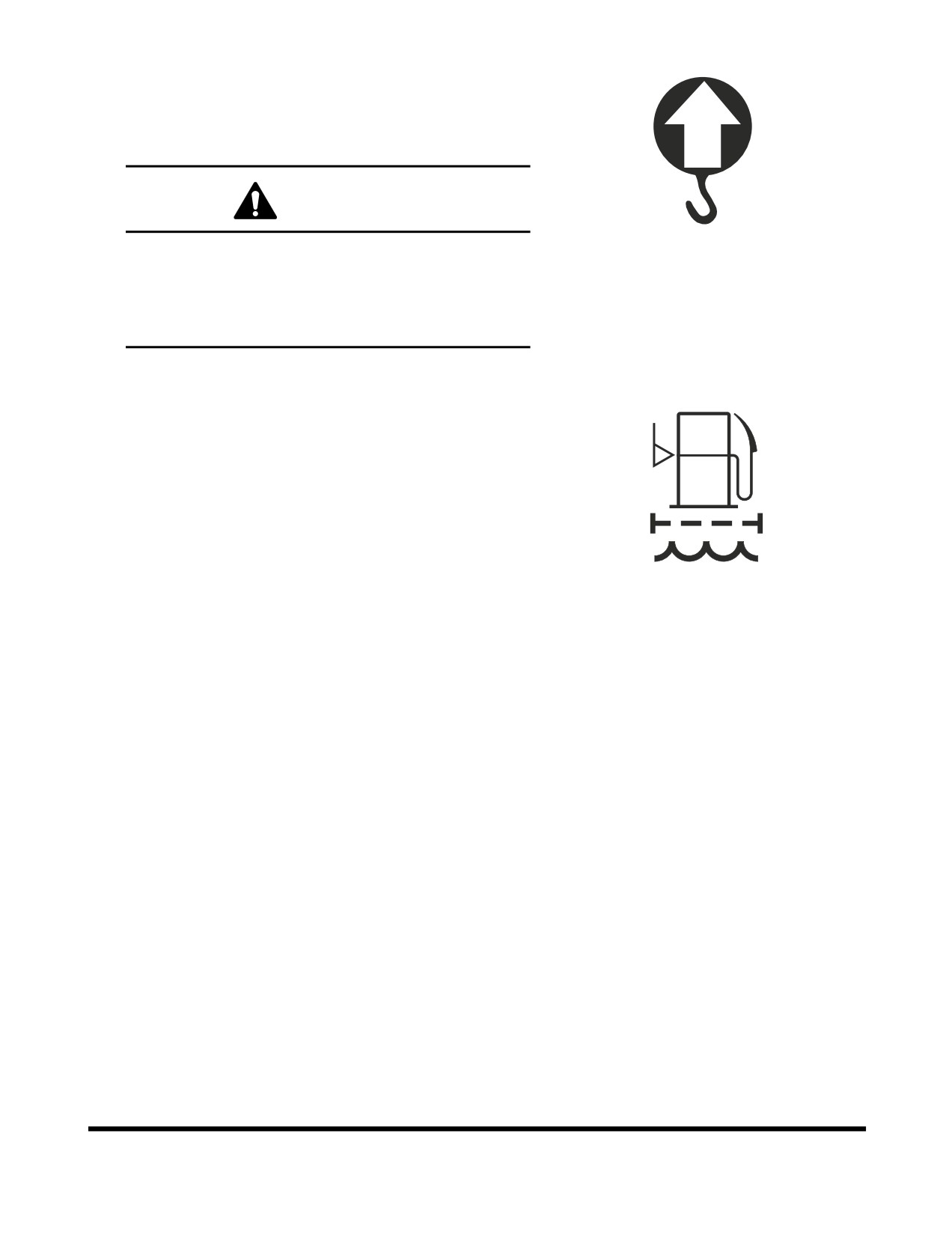

19. Overload Warning Switch (Optional)

O

If unit is equipped with an overload warning device, push

this switch to activate it.

I

O. In this position, the overload warning device is turned

"OFF."

I.

In this position, when a load is lifted that reaches the

machine safe lifting limit, a warning light on the

instrument panel will turn "ON" and a warning buzzer

will sound.

FG016023

Figure 29

WARNING

To prevent injury, do not exceed the rated load

capacity of the machine. If the machine is not on level

ground, load capacities will vary. There may be local

government regulations about the use of excavators

for lifting objects.

Please observe these regulations.

Operating Controls

OP001140

2-15

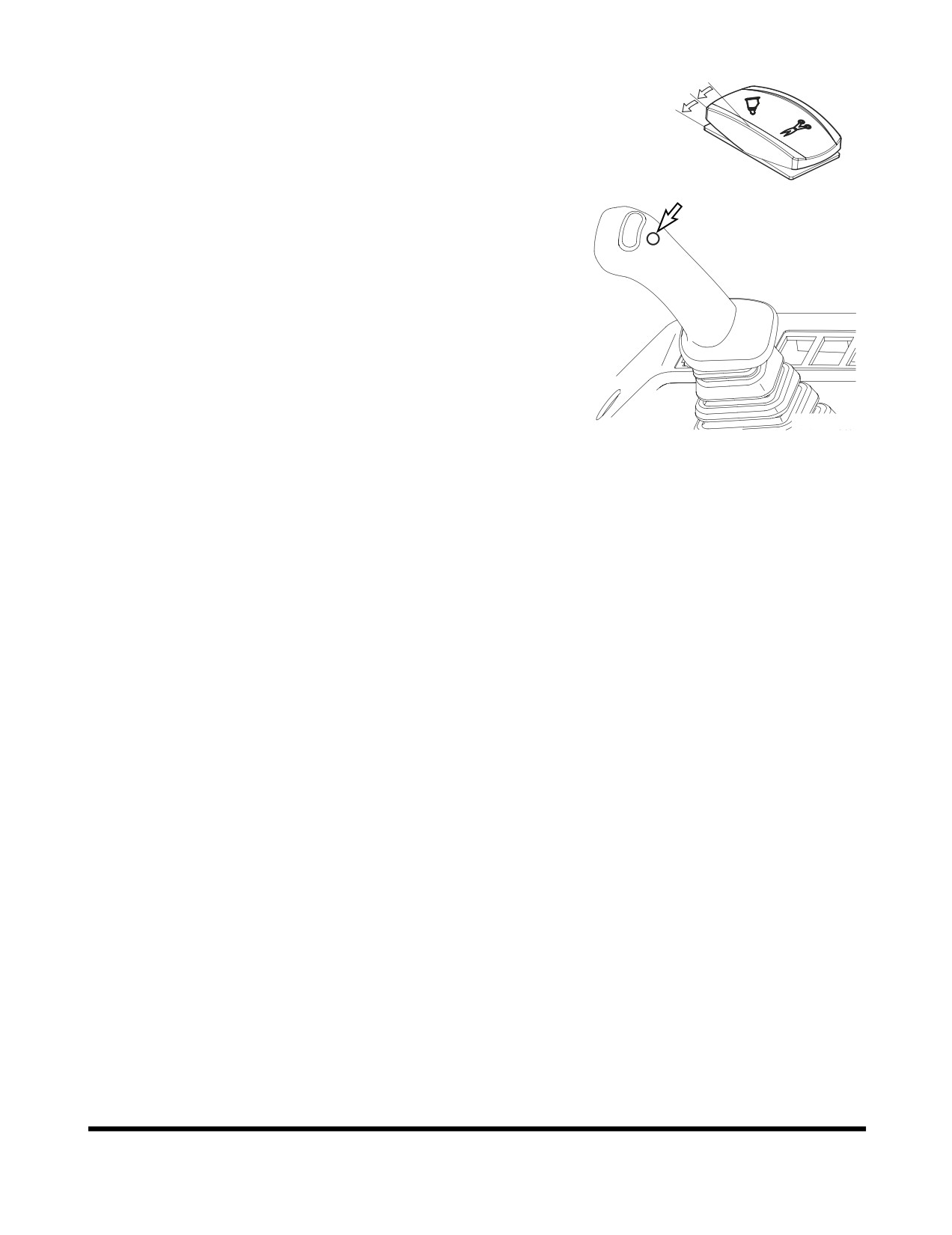

20. 2-Pump Flow Control Switch (Optional)

O

This switch is used to activate one or two optional pumps

I

for controlling attachments.

II

O. In this position, one pump is activated for use with an

attachment.

I.

In this position, two pumps are activated for use with

an attachment.

FG016026

Figure 30

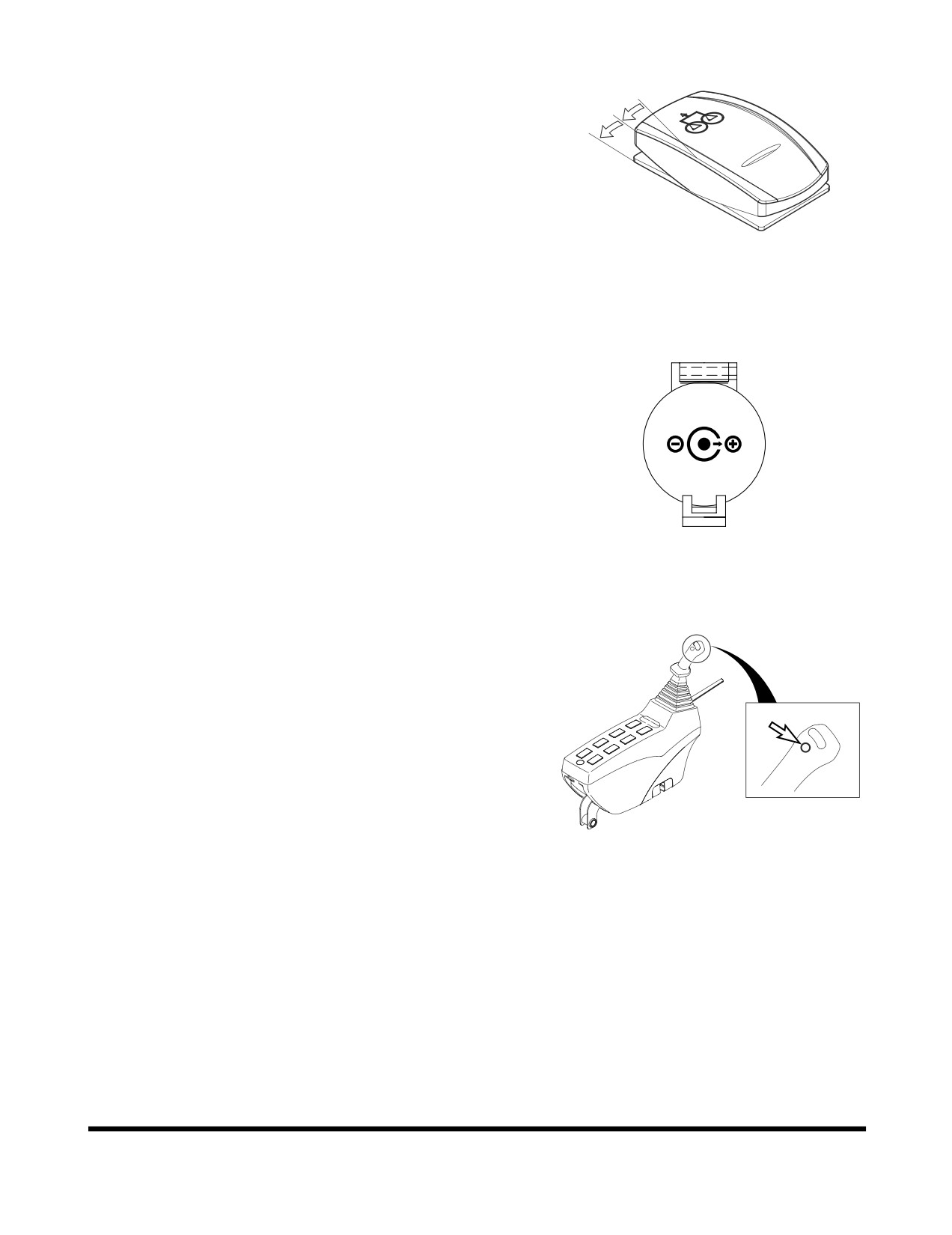

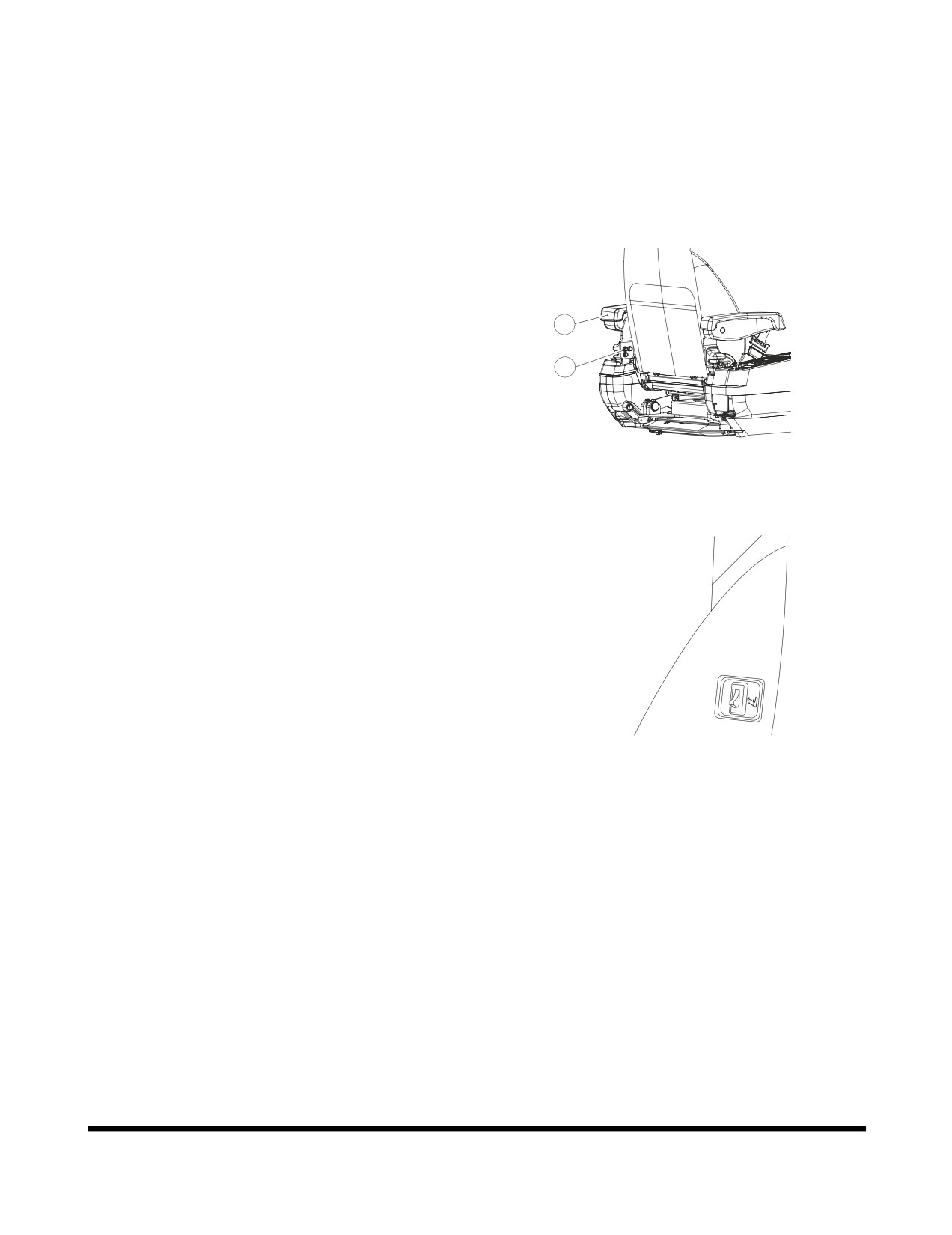

21. Power Socket for 12 Volt (Optional)

This is a power socket for only 12V DC devices.

This socket can be used for charging a cellular phone or

powering a small 12V DC electrical device.

Open the cap when using it.

12 V

NOTE: This socket is designed for small electrical

capacity devices. Do not use this socket for

large electrical capacity devices. Thus, damage

can be avoided.

HAAE1990

Figure 31

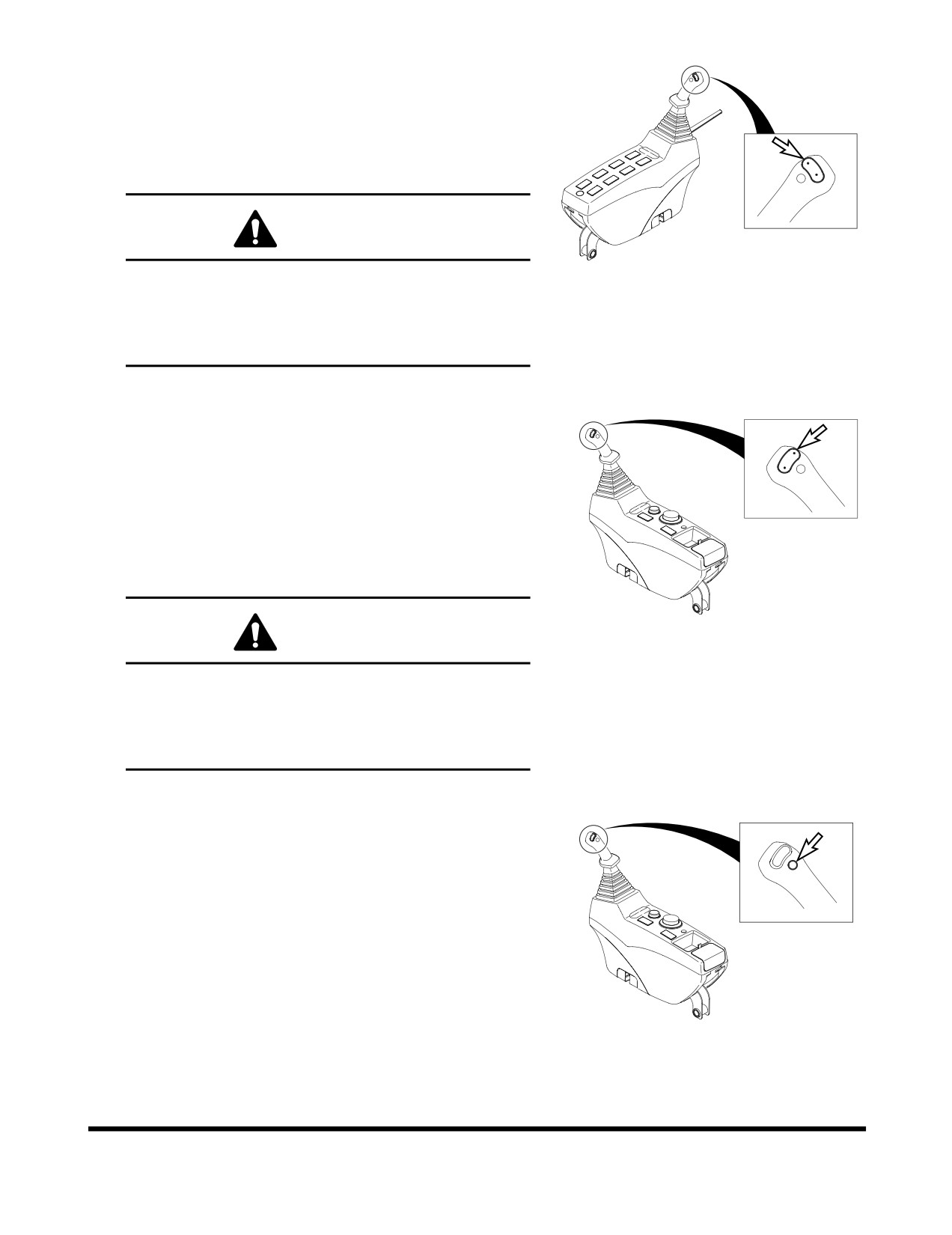

22. Horn Button (Left-hand Work Lever)

Press the lower button on the top of the left-hand work

lever (joystick) to sound horn.

NOTE: The starter switch must be "ON."

FG002084

Figure 32

Operating Controls

OP001140

2-16

23. Rotating Buttons

For a machine equipped with an attachment that rotates,

press the upper two buttons on the top of the left-hand

work lever (joystick) to rotate the attachment clockwise or

counterclockwise. Left button is for counterclockwise and

the right one is for clockwise.

WARNING

FG000382

Figure 33

Before using any attachment in a work application, be

sure to check its functional control. Make sure that

desired movement or action is being activated by the

control. e.g. opening/closing, CW/CCW, crowd/dump,

etc.

24. Shear Buttons

For a machine equipped with shear, press the two upper

buttons on the top of the right-hand work lever (joystick) to

open or close the shear. Left button is for closing (crowd),

right button is for opening (Dump).

NOTE: These buttons work with the breaker/boost/

shear selector switch. See “9. Breaker / Boost /

Shear Selector Switch” on page 2-10.

FG000383

Figure 34

WARNING

Before using any attachment in a work application, be

sure to check its functional control. Make sure that

desired movement or action is being activated by the

control. e.g. opening/closing, CW/CCW, crowd/dump,

etc.

25. Break / Booster Button (Right-hand

Work Lever)

Press the lower button on the top of the right-hand work

lever (joystick) to boost the hydraulic pressure. Refer to the

“Boost Mode” on page 3-22.

NOTE: This button works with the breaker/boost/shear

selector switch. See “9. Breaker / Boost / Shear

Selector Switch” on page 2-10.

FG000036

Figure 35

Operating Controls

OP001140

2-17

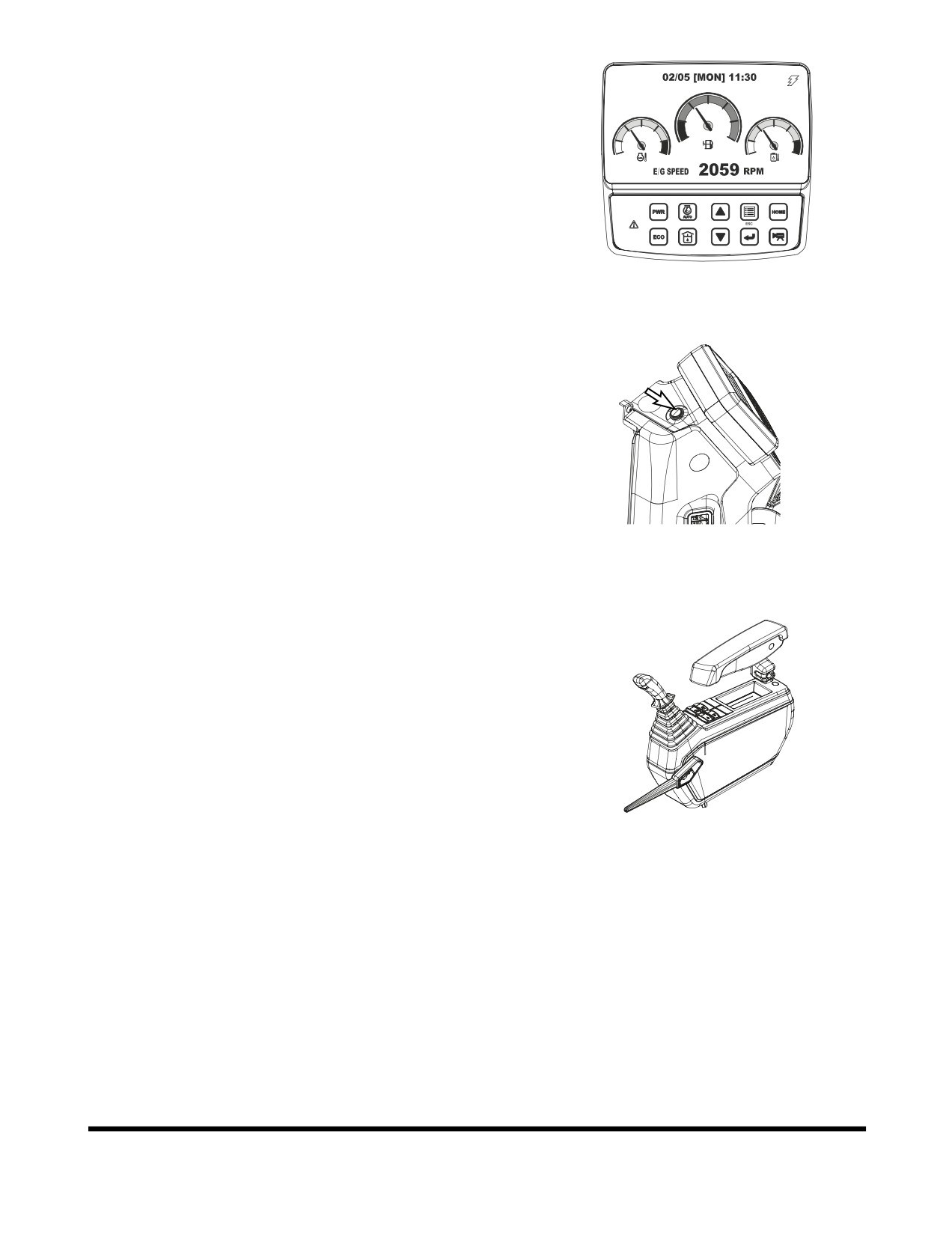

26. Instrument Panel

See “Instrument Panel” on page 2-20.

E

F

C

H

C

H

1

2

3

4

5

6

7

8

9

0

FG013662

Figure 36

27. Photo Sensor

The photo sensor detects the radiant energy of the sun.

In auto mode the air conditioner will automatically adjust

the air temperature based on to the detected radiant

energy.

FG015818

Figure 37

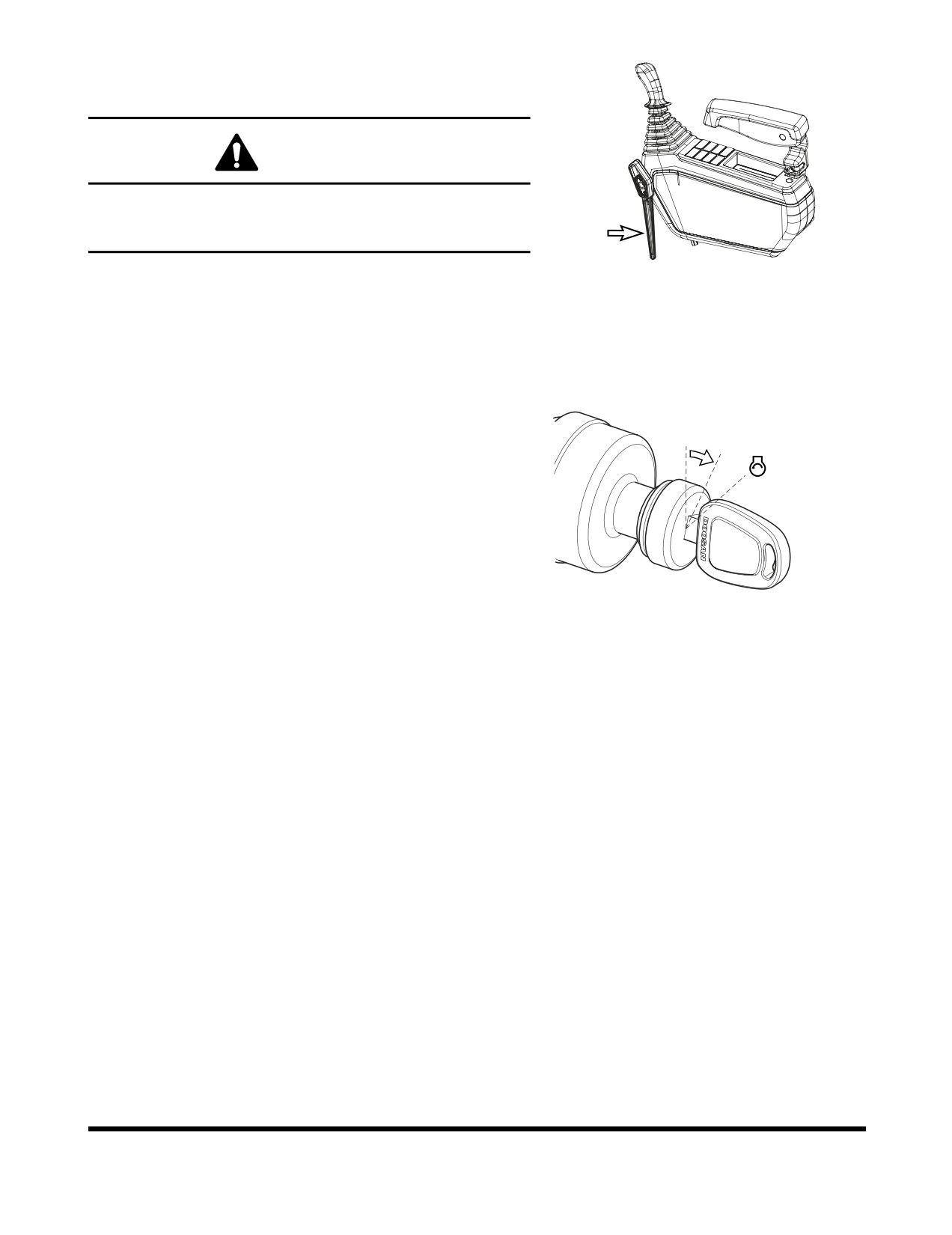

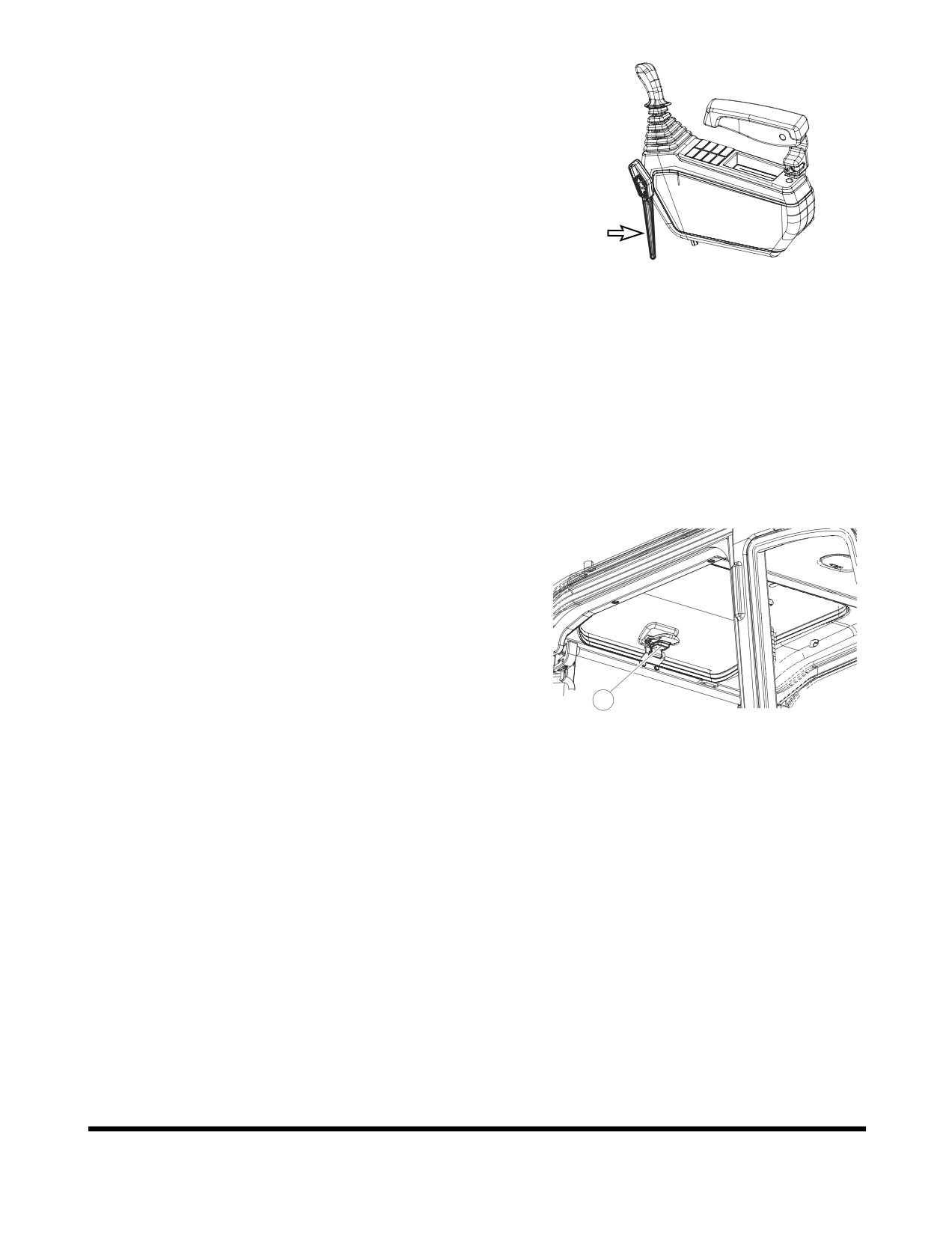

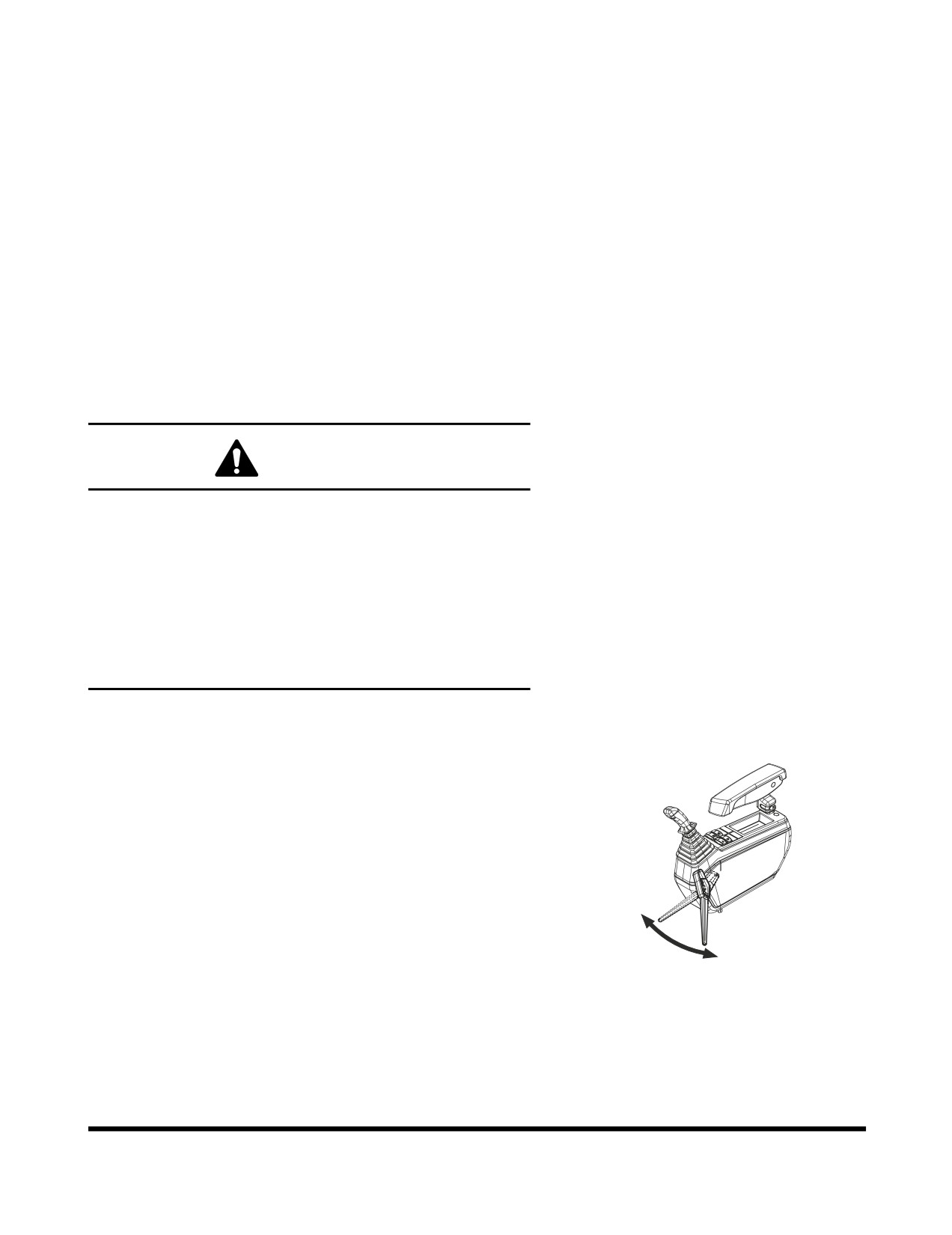

28. Safety Lever

See “Safety Lever” on page 3-14.

FG015817

Figure38

Operating Controls

OP001140

2-18

29. Auxiliary Mode Switch

O I

When the control system is out of order, the pump system

can be controlled manually.

O. In this position, the manual pump control is "OFF."

I.

In this position, the manual pump control is "ON."

CAUTION

FG016039

Be sure to turn pump control to the "O" (OFF) position,

Figure 39

after the control system is operating properly.

Operating Controls

OP001140

2-19

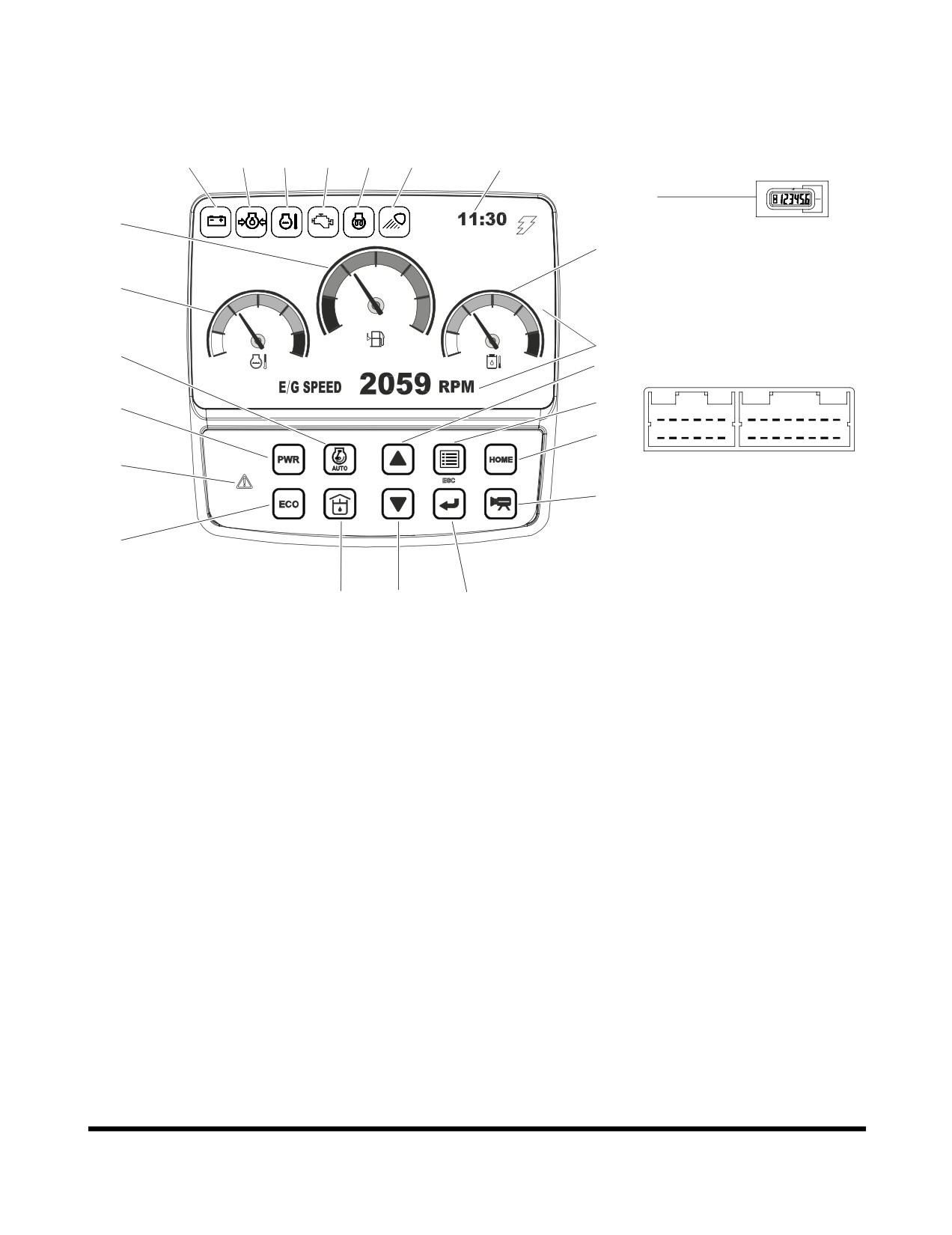

INSTRUMENT PANEL

7

8

9

10

11

12

5

1

6

CHECK

1

3

2

< CONNECTOR AND TERMINAL NO.>

E

F

4

16

C

H

C

H

18

AMP 040 28P

14

20

6

5

4

3

2

1

8

7

6

5

4

3

2

1

12 11 10

9

8

7

16

15

14

13

12 11

10

9

22

13

(CN7)

(CN6)

1

2

3

4

5

23

6

7

8

9

0

15

17

19

21

FG013521

Figure 40

Operating Controls

OP001140

2-20

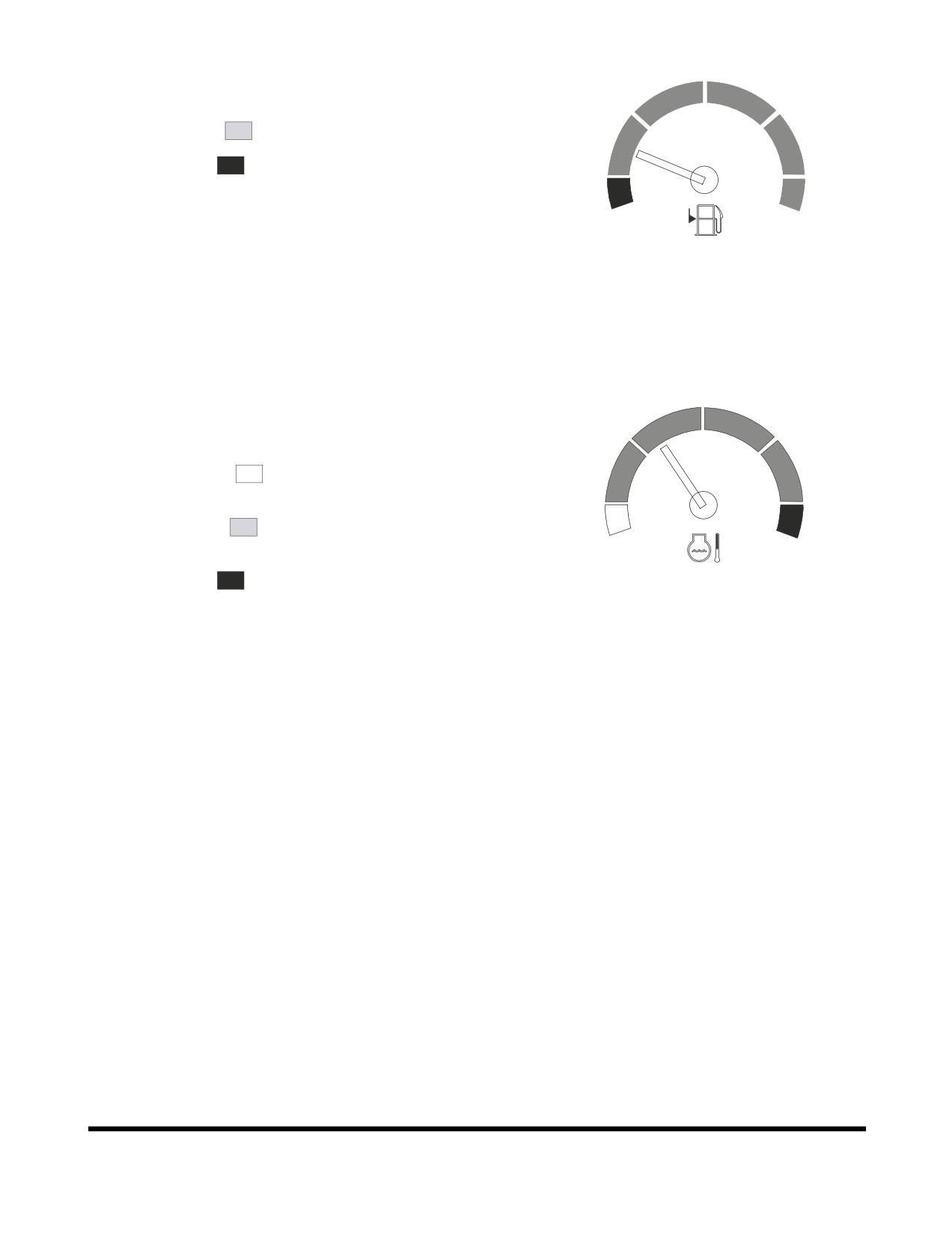

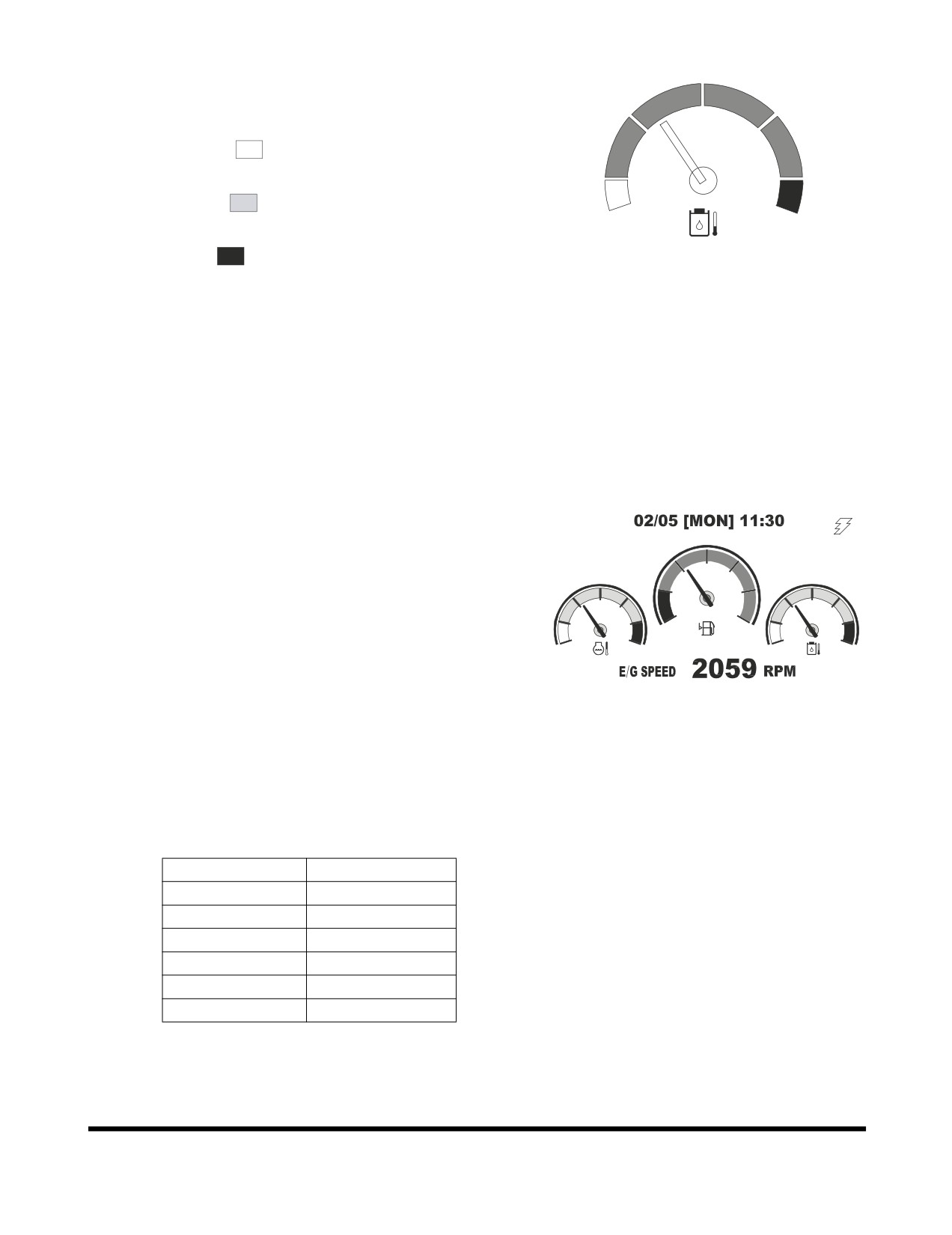

1. Fuel Gauge

Shows remaining fuel quantity in tank.

BLUE ZONE (

) - Indicates a normal fuel quantity.

RED ZONE (

) - Indicates that fuel level is low.

If the gauge pointer moves into the red zone, the fuel level

E

F

symbol will turn "ON," and be display in the screen. Stop

operation and immediately and add fuel.

FG013666

NOTE: See “Abnormal State Warning Symbols” on

page 2-29, for location of this warning symbol

Figure 41

and others.

Check the fuel level on firm, level ground.

2.

Engine Coolant Temperature Gauge

The colored bands indicate the temperature of the engine

coolant.

WHITE ZONE (

) - Indicates temperature is lower than

the normal operating temperature.

BLUE ZONE (

)

- Indicates temperature is within the

C

H

normal operating range.

RED ZONE (

) - Indicates temperature is too high.

FG013672

Figure 42

During operation, the pointer must be in the blue zone.

If the gauge pointer moves into the red zone, the engine

coolant temperature warning light will turn "ON," a warning

buzzer will sound, and the engine speed will be

automatically reduced. Allow the engine to run at low idle

speed until temperature gauge registers in the blue zone

again. When the blue zone is reached, allow the engine to

idle for an additional three - five minutes before shutting

down the engine. If not allowed to idle, heat surge may

develop which will damage the engine. Allowing the engine

to idle will dissipate heat. Check the coolant level, look for

a loose fan belt, inspect for debris around radiator, and so

on.

When the temperature reaches the normal range, the

engine speed will automatically recover.

Operating Controls

OP001140

2-22

3. Hydraulic Oil Temperature Gauge

The colored bands indicate the temperature of the

hydraulic oil

WHITE ZONE (

) - Indicates temperature is lower than

the normal operating temperature.

BLUE ZONE (

)

- Indicates temperature is within the

C

H

normal operating range.

RED ZONE (

) - Indicates temperature is too high.

FG013673

Figure 43

During operation, the pointer must be in the blue zone.

If the gauge pointer moves into the red zone, the hydraulic

oil temperature symbol will turn "ON," and be display in the

screen. Allow the engine to run at low idle speed until

temperature gauge registers in the blue zone again.

NOTE: See “Abnormal State Warning Symbols” on

page 2-29, for location of this warning symbol

and others.

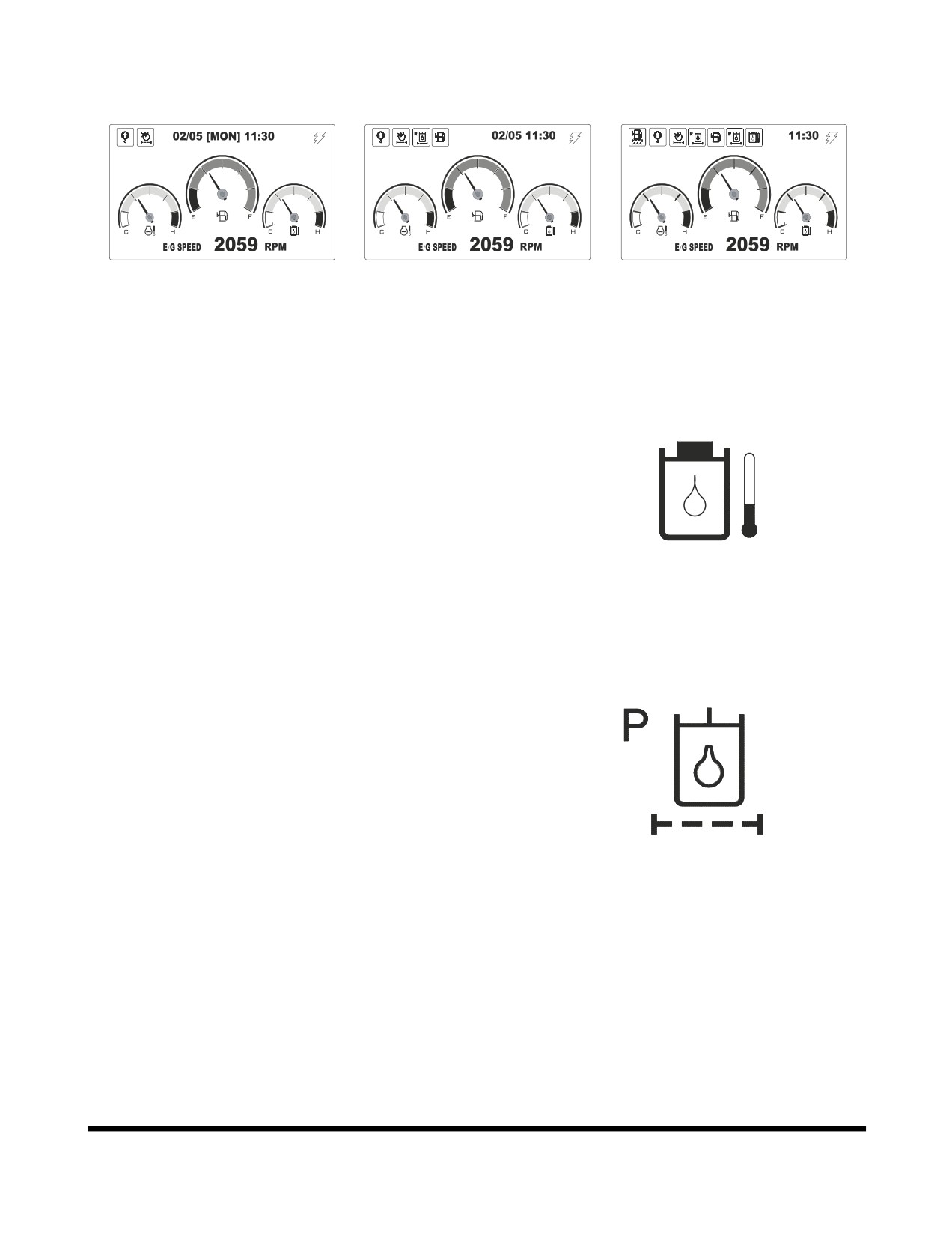

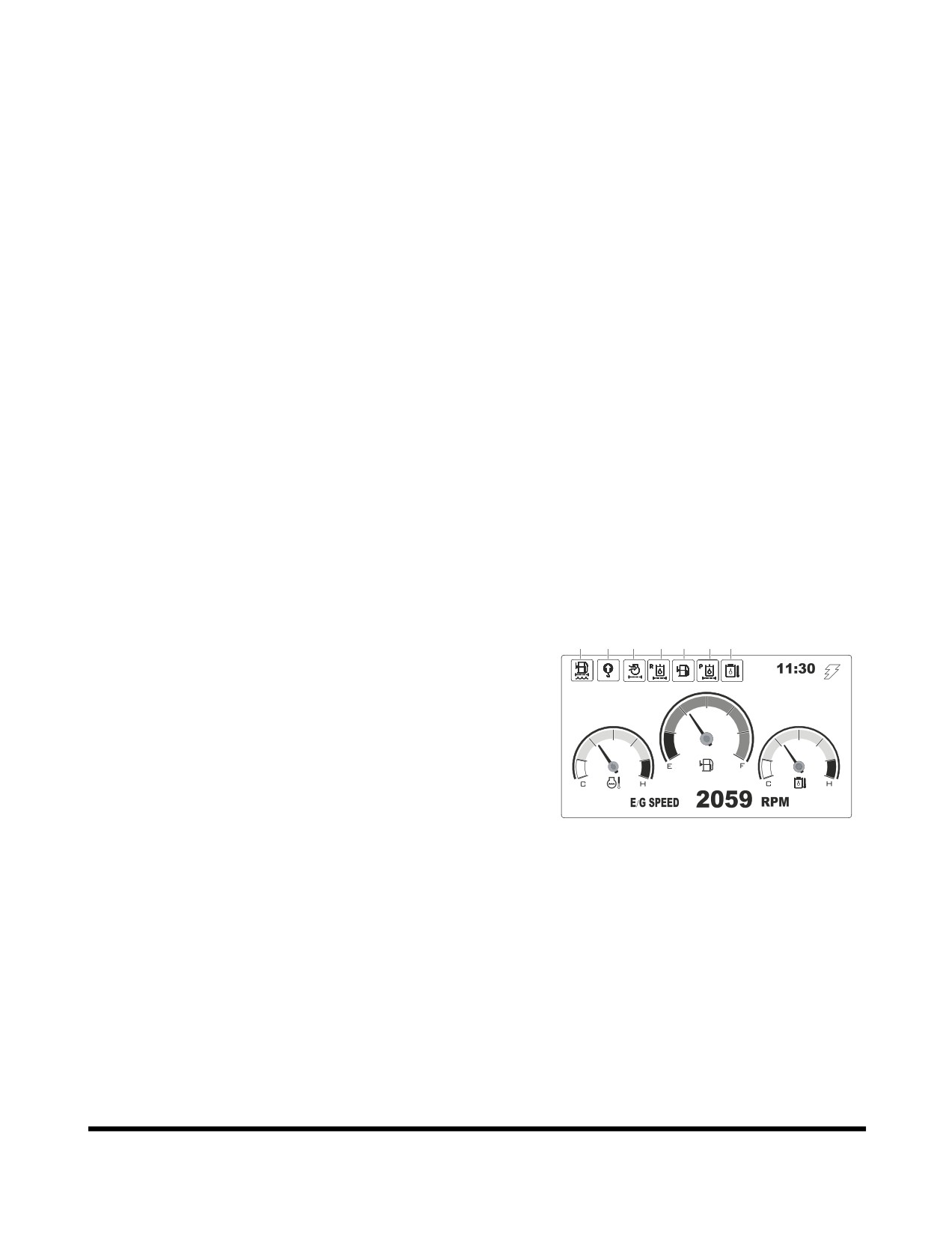

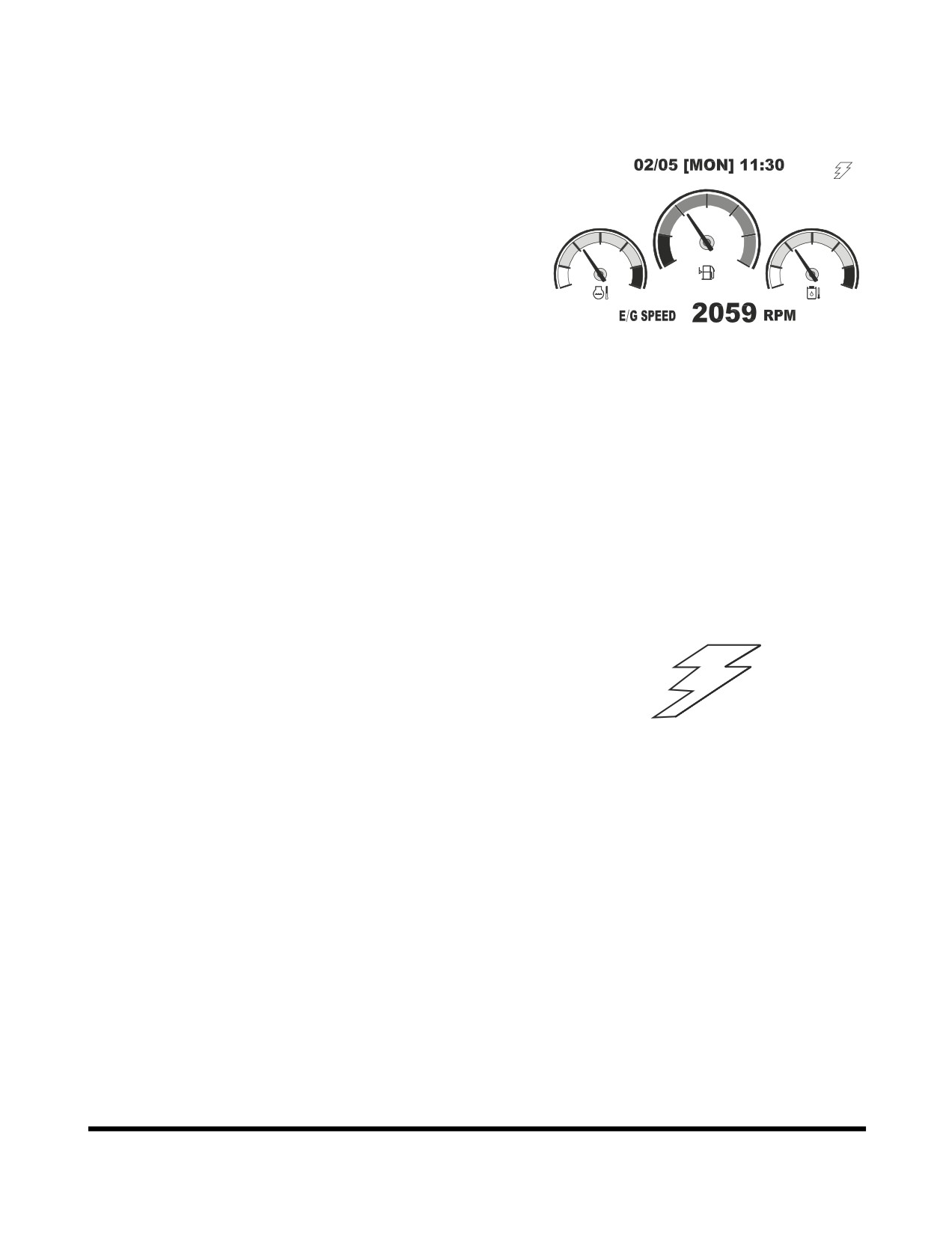

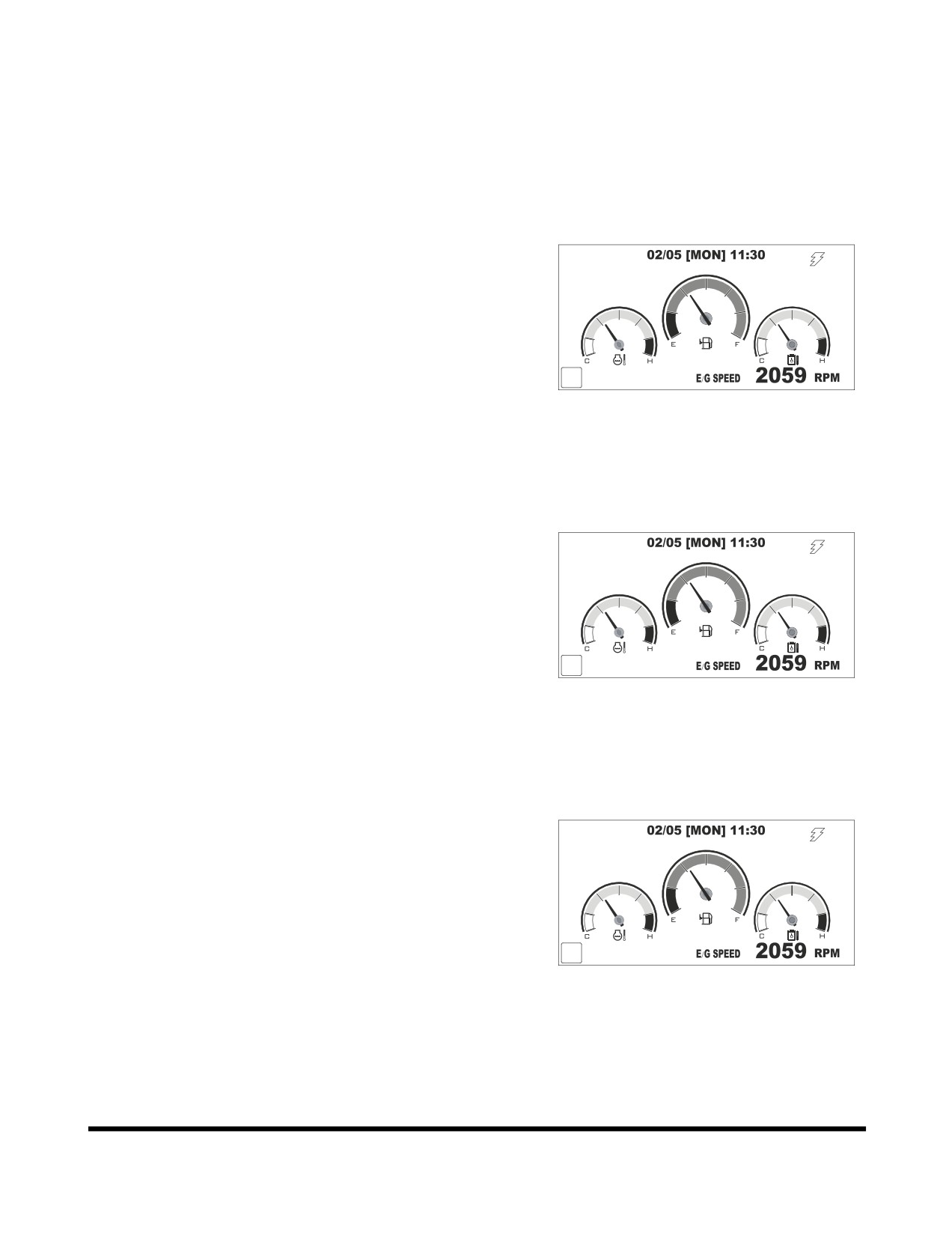

4. Multifunction Gauge and Graphic

Information Area

See “Multifunction Gauge and Graphic Information” on

page 2-27. This section will have a more in-depth

explanation of the display area.

E

F

C

H

C

H

FG013591

Figure 44

5. Digital Clock

A digital clock, shows the current time. The displayed

contents are as follows.

Display

Description

MM/DD [W] HH:mm

MM

Month

DD

Date

W

Day

HH

Hour

FG000044

mm

Minute

Figure 45

A (P)

AM (PM)

Refer to the “Setting Main Menu” on page 2-35 for time

setting.

Operating Controls

OP001140

2-23

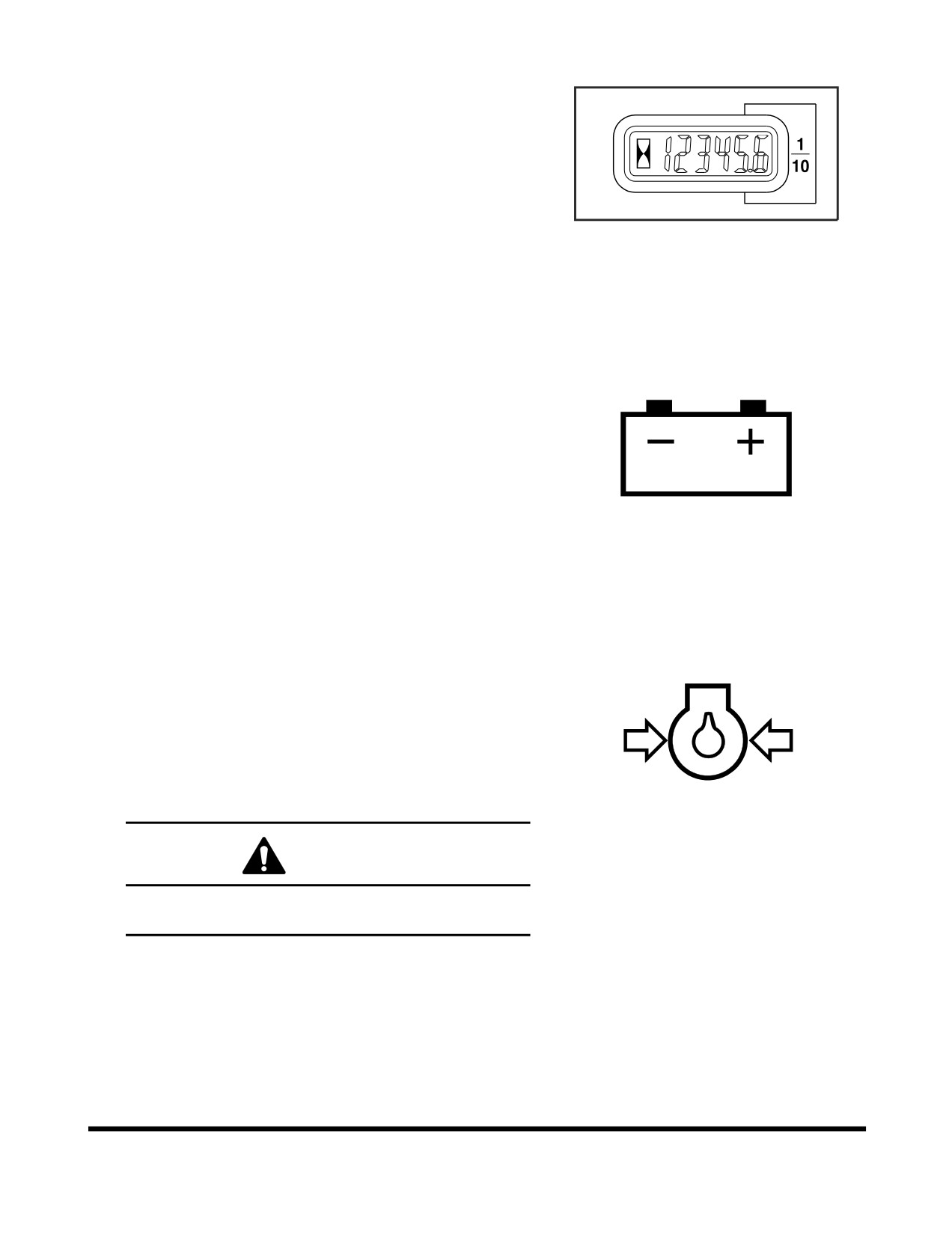

6. Hour Meter

The hour meter is used to indicate the total number of

running hours on the engine. The meter will flash every

four seconds when the engine is running to indicate that it

is functioning properly.

HAOA601L

Figure 46

7. Charge Warning

This symbol indicates when the engine starter switch is

turned "ON," and should go "OFF" after the engine starts. If

it does not turn "OFF," shut the engine down immediately

and determine the cause of the problem.

HAOA610L

Figure 47

8. Engine Oil Pressure Warning

This symbol indicates when the engine starter switch is

turned "ON," and should go "OFF" after the engine starts.

For example, if the engine oil pressure becomes too low,

the light will turn "ON" and a warning buzzer will sound. If

this happens, shut the engine down immediately and

determine the cause of the problem. If you continue to

work when this light is "ON," it will result in serious engine

damage.

HAOA620L

Figure 48

CAUTION

If you continue to work when this light is "ON," it will

result in serious engine damage.

Operating Controls

OP001140

2-24

9.

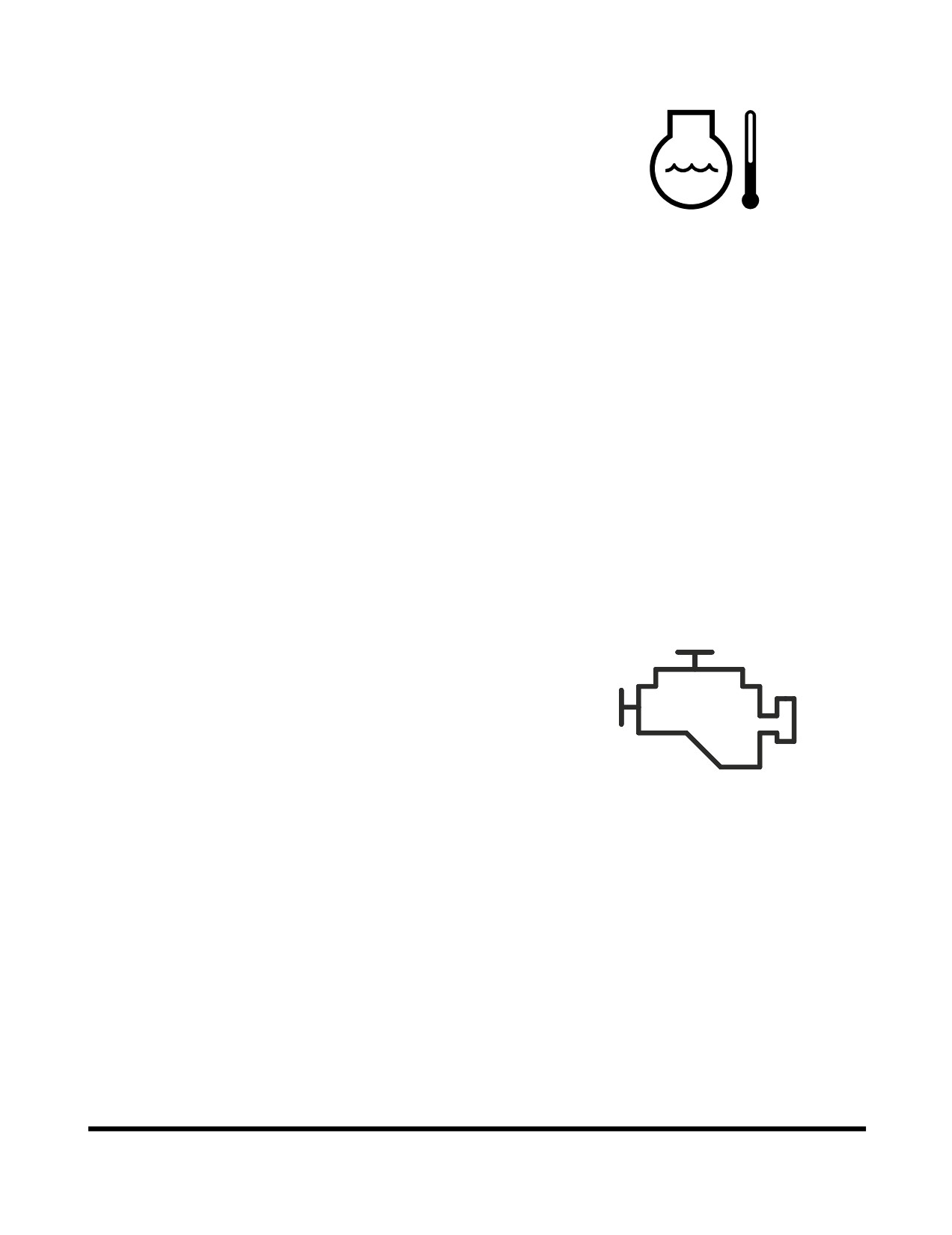

Engine Coolant Temperature Warning

If engine coolant overheats, this symbol appears on the

screen an alarm will sound, and the engine speed will be

automatically reduced, until coolant temperature drops. Do

not turn engine "OFF" because this will cause coolant

temperature to rise and may cause engine to siege

because of heat surge.

NOTE: Check the engine coolant temperature gauge. If

the gauge pointer moves into the red zone, the

engine coolant temperature warning light will

HAOD350L

turn "ON," a warning buzzer will sound, and the

Figure 49

engine speed will be automatically reduced.

Allow the engine to run at low idle speed until

temperature gauge registers in the blue zone

again. When the blue zone is reached, allow the

engine to idle for an additional three

- five

minutes before shutting down the engine. If not

allowed to idle, heat surge may develop which

will damage the engine. Allowing the engine to

idle will dissipate heat. Check the coolant level,

look for a loose fan belt, inspect for debris

around radiator, and so on.

When the temperature reaches the normal

range, the engine speed will automatically

recover.

10. Engine Check Warning

This symbol indicates when the engine needs to be check.

NOTE: If this symbol turns "ON" stop the machine and

repair the cause of the fault.

CHECK

FG000045

Figure 50

Operating Controls

OP001140

2-25

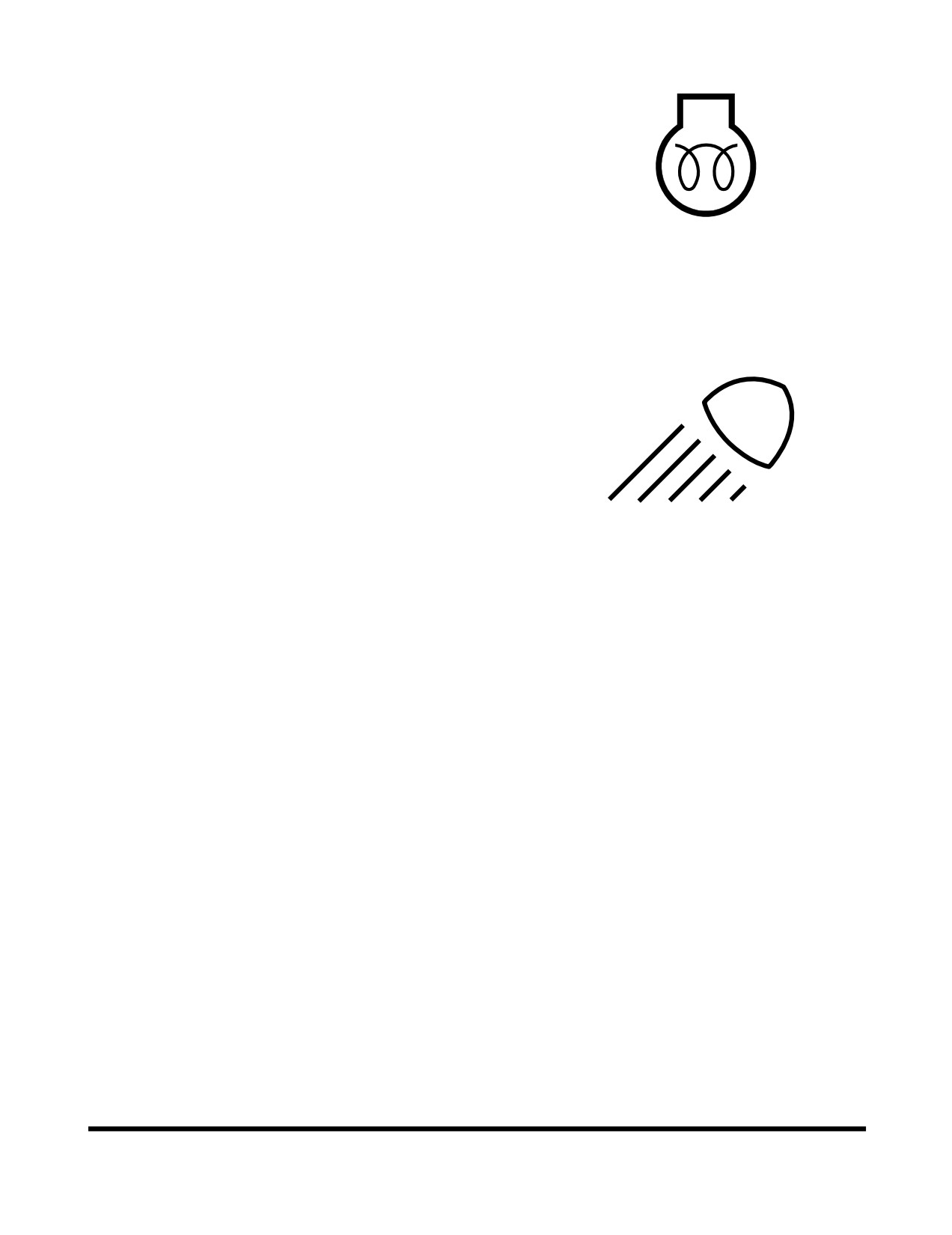

11. Preheating Indicator

In cold weather this symbol indicates that engine preheat

function is operating.

When this indicator symbol turns "OFF," it means that

engine preheat cycle has been completed.

HAAE2000

Figure 51

12. Work Light Indicator

The indicator symbol indicates that work lights are turned

"ON."

HB4O2003

Figure 52

Operating Controls

OP001140

2-26

MULTIFUNCTION GAUGE AND

GRAPHIC INFORMATION

When the engine starter switch is turned to the "I" (ON) position,

a LOGO will appear on the display screen for about two

seconds.

When the LOGO disappears, the multifunction gauge and

graphic information screen will appear.

The engine rpm is normally displayed at the bottom of the

screen when the starter switch is first turned "ON." Each time the

E

F

display selector button (19, Figure 40) is pressed, the digital

C

H

C

H

readout changes in the following sequence; Engine speed (rpm)

-> Battery voltage (VOLT) -> Front pump pressure (BAR) ->

FG013591

Rear pump pressure (BAR).

Figure 53

NOTE: See Figure 56 thru Figure 59.

A digital clock is located at the top of the display.

By using a combination of the mode selector buttons,

information for filters and oils can also be displayed.

The display can also be set for the desired language.

Refer to the “Setting Main Menu” on page 2-35 for the language

selection and information display sequences.

Communication Indicator

Indicates the condition of communication between main

controller and instrument panel.

1.

Normal Condition:

The symbol will sequentially move like lightening.

NOTE: See Figure 56 thru Figure 59.

2.

Abnormal Condition:

If the symbol is not displayed, it means there is a

FG000047

communication error.

Figure 54

NOTE: See Figure 55.

Operating Controls

OP001140

2-27

Front Hydraulic Pump Pressure

The front pump pressure is numerically displayed.

NOTE: This pump is closest to engine flywheel housing or is

the upper one of hydraulic pump.

FRONT PUMP 320 BAR

It displays the reading in BARs.

FG000051

Figure 58

Rear Hydraulic Pump Pressure

The rear pump pressure is numerically displayed.

NOTE: This pump is the farthest from engine flywheel

housing or is the lower one of hydraulic pump.

REAR PUMP 313 BAR

It displays the reading in BARs.

FG000052

Figure 59

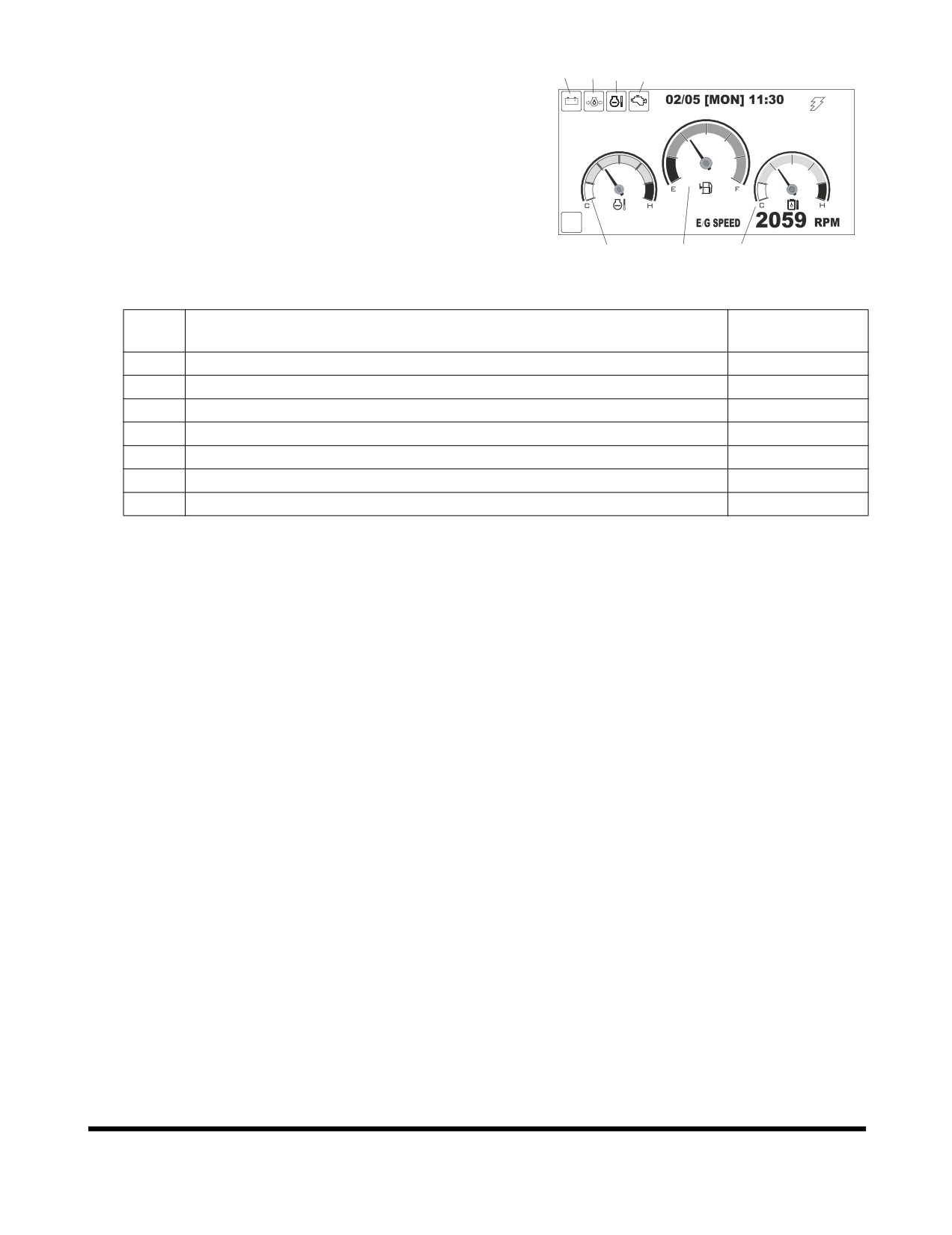

Abnormal State Warning Symbols

7

6

5

4

3

2

1

1.

Hydraulic Oil Overheating Warning

2.

Pilot Filter Clogged Warning

3.

Fuel Shortage Warning

4.

Return Filter Clogged Warning

5.

Air Cleaner Clogged Warning

6.

Overload Warning (Optional)

FG013702

7.

Water in Fuel Warning

Figure 60

Operating Controls

OP001140

2-29

Examples of Warning Display

FG013703

FG013704

FG013705

<2 kinds of warning display>

<4 kinds of warning display>

<7 kinds of warning display>

Figure 61

1.

Hydraulic Oil Overheat Warning

If the hydraulic oil temperature is too high, this symbol

appears on the screen.

FG000056

Figure 62

2.

Pilot Filter Clogged Warning

This symbol indicates when the pilot filter clogged.

If this symbol is displayed, immediately stop operation and

replace the pilot filter.

After the pilot filter has been serviced, restart machine

operation to remove warning symbol.

FG000055

Figure 63

Operating Controls

OP001140

2-30

3.

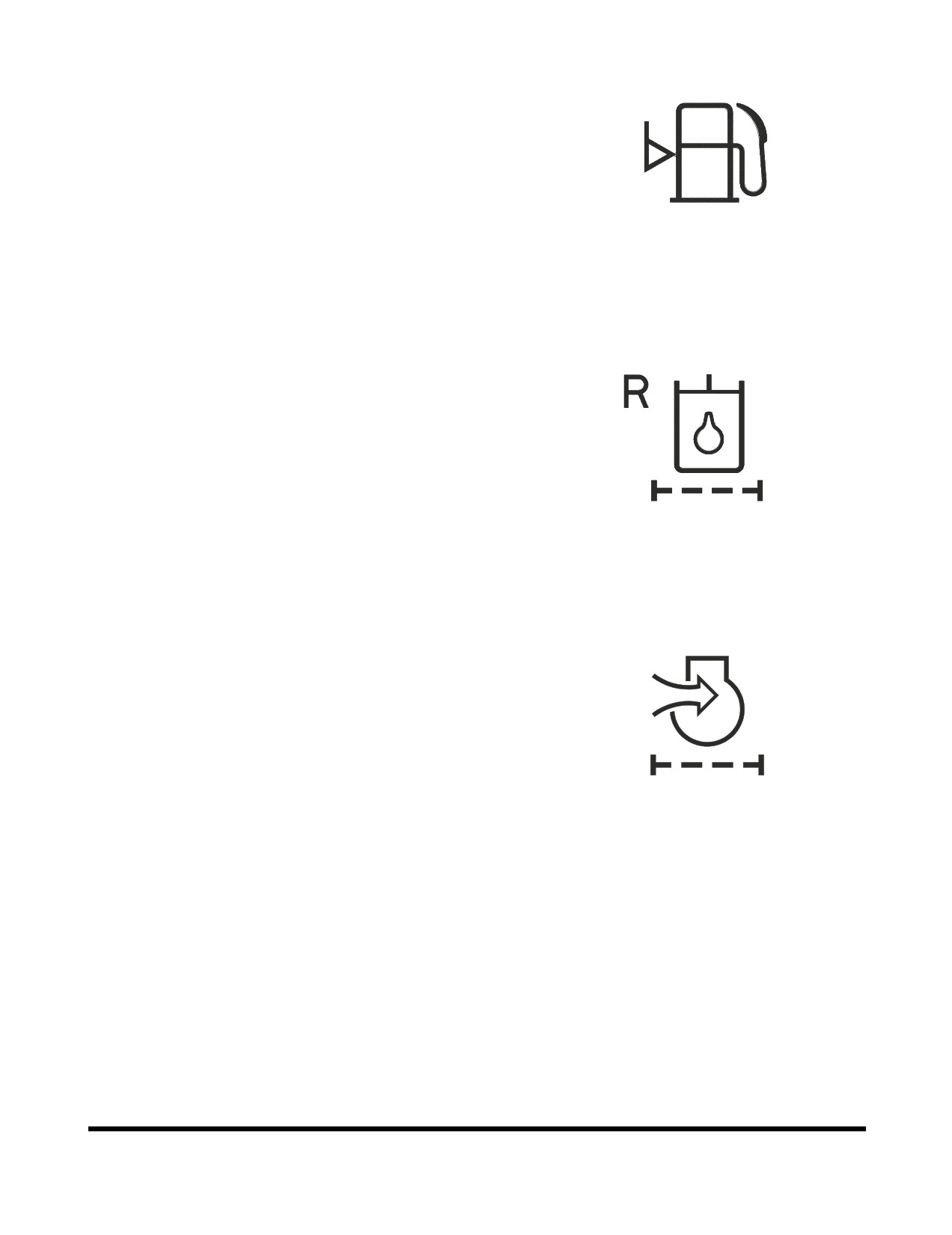

Fuel Shortage Warning

If the fuel quantity is too low, this symbol appears on the

screen.

If this light turns "ON," add fuel as soon as possible.

FG000057

Figure 64

4.

Return Filter Clogged Warning

This symbol indicates when the hydraulic return filter is

clogged.

If this symbol is displayed, immediately stop operation and

replace the return filter.

After the return filter has been serviced, restart machine

operation to remove warning symbol.

FG000054

Figure 65

5.

Air Cleaner Clogged Warning

This symbol indicates when the air cleaner is clogged.

If this symbol is displayed, immediately stop operation and

replace or clean the air filter.

After the air filter has been serviced, restart machine

operation to remove warning symbol.

FG000053

Figure 66

Operating Controls

OP001140

2-31

6.

Overload Warning (Optional)

If the overload warning switch is turned "ON," and this

symbol appears on the screen and the warning buzzer

sounds, that indicates that overloaded condition is

occurring. Immediately reduce the load.

WARNING

If this warning appears on the screen and a warning

FG000253

buzzer sound, reduce the load immediately.

Figure 67

If you continue to work, the machine can be turned over

or damage to hydraulic components and structural parts

could occur.

7.

Water In Fuel Warning

This symbol indicates when the water is full in the fuel

prefilter

When this symbol appears, drain water from fuel prefilter

as soon as possible.

FG013744

Figure 68

Operating Controls

OP001140

2-32

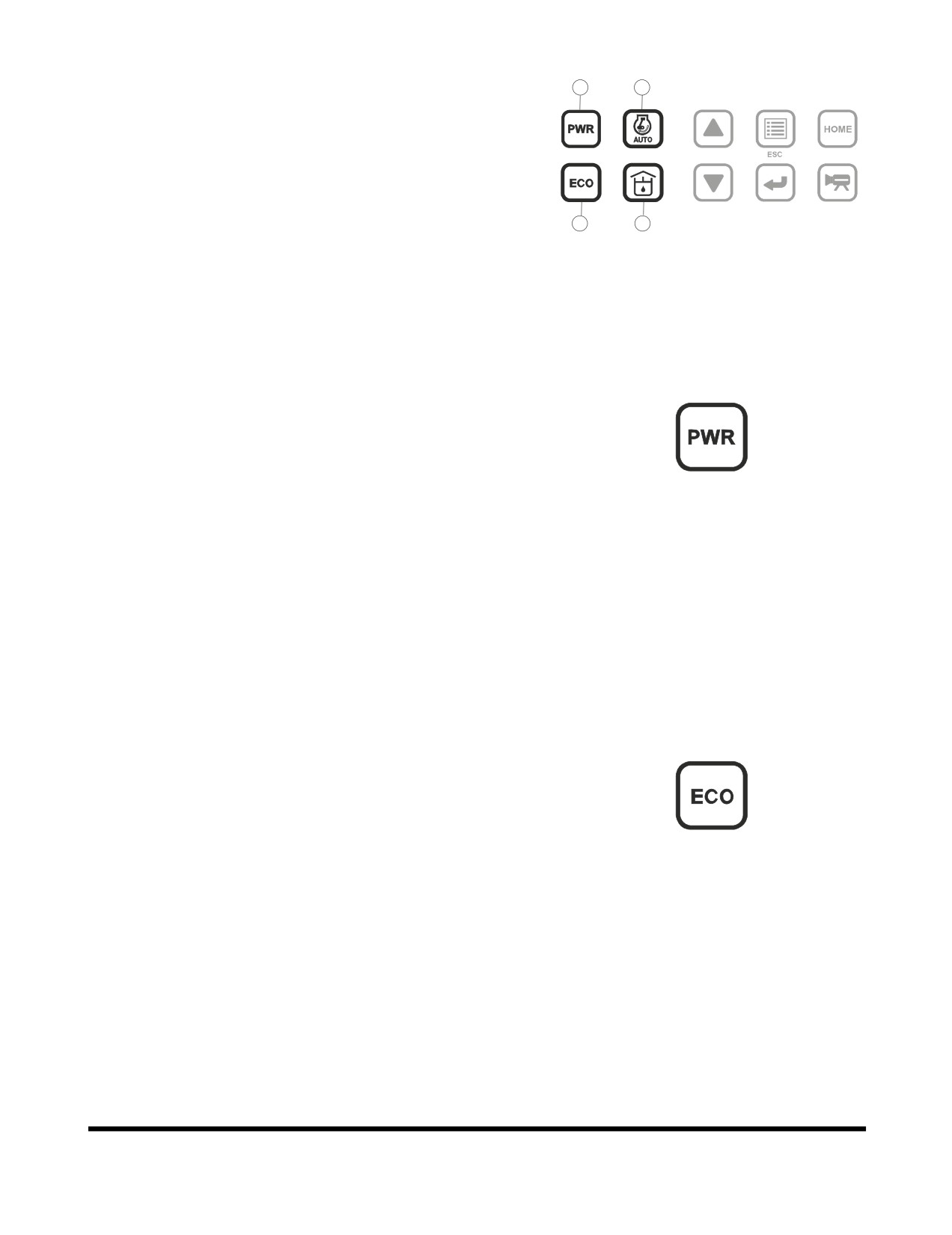

MODE SELECTOR BUTTONS

1

3

1.

Power Mode Selector Button

2.

Economy Mode Selector Button

1

2

3

4

5

3.

Auto Idle Selector Button

4.

Flow Control Button

6

7

8

9

0

2

4

FG013707

Figure 69

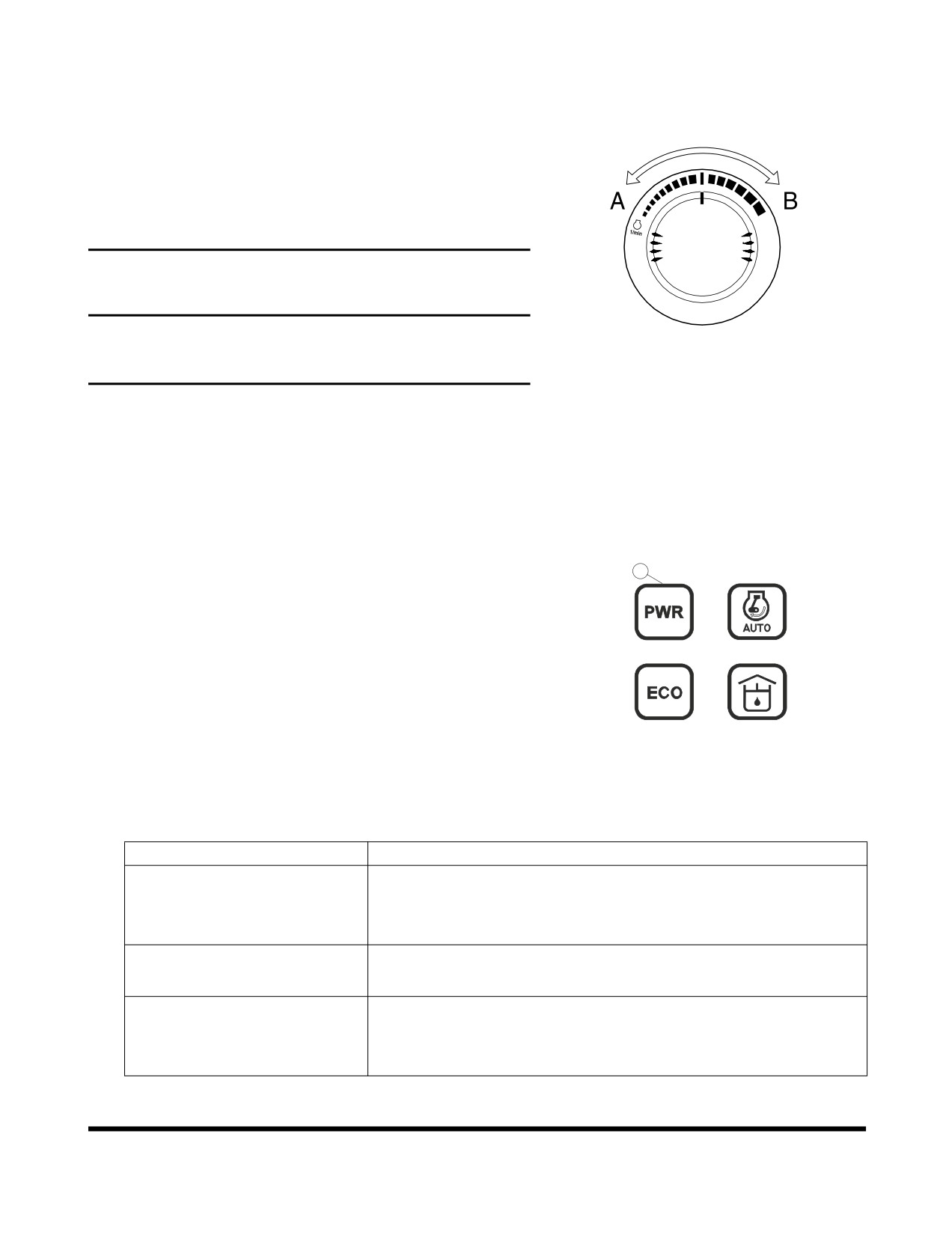

1. Power Mode Selector Button

This power mode is suitable for heavy-duty work that

requires a high operating speed. Push this button to turn

power mode "ON" or "OFF."

When the power mode button is pushed to the "ON"

position, an indicator light above it turns "ON."

1

When the power mode button is pushed again, it is turned

"OFF" and the power mode is deactivated and returns to

the standard operating mode.

FG013709

When turning the engine starter switch to the "I" (ON)

Figure 70

position, the power mode is automatically defaulted to

"Standard Mode."

NOTE: For further details, see "“Mode Selection” on

page 3-20.

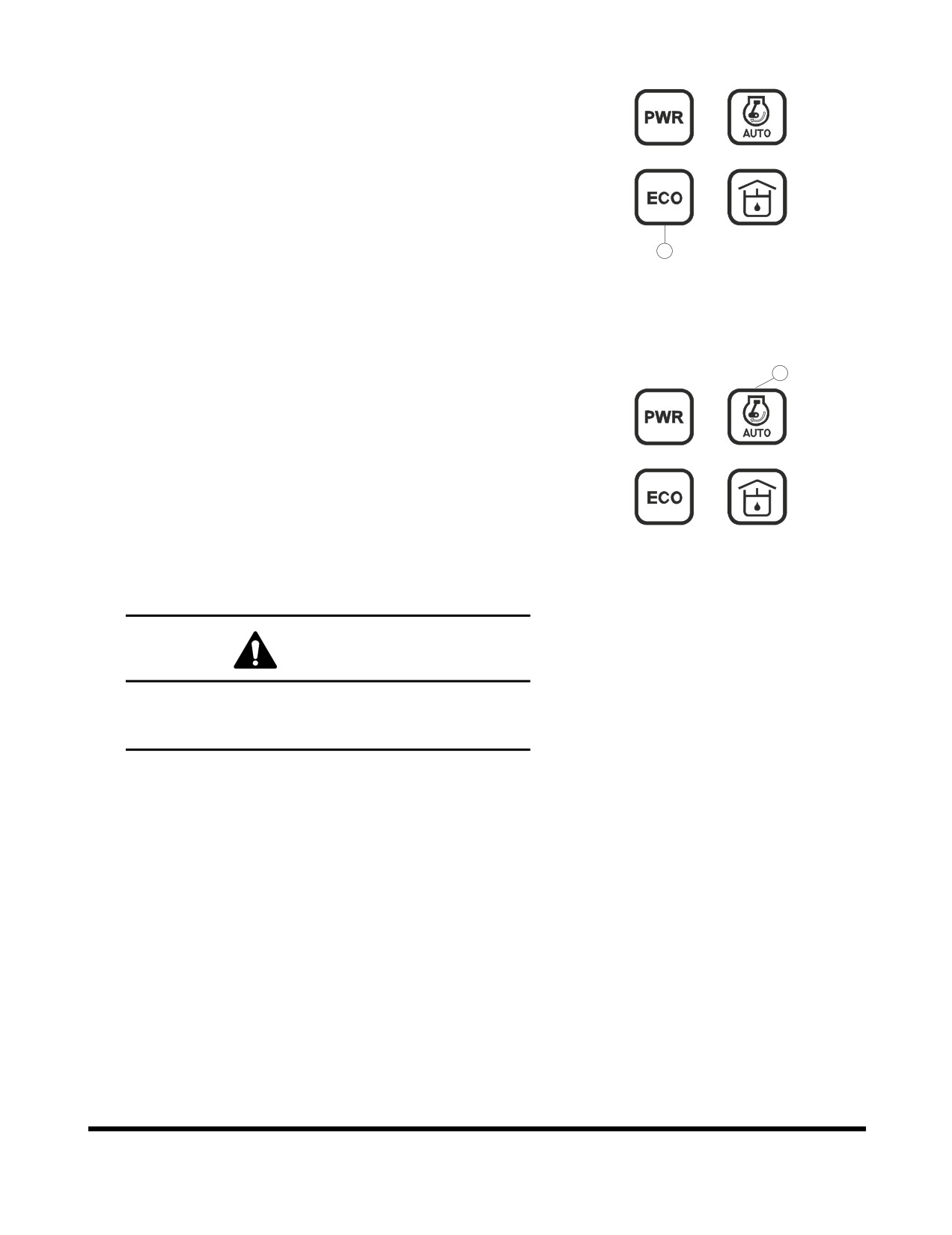

2. Economy Mode Selector Button

Economy mode is used for light loading work, when this

mode selected it will reduce noise and fuel consumption

with standard mode.

When the economy mode button is pushed to the "ON"

position, a symbol appears on the screen.

6

NOTE: When the economy mode button is pushed

again, it is turned "OFF" and the economy mode

is deactivated and returns to the standard

FG013710

operating mode.

Figure 71

Operating Controls

OP001140

2-33

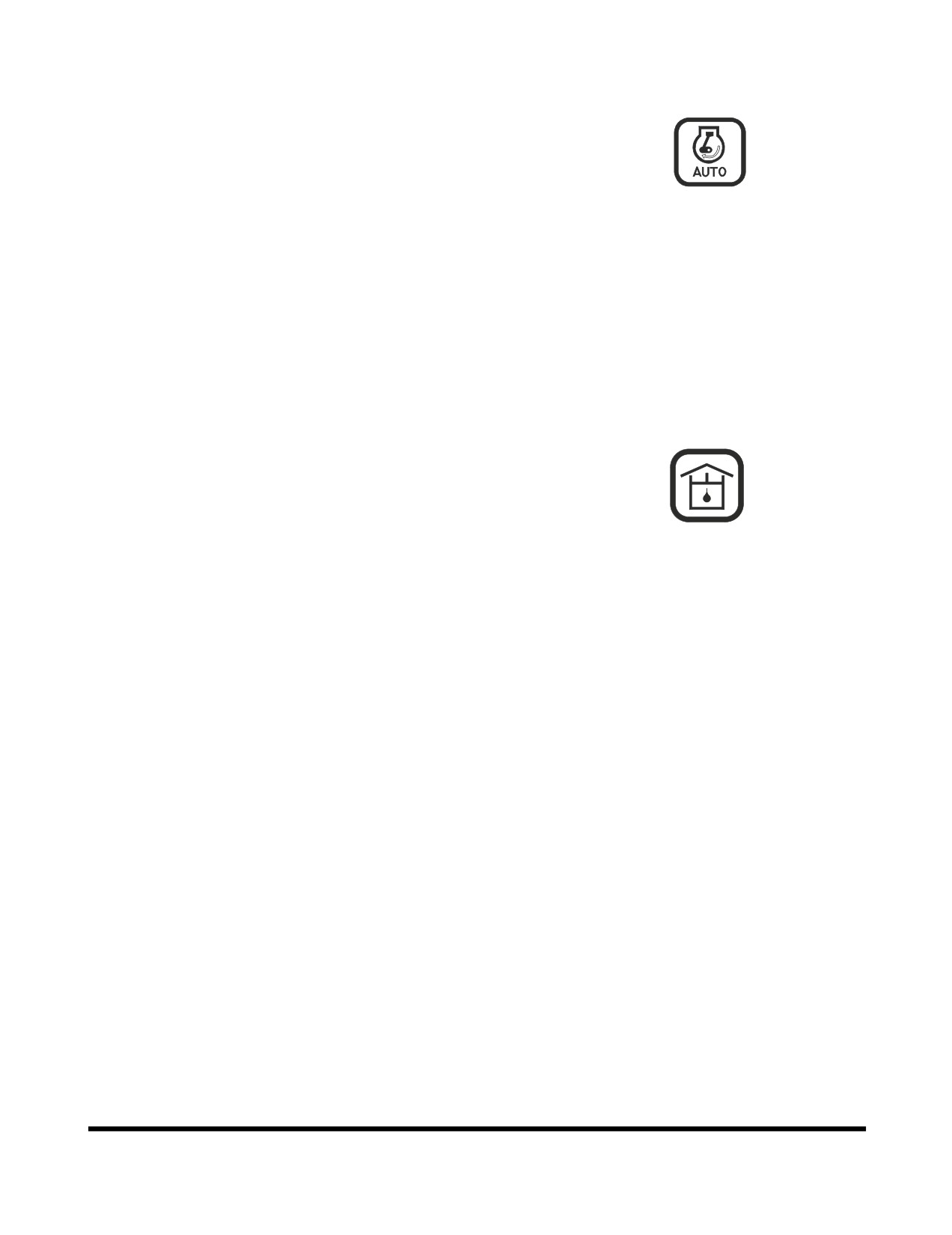

3. Auto Idle Selector Button

When the auto idle system is activated, the engine will

automatically reduce speed to "IDLE" approximately four

seconds after all of the control levers are in the neutral

position. This system is designed to reduce fuel

consumption and noise.

2

When the auto idle selector button is pushed to the "ON"

position, an indicator light above it turns "ON."

When the auto idle selector button is pushed again, it is

FG013711

turned "OFF" and the engine speed will return to the

Figure 72

setting of the engine speed dial and will remain at this

speed despite control lever position, until engine speed dial

is moved.

4. Flow Control Button

When the button is pushed, you can control the hydraulic

oil flow rate.

The flow control button is used to set the flow rate of pump

to match the installed tool/attachment for optimal

performance, without damaging it.

7

NOTE: For further details, see "“Flow Control” on

page 2-44.

FG013896

Figure 73

Operating Controls

OP001140

2-34

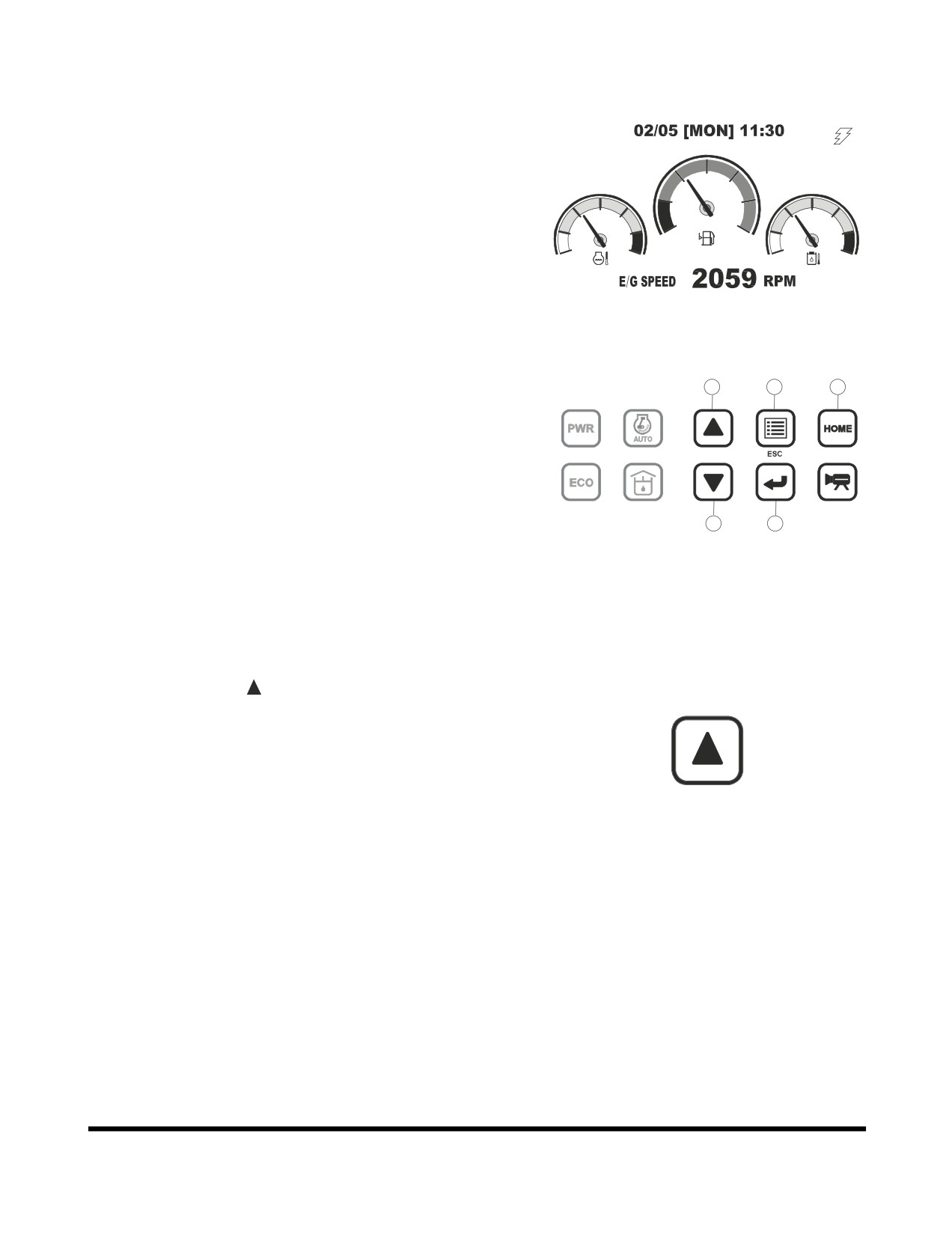

SETTING MAIN MENU

By using a combination of the selector buttons (Figure 75), you

can review and set the contents of the display screen. Items

such as language, time and filter/oil information can be checked,

and if necessary, set with new information.

E

F

C

H

C

H

FG013591

Figure 74

1

3

5

1

2

3

4

5

6

7

8

9

0

2

4

FG013712

Figure 75

1. Up Arrow Button

Up arrow button (

), is used to move a menu item "Up" or

to the "Left."

3

FG000068

Figure 76

Operating Controls

OP001140

2-35

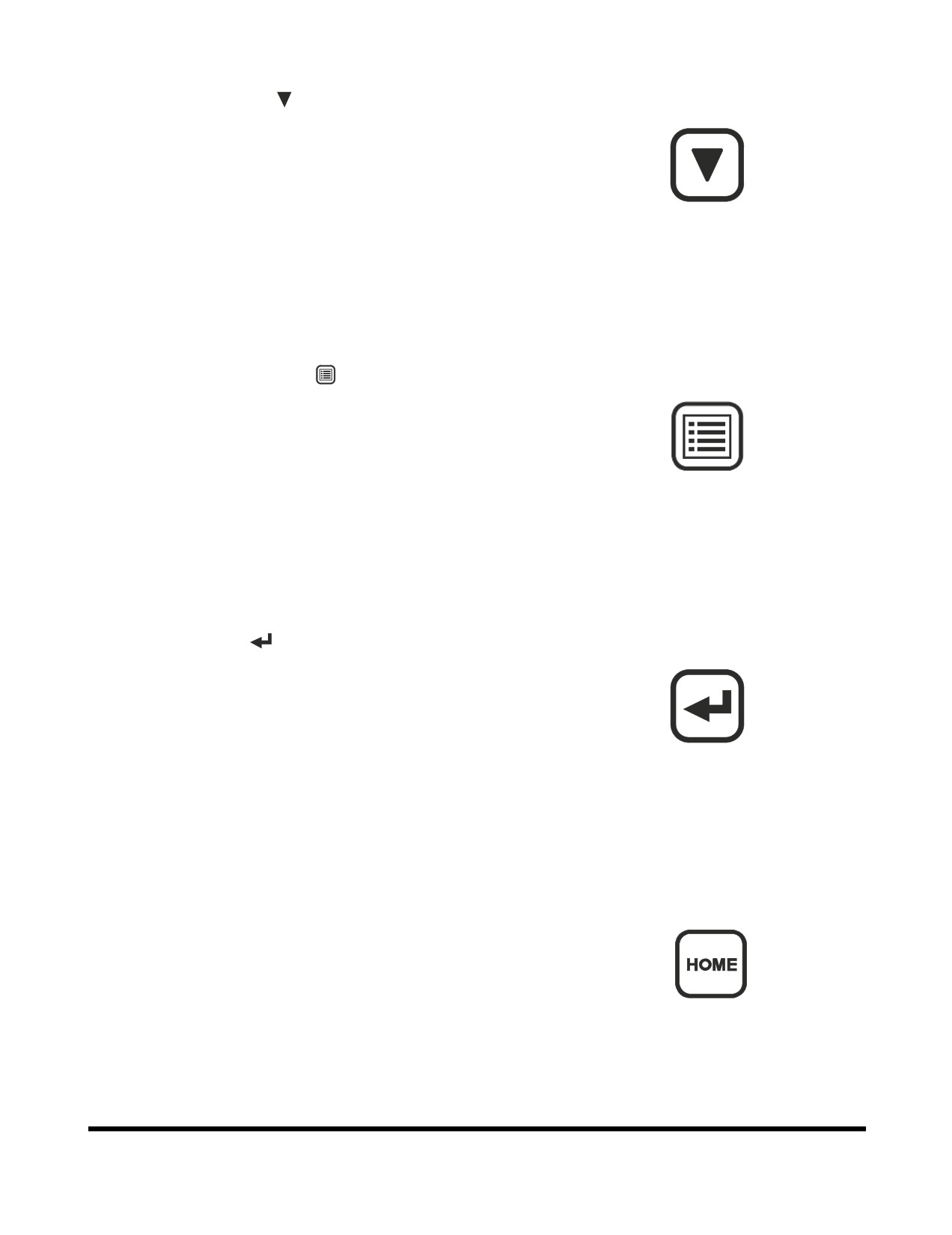

2. Down Arrow Button

Down arrow button (

), is used to move a menu item

"Down" or to the "Right."

7

FG000069

Figure 77

3. Display Selector Button (ESC - Escape)

Display selector button

(

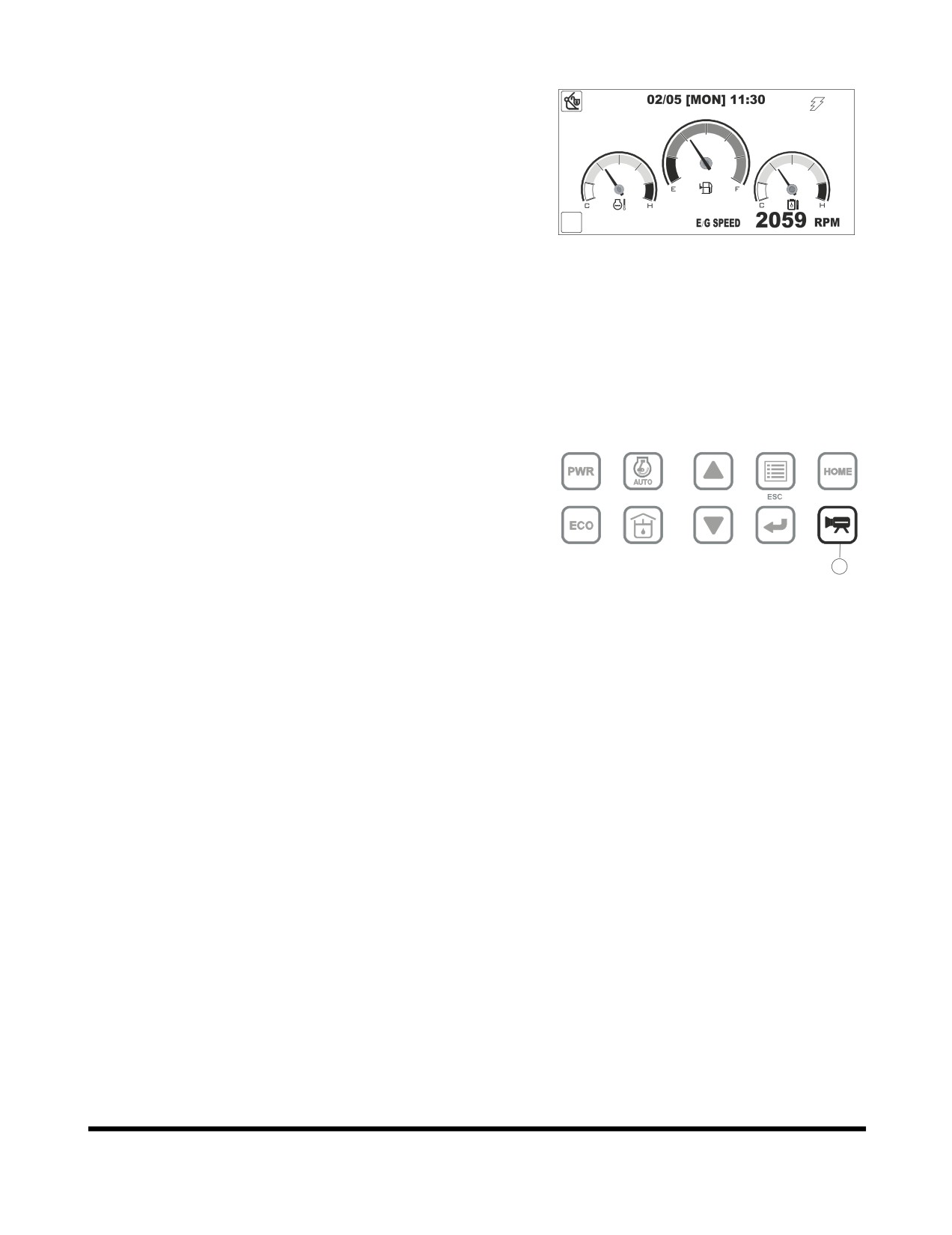

), is used to change the

displayed information on the screen. Each time the display

selector button is pressed, the digital readout changes.

NOTE: When setting the main menu, this button is used

as the menu / exit button (ESC). To access the

4

menus the button must be pressed and held for

three seconds.

NOTE: When this button is used for menu / exit button,

FG000070

it is used to access to main menu or return to a

Figure 78

previous screen from each submenu.

4. Selection Button

Selection button (

), is used to set a menu or clear the

operating hour of filter/oil.

8

FG000071

Figure 79

5. Home Button

Home button (HOME), is used to access to the default

screen from each submenu.

5

FG013713

Figure 80

Operating Controls

OP001140

2-36

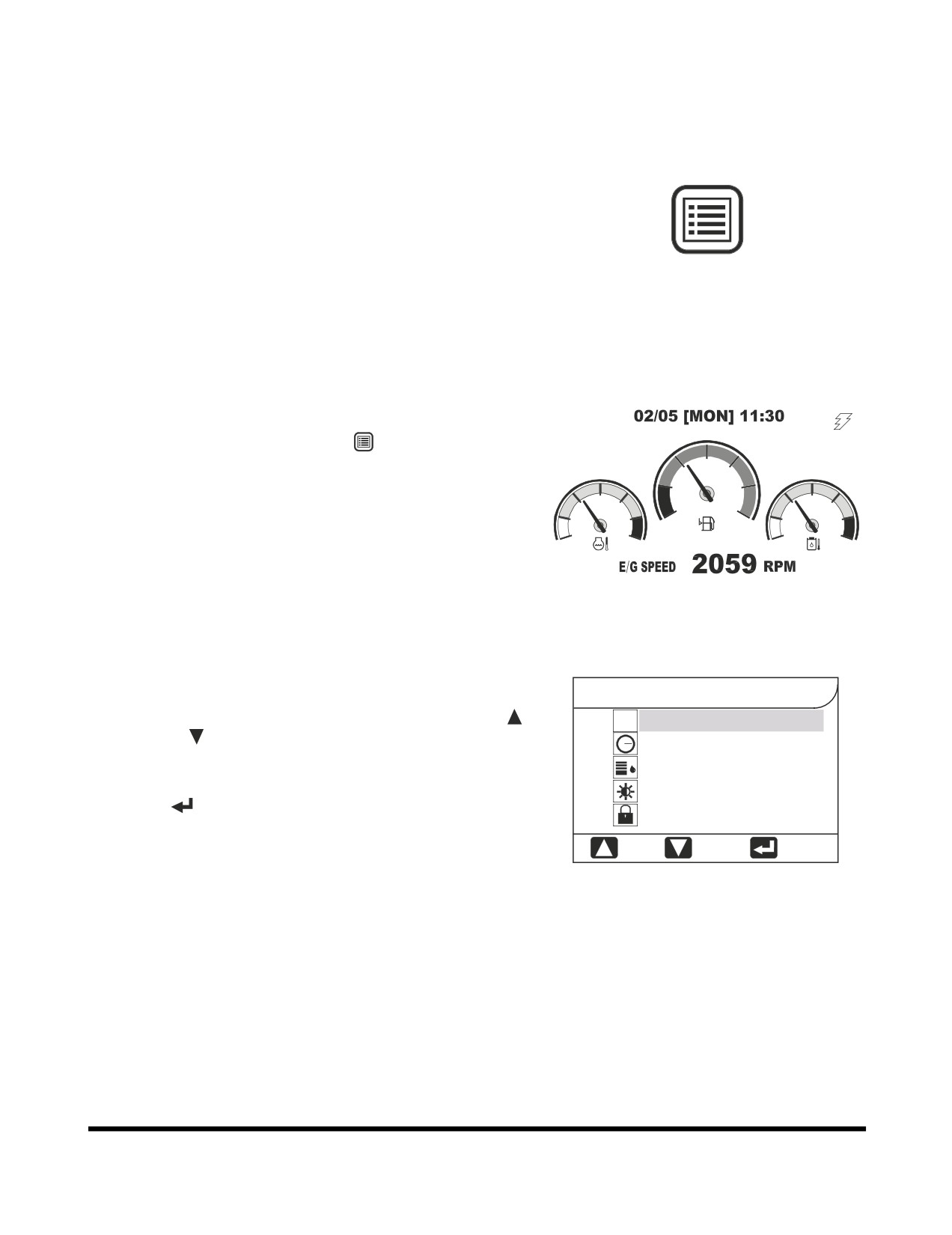

Display Selection and Escaping

Display Selection

When the display button (Figure 81) is pressed for more than

three seconds, the main menu screen (Figure 83) is displayed.

In the normal display screen, the engine speed (rpm), battery

voltage

(volt), front pump pressure

(bar), and rear pump

pressure (bar) can be displayed.

4

FG000070

Figure 81

ESC Button

The screen will return from the main menu to the normal display

screen, by again pressing the "ESC" (

) button.

NOTE: If more than twenty seconds are spent in any menu,

without changing the screen, it will return to the

normal display screen.

E

F

C

H

C

H

FG013591

Figure 82

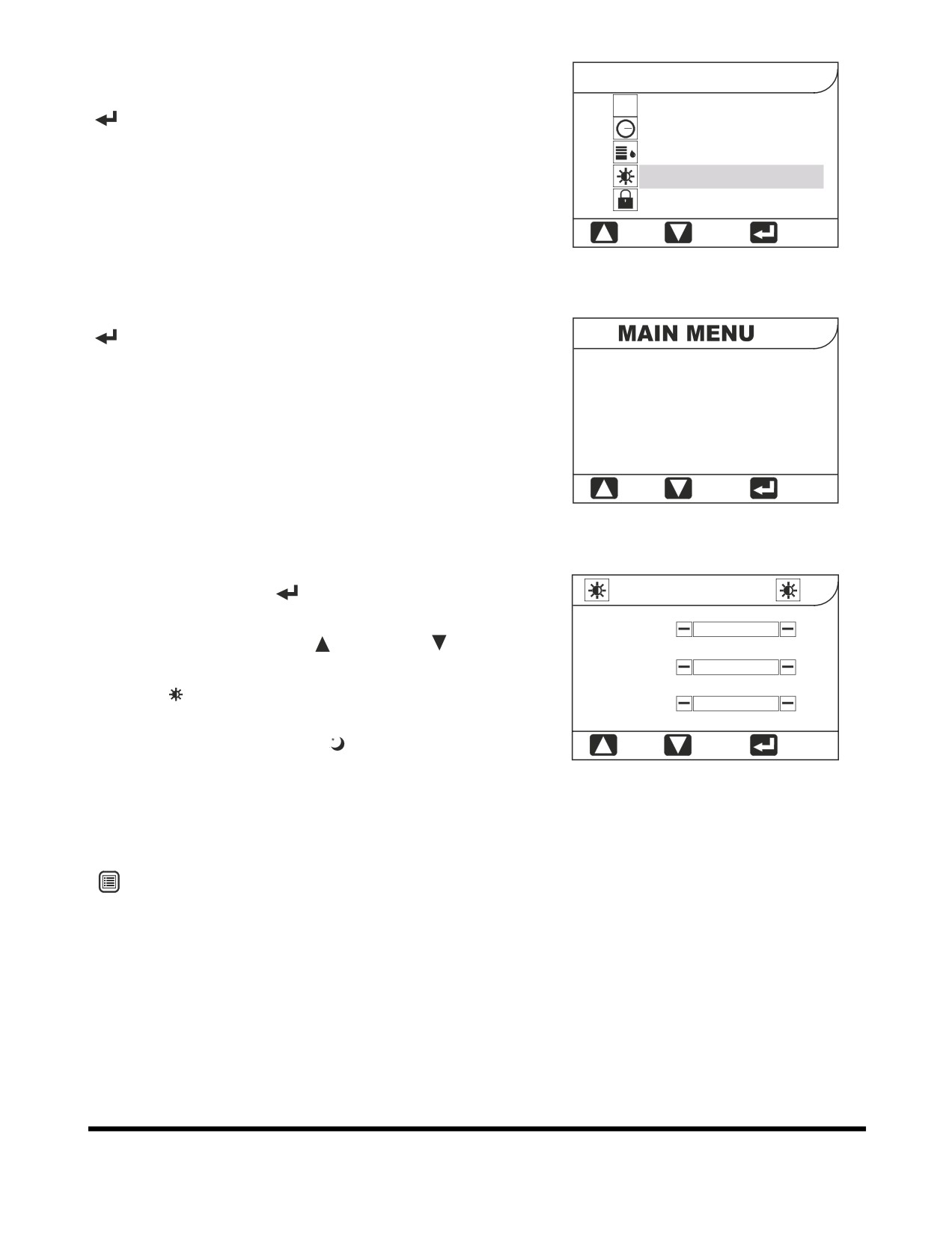

Main Menu

MAIN MENU

The menu selection can be changed by pressing the "UP" (

)

L

1. Language

or "DOWN" (

) buttons. The selected menu item will be

l

2. Set Clock

highlighted, and a cursor will appear by the menu item.

3. Filter / Oil Info

When the selected menu item is highlighted, press the

4. Adjust Display

"SELECT" (

) button to enter the next submenu.

5. Set Password

1.

“Language” on page 2-38.

: UP

: DOWN

: SELECT

2.

“Set Clock” on page 2-38.

FG013563

3.

“Filter / Oil Info” on page 2-39.

Figure 83

4.

“Adjust Display” on page 2-41

5.

“Set Password (Lock and Unlock)” on page 2-42

Operating Controls

OP001140

2-37

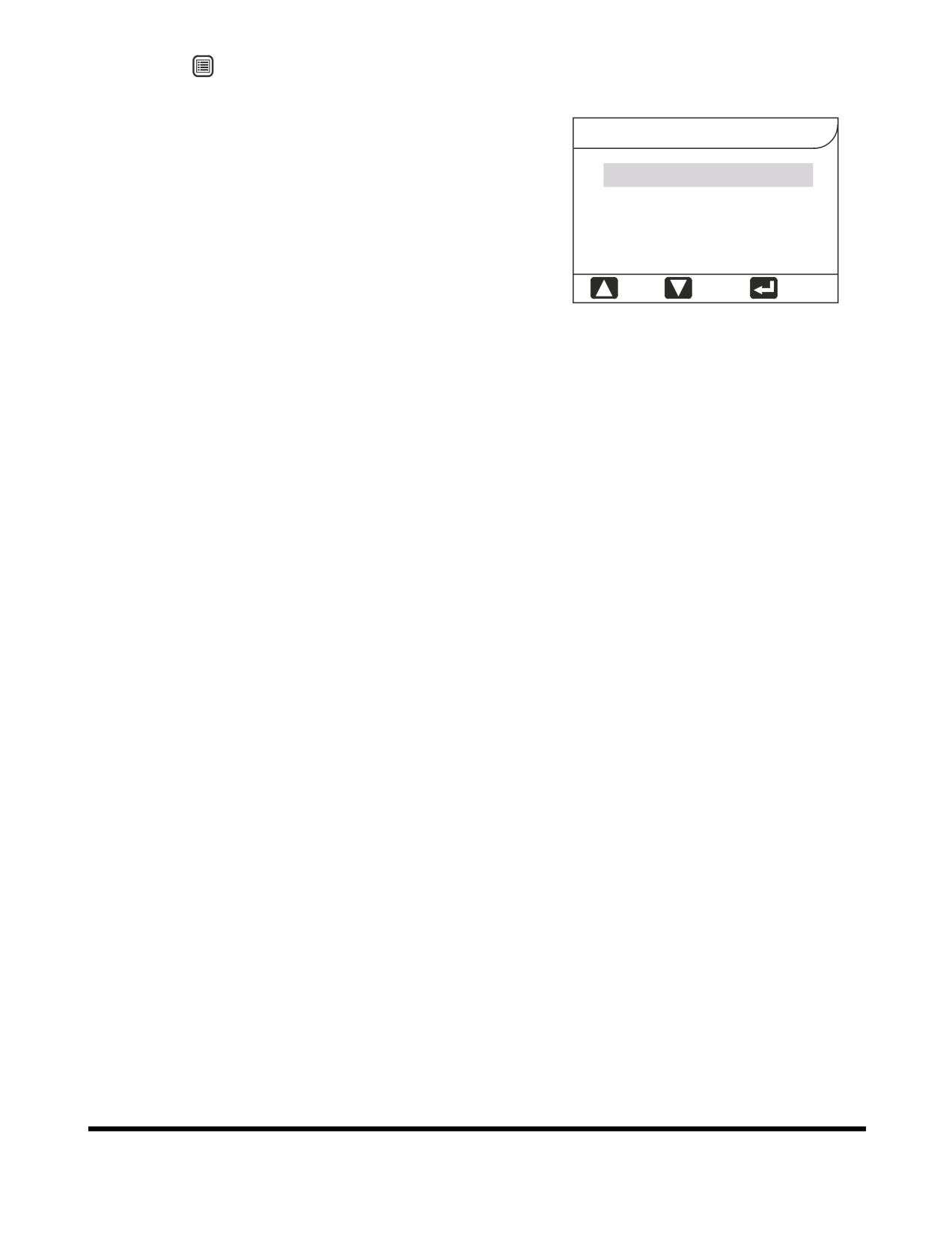

Language

L

Languag

When the cursor is on "Language," press the "SELECT" (

)

button. The language submenu will appear.

1. Korean

2. English

The desired language can be selected by using the "UP" (

) or

"DOWN"(

) buttons.

The display can be set for the desired language.

Press the "SELECT" (

) button to set the selected language.

: UP

: DOWN

: SET

FG013564

NOTE: If more than twenty seconds are spent in the menu,

without changing the screen, it will return to the

Figure 84

normal display screen.

Set Clock

MAIN MENU

When the cursor is on "Set Clock," press the "SELECT" (

)

L

1. Language

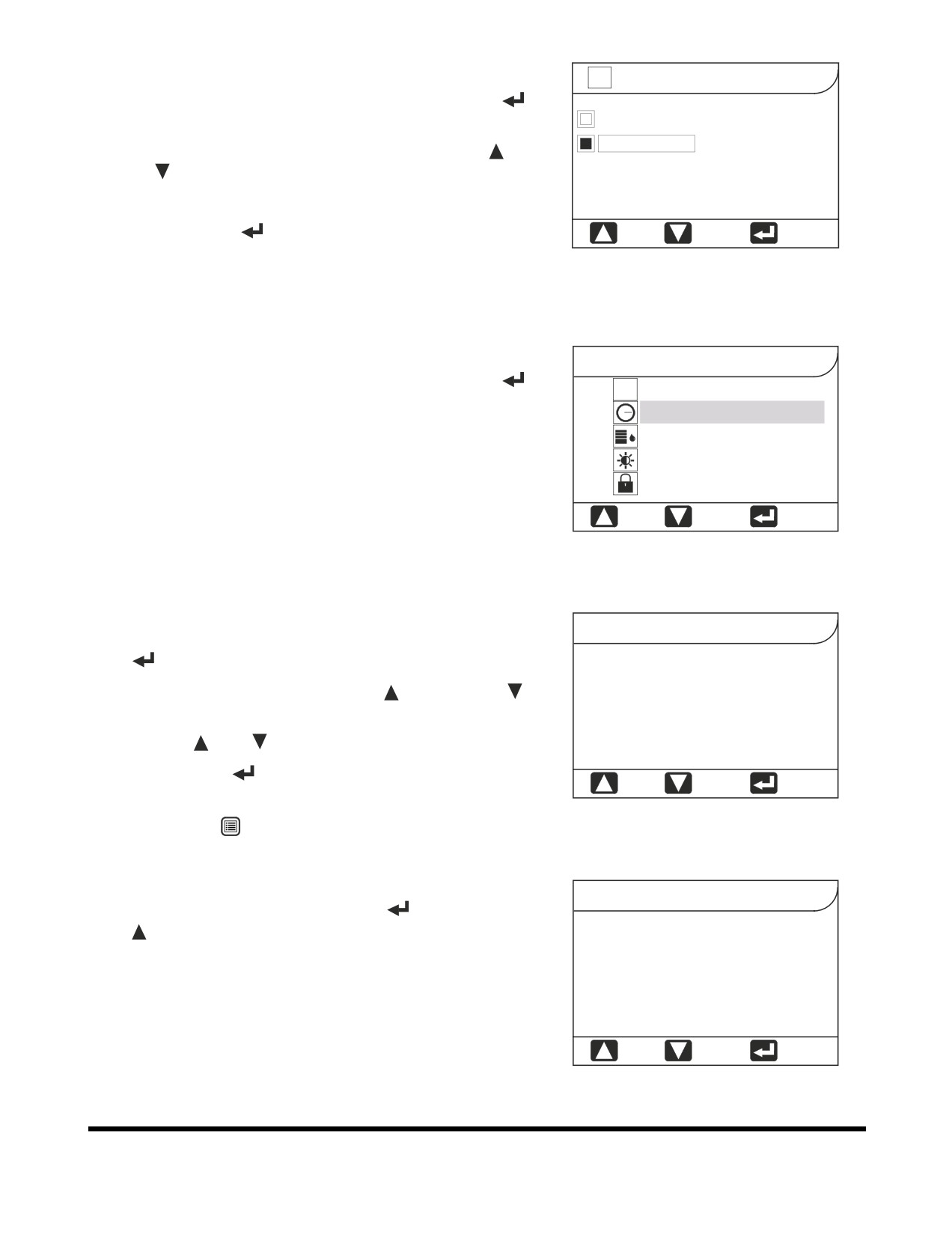

button. The set clock submenu will appear.

l

2. Set Clock

NOTE: If more than twenty seconds are spent in the menu,

3. Filter / Oil Info

without changing the screen, it will return to the

normal display screen.

4. Adjust Display

5. Set Password

: UP

: DOWN

: SELECT

FG013565

Figure 85

Setting Method

SET CLOCK

1.

Move the cursor to desired number by using the "SELECT"

(

) button. When selected the number will flash.

2.

Set the time by using the "UP"

(

) or "DOWN"(

)

02:30:30

buttons.

2003 11/04

•

"+" (

), "-" (

): Increase or decrease number.

•

"MOVE" (

): Confirm and move the cursor to next

: UP

: DOWN

: SELECT

number.

FG013566

•

"ESC" (

): Exit to the main menu.

Figure 86

'00' Minute Setting

SET CLOCK

1.

Simultaneously press the "SELECT" (

) button and "UP"

(

) button.

2.

If the displayed time is 30 minutes or less, the clock will

02:30:30

display the preceding hour.

2003 11/04

3.

If the displayed time is more than 30 minutes, the clock will

display the succeeding hour.

4.

When the preceding hour is more than 23, the day will be

: UP

: DOWN

: SELECT

increased.

FG013566

Figure 87

Operating Controls

OP001140

2-38

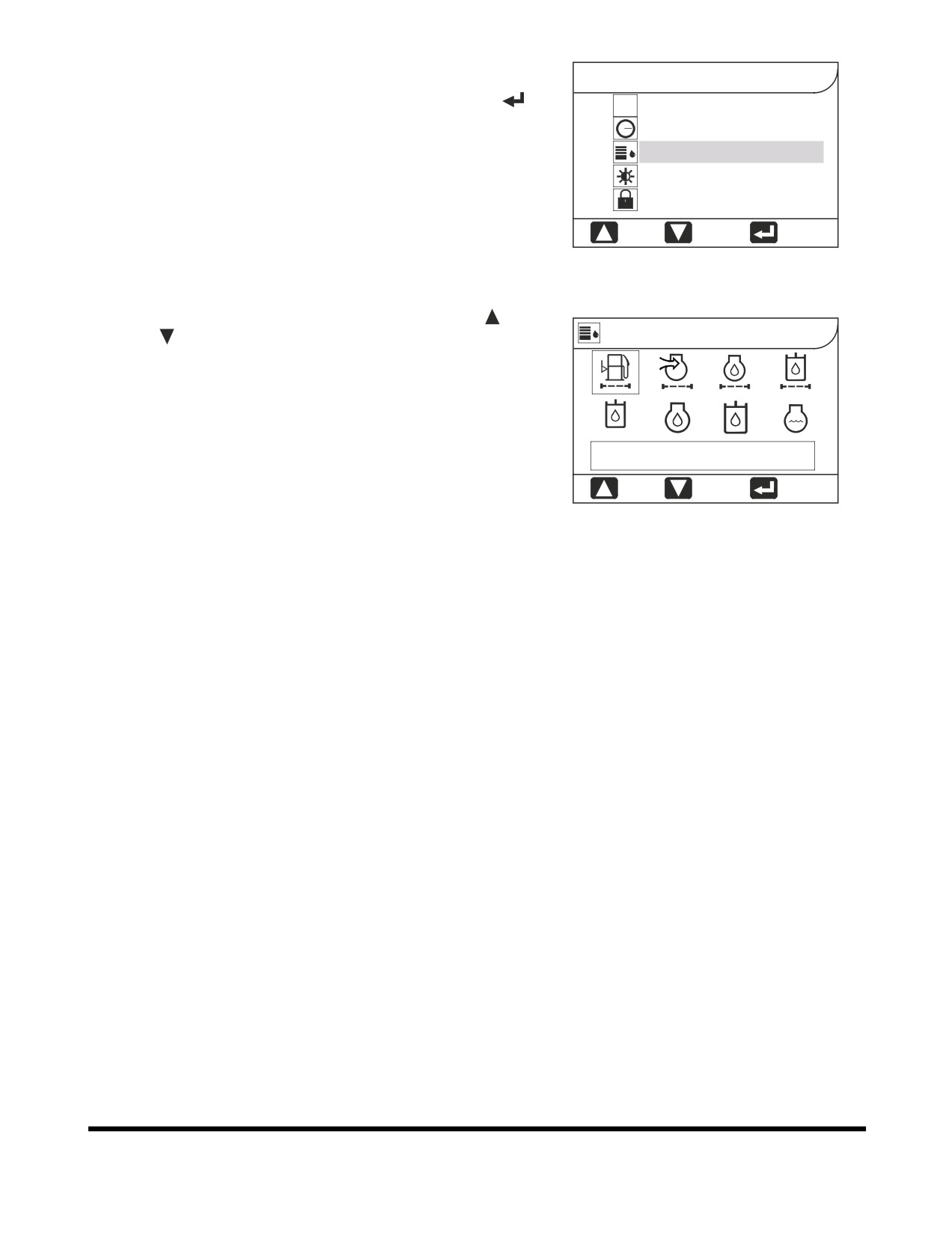

Filter / Oil Info

MAIN MENU

When the cursor is on "Filter/Oil Info," press the "SELECT" (

)

L

1. Language

button. The filter/oil information submenu will appear.

l

2. Set Clock

3. Filter / Oil Info

4. Adjust Display

5. Set Password

: UP

: DOWN

: SELECT

FG013567

Figure 88

Each symbol can be selected by pressing the "UP" (

) or

"DOWN" (

) buttons. At the bottom of the screen the operating

Filter/Oil Information

hour (Hrs) of each filter and/or oil is displayed.

R

P

1. Fuel Filter

Hrs : 0045Hrs 42m

: UP

: DOWN

: SELECT

FG013568

Figure 89

Operating Controls

OP001140

2-39

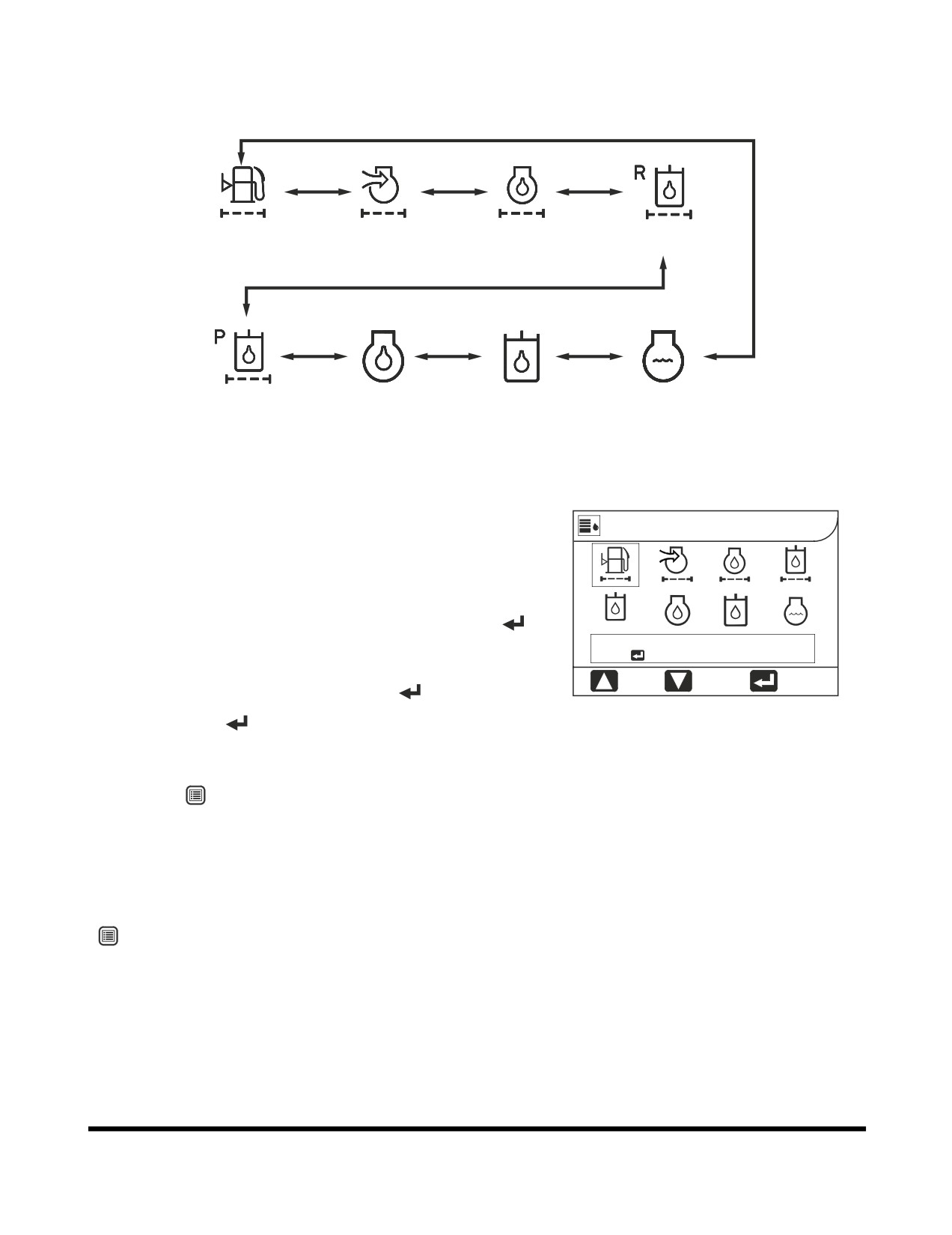

Menu Display Order and Icon Explanation

1. Fuel Filter

2. Air Cleaner

3. Engine Oil Filter

4. Hyd. Oil Filter

5. Pilot Filter

6. Engine Oil

7. Hydraulic Oil

8. Coolant Water

FG001358

Figure 90

Filter / Oils Operating Hour Reset

Filter/Oil Information

After changing a filter or oil, reset the operating hour to zero

R

(Hrs: 0000). The next replacement period can than be easily

checked. The operating hours are only accumulated while the

engine is running.

P

On the filter / oil information screen, press the "SELECT" (

)

button and then the reset screen will be displayed.

RESET?

YES :

NO : ESC

On the reset screen, the operating hour can be changed to zero

: UP

: DOWN

: SELECT

hour (Hrs: 0000) by pressing the "SELECT" (

).

FG013716

If the "SELECT"

(

) button is pressed, the reset will be

Figure 91

completed. and the screen will be returned to the previous

menu.

If the "ESC" (

) button is pressed, the screen will be returned

to the previous menu without being reset.

NOTE: If more than twenty seconds are spent in the menu,

without changing the screen, it will return to the

normal display screen.

The screen is returned to the main menu by pressing the "ESC"

(

) button.

Operating Controls

OP001140

2-40

Adjust Display

MAIN MENU

When the cursor is on "Adjust Display," press the "SELECT"

L

1. Language

(

) button. The adjust display submenu will appear.

l

2. Set Clock

3. Filter / Oil Info

4. Adjust Display

5. Set Password

: UP

: DOWN

: SELECT

FG013569

Figure 92

When the cursor is on "Adjust Display", press the "SELECT"

(

) button. The adjust display submenu will appear.

1. Adjust Display

2. Adjust Display (Camera)

: UP

: DOWN

: SELECT

FG013835

Figure 93

1.

Move the cursor to desired characteristic about display by

using the "SELECT" (

) button.

Adjust Display

2.

The desired brightness, contrast, backlight adjustment can

Brightness

lllll lllllllllll l l

ll

l

50%

be selected by using "UP" (

) or "DOWN" (

) buttons.

Contrast

l

lll lll

l

lll

lll l

l

50%

NOTE: When the equipment shipped and it is day mode

(

), the default brightness and contrast is set to

Back Light

lll lllllllll

llll

l

50%

50%, the default backlight is set to 90%.

When it is night mode (

), the default brightness is

: UP

: DOWN

: SELECT

set to 50%, the default contrast is set to 30%, the

FG013570

default backlight is set to 10%.

Figure 94

Default value of camera display is 50% (brightness),

50% (contrast), 90% (backlight).

The screen is return to the previous menu by pressing the "ESC"

(

) button. The display is then saved.

Operating Controls

OP001140

2-41

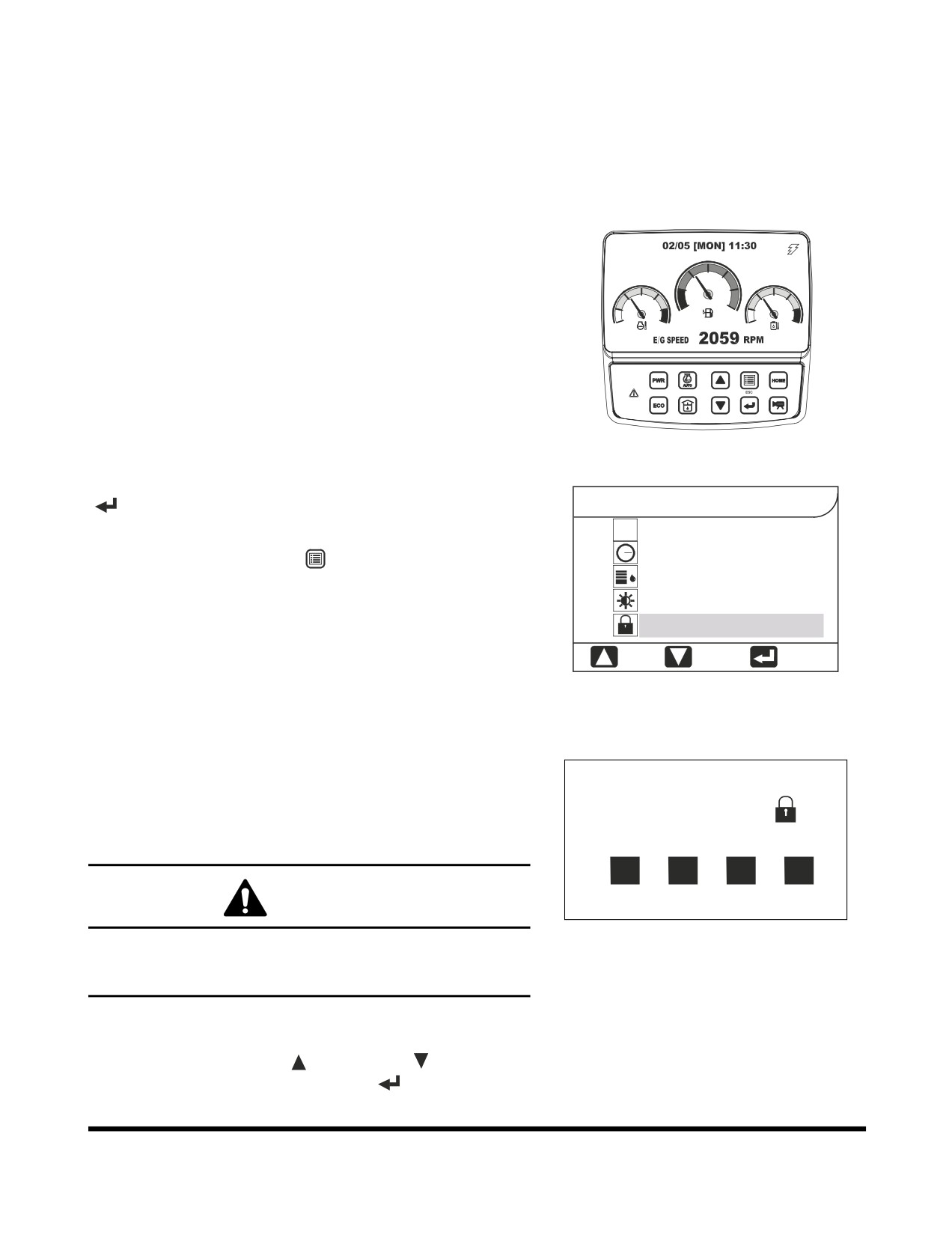

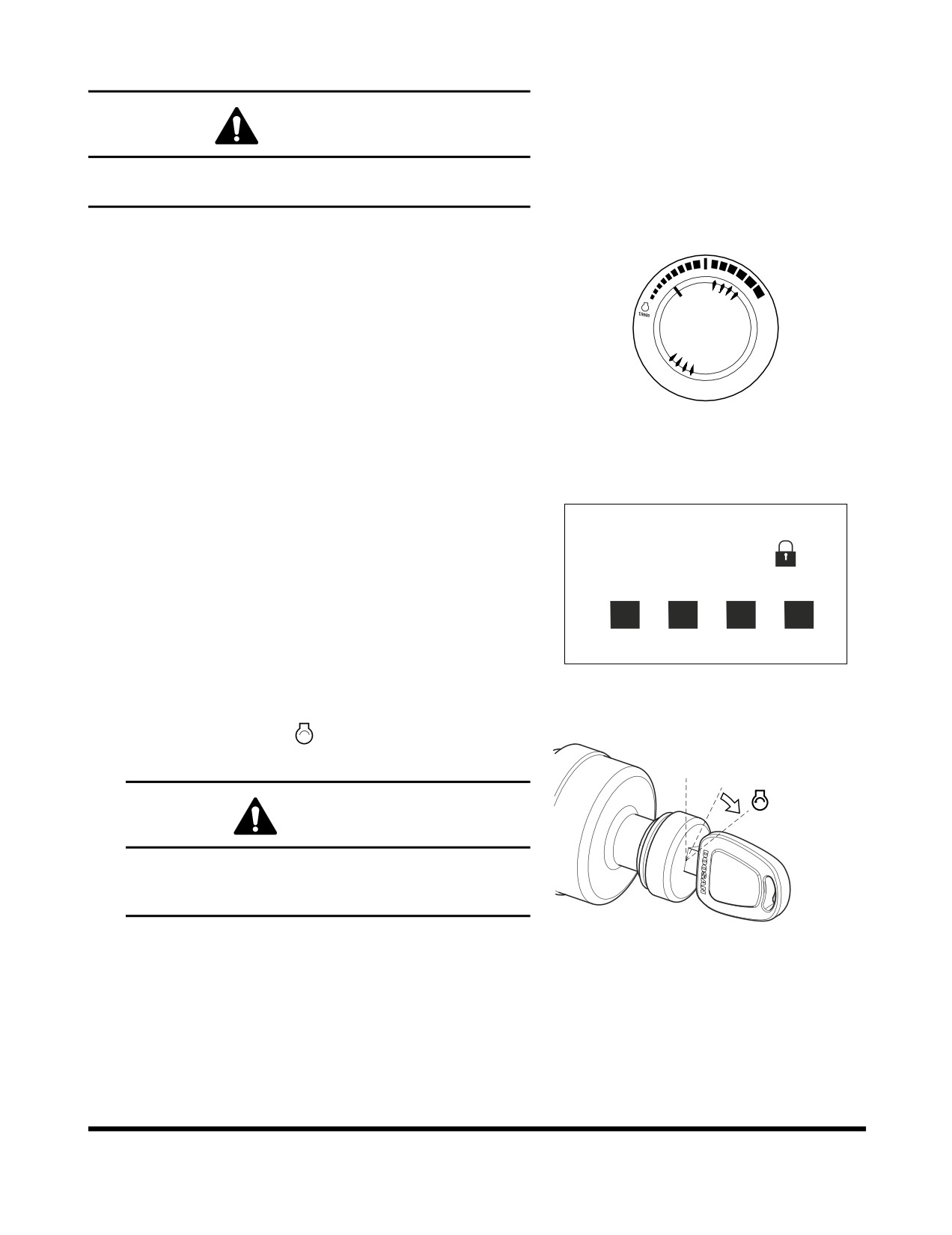

Set Password (Lock and Unlock)

Use extreme care when setting the password for starting the

engine. If a mistake is made when entering the number, and the

number is excepted by the system, as being correct, that

number will be the only one that will allow the security system to

be activated or deactivated.

Write your password down and keep it in a safe location.

Password numbers can only use numbers between 1 and 0. The

small number to the lower left of each button on the instrument

panel, indicates the number that will be entered when that button

is pressed.

E

F

C

H

C

H

1

2

3

4

5

6

7

8

9

0

FG013662

Figure 95

When the cursor is on "Set Password" press the "SELECT"

(

) button. The set password submenu will appear.

MAIN MENU

NOTE: The screen can be returned to the main menu by

L

1. Language

l

pressing the "ESC"(

) button (3, Figure 75).

2. Set Clock

3. Filter / Oil Info

4. Adjust Display

5. Set Password

: UP

: DOWN

: SELECT

FG013571

Figure 96

Password inquiry menu will be displayed.

NOTE: The initial password is "1111."

The password can be changed within ten minutes while the

ENTER

starter switch is in "I" (ON) position.

PASSWORD

After changing password, be sure to use the changed password.

CAUTION

FG013717

Failure to enter correct password three times, will return

normal display screen, and another attempt will not be

Figure 97

possible for ten minutes.

A three item menu will be displayed. The items are "LOCK,"

"UNLOCK," and "CHANGE PASSWORD." An item can be

selected by using the "UP" (

) or "DOWN" (

) buttons, and

then selected by pressing the "SELECT" (

) button.

Operating Controls

OP001140

2-42

Press "ESC" (

) button (3,Figure 75) for 1 more second, it

returns to main menu.

According to the selection of adoption (lock) or nonadoption

(unlock), the password function will be in working or nonworking.

Set Password

When you want to change a password, follow below procedure.

Lock

1.

Move the cursor to "Change Password."

Unlock

2.

Input desired 4 digits password using selector buttons (at

the first column). Input the same password one more time

Change Password

(at the second column)

3.

Select adoption

(lock) or nonadoption

(unlock) at set

: UP

: DOWN

: SELECT

password menu.

FG013718

NOTE: Keep in mind never to forget password.

Figure 98

NOTE: Please contact a DOOSAN distributor, if you

forget your password.

Operating Controls

OP001140

2-43

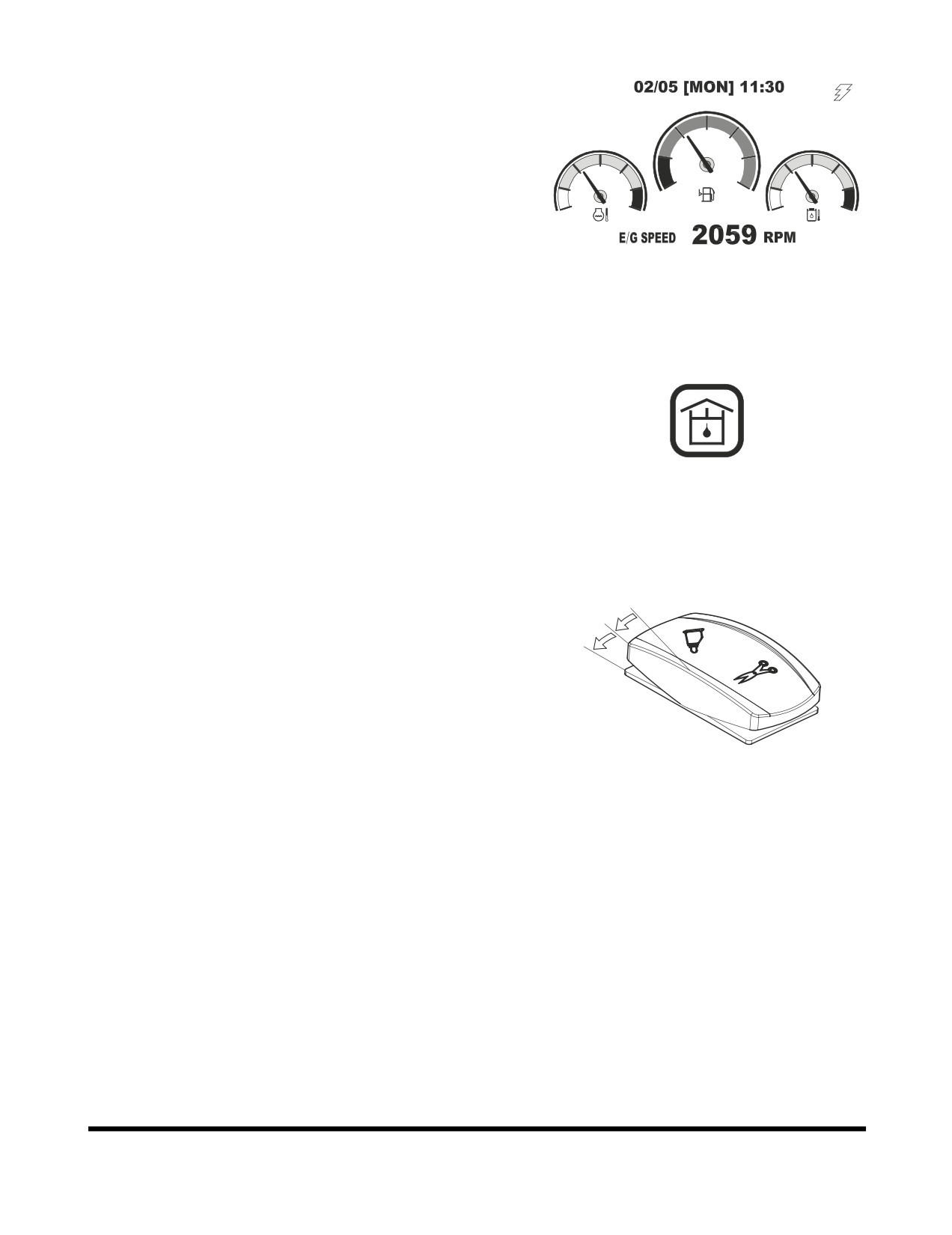

FLOW CONTROL

The flow control is used to set the proper flow rate for an

optional attachment (If equipped). The flow control screen is

accessed directly from the normal display screen without going

through the main menu or any submenus.

E

F

C

H

C

H

FG013591

Figure 99

When the flow control button (Figure 73 and Figure 100) is

pressed at the normal display screen

(Figure

99), the flow

control screen (Figure 102) will be displayed.

7

FG013896

Figure 100

Select a tool by using the breaker / boost / shear selector switch.

The symbol in the upper left corner of the display screen will

I

change according to the position that the selector switch is in.

O

Compare the symbols shown in (Figure 102 and Figure 103).

II

FG016018

Figure 101

Operating Controls

OP001140

2-44

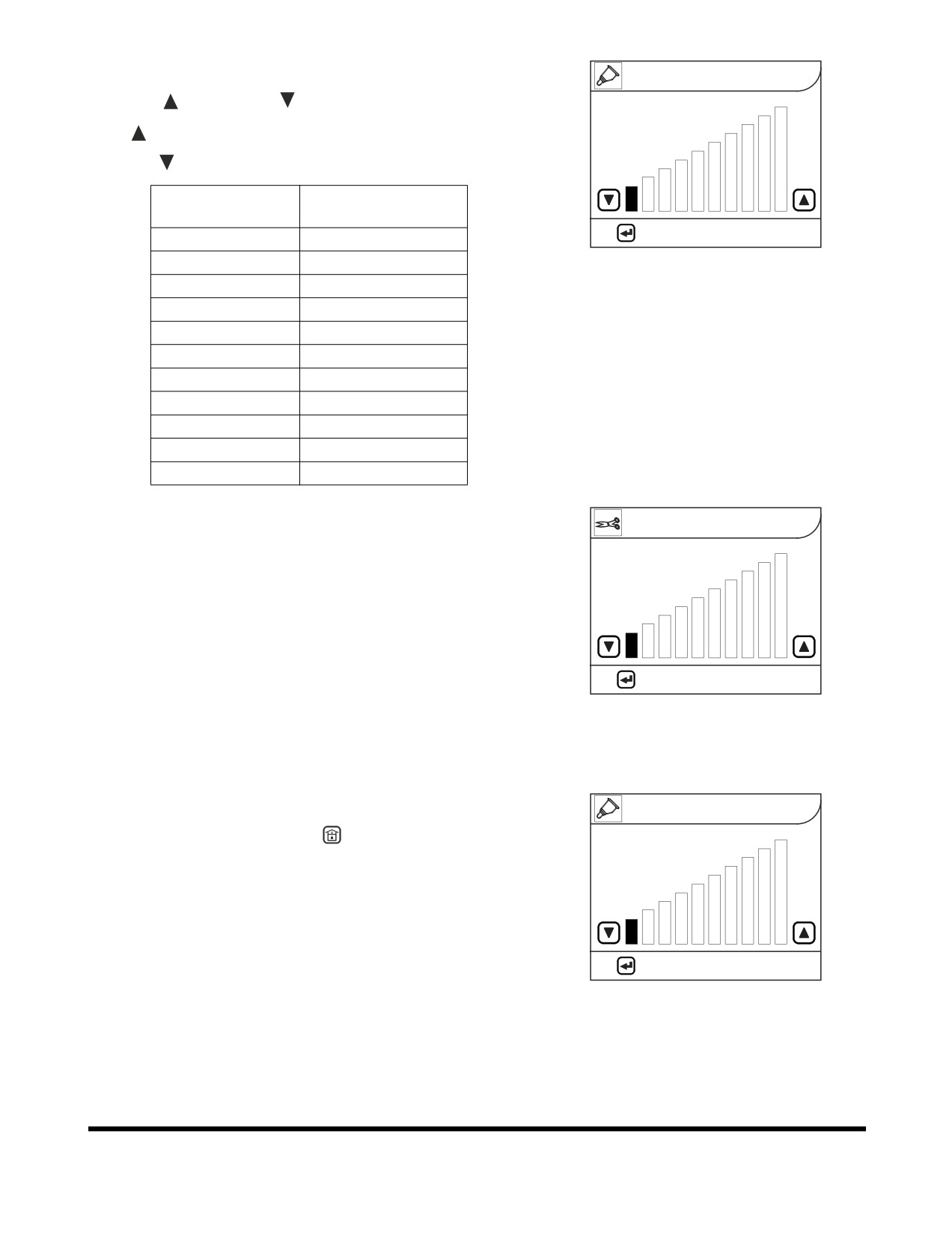

Adjusting Flow Rate

FLOW CONTROL

Use "UP" (

) or "DOWN" (

) buttons to adjust flow rate.

"UP" (

) button is used to increase a flow rate.

"DOWN" (

) button is used to decrease a flow rate.

Flow Control

Pump Flow Setting

Step

(l/min)

: APPLY

ESC: CANCEL

0

48

FG014885

1

70

Figure 102 Breaker

2

90

3

110

4

130

5

150

6

170

7

190

8

210

9

230

10

244

Pump flow setting is at rated engine speed, for only the output of

one pump.

FLOW CONTROL

Pump displacement will vary according to changes in engine

rpm.

: APPLY

ESC: CANCEL

FG014886

Figure 103 Shear

Escape

FLOW CONTROL

A. Press flow control button (

, Figure

100) to return to

normal display screen and save the flow rate setting.

B. If there is no adjustment for twenty seconds, the flow

control screen will return to the normal display screen.

: APPLY

ESC: CANCEL

FG014885

Figure 104

Operating Controls

OP001140

2-45

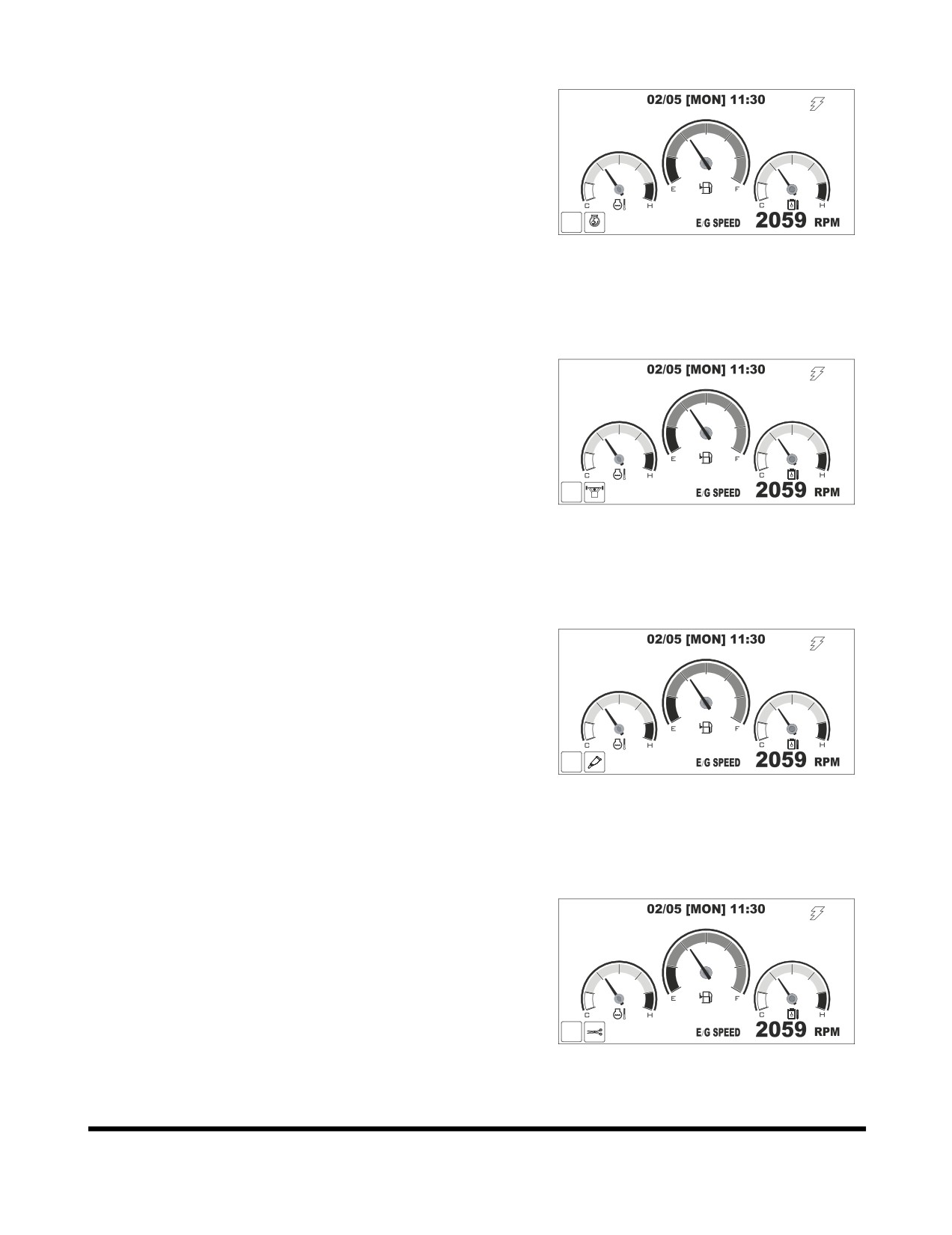

OPERATION SELECTION

DISPLAY

In the monitor you can see the application that is currently

selected.

Power Mode Selection

PWR

FG013720

Figure 105

Standard Mode Selection

STD

FG013721

Figure 106

Economy Mode Selection

ECO

FG013722

Figure 107

Operating Controls

OP001140

2-46

Auto Idle Selection

PWR

AUTO

FG013723

Figure 108

Power Boost Selection

PWR

FG013724

Figure 109

Breaker Selection

PWR

FG013725

Figure 110

Shear Selection

PWR

FG013726

Figure 111

Operating Controls

OP001140

2-47

Quick Clamp Operation Selection

(Optional)

PWR

FG013728

Figure 112

Camera Mode Selector Button

Camera Mode Selector Button (Optional)

Push this button (1, Figure 113) to turn camera mode "ON" or

"OFF".

When the camera mode button is pushed to the "ON" position,

the camera window appears on the screen.

1

2

3

4

5

When the camera mode button is pushed again, it is turned

"OFF" and the camera mode is deactivated and return to the

6

7

8

9

0

default screen.

1

FG013836

Figure 113

Operating Controls

OP001140

2-48

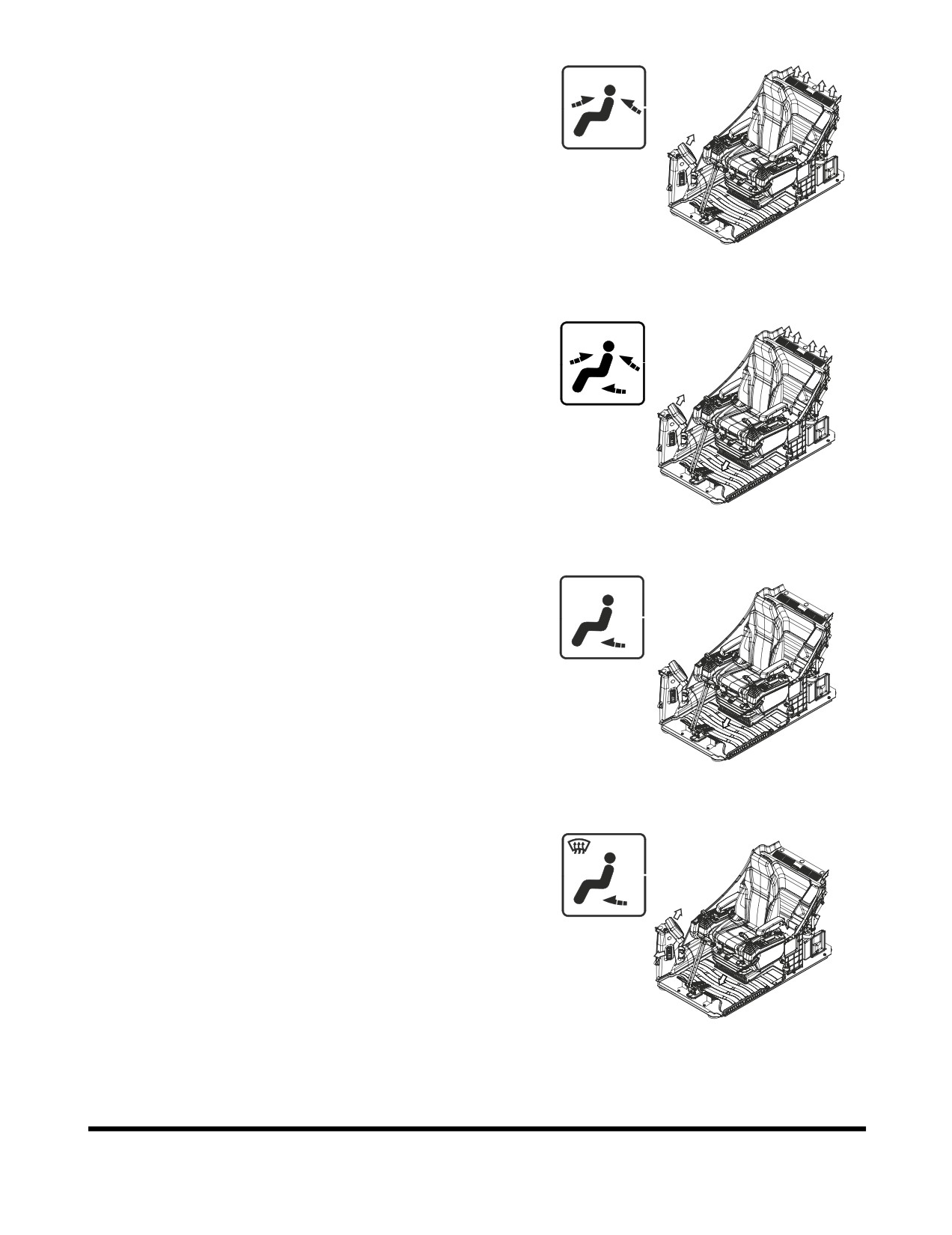

HEATER AND AIR CONDITIONER

CONTROL PANEL

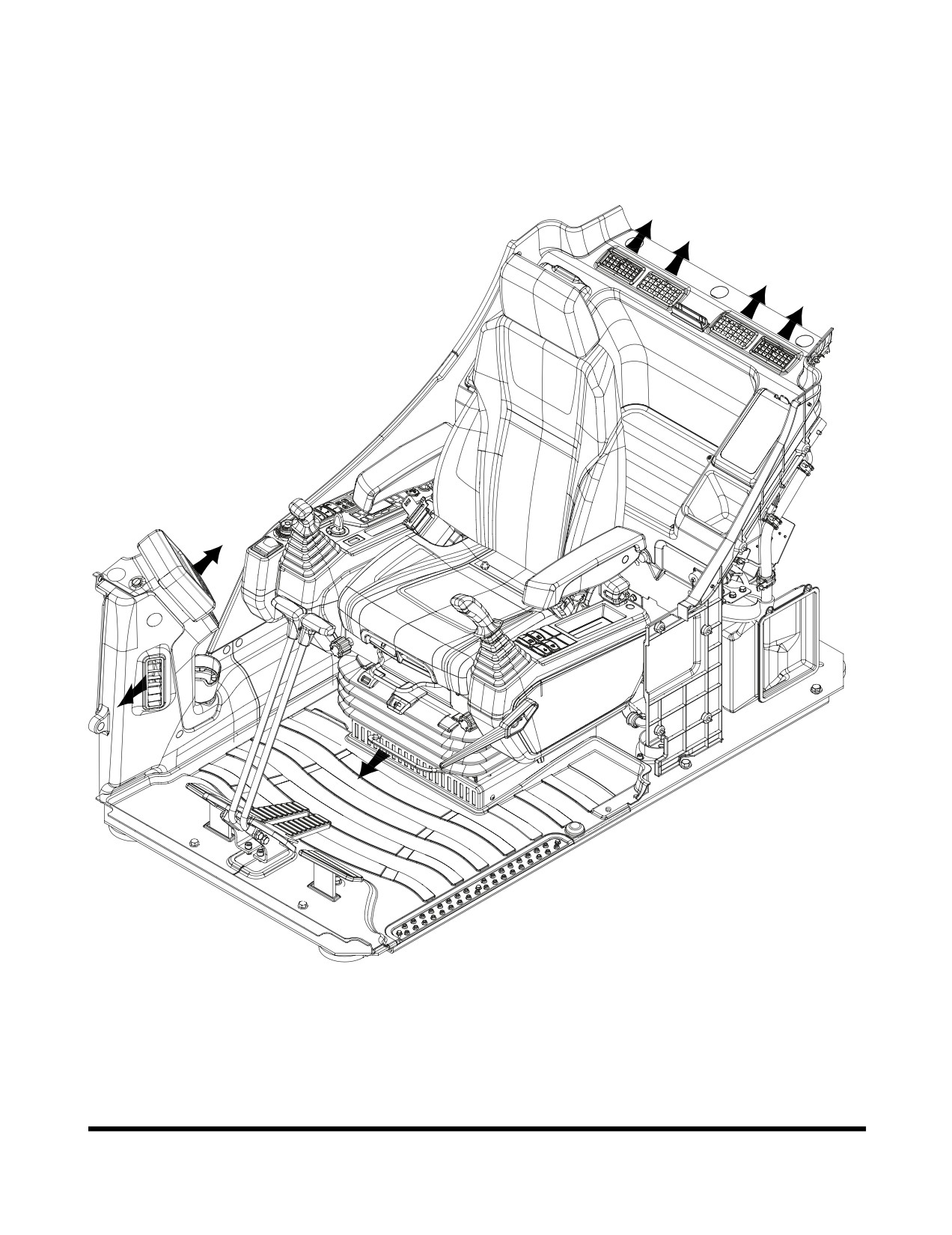

Location of Controls and Vents

FG015819

Figure 114

The heater and air conditioner are combined into one unit in the

rear cover behind the operator's seat.

The operator can control cabin temperature using the control

panel installed in the switch panel.

Operating Controls

OP001140

2-49

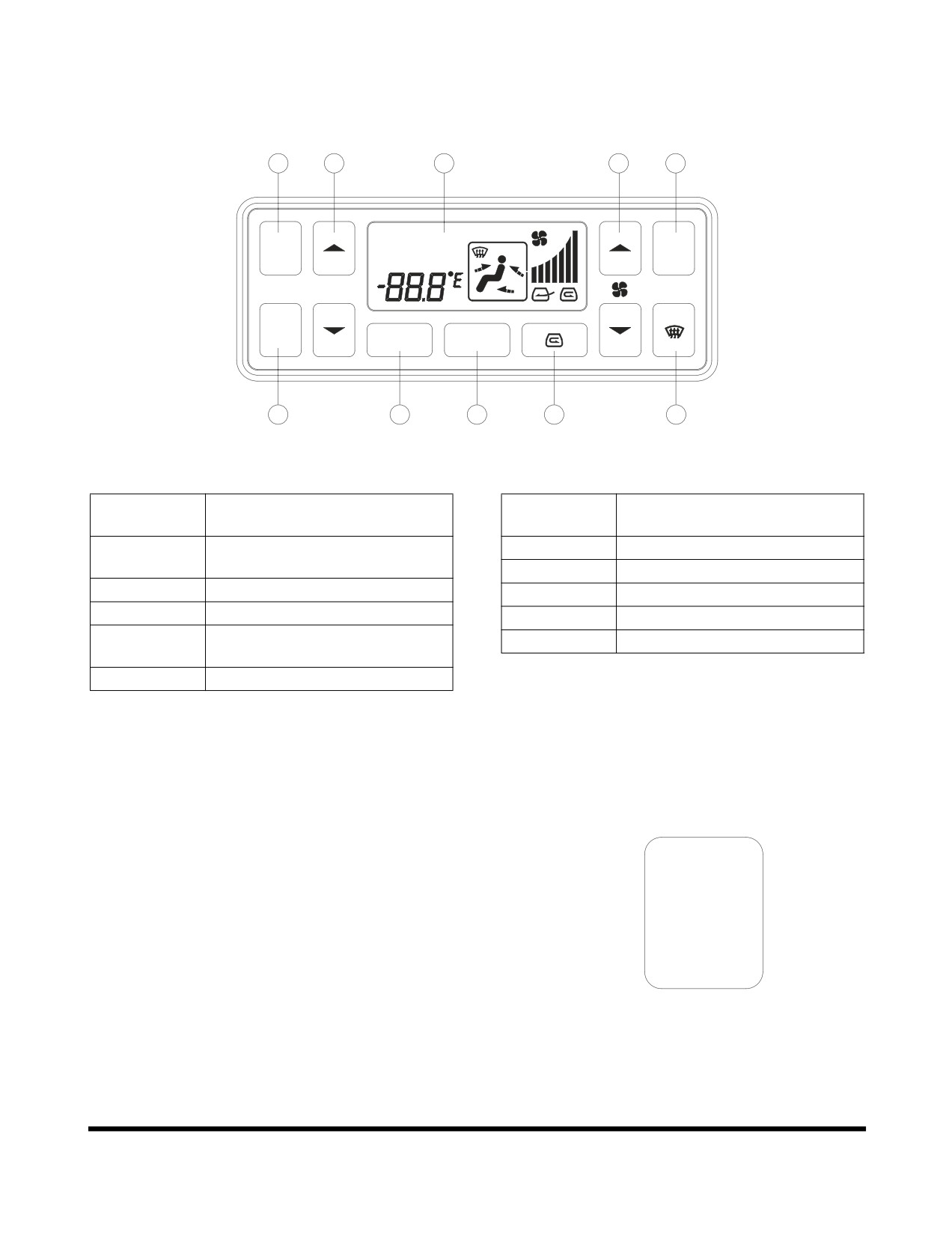

Control Panel

1

3

10

7

8

A/C

OUTSIDE

AUTO

A/C

AUTO

MAX

TEMP

OFF

SEL

MODE

2

4

5

6

9

FG000086

Figure 115

Reference

Reference

Description

Description

Number

Number

Automatic Temperature Control

6

Air Inlet Selector Button

1

Button

7

Fan Speed Selector Button

2

Off Button

8

Air Conditioner Button

3

Temperature Control Button

9

Defroster Button

Temperature Unit Selector

10

LCD Display

4

Button

5

Air Outlet Selector Button

NOTE: When the light switch is turned to "I" or "II" position,

the LED for illuminating in the control panel will turn

"ON."

1.

Automatic Temperature Control Button

This button is used to control the temperature level in the

cabin, according to the temperature setting of the operating

panel.

When the automatic temperature control function is

AUTO

activated, the word "AUTO" will be displayed in the upper

left of LCD display.

When the system is in "AUTO" mode, specifications can be

manually changed by pushing another button.

FG000088

If a function is manually changed, the word "AUTO" does

Figure 116

not appear in the LCD display, but the unchanged

functions will remain in "AUTO" mode.

Operating Controls

OP001140

2-50

2.

Off Button

This button is used to stop the fan and air conditioner.

OFF

FG000089

Figure 117

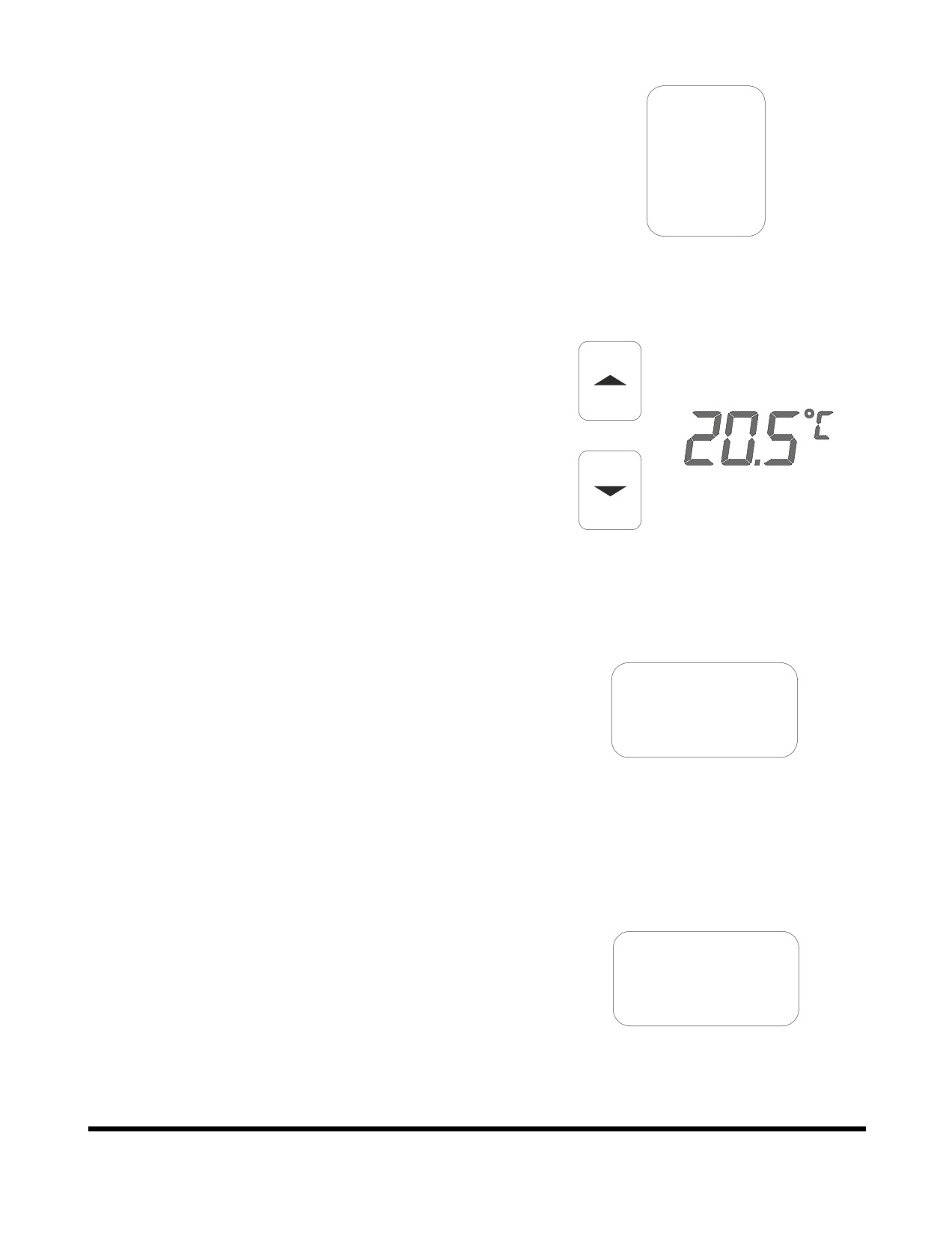

3.

Temperature Control Button

These buttons are used to control the cabin temperature.

Temperature is adjustable from 17°C (62°F) to 32°C (90°F)

by 0.5°C (1°F) increments.

Temperature setting is displayed on the LCD.

TEMP

When the system is turned "ON," the previously set

temperature is used as a starting point.

FG000090

Figure 118

4.

Temperature Unit Selector Button

This button gives the choice to select either °C or °F.

SEL

FG000094

Figure 119

5.

Mode Selector Button

This button is used to select which combination air outlets

will be used.

MODE

FG000096

Figure 120

Operating Controls

OP001140

2-51

A. Used to direct air flow to upper portion of operator's

cabin from both the front and rear.

FG015820

Figure 121

B. Used to direct air flow to upper portion of operator's

cabin from both the front and rear. It will also deliver

air to the lower portion of operator's cabin from under

the operator's seat.

FG015824

Figure 122

C. Used to direct air flow to lower portion of operator's

cabin and feet.

This mode is mainly used for heating.

FG015825

Figure 123

D. Used to direct air flow to the front window and to

operator's feet.

FG015826

Figure 124

Operating Controls

OP001140

2-52

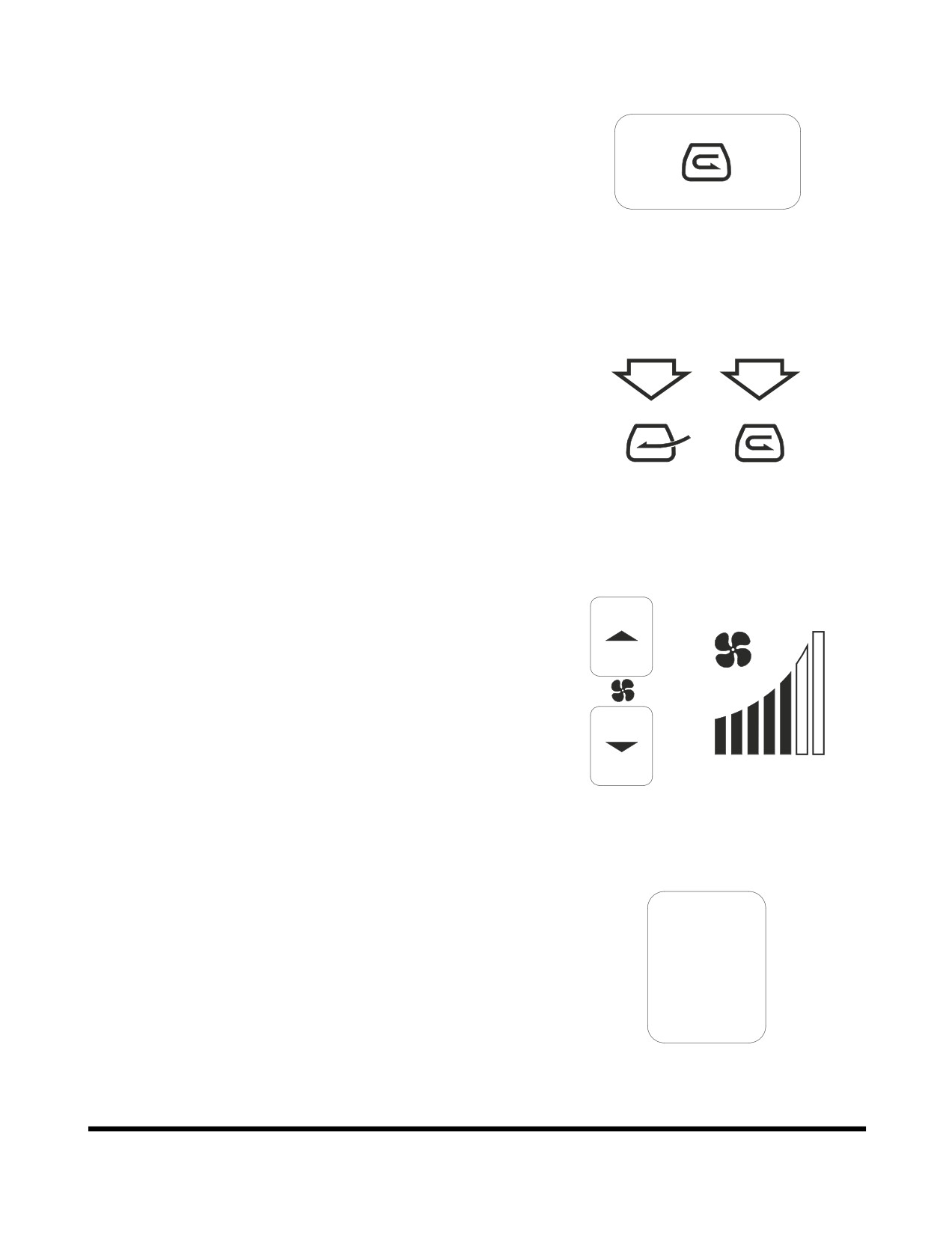

6.

Air Inlet Selector Button

This button is used to select fresh air from outside the

cabin, or recirculate air within the cabin.

Pressing this switch enables the choice between fresh air

and recirculating air within the operator's cabin. The select

mode is displayed on the LCD.

FG000101

Figure 125

A. "A" Symbol - Draws fresh air into operator's cabin.

Used to exchange air within the operator's cabin with

fresh air. Used to remove condensation or ice on

window (Winter / Rainy Season).

A

B

B. "B" Symbol - Recirculates air within the operator's

cabin. Used to quickly warm or cool the operator's

cabin.

FG000102

Figure 126

7.

Fan Speed Selector Buttons

These buttons are used to control the speed of the blower

fan.

Momentarily, pressing a button, changes the speed one

stage.

Continuously pressing and holding a button, repeatedly

changes the speed.

FG000103

Figure 127

8.

Air Conditioner Button

This button is used to turn the air conditioner "ON" or

"OFF."

When this function is activated, an "A/C" is displayed in the

upper left corner of the LCD.

A/C

FG000105

Figure 128

Operating Controls

OP001140

2-53

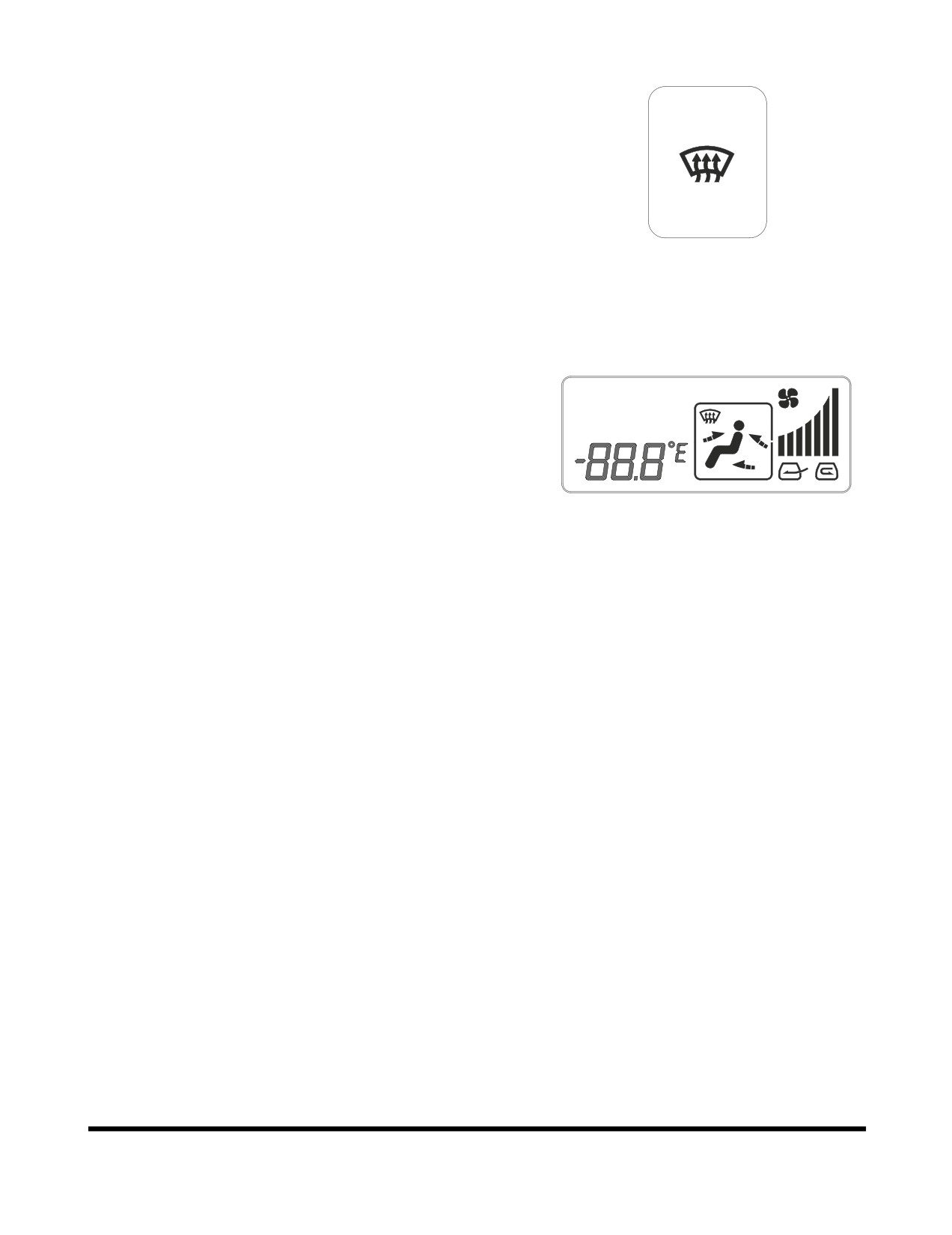

9.

Defroster Button

Used to direct air flow to front window.

FG000106

Figure 129

10. LCD Display

This display shows the current setting.

A/C

OUTSIDE

AUTO

MAX

Memory Function

The air conditioner panel has a memory function. When the

starter switch is turned "OFF" the settings for the panel, will be

stored. When the excavator is started, the last stored setting will

be used.

FG000107

Figure 130

Additional Operating Instructions

A proper indoor temperature in summer is 5 - 6°C (10 - 12°F)

less than the outdoor temperature.

Operate the air conditioner for twenty - thirty minutes a week to

circulate the refrigerant in the system.

NOTE: The blower button should be on "Three Bars."

If operating the air conditioner or heater for a long time, operate

the air inlet selector button, and when smoking, vent the air to

the outside to prevent irritation to eyes.

Operating Controls

OP001140

2-54

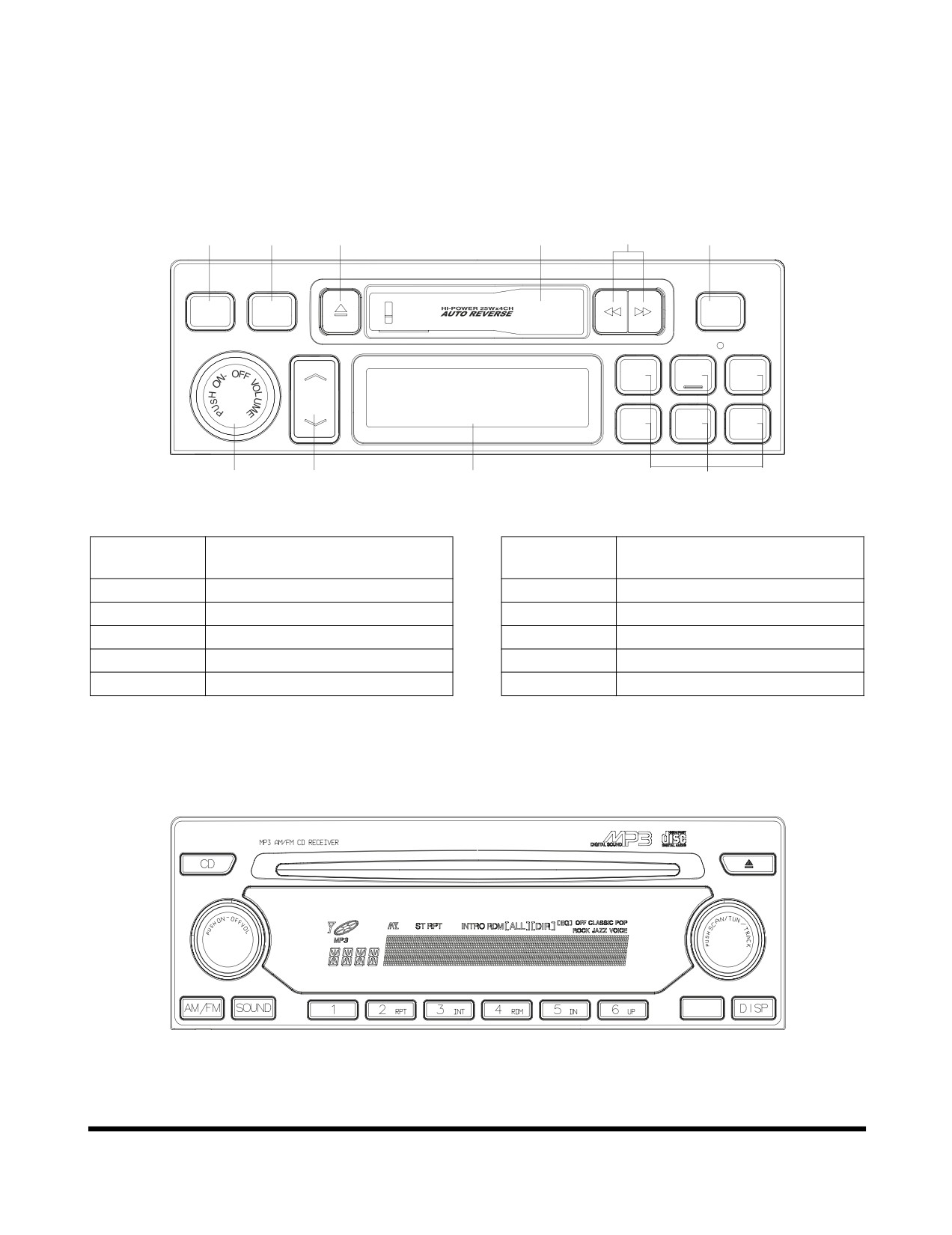

STEREO

Before operating the stereo or CD player, read operation manual

enclosed with stereo.

Stereo

2

3

7

9

8

5

PROGRAM

AST

SOUND

AM/FM

SCAN

1

2

3

TUNE

4

5

6

1

4

10

6

FG000108

Figure 131

Reference

Reference

Description

Description

Number

Number

1

Power / Volume Control

6

Preset Station

2

Sound Mode Selector

7

Tape Ejection

3

Band Selection

8

Fast Forward / Rewind

4

Tuning Up / Down

9

Tape Loading Slot

5

Scan Function / Auto Store

10

LCD

CD Player (Optional)

AST/DIR

FG000109

Figure 132

Operating Controls

OP001140

2-55

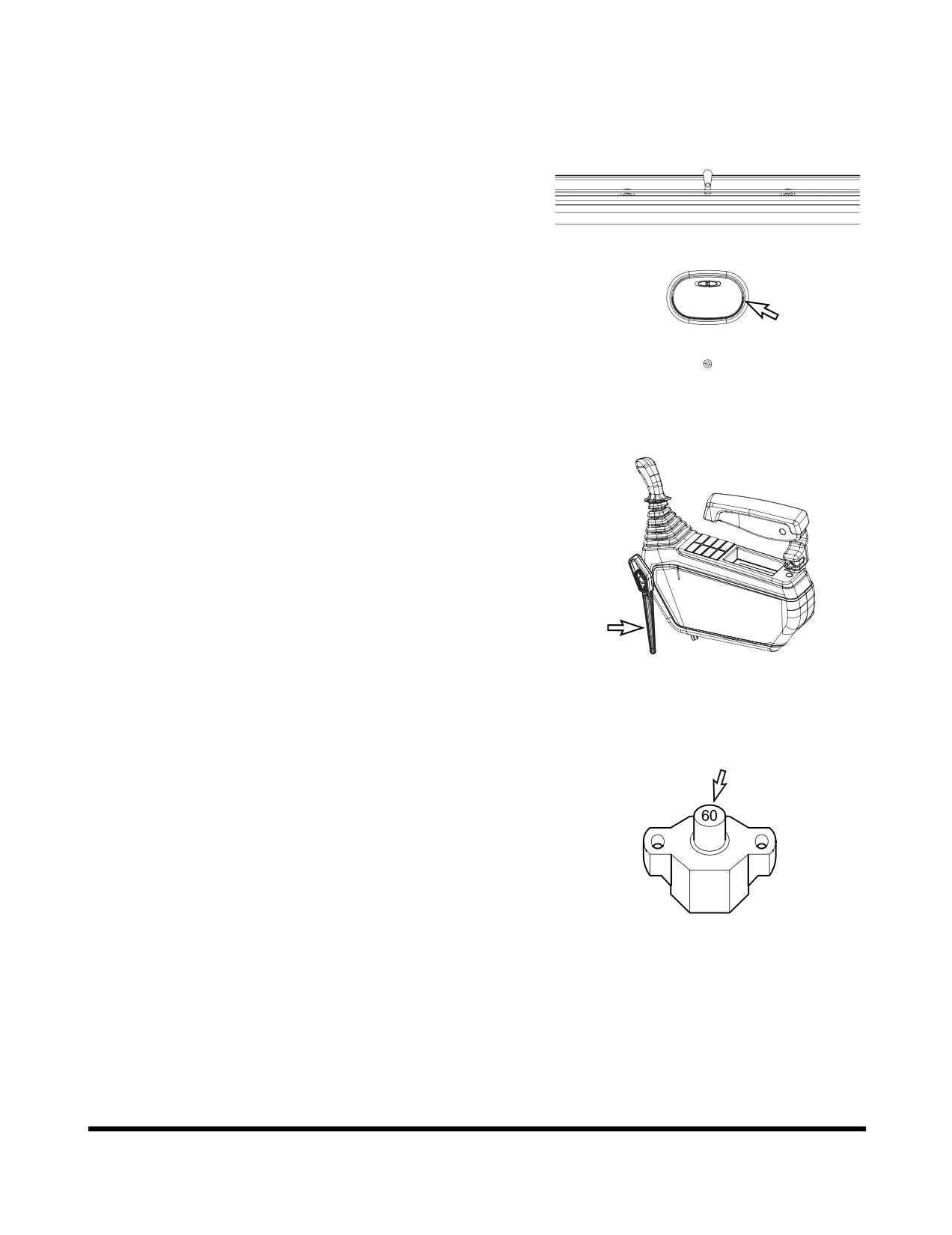

MISCELLANEOUS ELECTRICAL

DEVICES

Cabin Light

A light is installed on the top of the operator's cabin.

The light will work despite starter switch position.

NOTE: If light is left "ON" for a longtime while the engine is

not running, the battery will be discharged.

FG015827

Figure 133

Pilot Cutoff Switch

When the safety lever is put into the "LOCK" position, the switch

deactivates the work and travel levers. With the work and travel

levers deactivated, no digging/operational work can be done.

Lock

FG015828

Figure 134

Circuit Breaker

A main circuit breaker is in the battery box. It will automatically

cut off in case of an electrical short circuit or overload. This will

prevent the electrical wiring and components from being burned

or damaged.

If the circuit breaker is cut off, check all related circuits, this

means something is wrong in the electrical circuit.

After maintenance, press the red button for normal operation of

circuit breaker.

HAAE2110

Figure 135

Operating Controls

OP001140

2-56

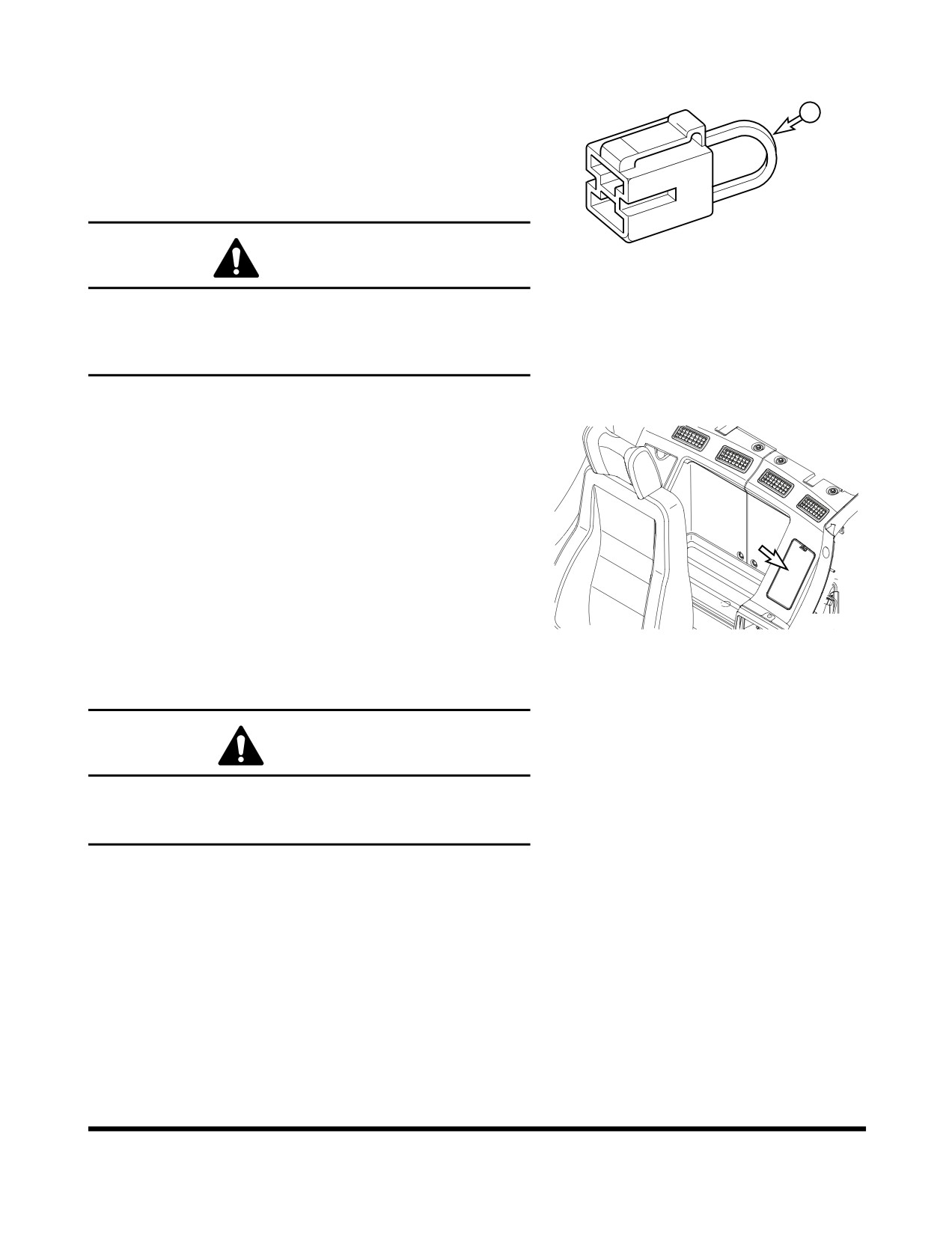

Fusible Link

A fusible link is in the battery box.

A

If the engine does not crank, first check that starter switch is

turned "ON" and that no power is available (No indicator lights

will light.). Check that "A" portion (Figure 136) of the fusible link

is not broken or burned through. Replace the fusible link if

damage and investigate cause.

HAAE2120

WARNING

Figure 136

When changing the fusible link, replace the fusible link with

the same capacity part. Otherwise, a fire could break out in

the wiring harness and/or other components of the circuit.

Always use original DOOSAN parts.

Fuse Boxes

There are two fuse boxes (Figure 137) on the left side of the

heater box. The fuses prevent electrical devices from

overloading or shorting.

A decal attached inside the fuse box access cover indicates the

function and amperage of each fuse.

NOTE: For a further explanation see

“Fuse Boxes” on

page 4-75.

Spare fuses are mounted on the inside of fuse box access

FG000110

cover.

Figure 137

Change a fuse if the element separates. If the element of a new

fuse separates, check the circuit and repair the circuit.

CAUTION

Always replace fuses with the same type and capacity fuse

that was removed. Otherwise, electrical damage could

result.

Operating Controls

OP001140

2-57

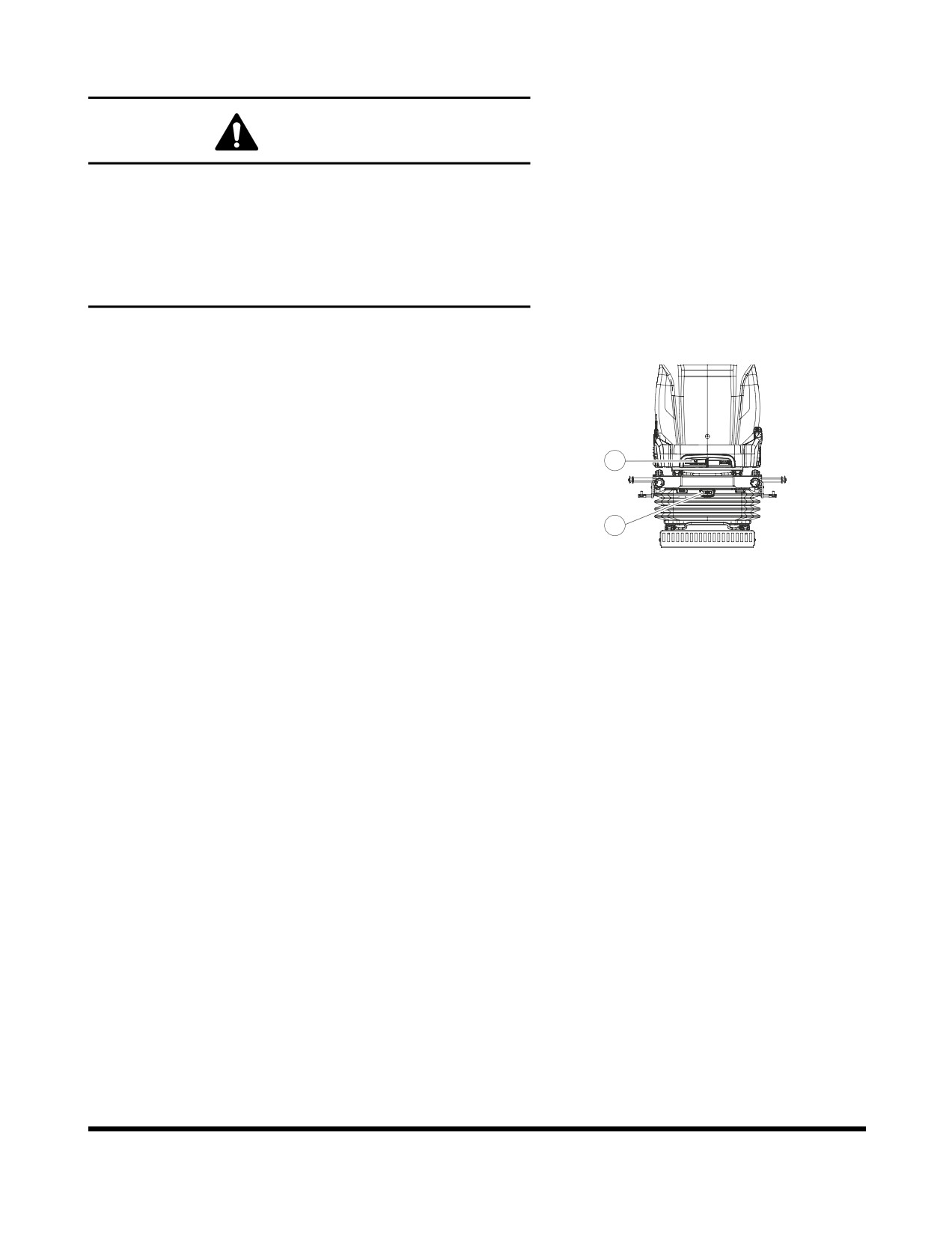

SEAT ADJUSTMENT

WARNING

Adjust the seat position before starting operations or after

changing the operator.

Always fasten your seat belt while operating machine.

Adjust the seat so that the control levers and pedals can be

operated freely and easily with the operator back against

the backrest.

1.

Forward / Backward Adjustment

Holding lever (1, Figure 138), raise it up, move the seat to

the desired position. Release lever to lock the seat in the

selected position. Adjustment range is 180 mm (7.1 in).

1

2.

Adjusting Height of Seat and Depth of

Cushion

2

FG015829

Forward Tilt

Figure 138

Push lever (2, Figure 138) down to adjust the angle of the

front of the seat. There are four positions that it can be set

at.

Rear Tilt

Pull lever (2, Figure 138) up to adjust the angle of the rear

of the seat. There are four positions that it can be set at.

Seat Height

It is possible to move the seat up or down by combining

adjustments forward and rear tilt. Height adjustment is

60 mm (2.4 in).

Adjust height of seat by moving adjustment lever (2, Figure

138) up or down. The cushion depth can be adjusted by

referring to the weight indication window on the right.

•

Green: Standard weight,

•

Red: Underweight or overweight.

Operating Controls

OP001140

2-58

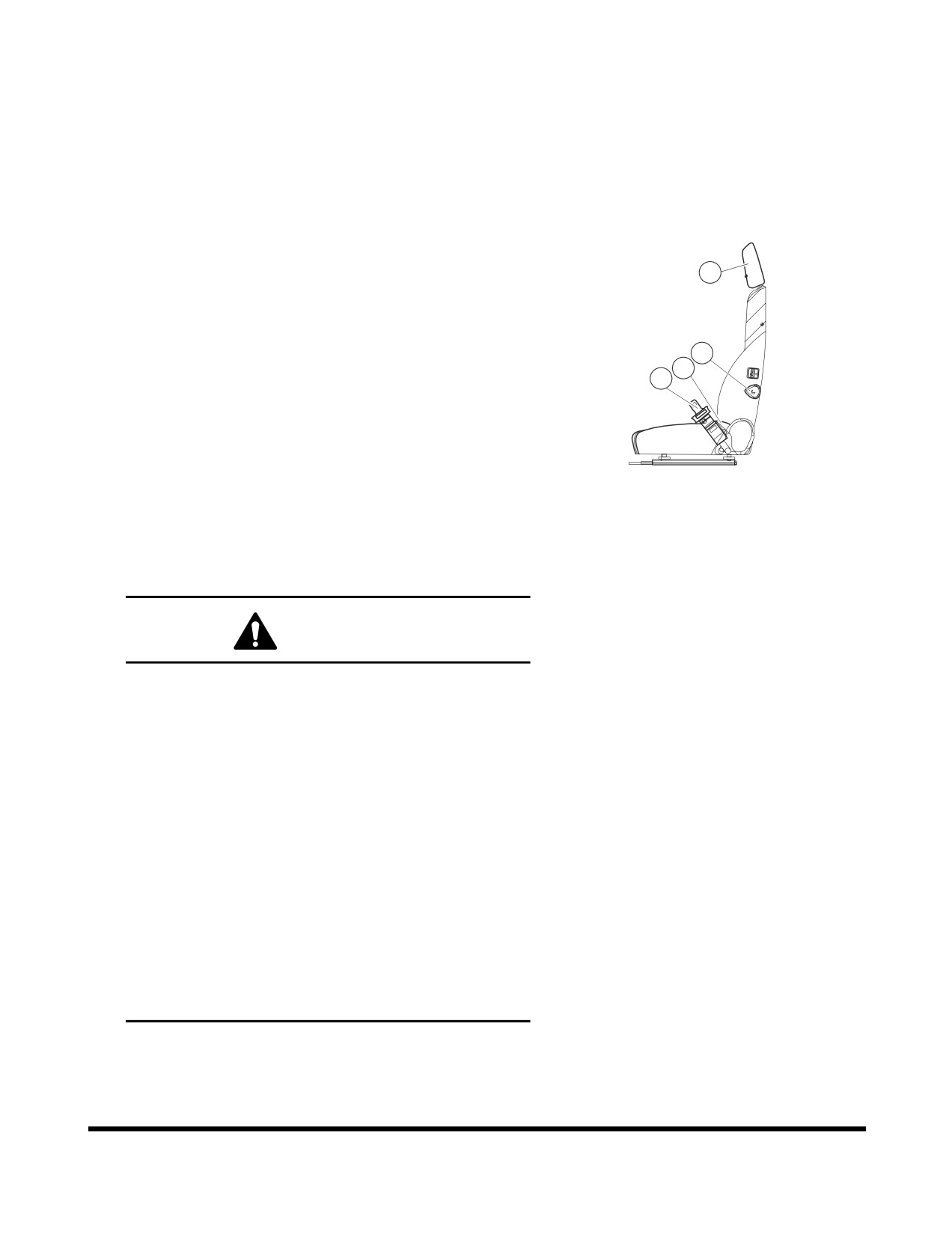

3. Reclining Position Adjustment

Pulling up left lever (3, Figure 139) allows seat backrest to

be moved forward or backward.

Sit with your back against the seat back when adjusting it.

If your back is not touching the seat back, the seat back

may suddenly move forward.

4. Lumbar Support Adjustment

5

A lumbar support is located in the seat back.

Turn the dial (4, Figure 139) counterclockwise to increase

the force of the lumbar support.

4

3

6

5. Headrest

The headrest (5, Figure 139) can be adjusted forward/

backward and up/down. Move it by holding both sides.

FG015815

Figure 139

6. Seat Belt

WARNING

The seat belt is for the operator's safety and should

always be worn. Before driving the machine, adjust the

seat to the desired position for maximum comfort and

machine control, then fasten the seat belt. Seat belts

must be worn across the pelvic region and adjusted

snugly to lessen the chance and severity of injury in

case of an accident. Never fasten a seat belt across the

abdomen.

Under no circumstances should the operator be

standing in the cabin when operating the excavator.

Do not adjust the seat position while the vehicle is

moving because a loss of control may result. Stop the

machine, apply the parking brake, and then adjust the

seat.

Always, check the condition of seat belt and belt

bracket before fastening it. Do not use it with twists in

it. Replace belt or bracket if damaged or worn.

Operating Controls

OP001140

2-59

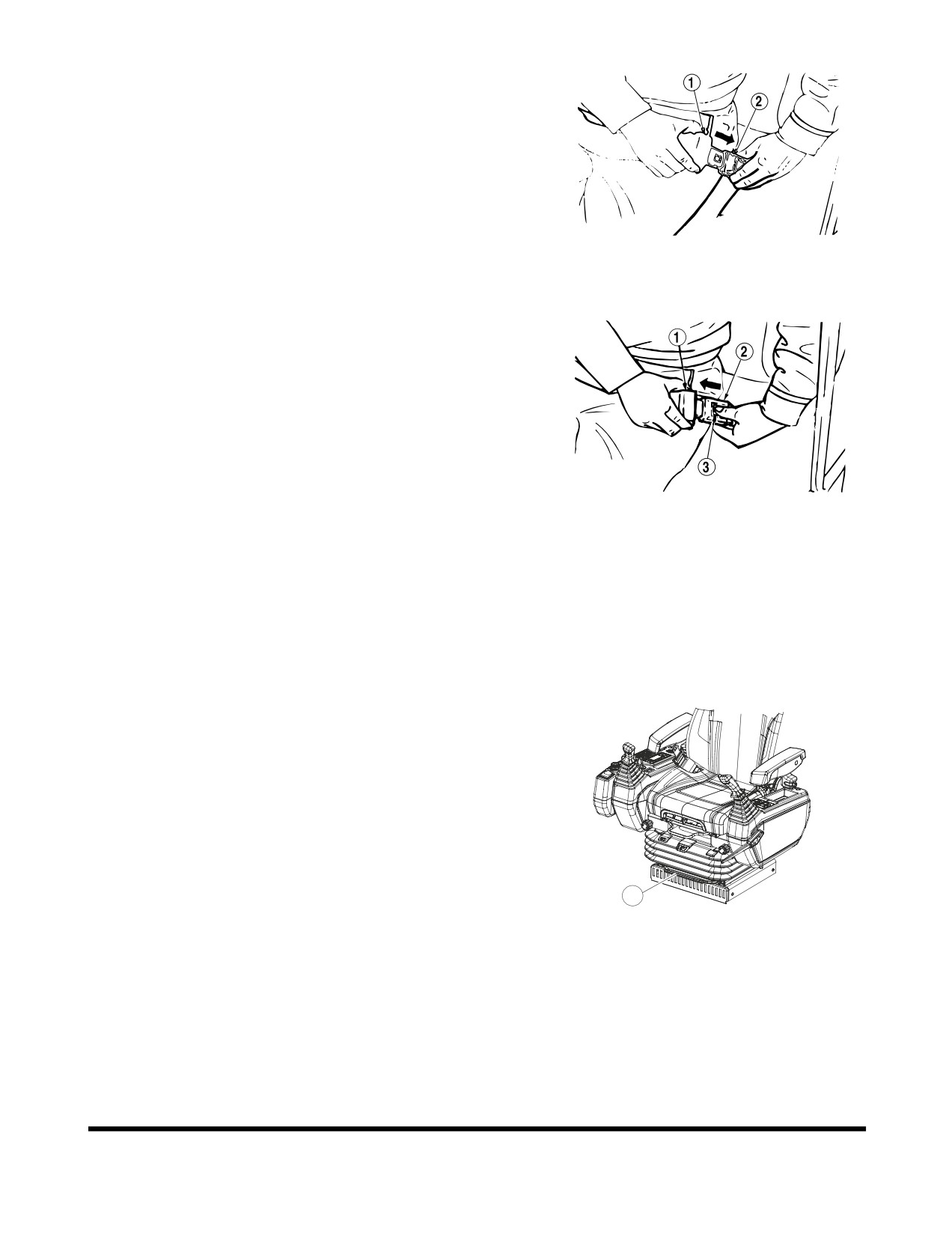

Seat Belt Locking and Unlocking

Insert belt end (1, Figure 140) into buckle (2). Pull belt to

check that belt end is locked into buckle.

Adjust belt length so it is comfortably tight against

operator's pelvic region (hipbone).

HAOB140L

Figure 140

Press button (3, Figure 141) in center of buckle (2) and pull

out belt (1) to unlock.

HAOB150L

Figure 141

7. Storage Compartment

The seat has a storage compartment. It is used for storing

the Operation and Maintenance Manual.

8. Left and Right Control Stand

Adjustment

For operator's convenience, the right and left control

stands and seat can slide together, within a

160 mm

(6.3 in) forward or backward travel distance.

Holding lever (4, Figure 142), raise it up, set the seat to

desired position. Release lever to lock seat in selected

position.

4

FG015831

Figure 142

Operating Controls

OP001140

2-60

9. Left and Right Control Stand Height

Adjustment

The left and right dials (5, Figure 143) at the lower part of

the seat can be turned to adjust the elevation height of

each control stand.

It can be used to adjust the height of the control joystick.

10. Adjusting Height/Angle of Armrest

It is possible to adjust height of armrest by removing three

bolts (6, Figure 143) holding armrest to driver's seat, and

moving armrest up or down by intervals of 20 mm, and

5

then installing armrest. Lift armrest slightly (5, Figure 143)

and rotate dial on bottom of support to left and right to

6

adjust angle of armrest.

FG015832

Figure 143

11. Heating Operator's Seat (Optional)

The air suspension seat can be heated. The heater switch

is found on left-hand side of seat back. To heat the seat,

press and hold switch until desired heat level is obtained.

When heating is not needed or seat is warmed, turn switch

to "OFF" position.

The seat heater has a primary thermostat that allows it to

operate between 28° - 37°C (82° - 99°F). At 37°C (99°F)

the primary thermostat stops heating the seat.

FG015816

NOTE: If the primary thermostat fails, there is a

Figure 144

secondary

(safety) thermostat that operates

between 32° - 41°C (90° - 106°F). At 41°C

(106°F) the secondary (safety) thermostat stops

heating the seat. If the seat is heating up to a

higher then normal temperature, have seat

serviced.

Operating Controls

OP001140

2-61

CEILING COVER

NOTE: If machine is equipped with optional transparent

ceiling cover never use any chemical cleaners on its

surface. Only use warm water to wash dust and dirt

from its surfaces, and after that, dry it with a soft

fabric towel.

Lock

FG015828

Figure 145

Opening the Ceiling Cover

1.

Lower bucket to ground.

2.

Set safety lever (Figure 145) on "LOCK."

3.

Pull lock (1, Figure 146) in front center of ceiling cover and

push it up with handle.

Closing the Ceiling Cover

1.

Lower bucket to ground.

2.

Set safety lever (Figure 145) on "LOCK."

3.

Pull down cover with handle (Figure 146) so lock (1) can

be locked into bracket in ceiling frame.

1

FG015834

Figure 146

Operating Controls

OP001140

2-62

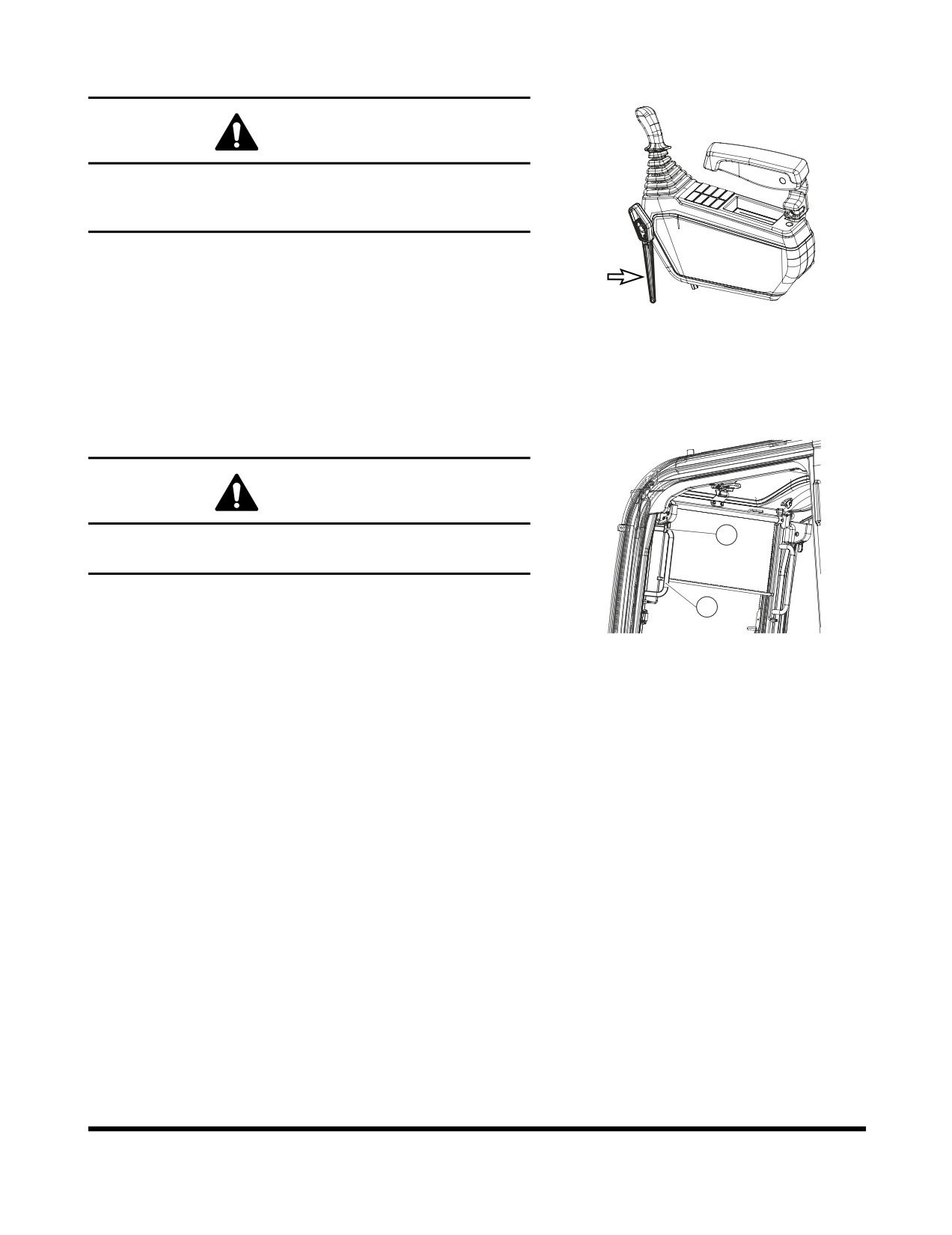

FRONT WINDOWS

WARNING

When leaving operator's seat, set safety lever to "LOCK"

position (Figure 147), if not a serious accident could occur

by accidentally moving work levers.

Lock

FG015828

Figure 147

Front Upper Window

The front upper window can be housed in cabin's ceiling.

Opening the Window

WARNING

When stowing front window in cabin roof, make sure both

2

release levers (1, Figure 148) are latched.

1.

Lower bucket to ground.

1

2.

Set safety lever (Figure 147) on "LOCK."

FG015835

3.

Set engine speed control dial to "LOW IDLE." Allow engine

Figure 148

to idle for three - five minutes.

4.

Shut down engine by turning key to "O" (OFF) position.

5.

Hold window handles (1, Figure 148), then pull lock levers

(2) to release lock. The top of front window will come out.

6.

Pull window up, and push it against lock pin at the rear of

cabin. Make sure that it is securely latched.

7.

Check that lock levers are securely latched in lock position.

NOTE: When front upper window is open, never extend

your head or body through window frame.

NOTE: If window happens to fall with a strong impact

against machine, while some part of your body

is extended out of cabin, it may result in bodily

injury.

NOTE: The front window is spring loaded to help ease

opening it. To fastening rear lock pin, hold

handle and fasten on rear lock pin.

Operating Controls

OP001140

2-63

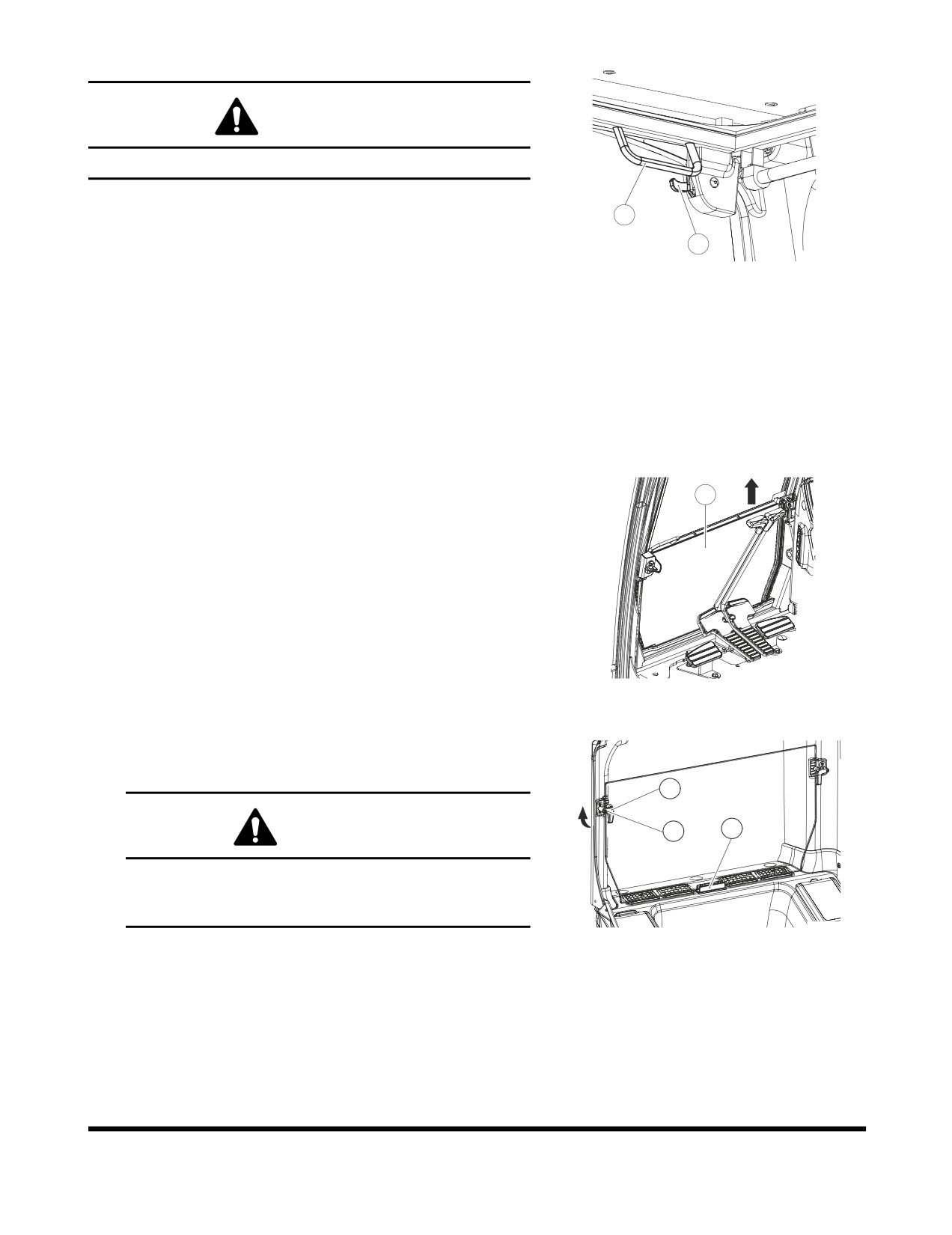

Closing the Window

WARNING

Be careful that your hands are not caught in window frame.

1.

Lower bucket to ground.

1

2.

Set safety lever (Figure 147) on "LOCK," and shut down

2

engine.

FG015836

3.

Holding upper handles (1, Figure 149) of front window with

Figure 149

left and right-hand, pull lock levers

(2, Figure

149) to

release lock.

4.

Push window forward, and lower it slowly.

5.

When bottom of window, reaches top of the front bottom

window, push front window to engage lock (2, Figure 148).

6.

Check that lock levers are securely latched in lock position.

Front Bottom Window

1

Opening Window

The front bottom window can be removed and stored in rear of

cabin.

1.

Open front top window and secure it to ceiling. Press

button to open levers on both sides (left and right), and lift

bottom window in direction of arrow, as shown in Figure

150.

FG015837

Figure 150

2.

Set bottom window in rubber holders

(2, Figure

151)

behind operator's seat. Secure window with left and right

levers (3) with push button (4).

3

WARNING

4

2

Never have wet hands when handling a window. Never

drop window or let it come into contact with other

parts of machine.

FG015840

Figure 151

Closing Window

Reverse the removal procedure.

NOTE: Make sure that bottom window is proper seated in

bottom of front cabin window opening, Closing upper

window with bottom window unattached may damage

bottom window.

Operating Controls

OP001140

2-64

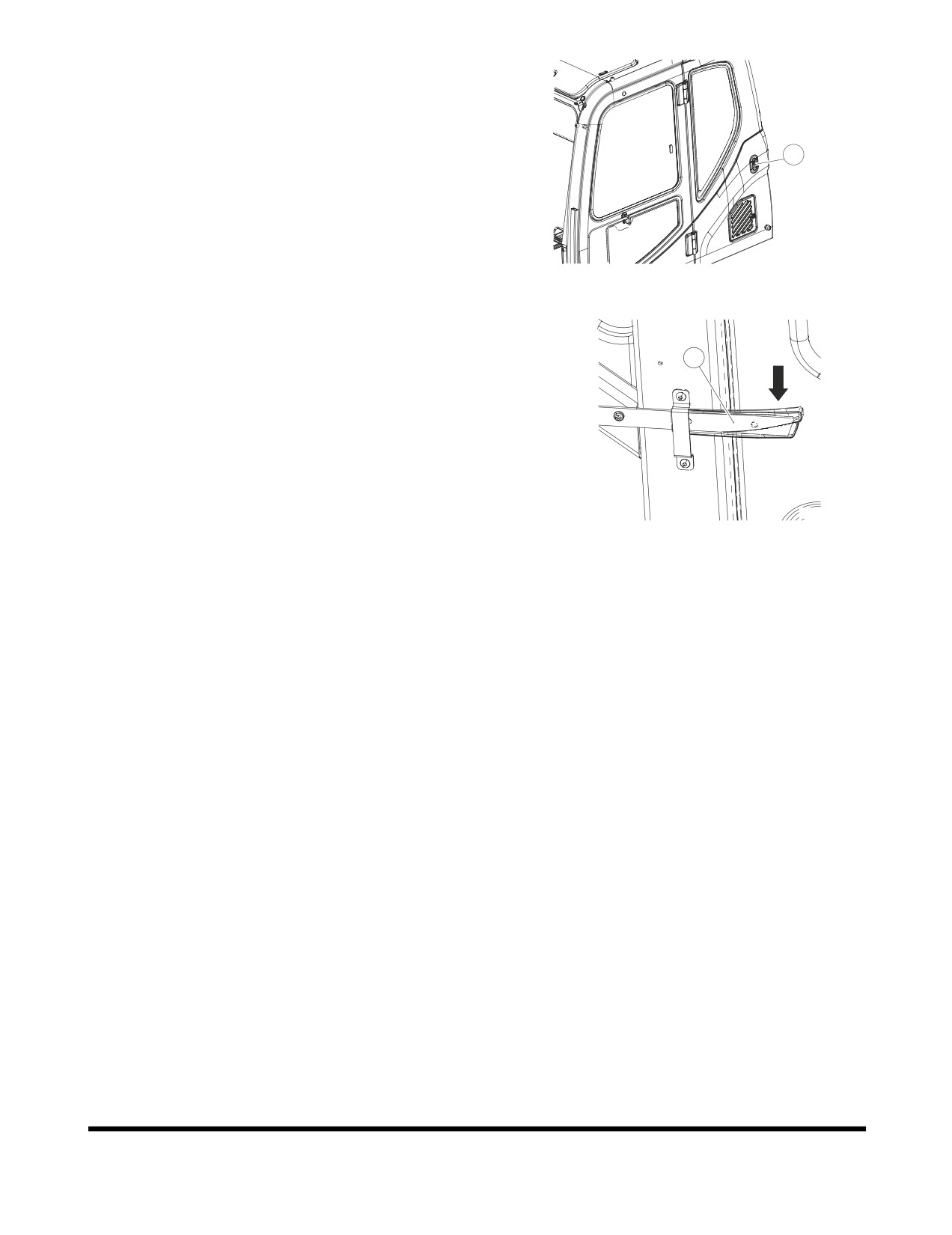

DOOR SIDE LATCH

1.

The door side latch (1, Figure 152) is used to secure door

to side of cabin when it is opened.

NOTE: Keep door closed and locked when machine is

1

not in use.

FG015841

Figure 152

2.

To release door from side of cabin, push latch lever (2,

Figure 153) down. The latch lever is to the left of operator's

seat.

2

FG015842

Figure 153

Operating Controls

OP001140

2-65

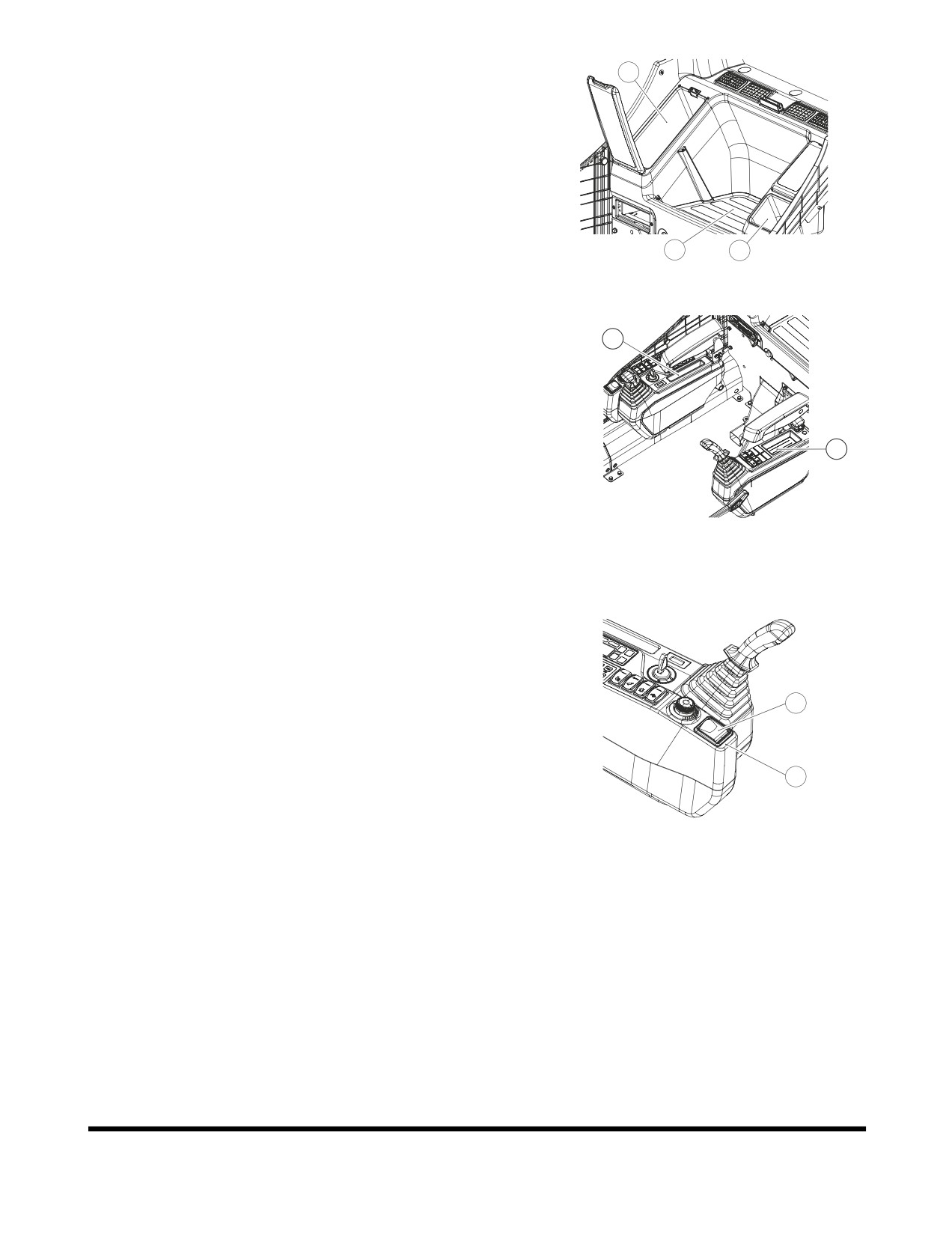

CABIN STORAGE

2

COMPARTMENTS

There are three storage compartments behind the operator's

seat.

The large compartment

(1, Figure

154) is for storing

nonperishable items.

The covered other one (2, Figure 154) is interconnected with the

air conditioner. It can be supplied with either warm or cool air

1

3

FG015843

when air conditioner is turned "ON." The small compartment (3,

Figure 154

Figure 154) is for storing small items.

There is a separate small tray on left side (4, Figure 155) and

right side (5, Figure 155) of operator's seat.

4

5

FG015844

Figure 155

ASHTRAY

An ashtray (1, Figure 156) is to the right side of the operator's

seat on side of cabin. Always close ashtray after putting out a

cigarette.

1

2

FG015859

Figure 156

Operating Controls

OP001140

2-66

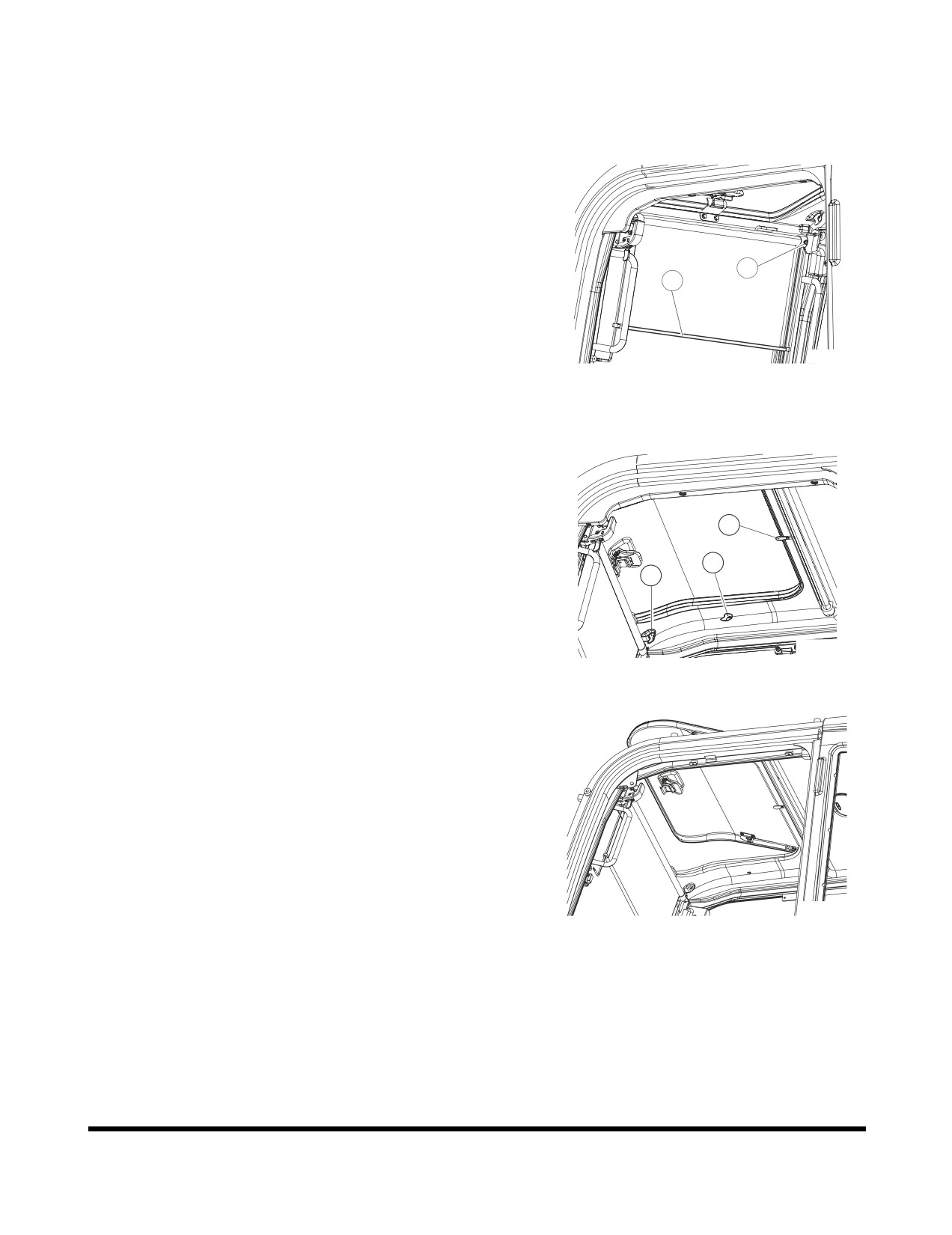

SUN VISOR

The excavator has two sun visors.

Front Window Visor

The sun visor can be used to reduce the amount of sunlight

coming through the front window and ceiling.

When wanting to reduce the amount of sunlight coming in the

front window, pull bar (1, Figure 157) down.

2

1

When not wanting protection, hold bar with left-hand and push

release button (2, Figure 157) with right-hand. This will allow

visor to retract.

NOTE: Do not allow visor to roll back up without holding it.

FG015860

Not holding it may result in damage to visor and

Figure 157

retract mechanism.

Ceiling Window Visor

When you wish to use visor, pull handle on bar (1, Figure 158) to

middle holders (2, Figure 158) or the end holders (3, Figure

1

158). Hook bar on holders to secure visor in place.

2

3

FG015861

Figure 158

Pull visor to release it. It will return to its original position.

NOTE: Do not allow visor to roll backup without holding it.

Not holding it may result in damage to visor and

retract mechanism.

FG015862

Figure 159

Operating Controls

OP001140

2-67

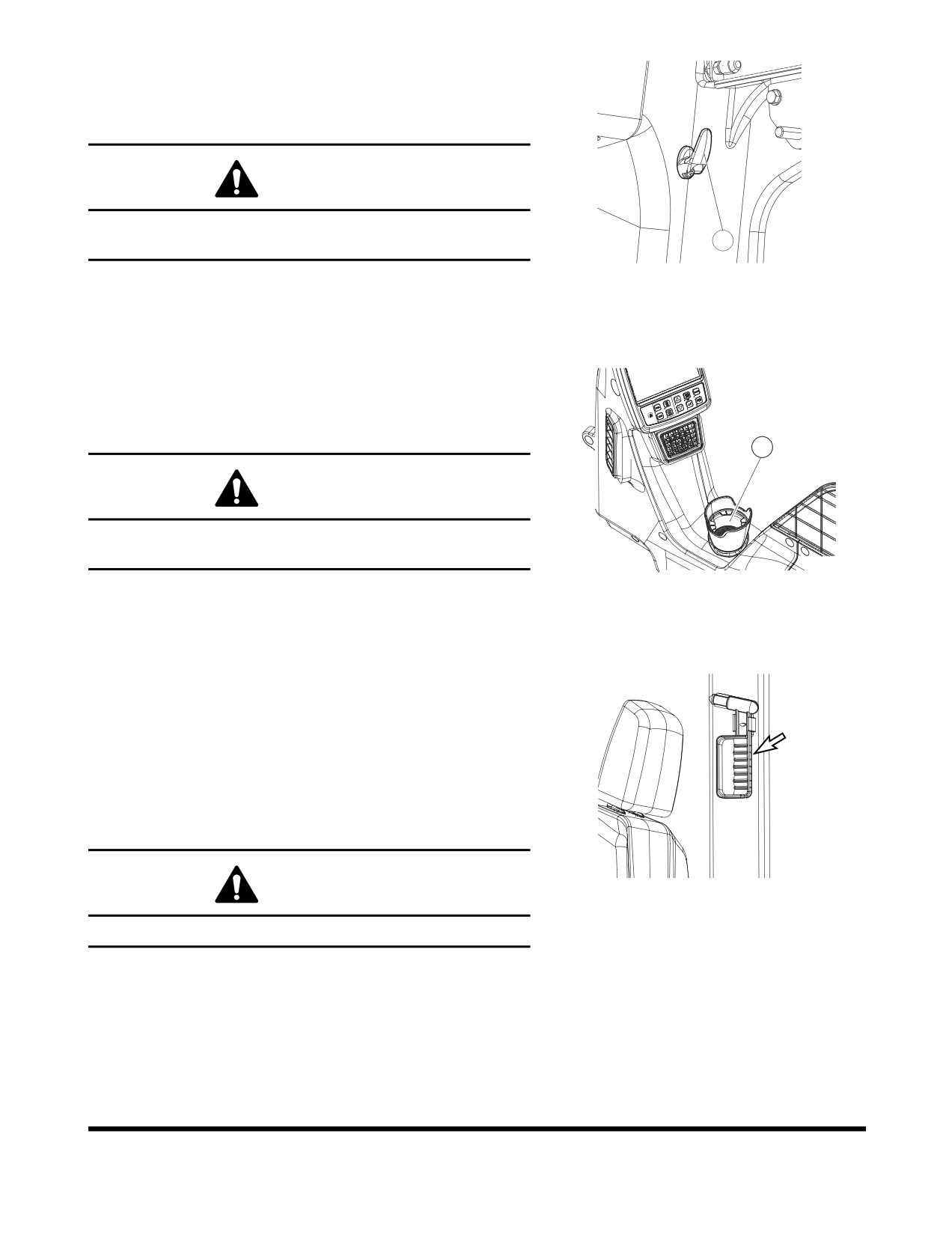

HANGER

A hanger (1, Figure

160) is located on upper left side of

operator's cabin.

WARNING

Do not hang anything that will easily fall down, or will

impair your view out of cabin.

1

FG015863

Figure160

CUP HOLDER

There is a rubber cup holder inside operator's cabin. Use it to

keep your cup firmly in place.

1

WARNING

When using cup holder, be careful not to touch right-hand

work lever (joystick).

FG015864

Figure 161

EMERGENCY GLASS BREAKING

TOOL

The excavator is equipped with a glass breaking tool. It is found

on center of column to left of cabin. This tool can be used in

case of an emergency that requires breaking glass to exit from

operator's cabin. Grip handle firmly and use sharp point to break

glass.

FG015808

WARNING

Figur162

Protect your eyes when breaking the glass.

Operating Controls

OP001140

2-68

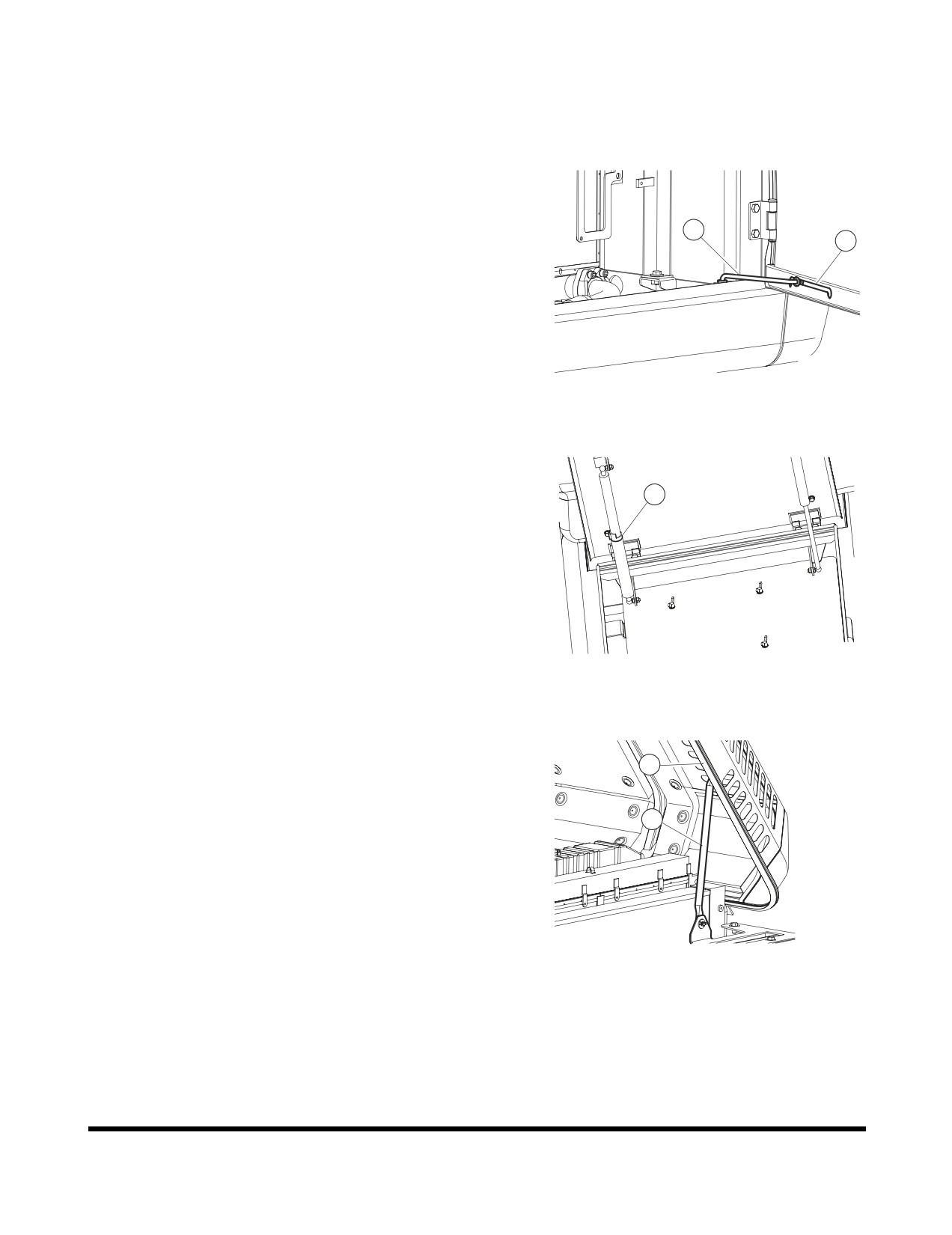

MISCELLANEOUS ACCESS

COVERS AND DOORS

Side Door

Open side access door and slide prop rod (1, Figure 163) in slot

(2) until it locks at end of slot.

1

2

FG000165

Figure 163

Battery Box Door

1

Opening

Open door until locking device (1, Figure 164) latches.

Closing

While holding door, press locking device to release lock and

close door.

FG000166

Figure 164

Engine Cover

2

Open cover and slide prop rod (1, Figure 165) in slot (2) until it

locks in notch at end of slot to support cover.

1

To close cover, move end of prop rod out of notch so it can slide

in slot.

FG000167

Figure 165

Operating Controls

OP001140

2-69

Operational Checks Before Starting

Engine

WARNING

When leaving operator's seat, set the safety lever to

"LOCK" (Figure 1) position, if not a serious accident could

Lock

occur by accidentally moving the travel or work levers.

FG015828

1.

Set safety lever on "LOCK" (Figure 1).

Figure 1

2.

Fasten seat belt. Check for proper operation and condition.

3.

Set all operation levers in "NEUTRAL."

NOTE: Be careful not to touch any switches when

starting engine.

4.

Rotate the starter switch to the "I" (ON) position (Figure 2).

Check all indicator lights. A warning buzzer will sound for

O

about two seconds. After two seconds, all lights except the

I

following will turn "OFF."

•

Charging warning light

•

Engine oil pressure warning light

•

Engine coolant temperature gauge

•

Fuel gauge

•

Hydraulic oil temperature gauge

FG000084

Figure 2

•

Engine rpm (0 rpm) digital readout

NOTE: If all of the indicator lights do not come "ON"

when the key is first turned, there is a problem.

Operation

OP001173

3-3

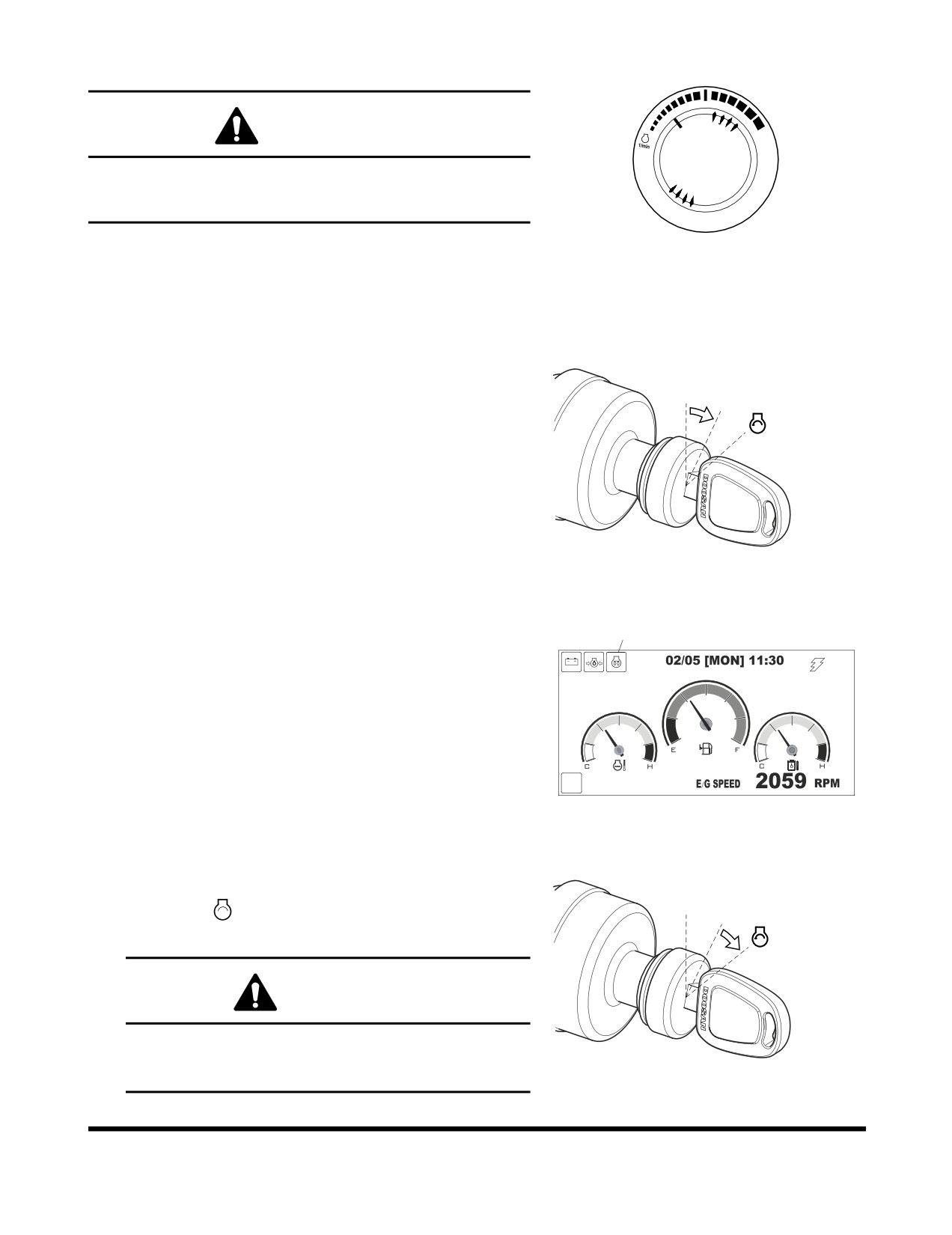

Engine Start

WARNING

Start the engine after sounding horn and making sure there

are no people or obstacles in the area.

1.

Perform all steps in “Operational Checks Before Starting

Engine” on page 3-3.

2.

Set engine speed control dial slightly above "LOW IDLE"

(Figure 3).

3.

Sound horn.

HAOB34L

Figure 3

4.

Enter password.

NOTE: If the security system is "LOCKED," a four-digit

password will be required to start the engine. If the

system is "UNLOCKED," no password will be

ENTER

required and this display screen will not appear.

PASSWORD

FG013717

Figure 4

" "

5.

Turn starter switch to

(START) position (Figure 5).

Engine should start in approximately five seconds.

O

I

WARNING

If the engine does not start after approximately fifteen

seconds of cranking, release the starter switch. Wait

about five minutes and repeat above step.

6.

After engine has started, release key. Key will return to the

FG000085

"I" (ON) position (Figure 5).

Figure 5

7.

Follow procedures in

“Hydraulic System Warm-up” on

page 3-10.

Operation

OP001173

3-4

8.

After warming unit, check all operating indicators to make

4

5

6

7

sure that all engine systems (oil pressure, coolant, etc.) are

in the normal operating range. If any problems are noticed,

CHECK

shut down engine. Normal indicators are:

PWR

1

2

3

FG013731

Figure 6

INDICATOR

No.

INSTRUMENT PANEL LIGHT OR GAUGE

READING

1

Engine Coolant Temperature Gauge

Blue Range

2

Fuel Gauge

Blue Range

3

Hydraulic Oil Temperature Gauge

Blue Range

4

Charging Warning

OFF

5

Engine Oil Pressure Warning

OFF

6

Engine Coolant Temperature Warning

OFF

7

Engine Check Warning

OFF

9.

Check color of exhaust smoke.

•

No color or light blue - Engine is running in good

condition.

•

Black - Incomplete combustion. Check cause.

•

White or dark blue - Engine is burning engine oil.

Check cause.

10.

Check for usual engine vibration and noises. If any are

heard or felt, investigate cause.

NOTE: If engine coolant temperature gauge pointer

moves into the red zone, the engine coolant

temperature warning light will turn "ON," a

warning buzzer will sound, and the engine

speed will be automatically reduced. Allow the

engine to run at low idle speed until temperature

gauge registers in the blue zone again. When

the blue zone is reached, allow the engine to

idle for an additional three - five minutes before

shutting down the engine. If not allowed to idle,

heat surge may develop which will damage the

engine. Allowing the engine to idle will dissipate

heat. Check the coolant level, look for a loose

fan belt, inspect for debris around radiator, and

so on.

Operation

OP001173

3-5

Cold Weather Starting

WARNING

DO NOT USE STARTING FLUIDS. The preheat system could

cause the starting fluid to explode. Starting fluids should

never be used.

1.

Perform all steps in "Operational Checks Before Starting

HAOB34L

Engine."

Figure 7

2.

Set engine speed control dial slightly above "LOW IDLE"

(Figure 7).

3.

Sound horn.

4.

Turn starter switch to the "I" (ON) position (Figure 8). When

preheat cycle is completed, the preheat indicator light (1,

O

Figure 9) will turn "OFF."

I

FG000084

Figure 8

1

PWR

FG013732

Figure 9

5.

After the preheat completion, immediately turn starter

" "

O

switch to

(START) position

(Figure

10). Engine

I

should start in approximately five seconds.

WARNING

If the engine does not start after approximately fifteen

seconds of cranking, release the starter switch. Wait

about five minutes and repeat above step.

FG000085

Figure 10

Operation

OP001173

3-6

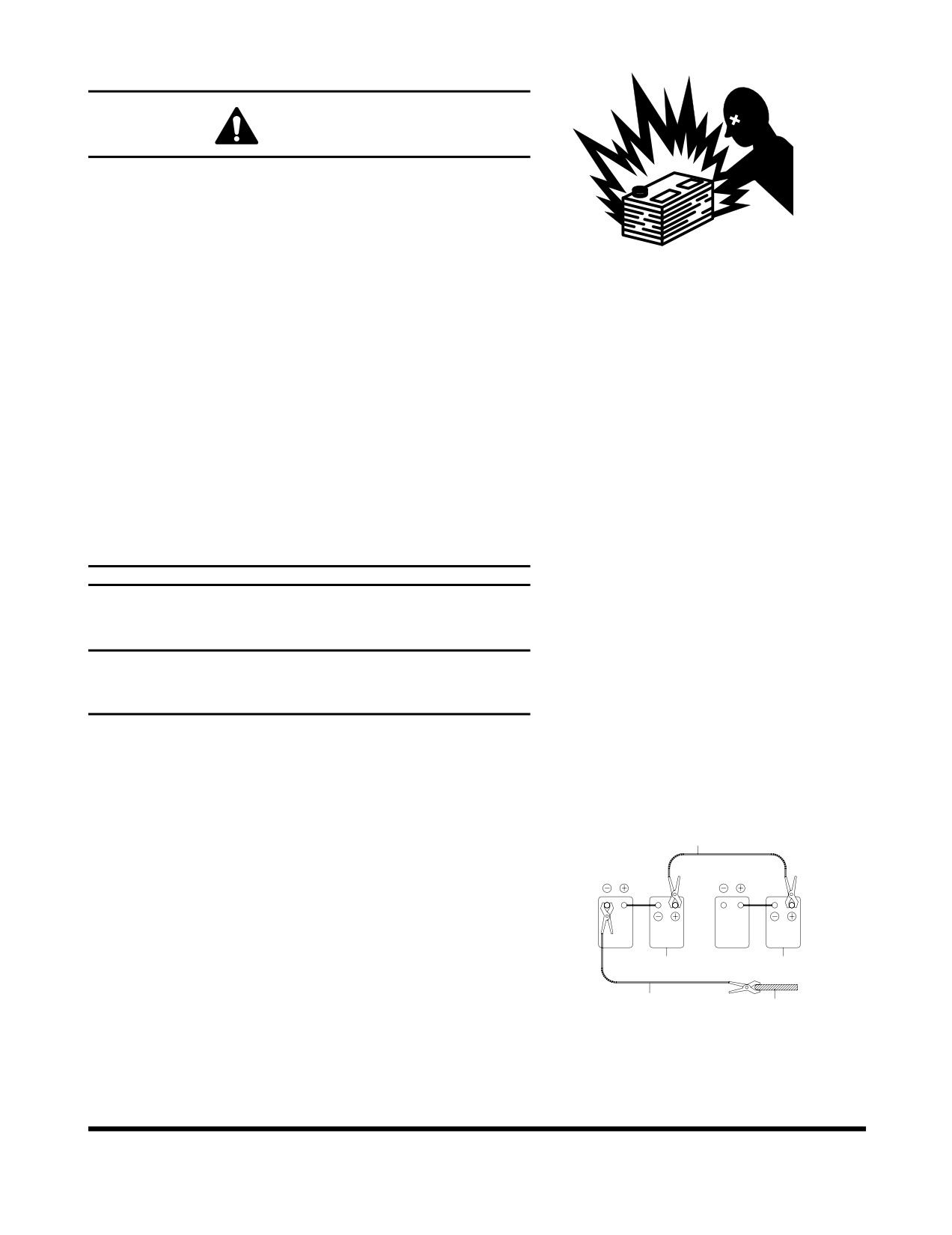

Starting Engine With a Booster Cable

WARNING

1.

An explosive gas is produced while batteries are in

use or being charged. Keep flames or sparks away

from the battery area.

2.

Charge batteries in a well ventilated area.

3.

Always wear eye protection when starting a machine

HAOA440L

with jumper cables.

Figure 11

4.

Improper jump starting procedures can cause an

explosion resulting in personal injury.

5.

Jump start vehicles on dry ground or concrete. Do not

jump start the machine on a steel floor, because the

floor is always grounded.

6.

When starting from another machine, make sure the

machines do not touch.

7.

Always connect the auxiliary battery positive

(+)

terminal too depleted battery positive (+) terminal first.

Then connect auxiliary battery negative (-) terminal to

the frame of the depleted battery machine second.

8.

Connect positive cable first when installing cables and

disconnect the negative cable first when removing.

IMPORTANT

The machine has a

24V (-) negative ground electrical

system. Use the same capacity 24V booster batteries when

jump-starting engine.

If the batteries are drained during starting procedures, jump start

engine using auxiliary or booster batteries according to the

following procedure:

Connecting the Booster Batteries

1

1.

Shut down engine of the machine on which booster

RED

batteries (3, Figure 12) are mounted.

2.

Connect one end of red cable (1, Figure 12) to the positive

(+) terminal of the machine batteries (4), and the other end

to the positive (+) terminal of the booster batteries.

3.

Connect one end of black cable (2, Figure 12) to the

3

4

negative (-) terminal of the booster batteries (3), and then

BLACK

make ground connection to the upper frame (5) of the

2

machine to be started with the other end of black (-) cable

5

ARO0440L

(2, Figure 12). When making the last connection to upper

Figure 12

frame, be sure to connect the cable end as far away from

the machine batteries as possible. DO NOT CONNECT

DIRECTLY TO THE NEGATIVE BATTERY TERMINAL.

4.

Start the engine.

Operation

OP001173

3-8

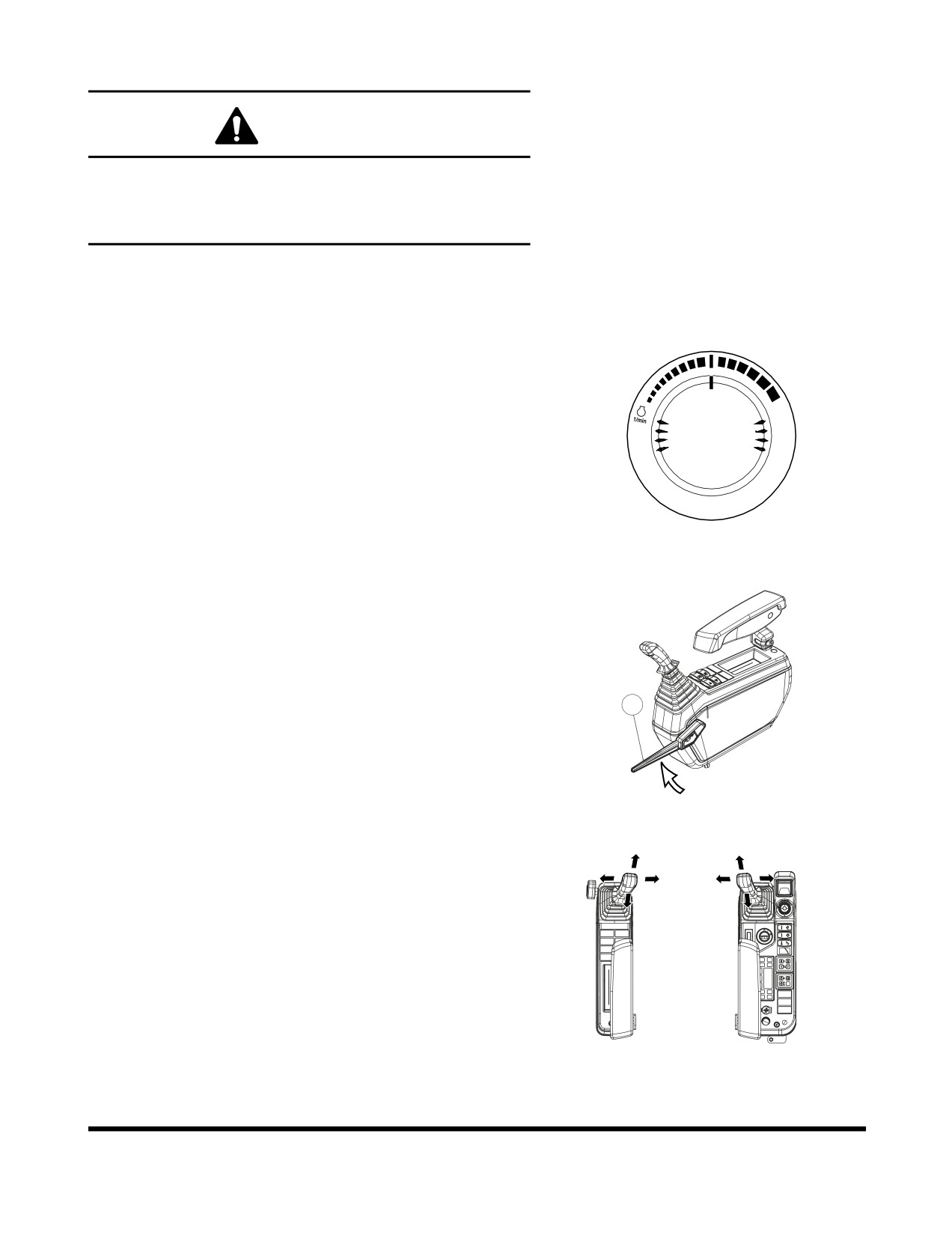

Hydraulic System Warm-up

WARNING

If a problem or abnormal operation occurs, immediately

shut down engine. Allow excavator to reach normal

operating temperature before starting work, especially in

cold weather.

The correct operating temperature of the hydraulic oil is 50° -

80°C (120° - 175°F). Make sure to follow the procedures listed

here for hydraulic fluid warm-up.

1.

Run engine for approximately five minutes set at the

middle of the speed range, without a load.

HAOB410L

Figure 13

2.

Set safety lever (1, Figure 14) on "UNLOCK" position.

1

FG015865

Figure 14

3.

Slowly cycle boom, arm and bucket cylinders about five

times without a load to circulate the oil through the system.

Do this for five minutes.

4.

Check for clearance and fully raise the front attachment.

Swing clockwise 3 revolutions. Swing counterclockwise 3

revolutions.

5.

Travel forward and reverse at low speed for two

revolutions of the drive sprocket.

FG015866

Figure 15

Operation

OP001173

3-10

Hydraulic System Warm-up - Cold Weather

1.

Run engine at "LOW IDLE" (no load) for five minutes

(Figure 16).

HAOB290L

Figure 16

2.

Run engine for approximately five minutes set at the

middle of the speed range, without a load (Figure 17).

HAOB410L

Figure 17

3.

Set safety lever (1, Figure 18) on "UNLOCK" position.

1

FG015865

Figure 18

4.

Slowly cycle boom, arm and bucket cylinders about five

times without a load to circulate the oil through the system.

Do this for five minutes.

FG015866

Figure 19

Operation

OP001173

3-11

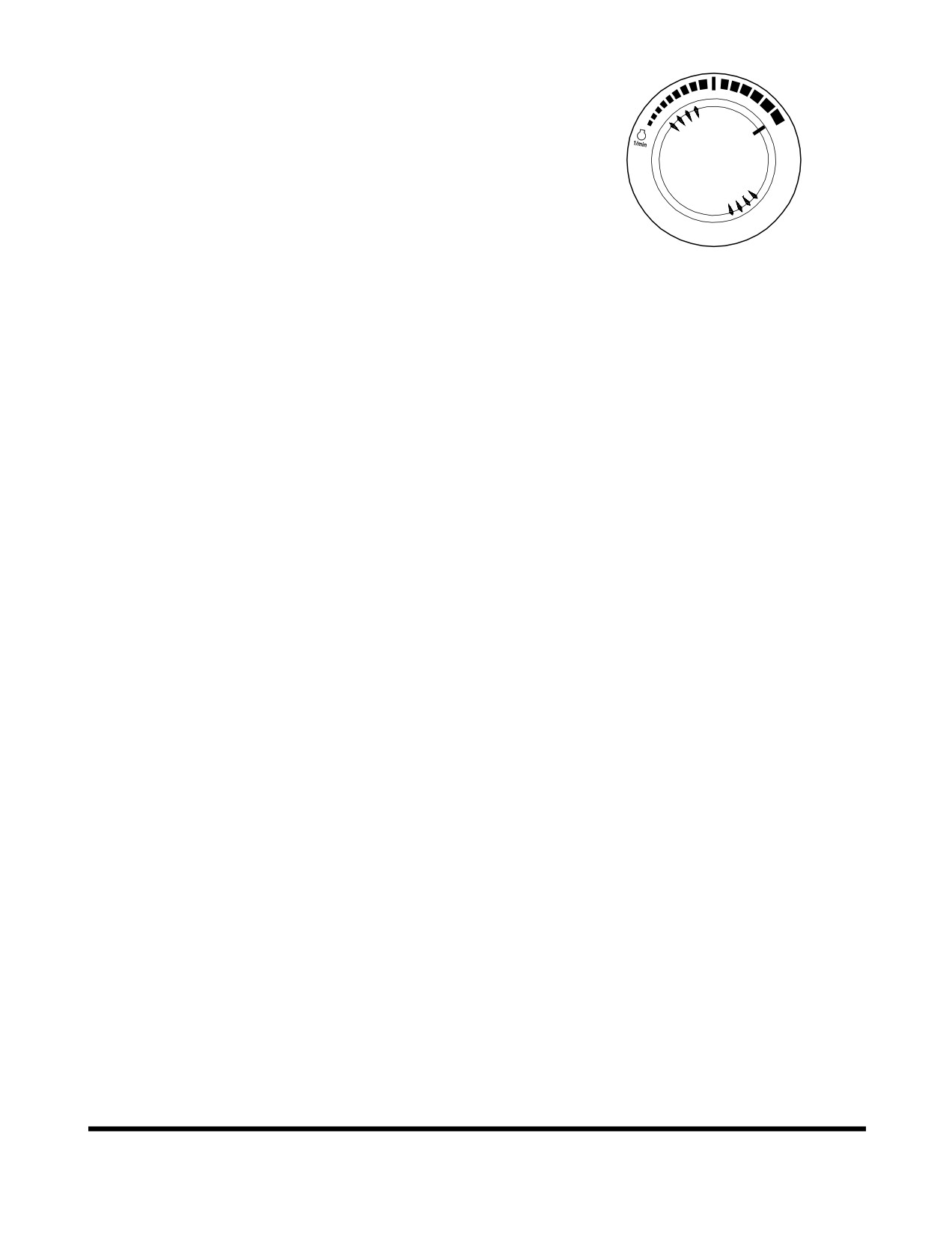

5.

Set engine speed control dial to "HIGH IDLE" (Figure 20).

6.

Repeat Step 4 for five minutes. If working speeds continue

to be slow, continue to operate, but use extreme caution

because the machine function may be erratic.

7.

Check for clearance and fully raise the front attachment.

Slowly swing clockwise

3 revolutions. Slowly swing

counterclockwise 3 revolutions.

8.

Travel forward and reverse at low speed for two

revolutions of the drive sprocket.

HAOB550L

Figure 20

Operation

OP001173

3-12

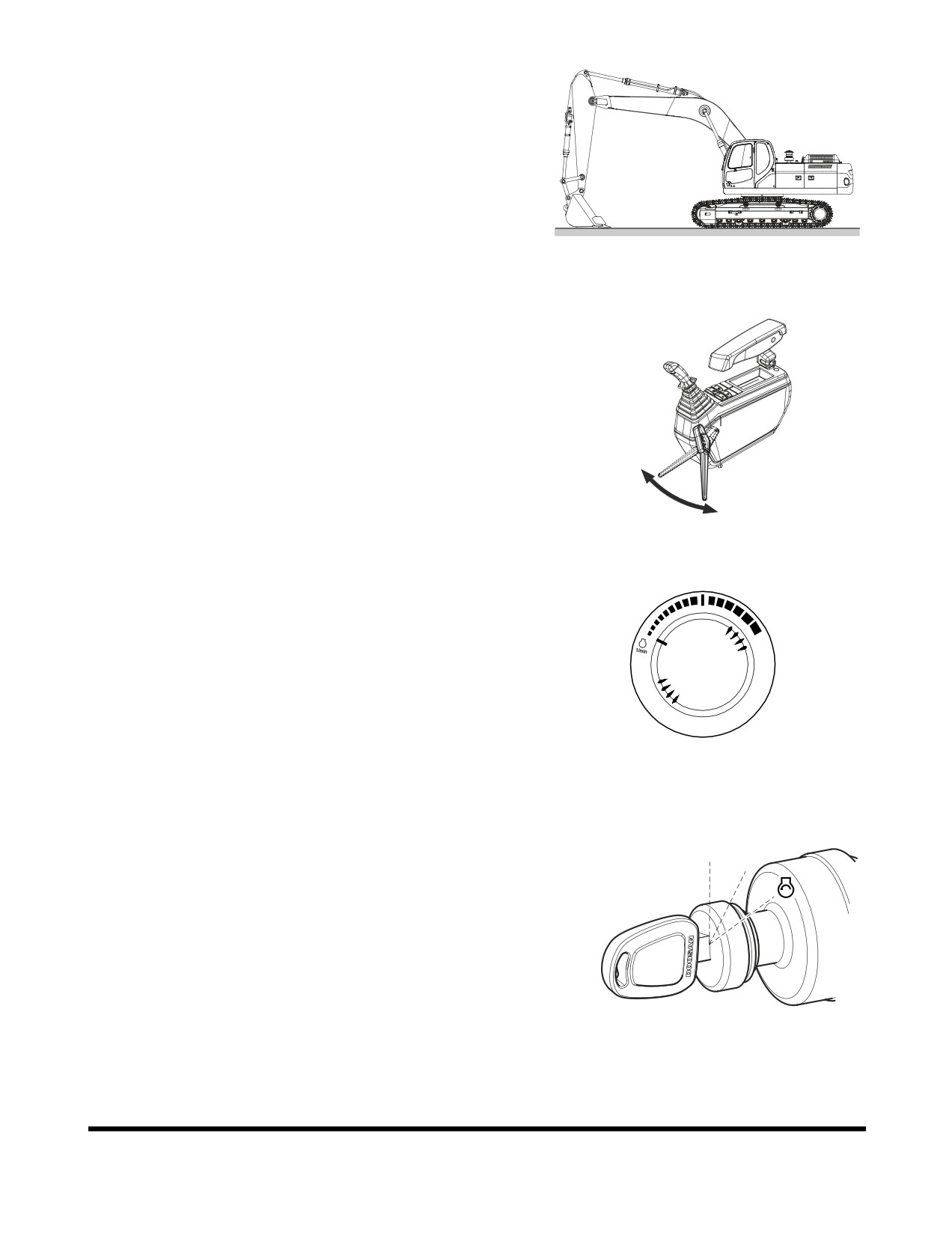

Engine Shut Down

NOTE: Allow engine to idle for three - five minutes before

shutting down the engine. If not allowed to idle, heat

surge may develop which will damage the engine.

Allowing the engine to idle will dissipate heat.

1.

Park excavator on level and firm ground.

2.

Lower front end attachment to ground and make sure all

operating controls are in "NEUTRAL."

FG000111

Figure 21

3.

Set safety lever on "LOCK" position (Figure 22).

Unlock

Lock

FG015867

Figure 22

4.

Set engine speed control dial to "LOW IDLE" (Figure 23).

Allow engine to idle for three - five minutes.

HAOB290L

Figure 23

5.

Shut down engine by turning key to "O" (OFF) position

(Figure 24).

O

I

6.

Remove key from starter switch.

FG000175

Figure 24

Operation

OP001173

3-13

Check and Confirmation After Stopping

Engine

1.

Repair excavator, if there are any coolant or oil leaks.

2.

Inspect front attachment and under carriage for abnormal

appearances. Correct any problems.

3.

Fill fuel tank.

4.

Get rid of any accumulated flammable materials such as

leaves and paper etc. in engine compartment.

5.

Clean all mud, etc. from undercarriage and tracks. Make

sure that all steps and hand holds are clean, and that the

operator's cabin is clean.

SAFETY LEVER

WARNING

When stopping engine or leaving the operator's seat,

"LOCK" the safety lever, otherwise, a serious accident may

occur by accidental movement of travel and work levers.

Whenever leaving the operator's seat, make sure the engine

is shut down and the safety lever is "LOCKED."

Especially, when adjusting the seat, control stands, or

raising the front window, lower window, or ceiling cover,

never forget to lock the safety lever in its "LOCKED"

position.

Be careful not to move the work levers (joysticks) when moving

safety lever.

1.

Push safety lever (Figure 25) down into the "LOCKED"

position. When safety lever is in the "LOCKED" position,

the front attachment, swing and travel movement will be

disabled even though a lever is moved.

NOTE: Lower bucket

(front attachment) to ground.

Place all control levers in "NEUTRAL" and shut

down engine, before using the safety lever.

Unlock

2.

Set safety lever

(Figure

25) on "RELEASE/UNLOCK"

position, by pulling it up before starting work.

Lock

FG015867

NOTE: When the engine is not running, but the safety

lever is "RELEASED" and the starter key is

Figure 25

tuned "ON," moving the work levers (joysticks)

may result in movement. The charged

accumulators in the system will provide pilot

pressure for control valve spool movement.

Operation

OP001173

3-14

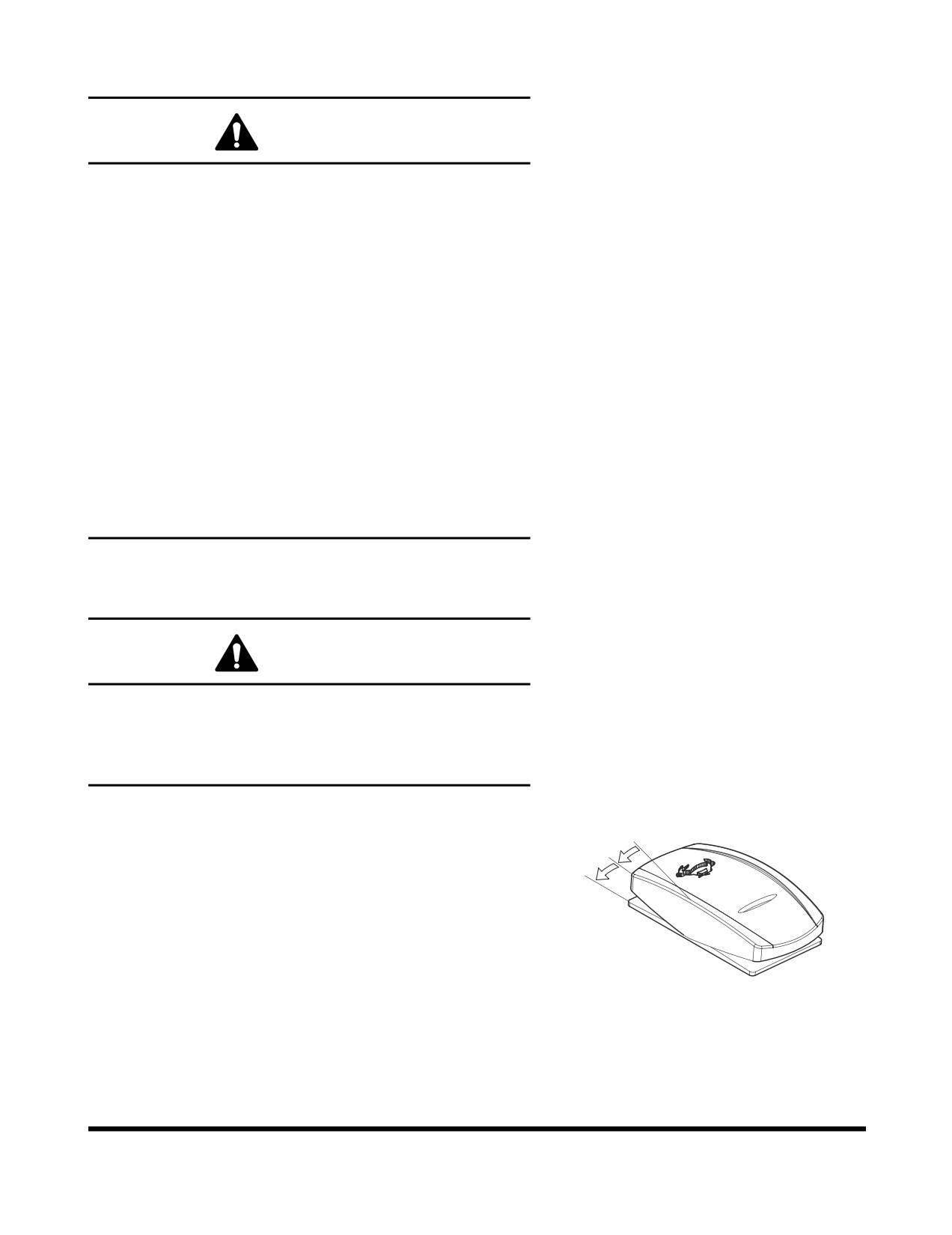

TRAVEL

WARNING

1.

Before operating the travel levers, make sure that you

know in which direction the machine is pointing. Look at

the end of the track assemblies. If the drive motors are

visible while sitting in the operator's seat, you are

looking at the back end of the track assembly (therefore,

you are looking backwards). In this case, the response of

the travel levers will be the reverse of normal operation.

2.

Before moving, make sure that there are no personnel

in the way or on the machine. Sound the horn to alert

workers that you are about to move the machine.

3.

Be sure the path is clear during travel.

4.

Use extreme caution when reversing travel. Be sure

there is a clear path behind the machine.

5.

Make sure to operate the travel control levers

smoothly to avoid sudden starts or stops.

6.

Before leaving the operator's seat, make sure to lock

out all control systems and shut down the engine to

avoid accidental activation.

Automatic Travel Speed Control

WARNING

Do not change the travel mode while traveling. Always use

speed mode "O" when traveling down a slope. It is very

dangerous to change to speed modes indicated "I" or "II"

while going down a slope. Only change travel mode after

coming to a complete stop.

Two travel speed ranges can be selected by using the travel

speed selector switch on the control panel (Figure 26).

O

"O" (LOW) - In this position low travel speed and a higher torque

I

are selected.

II

"I" (HIGH) - In this position high travel speed and a lower torque

are selected.

"II"

(AUTOMATIC) - Setting the control at the "II" position

enables the machine to change to a different speed range

automatically. This change happens automatically depending on

the hydraulic oil pressure in the travel circuit. When hydraulic oil

FG016016

pressure rises, the travel speed is automatically set to low. An

Figure 26

example is if the machine is traveling on a flat, solid surface, the

higher speed range would be used. When a slope is

encountered, the speed drops and the travel circuit hydraulic

pressure rises, causing the control circuit to shift to the higher

torque, lower speed range.

Operation

OP001173

3-15

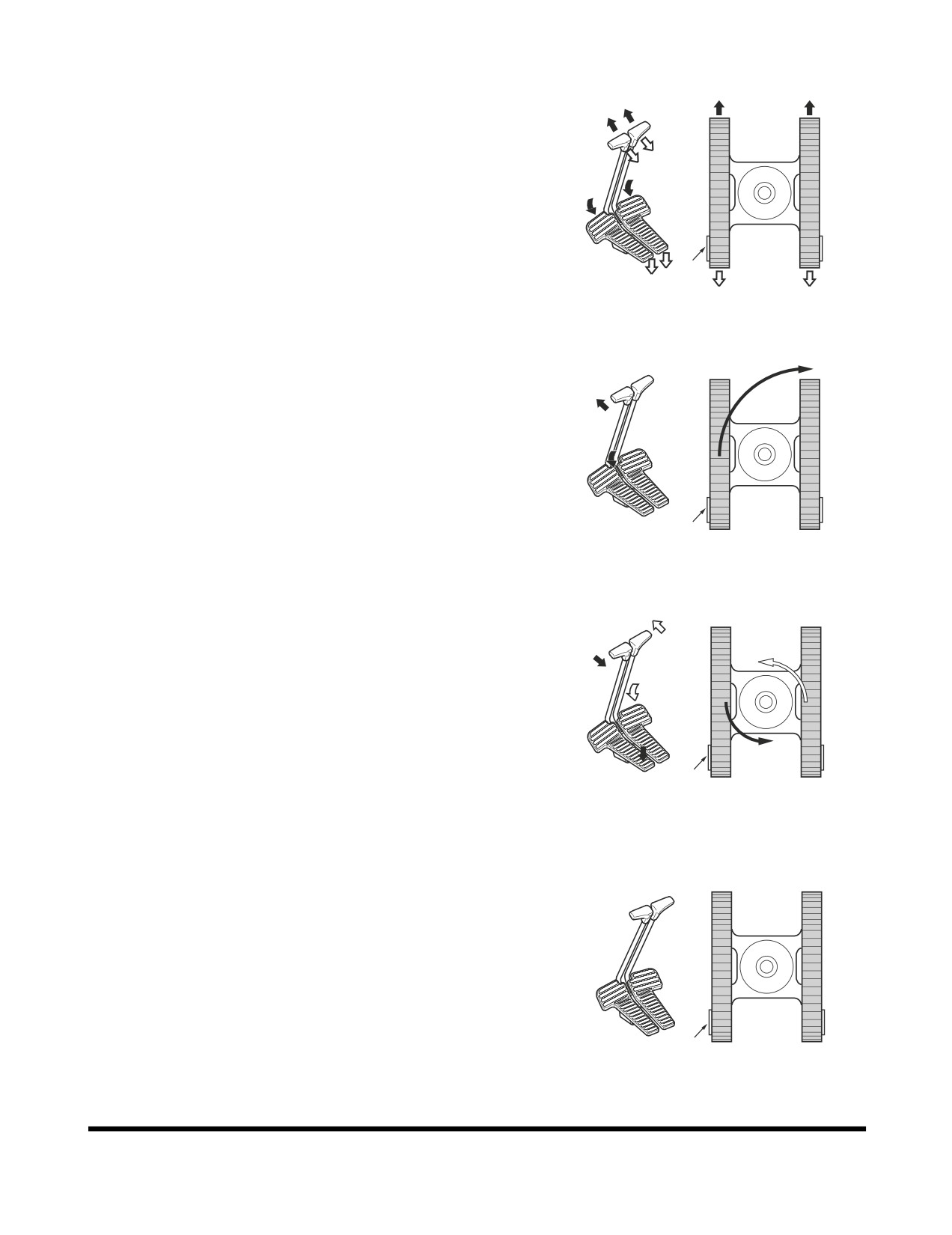

Travel Control Lever Operation

1.

To travel straight

(Figure

27), push both travel control

levers/pedals fully forward or backwards. The farther the

levers/pedals are pressed, the faster the travel speed.

NOTE: "X" is the sprocket end of the track.

"X"

FG000303

Figure 27

2.

Pivot turns (Figure 28) are made by rotating only one track

forward or backward. The machine will pivot on the

nonmoving track.

NOTE: "X" is the sprocket end of the track.

"X"

FG000304

Figure 28

3.

Spin turns (Figure 29) are made by rotating one track

forward and one track backward. The machine will spin

around its center point, thus counterrotating.

NOTE: "X" is the sprocket end of the track.

"X"

FG000305

Figure 29

4.

Stopping travel (Figure 30) - Returning travel levers to

"NEUTRAL" position will automatically apply brakes and

stop excavator.

NOTE: "X" is the sprocket end of the track.

"X"

FG000306

Figure 30

Operation

OP001173

3-16

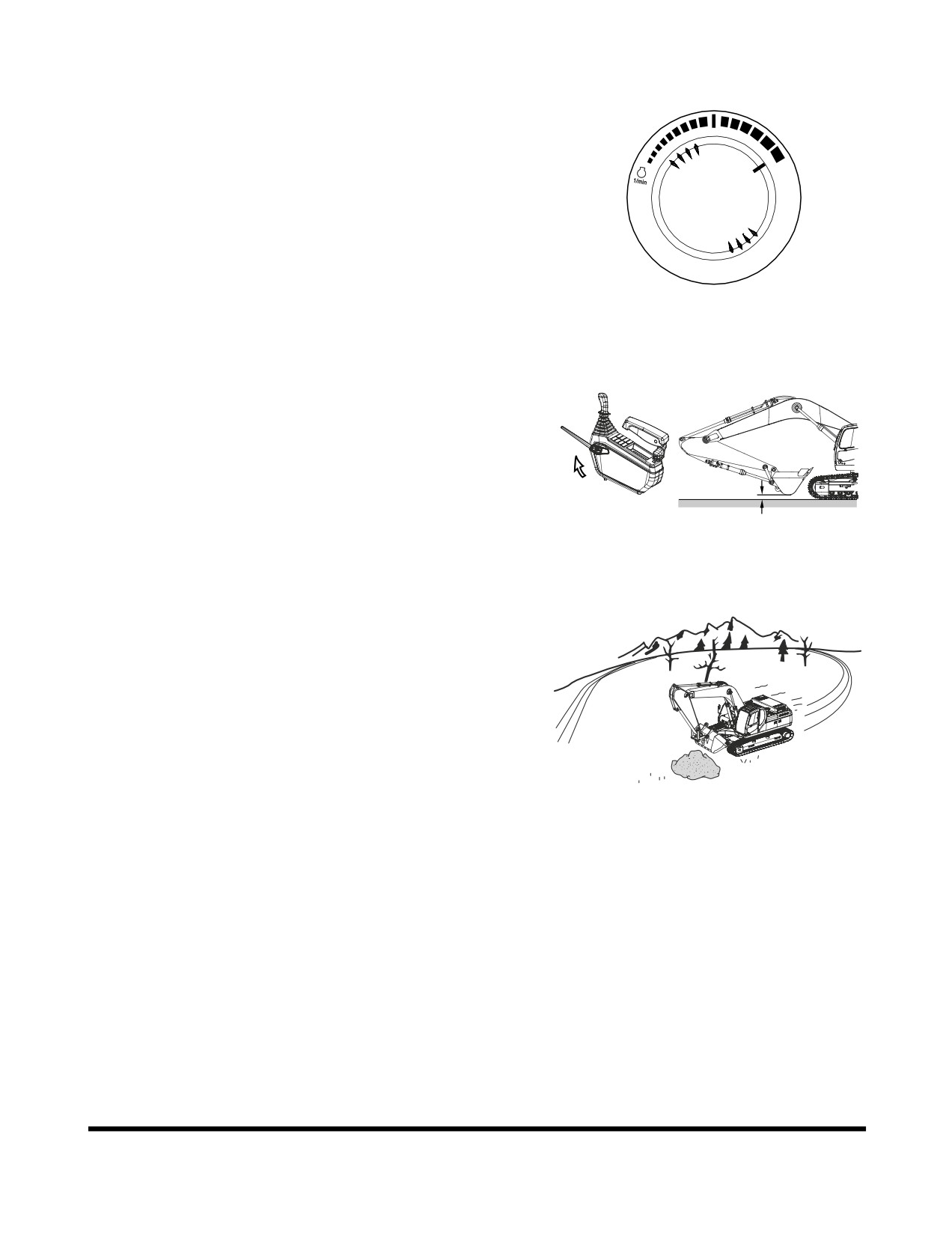

General Travel Instructions

1.

Set engine speed control dial

(Figure

31) on desired

speed.

HAOB550L

Figure 31

2.

Set safety lever on "UNLOCK" position, and folding the

front, raise it 40 - 50 cm (16 - 20 in) above ground. See

Figure 32.

40 ~ 50 cm

FG015868

Figure 32

3.

When possible, travel on firm, level ground. Avoid sudden

movements and sharp turns.

4.

When traveling on rough ground, travel at a slow speed

[1.0 - 1.5 km/h (0.62 - 0.93 MPH)]. Reduced engine speed,

to avoid shock loading the equipment. Be careful that an

excessive force is not added to equipment by touching or

climbing on rocks.

FG000423

Figure 33

Operation

OP001173

3-17

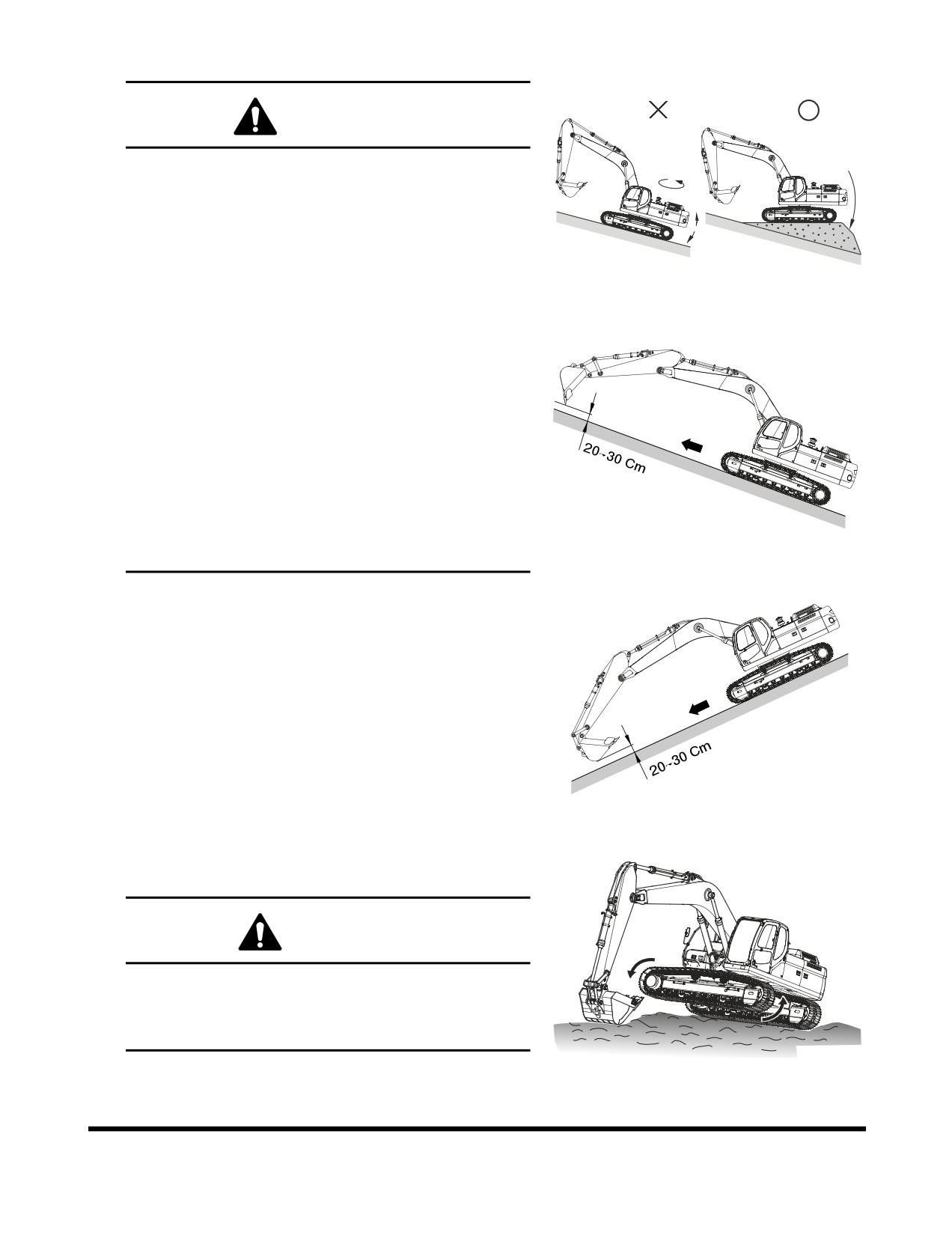

5.

On rough, frozen or uneven terrain, travel slowly.

WARNING

When traveling, keep bucket from 20 - 30 cm (8 - 12 in)

above ground.

Do not travel backward on a slope.

Never turn or travel crosswise on a slope.

Choose a safe alternate route before climbing a slope.

FG000212

If excavator starts to slip or becomes unstable, lower

Figure 34

the bucket immediately into the ground, using it as a

brake.

Avoid working on slopes, because there is a danger of

overturning by becoming unbalance while swinging

and performing front attachment operations.

It is very dangerous to swing towards bottom of slope

with a loaded bucket.

In unavoidable cases level the slope with fill soil, to

make the vehicle as horizontal as possible. See Figure

34.

Do not travel on slopes more than 30° because of

FG000126

turnover danger.

Figure 35

6.

Travel straight up or down slopes, never diagonally across

the slope. See Figure 35 and Figure 36. Extend the arm

and lower the boom to keep the bucket about 20 - 30 cm (8

-

12 in) off the ground. If the machine starts to slide or

becomes unstable, lower the bucket to regain control. If the

engine stalls, lower the bucket, make sure that all controls

are in the neutral position and restart the engine.

NOTE: Even though engine stops on a slope, do not

operate swing control. The hydraulic

accumulators may cause the unit to swing.

FG000128

NOTE: Do not open or close operator's door on a slope.

Figure 36

Make sure door is latched.

7.

If dirt or mud builds up in the track frame, raise each track

and rotate and clean that track.

CAUTION

When using the boom and arm to lift any portion of the

machine, roll the bucket until round base is against the

ground. The angle of the arm to the boom should be at

90°.

FG000376

Figure 37

Operation

OP001173

3-18

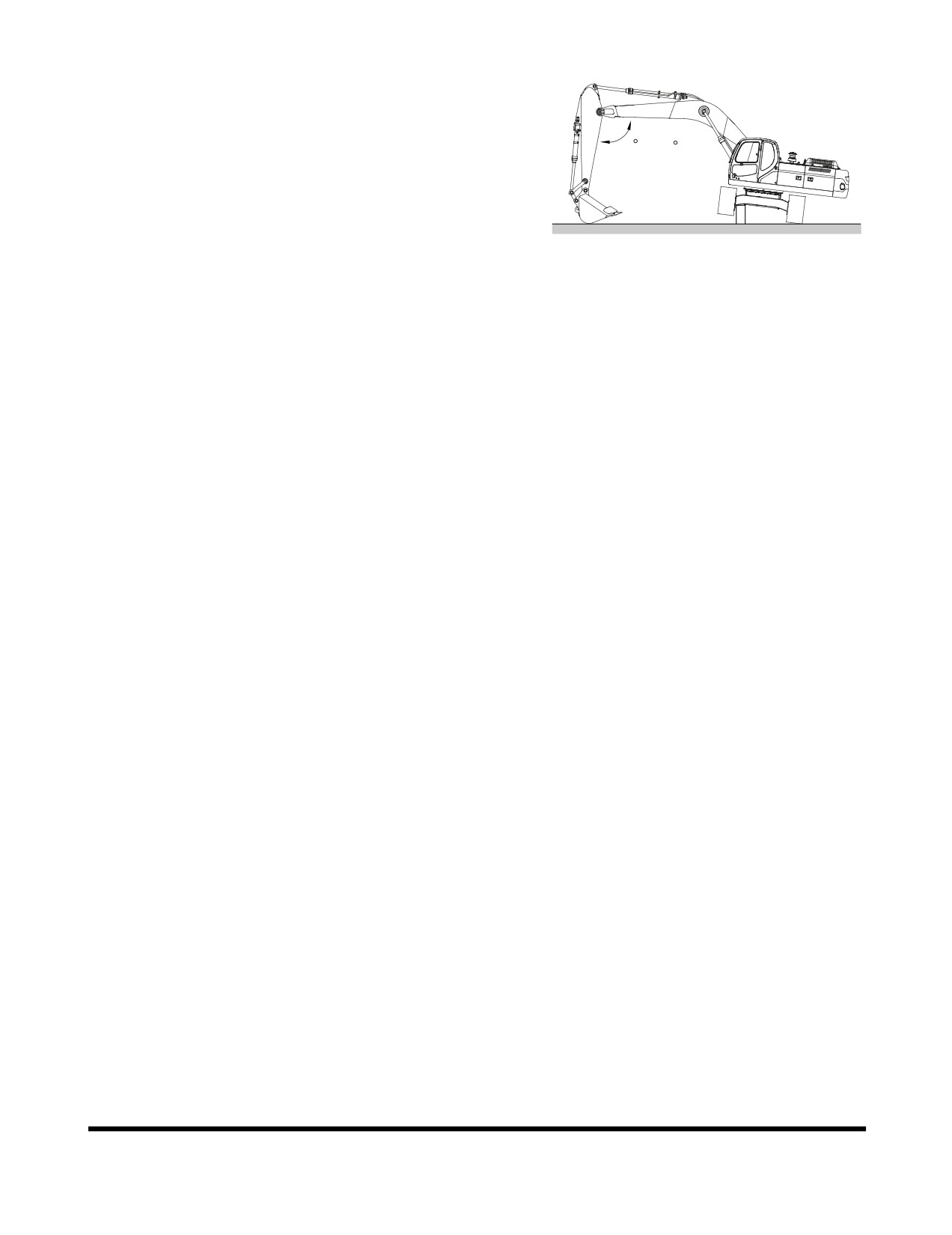

Make sure that material buildup has been cleared. See

Figure 37 and Figure 38.

8.

The excavator can travel in water that comes up to center

of upper carriage rollers. Make sure that footing is solid so

the machine will not sink. See

“Working in Water” on

90 ~ 110

page 3-30.

NOTE: If the machine is submerged to the point that

water or mud gets into the swing bearing or

center joint, stop machine operation. Remove

machine from the submerged location to firm,

FG000345

dry ground. Do not operate until proper

Figure 38

inspection and maintenance have been

completed. Refer to the Shop Manual or contact

your distributor.

Operation

OP001173

3-19

OPERATING INSTRUCTIONS

Engine Speed Control

Engine speed can be manually adjusted using the engine speed

control dial, Increase engine speed by rotating the control knob

clockwise. Decrease engine speed by rotating the control knob

counterclockwise.

IMPORTANT

The engine speed control system has been set at the

HAOA690L

factory and should not require adjustment as part of routine

Figure 39

maintenance.

Mode Selection

More efficient work can be done by choosing a proper power

and work mode combination, suitable to type of work and

conditions. Use the mode selection according to following guide.

Power Mode

1

1.

When the starter switch is turned "ON" the power mode is

automatically defaulted to the standard setting.

2.

Select a proper power mode using button (1, Figure 40)

before starting work.

1

2

3.

When the power mode button (1, Figure 40) is pressed, a

signal sounds, changing the power mode to either "ON" or

"OFF." When the power mode is turned "ON," the symbol

6

7

indicates on the screen.

FG013733

Deactivate the power mode by pressing it a second time.

Figure 40

When the power mode is turned "OFF," the symbol of

standard mode indicates on the screen and the power

mode returns to the standard mode.

Mode

Selection Point

• Required to perform heavy work in a short period of time.

POWER MODE

• Fast speed loading.

• Fast speed travel.

• General work.

STANDARD MODE

• Optimize fuel consumption.

• Light work.

ECONOMY MODE

• Minimize fuel consumption.

• Reduce noise.

Operation

OP001173

3-20

Economy Mode

1.

When the starter switch is turned "ON" the power mode is

automatically defaulted to the standard setting.

2.

Select a proper economy mode using button (2, Figure 41)

before starting work.

1

2

3.

When the economy mode button (2, Figure 41) is pressed,

a signal sounds, changing the economy mode to either

"ON" or "OFF". When the economy mode is turned "ON",

6

7

the symbol appears on the screen.

2

FG013742

Deactivate the economy mode by pressing it a second

time. When the economy mode is turned "OFF", the

Figure 41

symbol of standard mode indicates on the screen and the

economy mode returns to the standard mode.

Auto Idle Mode

3

1.

The system will automatically reduce engine speed to idle

speed approximately four seconds after all of the control

levers are in the neutral position. When a pilot function is

activated, engine speed is automatically returned to the

1

2

preselected range.

2.

When the starter switch is turned "ON", the work mode is

automatically defaulted to "AUTO IDLE".

6

7

3.

When the symbol is turned "ON", the auto idle function is

activated. Deactivate the auto idle function by again

FG013743

pressing the auto idle selector button (3, Figure 42). Now

Figure 42

the symbol will be turned "OFF".

WARNING

Turn "OFF' auto idle function when performing work in

close operating area, i.e., work in a narrow area and

loading / unloading on or off a trailer.

Operation

OP001173

3-21

Boost Mode

I

1.

Power boost switch is used to gain maximum digging

O

force.

II

2.

The power boost is activated while the lower button is

being pressed on top of the right-hand work lever

(joystick). The breaker / boost / shear selector switch must

be in the "O" (BOOST) position.

NOTE: The power boost mode does not affect forward

and reverse travel.

Do not use this switch for more than ten

seconds.

FG016035

Figure 43 RIGHT-AND WORK LEVER

(JOYSTICK)

Operation

OP001173

3-22

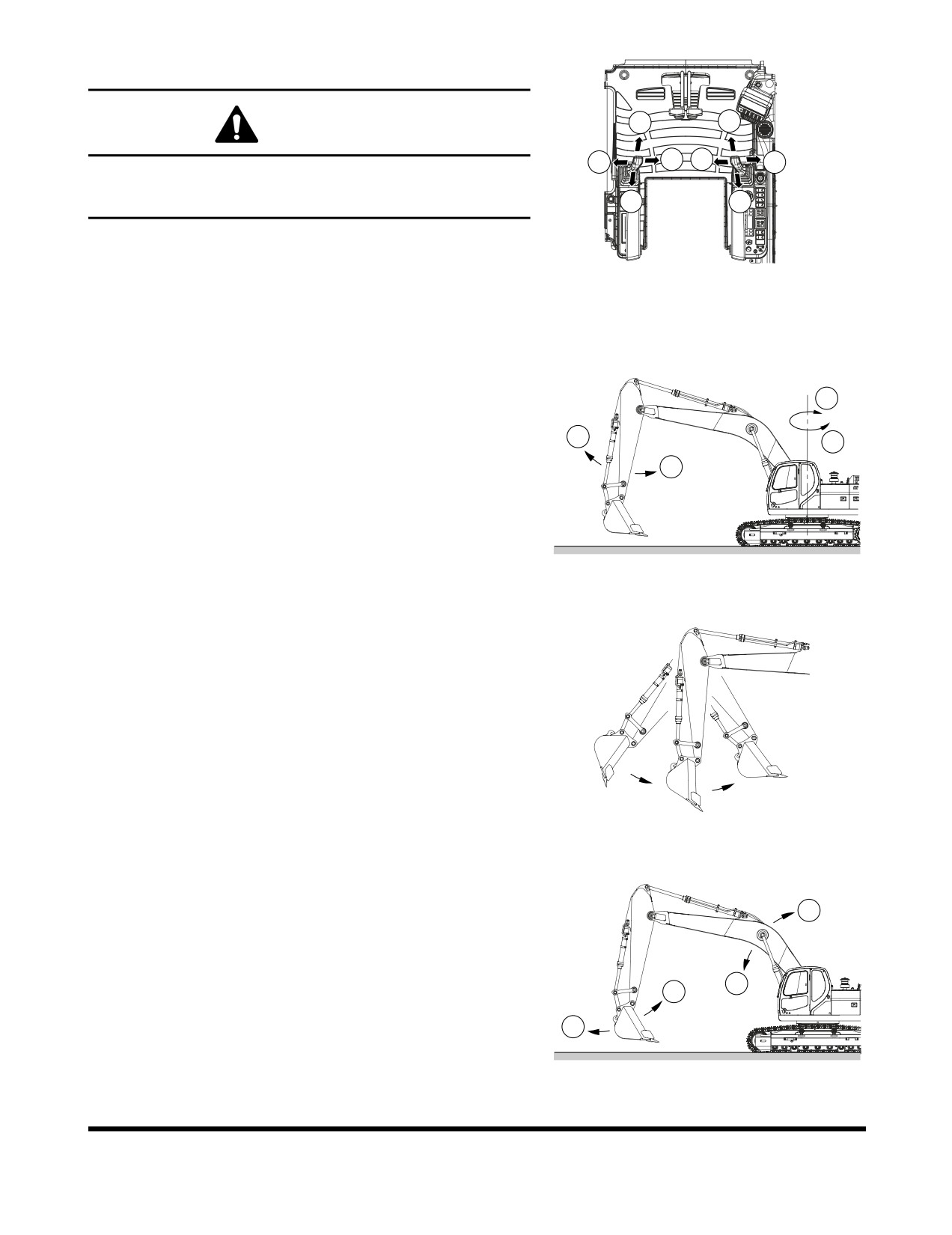

Work Levers (Joysticks) (ISO Style)

1

5

WARNING

3

4

7

8

Check surrounding area before swinging. When operating a

lever while in auto idle, do it carefully, because the engine

speed will increase rapidly.

2

6

NOTE: When starting work, move work levers (joysticks) slowly

FG015959

and check movement of swing and front attachment.

Figure44

This equipment is manufactured using the lever configuration

described in ISO standards. Do not change valving, hoses, etc., that

would change this standard. The boom, arm and bucket movements

and swing direction of work levers (joysticks) are as follows:

Left-hand Work Lever (Joystick) (Figure 44 and Figure 45)

1.

Arm dump

4

2.

Arm crowd

1

3

3.

Left swing

2

4.

Right swing

NOTE: The swing brake is spring applied and

hydraulically released. It is always engaged

when the work lever (joystick) is in "NEUTRAL"

or the engine is shut down.

FG000119

Figure 45

NOTE: The following is not a mechanical malfunction

but a proper phenomenon of the excavator.

When operating the arm, it may stop

momentarily. When the arm is operated, the

weight of the arm may cause it to move faster

than the amount of oil being supplied.

FG000120

Figure 46

Right-hand Work Lever (Joystick) (Figure 44 and Figure 47)

5.

Boom down

6

6.

Boom up

7.

Bucket crowd

5

8.

Bucket dump

7

NOTE: Even after stopping the engine, the front can be

8

lowered to the ground by operating work lever

(joystick), by setting safety lever on "UNLOCK"

position and turning starter switch "ON."

FG000121

Figure 47

Operation

OP001173

3-23

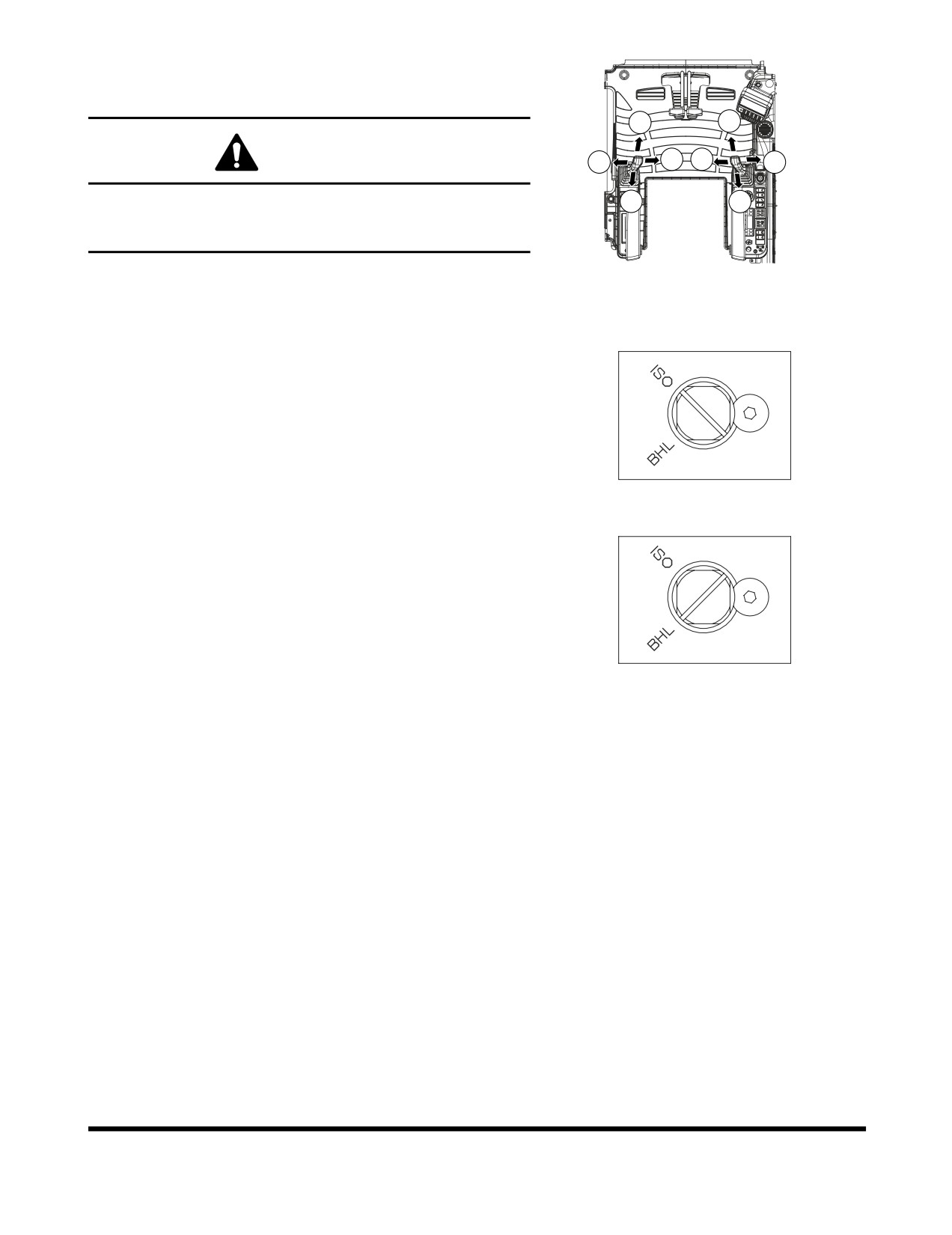

Change Machine Control Pattern by Select

Valve (If Equipped)

1

5

WARNING

4

7

3

8

Check surrounding area before swinging. When operating a

2

6

lever while in auto idle, do it carefully, because the engine

speed will increase rapidly.

FG015959

Figure 48

NOTE: When starting work, move work levers (joysticks)

slowly and check movement of swing and front

<ISO PATTERN>

attachment.

The machine control pattern can easily be changed to the ISO

standard or to the BHL standard by changing the position of the

select valve

(if equipped). Use the following procedure to

change the position of the select valve.

The select valve is located in the rear of the cabin.

1.

Rotating spool to the ISO position or to the BHL position.

(Figure 49)

<BHL PATTERN>

FG004954

Figure 49

Operation

OP001173

3-24

Content      ..      1      2      3      ..
