Doosan DX300LCA. Operation and Maintenance Manual (2010)

DX300LCA

Operation and Maintenance Manual

950106-00077E

Serial Number 5001 and Up

March 2010

DOOSAN reserves the right to improve our products in a continuing process to provide the best possible product

to the market place. These improvements can be implemented at any time with no obligation to change materials

on previously sold products. It is recommended that consumers periodically contact their distributors for recent

documentation on purchased equipment.

This documentation may include attachments and optional equipment that is not available in your machine's

package. Please call your distributor for additional items that you may require.

Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and

may vary from the actual item.

950106-00077E Operation and Maintenance Manual

Table of Contents

Safety

1-1

To the Operator of a DOOSAN Excavator

1-1

Location of Safety Labels

1-4

Summary of Safety Precautions for Lifting in Digging Mode

1-13

Unauthorized Modifications

1-14

General Hazard Information

1-14

Before Starting Engine

1-23

Machine Operation

1-27

Maintenance

1-34

Battery

1-42

Towing

1-44

Shipping and Transportation

1-45

Excavator Rated Lift Capacity Tables

1-46

Operating Controls

2-1

Component Locations

2-2

Operator's Area

2-4

Operational Controls and Panels

2-6

Instrument Panel

2-20

Multifunction Gauge and Graphic Information

2-27

Mode Selector Buttons

2-33

Setting Main Menu

2-35

Flow Control

2-44

Operation Selection Display

2-46

Heater and Air Conditioner Control Panel

2-48

Stereo

2-54

Miscellaneous Electrical Devices

2-55

Seat Adjustment

2-57

Table of Contents

950106-00077E

Ceiling Cover

2-61

Front Windows

2-62

Door Side Latch

2-64

Cabin Storage Compartments

2-65

Ashtray

2-65

Sun Visor

2-66

Hanger

2-66

Cup Holder

2-67

Door Window Holder

2-67

Emergency Glass Breaking Tool

2-67

Miscellaneous Access Covers and Doors

2-68

Operation

3-1

To Handle a New Excavator

3-1

Starting and Stopping the Engine

3-2

Safety Lever

3-13

Travel

3-14

Operating Instructions

3-19

Operating Precautions

3-25

Parking Excavator

3-30

Towing Procedure

3-31

Hydraulic Breaker

3-32

Adjusting the Pump Flow

3-37

Operating Techniques

3-40

Operation Under Unusual Conditions

3-42

Inspection, Maintenance and Adjustment

4-1

Preventive Maintenance

4-1

Preliminary Work Machine Setup for Maintenance

4-4

Table of Recommended Lubricants

4-6

Fluid Capacities

4-8

Lubrication and Service Chart

4-8

Maintenance Intervals

4-12

Table of Contents

950106-00077E

10 Hour / Daily Service

4-14

50 Hour / Weekly Service

4-24

250 Hour / Monthly Service

4-27

500 Hour / 3 Month Service

4-35

1,000 Hour / 6 Month Service

4-43

2,000 Hour / Yearly Service

4-49

4,000 Hour / Biennial Service

4-56

12,000 Hour / 6 Year Service

4-57

Air-Conditioning System

4-58

Bolt and Nut Inspection

4-59

Bucket

4-67

Bucket Shimming Procedures

4-69

Electrical System

4-71

Engine Cooling System

4-75

Fuel Transfer Pump (Optional)

4-78

Handling of Accumulator

4-80

Track Tension

4-81

Venting and Priming Hydraulic System

4-83

Long Term Storage

4-85

Maintenance in Special Conditions

4-87

Transportation

5-1

Loading and Unloading

5-1

Lifting With Sling

5-5

Troubleshooting

6-1

Electrical System

6-1

Engine

6-2

Hydraulic System

6-3

Swing System

6-4

Travel System

6-5

Specification

7-1

Table of Contents

950106-00077E

III

OP001002

1Safety

TO THE OPERATOR OF A

DOOSAN EXCAVATOR

DANGER

Unsafe use of the excavator could lead to serious injury or

death. Operating procedures, maintenance and equipment

practices or traveling or shipping methods that do not

follow the safety guidelines on the following pages could

cause serious, potentially fatal injuries or extensive damage

to the machine or nearby property.

Please respect the importance of taking responsibility for your

own safety, and that of other people who may be affected by

your actions.

The safety information on the following pages is organized into

the following sections:

“Location of Safety Labels” on page 1-4

“Summary of Safety Precautions for Lifting in Digging

Mode” on page 1-13

“Unauthorized Modifications” on page 1-14

“General Hazard Information” on page 1-14

“Before Starting Engine” on page 1-23

“Machine Operation” on page 1-27

“Maintenance” on page 1-34

“Battery” on page 1-42

“Towing” on page 1-44

10.

“Shipping and Transportation” on page 1-45

11.

“Excavator Rated Lift Capacity Tables” on page 1-46

Safety

OP001002

1-1

WARNING

Improper operation and maintenance of this machine can

be hazardous and could result in serious injury or death.

Operator and maintenance personnel should read this

manual thoroughly before beginning operation or

maintenance.

Keep this manual in the storage compartment to the rear of

the operator's seat, and have all personnel involved in

working on the machine read the manual periodically.

Some actions involved in operation and maintenance of the

machine can cause a serious accident, if they are not done

in a manner described in this manual.

The procedures and precautions given in this manual apply

only to intended uses of the machine.

If you use your machine for any unintended uses that are

not specifically prohibited, you must be sure that it is safe

for any others. In no event should you or others engage in

prohibited uses or actions as described in this manual.

DOOSAN delivers machines that comply with all applicable

regulations and standards of the country to which it has

been sent. If this machine has been purchased in another

country or purchased from someone in another country, it

may lack certain safety devices and specifications that are

necessary for use in your country. If there is any question

about whether your product complies with the applicable

standards and regulations of your country, consult

DOOSAN or your DOOSAN distributor before operating the

machine.

SAFETY ALERT SYMBOL

Be Prepared - Get to Know All Operating and Safety

Instructions.

This is the Safety Alert Symbol. Wherever it appears in this

manual or on safety signs on the machine you should be

alert to the potential for personal injury or accidents.

Always observe safety precautions and follow

recommended procedures.

Safety

OP001002

1-2

Learn the Signal Words Used with the

Safety Alert Symbol

The words "CAUTION," "WARNING," and "DANGER" used

throughout this manual and on decals on the machine indicate

degree of risk of hazards or unsafe practices. All three degrees

of risk indicate that safety is involved. Observe precautions

indicated whenever you see the Safety Alert "Triangle," no

matter which signal word appears next to the "Exclamation

Point" symbol.

CAUTION

This word is used on safety messages and safety labels and

indicates potential of a hazardous situation that, if not

avoided, could result in minor or moderate injury. It may

also be used to alert against a generally unsafe practice.

WARNING

This word is used on safety messages and safety labels and

indicates potential theat of a hazardous situation that, if not

avoided, could result in serious injury or death. It may also

be used to alert against highly unsafe practice.

DANGER

This word is used on safety messages and safety labels and

indicates an imminent hazard of a situation that, if not

avoided, is very likely to cause death or extremely serious

injury. It may also be used to alert against equipment that

may detonate or explode if handled or treated carelessly.

Safety precautions are described in SAFETY from page 1-4 on.

DOOSAN cannot predict every circumstance that might involve

a potential hazard in operation and maintenance. Therefore the

safety messages in this manual and on the machine may not

include all possible safety precautions. If any procedures or

actions not specifically recommended or allowed in this manual

are used, you must be sure that you and others can do such

procedures and actions safely and without damaging the

machine. If you are unsure about the safety of any procedures,

contact a DOOSAN distributor.

Safety

OP001002

1-3

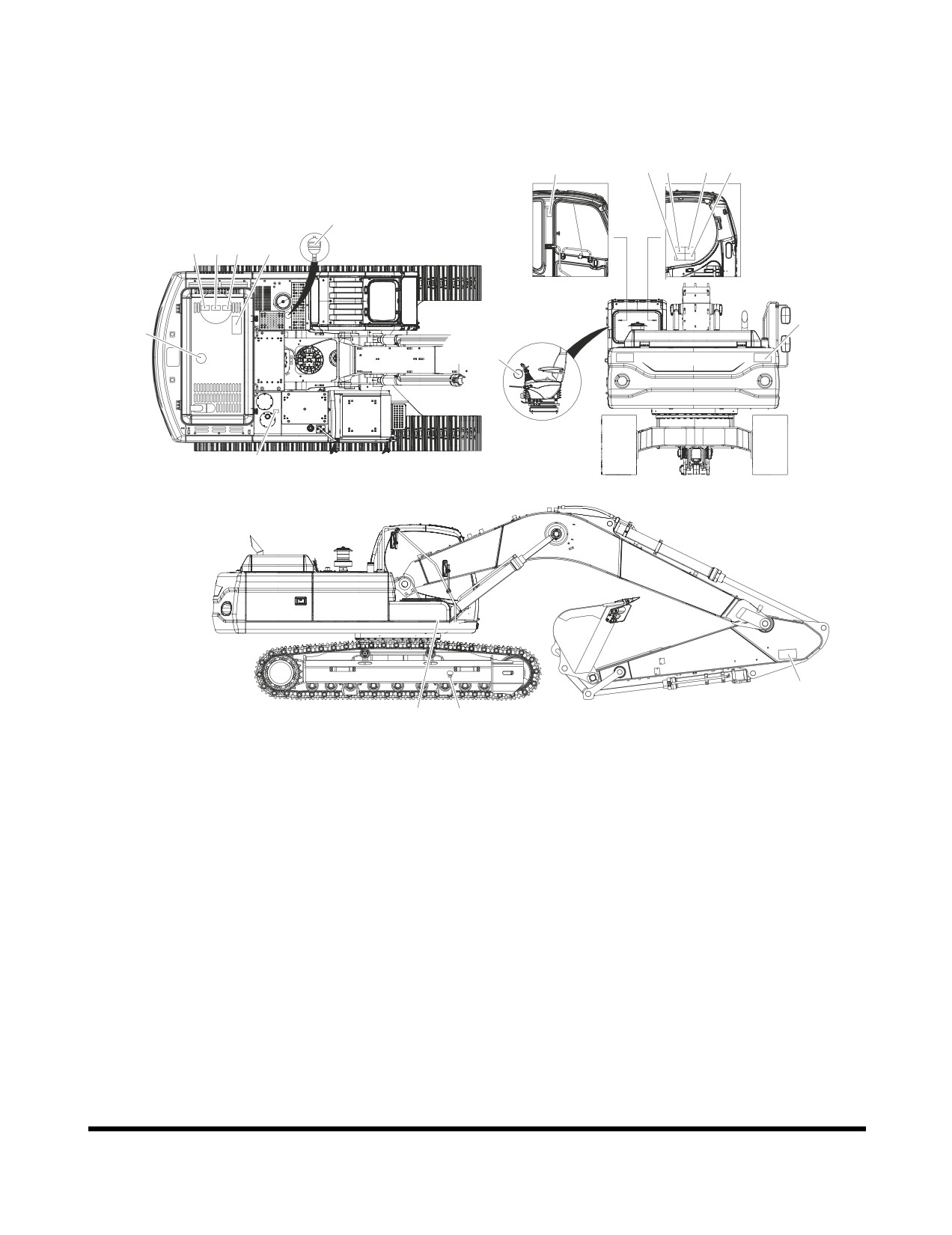

LOCATION OF SAFETY LABELS

FG015522

Figure 1

There are several specific warning signs on this machine. The

exact location of hazards and the description of the hazards are

reviewed in this section.

Please become familiarized with all warning signs.

Make sure that all the warning signs are legible. Clean the

warning signs or replace the warning signs if you cannot read

the words. Replace the illustrations if the illustrations are not

visible. When you clean the warning signs, use a cloth, water

and soap. Do not use solvent, gasoline, or other harsh

chemicals to clean the safety signs. Solvents, gasoline, or other

harsh chemicals could loosen the adhesive that secures the

warning sign. Loose adhesive will allow the warning sign to fall off.

Replace any safety sign that is damaged, or missing. If a safety

sign is attached to a part that is replaced, install a safety sign on

the replacement part.

Safety

OP001002

1-4

1. Warnings for Operation, Inspection

and Maintenance (190-00688)

AVOID DEATH OR SERIOUS INJURY. - READ AND UNDERSTAND

OPERATION MANUAL AND SAFETY LABELS prior to operating

this machine.

Never get in under the machine while it is being jacked up

with boom and arm.

Sound the horn to alert the people nearby before operating,

and make sure that all persons are clear of area.

Controls may be changed for attachments or operator

preference. Try control pattern before operating.

190-00688

FG015523

2. Warnings for High Voltage (190-00689)

DANGER

SERIOUS INJURY OR DEATH BY

ELECTROCTION can occur if

machine or attachments are

not a safe distance from electrical

power lines.

Line voltage

Safe Distance

6.6 kv

At least 3m(10ft)

66.6 kv

At least 5m(16ft)

275.0 kv

At least 10m(33ft)

190-00689

FG015524

Safety

OP001002

1-5

5. Warnings When Adjusting Track

Tension (2190-3386A)

The track adjuster adjustment and handling

The spring in the track adjuster is loaded with great force

and the pressure in the cylinder is very high. For this

reason there is a possibility of an accident which

may involve injury to personnel. It is very dangerous

to make mistakes when performing such an adjustment

or disassembly.

Be sure to read the procedures described in the Operation

and Maintenance Manual carefully before adjusting the

track tension.

2190-3386A

FG015526

6. Warnings for Leaving Operator's Seat

(190-00693)

Sudden and unwanted machine

movement can cause serious

injury or death.

Always make sure when leaving

operator’s seat to :

Lower equipment to the ground.

Move safety lever to LOCK position.

Turn key switch OFF. Remove key

from switch.

190-00693

FG015527

Safety

OP001002

1-7

7. Warnings for Batteries Maintenance

(2190-2533A)

Battery fumes can explode. Keep sparks and flames away

from batteries.

Always avoid storing metals like tools or flammable

materials around or on the batteries. Explosion or fire

can be caused by shortcircuiting batteries.

Surfuric acid in battery is poisonous. It is strong enough

burn skin, eat holes in clothing, and cause blindness

if splashed eyes.

If you spill acid on yourself;

1. Flush your skin with water.

2. Apply baking soda or lime to help neutralize the acid.

3. Flush your eyes with water for 10-15 minutes.

Get medical attention immediately.

2190-2533A

FG0015528

8. Warnings for High Temperature

Hydraulic Oil (190-00691A)

HOT OIL CAN CAUSE INJURY OR

BLINDNESS.

To prevent hot oil from spurting out:

Turn engine off

Allow oil to cool

Lift cap to relieve pressure

190-00691A

FG015529

Safety

OP001002

1-8

SUMMARY OF SAFETY

PRECAUTIONS FOR LIFTING IN

DIGGING MODE

DANGER

Unsafe use of the excavator while making rated lifts could

cause serious, potentially fatal injuries or extensive damage

to the machine or nearby property. Do not let anyone

operate the machine unless they've been properly trained

and understand the information in the Operation and

Maintenance Manual.

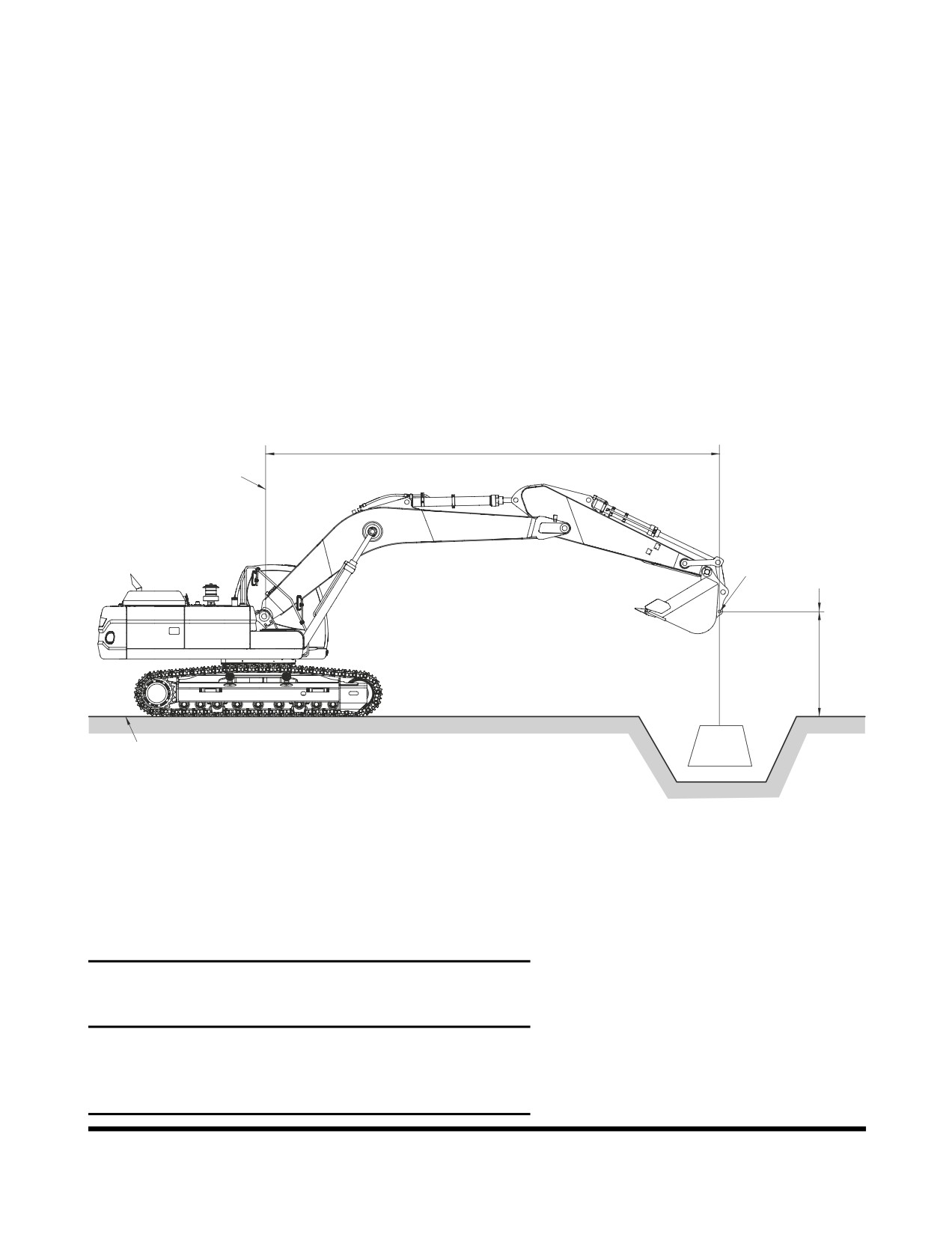

To lift safely while in Digging Mode, the following items must be

evaluated by the operator and the work site crew.

•

Condition of ground support.

•

Excavator configuration and attachments.

•

Weight, lifting height and lifting radius.

•

Safe rigging of the load.

•

Proper handling of the suspended load.

Tag lines on opposite sides of the load can be very helpful in

keeping a suspended load secure, if they are anchored safely to

control points on the ground.

WARNING

NEVER wrap a tag line around your hands or body.

NEVER rely on tag lines or make rated lifts when wind gusts

are more than 48.3 km/h (30 MPH). Be prepared for any wind

gust when working with loads that have a large surface

area.

Always engage the "Digging Mode" control on the Instrument

Panel before using the excavator for lifting work.

WARNING

If you need more information or have any questions or

concerns about safe operating procedures or working the

excavator correctly in a particular application or in the

specific conditions of your individual operating environment,

please consult your local DOOSAN representative.

Safety

OP001002

1-13

UNAUTHORIZED

MODIFICATIONS

Any modification made without authorization or written approval

from DOOSAN can create a safety hazard, for which the

machine owner will be held responsible.

For safety's sake, replace all OEM parts with the correct

authorized or genuine DOOSAN part. For example, not taking

the time to replace fasteners, bolts or nuts with the correct

replacement parts could lead to a condition where the safety of

critical assemblies are dangerously compromised.

GENERAL HAZARD

INFORMATION

Safety Rules

Only trained and authorized personnel can operate and maintain

the machine.

Follow all safety rules, precautions and instructions when

operating or performing maintenance on the machine.

Do not operate the machine if you are not feeling well, if you are

taking medication that makes you feel sleepy, if you have been

drinking, or if you are suffering from emotional problems. These

problems will interfere with your sense of judgment in

emergencies and may cause accidents.

When working with another operator or with a person on work

site traffic duty, be sure that all personnel know the nature of the

work and understand all hand signals that are to be used.

Always observe strictly any other rules related to safety.

Safety Features

Be sure that all guards and covers are installed in their proper

position. Have guards and covers repaired immediately if

damaged.

Be sure that you understand the method of use of safety

features such as safety lock lever and the seat belt, and use

them properly.

Never remove any safety features. Always keep them in good

operating condition.

Failure to use safety features according to the instructions in the

Operation and Maintenance Manual could result in serious

bodily injury.

Safety

OP001002

1-14

Inside Operator's Cabin

When entering the operator's cabin, always remove all mud and

oil from the soles of your shoes. If you operate the travel pedal

with mud or oil stuck to your shoes, your foot may slip and this

may cause a serious accident.

After using the ashtray, make sure that any matches or

cigarettes are properly extinguished, and be sure to close the

ashtray. If the ashtray is left open, there is a danger of fire.

Do not stick suction pads to the window glass. Suction pads act

as a lens and may cause fire.

Do not leave lighters laying around the operator's cabin. If the

temperature inside the operator's cabin becomes high, there is a

danger that the lighter may explode.

Do not use cellular telephones inside the operator's cabin when

driving or operating the machine. There is a danger that this may

lead to an unexpected accident.

Never bring any dangerous objects such as flammable or

explosive items into the operator's cabin.

To ensure safety, do not use the radio or music headphones

when operating the machine. There is a danger that this may

lead to a serious accident.

When operating the machine, do not put your hands or head out

of the window.

When standing up from the operator's seat, always place safety

lock lever securely in the "LOCK" position. If you accidentally

touch the work equipment levers when they are not locked, the

machine may suddenly move and cause serious injury or

damage.

When leaving the machine, lower the work equipment

completely to the ground, set safety lock lever to the "LOCK"

position and shut down engine. Use the key to lock all the

equipment. Always remove key and take it with you.

Clothing and Personal Protective Items

Secure long hair, and avoid loose clothing and jewelry. These

items have the tendency to catch on controls or protrude into

parts and cause serious injury or death.

Do not wear oily clothes. They are highly flammable.

Full eye protection, a hard hat, safety shoes and gloves may be

required at the work site.

While working on the machine, never use inadequate tools.

They could break or slip, causing injury, or they may not

HAOA020L

adequately perform intended functions.

Figure 2

Safety

OP001002

1-15

Breathing Masks, Ear Protection May Be

Required

Do not forget that some risks to your health may not be

immediately apparent. Exhaust gases and noise pollution may

not be visible, but these hazards can cause disabling or

permanent injuries.

NOTE: The equivalent continuous A-weighted sound

pressure level at the workstation for this machine is

73 dB (A).

Measurement is obtained on a dynamic machine

following the procedures and cabin conditions as

described in ISO 6396.

NOTE: The guaranteed sound power level emitted by the

machinery for this machine is 104 dB (A).

Measurement is obtained on a dynamic machine with

the procedures as described in 2000/14/EC.

Vibration Level Information

Hands/Arms: The weighted root mean square acceleration to

which the hands/arms are subjected, is less than 2.5 m/s².

Whole body: The weighted root mean square acceleration to

which the whole body is subjected, is less than 0.5 m/s².

Measurements are obtained on a representative machine, using

measuring procedures as described in the following standard:

ISO 2631/1. ISO 5349, and SAE J1166.

Recommendations for Limiting Vibrations

Select the right machine, equipment and attachments for a

particular application.

Replace any damaged seat by a DOOSAN genuine part.

Keep the seat maintained and adjusted.

•

Adjust the seat and suspension for the weight and

size of the operator.

•

Inspect and maintain the suspension and adjustment

mechanisms of the seat regularly.

Check that machine is properly maintained.

•

Tire pressure, brakes, steering, linkages, etc.

Steer, brake, accelerate, shift gears, move the

attachments and load the attachments smoothly.

Adjust the machine speed and travel path to reduce the

vibration level.

•

Slow down if it is necessary when traveling through

rough terrain.

•

When driving machine, avoid obstacles and

excessive rough terrain.

Safety

OP001002

1-16

Keep machine on the terrain where working and traveling

conditions are good.

•

Remove any large rocks or obstacles.

•

Fill any ditches and holes.

•

Provide machines for and schedule time to maintain

good terrain conditions.

Travel over longer distance

(e.g. on public roads) at

adjusted (medium) speed.

•

Always adjust the speed to prevent bouncing.

Mounting and Dismounting

Before getting on or off the machine, if there is any oil, grease,

or mud on the handrails, steps, or track shoes, wipe it off

immediately. Always keep these parts clean. Repair any

damage and tighten any loose bolts.

Never jump on or off the machine. In particular, never get on or

off a moving machine. These actions may lead to serious injury.

When getting on or off the machine, always face the machine,

and maintain three-point contact (both feet and one hand or one

foot and both hands) with the handrails, steps, and track shoes

to ensure that you support yourself securely.

Never hold any control levers when getting on or off the

machine.

Apply the door lock securely. If you grip the handrail inside the

door when moving on top of the track shoes, and the door lock is

not applied securely, the door may move and cause you to fall.

Use the points marked by arrows in the diagram when getting on

or off the machine.

FG000355

Figure 3

Safety

OP001002

1-17

Fuel, Oil and Hydraulic Fluid Fire Hazards

Fuel, oil and antifreeze will catch fire if it is brought close to a

flame. Fuel is particularly flammable and can be hazardous.

Always strictly observe the following.

Add fuel, oil, antifreeze and hydraulic fluid to the machine only in

a well ventilated area. The machine must be parked with

controls, lights and switches turned "OFF." The engine must be

"OFF" and any flames, glowing embers, auxiliary heating units

or spark causing equipment must be extinguished, turned "OFF"

and/or kept well clear of the machine.

Static electricity can produce dangerous sparks at the fuel filling

nozzle. In very cold, dry weather or other conditions that could

produce a static discharge, keep the tip of the fuel nozzle in

constant contact with the neck of the fuel filling nozzle, to

Figure 4

provide a ground.

Keep fuel and other fluid reservoir caps tight and do not start the

engine until caps have been secured.

Precautions When Handling Fluids at High

Temperature

Immediately after operations are stopped, the coolant, engine

oil, and hydraulic oil are at highest temperatures and the radiator

and hydraulic tank are still under pressure. Attempting to

remove cap, drain the oil or coolant, or replace the filters may

lead to serious burns. Always wait for the temperature to go

down, and follow the specified procedures when carrying out

these operations.

HAOA050L

Figure 5

To prevent hot coolant from spurting out, shut down engine, wait

for the coolant to cool, then loosen the cap slowly to relieve the

pressure.

To prevent hot oil from spurting out, shut down engine, wait for

the oil to cool, then loosen the cap slowly to relieve the pressure.

HAOA060L

Figure 6

Safety

OP001002

1-18

Asbestos Dust Hazard Prevention

Asbestos dust can be HAZARDOUS to your health if it is

inhaled. Materials containing asbestos fiber can be present on

work site. Breathing air that contains asbestos fiber can

ultimately cause serious or fatal lung damage. To prevent lung

damage from asbestos fiber, observe following precautions;

•

Use a respirator that is approved for use in an

asbestos-laden atmosphere.

•

Never use compressed air for cleaning.

ARO1770L

•

Use water for cleaning to keep down the dust.

Figure 7

•

Work on the machine or component with the wind at

your back whenever possible.

•

Always observe any regulations related to the work

site and working environment.

Injury from Work Equipment

Do not enter or put your hand, arm or any other part of your body

between movable parts, such as between the work equipment

and cylinders, or between the machine and work equipment.

If the control levers are operated, the clearance between the

machine and the work equipment will change and this may lead

to serious damage or personal injury.

If going between movable parts is necessary, always position

and secure the work equipment so it cannot move.

HDO1010L

Figure 8

Fire Extinguisher and First Aid Kit

As a precaution if any injury or fire should occur, always do the

following.

•

Be sure that fire extinguishers have been provided

and read the labels to ensure that you know how to

use them. It is recommended that an appropriately

sized (2.27 kg [5 lb] or larger) multipurpose "A/B/C"

fire extinguisher be mounted in the cabin. Check and

service the fire extinguisher at regular intervals and

make sure that all work site crew members are

HDO1009L

adequately trained in its use.

Figure 9

•

Provide a first aid kit in the storage compartment and

keep another at the work site. Check the kit

periodically and make any additions if necessary.

•

Know what to do in case of injury from fire.

•

Keep emergency numbers for doctor, ambulance

service, hospital and fire department near your

telephone.

Safety

OP001002

1-19

If the machine catches fire, it may lead to serious personal injury

or death. If a fire occurs during operation, escape from the

machine as follows:

•

Turn the starter switch to the "O" (OFF) position and

shut down engine.

•

If there is time, use the fire extinguisher to put out as

much of the fire as possible.

•

Use the handrails and steps to escape from the

machine.

The above is the basic method for escaping from the machine,

but changing the method may be necessary according to the

conditions, so carry out practice drills at the work site.

Protection from Falling or Flying Objects

On work sites where there is a danger that falling or flying

objects may hit the operator's cabin select a guard to match the

operating conditions to protect the operator.

Working in mines, tunnels, deep pits or on loose or wet surfaces

could produce danger of falling rock or hazardous flying objects.

Additional protection for the operator's cabin could be required in

the form of a FOPS (Falling Object Protective Structure) or

window guards.

HAOA110L

Figure 10

Never attempt to alter or modify any protective structure

reinforcement system, by drilling holes, welding, remounting or

relocating fasteners. Any serious impact or damage to the

system requires a complete integrity reevaluation.

Reinstallation, recertification and/or replacement of the system

may be necessary.

Contact your DOOSAN distributor for available safety guards

and/or recommendations to prevent danger of getting hit by

objects that could strike the operator's cabin. Make sure that all

other work site crew members are kept well away from the

excavator and safe from possible hazards.

HAOA100L

Figure 11

For breaker operation, install a front guard and apply a

laminated coating sheet to the front glass. Contact your

DOOSAN distributor for recommendations.

When carrying out demolition or cutting operation, install a front

guard and top guard, and apply a laminated coating sheet to the

front glass.

When working in mines or quarries where there is a danger of

falling rock, install FOPS (Falling Objects Protective Structure)

and apply a laminated coating sheet to the front glass.

If any glass on the machine is broken, replace it with new glass

immediately.

Safety

OP001002

1-20

Attachment Precautions

Option kits are available through your dealer. Contact DOOSAN

for information on available one-way (single-acting) and two-way

(double-acting) piping / valving / auxiliary control kits. Because

DOOSAN cannot anticipate, identify or test all the attachments

that owners may wish to install on their machines, please

contact DOOSAN for authorization and approval of attachments,

and their compatibility with optional kits.

Accumulator

The pilot control system is equipped with an accumulator. For a

brief period of time after the engine has been shut down, the

accumulator will store a pressure charge that may enable

hydraulic controls to be activated. Activation of any controls may

enable the selected function to operate under force of gravity.

When performing maintenance on the pilot control system, the

hydraulic pressure in the system must be released as described

in “Handling of Accumulator” on page 4-80.

The accumulator is charged with high-pressure nitrogen gas, so

it is extremely dangerous if it is handled in the wrong way.

Always observe the following precautions:

•

Do not drill or make any holes in the accumulator or

expose it to any flames, fire or heat source.

•

Do not weld on the accumulator, or try attaching

anything to it.

•

When carrying out disassembly or maintenance of

the accumulator, or when disposing of the

accumulator, the charged gas must be properly

released. Contact your DOOSAN distributor.

•

Wear safety goggles and protective gloves when

working on an accumulator. Hydraulic oil under

pressure can penetrate the skin and cause serious

injuries.

Indoor Ventilation

Engine exhaust gases can cause fatal accidents, and

unconsciousness, loss of alertness, judgment and motor control

and serious injury.

Make sure there is adequate ventilation before starting the

engine in any enclosed area.

You should also be aware of open windows, doors or ductwork

where exhaust may be carried, or blown by the wind, exposing

others to danger.

ARO1770L

Figure 12

Safety

OP001002

1-21

BEFORE STARTING ENGINE

Work Site Precautions

Before starting operations, thoroughly check the area for any

unusual conditions that could be dangerous.

Check the terrain and condition of the ground at the work site,

and determine the best and safest method of operation.

Make sure the ground surface is as hard and horizontal as

possible before carrying out operations. If there is a lot of dust

and sand on the work site, spray water before starting

operations.

If you need to operate on a street, protect pedestrians and cars

DANGER

No Entry

by designating a person for work site traffic duty or by erecting

fences and posting "No Entry" signs around the work site.

FG000400

Figure 14

Erect fences, post "No Entry" signs, and take other steps to

prevent people from coming close to or entering the work site. If

people come close to a moving machine, they may be hit or

caught by the machine, and this may lead to serious personal

injury or death.

Waterlines, gas lines, phone lines and high-voltage electrical

lines may be buried under the work site. Contact each utility and

identify their locations. Be careful not to damage or cut any of

these lines.

Check the condition of the riverbed, and the depth and flow of

the water before operating in water or crossing a river. NEVER

work in water that is more than the permissible water depth.

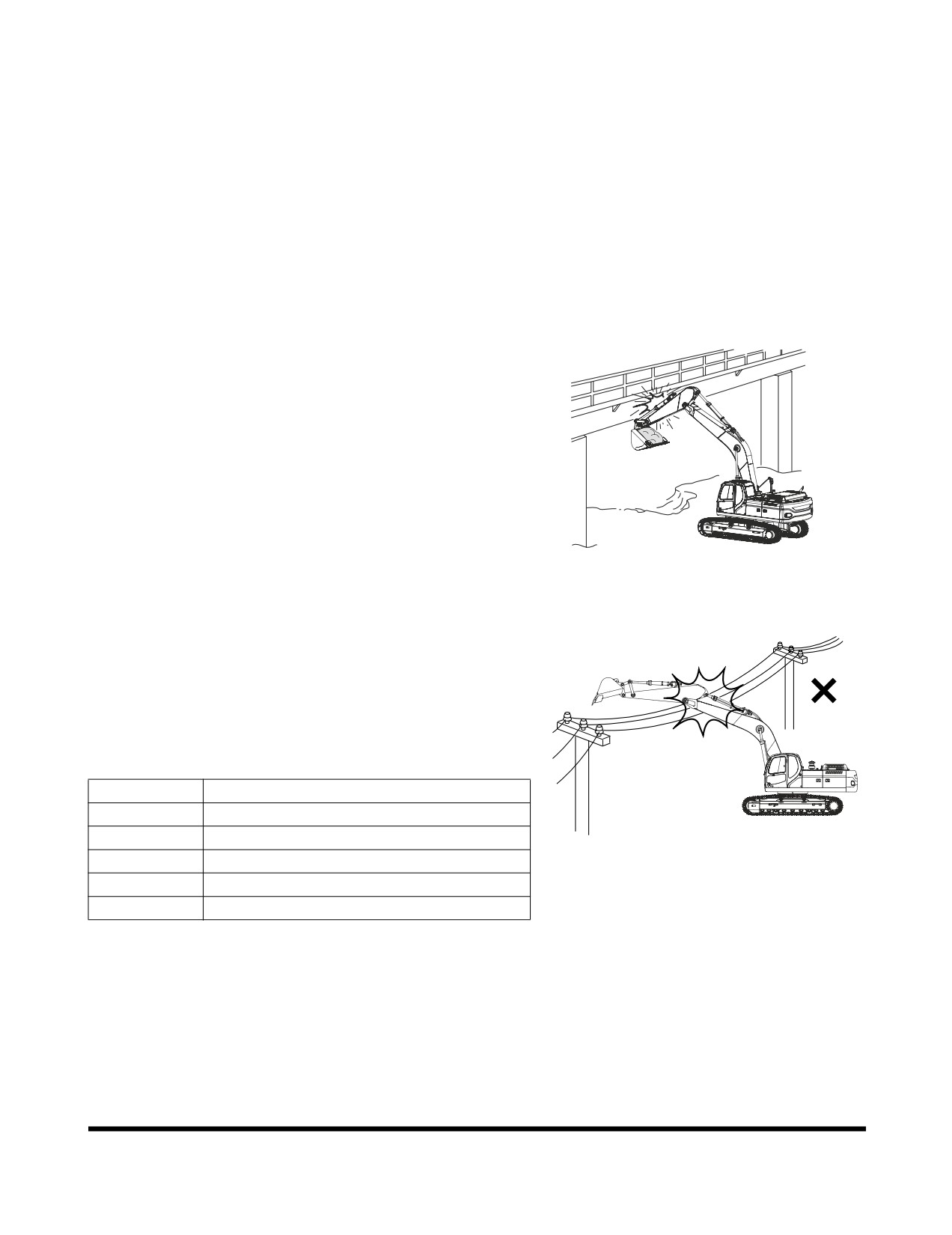

Any object in vicinity of boom could represent a potential hazard,

or cause the operator to react suddenly and cause an accident.

Use a spotter or signal person when working near bridges,

FG000363

phone lines, work site scaffolds, or other obstructions.

Figure 15

Minimum levels of insurance coverage, work permits or

certification, physical barriers around the work site or restricted

hours of operation may be mandated by governing authorities.

There may also be regulations, guidelines, standards or

restrictions on equipment that may have to be followed for local

requirements. There may also be regulations related to

performing certain kinds of work. If there is any question about

whether your machine and work site complies with the

applicable standards and regulations, contact your local

authorities and agencies.

Avoid entering soft ground. It will be difficult for the machine to

escape.

FG000372

Figure 16

Avoid operating your machine to close to the edge of cliffs,

overhangs, and deep ditches. The ground may be weak in such

areas. If the ground collapses, the machine could fall or tip over

resulting in serious injury or death.

Remember that soil after heavy rain, blasting or after

earthquakes, is weakened.

Newly laid earth and the soil near ditches is typically loose. It

can collapse under the weight of vibration of your machine and

Safety

OP001002

1-23

cause your machine to tip over.

Install the head guard (FOPS) if working in areas where there is

a danger of falling rocks.

Checks Before Starting Engine

Every day before starting the engine for the first time, carry out

the following checks. If these checks are not carried out

properly, there is a danger of serious injury.

Remove all wood chips, leaves, grass, paper and other

flammable materials accumulated in the engine compartment

and around the battery. They could cause a fire. Remove any

dirt from the window glass, mirrors, handrails, and steps.

Do not leave tools or spare parts laying around in the operator's

cabin. The vibration of the machine when traveling or during

operations may cause them to fall and damage or break the

control levers or switches. They may also get caught in the gap

of the control levers and cause the work equipment to

malfunction or move dangerously. This may lead to unexpected

accidents.

Check the coolant, fuel, and hydraulic tank oil levels, and check

for clogged air cleaner and damage to the electrical wiring.

Adjust the operator's seat to a position where it is easy to

operate the machine, and check the seat belt and mounts for

damage and wear.

Check the operation of the gauges and the angle of the mirrors,

and check that safety lever is in "LOCKED" position.

If any abnormalities are found in the above checks, carry out

repairs immediately.

Safety

OP001002

1-24

Engine Starting

Walk around your machine before getting in the operator's

cabin. Look for evidence of leaking fluid, loose fasteners,

misaligned assemblies or any other indications of possible

equipment hazard.

All equipment covers and machinery safety guards must be in

place, to protect against injury while the machine is being

operated.

Look around the work site area for potential hazards, people or

property that could be at risk while operation is in progress.

NEVER start the engine if there is any indication that

maintenance or service work is in progress, or if a warning tag is

attached to controls in the cabin.

A machine that has not been used recently, or is being operated

in extremely cold temperatures, could require a warm-up or

maintenance service before start-up.

Check gauges and monitor displays for normal operation before

starting the engine. Listen for unusual noises and remain alert

for other potentially hazardous conditions at the start of the work

cycle.

Do not short-circuit the starting motor to start the engine. This is

not only dangerous, but may also damage the machine.

When starting the engine, sound the horn as an alert.

Start and operate the machine only while seated.

Safety

OP001002

1-25

Before Operating Machine

If checks are not carried out properly after starting the engine, it

may result in a delay in discovering abnormalities in the

machine, and this may lead to personal injury or damage to the

machine.

Carry out the checks in an open area where there are no

obstructions. Do not let anyone near the machine when carrying

out the checks.

•

Check the operating condition of the equipment, and

the movement of the bucket, arm, boom, travel, and

swing systems.

•

Check the machine for any abnormal noise, vibration,

heat, smell, or abnormality with the gauges. Check

also for leakage of air, oil, and fuel.

•

If any abnormality is found, repair the problem

immediately. If the machine is used without repairing

the problems, it may lead to unexpected injury or

failure.

•

Clear all personnel from directly around machine and

from the area.

•

Clear all obstacles from the machine's path. Beware

of hazards.

•

Be sure that all windows are clean. Secure the doors

and the windows in the open position or in the shut

position.

•

Adjust the rearview mirrors for best visibility close to

the machine. Make sure that horn, the travel alarm (if

equipped), and all other warning devices are working

properly.

•

Fasten the seat belt securely.

•

Warm up the engine and hydraulic oil before

operating machine.

•

Before moving the machine, check undercarriage

position. The normal travel position is with idler

wheels to the front under the cabin and the drive

sprockets to the rear. When the undercarriage is in

the reversed position, the travel controls must be

operated in opposite directions.

Safety

OP001002

1-26

MACHINE OPERATION

When Swinging or Changing Direction of

Travel

Before operating the machine or the work equipment, always

observe the following precautions to prevent serious injury or

death.

•

Start and operate the machine only while seated.

•

When changing travel direction from forward to

reverse or from reverse to forward, reduce speed

early and stop the machine before changing the

HAOA190L

travel direction.

Figure 17

•

Sound the horn to warn people in the area.

•

Check that there is no one in the area around the

machine. There are blind spots behind the machine,

so if necessary, swing the upper structure to check

that there is no one behind the machine before

traveling in reverse.

•

When operating in areas that may be hazardous or

have poor visibility, designate a person to direct work

site traffic.

•

Ensure that no unauthorized person can come within

the turning radius or direction of travel.

Be sure to observe the above precautions even if a travel alarm

or mirrors are installed.

Safety

OP001002

1-27

Travel Precautions

TRAVEL POSTURE

Never turn the starting switch to the "O" (OFF) position when

traveling. It is dangerous if the engine stops while the machine is

traveling. It will be impossible to operate the steering.

Attachment control levers should not be operated while

traveling.

Do not change selected travel mode

(FAST/SLOW) while

traveling.

40 ~ 50 cm (16 ~ 20 in.)

Fold in work equipment so the outer end of the boom is as close

to the machine as possible, and is 40 - 50 cm (16 - 20 in)

aboveground.

INCORRECT

Never travel over obstacles or slopes that will cause the

machine to tilt severely. Travel around any slope or obstacle that

causes the machine to tilt 10 degrees or more to the right or left,

or 30 degrees or more from front to rear.

Do not operate the steering suddenly. The work equipment may

hit the ground and cause the machine to lose its balance, and

this may damage the machine or structures in the area.

When traveling on rough ground, travel at low speed, and avoid

FG000349

sudden changes in direction.

Figure 18

Always keep to the permissible water depth. Permissible water

depth is to the centerline of the upper track rollers.

When traveling over bridges or structures on private land, check

first that bridge or structure can withstand the weight of the

machine. When traveling on public roads, check with the local

authorities and follow their instructions.

Safety

OP001002

1-28

Traveling on Slopes

Never jump onto a machine that is running away to stop it. There

is a danger of serious injury.

Traveling on slopes could result in the machine tipping over or

slipping.

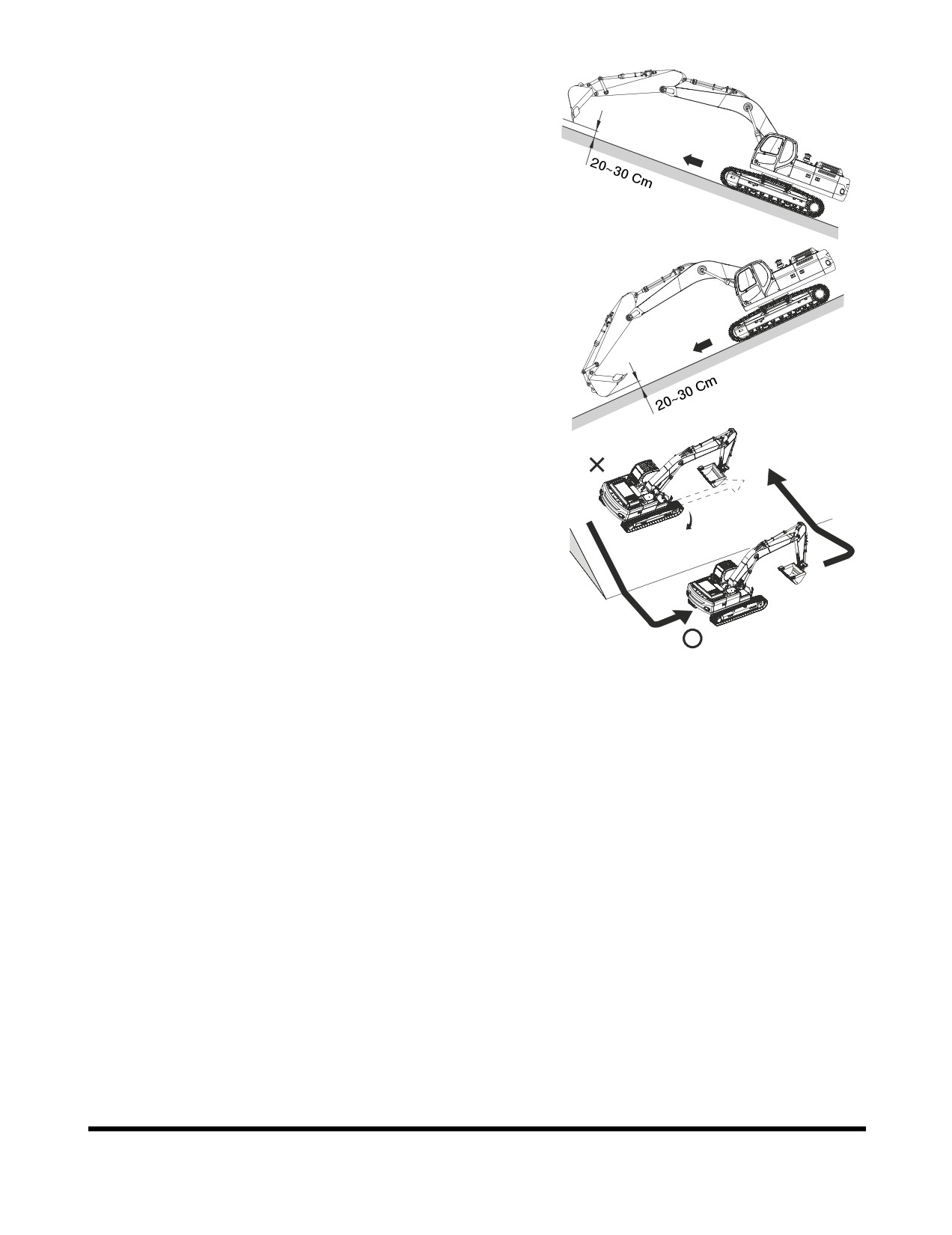

On hills, banks or slopes, carry the bucket approximately 20 - 30

cm (8 - 12 in) above the ground. In case of an emergency,

quickly lower the bucket to the ground to help stop the machine.

Do not travel on grass, fallen leaves, or wet steel plates. Even

slight slopes may cause the machine to slip to the side, so travel

at low speed and make sure that machine is always traveling

directly up or down the slope.

Avoid changing travel direction on a slope. This could result in

tipping or sideslipping of the machine.

When possible, operate the machine up slopes and downslopes.

Avoid operating the machine across the slope, when possible.

FG000365

Figure 19

Safety

OP001002

1-29

Prohibited Operations

Do not dig the work face under an overhang. This may cause the

overhang to collapse and fall on top of the machine.

FG000368

Figure 20

Do not carry out deep digging under the front of the machine.

The ground under the machine may collapse and cause the

machine to fall.

Working heavy loads over loose, soft ground or uneven, broken

terrain can cause dangerous side load conditions and possible

tip over and injury. Travel without a load or a balanced load may

also be hazardous.

Never rely on lift jacks or other inadequate supports when work

is being done. Block tracks fore and aft to prevent any

movement.

FG000170

Figure 21

When using the machine, to prevent accidents caused by

damage to the work equipment and overturning because of an

excessive load, do not use the machine in excess of its ability (in

terms of the maximum load and stability determined by the

structure of the machine).

When working at the edge of an excavation or on a road

shoulder, the machine could tip over, possibly resulting in

serious injury or death. Investigate the configuration and ground

conditions of the work site beforehand to prevent the machine

from falling and to prevent the ground, stockpiles, or banks from

collapsing.

FG000367

Figure 22

Safety

OP001002

1-30

Precautions for Operation

Be careful not to mistakenly travel too close to the edge of a cliff.

Use the machine only for its main purpose. Using it for other

purposes will cause failures.

To ensure a good view, always do the following:

•

When working in dark areas, attach working lights

and front lights to the machine. If necessary, set up

lighting at the work site.

•

Stop operations when the visibility is poor, such as in

fog, mist, snow, and rain. Wait for the visibility to

improve to a level which causes no problems for the

operation.

To avoid hitting the work equipment, always do the following:

•

When working in tunnels, on bridges, under electrical

wires, or when parking the machine or carrying out

other operations in places with limited height, be

careful not to hit the bucket or other parts.

•

To prevent collisions, operate the machine at a safe

speed when working in confined spaces, indoors, or

in crowded areas.

•

Do not pass the bucket over the heads of workers or

over the operator's cabin of dump truck.

FG000430

Figure 23

Avoid High-Voltage Cables

Serious injury or death can result from contact or proximity to

high-voltage electrical lines. The bucket does not have to make

physical contact with power lines for current to be transmitted.

Use a spotter and hand signals to stay away from power lines

not clearly visible to the operator.

Voltage

Minimum Safe Distance

6.6 kV

3 m (9' 10")

FG000171

33.0 kV

4 m (13' 1")

Figure 24

66.0 kV

5 m (16' 5")

154.0 kV

8 m (26' 3")

275.0 kV

10 m (32' 10")

Use these minimum distances as a guideline only. Depending

upon the voltage in the line and atmospheric conditions, strong

current shocks can occur with the boom or bucket as faraway as

4 - 6 m (13 - 20 ft.) from the power line. Very high voltage and

rainy weather could further decrease that safety margin.

NOTE: Before starting any operation near power lines (either

aboveground or buried cable type), you should

always contact the power utility company directly and

work out a safety plan with them.

Safety

OP001002

1-31

Protecting Cabin from Falling Object

(Optional)

In a work site where falling objects or flying objects are

expected, be sure to install adequate protective devices for

covering the cabin.

When using a breaker, be sure to install the front window

protection guard (Figure 25).

FG000112

Figure 25

In a work site where falling rocks can cause damage and

possibly crush personnel, or in a mining operation, be sure to

install the falling object protective structure (Figure 26).

Be sure to install any other additional protective structures

required for work site conditions.

When the falling object protective structure is installed, and the

front window needs to be cleaned, loosen the bolts marked with

an arrow. Be sure to tighten bolts when done.

Operate Carefully on Snow, Ice and in Very

Cold Temperatures

In icy cold weather avoid sudden travel movements and stay

away from even slight slopes. The machine could skid off to one

side very easily.

Snow accumulation could hide or obscure potential hazards.

Use care while operating or while using the machine to clear

FG000113

snow.

Figure 26

Warming up the engine for a short period may be necessary, to

avoid operating with sluggish or reduced working capacity. The

jolting shocks and impact loads caused by bumping or

bottoming the boom or attachment are more likely to cause

severe stress in very cold temperatures. Reducing work cycle

rate and workload may be necessary.

When the temperature rises, frozen road surfaces become soft,

and machine travel becomes unstable.

In cold weather, do not touch metal surfaces with your bare

hands. If you touch a metal surface in extremely cold weather,

your skin may freeze to the metal surface.

Safety

OP001002

1-32

Operations on Slopes

When working on slopes. there is a danger that machine may

lose its balance and turn over, when swinging, or when work

equipment is operated. Always carry out these operations

carefully.

Do not swing the work equipment from the uphill side to the

downhill side when the bucket is loaded. This operation is

dangerous.

If the machine has to be used on a slope, pile the soil to make a

FG000212

platform that will keep the machine as horizontal as possible.

Figure 27

In addition, lower the bucket as far as possible, keep it pulled

into the front, and keep the swing speed as low as possible.

Parking Machine

Avoid making sudden stops, or parking the machine wherever it

happens to be at the end of the workday. Plan so the excavator

120

will be on firm, level ground away from traffic and away from

high walls, cliff edges and any area of potential water

accumulation or runoff. If parking on inclines is unavoidable,

Block

block the crawler tracks to prevent movement. Lower the bucket

or other working attachment completely to the ground, or to an

overnight support saddle. There should be no possibility of

unintended or accidental movement.

When parking on public roads, provide fences, signs, flags, or

Unlock

lights, and put up any other necessary signs to ensure that

passing traffic can see the machine clearly. Park the machine so

the machine, flags, and fences do not obstruct traffic.

After the front attachment has been lowered to an overnight

storage position and all switches and operating controls are in

Lock

FG000666

the "OFF" position, the safety lock lever must be set to the

Figure 28

"LOCKED" position. This will disable all pilot circuit control

functions.

Always close the door of the operator's cabin.

Never Let Anyone Ride on Attachment

Never let anyone ride on any work attachment, such as the

bucket, crusher, grapple, or clamshell (grab bucket). There is a

danger of the person falling and suffering serious injury.

ARO1310L

Figure 29

Safety

OP001002

1-33

MAINTENANCE

Warning Tag

Alert others that service or maintenance is being performed and

WARNING

tag operator's cabin controls

- and other machine areas if

required - with a warning notice. OSHA mandated control lever

DO NOT OPERATE

lockout can be made with any OSHA certified lockout device and

a length of chain or cable to keep the safety lever in the fully

when performing inspection

lowered, nonactive position.

or maintenan

Warning tags, for controls are available from DOOSAN

190-00695A

distributors.

FG012195

Figure 30

Clean Before Inspection or Maintenance

Clean the machine before carrying out inspection and

maintenance. This prevents dirt from getting into the machine

and ensures safety during maintenance.

If inspection and maintenance are carried out when the machine

is dirty, it will become more difficult to locate the problems, and

there is a danger that you may get dirt or mud in your eyes or

that you may slip and injure yourself.

When washing the machine, do the following:

•

Wear shoes with nonslip soles to prevent yourself

from slipping and falling on wet places.

•

Wear safety glasses and protective clothing when

washing the machine with high-pressure steam.

•

Take action to prevent touching high-pressure water

and cutting your skin or having mud fly into your

ARO1330L

eyes.

Figure 31

•

Do not spray water directly on electrical components

(sensors, connector). If water gets into the electrical

system, there is a danger that it will cause defective

operation and malfunction.

Pick up any tools or hammers that are laying in the workplace,

wipe up any grease or oil or any other slippery substances, and

clean the area to make it possible to carry out the operation in

safety. If the workplace is left untidy, you may trip or slip and

suffer injury.

Safety

OP001002

1-34

Proper Tools

Use only tools suited to the task. Using damaged, low quality,

faulty, or makeshift tools could cause personal injury. There is a

danger that pieces from, chisels with crushed heads, or

hammers, may get into your eyes and cause blindness.

HDO1037L

Figure 32

Use of Lighting

When checking fuel, oil, battery electrolyte, or window washing

fluid, always use lighting with antiexplosion specifications. If

such lighting equipment is not used, there is a danger of an

explosion.

If work is carried out in dark places without using lighting, it may

lead to injury, so always use proper lighting.

Even if the place is dark, never use a lighter or flame instead of

lighting. There is a danger of fire. There is also danger that

HDO1040L

battery gas may catch fire and cause an explosion.

Figure 33

Fire Prevention and Explosion Prevention

All fuels, most lubricants and some coolant mixtures are

flammable. Leaking fuel or fuel that is spilled onto hot surfaces

or onto electrical components can cause a fire.

Store all fuels and all lubricants in properly marked containers

and away from all unauthorized persons.

Store oily rags and other flammable material in a protective

container.

Do not smoke while you refuel the machine or while you are in a

HDO1015I

refueling area.

Figure 34

Do not smoke in battery charging areas or in areas that contain

flammable material.

Clean all electrical connections and tighten all electrical

connections. Check the electrical wires daily for wires that are

loose or frayed. Tighten all lose electrical wires before you

operate the machine. Repair all frayed electrical wires before

you operate the machine.

Remove all flammable materials before they accumulate on the

machine.

Do not weld on pipes or on tubes that contain flammable fluids.

Do not flame cut on pipes or on tubes that contain flammable

fluids. Before you weld on pipes or on tubes or before you flame

cut on pipes or on tubes, clean the pipes or tubes thoroughly

with a nonflammable solvent.

Safety

OP001002

1-35

Burn Prevention

When checking the radiator coolant level, shut down engine, let

the engine and radiator cool down, then check the coolant

recovery tank. If the coolant level in the coolant recovery tank is

near the upper limit, there is enough coolant in the radiator.

Loosen the radiator cap gradually to release the internal

pressure before removing the radiator cap.

If the coolant level in the coolant recovery tank is below the

lower limit, add coolant.

Cooling system conditioner contains alkali. Alkali can cause

personal injury. Do not allow alkali to contact the skin, the eyes,

or the mouth.

Allow cooling system components to cool before you drain the

cooling system.

Hot oil and hot components can cause personal injury. Do not

allow hot oil or hot components to contact the skin.

Remove hydraulic tank filter plug only after the engine has been

stopped. Make sure that hydraulic tank filter plug is cool before

you remove it with your bare hand. Remove hydraulic tank filter

plug slowly to relieve pressure.

Relieve all pressure in the hydraulic oil system, in the fuel

system, or in the cooling system before you disconnect any

lines, fittings, or related items.

HAAE1980

Batteries give off flammable fumes that can explode.

Figure 35

Do not smoke while you are checking the battery’s electrolyte

levels.

Electrolyte is an acid. Electrolyte can cause personal injury. Do

not allow electrolyte to contact the skin or the eyes.

Always wear protective glasses when you work on batteries.

Safety

OP001002

1-36

Welding Repairs

When carrying out welding repairs, carry out the welding in a

properly equipped place. The welding should be performed by a

qualified worker. During welding operations, there is the danger

of, generation of gas, fire, or electric shock, so never let an

unqualified worker do welding.

The qualified welder must do the following:

•

To prevent explosion of the battery, disconnect the

battery terminals and remove batteries.

•

To prevent generation of gas, remove paint from the

location of the weld.

•

If hydraulic equipment, piping or places close to them

are heated, a flammable gas or mist will be generated

and there is a danger of it catching fire. To avoid this,

never subject these places to heat.

•

Do not weld on pipes or on tubes that contain

flammable fluids. Do not flame cut on pipes or on

tubes that contain flammable fluids. Before you weld

on pipes or on tubes or before you flame cut on pipes

or on tubes, clean the pipes or tubes thoroughly with

a nonflammable solvent.

•

If heat is applied directly to rubber hoses or piping

under pressure, they may suddenly break, so cover

them with a fireproof covering.

•

Wear protective clothing.

•

Make sure there is good ventilation.

•

Remove all flammable objects and provide a fire

extinguisher.

Warning for Counterweight and Front

Attachment Removal

DANGER

DOOSAN warns any user, that removal of the counterweight

from the machine, front attachment or any other part, may

affect the stability of the machine. This could cause

unexpected movement, resulting in death or serious

injuries. DOOSAN is not liable for any misuse.

Never remove counterweight or front attachment unless the

upper structure is in-line with the lower structure.

FG000371

Never rotate the upper structure once the counterweight or

Figure 36

front attachment has been removed.

Safety

OP001002

1-37

Precautions for Removal, Installation, and

Storage of Attachments

Before starting removal and installation of attachments, decide

on the team leader.

Do not allow anyone except the authorized workers close to the

machine or attachment.

Place attachments that have been removed from the machine in

a safe place so they do not fall. Put up a fence around the

attachments and take other measures to prevent unauthorized

HDO1041L

persons from entering.

Figure 37

Precautions When Working on Machine

When carrying out maintenance operations on the machine,

keep area around your feet clean and tidy to prevent falls.

Always do the following:

•

Do not spill oil or grease.

•

Do not leave tools laying about.

•

Watch your step when walking.

Never jump down from the machine. When getting on or off the

ARO1380L

machine, use the steps and handrails, and maintain a

Figure 38

three-point contact (both feet and one hand or both hands and

one foot) to support yourself securely.

If the job requires it, wear protective clothing.

To prevent injury from slipping or falling, when working on the

hood or covers, never use any area except the area equipped

with nonslip pads.

Lock Inspection Covers

When carrying out maintenance with the inspection cover open,

lock the cover securely in position with the lock bar.

If maintenance work is carried out with the inspection cover

open but not locked, there is a danger that it may suddenly close

and cause injury if there is a gust of wind.

Safety

OP001002

1-38

Prevention of Crushing and Cutting

You should always have at least two people working together if

the engine must be run during service. One person needs to

remain in the operator's seat, ready to work the controls or stop

the machine and shut off the engine.

Unless you are instructed otherwise, never attempt adjustments

while the machine is moving or while the engine is running.

Stay clear of all rotating parts and moving parts.

Keep objects away from moving fan blades. The fan blades will

throw objects and the fan blades can cut objects.

Do not use a wire rope cable that is kinked or frayed. Wear

gloves when you handle a wire rope cable.

When you strike a retainer pin, the retainer pin might fly out. The

loose retainer pin can injure personnel. Make sure that area is

clear of people when you strike a retainer pin. To avoid injury to

your eyes, wear protective glasses when you strike a retainer

pin.

Track Tension Adjustments Require

Caution

Never turn out the track tension grease valve. To release

pressure from the crawler frame track tension assembly, you

should NEVER attempt to disassemble the track adjuster or

attempt to remove grease fitting or valve assembly.

Keep your face and body away from the valve. Refer to the track

adjustment procedure in the Operator and Maintenance Manual

or Shop Manual.

HAOA110L

Figure 39

Supports and Blocking for Work

Equipment

Do not allow weight or equipment loads to remain suspended.

Lower everything to the ground before leaving the operator's

seat.

Do not use hollow, cracked or unsteady wobbling supports.

Do not work under any equipment supported only by a lifting

jack.

HDO1042L

Figure 40

Safety

OP001002

1-39

Action When Abnormality Is Found During

Inspection

If any abnormality is found during inspection, always carry out

repairs. In particular, if the machine is used when there are still

problems with the brake or work equipment systems, it may lead

to serious injury.

If necessary depending on the type of failure, please contact

your DOOSAN distributor for repairs.

Precautions with High-pressure Lines,

Tubes and Hoses

When inspecting or replacing high-pressure piping or hoses,

check to verify that pressure has been released from the circuit.

Failure to release the pressure may lead to serious injury.

Always do the following:

•

Wear protective glasses and leather gloves.

•

Fluid leaks from hydraulic hoses or pressurized

components can be difficult to see but pressurized oil

has enough force to pierce the skin and cause

serious injury. Always use a piece of wood or

cardboard to check for suspected hydraulic leaks.

Never use your hands or expose your fingers.

•

Do not bend high-pressure lines. Do not strike

high-pressure lines. Do not install lines, tubes or

hoses that are bent or damaged.

•

Make sure that all clamps, guards and heat shields

are installed correctly to prevent vibration, rubbing

against other parts, and excessive heat during

operation.

HDO1045I

- If any of the following conditions are found,

Figure 41

replace the part:

- Damage or leakage from hose end.

- Wear, damage, cutting of covering, or exposure

of strengthening wire layer.

- Cover portion is swollen in places.

- There is twisting or crushing at movable parts of

hose.

- Foreign material is embedded in the covering.

- Hose end is deformed.

NOTE: Refer to

“Hose In-service Lifetime Limit

(European

Standard

ISO 8331

and

EN982 CEN)”

on page 4-57, for additional

European regulations.

Safety

OP001002

1-40

BATTERY

Battery Hazard Prevention

Battery electrolyte contains diluted sulfuric acid and batteries

generate hydrogen gas. Hydrogen gas is highly explosive, and

mistakes in handling them can cause serious injury or fire. To

prevent problems, always do the following:

•

Do not smoke or bring any flame near the battery.

•

When working with batteries, ALWAYS wear safety

glasses and rubber gloves.

•

If you spill battery electrolyte on yourself or your

clothes, immediately flush the area with water.

•

If battery electrolyte gets into your eyes, flush them

immediately with large quantities of water and see a

doctor at once.

•

If you accidentally drink battery electrolyte, drink a

large quantity of water or milk, raw egg or vegetable

oil. Call a doctor or poison prevention center

immediately.

•

When cleaning the top surface of the battery, wipe it

with a clean, damp cloth. Never use gasoline, thinner,

or any other organic solvent or detergent.

HAAE2100

Figure 43

•

Tighten the battery caps securely.

•

If the battery electrolyte is frozen, do not charge the

battery or start the engine with power from another

source. There is a danger that battery may catch fire.

•

When charging the battery or starting with power

from another source, let the battery electrolyte melt

and check that there is no leakage of battery

electrolyte before starting the operation.

•

Always remove battery from the machine before

charging.

Safety

OP001002

1-42

Boost Starting or Charging Engine

Batteries

If any mistake is made in the method of connecting the booster

cables, it may cause an explosion or fire. Always do the

following:

•

Turn off all electrical equipment before connecting

leads to the battery. This includes electrical switches

on the battery charger or boost starting equipment.

•

When boost starting from another machine or vehicle

HAOA310L

do not allow the two machines to touch. Wear safety

Figure 44

glasses or goggles while required battery

connections are made.

•

24 volt battery units consisting of two series

connected twelve volt batteries have a cable

connecting one positive terminal on one of the 12 volt

batteries to a negative terminal on the other battery.

Booster or charger cable connections must be made

between the nonseries connected positive terminals

and between the negative terminal of the booster

battery and the metal frame of the machine being

boosted or charged. Refer to the procedure and

illustration in “Starting Engine With a Booster Cable”

on page 3-7 of this manual.

•

Connect positive cable first when installing cables

and disconnect the negative cable first when

removing them. The final cable connection, at the

metal frame of the machine being charged or boost

started, should be as faraway from the batteries as

possible.

Safety

OP001002

1-43

TOWING

Precautions When Towing

Cloth

If any mistake is made in the method of selecting or inspecting

the towing wire or in the method of towing, it may lead to serious

personal injury. Always do the following:

•

Always use the method of towing given in this

Operation and Maintenance Manual. Do not use any

other method.

Towing Wire

•

Use leather gloves when handling the wire rope.

•

When carrying out the preparation work for towing

with two or more workers, determine the signals to

use and follow these signals correctly.

•

Always fit the towing rope to the left and right hooks

and secure in position.

•

If the engine on the problem machine will not start or

there is a failure in the brake system. always contact

your DOOSAN distributor.

Towing Wire

•

Never go between the towing machine and the towed

FG014871

machine during the towing operation.

Figure 45

•

It is dangerous to carry out towing on slopes, so

select a place where the slope is gradual. If there is

no place where the slope is gradual, carry out

operations to reduce the angle of the slope before

starting the towing operation.

•

When towing a problem machine, always use a wire

rope with a sufficient towing capacity.

•

Do not use a frayed, kinked rope or a rope with any

loss of diameter.

•

Do not use the lightweight towing hook for towing

another machine.

Safety

OP001002

1-44

EXCAVATOR RATED LIFT

CAPACITY TABLES

WARNING

Let everybody be away from the boom cylinder. While lifting

operation, boom, arm, bucket hoses might burst and then

high-pressure oil will be ejected at high-speed.

If that failure mode takes place, handling weight or front

structure might fall by its gravity to the ground to cause

fatal injury to the person.

When changing the hoses record the part numbers of the

hoses to factory log book.

Do the service job under the company's serviceman.

Figure 46

WARNING

All rated lift capacities are based on the machine and the

load both remaining level at all times. DO NOT EXCEED THE

RATED LIFT CAPACITY. Lifting loads greater than those

shown in the rated capacity tables can cause catastrophic

equipment failure and/or structural collapse of the machine.

To operate safely the excavator should be on a firm, level and

uniformly supporting surface. The operator is expected to make

due allowance for all specific work site and lift related conditions,

and respond to changes in those conditions that could pose a

hazard. The following could all cause hazardous conditions and

accidents or injuries:

•

Soft or uneven ground.

•

Unlevel terrain.

•

Side loads.

•

Modifications or poor maintenance of the excavator.

•

Failure to lift squarely over the end or over the side of

the machine.

When a load is in the air, the operator must remain alert.

•

Avoid side loads that may be caused by uneven

slings, traveling with the load or swinging too quickly.

•

The load can become unbalanced if the hook line is

twisted and starts to rotate. If the surface area of the

load is large enough, wind gusts can create side loads.

•

Keep the bucket hook point directly over the load.

Tag lines on opposite sides of the load can help

maintain greater stability against side loads and wind gusts.

Safety

OP001002

1-46

Avoid traveling with a suspended load. Before swinging (or if

required, traveling), bring the load into an arm position (radius

and height) that has a safer weight capacity rating and adequate

movement clearance. The operator and all work site personnel

should be thoroughly familiar with safety instructions and

procedures within this Operation and Maintenance Manual.

The following weight loads are in compliance with SAE (J1097)

and ISO applicable, recommended standards for hydraulic

excavators performing lifting operation on a firm supporting

surface. An asterisk (*) next to the lift rating indicates rated load

does not exceed 87% of hydraulic capacity. All other ratings

have been determined not to exceed 75% of tipping capacity.

Do not attempt to lift or hold any load that exceeds rated load

capacity at the specified distances (from the machine's rotation

centerline and height - see "lift radius" and "lift height" in the

reference drawing, Figure 47).

Lifting Radius

Centerline

of Rotation

Lifting

Point

Lifting

Point

Height

Ground Line (Machine Supporting Surface)

FG000337

Figure 47

The weight of slings and any auxiliary lifting device (and/or the

weight difference of any attachment heavier than standard

configuration) must be deducted from the rated lift capacity to

determine allowable net lifting load. The lift point should be on

the back of the bucket, as shown in Figure 47.

IMPORTANT

Select the Digging Mode switch on the Instrument Panel

before using the excavator for lifting work. Engine and

hydraulic oil should both be fully warmed up to operating

temperature before starting a lift.

Safety

OP001002

1-47

TRACK WIDTH

3.2 m (10’ 6") STD TRACK

BOOM

6.245 m (20’ 6’’)

ARM

3.1 m (10’ 2")

BUCKET

SAE 1.27 m³ HEAPED (CECE 1.1 m³)

SHOE

600 mm (24")

COUNTERWEIGHT

5,300 kg (11,685 lb)

RATING OVER FRONT

RATING OVER SIDE OR 360 degree

UNIT

1,000 kg (1,000 lb)

METRIC

A(m)

MAX. REACH

A(m)

B(m)

4.01

3.77

7.09

4.87

3.65

7.83

5.05

4.90

4.57

3.62

8.39

5.71

5.42

5.26

4.48

3.66

8.81

7.39

6.50

5.93

5.53

5.57

4.34

4.19

3.44

3.77

3.37

9.09

14.80

11.31

8.80

7.39

6.85

6.52

5.29

5.95

4.18

5.21

3.35

3.96

3.16

9.25

8.28

13.51

12.18

10.16

8.62

8.29

6.48

7.13

5.05

6.36

4.03

5.63

3.25

4.22

3.04

9.31

8.55

15.04

11.52

11.27

8.16

9.07

6.17

8.68

4.84

6.73

3.88

5.53

3.16

4.58

9.25

0 (GROUND)

10.41

15.85

11.17

12.04

7.86

9.67

5.94

8.12

4.68

6.6

3.77

5.45

3.09

5.09

3.04

9.09

-1

9.86

12.81

16.10

11.03

12.44

7.69

10.05

5.8

8.06

4.56

6.51

3.69

5.6

3.16

8.80

-2

12.52

15.62

15.92

11.01

12.50

7.63

10.16

5.73

4.51

6.48

3.66

6.03

3.41

8.39

-3

15.38

18.96

15.35

11.1

12.20

7.65

9.98

5.74

8.01

4.52

6.75

3.83

7.83

-4

18.63

18.47

14.32

11.28

11.49

7.77

9.40

5.82

7.71

4.62

7.58

4.54

7.08

-5

21.88

16.11

12.65

11.58

10.18

7.99

8.16

6.03

8.02

5.92

6.07

-6

12.53

9.89

8.45

8.54

4.64

FEET

10’

15’

20’

25’

30’

MAX. REACH

A (ft)

B (ft)

A (ft)

25’

8.19

24’ 3"

20’

11.09

7.98

27’ 5"

15’

13.19

12.03

10.69

8.16

7.79

29’ 4"

10’

35.84

21.15

15.98

14.75

13.49

10.09

9.90

7.16

8.69

6.99

30’ 4"

5’

18.69

26.47

21.2

18.81

13.61

15.06

9.48

11.72

6.86

9.65

6.65

30’ 6"

0 (GROUND)

23.48

29.62

19.9

20.94

12.79

15.74

11.23

6.7

29’ 10"

-5’

31.83

30.53

19.44

21.95

12.37

15.45

8.74

12.78

7.21

28’ 3"

-10’

42.74

40.6

29.50

19.53

21.57

12.34

15.49

8.78

14.97

8.49

25’ 7"

-15’

37.50

26.16

20.1

19.04

12.75

17.26

11.5

21’ 5"

-20’

18.69

14’ 8"

1. RATINGS ARE BASED ON SAE J1097

2. LOAD POINT IS THE HOOK ON THE BACK OF THE BUCKET.

* RATED LOADS ARE BASED ON HYDRAULIC CAPACITY.

4. RATED LOADS DO NOT EXCEED 87 % OF HYD. CAPACITY OR 75 % OF TIPPING CAPACITY.

FG015477

Safety

OP001002

1-48

TRACK WIDTH

3.2 m (10’ 6") STD TRACK

BOOM

6.245 m (20’ 6")

ARM

2.5 m (8’ 2")

BUCKET

SAE 1.51 m³ HEAPED (CECE 1.3 m³)

SHOE

600 mm (24")

COUNTERWEIGHT

5,300 kg (11,685 lb)

RATING OVER FRONT

RATING OVER SIDE OR 360 degree

UNIT

1,000 kg (1,000 lb)

METRIC

A(m)

MAX. REACH

A(m)

B(m)

5.64

6.22

5.64

5.65

7.07

5.91

5.74

5.73

4.86

7.69

7.16

6.49

6.07

5.67

5.86

4.42

5.84

4.28

8.13

10.49

8.42

7.26

7.1

6.55

5.47

6.11

4.31

6.00

3.89

8.44

12.92

12.66

9.78

8.97

8.11

6.74

7.09

5.25

6.45

4.17

6.18

3.64

8.62

14.86

11.8

11.02

8.45

8.92

6.41

7.63

5.04

6.80

4.04

6.01

3.5

8.68

15.90

11.35

11.94

8.08

9.60

6.15

8.11

4.86

6.76

3.92

5.99

3.46

8.62

0 (GROUND)

16.23

11.17

12.48

7.86

10.06

5.97

8.23

4.72

6.66

3.83

6.12

3.52

8.44

-1

10.62

13.61

16.12

11.14

12.65

7.76

10.29

5.87

8.14

4.65

6.61

3.79

6.45

3.7

8.13

-2

14.38

17.67

15.65

11.21

12.49

7.76

10.23

5.85

8.13

4.63

7.04

4.04

7.68

-3

18.24

18.80

14.80

11.35

11.95

7.84

9.83

5.9

8.14

4.69

8.04

4.63

7.06

-4

22.24

16.88

13.44

11.6

10.92

8.02

8.91

6.06

8.49

5.74

6.22

-5

14.00

* 14.00

* 11.27

9.03

8.34

8.94

8.25

5.04

FEET

10’

15’

20’

25’

MAX. REACH

A (ft)

B (ft)

A (ft)

25’

12.42

21’ 7"

20’

12.88

12.60

10.93

12.60

10.89

25’ 0"

15’

18.09

14.85

13.32

10.58

13.02

9.02

27’ 2"

10’

23.76

22.79

17.52

14.53

14.63

10.04

13.61

8.05

28’ 3"

5’

28.45

20.8

20.07

13.51

16.01

9.51

13.19

7.65

28’ 5"

0 (GROUND)

21.87

30.61

19.89

21.79

12.85

15.86

9.12

13.5

7.76

27’ 8"

-5’

35.09

30.60

19.71

22.29

12.58

15.7

8.98

14.81

8.48

25’ 12"

-10’

40.78

28.70

21.21

12.71

17.76

10.3

23’ 1"

-15’

33.53

24.11

20.8

19.30

15.16

18’ 4"

1. RATINGS ARE BASED ON SAE J1097

2. LOAD POINT IS THE HOOK ON THE BACK OF THE BUCKET.

* RATED LOADS ARE BASED ON HYDRAULIC CAPACITY.

4. RATED LOADS DO NOT EXCEED 87 % OF HYD. CAPACITY OR 75 % OF TIPPING CAPACITY.

FG015478

Safety

OP001002

1-49

TRACK WIDTH

3.2 m (10’ 6") STD TRACK

BOOM

6.245 m (20’ 6")

ARM

3.75 m (12’ 4")

BUCKET

SAE 1.03 m³ HEAPED (CECE 0.9 m³)

SHOE

600 mm (24")

COUNTERWEIGHT

5,300 kg (11,685 lb)

RATING OVER FRONT

RATING OVER SIDE OR 360 degree

UNIT

1,000 kg (1,000 lb)

METRIC

A(m)

MAX. REACH

A(m)

B(m)

3.14

7.78

4.06

3.06

8.47

4.59

3.04

8.99

4.92

4.84

4.73

4.12

3.75

3.08

9.38

5.86

5.47

5.20

4.59

4.95

3.66

3.17

9.64

13.62

9.80

7.91

6.81

6.11

5.57

5.63

4.42

5.32

3.55

3.31

9.8

14.17

12.23

9.40

9.1

7.79

6.82

6.77

5.32

6.10

4.24

5.63

3.44

3.51

2.89

9.85

10.98

14.18

12.12

10.71

8.57

8.69

6.48

7.41

5.08

6.54

4.08

5.7

3.33

3.79

2.84

9.8

0 (GROUND)

7.58

11.32

15.44

11.59

11.70

8.18

9.43

6.2

7.95

4.88

6.78

3.94

5.6

3.23

4.18

2.86

9.64

-1

9.53

12.76

16.10

11.3

12.35

7.93

9.96

8.24

4.74

6.66

3.84

5.53

3.16

4.72

2.96

9.37

-2

11.59

14.76

16.27

11.18

12.65

7.8

10.25

5.88

8.14

4.64

6.59

3.77

5.5

3.14

8.99

-3

13.85

17.27

16.01

11.18

12.60

7.76

10.27

5.84

8.1

4.61

6.58

3.76

6.04

3.45

8.47

-4

16.41

20.16

19.23

15.32

11.29

12.18

7.81

9.97

5.87

8.14

4.64

6.92

3.97

7.78

-5

19.41

* 19.41

18.30

* 18.30

* 14.09

11.5

* 11.29

7.95

9.21

5.99

7.70

4.89

6.88

-6

21.40

* 21.40

15.51

* 15.51

* 12.09

11.85

9.65

8.22

8.30

6.81

5.65

FEET

10’

15’

20’

25’

30’

MAX. REACH

A (ft)

B (ft)

A (ft)

25’

8.83

6.84

26’ 6"

20’

10.00

6.70

29’ 4"

15’

11.10

9.17

7.93

6.85

31’ 2"

10’

28.92

18.73

14.74

12.71

10.64

11.63

7.61

7.28

6.62

32’ 2"

5’

27.19

24.66

22.37

17.85

14.3

14.49

9.97

12.36

7.24

8.02

6.31

32’ 3"

0 (GROUND)

25.56

28.80

20.7

20.42

13.34

16.05

9.4

12.03

6.93

9.22

6.32

31’ 8"

-5’

30.80

30.70

19.91

21.96

12.76

15.76

9.04

11.83

6.75

11.23

6.7

30’ 2"

-10’

38.88

30.59

19.75

22.23

12.56

15.63

8.93

13.38

7.65

27’ 8"

-15’

41.70

41.48

28.38

20.08

20.79

12.75

16.47

9.76

23’ 11"

-20’

33.03

22.91

20.98

18.43

15.67

18’ 1"

1. RATINGS ARE BASED ON SAE J1097

2. LOAD POINT IS THE HOOK ON THE BACK OF THE BUCKET.

* RATED LOADS ARE BASED ON HYDRAULIC CAPACITY.

4. RATED LOADS DO NOT EXCEED 87 % OF HYD. CAPACITY OR 75 % OF TIPPING CAPACITY.

FG015479

Safety

OP001002

1-50

TRACK WIDTH

3.4 m (11’2") STD TRACK

BOOM

10.0 m (32’ 10")

ARM

7.0 m (23’)

BUCKET

SAE 0.64 m³ HEAPED (CECE 0.55 m³)

SHOE

800 mm (31")

COUNTERWEIGHT

5,900 kg (13,007 Ib)

RATING OVER FRONT

RATING OVER SIDE OR 360 degree

UNIT

1,000 kg (1,000 lb)

METRIC

A(m)

B(m)

3.36

5.76

9.24

6.92

5.59

4.74

4.16

3.73

3.75

7.39

8.24

6.49

5.39

4.64

4.11

3.88

3.70

5.93

9.34

8.19

7.30

6.44

5.99

5.24

5.10

4.34

4.47

3.65

0 (GROUND)

4.12

5.70

8.41

7.65

7.96

6.01

6.52

4.9

5.52

4.08

4.80

3.45

4.06

4.66

5.92

8.05

7.3

8.48

5.7

6.96

4.64

5.88

3.87

5.10

3.28

4.69

5.25

6.34

8.16

7.09

8.84

5.49

7.29

4.45

6.18

3.7

5.35

3.13

5.32

5.88

6.89

8.53

6.98

9.09

5.36

7.54

4.31

6.41

3.58

5.46

3.03

5.96

6.54

7.52

9.08

6.93

9.22

5.28

7.70

4.23

6.39

3.5

5.38

2.95

6.62

7.23

8.23

9.77

6.94

9.25

5.26

7.75

4.19

6.34

3.45

5.33

2.9

7.31

7.97

9.00

10.58

6.99

9.19

5.27

7.74

4.18

6.32

3.43

5.31

2.88

8.03

8.76

9.86

* 10.88

7.08

9.04

5.32

7.67

4.21

6.34

3.45

5.32

2.89

8.79

9.61

10.82

10.45

10.51

7.21

8.78

5.41

7.49

4.27

6.38

3.49

5.35

2.92

9.60

10.53

11.89

10.69

10.00

7.37

8.40

5.53

7.20

4.36

6.25

3.56

5.42

2.99

10.47

11.55

11.35

10.99

9.32

7.58

7.87

5.69

6.77

4.49

5.89

3.67

5.15

3.08

11.39

12.67

10.19

8.43

7.84

7.16

5.89

6.17

4.66

10.83

8.68

7.25

6.18

6.16

5.30

4.89

4.76

MAX. REACH

A(m)

B(m)

2.22

2.15

2.14

1.37

0.94

15.37

2.31

2.30

2.1

1.74

0.95

15.73

2.46

2.41

2.38

2.04

1.73

0.97

0.96

16.01

2.72

2.62

2.54

2.33

2.48

1.98

2.29

1.68

1.29

0.98

16.23

3.12

2.94

2.79

2.63

2.68

2.24

2.58

1.91

2.52

1.63

1.53

1.38

1.00

16.38

3.41

3.17

2.95

2.98

2.51

2.82

2.15

2.70

1.84

2.61

1.58

1.71

1.34

1.03

16.48

3.71

3.28

3.40

2.8

3.16

2.4

2.97

2.06

2.82

1.77

2.71

1.52

1.83

1.3

1.08

16.51

4.00

3.11*

3.63

2.66

3.35

2.29

3.13

1.97

2.95

1.7

2.7

1.47

1.88

1.26

1.13

16.47

0 (GROUND)

4.27

2.94

3.85

2.53

3.53

2.18

3.27

1.89

2.98

1.64

2.65

1.42

1.85

1.23

1.19

1.16

16.38

4.51

2.8

4.06

2.41

3.70

2.09

3.29

1.81

2.92

1.58

2.6

1.37

1.70

1.2

1.27

1.16

16.23

4.72

2.69

4.16

2.32

3.65

2.01

3.23

1.75

2.87

1.53

2.57

1.34

1.38

1.17

1.36

1.17

16.01

4.69

2.59

4.08

2.24

3.58

1.95

3.17

1.7

2.83

1.49

2.54

1.31

1.48

1.2

15.72

4.62

2.52

4.02

2.18

3.53

1.9

3.13

1.66

2.8

1.46

2.46

1.29

1.62

1.24

15.36

4.57

2.48

3.98

2.15

3.5

1.87

3.11

1.64

2.79

1.45

1.80

1.31

14.93

4.55

2.46

3.96

2.13

3.49

1.86

3.11

1.64

2.8

1.46

2.03

1.4

14.41

4.56

2.47

3.97

2.14

3.5

1.87

4.59

2.5

2.16

3.54

1.9

4.65

2.55

4.06

2.22

3.61

1.97

4.52

2.65

3.94

2.32

FG015480

Safety

OP001002

1-51

FEET

10’

15’

20’

25’

30’

35’

40’

45’

50’

MAX. REACH

A (ft)

B (ft)

A (ft)

30’

4.32

2.09

48’ 9"

25’

4.98

4.92

2.81

2.08

50’ 11"

20’

5.24

4.74

3.98

3.66

2.11

52’ 5"

15’

6.30

5.37

5.60

4.51

4.85

3.52

2.17

53’ 6"

10’

13.85

16.88

12.01

9.54

8.08

7.12

6.87

5.89

5.76

6.01

4.25

5.56

3.35

2.27

54’ 0"

5’

8.22

19.74

14.88

14.49

11.34

10.63

9.28

8.11

7.97

6.34

6.47

5.39

6.45

5.85

3.18

2.42

54’ 2"

0 (GROUND)

9.21

15.58

17.19

12.99

12.92

9.63

10.40

7.43

8.77

5.86

7.08

5.02

6.81

3.76

5.68

3.02

2.63

2.56

53’ 9"

-5’

*11.04

11.04

15.68

18.77

12.04

14.16

8.9

11.33

6.89

9.47

5.46

7.66

4.68

6.59

3.55

5.54

2.89

2.90

2.56

52’ 11"

-10’

*13.11

13.11

17.11

19.67

11.53

15.01

8.44

11.76

6.51

9.4

5.17

7.94

4.39

6.44

3.4

5.43

2.8

3.27

2.64

51’ 6"

-15’

15.36

19.21

17.61

20.03

11.33

15.06

8.19

11.52

6.29

9.21

4.99

7.71

4.18

6.35

3.32

3.78

2.81

49’ 7"

-20’

*17.82

17.82

21.84

17.83

19.90

11.35

14.99

8.13

11.43

6.21

9.13

4.92

7.57

4.04

-25’

*20.55

20.55

25.03

18.25

19.28

11.56

15.1

8.23

11.49

6.26

9.18

4.97

7.52

-30’

* 23.65

23.65

23.72

18.88

18.09

11.93

14.41

8.49

11.7

6.46

9.37

5.15

7.59

4.06

-35’

27.24

20.87

19.76

16.12

12.51

12.90

8.92

1. RATINGS ARE BASED ON SAE J1097

2. LOAD POINT IS THE HOOK ON THE BACK OF THE BUCKET.

* RATED LOADS ARE BASED ON HYDRAULIC CAPACITY.

4. RATED LOADS DO NOT EXCEED 87 % OF HYD. CAPACITY OR 75 % OF TIPPING CAPACITY.

FG015480

Safety

OP001002

1-52

OP001003

2Operating Controls

The "Operating Controls" section presented here consists of the

following groups:

“Component Locations” on page 2-2

“Operator's Area” on page 2-4

“Operational Controls and Panels” on page 2-6

“Instrument Panel” on page 2-20

“Multifunction Gauge and Graphic Information” on

page 2-27

“Mode Selector Buttons” on page 2-33

“Setting Main Menu” on page 2-35

“Heater and Air Conditioner Control Panel” on page 2-48

“Stereo” on page 2-54

10.

“Miscellaneous Electrical Devices” on page 2-55

11.

“Seat Adjustment” on page 2-57

12.

“Ceiling Cover” on page 2-61

13.

“Front Windows” on page 2-62

14.

“Door Side Latch” on page 2-64

15.

“Cabin Storage Compartments” on page 2-65

16.

“Ashtray” on page 2-65

17.

“Sun Visor” on page 2-66

18.

“Hanger” on page 2-66

19.

“Cup Holder” on page 2-67

20.

“Door Window Holder” on page 2-67

21.

“Emergency Glass Breaking Tool” on page 2-67

22.

“Miscellaneous Access Covers and Doors” on page 2-68

Each group is explained with a point location drawing or photo

and a brief description of each control, switch, gauge or valve.

Indicator lights work besides the gauges on the instrument

panel. The operator should monitor machine pressure on the

instrument panel along with indicator lights. These lights will only

show that there is a problem.

WARNING

Warning lights. When any one or more of the warning lights

on the control console, comes "ON," immediately stop

operation and shut down unit. Investigate and correct the

problem before proceeding with operation.

Operating Controls

OP001003

2-1

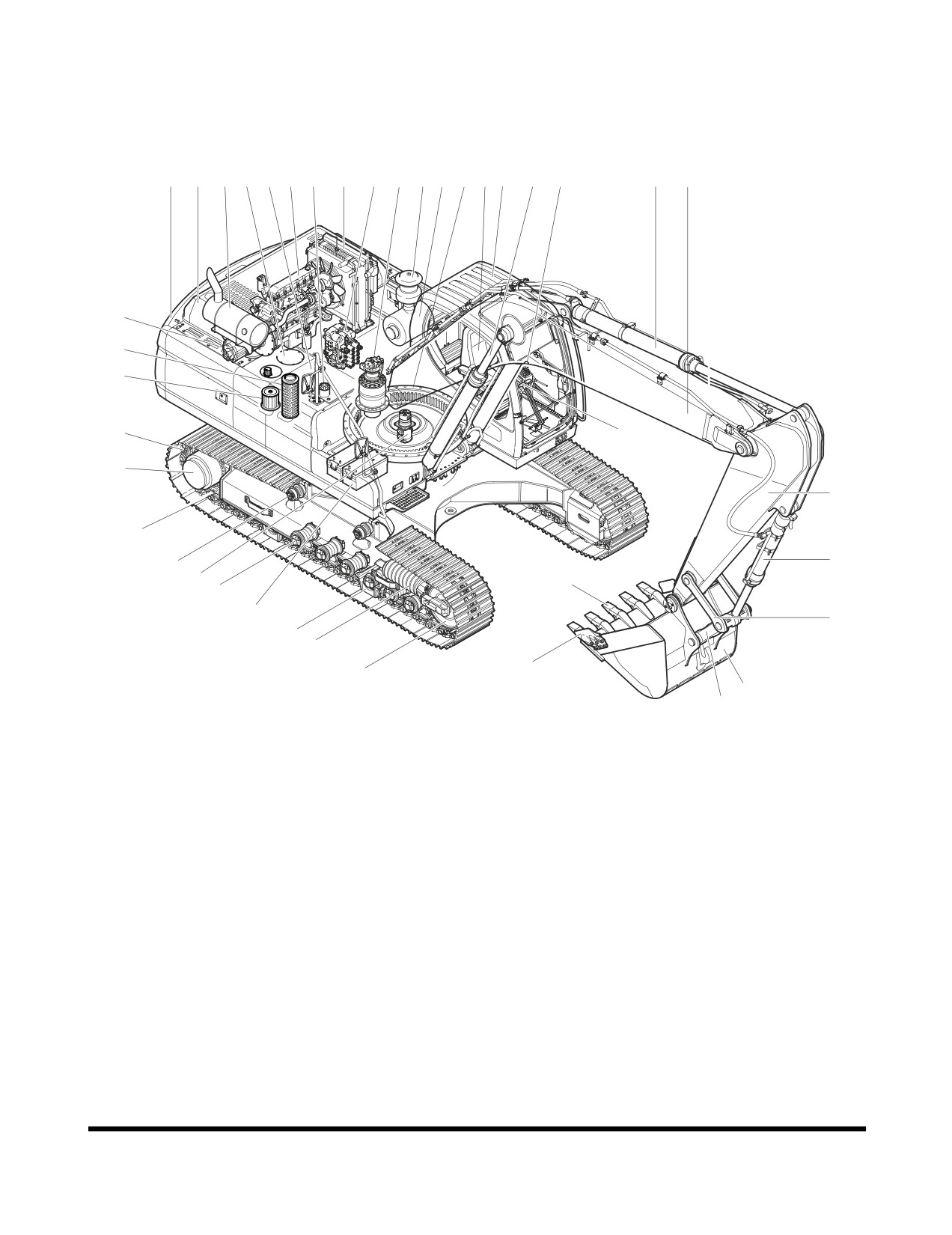

Reference

Description

Number

Counterweight

Arm

Hood

Bucket Cylinder

Muffler

Guide Link

Hydraulic Oil Tank

Bucket

Fuel Tank

Push Link

Engine

Tooth Point

Fuel Tank Fill Cap

Side Cutter

Radiator and Oil Cooler

Idler

Control Valves

Track Adjuster

Swing Motor

Track Guide

Precleaner

Battery

Air Cleaner

Lower Roller

Swing Bearing

Center Joint

Seat

Upper Roller

Cabin

Sprocket

Boom Cylinder

Travel Motor

Work Lever (Joystick) Controls

Track Link and Shoe

Arm Cylinder

Suction Filter

Boom

Return Filter

Travel Lever

Pumps

Operating Controls

OP001003

2-3

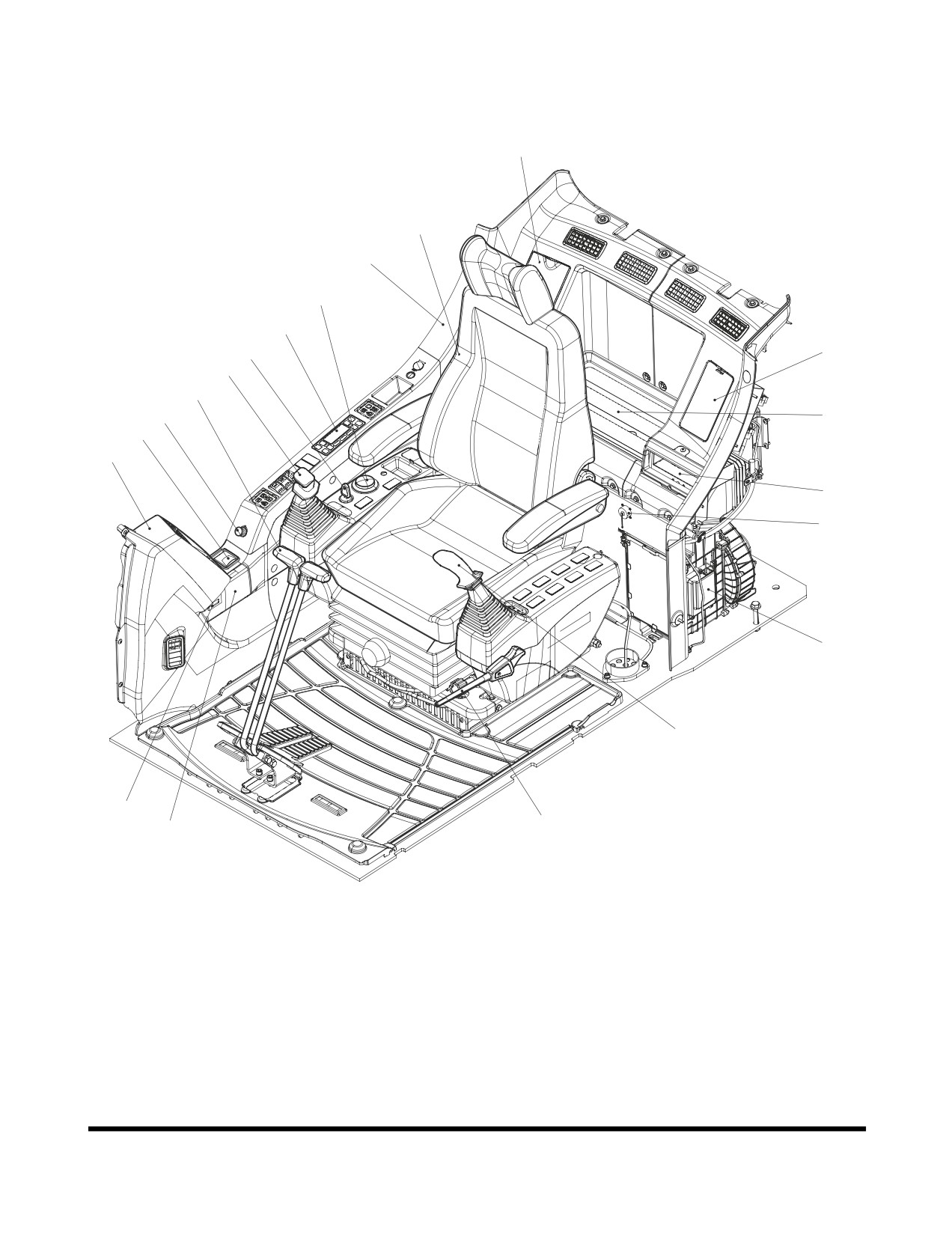

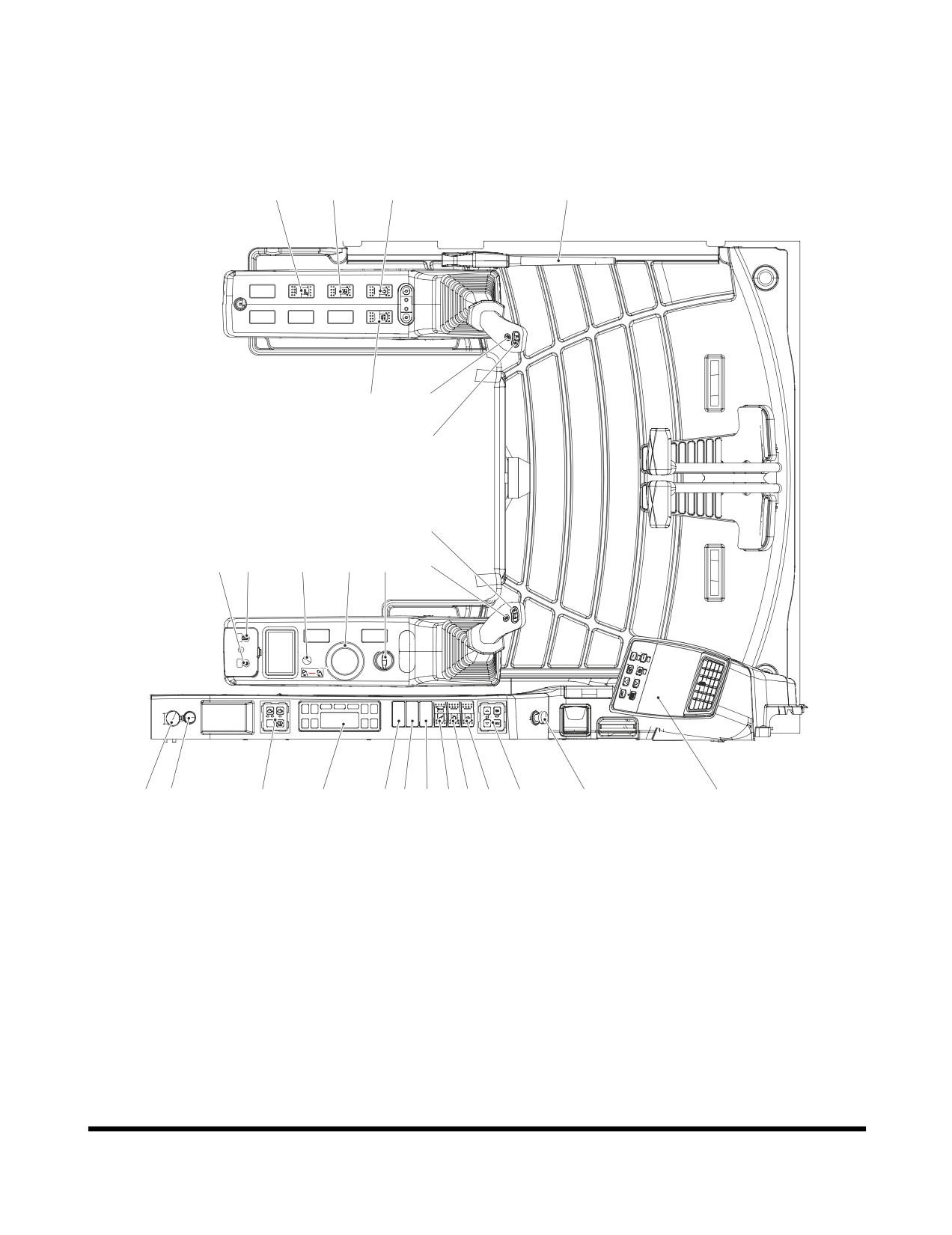

Reference

Description

Number

Instrument Panel

Storage Compartment

(See page 2-20)

(See page 2-65)

Cigarette Lighter

Heater and Air Conditioner Unit

(See page 2-15)

Stereo

Ashtray

(See page 2-54)

(See page 2-65)

Fuse Box

Travel Levers

(See page 2-56)

(See page 3-15)

Left-hand Work Lever (Joystick)

Right-hand Work Lever (Joystick)

(See page 3-24)

(See page 3-22)

Safety Lever

Storage Tray

(See page 3-13)

(See page 2-65)

Storage Compartment

Engine Speed Control Dial

(See page 2-65)

(See page 2-8)

DMS Laptop Computer

Heater and Air Conditioner

Connector

Control Panel

Cup Holder

(See page 2-48)

(See page 2-67)

Starter Switch

Hour Meter

(See page 2-8)

(See page 2-24)

Seat

(See page 2-57)

Operating Controls

OP001003

2-5

Reference

Description

Number

Starter Switch

Wiper Control Panel

Engine Speed Control Dial

Cigarette Lighter

Quick Clamp Switch (Optional)

Power Socket For 12v

Auxiliary Mode Switch

Travel / Swing Alarm Switch

(Optional)

Engine Emergency Stop Switch

Audio Control Panel

Overload Warning Switch

(Optional)

Travel Speed Selector Switch

Fuel Heater Switch (Optional)

Light Switch

Seat Warmer Switch (Optional)

Breaker / Booster / Shear

Horn Button

Selector Switch

Cabin Work Light Switch

Rotating Switch

(Optional)

Breaker / Booster Switch

Warning Light Switch (Optional)

Shear Switch

Lower Wiper Switch (Optional)

Instrument Panel

Heater And Air Conditional

Safety Lever

Control Panel

Photo Sensor

Operating Controls

OP001003

2-7

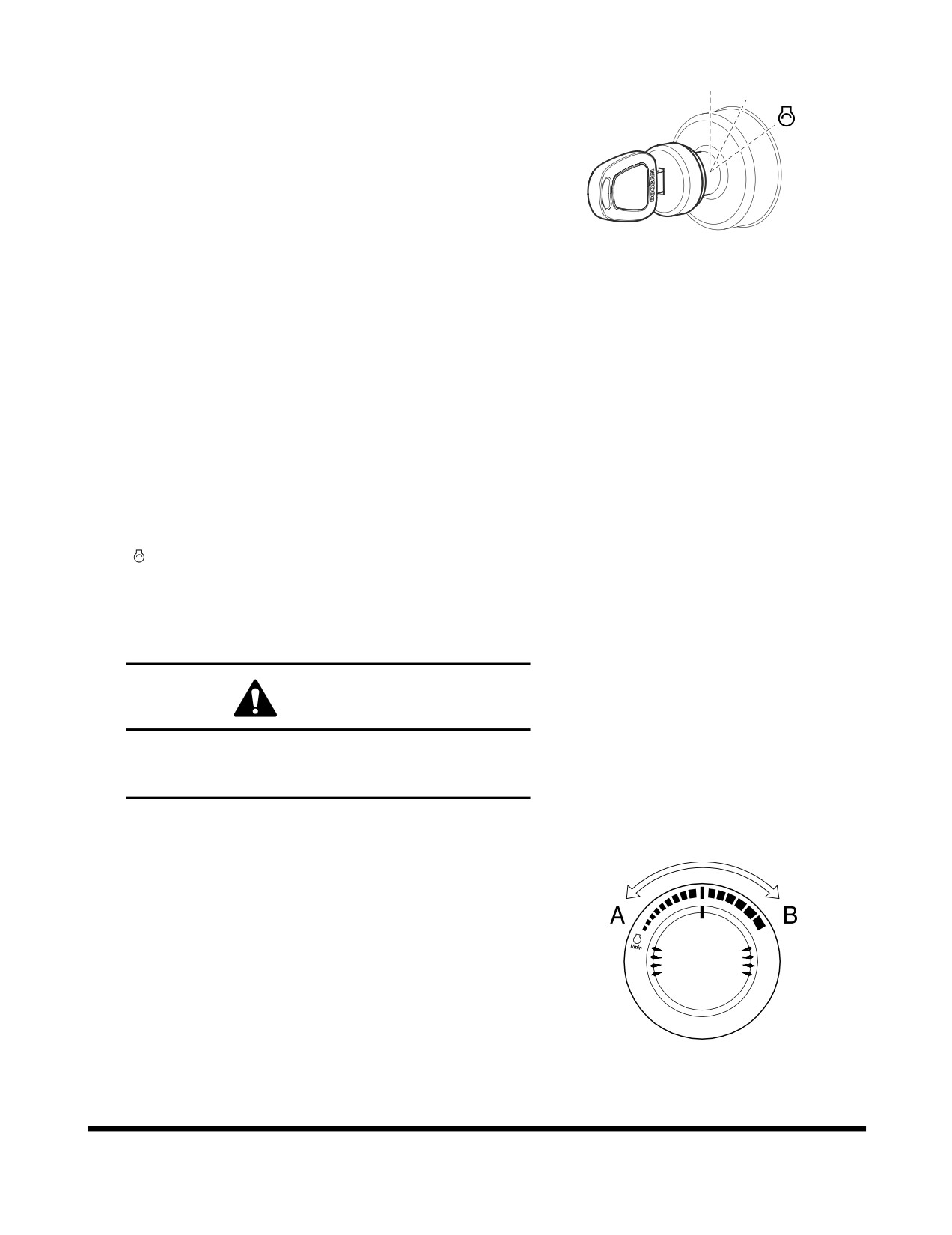

Starter Switch

A three-position starter switch is used to start or shut down

engine for equipment operation.

O. Turning the switch to this position turns the engine

"OFF" along with its electrical system. In this position

the engine is "OFF" but the interior cabin light and

fuel tank transfer pump (if equipped) are functional.

Turning the switch to this position turns the engine

electrical system "ON." When the switch is first turned

FG000014

"ON" the six indicator/warning lights across the top of

Figure 4

the instrument panel, will light for approximately two

seconds. The battery warning light and the engine oil

pressure warning light should remain "ON" after the

other four have turned "OFF."

NOTE: Preheat Indicator Light - The operation of

the preheat cycle depends on coolant

temperature. When the engine coolant is

cold enough, the preheat indicator light will

remain "ON" until the engine preheat cycle

is completed. The preheat cycle takes

about twenty seconds to complete, and

the indicator light will turn "OFF." When

the light turns "OFF," engage the starter.

. Moving switch to this position will crank engine. When

engine starts, release key and allow it to return to the

"I" (ON) position. Do not operate the starter switch for

more than fifteen seconds at a time. This will help

prevent damage to starter.

WARNING

DO NOT USE STARTING FLUIDS. The preheat system

could cause the starting fluid to explode. Starting

fluids should never be used.

2. Engine Speed Control Dial

The engine speed is controlled by the dial. Rotating it

clockwise increases engine speed

(rpm) and

counterclockwise decreases engine speed.

A Low idle (Lowest engine speed)

B High idle (Highest engine speed)

NOTE: The auto idle system will automatically reduce

engine speed to idle speed approximately four

seconds after all of the control levers are in the

HAOA690L

neutral position. This system is designed to

Figure 5

reduce fuel consumption and noise. See “3.

Auto Idle Selector Button” on page 2-34.

Operating Controls

OP001003

2-8

3. Quick Clamp Switch (Optional)

Clamp releasing for dispensable attachment is controlled.

O. In this position

, the quick clamp is "LOCKED." The

attachment is secured to the arm.

In this position

, the quick clamp is "UNLOCKED."

The attachment is released from the arm.

NOTE: To move the switch, pull up on the toggle

and then move it into the "UNLOCKED"

FG001342

position.

Figure 6

WARNING

When the attachment is still connected to the machine,

while the switch is "I" (

) position, do not operate the

machine or the attachment might fall to the ground. It

would cause personnel injuries.

4. Auxiliary Mode Switch

When the control system is out of order, the pump system

can be controlled manually.

O. In this position, the manual pump control is "OFF."

In this position, the manual pump control is "ON."

CAUTION

FG001343

Be sure to turn pump control to the "O" (OFF) position,

Figure 7

after the control system is operating properly.

5. Engine Emergency Stop Switch

O I

If the engine does not shut down when using the starter

switch, it can be stopped by moving the engine emergency

stop switch to the "I" (EMERGENCY STOP) position.

O. In this position, the engine emergency stop system is

"OFF."

In this position, "EMERGENCY STOP" is selected.

The engine will shut down.

NOTE: When released, the switch will return to its

FG001344

original position "O" (OFF) position.

Figure 8

Operating Controls

OP001003

2-9

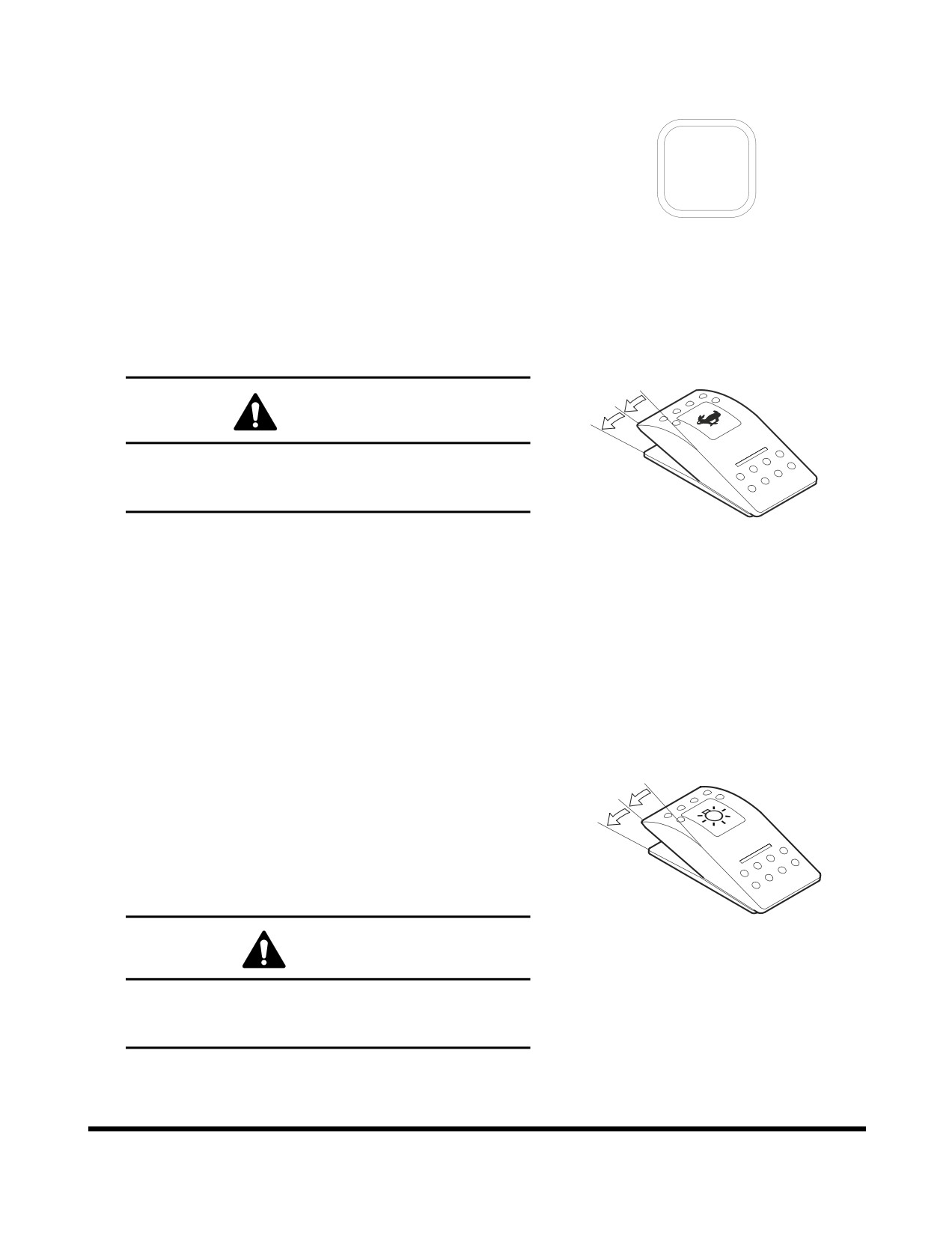

Manual Scan: When pressing scan button once, for less

than half-a-second, the frequency will be moved up in

sequence to the next available signal.

Auto Scan: When pressing scan button for more than a

half-a-second, the frequencies are automatically scanned

to the next higher one and will continue until the button is

SCAN

again pressed to stop the scan.

FG000022

Figure 13

7. Travel Speed Selector Switch

WARNING

Do not operate the travel speed selector switch when

unit is in motion. Temporary loss of control could

result.

This switch activates the automatic speed range for travel.

FG000023

O. In this position, "LOW" travel speed is selected.

Figure 14

In this position, "HIGH" travel speed is selected.

II.

In this position, "AUTOMATIC" travel speed is

selected. The travel speed automatically changes

between "LOW" or "HIGH" range, depending on

engine speed and travel motor loads.

8. Light Switch

This switch is used to turn "ON" the lights.

O. In this position, all lights are "OFF."

In this position, all illumination lights of the instrument

panel and the control switches are turned "ON."

II.

In this position, all illumination lights and work lights

are turned "ON."

FG000024

CAUTION

Figure 15

Do not leave instrument panel or work lights "ON"

when the engine is not running. Leaving lights "ON"

with the engine shut down will discharge batteries.

Operating Controls

OP001003

2-11

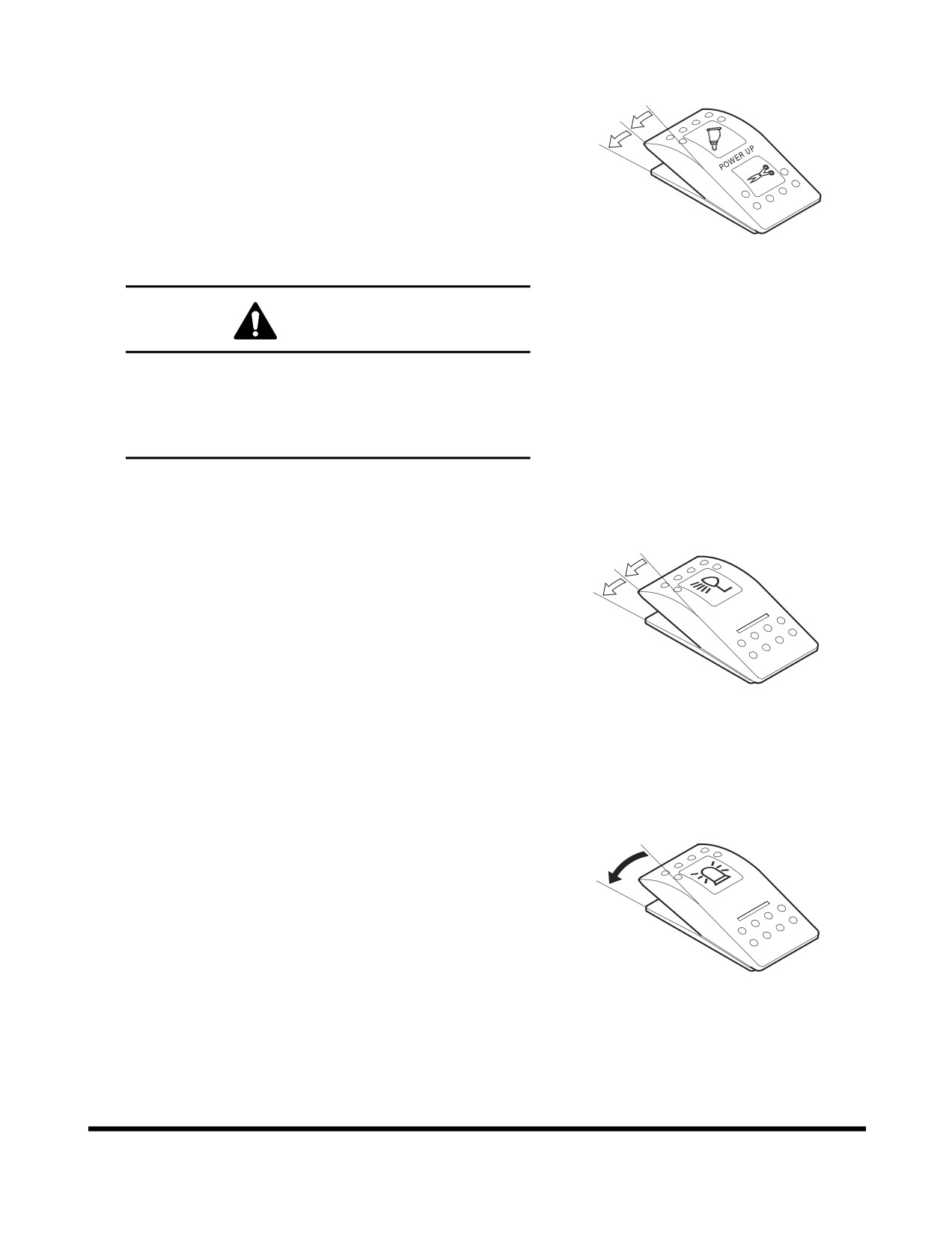

9. Breaker / Boost / Shear Selector

Switch

This switch is used to either select the breaker, power

boost, or shear.

O. In this position, a hydraulic pressure rise will be

activated when pressing the button on the right-hand

work lever (joystick).

In this position, shear is activated.

FG000025

II.

In this position, breaker is activated.

Figure 16

WARNING

Before using any attachment in a work application, be

sure to check its functional control. Make sure that the

desired movement or action is being activated by the

control. e.g. opening/closing, CW/CCW, crowd/dump,

etc.

10. Cabin Work Light Switch (Optional)

This switch is used to control the cabin work lights, if unit is

equipped with them.

O. In this position, all cabin work lights are turned "OFF."

In this position, the front cabin work lights on the front

top of cabin will turn "ON."

II.

In this position, the front cabin work lights on the front

top of cabin and rear cabin work lights on rear top of

cabin will turn "ON."

FG000026

Figure 17

11. Warning Light Switch (Optional)

If unit is equipped with a warning light, push this switch to

activate it.

O. In this position, the warning light is turned "OFF."

In this position, the warning light turns "ON" and will

start flashing.

FG000027

Figure 18

Operating Controls

OP001003

2-12

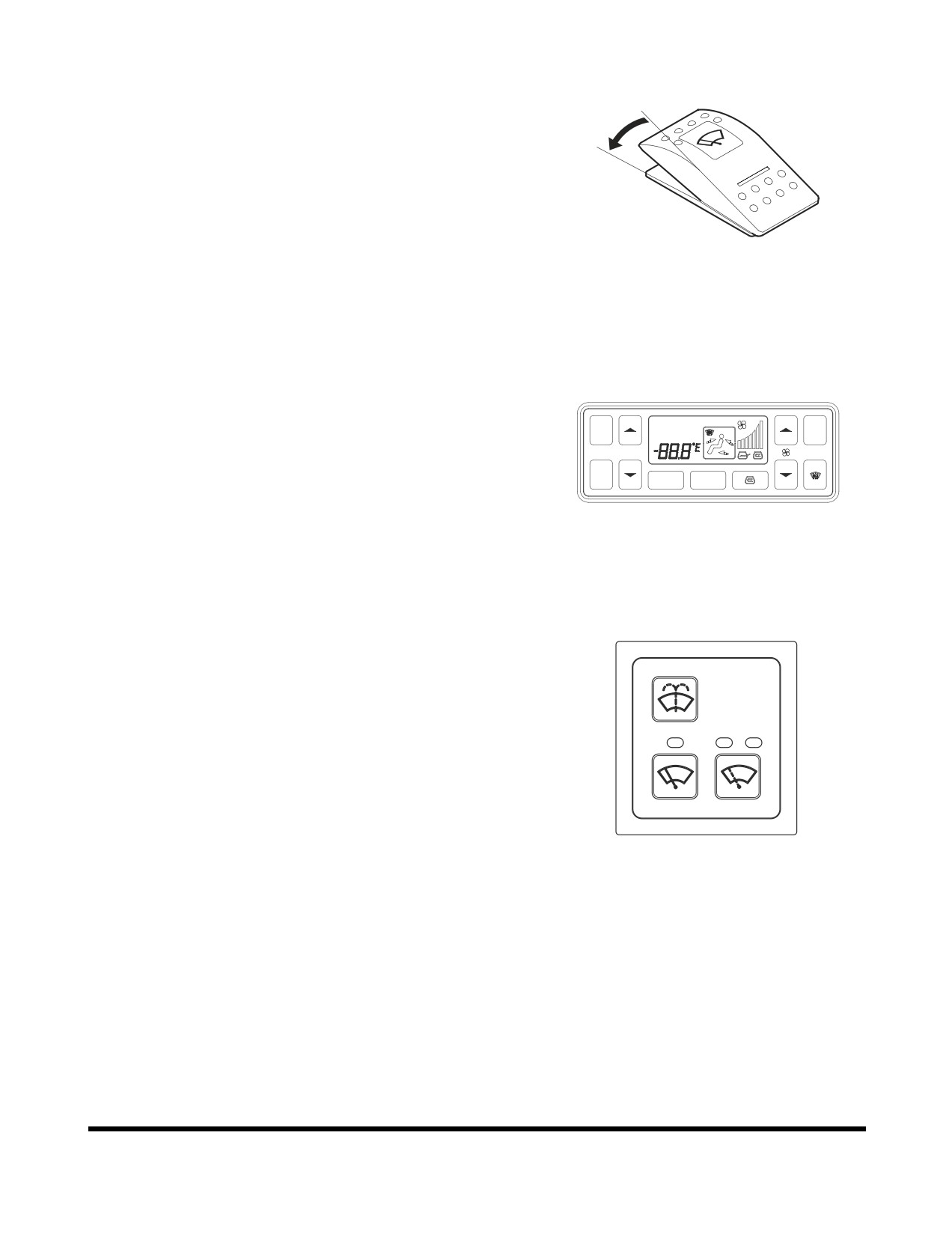

12. Lower Wiper Switch (Optional)

This switch is used to control the lower front window wiper.

O. In this position, lower windshield wiper is "OFF."

In this position, lower windshield wiper runs at a

constant speed.

NOTE: Operating wiper without washer fluid or when

there is sand or dirt present will damage the

window and wiper.

FG000028

Figure 19

13. Heater and Air Conditioner Control

Panel

This panel is used to control air conditioner and heater in

A/C

OUTSIDE

operator's compartment. Refer to

“Heater and Air

AUTO

MAX

A/C

Conditioner Control Panel” on page 2-48 for more details.

TEMP

OFF

SEL

MODE

FG000029

Figure 20

14. Wiper Switch Panel

This panel is only for operation of the upper windshield

wiper. When the wiper stops running, it moves to right side

of the cabin, resting in its support.

NOTE: When the front window is lifted, the wiper motor

will not operate.

FG000308

Figure 21

Operating Controls

OP001003

2-13

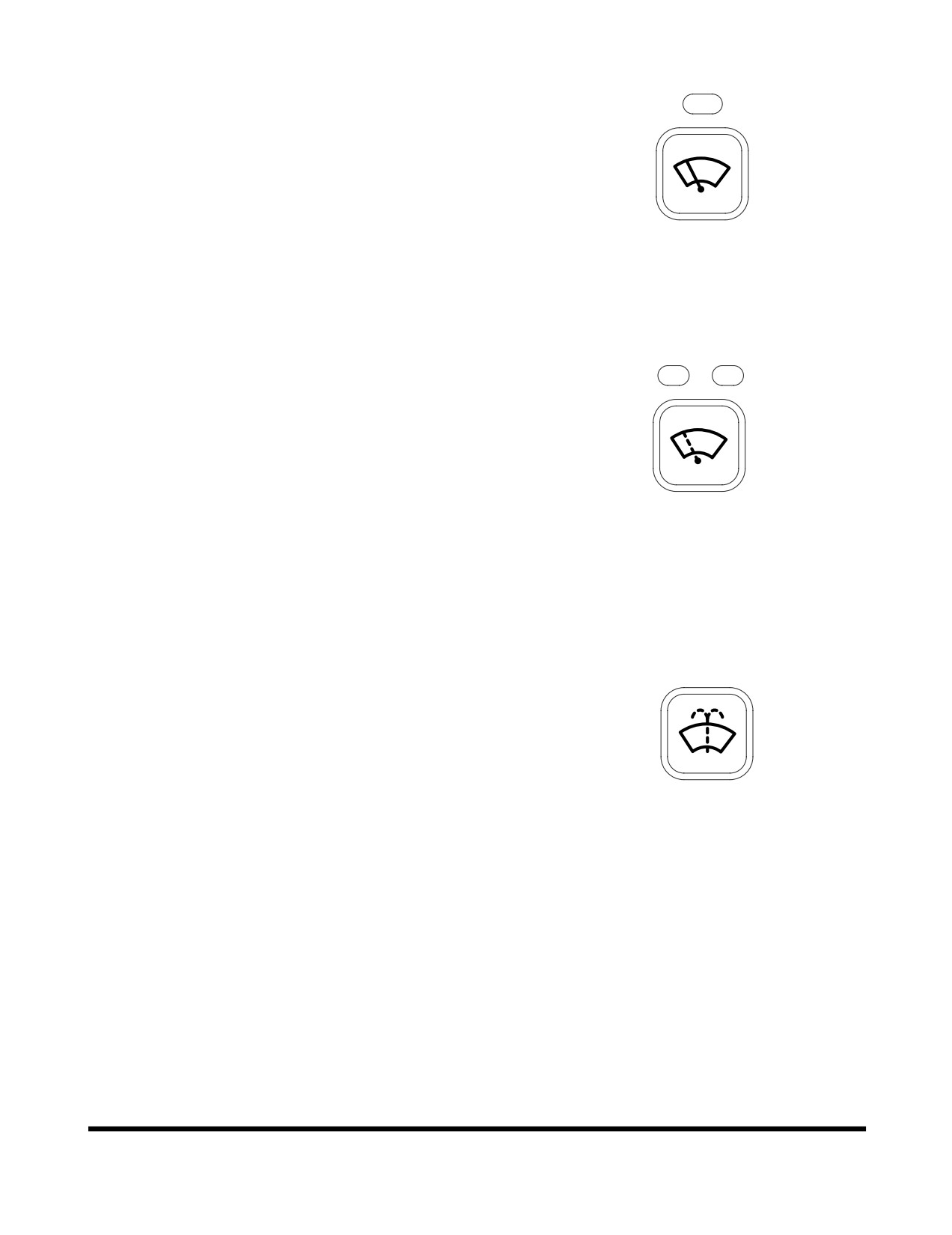

Constant Speed Button

Pressing the button turns "ON" the windshield wiper. An

indicator light above the button will turn "ON" indicating

that the wiper is "ON." The wiper will run at a constant

speed.

Pressing the button again, turns "OFF" the windshield

wiper.

FG000241

Figure 22

Intermittent Speed Button

Pressing button once (first time):

Windshield wiper runs approximately on a three

second intermittent cycle. The left side indicator light

will turn "ON."

Pressing button again (second time):

Windshield wiper runs approximately on a six second

intermittent cycle. The right side indicator light will

turn "ON."

FG000242

Pressing button again (third time):

Figure 23

Turns "OFF" the windshield wiper. Both indicator

lights will be turned "OFF."

Windshield Washer Button

Pressing the washer button will spray windshield washer

fluid onto the windshield. Use only the proper windshield

washer fluid in the system.

NOTE: Do not operate the windshield washer without

any fluid. If operate without any fluid, the

washer motor may be damaged. Check level in

washer tank, and add fluid as required.

NOTE: Using soapy water or synthetic detergent

instead of window cleaning fluid, may damage

FG000243

the wiper blade or painted surfaces. Use

Figure 24

standard window cleaning fluid: SSK703

Operating Controls

OP001003

2-14

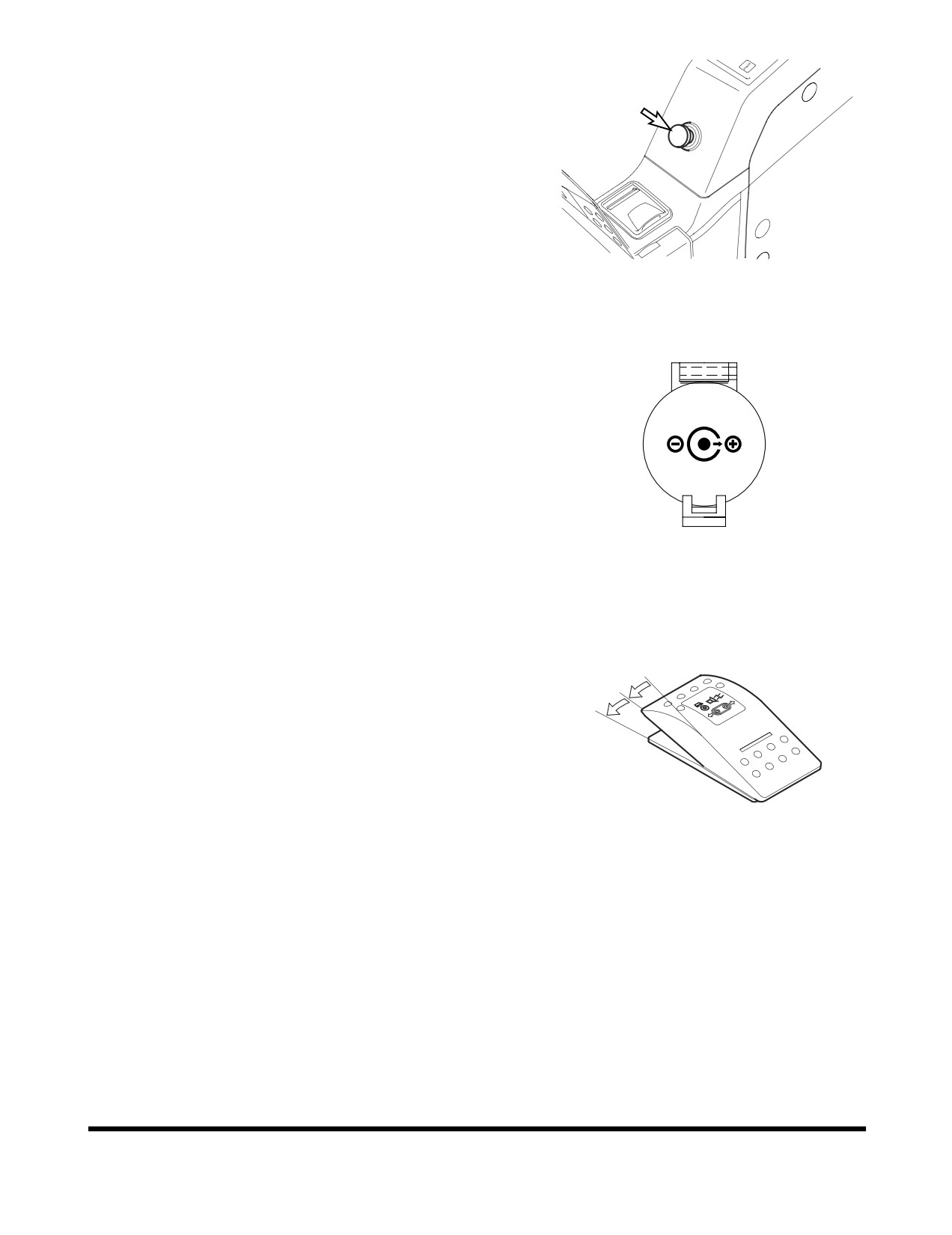

15. Cigarette Lighter

Push the lighter all the way into the socket and release

your hand. After pushing it in, it will be ejected when it is

heated. If it does not eject after a short time, pull it out and

have it serviced.

NOTE: This cigarette lighter is for

24V only. Never

connect a 12V electrical device to the lighter.

FG000030

Figure 25

16. Power Socket for 12 Volt

This is a power socket for only 12V DC devices.

This socket can be used for charging a cellular phone or

powering a small 12V DC electrical device.

Open the cap when using it.

12 V

NOTE: This socket is designed for small electrical

capacity devices. Do not use this socket for

large electrical capacity devices. Thus, damage

can be avoided.

HAAE1990

Figure 26

17. Travel/Swing Alarm Switch (Optional)

If unit is equipped with a travel/swing alarm buzzer, push

this switch to active it, whenever swinging or traveling.

O. In this position, the travel/swing alarm system is

turned "OFF."

In this position, the travel alarm will only sound, when

the machine is moving.

II.

In this position, the travel/swing alarm will sound

while swinging and traveling, if equipped with a swing

FG000031

alarm device.

Figure 27

NOTE: If machine is only equipped with a travel

alarm device, the alarm will not sound

when swinging although the switch is in

the "II" position.

Operating Controls

OP001003

2-15

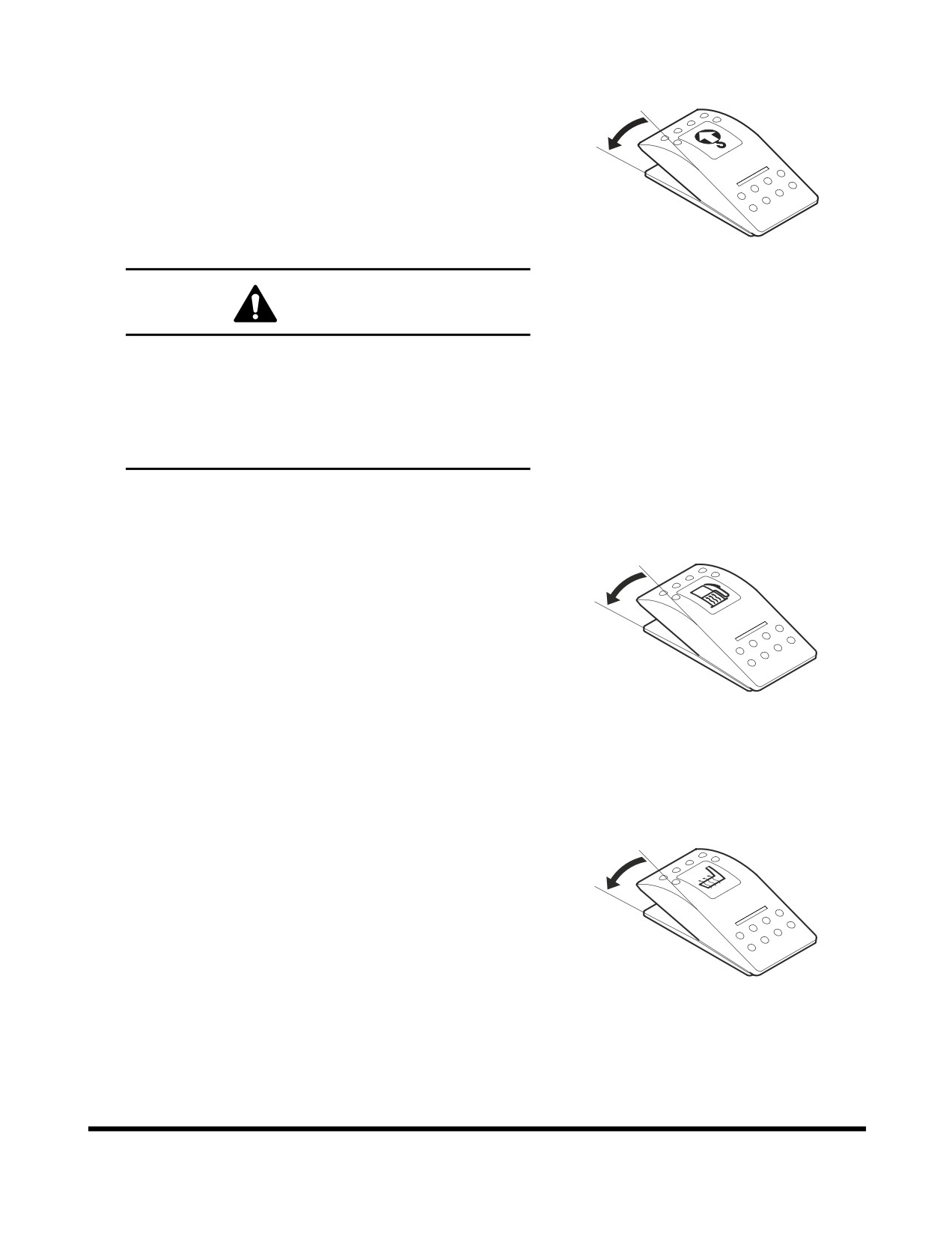

18. Overload Warning Switch (Optional)

If unit is equipped with an overload warning device, push

this switch to activate it.

O. In this position, the overload warning device is turned

"OFF."

In this position, when a load is lifted that reaches the

machine safe lifting limit, a warning light on the

instrument panel will turn "ON" and a warning buzzer

will sound.

FG000032

Figure 28

WARNING

To prevent injury, do not exceed the rated load

capacity of the machine. If the machine is not on level

ground, load capacities will vary. There may be local

government regulations about the use of excavators

for lifting objects.

Please observe these regulations.

19. Fuel Heater Switch (Optional)

This switch is used to activate the fuel heater system.

When the switch is activated, the fuel is warmed,

depending upon the temperature of the fuel.

NOTE: If the fuel temperature is above 5°C (41°F),

heating system is not activated.

O. In this position, the fuel heater system is turned

"OFF."

In this position, the fuel heater system is turned "ON."

FG000033

Figure 29

NOTE: The starter switch must be "ON."

20. Seat Warmer Switch (Optional)

If the seat is equipped with the optional seat warmer, push

this switch to activate it.

When the seat is warmed, the warmer is automatically

turned "OFF."

O. In this position, the seat warmer is turned "OFF."

In this position, the seat warmer is turned "ON."

NOTE: The starter switch must be "ON" with the engine

FG000034

running, for the heater to operate.

Figure 30

Operating Controls

OP001003

2-16

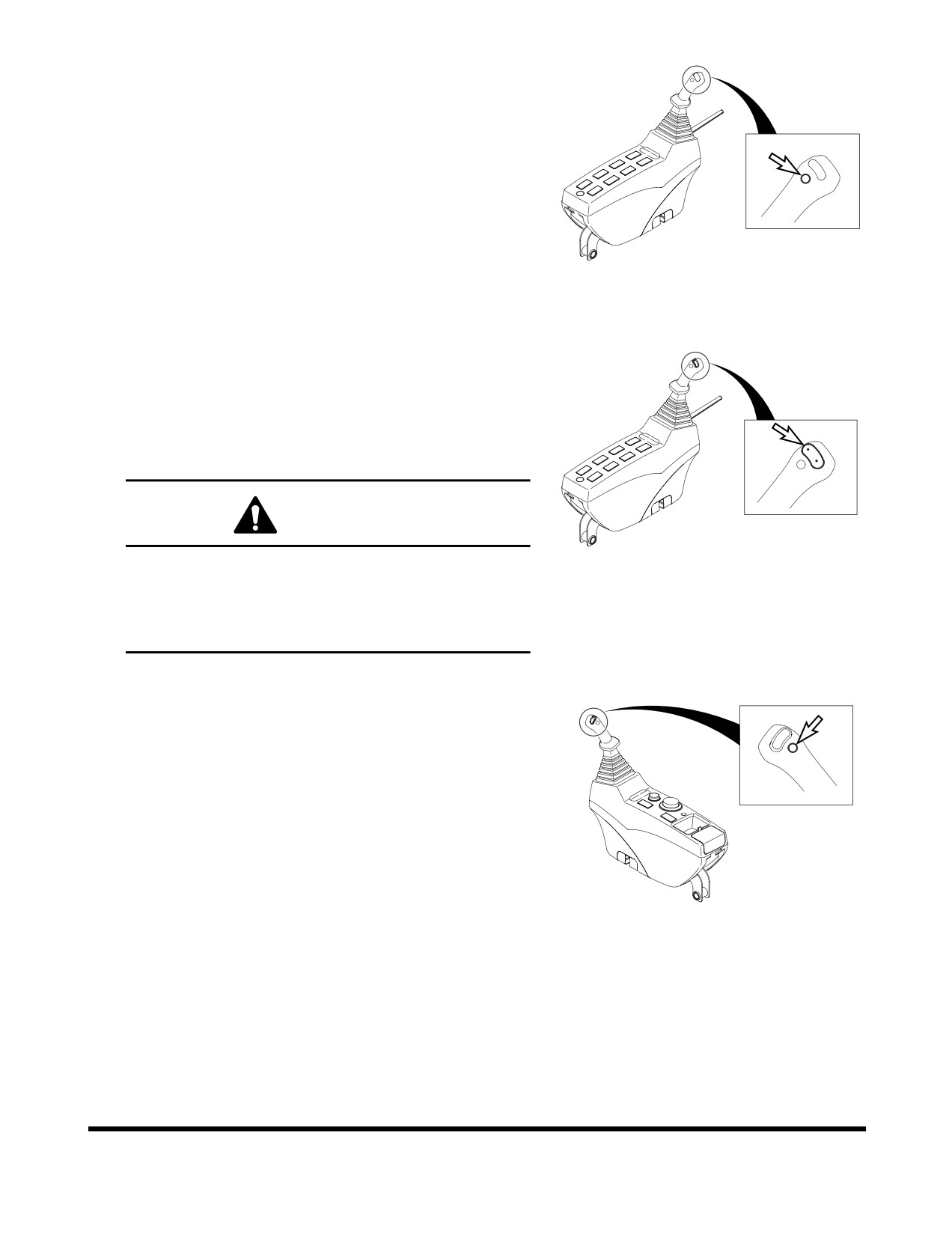

21. Horn Button (Left-hand Work Lever)

Press the lower button on the top of the left-hand work

lever (joystick) to sound horn.

NOTE: The starter switch must be "ON."

FG002084

Figure 31

22. Rotating Buttons

For a machine equipped with an attachment that rotates,

press the upper two buttons on the top of the left-hand

work lever (joystick) to rotate the attachment clockwise or

counterclockwise. Left button is for counterclockwise and

the right one is for clockwise.

WARNING

FG000382

Figure 32

Before using any attachment in a work application, be

sure to check its functional control. Make sure that the

desired movement or action is being activated by the

control. e.g. opening/closing, CW/CCW, crowd/dump,

etc.

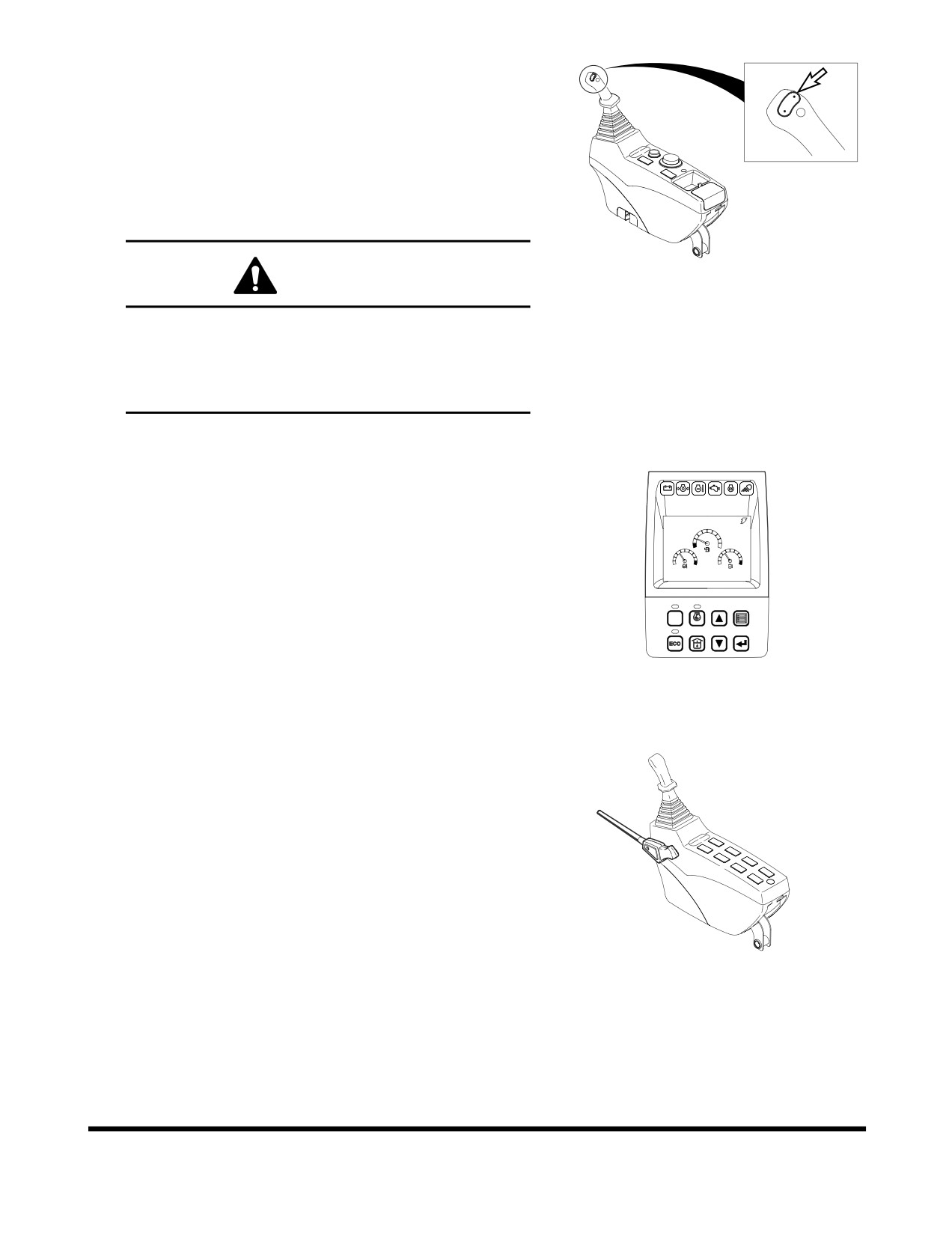

23. Booster Button (Right-hand Work

Lever)

Press the lower button on the top of the right-hand work

lever (joystick) to boost the hydraulic pressure. Refer to the

“Boost Mode” on page 3-21.

NOTE: This button works with the breaker/boost/shear

selector switch. See “9. Breaker / Boost / Shear

Selector Switch” on page 2-12.

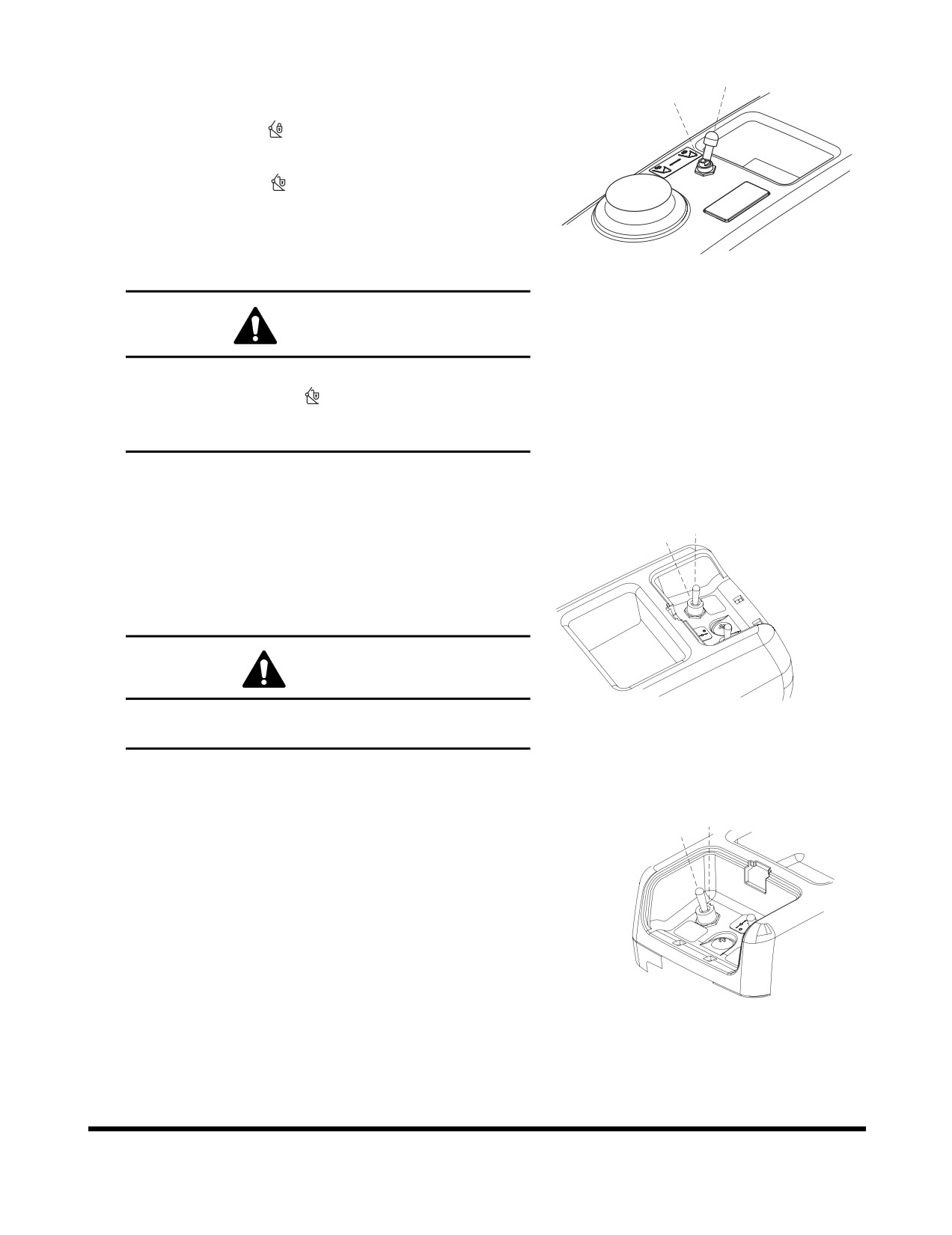

FG000036

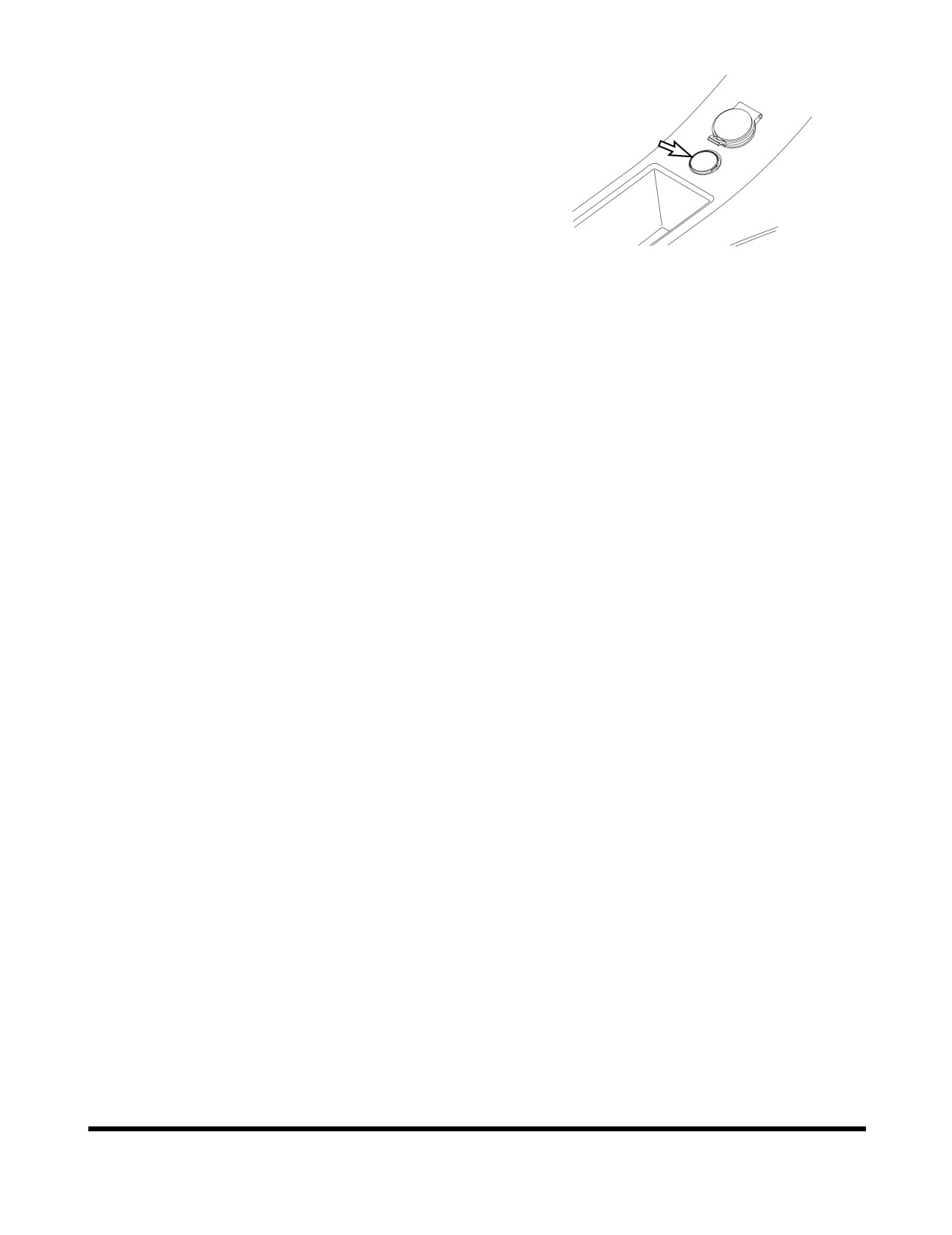

Figure 33

Operating Controls

OP001003

2-17

24. Shear Buttons

For a machine equipped with shear, press the two upper

buttons on the top of the right-hand work lever (joystick) to

open or close the shear. Left button is for closing (crowd),

right button is for opening (Dump).

NOTE: These buttons work with the breaker/boost/

shear selector switch. See “9. Breaker / Boost /

Shear Selector Switch” on page 2-12.

FG000383

Figure 34

WARNING

Before using any attachment in a work application, be

sure to check its functional control. Make sure that the

desired movement or action is being activated by the

control. e.g. opening/closing, CW/CCW, crowd/dump,

etc.

25. Instrument Panel

CHECK

See “Instrument Panel” on page 2-20.

02/05 [MO] 11:30

E/G SPEED

1700

RPM

POWER

AUTO

ESC

FG015471

Figure 35

26. Safety Lever

See “Safety Lever” on page 3-13.

FG000038

Figure 36

Operating Controls

OP001003

2-18

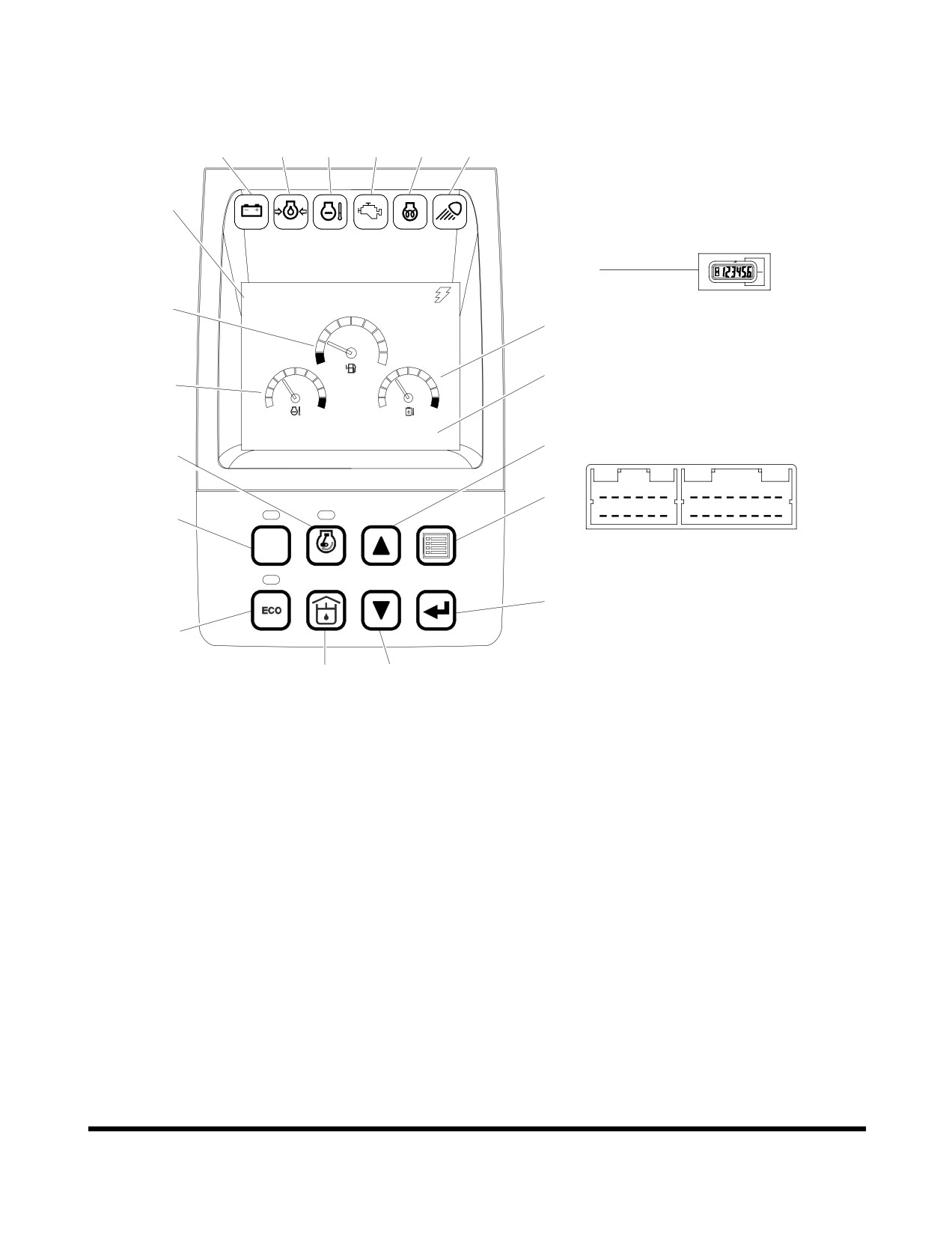

Reference

Description

Number

Fuel Gauge

Work Light Indicator Light

Engine Coolant Temperature

Power Mode Selector Button

Gauge

(See page 2-33)

Hydraulic Oil Temperature

Economy Mode Selector Button

Gauge

(See page 2-33)

Multifunction Gauge and Graphic

Auto Idle Selector Button

Information Area (See page

(See page 2-34)

2-27)

Flow Control Button

Digital Clock

(See page 2-34)

Hour Meter

Up Arrow Button

(See page 2-35)

Charge Warning

Engine Oil Pressure Warning

Down Arrow Button

Light

(See page 2-36)

Display Selector Button

Engine Coolant Temperature

(See page 2-36)

Warning Light

Engine Check Warning Light

Selection Button

(See page 2-36)

Preheat Indicator Light

Functional check

When the engine starter switch is turned to the "I" (ON) position,

all gauge bands, switch/button indicator lights and warning lights

will turn "ON" and the alarm buzzer will sound about two

seconds.

During this functional check, a LOGO will appear on the multi

function gauge in the graphic information area (3 and 4, Figure

38).

Password Activated

If a password has already been set and the system has been

"LOCKED," the password display will appear on the screen once

the functional check has been completed. Enter the password

into the text area and then engage the starter.

NOTE: Refer to

“Set Password

(Lock and Unlock)” on

page 2-42, for further details.

CAUTION

If the password does not match the stored password, the

engine will not start.

Operating Controls

OP001003

2-21

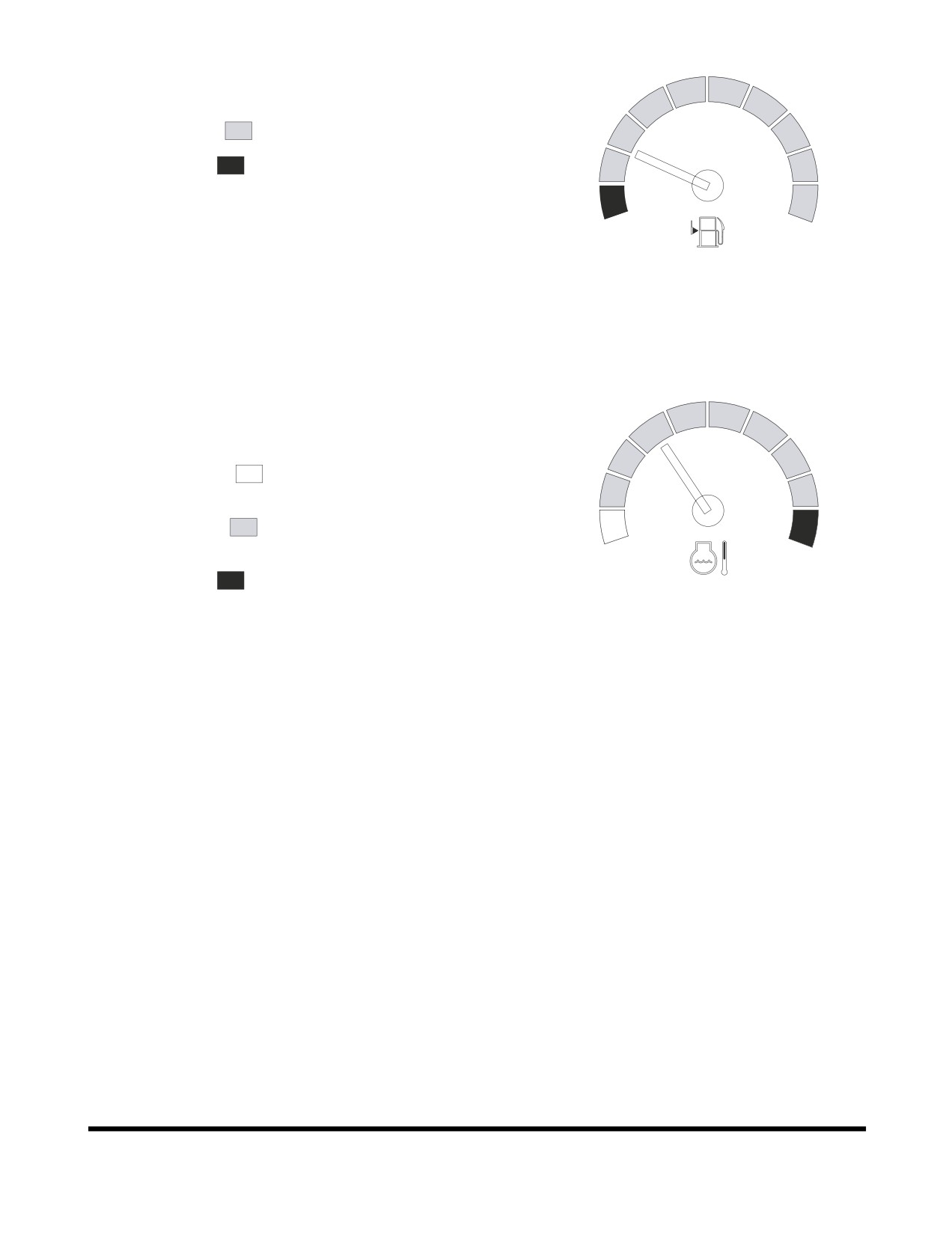

1. Fuel Gauge

Shows remaining fuel quantity in tank.

BLUE ZONE (

) - Indicates a normal fuel quantity.

RED ZONE (

) - Indicates that the fuel level is low.

If the gauge pointer moves into the red zone, the fuel level

symbol will turn "ON," and be display in the screen. Stop

operation and immediately and add fuel.

FG000040

NOTE: See “Abnormal State Warning Symbols” on

page 2-29, for location of this warning symbol

Figure 39

and others.

Check the fuel level on firm, level ground.

Engine Coolant Temperature Gauge

The colored bands indicate the temperature of the engine

coolant.

WHITE ZONE (

) - Indicates temperature is lower than

the normal operating temperature.

BLUE ZONE (

)

- Indicates temperature is within the

normal operating range.

RED ZONE (

) - Indicates temperature is too high.

FG000041

During operation, the pointer must be in the blue zone.

Figure 40

If the gauge pointer moves into the red zone, the engine

coolant temperature warning light will turn "ON," a warning

buzzer will sound, and the engine speed will be

automatically reduced. Allow the engine to run at low idle

speed until the temperature gauge registers in the blue

zone again. When the blue zone is reached, allow the

engine to idle for an additional three - five minutes before

shutting down the engine. If not allowed to idle, heat surge

may develop which will damage the engine. Allowing the

engine to idle will dissipate heat. Check the coolant level,

look for a loose fan belt, inspect for debris around radiator,

and so on.

When the temperature reaches the normal range, the

engine speed will automatically recover.

Operating Controls

OP001003

2-22

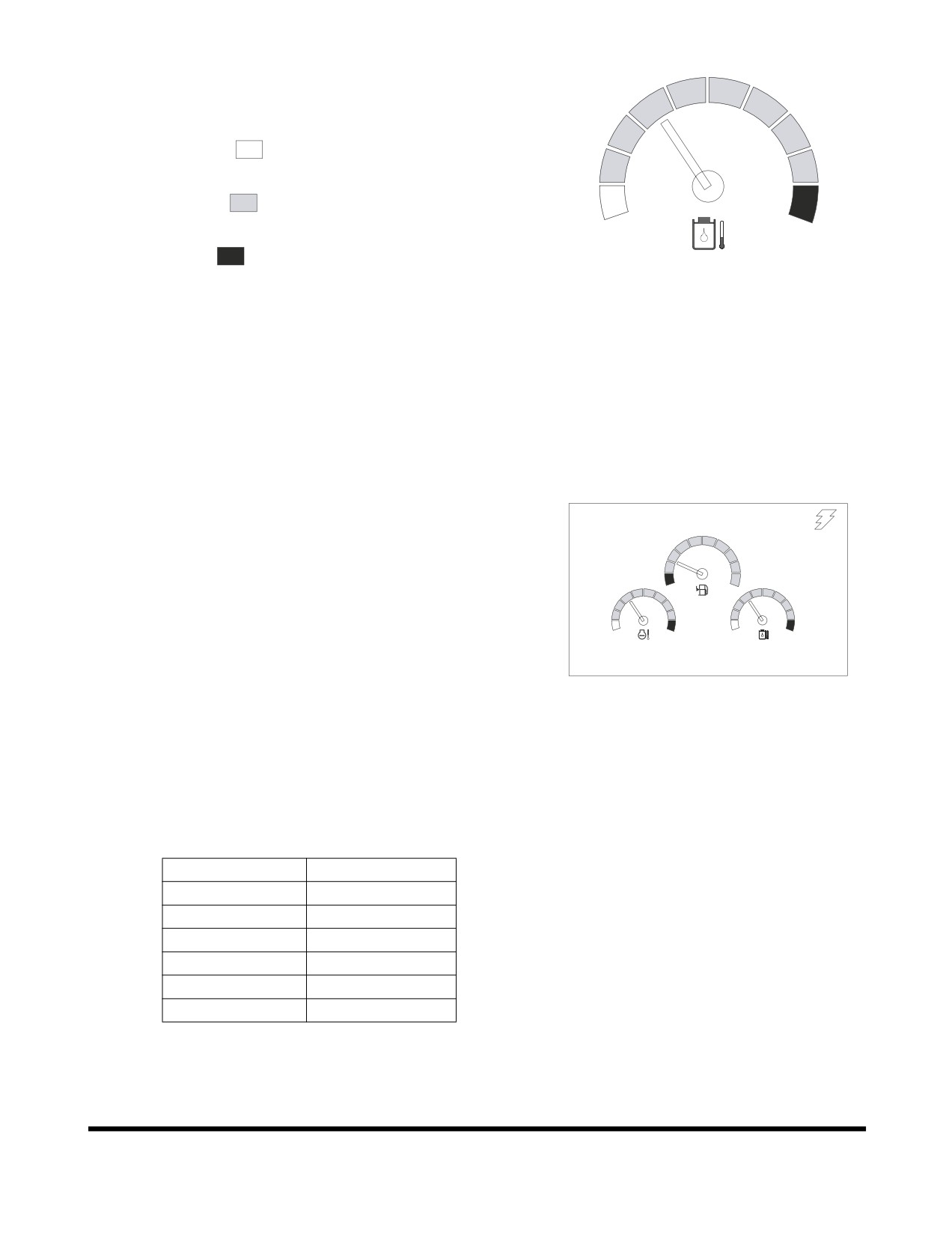

3. Hydraulic Oil Temperature Gauge

The colored bands indicate the temperature of the

hydraulic oil

WHITE ZONE (

) - Indicates temperature is lower than

the normal operating temperature.

BLUE ZONE (

)

- Indicates temperature is within the

normal operating range.

RED ZONE (

) - Indicates temperature is too high.

FG000042

Figure 41

During operation, the pointer must be in the blue zone.

If the gauge pointer moves into the red zone, the hydraulic

oil temperature symbol will turn "ON," and be display in the

screen. Allow the engine to run at low idle speed until the

temperature gauge registers in the blue zone again.

NOTE: See “Abnormal State Warning Symbols” on

page 2-29, for location of this warning symbol

and others.

4. Multifunction Gauge and Graphic

02/05 [MO] 11:30

Information Area

See “Multifunction Gauge and Graphic Information” on

page 2-27. This section will have a more in-depth

explanation of the display area.

E/G SPEED 1700 RPM

FG000043

Figure 42

5. Digital Clock

A digital clock, shows the current time. The displayed

contents are as follows.

Display

Description

MM/DD [W] HH:mm

Month

Date

Day

Hour

FG000044

Minute

Figure 43

A (P)

AM (PM)

Refer to the “Setting Main Menu” on page 2-35 for time

setting.

Operating Controls

OP001003

2-23

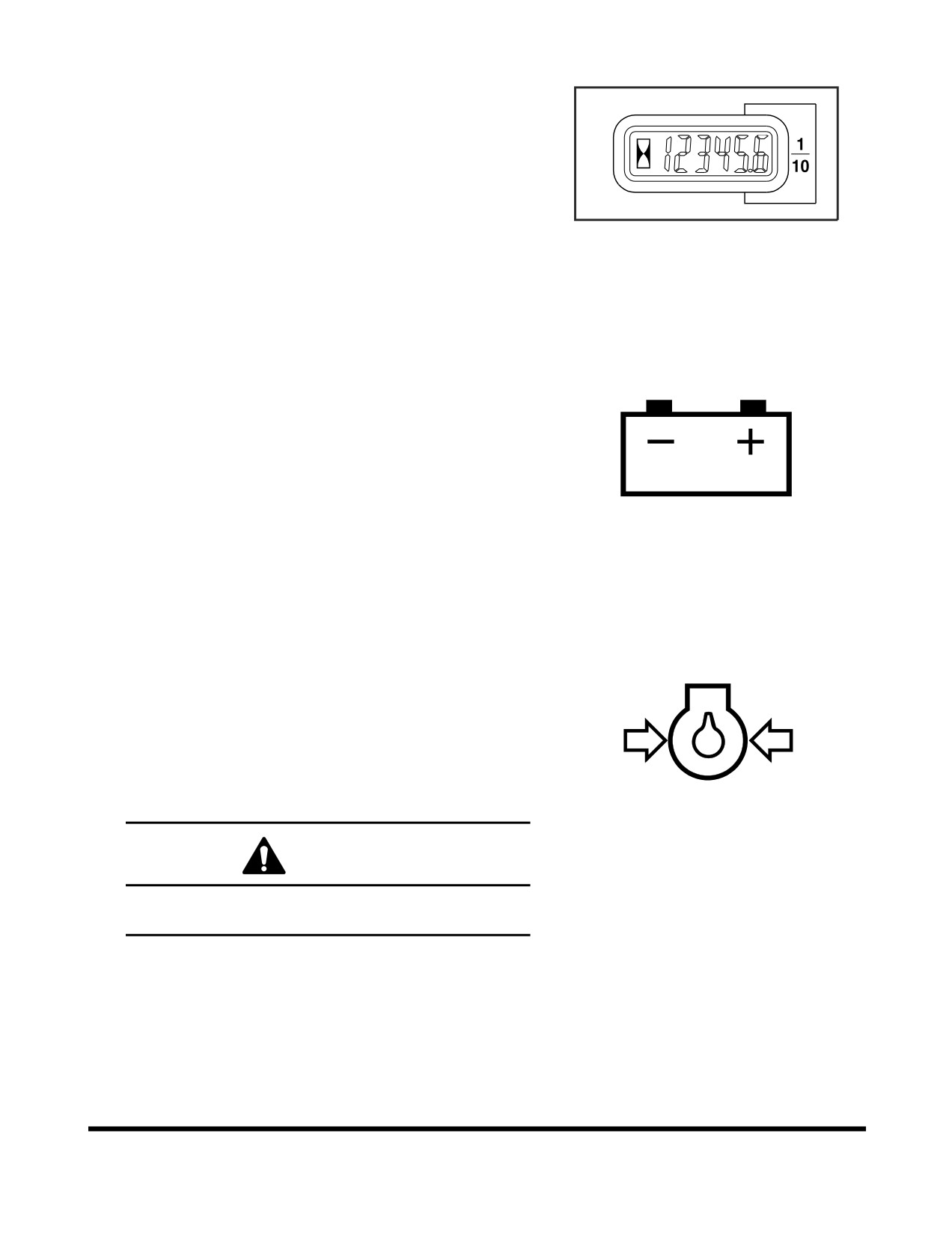

6. Hour Meter

The hour meter is used to indicate the total number of

running hours on the engine. The meter will flash every

four seconds when the engine is running to indicate that it

is functioning properly.

HAOA601L

Figure 44

7. Charge Warning

This symbol indicates when the engine starter switch is

turned "ON," and should go "OFF" after the engine starts. If

it does not turn "OFF," shut the engine down immediately

and determine the cause of the problem.

HAOA610L

Figure 45

8. Engine Oil Pressure Warning

This symbol indicates when the engine starter switch is

turned "ON," and should go "OFF" after the engine starts.

For example, if the engine oil pressure becomes too low,

the light will turn "ON" and a warning buzzer will sound. If

this happens, shut the engine down immediately and

determine the cause of the problem. If you continue to

work when this light is "ON," it will result in serious engine

damage.

HAOA620L

Figure 46

CAUTION

If you continue to work when this light is "ON," it will

result in serious engine damage.

Operating Controls

OP001003

2-24

Engine Coolant Temperature Warning

If engine coolant overheats, this symbol appears on the

screen an alarm will sound, and the engine speed will be

automatically reduced, until coolant temperature drops. Do

not turn engine "OFF" because this will cause coolant

temperature to rise and may cause engine to siege due to

heat surge.

NOTE: Check the engine coolant temperature gauge. If

the gauge pointer moves into the red zone, the

engine coolant temperature warning light will

HAOD350L

turn "ON," a warning buzzer will sound, and the

Figure 47

engine speed will be automatically reduced.

Allow the engine to run at low idle speed until

the temperature gauge registers in the blue

zone again. When the blue zone is reached,

allow the engine to idle for an additional three -

five minutes before shutting down the engine. If

not allowed to idle, heat surge may develop

which will damage the engine. Allowing the

engine to idle will dissipate heat. Check the

coolant level, look for a loose fan belt, inspect

for debris around radiator, and so on.

When the temperature reaches the normal

range, the engine speed will automatically

recover.

10. Engine Check Warning

This symbol indicates when the engine needs to be check.

NOTE: If this symbol turns "ON" stop the machine and

repair the cause of the fault.

CHECK

FG000045

Figure 48

Operating Controls

OP001003

2-25

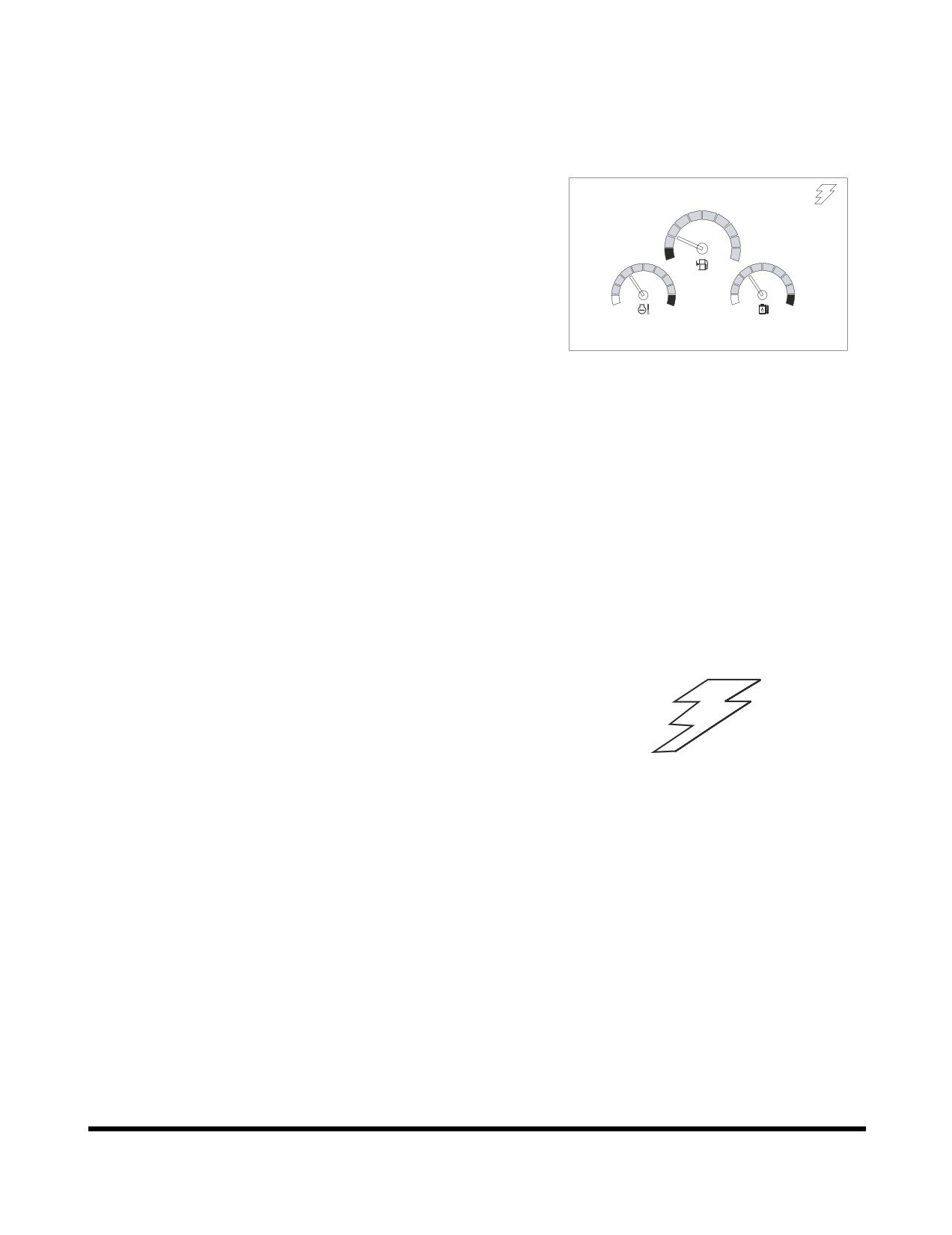

MULTIFUNCTION GAUGE AND

GRAPHIC INFORMATION

When the engine starter switch is turned to the "I" (ON) position,

a LOGO will appear on the display screen for about two

02/05 [MO] 11:30

seconds.

When the LOGO disappears, the multifunction gauge and

graphic information screen will appear.

The engine rpm is normally displayed at the bottom of the

screen when the starter switch is first turned "ON." Each time the

display selector button (19, Figure 38) is pressed, the digital

readout changes in the following sequence; Engine speed

E/G SPEED 1700 RPM

(RPM) -> Battery voltage (VOLT) -> Front pump pressure (BAR)

FG000043

-> Rear pump pressure (BAR).

Figure 51

NOTE: See Figure 54 thru Figure 57.

A digital clock is located at the top of the display.

By using a combination of the mode selector buttons,

information for filters and oils can also be displayed.

The display can also be set for the desired language.

Refer to the “Setting Main Menu” on page 2-35 for the language

selection and information display sequences.

Communication Indicator

Indicates the condition of communication between main

controller and instrument panel.

Normal Condition:

The symbol will sequentially move like lightening.

NOTE: See Figure 54 thru Figure 57.

Abnormal Condition:

If the symbol is not displayed, it means there is a

FG000047

communication error.

Figure 52

NOTE: See Figure 53.

Operating Controls

OP001003

2-27

Communication Error Warning

If a communication error is generated between e-EPOS

controller and instrument panel, this symbol will be displayed.

When this symbol is displayed, contact a DOOSAN distributor or

sales agency.

NOTE: If a communication error occurs during operation, the

last mode setting is stored. e.g. power mode, work

mode and auto idle are stored during failure.

NOTE: When starter switch is turned to the "I" (ON) position

FG000048

during a state of communication error failure, the

Figure 53

e-EPOS controller will default to the following modes.

Power mode: Standard mode

Working mode: Digging mode

Auto idle: "ON" (Selection state)

Engine Speed

The engine speed is numerically displayed.

E/G SPEED 1700 RPM

FG000049

Figure 54

Battery Voltage

The battery voltage is numerically displayed. With the engine

running, the reading should be between 26V - 30V.

When the starter is engaged or the preheat system is being

used, the voltage can temporarily drop below 24V, but this is a

BATTERY 28.0 VOLT

normal condition.

FG000050

Figure 55

Operating Controls

OP001003

2-28

Front Hydraulic Pump Pressure

The front pump pressure is numerically displayed.

NOTE: This pump is closest to engine flywheel housing

or is the upper one of hydraulic pump.

FRONT PUMP 320 BAR

It displays the reading in BARs.

FG000051

Figure 56

Rear Hydraulic Pump Pressure

The rear pump pressure is numerically displayed.

NOTE: This pump is the farthest from engine flywheel

housing or is the lower one of hydraulic pump.

REAR PUMP 313 BAR

It displays the reading in BARs.

FG000052

Figure 57

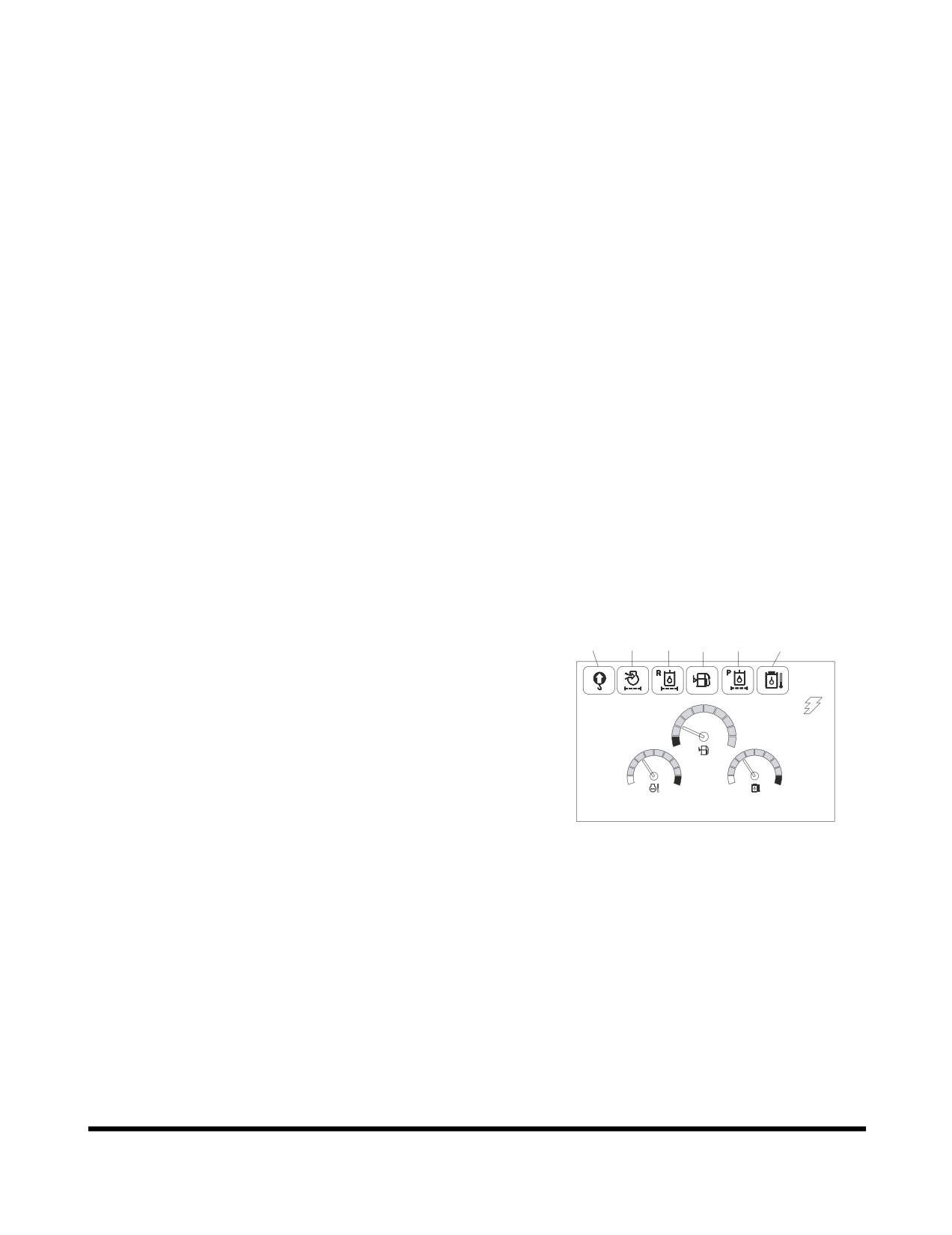

Abnormal State Warning Symbols

Hydraulic Oil Overheating Warning

Pilot Filter Clogged Warning

Fuel Shortage Warning

Return Filter Clogged Warning

Air Cleaner Clogged Warning

Overload Warning (Optional)

E/G SPEED 1700 RPM

FG001088

Figure 58

Operating Controls

OP001003

2-29

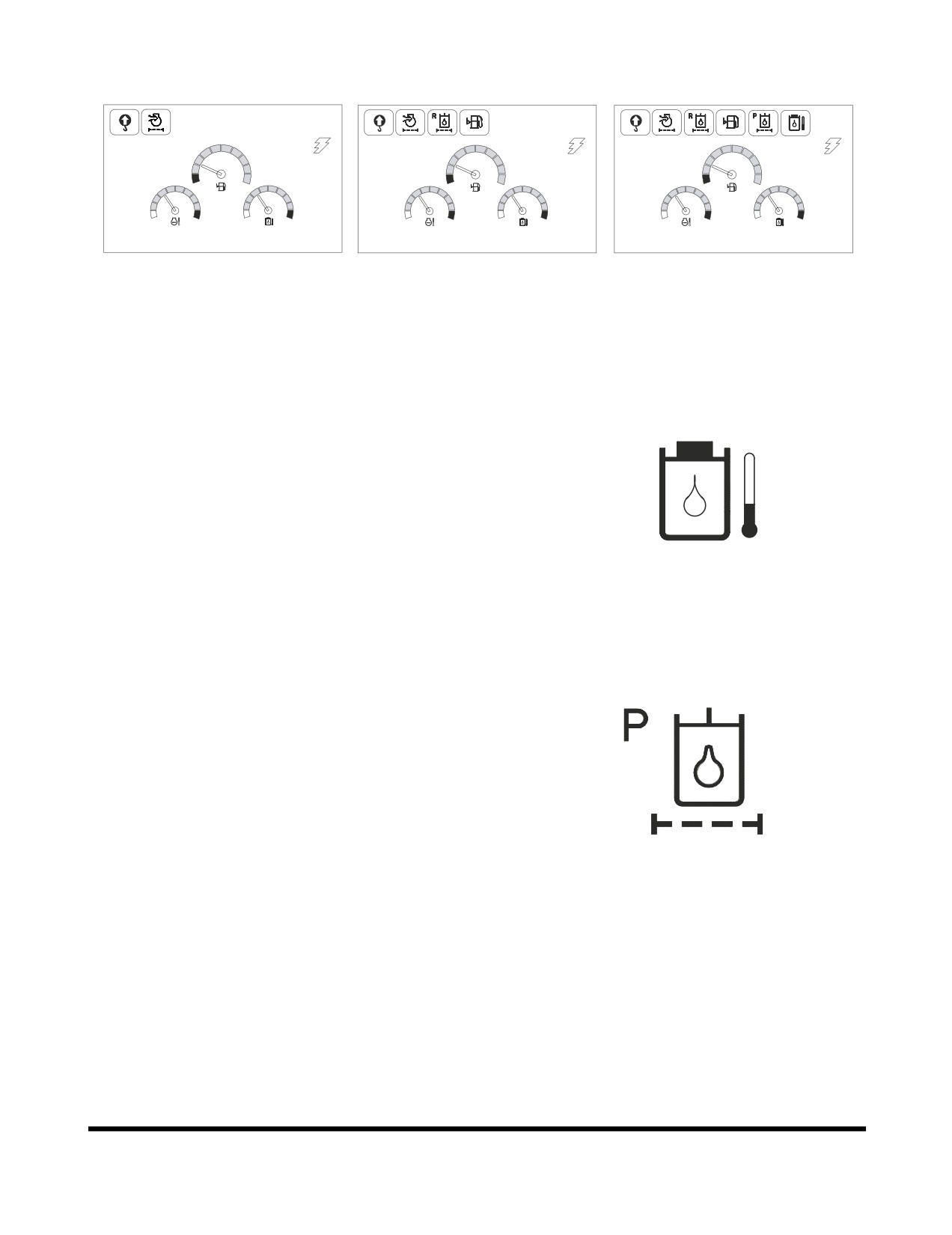

Examples of Warning Display

02/05 [MO] 11:30

02/05 11:30

E/G SPEED 1700 RPM

FG000059

FG000060

FG000061

<2 kinds of warning display>

<4 kinds of warning display>

<6 kinds of warning display>

Figure 59

Hydraulic Oil Overheat Warning

If the hydraulic oil temperature is too high, this symbol

appears on the screen.

FG000056

Figure 60

Pilot Filter Clogged Warning

This symbol indicates when the pilot filter clogged.

If this symbol is displayed, immediately stop operation and

replace the pilot filter.

After the pilot filter has been serviced, restart machine

operation to remove the warning symbol.

FG000055

Figure 61

Operating Controls

OP001003

2-30

Fuel Shortage Warning

If the fuel quantity is too low, this symbol appears on the

screen.

If this light turns "ON," add fuel as soon as possible.

FG000057

Figure 62

Return Filter Clogged Warning

This symbol indicates when the hydraulic return filter is

clogged.

If this symbol is displayed, immediately stop operation and

replace the return filter.

After the return filter has been serviced, restart machine

operation to remove the warning symbol.

FG000054

Figure 63

Air Cleaner Clogged Warning

This symbol indicates when the air cleaner is clogged.

If this symbol is displayed, immediately stop operation and

replace or clean the air filter.

After the air filter has been serviced, restart machine

operation to remove the warning symbol.

FG000053

Figure 64

Operating Controls

OP001003

2-31

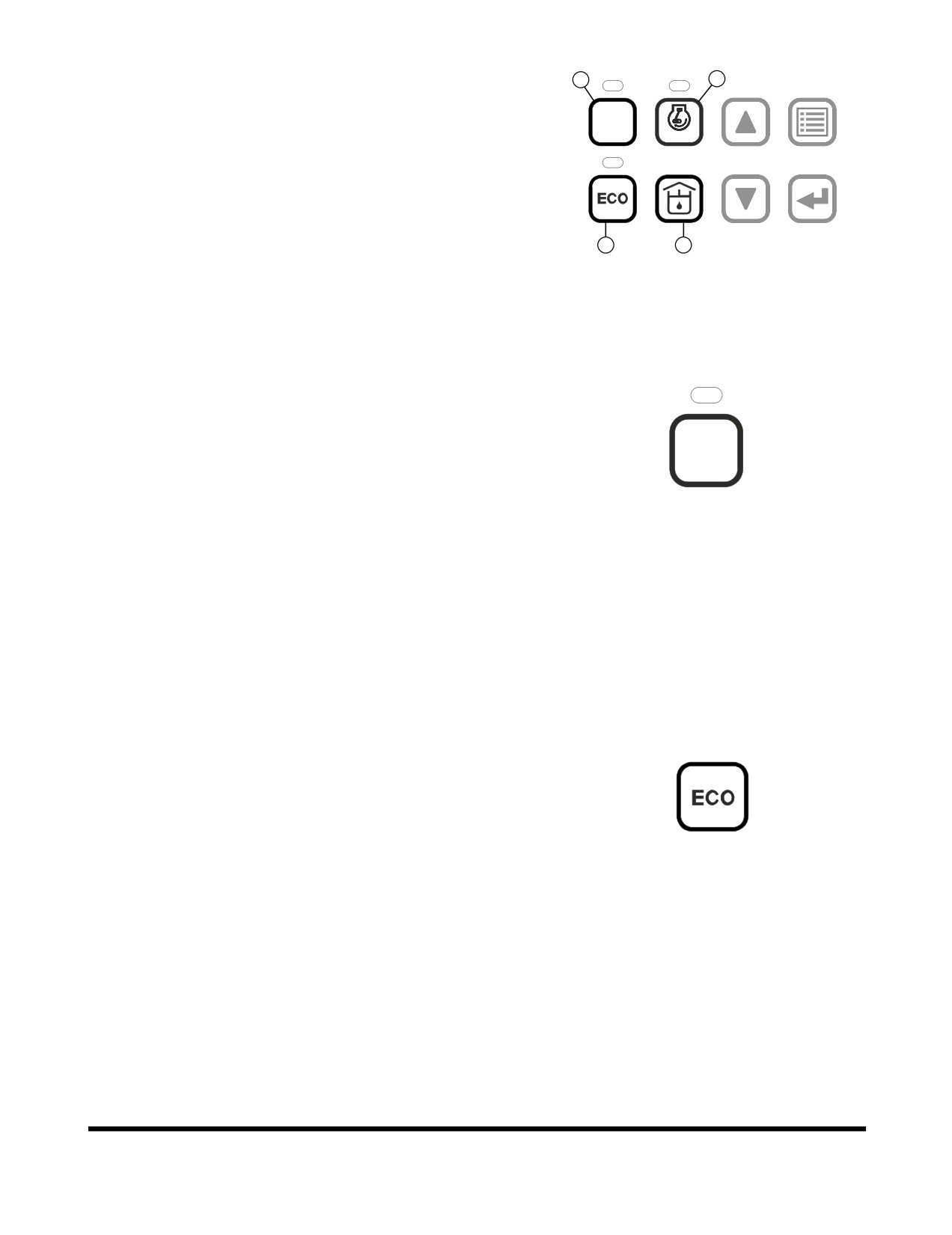

MODE SELECTOR BUTTONS

Power Mode Selector Button

POWER

Economy Mode Selector Button

AUTO

ESC

Auto Idle Selector Button

Flow Control Button

FG015507

Figure 66

1. Power Mode Selector Button

This power mode is suitable for heavy-duty work that

requires a high operating speed. Push this button to turn

power mode "ON" or "OFF."

When the power mode button is pushed to the "ON"

POWER

position, an indicator light above it turns "ON."

When the power mode button is pushed again, it is turned

"OFF" and the power mode is deactivated and returns to

the standard operating mode.

FG000063

When turning the engine starter switch to the "I" (ON)

Figure 67

position, the power mode is automatically defaulted to

"Standard Mode."

NOTE: For further details, see "“Mode Selection” on

page 3-19.

2. Economy Mode Selector Button

Economy mode is used for light loading work, when this

mode selected it will reduce noise and fuel consumption

with standard mode.

When the economy mode button is pushed to the "ON"

position, a symbol appears on the screen.

NOTE: When the economy mode button is pushed

again, it is turned "OFF" and the economy mode

is deactivated and returns to the standard

FG015473

operating mode.

Figure 68

Operating Controls

OP001003

2-33

3. Auto Idle Selector Button

When the auto idle system is activated, the engine will

automatically reduce speed to "IDLE" approximately four

seconds after all of the control levers are in the neutral

position. This system is designed to reduce fuel

consumption and noise.

AUTO

When the auto idle selector button is pushed to the "ON"

position, an indicator light above it turns "ON."

When the auto idle selector button is pushed again, it is

FG000065

turned "OFF" and the engine speed will return to the

Figure 69

setting of the engine speed dial and will remain at this

speed despite control lever position, until the engine speed

dial is moved.

4. Flow Control Button

When the button is pushed, you can control the hydraulic

oil flow rate.

The flow control button is used to set the flow rate of pump

to match the installed tool/attachment for optimal

performance, without damaging it.

NOTE: For further details, see "“Flow Control” on

page 2-44.

FG000066

Figure 70

Operating Controls

OP001003

2-34

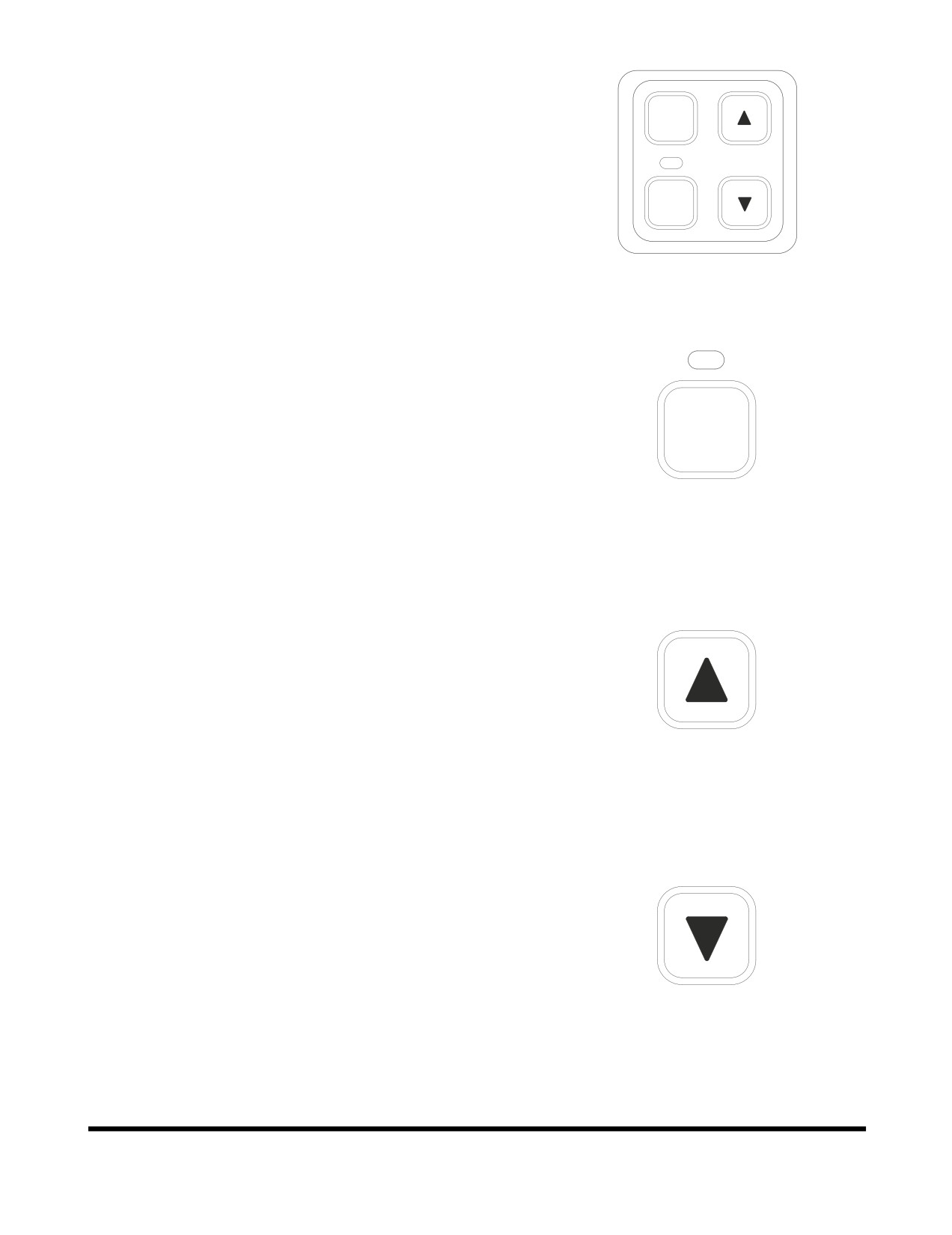

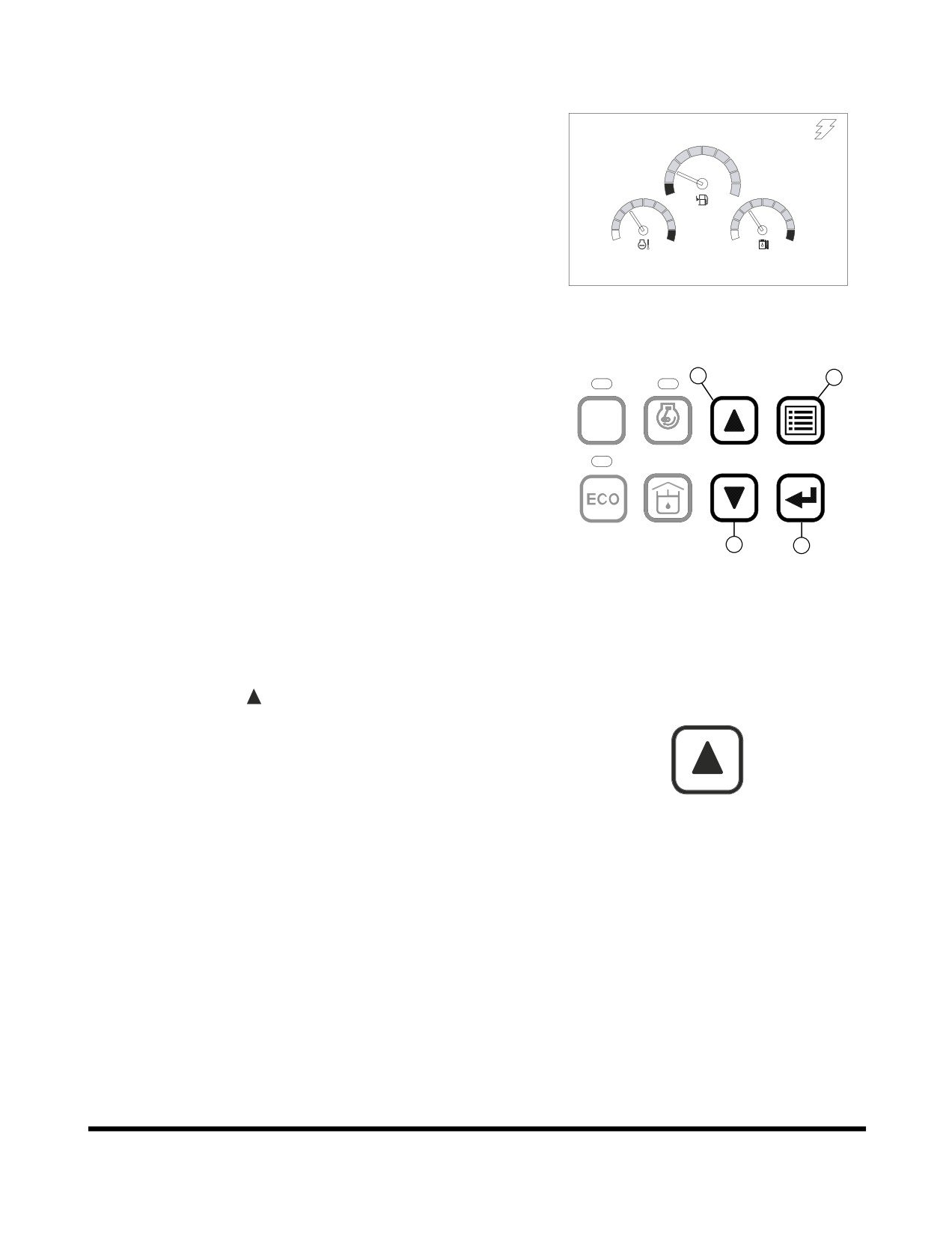

2. Down Arrow Button

Down arrow button (

), is used to move a menu item

"Down" or to the "Right."

FG000069

Figure 74

3. Display Selector Button (ESC - Escape)

Display selector button

(

), is used to change the

displayed information on the screen. Each time the display

selector button is pressed, the digital readout changes.

NOTE: When setting the main menu, this button is used

as the menu / exit button (ESC). To access the

menus the button must be pressed and held for

three seconds.

NOTE: When this button is used for menu / exit button,

FG000070

it is used to access to main menu or return to a

Figure 75

previous screen from each submenu.

4. Selection Button

Selection button (

), is used to set a menu or clear the

operating hour of filter/oil.

FG000071

Figure 76

Operating Controls

OP001003

2-36

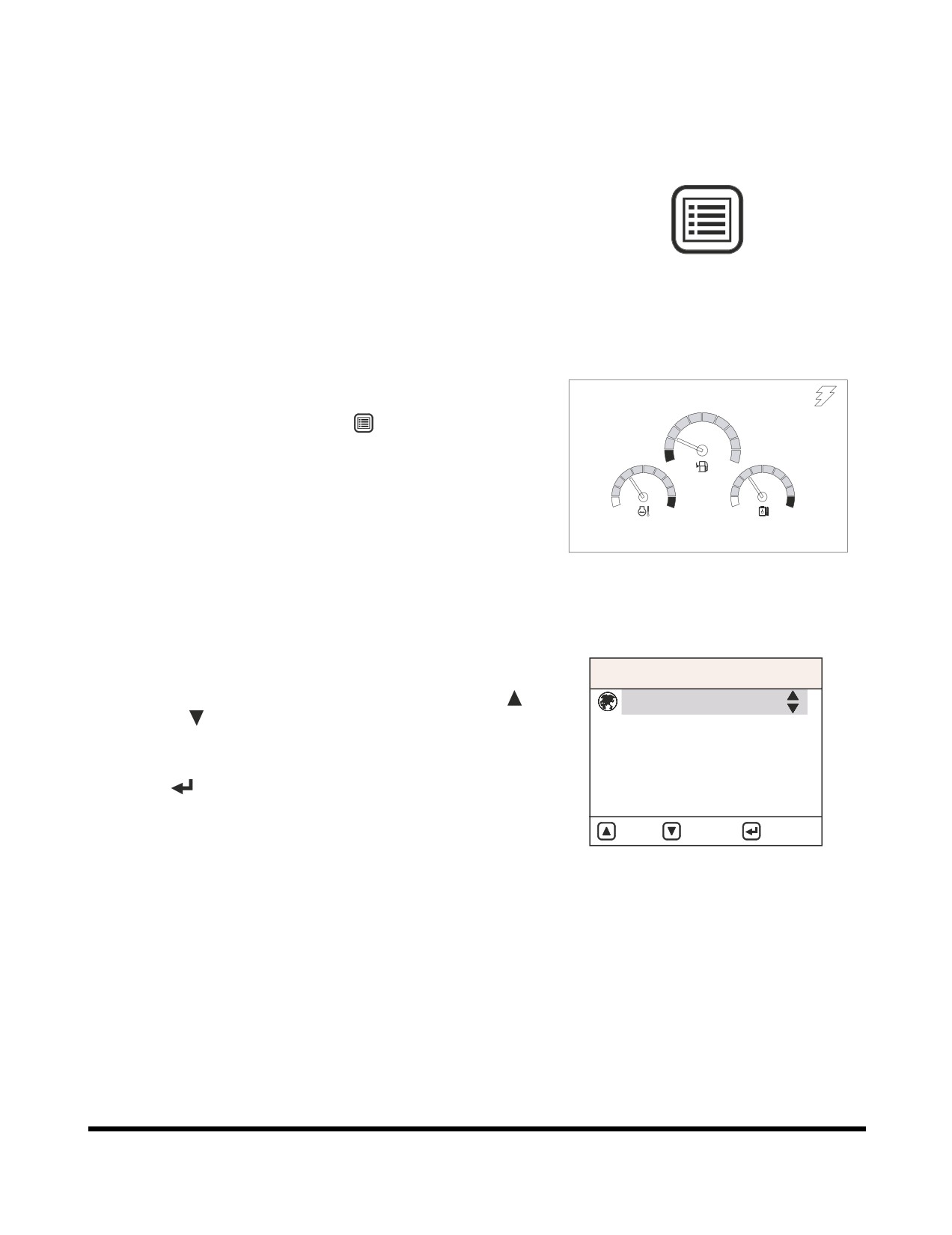

Display Selection and Escaping

Display Selection

When the display button (Figure 77) is pressed for more than

three seconds, the main menu screen (Figure 79) is displayed.

In the normal display screen, the engine speed (rpm), battery

voltage

(volt), front pump pressure

(bar), and rear pump

pressure (bar) can be displayed.

FG000070

Figure 77

ESC Button

02/05 [MO] 11:30

The screen will return from the main menu to the normal display

screen, by again pressing the "ESC" (

) button.

NOTE: If more than twenty seconds are spent in any menu,

without changing the screen, it will return to the

normal display screen.

E/G SPEED 1700 RPM

FG000043

Figure 78

Main Menu

MAIN MENU

The menu selection can be changed by pressing the "UP" (

)

1. Language

or "DOWN" (

) buttons. The selected menu item will be

2. Set Clock

highlighted, and a cursor will appear by the menu item.

3. Filter / Oil Info

When the selected menu item is highlighted, press the

4. Adjust Display

"SELECT" (

) button to enter the next submenu.

5. Set Password

“Language” on page 2-38.

: UP

: DOWN

: SELECT

“Set Clock” on page 2-38.

FG000072

“Filter / Oil Info” on page 2-39.

Figure 79

“Adjust Display” on page 2-41

“Set Password (Lock and Unlock)” on page 2-42

Operating Controls

OP001003

2-37

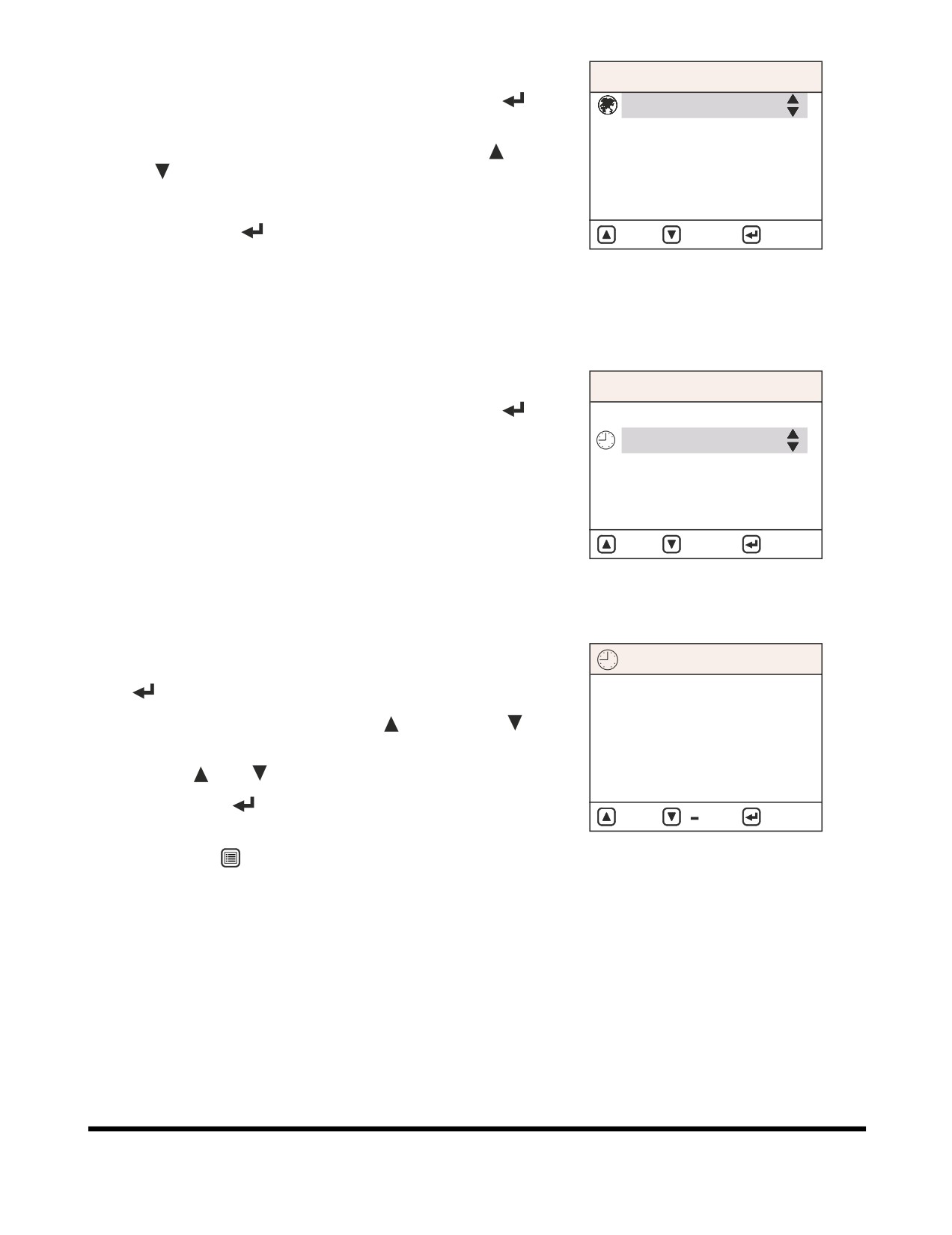

Language

MAIN MENU

When the cursor is on "Language," press the "SELECT" (

)

1. Language

button. The language submenu will appear.

2. Set Clock

The desired language can be selected by using the "UP" (

) or

3. Filter / Oil Info

"DOWN"(

) buttons.

4. Adjust Display

The display can be set for the desired language.

5. Set Password

Press the "SELECT" (

) button to set the selected language.

: UP

: DOWN

: SELECT

NOTE: If more than twenty seconds are spent in the menu,

FG000072

without changing the screen, it will return to the

Figure 80

normal display screen.

Set Clock

MAIN MENU

When the cursor is on "Set Clock," press the "SELECT" (

)

1. Language

button. The set clock submenu will appear.

2. Set Clock

NOTE: If more than twenty seconds are spent in the menu,

3. Filter / Oil Info

without changing the screen, it will return to the

normal display screen.

4. Adjust Display

5. Set Password

: UP

: DOWN

: SELECT

FG000075

Figure 81

Setting Method

SET CLOCK

Move the cursor to desired number by using the "SELECT"

(

) button. When selected the number will flash.

Set the time by using the "UP"

(

) or "DOWN"(

)

06:05

buttons.

2004 06/29

•

"+" (

), "-" (

): Increase or decrease number.

•

"MOVE" (

): Confirm and move the cursor to next

: +

: MOVE

number.

FG000076

•

"ESC" (

): Exit to the main menu.

Figure 82

Operating Controls

OP001003

2-38

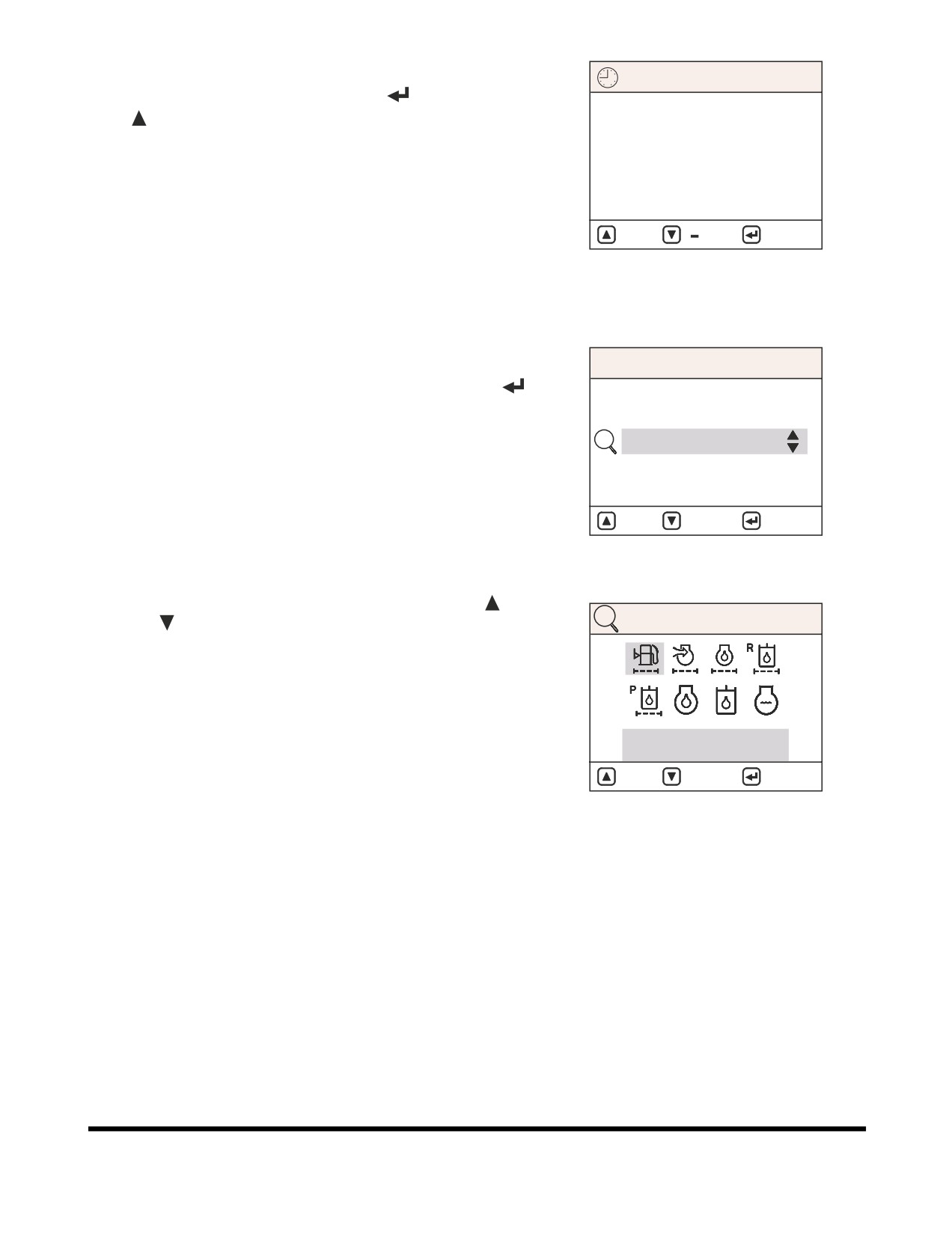

'00' Minute Setting

SET CLOCK

Simultaneously press the "SELECT" (

) button and "UP"

(

) button.

06:05

If the displayed time is 30 minutes or less, the clock will

display the preceding hour.

2004 06/29

If the displayed time is more than 30 minutes, the clock will

display the succeeding hour.

When the preceding hour is more than 23, the day will be

: +

: MOVE

increased.

FG000076

Figure 83

Filter / Oil Info

MAIN MENU

When the cursor is on "Filter/Oil Info," press the "SELECT" (

)

1. Language

button. The filter/oil information submenu will appear.

2. Set Clock

3. Filter / Oil Info

4. Adjust Display

5. Set Password

: UP

: DOWN

: SELECT

FG000077

Figure 84

Each symbol can be selected by pressing the "UP" (

) or

"DOWN" (

) buttons. At the bottom of the screen the operating

FILTER / OIL INFO

hour (Hrs) of each filter and/or oil is displayed.

1. Fuel Filter

Hrs : 0025

: UP

: DOWN

: RESET

FG000078

Figure 85

Operating Controls

OP001003

2-39

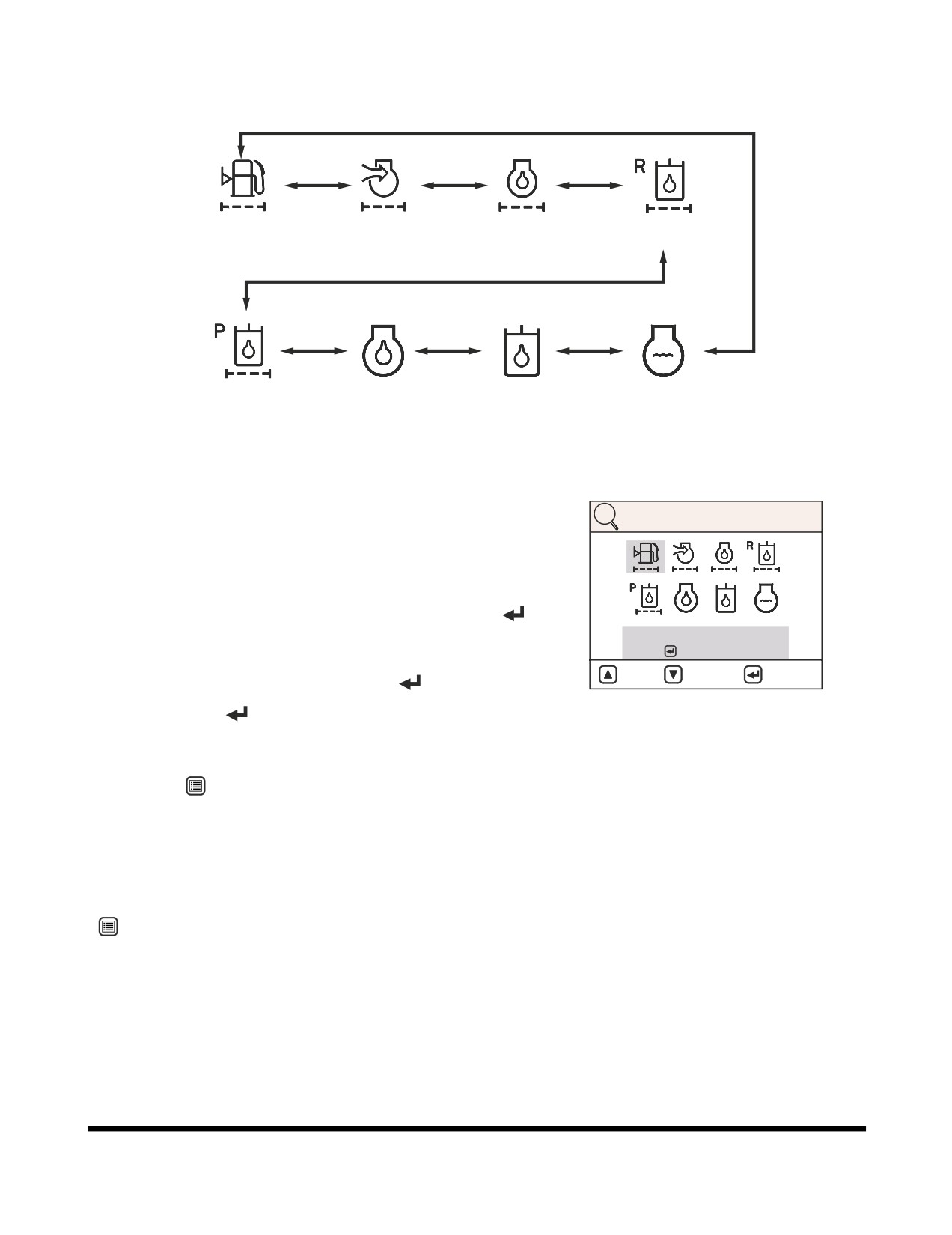

Menu Display Order and Icon Explanation

1. Fuel Filter

2. Air Cleaner

3. Engine Oil Filter

4. Hyd. Oil Filter

5. Pilot Filter

6. Engine Oil

7. Hydraulic Oil

8. Coolant Water

FG001358

Figure 86

Filter / Oils Operating Hour Reset

FILTER / OIL INFO

After changing a filter or oil, reset the operating hour to zero

(Hrs: 0000). The next replacement period can than be easily

checked. The operating hours are only accumulated while the

engine is running.

On the filter / oil information screen, press the "SELECT" (

)

button and then the reset screen will be displayed.

RESET?

YES :

NO : ESC

On the reset screen, the operating hour can be changed to zero

: UP

: DOWN

: RESET

hour (Hrs: 0000) by pressing the "SELECT" (

HAAE1960

If the "SELECT"

(

) button is pressed, the reset will be

Figure 87

completed. and the screen will be returned to the previous

menu.

If the "ESC" (

) button is pressed, the screen will be returned

to the previous menu without being reset.

NOTE: If more than twenty seconds are spent in the menu,

without changing the screen, it will return to the

normal display screen.

The screen is returned to the main menu by pressing the "ESC"

(

) button.

Operating Controls

OP001003

2-40

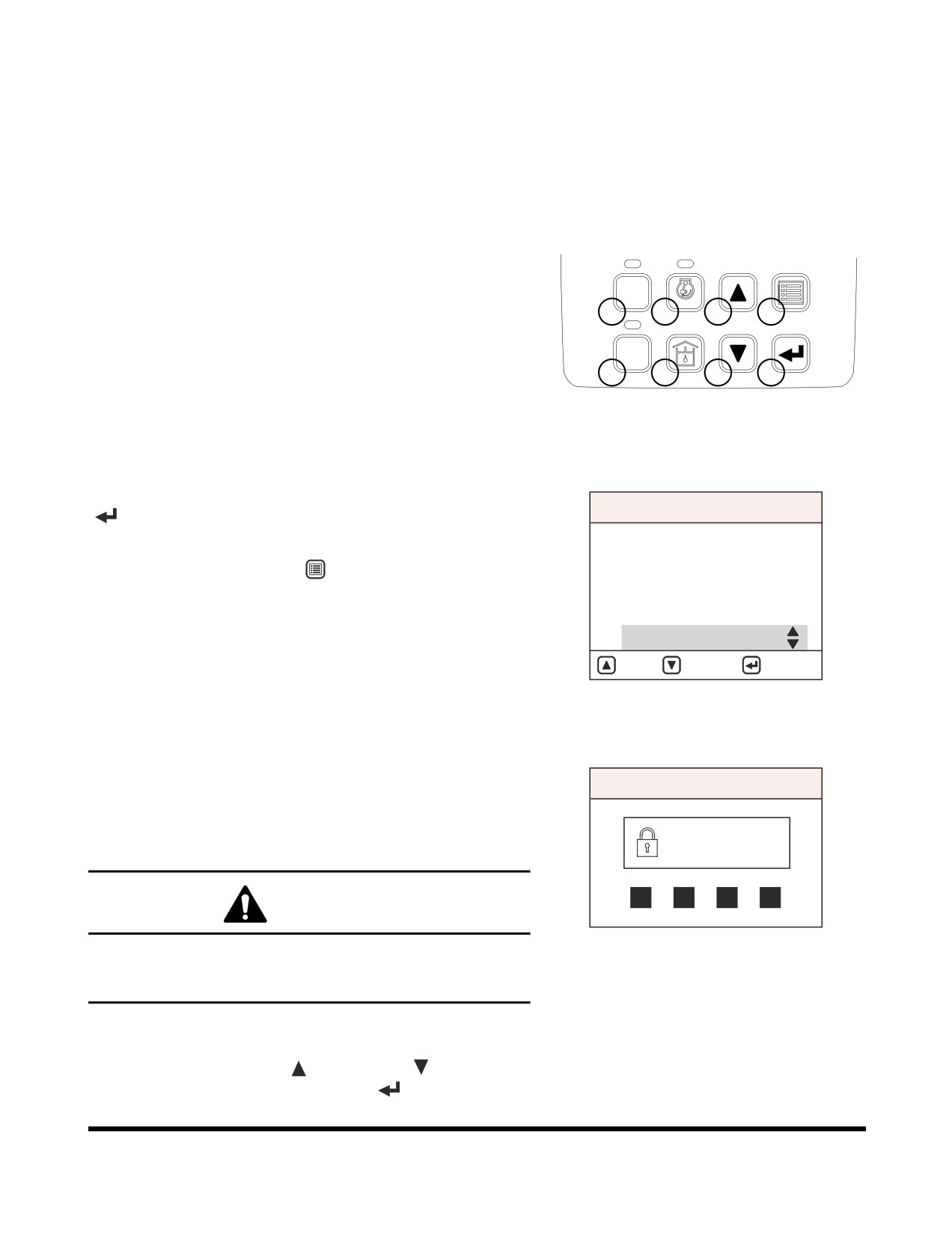

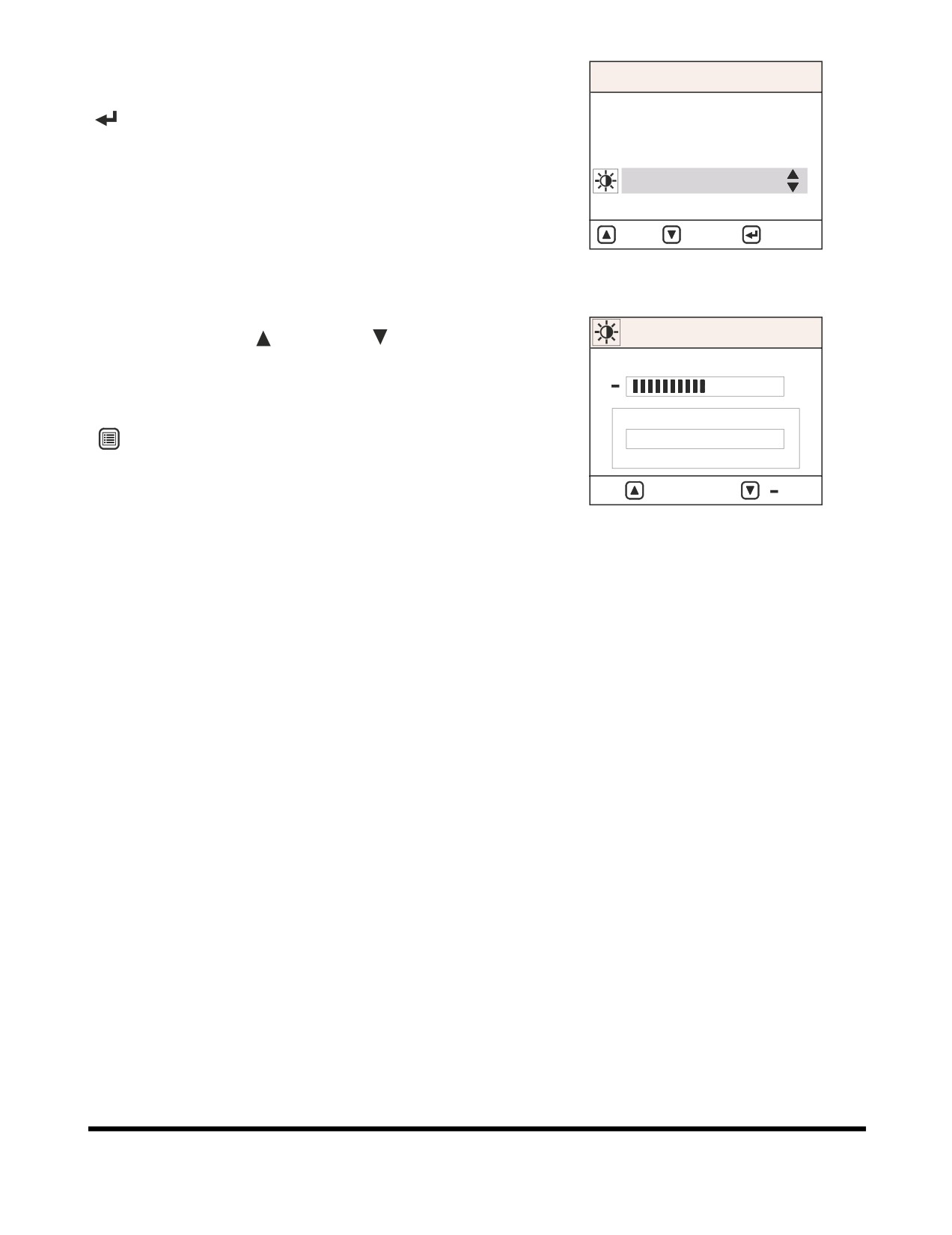

Set Password (Lock and Unlock)

Use extreme care when setting the password for starting the

engine. If a mistake is made when entering the number, and the

number is excepted by the system, as being correct, that

number will be the only one that will allow the security system to

be activated or deactivated.

Write your password down and keep it in a safe location.

Password numbers can only use numbers between 1 and 8. The

small number to the lower left of each button on the instrument

panel, indicates the number that will be entered when that button

is pressed. Numbers "0" and "9" are invailid choices.

POWER

AUTO

ESC

ECO

FG015510

Figure 90

When the cursor is on "Set Password" press the "SELECT"

(

) button. The set password submenu will appear.

MAIN MENU

1. Language

NOTE: The screen can be returned to the main menu by

2. Set Clock

pressing the "ESC"(

) button (3, Figure 72).

3. Filter / Oil Info

4. Adjust Display

5. Set Password

: UP

: DOWN

: SELECT

FG000227

Figure 91

Password inquiry menu will be displayed.

NOTE: The initial password is "1111."

SET PASSWORD

The password can be changed within ten minutes while the

starter switch is in "I" (ON) position.

ENTER

After changing password, be sure to use the changed password.

PASSWORD

CAUTION

FG000228

Failure to enter correct password three times, will return

Figure 92

normal display screen, and another attempt will not be

possible for ten minutes.

A three item menu will be displayed. The items are "LOCK,"

"UNLOCK," and "CHANGE PASSWORD." An item can be

selected by using the "UP" (

) or "DOWN" (

) buttons, and

then selected by pressing the "SELECT" (

) button.

Operating Controls

OP001003

2-42

Doosan DX300LCA. Operation and Maintenance Manual (2010) - page 1
