 122

lubricant has smoke and dust, sulfide, oxide and nitride and measure their amount. The

infrared analysis may help us work out the replacement cycle of the lubricant under special

working conditions.

The infrared analysis method shall be conducted simultaneously with the wear element

analysis method and chemical and physical tests so as to ensure the correct evaluation.

S.O.S Cyclogram

Oil box

Engine oil

Hydraulic

oil

Differential

/Final drive oil

Transmiss

ion fluid

Time interval  250h

500h

500h

500h

































 123

IX

Maintenance Interval

9.1 Upon Request

Prior to carrying out any operation and maintenance, the warnings and annotations in

this manual’s safety chapter shall be read and understood.

Please refer to the instructions for use and maintenance of the engine for cleaning of air

intake system.

Repairing of filtering element

Caution

In repairing of air filter, the engine shall be turned

off to avoid damage.

Please repair the air filter according to the instructions

for use and maintenance of fuel engine. The following

steps are for reference only.

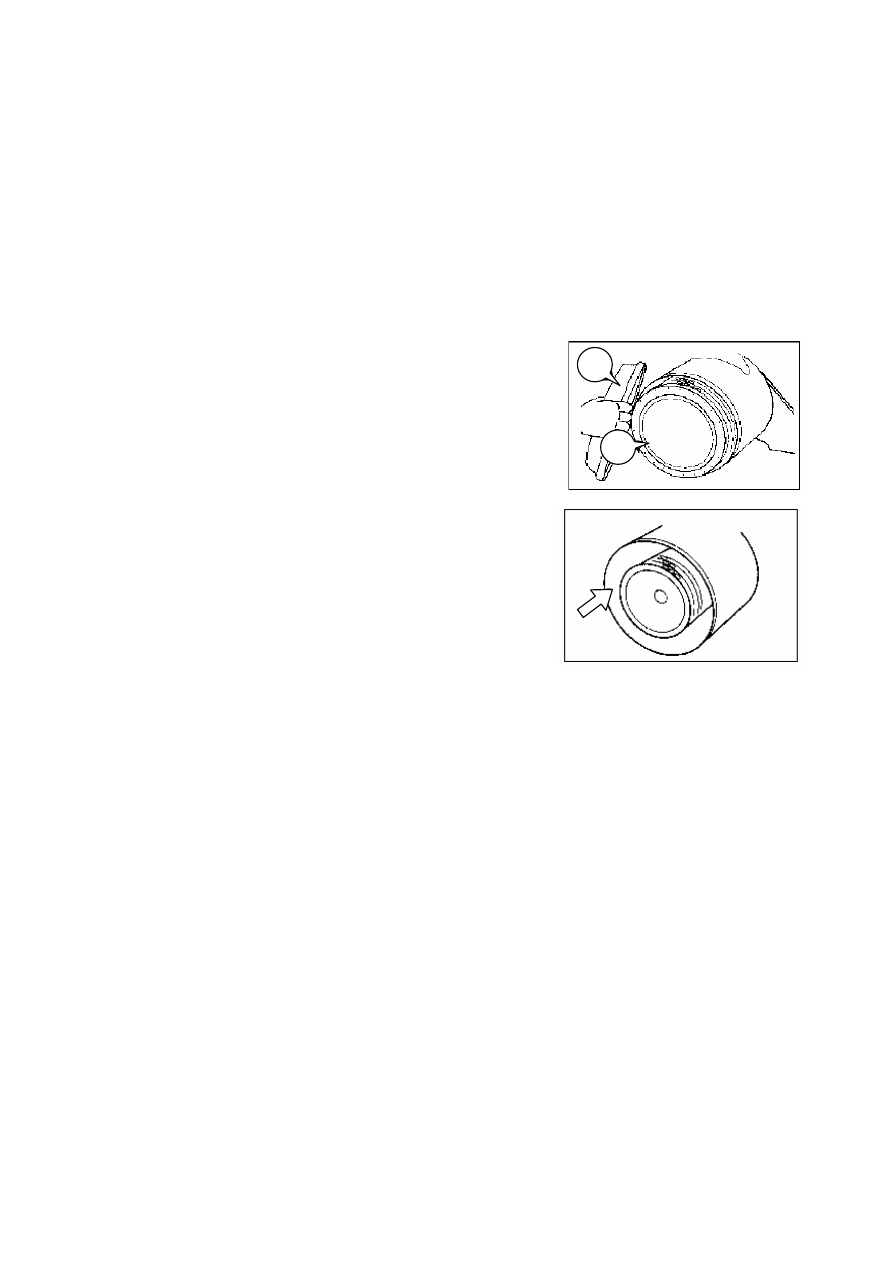

Replace/clean coarse filtering element

1． Dismantle the cover of air filter (1);

2． Dismantle coarse filtering element (2) from the shell of

the air filter;

3． Clean the shell of the air filter;

4． Clean and examine the coarse filtering element. Please see “Cleaning of Coarse Filtering

Element”;

5． Installed the cleaned coarse filtering element in the shell of the air filter;

6． Clean and install the cover, and fasten the bolts on the cover with hands not a tool.

After installing a cleanly coarse filter, if the engine discharges black smoke, new fine

filter shall be installed.

After being cleaned for 6 times, the coarse filtering element shall be replaced. Even if it

is not cleaned for 6 times, it shall be replaced one time every year.

Replace fine coarse filtering element

Caution

After each cleaning of fine filtering element, do not try to reuse it after cleaning.

After the coarse filtering element is repaired for three times, the fine one shall be

replaced.

1

2

 124

After installing a cleanly coarse filter, if the engine discharges black smoke, new

fine filter shall be installed.

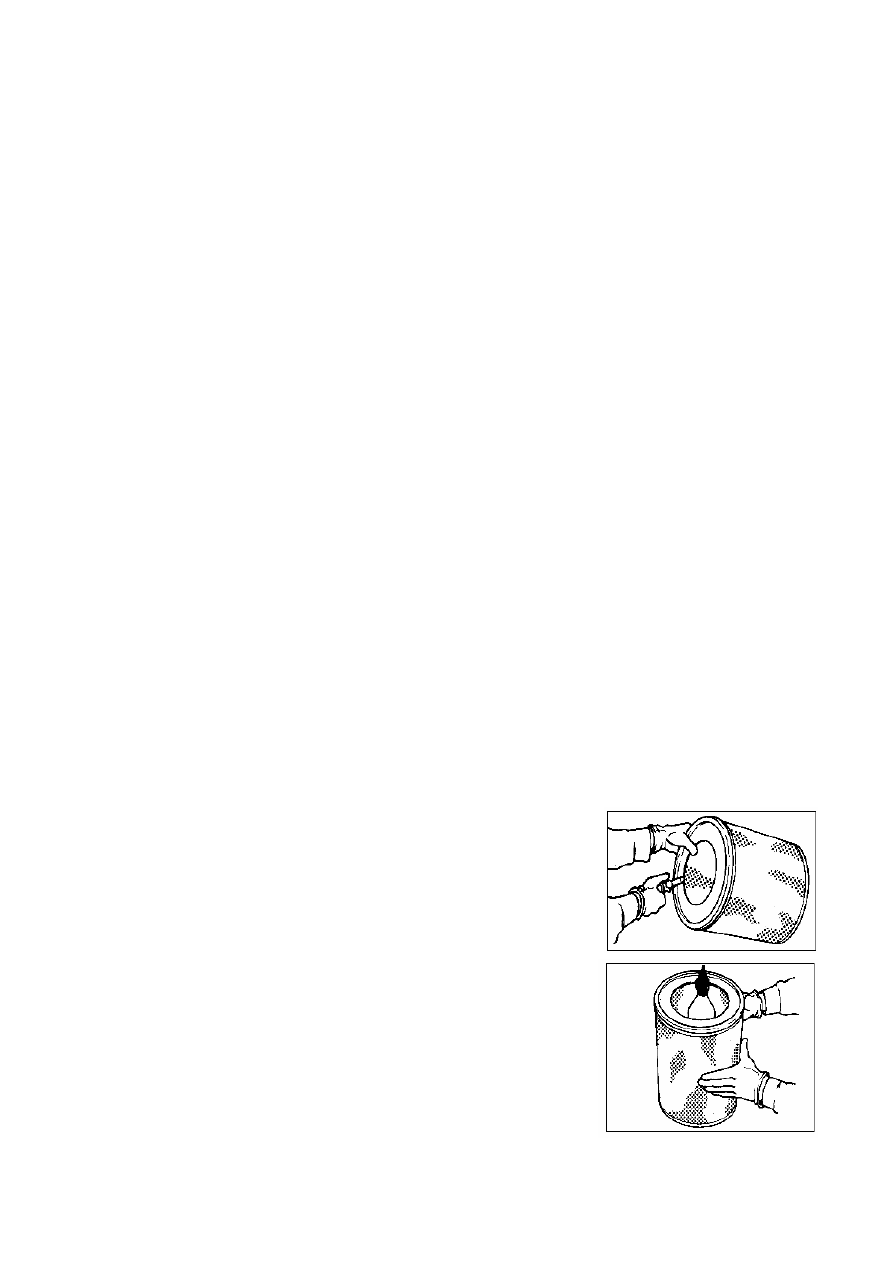

1． Open the maintenance door;

2． Dismantle the cover and coarse filtering element;

3． Dismantle the bolt fixing the fine coarse filtering element and then dismantle the fine

filtering element;

4． Cover the air inlet and clean the interior of the air filter;

5． Examine the gasket between air inlet pipe and shell. Any damaged gasket shall be

replaced;

6． Open air inlet to install a new fine filtering element;

7． Install the nut and gasket on the screw. The torsional moment of the nut shall be

27±7N.m;

8． Install the coarse filtering element and cover, and fasten the bolts on the cover with hands

not a tool;

9． Close the maintenance door.

Clean coarse filtering element

While cleaning the coarse filtering element, do not strike it, or not, the engine will

be damaged.

The filtering element may be cleaned with pressure air, pressure water or cleaning.

1． Induct the air or water along with internal and external wrinkles of the filtering element;

2． After cleaning, examine the coarse filtering element. Do not

use the filtering element with a damaged wrinkle, gasket or

seal;

3． Pack the cleaned filtering element and store it at a cleanly

and dry place.

Accumulator



The accumulator of this loader is free from maintenance,

which is located at the right side of the rear end of the rear

frame.。

  All fixed bolts of the accumulator shall be fastened per 1000

 125

hours.

Radiator



Clean or replace the pressure cover

The maintenance door of the radiator cover is designed at the rear topside of the machine.

1． Open the maintenance gate of the radiator.

2． Slowly loosen the radiator cap and release the pressure.

3． Examine the damage, precipitation or foreign substance of the cover, and wipe off the

cover with a cleanly cloth or if necessary replace it with a new one;

4． Fit on the cover;

Close the maintenance door.

Clean the exterior of radiator core

Open the radiator cowling at the back of the

machine.

The dust, leafs and other foreign substance on

the radiator may be removed with compressed air,

high-pressure water or steam (compressed air is

better).

Fuse



Location: Fuse box is installed at the right lower side of the instrument desk in the cab.

Fuse--It protects the electrical system from damage due to short circuit. If the fuse link is

burnt out, a new one of same specification shall be used; if the fuse link is burnt out again, the

circuit shall be examined and repaired.

z  Only the fuse of fusing current can be used,

or not, the circuit will be damaged possibly.

If the fuse requires to be replaced frequently,

it is possible the circuit is involved in failure.

Please examine the circuit.

Windscreen wiper and washer pump

Examination/replacement of the wiper

Examine the brush of the wiper. If it is worn
