CG938H Wheel Loader. Manual - part 24

 98

Operation of Loader

In order to avoid industrial injuries, anyone shall not work on or near the loader. At any

time, the loader shall be under control.

In driving at the busy downtown area or over a high place, the speed shall be reduced.

Prior to downgrade, the gear shall be selected. In downgrade, the gear shall not be

changed. The same gear for downgrade as the one for anabatic driving is a better practical

method.

The engine’s excessive speed for downgrade is not allowed. In downgrade, the

excessive speed of the engine may be reduced by the brake pedal.

The load will push the loader downgrade. At the beginning of downgrade, the gear shift

lever shall be placed at the first gear.

For the operation, the following items shall be noted:

1． Regulate the driver’s chair.

2． Lift the working device to avoid running against the obstruction.

3． As the braking oil pressure reaches the normal value, the parking brake shall be loosened.

4． Turn the transmission control rod to the required speed position, and pull it to the

required direction (at the beginning of machine’s start, only I and II gears are available).

5． Step on the accelerator pedal to make the engine at the required speed.

6． Step on the parking pedal to avoid movement of the loader.

7． As the loader advances, the driver shall have a good vision and control sense.

Caution

In order to ensure comfortable operation and maximum service life of driving

element, speed reduction or brake shall be conducted prior to change of direction and

gear.

Caution

During the period of drive, braking with parking brake will wear and damage the

parking brake seriously.

Warning

After starting and preheating of the engine, if the low brake pressure alarm lamp

lights continuously, the engine shall be stopped immediately for examination. After the

 99

alarm lamp lights off, the engine may be operated, or not, your driving safety would be

endangered. In case the brake pressure alarm lamp lights during the period of drive, it

shall be stopped immediately for examination.









































 100

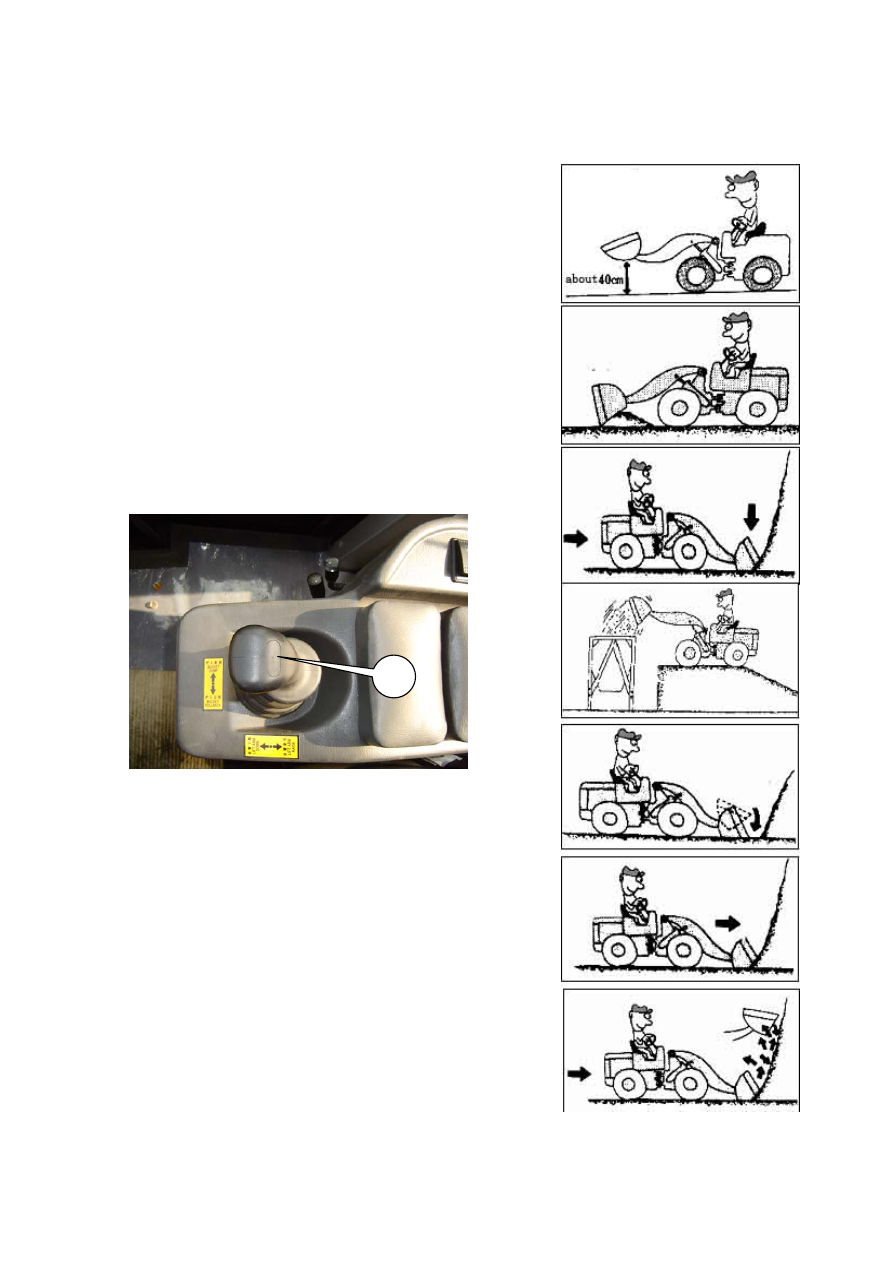

II Operation Technology

2.1 Common Technology

In operation, in order to widen the drivers’ vision and

stabilize loading, the bucket shall be lowered and kept about

40cm above the ground.



Use the wait time to level the working area.



Avoid more stress of the bucket to make the loader

have enough tractive force.

Use cutting teeth to load the relatively hard materials.

















In bucket reversion, the joy stick (1) shall     be

placed at the position of bucket reversion. And then turn

back it to the original position. Repeat the operation until

materials are unloaded.

In order avoid dust into the engine and keep visibility,

the bucket shall be reversed leeward.

Ensure the bucket is consistent with working

requirements. Overload will shorten the service life of the

loader.



1

 101

Scraping

Note:    Scraping is not allowed as the bucket is at the forerake position so as to

prevent the bucket from damage.

In scraping, the bottom of the bucket shall be parallel to the ground.

Bucket Reversion

Use the bucket stopper for maximum reversion angle.

z  Unnecessary repeated collision with the stopper will accelerate its wear. The charge of

repairing linkage gear of the working device is very high.

2.2 Loading of Stockpile

1． Level the bucket and scrape the ground slightly. Hold advance I gear to make the bucket

directly insert into the stockpile.

2． Make the joy stick of the moving arm at the position of lifting, and operate the joy stick of

the bucket to make the bucket incline backward slowly for 2-3 times for full loading.

3． After the bucket is filled, the bucket stays at the backrake position, and the joy stick of the

bucket stays the central position.

4． Lift the bucket enough high to avoid the stockpile. Make the transmission control rod at

the reverse gear to drive the loader backwards.

5． As the loader reverses to the certain position, lay down the bucket to the transport position

about 40cm away from the ground. Push the transmission control rod to the required gear

to transport the materials.

6． As the loader reaches the reversion unloading area, make the joy stick of moving arm at

the position of lifting until the bucket unloads all materials.
