PAGE 29

4) Apply a thin film of clean oil to rubber gasket on new filter.
5) Refer to Instructions on oil filter for proper installation.
6) Fill crankcase with approximately 2 quarts of new oil. Level

should reach top of indicator on dipstick.

7) Reinstall oil fill/dipstick and tighten securely.
8) Start engine; check for oil leaks. Stop engine; correct oil leaks.

Recheck oil level

9) Dispose of used oil and filter in accordance with local

ordinances.

PAGE 30

The   fuel   filter  is located  in the  fuel  line  on the left side
of the engine by the starter motor. Replace the filter yearly.
Prior to the removal of  the  old  filter, note the direction of
fuel flow as indicated on the filter. Have towels readily
available in order to quickly remove any fuel leakage.
Always  use  new  hose clamps and ensure the security of
the new filter by lightly pulling on each hose. Always
perform maintenance outdoors or in a well ventilated area.
Do not smoke or allow any open flames in the vicinity of any
maintenance activities.

3.2 Changing your fuel filter:

1) Locate your fuel filter and mark the direction it is facing.

2) Clamp each side of the fuel filter to minimize gas spills.

3) Remove the clips from each side of the fuel filter and
remove the fuel filter.

4) Place the new fuel filter in the same direction as the old

and place clips back into place and remove clamps.

PAGE 31

The air cleaner is the engine’s only defense
against damaging foreign particles. It is very
important that the air cleaner element is inspected
prior to each use. Remove the element and tap its
sides in order to remove debris. Do not blow the
filter out using compressed air. Doing so will
greatly reduce the air cleaners effectiveness.
Replace yearly; more often in dusty environments.
Adhering to these practices will help prevent loss
of power and premature engine failure.



3.3 Changing the air cleaner

1) Locate the air filter and lift up the cover.
2) Loosen the tensioner on the right side of the

air filter.

3) Clean or replace paper element.
4) Place the paper element back into place and

tighten the tensioner.

5) Place cover back to original position.

Lift to Access Air Filter

PAGE 32

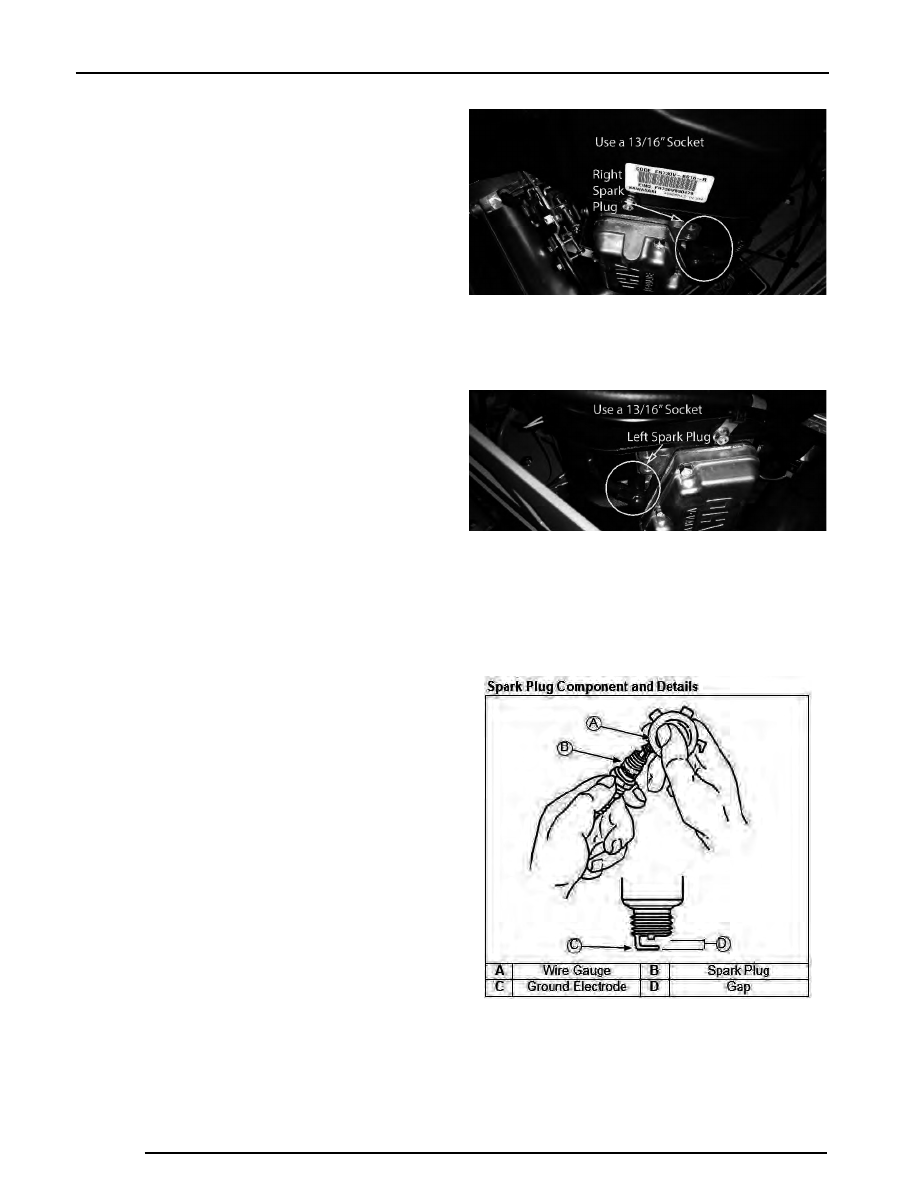

3.4 Changing the spark plugs and checking the spark plug gap:

1) Remove the wire on the spark plug and

use a 13/16” socket to remove the spark plug.

2) Check the gap on the spark plug to verify that it is

0.03 in using a feeler gauge.

3) If the spark plug is worn, overheated, wet or carbon

fouled replace the spark plug.

4) Install the plug into cylinder head and torque to 16

ft.-lbs. Be careful not to overtighten the spark plug.
