SECTION 4: ELECTRICAL SYSTEM

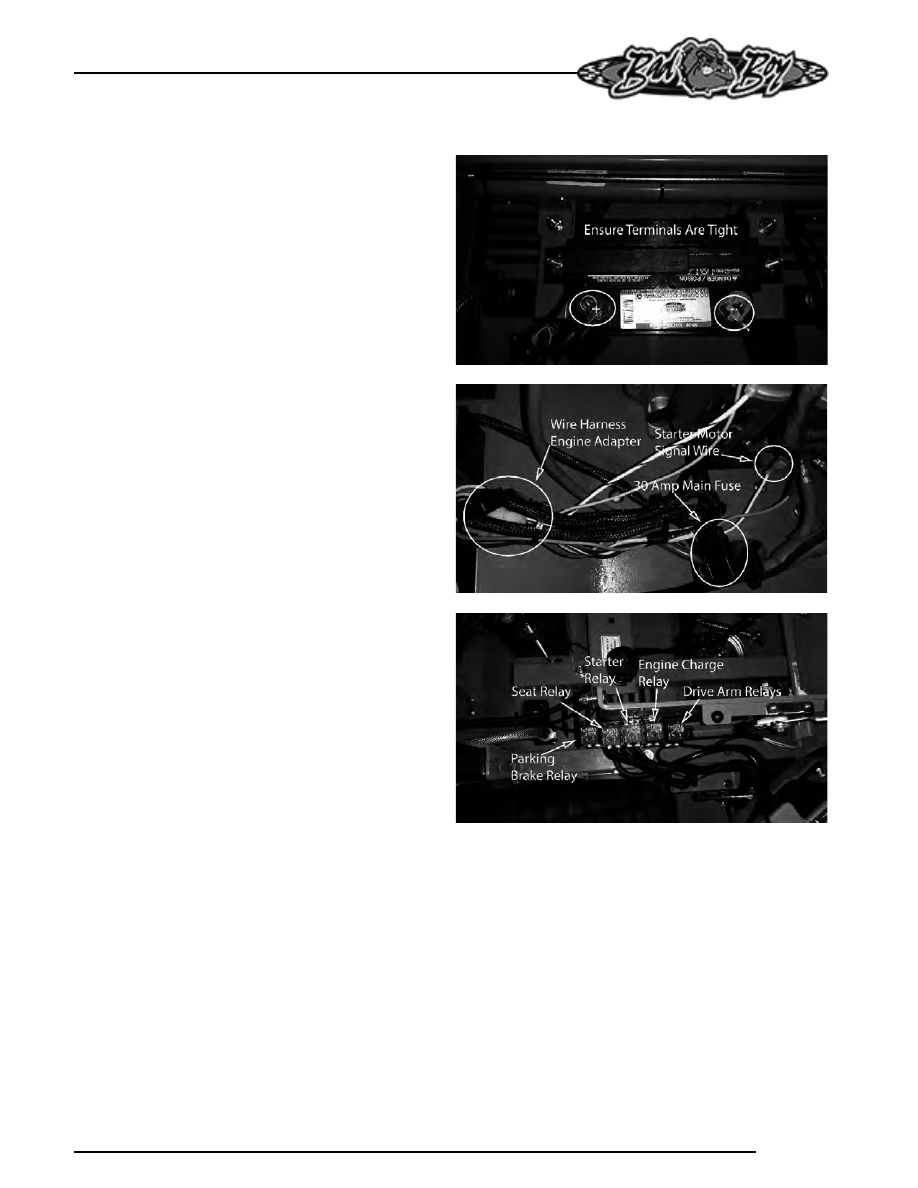

This mower is equipped with one protective fuse: a
30 amp main fuse (pictured to the right).

A blown fuse usually indicates a problem within the
electrical system or an electrical component. Ensure
the battery terminals are tightly fastened. Never
replace a fuse with one of a higher amperage rating
or ‘bypass’ a fuse in any way. Doing so creates a
significant fire hazard and can cause severe damage
to the mowers electrical components. If a fuse is
repeatedly blowing, contact your Bad Boy dealer.

On most models, the red wire coming out of the
engine is the charging wire from the alternator.
Check for 13.6 - 14.2 volts dc at this wire with engine
at full throttle.



If you are having issues starting your mower ensure
the signal wire is connected to your starter solenoid.

Check the condition and connection of the relays
located under the control panel. Ensure that they are
clean and connected. Make sure that wire terminal
ends have not been pushed out of the relay block.

PAGE

46

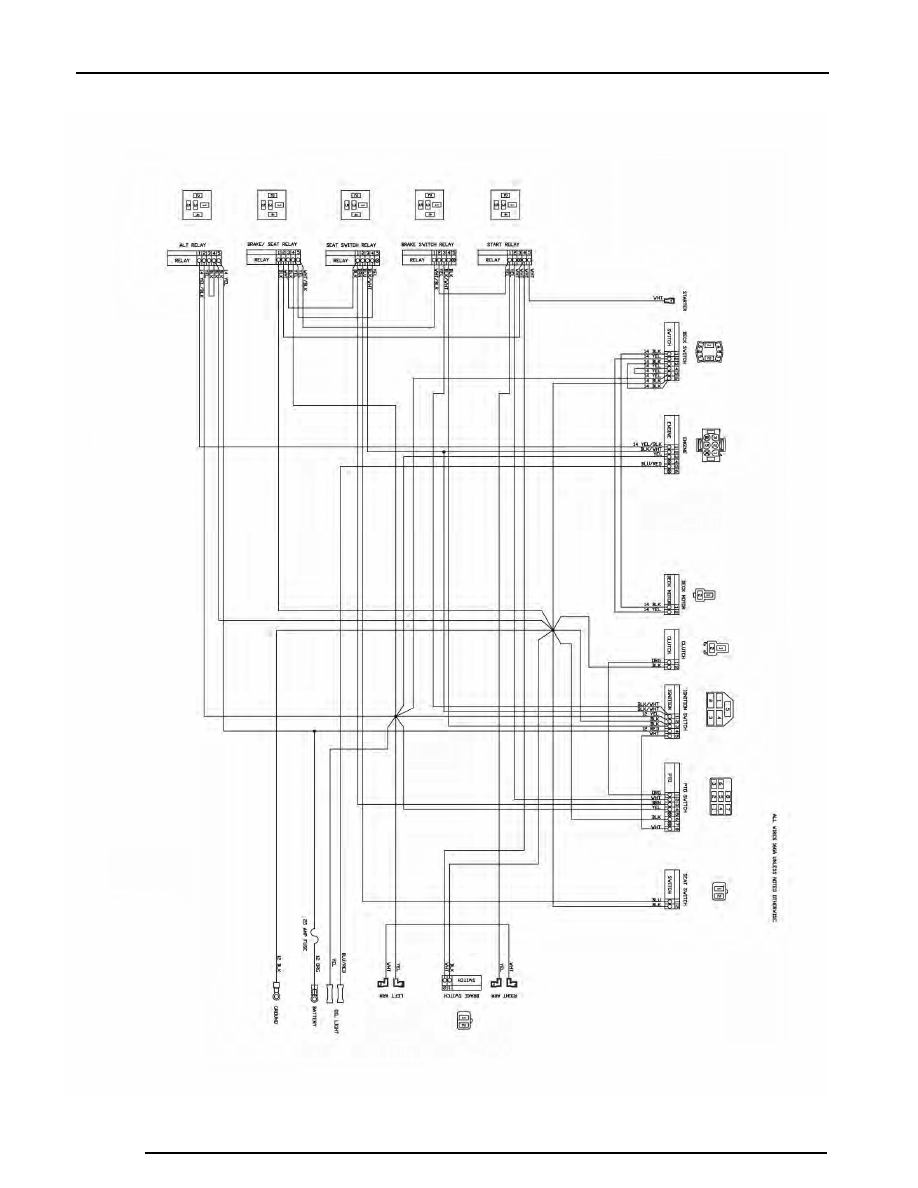

PAGE



47

SECTION 5: FRAME

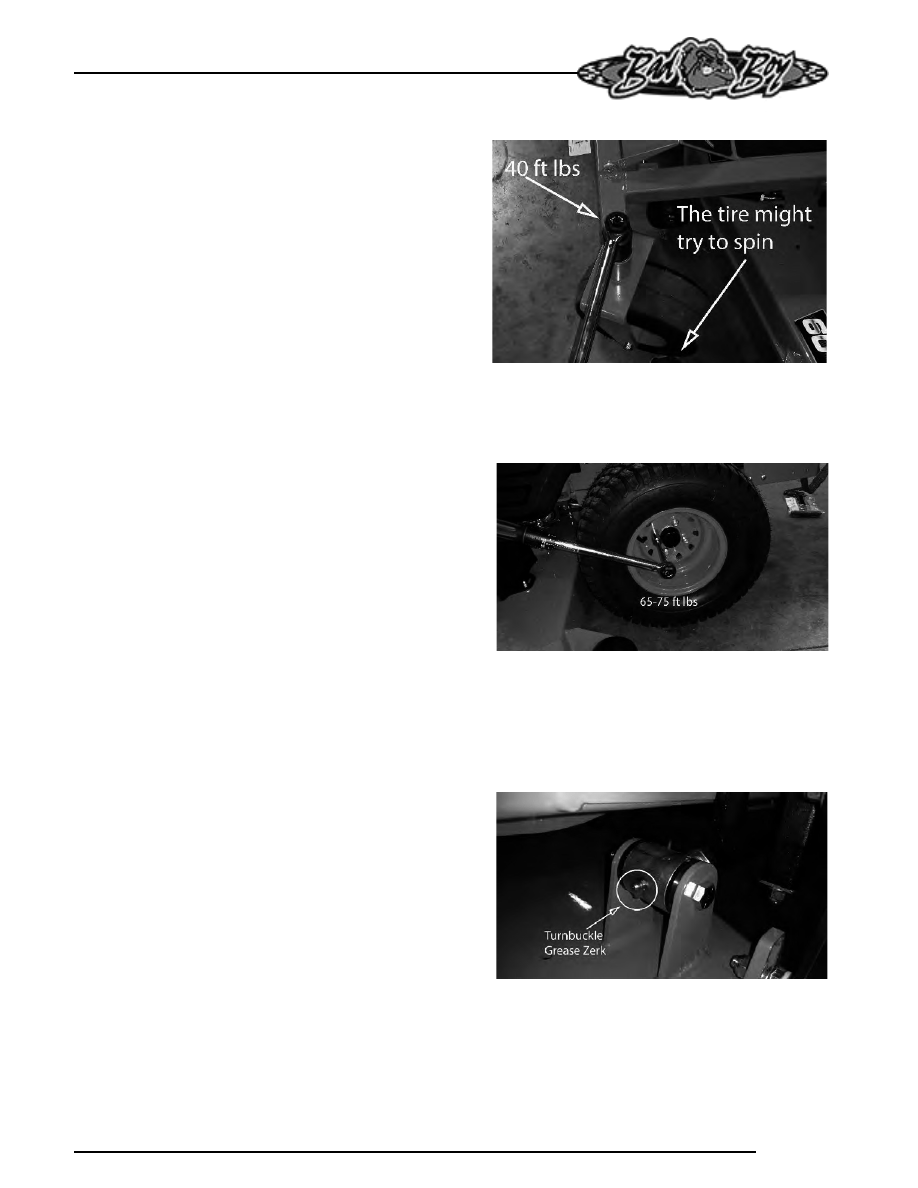

The front fork nuts require a torque of 40ft-lbs. While
applying this torque, turn the fork itself to ensure no
damage is done to the bearing. This operation is only
necessary if a repair requires it.



Torque rear wheel lugs to 65-75 ft. lbs. Re-torque at every
oil change and check at every mowing.

There are two grease zerks located on each of the two
turnbuckles (4 Total). Grease at every oil change.

PAGE

48

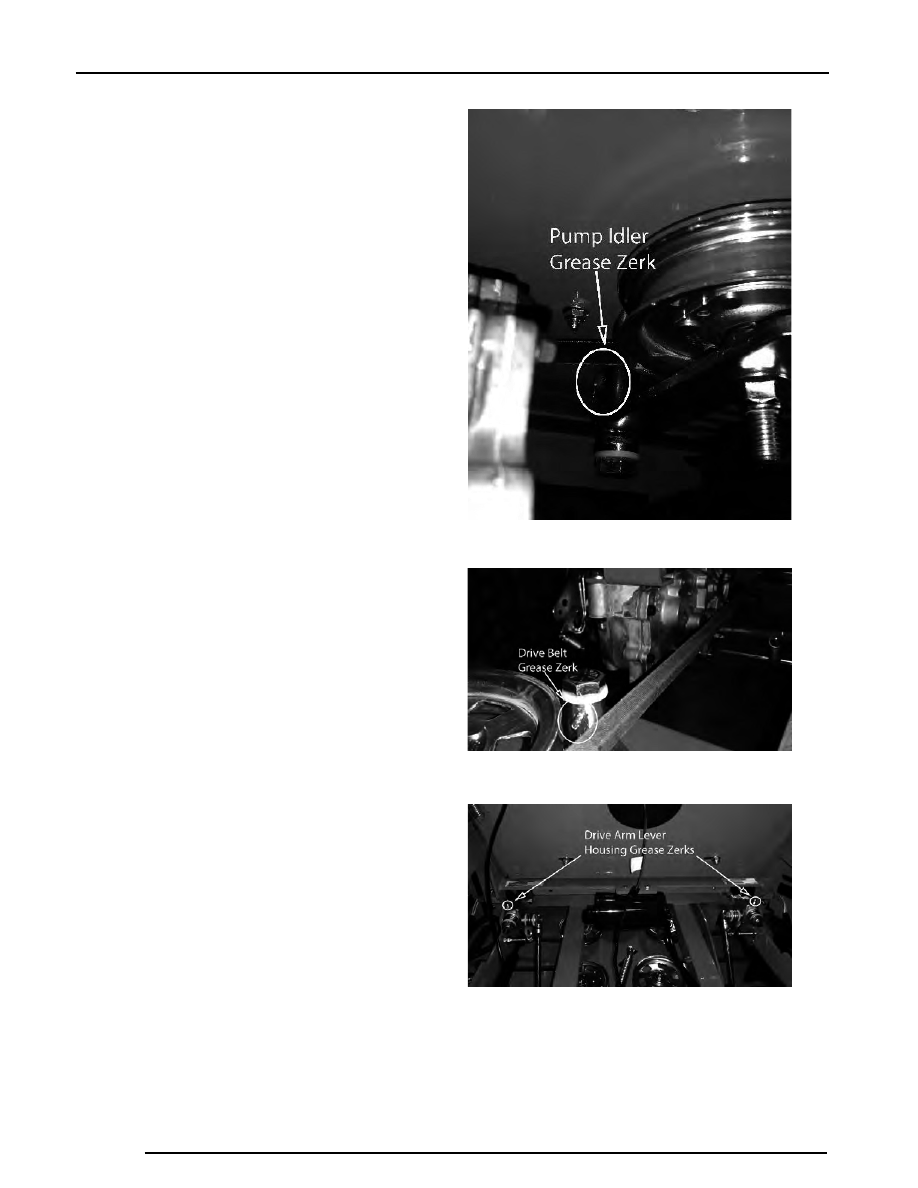

The pump belt tensioner is located under the engine and
has a grease fitting at its pivot point. Grease at every
engine oil change.



The deck belt tensioner is located at the rear of the
deck and has a grease fitting on its pivot point.
Grease at every engine oil change.

The control arm blocks have grease fittings located
on the top of each block. Grease one time a year.
