BBM MZ SERIES ZERO-TURN MOWER. Manual - part 12

PAGE



 46

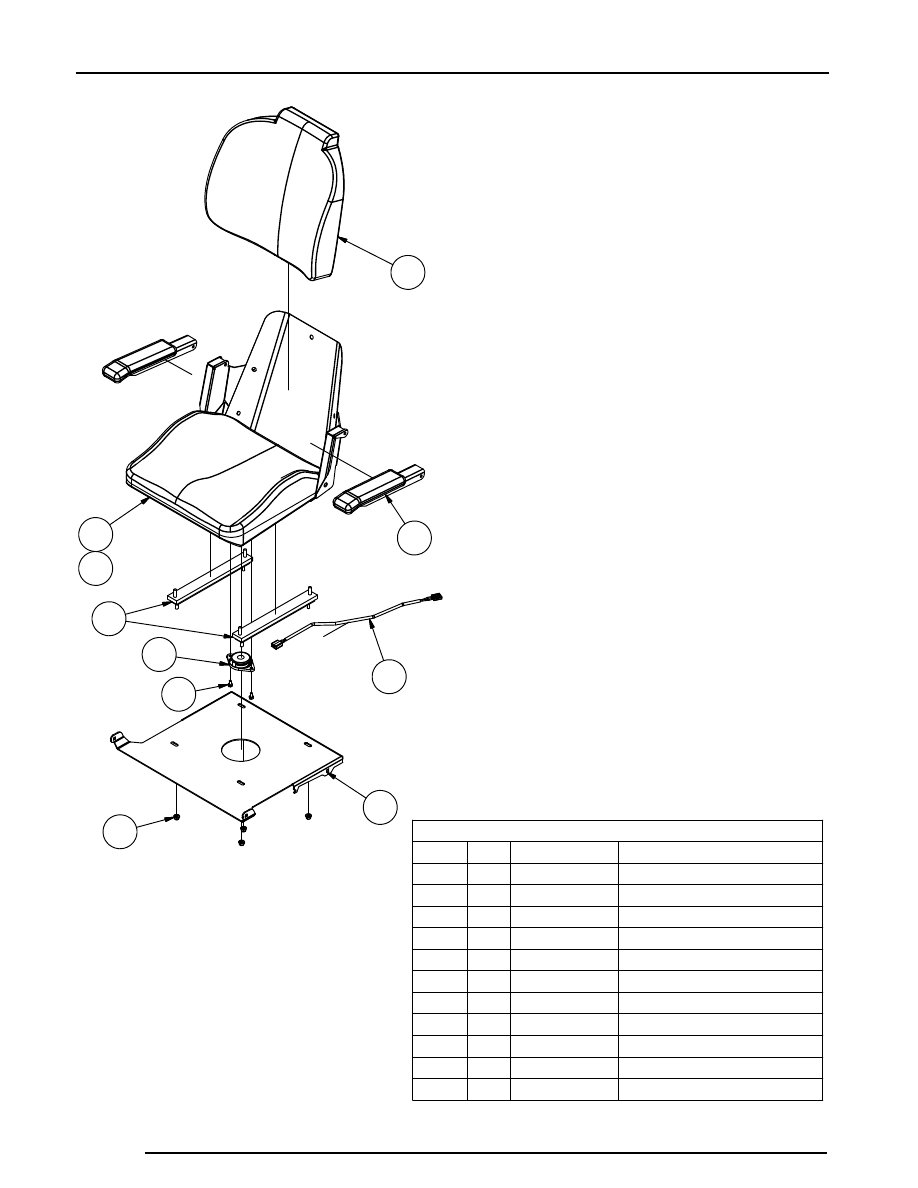

Parts List

DESCRIPTION

PART NUMBER

QTY

ITEM

2017 Zt Seat

071-2040-00

1

1

Seat Plate 2016

026-1016-00

1

2

5/16" Nylon Flange Nut

013-8049-00

4

3

Seat Safety Switch

071-8061-00

1

4

1/4-20x1/2 HWH Bolt Slot

030-7041-00

2

5

Seat Switch Adapter

036-5300-00

1

6

Arm Rest

071-2017-00

2

7

Seat Rail Pair

071-2020-50

1

8

Seat Bottom Cushion

071-2019-00

1

9

Seat Back Cushion

071-2014-16

1

10

Seat Belt Kit (Not Shown)

071-2013-00

1

11

1

9

8

6

7

4

5

2

3

MZ Magnum Seat Page for

Kawasaki Magnum ONLY

10

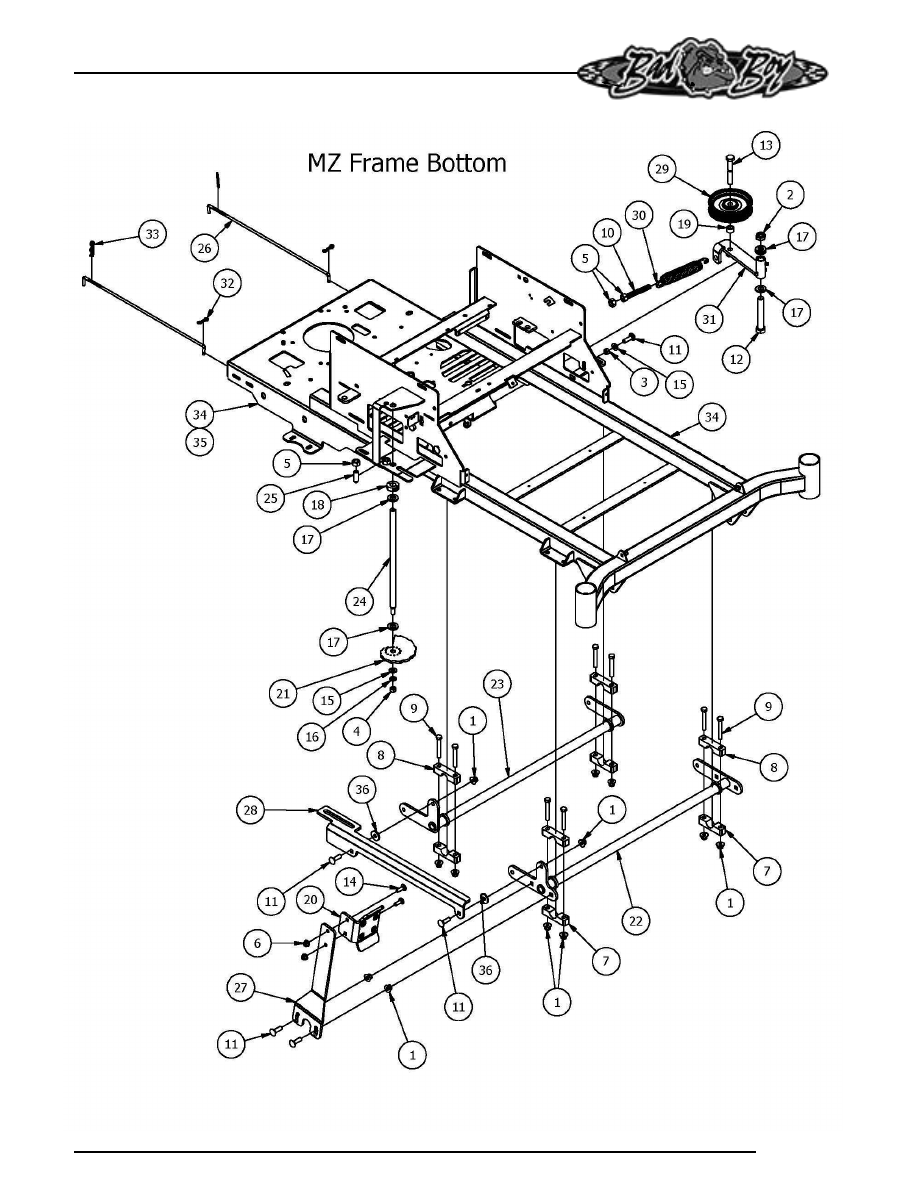

PAGE



47

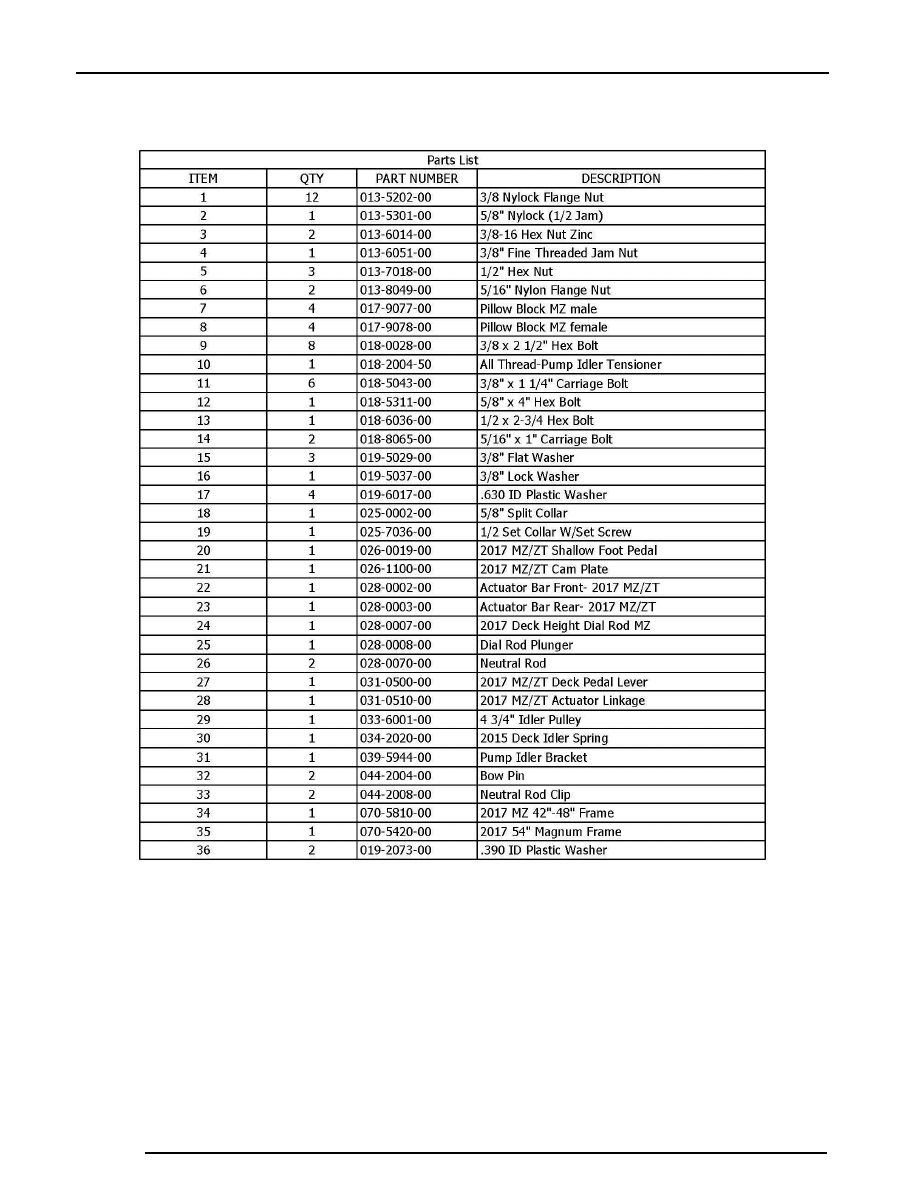

PAGE



 48

PAGE



49

Parts List

DESCRIPTION

PART NUMBER

QTY

ITEM

Kohler MZ Magnum 740cc

015-2014-00

1

1

Pump Belt

041-6400-00

1

2

3-3/4" Motor Pulley

033-2010-00

1

3

1/4" x 1" Key

042-6030-00

1

4

3/8 x 1 1/8 bolt

018-1075-00

4

5

Ground Cable

064-0030-00

1

6

Black Boot For Ground Cable

103-5400-00

1

7

2017 MZ Clutch Stop

057-5900-00

1

8

3/8" x 1" Hex Bolt

018-6049-00

2

9

Oil drain Hose

051-5401-00

1

10

Clutch 2017 Magnum/MZ

070-0055-00

1

11

1/4-20 Hex Flange Nuts Zinc w/Serrations

013-9001-00

1

12

3/8" Set Screw

030-6029-00

1

13

1/2 Belleville Washer

019-6020-00

1

14

7/16"-20 x 3" Hex Bolt Gr. 8

018-0007-00

1

15

Exhaust Gasket

015-2751-00

2

16

5/16" Lock Washer

019-8051-00

4

17

3/8 Nylock Nut

013-5041-00

2

18

5/16" x 1" Bolt

018-2007-00

4

19

Spark Plug

015-8000-00

1

20

Kohler Muffler

015-0051-00

1

21

KT 725 & KT-740 Precleaner

063-5002-00

1

22

KT 725 & KT-740 Air Element

063-5003-00

1

23

KT 725 & KT-740 Oil Filter

063-5400-00

1

24

Universal Fuel Filter

063-6000-00

1

25

Kohler KT- 725

015-2015-00

1

26

13

3

11

14

15

2

4

24

22

23

16

21

19

10

7

6

9

18

8

5

5

Kohler KT-725

    & KT-740

19

17

17

12

20

1

26

25

25
