FMS 1800 mm rc airplane. Instruction manual
1800mm Ranger
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
操作手册
SIMPLE
FLOATS
RIGID
Simple assembly
Optional floats
Strong durable EPO
FMSMODEL.COM
WARNING
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to the product,personal property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and failure to do so
could result in injury or damage to the product or other property. This product is not intended for use by children without direct
adult supervision.
This manual contains instructions for safety operation and maintenance. It is essential to read and follow all the instructions and
warnings in the manual prior to assembly, setup or use, in order to operate and avoid damage or serious injury.
p
w
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or
result in damage to the product or the property of others. This model is controlled by a radio signal subject to interference from
many sources outside your control. This interference can cause momentary loss of control so it is advisable to always keep a
safe distance in all directions around your model, as this margin will help avoid collisions or injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
·Never operate your model with low transmitter batteries.
·Always operate your model in an open area away from cars, traffic or people.
·Avoid operating your model in the street where injury or damage can occur.
·Never operate the model in populated areas for any reason.
·Carefully follow the directions and warnings for this and any optional support equipment you use (chargers,rechargeable
battery packs, etc.)
·Keep all chemicals, small parts and anything electrical out of the reach of children.
·Moisture causes damage to electronics. Avoid water exposure to all equipment not specifically designed and protected for this
purpose.
·Never lick or any place of any your model in your mouth as it could cause serious injury or even death.
Lithium Polymer (Li-Po) Battery Warning
CAUTION: Always follow the manufacturer’s instructions for safe use and disposal of batteries. Fire, property
damage, or serious injury can result from the mishandling of Li-Po batteries.
By handling, charging or using a Li-Po Battery you assume all risks associated with lithium batteries.
If at any time the batteries begin to swell or balloon, discontinue use immediately!
Always store the batteries at room temperature in a dry area to extend the life of the battery. Always transport
or temporarily store the battery in a temperature range of 40-120F. Do not store the battery or model in a car or in direct sunlight.
If stored in a hot car, the battery can be damaged or even catch fire.
Never use a Ni-Mh Charger to charge Li-Po Batteries. Failure to charge the battery with a Li-Po compatible charger
may cause fire resulting in personal injury and property damage.
Never discharge Li-Po Cells below 3V.
Never leave charging batteries unattended.
Never charge damaged batteries.
Charging the Flight Battery Warning
Use a battery charger that is designed to safely charge the Li-Po Battery. Read the charger instructions care
fully before use. When charging the battery, make certain the battery is on a heat resistant surface. It is also highly
recommended to place the Li-Po Battery inside a fire resistant charging bag readily available at hobby shops or
online.
Features:
Introduction
•
Power: Brushless 3541-750KV outrunner provides ample-
power, while the high quality 45A ESC has the output to
The FMS 1800mm Ranger official release notes!
match.
The FMS Ranger has quickly become well known amongst
•
CNC metal landing gear absorbs even the hardest landings
R/C pilots- Beginners love it for the simple assembly as well as
•
Oversized wheels for all-terrain operations
its stable and predictable handling characteristics while experts
•
STOL capable flight characteristics and excellent low
love the Ranger as a weekend flyer with mild aerobatic
speed handling
capabilities.
•
Realistic light set- Navigation lights, landing lights and
So what could be better than the 1200mm Ranger? Well, a
strobes
50% larger 1800mm Ranger, of course!
•
Screw-together assembly
While quite a bit bigger, the 1800mm Ranger is still true to its
•
Optional floats
roots- take off within 10ft and cruise at 1/3 throttle with the
•
Functional flaps
flaps down- STOL is in its DNA.
With a patented spring-cushioned nose gear and robust metal
main landing gears, the 1800mm Ranger will absorb just about
Table of contents
any landing impact. The durable, oversized wheels are
designed specifically for rough field operations.
Introduction·····························································
3
With landing lights, nav lights and strobes, the 1800mm
Kit contents·····························································
3
Ranger is realistic and could fly well into the dusk. Optional
Model assembly·······················································
4
floats add to the all-terrain fun of the Ranger.
Battery installation····················································
9
Build the 1800mm Ranger in as little as 3 minutes (for experi-
Receiver diagram·····················································
9
enced pilots)- the screw-together assembly is very straight-for-
Get your model ready to fly
········································
9
ward and easy to put together.
Clevis installation
····················································
11
Control horn and servo arm settings
····························
11
Want to supersize your experience? The 1800mm Ranger is
Center of gravity(CG)
··············································
11
the right way to start!
Before flying the model
············································
12
Flying course
························································
12
Troubleshooting
·····················································
13
Spare parts list content
············································
13

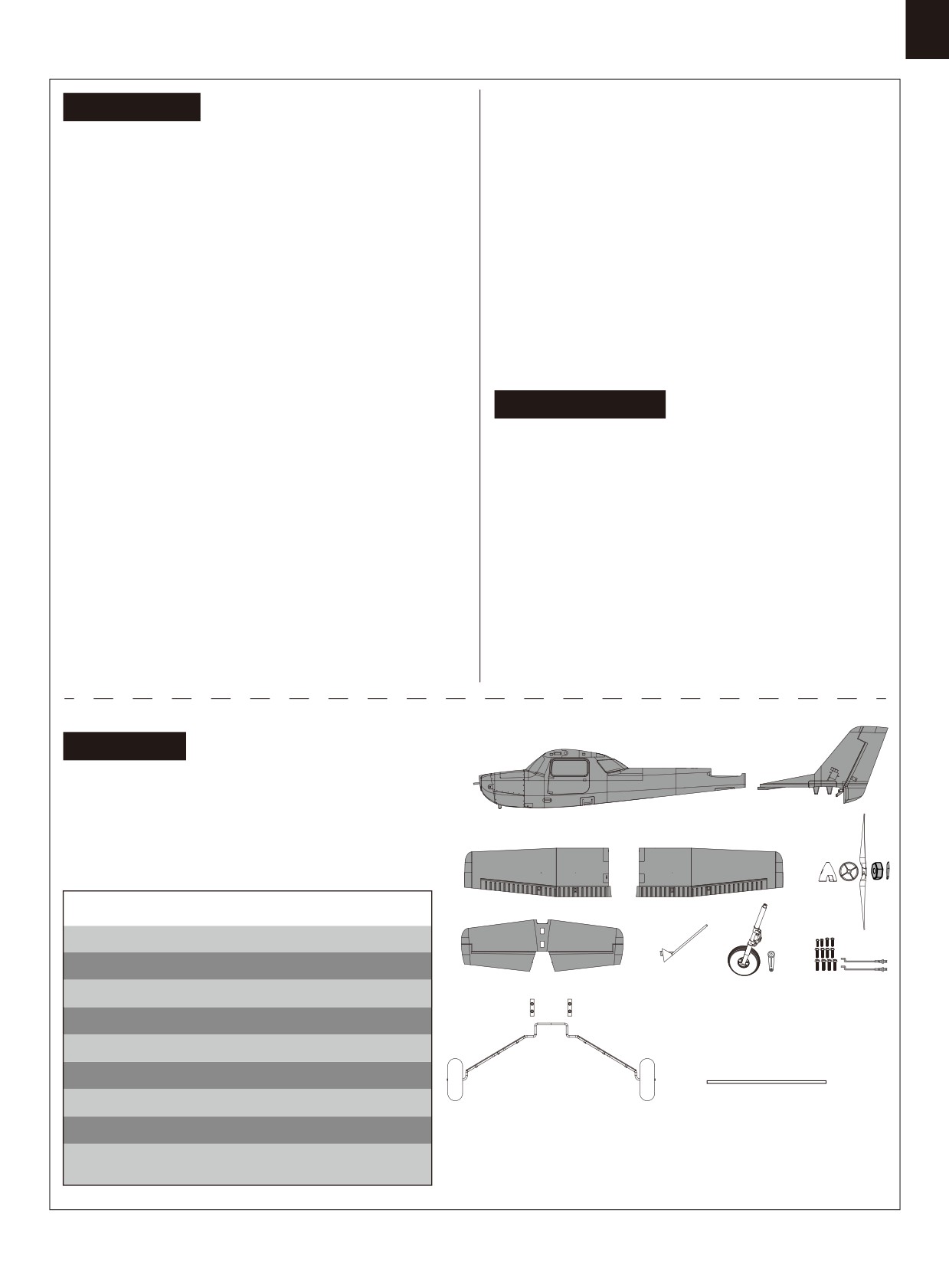

Kit contents
A.
B.
Before assembly, please inspect the contents of the kit. The
photo below details the contents of the kit with labels. If any
parts are missing or defective, please identify the name or
part number (refer to the spare parts list near the end of the
manual) then contact your local shop or email us: support
C.
D.
@fmsmodel.com
Specifications
E.
F.
G.
Wingspan: 1800mm (70.9 in)
H.
Overall Length: 1335mm (52.5 in)
Flying Weight: ~ 2180g
I.
Motor Size: 3541-KV750
Wing Load: 47.8 g/dm² (0.10oz/in²)
J.
Wing Area: 45.6 dm² (706.7 sq.in)
ESC: 45A
A: Fuselage
E: Horizontal Stabilizer I: Main landing gear
Servo: 17g Servo x 6
B: Vertical Stabilizer
F: Antenna
J: Wing tube
Recommended Battery: 14.8V 3300mAh-4000mAh
C: Main Wing
G: Nose landing gear
35C
D: Propeller Assembly
H: Screw and pushrod set
3

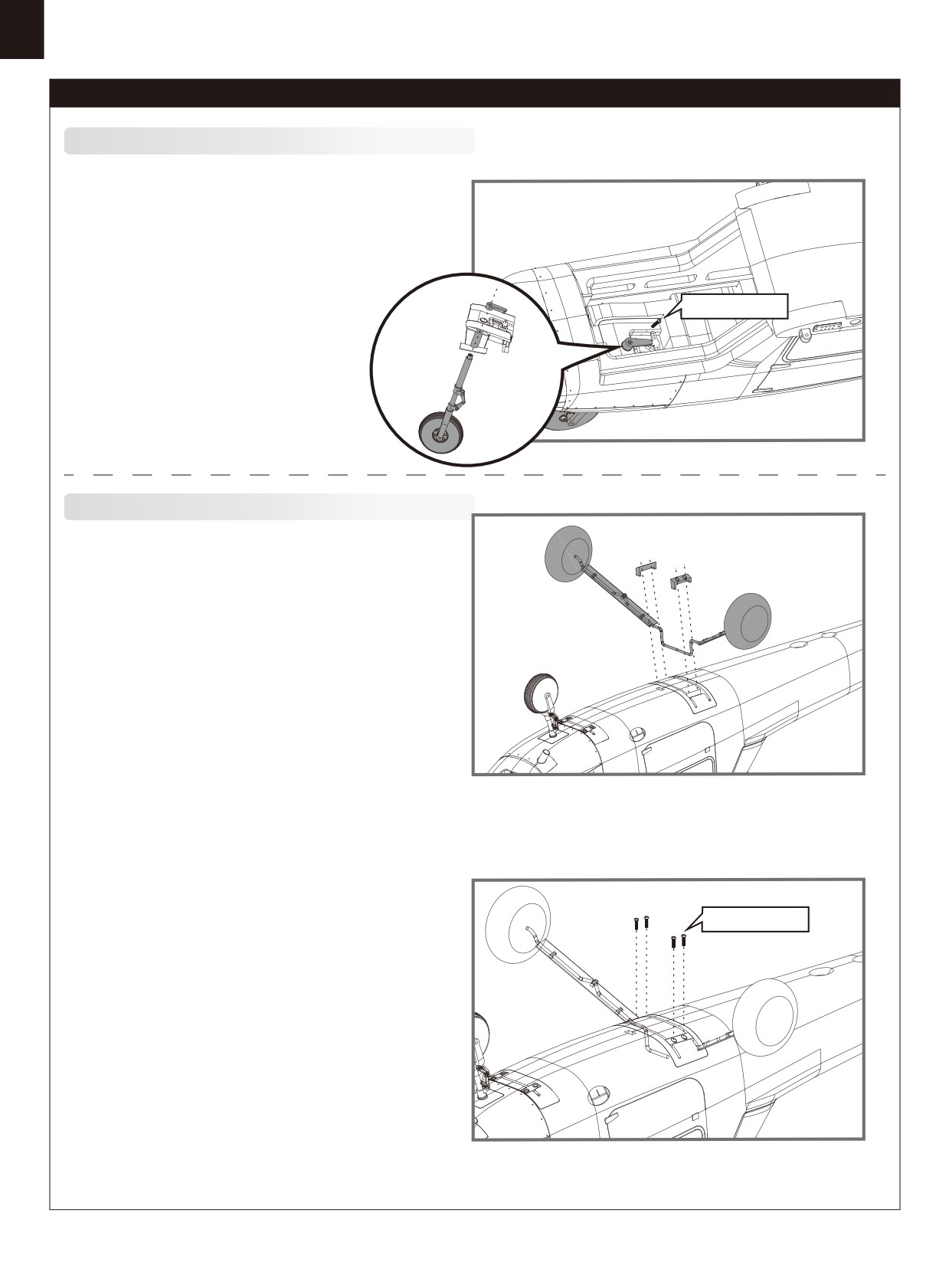

Model assembly
Nose
landing
gear
installation
1. Install the nose-landing gear into the
KM3.0*6mm
plastic slot on the aircraft as shown. Use the
included screw to secure the control horn.
Main
landing
gear
installation
1. With the airframe included, install the landing gear
and holder components into the slots on the fuselage
as shown.
HKM3.0*10mm
2. Secure the landing gear onto the fuselage with the
included screws.
4

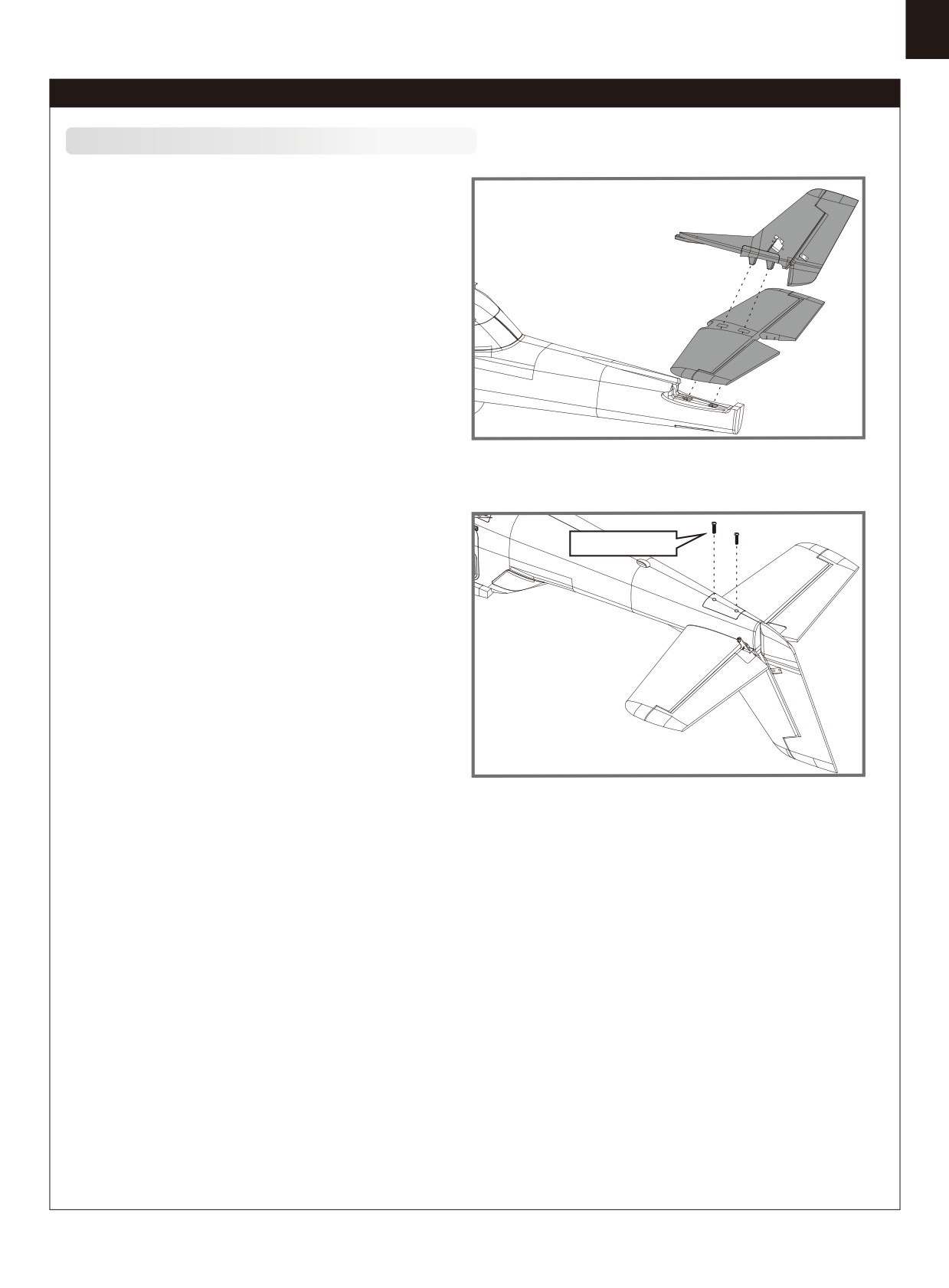

Model assembly
Installation of
the
horizontal
and vertical stabilizers
1. Install the horizontal and vertical stabilizers onto the
fuselage as shown.
HKM3.0*40mm
2. Secure the tail surfaces to the fuselage with the
include screws.
5
Model assembly

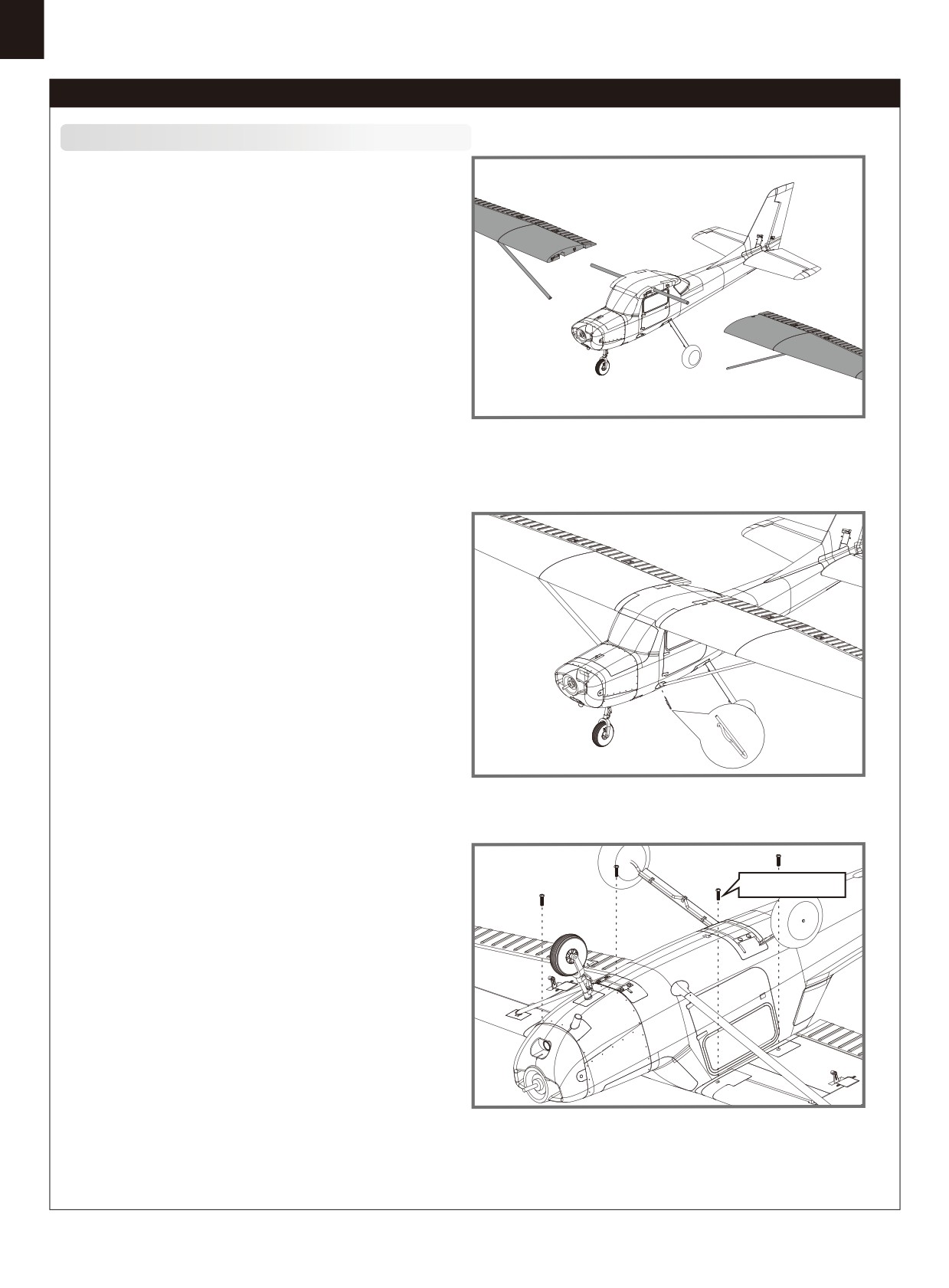

Main wing
installation
1. Slide the wing halves onto the wing spar and into
the wing slots.
2. Using the body pins, secure the struts to the fuselage.
HKM3.0*16mm
3. With the fuselage inverted, secure the wing halves
onto the airframe by using the included screws.
6

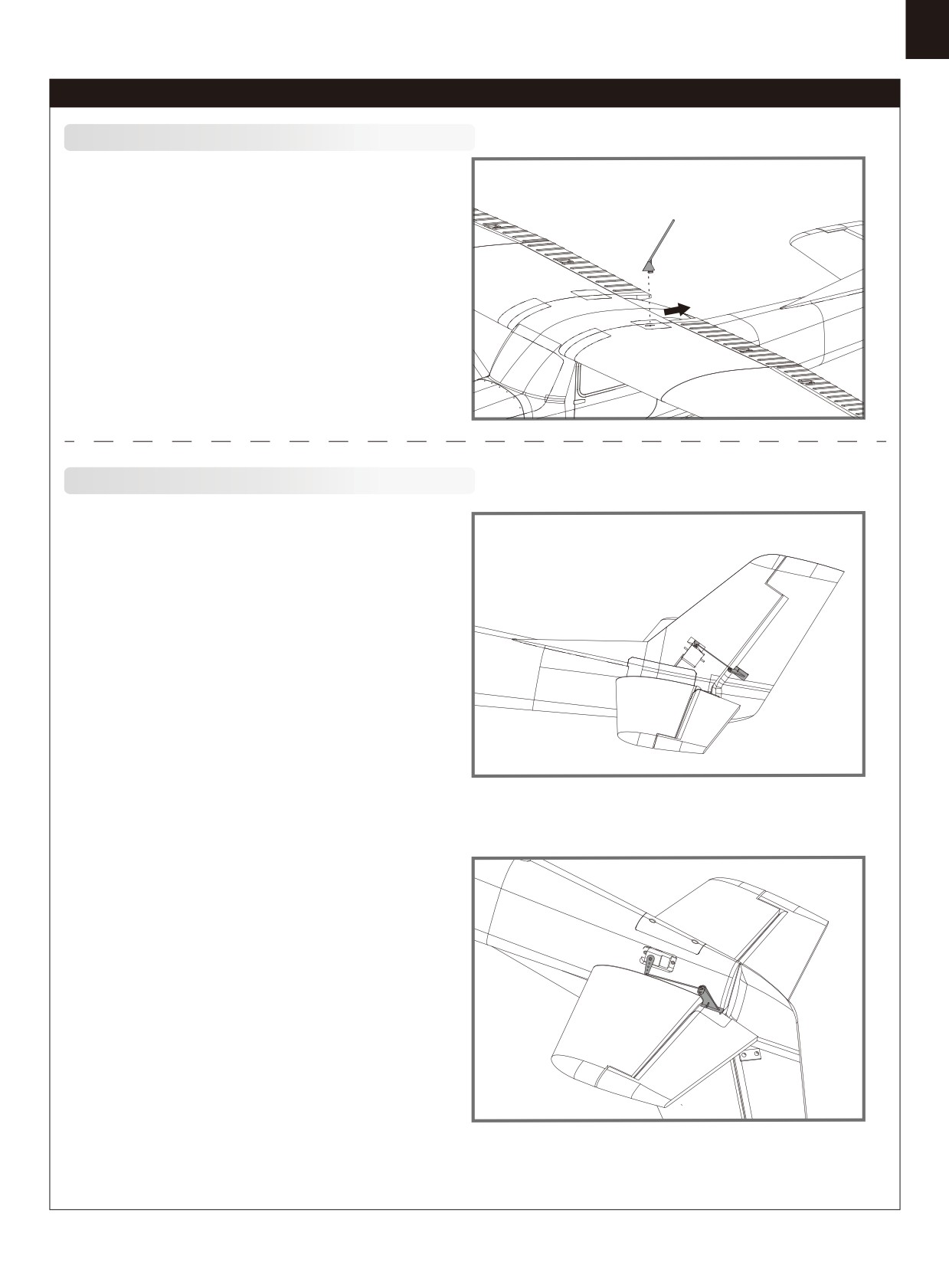

Model assembly
Antenna installation
1. The antenna is secured into its slot and lock it in
place by sliding the component towards the tail of
the aircraft.
Pushrod installation
1. With the rudder servo in its neutral position, con-
nect an included pushrod from the rudder servo to
the rudder surface.
2. With the elevator servo in its neutral position, con-
nect an included pushrod from the elevator servo to
the elevator surface.
7
Model assembly

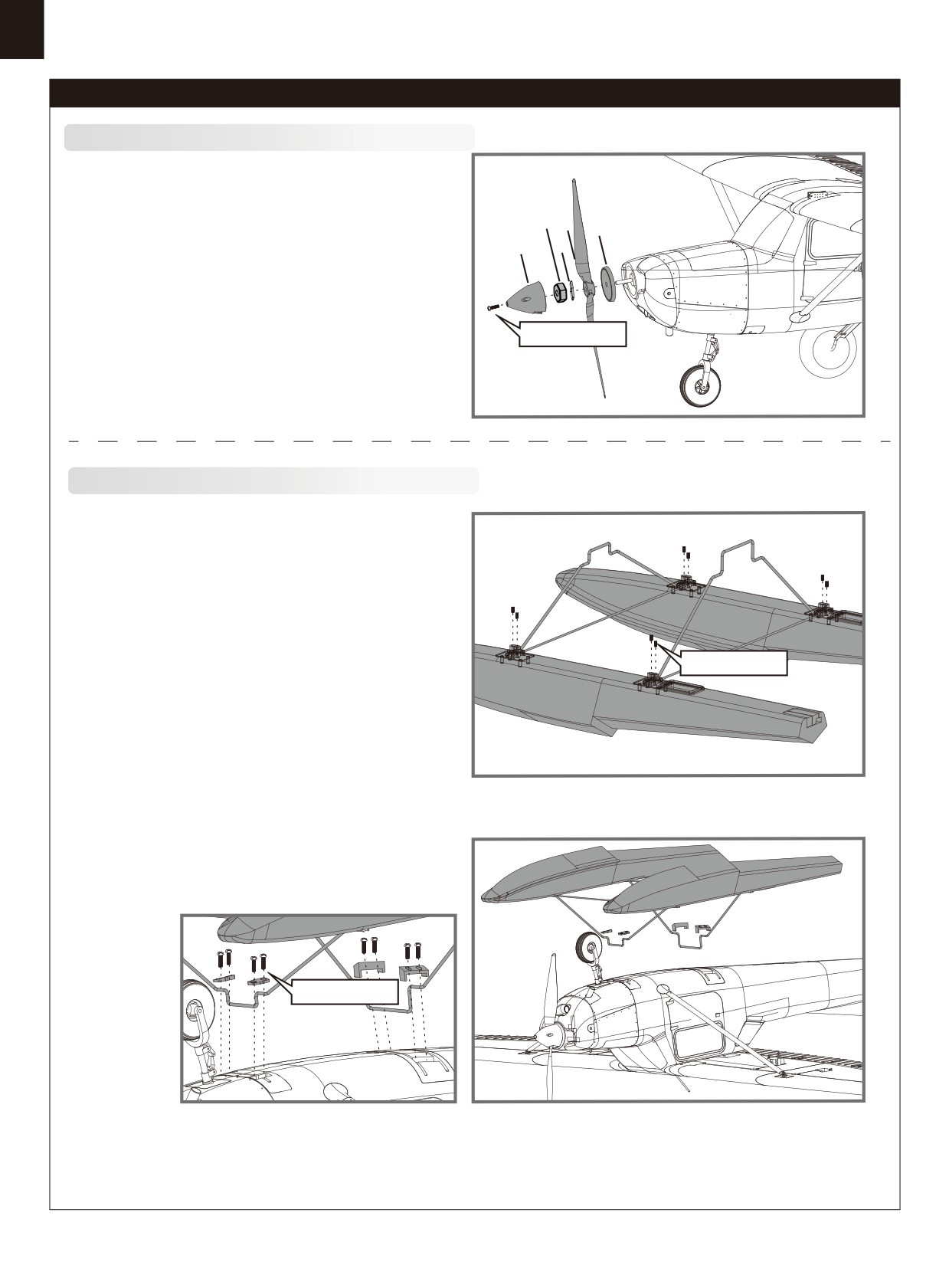

Propeller
installation
d b
a
e
c
1. Install the propeller assembly as shown
HKM3.0*10mm
Float
assembly
1. As shown in the image, connect both floats with
the metal struts and secure the structure with the
included screws
2. Connect the floats to the fuselage and secure with
the included screws and retainer.
Screws 3*4mm
HKM3.0*10mm
8

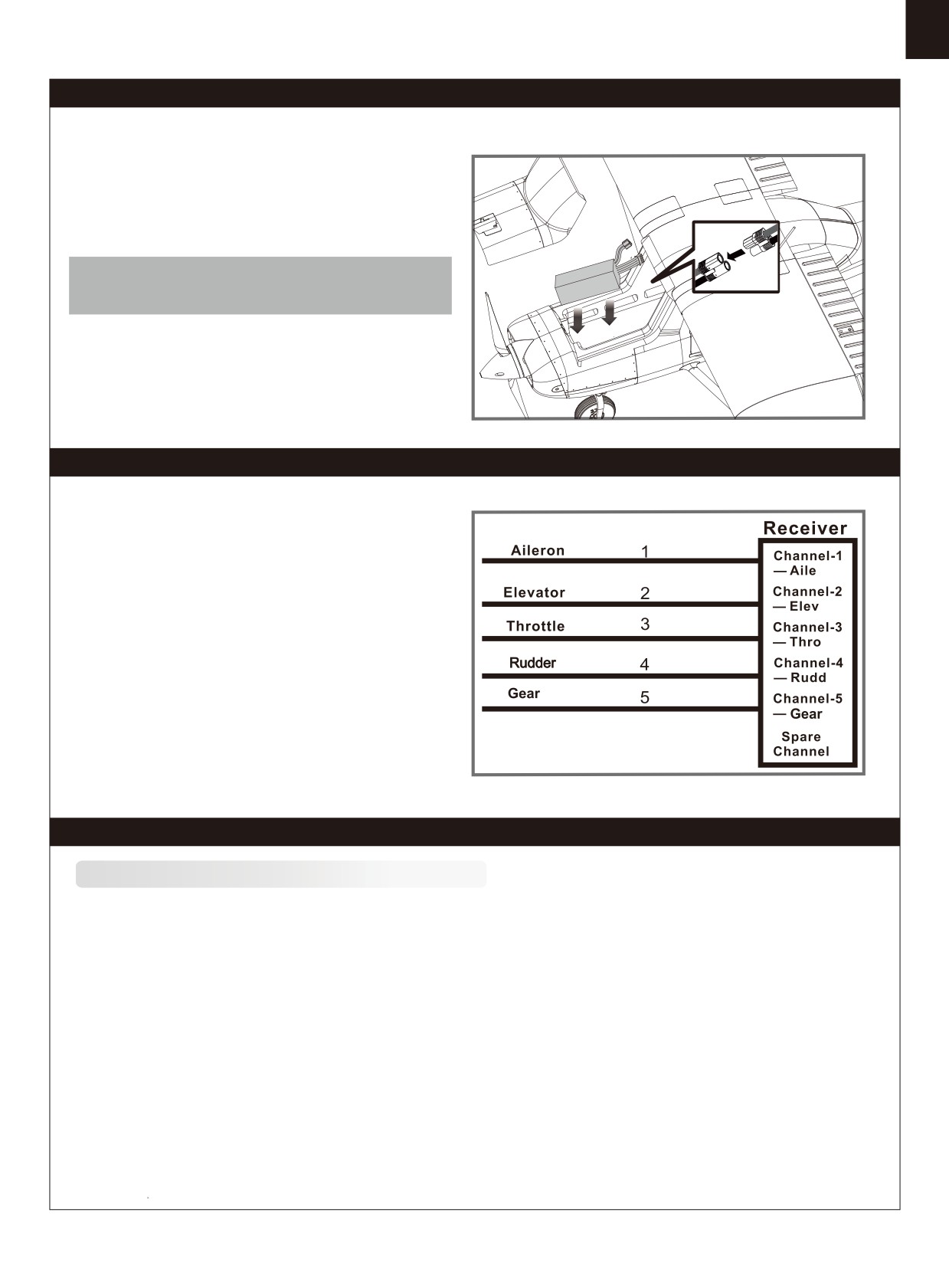

Battery installation
1. Pull back on the release tab and remove the battery hatch.
2. Apply hook tape to the cable end of the battery.
3. Make sure the battery is secured using hook tape.
Note: batteries from different manufacturers will vary in
weight and size, it is therefore important to check the center
of gravity of the aircraft before every flight.
Receiver diagram
The cables from the servo connector board should be connected
to your receiver in the order shown. Tuck the wire leads into the
recessed cavity towards the rear of the battery hatch.
spare
Get your model ready to fly
Impor
tant
ESC
and
model information
1. The ESC included with the model has a safe start. If the motor battery is connected to the ESC and the throttle stick is not in
the low throttle or off position, the motor will not start until the throttle stick is moved to the low throttle or off position. Once the
throttle stick is moved to the low throttle or off position, the motor will emit a series of beeps. Several beeps with the same tune
means the ESC has detected the cells of the battery. The count of the beeps equals the cells of the battery. The motor is now
armed and will start when the throttle is moved.
2. The motor and ESC come pre-connected and the motor rotation should be correct. If for any reason the motor is rotating in the
wrong direction, simply reverse two of the three motor wires to change the direction of rotation.
The motor has an optional brake setting. The ESC comes with brake switched off and we recommend that the model be flown
3.
with the brake off. However, the brake could be accidentally switched on if the motor battery is connected to the ESC while the
throttle stick is set at full throttle. To switch the brake off, move the throttle stick to full throttle and plug in the motor battery. The
motor will beep one time. Move the throttle stick to low throttle or the off position. The motor is ready to run and the brake will
be switched off.
Battery Selection and Installation. We recommend the 14.8V 3300mAh-4000mAh 35C Li-Po battery. If using another battery,
4.
the battery must be at least a 14.8V 3300mAh-4000mAh 35C battery. Your battery should be approximately the same capacity,
dimension and weight as the 14.8V 3300mAh-4000mAh 35C Li-Po battery to fit the fuselage without changing the center of
gravity significantly.
9

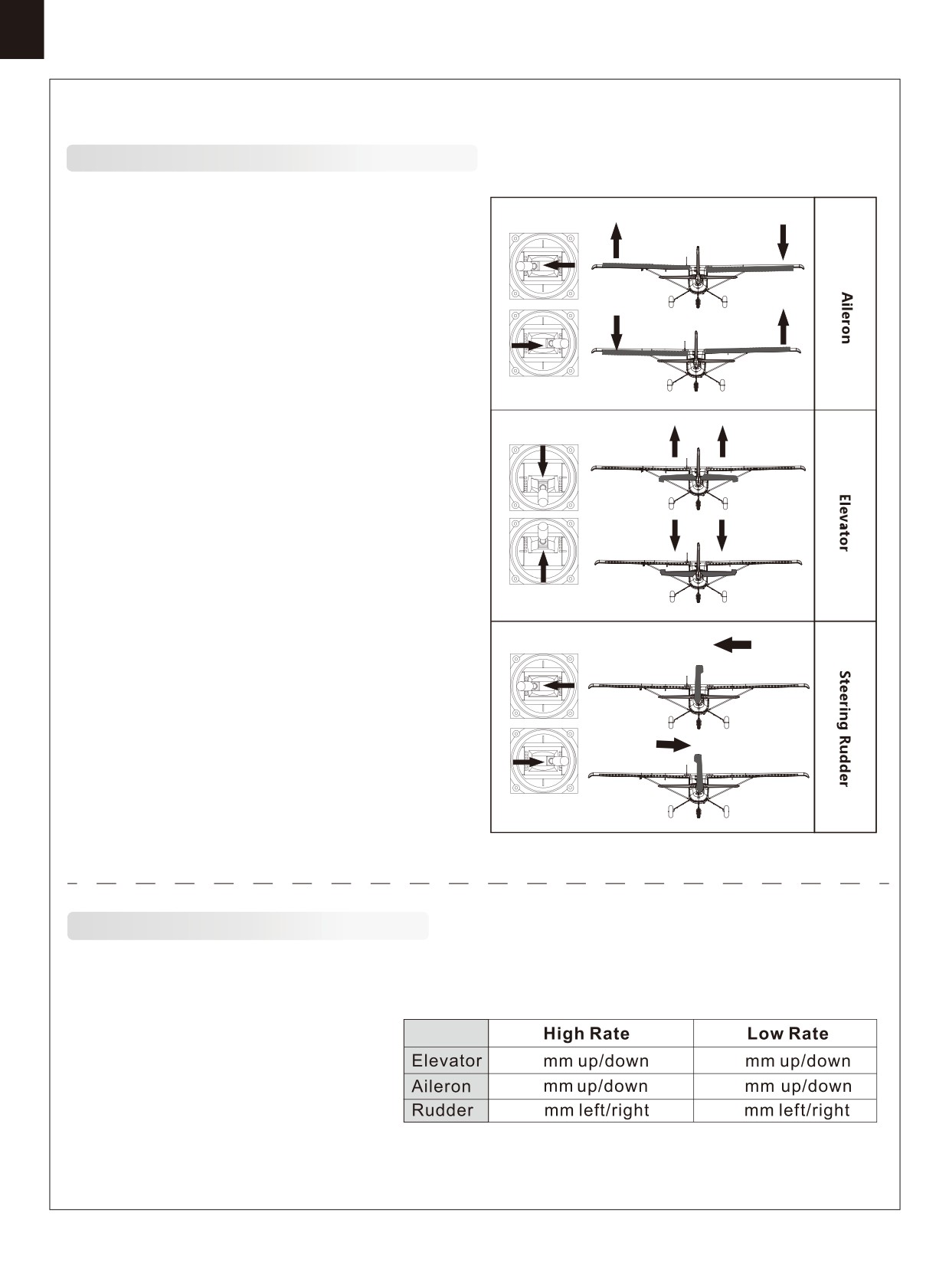

Transmitter
and model
setup
Before getting started, bind your receiver with your transmitter.
Bank left
Please refer to your transmitter manual for proper operation.
CAUTION: To prevent personal injury, DO NOT install the propel-
ler assembly onto the motor shaft while testing the control surfac-
es. DO NOT arm the ESC and do not turn on the transmitter until
the Transmitter Manual instructs you to do so.
Tips: Make sure all control sticks on your radio are in the neutral
position (rudder, elevator, ailerons) and the throttle is in the OFF
position. Make sure both ailerons move up and down (travel) the
same amount. This model tracks well when the left and right
ailerons travel the same amount in response to the control stick.
Move the controls on the transmitter to make sure the aircraft
Bank right
control surface moves correctly. See diagrams right.
Climb
Descend
Steer left
Steer right
Control
throws
The suggested control throw setting for the Ranger are as follows (dual rate setting):
Tips: On the first flight, fly the model in low rate.
The first time you use high rates,be sure to fly at
16
10
low to medium speeds. High rate, as listed, is
20
16
only for EXTREME maneuvering.
16
12
10

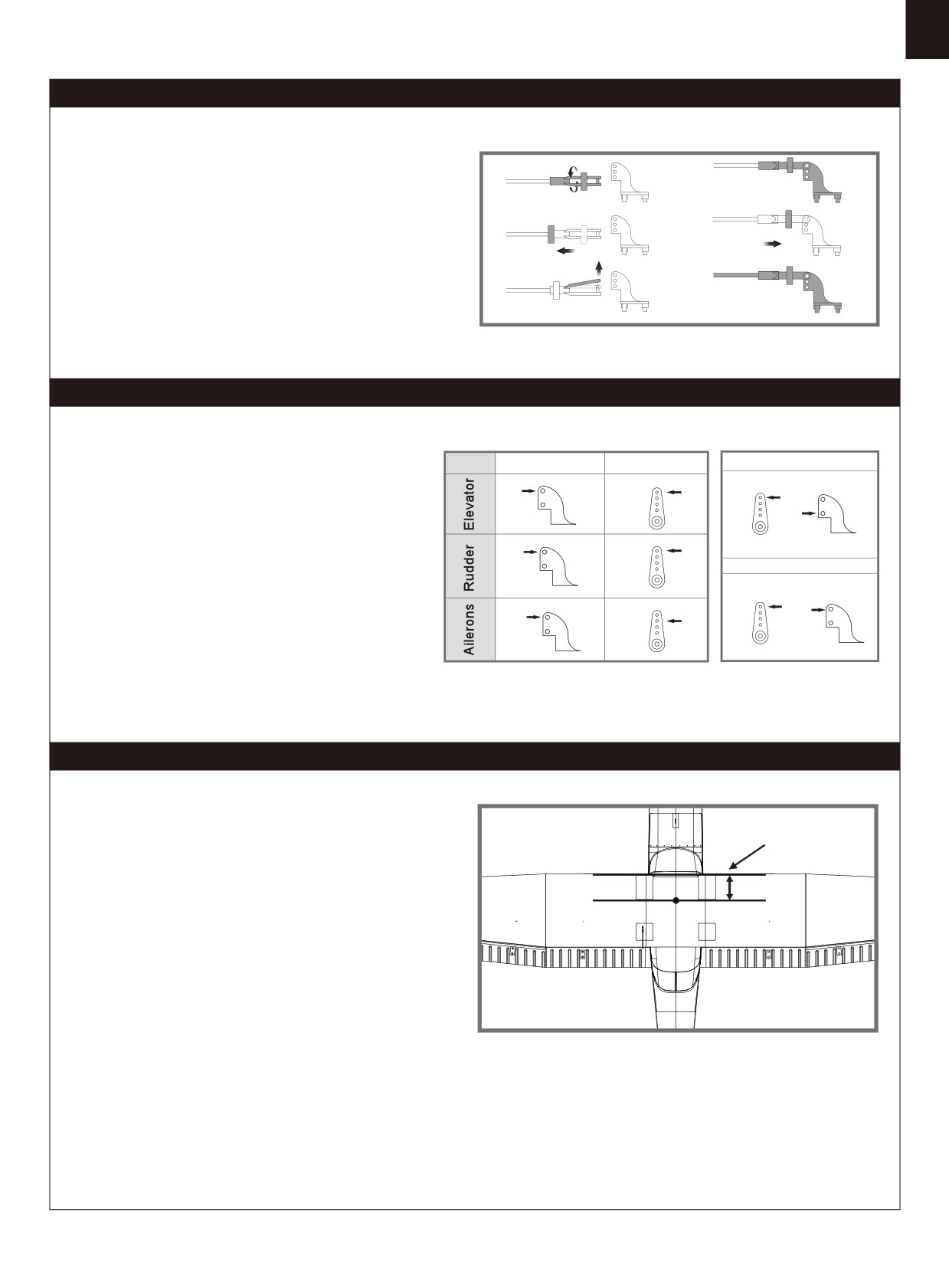

Clevis installation
a.
d.
1.Pull the tube from the clevis to the linkage.
2.Carefully spread the clevis, then insert the clevis pin into the
b.
e.
desired hole in the control horn.
3.Move the tube to hold the clevis on the control horn.
c.
f.
Control horn and servo arm settings
Horns
Arms
More control throw
The table shows the factory settings for the control horns
and servo arms. Fly the aircraft at the factory settings
before making changes.
After flying,you may choose to adjust the linkage positions
Less control throw
for the desired control response.
Check the C.G. (Center of gravity)
When balancing your model, adjust the battery as necessary
so the model is level or slightly nose down. This is the correct
75-85mm
balance point for your model. After the first flight, the CG
position can be adjusted for your personal preference.
1. The recommended Center of Gravity (CG) location for your
model is(75-85mm) from the leading edge of the main wing
(as shown) with the battery pack installed. Mark the location of
the CG on top of the wing.
2. When balancing your model, support the plane at the marks
made on the bottom of the main wing with your fingers or
a
commercially available balancing stand. This is the correct
balance point for your model. Make sure the model is assembled
and ready for flight before balancing.
11
Before flying the model
Flying course
Find a suitable flying site
Take
off
Find a flying site clear of buildings, trees, power lines and
While applying power, slowly steer to keep the model straight.
other obstructions. Until you know how much area will be
The model should accelerate quickly. As the model gains flight
required and have mastered flying your plane in confined
speed you will want to climb at a steady and even rate. It will
spaces, choose a site which is at least the size of two to three
climb out at a nice angle of attack (AOA).
football fields - a flying field specifically for R/C planes is best.
Never fly near people - especially children, who can wander
unpredictably.
Flying
Always choose a wide-open space for flying your plane. It is
ideal for you to fly at a sanctioned flying field. If you are not
Perform the range check for your plane
flying at an approved site always avoid flying near houses,
trees, wires and buildings. You should also be careful to avoid
As a precaution, an operational ground range test should be
flying in areas where there are many people, such as busy
performed before the first flight each time you go out.
parks, schoolyards, or soccer fields. Consult laws and
Performing a range test is a good way to detect problems
ordinances before choosing a location to fly your aircraft. After
that could cause loss of control such as low batteries, defective
takeoff, gain some altitude. Climb to a safe height before trying
or damaged radio components, or radio interference. This
technical manoeuvres, including high speed passes, inverted
usually requires an assistant and should be done at the actual
flight, loops, and point rolls.
flying site you will be using.
First turn on the transmitter, then install a fully-charged battery
into the fuselage. Connect the battery and install the hatch.
Remember, use care not to bump the throttle stick. Otherwise,
Landing
the propeller/fan will turn and possibly cause damage or injury.
Land the model when you hear the motor pulsing (LVC) or if
Note: Please refer to your Transmitter Manual that came with
you notice a reduction in power. If using a transmitter with a
your radio control system to perform a ground range check. If
timer, set the timer so you have enough flight time to make
the controls are not working correctly or if anything seems
several landing approaches.
wrong, do not fly the model until you correct the problem. Make
The model’s three point landing gear allows the model to land
certain all the servo wires are securely connected to the
on hard surfaces. Align model directly into the wind and fly
receiver and the transmitter batteries have a good connection.
down to the ground. Fly the airplane down to the ground using
1/4-1/3 throttle to keep enough energy for proper flare. Before
the model touches down, always fully decrease the throttle to
avoid damaging the propeller or other components. The key to
a great landing is to manage the power and elevator all the
way to the ground and set down lightly on the main landing
gear. After a few flights you will find the model can be set down
Monitor your flight time
lightlyon the mains and you can hold the nose wheel off
Monitor and limit your flight time using a timer (such as on a
balancing themodel on the mains until it slows and gently
wristwatch or in your transmitter if available). When the
settles the nose.
batteries are getting low you will usually notice a performance
drop before the ESC cuts off motor power, so when the plane
starts flying slower you should land. Often (but not always)
power can be briefly restored after the motor cuts off by
holding the throttle stick all the way down for a few seconds.
Maintenance
To avoid an unexpected dead-stick landing on your first flight,
set your timer to a conservative 4 minutes. When your alarm
Repairs to the foam should be made with foam safe adhesives
sounds you should land right away.
such as hot glue, foam safe CA, and 5min epoxy. When parts
are not repairable, see the Spare Parts List for ordering by item
number.
Always check to make sure all screws on the aircraft are
tightened. Pay special attention to make sure the spinner is
firmly in place before every flight.
12
Trouble shooting
Problem
Possible Cause
Solution
Aircraft will not respond to
-ESC is not armed.
-Lower throttle stick and throttle trim to lowest settings.
the throttlebut responds to
-Throttle channel is reversed.
-Reverse throttle channel on transmitter.
other controls.
-Damaged spinner, propeller,
Extra propeller noise or
-Replace damaged parts.
motor or motor mount.
extra vibration.
-Tighten parts for propeller adapter, propeller and spinner.
-Loose propeller and spinner parts.
-Remove and install propeller correctly.
-Propellor installed backwards.
-Flight battery charge is low.
-Completely recharge flight battery.
Reduced flight time or
-propeller installed backward.
-Replace flight battery and follow flight battery
aircraft underpowered.
-Flight battery damaged.
instructions.
-Control surface, control horn,
-Replace or repair damaged parts and adjust controls.
Control surface does not
linkage or servo damage.
-Do a check of connections for loose wiring.
move, or is slow to respond
-Wire damaged or connections
to control inputs.
loose.
Channels are reversed in the
Do the control direction test and adjust controls for
Controls reversed.
transmitter.
aircraft and transmitter.
-Motor loses power
-Damage to motor, or battery.
-Do a check of batteries, transmitter, receiver, ESC, motor
-Motor power pulses then
-Loss of power to aircraft.
and wiring for damage(replace as needed).
motor loses power.
-ESC uses default soft Low Voltage
-Land aircraft immediately and recharge flight battery.
Cutoff(LVC).
-Check connection from ESC to receiver.
LED on receiver flashes
Power loss to receiver.
-Check servos for damage.
slowly.
-Check linkages for binding.
Spare parts list content
FMSRX101
Fuselage
FMSRX116
R clasp
FMSRX102
Main wing set
FMSRX117
Wheel set
FMSRX103
Horizontal stabilizer
FMSRX118
Control horn set
FMSRX104
Vertical stabilizer
FMSRX119
Sticker
FMSRX105
Cowl
FMSRX120
LED set
FMSRX106
Battery cover
FMSRX121
LED controller
FMSRX107
Wing spar
FMSPROP054
propeller
FMSRX108
Wing struts
FMSDJ015
Motor amout
FMSRX109
Spinner
FMSBM041
Motor board
FMSRX110
Front landing gear set
FMSDZ022
Motor shaft
FMSRX111
Main landing gear set
PRKV750E
3541-KV750 motor
FMSRX112
Landing gear dashboard
PRESC025
45A ESC
FMSRX113
Antenna
FMSRX114
Steel set
FMSRX115
Screws set
Visit our website: www.fmsmodel.com to see photo of this product. Enter the key word "ESC" in the search bar for the
stock ESC instruction manual.
13
