SANY Excavator SY500H Technical Specifications
PRODUCT
SY500H
SPECIFICATIONS
STANDARD FEATURES
Gross Power
298.0 kW / 399.6 hp
• Powerful, robust and reliable
• A high-performance cooling
powertrain & hydraulic
system equipped with electronic
Dig Depth
components for long life in the
control fan clutch provide clean,
8255 mm / 27’ 1”
most demanding applications
quiet operation
Operating Weight
• Optimized positive flow control
• Selectable working modes
54500 kg / 120,152 lb
hydraulics improve operating
match machine performance
efficiency by up to 5% and fuel
to the application, maximizing
efficiency by up to 10%
productivity and minimizing
Bucket Breakout
operating costs
275.0 kN / 61,822 lbf

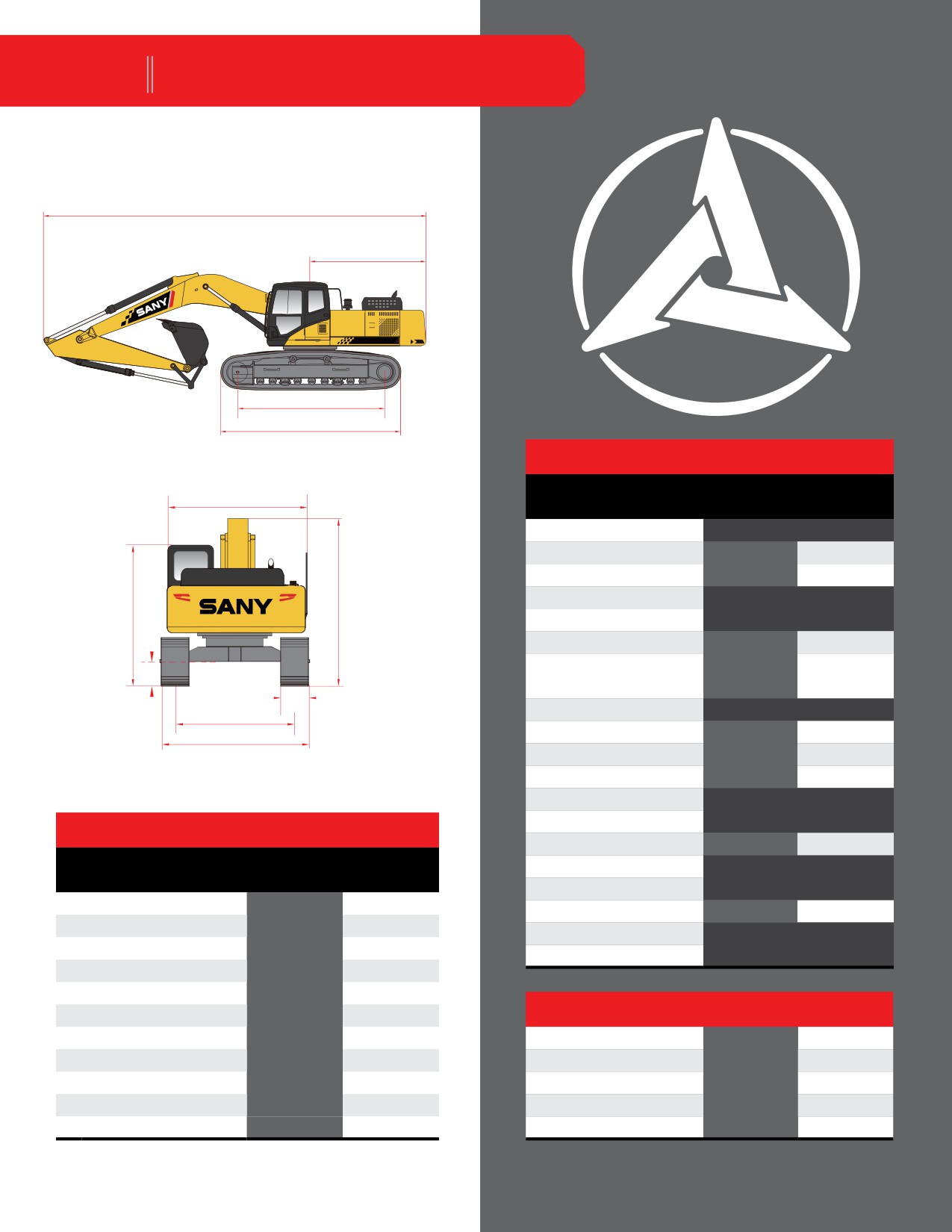

PRODUCT SPECIFICATIONS
SY500H
DIMENSIONS
A
Powerful, robust and
I
reliable powertrain and
SY500H-10
hydraulic components
J
K
TECHNICAL SPECIFICATIONS
Operating Weight
54500 kg
120,152 lb
D
Ground Pressure
59.0 kPa
8.6 psi
Engine
Cummins QSG12
Displacement
11.8 L
720.1 in³
Gross Power
298 kW
400 HP
C
Hydraulics
Positive Flow Control with Pilot Control
Main Hydraulic Pump
Axial Piston - Variable Displacement
Operating Flow (maximum)
720.0 L/min
190.2 gal/min
Operating Pressure (maximum)
34.3 MPa
4975 psi
H
Power Boost Pressure (maximum)
37.3 MPa
5410 psi
F
Travel Motor
Axial Piston with Park Brake
G
B
Travel Pressure (maximum)
34.3 MPa
4975 psi
Travel Speeds (maximum)
3.4 / 5.2 km/hr
2.1 / 3.2 mph
Travel Effort (maximum)
214.0 kN
48,109 lbf
Grade Capability (maximum)
35°
Swing Motor
Axial Piston with Swing Brake
DIMENSIONS
Swing Pressure (maximum)
27.5 MPa
3989 psi
Boom Length
7000 mm
22’ 11”
Swing Speed (maximum)
8.0 RPM
Stick (Arm) Length
3900 mm
12’ 9”
Undercarriage (standard)
Steel Track
A Transport Length
12157 mm
39' 11"
Track Shoe width (standard)
900 mm
35"
B Transport Width
3640 mm
11' 11"
Track Rollers (per side)
9
C Transport Height
3768 mm
12' 4"
Carrier Rollers (per side)
2
D Upper Structure Width
3292 mm
10' 10"
E Cab Height
3423 mm
11' 3"
SERVICE REFILL CAPACITIES
F Track Width (standard shoe)
900 mm
35"
G Track Gauge
2740 mm
8' 12"
Fuel Tank Capacity
680.0 L
179.6 gal
H Ground Clearance
560 mm
22"
DEF Tank Capacity
56.6 L
15.0 gal
I
Tailswing Radius
3850 mm
12' 8"
Hydraulic Tank Capacity
480.0 L
126.8 gal
J Track Length on Ground
4412 mm
14' 6"
Engine Oil Capacity
33.0 L
8.7 gal
K Track Length
5459 mm
17' 11"
Cooling System Capacity
50.0 L
13.2 gal

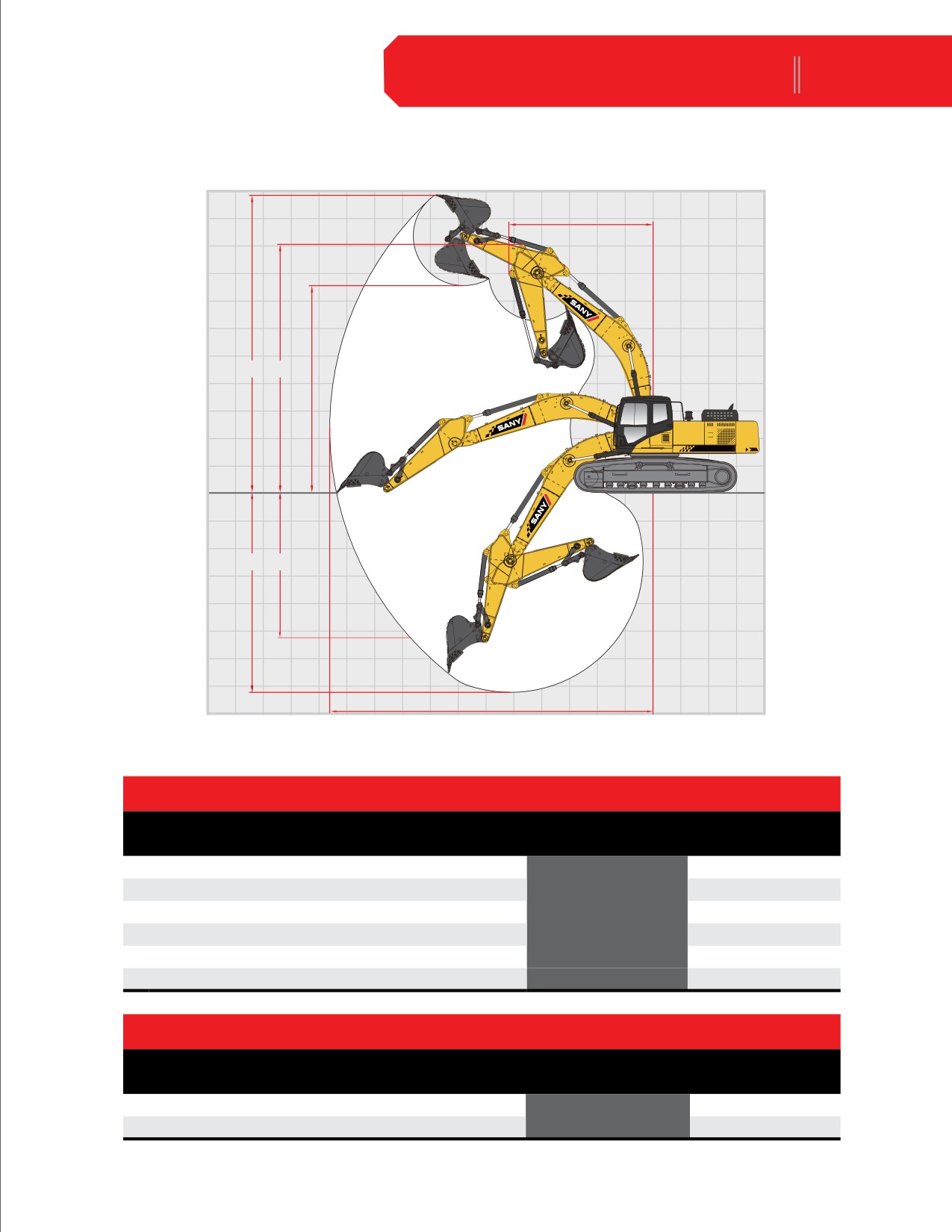

DIGGING PERFORMANCE
SY500H
WORKING RANGE
F
A
B
SY500H-10
C
D
E
WORKING RANGE
Boom Length
7000 mm
22.97 ft
Stick (Arm) Length
3900 mm
12.80 ft
A Maximum Digging Height
11112 mm
36' 5"
B Maximum Dumping Height
7843 mm
25' 9"
C Maximum Digging Depth
8255 mm
27' 1"
D Maximum Vertical Wall Digging Depth
6725 mm
22' 1"
E Maximum Reach at Ground Level
12537 mm
41' 2"
F Minimum Swing Radius
5237 mm
17' 2"
DIGGING PERFORMANCE
Boom Length
7000 mm
22.97 ft
Stick (Arm) Length
3900 mm
12.80 ft
Bucket Breakout Force (ISO)
275.0 kN
61,822 lbf
Stick (Arm) Digging Force (ISO)
207.0 kN
46,535 lbf

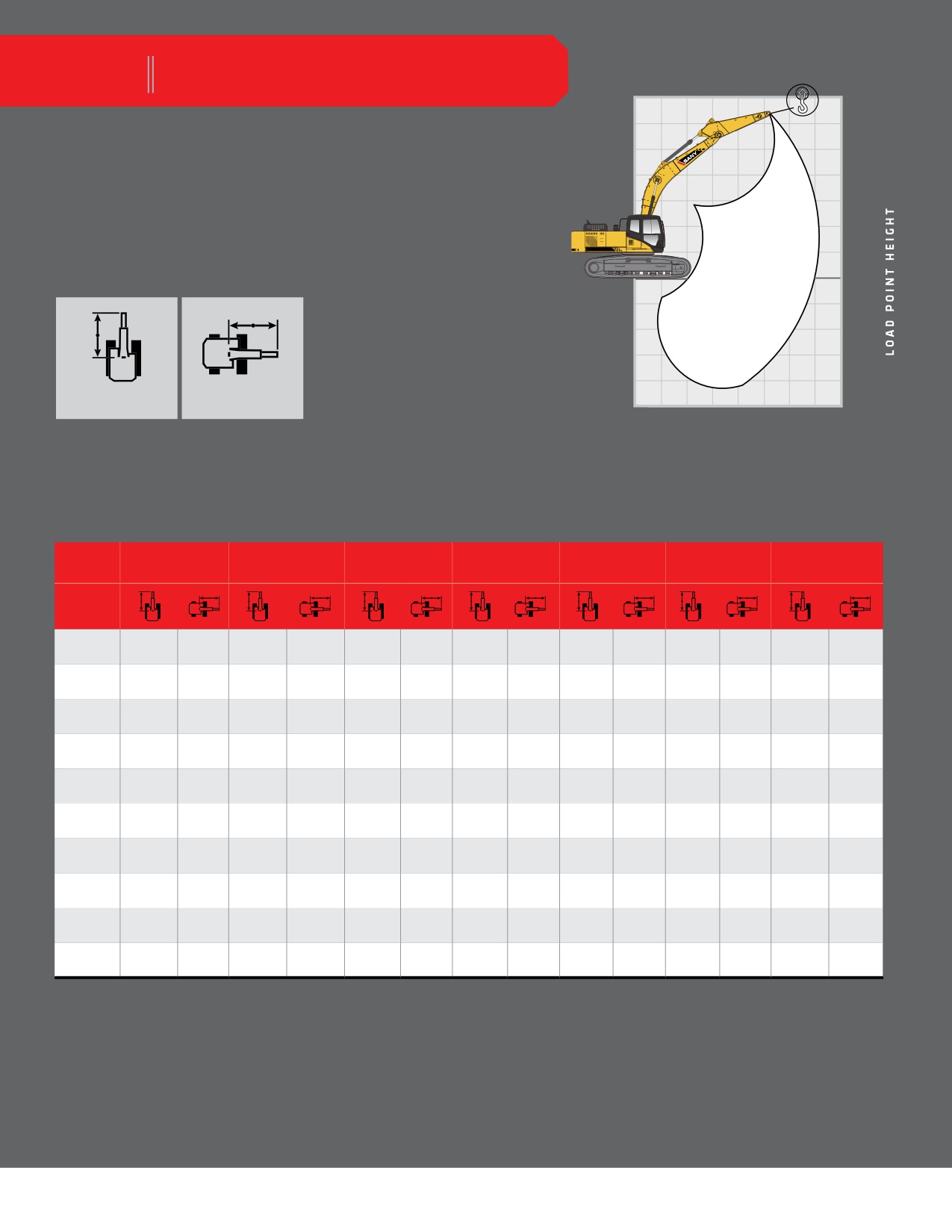

LIFTING PERFORMANCE
SY500H
10.5 [m]
34.4 [ft]
9.0
29.5
7.5
Standard 7000 mm (22’ 11”) Boom
24.6
6.0
Standard 3900 mm (12’ 9”) Arm
19.7
4.5
14.8
Standard 900 mm (35”) Track Shoes
3.0
9.8
No Bucket
SY500H-10
1.5
4.9
0
0
-1.5
Ratings are based on ISO 10567:2007.
-4.9
-3.0
Lift capacity does not exceed 75% of
-9.8
-4.5
tipping load with the machine on firm,
-14.8
level ground or 87% of hydraulic lifting
-6.0
-19.7
capacity.
-7.5
FRONT
SIDE
-24.6
[m]
0
1.5
3.0
4.5
6.0
7.5
9.0
10.5
12
[ft]
0
4.9
9.8
14.8
19.7
24.6
29.5
34.4
39.4
LOAD RADIUS
LOAD
3.0 m
4.5 m
6.0 m
7.5 m
9.0 m
10.5 m
RADIUS
9.8 ft
14.8 ft
19.7 ft
24.6 ft
29.5 ft
34.4 ft
MAX REACH
LOAD
POINT
HEIGHT
7.5 m
9644 kg*
8379 kg*
8379 kg*
9644 kg*
24.6 ft
21,261 lb*
18,473 lb*
18,473 lb*
6.0 m
9839 kg*
8644 kg*
8644 kg*
9839 kg*
19.7 ft
21,691 lb*
19,057 lb*
19,057 lb*
4.5 m
13158 kg*
13158 kg*
11414 kg*
11414 kg*
10445 kg*
8568 kg*
7114 kg
10445 kg*
14.8 ft
29,008 lb*
29,008 lb*
25,164 lb*
25,164 lb*
23,027 lb*
18,889 lb*
15,684 lb
3.0 m
21580 kg*
21580 kg*
15633 kg*
15633 kg*
12804 kg*
12804 kg*
11234 kg*
10361 kg*
6933 kg
8587 kg*
6756 kg
8721 kg
9.8 ft
47,576 lb*
47,576 lb*
34,465 lb*
34,465 lb*
28,228 lb*
28,228 lb*
24,766 lb*
22,842 lb*
15,285 lb
18,931 lb*
14,894 lb
1.5 m
22035 kg*
22035 kg*
17801 kg*
14631 kg
14119 kg*
10827 kg
12018 kg*
10726 kg*
6800 kg
8881 kg*
6642 kg
8441 kg
4.9 ft
48,579 lb*
48,579 lb*
39,244 lb*
32,256 lb
31,127 lb*
23,869 lb
26,495 lb*
23,647 lb*
14,991 lb
19,579 lb*
14,643 lb
0 m
22390 kg*
22390 kg*
19217 kg*
14111 kg
15103 kg*
10480 kg
12618 kg*
9940 kg*
6781 kg
8232 kg
0 ft
49,362 lb*
49,362 lb*
42,366 lb*
31,109 lb
33,296 lb*
23,104 lb
27,818 lb*
21,914 lb*
14,950 lb
-1.5 m
15090 kg*
15090 kg*
26730 kg*
21056 kg
19757 kg*
13888 kg
15570 kg*
10301 kg
12840 kg*
9940 kg*
6781 kg
8134 kg
-4.9 ft
33,268 lb*
33,268 lb*
58,930 lb*
46,421 lb
43,557 lb*
30,618 lb
34,326 lb*
22,710 lb
28,307 lb*
21,914 lb*
14,950 lb
-3.0 m
22978 kg*
22978 kg*
25642 kg*
21220 kg
19380 kg*
13906 kg
15330 kg*
10301 kg
12325 kg*
11810 kg*
7946 kg
8197 kg
-9.8 ft
50,658 lb*
50,658 lb*
56,531 lb*
46,782 lb
42,726 lb*
30,657 lb*
33,797 lb*
22,710 lb
27,172 lb*
26,037 lb*
17,518 lb
-4.5 m
32040 kg*
32040 kg*
23256 kg*
23256 kg*
17844 kg*
14153 kg
13916 kg*
10522 kg
12328 kg*
12193 kg*
9492 kg
7668 kg
-14.8 ft
70,636 lb*
70,636 lb*
51,271 lb*
51,271 lb*
39,339 lb*
31,202 lb*
30,680 lb*
23,197 lb
27,179 lb*
26,881 lb*
20,926 lb
-6.0 m
18743 kg*
18743 kg*
14112 kg*
14112 kg*
12207 kg*
12207 kg
-19.7 ft
41,321 lb*
41,321 lb*
31,112 lb*
31,112 lb*
26,912 lb*
26,912 lb*
* Indicates load limited by hydraulic lifting capacity
