SANY HEAVY DUTY FORKLIFT TRUCKS. Technical Specifications & Load Chart (2017)
HEAVY DUTY FORKLIFT TRUCKS
SANY Industrial Park, Gaolan Port Economic and Development Zone,
Zhuhai, Guangdong, China
Tel
0756-7266945
Service
4008 87 8318
Fax
0731-84031999-149
Consulting 4008 87 9318
B03S2ENAQ2-CP
Email sanyport@sany.com.cn
2017
SANY HEAVY DUTY FORKLIFT TRUCKS
SANY HEAVY DUTY
FORKLIFT TRUCKS
ACHIEVEMENT OF PROFESSIONAL QUALITY
COMPREHENSIVE
SAFE AND RELIABLE
HIGH-EFFICIENCY
ENERGY-SAVING
PRODUCT SERIES
03
05
07
01
1 / 2
SANY HEAVY DUTY FORKLIFT TRUCKS

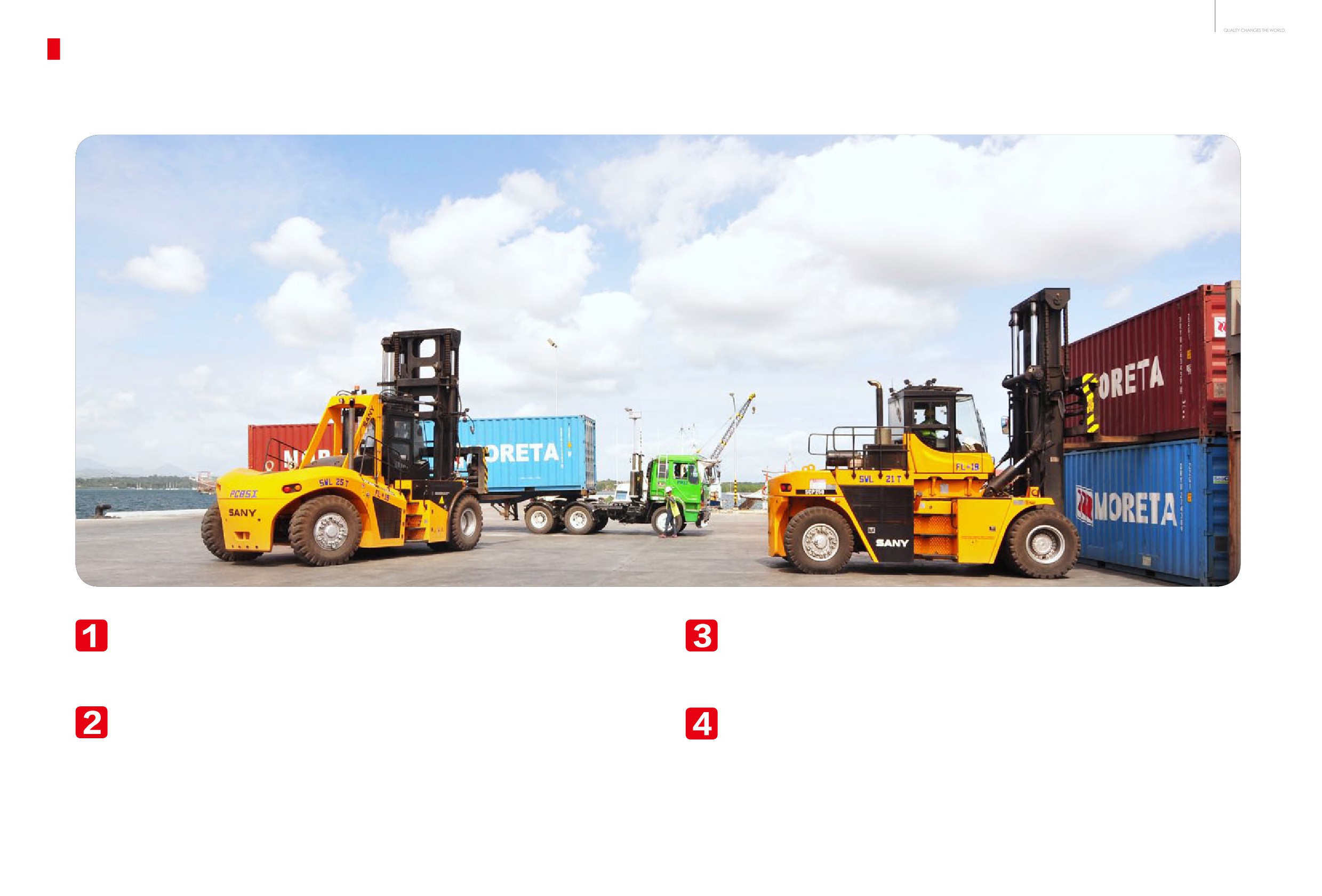

COMPREHENSIVE
World class, No. 1 logistics equipment supplier in China
PRODUCT SERIES
The following configurations are provided for free combination.
SANY Heavy-Duty Forklift Truck can not only handle large-tonnage cargo, but
Customized manufacturing is also available:
also support maintenance, discharge and installation of important equipment.
Hoisting capacity: 10t~16t, 18t~25t, 28t~35t, 40t~46t
When equipped with special accessories, it can also handle steel, stone, con-
crete, wood, 20’ container, etc. This SANY Port Machinery self-developed
Mast: Standard whole view mast, Duplex full free lift mast,
Heavy-duty Forklift Truck is reliable and highly efficient with different series of
Triplex full free lift mast
products with hoisting capacity from 10 to 46 tons. Various attachments and
Attachment: Fork, Coil ram, Clamp, Spreader, Truck frame handler, Bucket,
masts are provided to meet customers’ different requirements.
PC prefabrication unit attachment
3 / 4
SANY HEAVY DUTY FORKLIFT TRUCKS

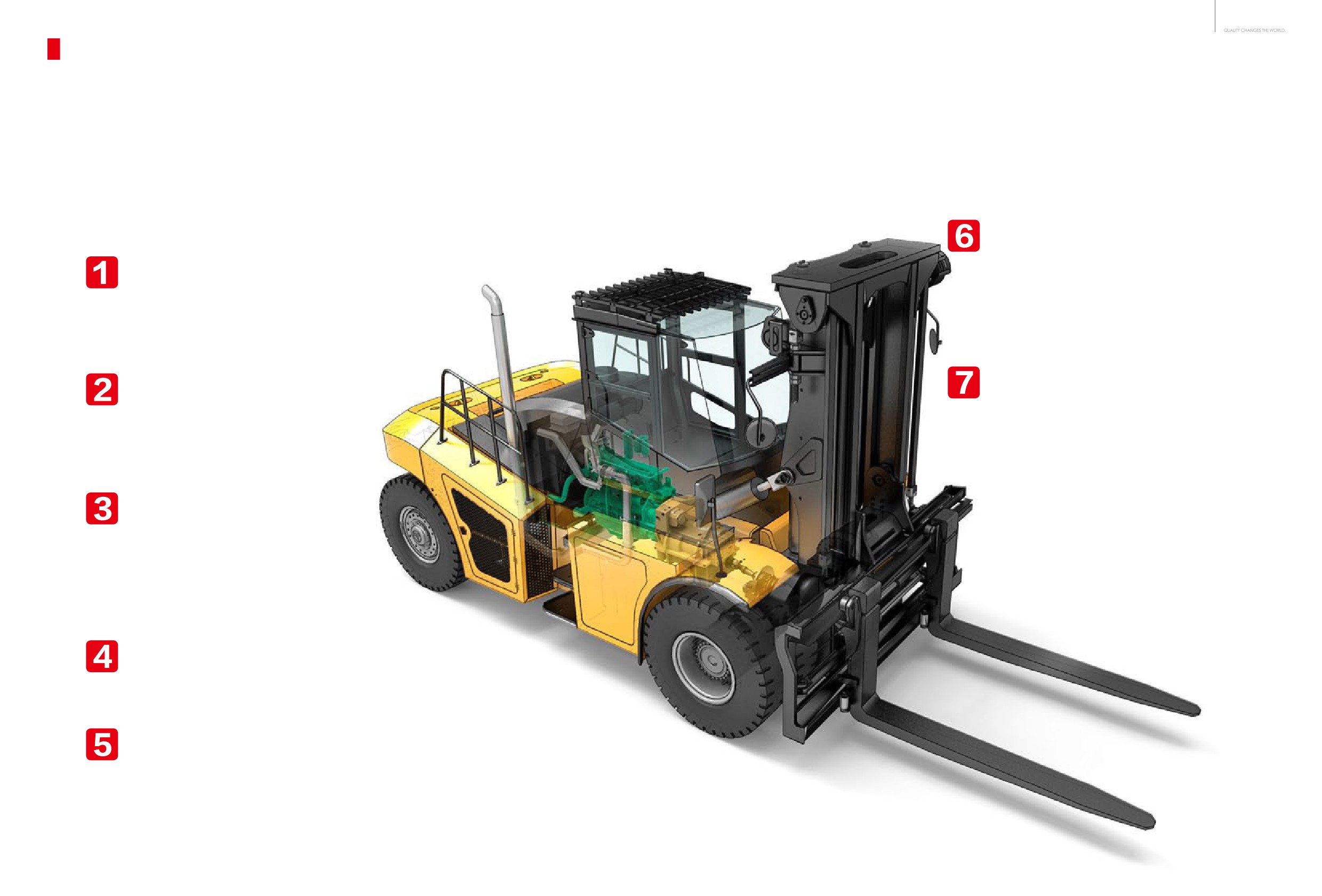

SAFE AND RELIABLE
Joint design of China and Germany, excellent quality
Reliable Structure Design
Designed by China and Germany together,
the equipment is assured to be highly reli-
Cab Automatic Lock Technology
able and endurable by adopting full-digit
While under maintenance, the cab will be turned on one
prototype design system, going through
side. With inappropriate operation, accidents would
FEA, dynamics simulation analysis, as well
happen. Cab of SANY Heavy-Duty Forklift Truck has the
as strict endurance and vibration tests.
double protection of mechanical and hydraulic anti-rollover
protection, effectively preventing accidental rollover.
Reliable Power System
Cargo Fall-off Protection
Using world famous brand engines like
Technology
VOLVO and CUMMINS which are reliable
The technology can automatically
in quality and strong in power, combining
control the position of the attachment,
the advanced power matching and control
preventing cargo fall in emergencies
technology, the equipment is greatly
such as sudden brake or making a turn.
optimized in dynamic performance.
Scientific and appropriate protection for
Automatic Braking
the engine and gearbox will significantly
Technology upon Reversing
prolong their longevity.
Adopting technologies like laser scanning
and graphic identification, the machine
can precisely detect people or obstacles
within the driving route and then brakes
automatically to prevent accidents. It is
highly intelligent with high safety.
Automatic Fire Extinguishing Technology
The pipeline network automatic fire extinguisher with strong
spray can realize fire alarm, anti-flaming and fire extinction
functions. The fireproof performance is steady and reliable.
Video system
Cameras installed on the mast which improve the view and
reduces the blind spots.
5 / 6
SANY HEAVY DUTY FORKLIFT TRUCKS
HIGH-EFFICIENCY
Attachment Quick Change Technology
Comfortable Operation Environment
The attachment can be switched quickly, so as to realize efficient work under
The operator-oriented design includes a broad view of working condition. The
different working conditions.
controlling devices are placed in proper position to ease fatigue of operators.
Efficient Control Technology
Quick dismantling technology for counter balance weight
The centralized joystick has inching control function. It can realize fine tuning to
the counter balance weight adopts the pin fork fixation method. The counter balance
millimeter precision easily. All the attachments' motions are under proportional
weight is easy to dismantle. It is suitable for working condition that requires frequent
control, providing an experience of man-machine unification. The machine also
hoisting from the ground to the cabin.
has multi-motion linkage design so that it can operate faster and more efficiently.
7 / 8
SANY HEAVY DUTY FORKLIFT TRUCKS
ENERGY-SAVING
Hydraulic Load Sensing System
The large tonnage forklift truck will automatically adjust the pump
displacement according to the load, realizing high precision flow
control. The effect of energy saving and consumption reduction
are remarkable.
Dynamic Power Matching Control System
Automatically recognize dynamic power according to load
change and adjust engine speed accordingly. The output power
automatically accommodate to load and work conditions, greatly
reducing energy consumption.
Design for Lighter
Optimize the structure to make it lighter and stronger.
9 / 10
SANY HEAVY DUTY FORKLIFT TRUCKS
CONFIGURATION PARAMETERS
Parameter
16t
18t
25t
30t
32t
35t
46t
Model
VOLVO
VOLVO
CUMMINS
CUMMINS
VOLVO
VOLVO
VOLVO
VOLVO
CUMMINS
VOLVO
CUMMINS
Type
TAD552VE
TAD572VE
QSB6.7
QSB6.7
TAD851VE
TAD871VE
TAD851VE
TAD871VE
QSC8.3
TAD1151VE
QSM11
Engine
Rated power (kW/rpm)
160/2200
160/2300
164/2300
164/2300
185/2200
185/2200
185/2200
185/2200
209/2200
265/2100
250/2100
Max. torque (Nm/rpm)
910/1450
910/1450
949/1500
949/1500
1160/1350
1160/1200
1160/1350
1160/1200
1356/1500
1780/1260
1674/1400
Exhaust standard
Ⅲ Stage
Ⅳ Stage
Ⅲ Stage
Ⅲ Stage
Ⅲ Stage
Ⅳ Stage
Ⅲ Stage
Ⅳ Stage
Ⅲ Stage
Ⅲ Stage
Ⅲ Stage
DANA 13.7HR32000
DANA 340 TE17312
DANA 340 TE17312
Gearbox
Type
DANA 15.5HR36000
SCP160G adopts DANA 340 TE17310
SCP250G adopts DANA 340 TE17310
SCP300G adopts DANA 340 TE17310
18t: KESSLER-D81 PL488
Drive Axle
Type
KESSLER-D81 PL478
KESSLER-D91 PL408
KESSLER-D102 PL341
25t: KESSLER-D91 PL488
Tyre
Dimension
12.00-24
14.00-24
16.00-25
18.00-25

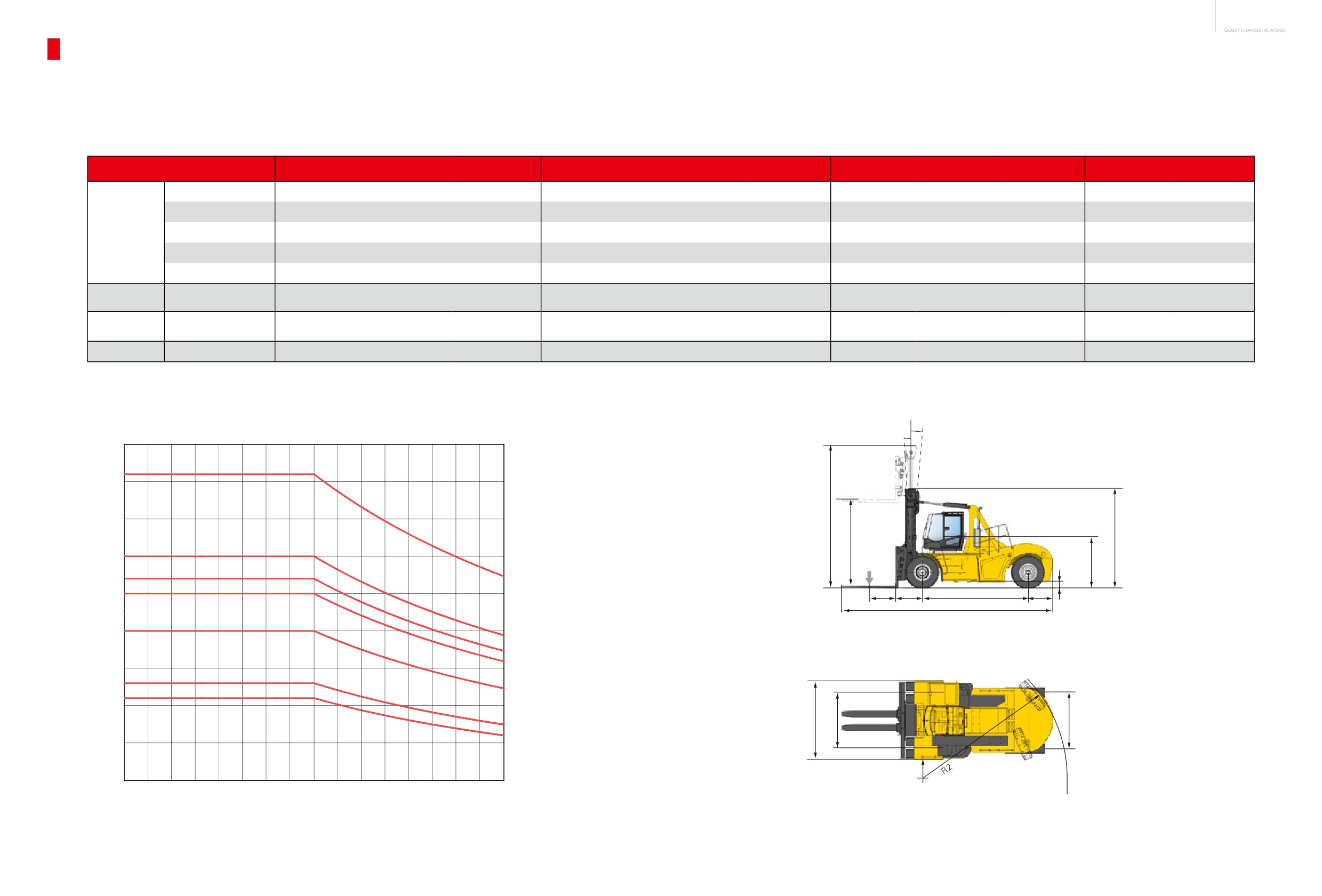

HEAVY-DUTY FORKLIFT LOAD CURVE GRAPH
DIMENSION MEASUREMENT IDENTIFIERS
kg
β
α
50000
SCP460C
45000
40000
H1
H3
H
SCP350C
35000
H4
SCP320C
H2
SCP300C SCP300G
30000
L1
L3
L2
L4
L
SCP250C SCP250G
25000
20000
SCP180C
SCP160C
SCP160G
15000
W
W1
W2
10000
R1
5000
400
500
600
700
800
900 1000 1100
1200 1300 1400
1500
1600 1700 1800
1900
2000
mm
11 / 12
SANY HEAVY DUTY FORKLIFT TRUCKS
TECHNICAL PARAMETER
Parameter
Unit
SCP160C Series
SCP160G
SCP180C Series
SCP250C Series
SCP250G
Rated capacity
t
16
16
18
25
25
Overall weight
kg
25500
25500
33100
36900
36120
Max. lift speed (Load/No load)
mm/s
350/400
350/400
300/350
250/300
300/350
Max. lowering speed (Load/No load)
mm/s
400/400
400/400
400/400
400/400
500/500
Max. travel speed (Load/No load)
km/h
27/29
28/30
26/30
26/30
23/25
Gradeability (Load)
%
33
33
34
29
32
Overall length L
mm
8070
8070
8580
8840
8840
Overall width W
mm
2675
2675
3100
3100
3100
Overall height H
mm
3760
3760
3850
3960
3960
Load center L1
mm
1200
1200
1200
1200
1200
Wheel base L2
mm
3750
3750
4050
4300
4300
Overhang front L3
mm
1010
1010
1125
1136
1136
Overhang rear L4
mm
910
910
1005
1005
1005
Min. ground clearance H2
mm
330
330
330
330
330
Truck height over seat height H4
mm
1910
1910
2040
2040
2040
Inner turning radius R1
mm
460
460
940
940
940
outer turning radius R2
mm
5100
5100
5750
6000
6000
Front track width W1
mm
1898
1898
2225
2204
2204
rear track width W2
mm
2120
2120
2450
2450
2450
Mast height (retracted H / extended H1)
mm
3760/5710
3760/5710
3850/5800
3960/5905
3960/5905
Max. lift height H3
mm
4000
4000
4000
4000
4000
Mast tilt (backwardα/forwardβ)
deg
5/10
5/10
5/10
5/10
5/10
Fork dimensions
mm
2400×200×100
2400×200×100
2400×250×105
2400×250×110
2400×250×110
Shift distance
mm
700~2310
700~2310
786~2776
786~2776
786~2776
Application
-
20’ ISO Containers/ Large-tonnage cargo
13 / 14
SANY HEAVY DUTY FORKLIFT TRUCKS
TECHNICAL PARAMETER
Qualification
Unit
SCP300C Series
SCP300G
SCP320C Series
SCP350C Series
SCP460C Series
Rated capacity
t
30
30
32
35
46
Overall weight
kg
43100
43100
45200
46200
57900
Max. lift speed (Load/No load)
mm/s
250/300
300/450
250/300
250/300
250/300
Max. lowering speed (Load/No load)
mm/s
400/400
500/500
400/400
400/400
400/400
Max. travel speed (Load/No load)
km/h
25/28
23/25
25/28
25/28
23/25
Gradeability (Load)
%
25
26
24
23
30
Overall length L
mm
9190
9190
9530
9530
10400
Overall width W
mm
3580
3580
3580
3580
4300
Overall height H
mm
4380
4380
4380
4380
4505
Load center L1
mm
1200
1200
1200
1200
1200
Wheel base L2
mm
4500
4500
4800
4800
5500
Overhang front L3
mm
1220
1220
1230
1230
1396
Overhang rear L4
mm
1105
1105
1105
1105
1100
Min. ground clearance H2
mm
315
315
315
315
430
Truck height over seat height H4
mm
2195
2195
2195
2195
2360
Inner turning radius R1
mm
780
780
930
930
1110
outer turning radius R2
mm
6300
6300
6600
6600
7600
Front track width W1
mm
2472
2472
2472
2472
3033
rear track width W2
mm
2450
2450
2450
2450
2740
Mast height (retracted H / extended H1)
mm
4380/6325
4380/6325
4380/6325
4380/6325
4505/6435
Max. lift height H3
mm
4000
4000
4000
4000
4000
Mast tilt (backwardα/forwardβ)
deg
5/10
5/10
5/10
5/10
5/10
Fork dimensions
mm
2400×300×110
2400×300×110
2400×300×125
2400×300×125
2400×300×140
Shift distance
mm
920~2850
920~2850
920~2850
920~2850
1550~3150
20’ ISO Containers
Application
-
Large-tonnage cargo
Large-tonnage cargo
15 / 16
SANY HEAVY DUTY FORKLIFT TRUCKS

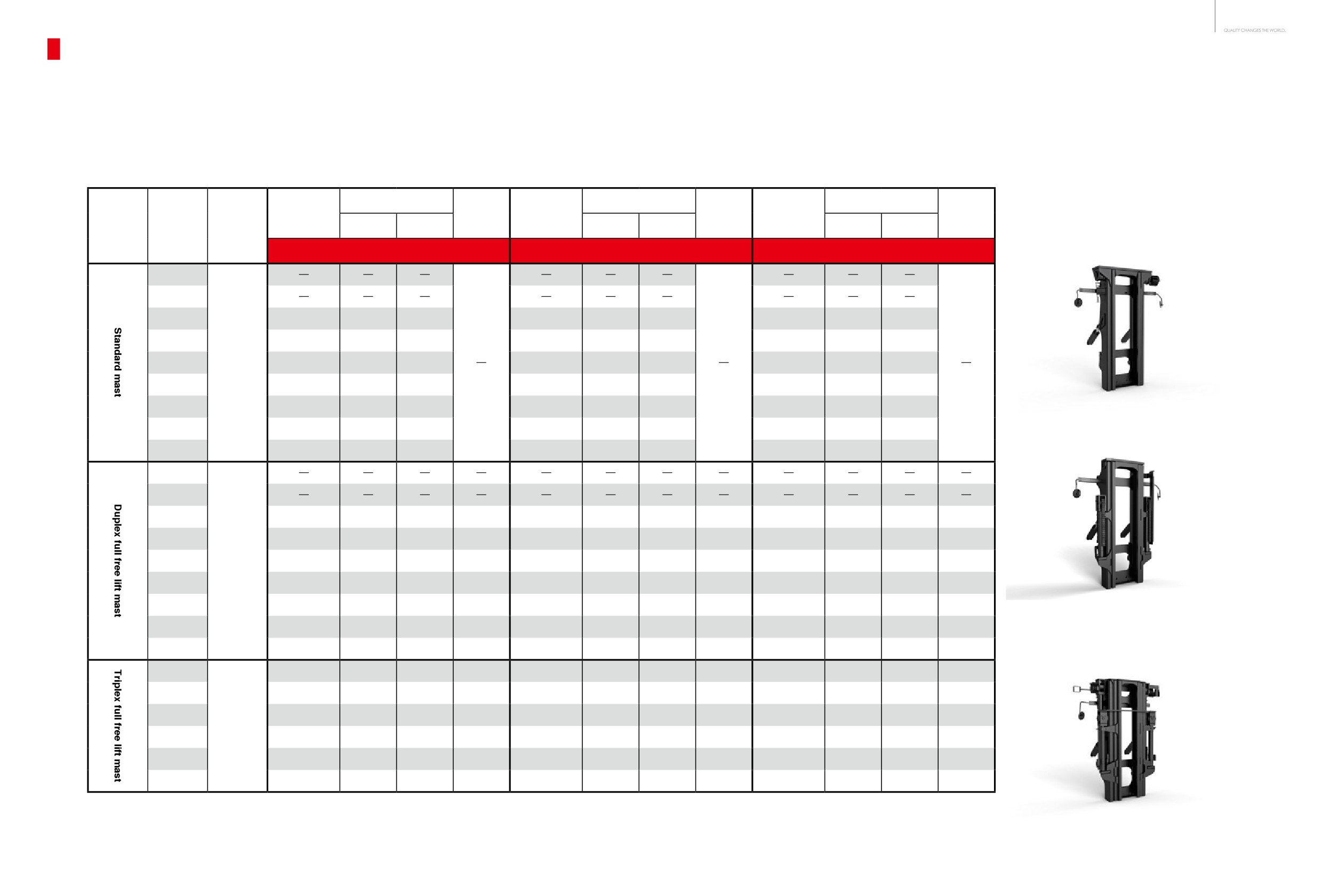

MAST OPTIONS
Mast height
Free
Mast height
Free
Mast height
Free
Mast height
Free
Max.
Sloping
Mast model
lift
Mast model
lift
Mast model
lift
Mast model
lift
Mast
hoisting
angle
Min.height
Max.height
height
Min.height
Max.height
height
Min.height
Max.height
height
Min.height
Max.height
height
type
height
(Front/
(H)
Rear)
SCP160
SCP180~200
SCP220~250
SCP280~300
3000
MCPMS1630
3260
4710
MCPMS2030
3350
4800
MCPMS2530
3460
4905
3500
MCPMS1635
3510
5210
MCPMS2035
3600
5300
MCPMS2535
3710
5405
4000
MCPMS1640
3760
5710
MCPMS2040
3850
5800
MCPMS2540
3960
5905
MCPMS3040
4360
6305
4500
MCPMS1645
4010
6210
MCPMS2045
4100
6300
MCPMS2545
4210
6405
MCPMS3045
4610
6805
5000
5°/10°
MCPMS1650
4260
6710
MCPMS2050
4350
6800
MCPMS2550
4460
6905
MCPMS3050
4860
7305
5500
MCPMS1655
4510
7210
MCPMS2055
4600
7300
MCPMS2555
4710
7405
MCPMS3055
5110
7805
6000
MCPMS1660
4760
7710
MCPMS2060
4850
7800
MCPMS2560
4960
7905
MCPMS3060
5360
8305
6500
MCPMS1665
5010
8210
MCPMS2065
5100
8300
MCPMS2565
5210
8405
MCPMS3065
5610
8805
7000
MCPMS1670
5260
8710
MCPMS2070
5350
8800
MCPMS2570
5460
8905
MCPMS3070
5860
9305
3000
MCPMD1630
3260
4710
1550
MCPMD2030
3450
4895
1500
MCPMD2530
3460
4910
1500
3500
MCPMD1635
3510
5210
1800
MCPMD2035
3700
5395
1750
MCPMD2535
3710
5410
1750
4000
MCPMD1640
3760
5710
2050
MCPMD2040
3950
5895
2000
MCPMD2540
3960
5910
2050
MCPMD3040
4280
6305
2050
4500
MCPMD1645
4010
6210
2300
MCPMD2045
4200
6395
2250
MCPMD2545
4210
6410
2250
MCPMD3045
4530
6805
2300
5000
5°/10°
MCPMD1650
4260
6710
2550
MCPMD2050
4450
6895
2500
MCPMD2550
4460
6910
2500
MCPMD3050
4780
7305
2550
5500
MCPMD1655
4510
7210
2800
MCPMD2055
4700
7395
2750
MCPMD2555
4710
7410
2750
MCPMD3055
5030
7805
2800
6000
MCPMD1660
4760
7710
3050
MCPMD2060
4950
7895
3000
MCPMD2560
4960
7910
3000
MCPMD3060
5280
8305
3050
6500
MCPMD1665
5010
8210
3300
MCPMD2065
5200
8395
3250
MCPMD2565
5210
8410
3250
MCPMD3065
5530
8805
3300
7000
MCPMD1670
5260
8710
3550
MCPMD2070
5450
8895
3500
MCPMD2570
5460
8910
3500
MCPMD3070
5780
9305
3550
4500
MCPMT1645
3250
6130
1700
MCPMT2045
3300
6180
1700
MCPMT2545
3529
6430
1700
MCPMT3045
3700
6580
1700
5000
MCPMT1650
3500
6630
1867
MCPMT2050
3467
6680
1867
MCPMT2550
3696
6930
1867
MCPMT3050
3867
7080
1867
5500
MCPMT1655
3750
7130
2033
MCPMT2055
3633
7180
2033
MCPMT2555
3863
7430
2033
MCPMT3055
4033
7580
2033
5°/10°
6000
MCPMT1660
4000
7630
2200
MCPMT2060
3800
7680
2200
MCPMT2560
4030
7930
2200
MCPMT3060
4200
8080
2200
6500
MCPMT1665
4250
8130
2367
MCPMT2065
3967
8180
2367
MCPMT2565
4197
8430
2367
MCPMT3065
4367
8580
2367
7000
MCPMT1670
4500
8630
2533
MCPMT2070
4133
8680
2533
MCPMT2570
4364
8930
2533
MCPMT3070
4533
9080
2533
17/ 18
SANY HEAVY DUTY FORKLIFT TRUCKS
MAST OPTIONS
Standard mast
Mast height
Free
Mast height
Free
Mast height
Free
Max.
Sloping
• Meet ordinary work condition requirement
Mast model
lift
Mast model
lift
Mast model
lift
Mast
hoisting
angle
• With mast lifting buffer position limitation pro-
Min.height
Max.height
height
Min.height
Max.height
height
Min.height
Max.height
height
type
height
(Front/
tection technology
(H)
Rear)
• Mast chain monitoring protection technology
SCP320~350
SCP380~400
SCP420~460
3000
3500
4000
MCPMS3540
4360
6305
MCPMS4040
4500
6430
MCPMS4640
4500
6430
4500
MCPMS3545
4610
6805
MCPMS4045
4750
6930
MCPMS4645
4750
6930
5000
5°/10°
MCPMS3550
4860
7305
MCPMS4050
5000
7430
MCPMS4650
5000
7430
5500
MCPMS3555
5110
7805
MCPMS4055
5250
7930
MCPMS4655
5250
7930
6000
MCPMS3560
5360
8305
MCPMS4060
5500
8430
MCPMS4660
5500
8430
Duplex full free lift mast
6500
MCPMS3565
5610
8805
MCPMS4065
5750
8930
MCPMS4665
5750
8930
• Suitable for narrow place like ship cabin
• Good view with free lift range exceeding 2000mm
7000
MCPMS3570
5860
9305
MCPMS4070
6000
9430
MCPMS4670
6000
9430
3000
3500
4000
MCPMD3540
4280
6305
2050
MCPMD4040
4500
6430
2050
MCPMD4640
4500
6430
2050
4500
MCPMD3545
4530
6805
2300
MCPMD4045
4750
6930
2300
MCPMD4645
4750
6930
2300
5000
5°/10°
MCPMD3550
4780
7305
2550
MCPMD4050
5000
7430
2550
MCPMD4650
5000
7430
2550
5500
MCPMD3555
5030
7805
2800
MCPMD4055
5250
7930
2800
MCPMD4655
5250
7930
2800
6000
MCPMD3560
5280
8305
3050
MCPMD4060
5500
8430
3050
MCPMD4660
5500
8430
3050
Triplex full free lift mast
6500
MCPMD3565
5530
8805
3300
MCPMD4065
5750
8930
3300
MCPMD4665
5750
8930
3300
• Separate lift for low position cargo; equipment
7000
MCPMD3570
5780
9305
3550
MCPMD4070
6000
9430
3550
MCPMD4670
6000
9430
3550
height is lowered by 20%; mast center of gravity
lowered by 10%; safer operation.
4500
MCPMT3545
3700
6580
1700
MCPMT4045
3800
6680
1700
MCPMT4645
3800
6680
1700
5000
MCPMT3550
3867
7080
1867
MCPMT4050
3967
7180
1867
MCPMT4650
3967
7180
1867
5500
MCPMT3555
4033
7580
2033
MCPMT4055
4133
7680
2033
MCPMT4655
4133
7680
2033
5°/10°
6000
MCPMT3560
4200
8080
2200
MCPMT4060
4300
8180
2200
MCPMT4660
4300
8180
2200
6500
MCPMT3565
4367
8580
2367
MCPMT4065
4467
8680
2367
MCPMT4665
4467
8680
2367
7000
MCPMT3570
4533
9080
2533
MCPMT4070
4633
9180
2533
MCPMT4670
4633
9180
2533
19 / 20
SANY HEAVY DUTY FORKLIFT TRUCKS
ATTACHMENT OPTIONS
ADD-ON OPTIONS

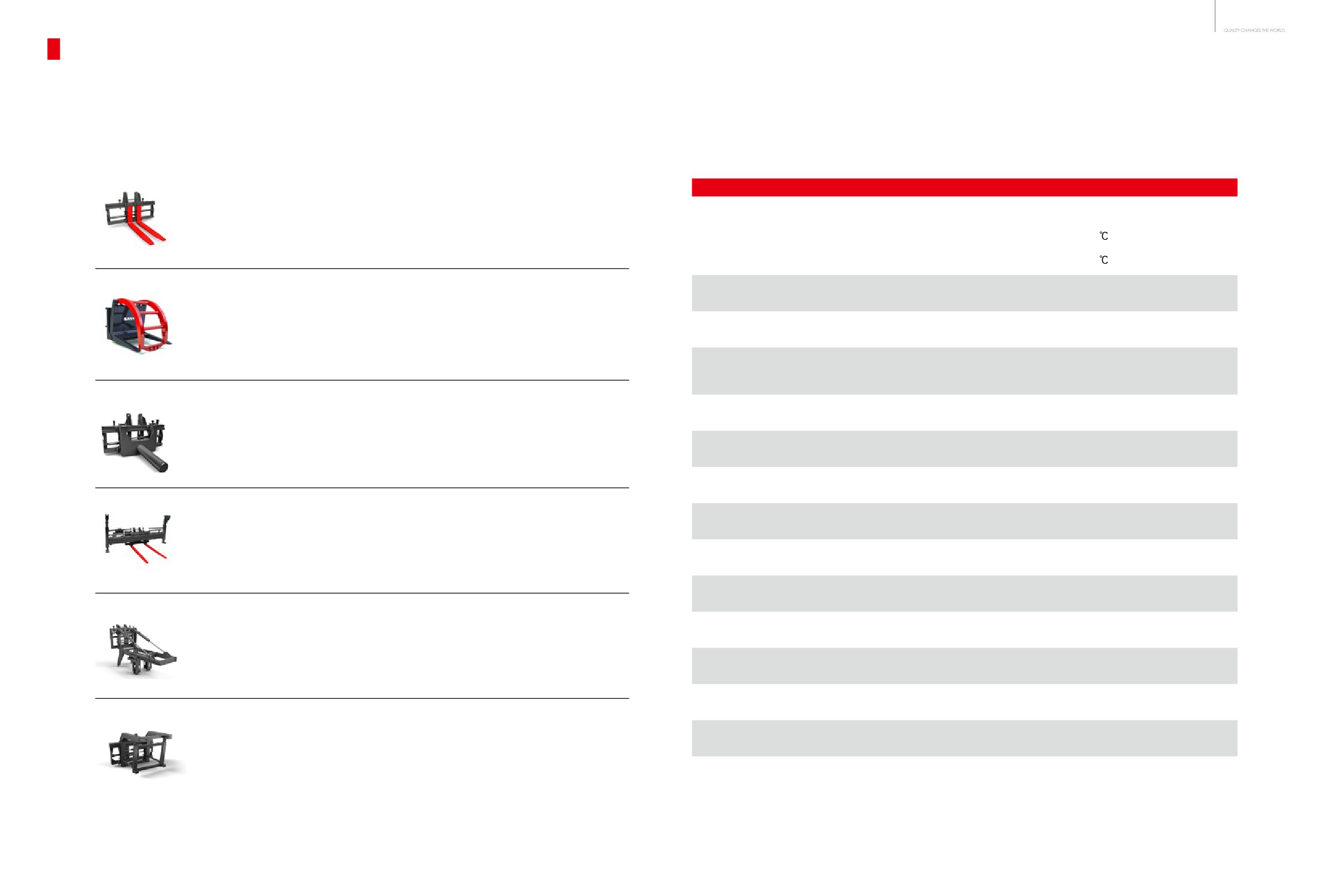

Fork
FUNCTION
BRAND
CODE
NOTE
Rated capacity: 16t/ 18t/ 25t/ 30t/ 32t/ 35t/ 46t
It is mainly used in such extremely cold district as
Application: Large-tonnage cargo or bulk cargo
Russia. It is recommended for district where the
Heat preservation device for
SANY
13815317
temperature is below -15
like North America,
extremely cold district
Main frame color: Engineering black
Russia and Europe. It is a must for district where the
temperature is below -30
Clamp
Engine timer (by hour)
SANY
11446498
Timer for the engine’s working hours
Rated capacity: 16t/ 18t/ 25t/ 30t/ 32t/ 35t/ 46t
Application: Wood
Amplifying alarm system
SANY
11447670
Including the amplifier and the alarm
Main frame color: Engineering black
Including: headlamp, rear lamp, mast working indicating
Heavy-duty Forklift Truck LED
SANY
13526557
lamp, tail lamp, steering lamp, alarm lamp and cab top
lamp
working lamp; all are LED lamp.
Coil ram
Rear counterweight alarm lamp
SANY
11447452
One alarm lamp for the rear counterweight
Rated capacity: 16t/ 18t/ 25t/ 30t/ 32t/ 35t/ 46t
Application: Curly cargo such as steel coil, steel wire coil, etc
Cab reading lamp
SANY
11447665
Hella fluorescent lamp, installed on the top of the cab.
Main frame color: Engineering black
Provide 12V power interface (on the top of the electric
12V power supply
SANY
11446544
control cabinet in the cab)
Container Spreader
Provide 24V power interface (on the top of the electric
24V power supply
SANY
11447574
control cabinet in the cab)
Rated capacity: 9t
Application: ISO 20’/40’ Containers
3m range reversing radar system
SANY
13515506
Visible reversing radar with 3m range sensor
Main frame color: Engineering black
Steering horn
SANY
60231261
Adding sound reminding function
Truck frame handler
Radio
SANY
60006478
Including radio, horn and antenna.
Rated capacity: 4.5t
Application: Chassis
Standard 16T coil ram
SANY
13407165
For steel coil
Main frame color: Engineering black
Standard 20~25T coil ram
SANY
13444243
For steel coil
PC prefabrication unit attachment
Standard 30~35T coil ram
SANY
13404846
For steel coil
Rated capacity: 16t
Application: PC prefabrication unit
Mast video monitoring system
SANY
13520946
For improving the front view
Main frame color: Engineering black
21 / 22
SANY HEAVY DUTY FORKLIFT TRUCKS
CONSTRUCTION CASES
Mexico
Port of Tianjin
Philippine
Taicang Port, Jiangsu
Shanghai
USA
Port of Singapore
Guatemala
Dammam, Saudi Arabia
23/ 24
SANY HEAVY DUTY FORKLIFT TRUCKS
SERVICE
Service Concept
All for customers, creating value for customers.
Service Strategy
Build unparalleled service; realize “First Brand of
Global Service” of Port Machinery.
Service Advantages
SANY has offices in over 200 countries and regions, with
30 agents in China, about 50 repair factories and 6S stores,
over 3000 elite service engineers, 1000 offices and parts
warehouse accommodating 100,000 kinds of parts worth more than RMB 600 million. We also have highly efficient
logistics system by air, sea and land, which can transport genuine parts at any time.
Industry leading Enterprise Control Center (ECC): running for more than ten years, the ECC, as the industry
initiative, is worth over RMB 30 million. It can realize real-time supervision and remote precision troubleshooting.
With information promoting industrialization, it innovatively created SANY’s service system of “Unity of man and
heaven, synergy among 1st, 2nd and 3rd levels”.
GCP, GPS and CSM system: customers can learn the working conditions & key work parameters through SANY’s
global portal and realize remote supervision. The system also supports parts and service search, providing
convenient all-round equipment supervision.
After-sales Service Hotline:
Consultation/Complaints Hotline:
