New Holland BoomerTM 3040 CVT / BoomerTM 3045 CVT / BoomerTM 3050 CVT Compact Tractor. SERVICE MANUAL (2016)

Contents

INTRODUCTION

Engine

[10.001] Engine and crankcase

10.1

[10.101] Cylinder heads

10.2

[10.102] Pan and covers

10.3

[10.103] Crankshaft and flywheel

10.4

[10.105] Connecting rods and pistons

10.5

[10.106] Valve drive and gears

10.6

[10.110] Balancer and damper

10.7

[10.114] Pump drives

10.8

[10.218] Fuel injection system

10.9

[10.254] Intake and exhaust manifolds and muffler

10.10

[10.304] Engine lubrication system

10.11

[10.400] Engine cooling system

10.12

[10.414] Fan and drive

10.13

Transmission

[21.504] Continuously Variable Transmission (CVT)

21.1

Four-Wheel Drive (4WD) system

[23.101] Mechanical control

23.1

Front axle system

[25.100] Powered front axle

25.1

[25.102] Front bevel gear set and differential

25.2

[25.310] Final drives

25.3

Rear axle system

[27.100] Powered rear axle

27.1

[27.106] Rear bevel gear set and differential

27.2

4801776014/11/2016

Power Take-Off (PTO)

[31.104] Rear electro-hydraulic control

31.1

[31.110] One-speed rear Power Take-Off (PTO)

31.2

[31.120] Central Power Take-Off (PTO)

31.3

Brakes and controls

[33.110] Parking brake or parking lock

33.1

[33.120] Mechanical service brakes

33.2

Hydraulic systems

[35.000] Hydraulic systems

35.1

[35.104] Fixed displacement pump

35.2

[35.204] Remote control valves

35.3

[35.300] Reservoir, cooler, and filters

35.4

Steering

[41.200] Hydraulic control components

41.1

[41.206] Pump

41.2

[41.216] Cylinders

41.3

Cab climate control

[50.100] Heating

50.1

[50.104] Ventilation

50.2

[50.200] Air conditioning

50.3

Electrical systems

[55.000] Electrical system

55.1

[55.010] Fuel injection system

55.2

[55.100] Harnesses and connectors

55.3

[55.201] Engine starting system

55.4

[55.301] Alternator

55.5

[55.302] Battery

55.6

[55.404] External lighting

55.7

4801776014/11/2016

Contents

INTRODUCTION

Foreword - Important notice regarding equipment servicing

Foreword (*)

Safety rules

Safety rules - Ecology and the environment

Basic instructions - Important notice regarding equipment servicing (*)

Basic instructions Hardware (*)

Basic instructions - Shop and assembly

Torque Wheel Bolt Torques (*)

Basic instructions Tire ballast and pressures (*)

General specification Tire Pressures (*)

Special tools (*)

Hydraulic contamination

General specification (*)

Consumables (*)

Capacities (*)

General specification (*)

Weight (*)

General specification (*)

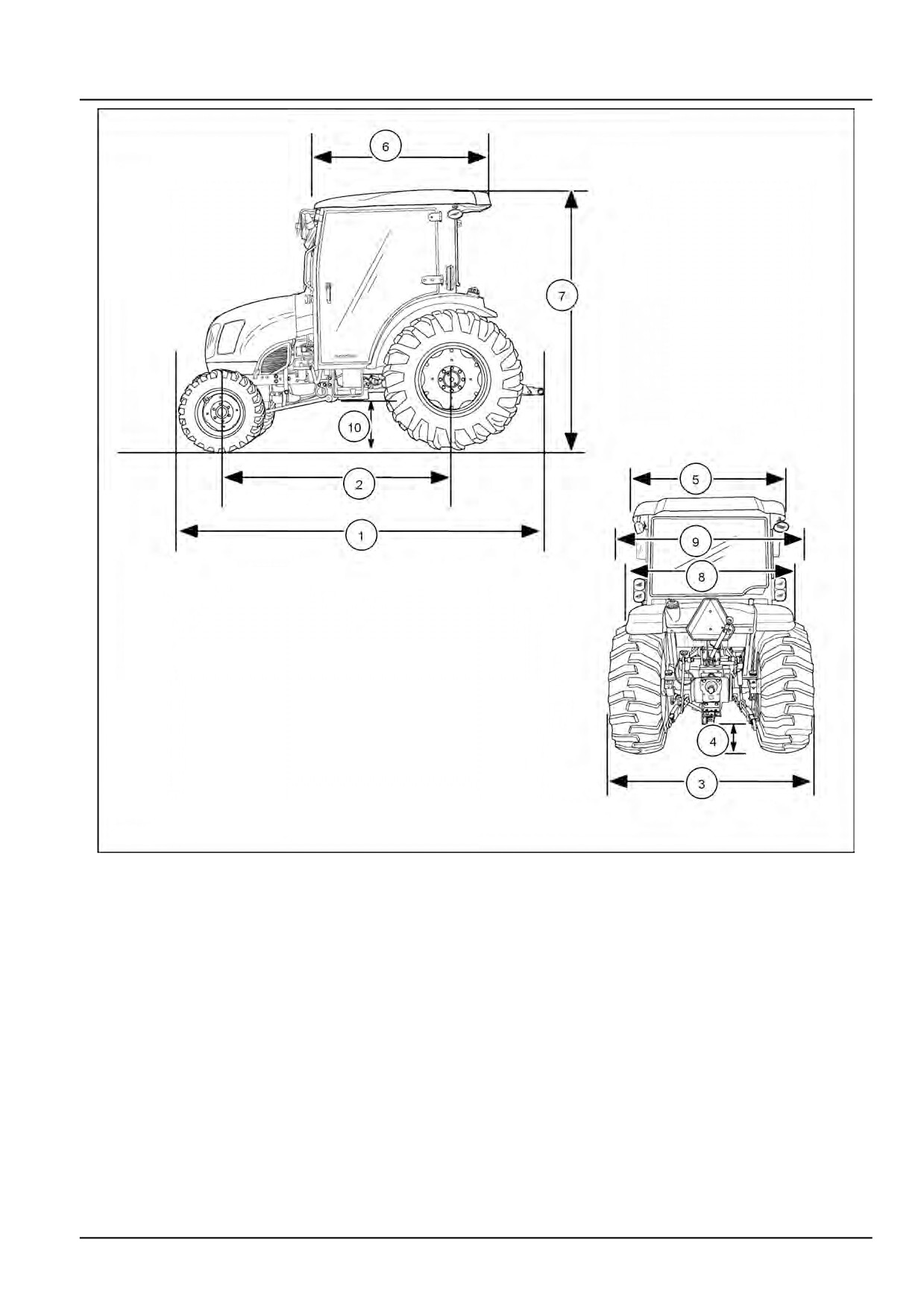

Dimension General (*)

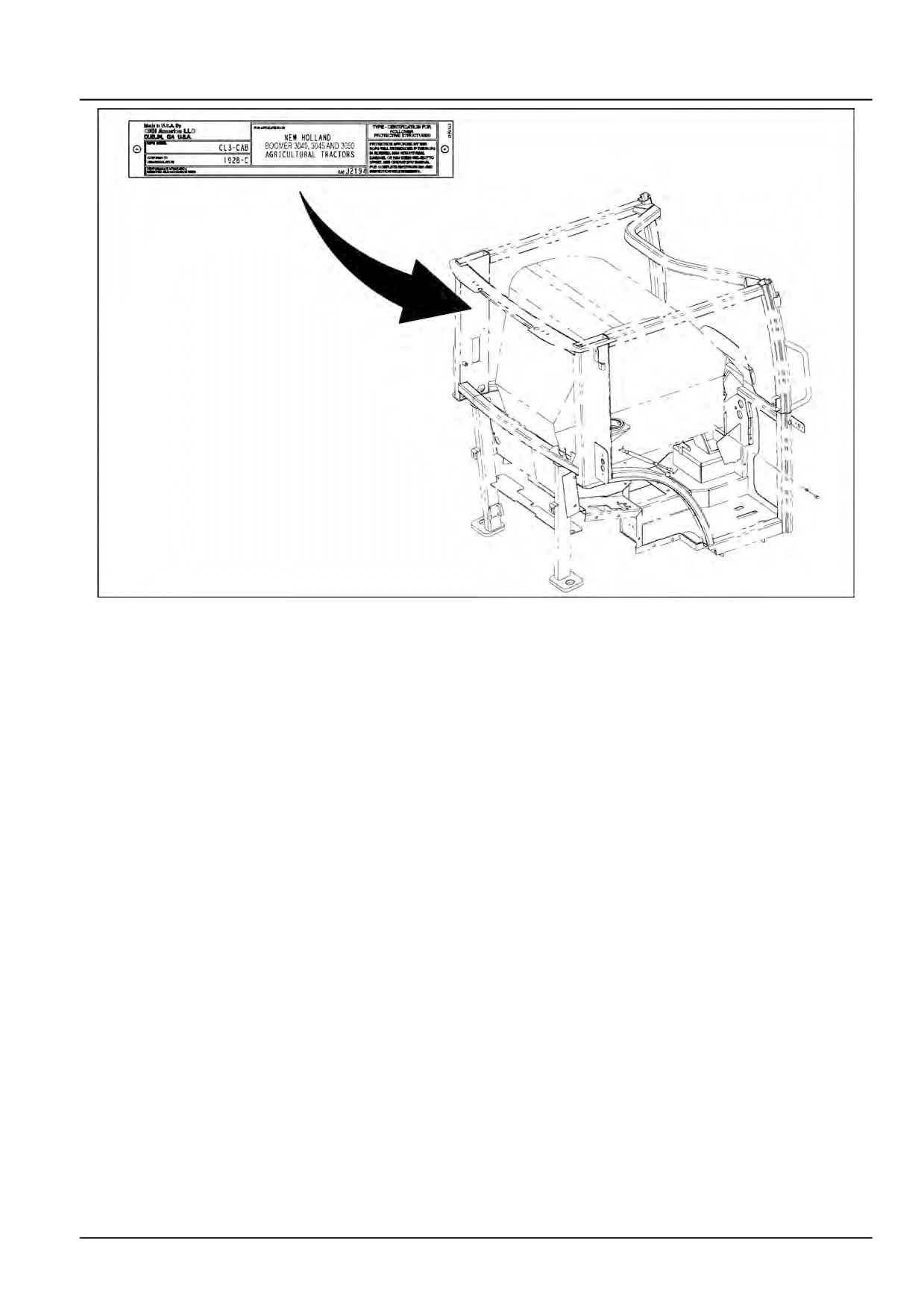

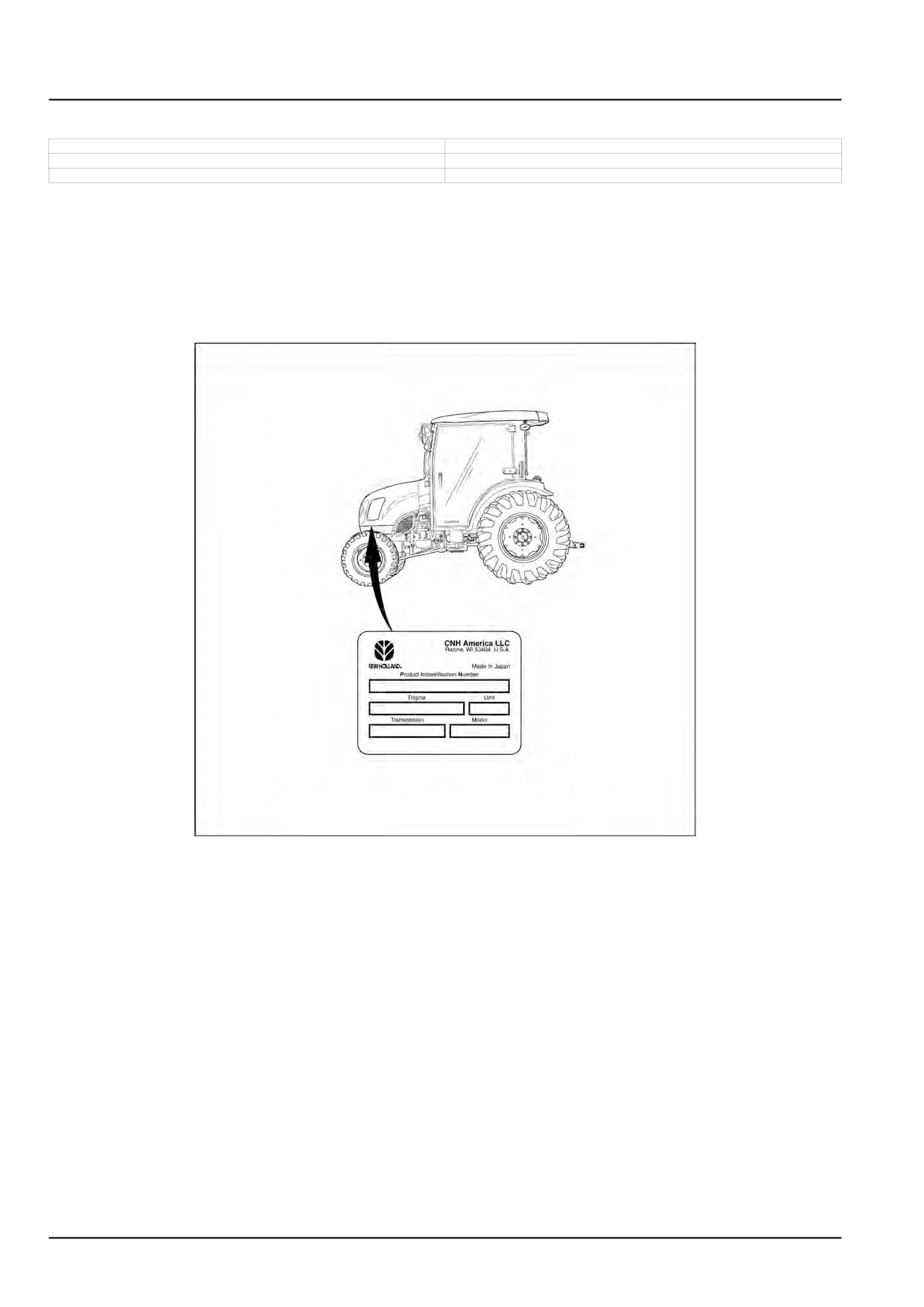

Product identification General information (*)

(*) See content for specific models

48017760 14/11/2016

INTRODUCTION

Foreword - Important notice regarding equipment servicing

All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel,

strictly complying with the instructions given, and using, whenever possible, the special tools.

Anyone who performs repair and maintenance operations without complying with the procedures provided herein

shall be responsible for any subsequent damages.

The manufacturer and all the organizations of its distribution chain, including - without limitation - national, regional, or

local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manu-

facturer, including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.

In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case

of damages caused by parts and/or components not approved by the manufacturer.

The manufacturer reserves the right to make improvements in design and changes in specifications at any time without

notice and without incurring any obligation to install them on units previously sold. Specifications, descriptions, and

illustrative material herein are as accurate as known at time of publication but are subject to change without notice.

In case of questions, refer to your NEW HOLLAND Sales and Service Networks.

48017760 14/11/2016

INTRODUCTION

Safety rules

Personal safety

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all

safety messages that follow this symbol to avoid possible death or injury.

Throughout this manual you will find the signal words DANGER, WARNING, and CAUTION followed by special in-

structions. These precautions are intended for the personal safety of you and those working with you.

Read and understand all the safety messages in this manual before you operate or service the machine.

DANGER indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

FAILURE TO FOLLOW DANGER, WARNING, AND CAUTION MESSAGES COULD RESULT

IN DEATH OR SERIOUS INJURY.

Machine safety

NOTICE: Notice indicates a situation that, if not avoided, could result in machine or property damage.

Throughout this manual you will find the signal word Notice followed by special instructions to prevent machine or

property damage. The word Notice is used to address practices not related to personal safety.

Information

NOTE: Note indicates additional information that clarifies steps, procedures, or other information in this manual.

Throughout this manual you will find the word Note followed by additional information about a step, procedure, or

other information in the manual. The word Note is not intended to address personal safety or property damage.

48017760 14/11/2016

INTRODUCTION

Safety rules - Ecology and the environment

Soil, air, and water quality is important for all industries and life in general. When legislation does not yet rule the

treatment of some of the substances that advanced technology requires, sound judgment should govern the use and

disposal of products of a chemical and petrochemical nature.

Familiarize yourself with the relative legislation applicable to your country, and make sure that you understand this

legislation. Where no legislation exists, obtain information from suppliers of oils, filters, batteries, fuels, anti-freeze,

cleaning agents, etc., with regard to the effect of these substances on man and nature and how to safely store, use,

and dispose of these substances.

Helpful hints

• Avoid the use of cans or other inappropriate pressurized fuel delivery systems to fill tanks. Such delivery systems

may cause considerable spillage.

• In general, avoid skin contact with all fuels, oils, acids, solvents, etc. Most of these products contain substances

that may be harmful to your health.

• Modern oils contain additives. Do not burn contaminated fuels and or waste oils in ordinary heating systems.

• Avoid spillage when you drain fluids such as used engine coolant mixtures, engine oil, hydraulic fluid, brake fluid,

etc. Do not mix drained brake fluids or fuels with lubricants. Store all drained fluids safely until you can dispose of

the fluids in a proper way that complies with all local legislation and available resources.

• Do not allow coolant mixtures to get into the soil. Collect and dispose of coolant mixtures properly.

• The air-conditioning system contains gases that should not be released into the atmosphere. Consult an air-condi-

tioning specialist or use a special extractor to recharge the system properly.

• Repair any leaks or defects in the engine cooling system or hydraulic system immediately.

• Do not increase the pressure in a pressurized circuit as this may lead to a component failure.

• Protect hoses during welding. Penetrating weld splatter may burn a hole or weaken hoses, allowing the loss of oils,

coolant, etc.

Battery recycling

Batteries and electric accumulators contain several substances that can have a harmful

effect on the environment if the batteries are not properly recycled after use. Improper

disposal of batteries can contaminate the soil, groundwater, and waterways. NEW

HOLLAND strongly recommends that you return all used batteries to a NEW HOLLAND

dealer, who will dispose of the used batteries or recycle the used batteries properly. In

some countries, this is a legal requirement.

Mandatory battery recycling

NOTE: The following requirements are mandatory in Brazil.

Batteries are made of lead plates and a sulfuric acid solution. Because batteries contain heavy metals such as lead,

CONAMA Resolution 401/2008 requires you to return all used batteries to the battery dealer when you replace any

batteries. Do not dispose of batteries in your household garbage.

Points of sale are obliged to:

• Accept the return of your used batteries

• Store the returned batteries in a suitable location

• Send the returned batteries to the battery manufacturer for recycling

48017760 14/11/2016

INTRODUCTION

Basic instructions - Important notice regarding equipment servicing

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel,

strictly complying with the instructions given, and using, whenever possible, the special tools.

Anyone who performs repair and maintenance operations without complying with the procedures provided herein

shall be responsible for any subsequent damages.

The manufacturer and all the organizations of its distribution chain, including - without limitation - national, regional, or

local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manu-

facturer, including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.

In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case

of damages caused by parts and/or components not approved by the manufacturer.

The information in this manual is up-to-date at the date of the publication. It is the policy of the manufacturer for

continuous improvement. Some information could not be updated due to modifications of a technical or commercial

type, or changes to the laws and regulations of different countries.

In case of questions, refer to your NEW HOLLAND Sales and Service Networks.

48017760 14/11/2016

INTRODUCTION

Basic instructions Hardware

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

General

Your tractor has been built using metric hardware.

NOTE: Be sure to use the hardware specified when using tapped holes, as trying to install a metric bolt in an inch

thread, or an inch bolt in a metric thread, will damage the thread.

Certain hardware must be tightened to specific torque specifications. If specific torque specifications are not noted,

tighten the hardware to the standard torque chart specification listed in this manual.

Plating

Hardware used on NEW HOLLAND balers is plated with zinc chromate (gold color). Gold colored hardware has

different torquing requirements from unplated or zinc plated (silver color) hardware because of the difference in the

coefficient of friction of the plating material. The torque charts in this manual list the correct specifications for gold,

silver, and unplated bolts.

Nut Tightening

Whenever possible, the nut should be tightened, not the head of the bolt. When tightening using the bolt head, the

clamp load can be lost because some of the torque applied twists the bolt instead of tensioning (stretching) it. The

tension on the bolt is what holds the joint together.

Approximately 90% of the torque applied during assembly goes to overcoming friction between the parts. The other

10% is used to tension (stretch) the bolt. After assembly, the frictional forces disappear, which is the basis for the

saying 'If it does not fail during assembly, it will not fail in service.' The bolt may later fail due to other factors, but not

from being over tightened.

Locknuts

Most locknuts are coated with a special lubricant that is dry to the touch. Anytime a locknut is used, a lower than

normal torque is required. Refer to the torque charts in this manual for specific values.

Jam Nuts

When using a jam nut to lock a regular nut, the jam nut should be installed first and tightened to one half the recom-

mended torque, then held in place while installing a regular nut to the recommended torque.

Thread Lubrication

The addition of antiseize compound, Molykote, oil, graphite, or any other lubricant to a bolt decreases the friction

between it and a nut. This makes it necessary to reduce the recommended torque to prevent over tensioning of the

bolt. When using the torque charts in this manual, decrease the value by 20% whenever a lubricant is used.

48017760 14/11/2016

INTRODUCTION

Basic instructions - Shop and assembly

Shimming

For each adjustment operation, select adjusting shims and measure the adjusting shims individually using a microm-

eter, then add up the recorded values. Do not rely on measuring the entire shimming set, which may be incorrect, or

the rated value shown on each shim.

Rotating shaft seals

For correct rotating shaft seal installation, proceed as follows:

1. Before assembly, allow the seal to soak in the oil it will be sealing for at least thirty minutes.

2. Thoroughly clean the shaft and check that the working surface on the shaft is not damaged.

3. Position the sealing lip facing the fluid.

NOTE: With hydrodynamic lips, take into consideration the shaft rotation direction and position the grooves so that

they will move the fluid towards the inner side of the seal.

4. Coat the sealing lip with a thin layer of lubricant (use oil rather than grease). Fill the gap between the sealing lip

and the dust lip on double lip seals with grease.

5. Insert the seal in its seat and press down using a flat punch or seal installation tool. Do not tap the seal with a

hammer or mallet.

6. While you insert the seal, check that the seal is perpendicular to the seat. When the seal settles, make sure that

the seal makes contact with the thrust element, if required.

7. To prevent damage to the seal lip on the shaft, position a protective guard during installation operations.

O-ring seals

Lubricate the O-ring seals before you insert them in the seats. This will prevent the O-ring seals from overturning and

twisting, which would jeopardize sealing efficiency.

Sealing compounds

Apply a sealing compound on the mating surfaces when specified by the procedure. Before you apply the sealing

compound, prepare the surfaces as directed by the product container.

Spare parts

Only use CNH Original Parts or NEW HOLLAND Original Parts.

Only genuine spare parts guarantee the same quality, duration, and safety as original parts, as they are the same

parts that are assembled during standard production. Only CNH Original Parts or NEW HOLLAND Original Parts can

offer this guarantee.

When ordering spare parts, always provide the following information:

• Machine model (commercial name) and Product Identification Number (PIN)

• Part number of the ordered part, which can be found in the parts catalog

48017760 14/11/2016

INTRODUCTION

Protecting the electronic and/or electrical systems during charging and welding

To avoid damage to the electronic and/or electrical systems, always observe the following practices:

1. Never make or break any of the charging circuit connections when the engine is running, including the battery

connections.

2. Never short any of the charging components to ground.

3. Always disconnect the ground cable from the battery before arc welding on the machine or on any machine

attachment.

• Position the welder ground clamp as close to the welding area as possible.

• If you weld in close proximity to a computer module, then you should remove the module from the machine.

• Never allow welding cables to lie on, near, or across any electrical wiring or electronic component while you

weld.

4. Always disconnect the negative cable from the battery when charging the battery in the machine with a battery

charger.

NOTICE: If you must weld on the unit, you must disconnect the battery ground cable from the machine battery.

The electronic monitoring system and charging system will be damaged if this is not done.

5. Remove the battery ground cable. Reconnect the cable when you complete welding.

WARNING

Battery acid causes burns. Batteries contain sulfuric acid.

Avoid contact with skin, eyes or clothing. Antidote (external): Flush with water. Antidote (eyes): flush

with water for 15 minutes and seek medical attention immediately. Antidote (internal): Drink large

quantities of water or milk. Do not induce vomiting. Seek medical attention immediately.

Failure to comply could result in death or serious injury.

W0111A

Special tools

The special tools that NEW HOLLAND suggests and illustrate in this manual have been specifically researched and

designed for use with NEW HOLLAND machines. The special tools are essential for reliable repair operations. The

special tools are accurately built and rigorously tested to offer efficient and long-lasting operation.

By using these tools, repair personnel will benefit from:

• Operating in optimal technical conditions

• Obtaining the best results

• Saving time and effort

• Working in safe conditions

48017760 14/11/2016

INTRODUCTION

Basic instructions Tire ballast and pressures

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

LIQUID BALLAST (OPTIONAL)

It is a common practice to add weight to the tractor by filling the rear tires with liquid. A calcium chloride (CaCl2) and

water solution is recommended due to its low freezing point and greater density (weight per gallon) than pure water.

Never exceed the total recommended weight for the tractor. Because special equipment is required to fill the tires,

consult your NEW HOLLAND Dealer.

Tires should never be filled beyond 75 %. At 75 % full, the liquid will come to the valve stem when the valve stem is

at its highest point at the top of the wheel.

TIRE PRESSURE

Tire pressure must be considered when adding weights, implements, or attachments to the tractor or damage to the

tractor may occur.

The chart below outlines tire inflation pressures.

FRONT TIRE INFLATION PRESSURES

Tire Type

Tire Size

Inflation Pressure

Agricultural:

8 x 16, 6PR, RI

82.7 - 193.1 kPa (12 -

FWD

28 psi) 1.4 - 1.9 bar (12 - 28

psi)

Turf:

27 x 10.5-15, 4PR, R3

68.9 - 206.8 kPa (10 -

FWD

27/12LL x 15, 6PR, R3

30 psi)

55.2 - 68.9 kPa (8 - 10 psi)

Industrial

10 x 16.5, 6PR, R4

110.3 - 310.3 kPa (16 -

45 psi)

REAR TIRE INFLATION PRESSURES

Agricultural

14.9 x 24, 4 PR, R1

82.7 - 96.5 kPa (12 - 14 psi)

Turf

44 x 18-20, 4PR, R3

82.7 - 137.9 kPa (12 -

22.5LL x 16.1, 6PR, R3

20 psi)

41.4 - 55.2 kPa (6 - 8 psi)

Industrial

17.5 x 24, 8PR, R4

82.7 - 179.3 kPa (12 -

26 psi)

NOTE: Do not underinflate or overinflate tires. Do not exceed maximum inflation pressure listed.

REAR TIRE LIQUID

600 g/5 lb Gal Solution/CaCL2

Ballast Weights (Per Tire)

Agricultural

14.9 x 24, 4PR, R1

272 kg (600 lb)

Turf

44 x 18-20, 4PR, R3

249 kg (549 lb)

Industrial (R4)

17.5 x 24, 6PR, R4

272 kg (600 lb)

48017760 14/11/2016

INTRODUCTION

General specification Tire Pressures

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

FRONT TIRE INFLATION PRESSURES

Tire Type

Tire Size

Inflation Pressure

Agricultural:

2WD

5.50 x 16, 4PR, F2

0.6 - 1.4 bar (8 - 20 psi)

7.5 x 15, 6 PR

FWD

7 x 16, 6PR, R1

0.6 - 1.4 bar (8 - 20 psi)

8 x 16, 6PR, R1

1.4 - 1.7 bar (20 - 24 psi)

Turf:

2WD

25 x 8.50-14, 4PR, R3

0.6 - 0.8 bar (8 - 12 psi)

FWD

27 x 8.50-15, 4PR, R3

Industrial (FWD only)

10 x 16.5, 6PR, R4

1.1 - 3.1 bar (16 - 45 psi)

REAR TIRE INFLATION PRESSURES

Agricultural

13.6 x 24, 4PR, R1

0.8 - 0.97 bar (12 - 14 psi)

Turf

44 x 18-20, 4PR, R3

0.83 - 1.38 bar (12 - 20 psi)

Industrial (R4)

17.5 x 24, 6PR, R4

0.83 - 1.79 bar (12 - 26 psi)

48017760 14/11/2016

INTRODUCTION

Special tools

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

Gauge (0-3000 psi)

OEM 1462

Gauge (6000 psi)

OEM 1464

Gauge (300 psi)

OEM 1457

Hose

Procure Locally

Tee Fitting

CNH299061

Adapter

FNH00227

Male Plug

Included with CNH299061

Female Cap

Included with CNH299061

Variseal Installation Tool

293955

Detent Tool

FNH00081

Seal Driver Set

FNH00293

Injector Test

FNH01721

Injector Adapter Set

FNH01728

Clutch Alignment Tool

FNH299006

Engine Compression Test Adapter

FNH00120

Engine Compression Test Gauge Assembly

OEM1074

Oil Pump Port Block Remover Tool

380002888

Oil Pump Port Block Installer Tool

380002887

Oil Pump Port Block Installer Pins

FNH11044

Micrometer

0 - 25 mm (0 - 1 in)

Micrometer

25 - 51 mm (1 - 2 in)

Micrometer

76 - 102 mm (3 - 4 in)

Small Hole Gauge

19 - 25 mm (0.75 - 1 in)

Cylinder Bore Gauge

76 - 102 mm (3 - 4 in)

Cylinder Bore Gauge

25 - 51 mm (1 - 2 in)

HST High Pressure Test Fitting

CNH299007

Engine Oil Pressure Test Fitting

FNH00011

PTO Clutch Pack Pressure Test Fitting

CNH299008

PTO Clutch Pack Press Tool

CNH299009

48017760 14/11/2016

INTRODUCTION

Special tools

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

Gauge - (0-3000 psi)

Procure Locally

Gauge - (6000 psi)

Procure Locally

Gauge - (300 psi)

Procure Locally

Hose

Procure Locally

Tee Fitting

CNH299061

Adapter

FNH00227

Male Plug

Included with CNH299061

Female Cap

Included with CNH299061

Variseal Installation Tool

380000836

Detent Tool

FNH00081

Seal Driver Set

FNH00293

Injector Test

FNH01721

Injector Adapter Set

FNH01728

Injector Cleaning Kit

FNH01720

Engine Compression Test Adapter . . . FNH00120

Engine Compression Test Gauge Assembly . . OEM1074

Oil Pump Port Block Remover Tool

FNH11097

Oil Pump Port Block Installer Tool

FNH00117

Oil Pump Port Block Remover Sleeve (Pair) . . FNH11099

Oil Pump Port Block Installer Pins

FNH11044

Micrometer

0 - 25 mm (0 - 1 in)

Micrometer

25 - 51 mm (1 - 2 in)

Micrometer

76 - 102 mm (3 - 4 in)

Small Hole Gauge

19 - 25 mm (0.75 - 1 in)

Cylinder Bore Gauge

76 - 102 mm (3 - 4 in)

Cylinder Bore Gauge

25 - 51 mm (1 - 2 in)

Engine Oil Pressure Test Fitting

380002904

PTO/FWD Oil Pressure Test Fitting

380001862

48017760 14/11/2016

INTRODUCTION

Hydraulic contamination

Contamination in the hydraulic system is a major cause of the malfunction of hydraulic components. Contamination

is any foreign material in the hydraulic oil.

Contamination can enter the hydraulic system in several ways:

• When you drain the oil or disconnect any line

• When you disassemble a component

• From normal wear of the hydraulic components

• From damaged seals or worn seals

• From a damaged component in the hydraulic system

All hydraulic systems operate with some contamination. The design of the components in this hydraulic system per-

mits efficient operation with a small amount of contamination. An increase in this amount of contamination can cause

problems in the hydraulic system.

The following list includes some of these problems:

• Cylinder rod seals that leak

• Control valve spools that do not return to neutral

• Movement of control valve spools is difficult

• Hydraulic oil that becomes too hot

• Pump gears, housing, and other parts that wear rapidly

• Relief valves or check valves held open by dirt

• Quick failure of components that have been repaired

• Slow cycle times are slow. The machine does not have enough power.

If your machine has any of these problems, check the hydraulic oil for contamination.

There are two types of contamination: microscopic and visible.

Microscopic contamination occurs when very fine particles of foreign material are suspended in the hydraulic oil.

These particles are too small to see or feel. Microscopic contamination can be found by identification of the following

problems or by testing in a laboratory.

Examples of problems caused by microscopic contamination:

• Cylinder rod seals that leak

• Control valve spools that do not return to neutral

• The hydraulic system has a high operating temperature

Visible contamination is foreign material that can be found by sight, touch, or odor. Visible contamination can cause

a sudden failure of components.

Examples of problems caused by visible contamination:

• Particles of metal or dirt in the oil

• Air in the oil

• Dark or thick oil

• Oil with an odor of burned oil

• Water in the oil

If you find contamination, use a portable filter to clean the hydraulic system.

48017760 14/11/2016

INTRODUCTION

General specification

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

Boomer 3040

Boomer 3045

Boomer 3050

ENGINE

Type/Model

Diesel/N844

Engine Gross Horsepower

29.8 kW (40.5 Hp)

33.6 kW (46 Hp)

Cylinders

Bore

84 mm (3.31 in)

Stroke

90 mm (3.54 in)

100 mm (3.94 in)

Displacement

2.0 l (122.0 in³)

2.2 l (134.3 in³)

Compression Ratio

22.5:1

Firing Order

1-3-4-2

Low Idle Speed

1025 RPM

1050 RPM

Maximum Speed:

High Idle

2850 RPM

3050 RPM

Rated

2600 RPM

2800 RPM

48017760 14/11/2016

INTRODUCTION

Consumables

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

Lubricant

Type and Description

Part Number

Container Size

Engine Oil

NEW HOLLAND AMBRA SUPER GOLD SSL ENGINE

86994335

9.46 l (2.5 US gal)

OIL 10W-40

NEW HOLLAND AMBRA AUTO SUPREME 10W-30

86641050

18.93 l (5 US gal)

NEW HOLLAND AMBRA SUPER GOLD 10W-30

9613313

0.946 l (1 US qt)

86641052

3.785 l (1 US gal)

9613314

9.46 l (2.5 US gal)

9673508DS

18.93 l (5 US gal)

NEW HOLLAND AMBRA SUPER GOLD HSP ENGINE

9613286

0.946 l (1 US qt)

OIL 30

86641043

3.785 l (1 US gal)

9613289

9.46 l (2.5 US gal)

86641044

18.93 l (5 US gal)

NEW HOLLAND AMBRA SUPER GOLD HSP ENGINE

9624812DS

208.2 l (55 US gal)

OIL 40

NEW HOLLAND AMBRA SUPER GOLD 15W-40

86641081

0.946 l (1 US qt)

86641082

3.785 l (1 US gal)

86641084

9.46 l (2.5 US gal)

86641083

18.93 l (5 US gal)

NEW HOLLAND AMBRA SUPER GOLD 20W-50

86994337

18.93 l (5 US gal)

NEW HOLLAND AMBRA AUTO SUPREME 5W-30

9673589DS

0.946 l (1 US qt)

NEW HOLLAND AMBRA AUTO SUPREME 10W-30

86641101

0.946 l (1 US qt)

Transmission

NEW HOLLAND AMBRA MULTI TRAN

86639558

3.785 l (1 US gal)

Oil

86639559

9.46 l (2.5 US gal)

86639560

18.93 l (5 US gal)

NEW HOLLAND AMBRA MULTI BIO S

86994341

9.46 l (2.5 US gal)

Hydraulic Oil

NEW HOLLAND AMBRA MULTI G 134™ HYDRAULIC

9624655DS

0.946 l (1 US qt)

TRANSMISSION OIL

9624656DS

3.785 l (1 US gal)

9624450

9.46 l (2.5 US gal)

9624451

18.93 l (5 US gal)

Grease

NEW HOLLAND AMBRA GR-9 MULTI-PURPOSE

9613310

TUBE - 14 OZ.

GREASE

Coolant

ESE-M97B18-D, Ethylene Glycol Coolant Concentrate

FGCC2701DS

3.785 l (1 US gal)

48017760 14/11/2016

INTRODUCTION

General specification

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

Air conditioning system

Boomer 3040

Boomer 3045

Boomer 3050

Compressor make/model . SANDEN/SD5H11

SANDEN/SD5H11

Bore

35 mm

Stroke

22.6 mm

Number of Cylinders

Refrigerant . .

R-134a

Capacity

1.1 kg (2.4 lb)

Oil

SP-20 (or equivalent)

Capacity . .

135 ml (4.56 US fl oz)

Rotation . .

Clockwise

Blower Motor . .

3 Speed-Electric

Number of Interior Vents . . Switch

Switch

48017760 14/11/2016

INTRODUCTION

Boomer 3040

Boomer 3045

Boomer 3050

COOLING SYSTEM

Type

Pressurized Liquid with

Recirculating Bypass

Water Pump:

Type

Centrifugal

Drive

V-Belt

Belt.

Deflection

10 - 15 mm (7/16 - 9/16 in)

when 9 - 11 kg (20 - 25 lb)

thumb pressure is applied

midway between belt

pulleys

Fan Diameter

410 mm (16.1 in)

Number of Fan Blades.

Thermostat:

Start to Open

80 °C (176 °F)

Fully Open

95 °C (203 °F)

Radiator Cap

0.9 bar (13 psi)

Antifreeze

Ethylene Glycol

48017760 14/11/2016

INTRODUCTION

Boomer 3040

Boomer 3045

Boomer 3050

ELECTRICAL

SYSTEM

Main System Protection.

80 A Maxifuse

Number Fuses for

Circuit Protection. .

Alternator

12 V, Heavy Duty, 55 A

12 V, Heavy Duty,

55 A

Battery type

12 V, w/ negative ground,

12 V, w/ negative ground, 420 cca

12 V, w/ negative

420 cca

ground, 420 cca

Starter HP (KW) Ratin.

2.0 kW (2.7 Hp)

Battery Rating Amp

64 - 69 A·h

Hrs

Starting Motor. . .

Solenoid Pre-Engaged

Solenoid Pre-Engaged Reduction

Reduction

FUEL SYSTEM

Fuel Type

Diesel

Type of Fuel to Use if

Above 40 °F

No. 2-Diesel,

Cetane Rating: Minimum

Cetane Rating: Minimum 40

Cetane Rating:

Minimum 40

Type of Fuel to Use if

Below 40 °F

No. 1-Diesel,

Cetane Rating: Minimum

Cetane Rating: Minimum 40

Cetane Rating:

Minimum 40

Injection Pump:

.Type

In-Line

Timing

21 ° BTDC

48017760 14/11/2016

INTRODUCTION

Boomer 3040

Boomer 3045

Boomer 3050

BRAKES

Type

Wet Disc

3 Disc Diameter

175 mm x 143 mm

Diameter ( 6.9 in x 5.6 in)

Diameter ( 6.9 in x 5.6 in

STEERING

Type

Power

Pump Flow@Rated

19.34 l/min (5.11 US gpm)

RPM

Turns

Lock-to-Lock:

FWD

4.3 R to L and 3 L to R

4.3 R to L and 3 L to R3

4.3 R to L and 3 L to R

Super Steer

4.3

Front WheelToe-In

0 - 5 mm (0 - 13/64 in)

Turning Radius w/o Brakes:

FWD

3238.5 mm (127.5 in)

Super Steer

2870.2 mm (113 in)

Max. Turn Angle

4WD

54 °

4WDSS

75 °

Front to rear axle ratio.

1.67 to 1

POWER TAKE-OFF

Type

Independent

Indipendent

Shaft:

Rear PTO. . .

35 mm (1-3/8 in)

Mid PTO

25.4 mm (1 in)

Engine Speed for

540 RPM Rear

2409 RPM -

2409 RPM

PTO Operation. . .

Horsepower Rear PTO

23 kW (30.8 Hp)

25.8 kW (34.6 Hp)

28.7 kW (38.5 Hp)

Observed

Horsepower Mid PTO

19.3 kW (26 Hp)

22.3 kW (30 Hp)

24.6 kW (36 Hp)

Observed. .

Engine Speed for

2000 RPM Mid

2407 RPM

PTO Operation. . .

Direction of Rotation (As

viewed from rear of tract)

. . .Rear PTO

Clockwise

Mid PTO

Counter-clockwise

HYDRAULIC LIFT

SYSTEM

Type

Open Center

Pump Type. . .

Gear

Pump Capacity.

36.9 l/min (9.7 US gpm)

39.8 l/min (10.5 US gpm)

System Relief Valve

171.6 bar (2488 psi)

Setting

Number of Rear Remotes

(optional

Available.

Number of Mid Remotes

(optional)

Available.

48017760 14/11/2016

INTRODUCTION

Boomer 3040

Boomer 3045

Boomer 3050

TRANSMISSION

Transmission Type. . .

CVT

TRANSMISSION

SPEEDS-KPH(MPH)

Forward Min @ rated speed

0.43 km/h (0.27 mph)

0.48 km/h (0.28 mph)

(AG)

Forward Max @ rated

30.16 km/h (18.70 mph)

32.48 km/h (20.18 mph)

speed (AG)

Reverse Min @ rated speed

0.42 km/h (0.26 mph)

0.45 km/h (0.27 mph)

(AG)

Reverse Max @ rated

29.94 km/h (18.60 mph)

32.24 km/h (20.03 mph)

speed (AG)

Forward Min @ rated speed

0.42 km/h (0.26 mph)

0.46 km/h (0.28 mph)

(R4)

Forward Max @ rated

29.85 km/h (18.54 mph)

32.15 km/h (19.98 mph)

speed (R4)

Reverse Min @ rated speed

0.42 km/h (0.26 mph)

0.45 km/h (0.27 mph)

(R4)

Reverse Max @ rated

29.63 km/h (18.41 mph)

31.91 km/h (19.83 mph)

speed (R4

Forward Min @ rated speed

0.39 km/h (0.24 mph)

0.42 km/h (0.26 mph)

(Turf)

Forward Max @ rated

27.81 km/h (17.28 mph)

29.95 km/h (18.61 mph)

speed (Turf)

Reverse Min @ rated speed

0.39 km/h (0.24 mph)

0.42 km/h (0.26 mph)

(Turf)

Reverse Max @ rated

27.6 km/h (17.15 mph)

29.72 km/h (18.47 mph)

speed (Turf)

Forward Min @ rated speed

0.38 km/h (0.23 mph)

0.41 km/h (0.25 mph)

(Galaxy Turf Special)

Forward Max @ rated

27.04 km/h (16.80 mph)

29.12 km/h (18.09 mph)

speed (Galaxy Turf Special)

Reverse Min @ rated speed

0.38 km/h (0.23 mph)

0.41 km/h (0.25 mph)

(Galaxy Turf Special)

Reverse Max @ rated

29.84 km/h (16.68 mph)

29.63 km/h (16.68 mph)

28.9 km/h (17.96 mph)

speed (Galaxy Turf Special)

48017760 14/11/2016

INTRODUCTION

Weight

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

Boomer 3040

Boomer 3045

Boomer 3050

CAST IRON

WEIGHTS

Front End: Ag, R-4 &

(2) weights @ 29.7 kg

Turf Tires with FWD, &

(65.5 lb)each

(65 lb)each

SuperSteer

Optional (2) weights @

45 kg (99 lb)each

Standard FWD Axle: (with

(5) weights @ 26 kg

extension bracket)

(57 lb)each Total 26 kg

(300 lb)

(5) weights @ 45 kg

(99 lb)each Total 225 kg

(496 lb)

SuperSteer Axle: (with

(2) weights @ 26 kg (57 lb)

extension bracket and

(3) weights @ 45 kg (99 lb)

adapter bracket) . . .

Total 420 lb

Rear Wheel: R-4 Tires . . .

(4) weights (2) per wheel @

(4) weights (2) per wheel

34 kg (75 lb)each

@ 34 kg (75 lb)each

Turf Tires

---

Ag. Tires

(4) weights (2) per wheel @

(4) weights (2) per wheel

48 kg (106 lb)each

@ 48 kg (106 lb)each

48017760 14/11/2016

INTRODUCTION

General specification

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

DRAWBARS

Boomer 3040

Boomer 3045

Boomer 3050 Boomer 50D

Swinging/ Extendible

Standard

3 POINT HITCH

Boomer 3040

Boomer 3045

Boomer 3050 Boomer 50D

Category Type

Position Control Type

Hydraulic

Drop Rate Control

Standard

Maximum Lift Capacity @

1606 kg (3541 lb)

ball ends Kg (lb)

Lift Capacity @ 24 in Behind

1059 kg (2330 lb)

Kg (lb)

Boomer 3040

Boomer 3045

Boomer 3050 Boomer 50D

TIRES FRONT:

Agricultural: FWD

8x16, 6PR, R1

8x16, 6PR, R11

Turf: FWD

27x10.50-15, 4PR, R3

27/12LL x 15

Industrial: FWD

10x16.5, 6PR, R4

REAR: Agricultural

14.9x24, 4PR, R1

Turf

44x18-20, 4 PR, R3

Industrial

17.5x24, 8PR, R4

Galaxy Turf Special

22.5 LL x 16

48017760 14/11/2016

INTRODUCTION

Dimension General

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

Boomer 3040

Boomer 3045

Boomer 3050

(1)-LENGTH Overall

(w/Vertical 3 pt. Hitch) -

mm (in.)

STD FWD

AG Tires

3098 mm (122 in)

R4 Tires

3098 mm (122 in)

Turf Tires

3098 mm (122 in)

Galaxy Turf Special

3098 mm (122 in)

Boomer 3040

Boomer 3045

Boomer 3050

SUPERSTEER

AG Tires

3288 mm (129.4 in) )

3288 mm (129.4 in)

R4 Tires

3288 mm (129.4 in)

Turf Tires

3288 mm (129.4 in)

Galaxy Turf Special

N/A

48017760 14/11/2016

INTRODUCTION

Boomer 3040

Boomer 3045

Boomer 3050

(2) - WHEEL BASE:

FWD

1887 mm (74.3 in)

SuperSteer

2057 mm (81.0 in)

Boomer 3040

Boomer 3045

Boomer 3050

(3) - WIDTH: Rear

Axle-Outside

AG Tires - 14.9 x 24

1687 mm (66.4 in)

Dished In

Dished Out

2090 mm (82.3 in)

R4 Tires - 17.5 x 24

1876 mm (73.9 in)

Dished In

Dished Out

2184 mm (86 in)

Turf Tires - 44-18 x 20

1819 mm (71.6 in)

Dished In

Dished Out

1841 mm (72.5 in)

Galaxy Turf Special -

22.5LL x 16

Dished In

Dished Out

2131 mm (83.9 in)

Boomer 3040

Boomer 3045

Boomer 3050

(4)-GROUND

CLEARANCE - mm

(in.) (at * CL)

AG TIRES

Std. FWD Minimum

318 mm (12.5 in)

Location (SUPERSTEER

274 mm (10.8 in)

Clutch)

Front Axle Crop Clearance

403 mm (15.6 in)

Rear Axle Crop Clearance

433 mm (17.0 in)

Boomer 3040

Boomer 3045

Boomer 3050

R4 TIRES

Std. FWD Minimum

302 mm (11.9 in)

Location (SUPERSTEER

266 mm (10.8 in)

Clutch)

Front Axle Crop Clearance

395 mm (15.6 in)

Rear Axle Crop Clearance

417 mm (16.4 in)

TURF TIRES

Std. FWD Minimum

280 mm (11.0 in)

Location (SUPERSTEER

223 mm (8.8 in)

Clutch)

Front Axle Crop Clearance

352 mm (13.9 in)

Rear Axle Crop Clearance

395 mm (15.6 in)

GALAXY TURF SPECIAL

Std. FWD Minimum

262 mm (10.3 in)

48017760

14/11/2016

INTRODUCTION

Boomer 3040

Boomer 3045

Boomer 3050

CAB DIMENSIONS:

mm (in.)

1486 mm (58.5 in)

(5) - Width - Cab

1676 mm (66 in)

(6) - Length - Cab

(7) - Height - Cab

AG Tires FWD

2303 mm (90.65 in)

R4 Tires FWD

2292 mm (90.25 in)

Turf Tires FWD

2226 mm (87.65 in)

Galaxy Tires FWD

2242 mm (88.25 in)

1486 mm (58.5 in)

(8) - Width - Standard

Fenders

1727 mm (68 in)

(9) - Width - with

Mirrors Extended

Roof Overhang Length

330 mm (13 in)

(rear)

Number of Steps (per

2 mm

tractor)

(10) - Step Height

AG Tires FWD

490 mm (19.3 in)

R4 Tires FWD

480 mm (18.9 in)

Turf Tires FWD

414 mm (16.3 in)

Galaxy Tires FWD

429 mm (16.9 in)

Cab Head Height

Center of Seat to Inner Roof

972 mm (38.25 in)

48017760 14/11/2016

INTRODUCTION

76083738N & 660

A CAB IDENTIFICATION PLATE is located inside on the left rear pillar of the cab. The identification numbers on these

plates are important in the event your tractor should require future service. For you convenience, have your dealer

record these numbers in the appropriate spaces below.

CNH America LLC is continually striving to improve its products. We reserve the right to change prices, specifications,

or equipment at any time without notice.

All data given in this book is subject to production variations. Dimensions and weights are approximate only, and the

illustrations do not necessarily depict tractors in standard condition. For exact information about any particular tractor,

please consult your NEW HOLLAND dealer.

48017760 14/11/2016

CONSUMABLES INDEX

Consumable

Reference

PAGE

NEW HOLLAND AMBRA

Consumables

SUPER GOLD SSL ENGINE

OIL 10W-40

NEW HOLLAND AMBRA

Consumables

AUTO SUPREME 10W-30

NEW HOLLAND AMBRA

Consumables

SUPER GOLD 10W-30

NEW HOLLAND AMBRA

Consumables

SUPER GOLD HSP ENGINE

OIL 30

NEW HOLLAND AMBRA

Consumables

SUPER GOLD HSP ENGINE

OIL 40

NEW HOLLAND AMBRA

Consumables

SUPER GOLD 15W-40

NEW HOLLAND AMBRA

Consumables

SUPER GOLD 20W-50

NEW HOLLAND AMBRA

Consumables

AUTO SUPREME 5W-30

NEW HOLLAND AMBRA

Consumables

AUTO SUPREME 10W-30

NEW HOLLAND AMBRA

Consumables

MULTI TRAN

NEW HOLLAND AMBRA

Consumables

MULTI BIO S

NEW HOLLAND AMBRA

Consumables

MULTI G 134™ HYDRAULIC

TRANSMISSION OIL

NEW HOLLAND AMBRA

Consumables

GR-9 MULTI-PURPOSE

GREASE

48017760 14/11/2016

Engine - Engine and crankcase

Engine - General specification

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

Boomer 3040

Boomer 3045

Boomer 3050

Engine Model

ISM N844

ISM N844L

Number of Cylinders

Bore x Stroke

84 mm x 90 mm ( 3.31 in x

84 mm x 100 mm ( 3.31 in

3.54 in)

x 3.94 in)

Displacement

1995 cm³ ( 121.7 in³)

2216 cm³ ( 135.2 in³)

Compression Ratio

22.5:1

Rated Speed

2600 RPM

2800 RPM

Muffler

Horizontal

Firing Order

1-3-4-2

Low Idle Speed

1050 RPM

Maximum No-Load Speed

2825 RPM

3025 RPM

Cylinder Arrangement

In-Line Vertical

Valve Arrangement

Overhead

Compression Pressure at

29.4 ± 1.8 bar (427 ±

200 RPM(cylinder speed)

50 psi)

Variation between cylinders

Engine - Torque

Boomer™ 3040 CVT

Boomer™ 3045 CVT

Boomer™ 3050 CVT

Boomer 3040

Boomer 3045

Boomer 3050

Engine Model

ISM N844

ISM N844L

TORQUE SPECIFICATION

Connecting Rod Cap Bolts

49 - 54 N·m (36 - 40 lb ft)

Main Bearing Retaining

49 - 54 N·m (36 - 40 lb ft)

Bolts

Relief Valve Assembly

59 - 69 N·m (43 - 51 lb ft)

Crankshaft Main Bearing

Holder Bolts

Rear Main

25 - 29 N·m (18 - 22 lb ft)

Center Mains

49 - 54 N·m (36 - 40 lb ft)

Engine Rear Mounting Plate

12 - 17 N·m (9 - 12 lb ft)

Flywheel Retaining Bolts

68 - 78 N·m (51 - 58 lb ft)

Engine Front Plate

9 - 12 N·m (6 - 9 lb ft)

Crankshaft Pulley Nut

274 - 333 N·m (202 - 246 lb

ft)

Cylinder Head Bolts

98 - 103 N·m (72.3 - 76 lb

ft)

Rocker Arm Assembly

27 - 39 N·m (20 - 29 lb ft)

Rocker Arm Locknut

11 - 16 N·m (8 - 12 lb ft)

Oil Tube Banjo Bolt

9 - 13 N·m (7 - 9 lb ft)

Oil Pressure Switch

14 - 20 N·m (10 - 14 lb ft)

Rocker Cover Bolts

7 - 12 N·m (6 - 9 lb ft)

Glow Plugs

14 - 20 N·m (10 - 14 lb ft)

Cooling Fan Bolts

9 - 13 N·m (7 - 9 lb ft)

Balancer

Retaining Bolts

49 - 53.9 N·m (36 - 39 lb ft)

48017760 14/11/2016

10.1 [10.001] / 3

Engine - Engine and crankcase

Metric Bolt Torque Specifications

Coarse Thread Fine Thread

Fine Thread

Bolt Size

Grade No.

Pitch

Torque

Pitch

Torque

4.9 - 6.9 N·m (3.6

- 5.1 lb ft)

1.0

8.3 - 11.3 N·m

(6.1 - 8.3 lb ft)

10T

11.8 - 15.7 N·m

(8.7 - 11.6 lb ft)

12.7 - 16.7 N·m

15.2 - 20.1 N·m

(9.4 - 12.3 lb ft)

(11.2 - 14.8 lb ft)

1.25

22.6 - 28.4 N·m

1.0

26.5 - 34.3 N·m

(16.6 - 21.0 lb ft)

(19.5 - 25.3 lb ft)

10T

28.4 - 36.3 N·m

30.4 - 40.2 N·m

(21.0 - 26.8 lb ft)

(22.4 - 29.7 lb ft)

25.5 - 33.3 N·m

28.4 - 36.3 N·m

(18.8 - 24.6 lb ft)

(21.0 - 26.8 lb ft)

M10

1.5

44.1 - 55.9 N·m

1.25

49.0 - 62.8 N·m

(32.5 - 41.2 lb ft)

(36.2 - 46.3 lb ft)

10T

53.9 - 69.6 N·m

57.9 - 73.5 N·m

(39.8 - 51.4 lb ft)

(42.7 - 54.2 lb ft)

37.3 - 47.1 N·m

43.1 - 54.9 N·m

(27.5 - 34.7 lb ft)

(31.8 - 40.5 lb ft)

M12

1.75

65.7 - 83.4 N·m

1.25

74.5 - 94.1 N·m

(48.5 - 61.5 lb ft)

(55.0 - 69.4 lb ft)

10T

92.2 - 116 N·m

99.0 - 127 N·m

(68.0 - 85.4 lb ft)

(73.1 - 93.3 lb ft)

62.8 - 80.4 N·m

69.6 - 87.3 N·m

(46.3 - 59.3 lb ft)

(51.4 - 64.4 lb ft)

M14

2.0

104 - 131 N·m

1.5

117 - 148 N·m

(76.7 - 96.9 lb ft)

(86.1 - 109 lb ft)

11T

139 - 175 N·m

147 - 186 N·m

(102 - 129 lb ft)

(108 - 137 lb ft)

86.3 - 110 N·m

91.2 - 115 N·m

(63.6 - 81.0 lb ft)

(67.3 - 84.6 lb ft)

M16

2.0

140 - 184 N·m

1.5

157 - 192 N·m

(110 - 136 lb ft)

(116 - 142 lb ft)

11T

206 - 255 N·m

221 - 270 N·m

(152 - 188 lb ft)

(163 - 199 lb ft)

114 - 141 N·m

131 - 163 N·m

(83.9 - 104 lb ft)

(96.9 - 120 lb ft)

M18

2.0

196 - 235 N·m

1.5

230 - 279 N·m

(145 - 174 lb ft)

(170 - 206 lb ft)

11T

275 - 333 N·m

299 - 368 N·m

(203 - 246 lb ft)

(221 - 271 lb ft)

144 - 179 N·m

172 - 211 N·m

(106 - 132 lb ft)

(127 - 156 lb ft)

M20

2.5

240 - 289 N·m

1.5

275 - 333 N·m

(177 - 213 lb ft)

(203 - 246 lb ft)

11T

363 - 441 N·m

397 - 485 N·m

(268 - 325 lb ft)

(293 - 358 lb ft)

Engine - Special tools

Boomer™ 3040

CVT

Boomer™ 3045

CVT

Boomer™ 3050

CVT

48017760 14/11/2016

10.1 [10.001] / 4

Engine - Engine and crankcase

Tool No.

Description

FNH01721

Injector Tester

FNH00120

Adapter - Compression Tester

FNH01728

Injector Adapter Set

OEM1074

Compression Test Gauge Assembly

FNH01720

Injector Cleaning Kit

380002887

Port Block Installer

FNH11044

Port Block Installer Pins

380002888

Port Block Remover

380002904

Oil Pressure Test Fitting

Micrometer, Outside

0 - 25 mm (0 - 1 in)

Micrometer, Outside

25 - 51 mm (1 - 2 in)

Micrometer, Outside

76.2 - 101.6 mm (3 - 4 in)

Small Hole Gauge

19 - 25 mm (0.75 - 1 in)

Cylinder Bore Gauge

76.2 - 101.6 mm (3 - 4 in)

Cylinder Bore Gauge

25 - 51 mm (1 - 2 in)

48017760 14/11/2016

10.1 [10.001] / 5
