NEW HOLLAND Tractors (Specifications)

New Holland Boomer

^™1000 & T1000 Series

Sub-compact Tractor Specifications

Boomer 1020

Boomer 1025

T1010

T1030

MODEL

Boomer 1020/T1010

Boomer 1025/T1030

ENGINE

Gross engine hp (kW)

(14.9)

(19.4)

PTO hp (kW)

15.5

(11.6)

19.7

(14.7)

Rated speed, rpm

3000

Cylinders

Displacement, cu. in. (L)

58.2

(.95)

69.0

(1.1)

Fuel capacity, gal. (L)

7.1

(26.9)

7.1

(26.9)

TRANSMISSIONS

Hydrostatic transmission

2-speed

Min/Max forward speed

with R4 tires, mph (k/hr)

0-10.3 (16.6)

BRAKES

Location

.........................................................Single LH side

Type

..............................................................Wet disc

POWER TAKE OFF (PTO)

Rear

540

Mid

2200

HYDRAULICS

Pump type

Gear

System type

...........................................................Open center

Pump capacity, gpm (lpm)*

5.6

(21.2)

5.6

(21.2)

Implement flow, gpm (lpm)

3.75

(14.20)

3.75

(14.21)

Steering priority flow, gpm (lpm)

1.85

(7.0)

1.85

(7.0)

3-point hitch lift capacity,

24 in. behind the lift balls, lb. (kg)

700

(318)

700

(318)

3 point hitch control

.....................................................Self centering valve

*@ rated speed

AXLE OPTIONS

FWD

Standard

Sensitrak™ Auto FWD

Optional

DIMENSIONS (with R4 tires)

Overall length witih 3-point hitch,

in. (mm)

96.3

(2445)

96.3

(2445)

Overall width (minimum), in. (mm)

46.4

(1180)

46.4

(1180)

Wheelbase, in. (mm)

55.1

(1400)

55.1

(1400)

Height to top of ROPS, in. (mm)

72.4

(1840)

72.4

(1840)

Ground clearance

7.3

(185)

7.3

(185)

Shipping weight w/R4 tires, lbs. (kg)

1455

(660)

1455

(660)

TIRE OPTIONS

Turf Tires

Front

.................................................18x8.5-8, 4 PR (R3) Turf

Rear

................................................26x12-12, 4 PR (R3) Turf

Industrial Tires

Front

..................................................18x8.5-8, 4 Pr (R4) Ind

Rear

.................................................26x12-12, 4PR (R4) Ind

STANDARD EQUIPMENT:

OPTIONAL EQUIPMENT:

• Toolbox

FRONT ATTACHMENTS

MID-MOUNT ATTACHMENTS REAR ATTACHMENTS

• Cup holder

• Loader

• 60” mid-mount mower

• Finishing mowers

• Foldable ROPS

• Quick-attach snow blower

• Grass catcher

• Rotary tiller

• 12 Volt accessory power outlet

• Quick-attach rotary broom

• Ballast box

• Quick-attach front blade

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 1 of 1

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland BB9000 Series

Large Square Baler Specifications

BB9060

BB9080

MODEL

BB9060

BB9080

TYPE

STANDARD

PACKER CUTTER

ROTOR CUTTER

STANDARD

ROTOR CUTTER

BALE DIMENSIONS

Width, in. (mm)

31.5

(800)

31.5

(800)

31.5

(800)

47.3

(1200)

47.3

(1200)

Height, in. (mm)

35.4

(900)

35.4

(900)

35.4

(900)

35.4

(900)

35.4

(900)

Maximum length, in. (mm)

102.3

(2600)

102.3

(2600)

102.3

(2600)

102.3

(2600)

102.3

(2600)

TRACTOR REQUIREMENTS

Minimum PTO power, hp

102

110

130

122

150

PTO speed, rpm

1000

HYDRAULIC REMOTES

Single axle

Tandem axle

MAIN DRIVE

Protection

Shearbolt, overrunning clutch and slip clutch

SUPER SWEEP™ PICK-UP

Width, in. (mm)

78.0

(1981)

78.0

(1981)

78.0

(1981)

88.6

(2250)

94.5

(2400)

Flotation

Adjustable spring

Hydraulic pick-up lift

Standard

Gauge wheels 15 X 6.00-6-4ply

CROPCUTTER™ SYSTEM

Knives options

—

Knife distance, in. (mm)

—

4.5

(114)

1.5

(39)

—

3.1

(78)

Knife removal

—

From the front

Sliding knife drawer

—

Sliding knife drawer

Knife activation, in - out

—

Hydraulic

—

Hydraulic

Knife protection

—

Individual springs

—

Individual springs

FEEDING SYSTEM

Feeder

2 packer forks

3 packer forks

Rotor

3 packer forks

Rotor

6 single tines

6 single tines Width 38.3 in. (973 mm)

9 single tines Width 53.4 in. (1356 mm)

"W" tine configuration

Feeder protection

Slip Clutch

Cut-out clutch

Slip Clutch

Cut-out clutch

Stuffer

Fork type with 4 tines

Fork type with 6 tines Fork type with 4 tines Fork type with 6 tines Fork type with 6 tines

Stuffer protection

Shearbolt

Pre-compression chamber, volume, ft.³, (m³)

8.8

(0.25)

8.8

(0.25)

8.8

(0.25)

10.6

(0.3)

10.6

(0.3 )

PLUNGER

Speed

42 strokes/min

Length of stroke, in. (mm)

(711)

TYING SYSTEM

Type

Double knot type

Number of twines

Knotter fan type

Electric

Knotter function alert

Monitor and visual

Knotter lubrication

Automatic Greasing

Twine ball capacity

Page 1 of 2

Downloaded from www.Manualslib.com manuals search engine

New Holland BB9000 Series

Large Square Baler Specifications

BB9060

BB9080

MODEL

BB9060

BB9080

TYPE

STANDARD

PACKER CUTTER

ROTOR CUTTER

STANDARD

ROTOR CUTTER

BALE DENSITY SYSTEM

Proportional 3-way control

Monitor controlled

Manual override

Standard

ELECTRONIC CONTROL SYSTEM

ISO 11783 connection ready

Standard

InfoView™ II monitor

Standard

IntelliView™ III touch screen

color monitor

Optional

TIRES

Single axle

600/55X22.5, 16 PR

710/40RX22.5

Tandem axle

500/50X17, 14 PR

BALER DIMENSIONS

Length chute closed, in. (mm)

284.6

(7230)

284.6

(7230)

284.6

(7230)

284.6

(7230)

284.6

(7230)

Width (single axle 600/55X22.5 tires),

in. (mm)

101.6

(2580)

101.6

(2580)

101.6

(2580)

101.6

(2580)

101.6

(2580)

Width (tandem axle 500/50X17 tires),

in. (mm)

99.2

(2520)

99.2

(2520)

99.2

(2520)

99.2

(2520)

99.2

(2520)

Height (single axle), in. (mm)

122

(3100)

122

(3100)

122

(3100)

122

(3100)

122

(3100)

Height (tandem axle), in. (mm)

120

(3050)

120

(3050)

120

(3050)

120

(3050)

120

(3050)

Weight (single axle), lbs. (kg)

15,035

(6820)

15,807

(7170)

17,240

(7820)

17,019

(7720)

19,466

(8830)

Weight (tandem axle), lbs. (kg)

16,358

(7420)

17,129

(7770)

18,563

(8420)

18,342

(8320)

20,789

(9430)

New Holland

Bale Accumulator Specifications

AC3104

AC4104

MODEL

AC3104

AC4104

Capacity

3 Bales

Bale size, in. (mm)

32.5

(826) wide bales

(1219) wide bales

Eject

Manual or Auto

Width, in. (mm)

116

(2946)

162

(4115)

Length, in. (mm)

110

(2794)

110

(2794)

Height*, in. (mm)

(813)

Weight, lb. (kg)

2,200

(998)

2,800

(1270)

Hydraulic req, gpm (lpm)

(37.8) continuous pressure

Silage bales

Yes

*with 26x12x12 tires

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 2 of 2

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland

Forage Blower Specifications

F62B

MODEL

F62B

LENGTH

108 in. (2,743 mm)

WIDTH

100 in. (2,540 mm)

WEIGHT

1,605 lbs. (729 kg)

BLOWER

Blowing height*

Over 100 ft. (Over 30 m)

Blower housing

60 in. dia. (1,524 mm)

Paddles (adjustable)

Paddle tip speed

8,460 ft./min. (2,579 m/min.)

Drive

Direct PTO

HOPPER

Diameter

Auger-12 in. (305 mm)

Length

Auger-50 in. (1,270 mm)

Width

37 in. (940 mm)

Height from ground

Adjustable-20¹⁄2 in. (520 mm)

to 27¹⁄8 in. (699 mm)

Feeder type

Auger

DRIVELINE PROTECTION

Shearbolt

PTO

540 rpm

TIRES

4.80-8 “C” load range

CAPACITY (with adequate power)

Corn silage*

Up to 180 tons/hr. (163 mt/hr.)

Haylage*

Up to 110 tons/hr. (100 mt/hr.)

OPTIONAL EQUIPMENT

Pipe Clamp

Kwik Pipe Bundle

Telescoping Pipe Section

Hinged Deflector

Safety Tow Chain+

* Capacity and height will depend upon tractor horsepower, type of crop, moisture content, length of cut, as well as general maintenance of pipes and spout.

+ Available from New Holland Service Parts.

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 1 of 1

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland

Industrial Dryer Specifications

K-11

K-24

K-90

K-94

MODEL

K-11 Tabletop Dryer

K-24

K-90

K-94

6 in. x 6 in.

12 in. x 12 in.

18 in. x 18 in.

18 in. x 24 in.

Overall Height

19.5 in.

36.5 in.

40.5 in.

46.5 in.

Work Height

16 1/8 in.

30 1/2 in.

37 in.

43 in.

Table Space Required

9 3/8 in. x 14 in.

—

Floor Space Required

—

24 in. x 37 in.

31 in. x 40 in.

Weight

79 lbs.

400 lbs.

615 lbs.

690 lbs.

Operating Speed

1,100 rpm

825 rpm

625 rpm

Motor Size

1/8 hp

1 hp

2 hp

3 hp

Basket Size

6 in. x 6 in.

12 in. x 12 in.

18 in. x 18 in.

18 in. x 24 in.

Capacity

7 lbs.

75 lbs.

150 lbs.

250 lbs.

Bearings

2, sealed ball

2, tapered roller

Reversible Control

Yes

Drive

Direct coupled

2 V-belts

Constuction

Arc-welded steel plate

Electrical System

110/120 VAC 50/60Hz

208, 220, 440, or

550 VAC at 60Hz;

380 VAC at 50Hz; 3-phase

Heating Unit

600 watts switchable electric

(Optional) electric; steam

Amperage

Starting: 10.1/10.4

Starting and operating amperage

Operating: 6.7/7.1

varies with voltage selected

Meets N.E.C. Specifications

Yes

U.L. Recognized

Yes

Grease Fittings

None

Exposed

Meets J.I.C. Specifications

—

Yes

OPTIONS

Soft Start

—

Yes

Variable Speed

—

Yes

Timer

—

Yes

Temperature Control

—

Yes

For more information or to find an authorized New Holland industrial dryer

distributor, contact us at:

CNH America LLC

P.O. Box 1895, M.S. 237

New Holland, PA 17557-0903

Phone: 717-355-4747

Fax: 717-355-3440

or visit our Web site at www.newholland.com/na

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 1 of 1

Downloaded from www.Manualslib.com manuals search engine

New Holland BC5000 Series

Small Square Baler Specifications

BC5050

BC5060

BC5070

BC5080

MODEL

BC5050

BC5060

BC5070

BC5080

BALE SIZE:

Cross section, in. (cm)

14x18 (36x46)

16x18 (41x48)

Length, in. (cm)

................................................................................Adjustable, 12 to 52 (31 to 132)

SUPER-SWEEP PICKUP:

Width inside, in. (m)

(1.65)

(1.9)

Width on flare, in. (m)

(1.8)

(2)

Number of teeth

88 on four tooth bars

110 on five tooth bars

156 on six tooth bars

Floating windguard

Eight rods

Thirteen rods

Drive

........V-belt to roller chain to “lost motion” reel drive

—

Gauge wheel

3.00x12; semi-pneumatic

15x6.00x6

ROTARY FEEDING SYSTEM:

Type

—

Packer fork in combination

with two paired rotors

with three paired rotors

Drive

—

............................Chain from main drive shaft; sealed ball bearings on all shafts

FLOW-ACTION^® FEEDING SYSTEM:

Type

Six feeder tines on a moving

—

finger bar

Drive

Chain; sealed ball bearings

—

FEED OPENING, sq. in. (cm³)

283

(1826)

283

(1826)

283

(1826)

318

(2052)

PLUNGER:

Stroke length, in. (cm)

(76.2)

Speed (540 rpm)

79 SPM

93 SPM

Construction

..........High-strength steel throughout; modified extension is built into the plunger face, eliminating the need for bolt-on extensions

TYING MECHANISMS:

Type

Knotter

Knotter or twister

Knotter or twister (heavy-duty) Knotter (heavy-duty)

Protection

Shearbolt

Capacity (twine)

Four balls

Six balls

Eight balls

(wire)

Four coils

MAIN DRIVE:

Flywheel diameter, in. (cm)

(56)

PTO

Three-joint

Protection

..........................................................................Shearbolt, overrunning and slip clutches

Gearbox

................................................Hypoid with tapered roller bearings; heat-treated alloy steel running in oil

TIRES:

Flotation (right)

25x7.50-15, 6PR

27x9.50-15, 6 PR

27x9.50-15, 6PR

11Lx15, 6PR

(left)

27x9.50-15, 6PR

31x13.50-15, 6PR

14Lx16.1, 6PR

DIMENSIONS:

Height (max.), in. (cm)

(146)

(178)

(180)

Width, in. (cm)

108

(275)

110

(279)

120

(304)

120

(304)

Length:, in. (cm)

With 3-joint PTO and

quarter-turn bale chute

240

(610)

247

(626)

247

(626)

247

(626)

Page 1 of 2

Downloaded from www.Manualslib.com manuals search engine

New Holland BC5000 Series

Small Square Baler Specifications

BC5050

BC5060

BC5070

BC5080

MODEL

BC5050

BC5060

BC5070

BC5080

WEIGHT (APPROXIMATE):

With three-joint PTO,

twine version, lb. (kg)

3,085

(1399)

3,400

(1542)

3,715

(1685)

4,200

(1905)

With three-joint PTO,

wire version, lb. (kg)

3,536

(1603)

3,851

(1746)

RECOMMENDED TRANSPORT SPEED,

mph (km/h)

(32)

TRACTOR REQUIREMENT*

Horsepower (min.), hp (kW)

(26)

(45)

(56)

(60)

*Tractor weight must be greater than baler weight; excludes bale thrower.

OPTIONS

BC5050: two- or three-joint PTO (Cat. IV); hydraulic pickup lift; hydraulic tongue swing; needle slot baffle kit; auxiliary

lights; road light kit; safety chain; wagon hitch and bale loading chute; triple-purpose chute; quarter-turn bale chute;

hydraformatic bale tension; ball hitch (BC5070, BC5080 only); replaceable bale chamber, hydraulic doors kit and bale

case extension kit (BC5080 only); bale case extension; grass feeder kit; safety chain; two-position hitch.

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 2 of 2

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland

Air Hoe Drill Specifications

P2050

3-SECTION MODEL, ft. (m)

(8.2)

(8.5)

(10.1)

(10.4)

(11.9)

(12.2)

DIMENSIONS

Transport, ft. (m)

Length

(8.8)

ft. in. (m)

Height

11’ 6” (3.5)

14’ 6” (4.4)

17’ 6” (5.3)

ft. in. (m)

Width

20’ 6” (6.2)

NUMBER OF SHANKS

Spacing, in. (cm)

7.2

(18.3)

—

in. (cm)

(25.4)

—

in. (cm)

(30.5)

—

5-SECTION MODEL, ft. (m)

(13.7)

(14.0)

(15.5)

(15.8)

—

DIMENSIONS

Transport, ft. (m)

Length

(8.8)

—

ft. in. (m)

Height

13’ 6” (4.1)

17’ 6” (5.3)

—

ft. in. (m)

Width

20’ 6” (6.2)

—

NUMBER OF SHANKS

Spacing, in. (cm)

7.2

(18.3)

—

in. (cm)

(25.4)

—

in. (cm)

(30.5)

—

TIRES

P2050 CONFIGURATION ft. (m)

27, 28, 33 and 34

39, 40, 45 and 46

51 and 52

(8.2, 8.5, 10.1 and 10.4)

(11.9, 12.2, 13.7 and 14.0)

(15.5, 15.8)

Single caster tires on front

Dual caster tires on front

(11L-15FI D-rating - 6-bolt hubs)

(9.5L-15FI D-rating - 6-bolt hubs)

(11L-15FI D-rating - 6-bolt hubs)

Tires on rear walking beams

(9.5L-15FI D-rating - 6-bolt hubs)

(11L-15FI D-rating - 6-bolt hubs)

Tires on wing sections

(9.5L-15FI 6-ply - 6-bolt hubs)

SPACING

4-row, in. (cm)

7.2, 10 or 12 (18.3, 25.4 or 30.5) spacings

FRAME/GROUND CLEARANCE

in. (cm)

28 to 32 (71.1 to 81.3) depending on openers and depth settings

CULTIVATOR-STYLE TRIPS

lb. (kg) in. (cm)

350

(160) with 1” x 2” (2.5 x 5.1) shank, 2 1/4” (5.7) centers fit 50° sweeps

lb. (kg) in. (cm)

550

(250) with 1” x 2” (2.5 x 5.1) shank, 2 1/4” (5.7) centers fit 50° sweeps

PRESS WHEELS

Rubber, in. (cm)

3 x 22 (7.6 x 55.9)

in. (cm)

4 x 22 (10.2 x 55.9)

in. (cm)

5 1/2 x 22 (14 x 55.9)

Steel, in. (cm)

3 1/2 x 22 (8.9 x 55.9)

in. (cm)

4 1/2 x 22 (11.4 x 55.9)

OPTIONS

Shim kits to lower shanks behind tractor wheels

.........................................................................................................................................Single or dual end markers

..........................................................................................................................................Press wheel mud scrapers

.............................................................................................................................................Tow hitch for NH

3cart

...................................................................................................................................Bolt-on caps for steel press wheels

............................................................................................................................1-bar heavy harrow for 4-row configuration

................................................................................Dual offset caster for the center section of 27’, 28’, 33’ and 34’ (8.2, 8.5, 10.1 and 10.4 m) models

......................................................................................................................Dual offset caster for the wing sections (all models)

ASAE 279.11 transport lighting is standard equipment

Page 1 of 2

Downloaded from www.Manualslib.com manuals search engine

New Holland

Air Hoe Drill Specifications

P2060

BASE SIZE, ft. (m)

(18.3)

(21.3)

No. of sections

No. of ranks

WORKING WIDTHS, ft. (m) (outside shank to outside shank + spacing)

7.5

(19.1) in. (cm), spacing

(18.3)

N/A

(25.4) in. (cm), spacing

(18.3)

(21.3)

(30.5) in. (cm), spacing

(18.3)

(21.3)

NUMBER OF SHANKS

7.5

(19.1) in. (cm), spacing

N/A

(25.4) in. (cm), spacing

(30.5) in. (cm), spacing

FRAME WIDTHS, ft. in. (m)

Main frame

10' 0" (3.05)

Inner wing

15' 0" (4.57)

Outer wing

10' 0" (3.05)

15' 0" (4.57)

Transport width

17' 8" (5.38)

Transport height (max)

13' 6" (4.11)

WEIGHTS, lb. (kg) (All with 350 lb. trips and 3 in rubber packers)

7.5

(19.1) in. (cm), spacing

36,300

(16,466)

N/A

(25.4) in. (cm), spacing

32,800

(14,878)

36,500

(16,556)

(30.5) in. (cm), spacing

31,100

(14,107)

34,400

(15,604)

TIRES

Main frame casters

11Lx15FI (Duals)

Inner wing casters

11Lx15FI (Duals)

Outer wing casters

11Lx15FI (Singles)

Rear transport wheels

11Lx15FI (Single)

Packer options, 7.5" (19.1 cm), spacing

Steel - 3-1/2" / Rubber - 3" in line gang style

Packer options, 10" and 12" (25.4 or 30.5 cm), spacing

Steel - 3-1/2", 4-1/2"/ Rubber - 3", 4”, 5-1/2" in line gang style / and 5-1/2" or 6-1/2" pneumatic walking beam style

Packer wheel mud scrapers

Optional for steel and rubber wheels

Stone kickers

Standard

Openers

NEW edge-on Stealth

Seed boots

Wide range of Flexicoil ground openers available

Air kits

Single shoot and double shoot available

Blockage monitors

Basic or expanded blockage monitors available; pin sensors and optical sensors

Tandem wheels for center

Standard; also 12.5x15FI D-rating / 15 high-flotation available

Tandem wheels for wings

Optional; also 12.5x15FI D-rating / 15 high-flotation available

In-frame harrow

Optional single-bar heavy harrow

Disc levellers

Optional

Trip assemblies, 7.5" (19.1 cm), spacing

350 lb. & 550 lb

Trip assemblies, 10" and 12" (25.4 or 30.5 cm), spacing

350 lb. & 550 lb

Trip assemblies

1" x 2" 50° C-shank or 1" x 2" 84° edge-on

Rank to rank spacing, in. (cm)

(66)

Frame depth, in (cm)

108

(274.3)

Caster to packer depth, in. (cm)

148

(375.9) at 1-inch / 2.54 cm of seeding depth

Frame/ground clearance

28 to 32 (71.1 to 81.3) depending on openers

Hydraulic system

High-quality parallel cylinders performing both depth and wing lift. functions

Depth control

Each wing follows ground independently (not affecting adjacent sections); single point adjustment

Safety chain and lights

Standard

Transport locks

Standard

Rear tow hitch

Optional; patented steering design to aid in cornering and limit sidehill skewing

Packing pressure adjustment

Each frame section independently adjustable

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 2 of 2

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland Boomer

^™ 4000 & T2400 Series

Utility Tractor Specifications

Boomer 4055

Boomer 4060

T2410

T2420

MODEL

BOOMER 4055/T2410

BOOMER 4060/T2420

ENGINE

Gross engine hp (kW)

(41.0)

(44.7)

PTO hp (kW), SSS transmission

(35.1)

(38.0)

EHSS transmission

(34.3)

(37.3)

Rated speed, rpm

2,700

2,800

Cylinders

Aspiration

Turbocharged

Displacement, cu. in. (L)

135.2

(2.2)

Fuel capacity, gal. (L)

13.5

(51.1)

TRANSMISSIONS

12x12 Synchro Shuttle Shift (SSS)

Min/Max forward speed with R4 tires, mph (k/hr)

1.1 to 17.5 (1.8 to 28.2)

1.1 to 18.1 (1.8 to 29.20)

12x12 Electro-Hydraulic Shuttle Shift (EHSS)

Min/Max forward speed with R4 tires, mph (k/hr)

1.2 to 18.6 (1.9 to 30)

1.2 to 19.2 (1.9 to 31)

BRAKES

Wet disc

POWER TAKE OFF (PTO)

Independent 540 rpm

HYDRAULICS

Pump type

Gear

Pump capacity, gpm (Lpm)*

11.6

(43.9)

12.0

(45.4)

Power steering pump, gpm (Lpm)*

5.5

(20.8)

3-point hitch lift capacity, 24 in. behind the lift balls,

lb. (kg)

3,465

(1571)

* @ rated speed

DIMENSIONS (with R4 TIRES)

Overall length, 3-pt. raised, in. (mm)

137.3

(3487)

Overall width (minimum), in. (mm)

71.6

(1819)

Wheelbase, in. (mm)

74.8

(1900)

Height to top of ROPS, in. (mm)

91.4

(2322)

Height to top of cab, in. (mm)

88.25

(2242)

88.25

(2242)

Approx. shipping weight (ROPS models), lbs. (kg)

4,260

(1932)

Approx. shipping weight (cab models), lbs. (kg)

5,220

(2368)

5,220

(2368)

TIRE OPTIONS

Ag Tires

Front

8 x 16 R1

9.5 x 16 R1

Rear

14.9-24 R1

OR 14.9-28 R1

Turf Tires

Front

27 x 10.5-15 R3

Rear

44 x 18-20 R3

Industrial Tires

Front

12 x 16.5 R4

Rear

18.4 x 24 R4

Galaxy^® Tires*

Front

27/12LL x 15 R3

Rear

22.5LL x 16.1 R3

*Front end loader installation not compatible with tractors equipped with Galaxy^® “Turf Special” golf and turf tires.

Galaxy is a registered trademark of Galaxy Tire & Wheel Co.

Page 1 of 2

Downloaded from www.Manualslib.com manuals search engine

New Holland Boomer

^™ 4000 & T2400 Series

Utility Tractor Specifications

Boomer 4055

Boomer 4060

T2410

T2420

OPTIONAL EQUIPMENT

• Soft cab

• Sunshade canopy

• 2-function mid-mount remote

• Front-end weights

• Front bumper/grill guard

hyd. with Joystick control

• Rear-wheel weight

• Rear work lamp

• Armrest assembly

• Rear counter-weight bracket

• Engine coolant heater

• Deluxe radio

• Linkage drawbar

• Remote hydraulic valves kit

• Right-hand step

• Front-end weight carrier

• Rear remote valve kits

• FOPS canopy

(maximum 3, choice of simple

• Drawbar clevis

or detented valves)

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 2 of 2

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland Boomer

^™ 4000 & T2400 Series

Utility Tractor Specifications

Boomer 4055

Boomer 4060

T2410

T2420

MODEL

BOOMER 4055/T2410

BOOMER 4060/T2420

ENGINE

Gross engine hp (kW)

(41.0)

(44.7)

PTO hp (kW), SSS transmission

(35.1)

(38.0)

EHSS transmission

(34.3)

(37.3)

Rated speed, rpm

2,700

2,800

Cylinders

Aspiration

Turbocharged

Displacement, cu. in. (L)

135.2

(2.2)

Fuel capacity, gal. (L)

13.5

(51.1)

TRANSMISSIONS

12x12 Synchro Shuttle Shift (SSS)

Min/Max forward speed with R4 tires, mph (k/hr)

1.1 to 17.5 (1.8 to 28.2)

1.1 to 18.1 (1.8 to 29.20)

12x12 Electro-Hydraulic Shuttle Shift (EHSS)

Min/Max forward speed with R4 tires, mph (k/hr)

1.2 to 18.6 (1.9 to 30)

1.2 to 19.2 (1.9 to 31)

BRAKES

Wet disc

POWER TAKE OFF (PTO)

Independent 540 rpm

HYDRAULICS

Pump type

Gear

Pump capacity, gpm (Lpm)*

11.6

(43.9)

12.0

(45.4)

Power steering pump, gpm (Lpm)*

5.5

(20.8)

3-point hitch lift capacity, 24 in. behind the lift balls,

lb. (kg)

3,465

(1571)

* @ rated speed

DIMENSIONS (with R4 TIRES)

Overall length, 3-pt. raised, in. (mm)

137.3

(3487)

Overall width (minimum), in. (mm)

71.6

(1819)

Wheelbase, in. (mm)

74.8

(1900)

Height to top of ROPS, in. (mm)

91.4

(2322)

Height to top of cab, in. (mm)

88.25

(2242)

88.25

(2242)

Approx. shipping weight (ROPS models), lbs. (kg)

4,260

(1932)

Approx. shipping weight (cab models), lbs. (kg)

5,220

(2368)

5,220

(2368)

TIRE OPTIONS

Ag Tires

Front

8 x 16 R1

9.5 x 16 R1

Rear

14.9-24 R1

OR 14.9-28 R1

Turf Tires

Front

27 x 10.5-15 R3

Rear

44 x 18-20 R3

Industrial Tires

Front

12 x 16.5 R4

Rear

18.4 x 24 R4

Galaxy^® Tires*

Front

27/12LL x 15 R3

Rear

22.5LL x 16.1 R3

*Front end loader installation not compatible with tractors equipped with Galaxy^® “Turf Special” golf and turf tires.

Galaxy is a registered trademark of Galaxy Tire & Wheel Co.

Page 1 of 2

Downloaded from www.Manualslib.com manuals search engine

New Holland Boomer

^™ 4000 & T2400 Series

Utility Tractor Specifications

Boomer 4055

Boomer 4060

T2410

T2420

OPTIONAL EQUIPMENT

• Soft cab

• Sunshade canopy

• 2-function mid-mount remote

• Front-end weights

• Front bumper/grill guard

hyd. with Joystick control

• Rear-wheel weight

• Rear work lamp

• Armrest assembly

• Rear counter-weight bracket

• Engine coolant heater

• Deluxe radio

• Linkage drawbar

• Remote hydraulic valves kit

• Right-hand step

• Front-end weight carrier

• Rear remote valve kits

• FOPS canopy

(maximum 3, choice of simple

• Drawbar clevis

or detented valves)

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 2 of 2

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland

Bale Wagon Specifications

H9870

H9880

1037

MODEL NUMBER

H9870

H9880

1037

Type

Self-propelled

Pull-type

Average tons per load

Bale size

Avg. bale weight, alfalfa

Bales per load

14 x 18 x 36

55-60 lbs.

161

104

14 x 18 x 38

60-75 lbs.

161

104

14 x 18 x 41

70-75 lbs.

161

104

15 x 22 x 46

90-130 lbs.

15 x 23 x 46

115-135 lbs.

16 x 18 x 36

70-75 lbs.

161

16 x 18 x 38

75-80 lbs.

161

16 x 18 x 41

85-90 lbs.

161

16 x 18 x 46

95-100 lbs.

107

16 x 23 x 46

125-145 lbs.

16 x 22 x 46

120-140 lbs.

Weight (empty), lbs. (kg)

16,130

(7316)

15,640

(7094)

5,410

(2454)

Length, ft. (cm)

31’ 3” (853)

25’ 6” (777)

Width, minimum ft. (cm)

9’ 11” (302)

9’ 4” (285)

Loader raised, max., ft. (cm)

11’ 4” (345)

10’ 7” (322)

10’ 2” (310)

Loader lowered, ft. (cm)

13’ 8” (417)

12’ 2” (371)

14’ 3” (433)

Height, ft. (cm)

14’ 8” (477)

11’ 11” (363)

Wheel tread width, ft. (cm)

Front

80-1/8” (204)

Rear

69-1/2” (177)

6’ (183)

Ground clearance, in. (cm)

(33)

Front axle

9-5/8” (24)

Transmission

13-1/8” (33)

Wheelbase, ft. (cm)

14’ 8” (447)

Overhead clearance (for stacking), ft. (cm)

16” x 18” bale

17’ 6” (533)

13’ (396)

14” x 18” bale

16’ 10” (513)

17’ 6” (533)

14’ (427)

15” x 22” bale

17’ 6” (533)

16” x 23” bale

17’ 6” (533)

Tires

Front

400/55-22.5

Rear

500/45-22.5

40 x 19-19.5

11.00L x 15

Tractor power requirements, (min)

50 hp

Front disc brakes

15” (38)

Rear disc brakes

15-3/8” (39)

Engine

6.7L New Holland

Horsepower, HP (kW)

173

(129)

173

(129)

Alternator

120 amp

Fuel tank, gal. (L)

(280)

Page 1 of 2

Downloaded from www.Manualslib.com manuals search engine

New Holland

Bale Wagon Specifications

H9870

H9880

1037

MODEL NUMBER

H9870

H9880

1037

Operating speeds, mph (kph)

(16)

Hauling (on approved grounds)

(48)

Hydraulic pumps

Piston pump

10.5 gpm (39.7 Lpm)

29 gpm (110 Lpm)

@ 2450 rpm (2050 psi)

Gear pump

6.7 gpm (25 Lpm)

@ 2450 rpm

Gear pump

13.8 gpm (52 Lpm)

@ 2450 rpm

Hydraulic valves

Electro-hydraulic

Manual spool valve

Two manifold valve

assemblies

Bale length, in. (cm)

Minimum

(91)

(118)

(86)

Maximum

(104)

(122)

(106)

Stack size, in. (cm)

16 x 18, height

162

(411)

162

(411)

7 tiers

16 x 18, width

120

(305)

(234)

3 bales

14 x 18, height

162

(411)

7 tiers

14 x 18, width

114

(290)

3 bales

16 x 23, height

151

(384)

16 x 23, width

(234)

15 x 22, height

157

(399)

15 x 22, width

(234)

Automatic tie tier

Standard

Max. hillside angle

10°

OPTIONS

■ Heater

■ Hillside hauling kit

■ Weight box

■ Tractor-mounted

■ Wiper kit

remote controls

■ Radio

■ Tier counter

■ Fan reverser

■ First table flow control valve

■ Auxiliary mirror

■ Auxiliary table flow control valve

■ Rear worklight

■

16 x 18 bale kit

■ Brake pedal kit

■ Auxiliary mirror

■ Rear worklight

■ Brake pedal kit

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 2 of 2

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland

Economy Compact Tractor Specifications

TC30

T1510

T1520

MODEL

TC30

T1510

T1520

ENGINE

Gross engine hp (kW)

(22.4)

(26.1)

PTO hp (kW), gear transmission

25.5

(19.0)

25.5

(19.0)

29.5

(22.0)

PTO hp (kW), hydro. transmission

(17.9)

(20.9)

Rated speed, rpm

2600

Cylinders

Aspiration

Natural

Displacement, cu. in. (L)

91.3

(1.5)

91.3

(1.5)

101.4

(1.7)

Fuel capacity, gal. (L)

7.1

(27)

TRANSMISSIONS

Gear

Speeds forward/reverse

9 x 3

Min/Max forward speed with R4 tires, mph (k/hr)

0.71 - 12.1 (1.1 - 19.5)

Hydrostatic

Ranges

Min/Max forward speed with R4 tires, mph (k/hr)

0 - 13.6 (0 - 21.9)

BRAKES

Wet disc

POWER TAKE OFF (PTO)

Rear PTO

Gear transmission, 2WD

Transmission-driven

Gear transmission, FWD

Live 540 rpm

Hydrostatic transmission, FWD

Live 540 rpm

Mid PTO (optional on gear transmission)

2WD gear transmission

Transmission-driven with

overrunning clutch, 2000 rpm overrunning clutch, 2000 rpm

FWD gear and hydrostatic transmission

Live 2000 rpm

AXLE OPTIONS

2WD

Optional

FWD

Standard

HYDRAULICS

Pump type

Gear

Pump capacity, gpm (Lpm)

6.2

(23.2)

Power steering pump, gpm (Lpm)

3.8

(14.2)

3-point hitch lift capacity, 24 in. aft of hitch, lb. (kg)

1635

(743)

DIMENSIONS

Overall length, 3-pt raised, in. (mm)

111.4

(2830)

Overall width with R4 tires, in. (mm)

(1575)

Wheelbase, in. (mm)

63.0

(1600)

Height to top of ROPS, with R4 tires, in. (mm)

82.3

(2090)

Shipping weight, FWD with R4 tires/9x3 trans., lbs. (kg)

2385

(1082)

2385

(1082)

2400

(1089)

TIRE OPTIONS

Ag R1, front/rear

7.4 x 14

11.2 x 24

Turf R3, front/rear

24 x 8.50-14

13.6 x 16

Industrial R4, front/rear

25 x 8.50-14

15 x 19.5

OTHER STANDARD FEATURES

Two-position extendable drawbar

Standard

Foldable ROPS

Standard

Page 1of 2

Downloaded from www.Manualslib.com manuals search engine

New Holland

Economy Compact Tractor Specifications

TC30

T1510

T1520

OPTIONAL EQUIPMENT

FRONT ATTACHMENTS

• Loader

• Quick-attach rotary broom

• Quick-attach dozer blade

• Quick-attach snow blower

MID ATTACHMENT

• Mid-mount mowers

REAR ATTACHMENTS

• Finishing mowers

• Flail mowers

• Snow blowers

• Utility backhoes

• Rotary tiller

• Post hole digger

• Ballast box

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 2of 2

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

NEW!

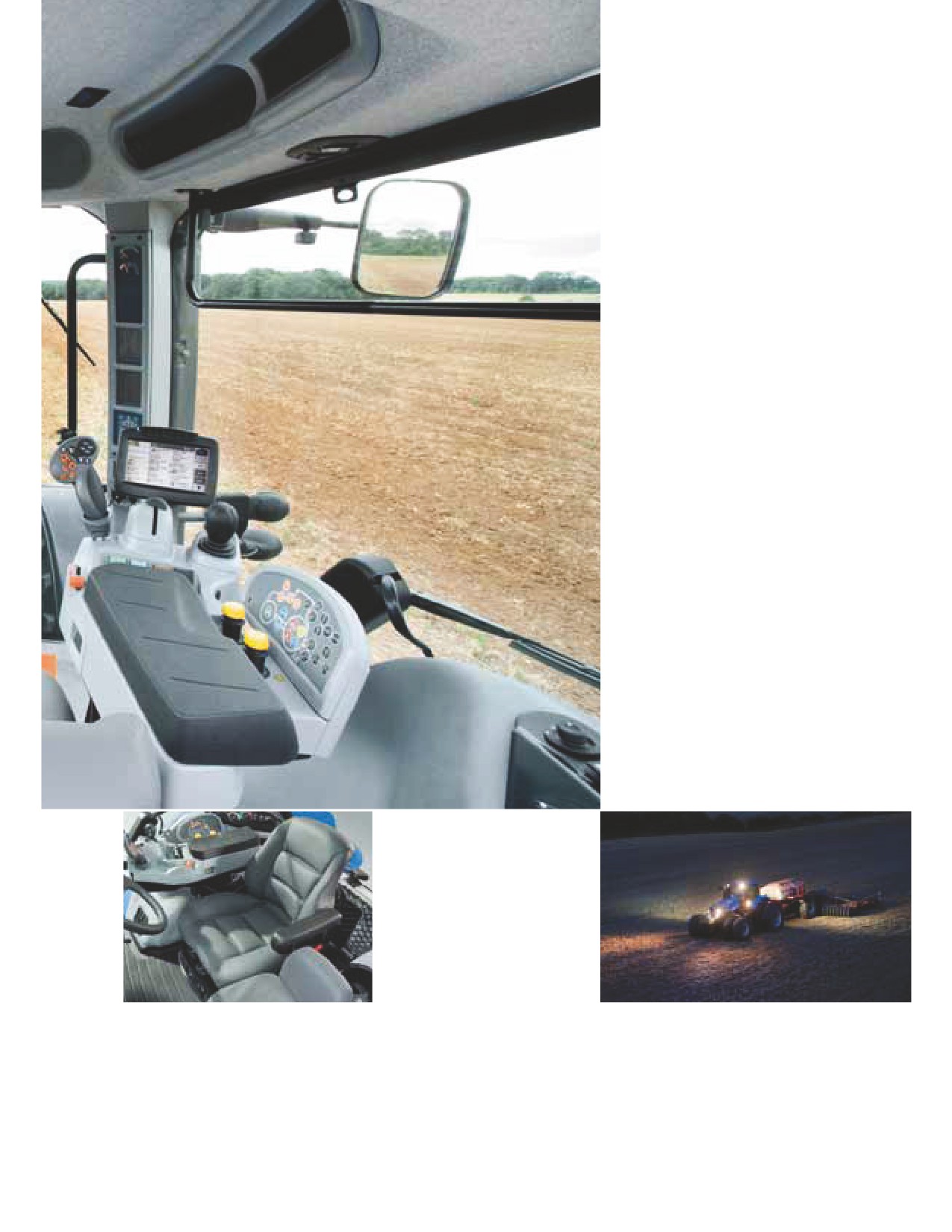

T8000 Series Tractors

175 to 270 PTO hp

T8010 T8020 T8030 T8040 T8050

Put unmatched power and innovative control to

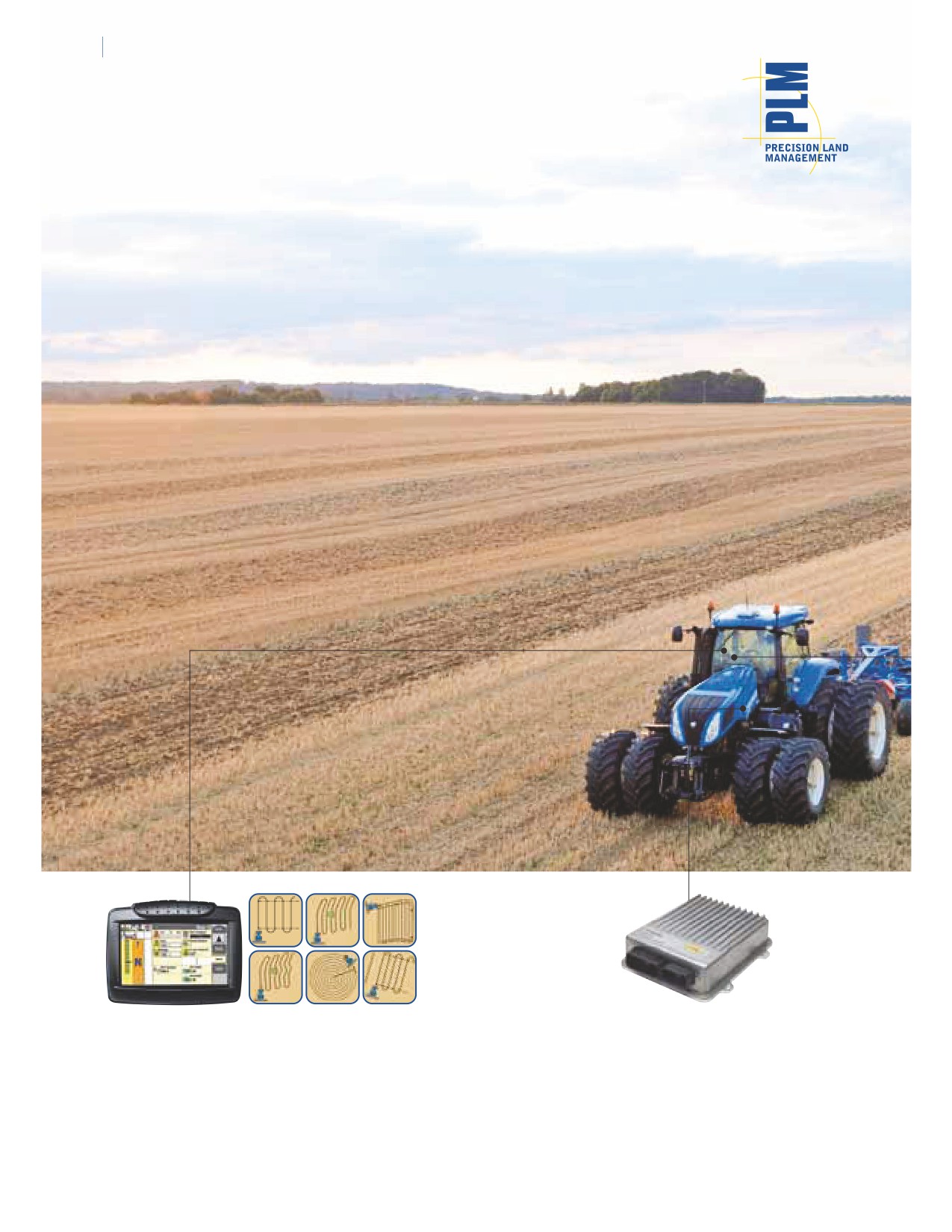

More precision and control

work for you with a NEW T8000 Series tractor from

Every T8000 tractor leaves the factory ready to

New Holland.

accept the optional IntelliSteer™ auto steering

More horsepower

system. This state-of-the-art guidance system allows

you to make perfect rows every time, with an

Five T8000 Series models range from 175 to 270

accuracy level as precise as +/- 1 inch (2.5 cm)!

PTO horsepower with up to 56% PTO torque rise

Performance instrumentation is standard equipment

and power growth up to 44 hp for incredible

for a wealth of information, fingertip control and

pulling power. Constant engine speed control

automatic engine shut down protection. Also

and foot throttle are now standard equipment for

standard is the Custom Headland Management

maximum control.

system that allows you to memorize and replay up

More hydraulic flow

to 30 adjustments with the push of a button to

simplify headland turns.

New Holland’s best-in-class flow is now even

higher—44 gallons per minute (gpm) standard, and

More T8000 features:

75 gpm with the exclusive dual-circuit MegaFlow™

• Best-in-class visibility and comfort

option—to easily handle the most advanced seeders

and specialty equipment. Hitch lift capacity is

• New luxury leather cab option

awesome, too—up to 18,590 pounds.

• Exclusive SuperSteer™ FWD axle option

More speed choices

•

Terraglide™ suspended FWD axle option

Choose from four full powershift transmissions,

• B100 biodiesel approved to reduce emissions

including a new 19x4 option that provides a time-

and oil imports

saving, 31-mph (50-kph) transport speed.

Downloaded from www.Manualslib.com manuals search engine

New Holland T8000 Series Tractor Specifications

MODEL

T8010

T8020

T8030

T8040

T8050

ENGINE:

PTO hp (kW)

175 (131)

200 (149)

225 (168)

255 (190)

270 (201)

PTO torque rise

56%

49%

PTO Power Growth, hp (kW)

33 (25)

44 (33)

33 (25)

34 (25.3)

33 (25)

TRANSMISSION

Standard

..........................................................................................18F/4R Power Shift

Optional

.........................................................................................*19F/4R Power Shift

Optional

..........................................................................................23F/6R Power Shift

Optional

......................................................................................19F/4R 31 mph (50 kph)

ELECTRICAL

Alternator

.............................................................................150 amp, 12-volt/175 amp Optional

INDEPENDENT PTO

Standard

.............................................................................................1 3⁄4",1000 rpm

Optional

.......................................................................................1 3⁄4", 1 3⁄8" 1000 rpm

Optional

....................................................................................1 3⁄4", 1 3⁄8" 1013/540 rpm

HYDRAULICS

Standard flow, gpm (l/min)

...................................................................................................44 (166)

Optional MegaFlow™, gpm (l/min)

...................................................................................................75 (282)

3-POINT HITCH

Type

Cat IIIN / III

Cat IVN / III

Standard lift capacity, lbs. (kg)

14,084 (6387)

15,183 (6885)

16,375 (7421)

18,590 (8432)

Optional lift capacity, lbs. (kg)

16,375 (7421)

17,931 (8132)

AXLES

Standard Front axle

......................................................................................................FWD

Optional

...........................................................................................SuperSteer™ FWD

............................................................................................Terraglide™ FWD

Tread spacing adjustment, in. (mm)

......................................................................................60 to 88 (1524 to 2235)

Rear axle length, in. (mm)

.................................................................................................120 (3050)

Standard rear axle diameter, in. (mm)

4 (102)

4.5 (115)

Optional rear axle diameter, in. (mm)

4.5 (115)

DIMENSIONS*

Wheelbase, in. (mm)

FWD and Terraglide™ FWD

...............................................................................................121.2 (3078)

SuperSteer™ FWD

...............................................................................................129.3 (3284)

Width, in. (mm)

.................................................................................................120 (3050)

CAPACITIES

Fuel tank, U.S. gal (L)

..................................................................................................180 (682)

SHIPPING WEIGHT

Standard FWD, lbs. (kg)***

19,752 (8959)

19,752 (8978)

20,370 (9240)

TerraGlide FWD, lbs. (kg)***

20,552 (9322)

21,170 (9603)

SuperSteer FWD, lbs. (kg)***

20,145 (9138)

20,617 (9352)

MAXIMUM OPERATING WEIGHT

T8000 Series, lbs. (kg)

26,500 (12,000)

29,500 (13,400)

32,500 (14,770)

34,500 (15,680)

***25mph (40kph) capable with reduced engine speed in 19th gear for improved fuel economy during transport

***Tires used for measurements are 16.9R30 front and 20.8R42 rear

***Weight is based on tractor equipped with standard equipment, minimum fuel, no ballast, no operator, and single front wheel configuration

Visit our Web site at www.newholland.com/na Or, call toll-free: 1-888-290-7377

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

New Holland is a registered trademark of CNH America LLC.

NH7250706 • 0807XX • XXX • PRINTED IN U.S.A.

Downloaded from www.Manualslib.com manuals search engine

New Holland

TL-A Series Tractor Specifications

TL80A TL90A TL100A

MODEL

TL80A

TL90A

TL100A

ENGINE

Engine horsepower* (kW)

80 (59.6)

90 (67.1)

98 (73.1)

PTO horsepower (kW)

69 (51.4)

77 (57.4)

85 (63.4)

Number of cylinders

Aspiration

Natural

Turbocharged

Displacement, cu. in. (L)

273 (4.5)

Rated speed (RPM)

2,500

Maximum torque RPM

1,400

PTO torque rise

50%

45%

Air cleaner

Dry type with dual elements

Fan

11-blade fixed

Starting aid

Air intake grid heater

*Manufacturer’s estimated

TRANSMISSIONS

Standard models

12 x 12 Synchro Command™ with mechanical shuttle

Deluxe models

24 x 24 Dual Command™ with power shuttle

Optional

20 x 12 creeper with mechanical shuttle (not available on TL100A Standard)

Traction clutch

Standard models

12-inch cerametallic dry clutch

Deluxe models

Multi-plate oil cooled clutch packs

ELECTRICAL

Battery

12V

Battery capacity, cca

960

Alternator amps

120

PTO

Standard models

Type

Independent, dry, 12-inch cerametallic clutch

Engagement

Mechanical lever

Speed RPM

540

540/1000

Deluxe models

Type

Independent, multi-plate, oil-cooled clutch pack

Engagement

Electro-hydraulic

Speed RPM

540

540/1000

HYDRAULICS

System type

Open center

Steering type

Hydrostatic

Steering and services gear pump flow, gpm (Lpm)

5.5 (21)

Implement gear pump flow, gpm (Lpm)

14.5 (55)

Total flow, gpm (Lpm)

20 (76)

Mid-mount loader valve

Optional, open center, joystick controlled

Rear remote valves (Standard models)

Open center valves (one standard, a second optional)

Rear remote valves (Deluxe models)

Closed center deluxe valves (two standard, a third optional)

Flow control

Standard on Deluxe models, not available on Standard models

THREE-POINT HITCH

Type

Cat II

OECD hitch lift capacity @ 24 inches, lb. (kg)

5,745 (2605)

Draft control/sensing

Mechanical/lower link

Link ends (Standard models)

Fixed (flexible optional)

Link ends (Deluxe models)

Flexible

Telescoping stabilizers

Yes

Swinging drawbar

Yes

Page 1of 2

Downloaded from www.Manualslib.com manuals search engine

New Holland

TL-A Series Tractor Specifications

TL80A TL90A TL100A

MODEL

TL80A

TL90A

TL100A

CAPACITIES

Fuel tank U.S., gal. (L)

33.5 (127)

Crankcase with filter, gal. (L)

2.6 (10)

Cooling system, gal. (L)

ROPS

3.2 (12)

Cab

3.7 (14)

STEERING

Turning angle

55 degrees

2WD turning radius, in. (mm) with brakes

133.9 (3350)

FWD turning radius, in. (mm) with brakes

137.8 (3540)

AXLES

Front 2WD, in. (mm)

56 (1422) to 84 (2134)

Front FWD, in. (mm)

56 (1422) to 84 (2134)

Rear, in. (mm)

60 (1524) to 84 (2134)

FWD engagement

Electro-hydraulic

FWD axle traction (Standard models)

Limited Slip

Front axle differential lock (Deluxe models)

Electro-hydraulic

Rear differential lock

2WD Standard models

Mechanical

FWD Standard models

Electro-hydraulic

All Deluxe models

Electro-hydraulic

Brakes

Hydraulic wet disc

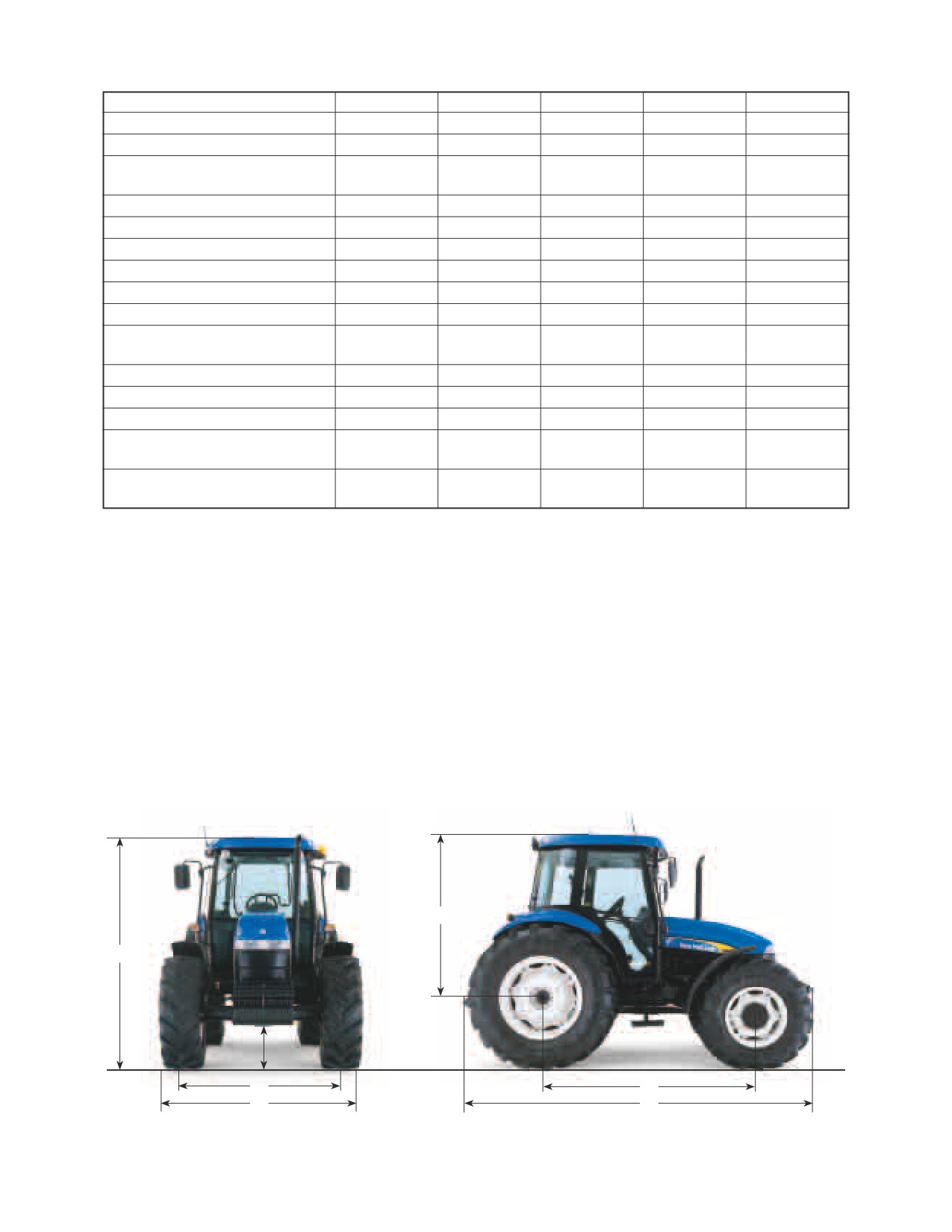

DIMENSIONS*

Height, top of cab, in. (mm)

102.5 (2604)

Height, ROPS up, in. (mm)

104.5 (2654)

Height, ROPS down, in. (mm)

84.0 (2133)

Height to exhaust (ROPS only), in. (mm)

117.5 (2985)

Wheelbase, in. (mm)

2WD

92.2 (2342)

FWD

91.1 (2314)

Width across fenders, in. (mm)

ROPS

72.6 (1845)

Cab

79.5 (2019)

Approx. shipping weight, lb. (kg)

ROPS 2WD

6,393 (2900)

6,834 (3100)

Cab 2WD

6,834 (3100)

7,275 (3300)

ROPS FWD

7,055 (3200)

7,486 (3400)

Cab FWD

7,496 (3400)

7,936 (3600)

* measured with 18.4R30 tires

Visit our Web site at www.newholland.com/na Or, call toll-free: 1-888-290-7377

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 2 of 2

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland

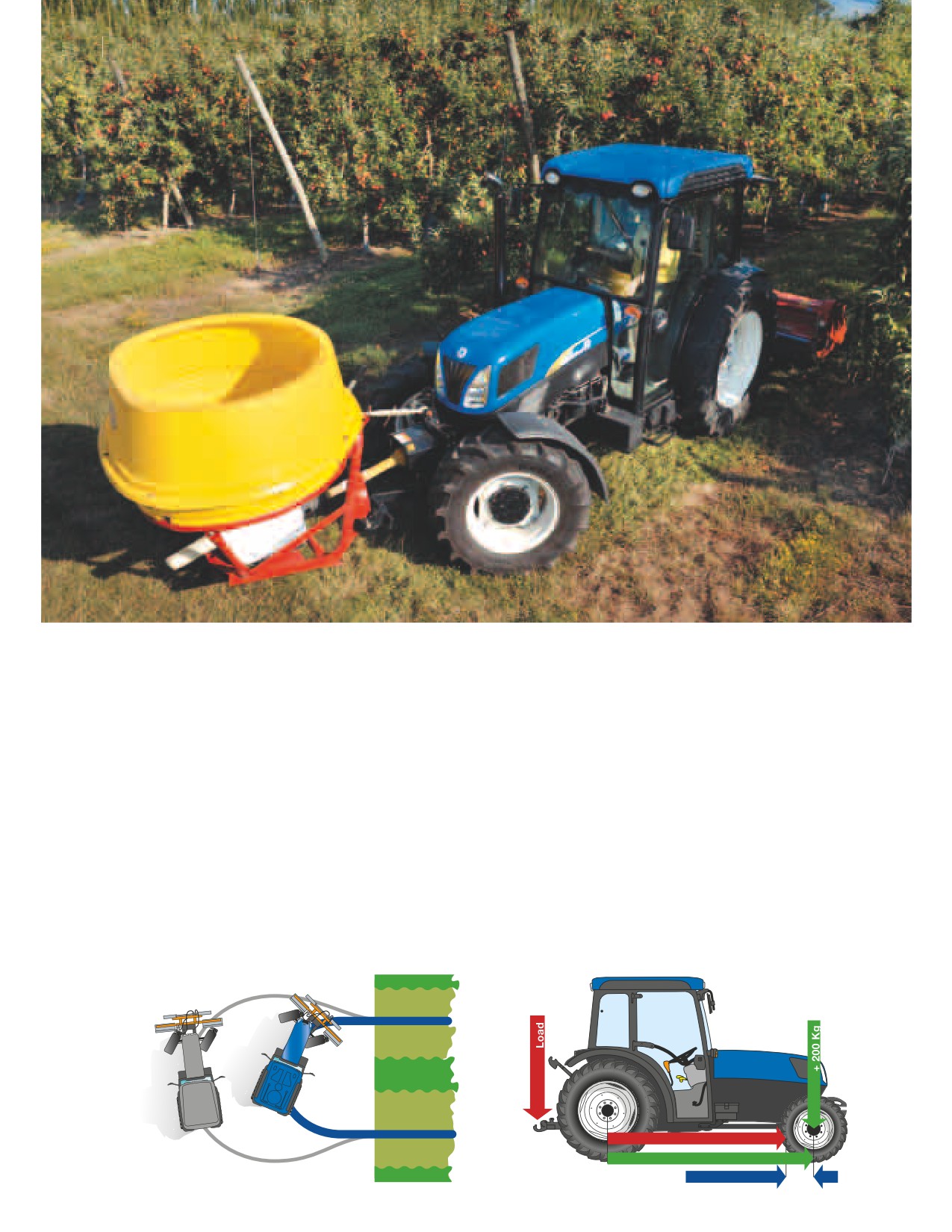

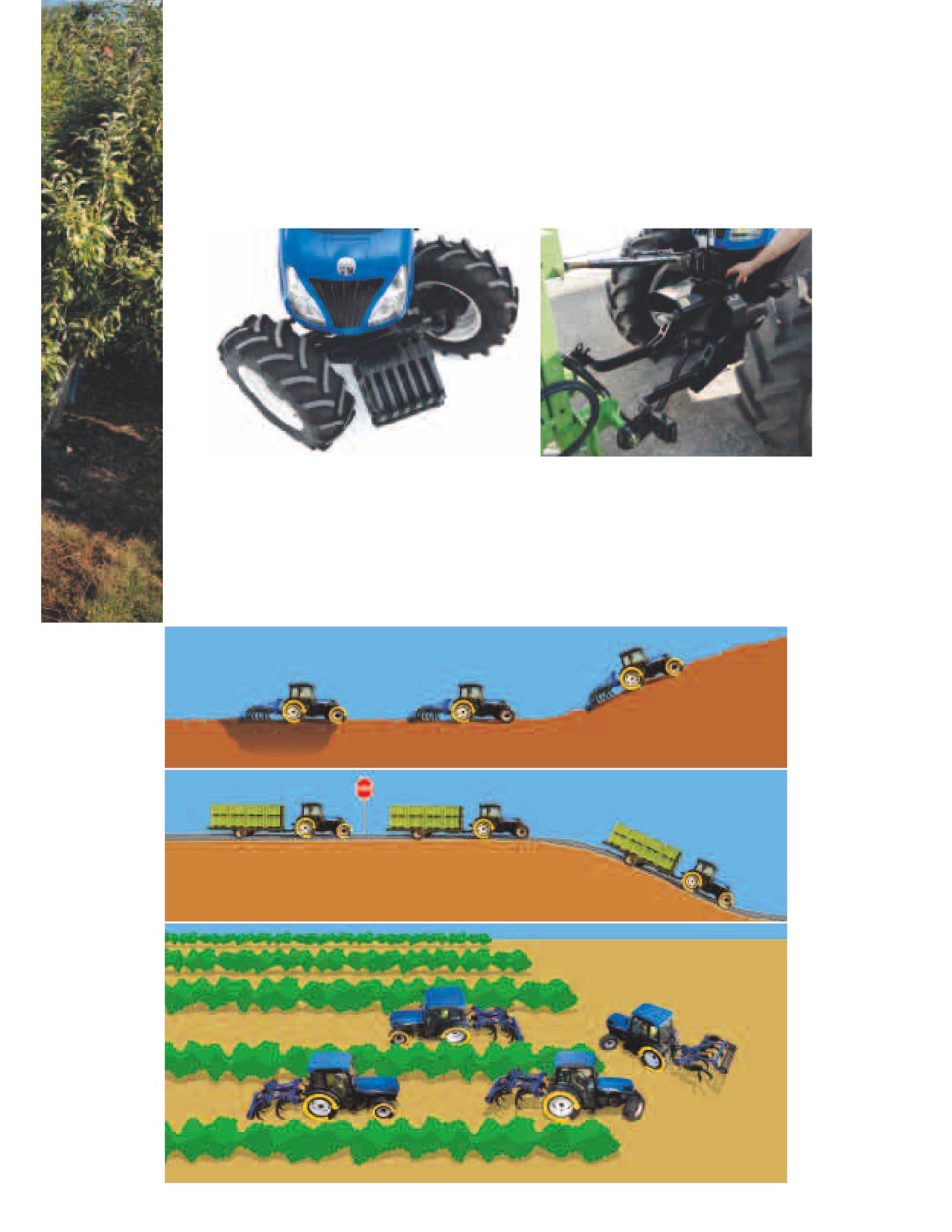

T4000 Series Utility Tractor Specifications

T4020

T4030

T4040

T4050

MODEL

T4020

T4030

T4040

T4050

ENGINE*

Type

4-cycle, diesel

Make

New Holland

Model

F5C

NEF

Cylinders / aspiration

..............................................................4 / Turbocharged air to air intercooled

Displacement, cu. in. (L)

195

(3.2)

195

(3.2)

274

(4.5)

274

(4.5)

Block type

Parent bore

Rated speed, RPM

2300

Gross engine horsepower

PTO horsepower

Emission legislation

Tier III

FUEL, AIR AND LUBRICATION SYSTEM

Injection pump

Bosch / rotary

Fuel filter type

........ Dual stage fuel filtering system with water/sediment separator followed by a paper filter element cartridge

Fuel tank capacity - standard, gal. (L)

Standard - 21.6 (82)

– Deluxe, gal. (L)

Deluxe - 19.8 (75)

Deluxe - 23.2 (88)

– SuperSteer™, gal. (L)

N/A

19.8

(75)

N/A

23.2

(88)

Air filter type

Dry / dual element

Oil and filter services***

600 hours

Muffler

Under hood

Exhaust outlet, ROPS

Right side of hood

Exhaust outlet, cab

Right side A-pillar

ELECTRICAL

Battery, volts

Battery, cca

730

800

Alternator, amps

120

Cold start aid

Grid heater

TRANSMISSION

Choice of transmissions

.......................16F x 16R Synchro Command transmission with your choice of mechanical shuttle or

clutchless power shuttle (all models)

Clutch type / size (mechanical), in. (mm)

............................................. Dry / 11 (280) diameter, heavy-duty cerametallic material

Clutch type / size (electrohydraulic), in. (mm)

......................................................... Wet / six plates 5.2 (133), organic material

Gears: 2 - 8 mph working range**

..............................................................12 x 12 - 7 gears | 16 x 16 - 9 gears

Gears: <1 mph**

..............................................................12 x 12 - 0 gears | 16 x 16 - 3 gears

Maximum speed**, mph (kph)

........................................12 x 12 - 18.73 (30.14) | 16 x 16 - 18.73 (30.14) or 23.5 (37.8)

PTO

Type

Fully independent

Base equipment PTO speed, RPM

540

Optional PTO speed, RPM

N/A

540/1000

Operator control

....................................................................T4000 Standard - mechanical

...................................................T4000 Deluxe / Deluxe Supersteer™ - Servo-assist

PTO clutch

.......................................................... Dry, mechanical, 11-in. dry, organic plate

Engine speed

................................................................ 2196 engine rpm at 540 PTO rpm

3-POINT HITCH

Category

...................................................................................................II, I

Draft control sensing

...................................................................................Mechanical, lower link

Fast raise/lower

..............................................................................................Standard

Link ends

...............................................................................................Flexible

Lift capacity, SAE @ 24", lb. (kg)

...........................................................................................3960 (1800)

TURNING WITHOUT BRAKES, ft. (mm)

2WD turning radius

..................................................11.9 (3628)

12.1 (3678)

2WD turnaround diameter

..................................................14.0 (4255)

14.1 (4305)

FWD turning radius

..................................................12.5 (3810)

12.7 (3860)

FWD turnaround diameter

..................................................14.1 (4288)

14.2 (4340)

FWD SuperSteer™ turning radius

11.2 (3415)

FWD SuperSteer turnaround diameter

6.7 (2043)

VEHICLE WEIGHT* lbs. (kg)

TN-A 2WD

4980 (2260)

5020 (2275)

6008 (2725)

TN-A FWD

5375 (2440)

5415 (2455)

6118 (2775)

TND-A 2WD

5565 (2525)

5605 (2545)

6449 (2925)

TND-A FWD

5960 (2705)

6000 (2720)

6559 (2975)

TNS-A FWD, ROPS

5585 (2535)

TNS-A FWD, Cab

6050 (2745)

TIRE OPTIONS

R1 "General Farming"- great for a wide variety of agricultural applications.

R3 "All Weather"- great for highway mowing, parks, orchards and light industrial applications.

R4 "Industrial"- great for light industrial applications, rental yards, contractors and municipalities.

Galaxy "Turf Special"- great for golf courses and stadium grounds maintenance.

*Approximate weights for base tractor with full fuel tank; 16.9x28R1 rear tires and 9.5Lx15 (2WD) or 12.4R20 (FWD) front tires; mechanical shuttle transmission; without front weights or rear

wheel weights; or rear wheel weights; single rear remote valve

TN60A

TN60DA

TN75SA

TN85A

TN85DA

TN70A

TN70DA

TN95A

TN95DA

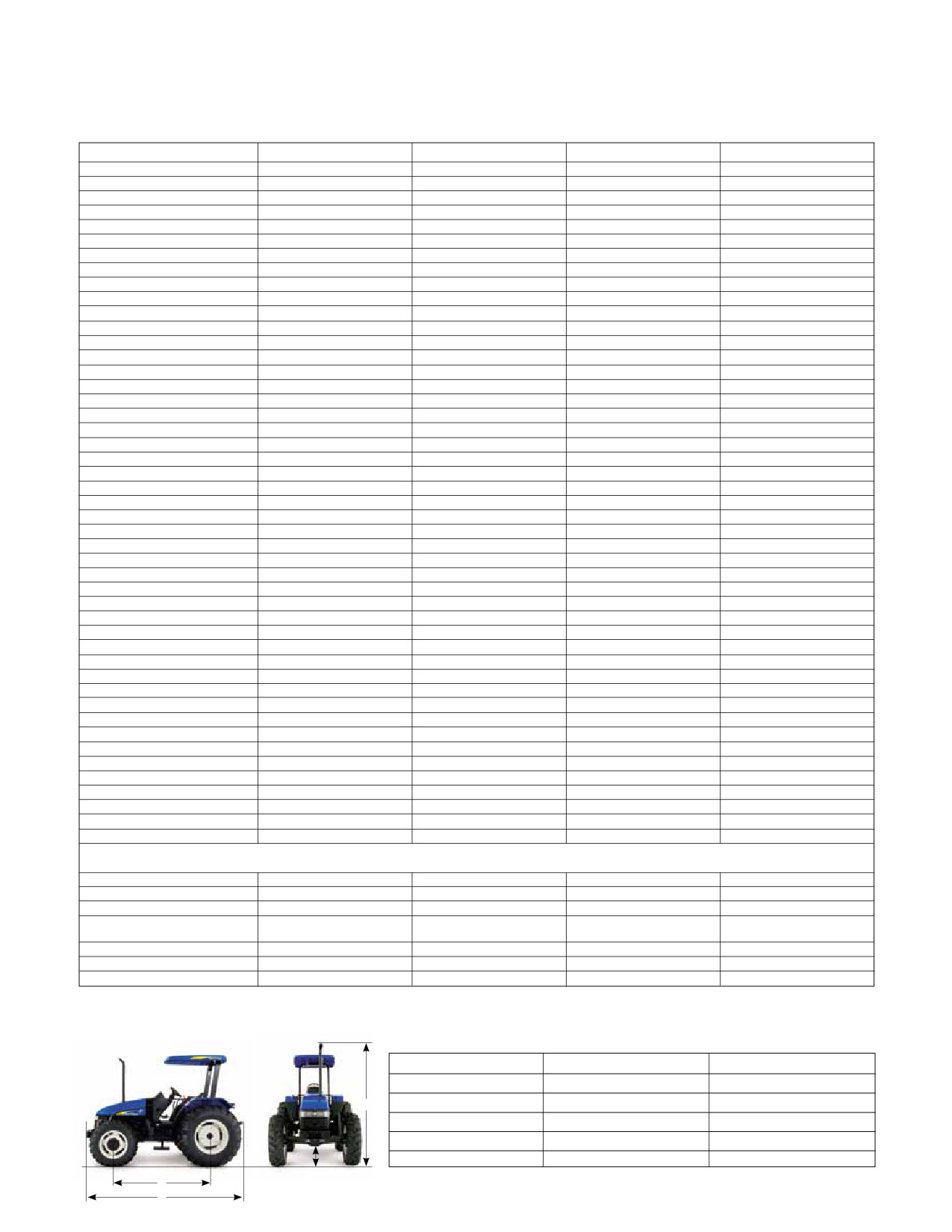

DIMENSIONS*

TN75A

TN75DA

Wheelbase, in. (mm)

2WD

81.5 (2070)

83.9 (2131)

86.7 (2202) (TN85A)

89.1 (2262) (TN85DA)

NA (TN95A)

NA (TN95DA)

FWD

78.9 (2005)

81.3 (2065)

93.5 (2375)

83.7 (2125)

86.0 (2185)

Height, in. (mm)

Top of ROPS, up

95.1 (2416)

Top of ROPS, down

75.1 (1908)

Top of cab

90.8 (2307)

Overall length (front weight to end of 3-pt. lift arms), in. (mm)

2WD

153.3 (3894)

155.7 (3954)

157.5 (4000) (TN85A)

159.8 (4059) (TN85DA)

NA (TN95A)

NA (TN95DA)

FWD

151.6 (3852)

154 (3912)

154.9 (3935)

157.5 (4000)

159.8 (4059)

Min/Max. overall width

.................................................................................67.2 (1708) / 92.7 (2355)

* Base tractor with: 14.9x28 rear tires, 9.5x15 front (2WD), 11.2x20 (FWD)

Page 2 of 3

Downloaded from www.Manualslib.com manuals search engine

New Holland

TN-A Series Tractor Specifications

TN60A/TN60DA TN70A/TN70DA TN75A/TN75DA/TN75SA TN85A/TN85DA TN95A/TN95DA

OPTIONAL EQUIPMENT

• Second rear remote valve

• Back up alarm wiring kit

• 4 pin power outlet (25 amp) electrical

• Blue fiberglass canopy

(lever controlled)

• Special tires

plug

• Front fenders for FWD front axle

• Third rear remote valve

• 7 pin implement (trailer) electrical

• Fixed external mirrors (cab only)

• White fiberglass canopy

(lever controlled)

plug

• Rear wheel weights

• Seat armrests

• Fourth rear remote valve (lever

• Horn

• Telescoping external mirrors

• Steel FOPS canopy

controlled — available on TND-A and

• Front weight bracket kit

(cab only)

• Drawbar clevis

TN75SA models when a mid-mount

• Grill guard

• Hydraulic filter protection kit

• Rotary beacon (cab only)

valve is not installed)

• 88 lb. front weights

• Single pin male 8 amp electrical plug

• Engine block heater

• Mid-mount valve with joystick control

• Horizontal exhaust kit

• Offset drawbar for Galaxy turf

Visit our Web site at www.newholland.com/na Or, call toll-free: 1-888-290-7377

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 3 of 3

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

New Holland

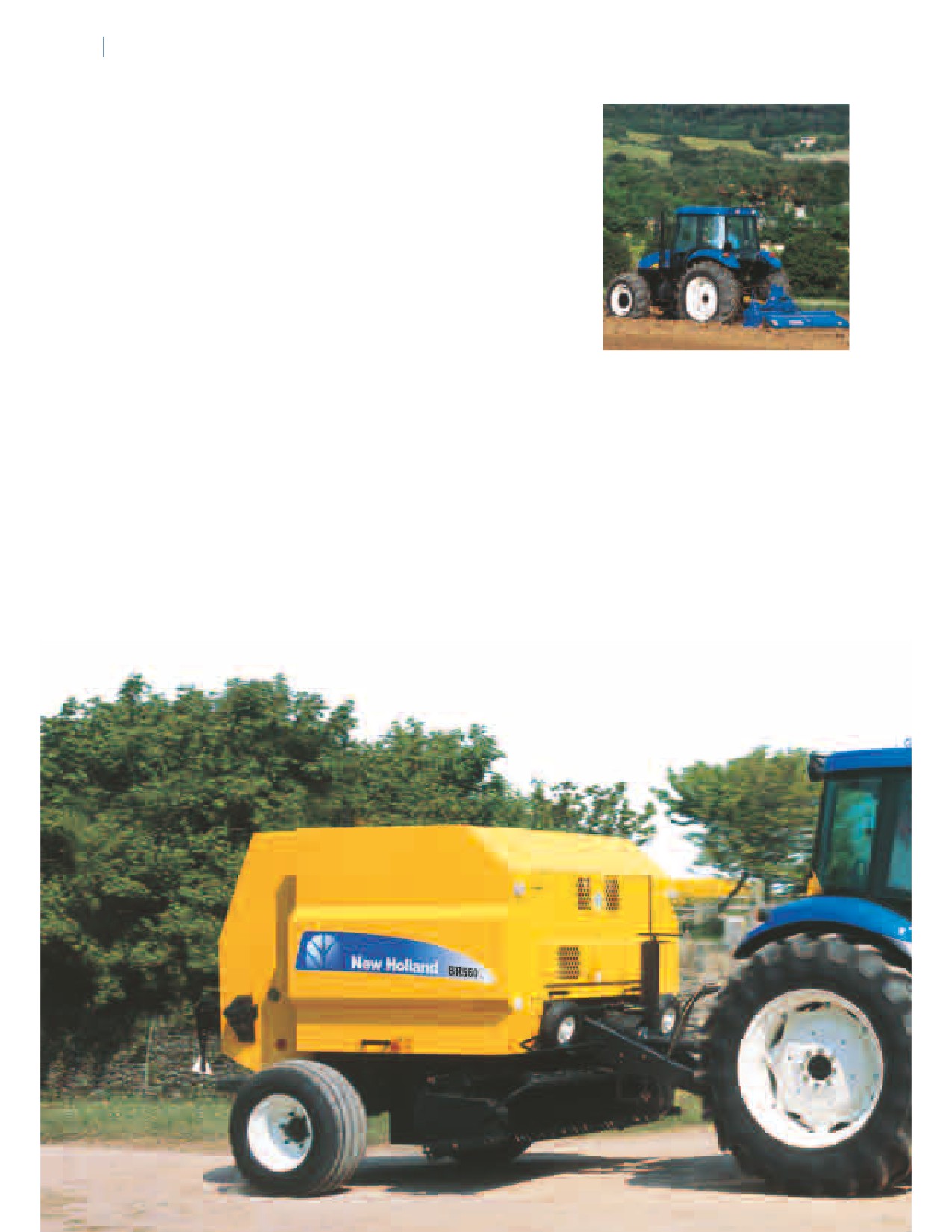

BR7000 Round Baler Specifications

BR7050

BR7060

MODEL

BR7050

BR7060

HIGH-MOISTURE

STANDARD

SILAGE SPECIAL

CROPCUTTER™

BALE SIZE

Diameter, in. (cm)

30-48 (76-122)

36-60 (92-152)

Width, in. (cm)

46.5

(118)

Weight, lbs. (kg)

300-750 (136-340)

400-1000 (181-454)

400-1200 (181-544)

400-1800 (181-816)

Density pressure

Adjustable

BALER DIMENSIONS AND WEIGHT

Overall width, in. (cm)

(216)

(240)

Overall length (tailgate closed),

in. (cm)

135

(343)

135

(343)

185

(470)

185

(470)

185

(470)

185

(470)

Overall length (tailgate open), in. (cm)

142

(361)

142

(361)

192

(488)

192

(488)

192

(488)

192

(488)

Overall height (tailgate closed), in. (cm)

(216)

(218)

116

(295)

116

(295)

116

(295)

116

(295)

Overall height (tailgate open), in. (cm)

127

(323)

127

(323)

158

(401)

158

(401)

158

(401)

158

(401)

Shipping weight, lbs. (kg)

2950

(1338)

3015

(1368)

4520

(2050)

5050

(2291)

5615

(2547)

6505

(2951)

Super Sweep™ PICKUP

Overall width, in. (cm)

(152)

N/A

Width tine-to-tine, in. (cm)

(113)

N/A

Width flare-to-flare, in. (cm)

(134)

N/A

Tine spacing, in. (cm)

2.6

(7)

2.6

(7)

2.6

(7)

N/A

Tine bars

N/A

Number of tines

N/A

Reel diameter, in. (cm)

(41)

N/A

Pickup protection

Adjustable slip clutch

N/A

WIDE PICKUP

Overall width, in. (cm)

N/A

(194)

N/A

Width tine-to-tine, in. (cm)

N/A

(153)

N/A

Width flare-to-flare, in. (cm)

N/A

(174)

N/A

Tine spacing, in. (cm)

N/A

2.6

(7)

2.6

(7)

N/A

Tine bars

N/A

Number of tines

N/A

Reel diameter, in. (cm)

N/A

(25)

N/A

Pickup protection

N/A

Adjustable

N/A

ratchet clutch

XtraSweep™ PICKUP (1.8M)

Overall width, in. (cm)

N/A

(213)

N/A

Width tine-to-tine, in. (cm)

N/A

(181)

N/A

Width flare-to-flare, in. (cm)

N/A

(201)

N/A

Tine spacing, in. (cm)

N/A

2.6

(7)

2.6

(7)

N/A

Tine bars

N/A

Number of tines

N/A

112

N/A

Reel diameter, in. (cm)

N/A

(31)

N/A

Pickup protection

N/A

Adjustable

N/A

ratchet clutch

XtraSweep PICKUP (2.07M)

Overall width, in. (cm)

N/A

(240)

Width tine-to-tine, in. (cm)

N/A

(207)

Width flare-to-flare, in. (cm)

N/A

(228)

Tine spacing, in. (cm)

N/A

2.6

(7)

Tine bars

N/A

Number of tines

N/A

128

Reel diameter, in. (cm)

N/A

(31)

Pickup protection

N/A

Shearbolt

Page 1 of 4

Downloaded from www.Manualslib.com manuals search engine

New Holland

BR7000 Round Baler Specifications

BR7050

BR7060

MODEL

BR7050

BR7060

HIGH-MOISTURE

STANDARD

SILAGE SPECIAL

CROPCUTTER™

BALE FORMING CHAMBER

Floor roll, in. (cm)

(31)

Forming rolls, in. (cm)

2 rolls, 10 (25)

3 rolls, 10 (25)

Stripper roll

Embossed surface

Starter roll, in. (cm)

Embossed surface Embossed surface

(17)

Steel looped sledge follower roll

N/A

Standard

Tailgate nose roll

N/A

Standard

N/A

Standard

Rubber backwrap roll

N/A

Standard

N/A

Standard

BELTS

Number of belts

Width, in. (cm)

(18)

Length, in. (cm)

273

(692)

273

(692)

343

(871)

343

(871)

343

(871)

343

(871)

Surface

Mini-rough top

Endless belts

N/A

Standard

TWINE SYSTEM

Twine application

One pivoting arm

Dual pivoting arms Dual pivoting arms Dual pivoting arms Dual pivoting arms

Twine control

Electric toggle switch Electric toggle switch

Automatic

Twine storage capacity

4 balls

6 balls

OVER-THE-EDGE WRAPPING

EdgeWrap™

N/A

Available

BALE FORMING INIDCATORS

Bale size

Standard

Driving gauges

N/A

Standard

Twine movement

Standard

Twine arm position

Standard

Bale counter

Standard

Bale ejector

Standard

Hydrualic pressure gauge

N/A

Standard

Tailgate latch

Standard

TRACTOR REQUIREMENTS

PTO hp (minimum), hp (kW)

(30)

(33)

(45)

(48)

100

(75)

PTO speed (rpm)

540

PTO protection

Shearbolt

Slip Clutch

Cutout Clutch

Hydrualic remote requirement

1-2

3-4

Page 2 of 4

Downloaded from www.Manualslib.com manuals search engine

New Holland

BR7000 Round Baler Specifications

BR7070

BR7080

BR7090

MODEL

BR7070

BR7070 ALL-PURPOSE BR7070 CROPCUTTER™

BR7080

BR7090

BALE SIZE

Diameter, in. (cm)

36-72 (91.5-182)

36-60 (92-152)

36-72 (91.5-182)

Width, in. (cm)

46.5

(118)

46.5

(118)

46.5

(118)

61.5

(156)

61.5

(156)

Weight, lbs. (kg)

400-1650 (181-748)

400-2200 (181-998)

500-1550 (227-703)

500-2200 (227-998)

Density pressure

Adjustable

BALER DIMENSIONS AND WEIGHT

Overall width, in. (cm)

(240)

111

(282)

111

(282)

Overall length (tailgate closed), in. (cm)

187

(475)

187

(475)

187

(475)

180

(457)

190

(483)

Overall length (tailgate open), in. (cm)

200

(508)

200

(508)

200

(508)

192

(488)

200

(508)

Overall height (tailgate closed), in. (cm)

126

(320)

126

(320)

126

(320)

108

(274)

124

(315)

Overall height (tailgate open), in. (cm)

175

(445)

175

(445)

175

(445)

146

(371)

170

(432)

Shipping weight, lbs. (kg)

5900

(2676)

6310

(2862)

7050

(3198)

5525

(2506)

6920

(3139)

Super Sweep™ PICKUP

Overall width, in. (cm)

N/A

(224)

Width tine-to-tine, in. (cm)

N/A

(153)

Width flare-to-flare, in. (cm)

N/A

(174)

Tine spacing, in. (cm)

N/A

2.6

(7)

2.6

(7)

Tine bars

N/A

Number of tines

N/A

144

Reel diameter, in. (cm)

N/A

(41)

Pickup protection

N/A

Adjustable slip clutch

WIDE PICKUP

Overall width, in. (cm)

(194)

N/A

Width tine-to-tine, in. (cm)

(153)

N/A

Width flare-to-flare, in. (cm)

(174)

N/A

Tine spacing, in. (cm)

2.6

(7)

N/A

Tine bars

N/A

Number of tines

N/A

Reel diameter, in. (cm)

(25)

N/A

Pickup protection

Adjustable ratchet clutch

N/A

XtraSweep™ PICKUP (1.8M)

Overall width, in. (cm)

(213)

N/A

Width tine-to-tine, in. (cm)

(181)

N/A

Width flare-to-flare, in. (cm)

(201)

N/A

Tine spacing, in. (cm)

2.6

(7)

2.6

(7)

N/A

Tine bars

N/A

Number of tines

112

N/A

Reel diameter, in. (cm)

(31)

N/A

Pickup protection

Adjustable ratchet clutch

N/A

XtraSweep PICKUP (2.07M)

Overall width, in. (cm)

N/A

(240)

N/A

(240)

Width tine-to-tine, in. (cm)

N/A

(207)

N/A

(207)

Width flare-to-flare, in. (cm)

N/A

(228)

N/A

(228)

Tine spacing, in. (cm)

N/A

2.6

(7)

N/A

2.6

(7)

Tine bars

N/A

Number of tines

N/A

128

N/A

128

Reel diameter, in. (cm)

N/A

(31)

N/A

(31)

Pickup protection

N/A

Shearbolt

N/A

Shearbolt

Page 3 of 4

Downloaded from www.Manualslib.com manuals search engine

New Holland

BR7000 Round Baler Specifications

BR7070

BR7080

BR7090

MODEL

BR7070

BR7070 ALL-PURPOSE BR7070 CROPCUTTER™

BR7080

BR7090

BALE FORMING CHAMBER

Floor roll, in. (cm)

(31)

Forming rolls, in. (cm)

3 rolls, 10 (25)

Stripper roll

Embossed surface

Starter roll, in. (cm)

(17)

Steel looped sledge follower roll

N/A

Standard

N/A

Tailgate nose roll

N/A

Standard

N/A

Rubber backwrap roll

N/A

Standard

N/A

BELTS

Number of belts

Width, in. (cm)

(18)

Length, in. (cm)

421

(1068)

421

(1068)

421

(1068)

343

(871)

421

(1068)

Surface

Mini-rough top

Endless belts

N/A

Standard

N/A

Optional

TWINE SYSTEM

Twine application

Dual pivoting arms

Twine control

Automatic

Twine storage capacity

6 balls

OVER-THE-EDGE WRAPPING

EdgeWrap™

Available

BALE FORMING INIDCATORS

Bale size

Standard

Driving gauges

Standard

Twine movement

Standard

Twine arm position

Standard

Bale counter

Standard

Bale ejector

Standard

Hydrualic pressure gauge

Standard

Tailgate latch

Standard

TRACTOR REQUIREMENTS

PTO hp (minimum), hp (kW)

(52)

105

(78)

(52)

(60)

PTO speed (rpm)

540

540/1000

PTO protection

Slip clutch

Cutout clutch

Slip clutch

Hydrualic remote requirement

1-2

3-4

1-2

Visit our Web site at www.newholland.com/na. Or, call toll-free 866-NEW-HLND (866-639-4563).

Design, materials and/or specifications are subject to

Safety begins with a thorough understanding of

change without notice and without liability therefor.

the equipment. Always make sure you and

Specifications are applicable to units sold in Canada, the

your operators read the Operator’s Manual

United States, its territories and possessions, and may

before using the equipment. Pay close

vary outside these areas.

attention to all safety and operating

decals and never operate machinery

without all shields, protective devices

and structures in place.

Page 4 of 4

New Holland is a registered trademark of CNH America LLC.

Downloaded from www.Manualslib.com

manuals search engine

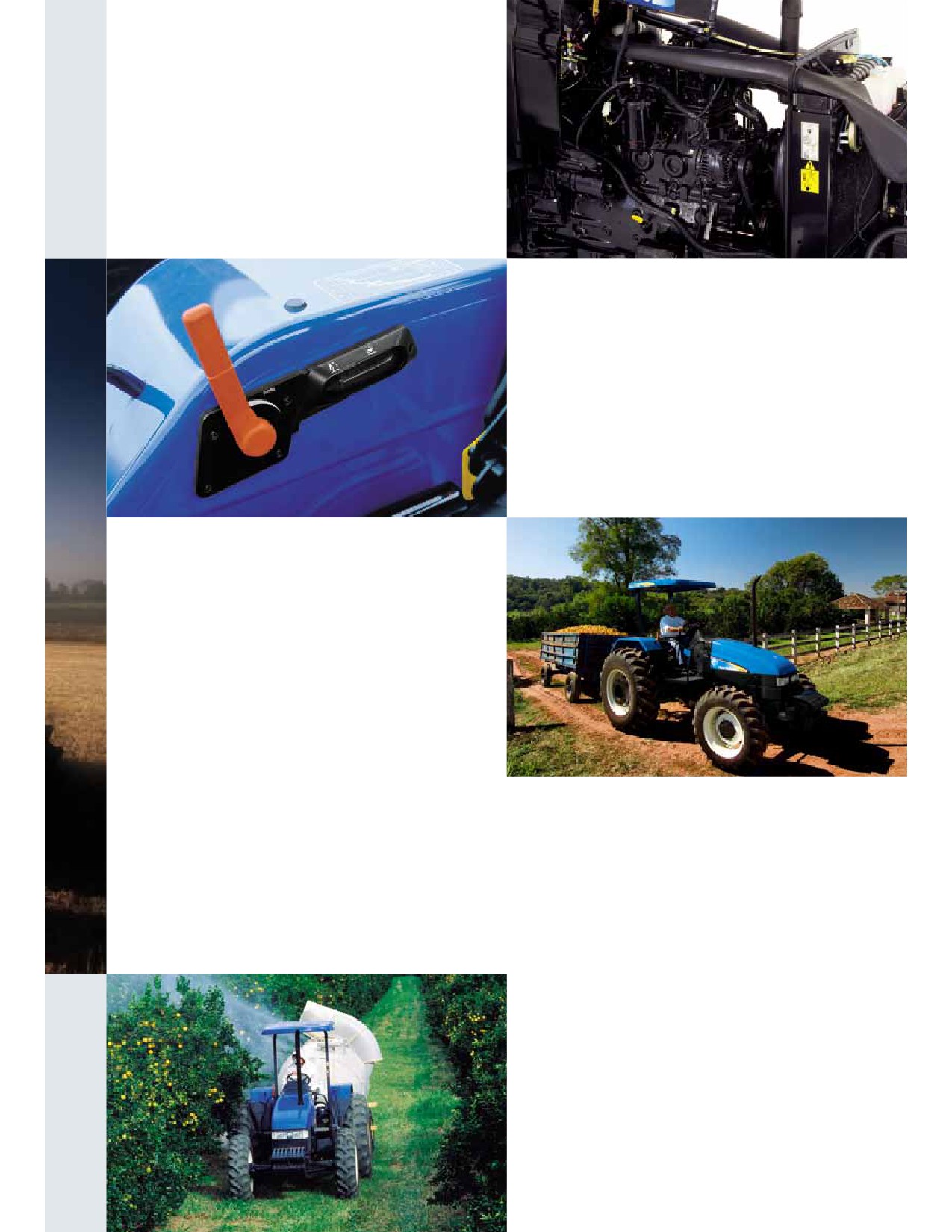

Motor

A linha TL Exitus vem equipada com motor MWM

International, que tem excelente relação torque/

potência, exclusivamente desenvolvido para atender

às mais diversas atividades no campo.

Tomada de força

De acionamento mecânico, tem acoplamento

progressivo. Além da velocidade de 540 rpm, essa

TDF oferece o sistema de velocidade sincronizada

com a roda e opção de TDF econômica.

Transmissão

Maximização da relação torque/potência e velocidade

exata para cada tarefa é tudo que você precisa nas

atividades do campo, e isso, a transmissão dos tratores

TL Exitus oferece sem nenhum esforço. A transmissão

com 12 marchas sincronizadas à frente e 4 à ré, em

3 gamas de velocidade, é oferecida para os modelos

TL60E e TL75E.

A outra opção de transmissão, com 12 marchas

sincronizadas à frente e 12 à ré (disponível para os

modelos TL75E, TL85E e TL95E), dispõe de uma

exclusiva alavanca de reversão, ideal para os serviços

que exigem grande número de manobras, o que

propicia maior conforto ao operador, além de alto

rendimento.

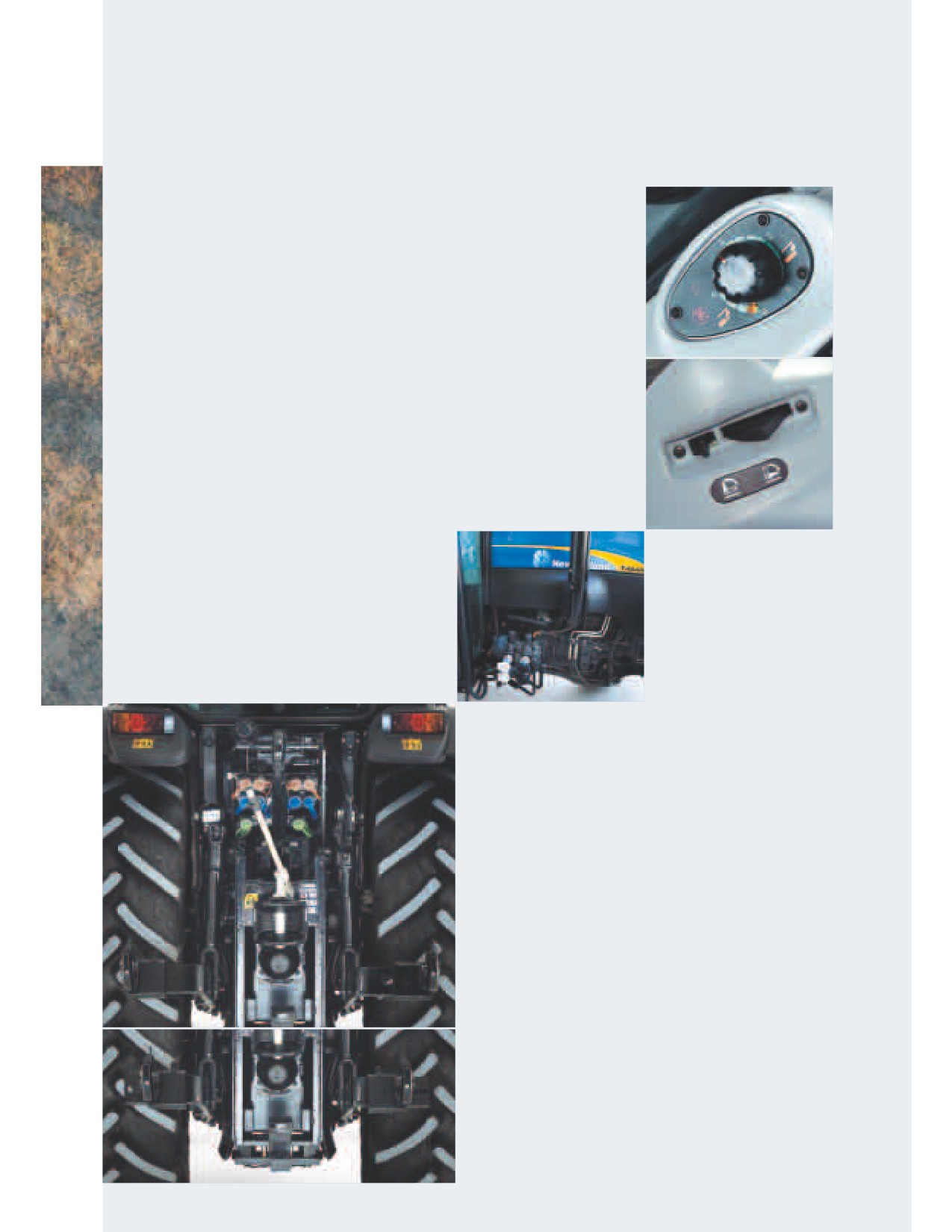

Sistema hidráulico

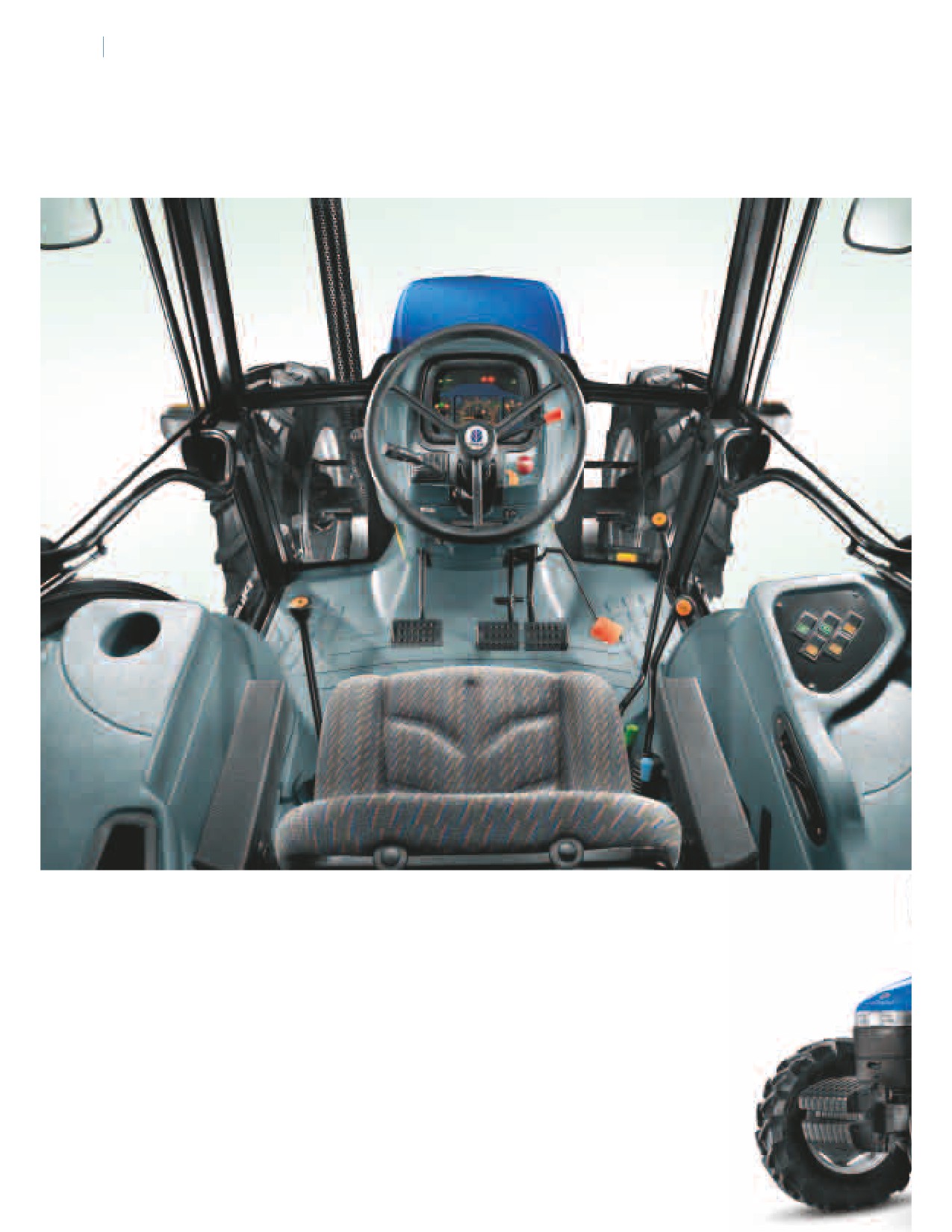

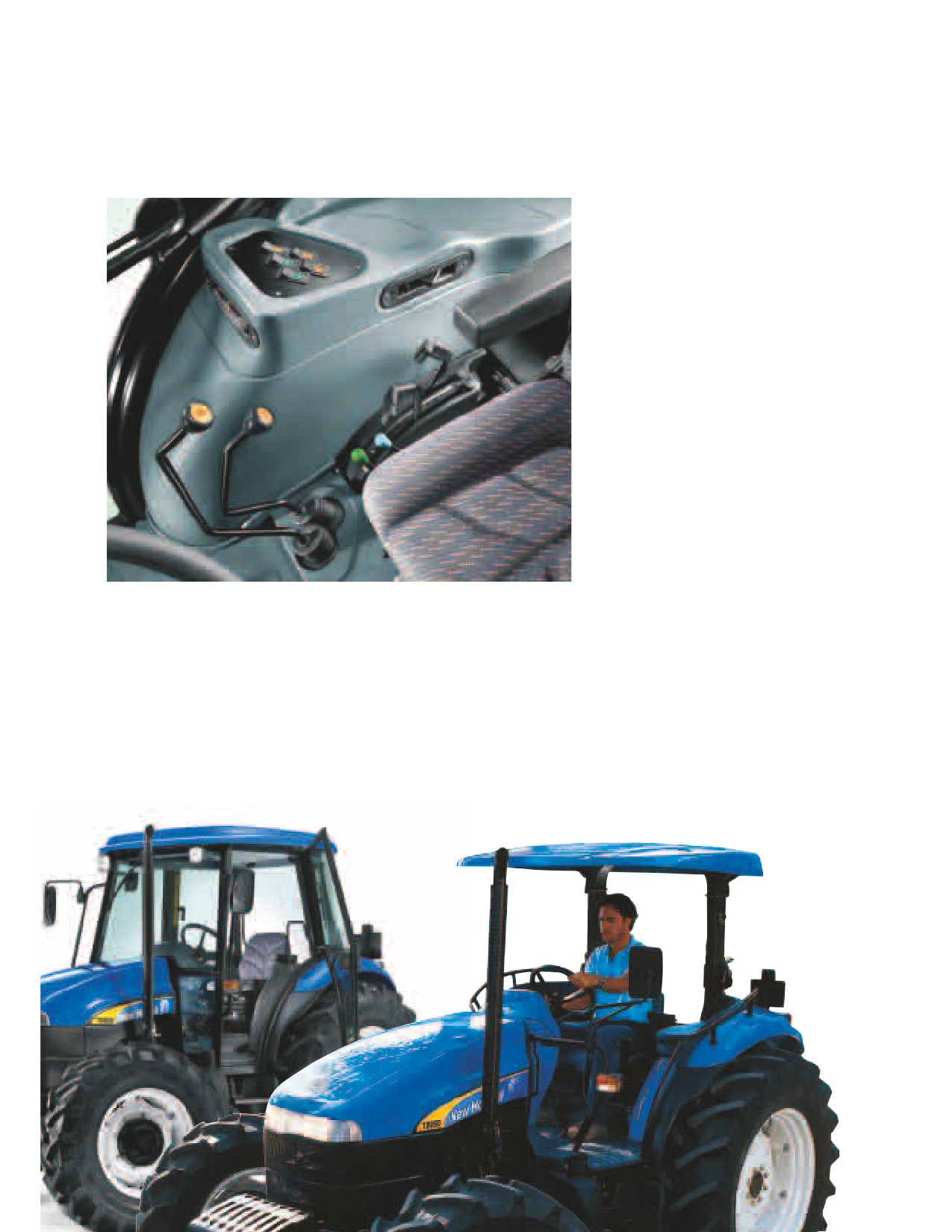

Plataforma do operador

O sistema hidráulico possui bomba de engrenagem

Para a New Holland, conforto é sinônimo de

independente, levante hidráulico categoria II, além

produtividade. A linha TL Exitus possui uma plataforma

de vir equipado com o exclusivo e consagrado

de grande área livre, sem obstáculos, e com comandos

Lift-O-Matic.

ergonomicamente posicionados e de fácil alcance.

Eixos, freios e direção

Os eixos são robustos, confiáveis e suportam com

segurança todos os esforços decorrentes das

diversas operações. Os freios oferecem total

segurança ao operador, e a direção hidrostática

permite fácil dirigibilidade e grande

manobrabilidade.

Downloaded from www.Manualslib.com manuals search engine

ESPECIFICAções

Modelo

TL60E

TL75E

TL85E

TL95E

Motor

Marca

MWM-International

Potência a 2.400 rpm (NBR1585)

62 cv (45,6 kW)

75 cv (55,2 kW)

83 cv (61,1 kW)

98 cv (72,1 kW)

Potência a 2.400 rpm (ISO TR14396)

65 cv (48,5 kW)

78 cv (57,4 kW)

88 cv (64,8 kW)

103 cv (75,8 kW)

Torque a 1.400 rpm

196 Nm

264 Nm

295 Nm

372 Nm

Número de cilindros

Aspiração

Natural

Turbo

Cilindrada

2.900 cm³

3.922 cm³

Bomba injetora

Rotativa Delphi

Filtro de ar

Duplo seco

Filtro sedimentador de combustível

Standard

Embreagem

Material do disco

Orgânico

Cerametálico

Acionamento

Mecânico

Transmissão

Tipo

Sincronizada

Velocidades (frente x ré)

12x4

12x4 / 12x12

12x12

Velocidades (com super-redutor)

•

20x12 (opcional)

Posição das alavancas

Lateral

Bloqueio do diferencial

Acionamento

Mecânico

Atuação

Eixo traseiro

Tomada de força

Tipo

Independente

Tomada de força econômica

•

Opcional

Sincronização com a roda

Standard

Rotação

540 rpm

Acionamento

Mecânico

Sistema hidráulico

Bomba

Engrenagens

Vazão/pressão

44,5 l/min / 194 kgf/cm²

Implementos

Categoria II

Lift-O-Matic

Memória mecânica de posição

Capacidade de levante no olhal

2.900 Kgf

3.460 Kgf

Válvula de controle remoto

•

Opcional

Sistema de direção

Tipo

Hidrostática

Bomba independente

Engrenagens

Vazão

32,7 l/min

Tração dianteira

Acionamento

Eletro-hidráulico

Freios

Tipo

Disco em banho de óleo

Acionamento do freio

Hidráulico

Pedais duplos interacopláveis tipo

Suspensos

Atuação (4x4)

Nas 4 rodas

Freio de estacionamento

Manual

Painel de instrumentos

Horímetro, indicador de combustível, indicador de temperatura, tacômetro, luzes de advertência: pressão de óleo, alternador, restrição do filtro do ar, bloqueio do diferencial, acionamento da TDF e

luzes direcionais.

Capacidades

Tanque de combustível

110 l

Peso (4x2/4x4)

2.880 kg (4x2) / 3.180 kg (4x4)

2.960 kg (4x2) / 3.260 kg (4x4)

2.960 kg (4x2) / 3.410 kg (4x4)

2.960kg (4x2) / 3.530 kg (4x4)

Lastro

Suporte de pesos dianteiro

Pesos dianteiros e de roda

(sem pesos)

(opcional)

Pneus Standard

Pneu dianteiro

7,5 x 16 (4x2) / 12,4 x 24 (4x4)

7,5 x 16 (4x2) / 14,9 x 24 (4x4)

Pneu traseiro

18,4 x 30 (4x2) / 18,4 x 30 (4x4)

18,4 x 34 (4x2) / 18,4 x 34 (4x4)

Dimensões

TL60E

TL75E / TL85E / TL95E

A - Distância entre eixos

2.150 mm (4x2) / 2.350 mm (4x4)

B - Comprimento total

3.700 mm (4x2) / 4.027 mm (4x4)

C - Largura total (Standard)

1.850 mm

D - Vão livre eixo dianteiro

500 mm (4x2) / 413 mm (4x4)

419 mm (4x2 e 4x4)

E - Altura do solo até o escape

2.700 mm (4x2 e 4x4)

Downloaded from www.Manualslib.com manuals search engine

New Holland.

Especialista no seu sucesso.

New Holland. A rede de concessionários

mais bem estruturada do Brasil.

Com uma rede de concessionários distribuídos por todo o país,

a New Holland oferece uma assistência técnica com profissionais

treinados na fábrica e peças genuínas para o melhor rendimento

de suas máquinas e a maior produtividade para o agricultor.

No seu concessionário:

New Holland Brasil.

Av. Juscelino K. de Oliveira, 11.825 - CEP 81450-903

Cidade Industrial - Fone: (41) 2107-7111

Curitiba - Paraná - Brasil

As dimensões, pesos e capacidades mostrados neste folheto, bem como qualquer conversão usada, são

sempre aproximados e estão sujeitos a variações normais dentro das tolerâncias de fabricação. É política da

New Holland o aprimoramento contínuo de seus produtos, reservando-se a mesma o direito de modificar as

especificações e materiais ou introduzir melhoramentos a qualquer tempo sem prévio aviso ou obrigação de

www.newholland.com.br

qualquer espécie. As ilustrações não mostram necessariamente o produto nas condições standard. Alguns

opcionais são produzidos somente sob encomenda.

Preliminar - 06/2011 - Impresso no Brasil

Downloaded from www.Manualslib.com manuals search engine

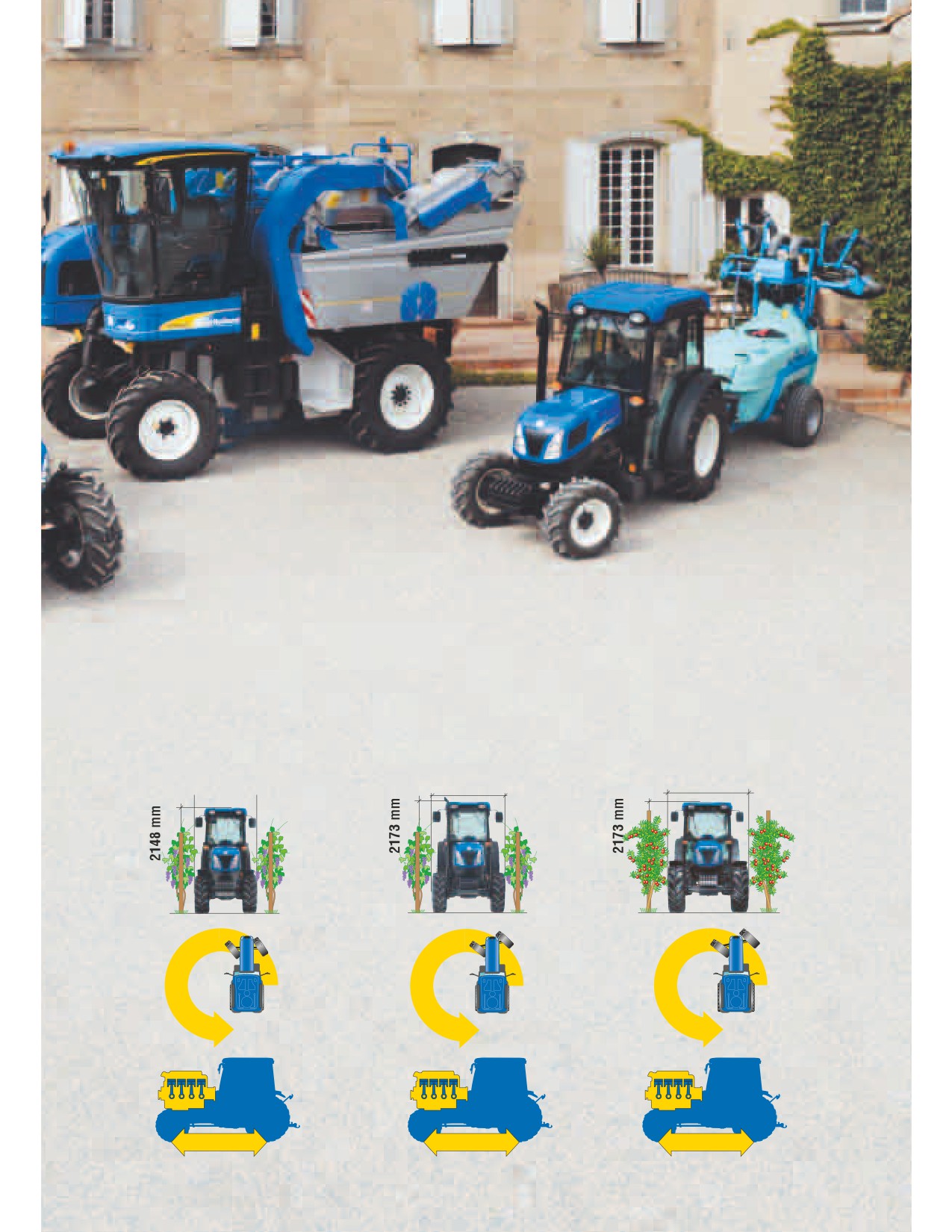

STYLISH NEW T4000F/N/V. GREAT LOOKS,

Offered in three widths to suit a range of specialist applications, the T4000F/N/V tractor

series match high power to weight ratios to best in class manoeuvrability. Key features

include power outputs of 78, 87 and 97 hp, a wide transmission offering, cab or ROPS

and a choice of front axles.

POWERFUL AND COMPACT

unrivalled performance in a compact package.

SPECIALIST VERSATILITY

Few specialist tractors can match the all-round versatility of a T4000F/N/V tractor.

Available with tight turning SuperSteer, with automatic 4WD, these tractors can be

used in a wide range of applications.

PRODUCTIVE COMFORT

Available with an advanced, fully sealed Blue Cab, T4000F/N/V tractors match

unrivalled comfort in the most unforgiving environments with brilliant all-round

visibility.

ENGINEERED TO REDUCE COSTS

Long engine service intervals and low fuel consumption reduce the whole life

operating costs of all T4000F/N/V models.

Downloaded from www.Manualslib.com manuals search engine

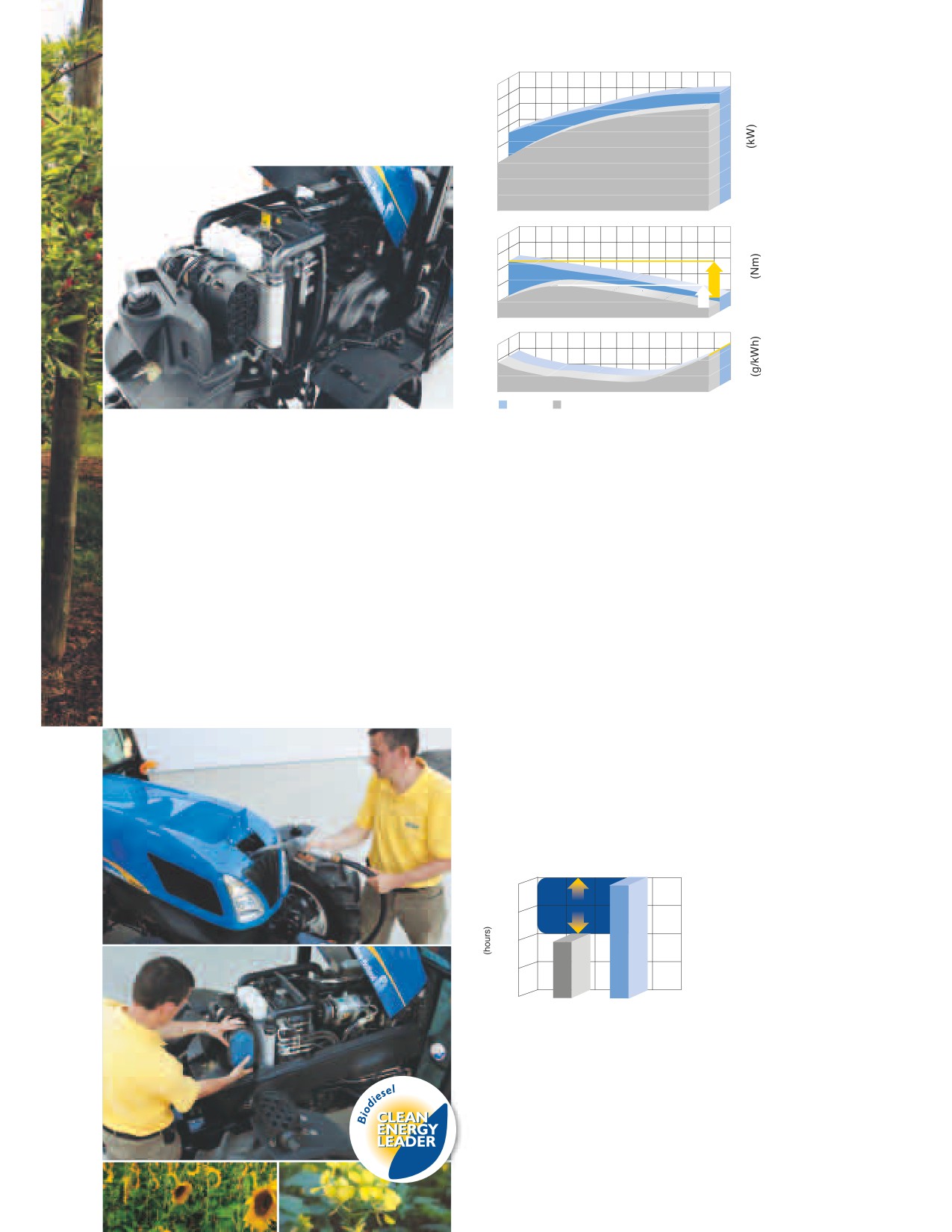

(rpm)

1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300

Power

(rpm)

1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300

500

450

400

+35% TORQUE BACK-UP

350

300

Torque

250

(rpm)

1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300240

230

220

210

Fuel consumption

T4050 TN95FA

INTERCOOLED EFFICENCY

MORE POWER AND TORQUE. SAME

By cooling the engine intake air, the intercooler

FUEL CONSUMPTION

fitted to the T4000F/N/V power units boosts

All T4000F/N/V models develop more

combustion efficiency. This is of particular benefit

power and greater torque at a lower engine

in high ambient temperatures, overall fuel use and

speed when compared to the previous

power development remaining consistent,

TN-A speciality series. This increase in

regardless of conditions.

output is achieved without an increase in

fuel consumption, this remaining at an

optimum 219 g/kWh for the range topping

T4050F/N/V.

EASIER TO LOOK AFTER

From the outset, New Holland has designed all

T4000 models for ease of maintenance. A fast

access fuel flap allows speedy refuelling

without raising the one-piece engine hood.

Engine service intervals are as high as 600

hours on the T4050F/N/V.

600

+ 100%

450

300

150

TN-A

T4050

ENGINEERED FOR 100% BIODIESEL

All T4000F/N/V are designed to operate on

biodiesel fuels without costly modifications.

Talk to your New Holland dealer for full details.

Downloaded from www.Manualslib.com manuals search engine

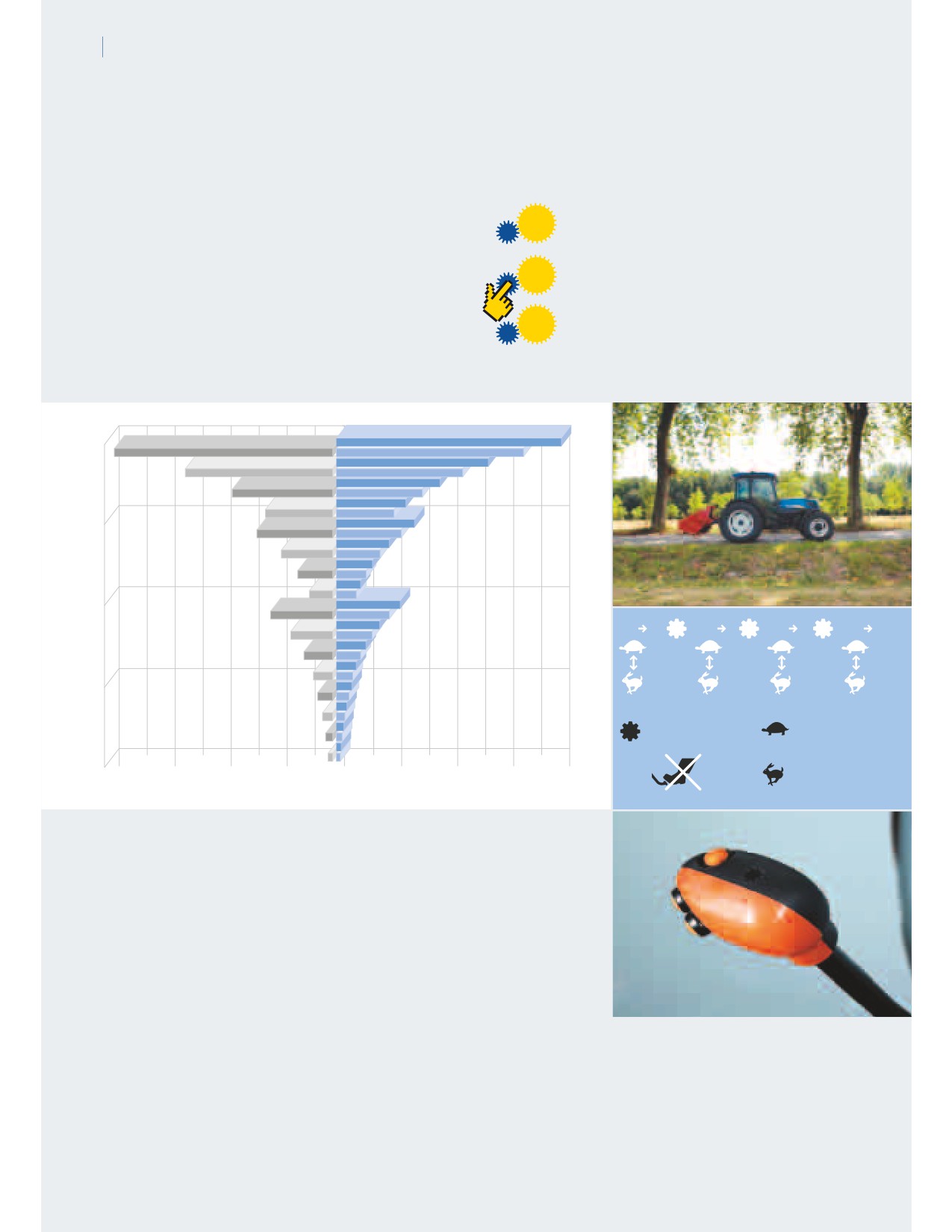

TRANSMISSION

A WIDE CHOICE OF EFFICIENT TRANSMISSIONS

Thanks to the modular build of T4000F/N/V

TRANSMISSION CHOICE

tractors, the transmissions can be easily

16x16

Powershuttle

matched to end user needs. Advanced

(30 kph / 40 kph)

features include power shuttle, power clutch

and creep speed options.

32x16

Dual Command™

(30 kph / 40 kph)

44x16

Dual Command™ (optional

creeper / 30 kph / 40 kph)

40,123

38,869

33,436

27,083

26,237

22,569

18,424

17,848

15,353

12,359

11,973

10,3

13,897

13,463

11,581

9,381

9,087

7,817

6,381

6,182

5,318

4,281

4,147

3,567

11,352

10,997

9,46

7,663

7,423

6,386

5,213

5,05

4,344

3,497

3,388

2,914

2,701

2,617

2,251

1,823

1,766

1,519

1,24

Power Clutch button

Low dual power

1,201

1,034

+ Gear change

0,832

0,806 1

0,693

High dual power

reverse

kph

forward

DUAL COMMAND™ OFFERS SO MUCH MORE

Power Clutch button

The 32x16 Dual Command™ transmission with power

shuttle offers the same number of ratios as Split

Command, but allows a high low push button ratio 'split'

to be made under full load and without using the clutch.

Hi-button

A 44x16 Dual Command transmission is available to meet

specialist requirements.

Lo-button

POWER CLUTCH

Dual command transmissions are

available with a Power Clutch option.

This allows the operator to use a push

button on the main shift lever to operate

the clutch. This makes changes on the

move fast, smooth and comfortable.

Downloaded from www.Manualslib.com manuals search engine

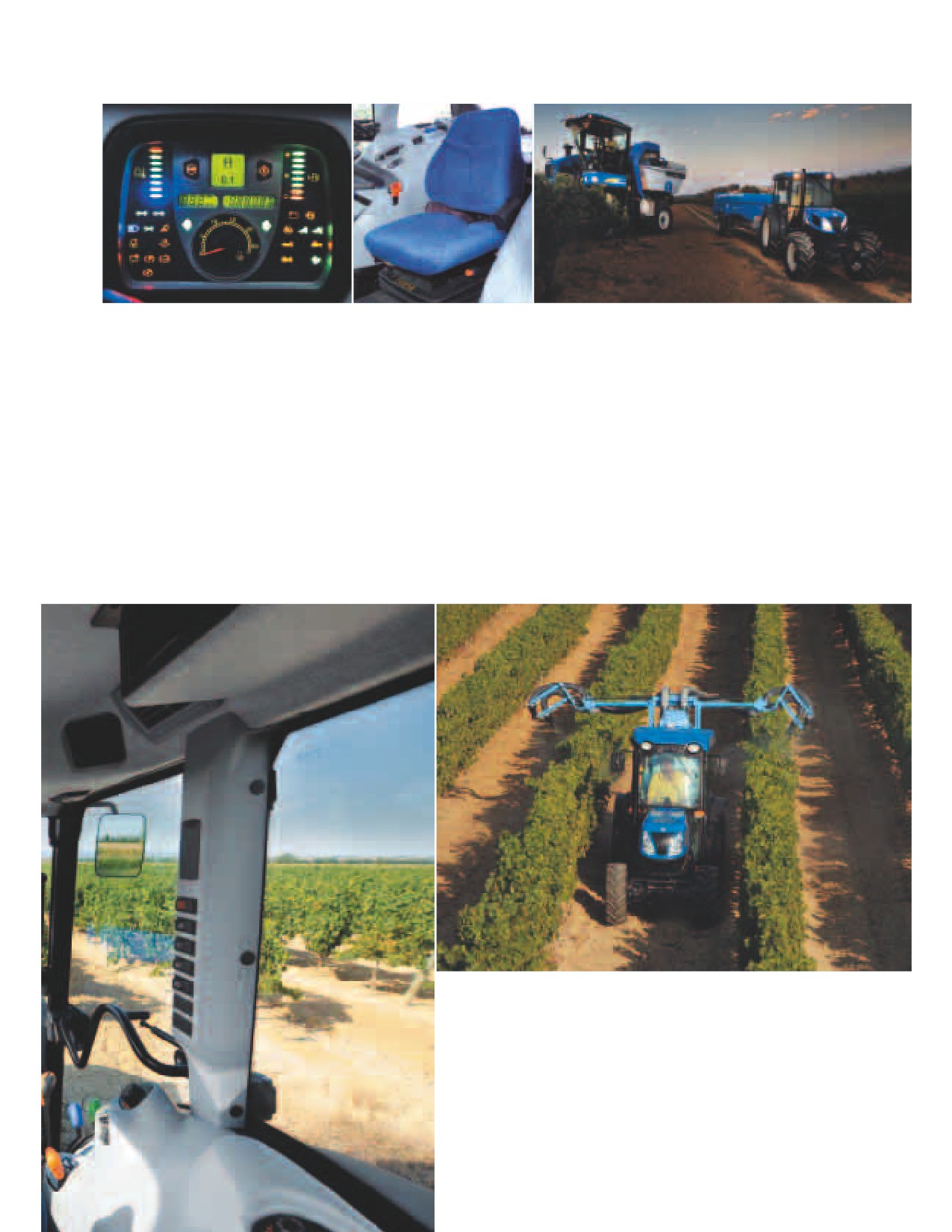

ALL THE INFORMATION YOU NEED

HIGH COMFORT SEAT

BRIGHT LIGHTS FOR DARK NIGHTS

The new instrument display fitted to all

Fitted with a deep cushion seat

Two work lights are incorporated within the

T4000F/N/V tractors is easy to read and

pan and wide backrest, the seat

main headlight cluster. Cab models have

understand. The new display lists valuable

in T4000F/V/N tractors adjusts to

two worklights built into the front and rear

information including forward speed, PTO

suit all sizes of operator. A choice

roof panel. ROPS tractors have a single

speed, low fuel and the next service

of mechanical or deluxe air

rear mounted fender light.

interval.

suspension seats are available.

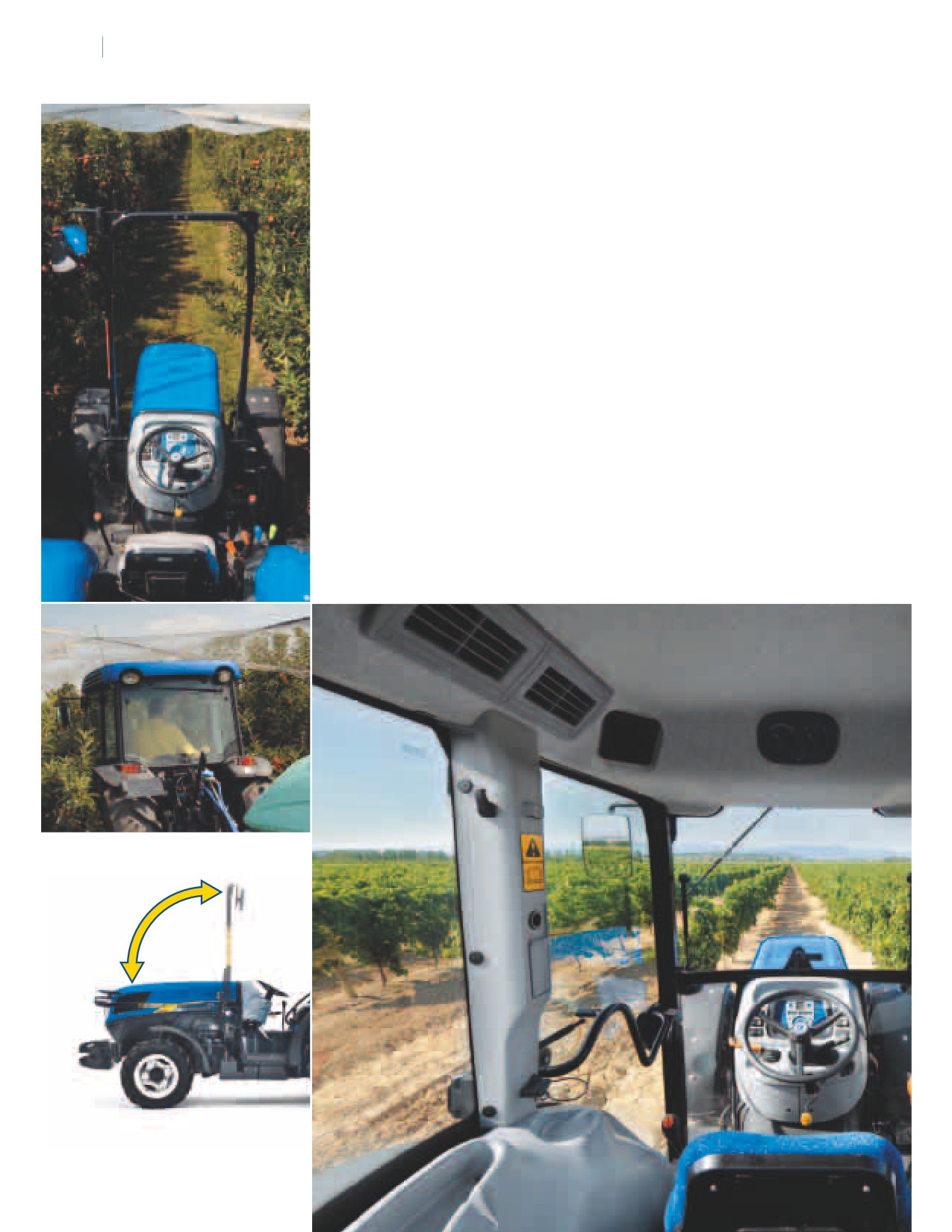

BLUE CAB FOR HARSH ENVIRONMENTS

The sealed Blue Cab has thermostatically controlled air

conditioning developed to suit harsh environments. Anti-

pollen plus recirculation filters remove dust and pollutants.

The ventilation system draws in 20% more air than the

standard cab. A range of carbon filters can be specified.

Downloaded from www.Manualslib.com manuals search engine

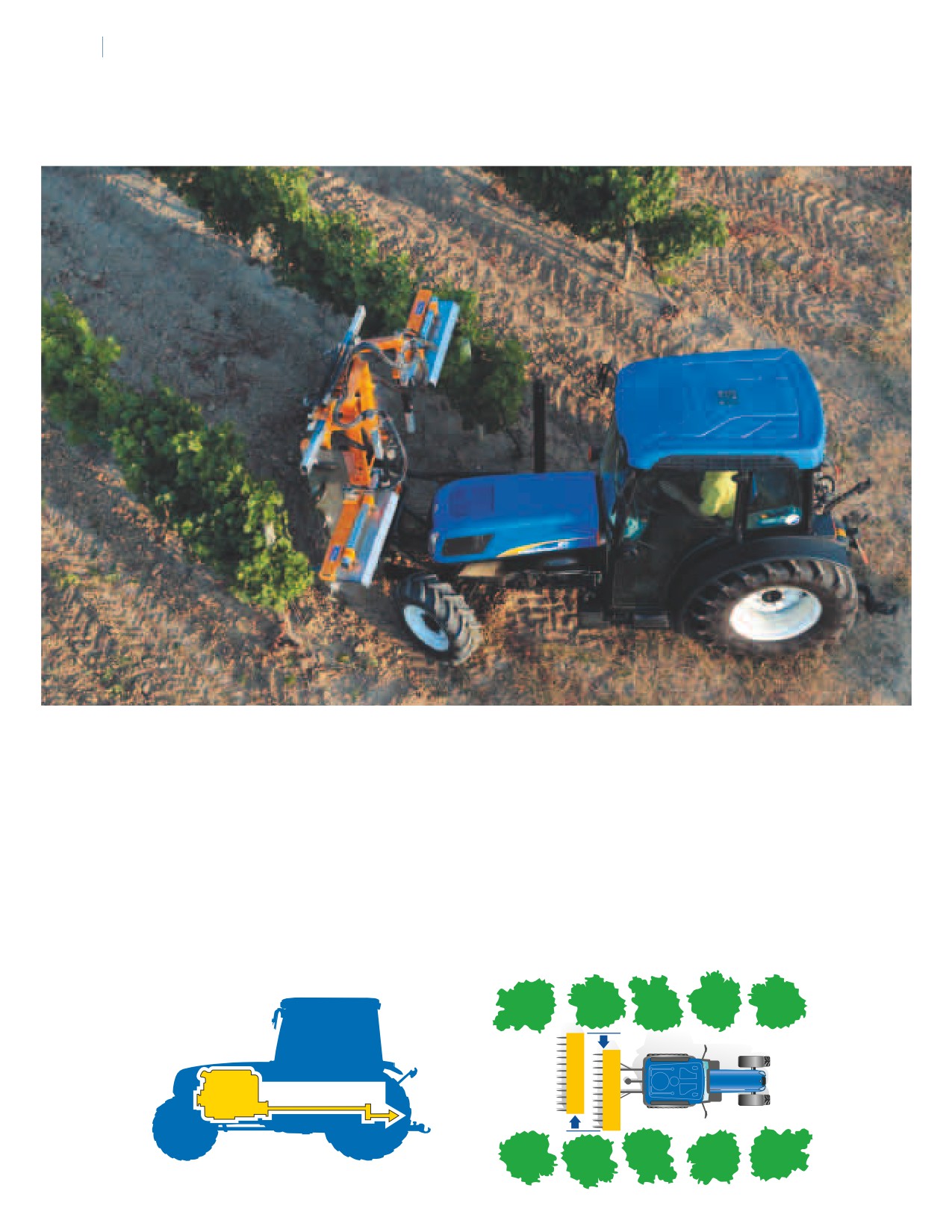

PTO AND HYDRAULICS

SPECIALIST TRACTORS FOR SPECIALIST NEEDS

The modular build of T4000F/N/V tractors enables New Holland to offer a broad range of specifications that exactly matches

your specialised need. The standard hydraulic flow of all models is 48.6 Lpm. Need more flow? Specify the Megaflow pump,

and output can be increased to 63.8 Lpm.*

T4000F/N/V. Factory built to your specification.

* Standard for the Australian market.

DIRECT OUTPUT, NO LOSS OF POWER

HYDRAULIC LINKAGE SETTINGS

Engaged via a servo assisted control, the rear pto on

Hydraulic stabilisers can be specified to allow the

T4000F/N/V tractors has a direct driveline to minimise

attachment to be offset to either side of the tractor.

power loss. Maximum engine power is directed to the

The stabilisers can be set in a fixed or float position by

PTO for optimum efficiency and performance. A

the push of a button. A levelling ram can also be

choice of Ground Speed/540/540E/1000 PTO speeds

specified for the right lower link arm. Both systems

are available.

have a dedicated hydraulic supply.

DIRECT PTO POWER OUTPUT

Downloaded from www.Manualslib.com manuals search engine

ADVANCED ELECTRONIC DRAFT CONTROL

FOR OPTIMUM PERFORMANCE

Electronic draft control, EDC, is available. Easy to operate and of

proven dependability, EDC on certain models can be linked to the axle

differentials. When the rear linkage is lowered, the differentials are

locked. As the linkage is raised, the differentials are unlocked.

MECHANICAL HYDRAULICS WITH LIFT-O-MATIC

The mechanical hydraulic system features proven Flexion Bar™ lower

link draft sensing. This offers excellent weight transfer performance

and easily adjusted sensitivity. Lift-O-Matic is standard and enables an

implement to be raised and lowered to its previous setting using a

single control. Also, a mechanical lift height control limiter ensures

accurate implement lift height setting which eliminates the risk of

damaging PTO shafts.

REMOTES TO POWER SPECIALIST

ATTACHMENTS

Modern attachments can require three or more

remote valves. With T4000, this is not a

problem.

Up to three remotes, plus two push button

controlled flow dividers, allow up to five outlets

to be specified. Up to two mid-mount remotes

can also be fitted for use with front mounted

implements.

Oil flow rate can be adjusted as required by

using a simple control valve.

VERSATILE LINKAGE

WITH HIGH CAPACITY

For maximum versatility, the rear linkage is

adjustable to match Cat I or Cat II implements.

All T4000 F/V/N models offer high lift

capacities of up to 2600 kg on the T4000F

models. Quick-attach couplings are standard

with remote linkage controls to speed the

fitting and removal of attachments.

Downloaded from www.Manualslib.com manuals search engine

THE RIGHT FRONT AXLE

VERSATILE SUPERSTEER

FOR YOUR NEEDS

FRONT LINKAGE AND PTO

All T4000F/N/V tractors are specified with

All T4000F models can be specified with an

4WD front axles. The T4000F/N feature the

axle mounted Cat I/II front linkage with quick

exclusive SuperSteer as standard. The turn

attach couplings and 1000 rpm PTO. Fully

radius of the T4000F/N/V tractors can be as

integrated into the main hydraulic controls,

low as 2.9 m. The 2WD specification is

the front linkage can be easily and precisely

available on both ROPS and cab models.

controlled. Remote exterior switches make

coupling attachments safe, fast and simple.

ADVANCED TRACTION MANAGEMENT

The acclaimed and proven New Holland automatic 4WD system is now available on all

T4000F/N/V models. The system engages drive to the front wheels if rear wheel slip

exceeds 5%* and on slopes of 10 deg plus*. For stability and safety, 4WD is also

engaged when both brake pedal are pressed. The front and rear differentials are

engaged and released by a dash mounted switch.

*Only T4000F/N models

Downloaded from www.Manualslib.com manuals search engine

SPECIFICATIONS

MODELS

T4030V _I N _I F

T4040V _I N _I F

T4050V _I N _I F

New Holland Engine*

F5C

NEF

No. of cylinders / Capacity / Valves / Emissions Level

4 / 3200 / 2 / Tier III

4 / 4500 / 2 / Tier III

Aspiration

Turbocharged

Intercooler

●

Approved biodiesel Blend

B100**

Rated Engine Power ISO TR14396 - ECE R120

[kW/hp(CV)]

57 / 78

65 / 88

71 / 97

Rated Engine Speed

(rpm)

2300

Max. Torque ISO TR14396

(Nm)

330@1250rpm

352@1250rpm

398@1300rpm

Torque reserve

(%)

Horizontal Exhaust

●

Vertical exhaust (Cab only)

Internal EGR

●

Cooling method

Liquid

Optimum fuel Consumption

(g/kWh)

218

219

216

Fuel tank capacity

(L)

Service Interval

(hrs)

500

600

Transmission

Electro hydraulic diff. lock

●

Mechanical diff. lock

Suspended pedals

●

Oil immersed braking system

●

16 x 16 Powershuttle (30kph / 40kph)

Minimum speed (Without Creeper)

(km/h)

0,7

32 x 16 Dual Command™ (30 kph / 40kph)

Minimum speed (Without Creeper)

(km/h)

0,7

44 x 16 Dual Command™ [Optional Creeper (30 kph / 40kph)]

Minimum speed (With Creeper)

(km/h)

0,17

Power Clutch (Dual Command™ transmission only)

Front axle

4WD front axles

●

SuperSteer™ 4WD front axle

●

Auto 4WD Standard / SuperSteer

- / ●

Steering angle 4WD front axle

(°)

Steering angle SuperSteer front axle

(°)

Turn radius 4WD front axle

(mm)

3400

3440

Turn radius SuperSteer front axle

(mm)

2960

2900

2960

2900

3050

2980

Dynamic fenders

Electro hydraulic diff. lock

●

Independent steering pump (28Lpm or 35.6Lpm Megaflow pump)

●

Front braking system

Axle oscillation

(°)

Hydraulic system

Standard pump flow

(Lpm)

48,6

Optional MegaFlow™ pump flow

(Lpm)

63,8

Mechanical draft control (MDC)

●

Lower link draft sensing

●

Lift-O-Matic™ system

●

Electronic draft control (EDC)

Cont. lift capacity through the range (610mm behind the ball bar ends)

(kg)

1835

Max. lift capacity at ball ends with arms horizontal

(kg)

2600

Rear Linkage category

I & II

Rear fender mounted Linkage controls (EDC only)

Width adjustable link ends

Hydraulically adjustable right hand lift rod adjustment and sway restriction

Max. no. remote outlets

(Rear/Mid)

6/4

10/4

6/4

10/4

6/4

10/4

Flow control

Two mid-mount remotes with flow control

Rear

Mid mount

Rear

Mid mount

Rear

Mid mount

div.

valve

div.

valve

div.

valve

SuperSteer™ front lift & PTO (Electronically engaged)

Max. front linkage lift capacity at ball ends

(kg)

1275

PTO

Servo-assisted engagement

●

Ground speed

540 / 540E / 1000

●

Downloaded from www.Manualslib.com manuals search engine

MODELS

T4030V _I N _I F

T4040V _I N _I F

T4050V _I N _I F

Operator environment

Rubber isolation blocks

●

Lateral levers

●

Suspended platform (with mid mounted foldable ROPS)

●

Electronic instrumentation

●

Cab

Air conditioning

Blue Cab

●

Max. noise level***

(dBA)

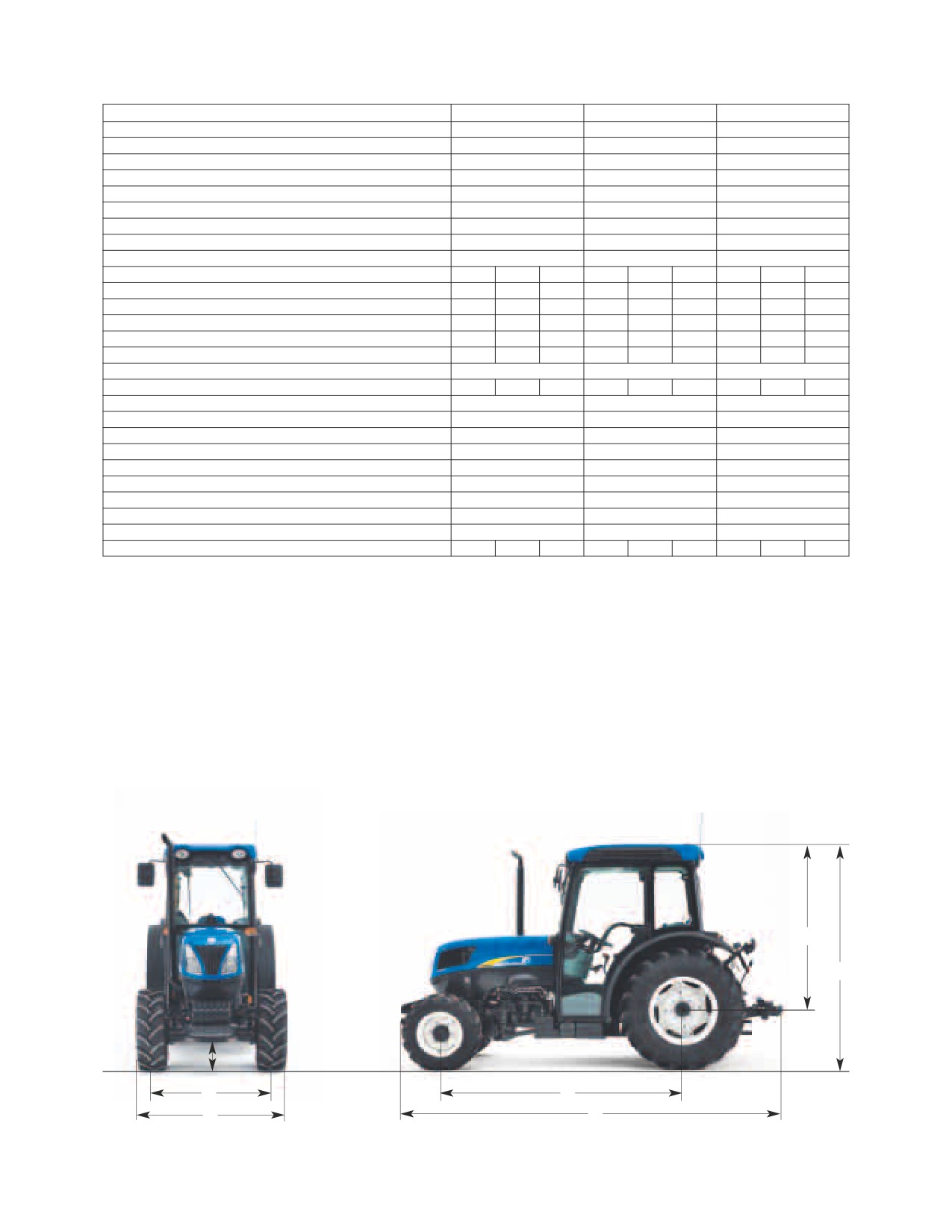

Dimensions & Weights****

A Wheelbase 4WD

(mm)

2093

2180

A Wheelbase SuperSteer™ 4WD front axle

(mm)

2348

2435

B Overall length 4WD

(mm)

3925

3914

3925

3914

4012

4001

C Minimum overall width

(mm)

1061

1229

1398

1061

1229

1398

1061

1229

1398

D Height to top of ROPS

(mm)

2249

2274

2249

2274

2335

2360

2274

D Height to top of cab

(mm)

2148

2173

2148

2173

2148

2173

E Height at centre rear axle to top of cab

(mm)

1648

F Ground clearance min

(mm)

270

290

323

270

290

323

270

290

323

G T4000V front wheel track setting 4WD

(mm)

879 - 985

G T4000N front wheel track setting 4WD

(mm)

1075 - 1251

G T4000F front wheel track setting 4WD

(mm)

1062 - 1492

1190 - 1492

G T4000V rear wheel track setting 4WD

(mm)

861 - 1261

G T4000N rear wheel track setting 4WD

(mm)

1003 - 1273

G T4000F rear wheel track setting 4WD

(mm)

1130 - 1530

1108 - 1371

T4000V Weights***** 2WD/4WD

(kg)

2459 / 2710

2531 / 2790

T4000N Weights***** 2WD/4WD

(kg)

2546 / 2762

2618 / 2852

T4000F Weights***** 2WD/4WD

(kg)

2840 / 2910

2930 / 3000

Max. permissible weight

(kg)

3800

4000

4300

3800

4000

4300

3800

4000

4300

*Developed by Fiat Powertrain Technologies

**Conditions apply

***Cab model only

****Rear Tyres T4000 F = 340/85R28, T4000N = 320/85R24, T4000V 280/85R28

*****With driver (85kg) and full fuel tank

● Standard O Optional

- Not available

Downloaded from www.Manualslib.com manuals search engine

NEW HOLLAND.

A REAL SPECIALIST IN YOUR

AGRICULTURAL BUSINESS.

AT YOUR OWN DEALER

YOUR SUCCESS - OUR SPECIALTY

Safety begins with a thorough understanding of the

equipment. Always make sure you and your operators

read the Operator’s Manual before using the

equipment. Pay close attention to all safety and

Visit our web site at: www.newholland.com - tel: +61 2 9673 7777

operating decals and never operate machinery

without all shields, protective devices and

31-53 Kurrajong Road, St Marys NSW 2760

structures in place.

The data indicated in this folder is approximate. The models described here can be subjected to modifications without any notice by the manufacturer.

The drawings and photos may refer to equipment that is either optional or intended for other countries. Please apply to our Sales Network for any further

information. Published by New Holland Brand Communications. Bts Adv. - Printed in Australia - T4000F/N/V 06/09

Downloaded from www.Manualslib.com manuals search engine

TDD Plus

COMMON SENSE TRACTORS

WITH HEAD TURNING LOOKS

Series TDD Plus tractors match great looks with class leading ergonomics, low noise,

excellent comfort, brilliant service access and superb all-round visibility. Take a look

at the operating environment. Low effort suspended pedals are fitted, reducing noise

coming up through the suspended floor platform. The Lift-O-Matic and hydraulic

controls are positioned so they are easy to reach. The gear levers are shaped to

make them easier to use. The PTO control is also more easy to operate without any

button to push. No other tractor in its class can match the ergonomic excellence of

a TDD Plus.

Then take a look at the specifications offered. Synchro Shuttle™ transmissions, with

creep speeds, plus a choice of 2WD with 30kph or 4WD with 40kph transport speeds

are available. Consider the design detail. The engine air filter and exhaust muffler

are mounted under the single-piece engine hood to provide a clear view over

the front of the tractor. The stylish cab features large glazed doors to make

getting in and out easier and offer an excellent field of vision to the sides.

There is even space for documents in a purpose made holder.

With Series TDD Plus tractors, beauty is more than skin deep.

Downloaded from www.Manualslib.com manuals search engine

Modern style, traditional simplicity

New Holland Series TDD Plus tractors combine simple

operation and maintenance with the benefits of modern

comfort, attractive styling and a choice of features.

The transmission covers all type of applications with the

Synchro Shuttle™ 20x12 30 or 40kph, with the creeper

option as standard. Series TDD Plus can be specified

with 2WD or 4WD.

Proven efficiency

The rugged hydraulics are extremely

efficient, offering best in class rear

linkage lift capacity and proven

features that include the Lift-O-Matic™

and Flexion Bar systems. Up to four

rear and two mid-mount couplers can

be specified.

Tractors to match your needs

The New Holland Series TDD Plus tractor

range offers a choice of specification to meet

the diverse needs of customers. A suspended,

flat floor platform is standard on less cab

models for improved levels of comfort

and reduced vibration.

The cabbed models offer an excellent

field of vision and class leading levels

of comfort. Air conditioning is standard.

Downloaded from www.Manualslib.com manuals search engine

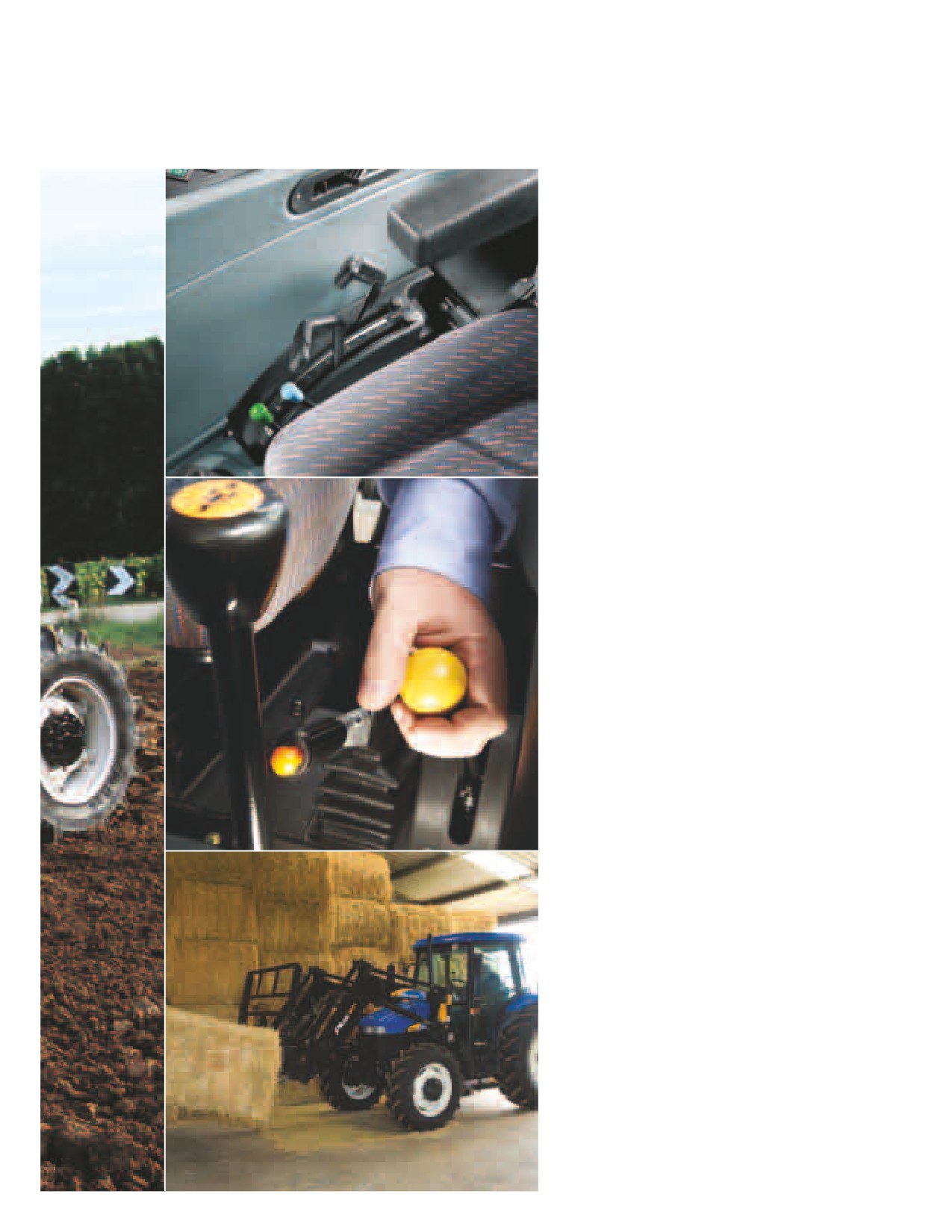

Every control within easy reach

It does not take long to become familiar

with the control layout of TDD Plus tractors.

Every function, from the PTO and gear

levers to the rear linkage and Lift-O-Matic

controls, are positioned in a logical and

easy to reach position. Within a short space

of time, operators new to a TDD Plus tractor

will work with familiar ease. Of equal

importance, New Holland quality ensures

everything moves with well oiled precision.

A cabbed tractor with less-cab visibility

Series TDD Plus cabbed tractors benefit from a

modern stylish cab with fully glazed doors and

Less-cab versatility

opening curved rear side windows. By combining

Less cab models are specified with a sun

narrow pillars with a large glazed area, the cab

canopy. Designed to deflect direct sunlight,

offers an excellent all-round field of vision.

heat and noise from the operator, the canopy

Air conditioning is standard.

can be removed when access to low buildings

is necessary.

Downloaded from www.Manualslib.com manuals search engine

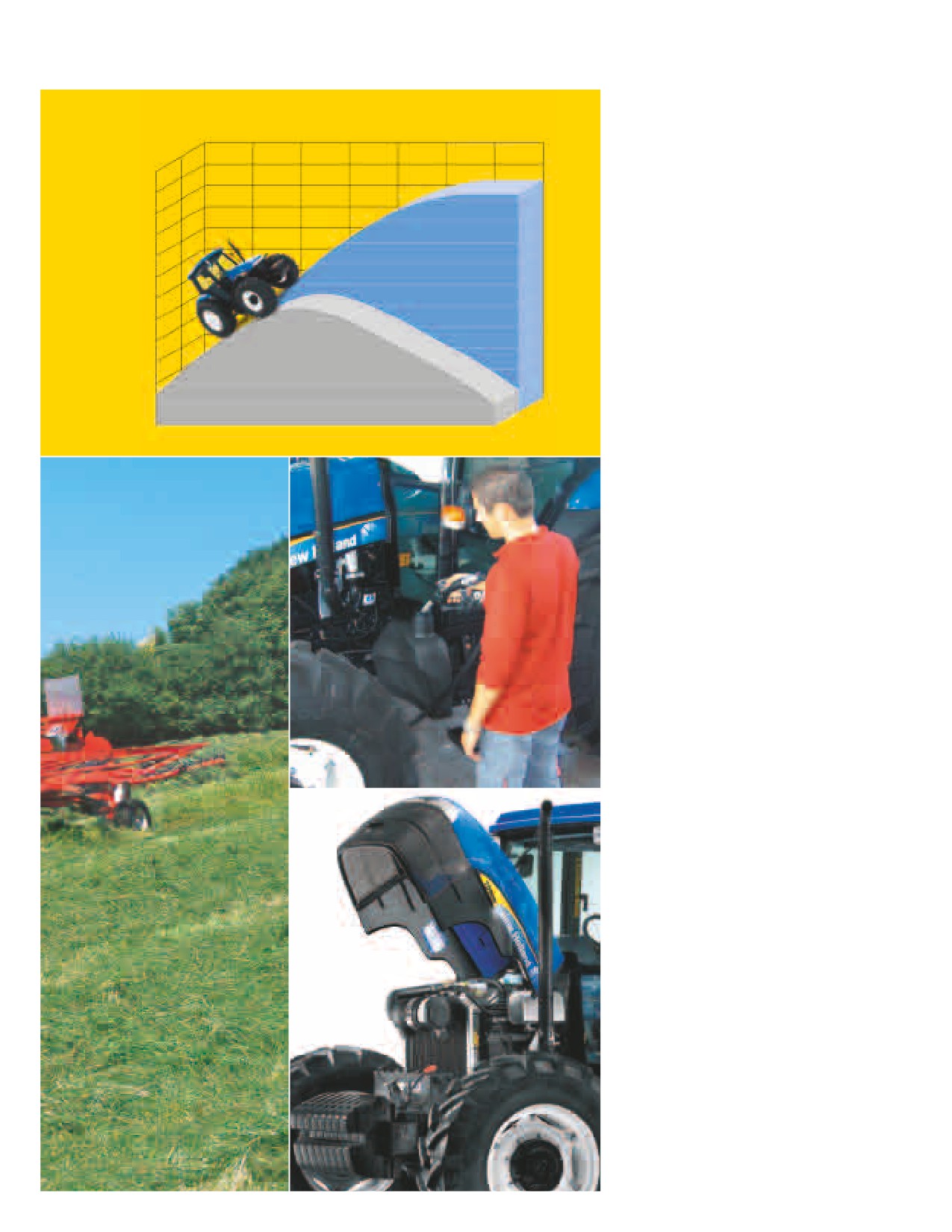

rpm

1000

1250

1500

1750

2000

2250

2500

74/100

Power and torque

70/95

for versatile performance

66/90

With maximum power developed

at 2500rpm and torque reserves

62/85

as high as 33%, Series TDD Plus

59/80

tractors are extremely versatile.

POWER

55/75

For demanding draft and PTO

51/70

applications, there is always

350

power in reserve.

48/65

325

44/60

300

40/55

275

Torque

37/50

250

33/45

225

200

[kW/hp(CV)]

Low level fuel filling

Series TDD Plus tractors are more than

just good looking. Advanced features

include a low level fuel tank that is

easily filled. The tank has sufficient

capacity for a full working day, even

in the most demanding applications.

Easy servicing

Daily maintenance and routine

servicing are easier on Series TDD Plus.

The narrow engine hood opens on gas

struts to provide full engine access.

All service filters are easy to reach and

change. Looking after a TDD Plus tractor

takes less time for lower whole life costs.

Downloaded from www.Manualslib.com manuals search engine

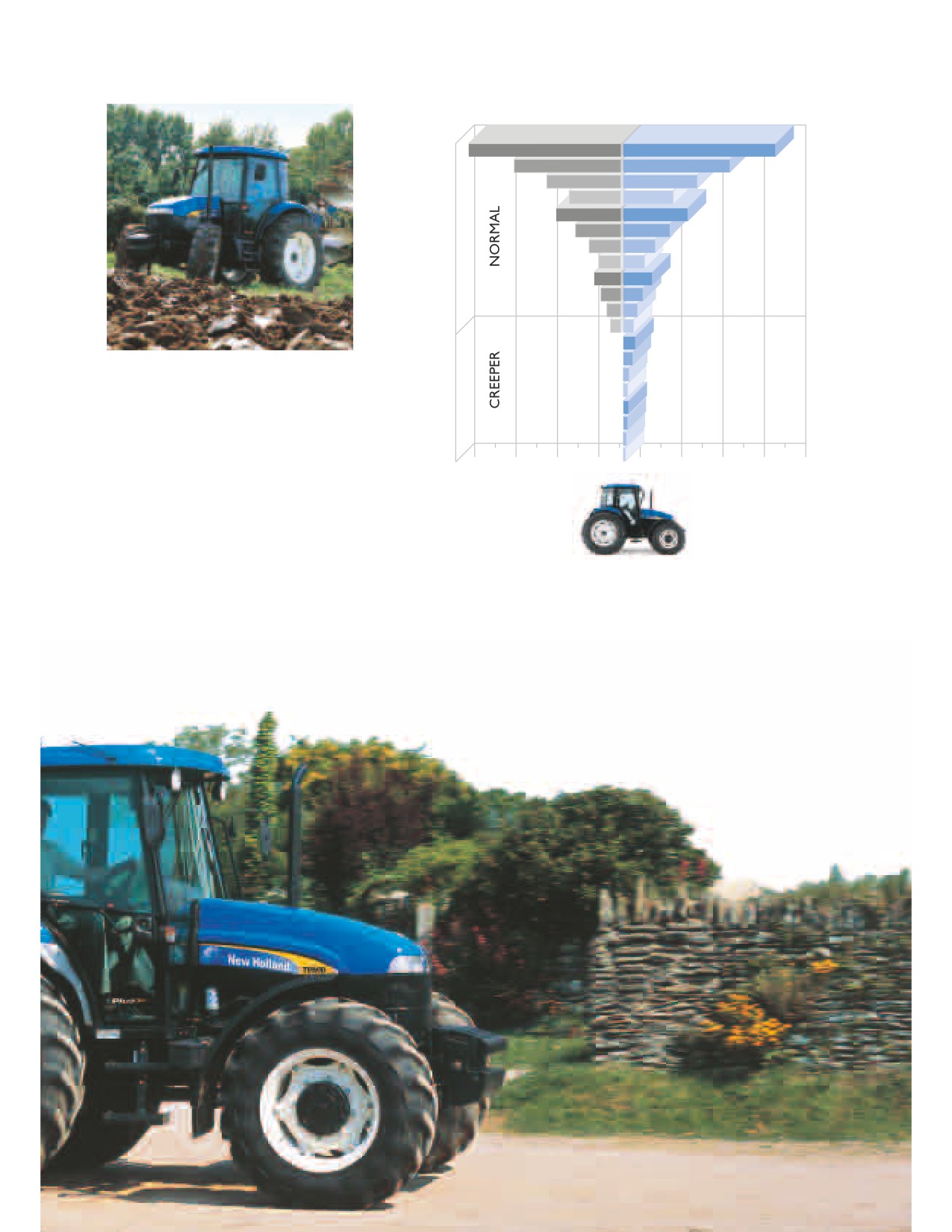

TDD Plus

TRANSMISSION.

Efficient, easy

to use and versatile.

Developed around proven transmission, hydraulic and axle

modules, TDD tractors offer proven dependability.

Matched to modern manufacturing, all components benefit from

exacting quality control at each production stage. This ensures

every part of a TDD tractor has to pass stringent tests before it is

built into the tractor.

Specified with a Synchro Shuttle™ transmission with matched

forward and reverse speeds and additional creep speeds. Low

power loss through the transmission is a key New Holland

feature. This is achieved by careful design, reducing the number

of gears that are engaged to produce a given operating speed.

The right speed for the job

For durability, the constant mesh gears are helically cut. This

The Synchro Command™ transmission

feature helps reduce noise and vibration and is a key feature in

has three ranges of four speeds plus two

ensuring maximum durability. The standard transmission features

creeper ranges.

at 30kph transport ratio. Where local conditions allow, a 40kph

The transmission design enables the

transmission is available (Standard with 4WD Cab Units).

operator to select a working ratio and then

choose the right speed to match the job.

If conditions change, the overlap between

the speeds enables a different gear to be

selected within the same ratio. Up to eight

gears can be selected in the main working

speeds between 4 - 12kph.

Downloaded from www.Manualslib.com manuals search engine

Proven linkage control

All Series TDD Plus tractors feature

New Holland’s proven Flexion Bar™ lower

link draft sensing. The system is simple to

operate.

It incorporates the Lift-O-Matic™ rear

linkage control, which can be set by the

operator to raise and lower an implement

to pre-set heights via a single control, as

standard. This reduces the number of

operations that need to be made when

turning at the end of the field and also

ensures preset lift and lower heights are

maintained.

Efficient and easy to use

TDD tractors have a direct drive PTO

system. This reduces power losses and

the number of wearing parts within the

transmission.

Operated by a simple hand lever, the

PTO clutch allows the operator to feed

power to a driven implement gradually.

This reduces wear and tear.

PTO speeds available include ground

speed, 540/540E or 540/1000rpm.

More flow, greater control

All TDD models have independent power

steering and hydraulic service pumps. This

ensures full hydraulic power is always

available especially for demanding

applications such as front end loader work.

Downloaded from www.Manualslib.com manuals search engine

SPECIFICATIONS

MODELS

TD60D Plus

TD70D Plus

TD80DPlus

TD90D Plus

TD95D Plus

Engine*

No. of cylinders / aspiration / emission level

3 / naturally

3 / turbocharged

4 / naturally

4 / turbocharged

/ Tier II

Capacity

(cm³)

2930

3908

Bore x stroke

(mm)

104x115

Rated engine power ISO TR14396

- 2013/25/EC

[kW/hp(cv)]

59 / 43,5

69 / 50,5

58.5 / 80

65.5 / 89

69 / 94

Rated engine speed

(rpm)

2500

Max. torque at 1500rpm

(Nm)

206

255

279

320

337

Torque rise

(%)

Fuel tank capacity

(l)

92L

Synchro Shuttle™ transmission - 30kph

Number of gears / with creeper (F - R)

20x12

Speed range / with creeper

(kph)

0.25 - 30

0.25-30

Synchro Shuttle™ transmission - 40kph

Number of gears / with creeper (F - R)

20x12

Speed range / with creeper

(kph)

0.35-40

Axles

2WD front axle

4WD front axle

●

Hydraulics

Flexion Bar™ lower link draft sensing

●

Rear linkage category

Mechanical lift with Lift-O-Matic™

●

Position, draft, mixed and float controls

●

Main Pump flow - MegaFlow™

(lpm)

Steering pump flow

(lpm)

26.5

Remote valves

Max. number

Mid mount couplers

Linkage

Maximum lift capacity at ball ends with

arms horizontal

(kg)

3000

3565

Continuous lift capacity through the range

(610mm behind bar ends)

(kg)

2245

2700

PTO

Engine speed at:

540rpm

(rpm)

2200

540 Economy rpm

(rpm)

1715

1000rpm (optional)

(rpm)

2380

PTO activation

mechanical

Cab

Comfort driver seat

●

Air re-circulation filters

●

Turnaround diameter at narrowest

track setting

Turn angle

(°)

Min. turn radius

(mm)

3800

4100

Downloaded from www.Manualslib.com manuals search engine

MODELS

TD60D Plus

TD70D Plus

TD80DPlus

TD90D Plus

TD95D Plus

Dimensions**

A Overall length 2WD / 4WD

(mm)

3933 / 3933

4032 / 3976

4115 / 4059

B Minimum width

(mm)

1808

C Height at centre of rear axle to top of

Cab / ROPS

(mm)

1875 / 1896

1878 / 1896

D Total height Cab / ROPS

(mm)

2550 / 2570

2540 / 2558

2566 / 2584

2618 / 2636

E Wheelbase 2WD / 4WD

2175 / 2119

2305 / 2249

2388 / 2332

F Track width

Front 2WD

(mm)

1410 - 1910

Front 4WD

(mm)

1445 - 1875

1550 - 1980

Rear Min. / Max. (all axle types)

(mm)

1425 - 1925

1420 - 2025

G Ground clearance under drawbar

2WD / 4WD

(mm)

285 / 292

346 / 333

390 / 375

Weights**

Minimum weight cab 2WD / 4WD

(kg)

2840 / 3080

3170 / 3600

3340 / 3770

Minimum weight ROPS 2WD / 4WD

(kg)

2650 / 2920

2940 / 3420

3150 / 3580

Max. permissible weight on the front axle

2WD / 4WD

(kg)

2400 / 2650

2000 / 2800

Max. permissible weight on the

rear axle

(kg)

4000

* New Holland Engine developed by FPT - Fiat Powertrain Technologies

** National restrictions apply.

● Standard O Optional at extra cost

- Not available

Downloaded from www.Manualslib.com manuals search engine

NEW HOLLAND.

A REAL SPECIALIST IN YOUR

AGRICULTURAL BUSINESS.

at your own dealer

YOUR SUCCESS - OUR SPECIALTY

Safety begins with a thorough understanding of the

equipment. Always make sure you and your operators

read the Operator’s Manual before using the

equipment. Pay close attention to all safety and

operating decals and never operate machinery

Visit our web site at: www.newholland.com - tel: +61 2 9673 7777

without all shields, protective devices and

31-53 Kurrajong Road, St Marys NSW 2760

structures in place.

The data indicated in this folder are approximate. The models described here can be subjected to modifications without any notice by the manufacturer.

The drawings and photos may refer to equipment that is either optional or intended for other countries. Please apply to our Sales Network for any further

information. Published by New Holland Brand Communications. Bts Adv. - Printed in Australia - TDD Plus 05/09

Downloaded from www.Manualslib.com manuals search engine

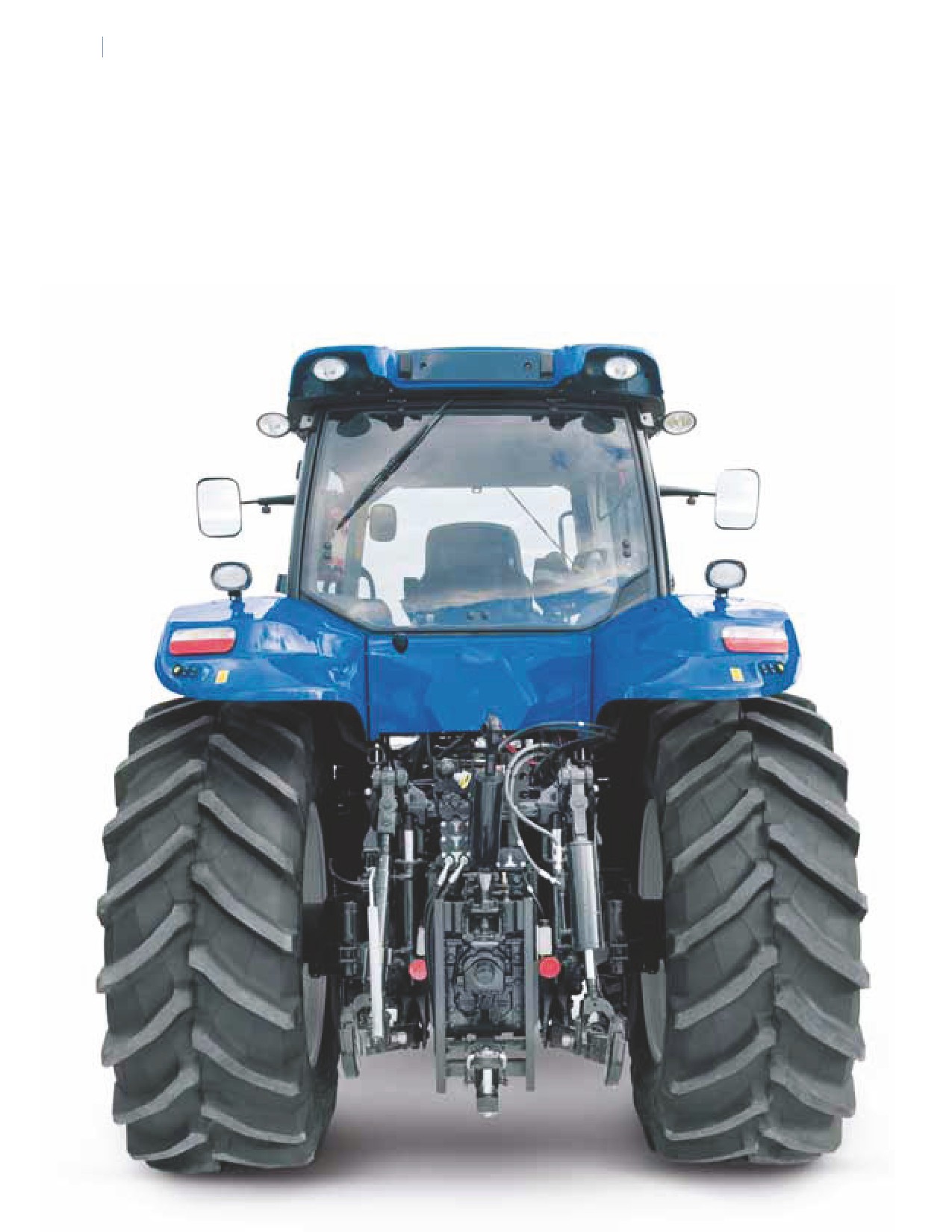

THE FIRST AGRICULTURAL CROSSOVER

STYLISH AND STABLE, POWERFUL AND ABLE.TYPICALLY NEW HOLLAND

New Holland DNA runs through every aspect of the T8 tractor series.

A long wheelbase for stability. A quiet, spacious cab. World class ergonomics. Modern FPT Industrial

power for optimum performance and economy. Heavy duty axles for dual wheels front and rear.

High capacity hydraulics. Brilliant all-round visibility. Great manoeuvrability. Stylish looks.

MORE POWER AND PRODUCTIVITY

T8 tractors are the most powerful rigid tractor series available with a full powershift transmission. The

entire range boasts New Holland’s cutting-edge ECOBlue™ SCR technology for Tier 4A compliance.

This means that the Cursor 9 engine enjoys exceptional breathability for a significant performance

advantage. All models benefit from Engine Power Management which offers more power for

demanding PTO, hydraulic and transport applications, with up to 49hp(CV) extra on the T8.390.

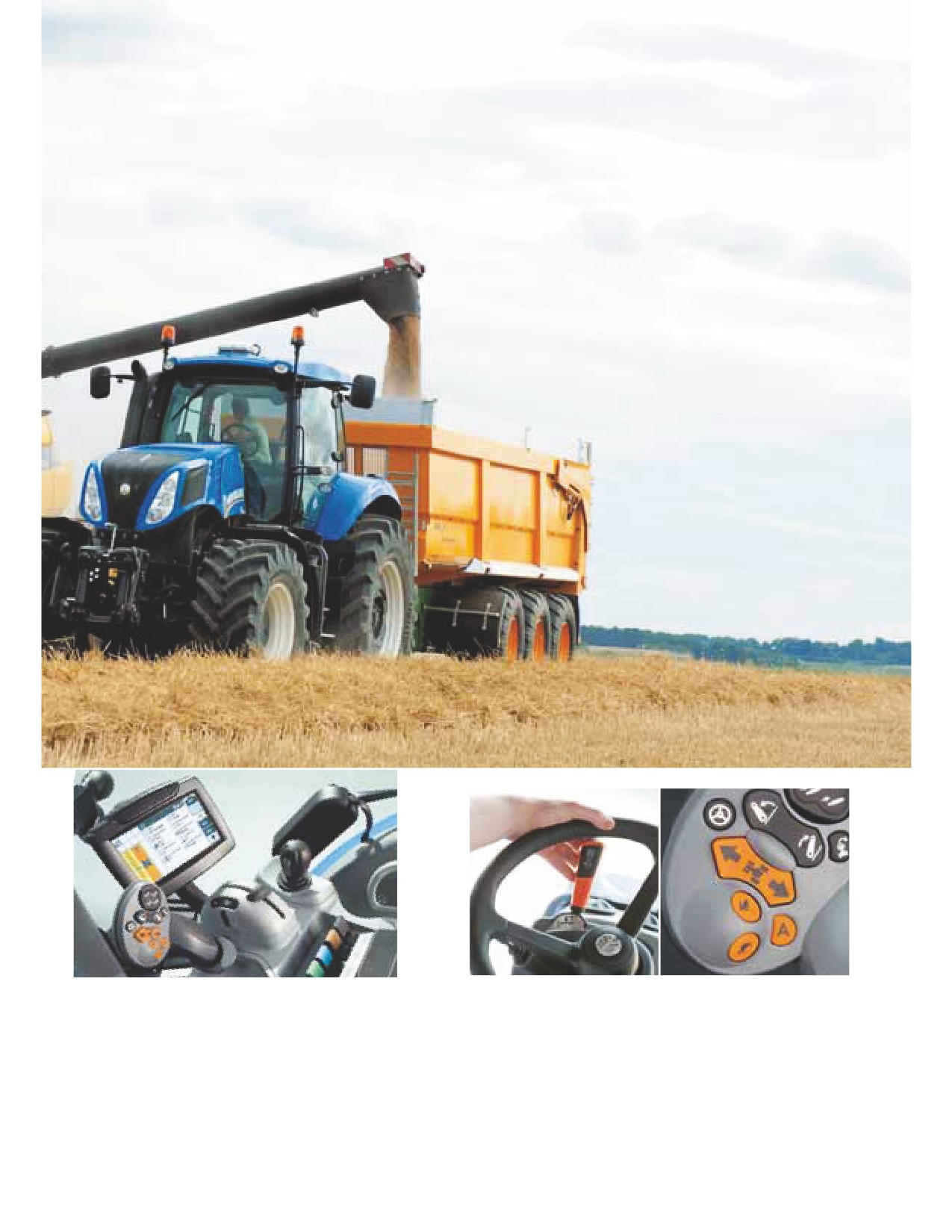

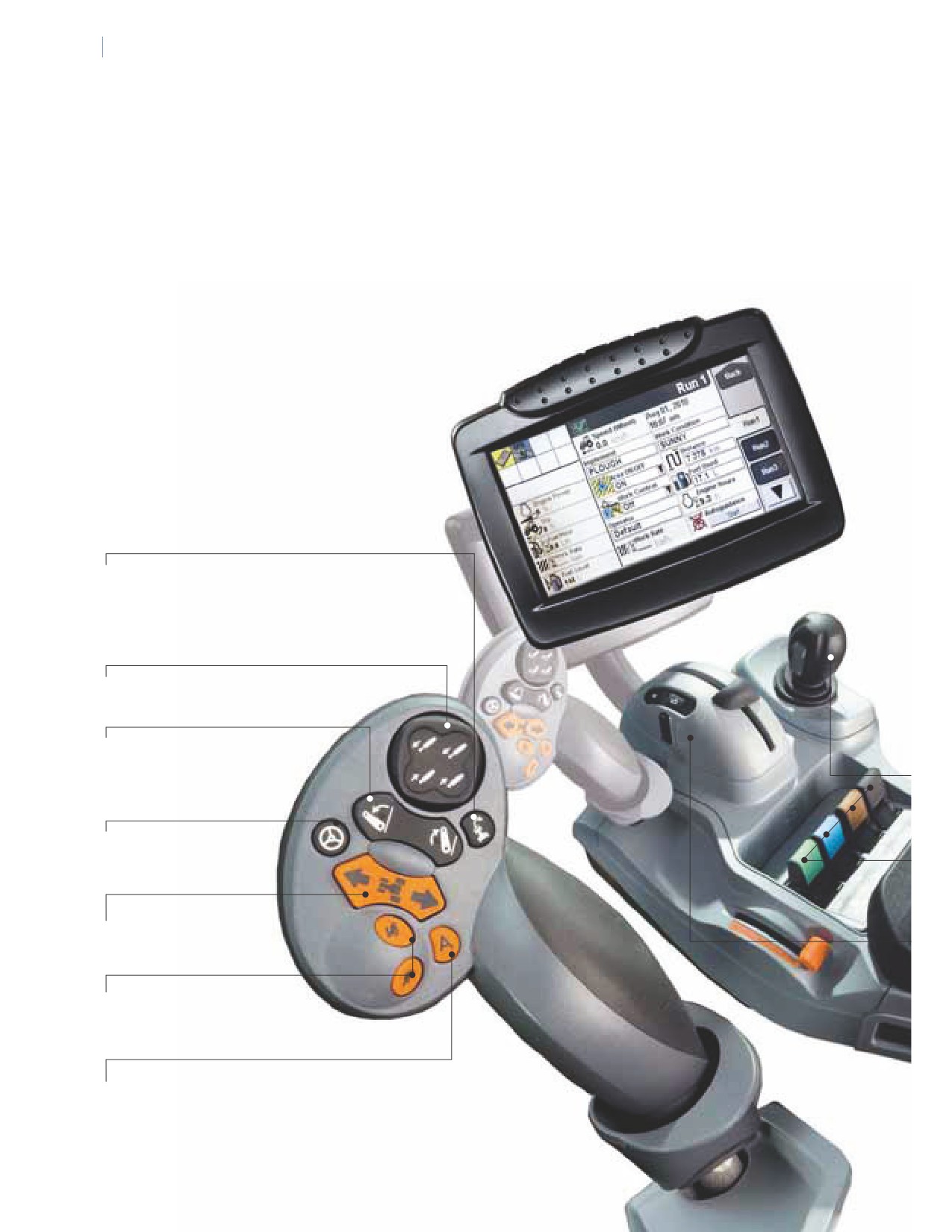

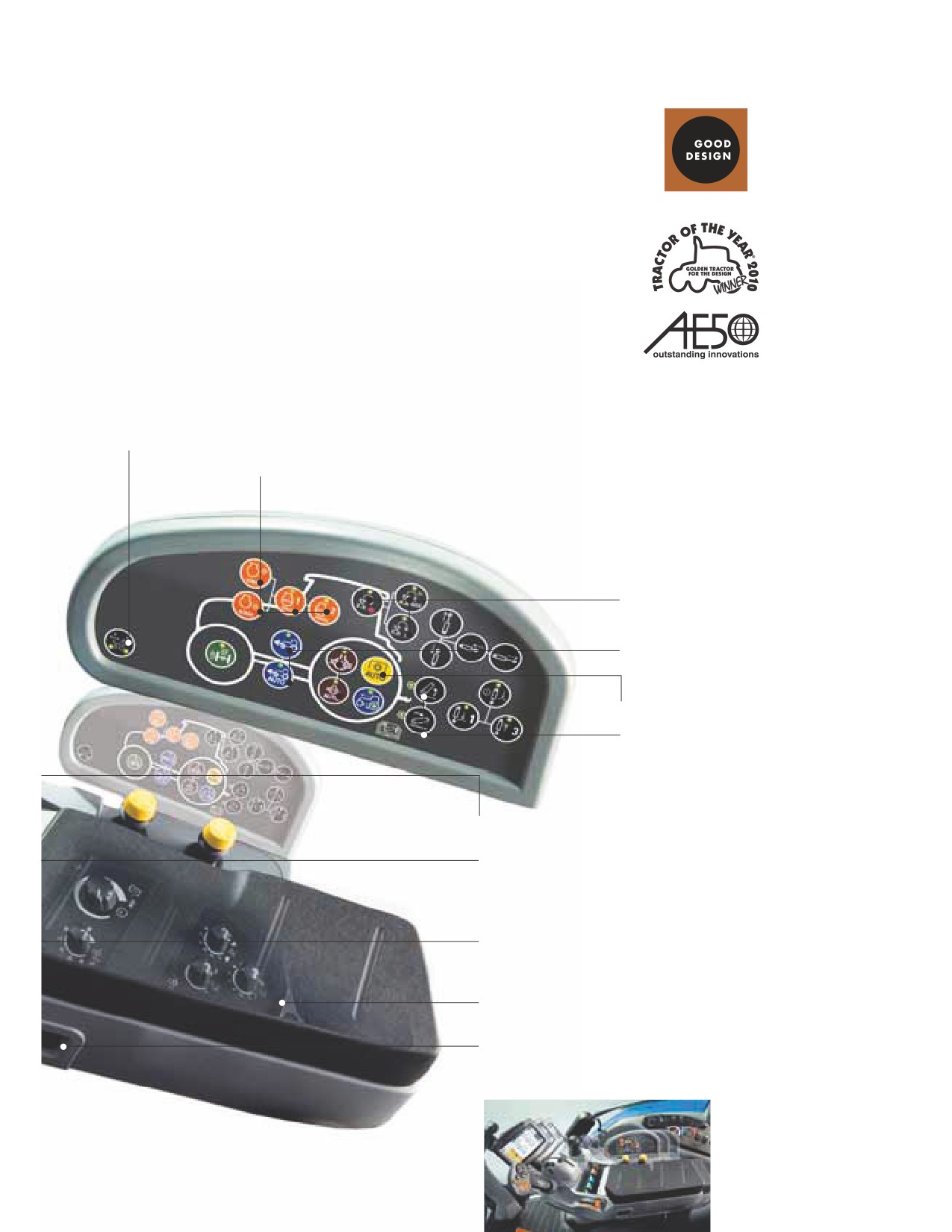

ABSOLUTE DRIVING PLEASURE

New Holland’s SideWinder™ II armrest makes the T8 range intuitive to operate for reduced fatigue.

All key functions are immediately recognizable and are perfectly placed for fingertip control.

The 68dB(A) whisper-quiet cab is the most spacious in its segment and offers uninterrupted 360°

visibility. Comfort Ride™ cab suspension ensures the smoothest ride even on the roughest terrain.

EXACTLY WHAT IT SAYS ON THE ENGINE HOOD

T8 tractors offer improved performance thanks to the Tier 4A ECOBlue™

SCR advantage, and these productivity enhancing characteristics are

immediately obvious to all users. How? Quite simply, it is on the hood.

The first two digits ‘T8’ refer to the tractor’s category and the following

three, for example ‘390’, refer to the maximum engine power the T8

can deliver when its Engine Power Management is active.

Downloaded from www.Manualslib.com manuals search engine

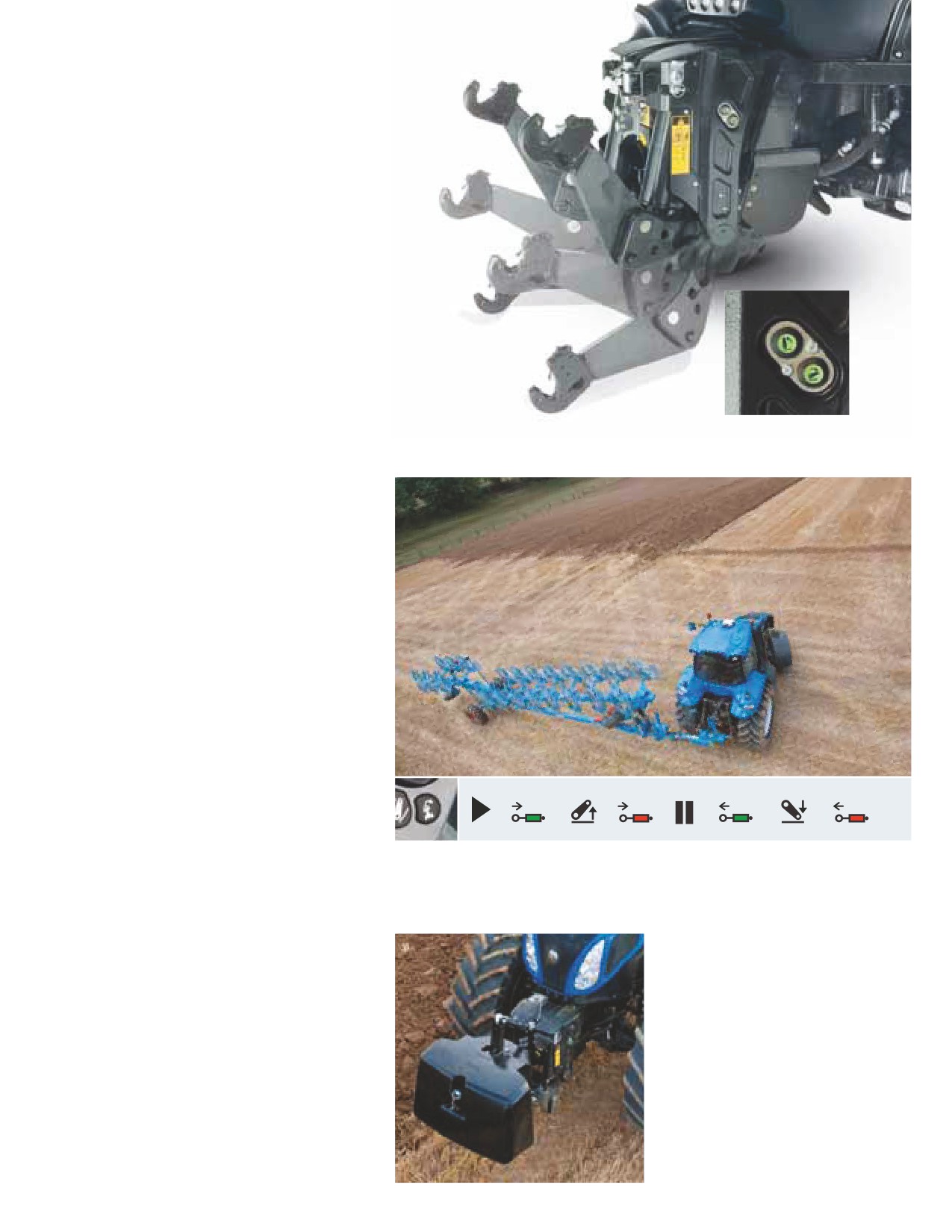

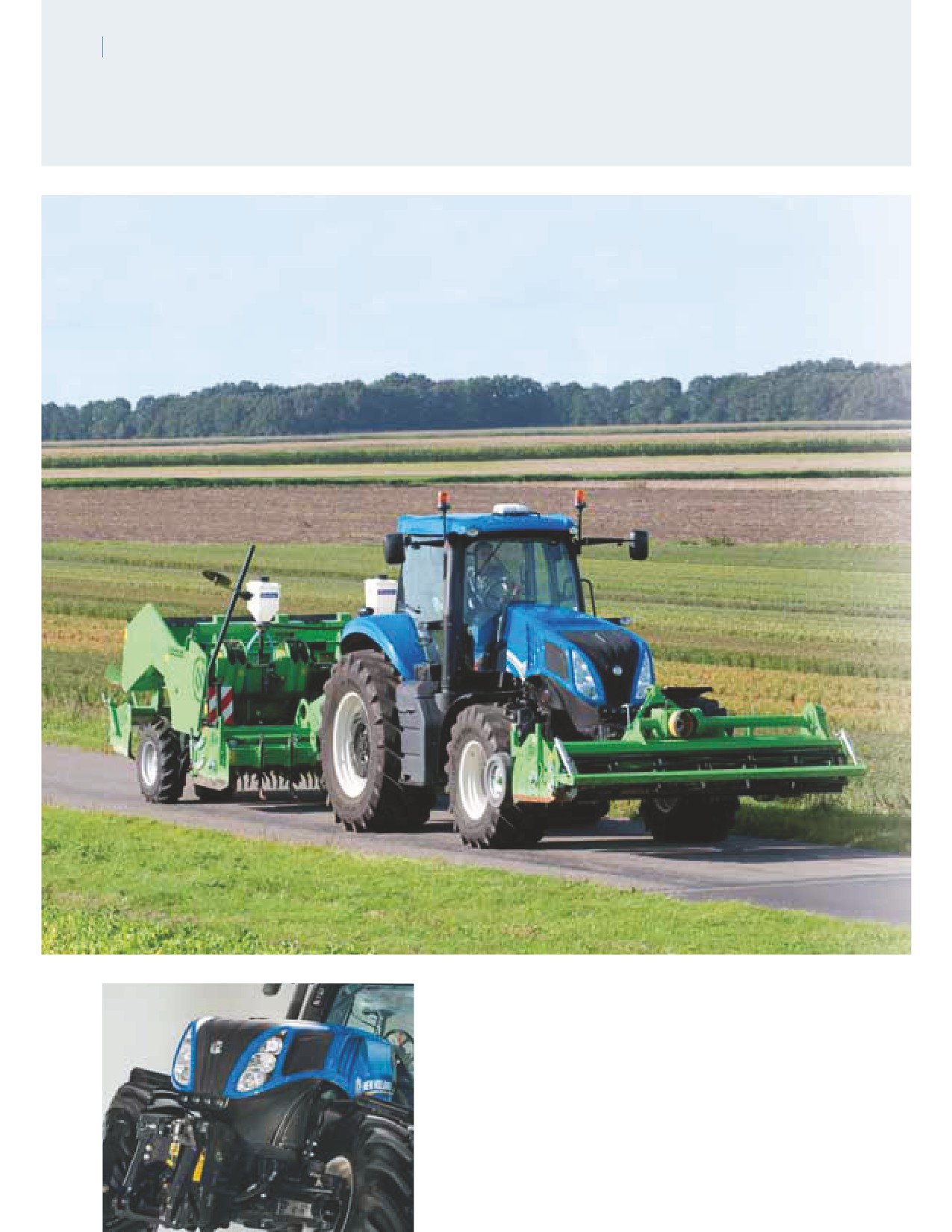

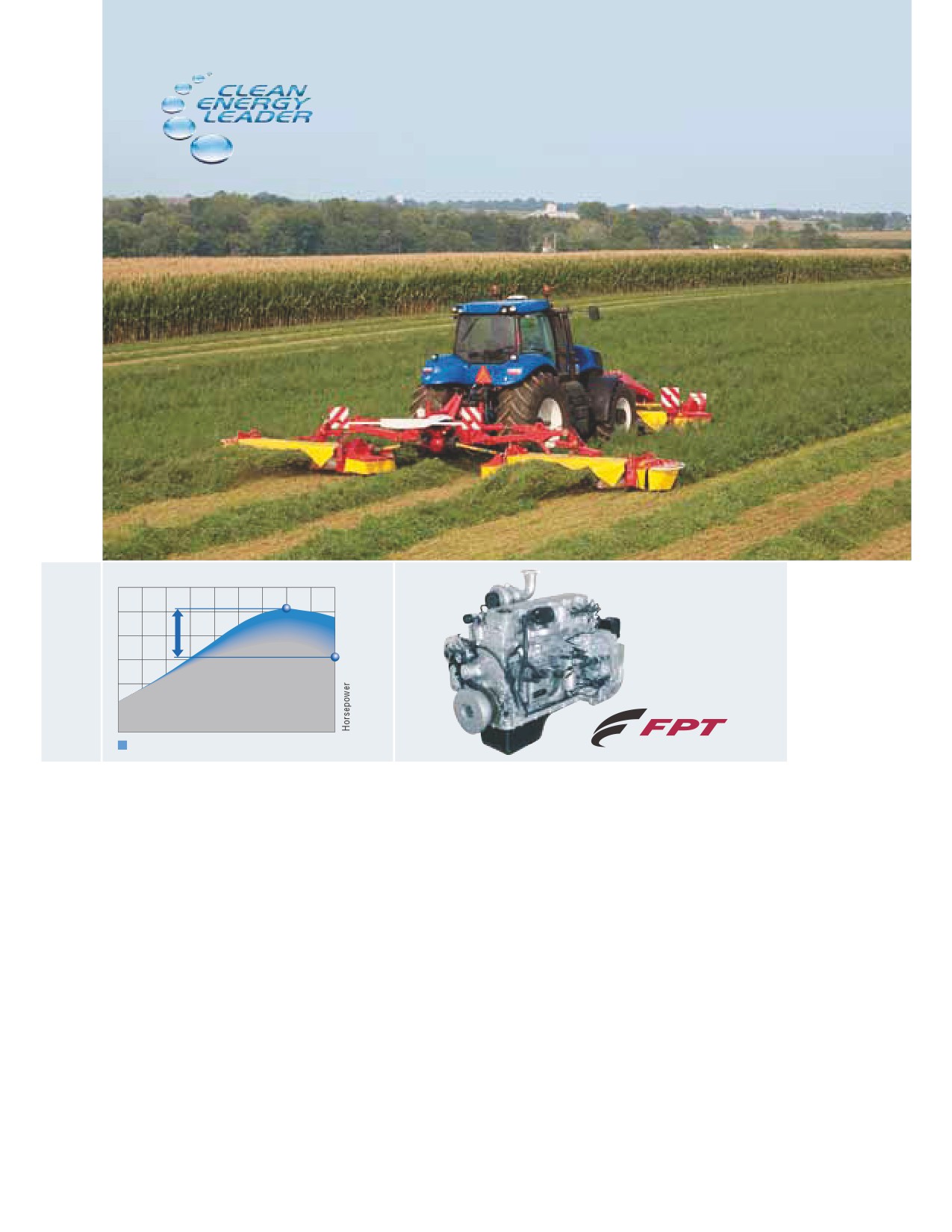

MAXIMUM VERSATILITY

T8 tractors were not designed solely for primary arable work. The long wheel base and exceptional

maneuverability ensure the T8 can not just excel at heavy draft applications, they are also perfect for

secondary cultivation, drilling and haulage tasks. The integrated front linkage and PTO means that

a full range of front mounted implements can be fitted and powered.

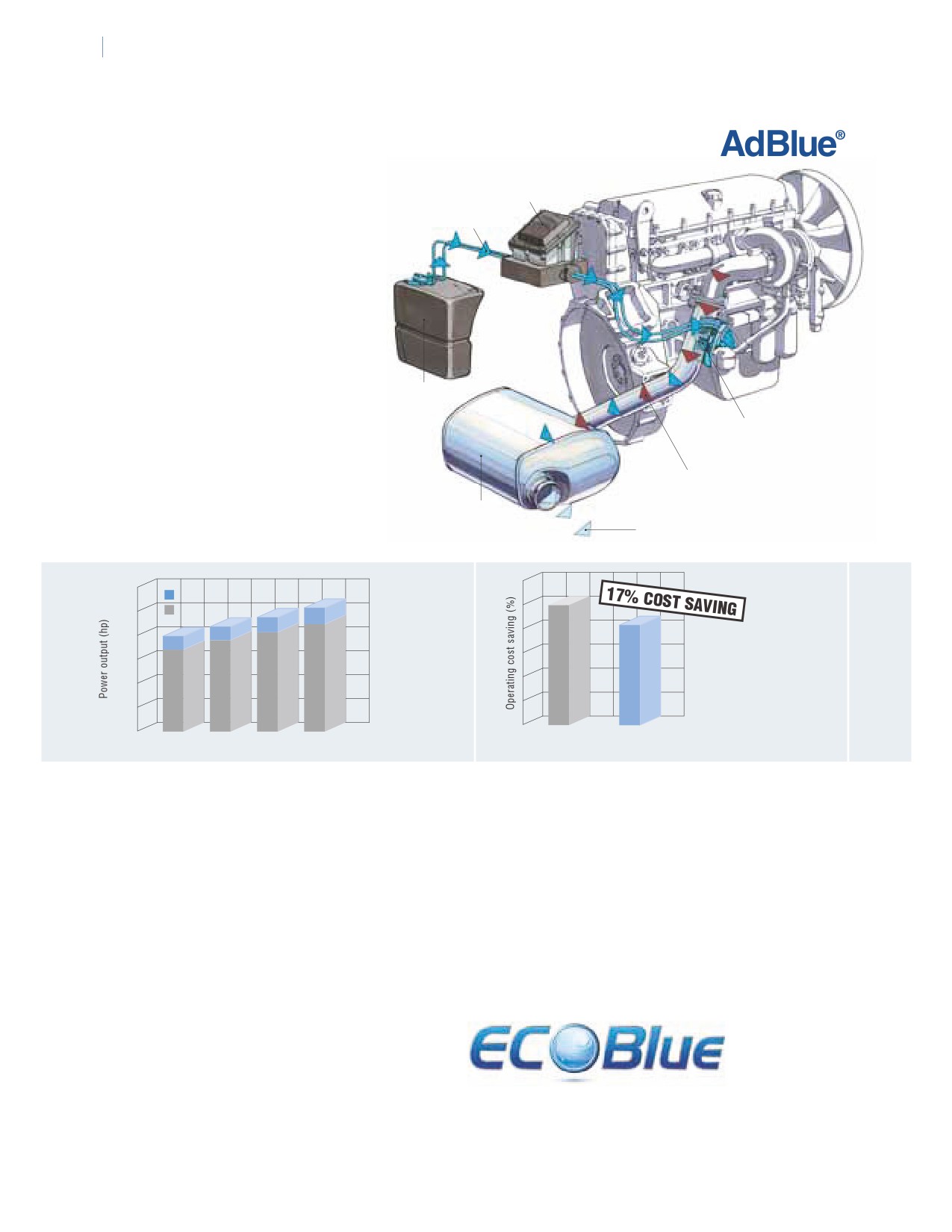

LOWER OPERATING COST

Operating costs for the new, Tier 4A compliant T8 tractors have been reduced by 17%, thanks

to cutting-edge ECOBlue™ SCR technology, when compared to existing Tier 3 models. This is due to

improved fuel efficiency and long service intervals. Even when the cost of AdBlue^® is taken into account.

Engine speed

Max power with EPM [hp(CV)]

T8.300

298

EPM [hp(CV)]

T8.330

327

T8.300

T8.360

357

Rated power [hp(CV)]

T8.330

T8.390

389

T8.300

257

T8.360

T8.330

284

T8.390

T8.360

311

T8.390

340

EPM according to the load on transmission, PTO and hydraulics.

Downloaded from www.Manualslib.com manuals search engine

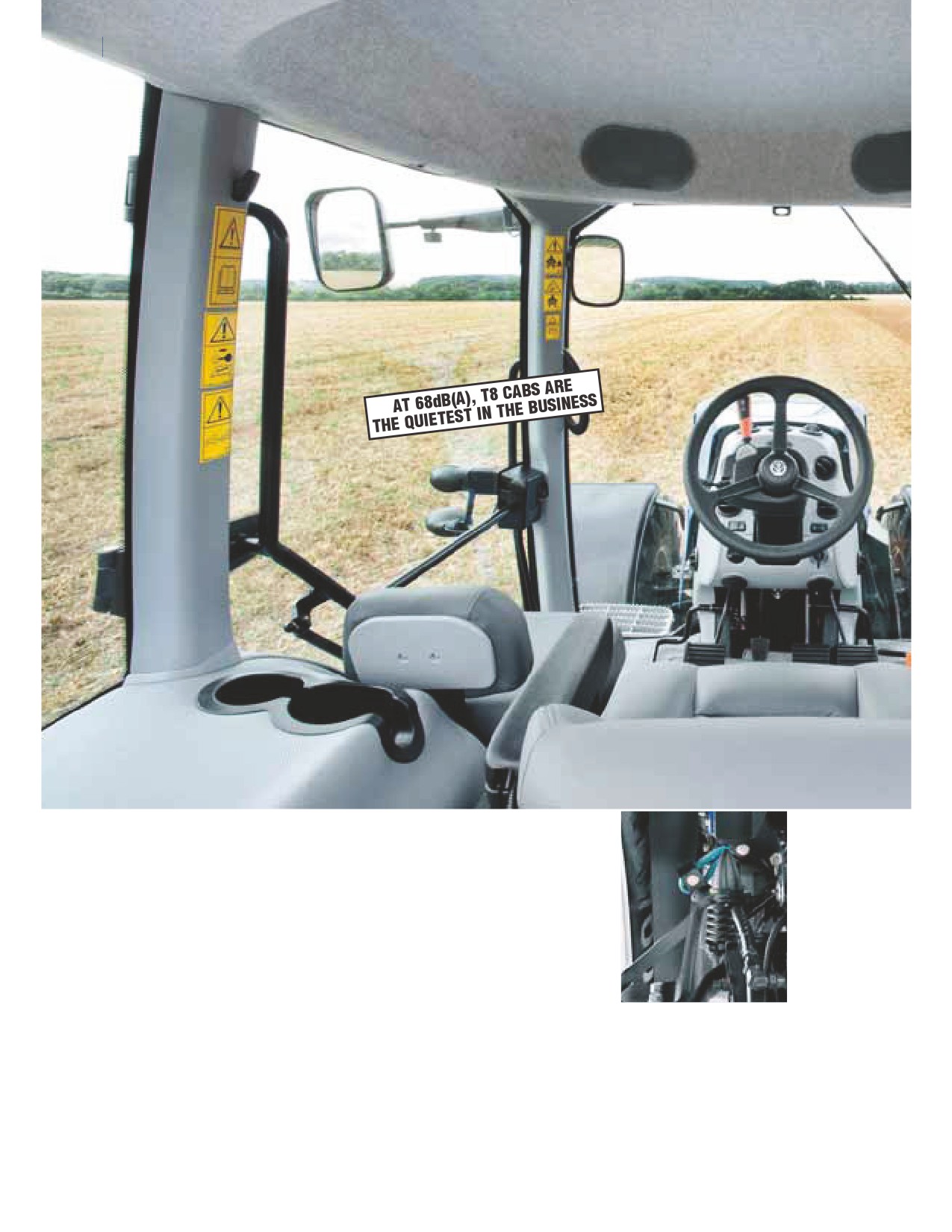

NEW HOLLAND VISIBILITY

New Holland T8 tractors have

a five-pillar cab design with fully

glazed doors. This is perfectly

matched with a slim engine hood,

curvaceous fenders and a compact

overall design. This all combines

to ensure the operator has brilliant

360° visibility.

THE FINER POINTS

From the low level door release

to the in cab storage and power

locations, the T8 cab ticks all the

boxes. Right hand wash wipe,

electrically adjustable heated

mirrors and implement box

mounting bars are all standard.

CUSTOMISE YOUR

WORKING ENVIRONMENT

Set your preferred in-cab working

temperature and the optional

automatic climate control system

will maintain this setting, adjusting

to suit ambient conditions. Pull

down the cab blinds to stay cool.

AUTO COMFORT™ SEAT

FROM DUSK TO DAWN

Operator comfort is a key New Holland priority.

Cab roof, engine hood and fender

The advanced Auto Comfort™ seat

worklights are easily controlled from a

automatically adjusts to the weight of the

dedicated switch panel. A 360 degree

operator. Offering precision controlled

lighting package supplies 4 HID lights

damping, the seat automatically reacts to

and 10 halogen lights. Delayed lighting

shock loads before they reach the operator.

ensures that you can leave the tractor

in safety before the lights are turned off.

Downloaded from www.Manualslib.com manuals search engine

IDEWINDER™ II ARMREST & COMMANDGRIP™ HANDLE

SIDEWINDER II.

As modern tractors offer increasingly sophisticated features there is a risk that they

become more difficult to understand and operate. At New Holland we listened to

customers and developed the SideWinder™ II armrest to make everything simpler.

All key controls are accessed from the armrest. Throttle, transmission and hydraulics.

Everything you need to control is quickly and easily accessible. More advanced

features can be quickly accessed. It does not take long to master a T8 tractor.

INTELLIVIEW™ III TOUCHSCREEN.

All the information you need at a

glance. Fingertip adjustment of all

key settings and compatible with

the New Holland IntelliSteer™

guidance system.

• Headland turn sequencing, HTS.

Press to record, store and activate

automated headland turn.

• Finger tip control for

up to two remote valves.

• Rear linkage raise lower.

• Optional IntelliSteer™

autoguidance, automated

steering engagement.

• Forward reverse

shuttle switch.

• Change transmission ratio

up and down.

• Ground Speed Management, GSM.

Transmission and engine work together

to optimise performance.

Downloaded from www.Manualslib.com manuals search engine

EASY ACCESS TO ADVANCED FEATURES

As awarded by The Chicago Athenaeum:

Museum of Architecture and Design.

Push the symbol. Activate the feature. The Integrated Control

Panel, ICP, makes it simple to access advanced operating

features. No need to scroll through menus to set up Terralock

traction management, HTS headland turn sequencing, Auto PTO

or ESM Engine Speed Managment.

• Select paddle or joystick control for remote valves.

• Throttle up to your desired engine speed, select Engine

Speed Management, and the speed is fixed.

• Press the Headland Turn Sequencing

button to record and replay the

functions you use most frequently.

• Engage Terralock and it will

automatically manage four-wheel

drive and differential lock selection.

• Auto PTO will disengage and reengage

the PTO during a headland turn.

• Three point hitch levelling and top link

extension at the touch of a button.

• Multifunction joystick. The joystick can be used

to control remote valves or the front linkage.

• Electronic remotes. Easy to reach paddles

provide fingertip hydraulic operation.

Flow and timing can be simply adjusted

through the IntelliView™ III touch screen.

• EDC mouse.

Precise control of the independent Position

and Draft systems.

• Full access to further advanced controls

under the padded armrest.

• Electronic SideWinder™ II adjustment.

Move the armrest to the position that suits you.

Downloaded from www.Manualslib.com manuals search engine

PLM

NEW HOLLAND GUIDANCE SYSTEMS

TO MATCH YOUR FARMING NEEDS

ALL WIRED UP READY FOR YOUR CHOSEN GUIDANCE SYSTEM

Series T8 tractors can be specified with a fully integrated New Holland designed and developed

IntelliSteer™ Automatic Steering System. Matching DGPS or RTK Technology to fully integrated

control, IntelliSteer helps ensure parallel pass to pass accuracy of up to 1-2cm*. IntelliSteer

is ideal for precision work in even the most demanding situations. It is designed to dramatically

improve operator performance and comfort. All this and more at the touch of a button.

* Using RTK correction signal.

FULLY INTEGRATED INTELLISTEER™ GUIDANCE

Guidance system choice will relate to the intended applications and the need to

integrate with existing systems. With T8 series tractors, all IntelliSteer options operate

via factory installed systems that facilitate installation and upgrades. This enables the

selected package to be modified and upgraded simply and more economically.

INTELLIVIEW - VISIBLE INTELLIGENCE

INTEGRATED CONTROL SYSTEMS

The standard IntelliView™ III monitor can be used to set up the

The New Holland IntelliSteer™ System uses

optional New Holland auto guidance systems, and includes a visual

built in T3 terrain compensated correction

interface that can be employed when operating the IntelliSteer™

signals (roll, pitch, yaw) to keep the Navigation

system. The IntelliView™ III monitor has a touchscreen display

Controller II informed of the tractor's orientation.

which allows the programming of a variety of guidance paths,

Also integrated into the hydraulic system is a

from straight A-B runs to the most complex adaptive curves. You

control valve which converts the signals from

can also personalize your settings simply and easily and even transfer

the Navigation Controller II into hydraulic

information from your tractor, direct to your Precision Farming software.

movements of the steering system.

Downloaded from www.Manualslib.com manuals search engine

4,000

£2803

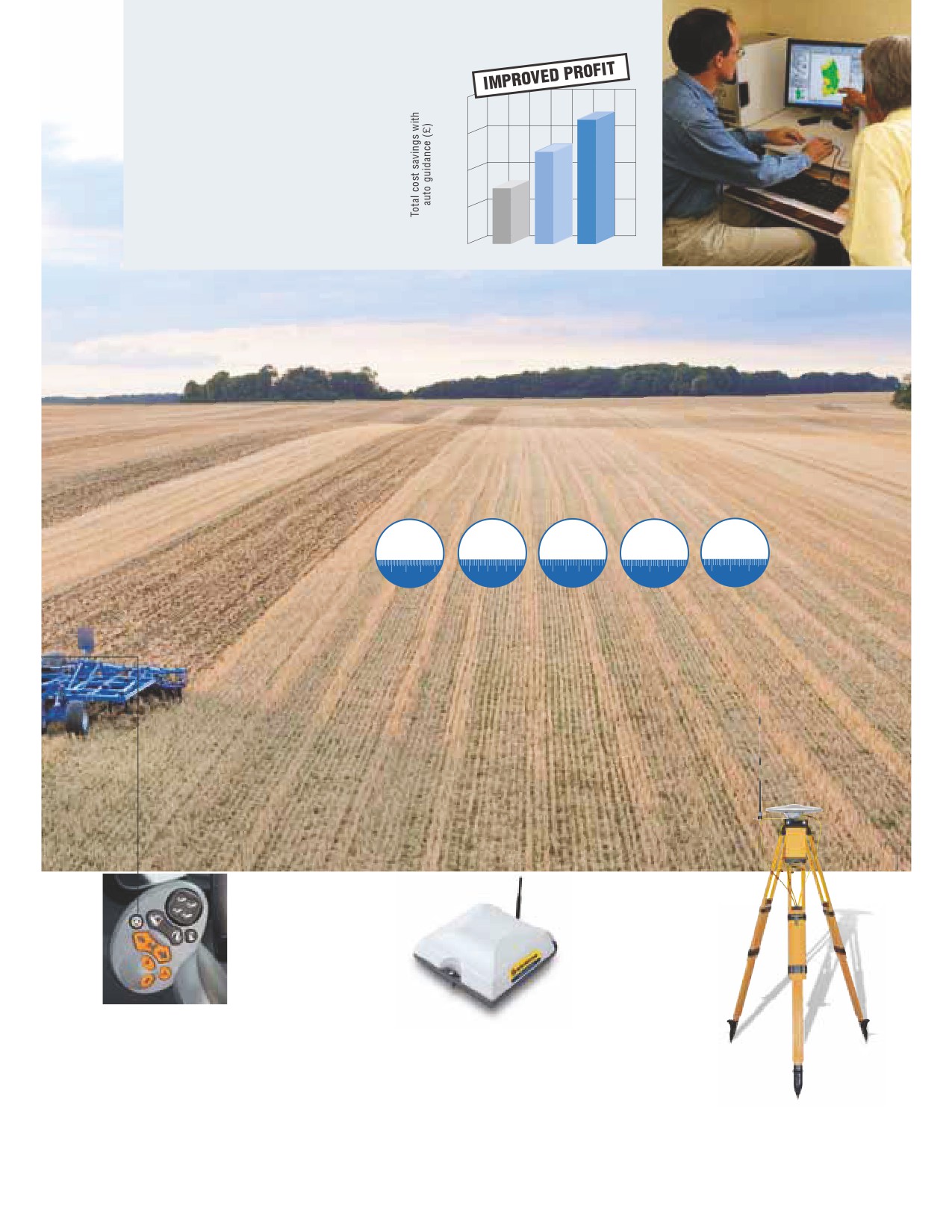

GOOD GUIDANCE SAVES MONEY

IntelliSteer helps improve overall

3,000

£2247

operating efficiency. In poor light

or during long working days,

2,000

£1503

precision driving is not compromised.

Improved efficiency saves money.

1,000

It is as simple as that.

EGNOS HP/XP RTK

LEVELS OF ACCURACY AND REPEATABILITY

New Holland offer four levels of accuracy. This enables you to select the right

IntelliSteer™ system to match your needs and budget. When using RTK correction

with IntelliSteer™ you can enjoy guaranteed year on year repeatability.

EGNOS

RTK

OmniSTAR VBS

OmniSTAR XP

OmniSTAR HP

RTK VRS/GPS

GPS+GLONASS

30 cm

12 cm

10 cm

2,5 cm

RTK BASE STATION

An RTK base station can be used

to broadcasts a correction signal

to achieve a pass to pass

accuracy of -2.5cm.

INTELLISTEER.

NH 262 RECEIVER

ON AND OFF SIMPLICITY

The NH 262 receiver is capable

The CommandGrip™ handle

of working with EGNOS, OmniSTAR

incorporates a single button that

or RTK correction. For RTK

is used to activate the IntelliSteer

applications a slim profile radio

system. New Holland makes

mounts underneath the receiver.

advanced technology accessible.

Downloaded from www.Manualslib.com manuals search engine

ENGINE

ULTIMATE ENGINE BREATHABILITY

T8 tractors are powered by the

Supply module

same family of advanced Tier 4A

AdBlue/DEF additive

compliant Cursor engine used in

New Holland CX combines. We are

committed to making agriculture

more efficient whilst respecting the

environment. The proven ECOBlue™

SCR technology uses AdBlue^® to

transform the harmful nitrogen

oxides contained in the exhaust gas

into harmless water and nitrogen.

This after-treament system is

AdBlue/DEF tank

separate from the main engine which

means only clean, fresh air is fed

Dosing module

into the engine. What does this

mean? Clean running power units

that offer improved performance

Exhaust gas containing NOx

and enhanced fuel efficiency.

SCR Catalyst

Nitrogen and Water

450

EPM

375

Rated power

300

225

150

T8000

T8.300

T8.330

T8.360

T8.390

Tier 3

Tier 4A

ECOBLUE™ SCR:YOUR POWER GUARANTEE

CLEAN RUNNING THAT SAVES MONEY

ECOBlue™ SCR guarantees exceptional

T8 tractors fitted with Tier 4A compliant engines

performance and high productivity, independent

offer a 17% reduced overall operating cost thanks

of fuel quality, sulphur levels and without the need

to improved fuel efficiency, 100% longer service

for costly diesel additives.

intervals, now up to 600 hours, and reduced servicing

The T8.300 is rated at 257hp(CV) but will deliver

costs. All this contributes to longer engine life. Where

up to 298hp(CV). The 311hp(CV) T8.360 and

does AdBlue^® fit into the equation? Well, it’s already

340hp(CV) T8.390 develops up to 357 and

been accounted for. AdBlue^® should not be looked

389hp(CV) respectively. More power from less

at as an extra cost, it's your route to a lower fuel bill.

fuel with clean emissions.

Whatever you spend on AdBlue^® is paid for several

times over by the reduction in fuel consumption and

the increase in output! Improved environmental profile

and reduced operating costs: it's a win-win situation.

Downloaded from www.Manualslib.com manuals search engine

ENGINE SPEED MANAGEMENT

In applications where a constant PTO speed is required, the operator

can select Engine Speed Management. This will ensure this selected

speed is accurately maintained under changing loads. This means that

a fixed forward speed will be maintained even on challenging terrain.

Engine speed

49hp(CV)

EPM according to the load on transmission, PTO and hydraulics.

POWERTRAIN TECHNOLOGIES

ENGINE POWER MANAGEMENT

Engine Power Management is a renowned

New Holland are not going it alone when it comes

New Holland tractor feature. In short, the

to Tier 4A technology, they can draw on the experience

engine develops more power and torque

of their engine development partner: FPT Industrial.

according to the load on the transmission,

Pioneers: Fiat invented Common Rail technology

hydraulics and PTO. On a T8.390 tractor,

in the 1980s and brought it to the masses in 1997

EPM will deliver up to 49hp(CV) extra

on the Alfa Romeo 156. They were the very first to introduce

but only when it is needed to

it on agricultural machines. Pioneering. Always.

maintain performance.

Cleaner: Fiat S.p.A. have the lowest overall CO2 emissions of

any automotive manufacturer in Europe. Cleaner. Everywhere.

Proven: FPT Industrial have already produced over 150,000

SCR engines during the last five years for the haulage

industry. Reliability. Confirmed.

After all, only those who invented it can reinvent it.

Downloaded from www.Manualslib.com manuals search engine

TRANSMISSION

PROVEN DESIGN, MODERN CONTROL

A FULL POWERSHIFT UP TO 390HP(CV)

Ultra Command™ full powershift transmissions match proven mechanical

efficiency to New Holland ease of control. The result? A transmission

that is really easy to set up and operate with a speed to perfectly match

every application. The CommandGrip™ handle provides finger tip access

to automated features, that including Ground Speed Management.

Choose between 19x4 (40kph ECO or 50kph) direct drive or a 23x6

with creeper options. Ease of use comes as standard.

GSM. INTELLIGENT AUTOMATION

FIXED FORWARD SPEED?

New Holland Ground Speed

GSM TAKES CARE OF IT

Management, GSM, is more than

When load conditions change in the

just an automated transmission shift

field, GSM will automatically maintain

system. With CVT-like functionality, it

a fixed forward speed. The operator

uses a combination of data relating

first sets the desired working speed

to engine load, forward speed and

and then selects the GSM function.

operator setting, to manage both

The automated system will then

engine and transmission speeds to

match engine and transmission

ENGINE

optimise performance and economy.

POWER

speeds to maintain this fixed forward

GEARS 9

Simple to set up and extremely efficient,

SPEED

speed, to deliver the perfect balance

GSM is well proven and dependable.

between maintaining productivity

without compromising economy.

FULL COMMAND IN TRANSPORT

During road transport, GSM will

automatically shift the transmission

according to load and throttle

settings. The foot pedal will act as

a drive pedal, simply press it down

to upshift to your required speed.

Downloaded from www.Manualslib.com manuals search engine

FACTORY FITTED FRONT LINKAGE AND PTO

From the outset, the T8 tractor series was designed

to work with a front linkage. The slim engine hood

provides excellent forward visibility.

The balanced long wheelbase makes it easier to

make full use of the linkage’s 5810kg lift capacity.

Integrated electronic front linkage controls are within

easy reach of the operator. A retrofit front linkage

and PTO package is also available.

HEADLAND TURN SEQUENCE

The Headland Turn Sequence has been

refined and developed by New Holland

for the ultimate in easy set-up and use.

For complex applications, including

operating a front linkage, HTS really

can reduce operator fatigue. Of equal

importance, the operator can use HTS

to manage a selection of operations

but leave others to manual control.

It is up to the operator. Set up is simply a

case of recording the desired operations

at the headland. The actions can then

be repeated, automatically, by pressing

a button on the CommandGrip™ handle.

8 sec

5 sec

8 sec

5 sec

FLEXIBLE BALLASTING

Thanks to New Holland’s optional fully

integrated front linkage, ballasting is now

even easier. You can choose between a

whole whole host of front ballasting options

to perfectly suit each individual application.

They can be be quickly and simply fitted

and removed from the comfort of the cab.

Downloaded from www.Manualslib.com manuals search engine

MEGAFLOW™ PUMP

Standard hydraulic flow is a

generous 161 litres per minute.

For extremely high flow requirements

an additional MegaFlow pump

delivers a total flow of 274 litres

per minute. With Engine Power

Management, full hydraulic capacity

can be exploited in demand

conditions, with up to 49hp(CV)

of extra power available.

UP TO 6 ELECTRONIC REMOTES

The remote valves fitted to T8 tractors

are easily identified and related to their

in-cab control. The operator can access

all six without having to move away

from the SideWinder™ II armrest. Four

colour-coded paddles and a centrally

positioned joystick make it simpler to

identify and work each remote with

exact precision. The CommandGrip will

also give access to two valves. Flow,

timing and detent settings can be set to

precisely match the job. Each valve can

also be programmed into the Headland

Sequencing system.

FLOW CONTROL

USING THE INTELLIVIEW III

The IntelliView™ III touchscreen makes

setting flow rates to individual valves simple.

Scroll through the menus and select valve

control. Choose the outlet you wish to adjust,

and drag the slider with your finger to the

desired setting. Job done.

Downloaded from www.Manualslib.com manuals search engine

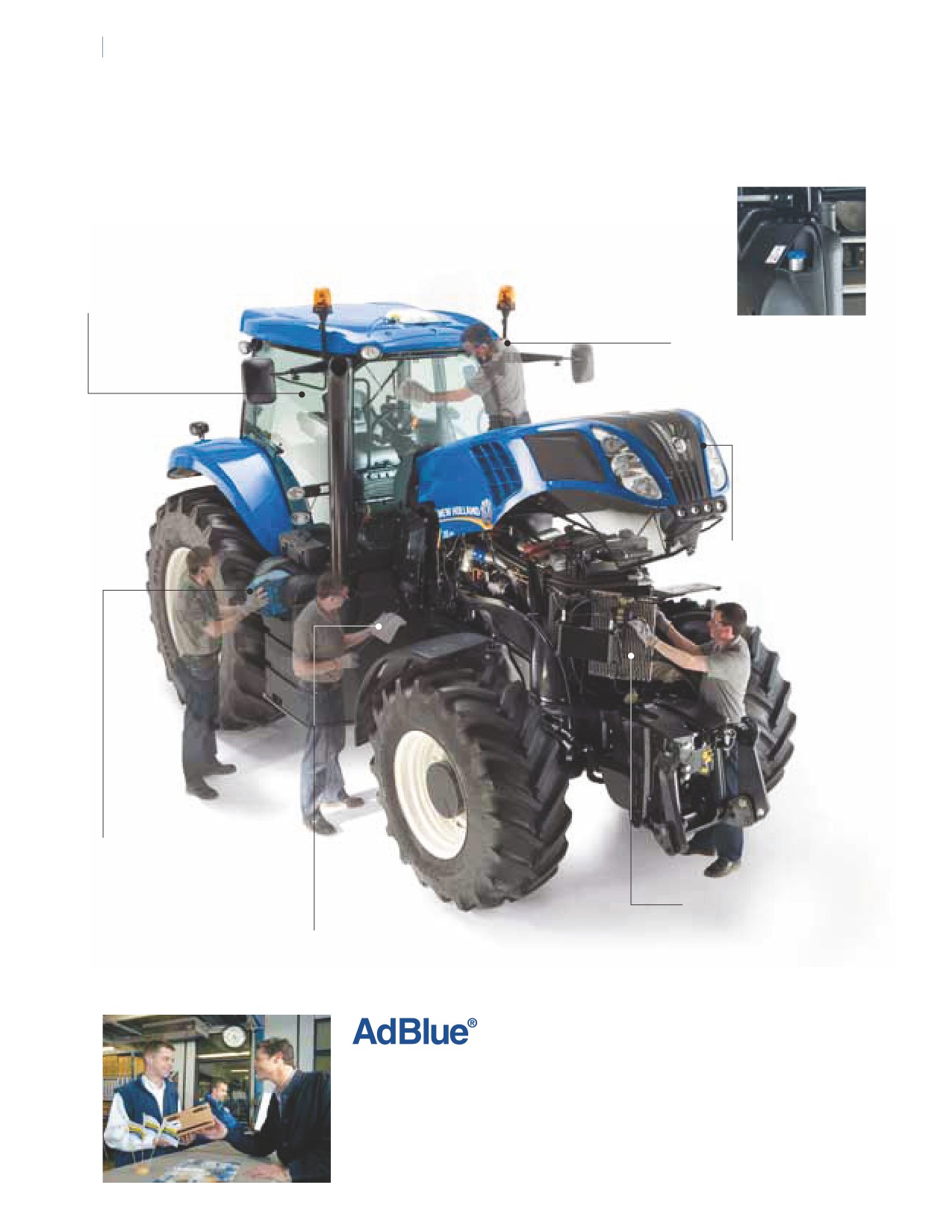

SERVICE AND BEYOND THE PRODUCT

360°: T8

The new T8 range has been designed to spend more time

The 89 litre AdBlue^® additive

working and less time in the yard. All service points are easy

tank has a lock which prevents

to access, and super long service intervals mean they will

filling with fuel. It only needs to

spend more time in their natural environment: the field!

be filled once every two refills

of the 651 litre fuel tank.

• Top up the screen

wash bottle through

• A built in step makes

the rear window.

reaching the front screen for

cleaning safe and secure.

• Single piece engine

hood opens wide for

full service access.

• Check, clean or replace the

engine air filter without

raising the engine hood.

• Cooling package opens

out to make cleaning

• Engine and hydraulic oil check and fill points are

faster and easier.

easy to reach making routine checks fast and

servicing simpler. Engine service intervals have

been extended by 100% to 600 hours.

WILL I BE ABLE TO FIND ADBLUE^® EASILY?

The answer is yes! It will be available on your doorstep,

through CNH Parts & Service; just contact your local dealer

for more information. If that wasn’t enough, AdBlue can even

be delivered direct to your farm for absolute convenience.

Downloaded from www.Manualslib.com manuals search engine

FINANCE TAILORED

TRAINED TO GIVE YOU

SERVICE PLUS -

TO YOUR BUSINESS

THE BEST SUPPORT

LONG LASTING CONFIDENCE

CNH Capital, the financial services

Your dedicated New Holland dealer

Service Plus coverage from

company of New Holland, is well

technicians receive regular training

Covéa Fleet provides owners

established and respected within the

updates. These are carried out both

of New Holland agricultural

agricultural sector. Advice and finance

through on-line courses as well as

machinery with additional cover

packages tailored to your specific

intensive classroom sessions. This

on the expiry of the manufacturer’s

needs are available. With CNH Capital,

advanced approach ensures your

contractual warranty. Please ask

you have the peace of mind that

dealer will always have the skills

your dealer for more details.

comes from dealing with a financing

needed to look after the latest and

Terms and conditions apply.

company that specialises in agriculture.

most advanced New Holland products.

DEALER INSTALLED

ACCESSORIES

A comprehensive range of

approved accessories to

optimise machine performance

in all conditions can be supplied

and fitted by your dealer.

WWW.NEWHOLLANDSTYLE.COM

Want to make New Holland

a part of your everyday life?

Browse the comprehensive selection

on www.newhollandstyle.com.

A whole range of items are available

including hard wearing work clothing

and a vast selection of scale models,

together with so much more.

New Holland. As individual as you.

Downloaded from www.Manualslib.com manuals search engine

SPECIFICATIONS

MODELS

T8.3OO

T8.33O

T8.36O

T8.39O

New Holland Engine*

FPT Cursor 9

No. of Cylinders / Aspiration / Valves / Emission level

6/ WT / 4 / Tier 4A

ECOBlue™ SCR system (Selective Catalytic Reduction)

Fuel system - High Pressure Common Rail

Capacity

(cm³)

8700

Approved biodiesel blend**

B20

Bore and stroke

(mm)

117x135

Max. EPM horsepower - ISO TR14396 - ECE R120

[kW/hp(CV)]

219/298

241/327

263/357

286/389

Max. horsepower - ISO TR14396 - ECE R120

[kW/hp(CV)]

208/282

230/312

252/342

275/373

Rated EPM horsepower - ISO TR14396 - ECE R120

[kW/hp(CV)]

216/293

235/319

255/346

276/375

Rated horsepower - ISO TR14396 - ECE R120

[kW/hp(CV)]

189/257

209/284

229/311

250/340

Rated engine speed

(rpm)

2000

Max. torque - ISO TR14396

(Nm)

1267 @ 1500

1397 @ 1500

1531 @ 1500

1671 @ 1500

Torque rise standard / EPM

(%)

40 / 23

40 / 25

40 / 26

40 / 27

Viscous coupled cooling fan

Earth friendly engine oil filter

Exhaust brake

Diesel capacity

(Litres)

651

DEF/AdBlue^® tank capacity

(Litres)

Service interval

(hours)

600

Transmission

IntelliShift™ system

Ground Speed Management system (GSM)

19 x 4 Ultra Command™ Full-Powershift (40kph ECO or 50kph)

Min. Speed

(kph)

3,35

3,34

23 x 6 Ultra Command™ Full-Powershift (40kph with Creeper)

Min. Speed

(kph)

0,98

0,97

Electrical

12 volt alternator

(Amps)

200

Battery capacity

(CCA)

1900

Axles

Terraglide™ front axle suspension

Steering angle

(°)

Turning radius

(mm)

5440

4970

Terralock™ functions

Dynamic front fenders

Bar rear axle

Hydraulics

Closed Centre Load Sensing (CCLS)

Main pump flow Standard / MegaFlow™ option

(Lpm)

161/274

Electronic Draft Control (EDC)

Remote valves

Type

Electro hydraulic

Max. no. rear valves

Joystick control

Linkage

Rear linkage category

III/IIIN

IVN/III

Max. lift capacity at ball ends

(kg)

9130

10200

Front linkage category

Max. lift capacity (610mm in front of ball ends)

(kg)

5810

PTO

Auto Soft Start

Engine speed at: 540/1000rpm

(rpm)

1804/1804

-/1804

Auto PTO management

Front PTO (1000rpm)

Brakes

Electronic park brake

Hydraulic trailer brakes

Optional pneumatic and hydraulic trailer braking system

Downloaded from www.Manualslib.com manuals search engine

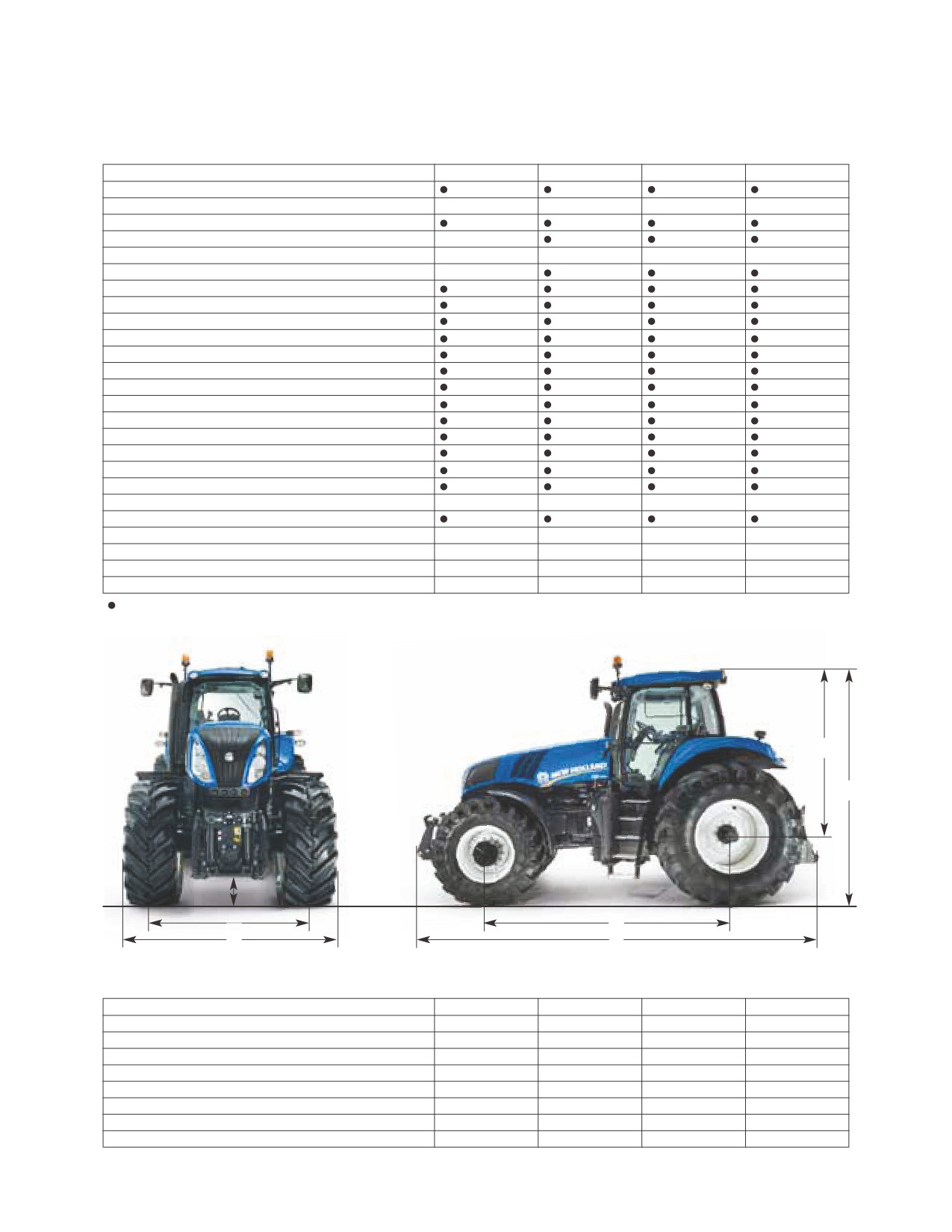

MODELS

T8.3OO

T8.33O

T8.36O

T8.39O

Cab

Cab with FOPS - OECD code 10 level 1

Cab category level - EN 15695

High visibility RHS window

HID lighting pack

Auto Comfort™ seat with seat belt

Auto Comfort™ leather seat with seat belt

SideWinder™ II armrest

CommandGrip™ handle

Electronic adjustment of SideWinder™ II armrest

Air conditioning

Automatic climate control

Air recirculation filters

Electronic remotely adjustable mirrors

Comfort Ride ™ cab suspension

Headland Turn Sequence (HTS)

Fender mounted external controls

A pillar performance monitor with enhanced key pad

IntelliView™ III colour monitor with ISO 11783 connector

IntelliSteer™ guidance ready

Optimum cab noise level - 77/311 EEC

[dB(A)]

Factory fit rotating beacons

Weights

Minimum unballasted / shipping weights

Terraglide™ suspended front axle

(kg)

11010

11315

Max. permissible weight at 50kph

(kg)

17500

18000

Standard O Optional

- Not available

* Developed by FPT Industrial

** Biodiesel blend must fully comply with the latest fuel specification EN14214:2009 and operation is in accordance with operator manual guidelines

MODELS

T8.3OO

T8.33O

T8.36O

T8.39O

Dimensions

With rear tyre size

658/85R38

710/70R38

710/70R42

800/70R38

A Overall length inc. weight pack and rear linkage

(mm)

6369

B Min. width

(mm)

2534

C Height at centre of rear axle to top of cab

(mm)

2468

D Overall height

(mm)

3267

3325

3376

3368

E Wheelbase

(mm)

3450

F Track width (min./max.)

(mm)

1727/2235

G Ground clearance (depends on hitch or tow hook)

(mm)

306

364

415

407

Downloaded from www.Manualslib.com manuals search engine

NEW HOLLAND TOP SERVICE:

CUSTOMER SUPPORT AND CUSTOMER INFORMATION

TOP AVAILABILITY.

TOP SPEED.

TOP PRIORITY.

TOP SATISFACTION.

If you need information,

Express parts delivery:

Fast-track solution during

We drive and track

or have an out of hours

when you need it,

the season: because

the solution you need,

question, ring our toll-free

where you need it!

your harvest can’t wait!

keeping you informed:

number*. All day, every

until you are

day, we are just a call away.

100% satisfied!

* Calls to the Top Service team are free from landlines

in the United Kingdom and Republic of Ireland.

UK-based mobile calls are also free, but Republic

of Ireland mobile users should call 01 2421881 and

this will be charged at your standard network rate.

For more details, ask your New Holland dealer!

AT YOUR OWN DEALER

Visit our web site for UK: www.newholland.com/uk - for ROI: www.newholland.com/ie

The data indicated in this folder are approximate. The models described here can be subjected to modifications without any notice by the manufacturer.

The drawings and photos may refer to equipment that is either optional or intended for other countries. Please apply to our Sales Network for any

further information. Published by New Holland Brand Communications. Bts Adv. - Printed in Italy - 05/11 - TP01 - (Turin) - 100011/INB

Downloaded from www.Manualslib.com manuals search engine
