320 Hydraulic Excavator User Manual
Home » CAT » 320 Hydraulic Excavator User Manual
320 Hydraulic Excavator User Manual
Contents [ hide
1 Technical Specifications
1.1 320 Hydraulic Excavator Specifications
1.1.1 Engine
1.1.2 Swing Mechanism
1.1.3 Weights
1.1.4 Track
1.1.5 Drive
1.1.6 Hydraulic System
1.1.7 Service Refill Capacities
1.1.8 Standards
1.1.9 Sound Performance
1.1.10 Operating Weight and Ground Pressure
1.1.11 Major Component Weights
1.1.12 Dimensions
1.1.13 Working Ranges
1.1.14 Reach Boom Lift Capacities - Counterweight: 4.2 mt (9,300 lb) - without Bucket, Heavy Lift: On
1.1.15 HD Reach Boom Lift Capacities - Counterweight: 4.7 mt (10,400 lb) - without Bucket, Heavy
Lift: On
1.1.16 Super Long Reach Boom Lift Capacities - Counterweight: 4.7 mt (10,400 lb) - without Bucket
1.1.17 Bucket Specifications and Compatibility
1.1.18 Attachments Offering Guide
1.1.19 Thumb Specifications
2 Standard and Optional Equipment
3 Dealer Installed Kit and Attachments
3.1 Related Posts
Technical Specifications
Configurations and features may vary by region. Please consult your Cat ® dealer for availability in your area.
320 Hydraulic Excavator Specifications

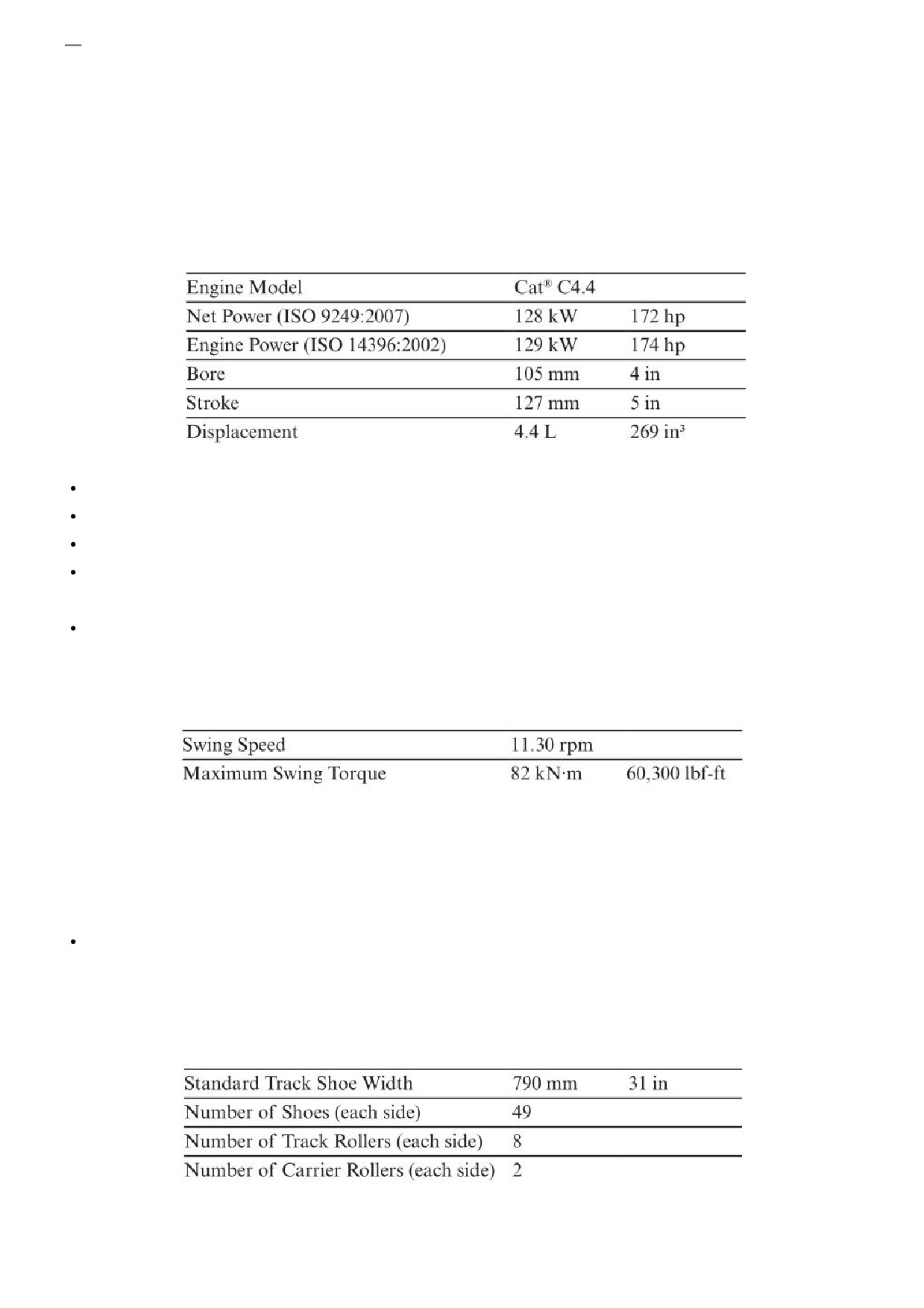

Engine
The 320 meets U.S. EPA Tier 4 Final emission standards.
Recommended for use up to 4500 m (14,764 ft) altitude with engine power derate above 3000 m (9,842.5 ft).
Net power is tested per ISO 14396:2002. Standards in effect at the time of manufacture.
Net power available at the flywheel when engine is equipped with fan, air cleaner, aftertreatment, and
alternator with engine speed at 2,200 rpm.
Rated speed at 2,200 rpm.
Swing Mechanism
Weights
Operating Weight
—
22 500 kg
—
49,600 lb
Reach boom, R2.9 (9’6″) stick, HD 1.19 m3 (1.56 yd3) bucket 790 mm (31 in) triple grouser shoes, 4.2 t (10.400
lb) counterweight.
Track

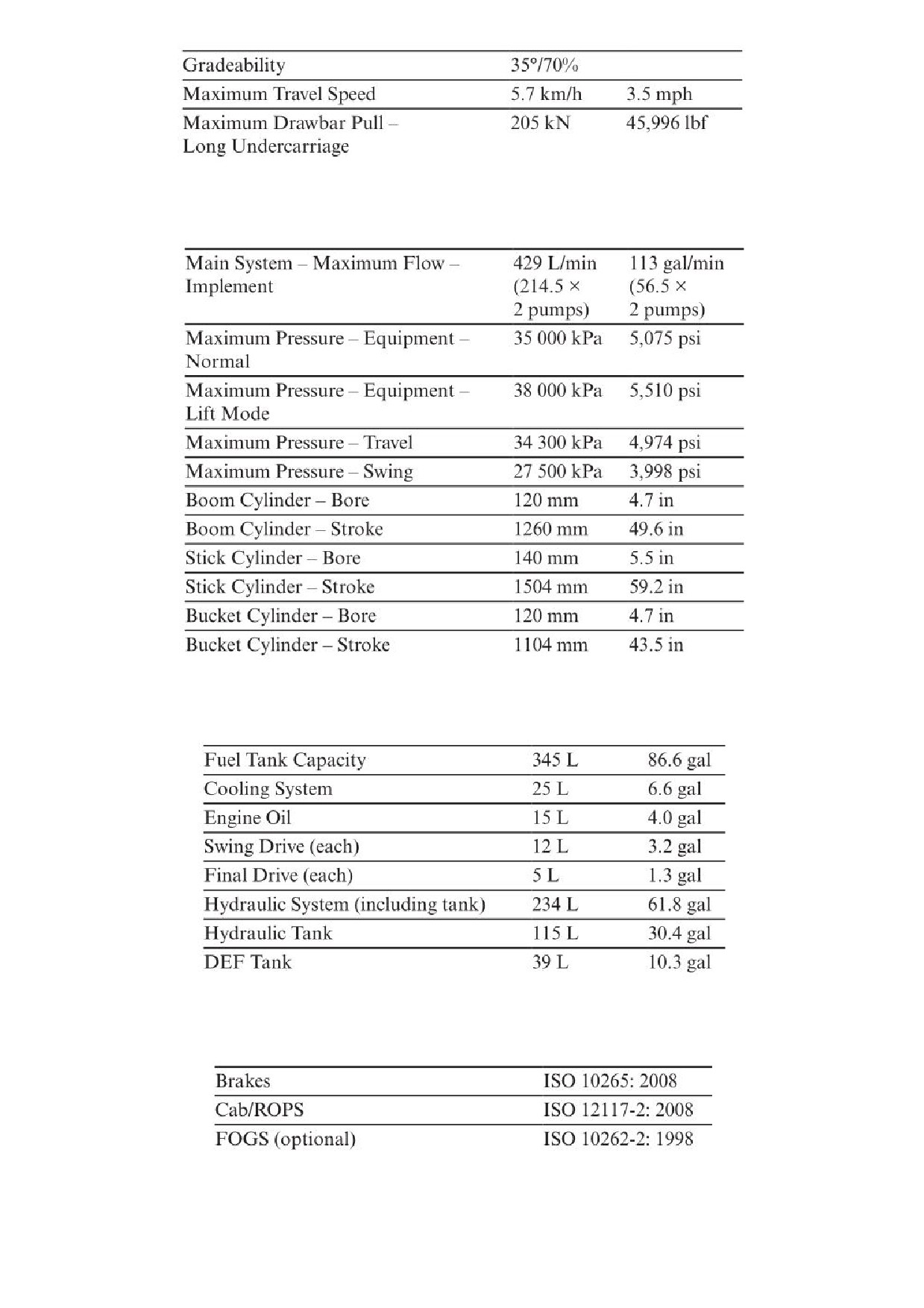

Drive
Hydraulic System
Service Refill Capacities
Standards
Sound Performance
ISO 6395:2008 (external) — 99 dB(A)
ISO 6396:2008 ISO 6396 (inside cab) — 70 dB(A)
Hearing protection may be needed when operating with an open operator station and cab (when not properly
maintained or doors/windows open) for extended periods or in a noisy environment.

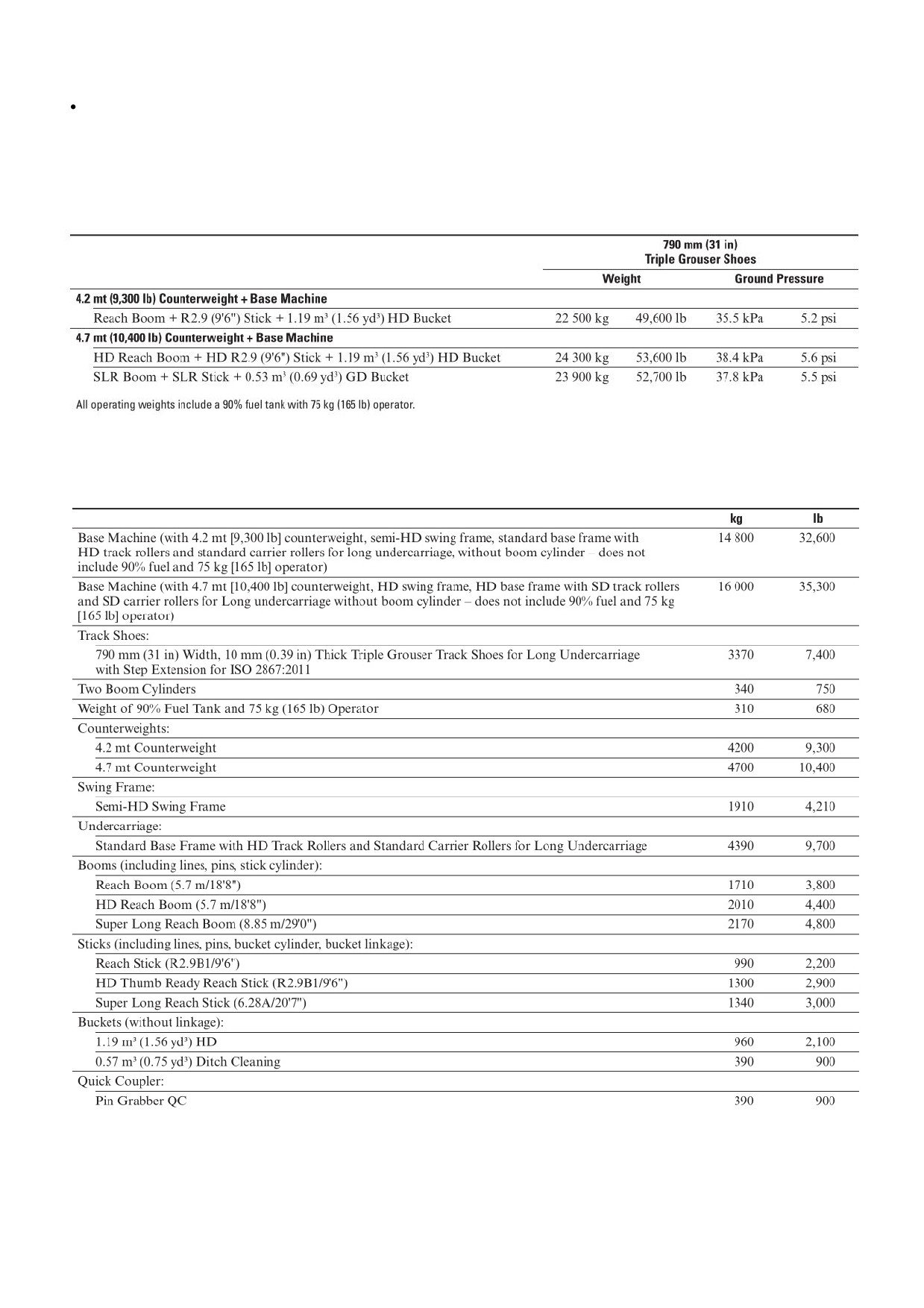

Operating Weight and Ground Pressure
Major Component Weights

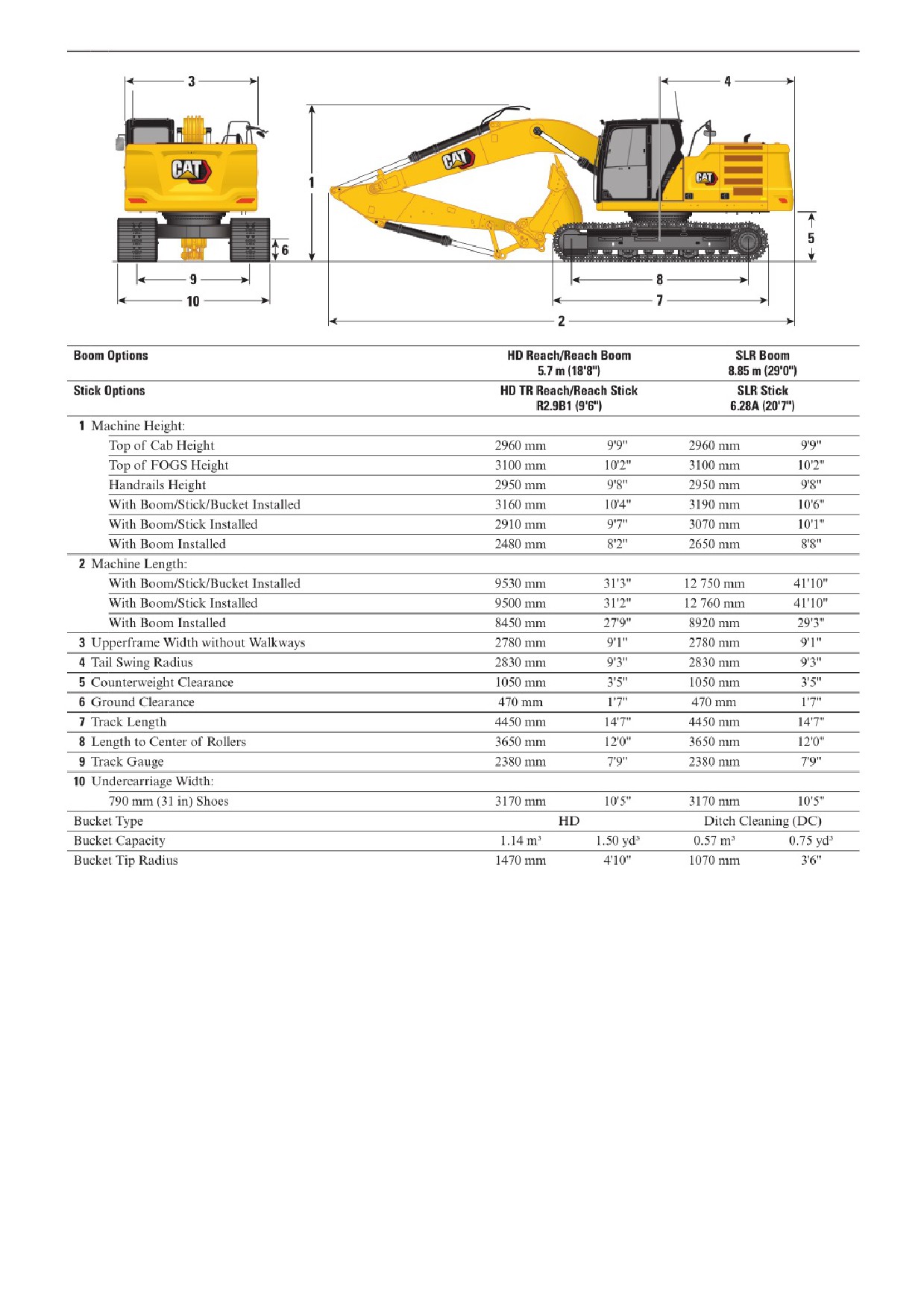

Dimensions
All dimensions are approximate and may vary depending on bucket selection .

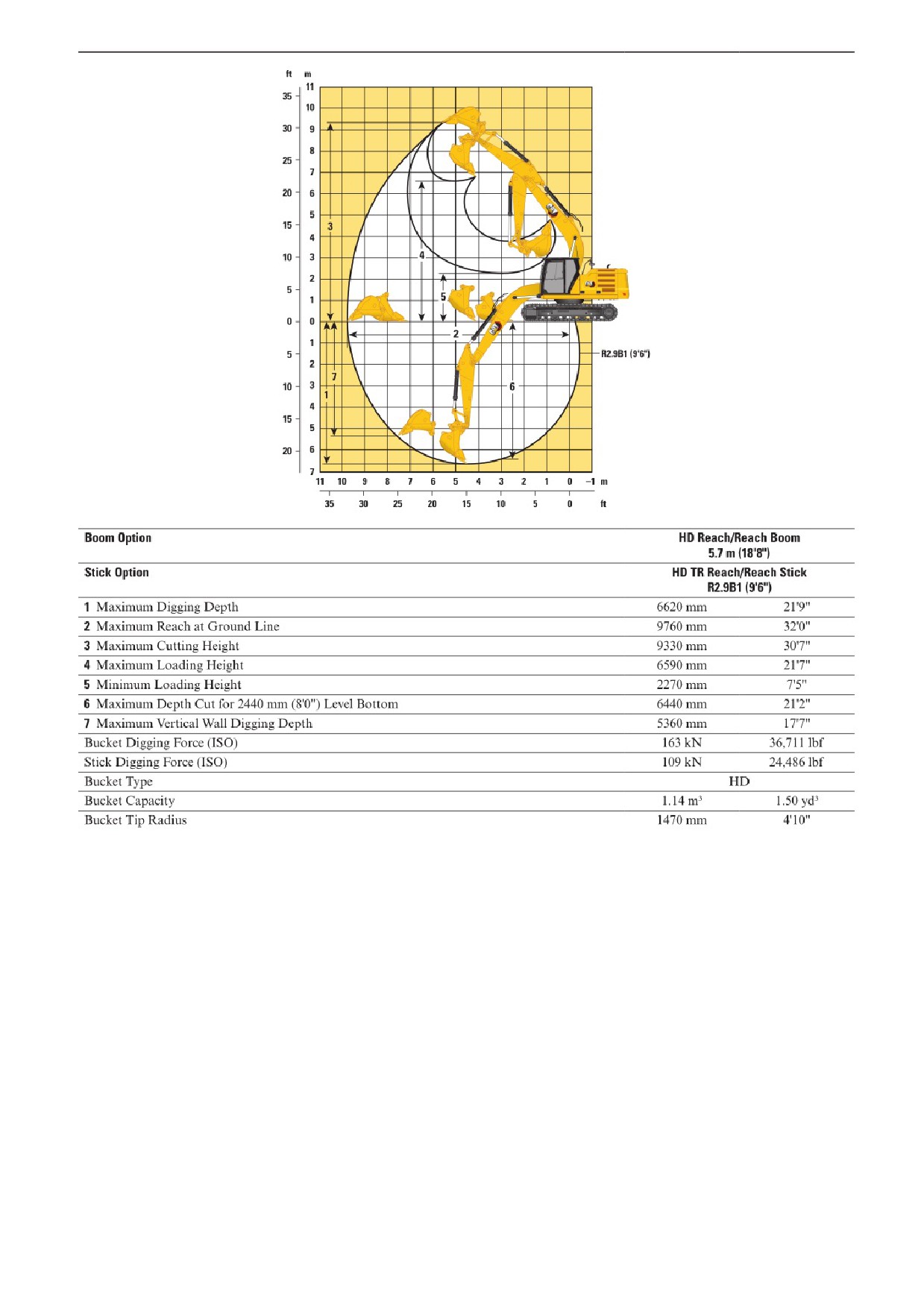

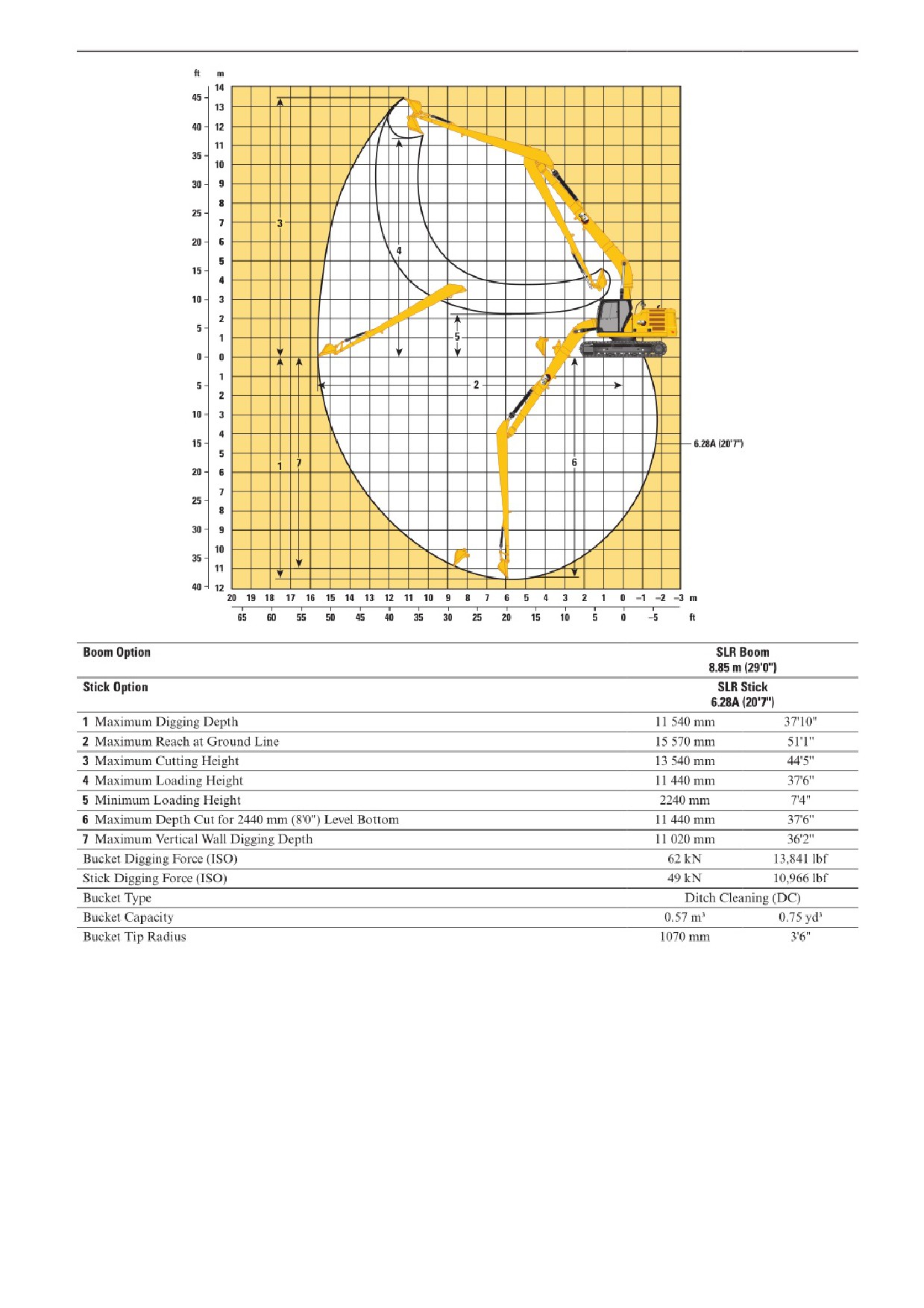

Working Ranges
All dimensions are approximate and may vary depending on bucket selection.

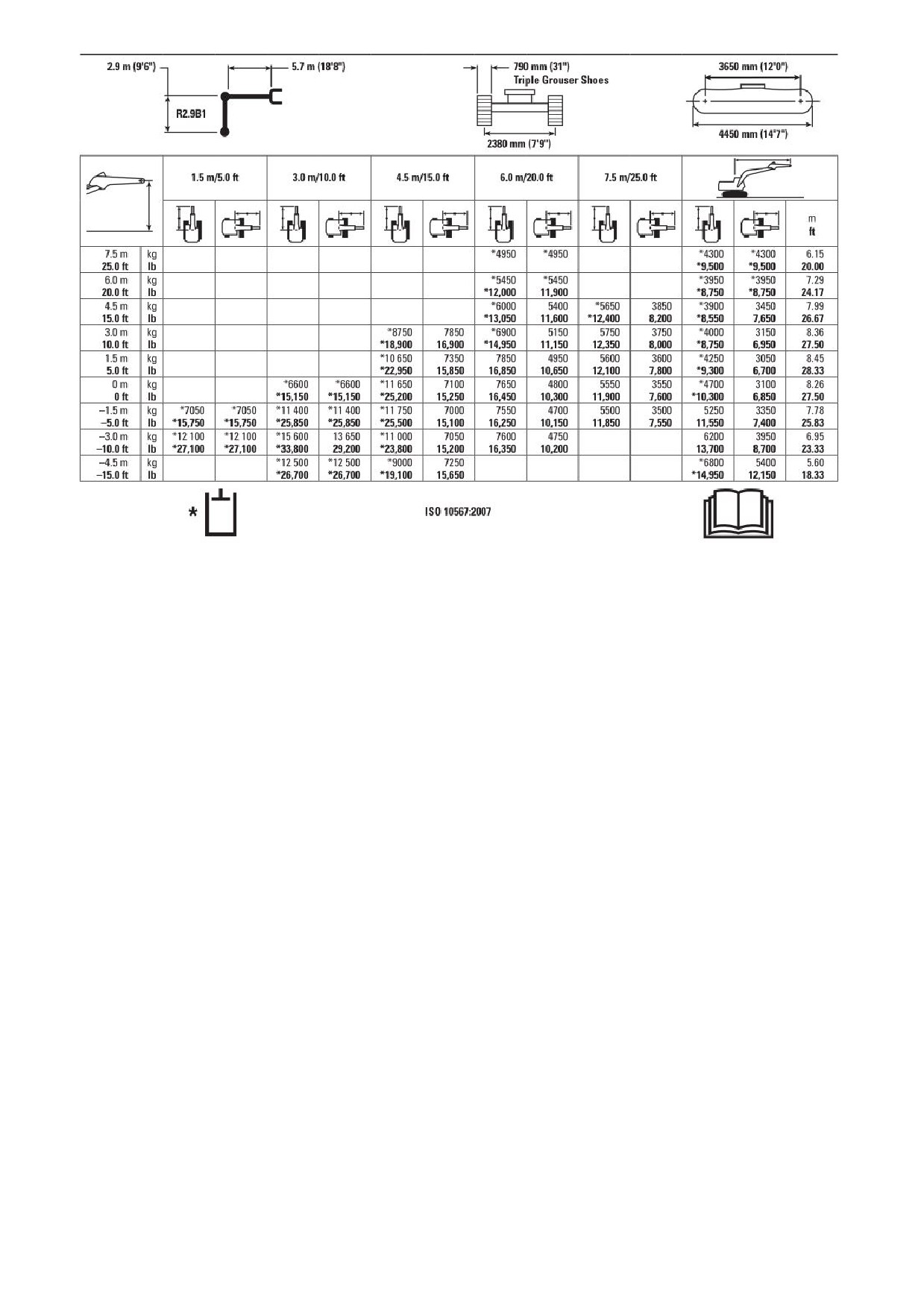

Reach Boom Lift Capacities - Counterweight: 4.2 mt (9,300 lb) - without Bucket, Heavy Lift:
On
* Indicates that the load is limited by hydraulic lifting capacity rather than tipping load . The above loads are in
compliance with hydraulic excavator lift capacity standard ISO 10567:2007 . They do not exceed 87% of hydraulic
lifting capacity or 75% of tipping load . Weight of all lifting accessories must be deducted from the above lifting
capacities . Lifting capacities are based on the machine standing on a firm, uniform supporting surface . The use
of a work tool attachment point to handle/lift objects, could affect the machine lift performance .
Lift capacity stays with ±5% for all available track shoes .
Always refer to the appropriate Operation and Maintenance Manual for specific product information .

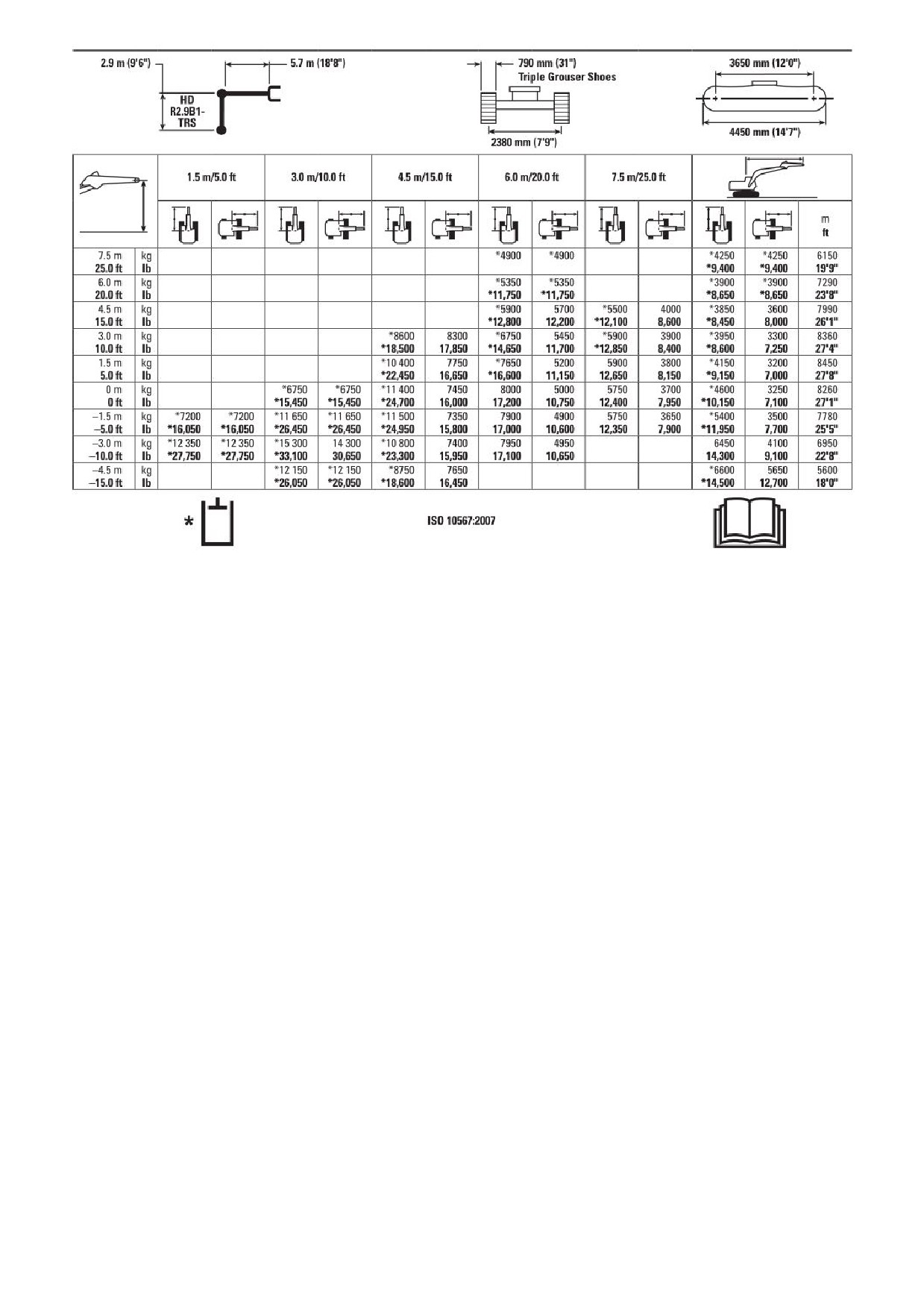

HD Reach Boom Lift Capacities - Counterweight: 4.7 mt (10,400 lb) - without Bucket, Heavy
Lift: On
* Indicates that the load is limited by hydraulic lifting capacity rather than tipping load . The above loads are in
compliance with hydraulic excavator lift capacity standard ISO 10567:2007 . They do not exceed 87% of hydraulic
lifting capacity or 75% of tipping load . Weight of all lifting accessories must be deducted from the above lifting
capacities . Lifting capacities are based on the machine standing on a firm, uniform supporting surface . The use
of a work tool attachment point to handle/lift objects, could affect the machine lift performance .
Lift capacity stays with ±5% for all available track shoes .
Always refer to the appropriate Operation and Maintenance Manual for specific product information .

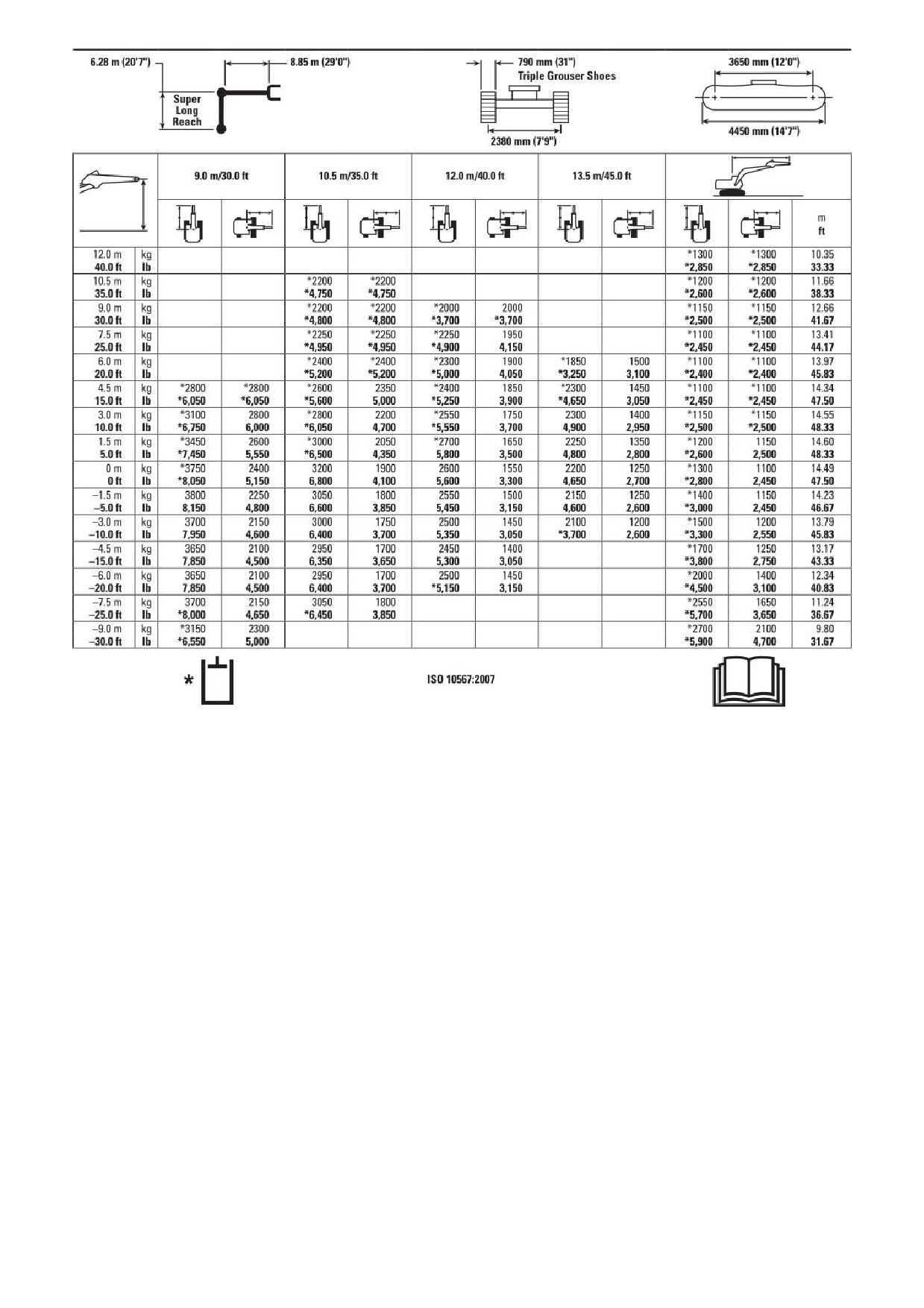

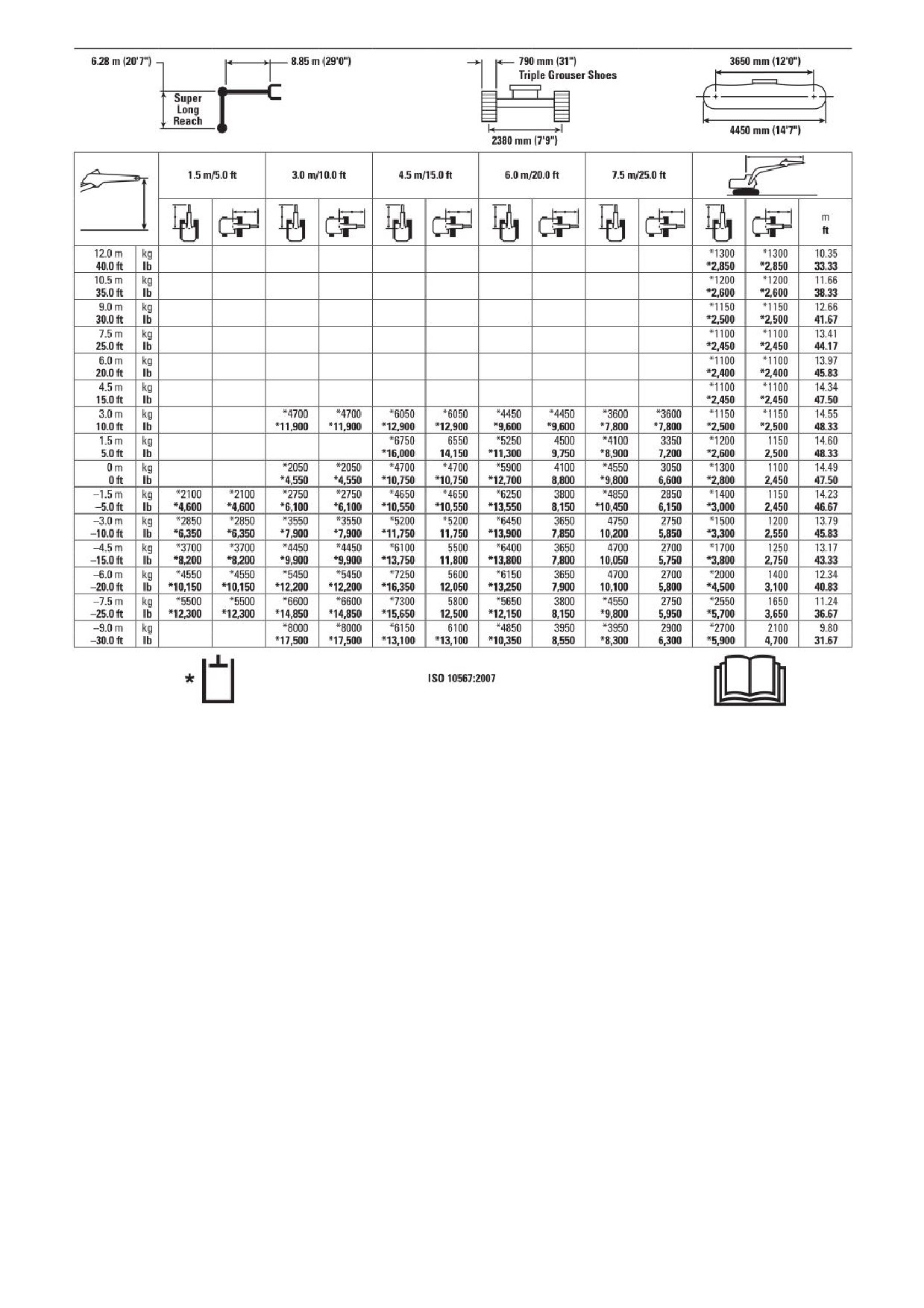

Super Long Reach Boom Lift Capacities - Counterweight: 4.7 mt (10,400 lb) - without Bucket
* Indicates that the load is limited by hydraulic lifting capacity rather than tipping load . The above loads are in
compliance with hydraulic excavator lift capacity standard ISO 10567:2007 . They do not exceed 87% of hydraulic
lifting capacity or 75% of tipping load . Weight of all lifting accessories must be deducted from the above lifting
capacities . Lifting capacities are based on the machine standing on a firm, uniform supporting surface . The use
of a work tool attachment point to handle/lift objects, could affect the machine lift performance .
Lift capacity stays with ±5% for all available track shoes.
Always refer to the appropriate Operation and Maintenance Manual for specific product information .
* Indicates that the load is limited by hydraulic lifting capacity rather than tipping load . The above loads are in
compliance with hydraulic excavator lift capacity standard ISO 10567:2007 . They do not exceed 87% of hydraulic
lifting capacity or 75% of tipping load . Weight of all lifting accessories must be deducted from the above lifting
capacities . Lifting capacities are based on the machine standing on a firm, uniform supporting surface . The use
of a work tool attachment point to handle/lift objects, could affect the machine lift performance .
Lift capacity stays with ±5% for all available track shoes.
Always refer to the appropriate Operation and Maintenance Manual for specific product information .

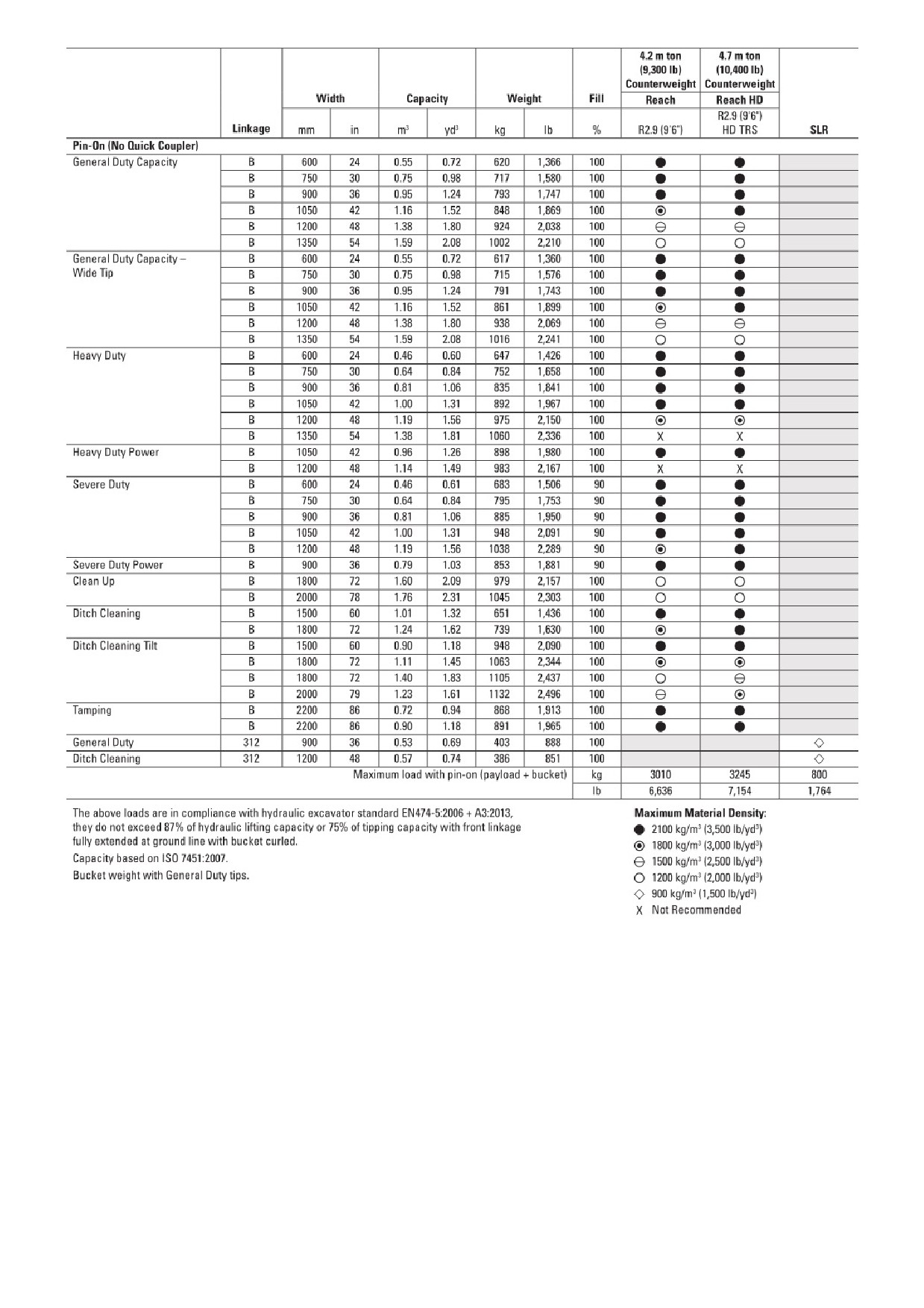

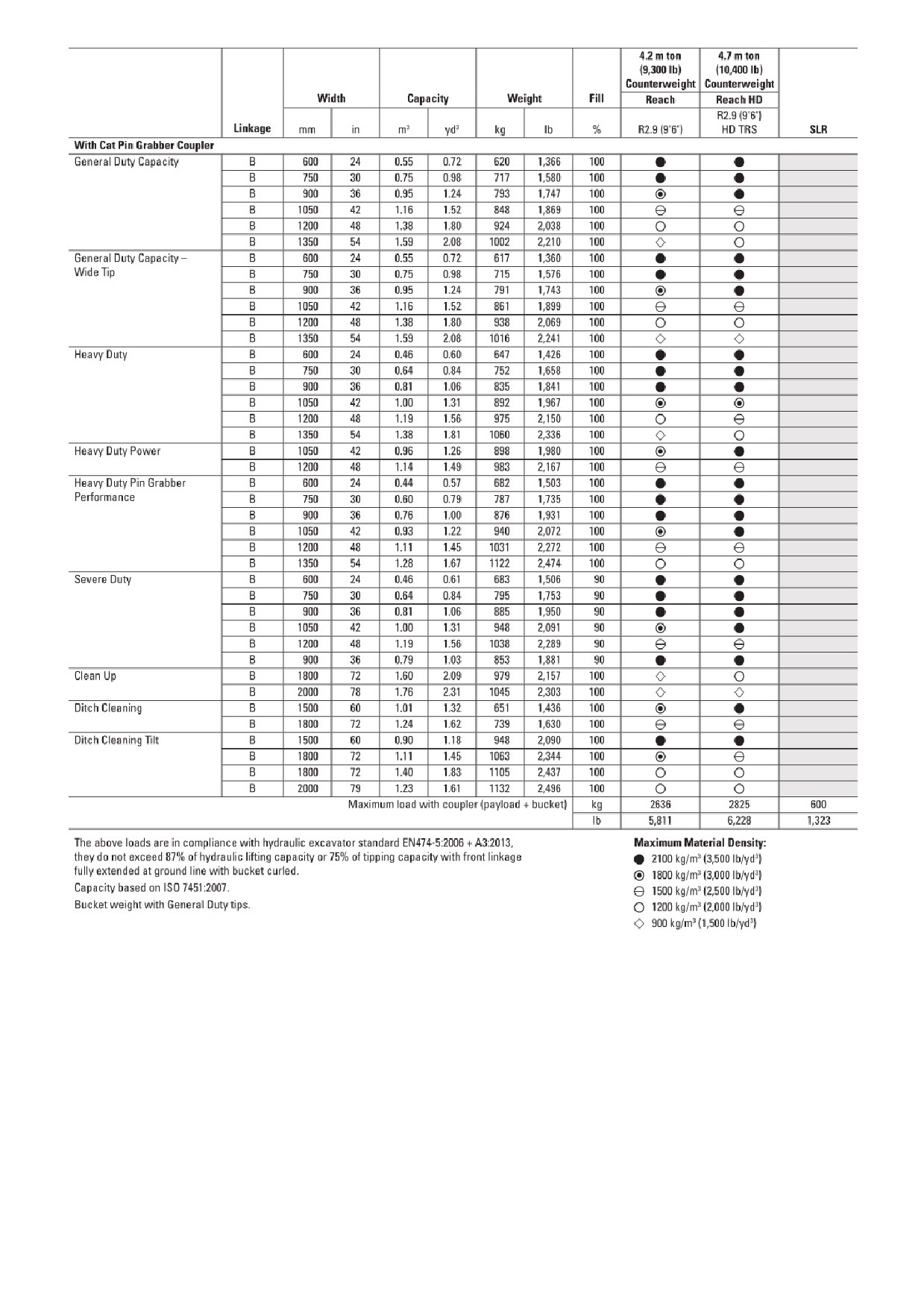

Bucket Specifications and Compatibility
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products .
Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for
weight, dimensions, flows, pressures, etc . may result in less-than-optimal performance, including but not limited
to reductions in production, stability, reliability, and component durability . Improper use of a work tool resulting in
sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick.
Caterpillar recommends using appropriate work tools to maximize the value customers receive from our products .
Use of work tools, including buckets, which are outside of Caterpillar’s recommendations or specifications for
weight, dimensions, flows, pressures, etc . may result in less-than-optimal performance, including but not limited
to reductions in production, stability, reliability, and component durability . Improper use of a work tool resulting in
sweeping, prying, twisting and/or catching of heavy loads will reduce the life of the boom and stick .

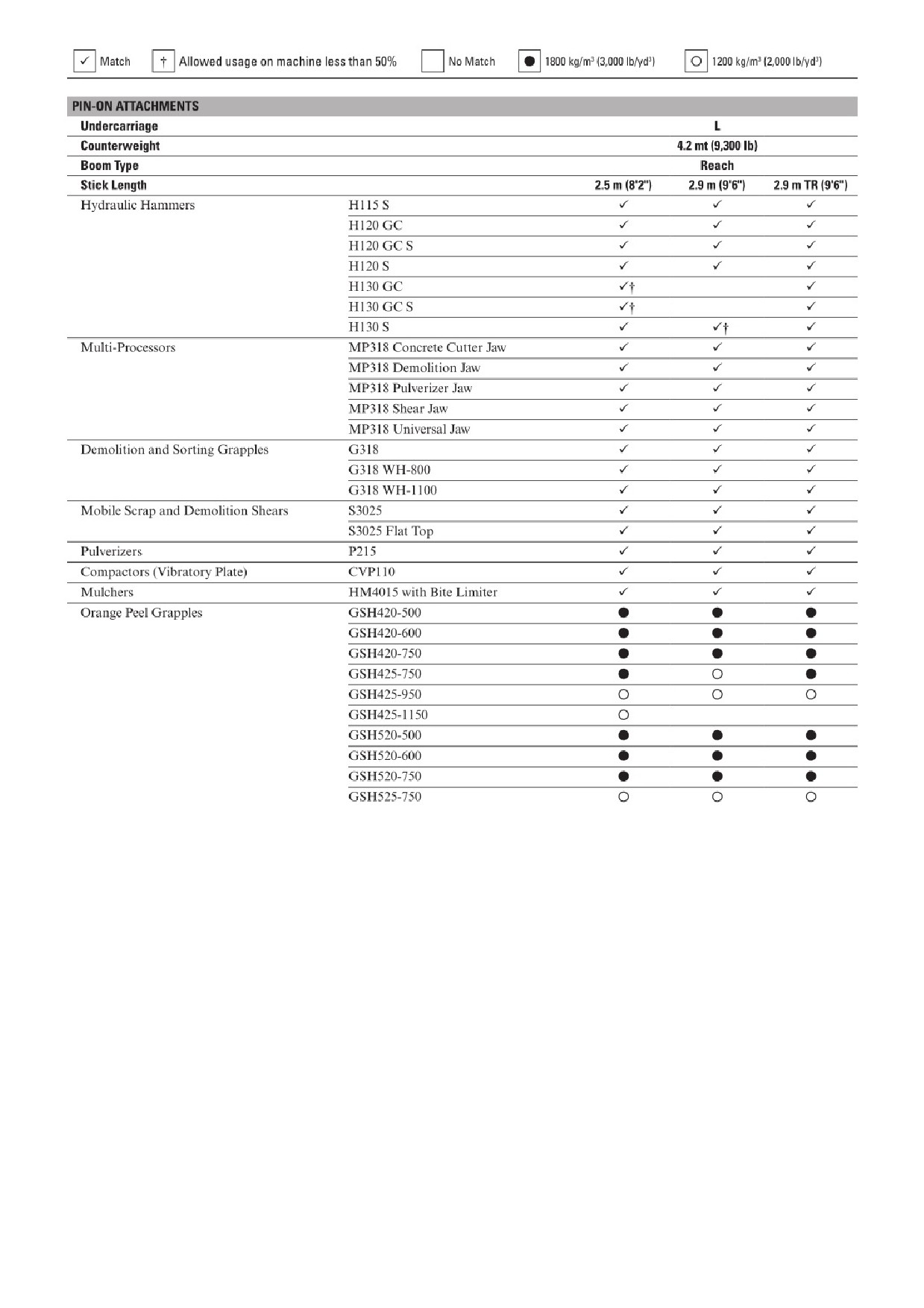

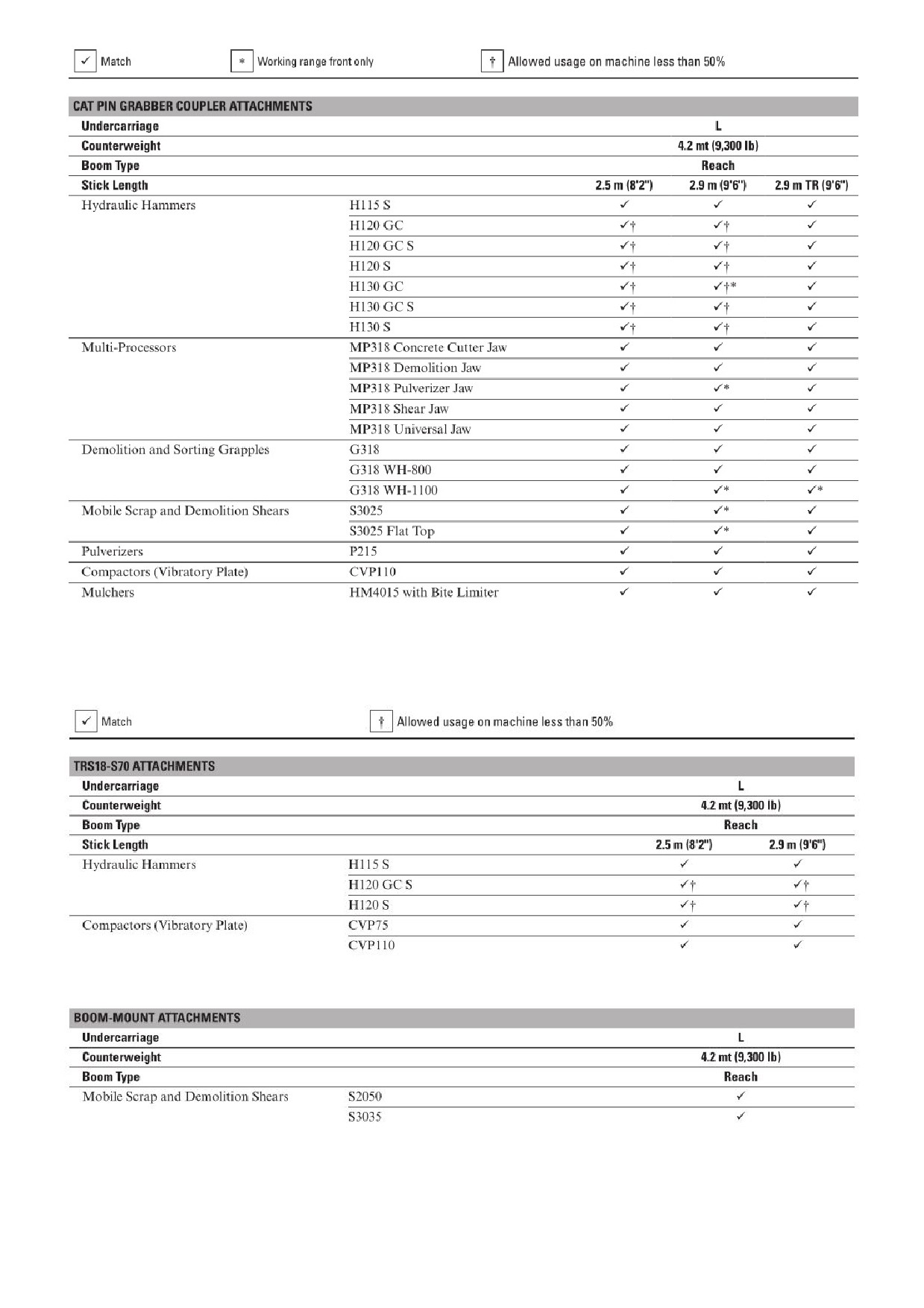

Attachments Offering Guide
Not all Attachments are available in all regions . Consult your Cat dealer for configurations available in your region
Not all Attachments are available in all regions . Consult your Cat dealer for configurations available in your region
Not all Attachments are available in all regions . Consult your Cat dealer for configurations available in your region

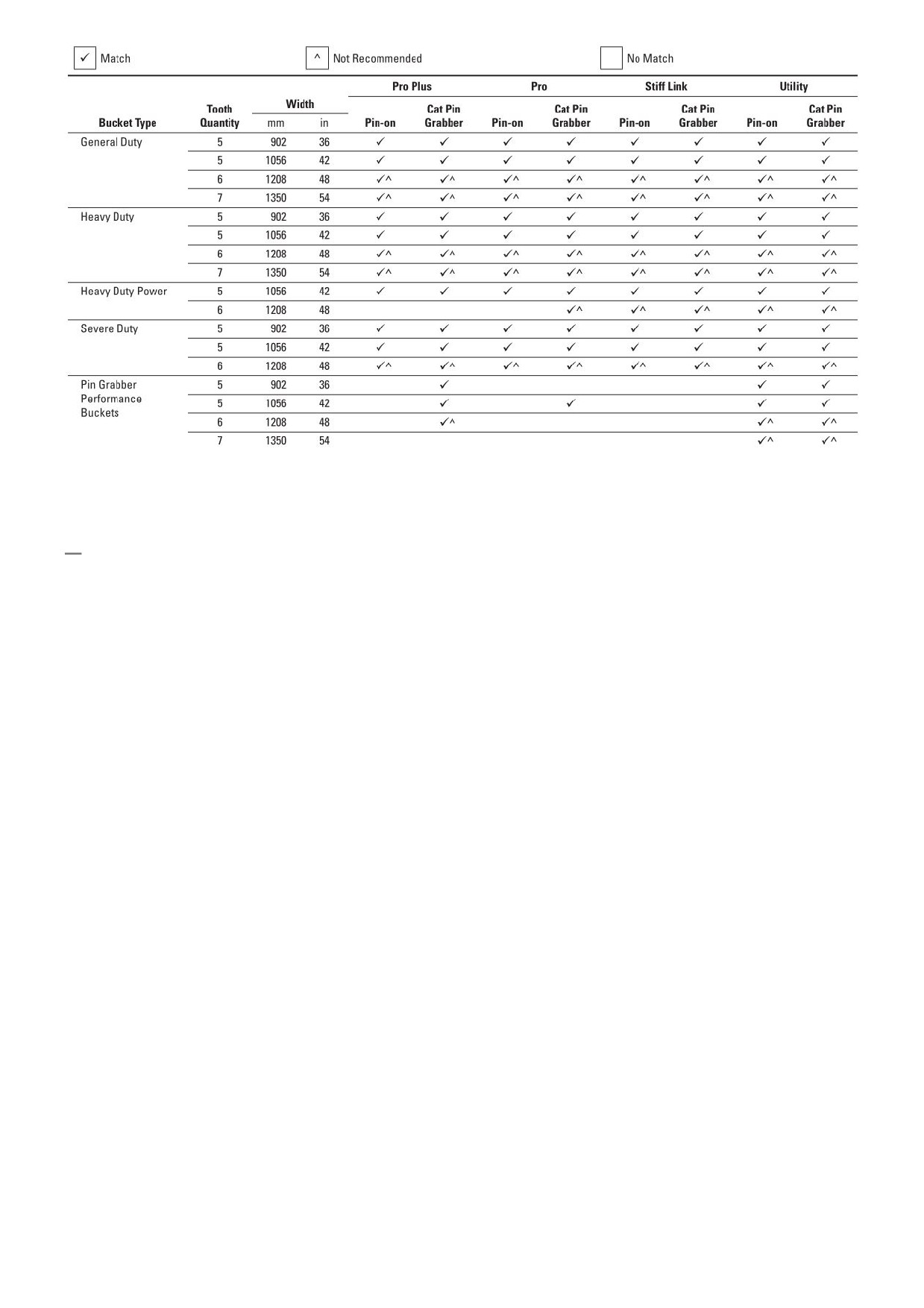

Thumb Specifications
^ Maximum bucket payload will vary depending on thumb’s mass, stick length, counterweight, and coupler type;
please select bucket using the bucket matching guide .

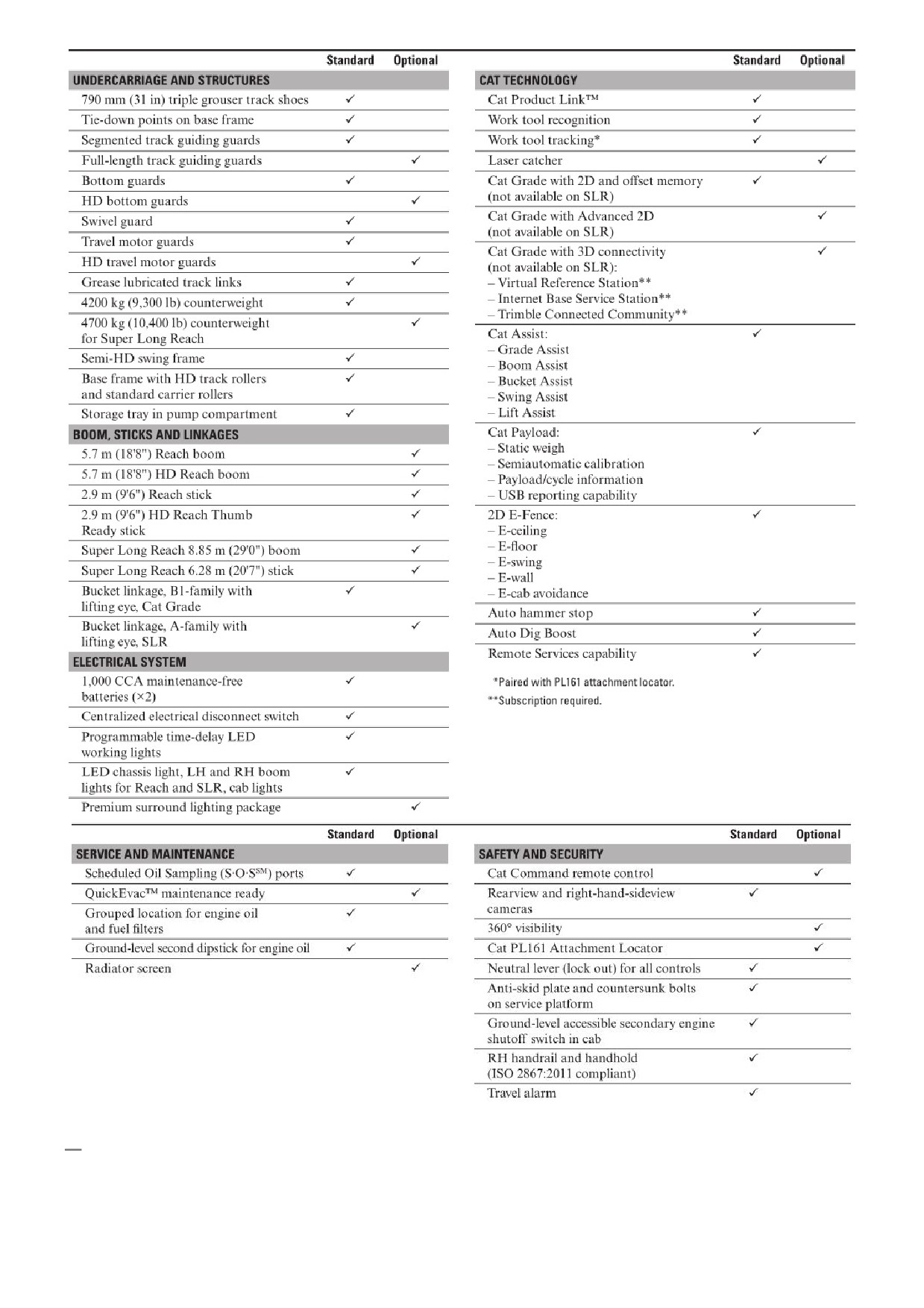

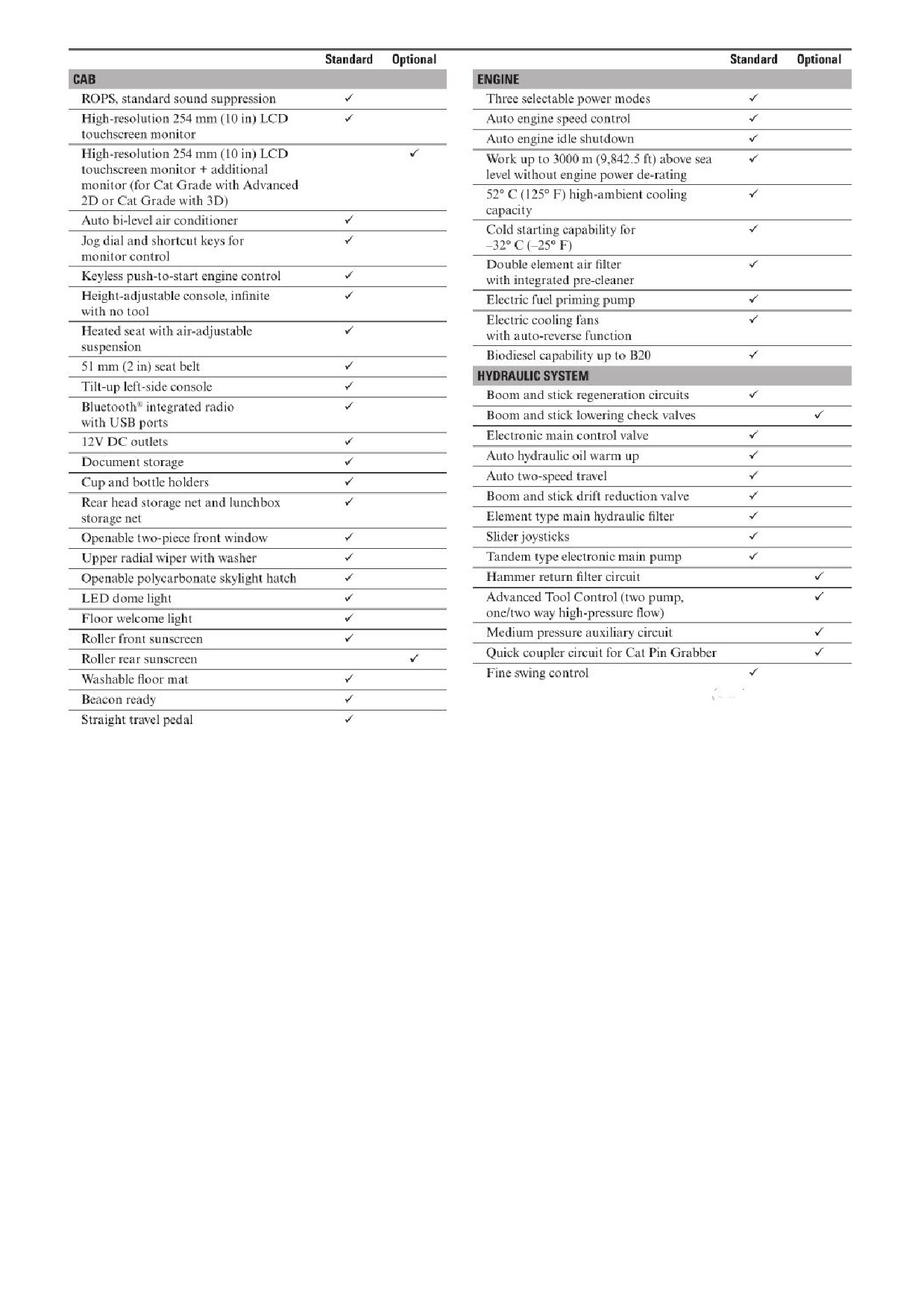

Standard and Optional Equipment
Standard and optional equipment may vary. Consult your Cat dealer for details.
Dealer Installed Kit and Attachments
Attachments may vary . Consult your Cat dealer for details .
CAB
Radial lower wiper
LH/RH electrical pedal for tool control
Dual exit rear window kit
Rain protector plus cab light cover
75 mm (3″) retractable seat belt
SAFETY AND SECURITY
Bluetooth key fob
SERVICE AND MAINTENANCE
Grease gun holder
ELECTRICAL
Jump start wiring
GUARDS
Side rubber bumper
Falling object guard system (not compatible with cab light cover, rain protector)
Mesh guard full front (not compatible with cab light cover, rain protector)
Mesh guard lower half front
Full protecting vandalism guard
For more complete information on Cat products, dealer services, and industry solutions, visit us on the web
at www.cat.com
All rights reserved
Materials and specifications are subject to change without notice . Featured machines in photos may include
additional equipment . See your Cat dealer for available options.
CAT, CATERPILLAR, LET’S DO THE WORK, their respective logos, “Caterpillar Corporate Yellow,” the “Power
Edge” and Cat “Modern Hex” trade dress as well as corporate and product identity used herein, are trademarks of
Caterpillar and may not be used without permission.
AEXQ2161-04 (11-2020)
Replaces AEXQ2161-03
Build Number: 07D
(North America)
