DYNAPAC LG200. SPARE PARTS CATALOGUE SLG200-3EN2



  Index      Manuals



Search            copyright infringement





















DYNAPAC LG200. SPARE PARTS CATALOGUE SLG200-3EN2





DYNAPAC
LG200
SPARE PARTS
CATALOGUE
SLG200-3EN2
Atlas Copco Construction Tools AB
SE-105 23 Stockholm, Sweden
I
Forward/Reverse Vibratory Plate Compactor
LG200
Spare Parts Catalogue
SLG200-3EN2
Valid from serial number:
*32007397-*
Engines:
Honda GX200
Hatz 1B20
Published catalogue issues valid for these thrench compactors:
Catalogue
Issue date
Replaced by
SLG200-2EN1
2004 - 01
SLG200-2EN2
SLG200-2EN2
2005 - 04
SLG200-2EN3
SLG200-2EN3
2008 - 09
SLG200-3EN1
SLG200-2EN4
2009 - 03
SLG200-2EN4
SLG200-3EN1
2009 - 03
SLG200-3EN2
SLG200-3EN2
2009 - 04
We reserve the right to change specifications without notice.
Printed in Sweden.
II
RESERVDELSBESTÄLLNING
ORDERING SPARE PARTS
Följande uppgifter ska lämnas vid beställning av reserv- To avoid errors in delivery, please give the following
delar för att undvika leveransfel:
information when ordering spare parts:
1. Maskintyp.
1. Type of machine.
2. Vältens serienummer.
2. Roller serial number.
3. Antal av önskad reservdel.
3. Quantity required.
4. Reserdelens artikelnummer.
4. Part number.
5. Reservdelens benämning.
5. Parts denomination.
6. Måttuppgifter vid beställning av metervara.
6. Dimensions when ordering per length.
ERSATZTEILBESTELLUNG
ORDINI DI RICAMBI
Zur Vermeidung von Fehllieferungen sind bei der Bestel-
Per evitare errori nelle consegne di ricambi, Vi preghiamo
lung von Ersatzteilen folgende Angaben zu machen:
di comunicarci le seguenti informazioni al momento dell
1. Maschinentyp.
'ordinazione:
2. Herstellungsnummer.
1. Tipo di macchina.
3. Bestellmenge. (Quantity)
2. Numero di serie della macchina.
4. Ersatzteilnummer. (Part Nº)
3. Quantità dei pezzi desiderati. (Quantity)
5. Ersatzteilbenennung. (Denomination)
4. Numero di codice del pezzo. (Part Nº)
6. Massangaben bei Bestellung von Meterware.
5. Descrizione del pezzo di ricambio. (Denomination)
6. Misura, in caso di ordine per metro.
PEDIDO DE RECAMBIOS
COMMANDE DE PIECES DE RECHANGE
Para evitar errores en las entregas, deberán indicarse los
Les indications suivantes doivent être fournies lors de la
siguientes datos al hacer un pedido de recambios:
commande de piéces de rechange, afin d'éviter toute erreur
1. Tipo de máquina.
de livraison:
2. Número de serie.
1. Type de machine.
3. Cantidad de piezas deseadas. (Quantity)
2. Numéro de série.
4. Número de artículo de la pieza de recambio. (Part Nº)
3. Quantité désirée de pièce de rechange. (Quantity)
5. Denominación de la pieza. (Denomination)
4. Numéro de la piéce de rechange. (Part Nº)
6. Indíquese la medida al solicitar un artículo que se
5. Dénomination de la piéce de rechange. (Denomination)
expide por metros.
6. Longueur en cas de commande au mètre.
YOUR AGENT/DEALER:
III
Text pages
The text pages is structured as the
picture on the right.
1.
This is the remarks for
specific items and the descriptions
3
of the remarks is at the bottom of
1
2
the parts list.
2.
Parts indicated by a dot and
moved to the right are included
when buying the assembled unit
above.
3.
Spare parts and service code
for a specific part, mainly for
internal use at Dynapac. "A" =
Service part, "B" = Fast moving
1
part, "C" = Suggested exchanged
part and "D" = Regular spare part.
Changes
PARTS
SERVICE
GROUP
PAGE
NOTES
INFO
INFO
Notes
IV
Notes
V
PÄRMETIKETT
BINDER LABEL
För att undvika fel vid reservdelsbeställning finns här
To avoid errors when ordering spare parts use the labels
nedan två etiketter som passar i fickorna på pärmarnas
below to identify the catalogues on the back of the
ryggar. På dessa kan man se från vilket vältnummer av
binder. The label contain the serial number range for
aktuell maskin reservdelskatalogen gäller. Gör så här:
which the catalogue is valid. Do like this:
1. Tag denna sida ur pärmen.
1. Remove this page from the binder.
2. Klipp ut etiketten till VÄNSTER (1) och sätt in den i
2. Cut out the LEFT label (1) and put it on THIS binders
fickan på DENNA pärmens rygg.
back.
3. Finns det en etikett till HÖGER (2), kan denna an-
3. If there is a label to the RIGHT (2), it can be used on
vändas på pärmen för FÖREGÅENDE utgåva av
thebinder for PRECEDING issue of this catalogue.
denna katalog.
4. Throw away this paper.
4. Kasta detta papper.
KATALOG-BESCHRIFTUNG
ETICHETTA POSTA SUL RACCOGLITORE
Zur Vermeidung von Fehlen bei der Ersatzteilbestellung
Per evitare errori quando ordinate pezzi di ricambio, usate
benutzen Sie bitte die unteren Beschriftungen, um die
le etichette in calce che servono ad identificare i cataloghi
Kataloge auf der Rückseite zu kennzeichen. Auf der
sul retro del raccoglitore. L'etichetta indica il numero di
Beschriftung ist angegaben, für welche
matricola delle maccine prese in considerazione nel catalo-
Maschinennummern der jeweilige Katalog gültig ist.
go.
Ablauf:
1. Rimuovete questa pagina dal raccoglitore.
1. Nehmen Sie dieses Blatt aus dem Katalog.
2. Ritagliate l'etichetta posta a SINISTRA (1) e ponetela
2. Schneiden Sie die LINKE Beschriftung (1) aus. Schie-
sul retro DEL raccoglitore.
ben Sie die Beschriftung in die tasche auf DEM
3. Se trovate anche un'etichetta sulla DESTRA (2),
Katalogrücke.
ritagliatela e ponetela sul raccoglitore relativo alla
3. Sollte die Beschriftung unten RECHTS (2) mitgeliefert
PRECEDENTE edizione del catalogo.
werden, kennzeichen Sie damit bitte die ÄLTERE
4. Distruggete questo foglio.
Ausführung dieses Kataloges.
4. Den Rest dieses Blattes bitte vernichten.
ETIQUETA PARA LA CARPETA
ETIQUETAGE DU CATALOGUE
Para evitar errores al pedir repuestos utilicen las etiquetas
Afin d'éviter des erreurs lors de commandes de pièces de
abajo descritas para identificar los catálogos en la parte
rechange, nous vous conseillons d'apposer les marquages
trasera de la carpeta. En la etiqueta se ven los números
ci-dessous à l'arrière du classeur, pour identifier les catalo-
de referencia de la serie para la cual es válido el catálogo.
gues. Ce marquage indique les numéros de série pour
Instrucciones:
lesquels le catalogue est adapté. Il convient de procéder de
1. Quitar esta página de la carpeta.
la façon suivante:
2. Corta la etiqueta IZQUIERDA (1) y ponerla est ESTA
1. Retirez cette page du classeur.
carpeta en la parte trasera.
2. Découpez l'étiquette de GAUCHE (1), et apposez-la à
3. Si hay una etiqueta en la parte DERECHA (2) se puede
l'arrière de CE catalogue.
utilizar en la carpeta para el catálogo que PRECEDE a
3. Si il y a une étiquette à DROITE (2), vous pourrez
esta.
l'apposer sur le classeur de l'edition PRECEDENTE du
4. Tirar esta hoja.
catalogue.
4. Détruire cetta feuille.
1.
Catalogue
SLG200-3EN2
Atlas Copco Construction Tools AB
TABLE OF CONTENTS
Page
LG200 SN 2007396-
2
Ground plate, engine plate and frame
4
Ground plate, engine plate and frame
6
Ground plate and eccentric element
8
Option, transport device
10
Transport device New version
12
Eccentric element
14
Eccentric element
16
Piston, cpl
18
Engine and engine installation
20
Engine Honda GX200
22
Engine Hatz 1B20
24
Engine installation, Honda
28
Engine installation, Hatz
30
Power transmission
32
Power transmission, Honda
34
Power transmission, Hatz
36
Hydraulic system
38
Hydraulic system
40
Hydraulic oil tank
42
Hydraulic pump installation
44
Electrical equipment
46
Electrical equipment
48
Handle and throttle control
50
Handle and throttle control, Honda
52
Handle and throttle control, Hatz
54
Decals and documentation
56
Decals and documentation
58
TC 1
Atlas Copco Construction Tools AB
LG200 SN 2007396-

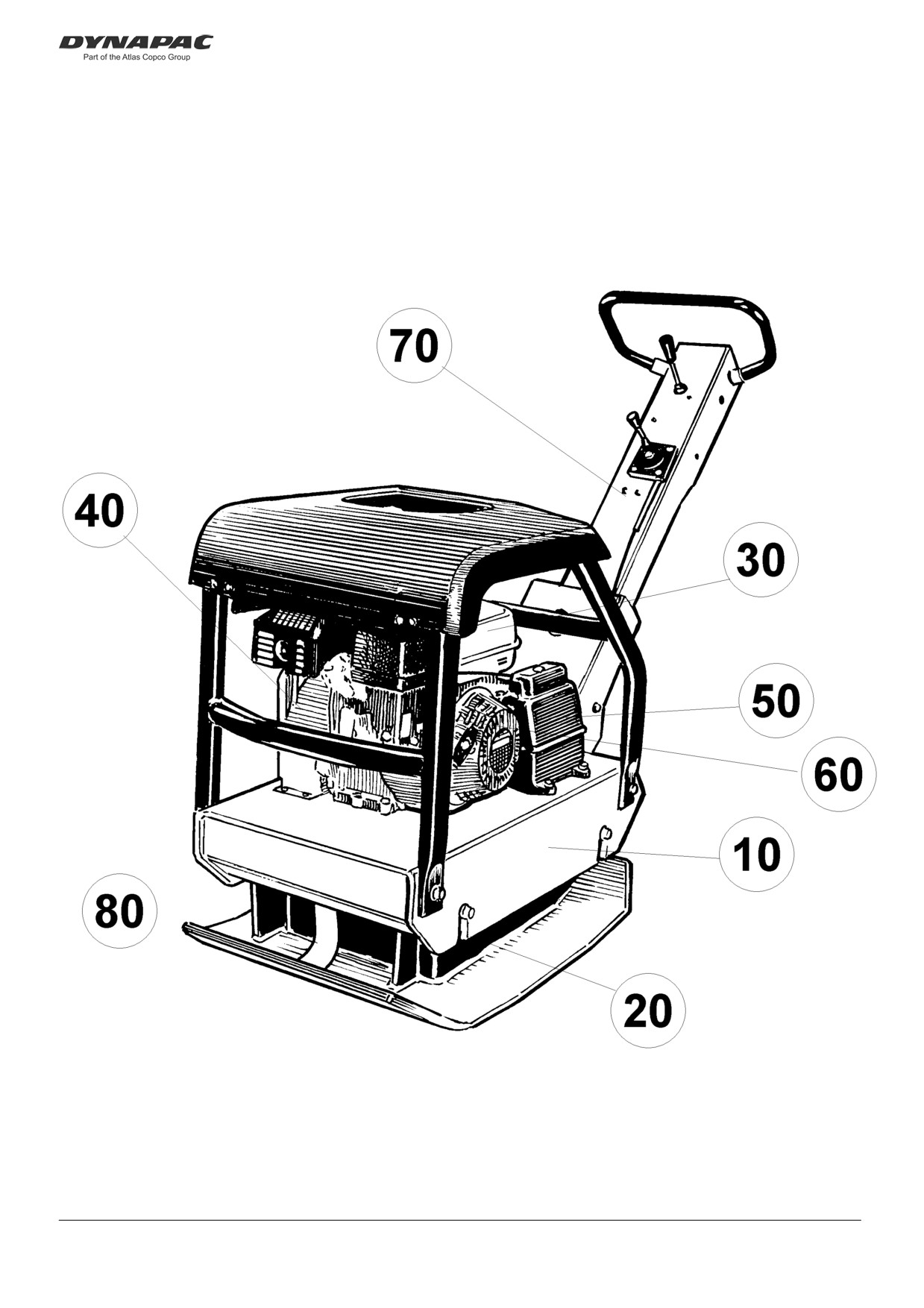

LG200120
2
SLG200-3EN2
Atlas Copco Construction Tools AB
LG200 SN 2007396-
Item Part No Rem Qty Description
Code
10
Ground plate, engine plate and frame ( Page 4 )
20
Eccentric element ( Page 14 )
30
Engine and engine installation ( Page 20 )
40
Power transmission ( Page 32 )
50
Hydraulic system ( Page 38 )
60
Electrical equipment ( Page 46 )
70
Handle and throttle control ( Page 50 )
80
Decals and documentation ( Page 56 )
1
SLG200-3EN2
3
Atlas Copco Construction Tools AB
Ground plate, engine plate and frame
4
SLG200-3EN2
Atlas Copco Construction Tools AB
Ground plate, engine plate and frame
Item Part No Rem Qty Description
Code
10
Ground plate, engine plate and frame ( Page 6 )
15
Ground plate and eccentric element ( Page 8 )
20
Option, transport device ( Page 10 )
30
Transport device ( Page 12 )
New version
SLG200-3EN2
5
Atlas Copco Construction Tools AB

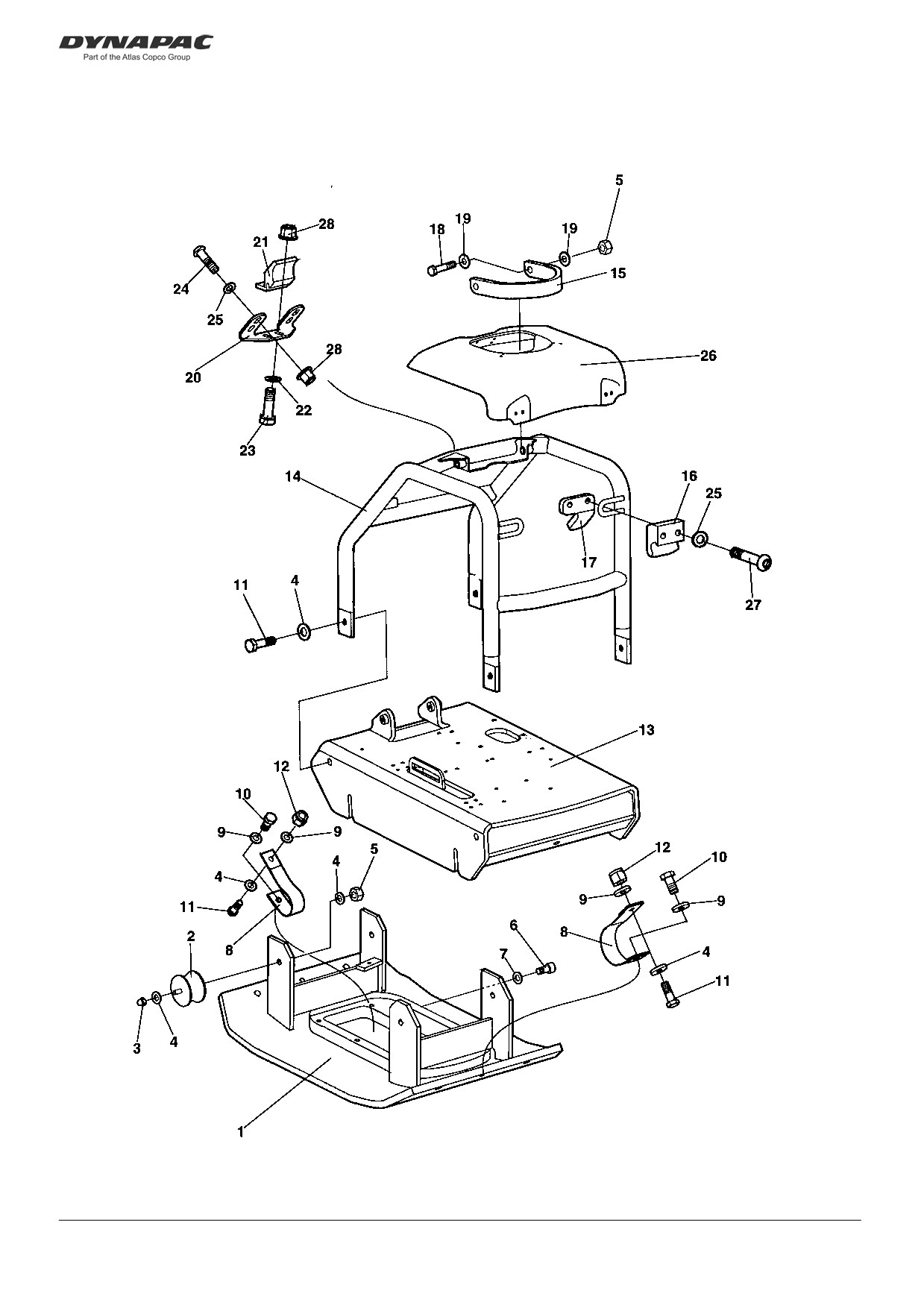

Ground plate, engine plate and frame
17958
6
SLG200-3EN2
Atlas Copco Construction Tools AB
Ground plate, engine plate and frame
Item
Part No Rem Qty
Description
Code
1
4700280621
1
Ground plate
2
4700280750
4
Shock absorber
B
3
4700581013
4
Nut
4
4700904231
12
Washer
13x24x2 300 HV
5
4700570007
6
Hexagon nut
M12
6
4700508028
1
Screw
7
4700747541
2
Washer
D
8
D100505036
2
Strap
D
9
4700924543
4
Washer
10
4700500051
2
Screw
M12x25H 8.8 A3K
11
4700500037
6
Screw
12
4700586019
2
Lock nut
13
D386986-01
1
Engine base
14
D387113-03
1
Protective frame
15
D284237-03
1
Lifting lug
16
4700387260
2
Clip
17
4700387705
2
Stop
18
4700500049
2
Screw
19
4700904742
4
Washer
20
4700387261
1
Bracket
21
4700387259
1
Clip
22
4700904228
2
Washer
6,4x12x1,5
23
4700500040
2
Screw
M6-1x20 8,8
24
4700791524
4
Screw
25
4700904655
8
Washer
26
4700387257
1
Hood
27
4700904798
4
Screw
28
4700902285
6
Lock nut
M6
SLG200-3EN2
7
Atlas Copco Construction Tools AB

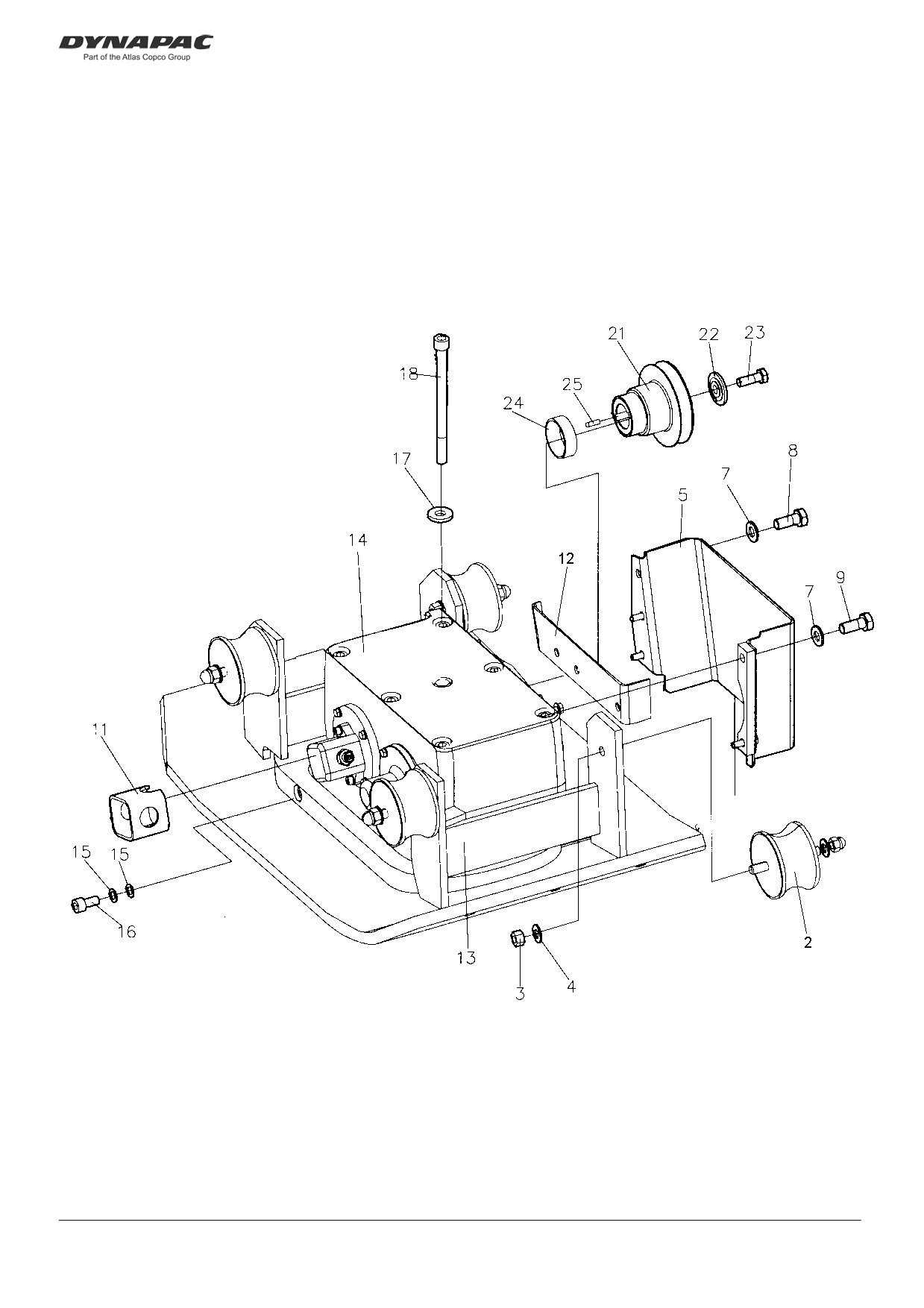

Ground plate and eccentric element
18975
8
SLG200-3EN2
Atlas Copco Construction Tools AB
Ground plate and eccentric element
Item Part No Rem Qty Description
Code
2
A
Shock absorber
3
A
Nut
4
A
Washer
5
4700280871
1
V-belt cover
7
4700904229
8
Washer
8,4x16x1,5
8
4700500053
6
Screw
M8x20H 8.8
9
4700500022
2
Screw
M8x30H 8.8 A2K
11
B
1
Cover
12
4700280858
1
V-belt protection, inner
13
A
1
Ground plate
14
1
Eccentric element ( Page 16 )
15
4700747541
2
Washer
D
16
4700508028
1
Screw
17
4700904703
6
Washer
18
4700929454
6
Screw
21
4700280643
1
Pulley
22
4700280654
1
Washer
23
4700500028
1
Screw
24
4700928795
1
Sleeve
25
4700350029
1
Key
A)
See section ground plate, engine plate and frame
B)
See section hydraulic system
SLG200-3EN2
9
Atlas Copco Construction Tools AB
Option, transport device
17952
10
SLG200-3EN2
Atlas Copco Construction Tools AB
Option, transport device

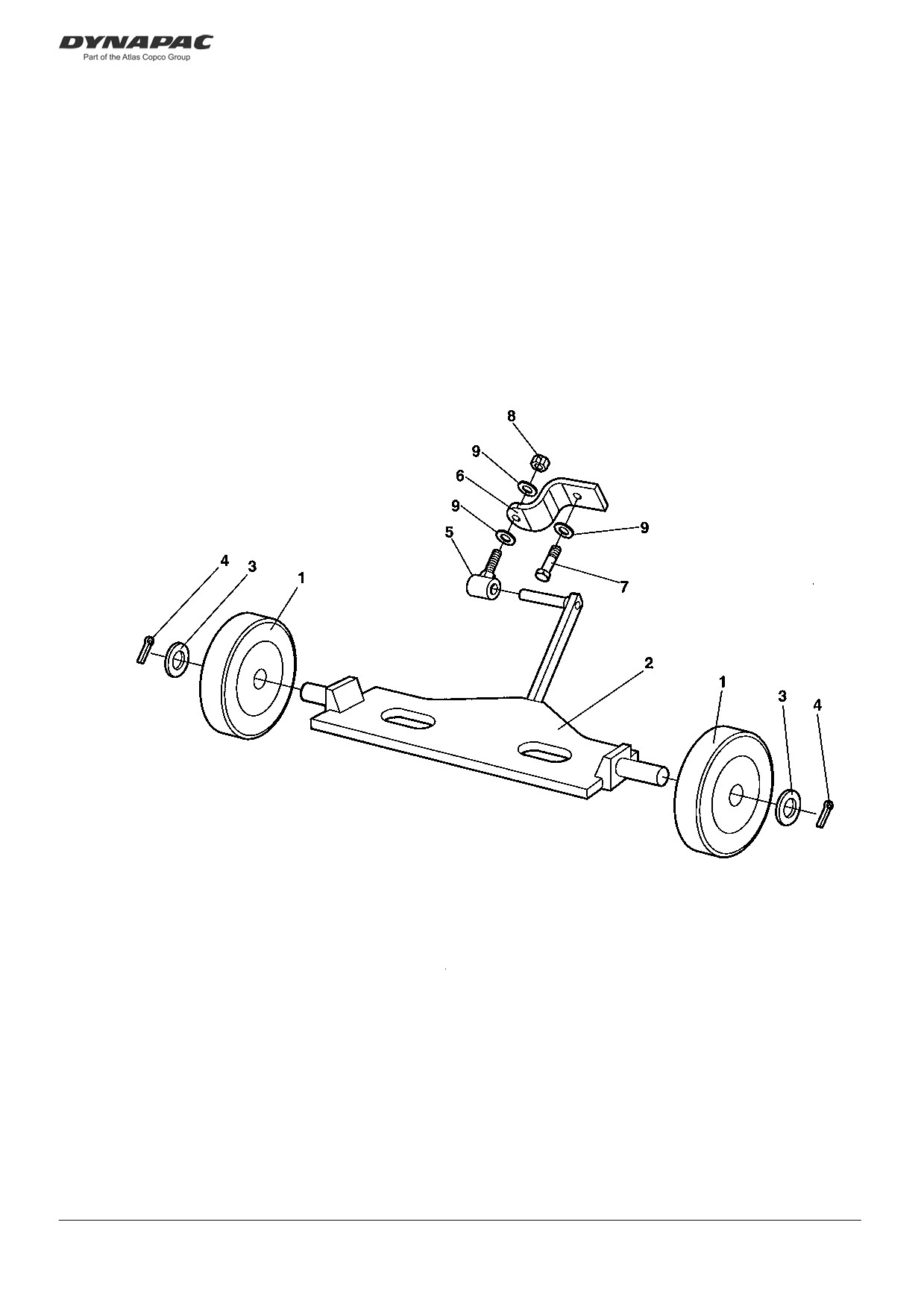

Item Part No Rem Qty Description
Code
1
4700383598
2
Wheel
2
4700281887
1
Transport device
3
4700271032
2
Washer
4
4700630010
2
Split pin
5
4700281893
1
Bracket
6
4700389243
1
Bracket
7
4700500056
1
Screw
8
4700570007
1
Hexagon nut
M12
9
4700904231
3
Washer
13x24x2 300 HV
1
SLG200-3EN2
11
Atlas Copco Construction Tools AB

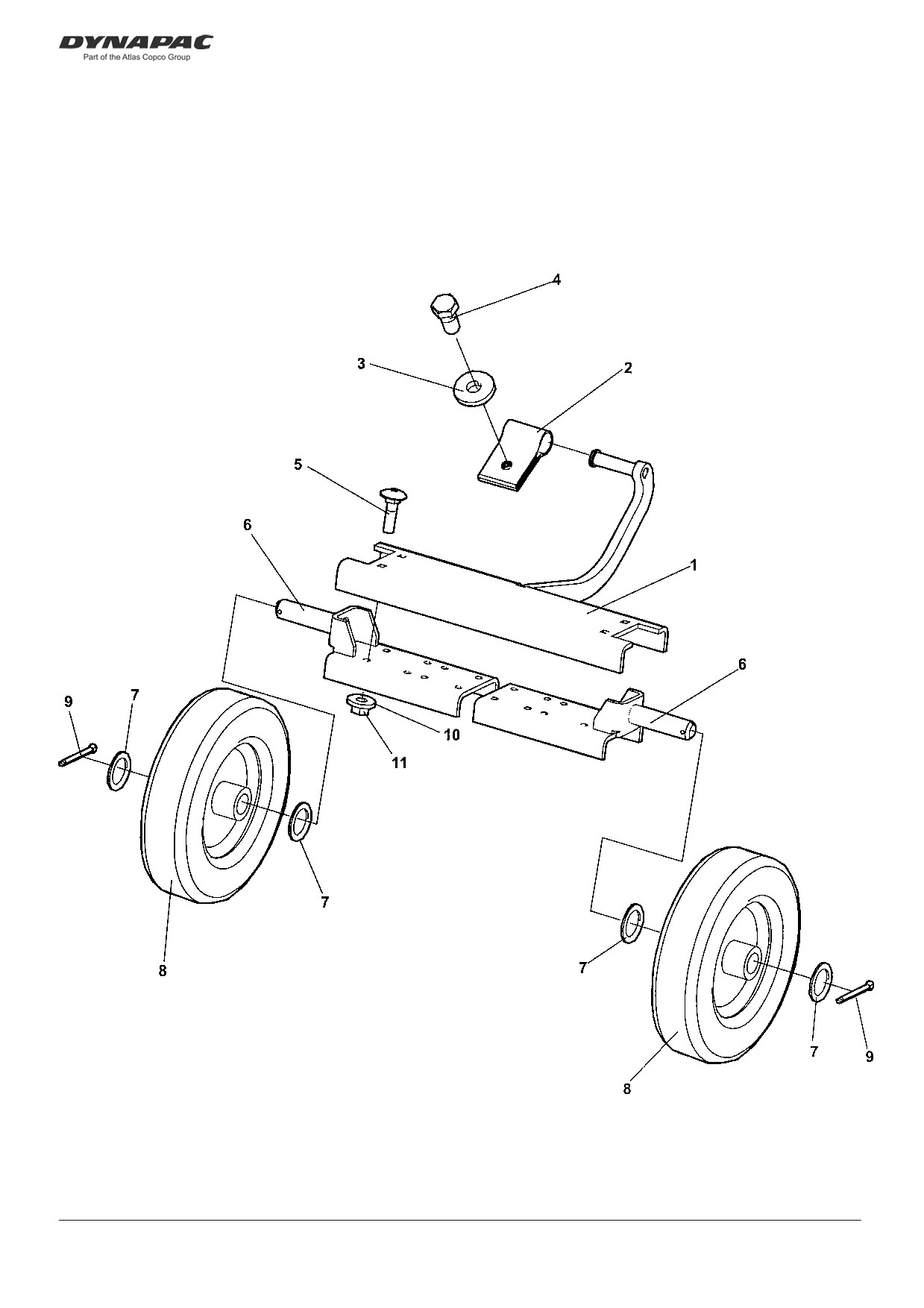

Transport device New version
18682
12
SLG200-3EN2
Atlas Copco Construction Tools AB
Transport device New version
Item Part No Rem Qty Description
Code
1
4700394933
1
Transport device
2
4700280417
1
Strap
B
3
4700924543
1
Washer
4
4700500051
1
Screw
M12x25H 8.8 A3K
5
4700791614
4
Screw
6
4700394985
2
Wheel bracket
7
4700271032
4
Washer
8
4700383598
2
Wheel
9
4700630015
2
Split pin
10
4700904640
4
Washer
8,4x22x3
11
4700570005
4
Nut
M8
SLG200-3EN2
13
Atlas Copco Construction Tools AB
Eccentric element
14
SLG200-3EN2
Atlas Copco Construction Tools AB
Eccentric element
Item Part No Rem Qty Description
Code
10
Eccentric element ( Page 16 )
20
Piston, cpl ( Page 18 )
1
SLG200-3EN2
15
Atlas Copco Construction Tools AB
Eccentric element
18215-1
16
SLG200-3EN2
Atlas Copco Construction Tools AB
Eccentric element
Item
Part No Rem Qty
Description
Code
1
Eccentric element, cpl
1
1
.Piston, cpl ( Page 18 )
2
4700508025
2
.Screw

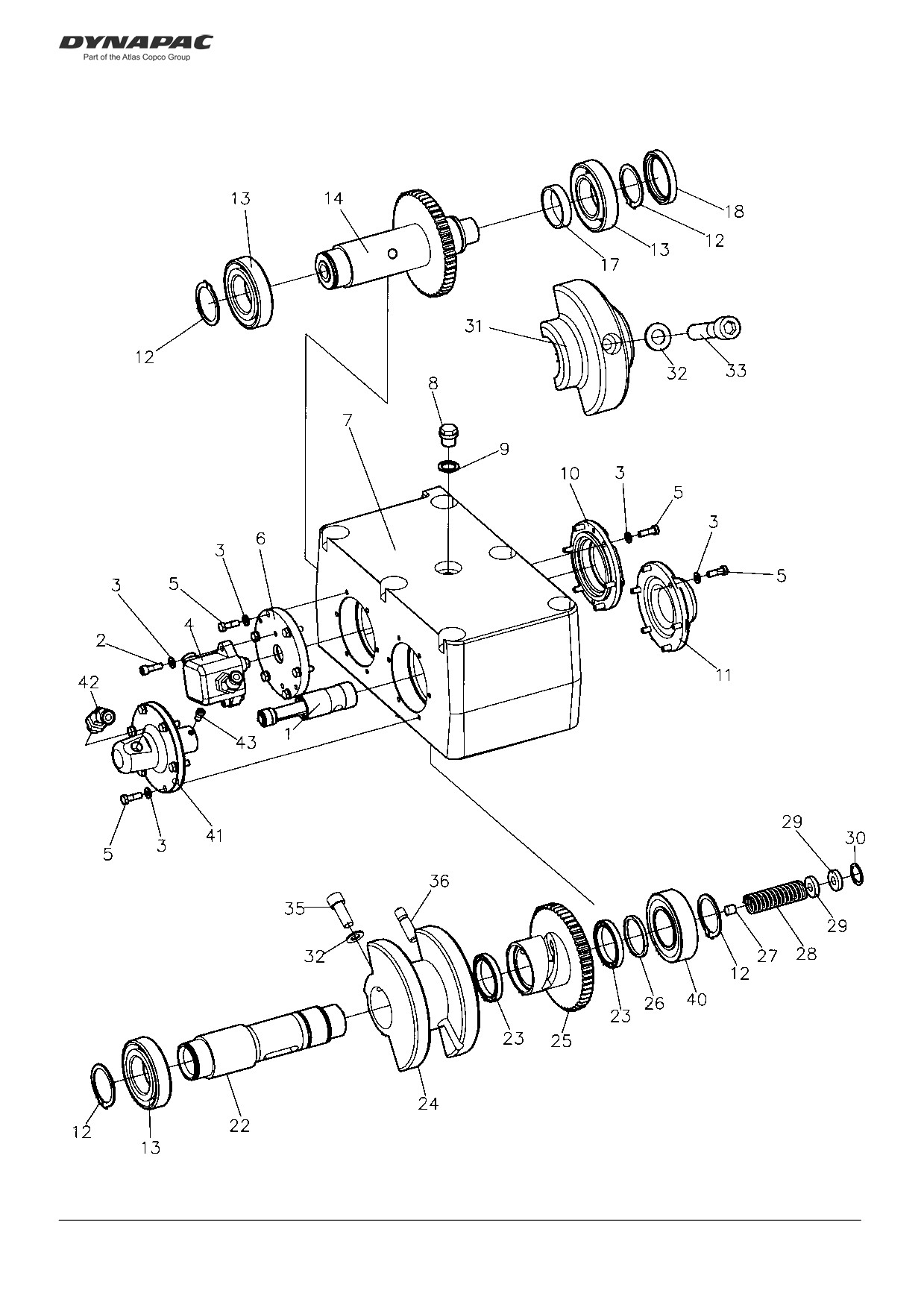

M6x20
3
4700904228
18
.Washer
6,4x12x1,5
4
1
.Hydraulic pump installation ( Page 44 )
5
4700500040
16
.Screw
M6-1x20 8,8
6
4700379168
1
.Cover
7
4700379175
1
.Eccentric housing
8
4700232143
1
.Plug
9
4700162011
1
.Washer, sealing
D
10
4700379167
1
.Cover
11
4700379165
1
.Cover
12
4700150017
4
.Retaining ring
D
13
4700903363
3
.Ball bearing
D
14
4700395060
1
.Shaft, cpl
17
4700280645
1
.Spacer ring
18
4700928794
1
.Sealing ring
D
22
4700378777
1
.Shaft
23
4700929287
2
.Ball bearing
D
24
4700280669
1
.Eccentric
D
25
4700395059
1
.Reverser
26
4700379016
1
.Ring
27
4700928241
1
.Screw
28
4700280677
1
.Spring
29
4700280648
2
.Washer
30
4700151007
1
.Retaining ring
31
4700286380
1
.Weight
32
4700904638
2
.Washer
12x22x2
33
4700792724
1
.Screw
35
4700792723
1
.Screw
36
4700280644
1
.Pin
40
4700792254
1
.Spherical roller bearing
41
4700379166
1
.Cylinder
42
4700791537
1
.Straight connector
43
4700380155
1
.Screw
1
SLG200-3EN2
17
Atlas Copco Construction Tools AB
Piston, cpl
18217
18
SLG200-3EN2
Atlas Copco Construction Tools AB
Piston, cpl

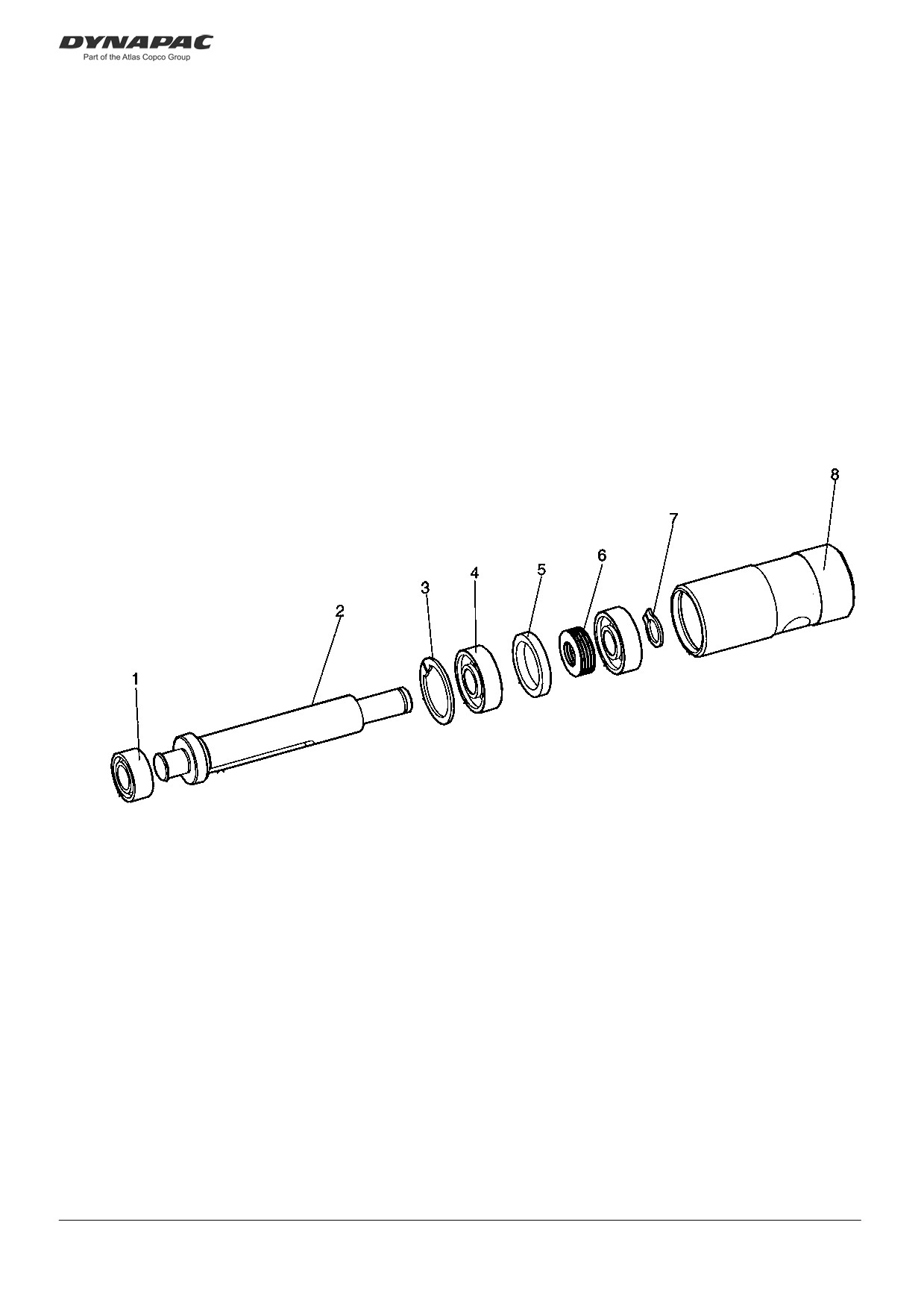

Item Part No Rem Qty Description
Code
1
Piston, cpl
1
4700281276
1
.Sealing ring
2
4700377359
1
.Piston rod
3
4700151039
1
.Retaining ring
4
4700929286
2
.Ball bearing
D
5
4700280647
1
.Spacer ring
6
4700929291
10
.Cup spring
7
4700150002
1
.Retaining ring
8
4700280637
1
.Piston
SLG200-3EN2
19
Atlas Copco Construction Tools AB
Engine and engine installation
20
SLG200-3EN2
Atlas Copco Construction Tools AB
Engine and engine installation
Item Part No Rem Qty Description
Code
10
Engine Honda GX200 ( Page 22 )
20
Engine Hatz 1B20 ( Page 24 )
30
Engine installation, Honda ( Page 28 )
40
Engine installation, Hatz ( Page 30 )
SLG200-3EN2
21
Atlas Copco Construction Tools AB
Engine Honda GX200
16101
22
SLG200-3EN2
Atlas Copco Construction Tools AB
Engine Honda GX200

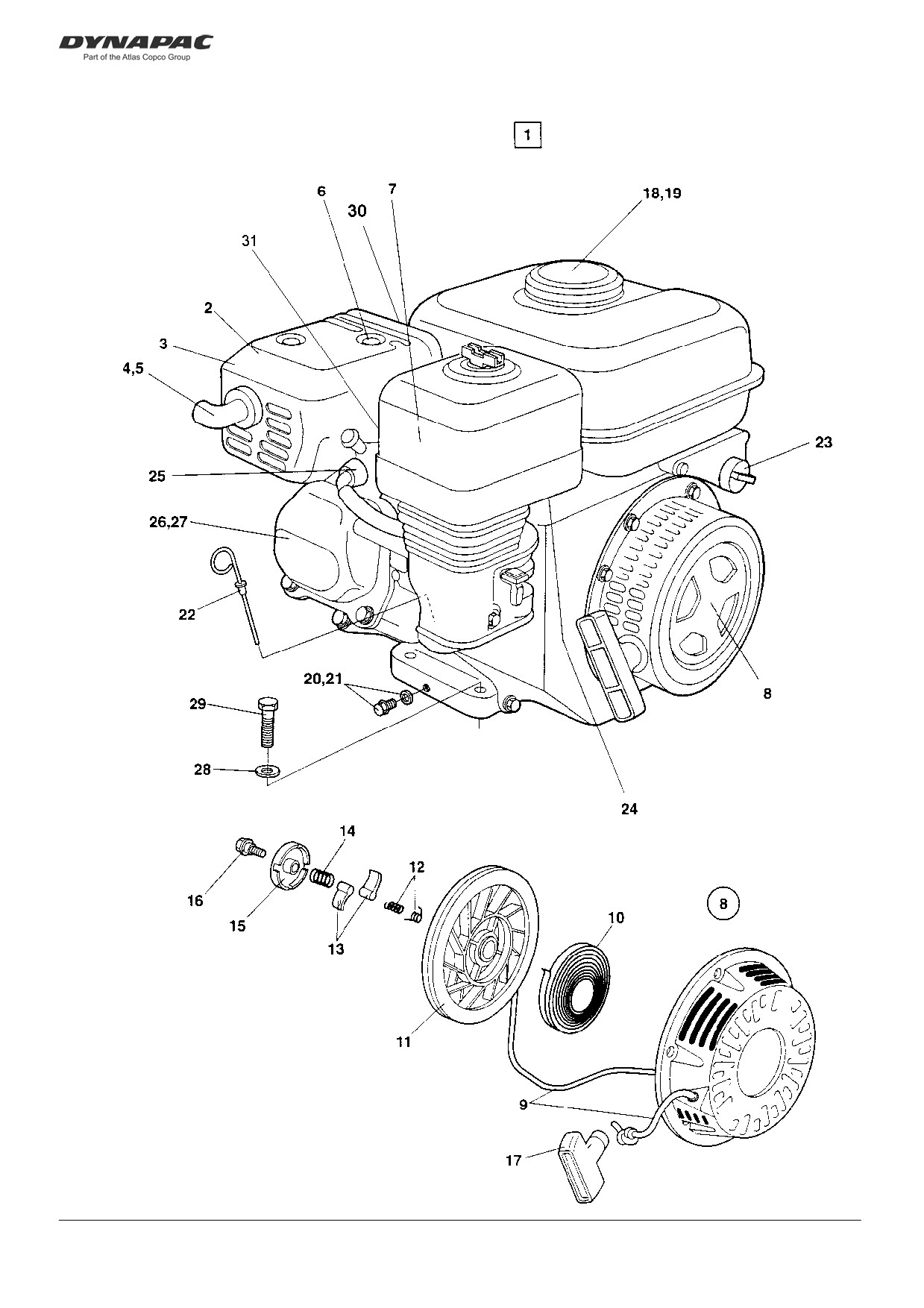

Item
Part No Rem Qty
Description
Code
1
4700387979
1
Engine, cpl
2
4700239889
1
.Muffler
3
4700239890
1
.Muffler cover
4
Not used on this model
5
Not used on this model
6
4700239063
1
.Gasket, muffler
7
4700239064
1
.Air cleaner element, cpl
A
8
4700239065
1
.Recoil starter, cpl
D
9
4700239374
1
..Starter rope
B
10
4700239375
1
..Spring
B
11
4700239376
1
..Reel
12
4700239377
2
..Spring
13
4700239378
2
..Ratchet
14
4700239379
1
..Friction spring
15
4700239380
1
..Guide
16
4700239381
1
..Screw
17
4700239391
1
..Handle
B
18
4700239321
1
.Fuel tank
19
4700239324
1
.Fuel tank cap
D
20
4700239682
2
.Plug
D
21
4700238303
2
.Gasket
D
22
4700935802
1
.Oil level plug
23
4700239067
1
.Oil alert
24
1
.Carburettor, cpl.
25
4700239565
1
.Spark plug
A
26
4700238301
1
.Gasket
D
27
4700238309
1
.Gasket, cylinder head
B
28
A
4
Washer
B
29
A
4
Screw
B
30
1
Catalyser
B
31
4700573002
B
1
Nut
M5
A)
See section engine installtion
B)
Locking nut for revolution screw
SLG200-3EN2
23
Atlas Copco Construction Tools AB

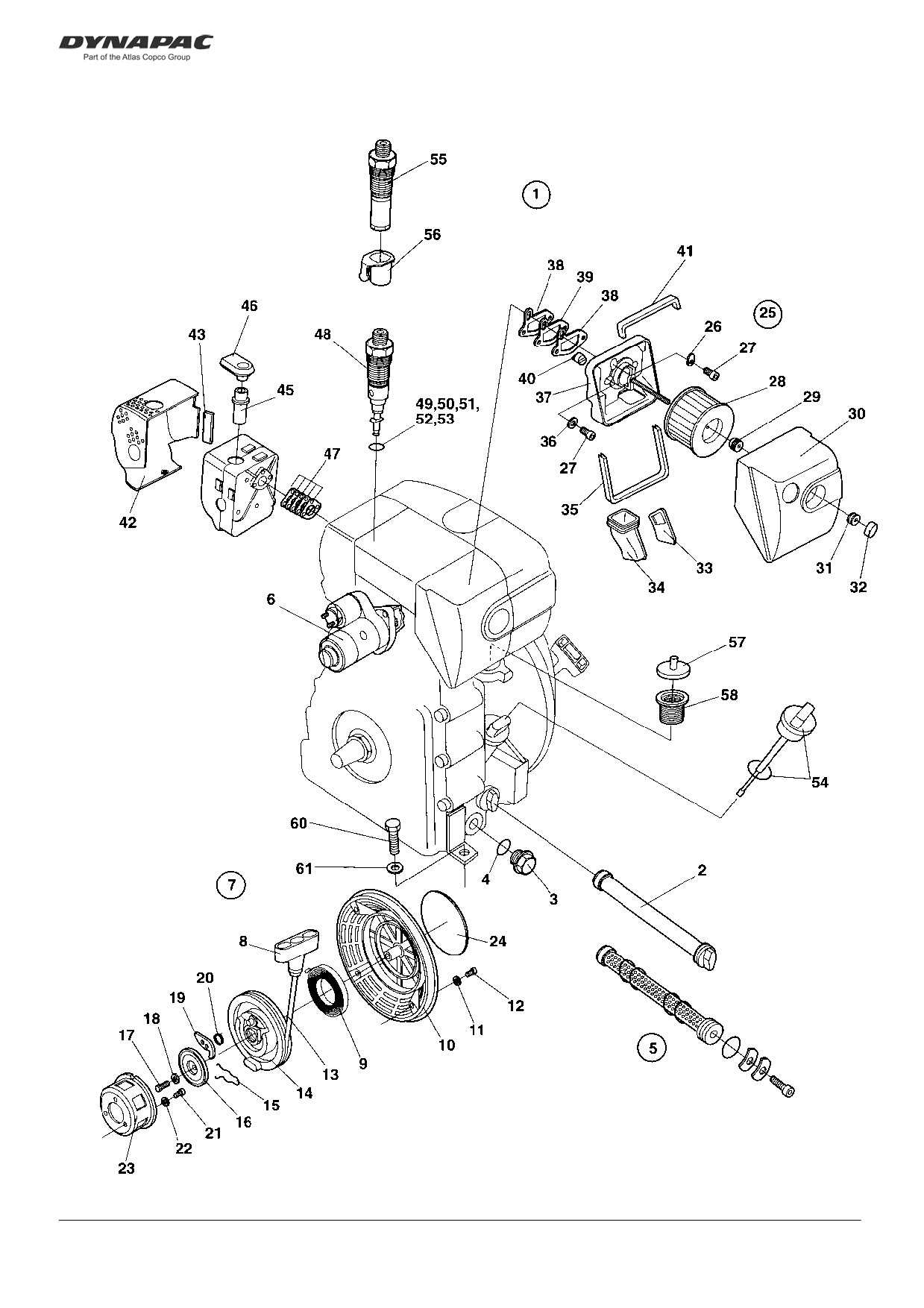

Engine Hatz 1B20
17122
24
SLG200-3EN2
Atlas Copco Construction Tools AB
Engine Hatz 1B20
Item
Part No Rem Qty
Description
Code
1
4700391058
1
Engine, cpl
Hatz 1B20
4700391057
1
Engine, cpl
Hatz 1B20, electrical started
4700383293
B
1
.Summer
4700939588
B
1
.Instrument box, cpl
4700938146
B
1
..Ignition switch
4700938086
B
1
..Ignition key
2
Not used on this model
3
4700937002
1
.Plug
D
4
4700937003
1
.O-ring
B
5
4700937415
1
.Oil strainer, cpl
6
1
.Starter
7
4700936982
1
.Recoil starter, cpl
D
8
4700936983
1
..Knob
B
9
4700936985
1
..Spiral spring
B
10
4700936986
1
..Housing
11
4700936987
4
..Washer
12
4700936988
4
..Screw
13
4700936989
1
..Rope
B
14
4700936990
1
..Reel
15
4700936991
1
..Spring
B
16
4700936992
1
..Friction plate
17
4700936993
1
..Screw
18
4700936994
1
..Washer
19
4700936995
1
..Ratchet
20
4700936996
1
..O-ring
21
4700936997
3
.Screw
22
4700936998
3
.Washer
23
4700936999
1
.Starter pulley
24
4700937000
1
.Decal
1
26
4700937011
1
.Washer
27
4700937012
3
.Screw
28
4700937013
1
.Filter element
A
29
4700937014
1
.Nut
30
4700937015
1
.Protecting cover
31
4700937016
1
.Rubber sleeve
32
4700937017
1
.Nut
33
4700937018
1
.Plate
34
4700937019
1
.Rubber hose
35
4700937020
1
.Edge trim
36
4700239517
2
.Washer
37
4700937021
1
.Air filter house
38
4700937022
2
.Gasket
39
4700937023
1
.Gasket
40
4700937024
1
.Vent nipple
41
4700937010
1
.Edge trim
42
4700937007
1
.Protecting cover
43
4700937008
1
.Edge trim
44
4700937009
1
.Muffler
45
4700937005
1
.Exhaust tube
46
4700937004
1
.Exhaust pipe
47
4700937006
6
.Gasket
48
4700936976
1
.Injection pump cpl
D
49
4700936977
1
..O-ring
0,2 mm
50
4700936978
1
..O-ring
0,3 mm
51
4700936979
1
..O-ring
0,4 mm
52
4700936980
1
..O-ring
0,5 mm
53
4700936981
1
..O-ring
0,6 mm
B)
For electrical version
SLG200-3EN2
25
Atlas Copco Construction Tools AB
Engine Hatz 1B20
17122
26
SLG200-3EN2
Atlas Copco Construction Tools AB
Engine Hatz 1B20
Item Part No Rem Qty Description
Code
54
4700937608
1
.Oil dipstick
55
4700938968
1
.Nozzle
56
4700937606
1
.Sleeve
57
4700937604
1
.Lock
58
4700937605
1
.Socket
60
A
4
Screw
61
A
4
Washer
A)
See section engine installation
SLG200-3EN2
27
Atlas Copco Construction Tools AB
Engine installation, Honda
17955
28
SLG200-3EN2
Atlas Copco Construction Tools AB
Engine installation, Honda

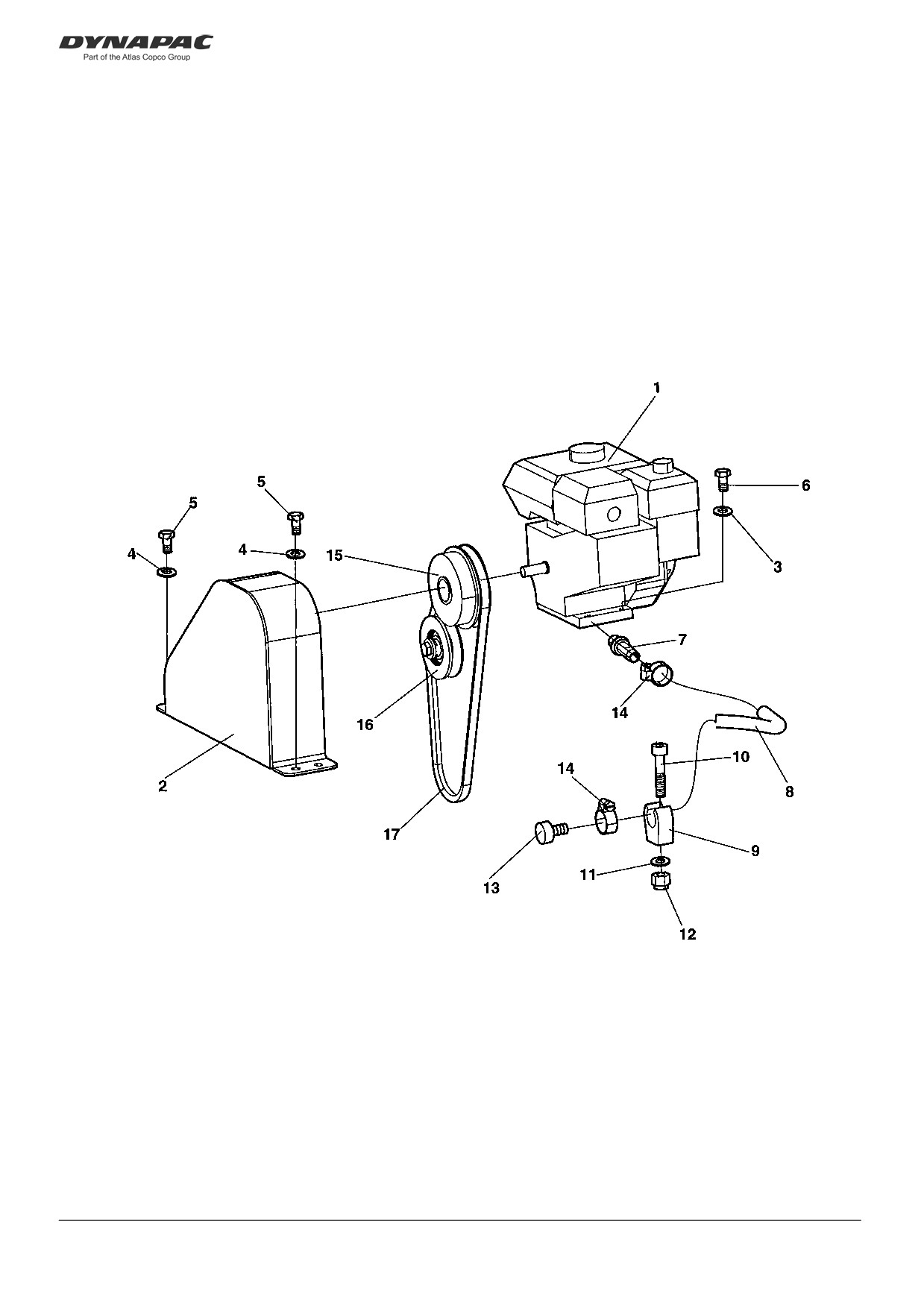

Item Part No Rem Qty Description
Code
1
Engine Honda GX200 ( Page 22 )
2
D387301-02
1
V-belt guard
3
4700904229
4
Washer
8,4x16x1,5
4
4700904640
4
Washer
8,4x22x3
5
4700500019
4
Screw
M8x16H 8.8 A2K
6
4700500047
4
Screw
7
D100504811
1
Hose connection
8
D100901382
1
Hose
9
4700281234
1
Ryw-clips
10
4700508023
1
Screw
11
4700904281
1
Washer
5,3x10x1 300HV
12
4700902284
1
Nut
M5
13
D100504609
1
Plug
14
4700313001
2
Hose clamp
15
A
Clutch, cpl
16
A
Idler, cpl
17
A
V-belt
1
A)
See section power transmission
SLG200-3EN2
29
Atlas Copco Construction Tools AB
Engine installation, Hatz
17954
30
SLG200-3EN2
Atlas Copco Construction Tools AB
Engine installation, Hatz
Item Part No Rem Qty Description
Code

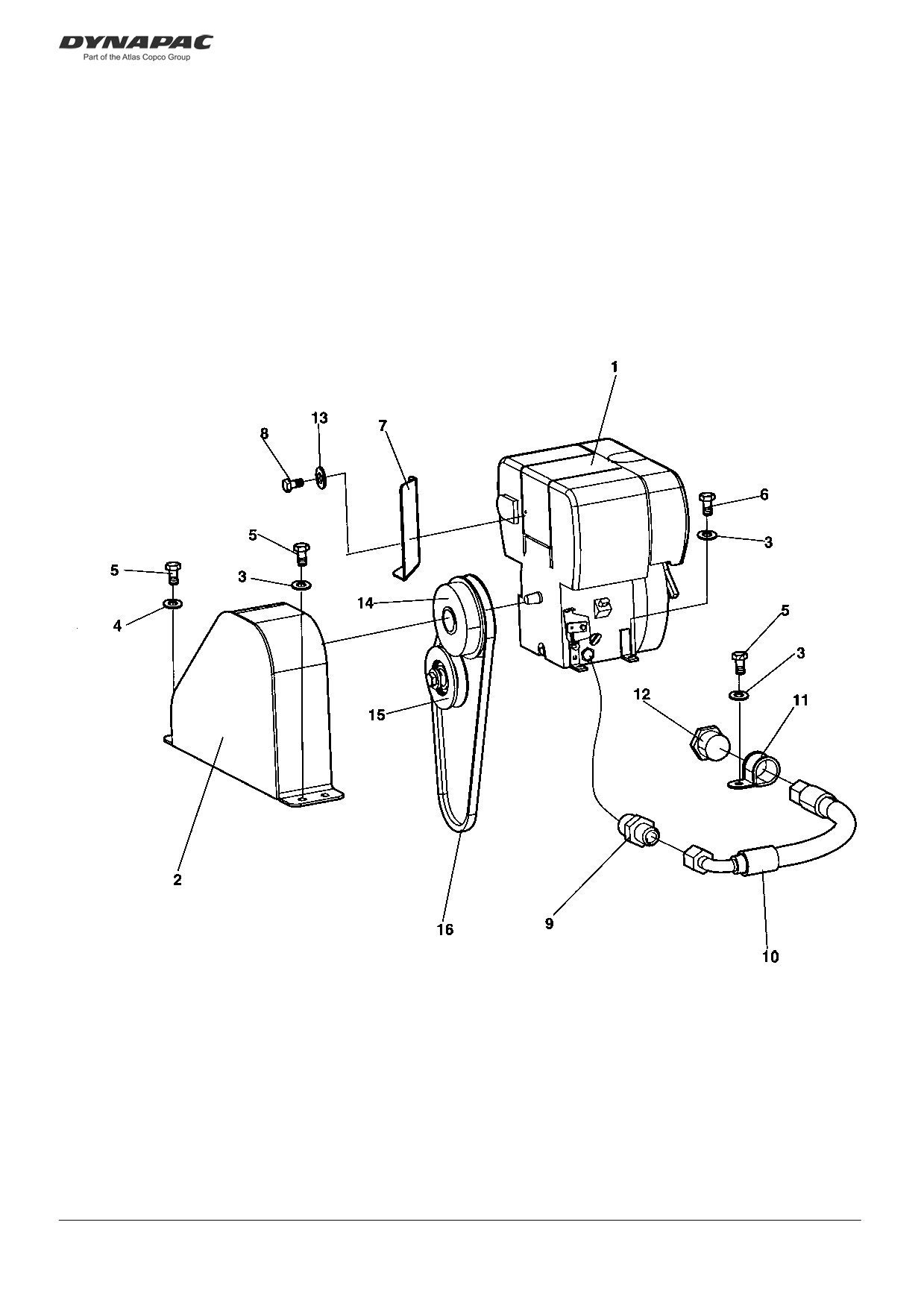

1
Engine Hatz 1B20 ( Page 24 )
2
D387301-02
1
V-belt guard
3
4700904229
5
Washer
8,4x16x1,5
4
4700904640
4
Washer
8,4x22x3
5
4700500019
5
Screw
M8x16H 8.8 A2K
6
4700500021
4
Screw
M8-1,25x25 8.8
7
4700387577
1
Deflector
8
4700508002
1
Screw
9
4700903925
B
1
Connector
10
4700482328
B
1
Hydraulic hose
11
4700921044
B
1
Clamp
12
4700232095
B
1
Plug
13
4700904228
1
Washer
6,4x12x1,5
14
A
1
Clutch
15
A
1
Idler, cpl
16
A
1
V-belt
A)
See section power transmission
B)
Old version
SLG200-3EN2
31
Atlas Copco Construction Tools AB
Power transmission
32
SLG200-3EN2
Atlas Copco Construction Tools AB
Power transmission
Item Part No Rem Qty Description
Code
10
Power transmission, Honda ( Page 34 )
30
Power transmission, Hatz ( Page 36 )
1
SLG200-3EN2
33
Atlas Copco Construction Tools AB

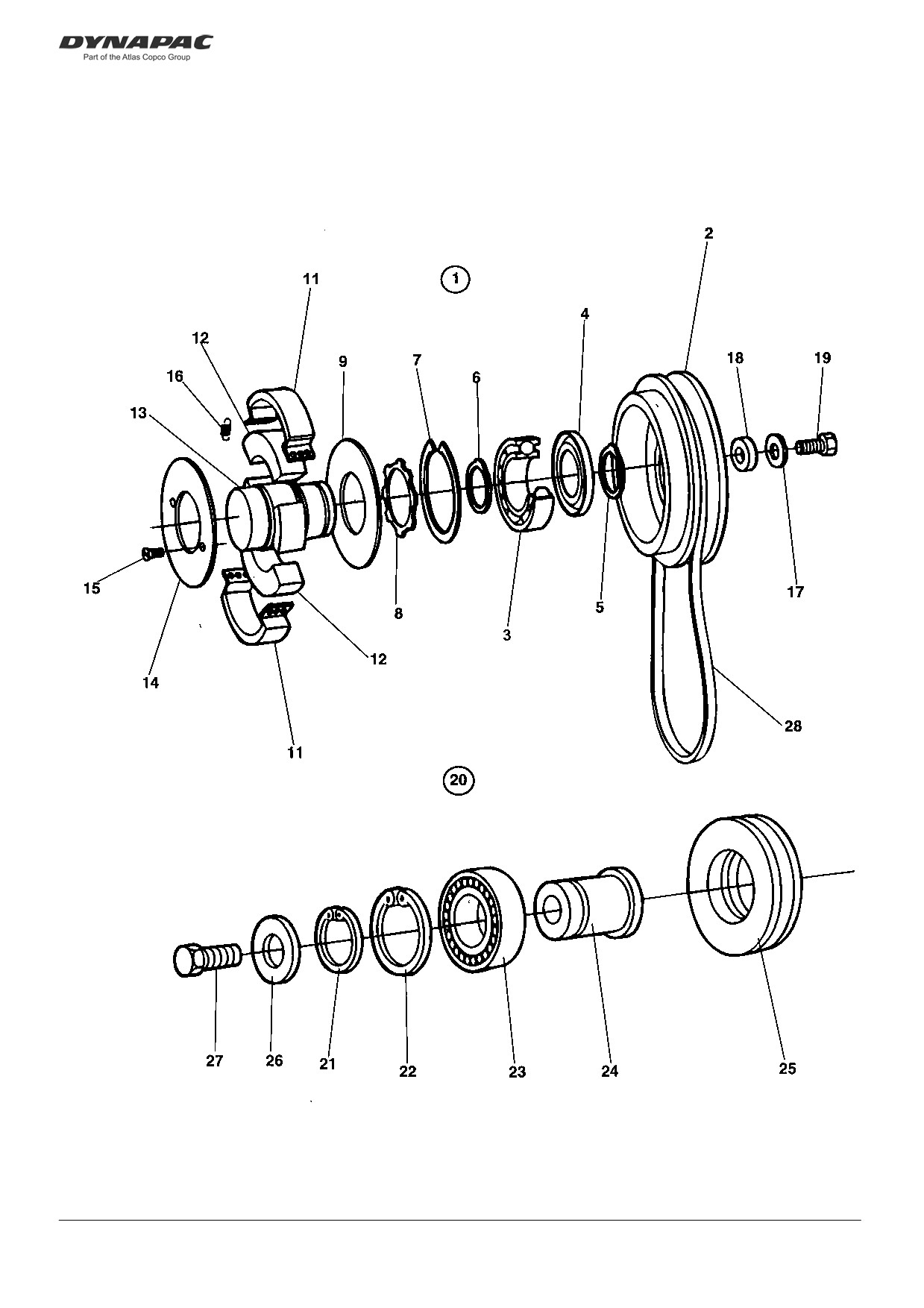

Power transmission, Honda
17953
34
SLG200-3EN2
Atlas Copco Construction Tools AB
Power transmission, Honda
Item
Part No Rem Qty
Description
Code
1
4700281124
1
Centrifugal clutch, cpl
D
2
4700935803
1
.Pulley
3
4700111180
1
.Ball bearing
D
4
Not used on this model
D
5
4700150012
1
.Snap ring
D
6
Not used on this model
D
7
4700151019
1
.Retaining ring
D
8
4700239734
1
.Retaining ring
9
4700935808
1
.Cover
10
4700935807
1
.Hub
11
4700929360
2
.Clutch lining
B
12
4700239290
2
.Weight
D
13
4700935807
1
.Hub
14
D100901024
1
.Cover
15
4700535002
2
.Screw
16
4700929356
2
.Spring
B
17
4700904734
1
Washer
8,4x26x4
18
Not used on this model
19
4700500021
1
Screw
M8-1,25x25 8.8
20
4700280835
1
Idler, cpl
D
21
4700150009
1
.Snap ring
22
4700151017
1
.Snap ring
23
4700111114
1
.Ball bearing
24
4700280837
1
.Shaft
25
4700280836
1
.V-belt pulley
D
26
4700904213
1
Washer
27
4700500046
1
Screw
28
4700281345
1
V-belt
B
SLG200-3EN2
35
Atlas Copco Construction Tools AB

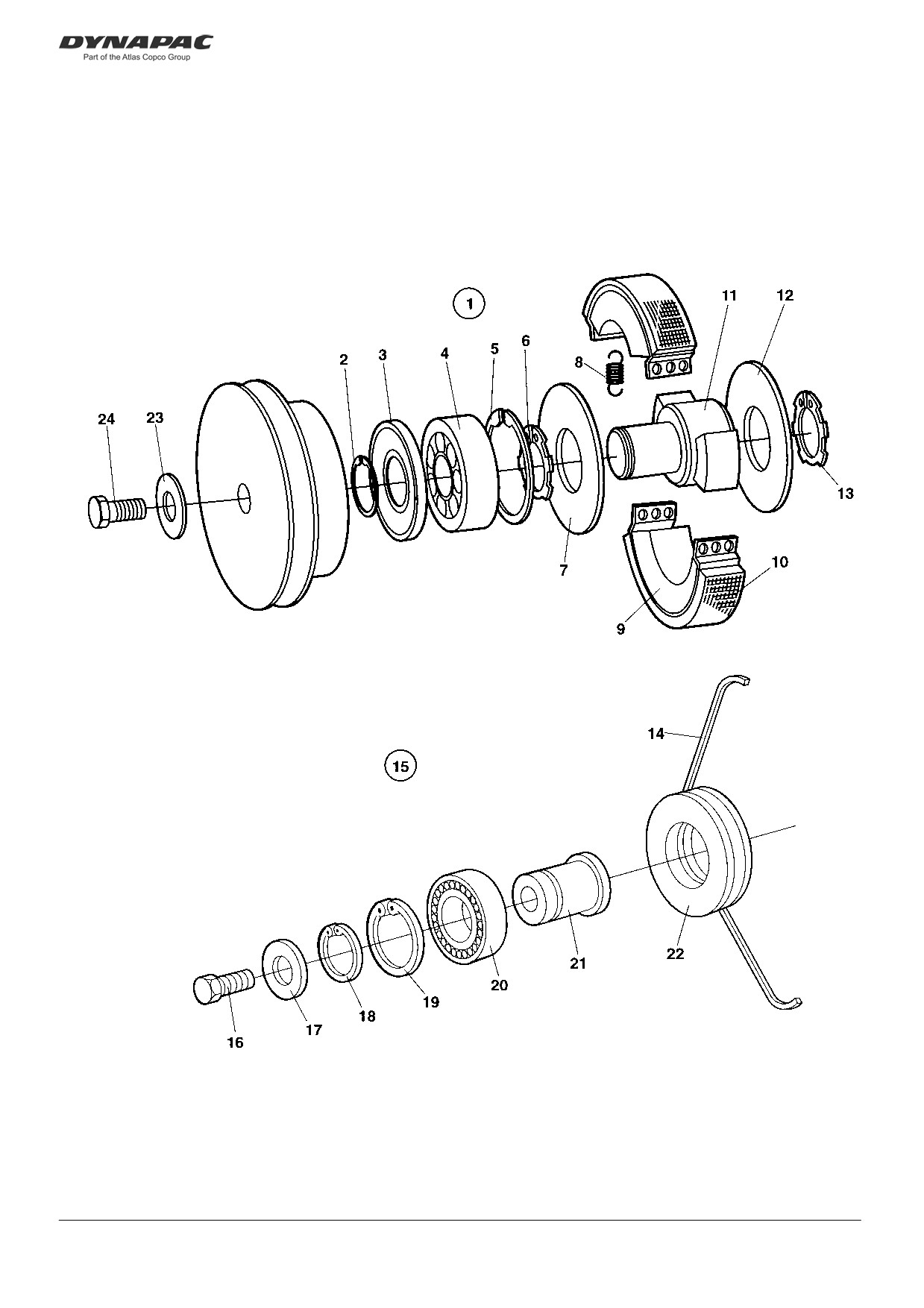

Power transmission, Hatz
16871-1
36
SLG200-3EN2
Atlas Copco Construction Tools AB
Power transmission, Hatz
Item
Part No Rem Qty
Description
Code
1
4700377620
1
Centrifugal clutch, cpl
2
4700937036
1
.Retaining ring
3
A
Not used on this model
4
4700940371
1
.Ball bearing
D
5
4700937035
B
1
.Retaining ring
6
4700239734
1
.Retaining ring
7
4700239768
1
.Cover
8
4700937527
4
.Spring
9
4700940372
2
.Centrifugal weight
D
10
4700238606
2
.Clutch lining
B
11
4700940932
1
.Hub
12
4700239768
1
.Cover
13
4700239734
1
.Retaining ring
14
4700281249
1
.V-belt
B
15
4700280835
1
Idler, cpl
D
16
4700500046
1
.Screw
17
4700904213
1
.Washer
18
4700150009
1
.Snap ring
19
4700151017
1
.Snap ring
20
4700111114
1
.Ball bearing
21
4700280837
1
.Shaft
22
4700280836
1
.V-belt pulley
D
23
4700904734
1
.Washer
8,4x26x4
24
4700500022
1
.Screw
M8x30H 8.8 A2K
1
A)
Not used on this model, replaced by item 5
B)
Mounted at the other side of the ball bearing, item 4
SLG200-3EN2
37
Atlas Copco Construction Tools AB
Hydraulic system
38
SLG200-3EN2
Atlas Copco Construction Tools AB
Hydraulic system
Item Part No Rem Qty Description
Code
10
Hydraulic system ( Page 40 )
20
Hydraulic pump installation ( Page 44 )
1
SLG200-3EN2
39
Atlas Copco Construction Tools AB

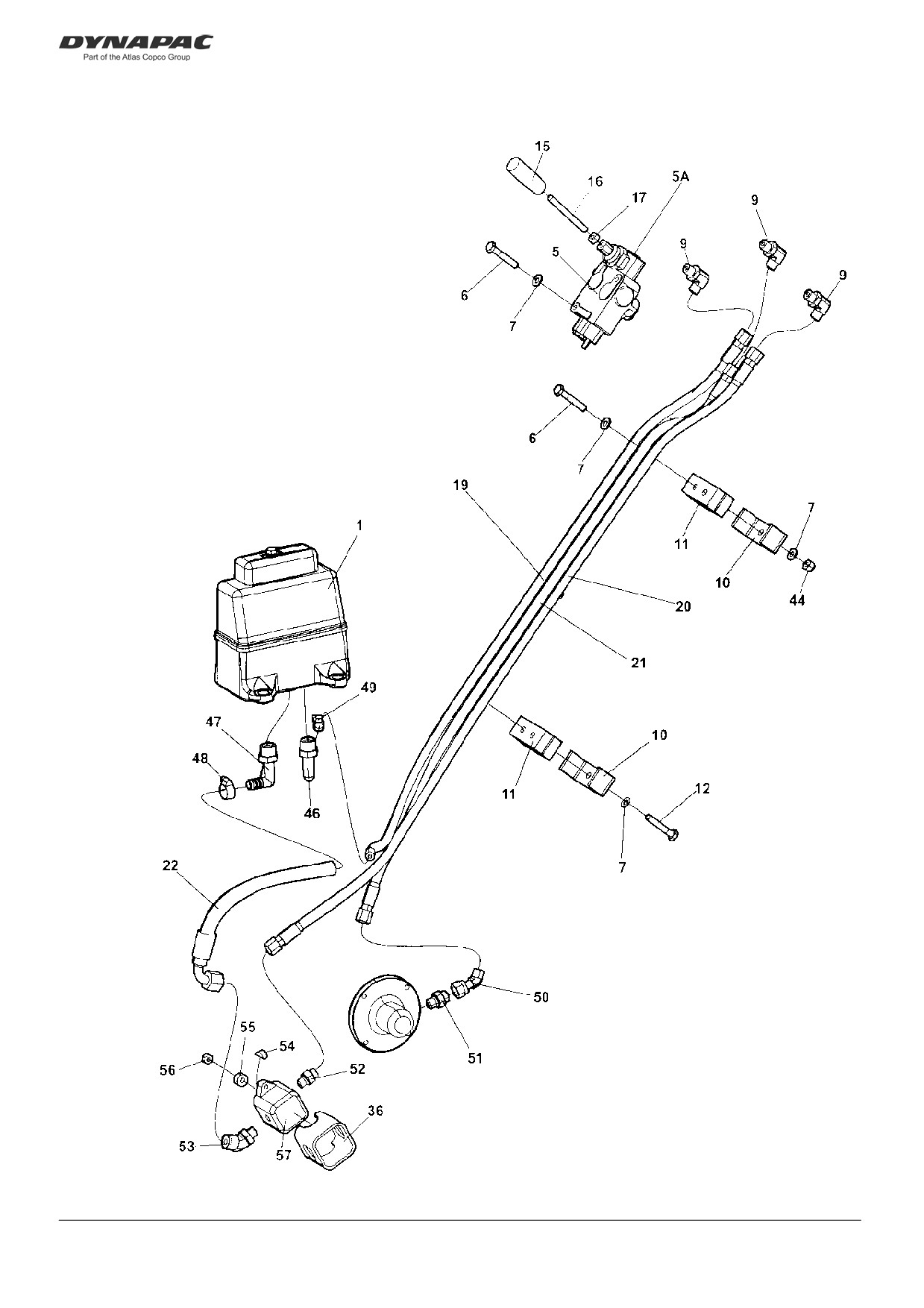

Hydraulic system
18976
40
SLG200-3EN2
Atlas Copco Construction Tools AB
Hydraulic system
Item
Part No Rem Qty
Description
Code
1
1
Hydraulic oil tank ( Page 42 )
3
4700904230
4
Washer
4
4700500029
4
Screw
5
4700282993
1
Valve
4700937924
1
.Lever housing
6
4700500079
2
Screw
M6-1x50 8,8
7
4700904228
4
Washer
6,4x12x1,5
9
4700791397
3
Elbow 90, O-ring
10
D100505023
2
Bracket
11
4700280534
2
Rubber block
12
4700500025
4
Screw
M8-1,25x50 8,8
14
4700904229
4
Washer
8,4x16x1,5
15
4700903821
1
Grab handle
16
D100505042
1
Rod
17
4700570005
1
Nut
M8
19
4700395372
1
Hydraulic hose
20
4700483906
1
Hydraulic hose
21
4700484243
1
Hydraulic hose
22
4700395373
1
Hydraulic hose
36
4700280540
1
Cover
38
4700586002
2
Lock nut
M6 -8
44
4700586003
2
Lock nut
M8
46
A
1
Adapter
47
A
1
Adapter
48
A
1
Hose clamp
49
A
1
Hose clamp
50
4700791403
1
Elbow 45
51
B
1
Adapter
52
C
1
Adapter
53
C
1
Elbow
54
C
1
Key
55
C
1
Sleeve
56
C
1
Nut
57
C
1
Hydraulic pump
1
A)
See section hydraulic oil tank
B)
See section eccentric element
C)
See section hydraulic pump installation
SLG200-3EN2
41
Atlas Copco Construction Tools AB

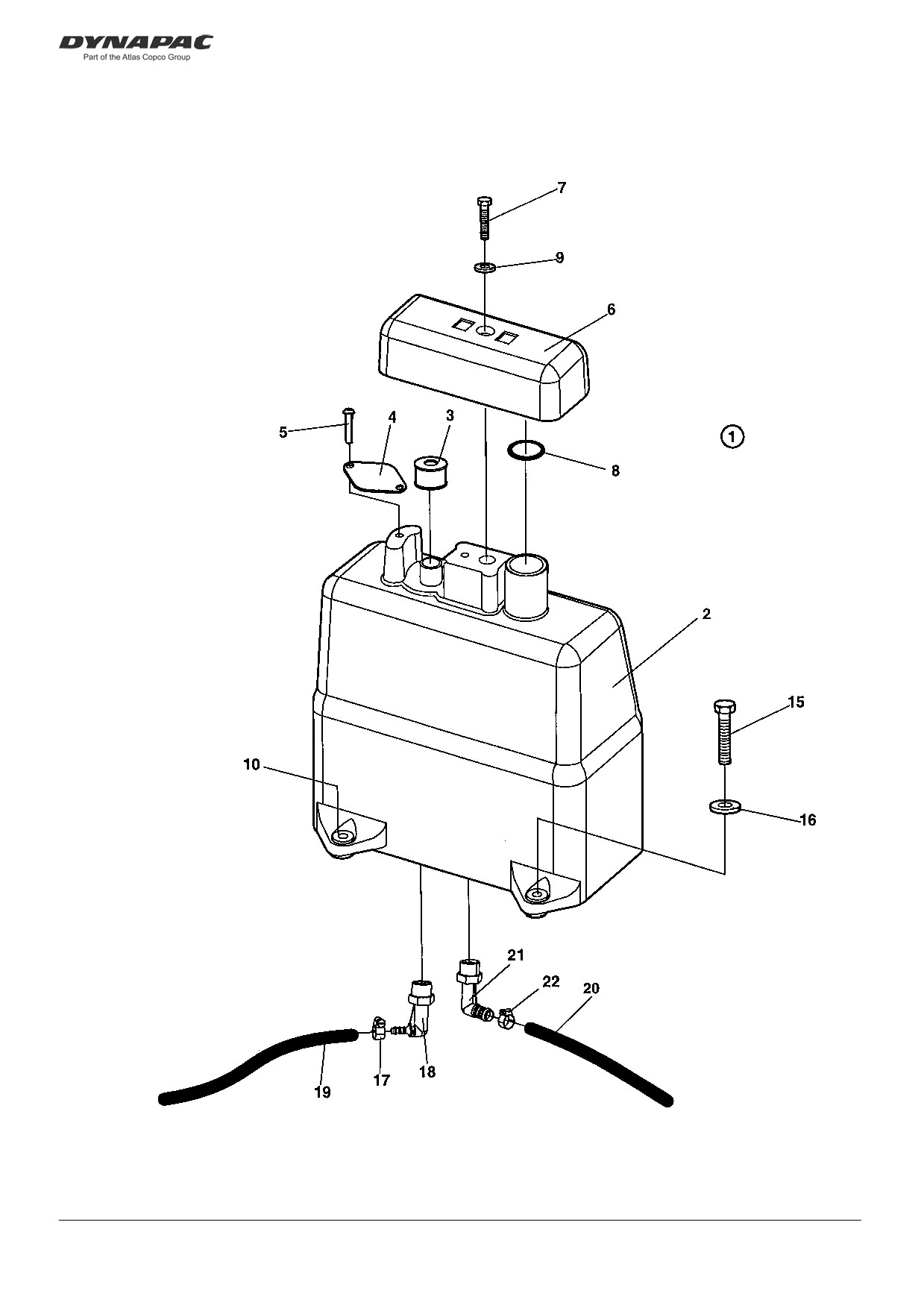

Hydraulic oil tank
18098
42
SLG200-3EN2
Atlas Copco Construction Tools AB
Hydraulic oil tank
Item Part No Rem Qty Description
Code
1
4700376677
1
Hydraulic oil tank, cpl
2
4700387830
1
.Hydraulic oil tank
3
4700381566
1
.Air filter
4
4700381563
1
.Holder
5
4700904960
2
.Screw
6
4700381385
1
.Cover
7
4700500021
1
.Screw
M8-1,25x25 8.8
8
4700160110
1
.O-ring
9
4700904229
1
.Washer
8,4x16x1,5
10
4700377333
4
.Bushing
15
4700500029
4
Screw
16
4700904230
4
Washer
17
4700313108
1
Hose clamp
18
4700376674
1
Adapter
19
A
1
Hydraulic hose
20
A
1
Hydraulic hose
21
4700376675
1
Adapter
22
4700313003
1
Hose clamp
D
A)
See section "hydraulic system"
SLG200-3EN2
43
Atlas Copco Construction Tools AB

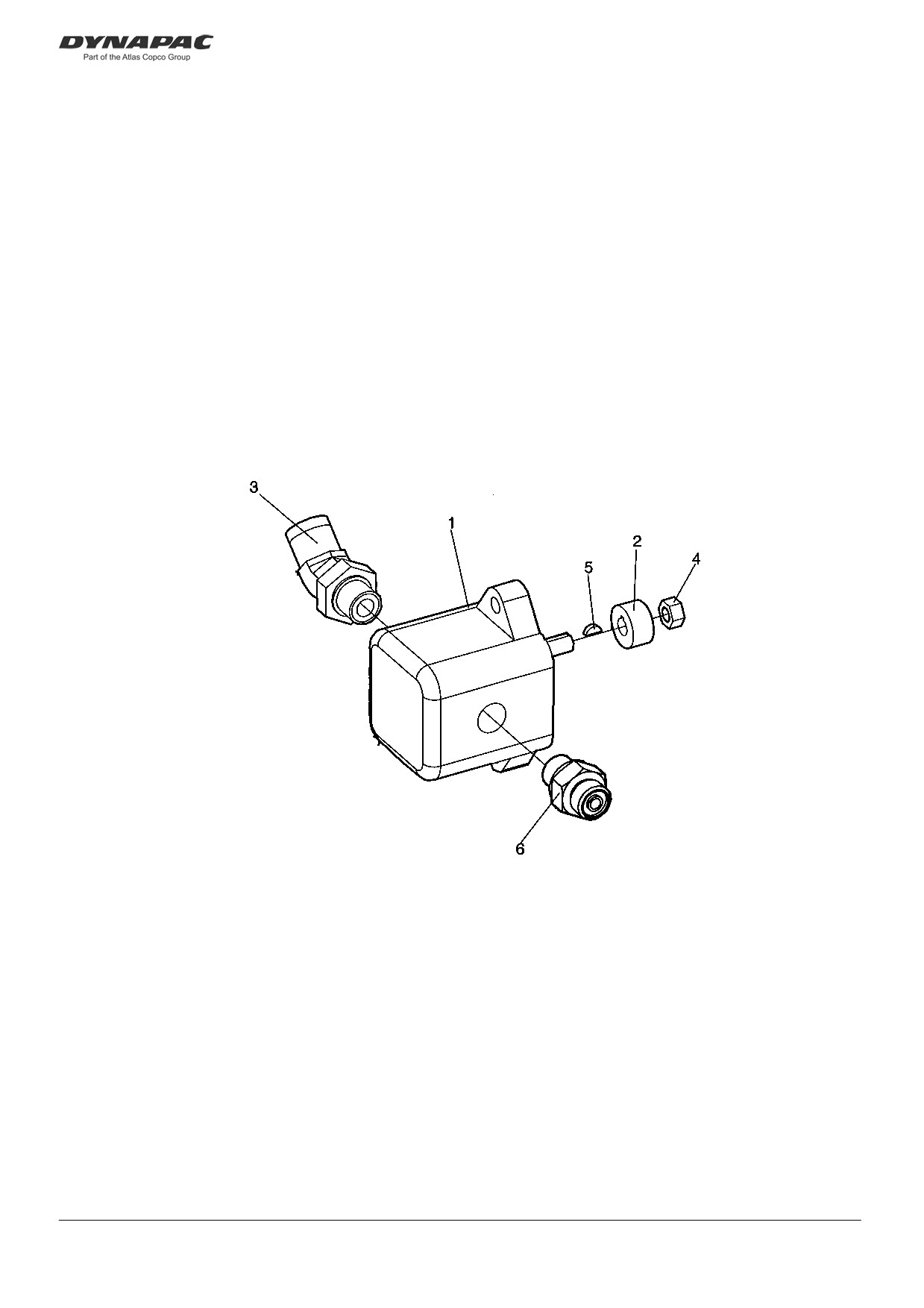

Hydraulic pump installation
18222
44
SLG200-3EN2
Atlas Copco Construction Tools AB
Hydraulic pump installation
Item Part No Rem Qty Description
Code
1
4700383562
1
Hydraulic pump
2
4700928894
1
Sleeve
3
4700792253
1
Elbow
4
1
Nut
5
1
Key
6
4700791537
1
Straight connector
SLG200-3EN2
45
Atlas Copco Construction Tools AB

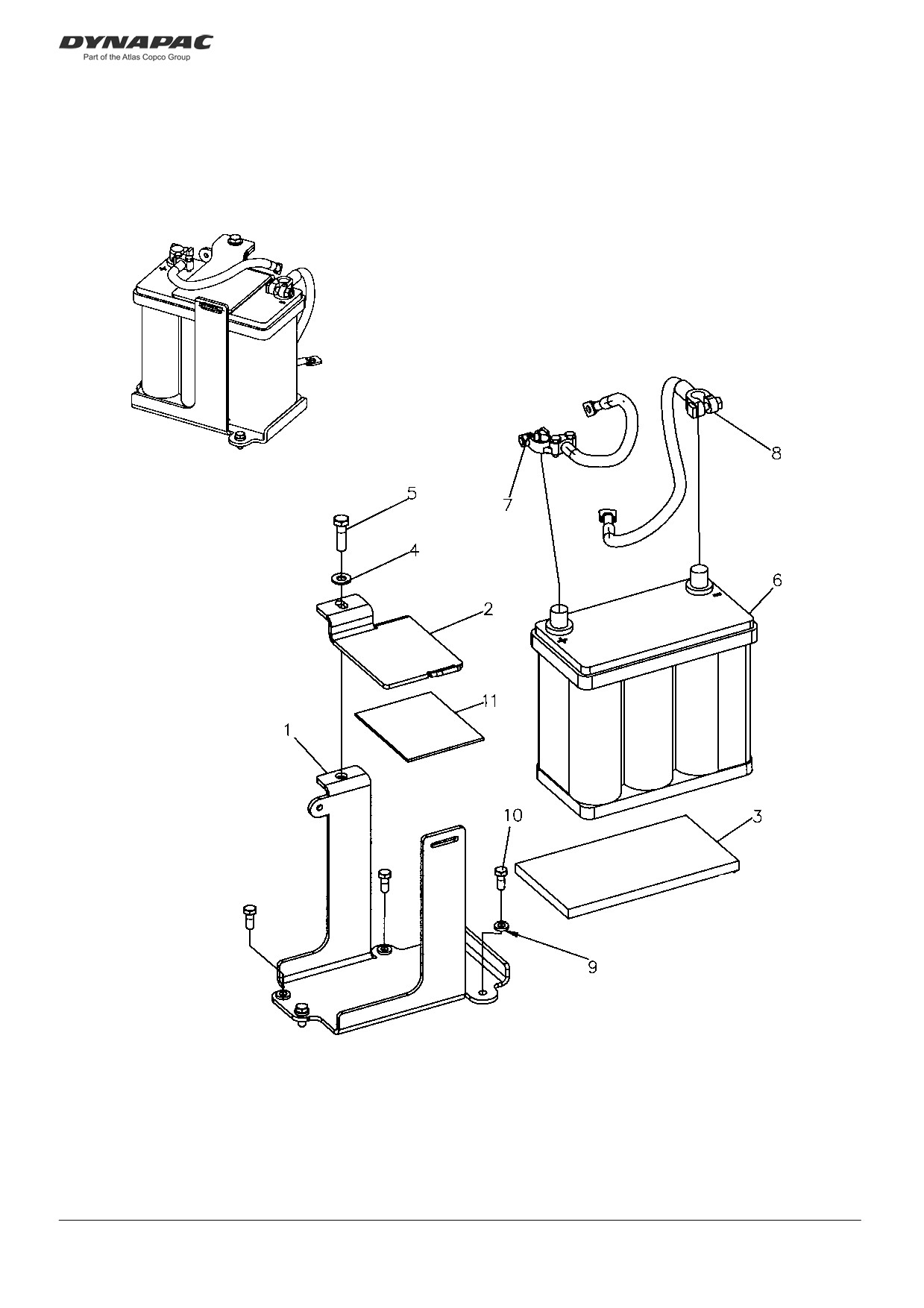

Electrical equipment
46
SLG200-3EN2
Atlas Copco Construction Tools AB
Electrical equipment
Item Part No Rem Qty Description
Code
30
Electrical equipment ( Page 48 )
1
SLG200-3EN2
47
Atlas Copco Construction Tools AB
Electrical equipment
18795
48
SLG200-3EN2
Atlas Copco Construction Tools AB
Electrical equipment
Item Part No Rem Qty Description
Code
1
4700395879
1
Holder
2
4700395878
1
Bracket
3
4700395687
1
Insulation
4
4700904230
1
Washer
5
4700500030
1
Screw
6
4700378719
1
Battery
B
7
4700792234
1
Battery cable
+
8
4700792717
1
Battery cable
-
9
4700904556
4
Washer
8,4x16x3,0
10
4700500053
4
Screw
M8x20H 8.8
11
4700395998
1
Rubber cloth
SLG200-3EN2
49
Atlas Copco Construction Tools AB
Handle and throttle control
50
SLG200-3EN2
Atlas Copco Construction Tools AB
Handle and throttle control
Item Part No Rem Qty Description
Code
10
1
Handle and throttle control, Honda ( Page 52 )
20
1
Handle and throttle control, Hatz ( Page 54 )
1
SLG200-3EN2
51
Atlas Copco Construction Tools AB

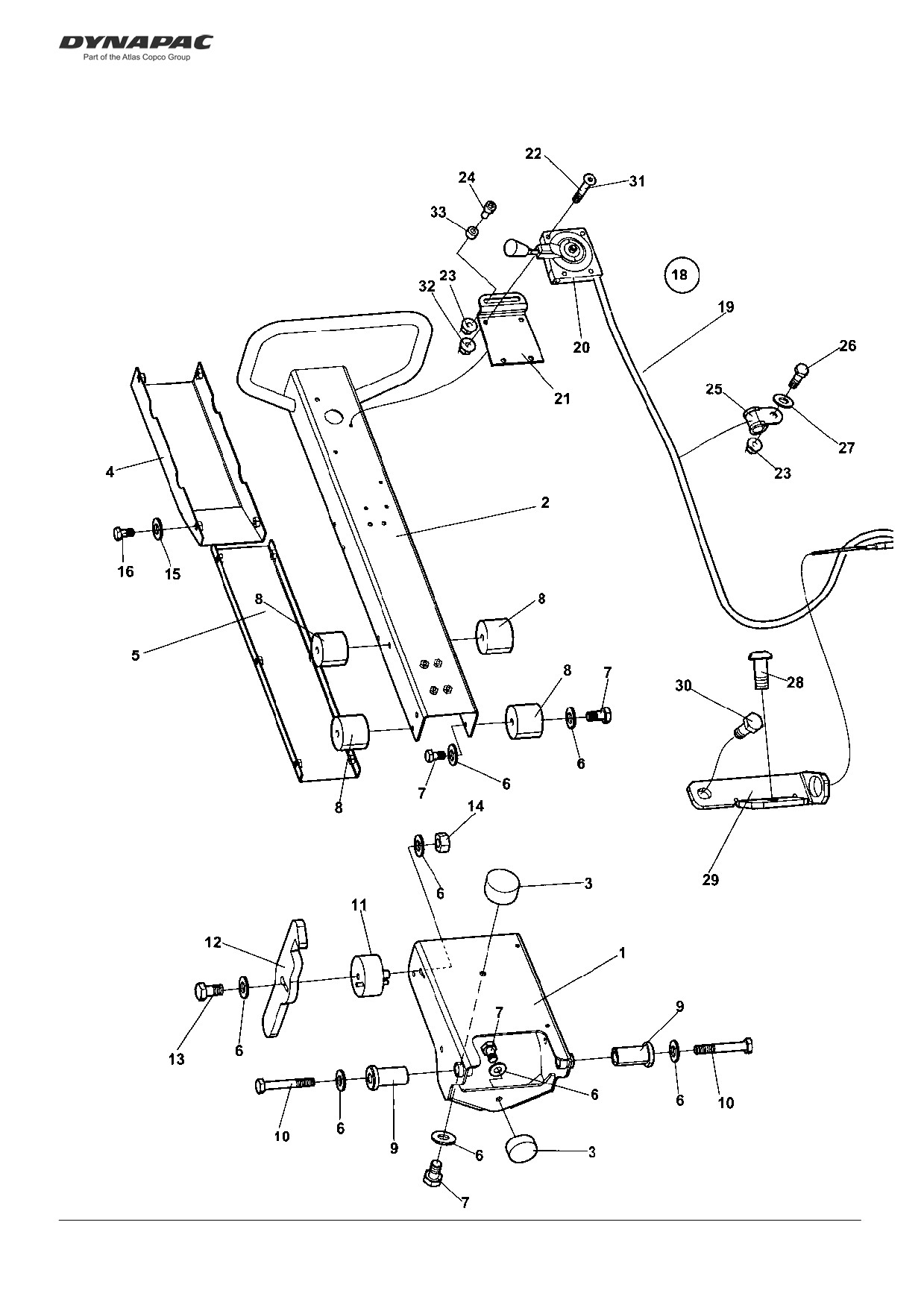

Handle and throttle control, Honda
17956-2
52
SLG200-3EN2
Atlas Copco Construction Tools AB
Handle and throttle control, Honda
Item
Part No Rem Qty
Description
Code
1
D386988-02
1
Handle bracket
2
D389982-02
1
Handle
3
4700791373
2
Shock absorber
4
D282901-03
1
Cover, upper
5
D282903-03
1
Cover, lower
6
4700904230
14
Washer
7
4700500043
10
Screw
M10x16H 8,8
8
D100900827
4
Shock absorber
9
D100504729
2
Bushing
10
4700500109
2
Screw
M10-1,5x65 8,8
11
4700385387
1
Shock absorber
12
4700382496
1
Hook
13
4700500048
1
Screw
M10-1,5x20 8,8
14
4700570006
1
Nut
15
4700904229
10
Washer
8,4x16x1,5
16
4700500019
10
Screw
M8x16H 8.8 A2K
18
4700387987
1
Throttle control
19
4700387983
1
.Throttle cable
20
4700455019
1
.Throttle handle
21
4700284365
1
Bracket
22
4700924875
B
3
Screw
23
4700902285
3
Lock nut
M6
24
4700508001
B
1
Screw
M6x12
4700508025
D
1
Screw
M6x20
25
4700921065
3
Clamp
26
4700500040
2
Screw
M6-1x20 8,8
27
4700904228
2
Washer
6,4x12x1,5
28
4700903903
1
Screw
29
4700387958
1
Bracket
30
4700500013
1
Screw
M6-1x16
8,8
31
4700904747
A
4
Screw
M5X30
32
4700902285
C
3
Lock nut
M6
33
4700394417
1
Spacer
A)
New version
B)
Old version
C)
Use together with item 22
D)
New version, use togheter with item 33
SLG200-3EN2
53
Atlas Copco Construction Tools AB

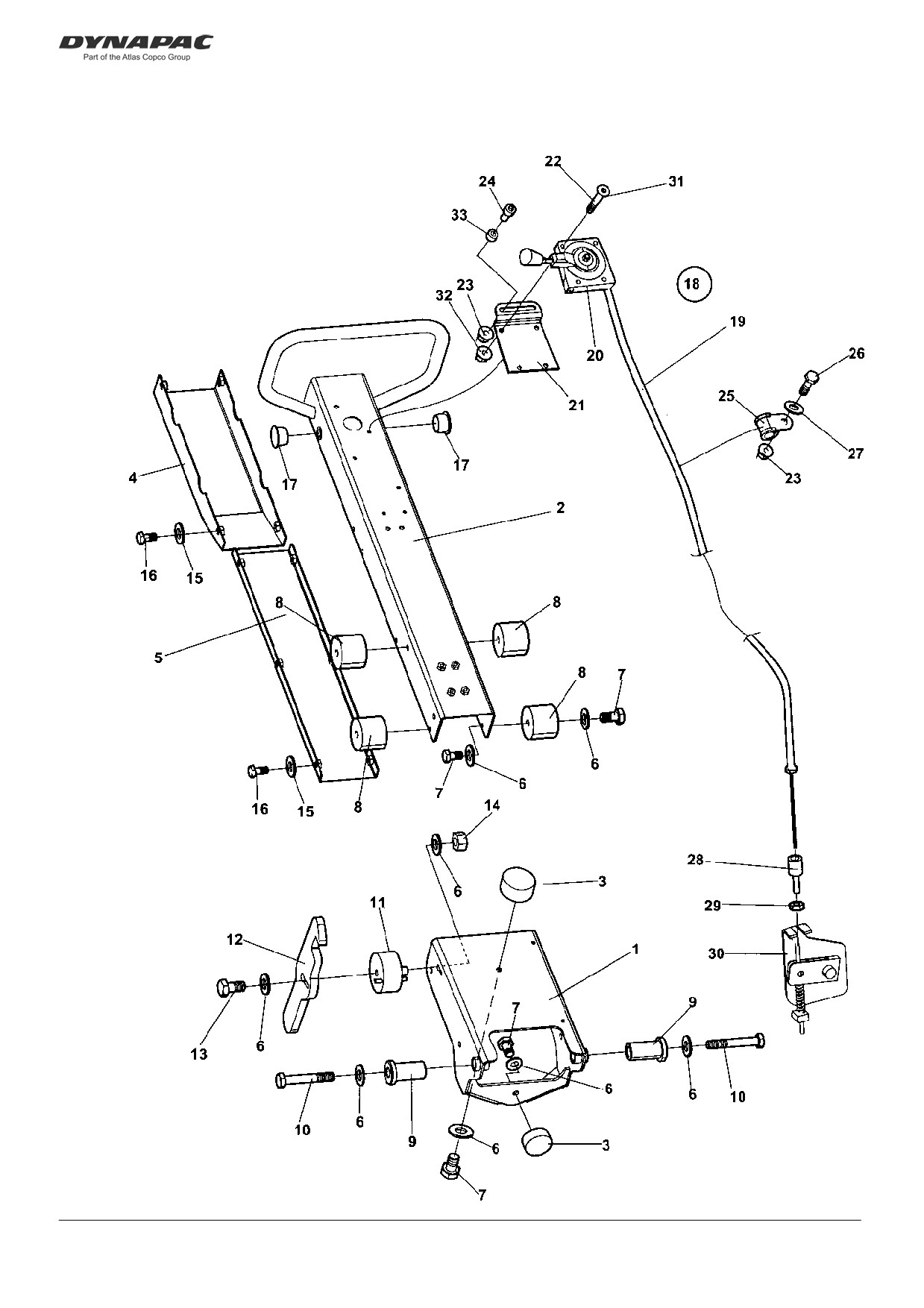

Handle and throttle control, Hatz
17957-1
54
SLG200-3EN2
Atlas Copco Construction Tools AB
Handle and throttle control, Hatz
Item
Part No Rem Qty
Description
Code
1
D386988-02
1
Handle bracket
2
D389982-02
1
Handle
3
4700791373
2
Shock absorber
4
D282901-03
1
Cover, upper
5
D282903-03
1
Cover, lower
6
4700904230
14
Washer
7
4700500043
10
Screw
M10x16H 8,8
8
D100900827
4
Shock absorber
9
D100504729
2
Bushing
10
4700500109
2
Screw
M10-1,5x65 8,8
11
4700385387
1
Shock absorber
12
4700382496
1
Hook
13
4700500048
1
Screw
M10-1,5x20 8,8
14
4700570006
1
Nut
15
4700904229
10
Washer
8,4x16x1,5
16
4700500019
10
Screw
M8x16H 8.8 A2K
18
4700380709
1
Throttle control
19
4700380710
1
Throttle cable
20
4700455019
1
Throttle handle
21
4700284365
1
Bracket
22
4700924875
C
3
Screw
23
4700902285
3
Lock nut
M6
24
4700508001
C
1
Screw
M6x12
4700508025
E
1
Screw
M6x20
25
4700921065
3
Clamp
26
4700500040
3
Screw
M6-1x20 8,8
27
4700904228
3
Washer
6,4x12x1,5
28
4700284107
1
Nipple
29
4700570004
2
Nut
M6X1,00 -8 A2K
30
A
1
Speed control
31
4700904747
B
1
Screw
M5X30
32
4700902285
D
3
Lock nut
M6
33
4700394417
1
Spacer
A)
Supplied with engine
B)
New version
C)
Old version
D)
Use together with item 22
E)
New version, use together with item 33
SLG200-3EN2
55
Atlas Copco Construction Tools AB
Decals and documentation
56
SLG200-3EN2
Atlas Copco Construction Tools AB
Decals and documentation
Item Part No Rem Qty Description
Code

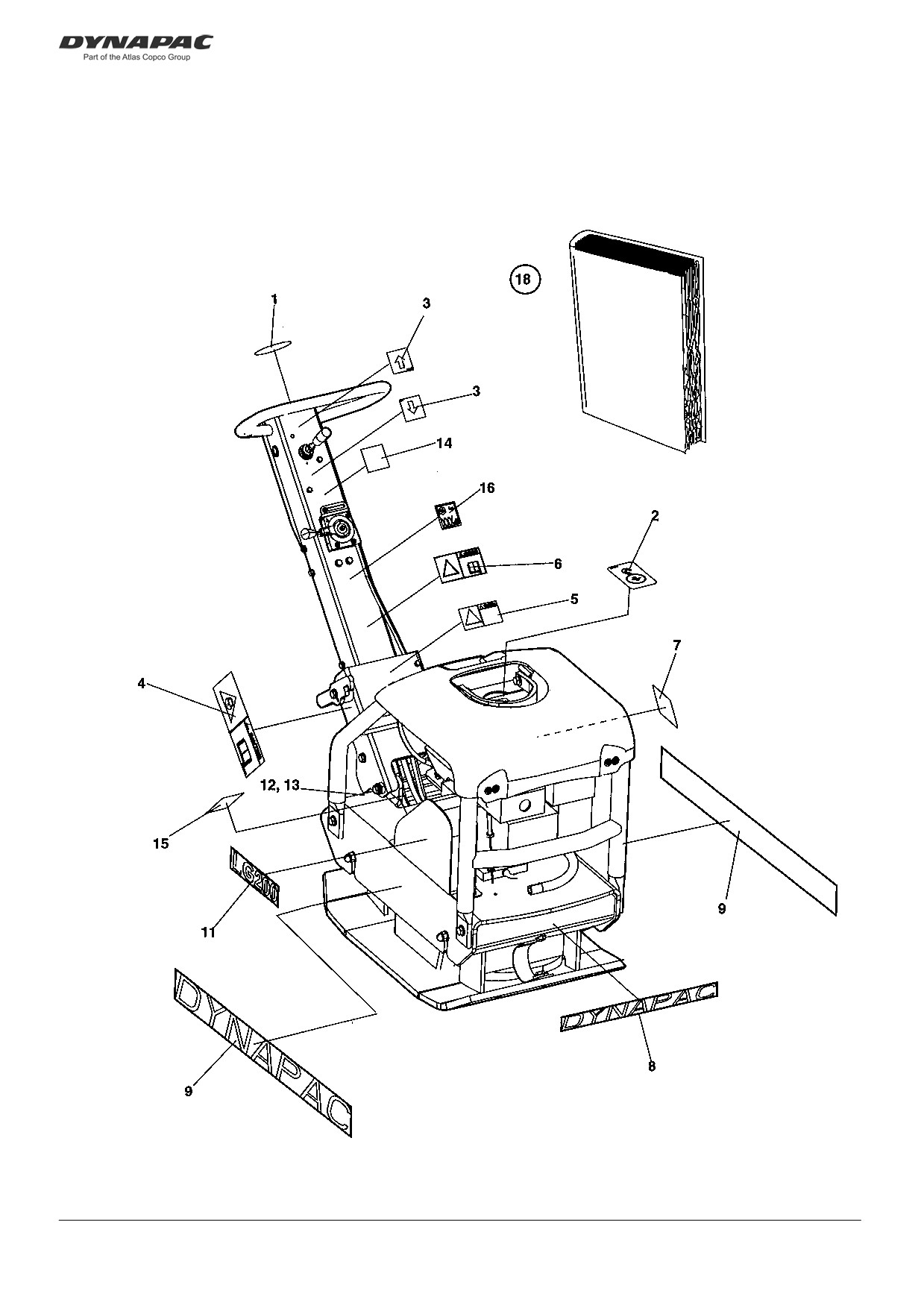

10
Decals and documentation ( Page 58 )
1
SLG200-3EN2
57
Atlas Copco Construction Tools AB
Decals and documentation
17959
58
SLG200-3EN2
Atlas Copco Construction Tools AB
Decals and documentation
Item Part No Rem Qty Description
Code
1
4700281898
1
Decal "Ear protection"
2
4700281269
1
Decal "LIFT"
3
4700284278
2
Decal
4
4700908229
1
Safety decal
5
4700904785
1
Safety decal
6
4700904680
1
Decal "Read instruction manual"
7
4700272373
1
Decal "HYDRAULIC OIL"
8
4700904097
1
Decal "DYNAPAC"
L=290 mm
9
4700904096
2
Decal "DYNAPAC"
L=420 mm
11
4700281749
1
Decal
LG200
12
1
Sign plate
13
4700527002
4
Drive screw
14
4700284285
1
Decal
15
4700903832
1
Safety decal
16
4700791293
1
Decal "Sound power level"
105dB
17
4700903424
1
Decal "HOT SURFACE"
18
1
Documentation
1
Spare parts catalogue
SLG200
1
Instructions
ILG200
1
SLG200-3EN2
59
SLG200-3EN2
Atlas Copco Construction Tools AB
NUMERICAL INDEX
Part Number
Page
Part Number
Page
Part Number
Page
4700111114
35,37
4700281124
35
4700395059
17
4700111180
35
4700281234
29
4700395060
17
4700150002
19
4700281249
37
4700395372
41
4700150009
35,37
4700281269
59
4700395373
41
4700150012
35
4700281276
19
4700395687
49
4700150017
17
4700281345
35
4700395878
49
4700151007
17
4700281749
59
4700395879
49
4700151017
35,37
4700281887
11
4700395998
49
4700151019
35
4700281893
11
4700455019
53,55
4700151039
19
4700281898
59
4700482328
31
4700160110
43
4700282993
41
4700483906
41
4700162011
17
4700284107
55
4700484243
41
4700232095
31
4700284278
59
4700500013
53
4700232143
17
4700284285
59
4700500019
29,31,53,55
4700238301
23
4700284365
53,55
4700500021
31,35,43
4700238303
23
4700286380
17
4700500022
9,37
4700238309
23
4700313001
29
4700500025
41
4700238606
37
4700313003
43
4700500028
9
4700239063
23
4700313108
43
4700500029
41,43
4700239064
23
4700350029
9
4700500030
49
4700239065
23
4700376674
43
4700500037
7
4700239067
23
4700376675
43
4700500040
7,17,53,55
4700239290
35
4700376677
43
4700500043
53,55
4700239321
23
4700377333
43
4700500046
35,37
4700239324
23
4700377359
19
4700500047
29
4700239374
23
4700377620
37
4700500048
53,55
4700239375
23
4700378719
49
4700500049
7
4700239376
23
4700378777
17
4700500051
7,13
4700239377
23
4700379016
17
4700500053
9,49
4700239378
23
4700379165
17
4700500056
11
4700239379
23
4700379166
17
4700500079
41
4700239380
23
4700379167
17
4700500109
53,55
4700239381
23
4700379168
17
4700508001
53,55
4700239391
23
4700379175
17
4700508002
31
4700239517
25
4700380155
17
4700508023
29
4700239565
23
4700380709
55
4700508025
17,53,55
4700239682
23
4700380710
55
4700508028
7,9
4700239734
35,37
4700381385
43
4700527002
59
4700239768
37
4700381563
43
4700535002
35
4700239889
23
4700381566
43
4700570004
55
4700239890
23
4700382496
53,55
4700570005
13,41
4700271032
11,13
4700383293
25
4700570006
53,55
4700272373
59
4700383562
45
4700570007
7,11
4700280417
13
4700383598
11,13
4700573002
23
4700280534
41
4700385387
53,55
4700581013
7
4700280540
41
4700387257
7
4700586002
41
4700280621
7
4700387259
7
4700586003
41
4700280637
19
4700387260
7
4700586019
7
4700280643
9
4700387261
7
4700630010
11
4700280644
17
4700387577
31
4700630015
13
4700280645
17
4700387705
7
4700747541
7,9
4700280647
19
4700387830
43
4700791293
59
4700280648
17
4700387958
53
4700791373
53,55
4700280654
9
4700387979
23
4700791397
41
4700280669
17
4700387983
53
4700791403
41
4700280677
17
4700387987
53
4700791524
7
4700280750
7
4700389243
11
4700791537
17,45
4700280835
35,37
4700391057
25
4700791614
13
4700280836
35,37
4700391058
25
4700792234
49
4700280837
35,37
4700394417
53,55
4700792253
45
4700280858
9
4700394933
13
4700792254
17
NI 1
4700280871
9
4700394985
13
4700792717
49
SLG200-3EN2
Atlas Copco Construction Tools AB
NUMERICAL INDEX
Part Number
Page
Part Number
Page
Part Number
Page
4700792723
17
4700936989
25
D284237-03
7
4700792724
17
4700936990
25
D386986-01
7
4700902284
29
4700936991
25
D386988-02
53,55
4700902285
7,53,55
4700936992
25
D387113-03
7
4700903363
17
4700936993
25
D387301-02
29,31
4700903424
59
4700936994
25
D389982-02
53,55
4700903821
41
4700936995
25
4700903832
59
4700936996
25
4700903903
53
4700936997
25
4700903925
31
4700936998
25
4700904096
59
4700936999
25
4700904097
59
4700937000
25
4700904213
35,37
4700937002
25
4700904228
7,17,31,41,53,55
4700937003
25
4700904229
9,29,31,41,43,53
4700937004
25
55
4700937005
25
4700904230
41,43,49,53,55
4700937006
25
4700904231
7,11
4700937007
25
4700904281
29
4700937008
25
4700904556
49
4700937009
25
4700904638
17
4700937010
25
4700904640
13,29,31
4700937011
25
4700904655
7
4700937012
25
4700904680
59
4700937013
25
4700904703
9
4700937014
25
4700904734
35,37
4700937015
25
4700904742
7
4700937016
25
4700904747
53,55
4700937017
25
4700904785
59
4700937018
25
4700904798
7
4700937019
25
4700904960
43
4700937020
25
4700908229
59
4700937021
25
4700921044
31
4700937022
25
4700921065
53,55
4700937023
25
4700924543
7,13
4700937024
25
4700924875
53,55
4700937035
37
4700928241
17
4700937036
37
4700928794
17
4700937415
25
4700928795
9
4700937527
37
4700928894
45
4700937604
27
4700929286
19
4700937605
27
4700929287
17
4700937606
27
4700929291
19
4700937608
25
4700929356
35
4700937924
41
4700929360
35
4700938086
25
4700929454
9
4700938146
25
4700935802
23
4700938968
27
4700935803
35
4700939588
25
4700935807
35
4700940371
37
4700935808
35
4700940372
37
4700936976
25
4700940932
37
4700936977
25
D100504609
29
4700936978
25
D100504729
53,55
4700936979
25
D100504811
29
4700936980
25
D100505023
41
4700936981
25
D100505036
7
4700936982
25
D100505042
41
4700936983
25
D100900827
53,55
4700936985
25
D100901024
35
4700936986
25
D100901382
29
4700936987
25
D282901-03
53,55
NI 2
4700936988
25
D282903-03
53,55





















//////////////////////////////////////////
