DYNAPAC LG500. SPARE PARTS CATALOGUE SLG500-3EN1





DYNAPAC
LG500
SPARE PARTS
CATALOGUE
SLG500-3EN1
Atlas Copco Construction Tools AB
SE-105 23 Stockholm, Sweden
I

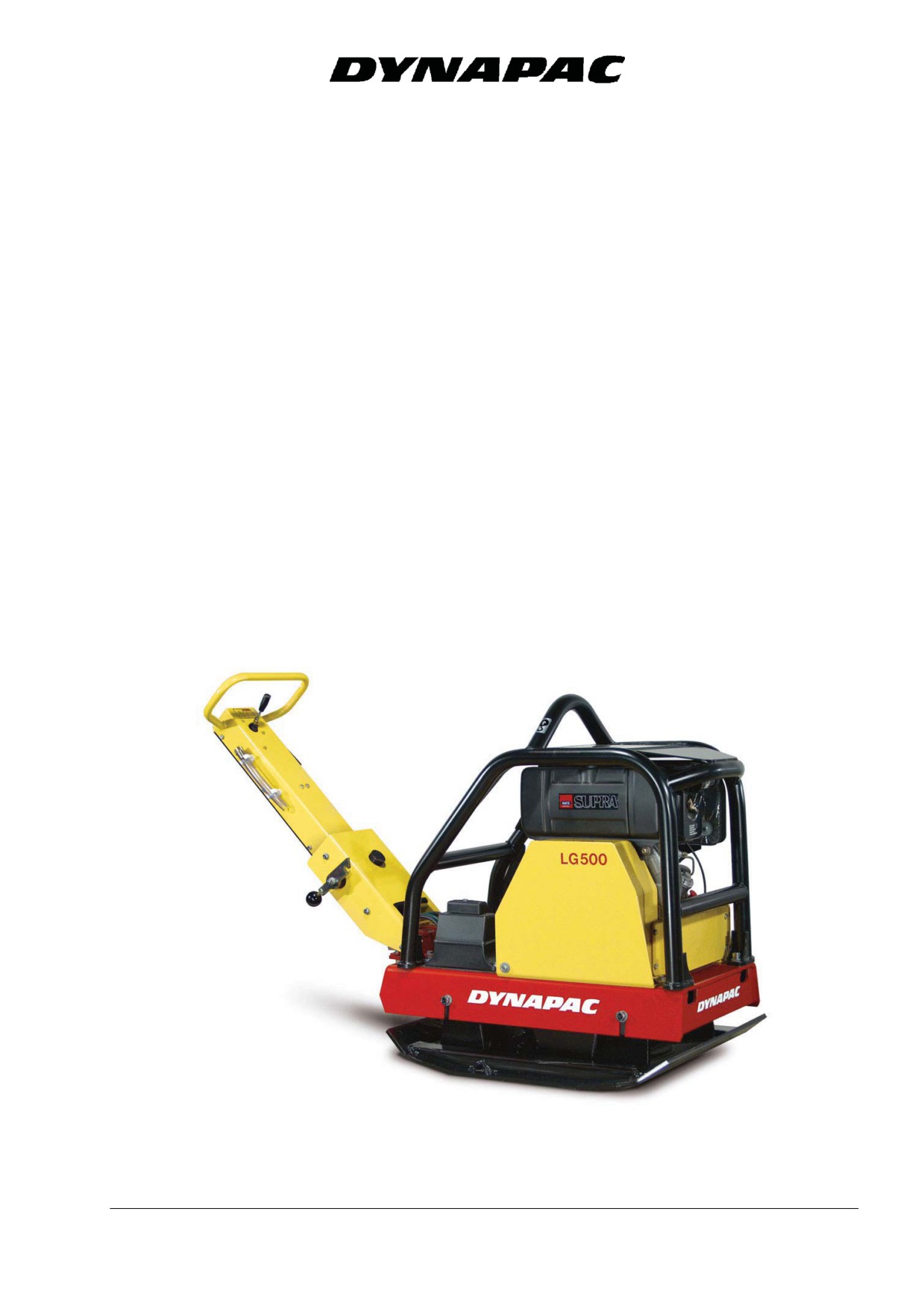

Forward/Reverse Vibratory Plate Compactor
LG500
Spare Parts Catalogue
SLG500-3EN1
Valid from serial number:
*35007918*-
Engines:
Hatz 1D81
Published catalogue issues valid for these plates:
Catalogue
Issue date
Replaced by
SLG500-3EN1
2010 - 04
We reserve the right to change specifications without notice.
Printed in Sweden.
II
RESERVDELSBESTÄLLNING
ORDERING SPARE PARTS
Följande uppgifter ska lämnas vid beställning av reserv- To avoid errors in delivery, please give the following
delar för att undvika leveransfel:
information when ordering spare parts:
1. Maskintyp.
1. Type of machine.
2. Vältens serienummer.
2. Roller serial number.
3. Antal av önskad reservdel.
3. Quantity required.
4. Reserdelens artikelnummer.
4. Part number.
5. Reservdelens benämning.
5. Parts denomination.
6. Måttuppgifter vid beställning av metervara.
6. Dimensions when ordering per length.
ERSATZTEILBESTELLUNG
ORDINI DI RICAMBI
Zur Vermeidung von Fehllieferungen sind bei der Bestel-
Per evitare errori nelle consegne di ricambi, Vi preghiamo
lung von Ersatzteilen folgende Angaben zu machen:
di comunicarci le seguenti informazioni al momento dell
1. Maschinentyp.
'ordinazione:
2. Herstellungsnummer.
1. Tipo di macchina.
3. Bestellmenge. (Quantity)
2. Numero di serie della macchina.
4. Ersatzteilnummer. (Part Nº)
3. Quantità dei pezzi desiderati. (Quantity)
5. Ersatzteilbenennung. (Denomination)
4. Numero di codice del pezzo. (Part Nº)
6. Massangaben bei Bestellung von Meterware.
5. Descrizione del pezzo di ricambio. (Denomination)
6. Misura, in caso di ordine per metro.
PEDIDO DE RECAMBIOS
COMMANDE DE PIECES DE RECHANGE
Para evitar errores en las entregas, deberán indicarse los
Les indications suivantes doivent être fournies lors de la
siguientes datos al hacer un pedido de recambios:
commande de piéces de rechange, afin d'éviter toute erreur
1. Tipo de máquina.
de livraison:
2. Número de serie.
1. Type de machine.
3. Cantidad de piezas deseadas. (Quantity)
2. Numéro de série.
4. Número de artículo de la pieza de recambio. (Part Nº)
3. Quantité désirée de pièce de rechange. (Quantity)
5. Denominación de la pieza. (Denomination)
4. Numéro de la piéce de rechange. (Part Nº)
6. Indíquese la medida al solicitar un artículo que se
5. Dénomination de la piéce de rechange. (Denomination)
expide por metros.
6. Longueur en cas de commande au mètre.
YOUR AGENT/DEALER:
III

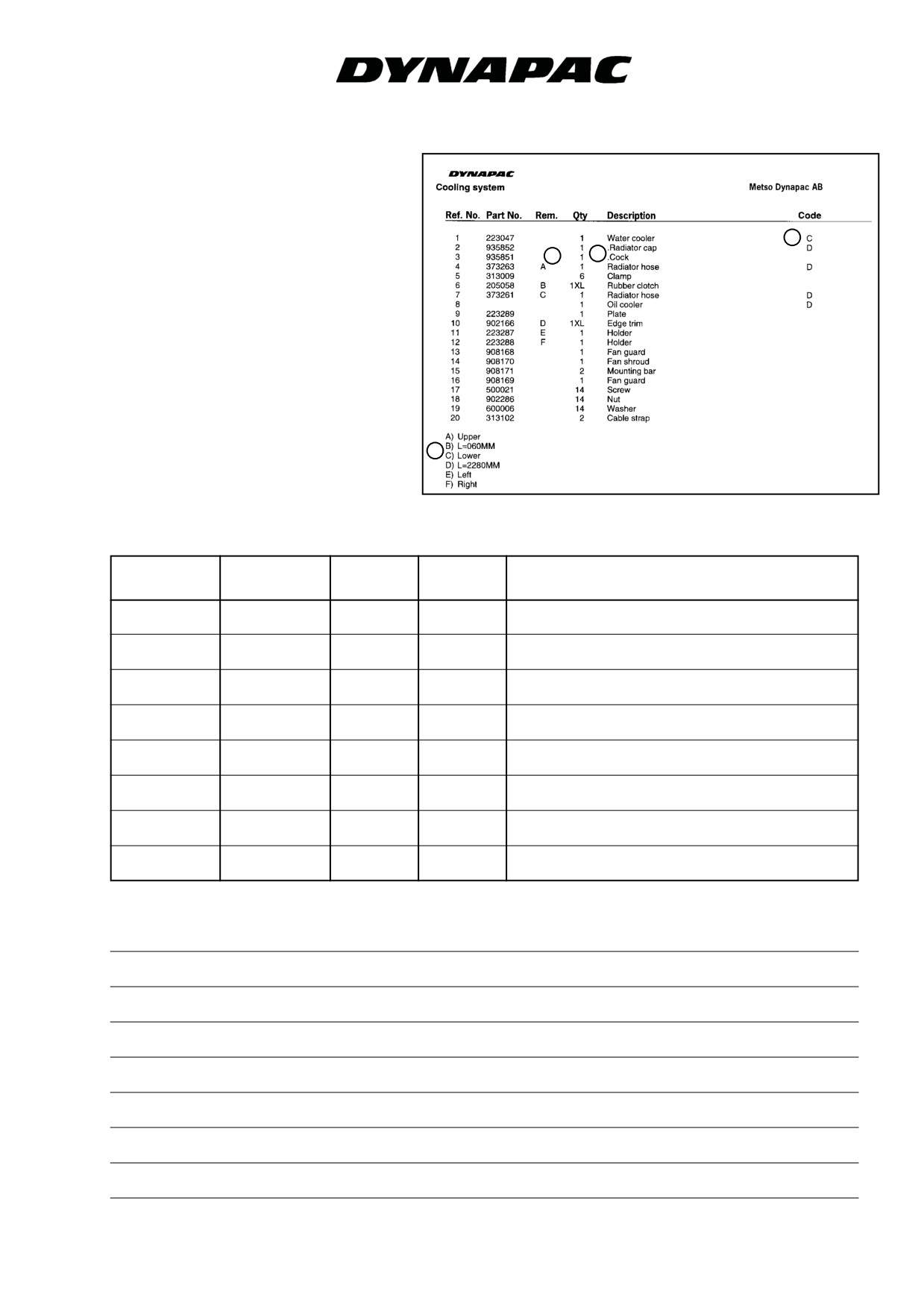

Text pages
The text pages is structured as the
picture on the right.
1.
This is the remarks for
specific items and the descriptions
3
of the remarks is at the bottom of
1
2
the parts list.
2.
Parts indicated by a dot and
moved to the right are included
when buying the assembled unit
above.
3.
Spare parts and service code
for a specific part, mainly for
internal use at Dynapac. "A" =
Service part, "B" = Fast moving
1
part, "C" = Suggested exchanged
part and "D" = Regular spare part.
Changes
PARTS
SERVICE
GROUP
PAGE
NOTES
INFO
INFO
Notes
IV
Notes
V
PÄRMETIKETT
BINDER LABEL
För att undvika fel vid reservdelsbeställning finns här
To avoid errors when ordering spare parts use the labels
nedan två etiketter som passar i fickorna på pärmarnas
below to identify the catalogues on the back of the
ryggar. På dessa kan man se från vilket vältnummer av
binder. The label contain the serial number range for
aktuell maskin reservdelskatalogen gäller. Gör så här:
which the catalogue is valid. Do like this:
1. Tag denna sida ur pärmen.
1. Remove this page from the binder.
2. Klipp ut etiketten till VÄNSTER (1) och sätt in den i
2. Cut out the LEFT label (1) and put it on THIS binders
fickan på DENNA pärmens rygg.
back.
3. Finns det en etikett till HÖGER (2), kan denna an-
3. If there is a label to the RIGHT (2), it can be used on
vändas på pärmen för FÖREGÅENDE utgåva av
thebinder for PRECEDING issue of this catalogue.
denna katalog.
4. Throw away this paper.
4. Kasta detta papper.
KATALOG-BESCHRIFTUNG
ETICHETTA POSTA SUL RACCOGLITORE
Zur Vermeidung von Fehlen bei der Ersatzteilbestellung
Per evitare errori quando ordinate pezzi di ricambio, usate
benutzen Sie bitte die unteren Beschriftungen, um die
le etichette in calce che servono ad identificare i cataloghi
Kataloge auf der Rückseite zu kennzeichen. Auf der
sul retro del raccoglitore. L'etichetta indica il numero di
Beschriftung ist angegaben, für welche
matricola delle maccine prese in considerazione nel catalo-
Maschinennummern der jeweilige Katalog gültig ist.
go.
Ablauf:
1. Rimuovete questa pagina dal raccoglitore.
1. Nehmen Sie dieses Blatt aus dem Katalog.
2. Ritagliate l'etichetta posta a SINISTRA (1) e ponetela
2. Schneiden Sie die LINKE Beschriftung (1) aus. Schie-
sul retro DEL raccoglitore.
ben Sie die Beschriftung in die tasche auf DEM
3. Se trovate anche un'etichetta sulla DESTRA (2),
Katalogrücke.
ritagliatela e ponetela sul raccoglitore relativo alla
3. Sollte die Beschriftung unten RECHTS (2) mitgeliefert
PRECEDENTE edizione del catalogo.
werden, kennzeichen Sie damit bitte die ÄLTERE
4. Distruggete questo foglio.
Ausführung dieses Kataloges.
4. Den Rest dieses Blattes bitte vernichten.
ETIQUETA PARA LA CARPETA
ETIQUETAGE DU CATALOGUE
Para evitar errores al pedir repuestos utilicen las etiquetas
Afin d'éviter des erreurs lors de commandes de pièces de
abajo descritas para identificar los catálogos en la parte
rechange, nous vous conseillons d'apposer les marquages
trasera de la carpeta. En la etiqueta se ven los números
ci-dessous à l'arrière du classeur, pour identifier les catalo-
de referencia de la serie para la cual es válido el catálogo.
gues. Ce marquage indique les numéros de série pour
Instrucciones:
lesquels le catalogue est adapté. Il convient de procéder de
1. Quitar esta página de la carpeta.
la façon suivante:
2. Corta la etiqueta IZQUIERDA (1) y ponerla est ESTA
1. Retirez cette page du classeur.
carpeta en la parte trasera.
2. Découpez l'étiquette de GAUCHE (1), et apposez-la à
3. Si hay una etiqueta en la parte DERECHA (2) se puede
l'arrière de CE catalogue.
utilizar en la carpeta para el catálogo que PRECEDE a
3. Si il y a une étiquette à DROITE (2), vous pourrez
esta.
l'apposer sur le classeur de l'edition PRECEDENTE du
4. Tirar esta hoja.
catalogue.
4. Détruire cetta feuille.
1.
Catalogue
SLG500-3EN1
Atlas Copco Construction Tools AB
TABLE OF CONTENTS
Page
LG500 SN 35007918-
2
Ground plate
4
Ground plate for extension plates and frame
6
Ground plate and eccentric element
8
Engine plate and frame
10
V-belt cover
12

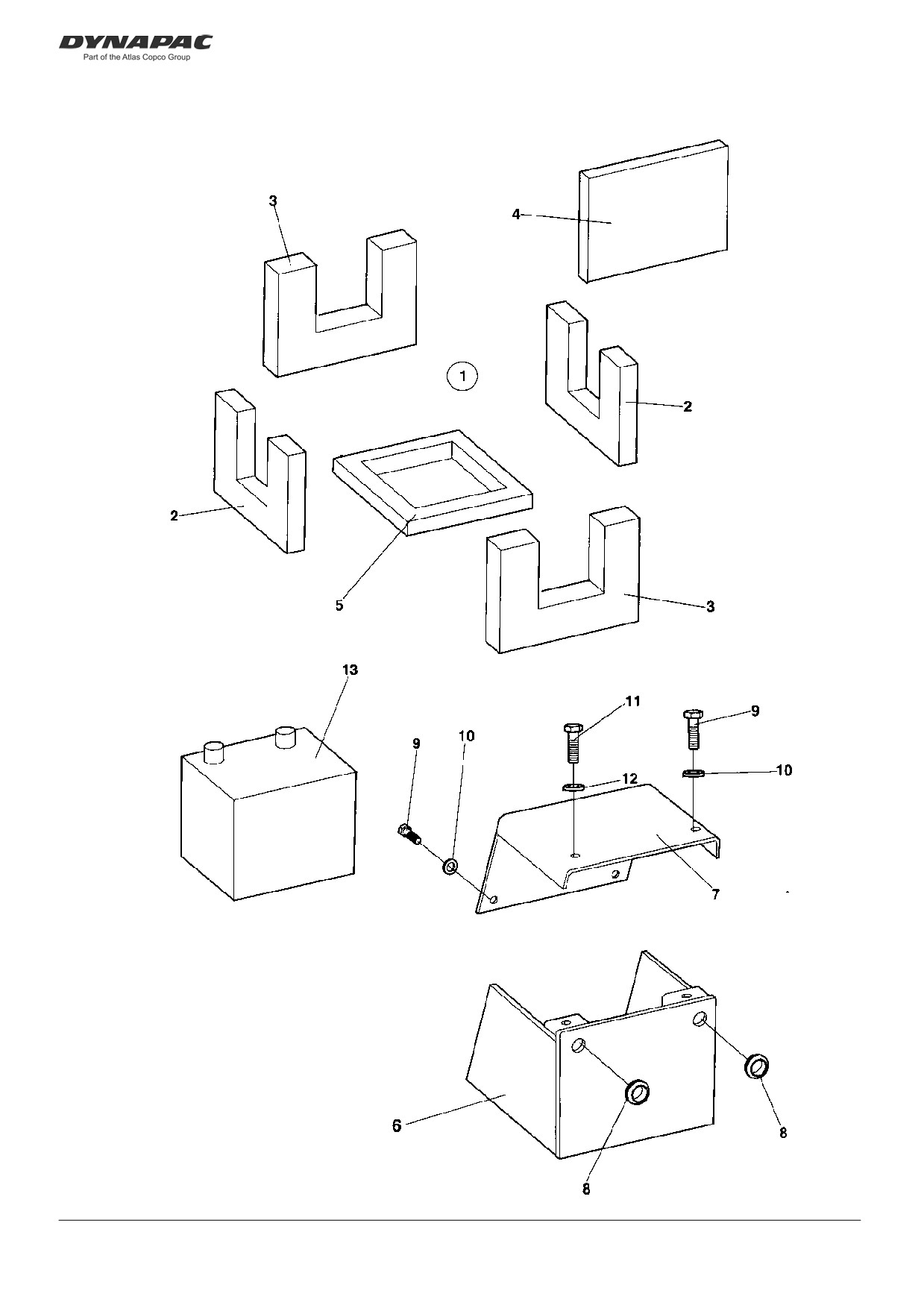

Option
14

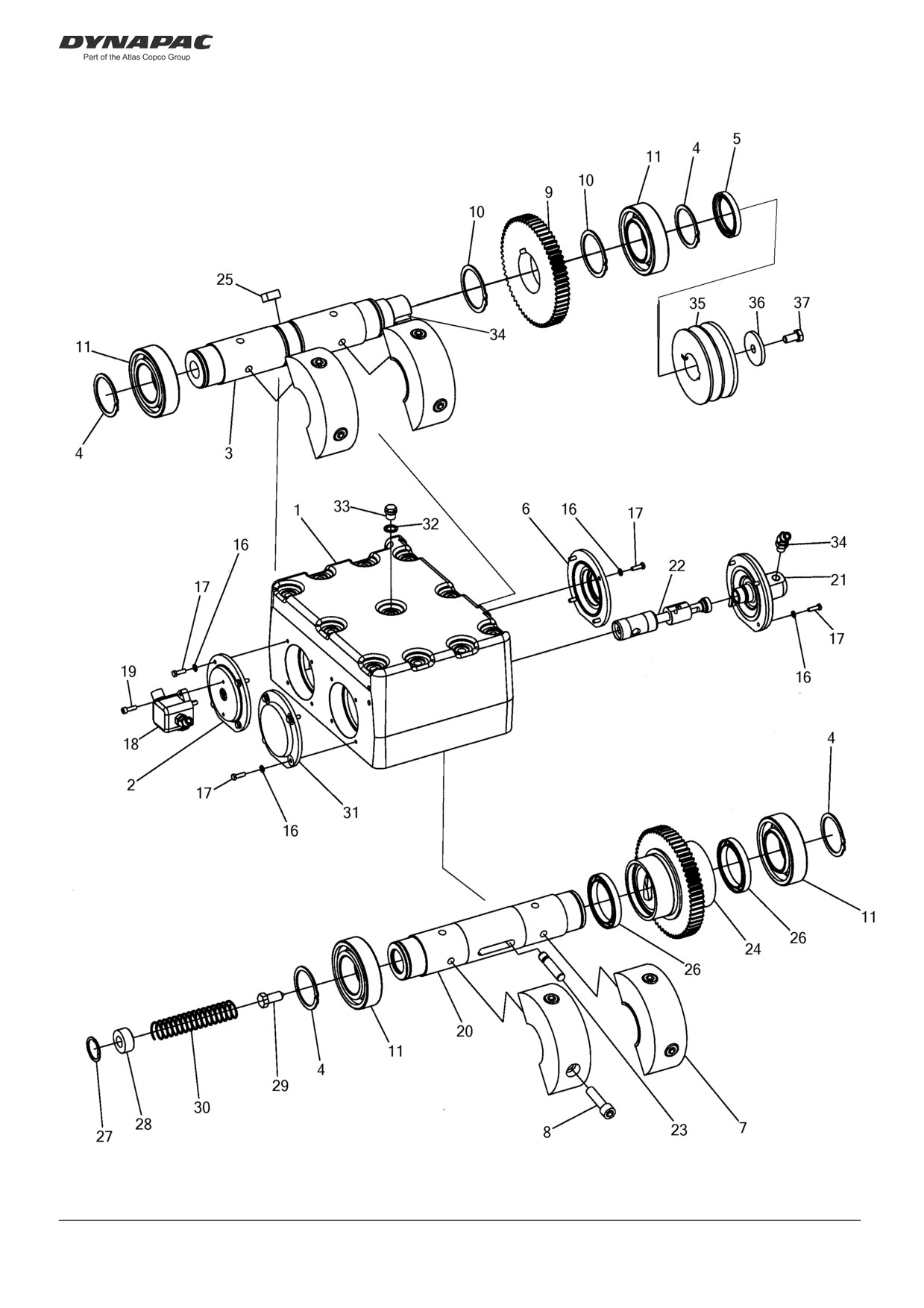

Eccentric element
16
Eccentric element
18
Piston, cpl
20
Engine and engine spacer installation
22

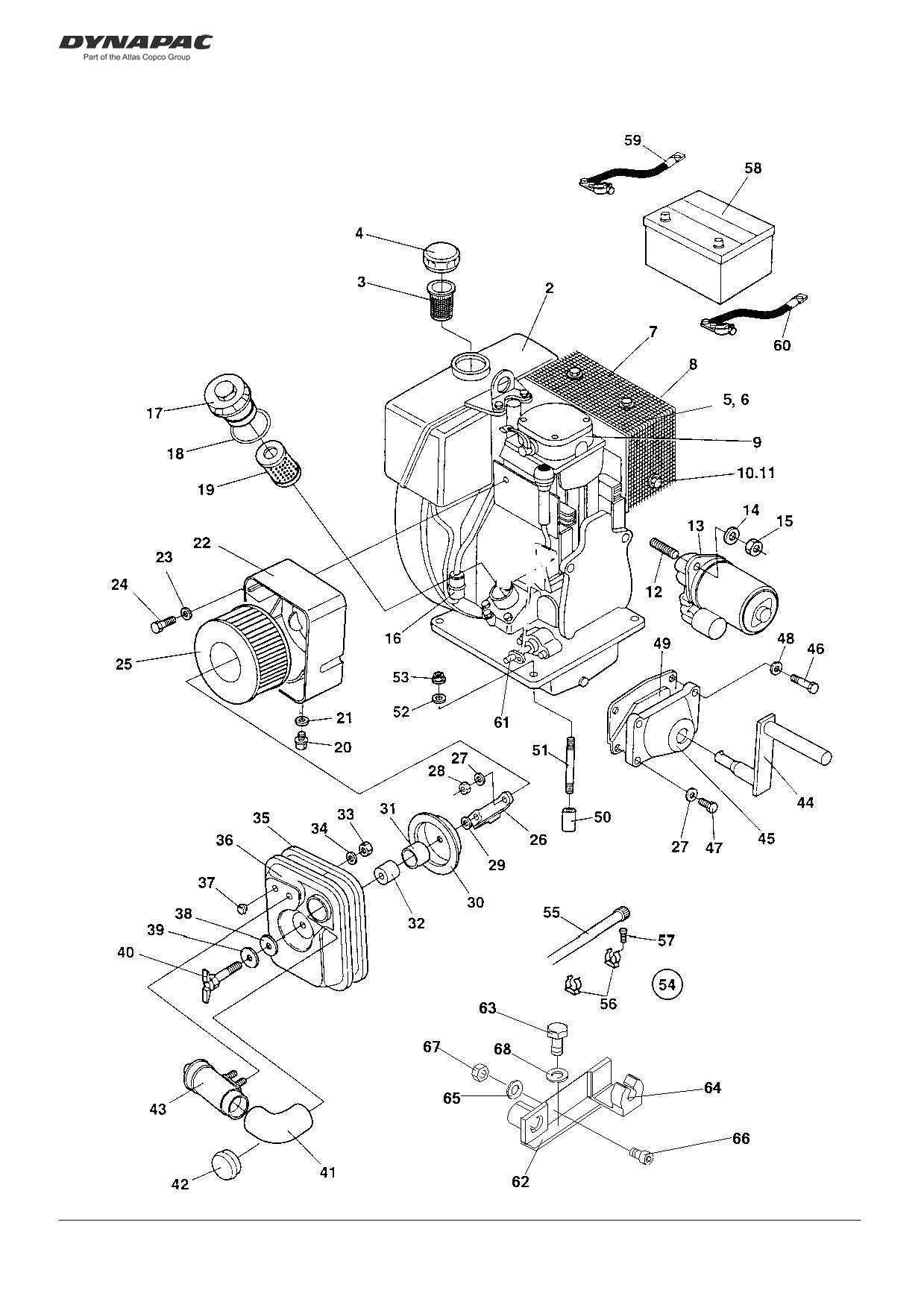

Engine Hatz 1D81Z
24

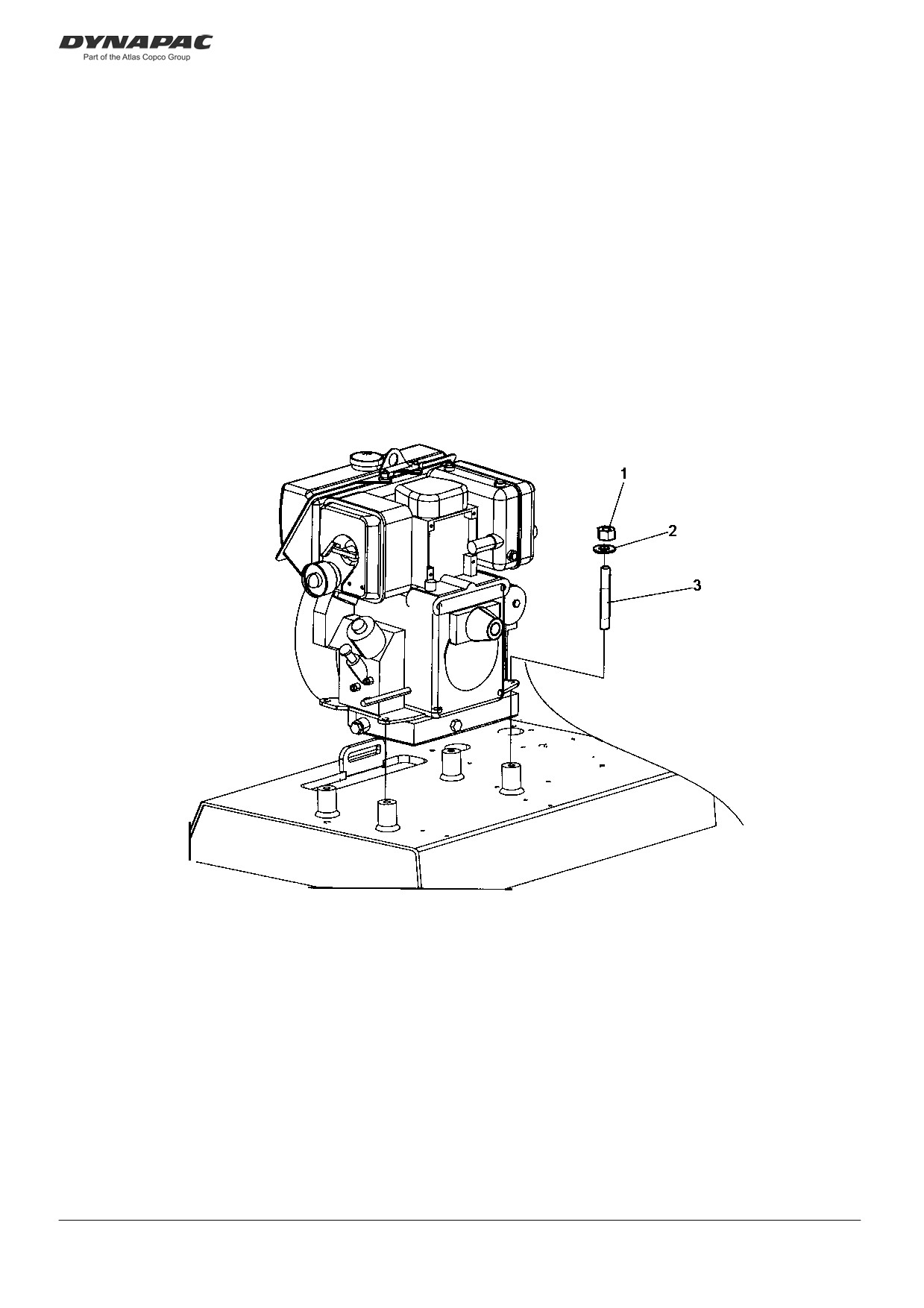

Engine spacer installation
28

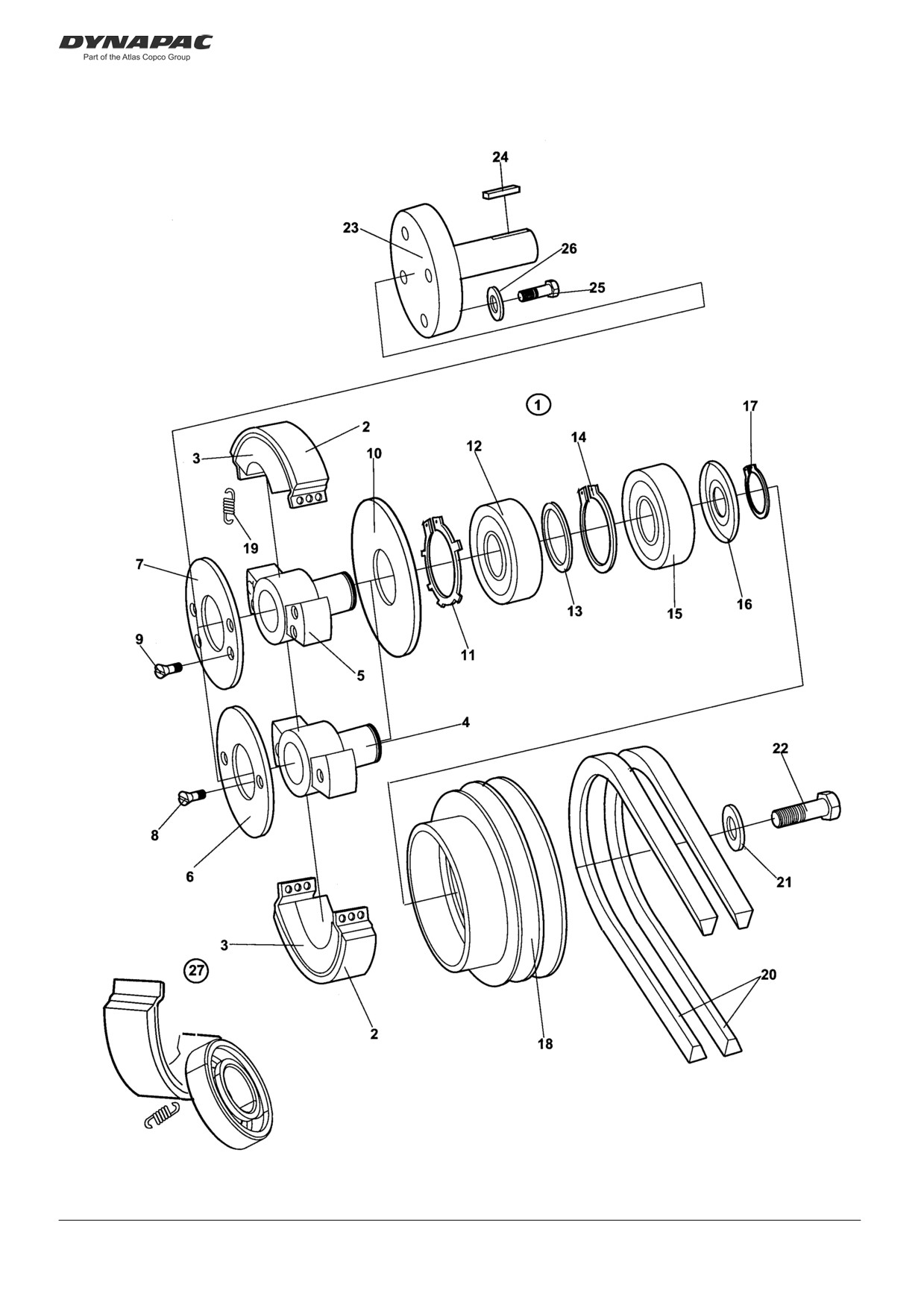

Power transmission
30
Clutch
32

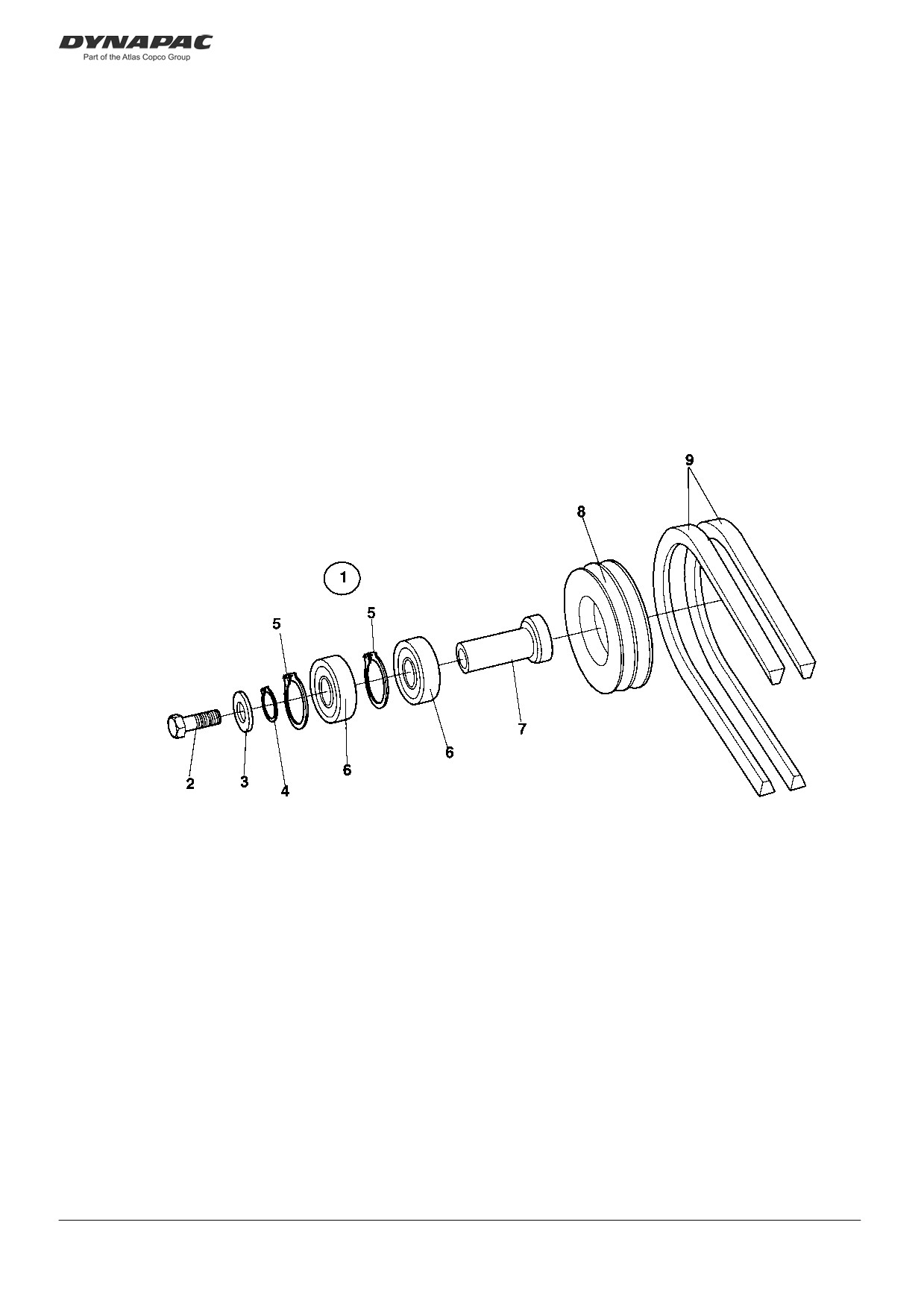

Belt tightener
34
Hydraulic system
36
Hydraulic system
38
Hydraulic tank
40
Hydraulic pump installation
42
Electrical equipment
44
Control panel
46
Battery and battery box
48
Handle and controls
50
Handle
52

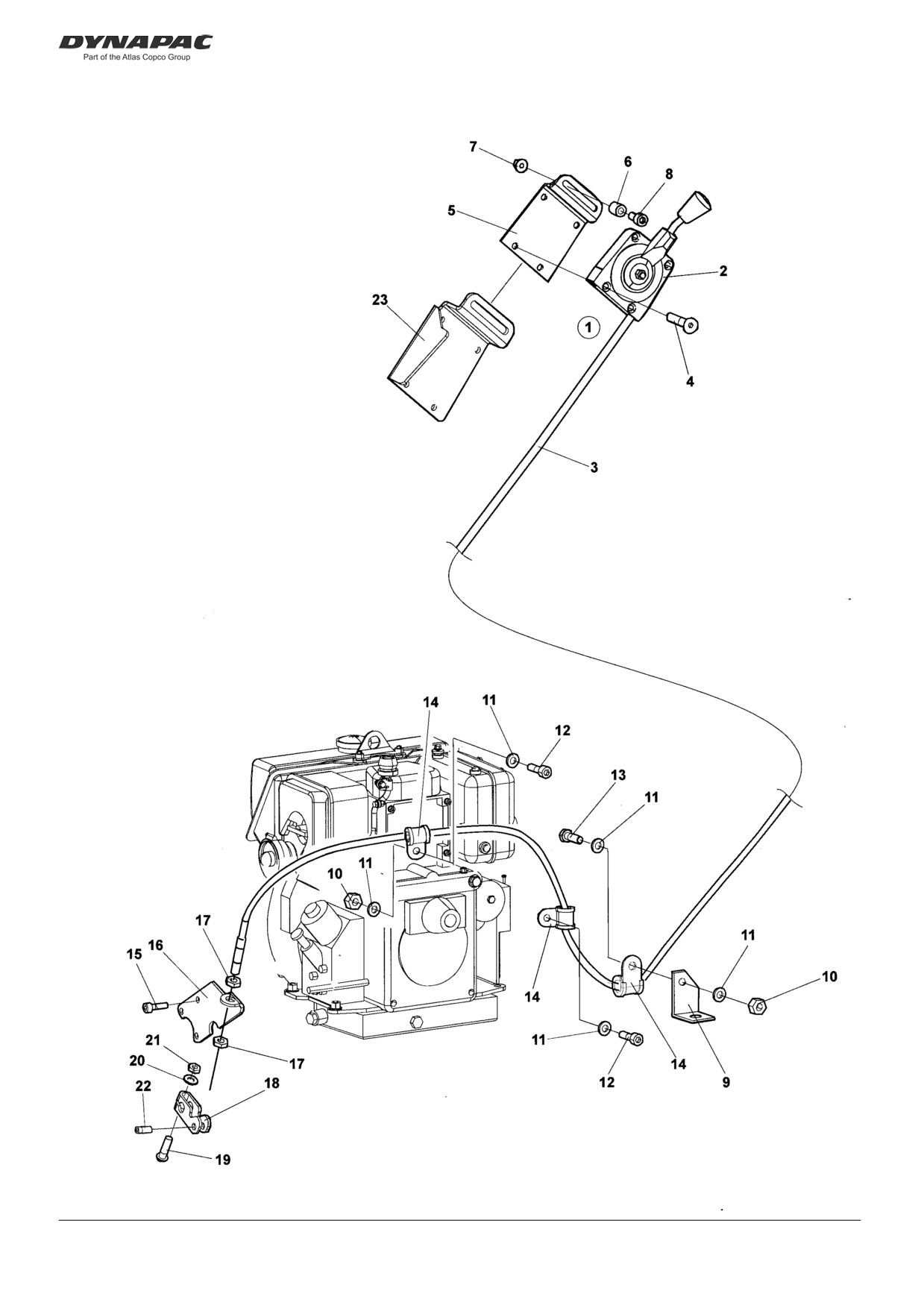

Throttle control
54

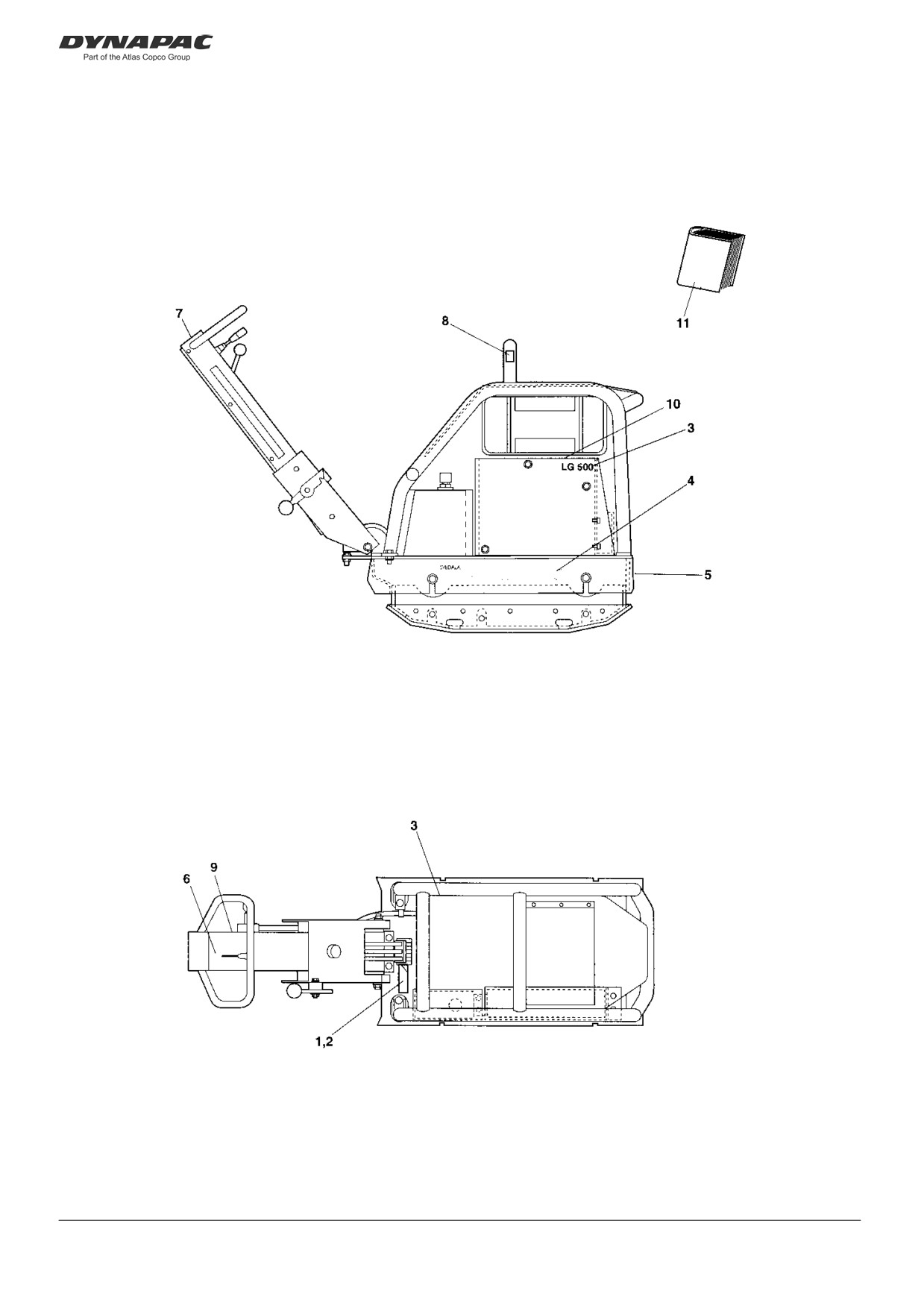

Decals and equipment
56
Decals and equipment
58
TC 1
Atlas Copco Construction Tools AB
LG500 SN 35007918-
LG500100
2
SLG500-3EN1
Atlas Copco Construction Tools AB

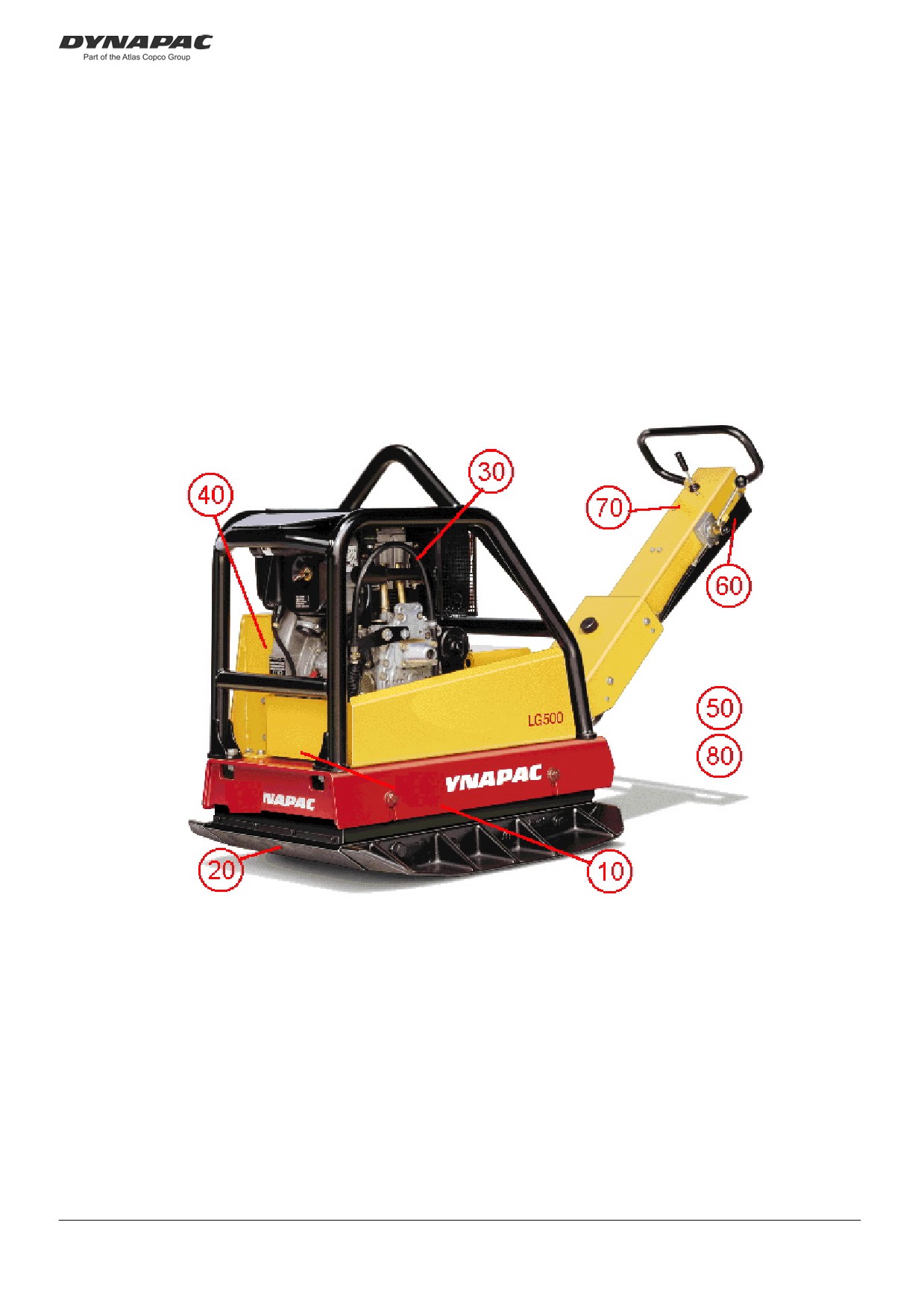

LG500 SN 35007918-
Item Part No Rem Qty Description
Code
10
Ground plate ( Page 4 )
20
Eccentric element ( Page 16 )
30
Engine and engine spacer installation ( Page 22 )
40
Power transmission ( Page 30 )
50
Hydraulic system ( Page 36 )
60
Electrical equipment ( Page 44 )
70
Handle and controls ( Page 50 )
80
Decals and equipment ( Page 56 )
SLG500-3EN1
3
Atlas Copco Construction Tools AB
Ground plate
4
SLG500-3EN1
Atlas Copco Construction Tools AB
Ground plate
Item Part No Rem Qty Description
Code
10
Ground plate for extension plates and frame ( Page 6 )
15
Ground plate and eccentric element ( Page 8 )
20
Engine plate and frame ( Page 10 )
40
V-belt cover ( Page 12 )
50
Option ( Page 14 )
SLG500-3EN1
5
Atlas Copco Construction Tools AB

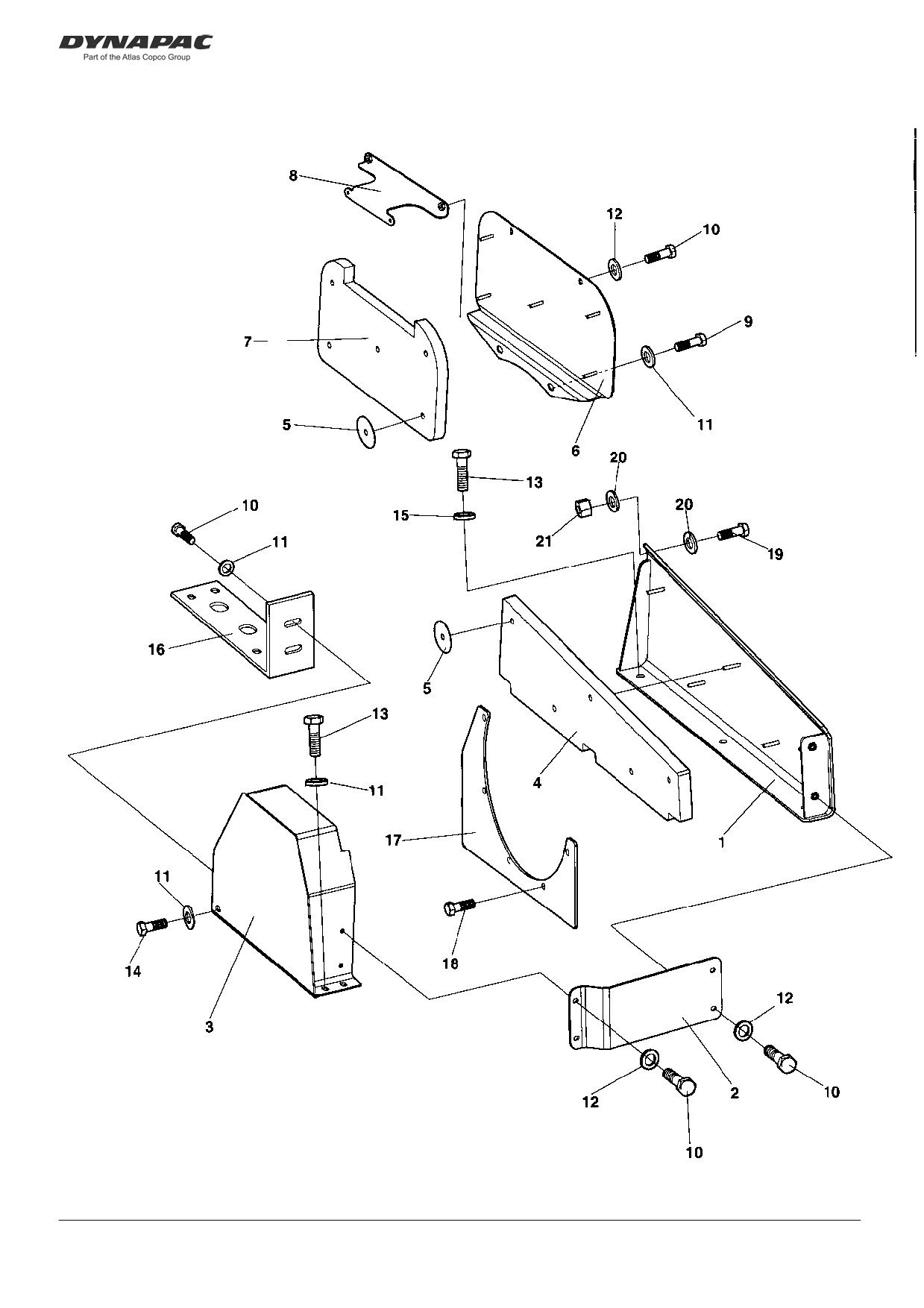

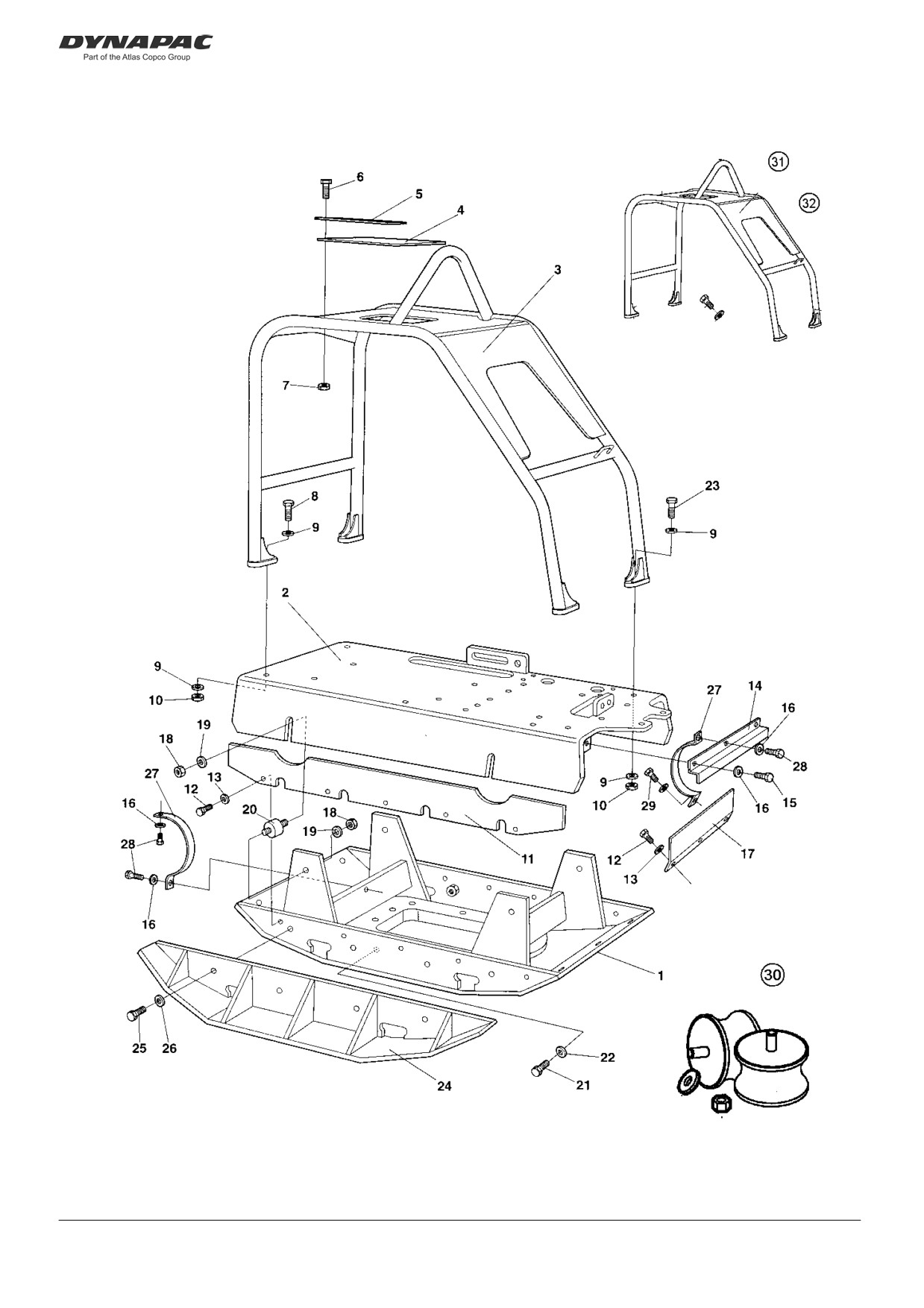

Ground plate for extension plates and frame
16060-1
6
SLG500-3EN1
Atlas Copco Construction Tools AB
Ground plate for extension plates and frame
Item
Part No Rem Qty
Description
Code
1
4700282714
1
Ground plate
2
D281490-01
1
Engine plate
3
4700386612
1
Protective frame
4
4700281485
1
Cover
5
4700281484
1
Bracket
6
4700902520
3
Screw
C
7
4700902286
3
Hexagon lock nut with flange
C
8
4700508036
2
Screw
9
4700904558
8
Washer
17X30X6 300HV
10
4700586021
4
Nut
M16
11
4700282704
2
Plastic cover
12
4700500048
16
Screw
M10-1,5x20 8,8
13
4700928441
16
Washer
14
D281482-01
1
Plate
15
4700500051
2
Screw
M12x25H 8.8 A3K
C
16
4700924543
5
Washer
17
4700386349
1
Plastic cover Model 35001515
18
4700570008
8
Nut
M16 -8
C
19
4700904232
8
Washer
C
20
4700280454
4
Shock absorber
B
21
4700508028
1
Screw
22
4700747541
2
Washer
D
23
4700508036
2
Screw
24
4700280544
C
2
Extension plate
25
4700500101
8
.Screw
M20x50
C
26
4700615047
8
.Conical spring washer
27
4700283075
2
Strap
28
4700500035
3
Screw
M12x020H
29
4700500028
1
Screw
30
4812155299
1
Repair kit, shock absorbers
8
.Item 18
8
.Item 19
4
.Item 20
31
Not used on this model
32
4812155355
1
Repair kit, protective frame
1
.Item 3A
4
.Item 23
4
.Item 9
1
.Decal, lifting point
1
.Item 4
1
.Item 5
3
.Item 6
C)
Option
SLG500-3EN1
7
Atlas Copco Construction Tools AB

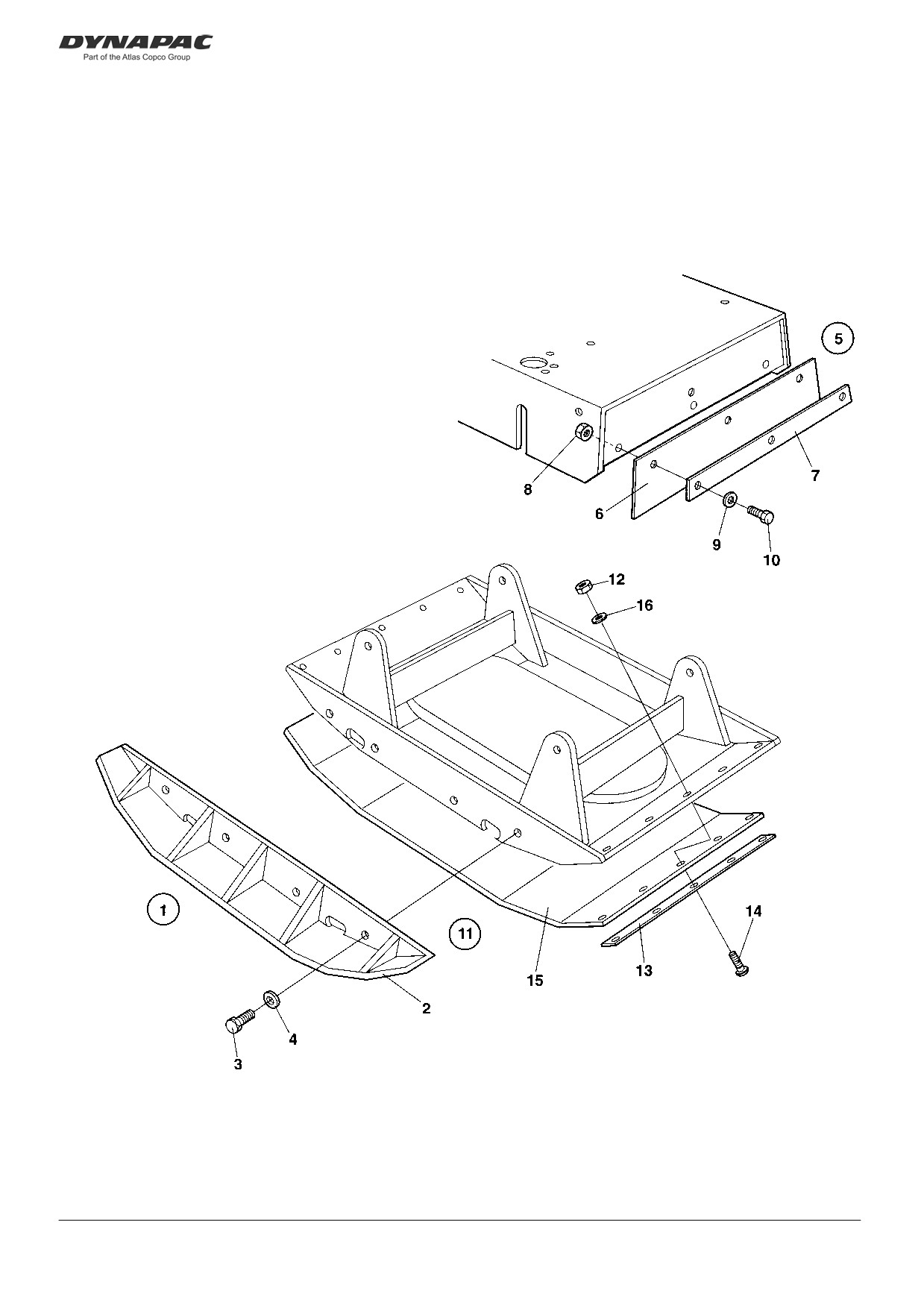

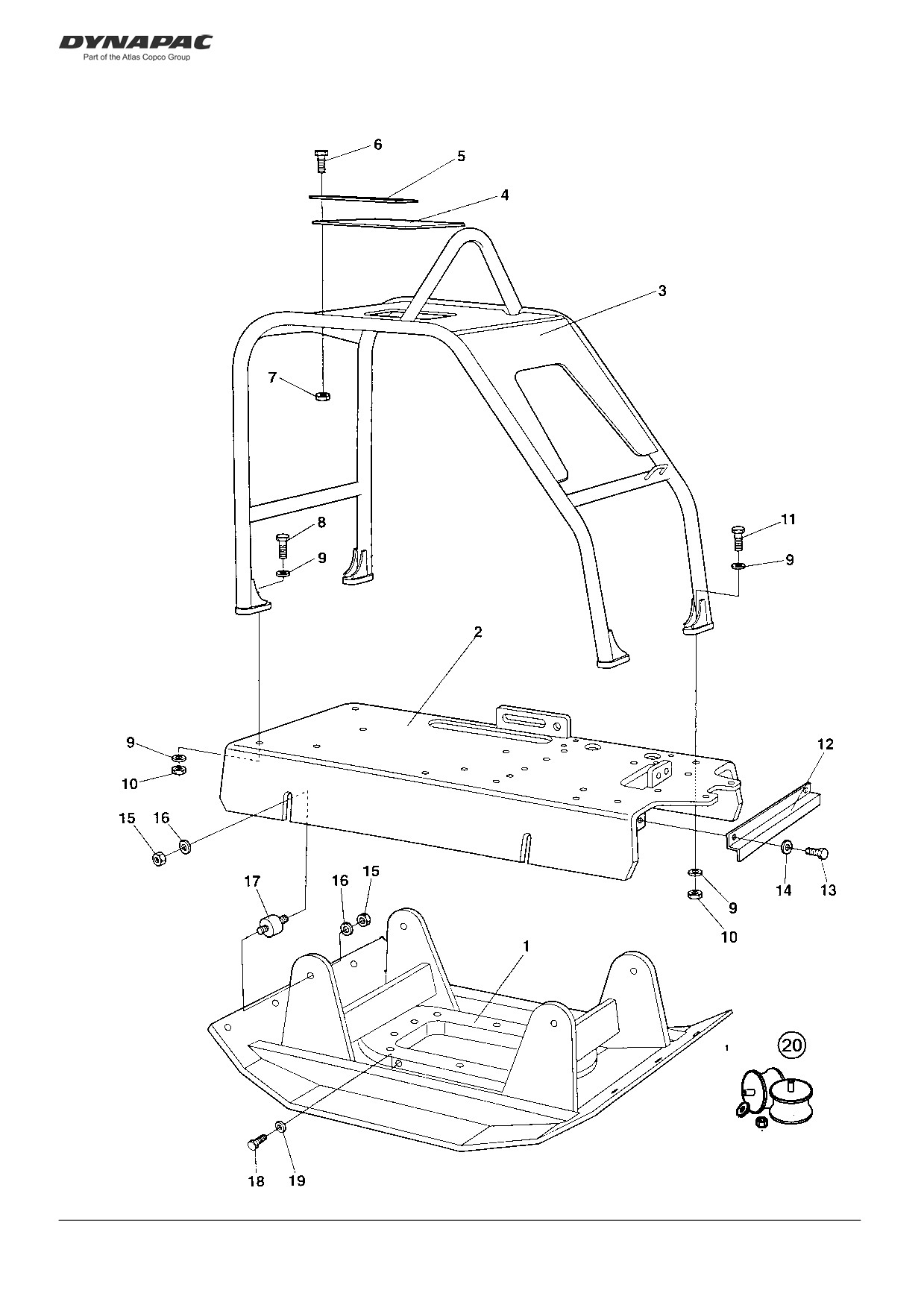

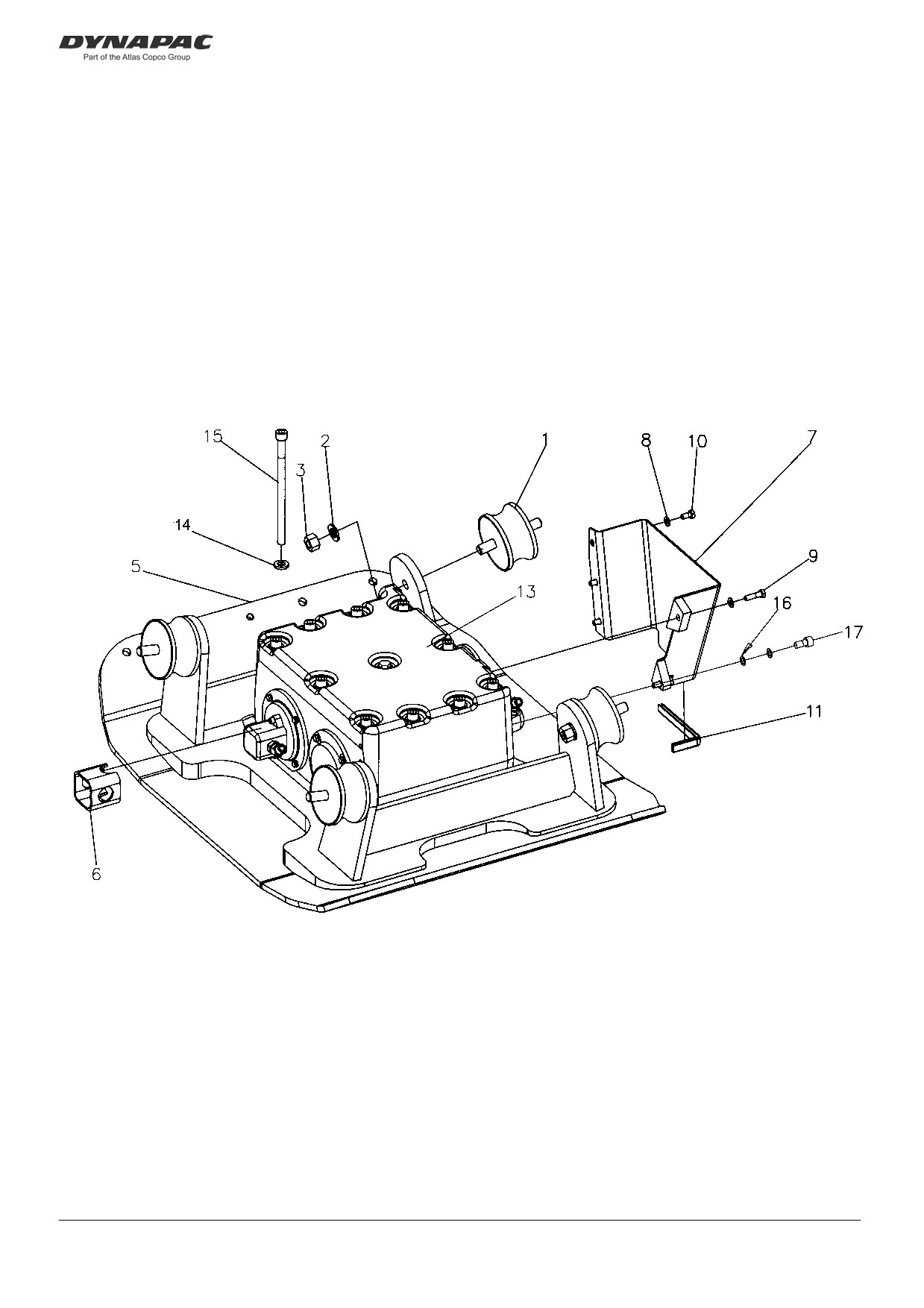

Ground plate and eccentric element
18443
8
SLG500-3EN1
Atlas Copco Construction Tools AB
Ground plate and eccentric element
Item Part No Rem Qty Description
Code
B
B
B
B
1
6
Not used on this model
7
4700280434
1
Belt guard
8
4700904229
5
Washer
8,4x16x1,5
9
4700500022
2
Screw
M8x30H 8.8 A2K
C
10
4700508005
3
Screw
11
4700202028
A
1XL Edge trim
D
13
Eccentric element ( Page 18 )
14
4700904213
10
Washer
C
15
4700928944
10
Screw
16
4700747541
2
Washer
D
17
4700508028
1
Screw
A)
L 0,165 m
B)
Se section ground plate and frame
SLG500-3EN1
9
Atlas Copco Construction Tools AB
Engine plate and frame
16193-1
10
SLG500-3EN1
Atlas Copco Construction Tools AB
Engine plate and frame
Item Part No Rem Qty
Description
Code
1
4700389108
1
Ground plate
2
D281490-01
1
Engine plate
3
4700281475
1
Protective frame
4
4700281485
1
Cover
5
4700281484
1
Bracket
6
4700902520
3
Screw
C
7
4700902286
3
Hexagon lock nut with flange
C
8
4700508036
2
Screw
9
4700904558
8
Washer
17X30X6 300HV
10
4700586021
4
Nut
M16
11
4700508036
2
Screw
12
D281482-01
1
Plate
13
4700500051
2
Screw
M12x25H 8.8 A3K
C
14
4700904213
2
Washer
C
15
4700570008
8
Nut
M16 -8
C
16
4700904232
8
Washer
C
17
4700280454
4
Shock absorber
B
18
4700508028
1
Screw
19
4700747541
2
Washer
D
20
4812155299
1
Repair kit, shock absorbers
8
.Item 15
8
.Item 16
4
.Item 17
SLG500-3EN1
11
Atlas Copco Construction Tools AB
V-belt cover
17690
12
SLG500-3EN1
Atlas Copco Construction Tools AB
V-belt cover
Item Part No Rem Qty Description
Code
1
D386614-02
1
Protective cover
2
D386314-02
1
Bracket
3
D386315-02
1
V-belt cover
4
4700386599
1
Insulation
5
4700373476
10
Insulating washer
C
6
4700386313
1
Cover
7
4700386393
1
Insulation
8
4700386369
1
Bracket
9
4700500056
2
Screw
C
10
4700500021
8
Screw
M8-1,25x25 8.8
11
4700904213
4
Washer
C
12
4700904556
8
Washer
8,4x16x3,0
13
4700500051
5
Screw
M12x25H 8.8 A3K
C
14
4700500035
1
Screw
M12x020H
15
4700904213
3
Washer
C
16
4700394699
1
Bracket
17
4700386316
1
Plate
18
4700500048
5
Screw
M10-1,5x20 8,8
19
4700500029
2
Hexagon head screw
C
20
4700904557
4
Steel plain washer
21
4700570006
2
Nut
C
SLG500-3EN1
13
Atlas Copco Construction Tools AB
Option
17103
14
SLG500-3EN1
Atlas Copco Construction Tools AB
Option
Item
Part No Rem Qty Description
Code
1
1
Extension plate, cpl
C
2
4700280544
2
.Extension plate
3
4700500101
8
.Screw
M20x50
C
4
4700615047
8
.Conical spring washer
5
Not used on this model
6
.Not used on this model
7
4700281879
.Not used on this model
8
4700586019
.Lock nut
9
4700600009
.Washer
13x24x2,5
C
10
4700500133
.Screw
C
11
1
Polyurethane plate, cpl
C
12
4700586018
D
8
.Lock nut
C
4700902287
C
8
.Nut
C
13
4700381902
D
2
.Bracket
4700382008
C
2
.Bracket
14
4700904341
C
8
.Carriage screw
4700500161
D
8
.Hexagon head screw
C
15
4700280888
A
1
.Polyurethane plate
4700381903
B
1
.Polyurethane plate
16
4700904230
D,E
8
.Steel plain washer
A)
Widht = 750 mm
B)
Widht = 850 mm, use together with extension plates
C)
Part for polyurethane plate 4700280888
D)
Part for polyurethane plate 4700381903
E)
Mounted between bracket and screw
SLG500-3EN1
15
Atlas Copco Construction Tools AB
Eccentric element
16
SLG500-3EN1
Atlas Copco Construction Tools AB
Eccentric element
Item Part No Rem Qty Description
Code
10
Eccentric element ( Page 18 )
20
Piston, cpl ( Page 20 )
SLG500-3EN1
17
Atlas Copco Construction Tools AB
Eccentric element
19083
18
SLG500-3EN1
Atlas Copco Construction Tools AB
Eccentric element
Item
Part No Rem Qty
Description
Code
1
4700379121
1
Eccentric housing
C
2
4700379079
1
Cover
3
4700377986
1
Shaft, cpl
4
4700150033
4
Retaining ring
5
4700928794
1
Sealing ring
D
6
4700379080
1
Cover
7
4700280436
4
Eccentric weight
D
8
4700928791
8
Screw
9
4700378216
1
Gear
10
4700150020
2
Snap ring
11
4700928786
4
Ball bearing
16
4700904228
16
Washer
6,4x12x1,5
17
4700500040
16
Screw
M6-1x20 8,8
C
18
Hydraulic pump installation ( Page 42 )
19
4700508025
2
Screw
M6x20
20
4812070073
1
Eccentric shaft
21
4812070042
1
Hydraulic cylinder
22
Piston, cpl ( Page 20 )
23
4700280442
1
Pin
24
4812070093
1
Reverser
25
4700280450
1
Key
26
4700928796
2
Ball bearing
27
4700928787
1
Retaining ring
28
4700280448
1
Stop
29
4700280449
1
Screw
30
4700928798
1
Spring
31
4700379081
1
Cover
32
4700162011
1
Washer, sealing
D
33
4700232143
1
Plug
34
4700928788
1
Key
D
35
4700377776
1
Pulley
36
4700280432
1
Washer
37
4700500048
1
Screw
M10-1,5x20 8,8
SLG500-3EN1
19
Atlas Copco Construction Tools AB

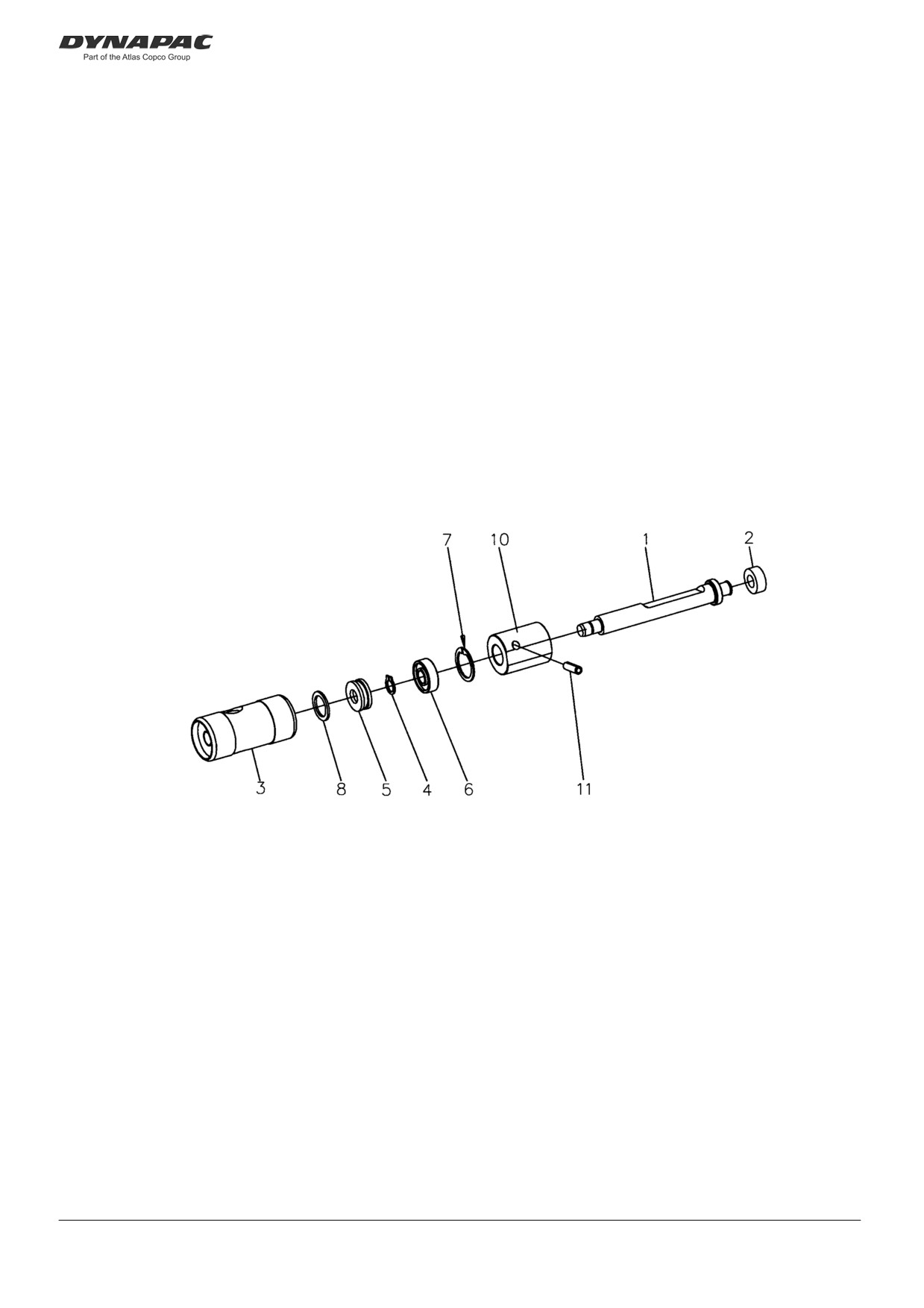

Piston, cpl
19082
20
SLG500-3EN1
Atlas Copco Construction Tools AB
Piston, cpl
Item Part No Rem Qty Description
Code
1
4812070044
1
Piston rod
2
4700281276
1
Sealing ring
3
4812070052
1
Piston
4
4700150002
1
Retaining ring
5
4812070362
1
Thrust ball bearing
6
4812070359
1
Ball bearing
7
4700151039
1
Retaining ring
8
4812070363
1
Spring washer
10
4812070043
1
Cap
11
4700629062
1
Spring pin
SLG500-3EN1
21
Atlas Copco Construction Tools AB
Engine and engine spacer installation
22
SLG500-3EN1
Atlas Copco Construction Tools AB
Engine and engine spacer installation
Item Part No Rem Qty Description
Code
10
Engine ( Page 24 )
Hatz 1D81Z
20
Engine spacer installation ( Page 28 )
SLG500-3EN1
23
Atlas Copco Construction Tools AB
Engine Hatz 1D81Z
16065-1
24
SLG500-3EN1
Atlas Copco Construction Tools AB
Engine Hatz 1D81Z
Item
Part No Rem Qty
Description
Code
Model LG500 man/el
1
4700395242
1
Engine, cpl
Hatz 1D81, Manual started
4700395243
B
1
Engine, cpl
Hatz 1D81, Electrical started
4700938278
1
Solenoid valve
2
4700935942
1
.Fuel tank, cpl
D
3
4700239550
1
.Fuel strainer
D
4
4700937428
1
.Fuel cap
5
1
.Injector
6
1
..Nozzle
7
4700239421
1
.Muffler
D
8
4700239428
1
.Muffler cover
9
4700239333
1
.Valve cover gasket
D
10
4700500058
5
.Screw
M16-2,0x65 8,8
11
4700928381
5
.Washer
6,4x18x1,6
C
12
4700935610
B
2
.Screw
13
4700936922
B
1
.Starter
14
4700935611
B
2
.Washer
15
4700935612
B
2
.Nut
16
4700937873
1
.Fuel filter
A
17
4700935608
1
.Oil filter cover, cpl
18
4700239335
1
..O-ring
B
19
4700239326
1
.Oil filter
A
20
4700239534
1
.Screw
21
4700239533
1
.Washer
22
4700239516
1
.Housing
23
4700239517
1
.Washer
24
4700239518
1
.Screw
25
4700239423
1
.Air filter element
A
26
4700239519
1
.Bracket
27
4700239520
3
.Washer
28
4700239521
1
.Nut
29
4700239522
1
.Washer
30
4700239523
1
.Cover
31
4700239524
1
.Bushing
32
4700239525
1
.Gasket
33
4700239887
2
.Nut
34
4700239886
2
.Washer
35
4700239526
1
.Gasket
D
36
4700239527
1
.Cover
37
4700239532
2
.Plug
38
4700239529
1
.Washer
39
4700239530
1
.Washer
40
4700239531
1
.Screw
41
4700239882
1
.Elbow
42
4700935609
C
1
.Plug
43
4700239883
1
.Cyclone
44
4700239382
1
Safety crank
D
45
4700239553
1
Collar bearing
46
4700508096
2
Screw
C
47
4700508092
2
Screw
C
48
4700935752
2
Washer
49
4700935753
1
Gasket
I
1
I
4
I
4
I
4
B)
LG500 el
C)
Replaced by 379101
I)
See section engine spacer installation
SLG500-3EN1
25
Atlas Copco Construction Tools AB
Engine Hatz 1D81Z
16065-1
26
SLG500-3EN1
Atlas Copco Construction Tools AB
Engine Hatz 1D81Z
Item Part No Rem Qty Description
Code
54
4700281852
1
Oil drain, cpl
D
55
4700244059
E
1XL Hose
D
56
4700281116
2
Ryw-clips
57
4700281115
2
Screw
58
4700281896
B
1
Battery
B
59
4700281202
B
1
Battery cable
(-)
D
60
4700281201
B
1
Battery cable
(+)
D
61
4700239508
1
Throttle lever
62
D280772-01
1
Bracket
63
4700500019
2
Screw
M8x16H 8.8 A2K
C
64
4700281183
1
Crank holder
65
4700904229
2
Washer
8,4x16x1,5
66
4700508005
2
Screw
67
4700570005
2
Nut
M8
C
68
4700904556
2
Washer
8,4x16x3,0
B)
LG500 el
E)
L=400MM
SLG500-3EN1
27
Atlas Copco Construction Tools AB
Engine spacer installation
19071
28
SLG500-3EN1
Atlas Copco Construction Tools AB
Engine spacer installation
Item Part No Rem Qty Description
Code
1
4700928849
4
Nut
M12-1,75
C
2
4700904703
4
Washer
C
3
4700394700
4
Stud
SLG500-3EN1
29
Atlas Copco Construction Tools AB
Power transmission
30
SLG500-3EN1
Atlas Copco Construction Tools AB
Power transmission
Item Part No Rem Qty Description
Code
20
Clutch ( Page 32 )
30
Belt tightener ( Page 34 )
SLG500-3EN1
31
Atlas Copco Construction Tools AB
Clutch
17691-3
32
SLG500-3EN1
Atlas Copco Construction Tools AB
Clutch
Item
Part No Rem Qty
Description
Code
1
4700386311
1
Clutch, cpl From 35001515
2
4700939359
2
.Clutch lining
3
2
.Weight
4
Not used on this model
5
4700939357
1
.Hub
6
Not used on this model
7
4700939360
1
.Cover
8
Not used on this model
9
4700939361
4
.Screw
10
4700939362
1
.Cover
11
4700939363
1
.Lock washer
12
4700938724
1
.Ball bearing
D
13
4700939356
1
.Washer
14
4700938725
1
.Retaining ring
15
4700938724
1
.Ball bearing
D
16
4700938727
1
.Nilos ring
17
4700938726
1
.Snap ring
18
4700939355
1
.V-belt pulley
19
4700421246
4
.Spring
B
20
4700386312
2
V-belt
21
4700904213
2
Washer
C
22
4700500048
1
Screw
M10-1,5x20 8,8
23
4700281194
1
Engine shaft
24
4700350036
1
Key
D
25
4700500022
4
Screw
M8x30H 8.8 A2K
C
26
4700904556
4
Washer
8,4x16x3,0
27
4812155351
1
Repair kit, clutch
2
.Item 2
4
.Item 19
1
.Item 15
SLG500-3EN1
33
Atlas Copco Construction Tools AB
Belt tightener
19084
34
SLG500-3EN1
Atlas Copco Construction Tools AB
Belt tightener
Item Part No Rem Qty Description
Code
1
4700378060
C
Belt tightener, cpl
2
4700500051
D
1
.Screw
M12x25H 8.8 A3K
C
3
4700924543
D
1
.Washer
4
4700150012
1
.Snap ring
D
5
4700151019
2
.Retaining ring
D
6
4700111180
2
.Ball bearing
D
7
4700378061
1
.Shaft
8
4700380517
1
.V-belt pulley
9
A
V-belt
A)
See section clutch
C)
New version
D)
Not included in complete belt tightener, P/N 4700378060
SLG500-3EN1
35
Atlas Copco Construction Tools AB
Hydraulic system
36
SLG500-3EN1
Atlas Copco Construction Tools AB
Hydraulic system
Item Part No Rem Qty Description
Code
10
Hydraulic system ( Page 38 )
20
Hydraulic tank ( Page 40 )
30
1
Hydraulic pump installation ( Page 42 )
SLG500-3EN1
37
Atlas Copco Construction Tools AB

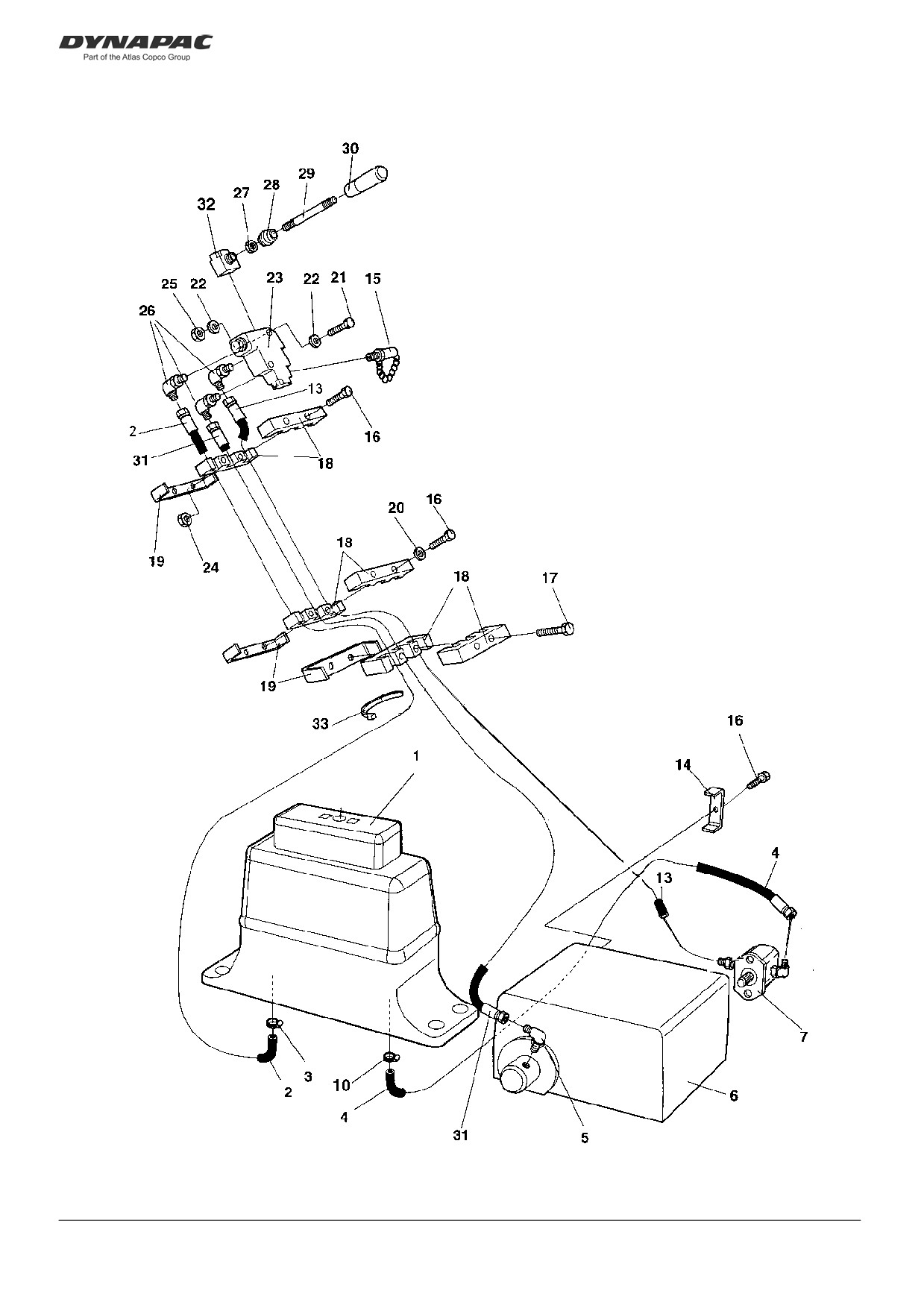

Hydraulic system
19081
38
SLG500-3EN1
Atlas Copco Construction Tools AB
Hydraulic system
Item
Part No Rem Qty
Description
Code
1
A
1
Hydraulic tank
2
4812070427
1
Hydraulic hose
D
3
4700313108
1
Hose clamp
4
4812070426
1
Hydraulic hose
5
4700234481
1
Connector
6
G
1
Eccentric element
7
1
Hydraulic pump installation ( Page 42 )
10
4700313003
1
Hose clamp
D
13
4811000187
1
Hydraulic hose
14
4700383458
1
Hose holder
15
4700938163
1
Measuring nipple
16
4700500025
5
Screw
M8-1,25x50 8,8
C
17
4700500026
2
Screw
M8-1,25x60 8,8
18
4700280534
3
Rubber block
19
D100505023
3
Bracket
20
4700615043
2
Washer
8,4x18x2
C
21
4700500079
2
Screw
M6-1x50 8,8
22
4700615042
4
Conical spring washer
23
4700281375
1
Valve
D
24
4700902286
2
Hexagon lock nut with flange
C
25
4700902285
2
Nut
C
26
4700791397
3
Elbow 90, O-ring
27
4700570005
1
Nut
M8
C
28
4700936595
1
Rubber Cover
29
D100505042
1
Rod
30
4700903821
1
Grab handle
31
4700484208
1
Hydraulic hose
32
4700937924
F
1
Lever housing
33
4700313041
1
Cable ties
34
4700313003
I
1
Hose clamp
D
A)
See section hydraulic tank
F)
Included in 4700281375
G)
See section eccentric element
I)
Use together with item 9
SLG500-3EN1
39
Atlas Copco Construction Tools AB

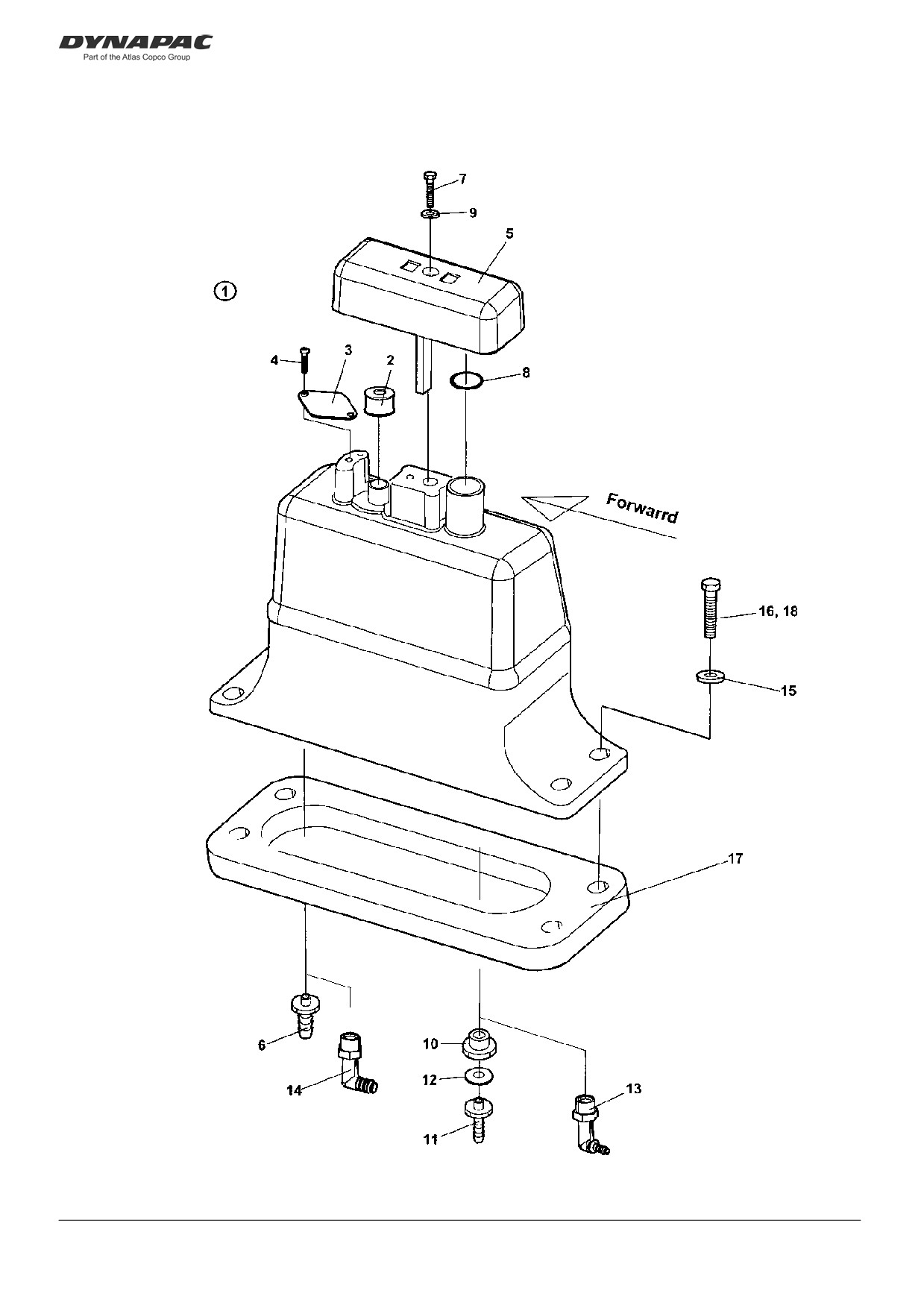

Hydraulic tank
17228-2
40
SLG500-3EN1
Atlas Copco Construction Tools AB
Hydraulic tank
Item Part No Rem Qty Description
Code
1
4700376676
1
Hydraulic oil tank, cpl
2
4700381566
1
.Air filter
3
4700381563
1
.Holder
4
4700904960
2
.Screw
5
4700381385
1
.Cover
6
4700383038
1
.Hose coupling
7
4700500021
1
.Screw
M8-1,25x25 8.8
8
4700160110
1
.O-ring
9
4700904229
1
.Washer
8,4x16x1,5
10
4700383039
1
.Reducer
11
4700383353
1
.Hose coupling
12
4700480124
1
.Washer
13
4700376674
1
Adapter
14
4700376675
1
Adapter
15
4700904229
4
Washer
8,4x16x1,5
16
Not used on this model
17
4700384230
1
Spacer
18
4700500032
4
Screw
M10 x 55
SLG500-3EN1
41
Atlas Copco Construction Tools AB

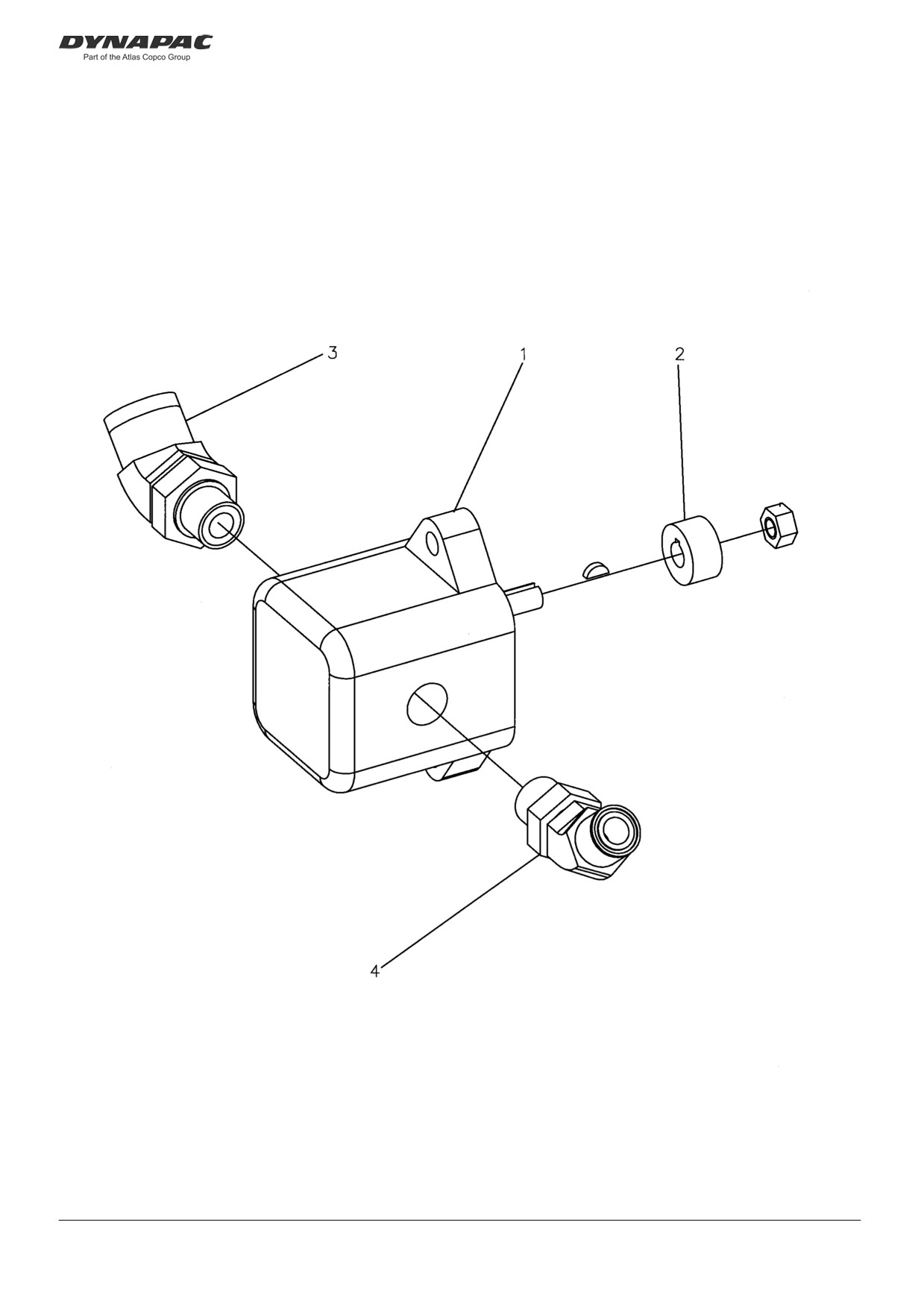

Hydraulic pump installation
19041
42
SLG500-3EN1
Atlas Copco Construction Tools AB
Hydraulic pump installation
Item Part No Rem Qty Description
Code
1
4700383562
1
Hydraulic pump
2
4700928894
1
Sleeve
3
4700792253
1
Elbow
4
4700792443
1
Elbow connector 45
SLG500-3EN1
43
Atlas Copco Construction Tools AB
Electrical equipment
44
SLG500-3EN1
Atlas Copco Construction Tools AB
Electrical equipment
Item Part No Rem Qty Description
Code
15
Control panel ( Page 46 )
20
Battery and battery box ( Page 48 )
SLG500-3EN1
45
Atlas Copco Construction Tools AB

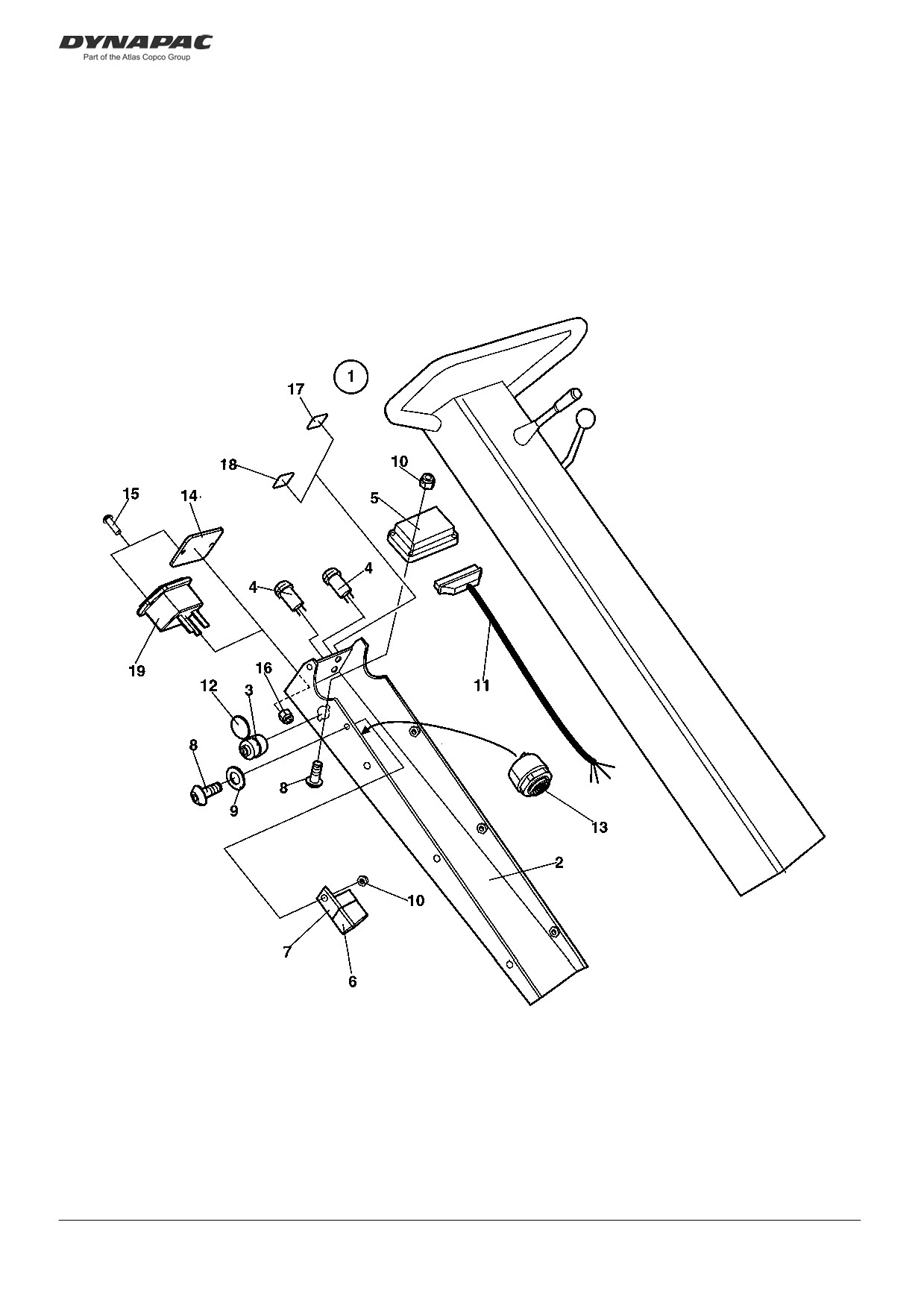

Control panel
18188
46
SLG500-3EN1
Atlas Copco Construction Tools AB
Control panel
Item Part No Rem Qty
Description
Code
1
1
Control panel, cpl
2
4700378223
1
.Control panel, cpl
3
4700238158
1
.Ignition switch
4700238236
1
.Ignition key
D
4
4700791058
2
.Diode lamp
D
5
Not used on this model
D
6
Not used on this model
D
7
Not used on this model
D
8
Not used on this model
D
9
Not used on this model
D
10
Not used on this model
D
11
4700378225
1
.Cable harness
12
Not used on this model
13
4700385599
1
.Buzzer
B
14
4700376867
1
.Cover
15
4700904967
2
.Screw
16
4700928927
2
.Lock nut
17
4700791436
1
.Decal "Charging"
D
18
4700791437
1
.Decal "OIL PRESSURE"
D
19
4700385600
A
1
Hour meter
1
A)
Option
SLG500-3EN1
47
Atlas Copco Construction Tools AB
Battery and battery box
17696
48
SLG500-3EN1
Atlas Copco Construction Tools AB
Battery and battery box
Item Part No Rem Qty Description
Code
1
4700281895
1
Isolation kit
2
1
.Isolation
3
1
.Isolation
4
1
.Isolation
5
1
.Isolation
6
D281663-02
1
Battery box
7
D281660-02
1
Cover
8
4700929200
2
Grommet
9
4700500019
4
Screw
M8x16H 8.8 A2K
C
10
4700904229
4
Washer
8,4x16x1,5
11
4700500043
1
Screw
M10x16H 8,8
C
12
4700904557
1
Steel plain washer
13
A
1
Battery
A)
See section engine
SLG500-3EN1
49
Atlas Copco Construction Tools AB
Handle and controls
50
SLG500-3EN1
Atlas Copco Construction Tools AB
Handle and controls
Item Part No Rem Qty Description
Code
15
Handle ( Page 52 )
40
Throttle control ( Page 54 )
SLG500-3EN1
51
Atlas Copco Construction Tools AB

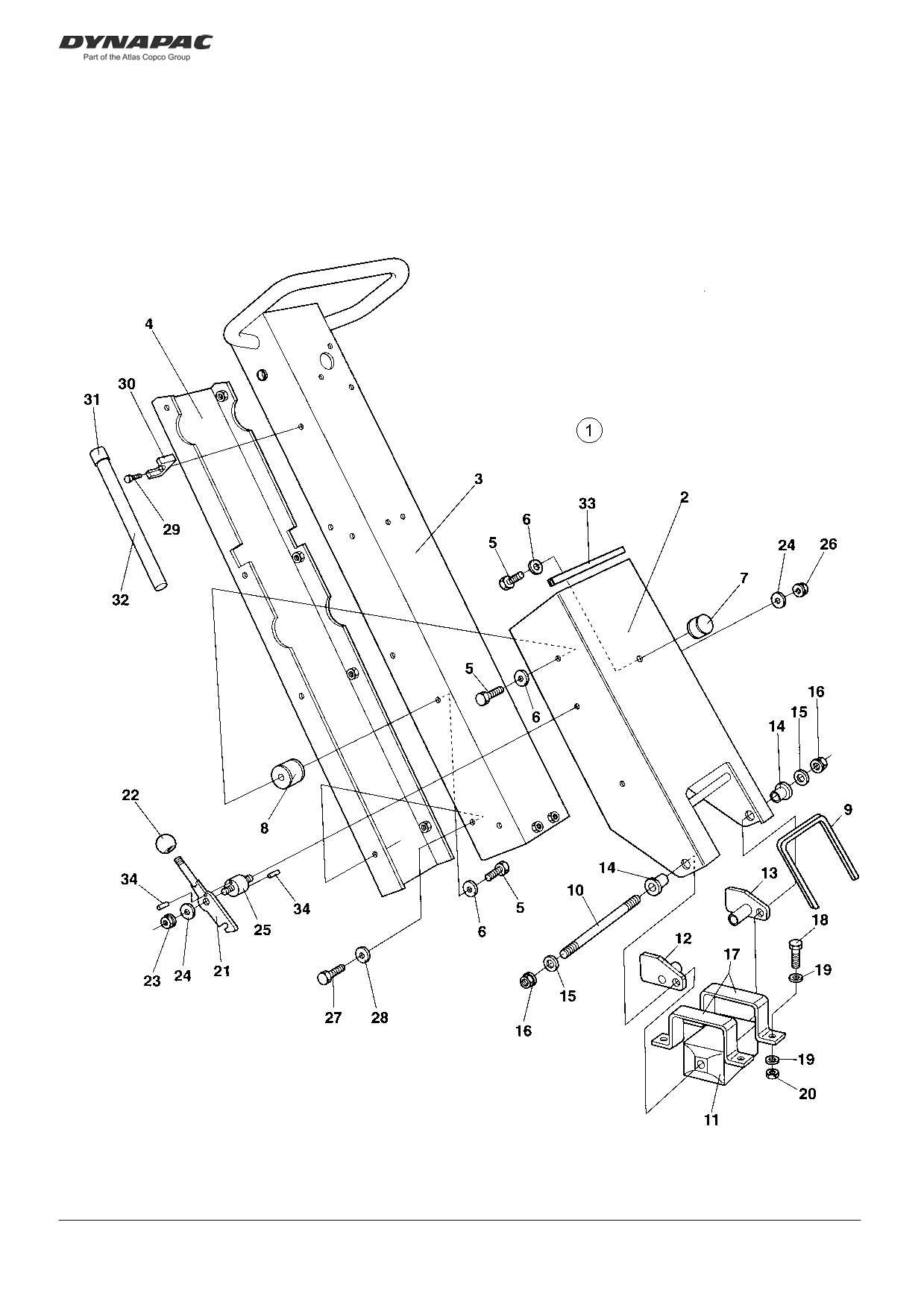

Handle
16063-1
52
SLG500-3EN1
Atlas Copco Construction Tools AB
Handle
Item
Part No Rem Qty
Description
Code
1
4700281505
1
Handle, cpl
2
D282700-02
1
.Handle, lower
3
D377310-02
1
.Handle
4
4700377312
A
1
.Cover
5
4700500043
9
.Screw
M10x16H 8,8
C
6
4700904230
9
.Steel plain washer
7
4700281804
1
.Rubber stop
D
8
D100900808
4
.Shock absorber
9
4700902379
B
1XL
.Edge trim
10
D100504231
1
.Stud
11
D100900821
1
.Shock absorber
12
D100505016
1
.Retainer, right
13
D100505015
1
.Retainer, left
14
D100504232
2
.Sleeve
15
4700900994
2
.Lock washer
16
4700581013
2
.Nut
17
D100900822
2
.Retainer
18
4700500194
4
.Screw
C
19
4700904703
8
.Washer
C
20
4700586019
4
.Lock nut
21
4700282724
1
Hook
22
4700281382
1
Ball knob
M12, D= 50mm
23
4700581012
1
Nut
24
4700904557
2
Steel plain washer
25
4700281431
1
Shock absorber
B
26
4700570006
1
Nut
C
27
4700500019
8
Screw
M8x16H 8.8 A2K
C
28
4700904229
8
Washer
8,4x16x1,5
29
4700281115
2
Screw
30
4700281116
2
Ryw-clips
31
4700281852
1
Oil drain, cpl
D
32
4700244059
1
Hose
D
33
4700926911
C
1XL
Rubber strip
34
4700629059
2
Spirol pin
A)
Hatz manual
B)
L=165MM
C)
220MM
SLG500-3EN1
53
Atlas Copco Construction Tools AB
Throttle control
18692-1
54
SLG500-3EN1
Atlas Copco Construction Tools AB
Throttle control
Item
Part No Rem Qty
Description
Code
1
4700397492
1
.Throttle control, cpl
D
2
4700455019
1
.Throttle handle
4700238443
1
..Square nipple
3
4700380751
1
.Control cable
D
4
4700904687
A
4
Screw
M5X25
4700904747
B
4
Screw
M5x30
5
4700284365
A
1
Bracket
6
4700394417
F
1
Spacer
7
4700902285
B
1
Nut
C
8
4700508025
1
Screw
M6x20
9
4700282707
1
Bracket
10
4700570004
3
Nut
M6X1,00 -8 A2K
11
4700904228
6
Washer
6,4x12x1,5
12
C
1
Screw
13
4700500040
1
Screw
M6-1x20 8,8
C
14
4700921065
3
Clamp
C
15
D
3
Screw
C
16
4700281228
1
Bracket
17
E
2
Nut
18
4700239508
D
1
Throttle lever
19
D
1
Screw
20
D
1
Washer
21
D
1
Nut
22
4700281236
1
Nipple
23
4812070115
B
1
Bracket
A)
Old version
B)
New version
C)
Use exsting screw
D)
Supplied with engine
E)
Not loose part, supplied with throttle cable
F)
Old version, use this spacer together with item 5
SLG500-3EN1
55
Atlas Copco Construction Tools AB
Decals and equipment
56
SLG500-3EN1
Atlas Copco Construction Tools AB
Decals and equipment
Item Part No Rem Qty Description
Code
10
Decals and equipment ( Page 58 )
SLG500-3EN1
57
Atlas Copco Construction Tools AB
Decals and equipment
17371
58
SLG500-3EN1
Atlas Copco Construction Tools AB
Decals and equipment
Item Part No Rem Qty Description
Code
1
4700281270
1
Sign plate
2
4700527002
4
Drive screw
C
3
4700395397
2
Decal
LG500
4
4700379424
2
Decal "DYNAPAC"
5
4700379423
1
Decal "DYNAPAC"
6
4700904680
1
Decal "Read instruction manual"
7
4700281898
1
Decal "Ear protection"
8
4700281269
2
Decal "LIFT"
9
4700284285
1
Decal
10
4700903832
1
Safety decal
11
1
Documentation
1
.Spare parts catalogue
SLG500
1
.Instruction book, engine
1
.Operation
12
4700791297
1
Decal "Sound power level"
109dB
SLG500-3EN1
59
SLG500-3EN1
Atlas Copco Construction Tools AB
NUMERICAL INDEX
Part Number
Page
Part Number
Page
Part Number
Page
4700111180
35
4700281194
33
4700383458
39
4700150002
21
4700281201
27
4700383562
43
4700150012
35
4700281202
27
4700384230
41
4700150020
19
4700281228
55
4700385599
47
4700150033
19
4700281236
55
4700385600
47
4700151019
35
4700281269
59
4700386311
33
4700151039
21
4700281270
59
4700386312
33
4700160110
41
4700281276
21
4700386313
13
4700162011
19
4700281375
39
4700386316
13
4700202028
9
4700281382
53
4700386349
7
4700232143
19
4700281431
53
4700386369
13
4700234481
39
4700281475
11
4700386393
13
4700238158
47
4700281484
7,11
4700386599
13
4700238236
47
4700281485
7,11
4700386612
7
4700238443
55
4700281505
53
4700389108
11
4700239326
25
4700281804
53
4700394417
55
4700239333
25
4700281852
25,53
4700394699
13
4700239335
25
4700281879
15
4700394700
29
4700239382
25
4700281895
49
4700395242
25
4700239421
25
4700281896
27
4700395243
25
4700239423
25
4700281898
59
4700395397
59
4700239428
25
4700282704
7
4700397492
55
4700239508
27,55
4700282707
55
4700421246
33
4700239516
25
4700282714
7
4700455019
55
4700239517
25
4700282724
53
4700480124
41
4700239518
25
4700283075
7
4700484208
39
4700239519
25
4700284285
59
4700500019
27,49,53
4700239520
25
4700284365
55
4700500021
13,41
4700239521
25
4700313003
39
4700500022
9,33
4700239522
25
4700313041
39
4700500025
39
4700239523
25
4700313108
39
4700500026
39
4700239524
25
4700350036
33
4700500028
7
4700239525
25
4700373476
13
4700500029
13
4700239526
25
4700376674
41
4700500032
41
4700239527
25
4700376675
41
4700500035
7,13
4700239529
25
4700376676
41
4700500040
19,55
4700239530
25
4700376867
47
4700500043
49,53
4700239531
25
4700377312
53
4700500048
7,13,19,33
4700239532
25
4700377776
19
4700500051
7,11,13,35
4700239533
25
4700377986
19
4700500056
13
4700239534
25
4700378060
35
4700500058
25
4700239550
25
4700378061
35
4700500079
39
4700239553
25
4700378216
19
4700500101
7,15
4700239882
25
4700378223
47
4700500133
15
4700239883
25
4700378225
47
4700500161
15
4700239886
25
4700379079
19
4700500194
53
4700239887
25
4700379080
19
4700508005
9,27
4700244059
27,53
4700379081
19
4700508025
19,55
4700280432
19
4700379121
19
4700508028
7,9,11
4700280434
9
4700379423
59
4700508036
7,11
4700280436
19
4700379424
59
4700508092
25
4700280442
19
4700380517
35
4700508096
25
4700280448
19
4700380751
55
4700527002
59
4700280449
19
4700381385
41
4700570004
55
4700280450
19
4700381563
41
4700570005
27,39
4700280454
7,11
4700381566
41
4700570006
13,53
4700280534
39
4700381902
15
4700570008
7,11
4700280544
7,15
4700381903
15
4700581012
53
4700280888
15
4700382008
15
4700581013
53
4700281115
27,53
4700383038
41
4700586018
15
4700281116
27,53
4700383039
41
4700586019
15,53
NI 1
4700281183
27
4700383353
41
4700586021
7,11
SLG500-3EN1
Atlas Copco Construction Tools AB
NUMERICAL INDEX
Part Number
Page
Part Number
Page
Part Number
Page
4700600009
15
4700936595
39
4700615042
39
4700936922
25
4700615043
39
4700937428
25
4700615047
7,15
4700937873
25
4700629059
53
4700937924
39
4700629062
21
4700938163
39
4700747541
7,9,11
4700938278
25
4700791058
47
4700938724
33
4700791297
59
4700938725
33
4700791397
39
4700938726
33
4700791436
47
4700938727
33
4700791437
47
4700939355
33
4700792253
43
4700939356
33
4700792443
43
4700939357
33
4700900994
53
4700939359
33
4700902285
39,55
4700939360
33
4700902286
7,11,39
4700939361
33
4700902287
15
4700939362
33
4700902379
53
4700939363
33
4700902520
7,11
4811000187
39
4700903821
39
4812070042
19
4700903832
59
4812070043
21
4700904213
9,11,13,33
4812070044
21
4700904228
19,55
4812070052
21
4700904229
9,27,41,49,53
4812070073
19
4700904230
15,53
4812070093
19
4700904232
7,11
4812070115
55
4700904341
15
4812070359
21
4700904556
13,27,33
4812070362
21
4700904557
13,49,53
4812070363
21
4700904558
7,11
4812070426
39
4700904680
59
4812070427
39
4700904687
55
4812155299
7,11
4700904703
29,53
4812155351
33
4700904747
55
4812155355
7
4700904960
41
D100504231
53
4700904967
47
D100504232
53
4700921065
55
D100505015
53
4700924543
7,35
D100505016
53
4700926911
53
D100505023
39
4700928381
25
D100505042
39
4700928441
7
D100900808
53
4700928786
19
D100900821
53
4700928787
19
D100900822
53
4700928788
19
D280772-01
27
4700928791
19
D281482-01
7,11
4700928794
19
D281490-01
7,11
4700928796
19
D281660-02
49
4700928798
19
D281663-02
49
4700928849
29
D282700-02
53
4700928894
43
D377310-02
53
4700928927
47
D386314-02
13
4700928944
9
D386315-02
13
4700929200
49
D386614-02
13
4700935608
25
4700935609
25
4700935610
25
4700935611
25
4700935612
25
4700935752
25
4700935753
25
NI 2
4700935942
25





















//////////////////////////////////////////
