**DYNAPAC Forward moving vibration plate LF62 (Engine Honda GX120) Serial number 26201004-. Operation & Maintenance (2020)**

Table of Contents

Introduction..............................................................................................................................1

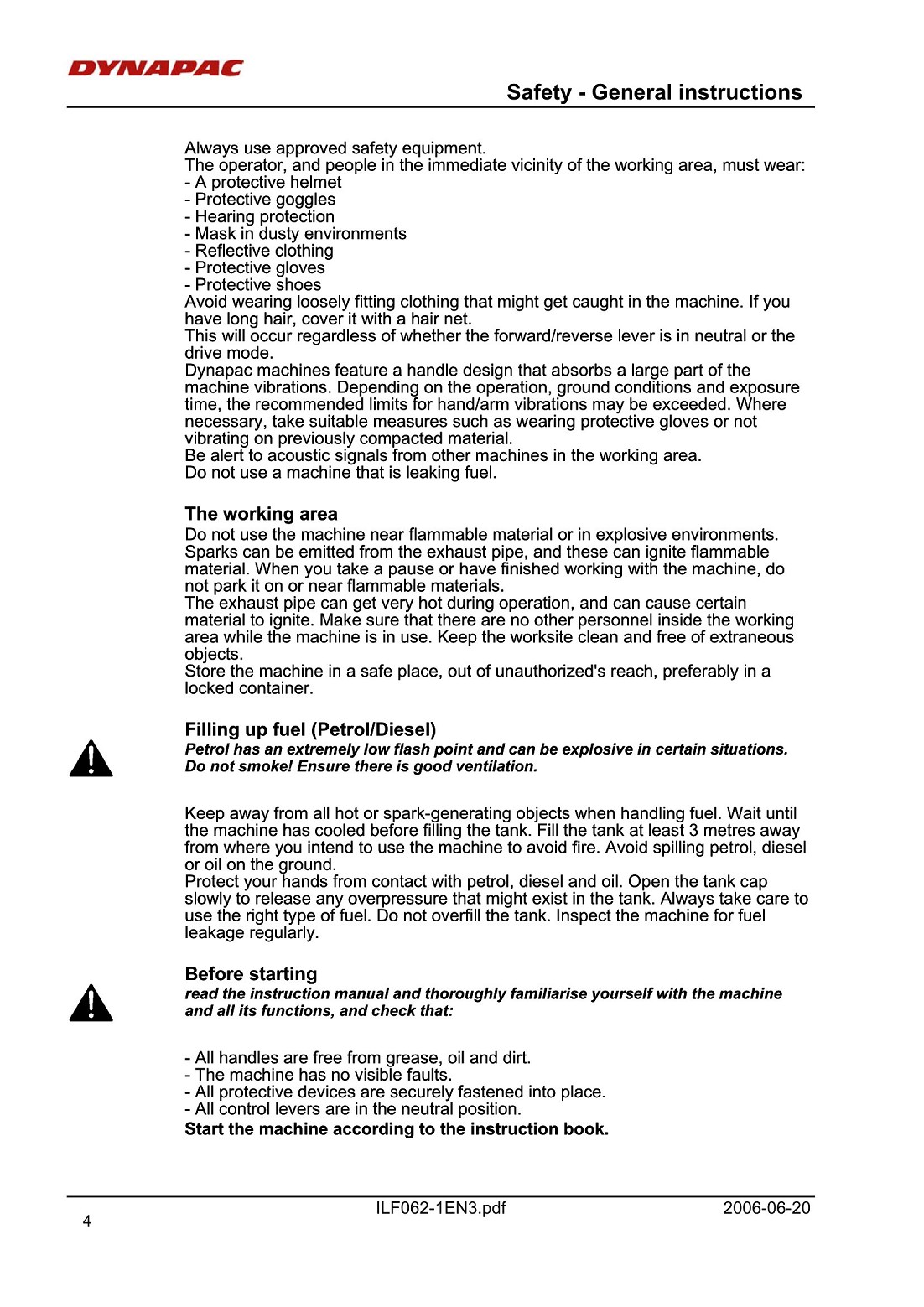

Safety - General instructions....................................................................................................3

Safety - when operating...........................................................................................................7

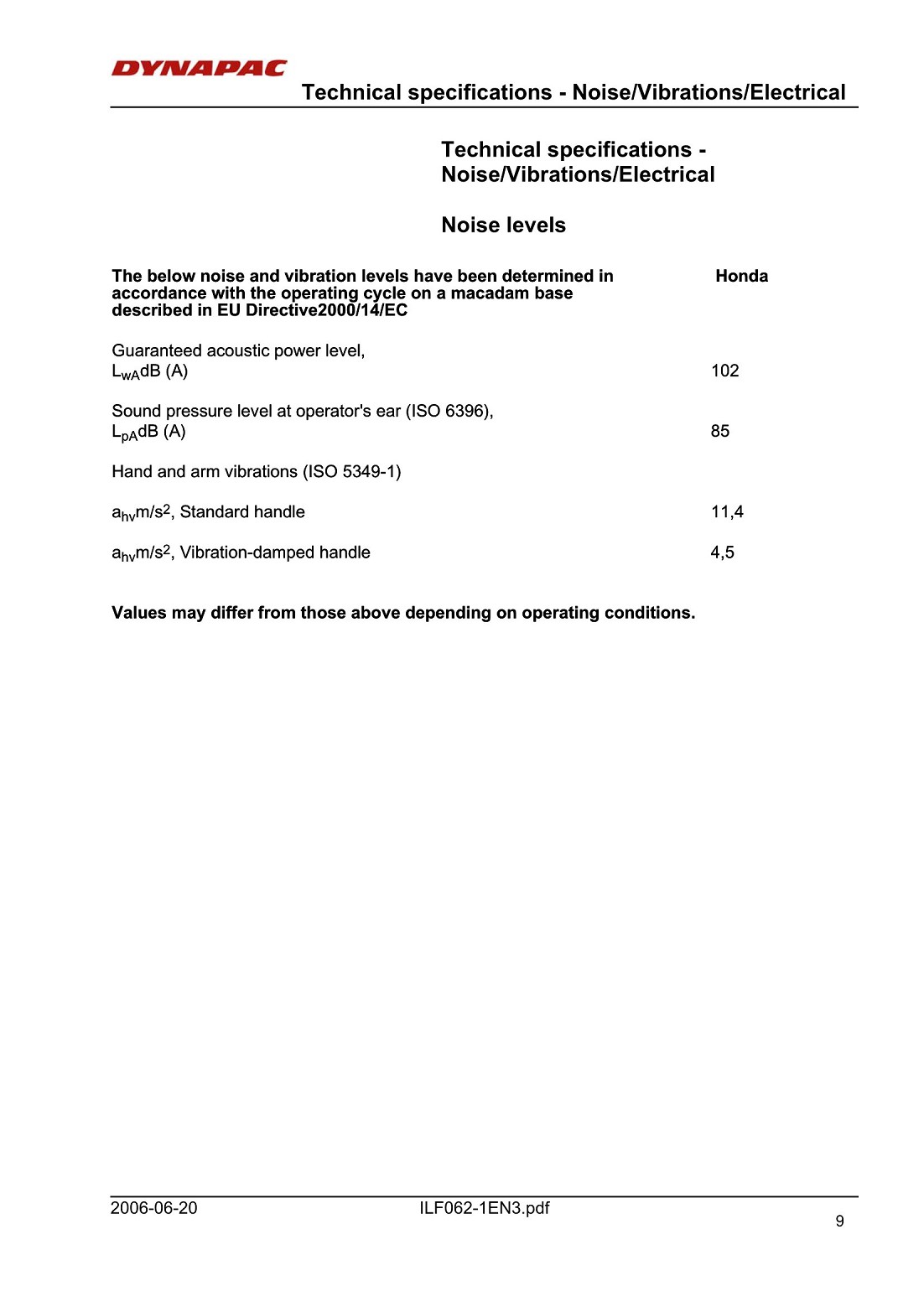

Technical specifications - Noise/Vibrations/Electrical..............................................................9

Technical specifications - Dimensions...................................................................................11

Technical specifications - Weights and volumes...................................................................13

Technical specifications - General.........................................................................................15

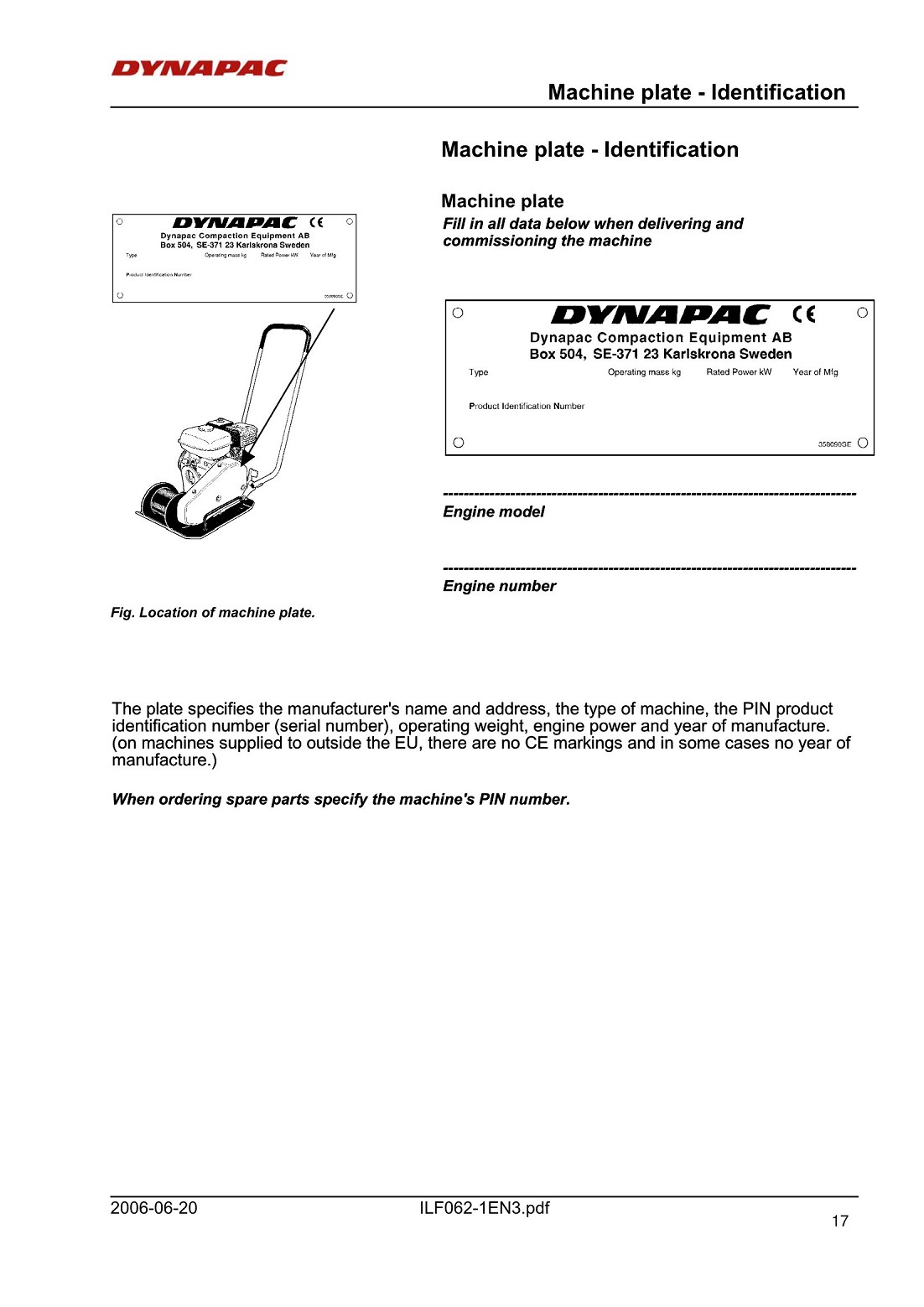

Machine plate - Identification.................................................................................................17

Machine specifications- Decals..............................................................................................18

Operation - Starting................................................................................................................21

Operating - Stopping..............................................................................................................25

Miscellaneous........................................................................................................................27

Maintenance - Lubricants and symbols.................................................................................29

Maintenance - Maintenance schedule...................................................................................31

Maintenance - 10h.................................................................................................................35

Maintenance - 20h.................................................................................................................37

Maintenance - 100h...............................................................................................................39

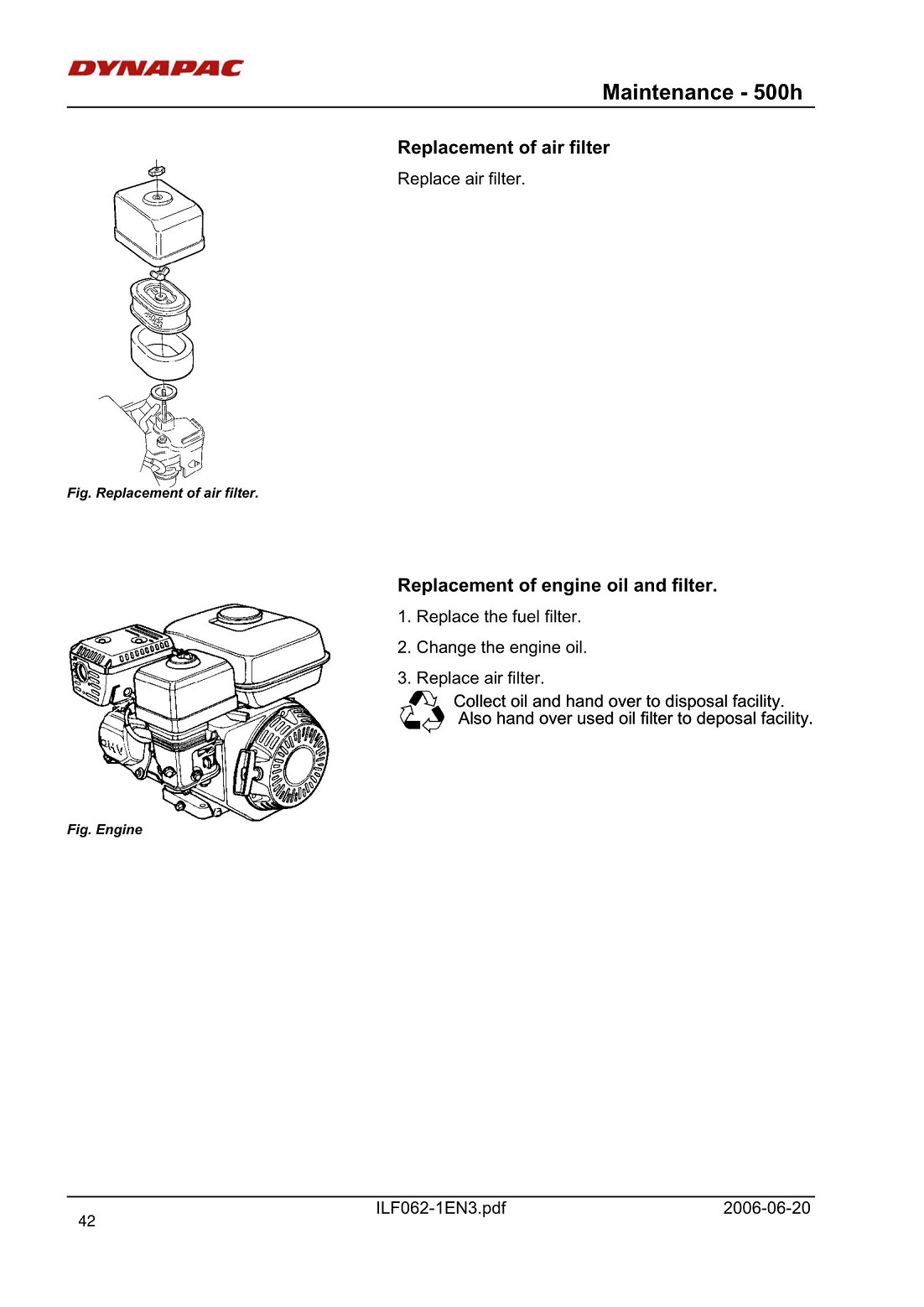

Maintenance - 500h...............................................................................................................41
ILF062-1EN3.pdf
2006-06-20

Introduction
Introduction
Warning symbols

A WARNING! Marks a danger or a hazardous procedure that can result in life threatening or serious injury if the warning is ignored.
Ш CAUTION ! Marks a danger or hazardous procedure that can result in damage to the machine or property if the warning is ignored.
Safety information

A We recommend that the operator reads the safety instructions in this manual carefully. Always follow the safety instructions. Ensure that this manual is always easily accessible.
A Read the entire manual before starting the machine and before carrying out any maintenance.
A Ensure good ventilation (extraction of air by fan) where the engine is run indoors.
General

This manual contains instructions for machine operation and maintenance.

The machine must be correctly maintained for maximal performance.

The machine should be kept clean so that any leakages, loose bolts and loose connections are discovered at as early a point in time as possible.

Inspect the machine every day, before starting. Inspect the entire machine so that any leakages or other faults are detected.

Check the ground under the machine. Leakages are more easily detected on the ground than on the machine itself.
ILF062-1EN3.pdf
