Dynapac Vibratory Roller CA150. Operation & Maintenance (2004)

Vibratory Roller

CA150

Operation

O150EN3, February 2004

Diesel engine:

CA 150: Cummins 4BT 3.3

These instructions apply from:

CA150

PIN (S/N) *73X20400*

CA150 is Dynapac’s light vibratory soil compactor. Available in STD, D (smooth

drum) and P, PD (padfoot) versions. The P, PD version has its widest range of

application on cohesive material and rockfill materials.

All types of supporting and reinforcement courses can be compacted, and the

interchangeable drums, ie, D to PD and vice versa, give enhanced versatility in

the choice of application.

The cab and safety-related accessories are described in this manual. Other accessories,

such as the compaction meter, etc. are described in separate instructions.

Reservation for alterations.

Printed in Sweden

CONTENTS

Page

Safety instructions (Read the Safety Manual also)

Safety when driving

Safety decals, location/description

5, 6

Machine and engine plates

Instruments and controls

Instruments and controls, functional description

9, 10

Controls in the cab

Before starting

13-15

Starting

Operation

Driving/Vibration

Braking

Parking

Lifting

Towing

Instructions for towing

Towing/Retrieval

Transport

Operating instructions - Summary

WARNING SYMBOLS

Safety instructions - Personal safety

Special caution - Machine or component damage

SAFETY MANUAL

The safety manual, which accompanies each

machine, must be studied by each operator of

the roller. Always follow the safety rules and

do not remove the manual from the roller.

GENERAL

CALIFORNIA

This manual contains instructions concerning operation

and use of the roller. For information regarding care and

Proposition 65 Warning

maintenance, see the manual, “MAINTENANCE, CA150”.

Diesel engine exhaust and some of its

When starting up and driving a cold machine,

constituents are known to the State of

which implies cold hydraulic fluid, the braking

California to cause cancer, birth defects,

distance will be longer than normal until the

and other reproductive harm.

machine reaches normal working temperature.

CA150 O150EN3

SAFETY INSTRUCTIONS (Read the Safety Manual also)

The operator must be familiar with the contents of the OPERATION

MANUAL before starting the roller.

Make sure that all instructions in the MAINTENANCE MANUAL are

followed.

Only trained and/or experienced operators may drive the roller. Passen-

gers are not allowed on the roller. Remain seated during all operation.

Never use the roller if it is in need of adjustment or repairs.

Board and leave the roller only when it is stationary. Use the grips and

railings that are provided. Always use a ”three-point grip” - both feet and

one hand or one foot and both hands - when boarding or exiting the machine.

The ROPS (Roll Over Protective Structure) should always be used when

the machine is operated on risky ground.

Drive slowly in sharp bends.

Avoid driving at an angle on slopes; drive straight up or down.

When driving close to unsafe edges or holes, make sure that at least two

thirds of the drum width is firmly on material that has already been

compacted.

10. Make sure that there are no obstacles in the direction of travel, on the

ground or overhead.

11. Drive extra carefully on uneven ground.

12. Use the safety equipment provided. The seat belt must be worn on ma-

chines fitted with ROPS.

13. Keep the roller clean. Clean dirt and grease from the operator’s platform

without delay. Keep all signs and decals clean and clearly legible.

14. Safety measures before refueling:

- Stop the engine.

- Do not smoke.

- No naked flame in the vicinity.

- Ground the nozzle of the filling device against the tank to prevent sparks.

15. Before repairs or service:

- Place chocks against the drums/wheels and against the strike-off blade.

- Lock the articulation if required.

16. Hearing protectors are recommended if the noise level exceeds 85 dB(A).

The noise level may vary depending on what material the machine is

operating on.

17. Make no changes or modifications on the roller that could affect safety.

Changes may only be made following written consent by Dynapac.

18. Avoid using the roller before the hydraulic fluid has reached its normal

working temperature. Remember that the braking distance will be longer if

the fluid is cold. See starting instructions in the OPERATION MANUAL.

CA150 O150EN3

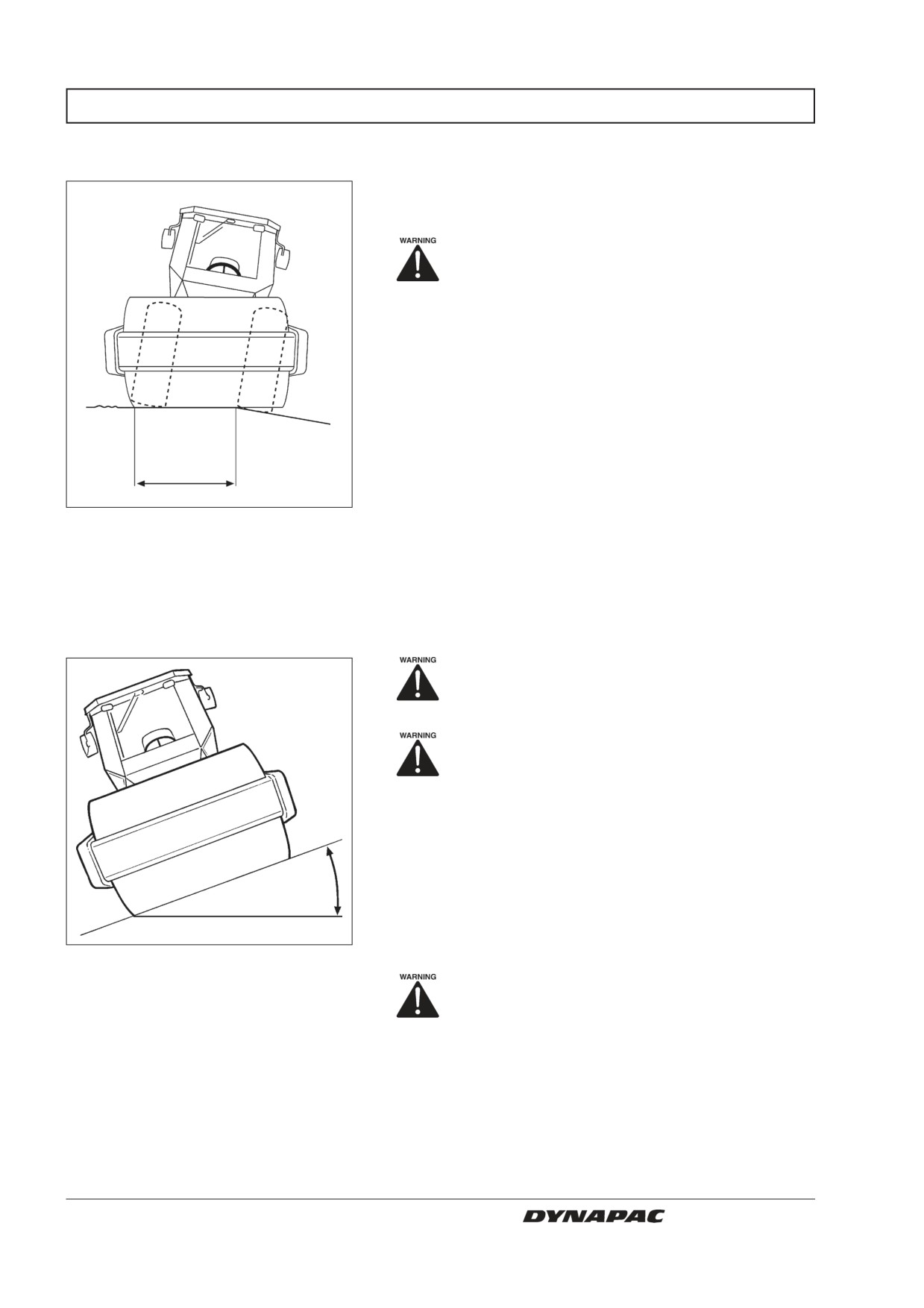

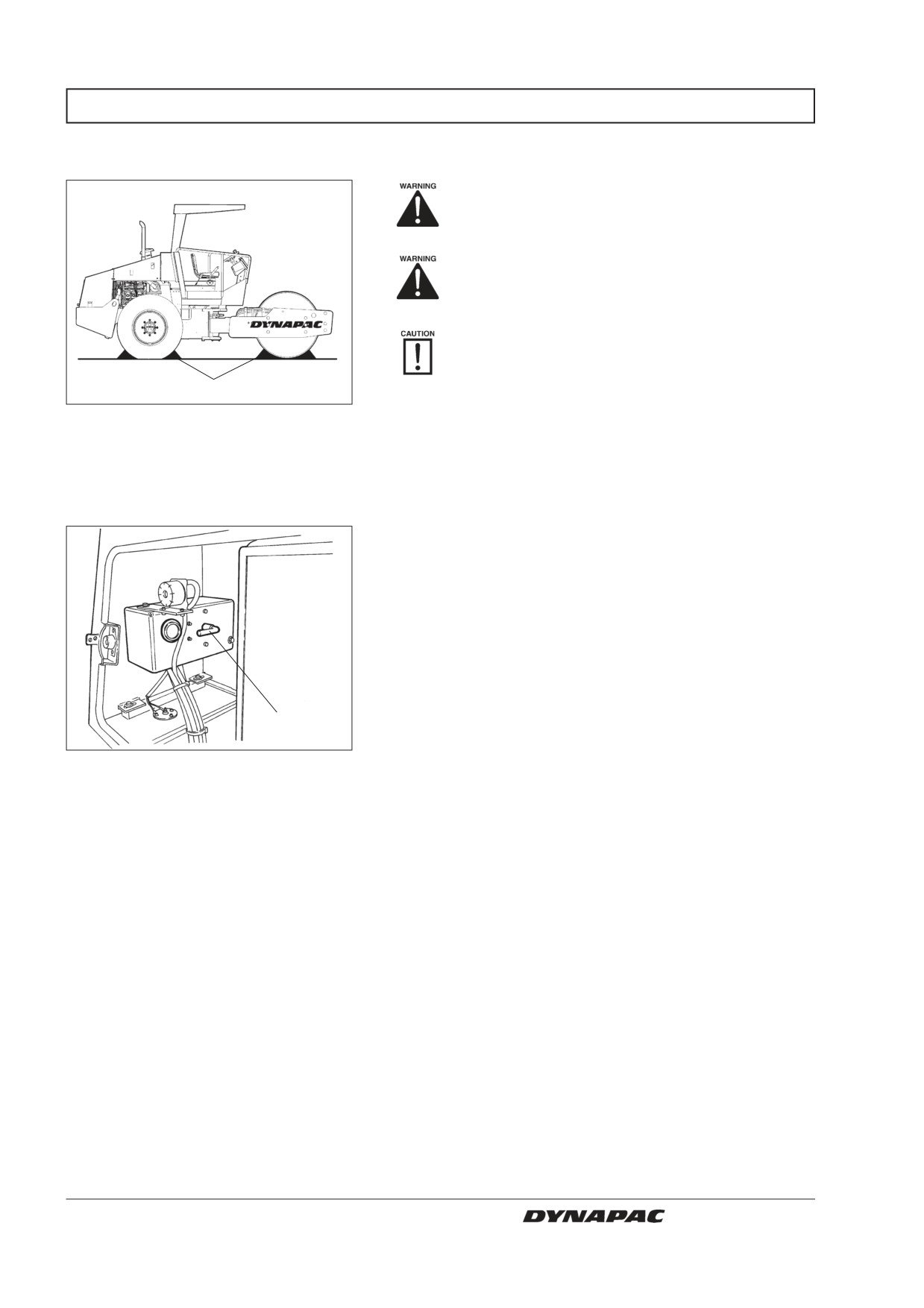

SAFETY WHEN DRIVING

Driving near an edge

When you drive near an edge, at least two thirds of the

drum width must be on solid ground.

Remember that the machine’s center of

gravity is displaced outward when you

steer to one side. For example, it shifts to

the right when you steer to the left.

At least

2/3

Fig. 1

Position of drum when driving near

an edge

Slopes

The ROPS (Roll Over Protective Structure)

is always recommended when driving on

slopes or insecure ground.

Where possible, avoid all driving across a

slope. Instead, drive up and down on slop-

ing ground.

The tilting angle is measured on a hard, level surface

with the machine stationary, steering angle zero, vibra-

tion switched OFF and all tanks full. Remember that

loose ground, steering of the machine, vibration

Max 20°

switched ON, driving speed and raising the center of

or 36%

gravity (for example, with accessories) may cause the

machine to topple even on a smaller slope than that

stated here.

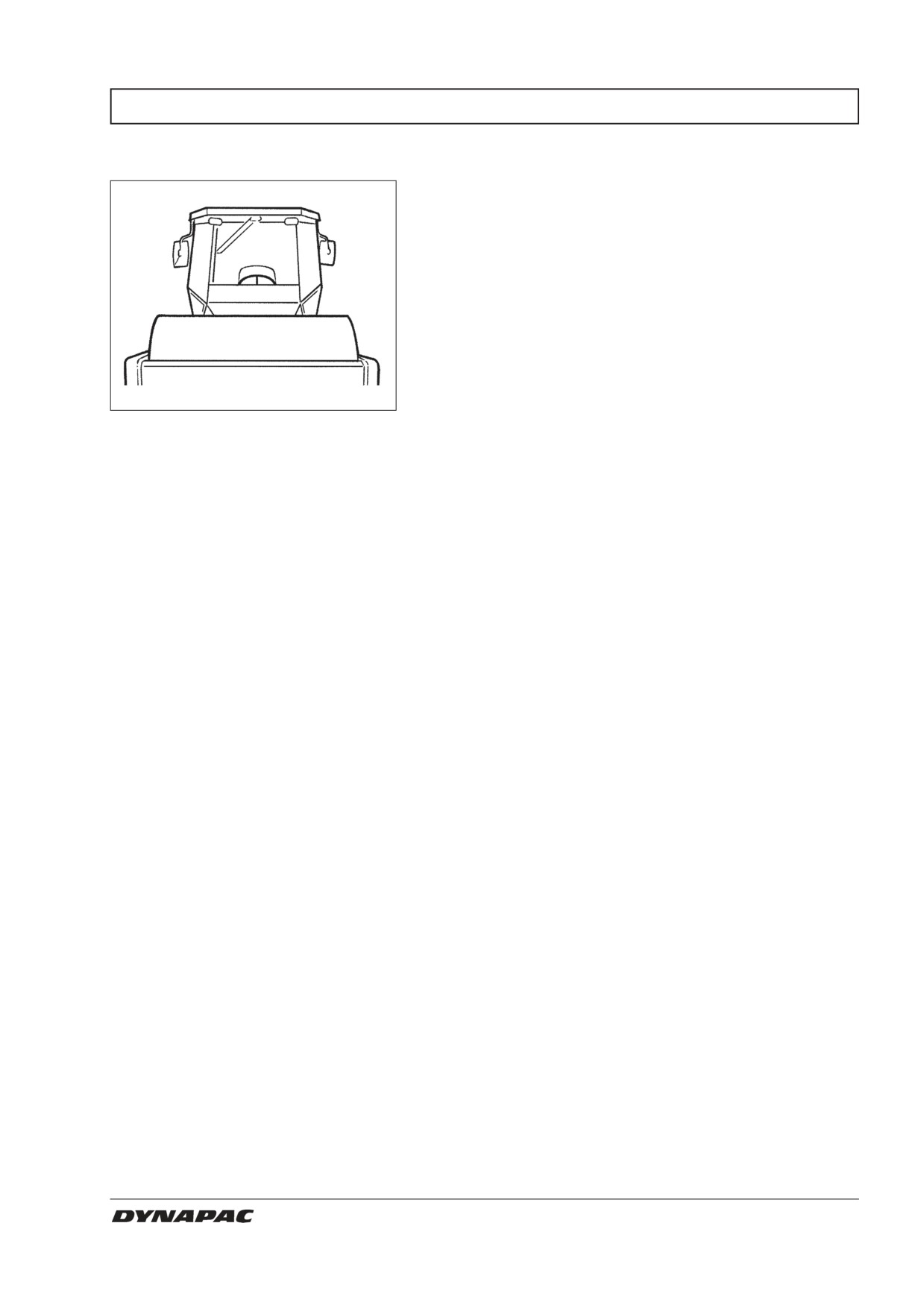

Fig. 2

Tipping angle on side slopes

To leave the cab in an emergency, release

the hammer located on the rear right post

and break the rear window.

CA150 O150EN3

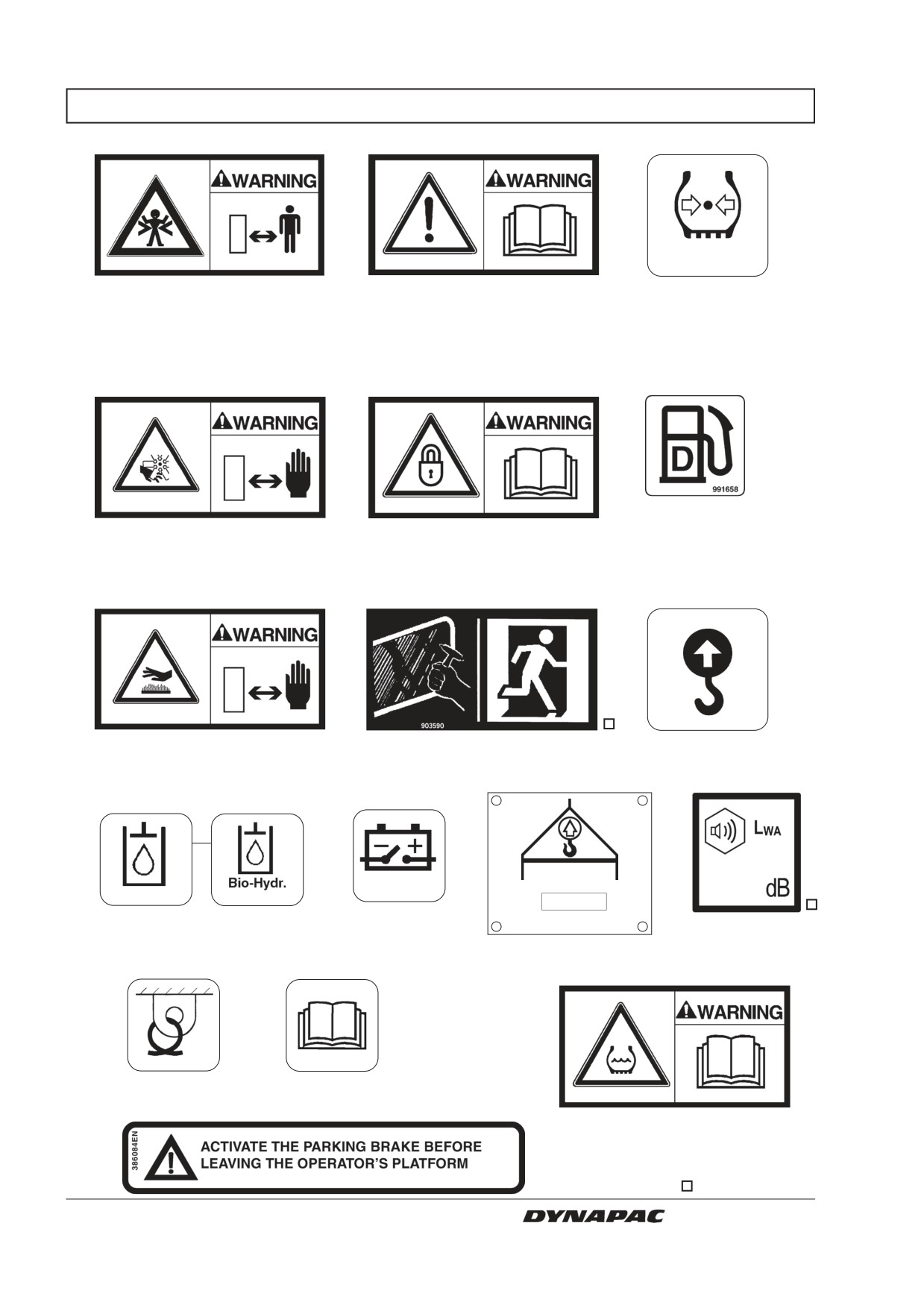

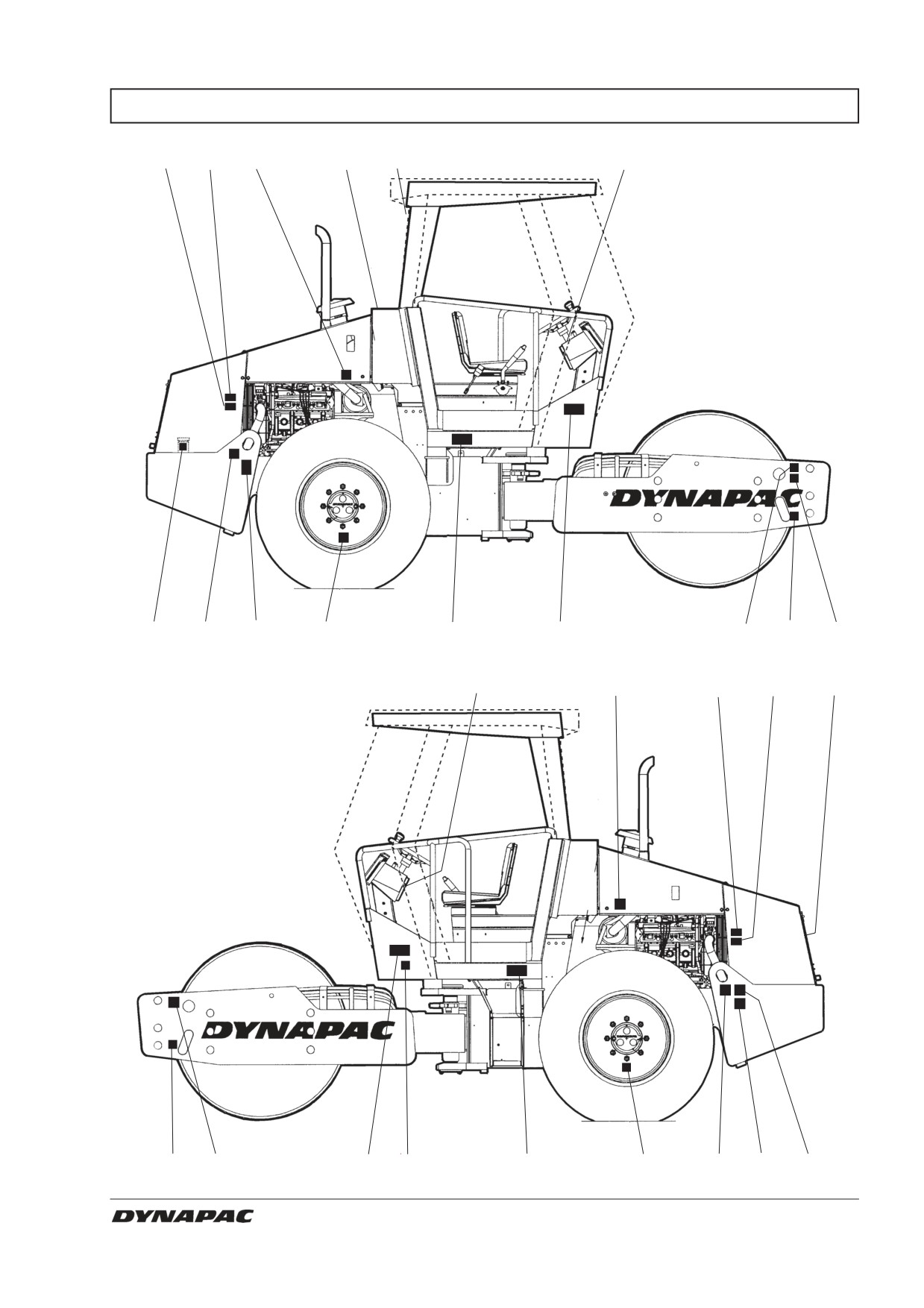

SAFETY DECALS, LOCATION/DESCRIPTION

110 kPa

903422

903459

16 psi

385080

Crush zone, articulation/

The operator is urgently

Tire pressure

Drum. Maintain a safe dis-

requested to read the safety

tance from the crush zone.

manual, and the operation

and maintenance instruc-

tions before using the

machine.

903423

908229

Diesel fuel

Warning - rotating engine

The articulation must be

components. Keep your

interlocked when lifting.

hands at a safe distance from

Read the instruction manual.

the danger zone.

903424

357587

Warning - hot surfaces in

Emergency exit

Lifting point

the engine compartment.

Do not touch.

Alt. 1

Alt. 2

12.

13.

791277

11.

10.

904835

107

272372

904601

Mass

Hydraulic

Biological

Battery

904870

Sound Power

fluid

hydraulic

disconnector

fluid

Lifting plate

level

14.

15.

17.

382751

903425

Securing

Handbook

903985

point

compartment

Tires filled with ballast

16.

(Optional).

Read the instruction manual.

= Optional

CA150 O150EN3

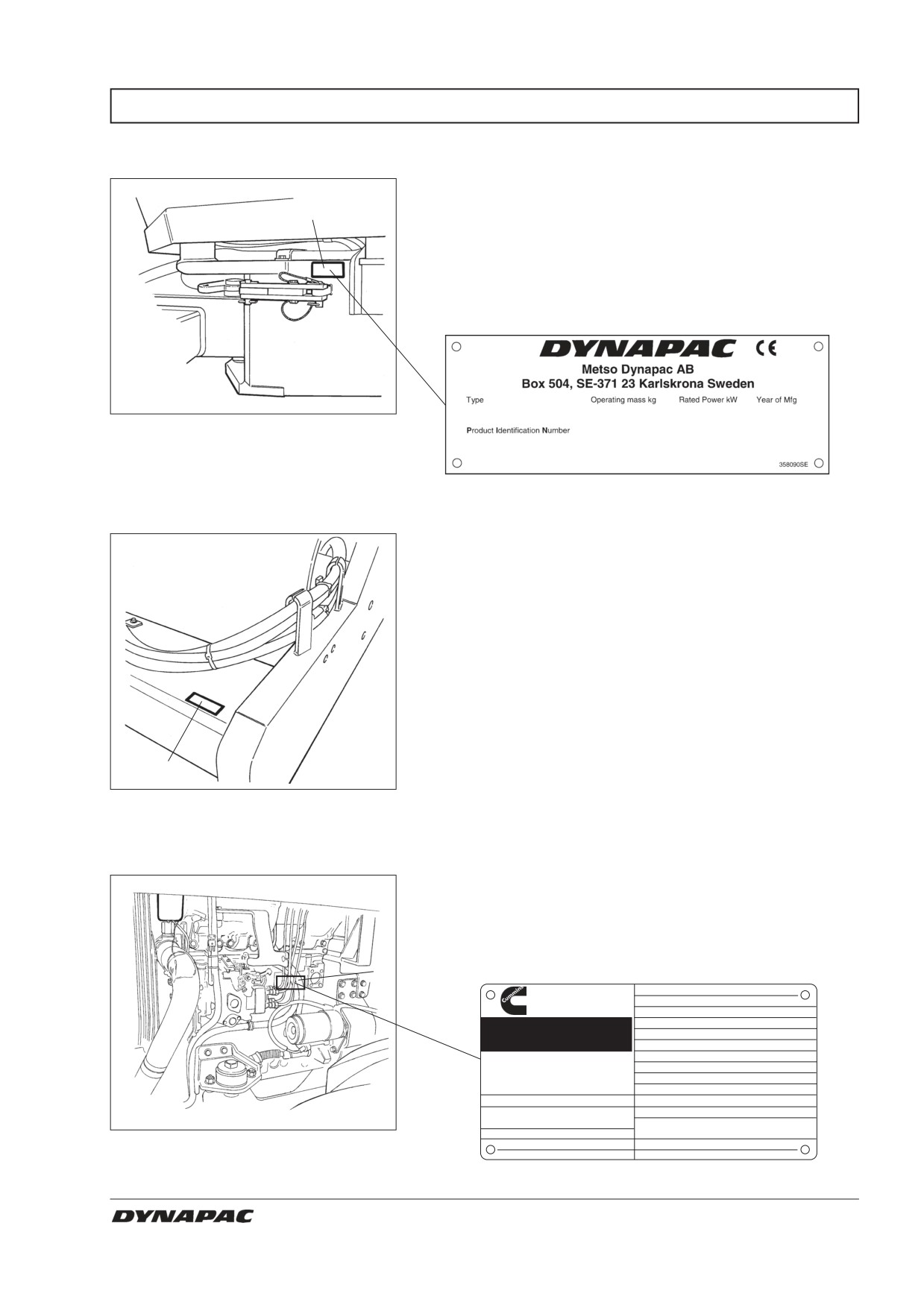

MACHINE AND ENGINE PLATES

Machine plate

The machine plate (1) is affixed on the front left side of

the frame, by the steering joint. The plate shows the

manufacturer’s name and address, type of machine,

product identification number (PIN), weight in working

order, engine power and year of manufacture (the year

of manufacture is not specified if the machine is

delivered outside the EU).

Please state the roller PIN when ordering spares.

Fig. 3

Operator’s platform

1. Machine plate

PIN on frame

The PIN (1) of the machine is punched on the front right

edge of the forward frame beam.

Fig. 4

Front frame

1. PIN

Engine plate

The engine plate (1) is affixed to the right side of the

engine under the injection pump. The plate indicates the

type of engine, serial number and engine data. Please

state the engine serial number when ordering spares.

See also the Engine Manual.

Cummins Engine Company, Inc

Important Engine Information

Columbus, Indiana USA

Model

B3.3

ESN68006012

47202-3005 www.Cummins.com

Gross rated HP/kW

80 /60 at 2200 rpm

WARNING: Injury may result and warrantyis voided

Low Idle RPM

800

RPM

if fuel rate, rpm or altitude exceed published

Fuel Rating

FR30004

maximum values for this model and application.

CPL

2674

This engine conforms to YYYY U.S. EPA and California

Displacement:

3.261 L/199 in3

regulations for large non-road compression ignition

engines as applicable. This engine is certified to

operate on diesel fuel.

Timing-BTDC

8 degrees

Valve Lash Intake

0.014in/0.35mm

EPA Cert. Family:

ICEXL03.3AAB

(cold engine) Exhaust 0.020in/0.50mm

European Approval Number:

Fuel rate at rated HP/kW 61mm3/st

e11*97/68CA*00/000*0069*00

Fig. 5

Engine

S.O.

SO94678

Date of Manufacture

yyyy-mm-dd

Made in Japan

6204-81-2411

1. Engine/EPA sign

CA150 O150EN3

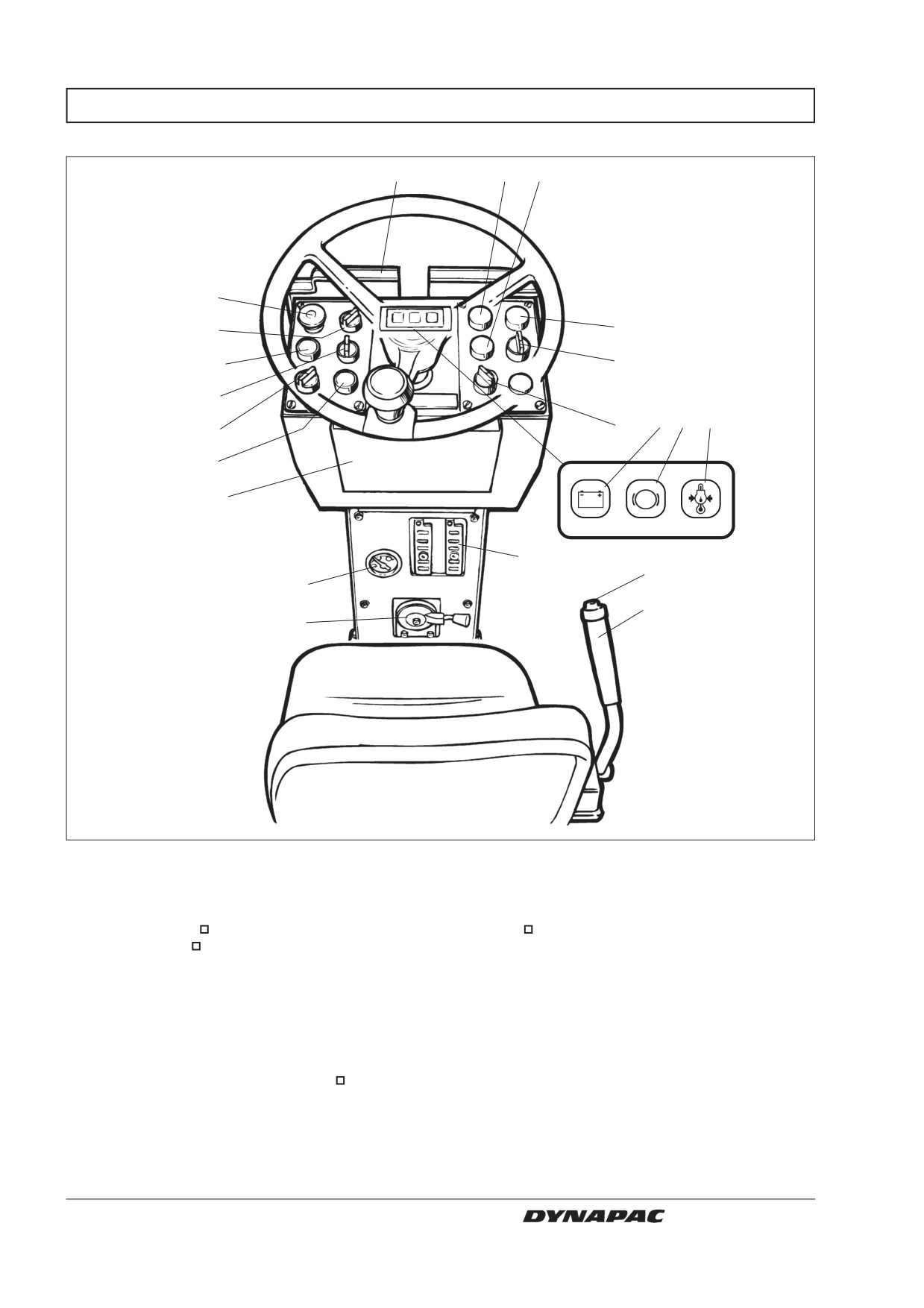

INSTRUMENTS AND CONTROLS

Fig. 6

Instruments and control panel

1. Horn

12. Warning lamp, hydraulic temperature

2. Starter switch

13. Amplitude selector Low/0/High

3. Hazard beacon

14. Speed selector, rear axle

4. Working lights

15. Engine revs control

5. Reserve/parking brake knob

16. Fuel gauge

6. Instrument protection

17. Fuse box

7. Warning lamp, charging

18. Vibration ON/OFF

8. Brake warning lamp

19. Forward/Reverse lever

9. Warning lamp, engine oil

20. Test button for warning lamps

pressure/Engine temperature

21 . Handbook compartment

10. Warning lamp, hydraulic filter

11. Warning lamp, air filter

= Optional

CA150 O150EN3

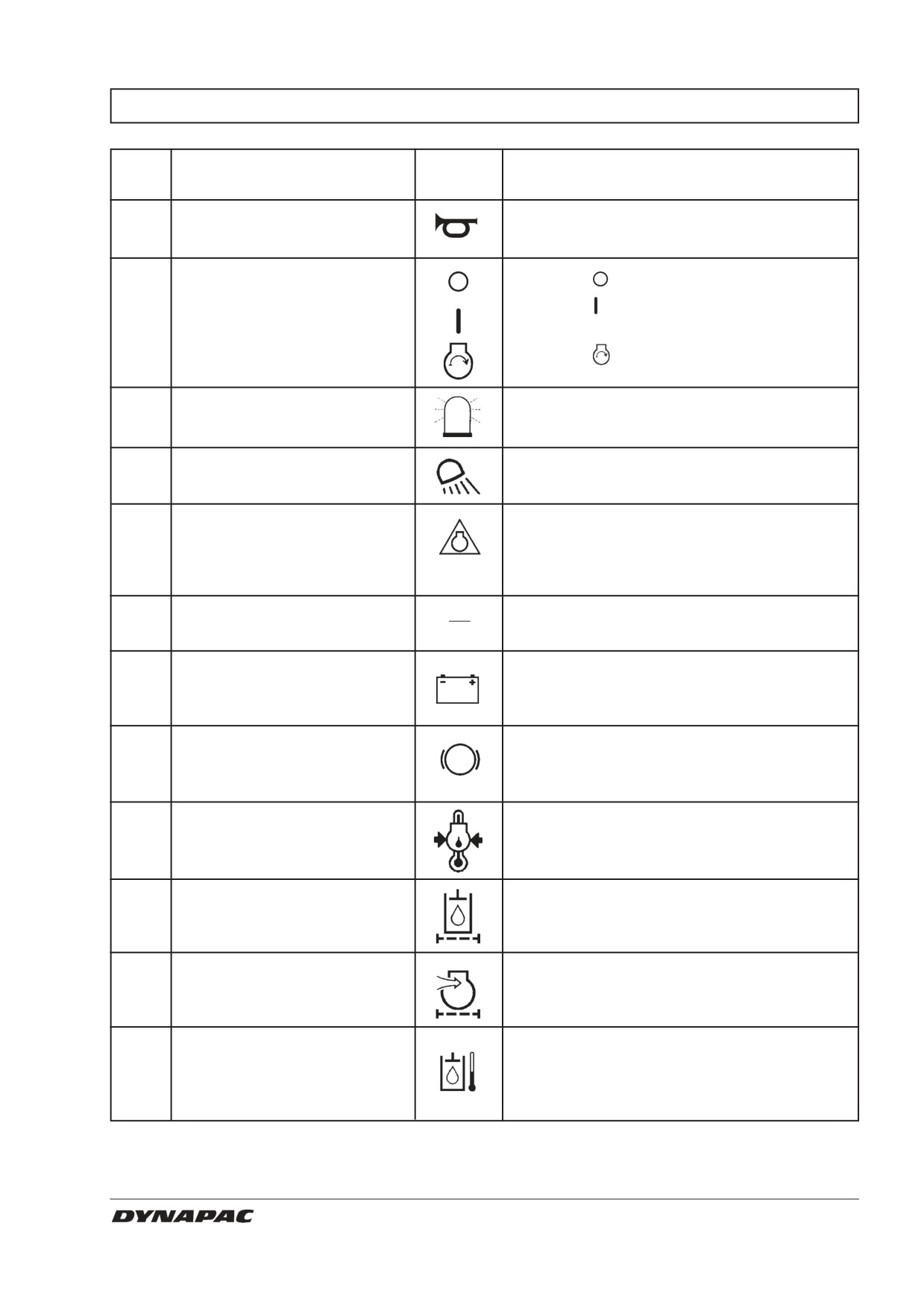

INSTRUMENTS AND CONTROLS, FUNCTIONAL DESCRIPTION

Items.in

Designation

Symbol

Function

fig. 6

Horn, switch

Press to sound the horn.

Starter switch

In position

the electric circuit is broken.

In position all instruments and electric

controls are powered.

In position

the start motor is activated.

Hazard beacon, switch

Turn right to switch on the hazard beacon.

(Optional)

Working lights, switch

Turn right to switch on the working lights.

(Optional)

Reserve brake/Parking brake

Press to activate the reserve brake. Press

when the machine is stationary to activate the

parking brake.

STOP

Pull out to release both brakes.

Instrument protection

Fold down over the instruments to protect

from weather and damage.

Warning lamp, battery

If this lamp lights while the engine is running,

charging

the alternator is not charging.

Stop the engine and remedy the fault.

Brake warning lamp

The lamp lights when the parking or reserve

brake knob is pushed in and the brakes are

applied.

Warning lamp, oil pressure

The lamp lights if engine oil pressure is too

low. Stop the engine immediately and locate

the fault.

Warning lamp, hydraulic filter

If this lamp lights while the engine is running at

full rev, the hydraulic filters must be changed.

Warning lamp, air filter

If this lamp lights while the engine is running at

full rev, the air cleaner must be cleaned or

replaced.

Warning lamp, hydraulic

If this lamp lights, the hydraulic fluid is too hot.

temperature

Do not drive the roller; cool the fluid by

allowing the engine to idle and locate the fault.

CA150 O150EN3

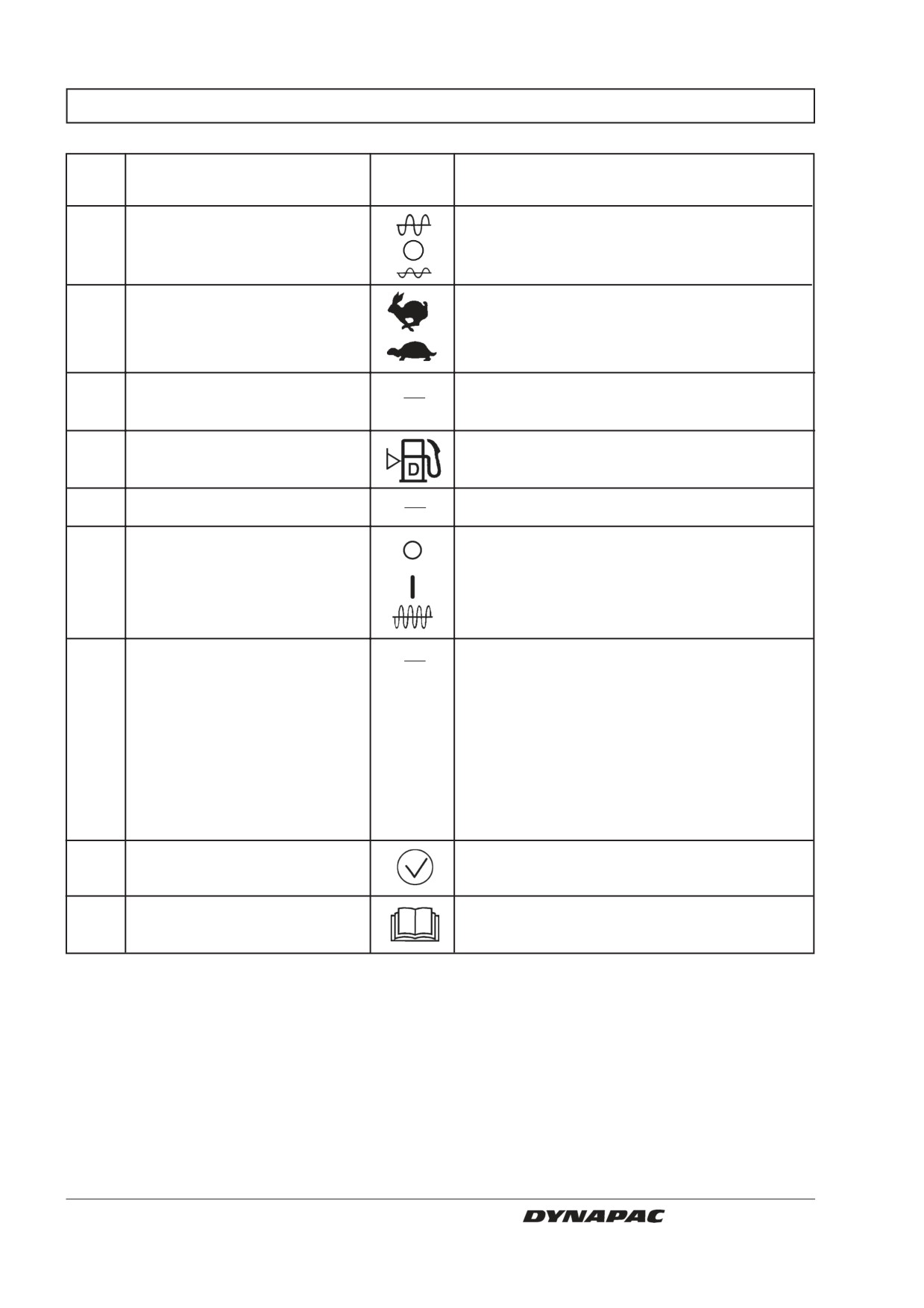

INSTRUMENTS AND CONTROLS, FUNCTIONAL DESCRIPTION

Items in

Designation

Symbol

Function

fig. 6

Amplitude selector

The left mode gives low amplitude.

The right mode gives high amplitude.

Vibration is OFF in the O mode.

Speed selector, rear axle

Transportation speed (High)

(Optional)

Working speed (Low)

Revs control, diesel engine

Working revs in the upper position.

Idling in the lower position.

Fuel gauge

Indicates fuel tank level.

Fuse box

Contains fuses for the electrical system.

Vibration ON/OFF, switch

Press once and release to switch vibration

ON, press again to switch vibration OFF.

The above applies only when the amplitude

selector (13) is in the High or Low mode.

Forward/Reverse lever

The lever must be in neutral to start the

engine, it cannot be started with the forward/

reverse lever in any other position.

Direction of travel and speed of the roller is

regulated with the forward/reverse lever. The

roller moves forward when the lever is

moved forward, etc. Speed of the roller is

regulated in proportion to how far the lever is

moved from neutral. The further from neutral,

the higher the speed.

Test button for warning lamps

The lamps 10, 11, 12 are checked when the

switch is pressed.

Handbook compartment

Stowage space for safety manual and

operator’s manuals.

CA150 O150EN3

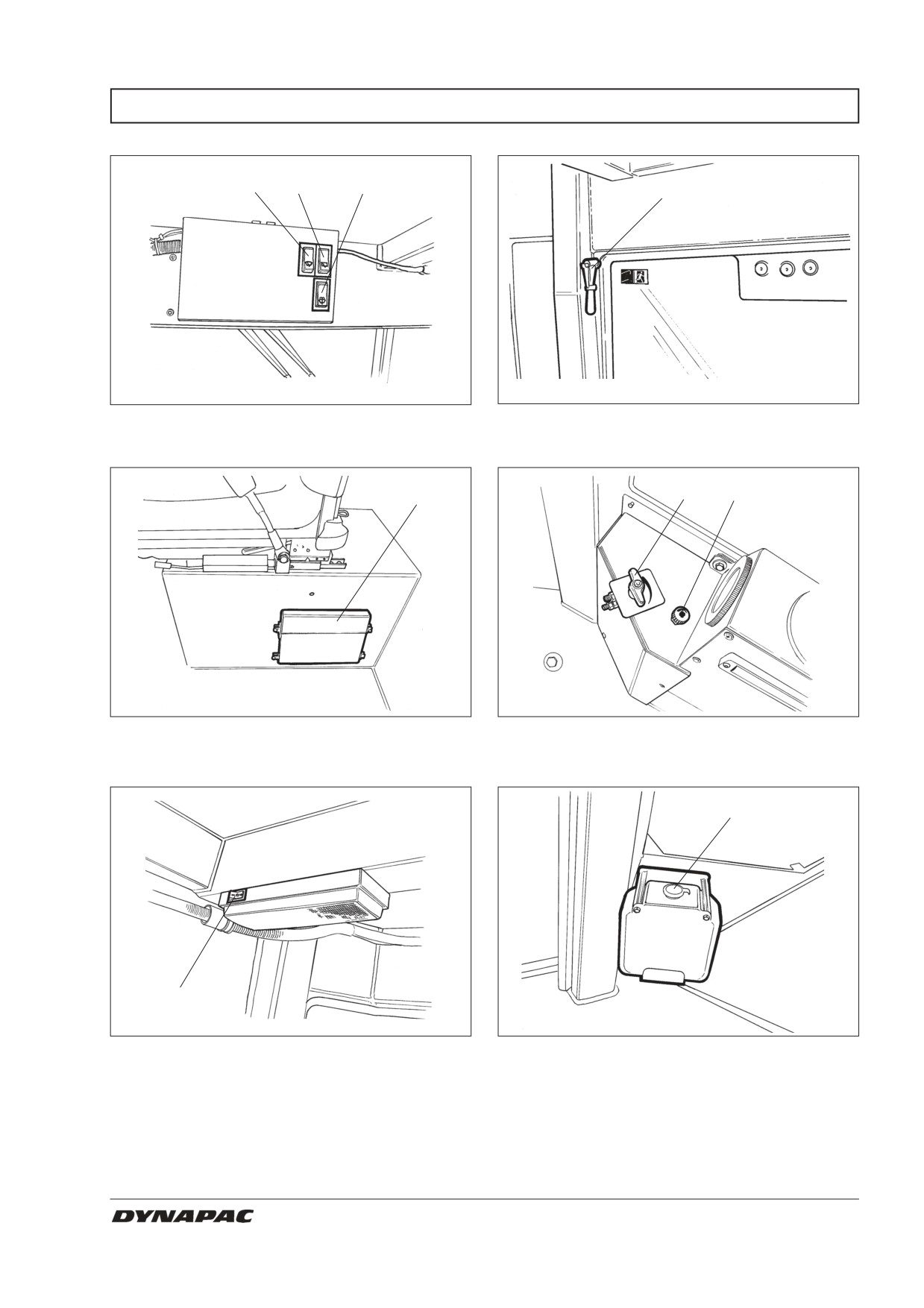

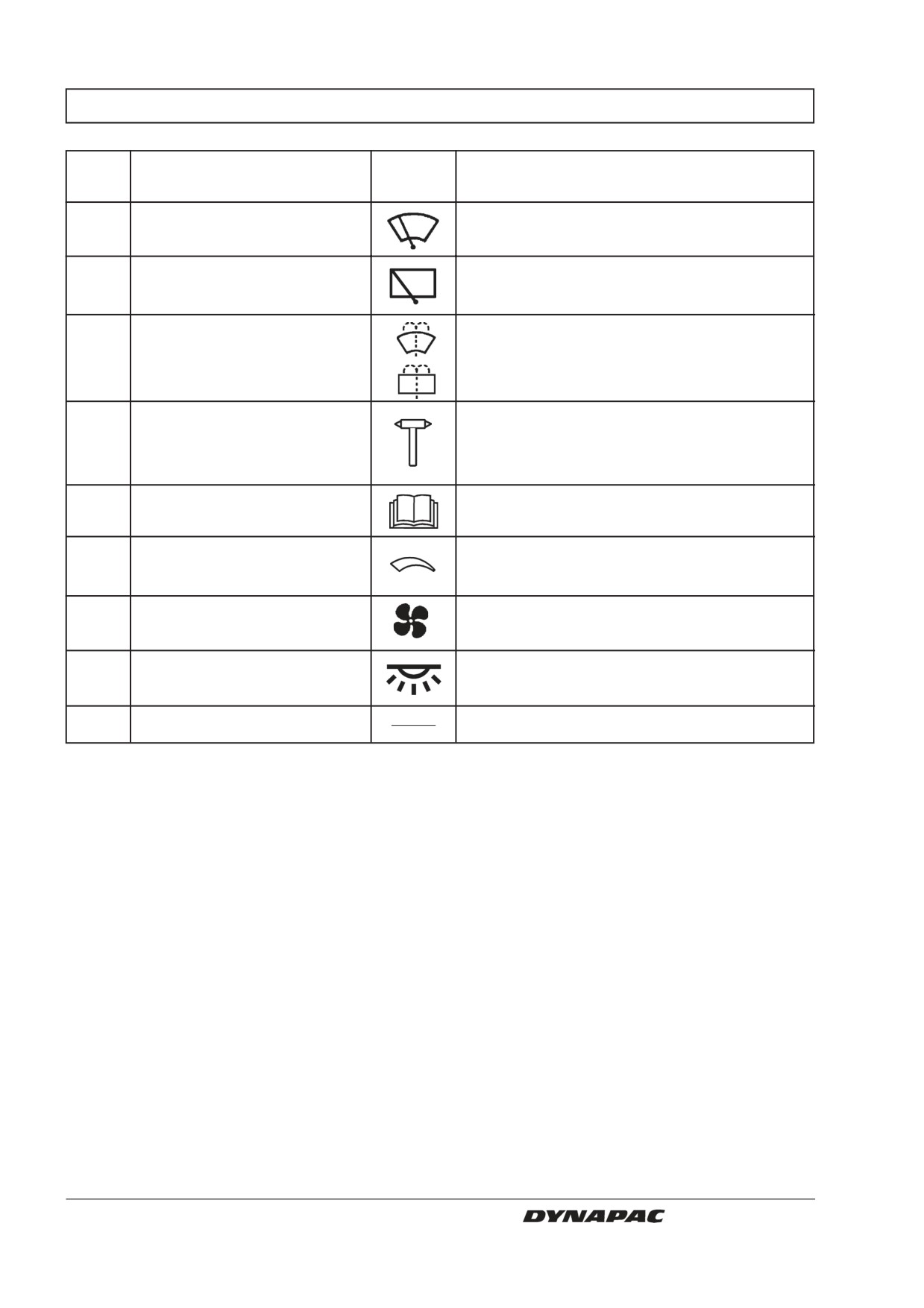

CONTROLS IN THE CAB, FUNCTIONAL DESCRIPTION

Items in

Designation

Symbol

Function

fig. 7

Wiper front, switch

Press to turn on the front wiper.

Wiper rear, switch

Press to turn on the rear wiper.

Screenwash front and rear

Press at the top to spray the windscreen.

panes, switch

Press at the bottom to spray the rear screen.

Hammer for emergency

To evacuate the cab in an emergency,

evacuation

release the hammer and break the REAR

window.

Handbook compartment

Stowage space for safety manual and

operator’s manuals.

Heater (Optional)

Left mode, maximum heating.

Right mode, heating turned off.

Air fan, switch

Left mode, fan turned off. Right mode, cab

(Optional)

ventilation increases in three steps.

Cab lighting,

Press to turn on the cab lights.

switch

Windshield washer fluid

Fill with new fluid as needed.

CA150 O150EN3

BEFORE STARTING

Battery disconnecter

- Switching ON

Remember to carry out daily service. See maintenance

manual.

The battery disconnecter is located in the engine

compartment. Open the engine cover and set the key

(1) to the ON position. The entire roller will be powered.

The hourmeter (2) records the number of hours so long

as the engine is running.

Fig. 8

Engine compartment

The engine hood must be unlocked during

1. Battery disconnecter

operation, so that battery power can be

2. Hourmeter

disconnected quickly if necessary.

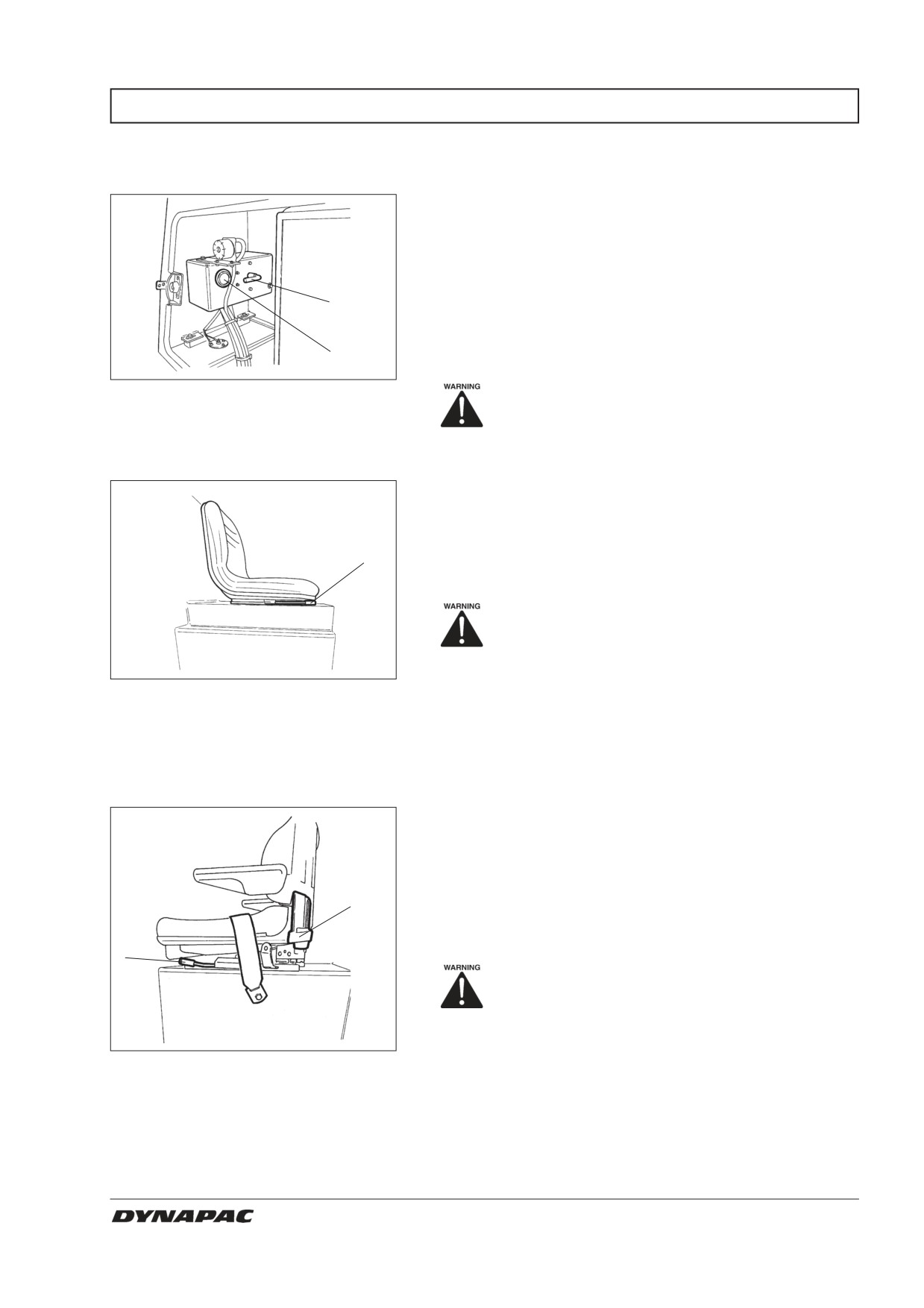

Operator’s seat - Setting

Adjust the operator’s seat to ensure a comfortable

posture and so that all controls are within easy reach.

The seat can be adjusted as follows:

- Length adjustment (1)

Always make sure that the seat is secure

before beginning operation.

Fig. 9

Operator’s seat

1. Locking lever - length adjustment

Operator’s seat in cab (Optional)

- Setting

Set the operator’s seat in a comfortable position and so

that the controls are easily accessible.

The seat has the following adjustment facilities:

- Length adjustment (1).

- Weight adjustment (2).

Always make sure that the seat is secure

before beginning operation.

Fig. 10

Operator’s seat

1. Locking lever - length adjustment

2. Lever - weight adjustment

CA150 O150EN3

BEFORE STARTING

Instruments, lamps and

field of view - Check

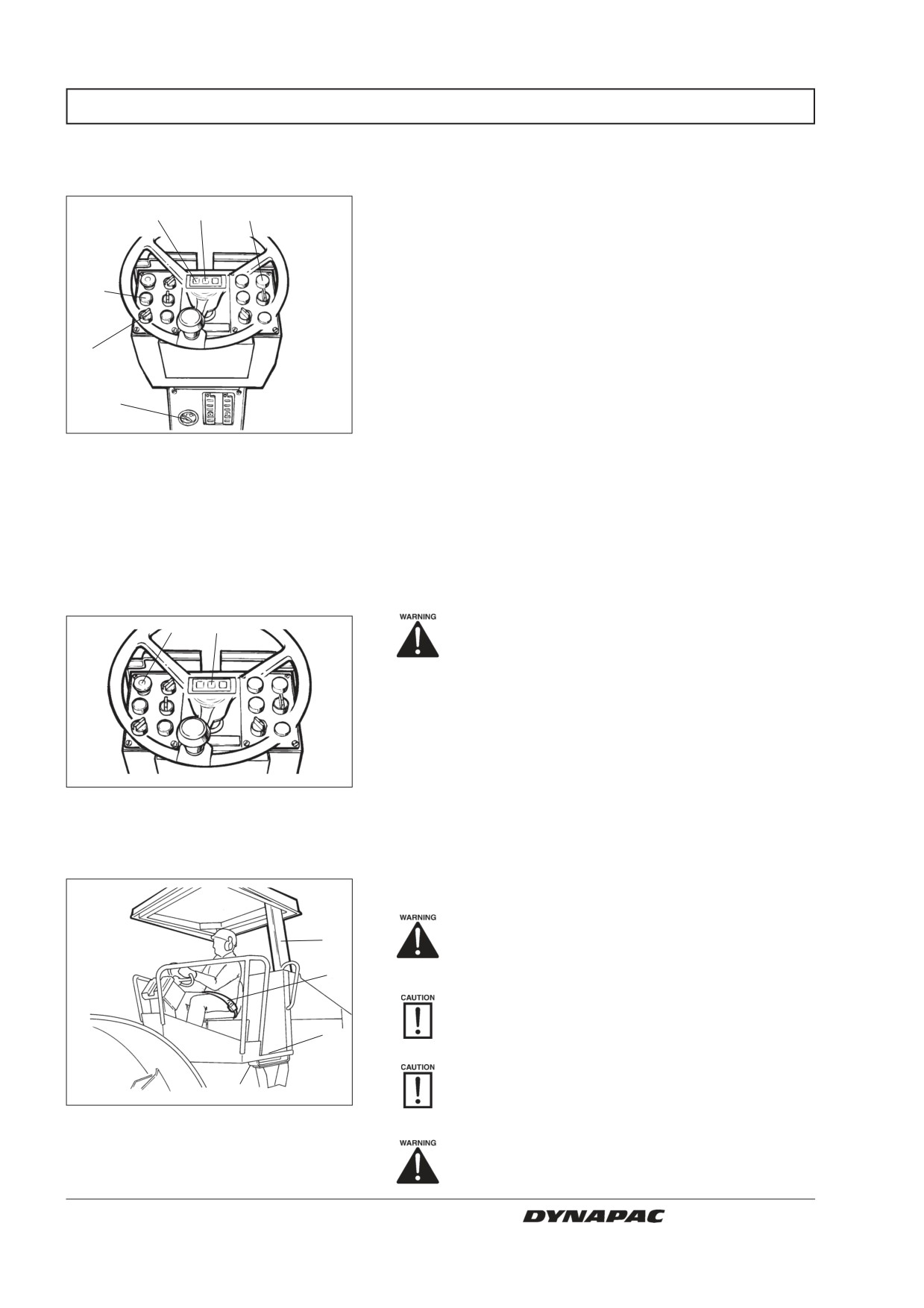

Turn the starter switch (2) to position I. Press the

button (20) and make sure that all the control lamps

light.

Check that the fuel gauge (16) gives a reading.

Check that the warning lamps for charging (7), oil

pressure (12), and parking brake (8) light.

Fig. 11

Instrument panel

2. Starter switch

7. Charging lamp

8. Brake lamp

12. Oil pressure lamp

16. Fuel gauge

20. Test button for warning lamps

Reserve/parking brake

- Control

Ensure that the reserve/parking brake knob

(5) is pressed down.

If the parking brake is not applied, the

roller may start to roll when you start the

engine on sloping ground.

Fig. 12

Control panel

5. Reserve/parking brake knob

8. Brake lamp

If the roller is equipped with a ROPS (2) (Roll Over

Operator’s station

Protective Structure) or a cab, always use the seat belt

(1) and wear a hard hat.

Replace the seat belt (1) if it shows signs

of wear or has been subjected to severe

force.

Check that the rubber elements (3) on the

platform are intact. Worn elements will impair

comfort.

Ensure that the anti-slip (4) on the platform is

in good condition; replace with new anti-slip if

friction is poor.

Fig. 13

Operator’s station

1. Seat belt

3. Rubber element

2. ROPS

4. Anti-slip

If the machine is fitted with a cab, make sure

that the door is closed when in motion.

CA150 O150EN3

STARTING

Starting the engine

Set the forward/reverse lever (19) in neutral. The

engine cannot be started if the lever is in any other

position.

Set the amplitude selector (13) for Low/High vibration to

O mode.

Set the revs control (15) to idling mode.

Turn the starter switch (2) to the right to the starting

mode and release the knob immediately when the

engine starts.

Do not run the starter motor too long. If the

engine does not start immediately, wait a

minute or so before making a new attempt.

Warm up the engine for a few minutes with the rev

control in the idling mode, longer if the ambient

temperature is below +10°C (+50°F).

Check while warming up that the warning lamps for oil

pressure (9) and charging (7) are out. The warning

lamp (8) for the parking brake should still light.

When you start up and drive a cold machi-

ne, the hydraulic fluid is cold, and the

braking distance will be longer than normal

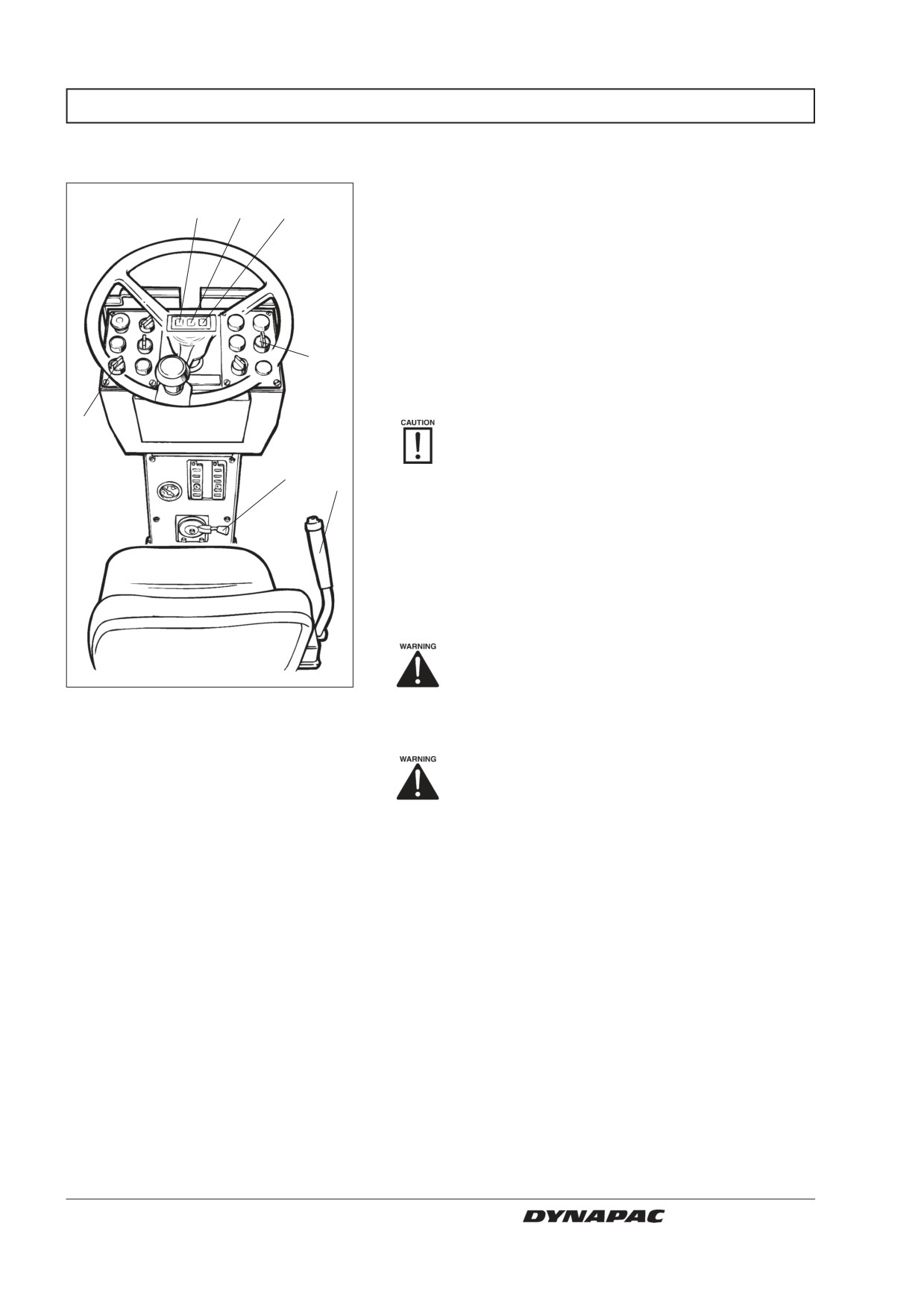

Fig. 15

Instrument panel

until the machine reaches normal working

2. Starter switch

temperature.

7. Charging lamp

8. Brake lamp

Ensure that ventilation (extraction) is

9. Oil pressure lamp/temperature

adequate if the engine is run indoors.

lamp

13. Amplitude selector

Risk of carbon monoxide poisoning.

15. Revs control

19. Forward/Reverse lever

CA150 O150EN3

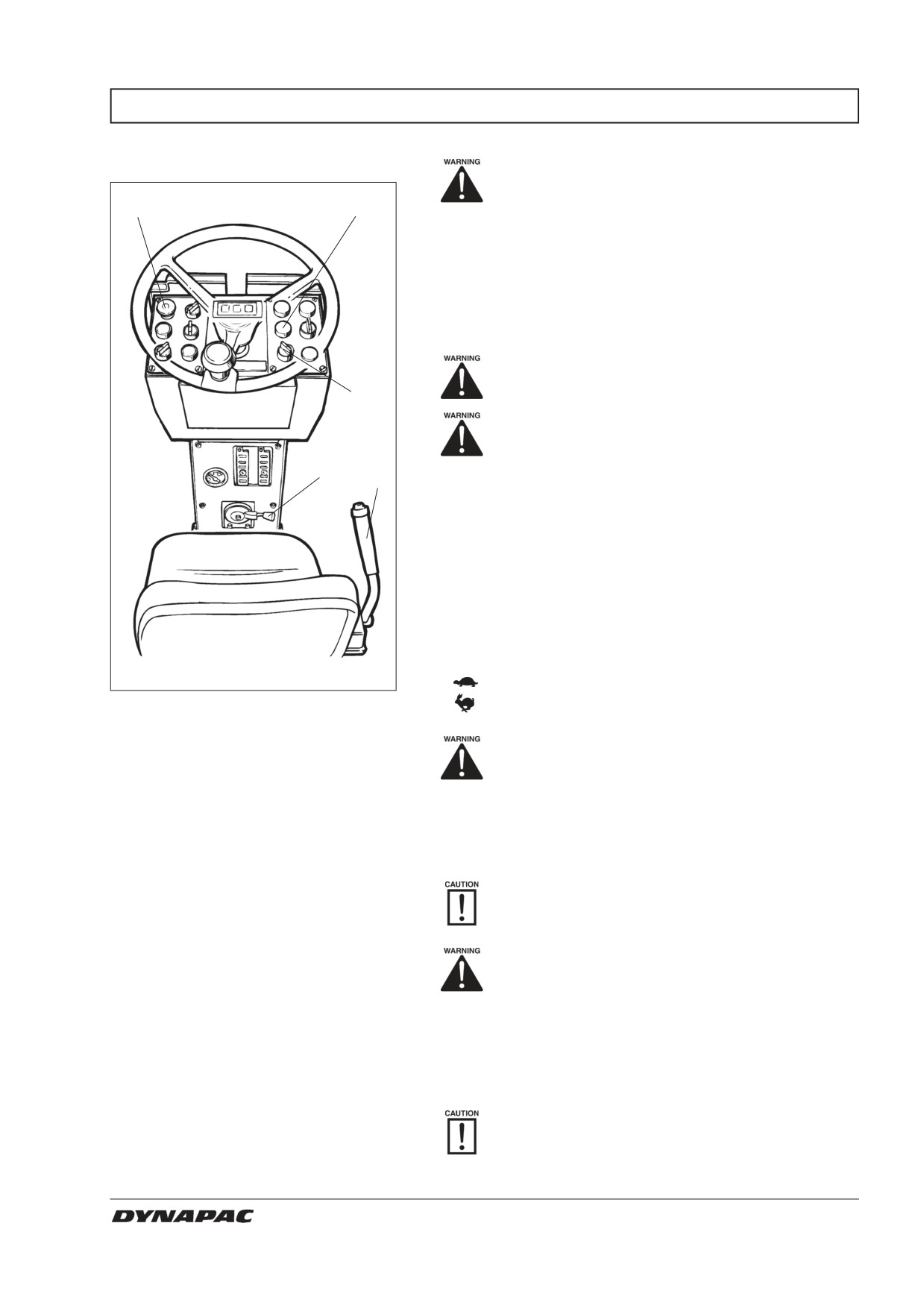

OPERATION

Driving the roller

Under no circumstances may the machine

be operated from the outside. The operator

must remain seated inside the machine

during all operation.

Turn the rev control (15) upward and latch it at its limit.

The engine speed should be about 2300 r/min.

Check that the steering is working by turning the

steering wheel once to the right and once to the left,

while the roller is stationary.

Ensure that the area in front of and behind

the roller is clear.

Pull up the reserve/parking brake knob (5)

and check that the warning lamp for the

parking brake is out. When starting the

roller on a slope, be prepared that it may

begin to roll.

Set the High/Low speed selector (14) to the desired

mode (optional feature), see decal on the instrument

panel.

Max-speeds, km/h (mph)

Std/P

7,5 (4.7)

5 (3.1)

Dualspeed, rear axle

Std/P

7,5 (4.7)

5 (3.1)

Fig. 16

Instrument panel

18,5 (11.5)

9 (5.6)

5. Reserve/parking brake knob

11. Warning lamp, air filter

The high mode may only be used for trans-

14. Speed selector, rear axle

port runs on an even surface.

15. Rev control

19. Forward/Reverse lever

Carefully move the forward/reverse lever (19) in the

desired direction of travel.

Speed increases as the lever is moved farther from the

neutral position.

Always regulate speed with the forward/

reverse lever and never by changing the

engine speed.

Check operation of the reserve/parking

brake by pressing the reserve/parking

brake knob (5) while the roller is running

slowly forward.

Check occasionally while driving that no lamps light. If

the oil pressure lamp lights, stop the roller and the

engine immediately. Check and remedy any fault; see

also the maintenance manual and the engine manual.

If the warning lamp (11) for the air cleaner

lights during operation (at full engine revs), the

main filter must be cleaned or replaced; see

Maintenance Manual.

CA150 O150EN3

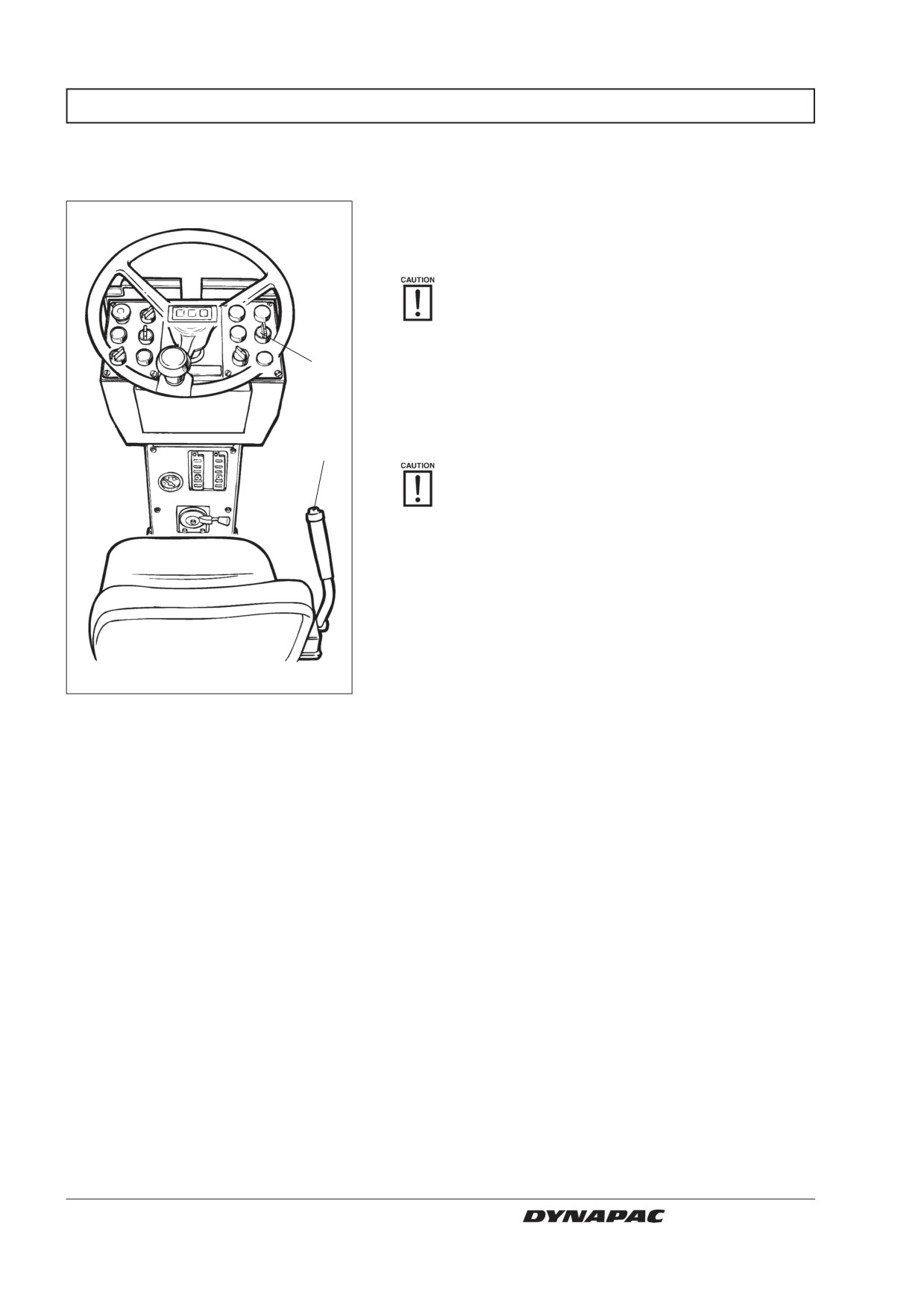

DRIVING/VIBRATION

Low/High amplitude

- Setting

Drum vibration can be set in two modes, selected using

the switch (13). Turn the knob to the left mode for low

amplitude, to the right mode for high amplitude.

Never alter the amplitude setting while the

vibration is running. Switch vibration off first

and wait until it has ceased before altering the

amplitude.

Engagement and disengagement of vibration is made

with the switch (18) on top of the forward/reverse lever.

Always switch off vibration before the roller comes to a

complete standstill.

Never allow vibration to be on when the roller

is stationary; this may damage the surface

and the machine.

Fig. 17

Instrument panel

13. Amplitude selector

18. Vibration ON/OFF

CA150 O150EN3

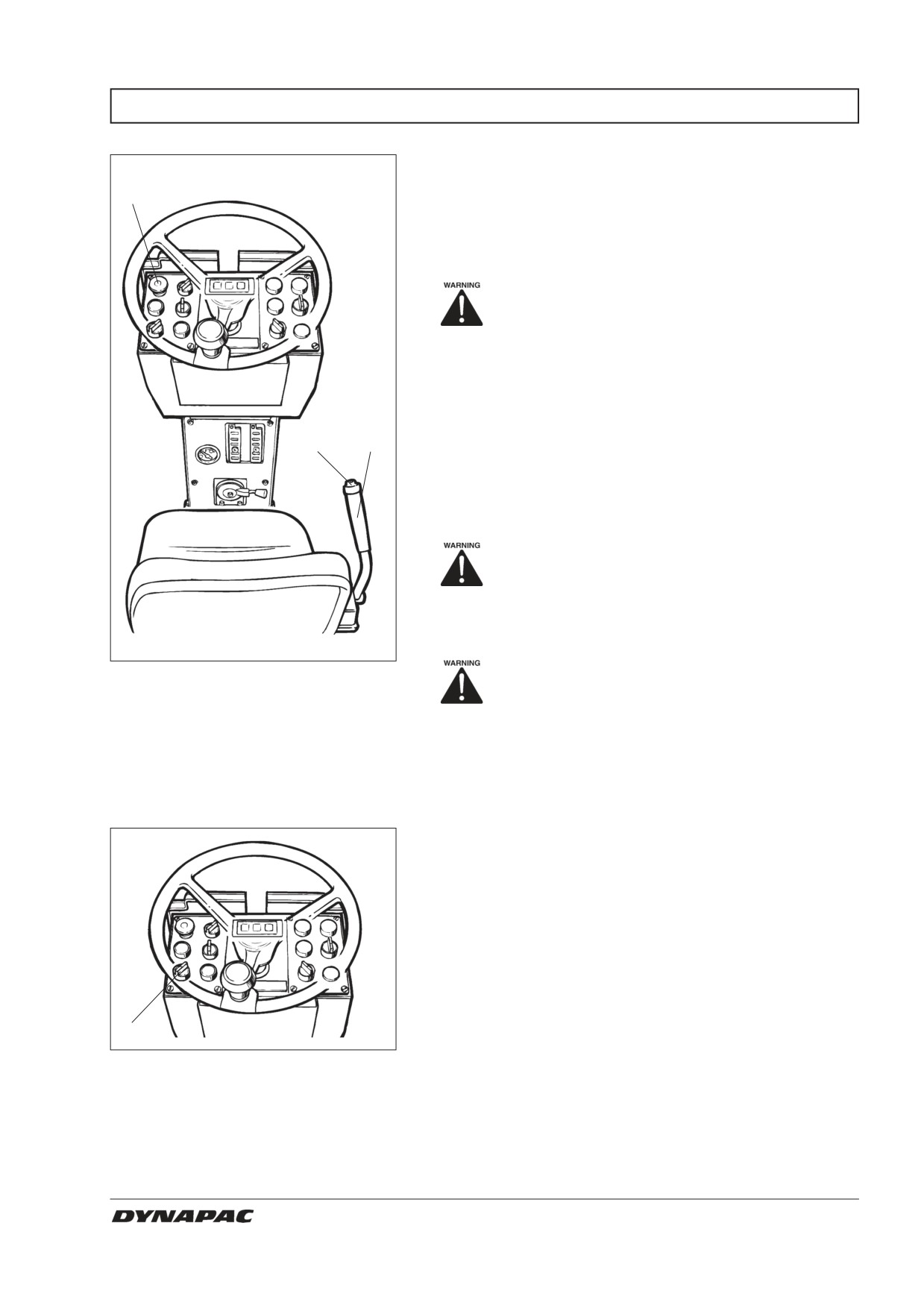

BRAKING

Braking is normally done with the forward/reverse lever

(19).

The hydrostatic transmission brakes the roller when the

lever is moved toward neutral. In addition, multi-disc

brakes in the rear axle act as a parking brake and are

activated when the reserve brake knob (5) is pressed in.

To brake in an emergency, press the reser-

ve/parking brake knob (5), hold the stee-

ring wheel firmly and be prepared for a

sudden stop.

After braking, restore the forward/reverse lever to

neutral and pull up the reserve/parking brake knob.

Normal braking

Press the switch (18) to disengage vibration.

Move the forward/reverse lever (19) to neutral to stop

the roller.

Always press the parking brake knob (5),

even for brief stops on sloping ground.

Turn the speed control back to idling, allow the engine

to idle a few minutes to cool down.

When starting up and driving a cold

Fig. 18

Control panel

machine, which implies cold hydraulic

5. Reserve brake knob

18. Vibration switch ON/OFF

fluid, the braking distance will be longer

19. Forward/Reverse lever

than normal until the machine reaches

working temperature.

Switching off

Check instruments and warning lamps to see if any

faults are indicated. Switch off all lights and other

electrical functions.

Turn the starter switch (2) to mode O. Lower the instru-

ment cover (on rollers without cab) and lock it.

Fig. 19

Instrument panel

2. Starter switch

CA150 O150EN3

PARKING

Chocking the drum

Never leave the machine with the engine

running unless the reserve/parking brake

knob is pressed in.

Make sure the roller is parked safely and is

not a traffic hazard. Chock the drums when

parking on sloping ground.

Remember the risk of freezing during the

winter. Fill the engine cooling system and the

screenwash bottle in the cab with suitable anti-

freeze mixtures. See also the Maintenance

Manual.

Fig. 20

Chocking the drum

1. Chock

Battery disconnecter

Switch the battery disconnector (1) into disconnected

mode and remove the key before leaving the roller.

This will prevent discharging of the battery and will also

make it difficult for any unauthorized person to start and

drive the machine. Also lock the engine compartment

cover.

Fig. 21

Tractor frame, rear left

1. Battery disconnecter

CA150 O150EN3

LIFTING

Locking the articulated joint

Articulation must be locked to prevent

inadvertent turning before lifting the roller.

Turn the steering wheel so that the machine is set to

drive straight forward. Push in the reserve/parking

brake knob.

Pull out the lowermost locking cotter (2) fitted with a

wire, pull up locking stud (3) fitted with a wire.

Fold out the locking arm (1) and secure it to the upper

locking lug (4) on rear machine frame.

Fit the locking stud (3) in the holes through the locking

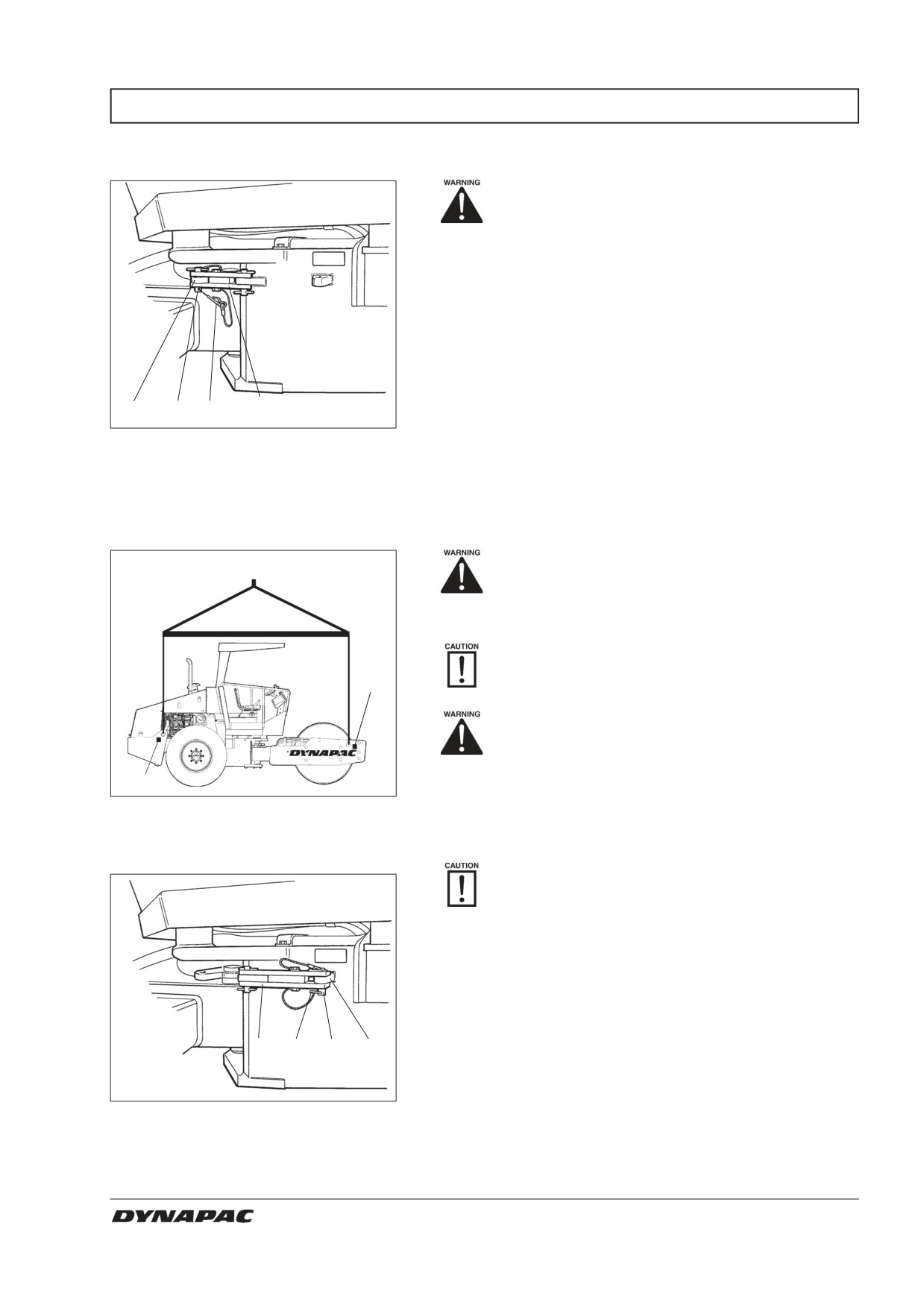

Fig. 22

Articulation in interlocked mode

1. Locking arm

arm (1) and locking lug (4) and secure the stud in

2. Locking cotter

position with the locking cotter (2).

3. Locking stud

4. Locking lug

Lifting the roller

The gross weight of the machine is noted

Weight: See lifting plate on the roller.

on the lifting plate (1). See also technical

specifications in the maintenance instruc-

tions.

Lifting gear, such as chains, steel wires,

straps, and lifting hooks must be dimensioned

in conformance with current regulations.

Keep well clear of the lifted machine! Make

sure that lifting hooks are securely anchored.

Fig. 23

Roller prepared for lifting

1. Lifting plate

Releasing the articulated joint

Remember to restore the articulation interlock

to its open mode before driving again.

Fold back the locking arm (1) and secure it in the

locking lug (4) with the locking stud (3). Insert the

lowermost locking cotter (2) fitted with a wire, to secure

the locking stud (3). The locking lug (4) is located on

the tractor frame.

Fig. 24

Articulation in open mode

1. Locking arm

2. Locking cotter

3. Locking stud

4. Locking lug

CA150 O150EN3

TOWING

Alternative 1

Towing short distance with

engine working

The roller may be moved a distance of up to 300

metres (330 yards) using either of the following

alternatives.

Press the reserve/parking brake knob, and

stop the engine temporarily. Chock the

drums to prevent the machine from rolling.

Open the engine hood. Turn both towing valves (1)

(middle hexagonal nut) three turns counter clockwise,

while holding the multifunction valve (2) (lowermost

hexagonal nut) in place. The valves are located on the

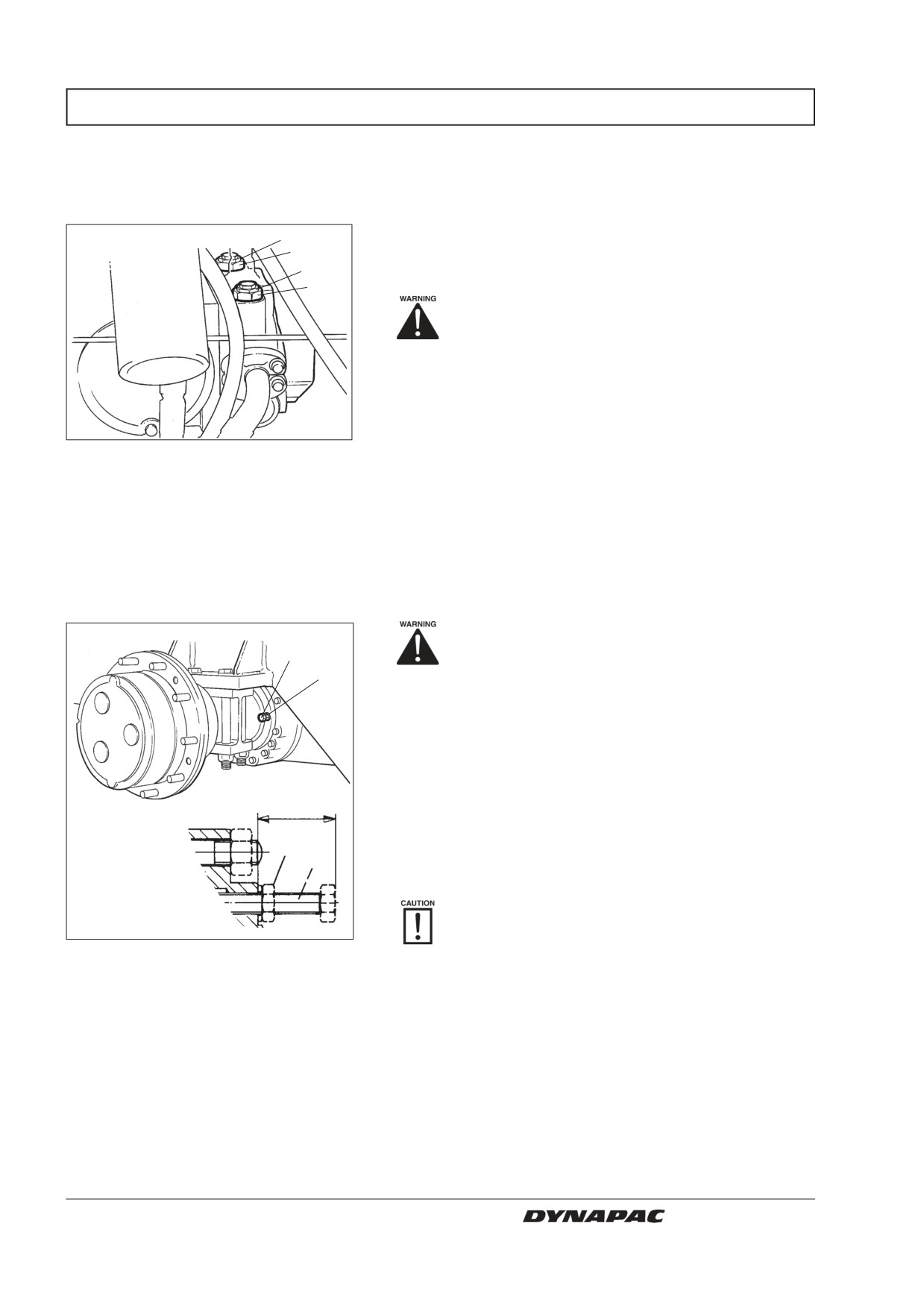

Fig. 25

Propulsion pump

upper side of the propulsion pump.

1. Towing valve

2. Locknut

Start the engine and allow it to idle.

The roller can now be towed and can also be steered if

the steering system is in action.

Alternative 2

Towing short distance with

engine not working

Chock the drums as a precaution so the

roller does not begin to move when the

brakes are disengaged mechanically.

First, open both of the towing valves according to

alternative 1 above.

Rear axle brake

Undo the locknut (3) and adjust the adjustment screws

30 mm

(4) by hand until resistance increases, and then one

(1.2 in)

additional turn. The adjustment screws are located on

the rear axle, two screws on each side of the

differential housing.

After towing, remember to tighten the towing

valves (1). Screw out the adjusting screws (4)

Fig. 26

Rear axle

to their initial position 30 mm (1.2 in) from the

3. Locknut

contact surface, and tighten the locknuts (3).

4. Adjusting screw

Tighten the four hexagonal socket screws (5).

CA150 O150EN3

INSTRUCTIONS FOR TOWING

Disengaging the drum brake

Drum motor brake (Optional)

Screw off the center plug (2) of the drum brake, which

is accessible through the center hole (1) in the left side

of the frame.

Fig. 27

Left frame side

1. Centre hole

2. Centre plug

Screw in the bolt (3) to the bottom according to the

figure. Now screw in the nut (4) so that it lies against

the washer (5) and then a further 11/2 inch while hold-

ing the bolt (3).

The brake is now disengaged and the roller can be

towed.

After towing, remember to reset the towing

valves (1). Unscrew the adjusting screw (4) to

its initial position 26 mm (1 inch) from the

contact surface, and tighten the lock nuts (3).

Also reset the brake of the drum motor.

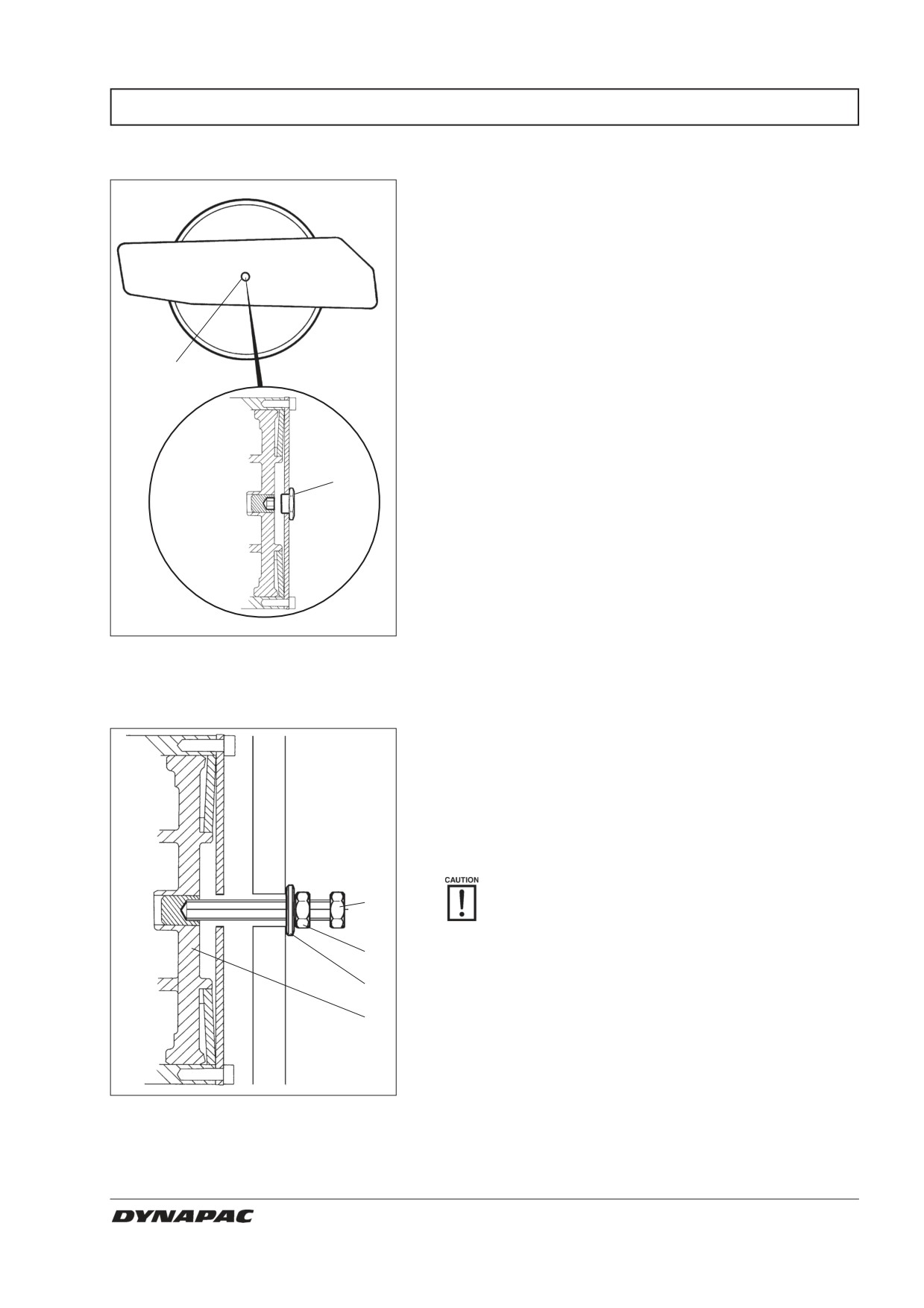

Fig. 28

Sectional view of brake housing

3. Bolt

4. Nut

5. Washer

6. Brake piston

CA150 O150EN3

TOWING/RETRIEVAL

Towing a roller

The roller must be counter-braked when

towing. Use a towbar because the roller

will have no ability to brake.

The roller must be towed slowly, max. 3 km/h

(2 mph) and for a short distance only, max.

300 m (330 yards).

When a machine is towed/retrieved, the towing device

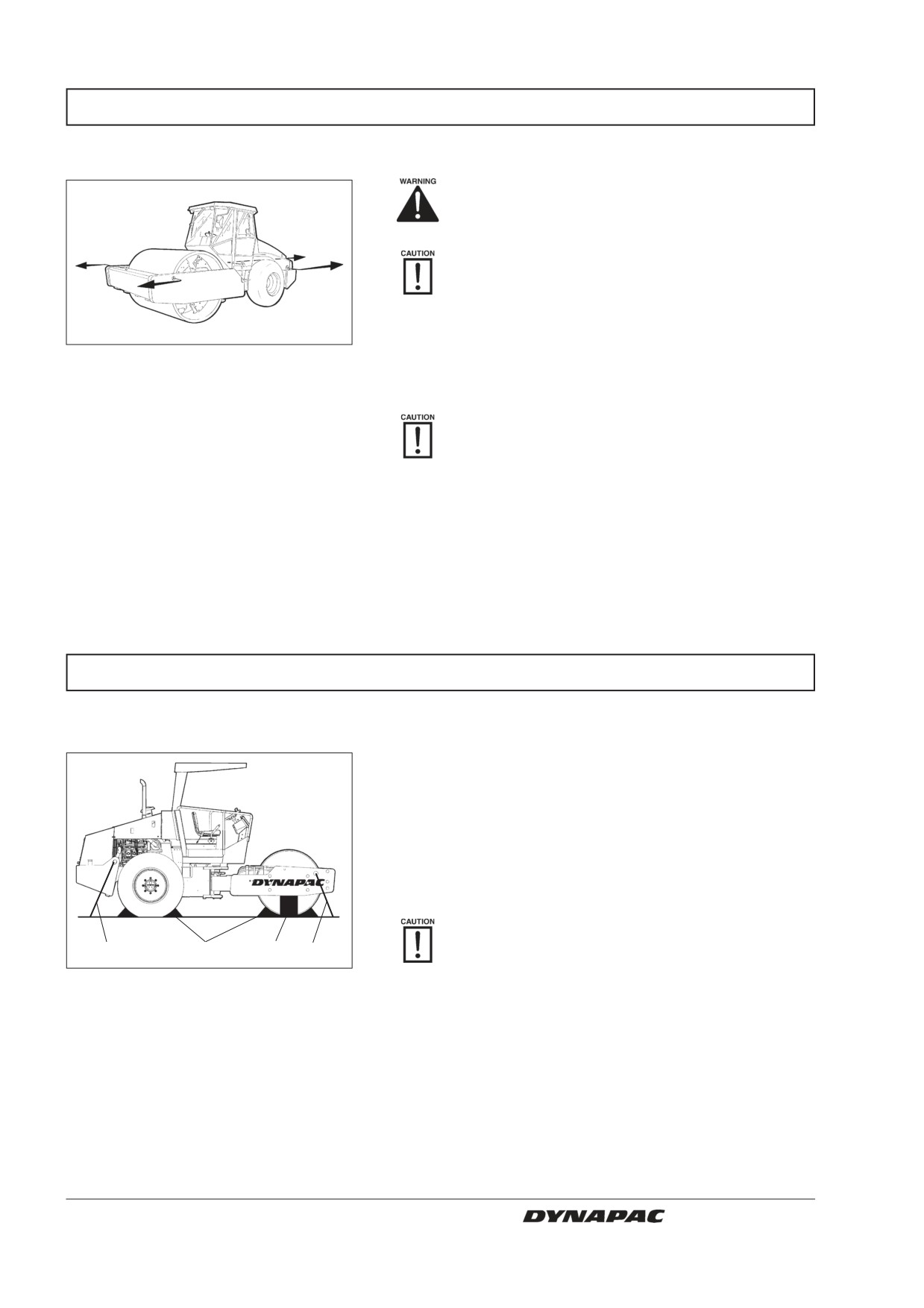

Fig. 29

Towing

must be connected to both lifting holes. Pulling forces

shall act longitudinally on the machine as illustrated.

Maximum gross pulling force 120 kN (27 lbf).

Restore the items for towing according to

alternative 1 or 2 on the preceding page.

TRANSPORT

Roller prepared for transport

Chock the drums (1) and secure the chocks to the

transport vehicle.

Block up under the drum frame (2), to avoid overload

on the rubber suspension of the drum when lashing.

Clamp down the roller with lashing strap (3) at all four

corners; decals indicate the fixing points.

Remember to restore the articulation interlock

to its open mode before starting the roller

again.

Fig. 30

Transportation

1. Chocks

2. Supporting blocks

3. Lashing wire

CA150 O150EN3

OPERATING INSTRUCTIONS - SUMMARY

Follow the SAFETY INSTRUCTIONS in the Safety Manual.

Ensure that all instructions in the maintenance manual are followed.

Turn the battery disconnecter to on.

Move the forward/reverse lever to neutral.

Set the vibration selector to the O mode.

Set the revs control to the idling mode.

Start the engine and allow it to warm up.

Set the revs control in the operating mode.

Put the reserve/parking brake knob in the pulled-out position.

10.

Drive the roller. Operate the forward/reverse controls with care.

11.

Test the brakes.

Remember that the braking distance will be longer if the roller is cold.

12.

Use the vibration only when the roller is in motion.

13.

IN AN EMERGENCY:

- Push in the reserve/parking brake knob.

- Hold the steering wheel firmly.

- Brace yourself for a sudden stop.

14.

Parking:

Push in the reserve/parking brake knob.

Stop the engine and chock the drums.

15.

Lifting:

- See the operation manual.

16.

Towing:

- See the operation manual.

17.

Transport:

- See the operation manual.

18.

Retrieval:

- See the operation manual.

CA150 O150EN3
