Dynapac Vibratory Rammer LT5001/6000/7000. Operation & Maintenance (2004)
Vibratory Rammer
LT5001/6000/7000
Operation & Maintenance
ILT6000EN3, January 2004
Petrol Engine:
Honda GX100 (LT5000)
Honda GX100 (LT6000)
Honda GX120 (LT7000)
These instructions apply from:
LT5000 PIN (S/N) *75100020*
LT6000 PIN (S/N) *76100020*
LT7000 PIN (S/N) *77100020*
Dynapac’s LT5001/6000/7000 tampers are suitable for compacting soil in trenches, around poles
and in restricted spaces. It has been designed to comply with contractors' highest demands in
terms of efficiency, simplicity and operators comfort.
The LT tampers are designed for operation in well ventilated spaces, as all
combustion engine machines.
Reservation for changes.
Printed in Sweden
CONTENTS
Page
General
3
Machine plate
3
Safety instructions (For all Light products)
4-6
Safety decals, location/description
7, 8
Fuel and lubricants
9
Technical data
10

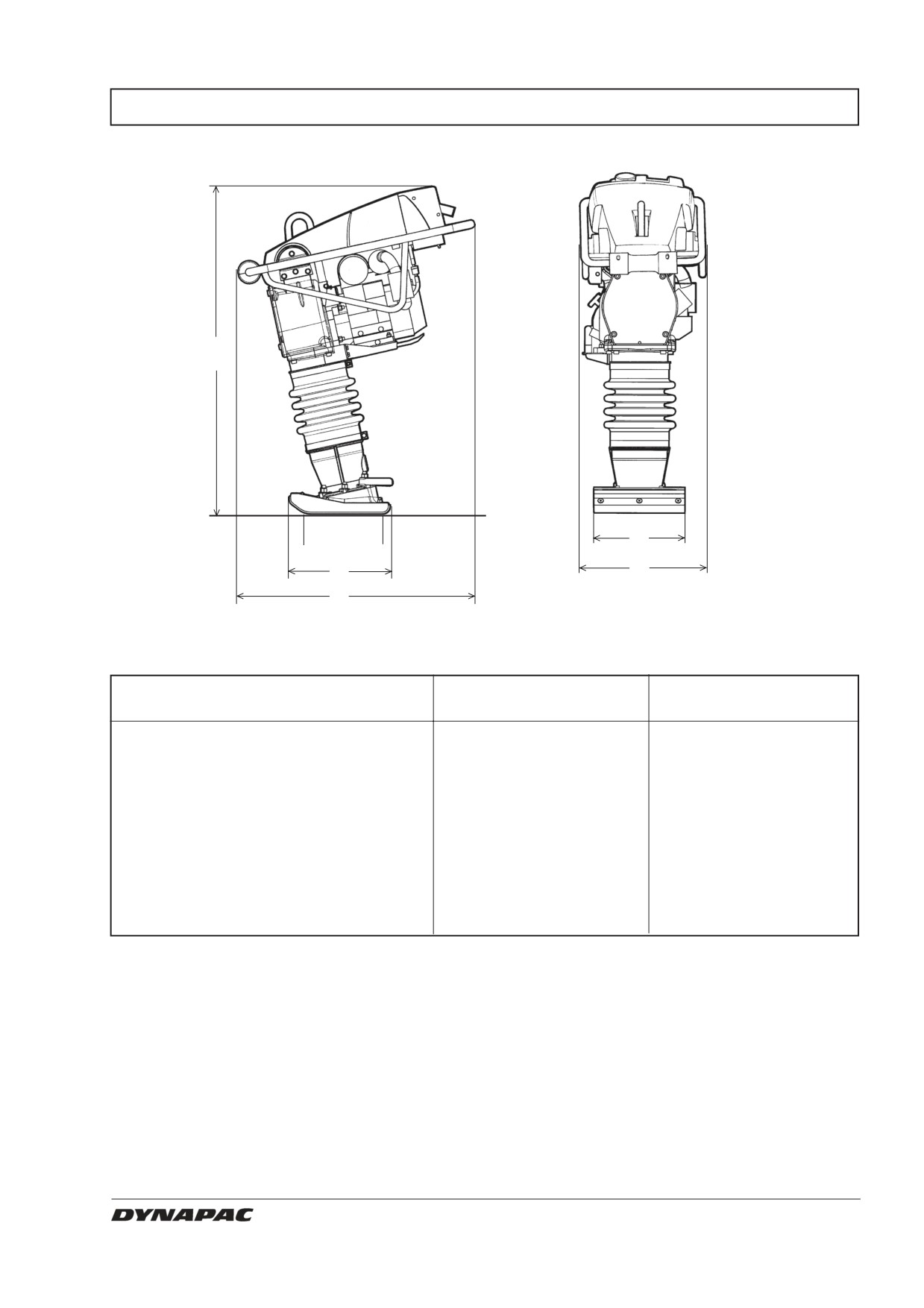

Technical data - Dimensions
11
Operation
12-14
Instructions for lifting
15
Long time storage
15
Maintenance - Service points
16, 17
Maintenance - Every 10 hours of operation
18
Maintenance - Every 100 hours of operation
19
Carburettor - LT5001/6000
20
Carburettor - LT7000
21
Maintenance - Every 500 hours of operation
22
Troubleshooting
23
WARNING SYMBOLS
WARNING: Indicates danger or hazardous
procedure that could lead to serious or mortal
injury if the warning is neglected.
CAUTION: Indicates danger or hazardous
procedure that could lead to machine or property
damage if the warning is neglected.
SAFETY INSTRUCTIONS
The safety instructions are included in this
manual and must be studied by the operator.
Always follow the safety rules and keep the
manual available for future use.
Read through the entire manual before
starting any maintenance operations.
Ensure good ventilation (air extraction) if the
engine is run indoors.
2
LT5001/6000/7000 ILT6000EN3
GENERAL
It is important that the machine is maintained correctly to
ensure proper function. It should be kept clean so that any
leakage, loose bolts and loose connections can be discov-
ered in time.
Make a habit of inspecting the machine every day before
starting up by checking all round it to detect any sign of
leakage or other faults.
SPARE A THOUGHT FOR THE ENVIRONMENT!
Do not let oil, fuel and other environmentally hazard-
ous substances contaminate the environment.
Always dispose of used filters, drained oil and any
remaining fuel properly.
This manual contains instructions for periodic attention
which should normally be carried out by the operator.
There are additional instructions relating to the
engine, for which the manufacturer’s instructions
are detailed in the engine manual.

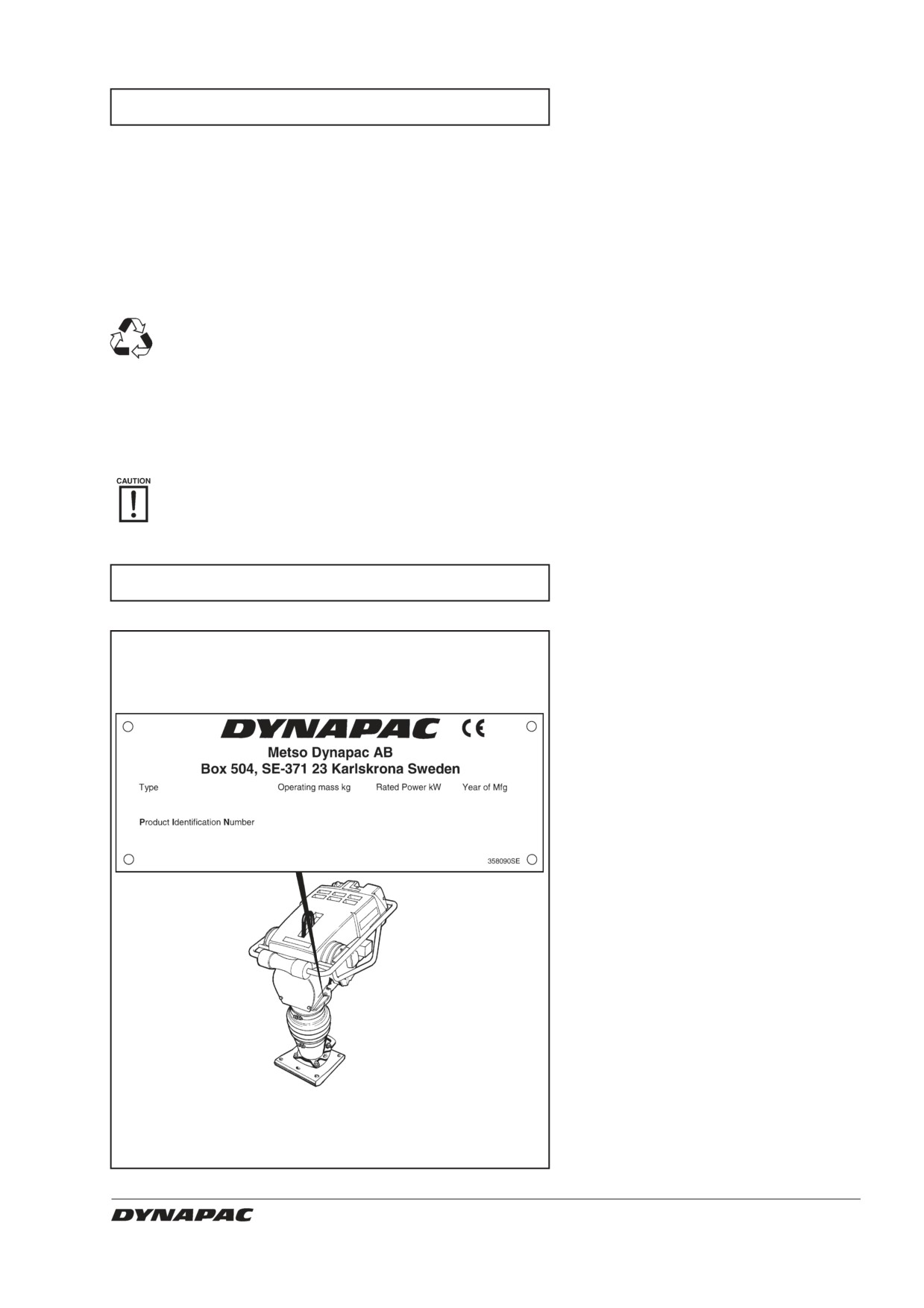

MACHINE PLATE
Fill in all data below, when delivering and
commissioning the machine.
L000564A
Engine Model
Engine Number
LT5001/6000/7000 ILT6000EN3
3
SAFETY INSTRUCTIONS (FOR ALL LIGHT PRODUCTS)
Symbols
Safety equipment
The signal words WARNING and CAUTION
used in the safety instructions have the follow-
Long exposure to loud noise without
ing meanings:
ear protectors can cause permanent
damage to hearing.
WARNING: Indicates danger or
hazardous procedure that could
Long exposure to vibrations can dam-
lead to serious or mortal injury if
age the hands, fingers and wrists. Do
the warning is neglected.
not use the machine if you experience
discomfort, cramp or pain. Consult a
CAUTION: Indicates danger or haz-
doctor before resuming work with
ardous procedure that could lead to
the machine.
machine or property damage if the
warning is neglected.
Always use approved safety equipment. The
operator, and people in the immediate vicinity of
Important rules for your safety
the working area, must wear:
• Safety helmet
The machine must not be modified
• Safety goggles
without the prior consent of the man-
• Ear protectors
ufacturer. Use only original parts.
• Dust mask in dusty environments
Use only the accessories recom-
• High-visibility clothing
mended by Dynapac. If modifications
• Protective gloves
not approved by Dynapac are carried
• Protective shoes
out, these could result in serious in-
Avoid wearing loosely fitting clothing that might
jury to yourself or other personnel.
get caught in the machine. If you have long hair,
cover it with a hair net. Vibrations from hand-held
• These recommendations are based on
machines are transmitted into the hands via the
international safety standards.
handles of the machine. Dynapac’s machines
• You must also observe any local safety
are equipped with vibration-relieved handles.
regulations which may be in force. Read all
Depending on operation, the course and dura-
instructions carefully before operating the
tion of exposure, the recommended limit values
machine. Keep the instructions in a safe place.
for hand and arm vibration can be exceeded.
•
Signs and stickers giving important information
Take suitable measures as required, eg, wear
about safety and maintenance are supplied
protective gloves, and do not vibrate already
with every machine. Make sure that they are
compacted material.
always legible. The ordering numbers for new
Be alert to acoustic signals from other machines
stickers can be found in the spare parts list.
in the working area.
•
Use of the machine and its accessories is
restricted to the applications specified in the
Working area
product literature.
Do not use the machine near flammable material
•
For reasons of product safety, the machine
or in explosive environments. Sparks can be
must not be modified in any way.
emitted from the exhaust pipe, and these can
• Replace damaged parts immediately.
ignite flammable material. When you take a pause
Replace all wear parts in good time.
or have finished working with the machine, do not
park it on or near flammable materials. The ex-
Be alert
haust pipe can get very hot during operation, and
Always pay attention to what you are doing, and
can cause certain material to ignite. Make sure
use your common sense. Do not use the ma-
that there are no other personnel inside the work-
chine if you are tired or under the influence of
ing area while the machine is in use. Keep the
drugs, alcohol or other substances which can
worksite clean and free of extraneous objects.
effect your vision, reaction ability or judgement.
Store the machine in a safe place, out of unauthor-
ized’s reach, preferably in a locked container.
4
LT5001/6000/7000 ILT6000EN3
SAFETY INSTRUCTIONS (FOR ALL LIGHT PRODUCTS)
Filling with fuel (Gasoline/diesel)
Petrol has an extremely low flash-
Always take extreme care when driv-
point and can be explosive in certain
ing the machine on slopes. Always
situations. Do not smoke. Make sure
drive straight up and down on slopes.
that worksite ventilation is good.
Do not exceed the maximum grada-
bility of the machine according to the
Keep away from all hot or spark-generating
instruction book. Stay clear of ma-
objects when handling fuel. Wait until the ma-
chine when operating on a slope or in
chine has cooled before filling the tank. Fill the
a trench.
tank at least 3 metres away from where you
intend to use the machine. Avoid spilling petrol,
Do not touch the engine, the exhaust pipe or
diesel or oil on the ground. Protect your hands
the eccentric element of the machine. They
from contact with petrol, diesel and oil.
gets very hot during operation and can cause
burn injuries.
Open the tank cap slowly to release any
overpressure that might exist in the tank. Do
Do not touch V-belts or rotating parts during
not overfill the tank. Inspect the machine for
operation.
fuel leakage regularly.
Parking
Do not use a machine that is leaking fuel.
Park the machine on ground as level and firm
as possible. Before leaving machine:
Starting the machine
• Apply the parking brake.
• Shut off the engine and pull the ignition key
out.
Before starting read instruction
book and make your self familiar
with the machine and make sure
Loading/Unloading
that:
Never remain under or in the
• All handles are free from grease, oil and dirt.
immediate vicinity of the machine
• The machine does not show any obvious faults.
when it is lifted by a crane. Only use
• All protective devices are securely fastened in
marked lifting points. Always make
their places.
sure that all lifting devices are
• All control levers in ”neutral” position.
dimensioned for the weight of the
products.
Start the machine according to the instruction-
book.
Maintenance
Maintenance work must only be carried out by
Operation
skilled personnel. Keep unauthorized persons
away from the machine. Do not carry out mainte-
Keep your feet well clear of the
nance work while the machine is moving or the
machine.
engine is running.
Do not operate the machine in
poorly ventilated spaces. There is a
risk of carbon monoxide poisoning.
Use the machine only for the purpose for which
it is intended. Make sure you know how to stop
the machine quickly in the event of an emer-
gency situation.
LT5001/6000/7000 ILT6000EN3
5
SAFETY INSTRUCTIONS (FOR ALL LIGHT PRODUCTS)
Working with the hydraulic system
Regular maintenance of the hydraulic system is
important. Minor damage or a split hose or cou-
pling can have devastating consequences. Bear
in mind that the hydraulic hoses are made of
rubber and can deteriorate with age, which can
result in splitting. In all cases of uncertainty with
regard to durability or wear, replace the hoses
with new original hoses from Dynapac.
Working with battery
The battery contains poisonous and corrosive
sulphuric acid. Wear protective glasses and
avoid getting acid on your skin, clothes or on the
machines. If you get sulphuric acid on yourself,
rinse the skin with water. If you get acid in your
eyes, rinse them with water for at least 15 min-
utes and seek immediate medical treatment. The
gas that is emitted by the battery is explosive.
When fitting or replacing a battery, always take
care so that you do not short- circuit the battery
poles.
Repair
Never use a machine that is damaged. Qualified
repair work requires trained personnel, please
contact your nearest authorized workshop.
Extinguishing fires
If there is a fire in or on the machine, it is best
to use an ABE-class fire extinguisher.
However, a BE-class CO2 extinguisher is
also suitable.
6
LT5001/6000/7000 ILT6000EN3

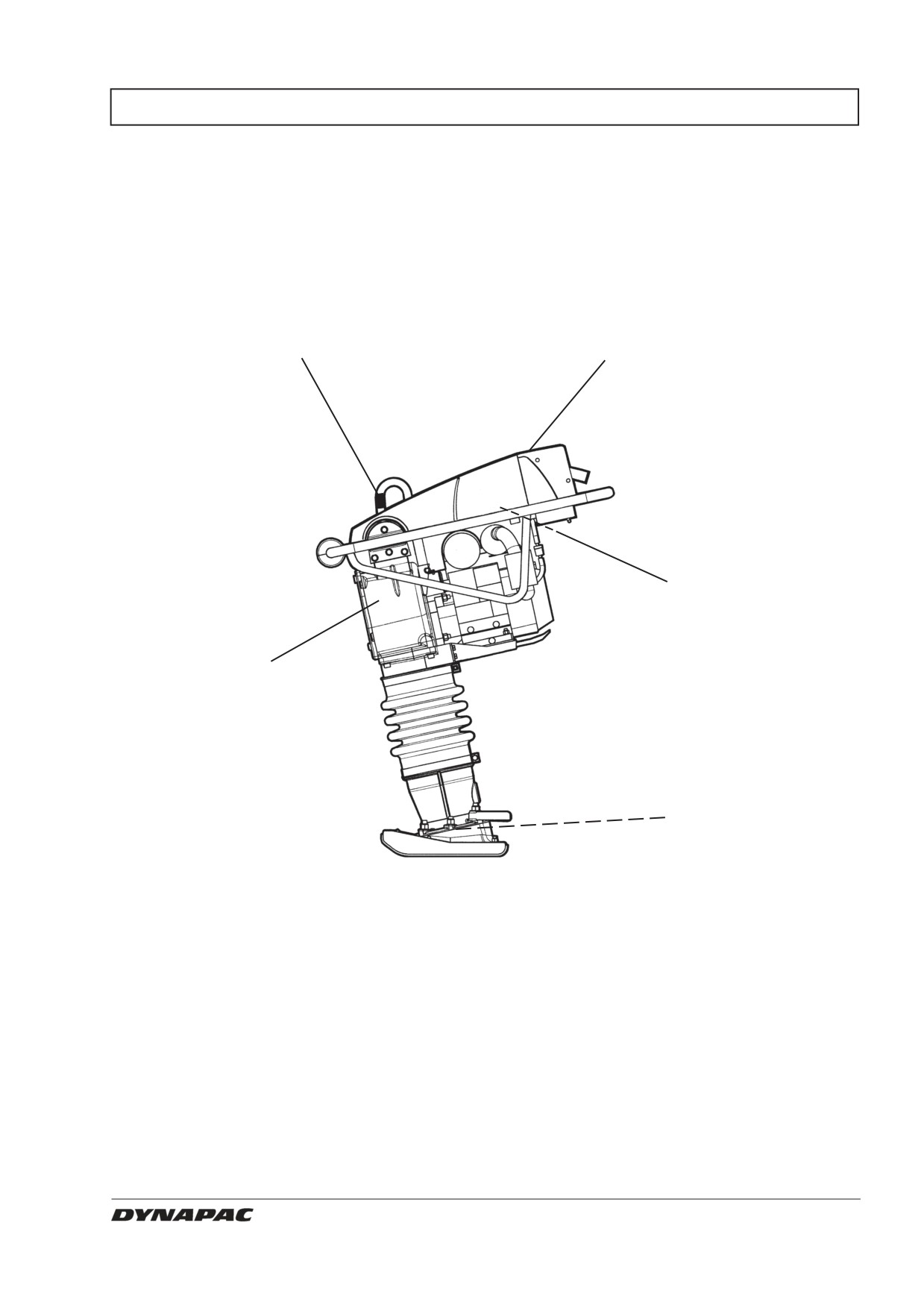

SAFETY DECALS, LOCATION/DESCRIPTION
4
1
2
5
3
L000565A
LT5001/6000/7000 ILT6000EN3
7

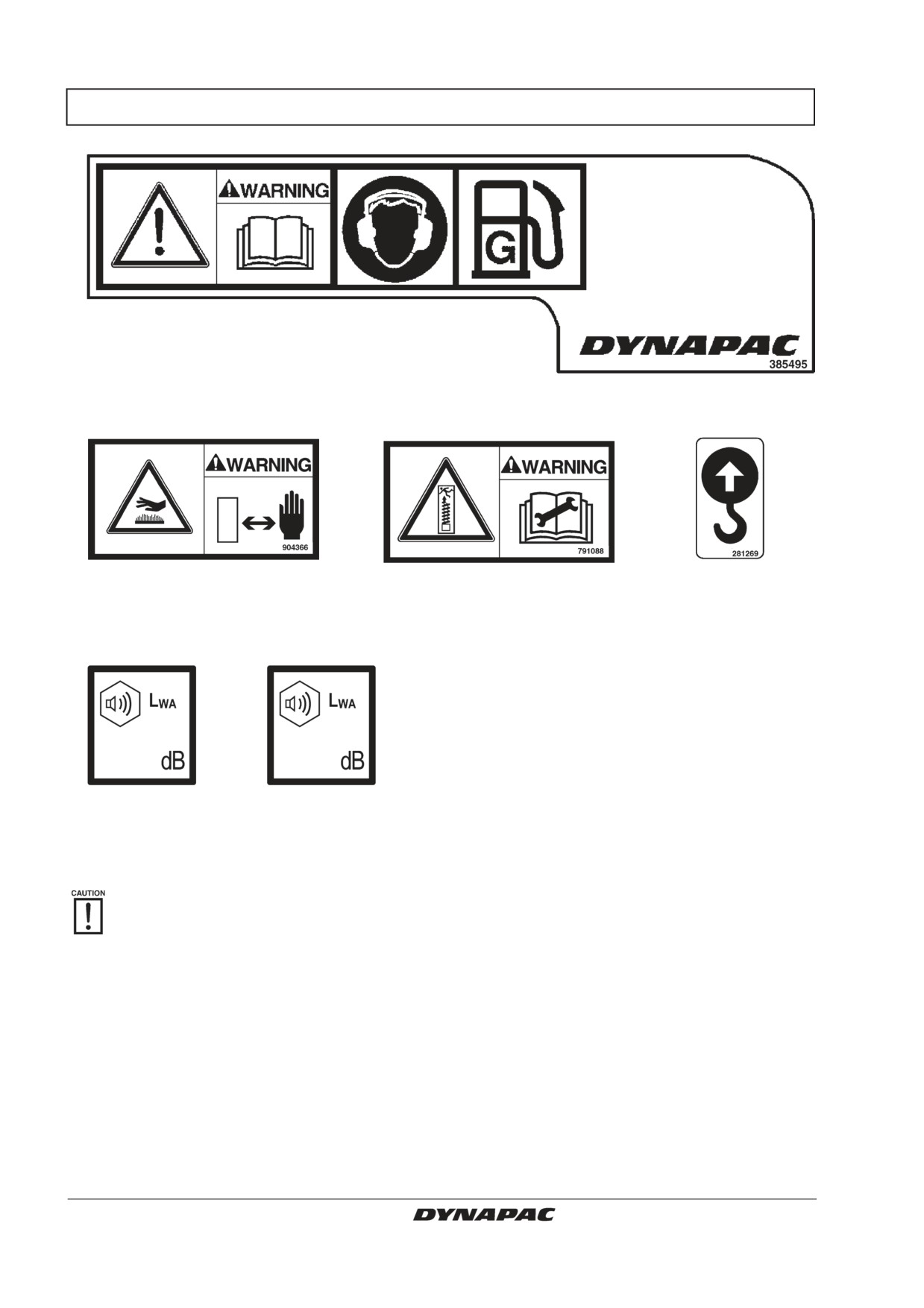

SAFETY DECALS, LOCATION/DESCRIPTION
1.
The operator is urgently
Use ear
Fuel
requested to read the safety
protectors
manual, and the operation and
maintenance instructions
before using the machine.
2.
3.
4.
Warning: hot surfaces in
Compressed spring assem-
Lifting
the exhaust system. Do not
bly. Read the service manual.
point
touch the exhaust silencer
5.
791292
5.
791295
104
107
Guaranteed Sound
Guaranteed Sound
Power level
Power level
(LT5001/6000)
(LT7000)
When transporting the machine in a horizontal position, it is essential that no fuel leaks out. If
necessary, empty the fuel tank prior to transportation.
8
LT5001/6000/7000 ILT6000EN3
FUEL AND LUBRICANTS
ENGINE OIL
Use SAE 15W / 40:
0,4 lit. (0.4 qts) Shell Universal Engine Oil TX15W-40 or equivalent
RAMMING
Use SAE 10W / 30:
CYLINDER OIL
0,9 lit. (0.9 qts) Shell Universal Engine Oil TX15W-40 or equivalent
LT5000 0,6 lit. (0.6 qts) Shell Universal Engine Oil TX15W-40
or equivalent
FUEL
Use normal quality gasoline (unleaded):
2,5 lit. (2.6 qts)
Stop the engine before refilling the fuel tank.
Never refuel near an open flame or sparks
which could start a fire. Don't smoke. Use
pure fuel and clean filling equipment. Take
care not to spill fuel.
Spare parts for service
LT 5001/6000
LT 7000
(spare part number)
Honda GX100
Honda GX120
Air filter for engine
93 89 32
93 62 64
Fuel filter for engine
93 54 38
93 54 38
Spark plug
93 89 34
92 48 42
LT5001/6000/7000 ILT6000EN3
9
TECHNICAL DATA
LT5000
LT6000
LT7000
Weight
Operating weight, kg (lbs)
63 (139)
69 (152)
78 (172)
Compaction data
Vibr. frequency, Hz
12
12
12
Vibr. frequency, vpm
720
720
720
Lenght of stroke, mm (in)
50-60 (2.0-2.4)
65-75 (2.6-3.0)
70-80 (2.8-3.1)
Operating data
Speed of travel, m/min (feet/min)15-18 (49-59)
15-18 (49-59)
15-18 (49-59)
Volumes
Fuel tank, lit. (qts)
2,5 (2.6)
2,5 (2.6)
2,5 (2.6)
Engine, lit. (qts)
0,3 (0.3)
0,3 (0.3)
0,4 (0.4)
Rammingcylinder, lit. (qts)
0,6 (0.6)
0,9 (0.9)
0,9 (0.9)
Fuel consumtion, l/h (qts/h)
0,69 (0.73)
0,69 (0.73)
0,87 (0.92)
Engine
Model
Honda
Honda
Honda
GX100
GX100
GX120
Manual start
Manual start
Manual start
Output, kW (hp)
2,2 (3.0)
2,2 (3.0)
2,9 (3.9)
Engine speed, vpm
3800-3900
3800-3900
3600-3700
Idling
1600-1900
1600-1900
1400-1600
Noise and Vibrations
The following sound levels and vibration levels are determined based on the operating cycle on a
macadam course as described by EU directive 2001/14/EC.
Guaranteed acoustic power level
LwA dB (A)
104
104
107
Sound-pressure level at the operator’s ear (ISO 6396)
LpA dB (A)
91
91
96
Hand and arm vibration (ISO 5349-1)
ahv m/s2
7
7
11
These values may differ during operation due to the specific operational conditions.
10
LT5001/6000/7000 ILT6000EN3
TECHNICAL DATA - DIMENSIONS
C
L000199A
L000200A
CONTACT
AREA
E
B
D
A
LT5000
LT6000
LT7000
A mm (in)
810 (31.9)
810 (31.9)
810 (31.9)
B mm (in)
330 (13)
330 (13)
330 (13)
C mm (in)
1030 (40.5)
1074 (42.3)
1074 (42.3)
D mm (in)
422 (16.6)
422 (16.6)
422 (16.6)
E mm (in)
150 (5.9)
230 (9.1)
280 (11)
Contact area, m2
0,034 (0.37)
0,053 (0.57)
0,065 (0.70)
(sq feet)
LT5001/6000/7000 ILT6000EN3
11

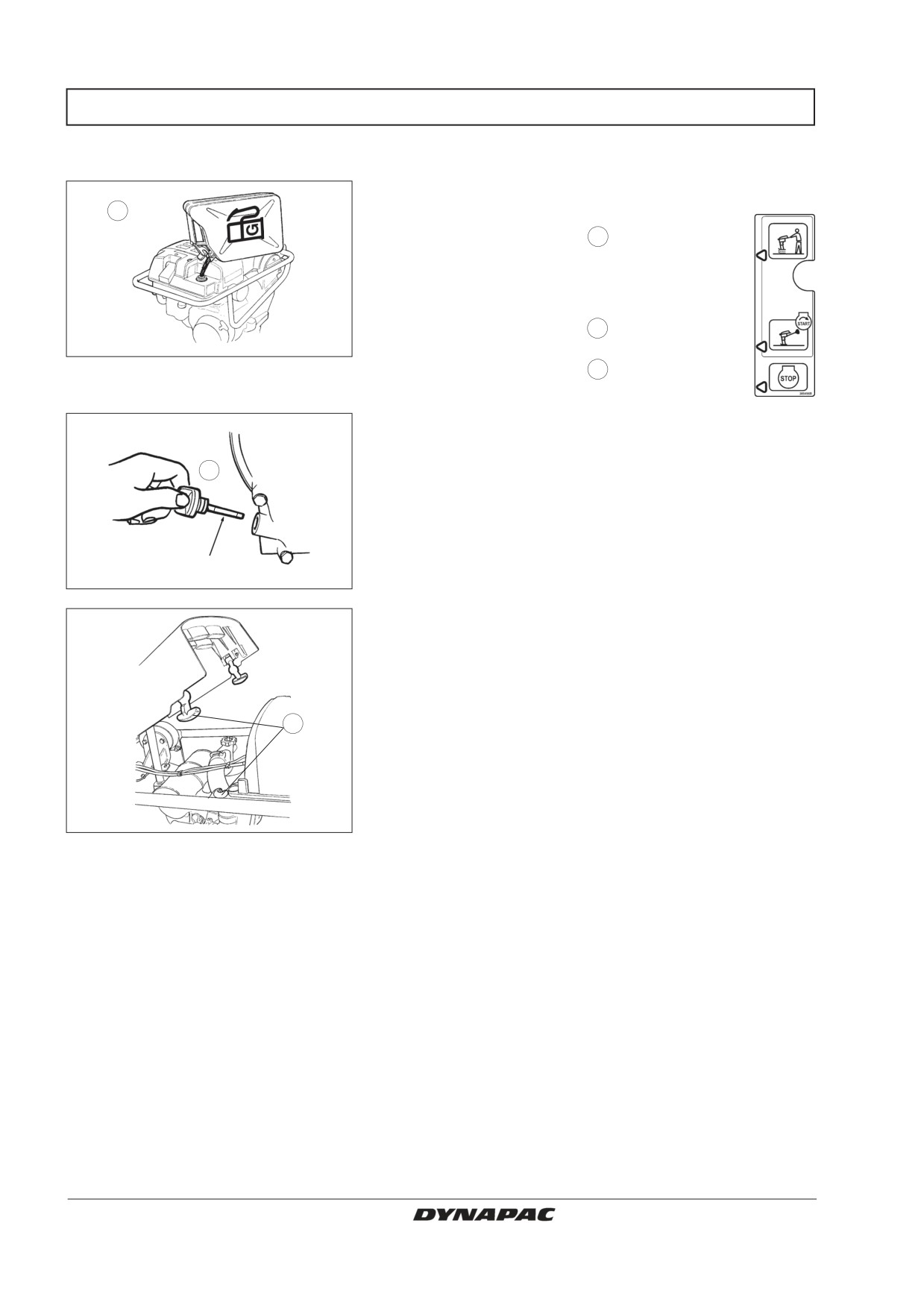

OPERATION
Before start
1. Fill the fuel tank.
Tankvolume 2,5 lit. (2.6 qts)
1
1
Working
mode
2
Start/Idling
L000569A
3
Stop/Transport/
Refuel
2. Check the oil level in the engine while the tamper is
upright.
2
Max.
Min.
OK
L000077A
3. Check that the hood is locked.
3
L000634A
12
LT5001/6000/7000 ILT6000EN3
OPERATION
Starting the engine
4. Put the throttle in the start mode.
4
Startmode
L000566A
LT5001/6000 (Honda GX100)
5. Move the choke lever to the CLOSED position.
The choke may not be needed if the engine is warm
or the air temperature is high.
7
5
L000149A
LT7000 (Honda GX120)
5. Move the choke lever to the CLOSED position.
The choke may not be needed if the engine is warm
or the air temperature is high.
7
5
L000179A
6. Pull slowly on the magnapull starter handle (4) until
you feel it engage, then let the handle return a short
distance and pull sharply to start the engine. Do not
allow the starter grip to snap back against the
engine. Return it gently to prevent damages to the
6
starter.
7. When the Choke Lever has been moved to
CLOSED position at the time of starting, move it
L000177A
to OPEN position. Let the engine run without load at
idle for a few minutes for warm up.
LT5001/6000/7000 ILT6000EN3
13
OPERATION

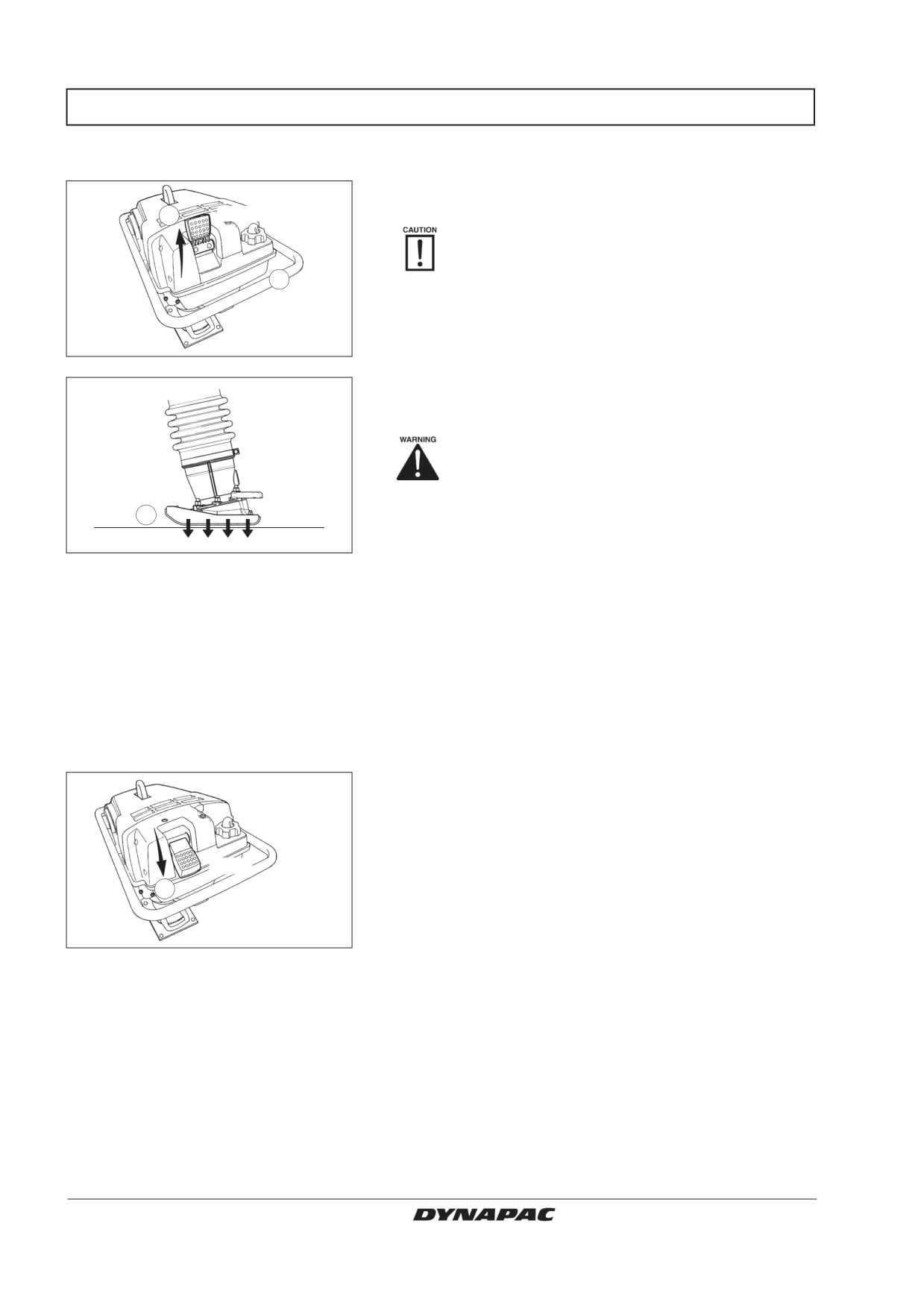

Operating
1.
Move the throttle to the working mode and the
Working mode
tamper will begin to move.
1
During operation, the engine must always work
at full throttle (working mode).
2
2.
Guide the tamper with guide handle.
L000568A
3.
Take care that the shoe hits parallel to the ground.
4.
Do not fight or overpower the machine.
Never work on hard surfaces (solid rock,
hardened concrete or such). When working in
trenches always make sure that they are wide
enough. When working in a narrow trench, it
3
the ramming shoe should get caught between
the walls of the trench, the rammer may mis-
L000167A
strike and can be severely damaged. The
ramming shoe may especially be damaged
severely. Make certain that the rammer is
steared only by using the hand grip. It should
only be pushed. The rammer must not be
pressed into the materials being compacted.
Excessive pressure to the operation handle
will lead to the unsatisfactory compaction due
to the fact that the jumping action is hindered.
If the machine falls over while working, switch
off the engine before raising it.
Stopping the engine
1.
Put the throttle in the stop mode. Fuel supply to the
engine is cut off in this mode, tank ventilation is
closed and the engine switch is Off.
Stop
1
L000571A
14
LT5001/6000/7000 ILT6000EN3

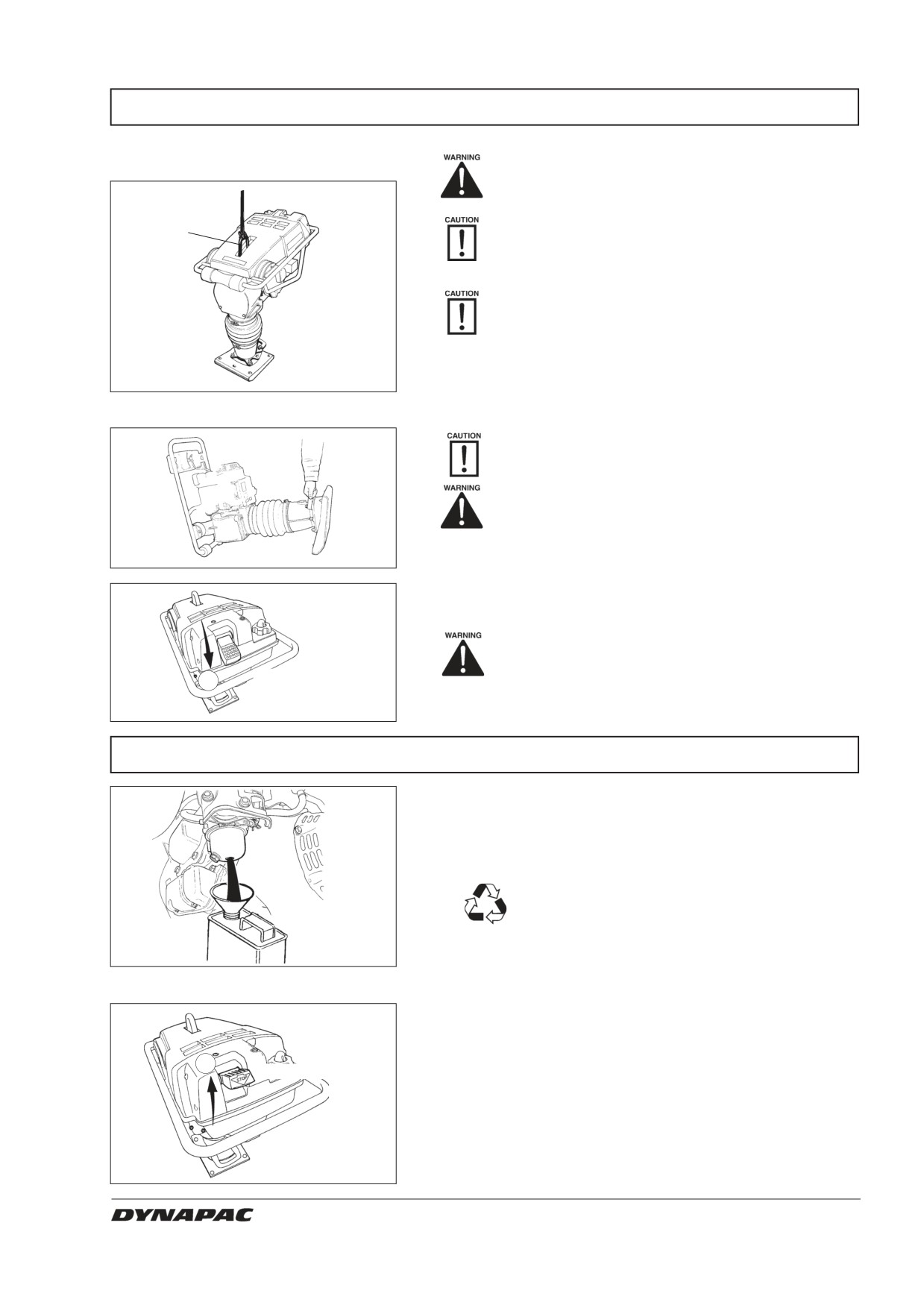

INSTRUCTIONS FOR LIFTING
Transport and liftning
Keep well clear of the hoisted machine.
1
Use only the frame lifting hook (1) for lifting the
machine.
All lifting devices must be dimensioned in order
to fullfil all regulations. Before lifting check that
ramming shoe is correctly attached and not
damaged.
L000573A
The weight is noted on the machine data plate; see the
"Machine data plate" section.
Lifting handle
Lay the machine down when switched off and
not in use.
Always lash the machine securely for all
transportation.
For moving short distances, the machine can be tilted
L000170A
forward so that it rests on the plastic wheels on the
handle. Lift the transport handle and roll the machine
forward or backward. Put the throttle in stop mode so
that no fuel runs out.
Keep your feet clear of the machine.
Stop
1
L000571A
LONG TIME STORAGE
1.
Clean the machinery. Remove mud and dirt from
the ramming shoe.
2.
Clean the air cleaner.
3.
Drain all fuel from the fuel tank and carbu-
retor. Collect the contents in a receptacle
and dispose of it properly.
L000636A
4.
Put the throttle in start mode and empty fuel through
the carburettor drain plug.
5.
Pull the starter grip lightly until pressure is felt.
6.
Clean up oil and dust accumulation on rubber parts.
4
Startmode
7.
Apply a light coat of oil on the ramming shoe to
prevent rust formation.
8.
Put the cover entirely on the machine, and store the
machine in dry, dust-free area.
L000566A
LT5001/6000/7000 ILT6000EN3
15

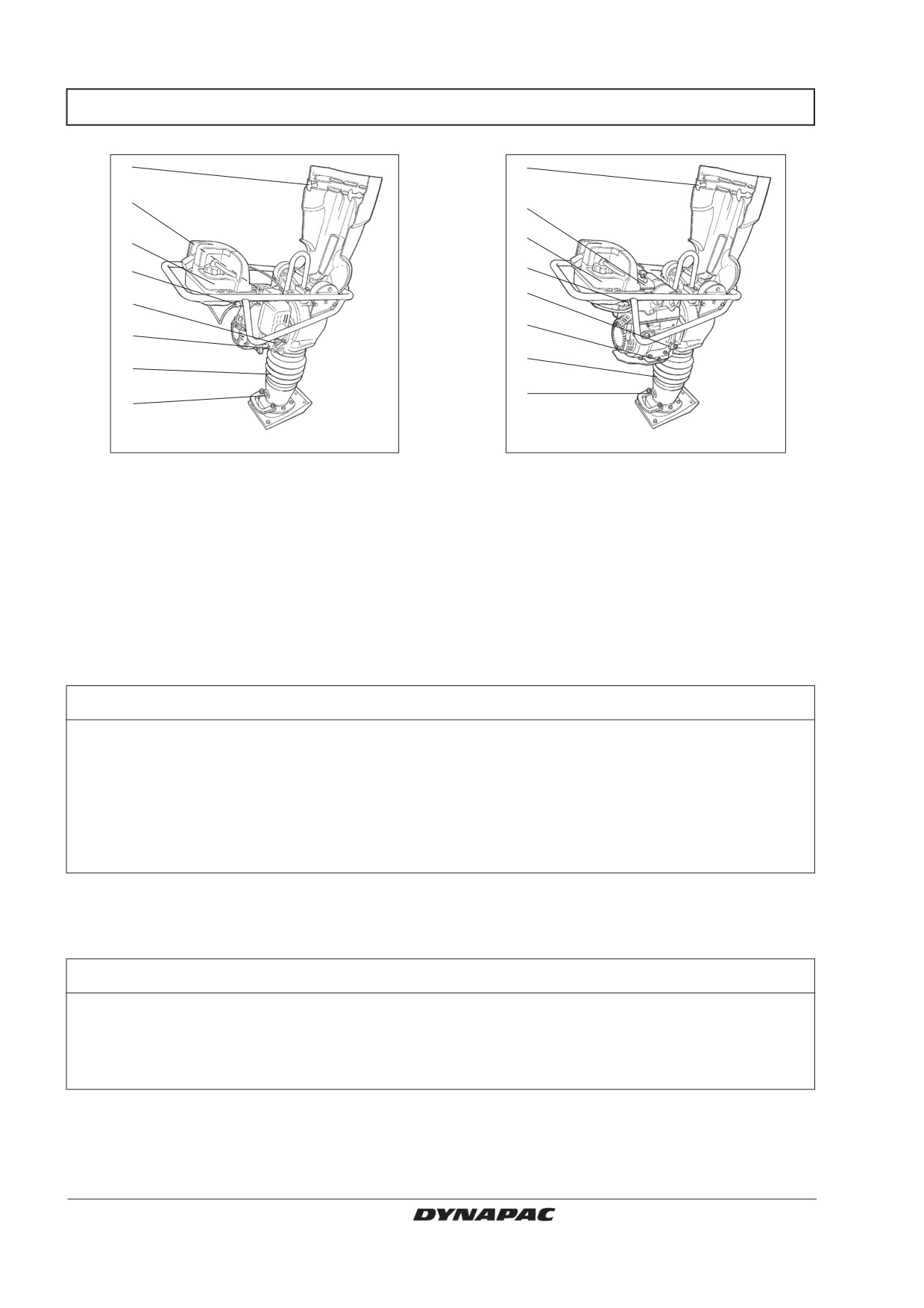

MAINTENANCE - SERVICE POINTS
8
8
3
3
1
1
2
2
4
4
5
5
7
7
6
6
L000580A
L000579A
LT5001/6000
LT7000
1. Fuel tank
2. Fuel filter
3. Air filter
4. Oil dipstick
5. Oil drain plug
6. Rammer oil sightglass
7. Bellows
8. Hood lock
Every 10 hours of operation
Item in fig. Maintenance
see page
Comments
1
Check and replenish fuel
12
4
Check and replenish engine oil
18
Check for oil leakage
Check/retighten bolted joints (rammer foot).
18
3
Check air cleaner elements
19
6
Check ramming system lubrication with
sight glass
18
The first 20 hours of operation
Item in fig. Maintenance
see page
Comments
5
Change engine oil
19
3
Clean / replace air cleaner elements
See engine manual
Check the engine revs.
20, 21
7
Change ramming system oil
22
16
LT5001/6000/7000 ILT6000EN3
MAINTENANCE - SERVICE POINTS
Every 100 hours of operation
Item in fig. Maintenance
see page
Comments
5
Change engine oil
19
3
Clean / replace air cleaner elements
19
See engine manual
Check the engine revs.
20, 21
3
Check and clean the spark plug
19
Every 500 hours of operation (Atleast once a year)
Item in fig. Maintenance
see page
Comments
2
Change fuel filter and clean the fuel tank
7
Change ramming system oil
22
8
Check the hood lock
22
LT5001/6000/7000 ILT6000EN3
17

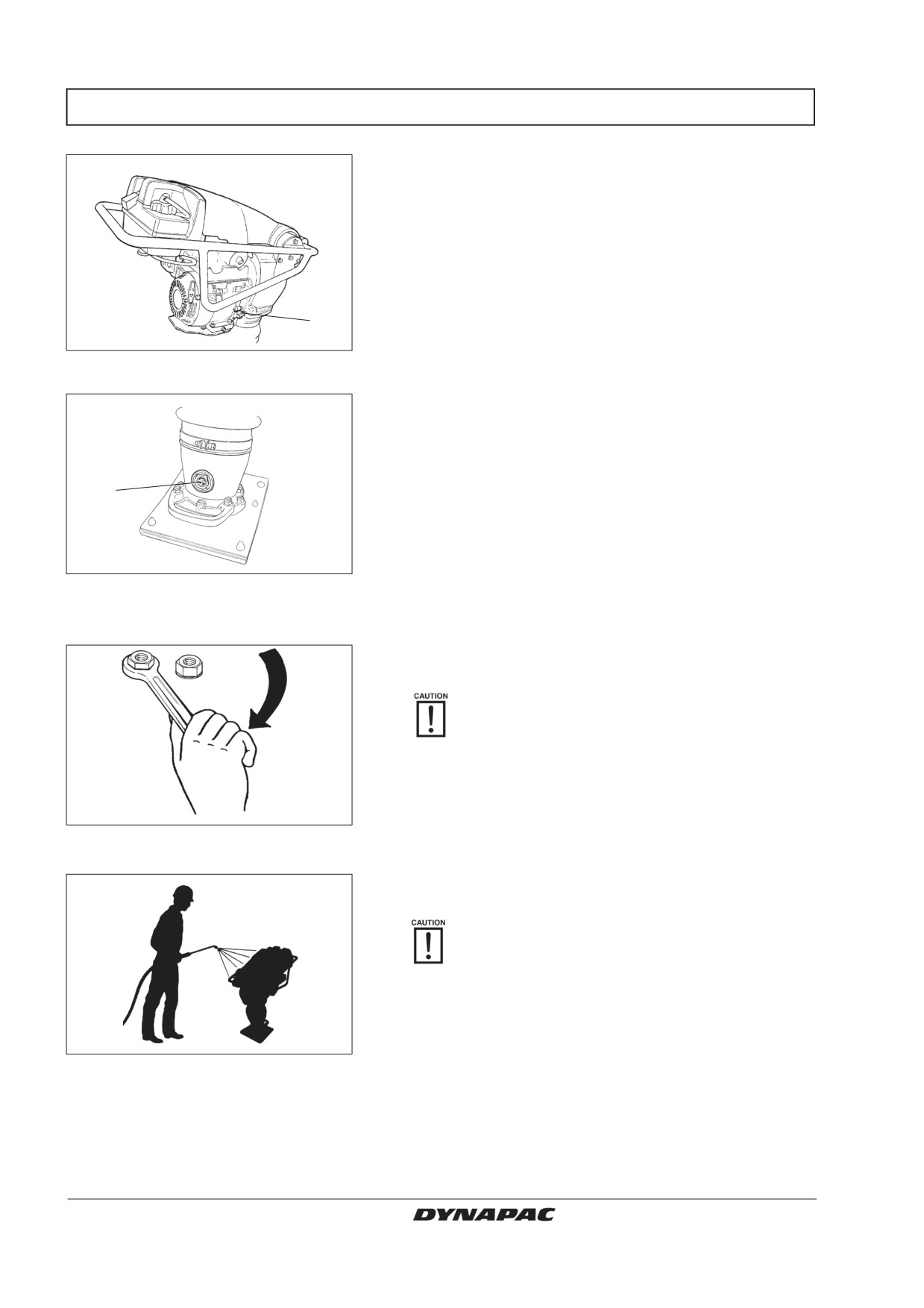

MAINTENANCE - EVERY 10 HOURS OF OPERATION
1. Check oil level (1) in the engine.
2. Check air cleaner.
We recommend reading the detailed engine instructions
supplied with the machine.
1
L000581A
1. Oil dipstick
3. Check oil level in the tamper leg through the sight
glass (1). The level should be at the middle of the
sight glass.
1
L000175A
1. Sight glass
4. Check and, where necessary, tighten screws and
nuts.
Take special care with bolted joints on the
rammer foot.
L000028A
5. Keep machine clean. The machine shall always be
upright when washed.
Never aim a water jet directly at the cap of the
fuel tank. This is especially important when
using a high-pressure jet. Put a plastic bag
over the filler cap of the fuel tank and secure
with a rubber band.
L000572A
18
LT5001/6000/7000 ILT6000EN3

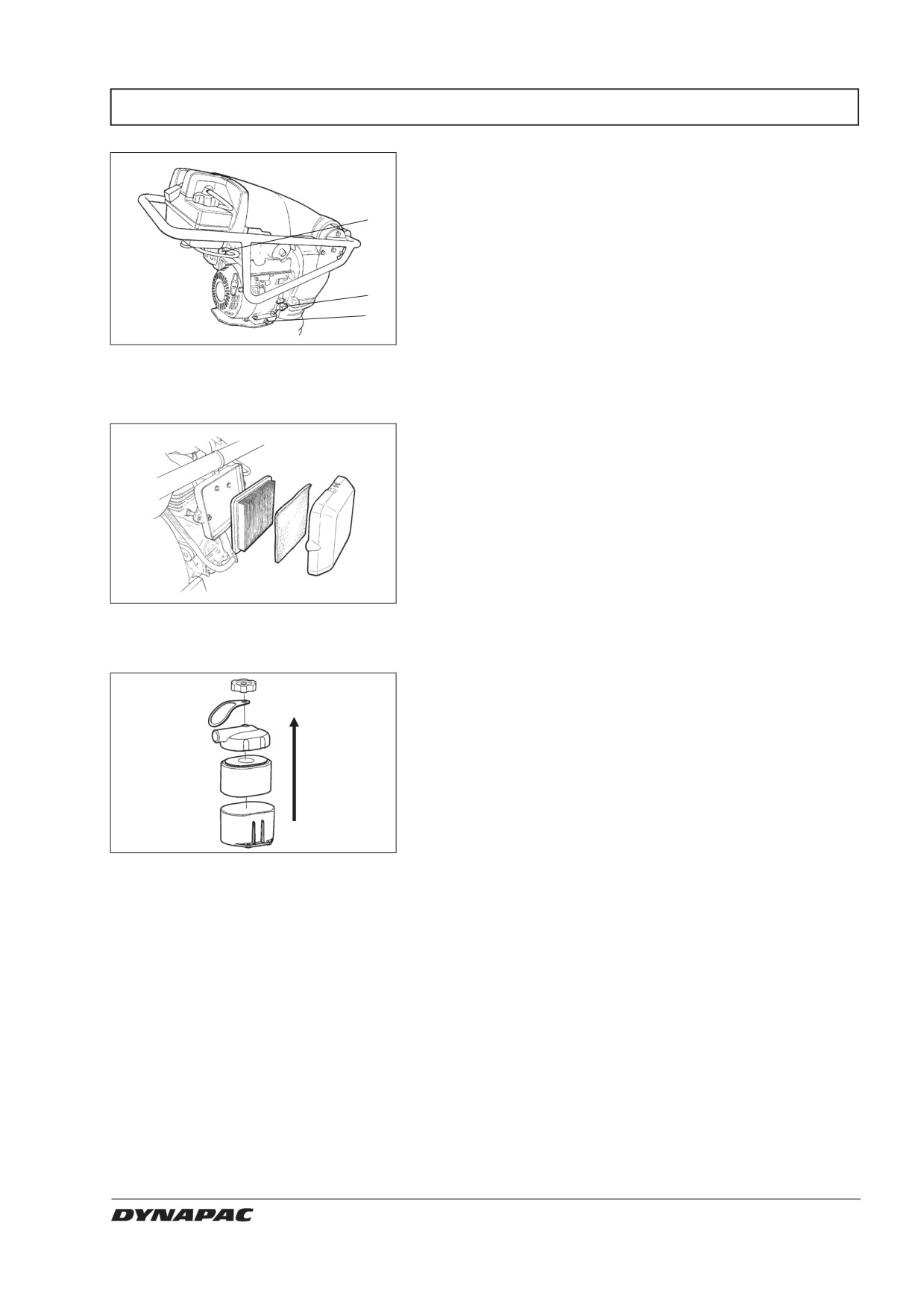

MAINTENANCE - EVERY 100 HOURS OF OPERATION
1. Change oil (see engine manual).
2. Check and clean the spark plug.
3
1
2
L000581A
1. Oil dipstick
2. Oil drain plug
3. Spark plug
LT5001/6000
3. Replace air cleaner element (see engine manual).
L000168A
LT7000
3. Replace air cleaner element. (see engine manual).
L000575B
LT5001/6000/7000 ILT6000EN3
19

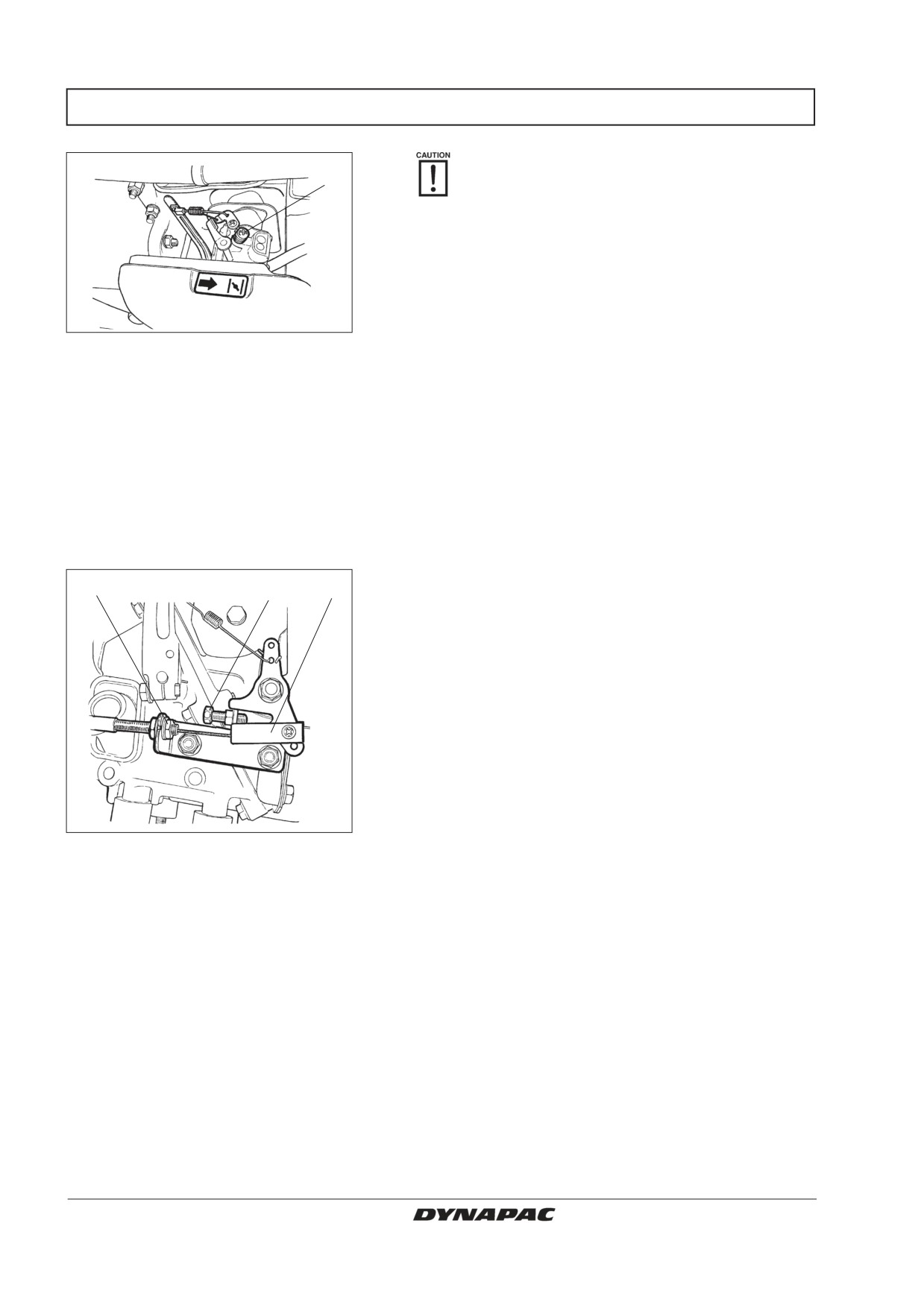

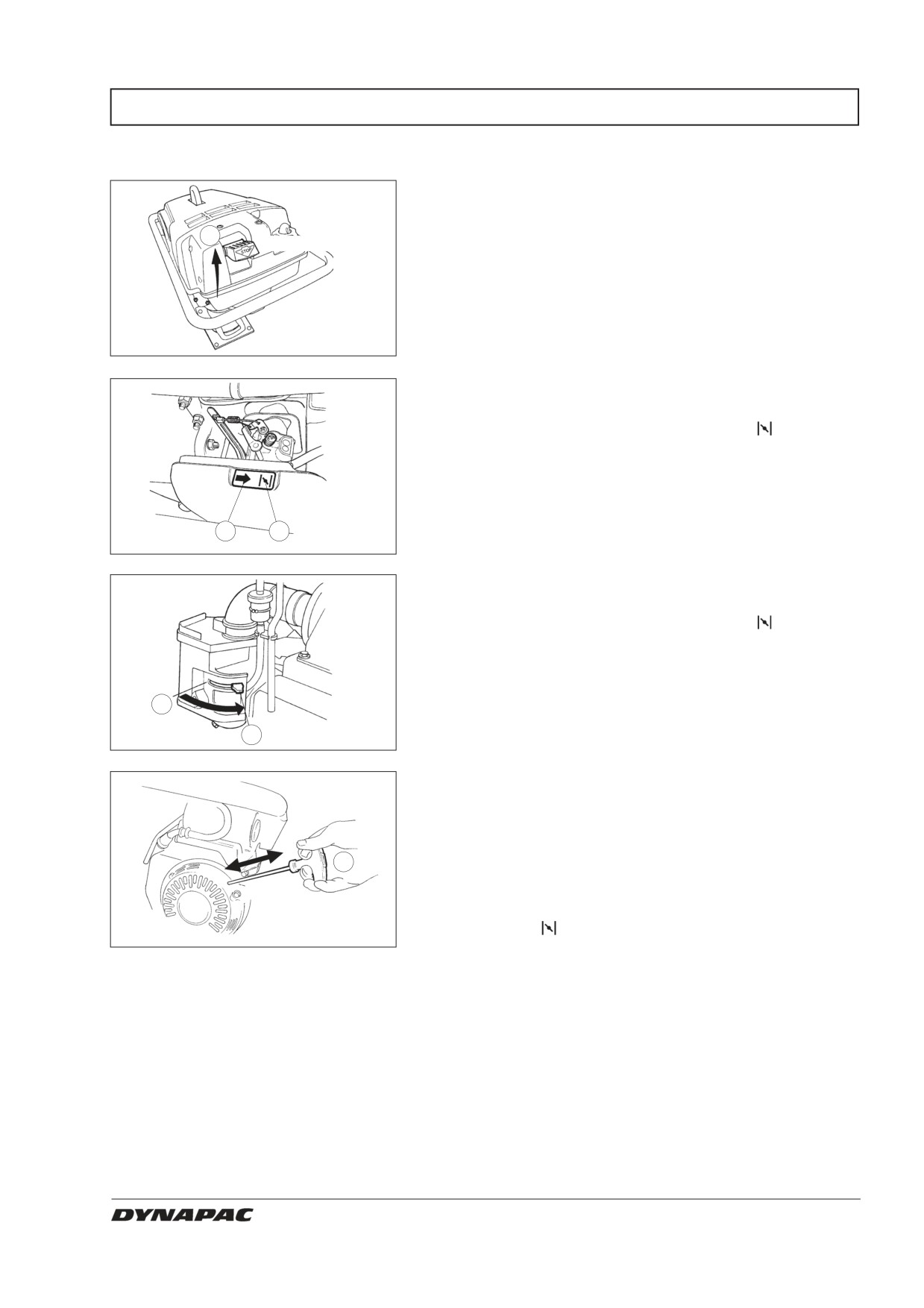

CARBURETTOR - LT5001/6000
The air cleaner must be cleaned and the
1
engine run warm before adjusting the revs.
Tachometer PIN: 924719
Revs:
Idling Revs: 1600-1900 rpm
Engagement revs for centrifugal clutch, about: 2500 rpm
Working revs, about: 3800-3900 rpm
L000635A

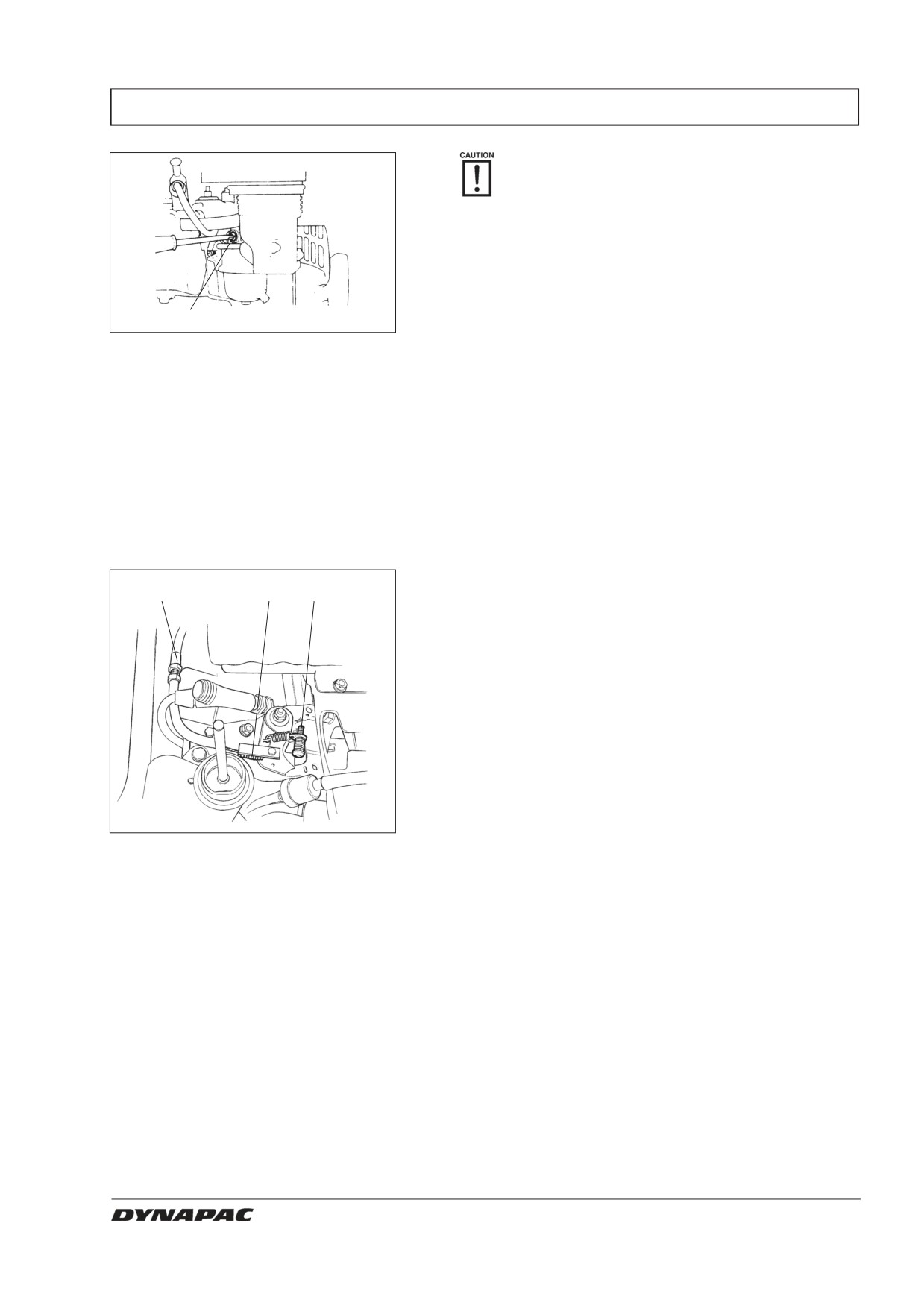

1. Idling adjustment screw
Idling adjustment
Start the engine and allow it to warm up. While the
engine is running, turn the adjusting screw to give the
standard idling revs for the engine.
Increase and then decrease the engine speed. Wait
30-60 seconds, and then check the idling speed again.
Adjusting the working revs
3
1
2
Adjust working revs with the screw (1). Ensure that
there is about 5 mm pre-tension on the throttle-wire
spring (2) at full throttle.
Adjust the length of the wire (3) to give the correct pre-
tension.
L000578B
1. Adjusting screw for working revs
2. Spring
3. Adjusting screw for throttle wire
20
LT5001/6000/7000 ILT6000EN3
CARBURETTOR - LT7000
The air cleaner must be cleaned and the
engine run warm before adjusting the revs.
Tachometer PIN: 924719
Revs:
Idling Revs: 1400-1600 rpm
Engagement revs for centrifugal clutch, about: 2500 rpm
Working revs, about: 3600-3700 rpm
1
L000577A
1. Idling adjustment screw
Idling adjustment
Start the engine and allow it to warm up. While the
engine is running, turn the adjusting screw to give the
standard idling revs for the engine.
Adjusting the working revs
3
2
1
Adjust working revs with the screw (1). Ensure that
there is about 5 mm pre-tension on the throttle-wire
spring (2) at full throttle.
Adjust the length of the wire (3) to give the correct pre-
tension.
L000578A
1. Adjusting screw for working revs
2. Spring
3. Adjusting screw for throttle wire
LT5001/6000/7000 ILT6000EN3
21

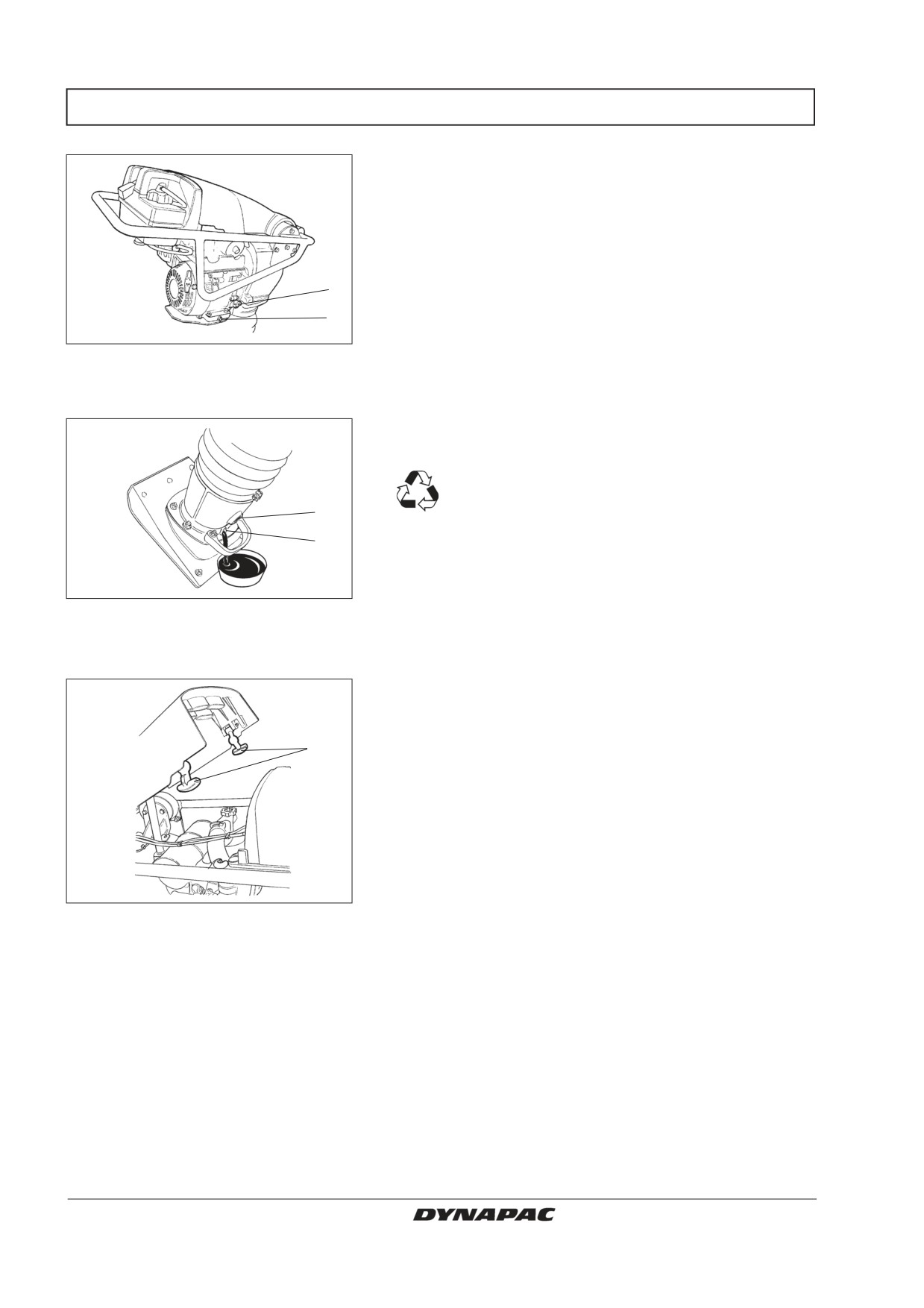

MAINTENANCE - EVERY 500 HOURS OF OPERATION
1.
Change engine oil (see engine manual).
2.
Replace air cleaner element (see engine manual).
3.
Replace fuel filter and clean the fuel tank.
1
2
L000581A
1. Oil dipstick
2. Oil drain plug
4.
Change oil in the tamper leg. Screw out the drain
plug (1) and empty the oil into a receptacle.
Save the oil in a can and dispose of it properly.
2
1
5.
Refit the plug tight, making sure that the washer
seal is undamaged.
L000172A
6.
Remove the sight glass (2) and fill with fresh oil as
1. Oil drain plug
follows. Refit the sight glass and tighten firmly. The
2. Sight glass
oil level should be at the middle of the sight glass.
7.
Check the rubber straps on the hood.
1
L000634A
1. Rubber straps
22
LT5001/6000/7000 ILT6000EN3
TROUBLESHOOTING
TROUBLE
POSSIBLE CAUSE
REMEDY
Engine stalls or does not start
Insufficient fuel
Fill with gasoline, check the fuel filter
Engine does not accelerate, is
Air filter is dirty
Clean/replace the air filter
hard to start or runs erratically
Motor oil low
Fill with motor oil
Engine overheats
Motor oil low
Fill with motor oil
Restricted air flow
Clean/replace the air filter
Engine runs, but rammer does
Clutch damaged
Repair or replace clutch
not tamp
Engine running smoothly, but the
Clutch damaged
Repair or replace clutch
tamper is uneven
Oil or grease on clutch
Dismantle and remove oil/grease
Soil buildup on ramming shoe
Clean shoe
Broken or worn springs
Replace springs
Incorrect engine revs.
Adjust engine revs.
Fuel filter clogged
Replace fuel filter
LT5001/6000/7000 ILT6000EN3
23
Dynapac Compaction Equipment AB
Box 504, SE-371 23 Karlskrona, Sweden
Phone: +46 455 30 60 00
Fax: +46 455 30 60 30
