Saeco Vending machine (Type: D.A. COMBISNACK). GUIDE MANUAL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

Contents

1 -

DIAGRAM OF CONNECTIONS TO THE KEYPAD BOARD/CPU:

2 -

PAYMENT SYSTEM INSTALLATION

3 -

PAYMENT SYSTEM FEEDER KIT

4 -

INDEPENDENT TANK KIT

5 -

FLOAT KIT

6 -

PULSE COUNTER KIT

7 -

WATER SOLENOID VALVE KIT

8 -

SUGAR COIL KIT

9 -

SAECO CARD ASSEMBLY KIT

9.1 -

Saeco card programming

10 -

HANDLING KIT

11 -

BRITA PURIFIER KIT

12 -

RS 232 INTERFACE BOX

13 -

SAECO WATER SOFTENER SUPPORT

14 -

PROGRAMMING KEY

15 -

12V PARALLEL COINER KIT

16 -

CLOCK MODULE INSERTION (TIME KEEPER)

16.1 - TIME KEEPER functions in the programming menus

16.2 - TIME KEEPER functions in the maintenance menus

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

Maintenance technician

It is used to indicate operations to be performed by specialized maintenance technicians only.

He is the only person authorized to keep the KEY TO ACTIVATE THE SAFETY MICROSWITCH which allows disabling the security

system.

2 - PAYMENT SYSTEM

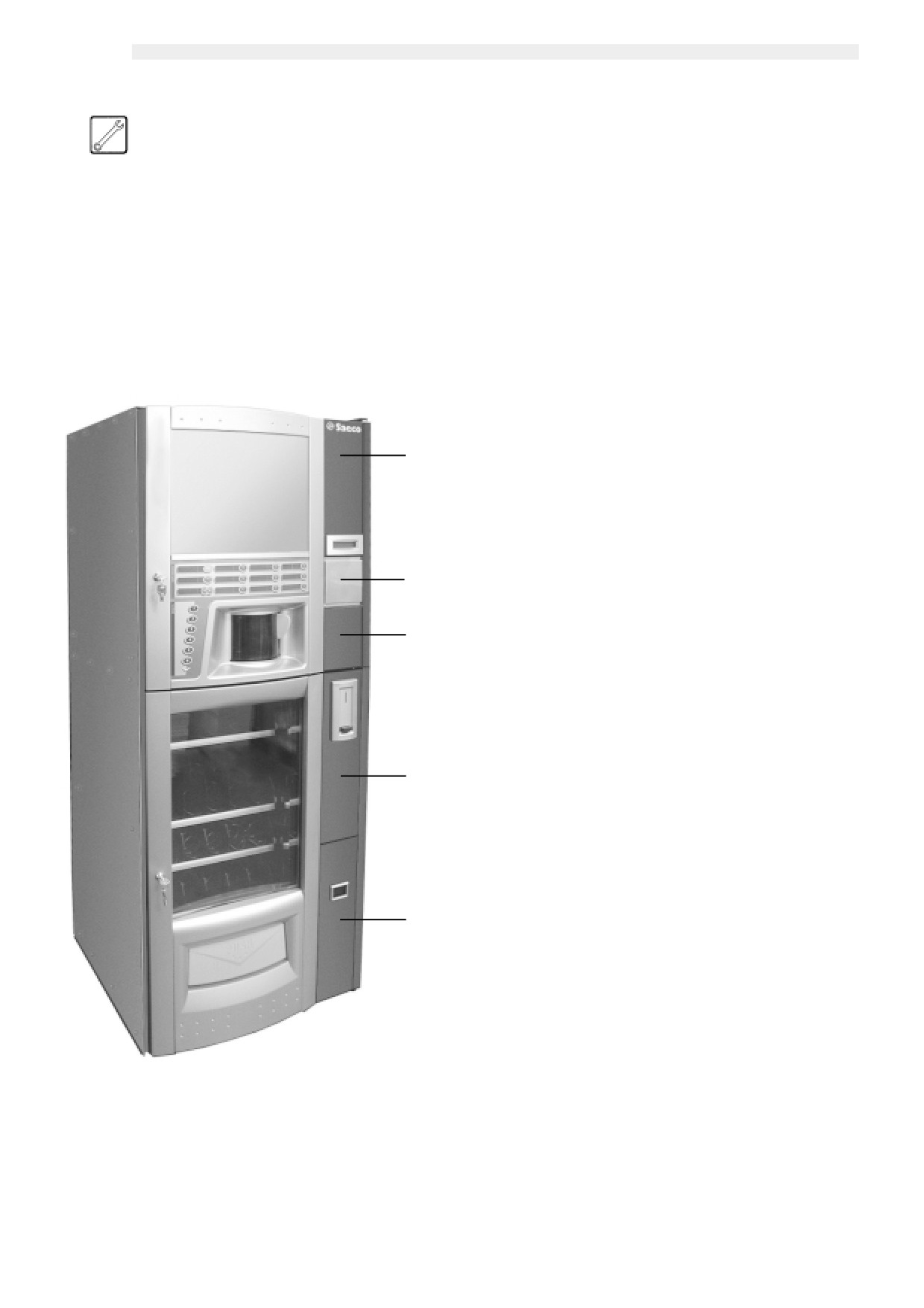

This vending machine is supplied with panels assembled as shown

in fig. 2. It is possible to change and replace them with those

INSTALLATION

provided by Saeco according to the customer’s requirements.

- Panel for OTR. and M.IVO banknote readers

- Panel for JCM banknote reader

- Panel for SMILE banknote reader

- Panel for m125 COINCO banknote reader

- Panel for NRI G13 coiner

- Lower Neutra panels (to combine with NRI G 13 panel)

Saeco also supplies the relevant wiring harnesses to connect the

different payment systems.

A specific kit must be used to connect the 12V non-change-giving

parallel coiner.

Open the front doors to replace the panels and remove the CPU

guard to replace the upper door.

Before taking panel B off, it is necessary to remove also the

instruction support steel sheet.

Panel for

OTR. and M.IVO banknote readers

It is inserted in lieu of panels B, C and is preset for OTR. and

M.IVO banknote readers.

Panel for JCM banknote reader

It is inserted in lieu of panels B, C and is preset for JCM banknote

reader.

Panel for SMILE banknote reader

It is inserted in lieu of panels B, C and is preset for SMILE banknote

reader.

Panel for m125 COINCO banknote reader

It is inserted in lieu of panels B, C and is preset for m125 COINCO

banknote reader.

Panel for NRI G13 coiner and Neutra lower panel

These two panels must be combined.

fig. 2

They are inserted in lieu of panels D, E and are preset for NRI

G13 COINER.

- Connect the payment system cable to the suitable connector on the CPU card according to the instructions supplied by the diagram at

page 3.

- If during the payment system installation, the “B” panel instructions are removed, it will be necessary to insert the proper instructions, in

a large, short format, in the “advertising image” area.

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

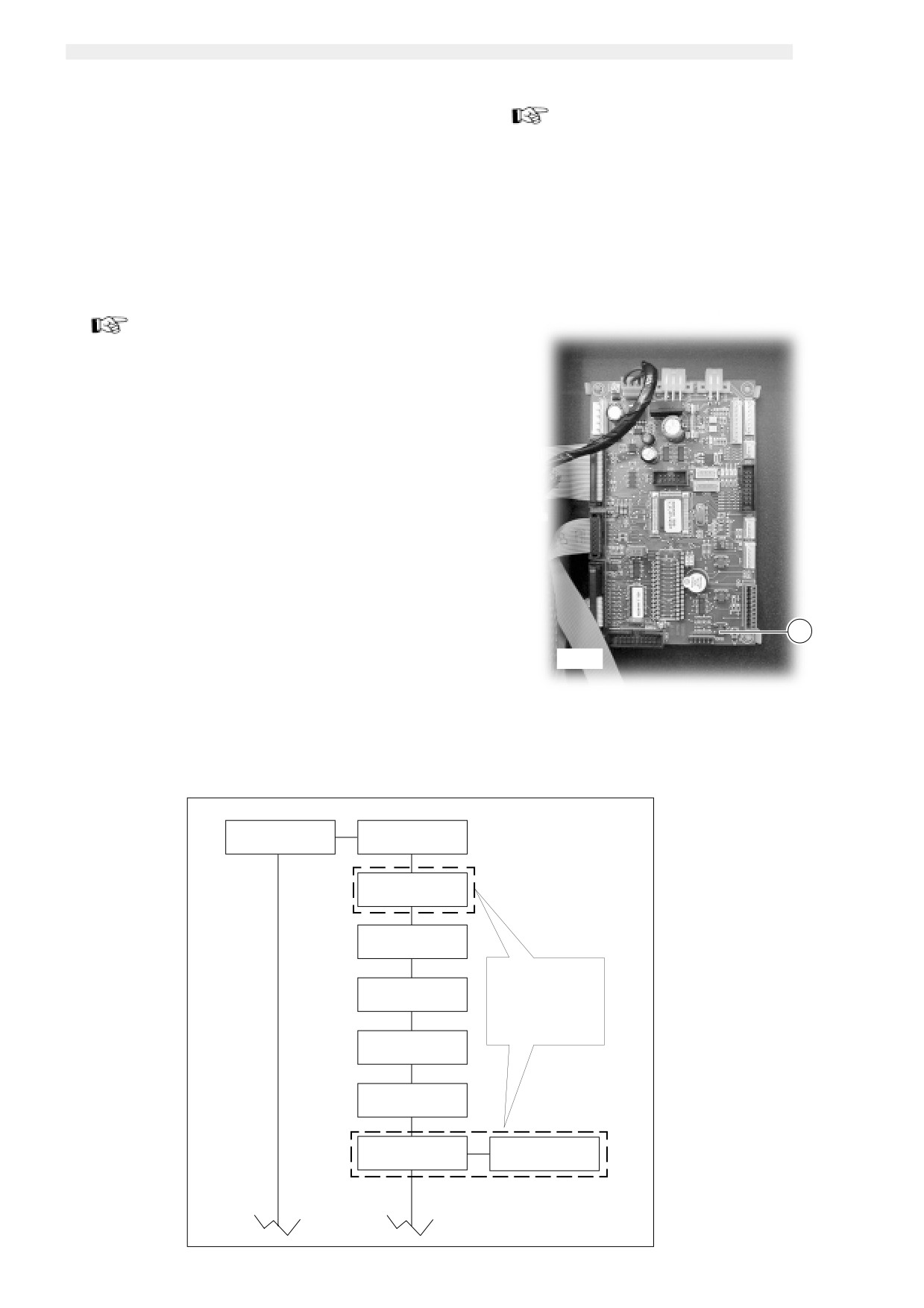

Connect the wiring harness (ref. a, fig. 3) to the payment

3 - PAYMENT SYSTEM

system power supply board as well as to the CPU card (fig.

FEEDER KIT

5). See instructions on harness to carry out the connection.

This kit provides all the necessary power supply for the proper

operation of the payment systems connected to the CPU card of

Combisnack vending machine, which have a mains voltage of

+ 12 Vdc (parallel banknote readers) or + 6 Vdc (1432.0xx

and 1471.0xx models saeco card).

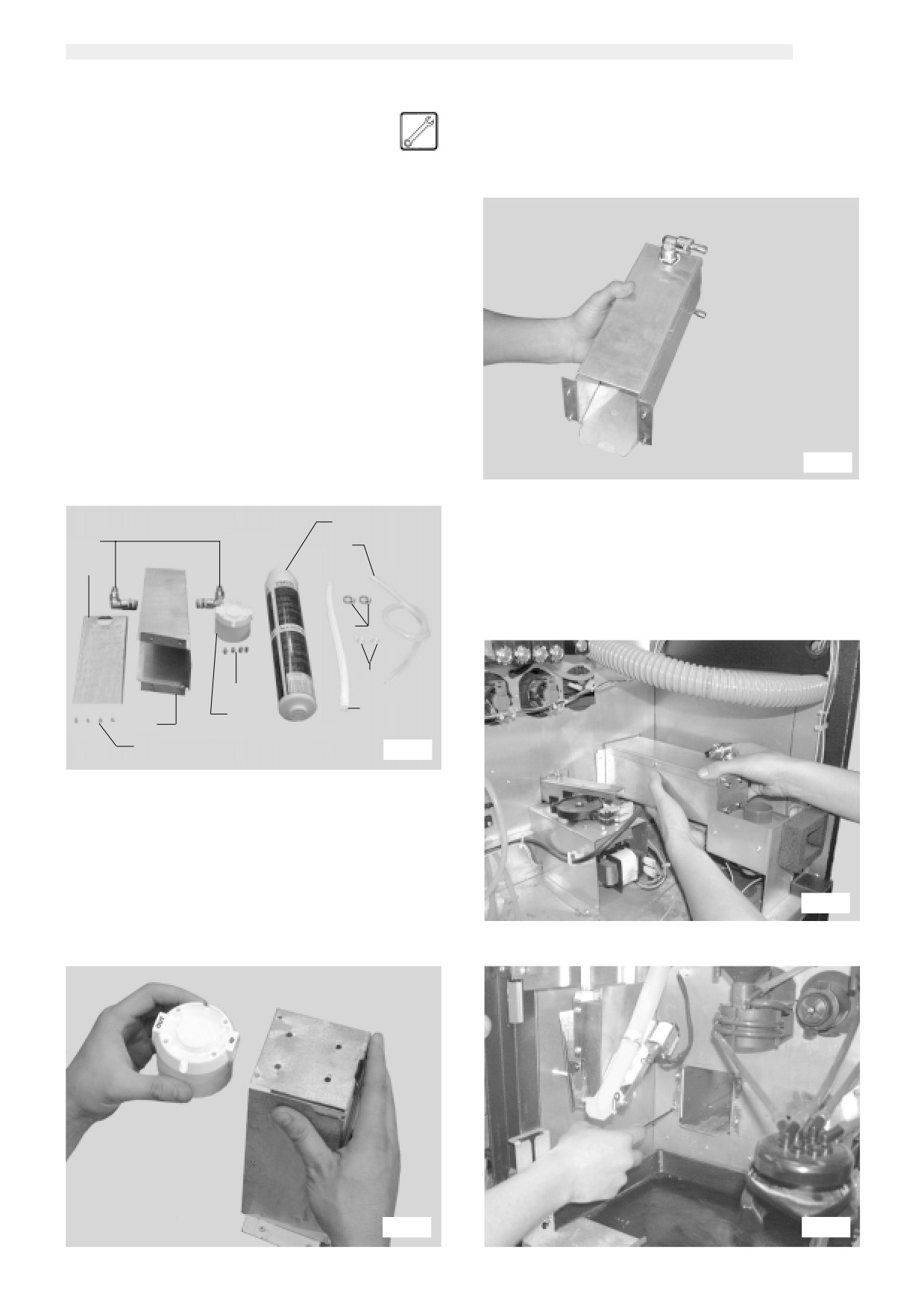

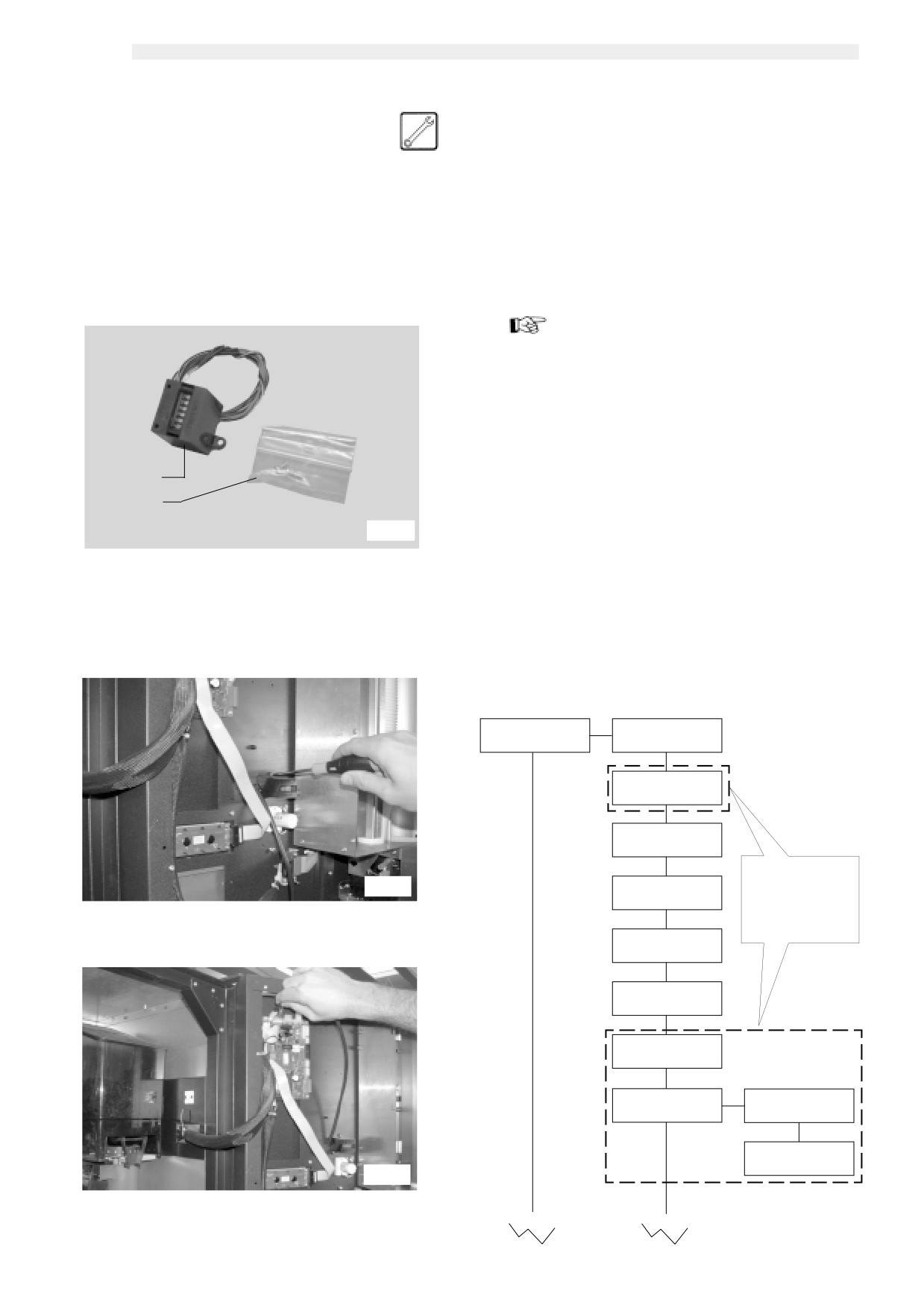

Assembly kit (fig. 3)

a. 1 feeder outlet wiring harness - CPU card

b. 4 screws and spacers

c. 1 feeder inlet wiring harness - CPU card

d. 1 +6Vdc / +12Vdc feeder board

fig. 5

Unplug the four-pin connector from the CPU card (fig. 6).

fig. 3

fig. 6

Installation

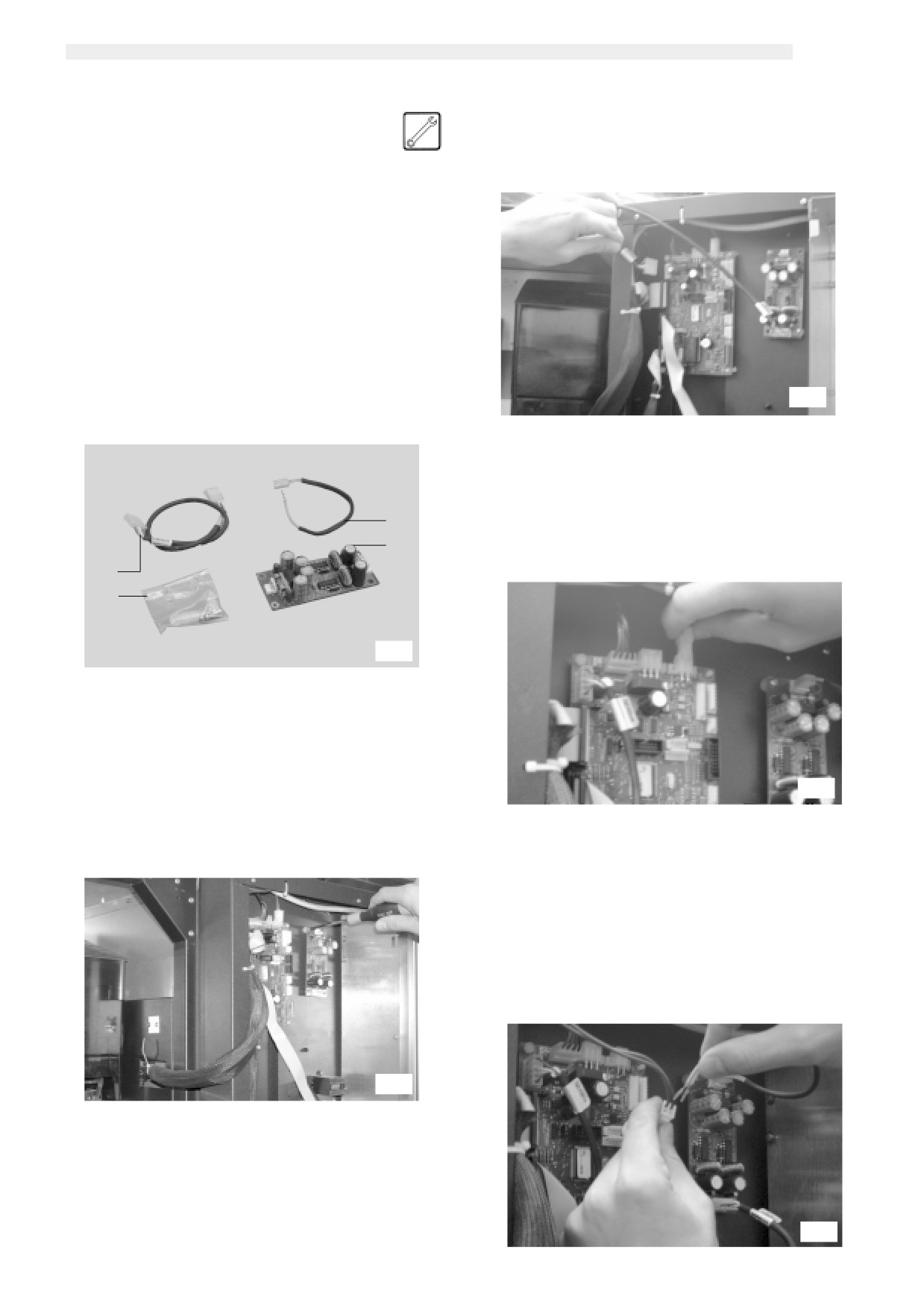

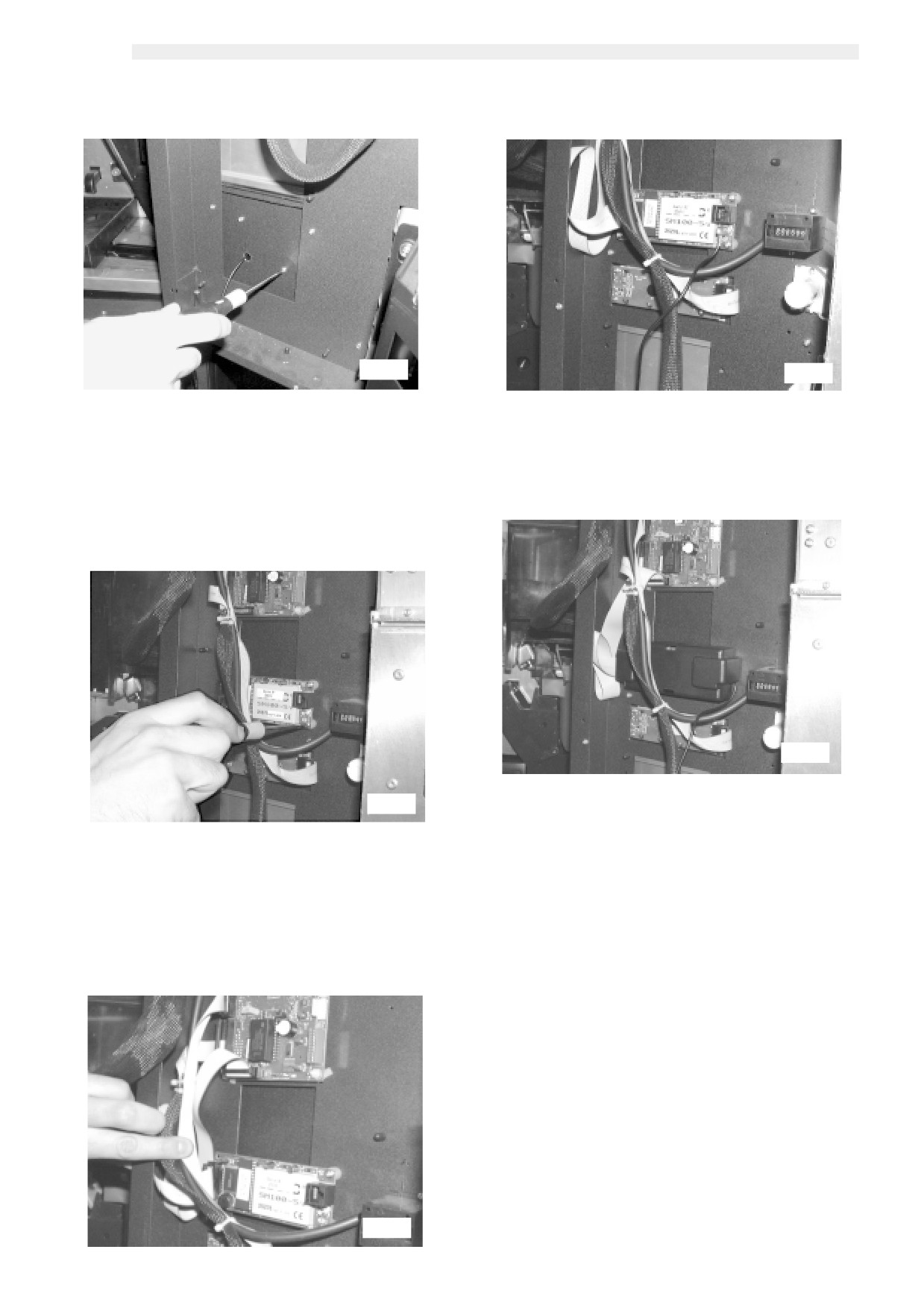

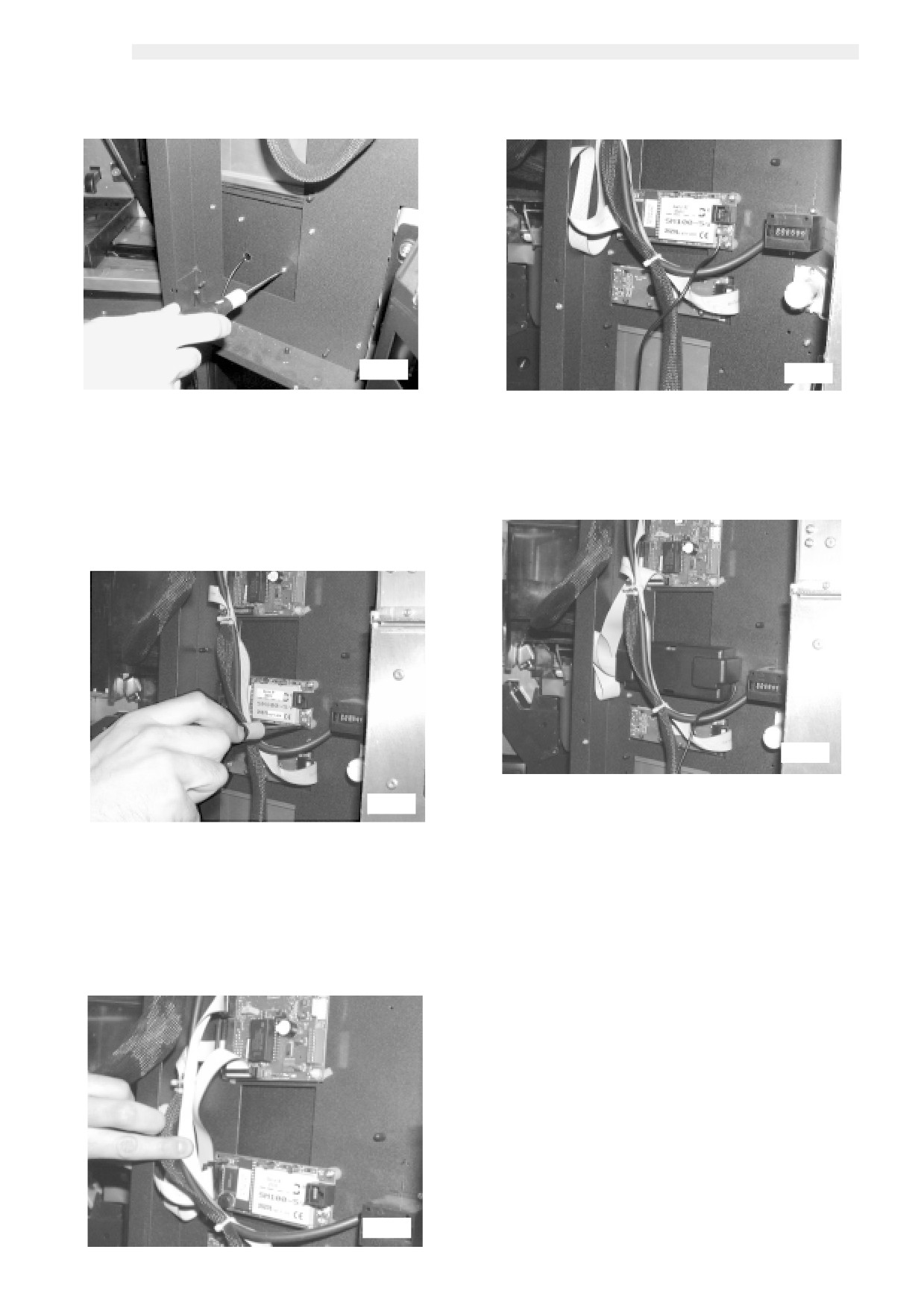

Open the upper door and fasten (fig. 4) the payment system

power supply board (ref. d, fig. 3) to the same door by using

the four screws and spacers (ref. b, fig. 3).

Connect the two-pin connector (ref. c, fig. 3) to the payment

system power supply board. Connect the 2 contacts of the

other end to the 2 free slots of the 4-pin connector that was

previously unplugged from the CPU card (fig. 7).

fig. 4

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

Connect the four-pin connector to the CPU card (fig. 8).

fig. 8

Close the vending machine upper door.

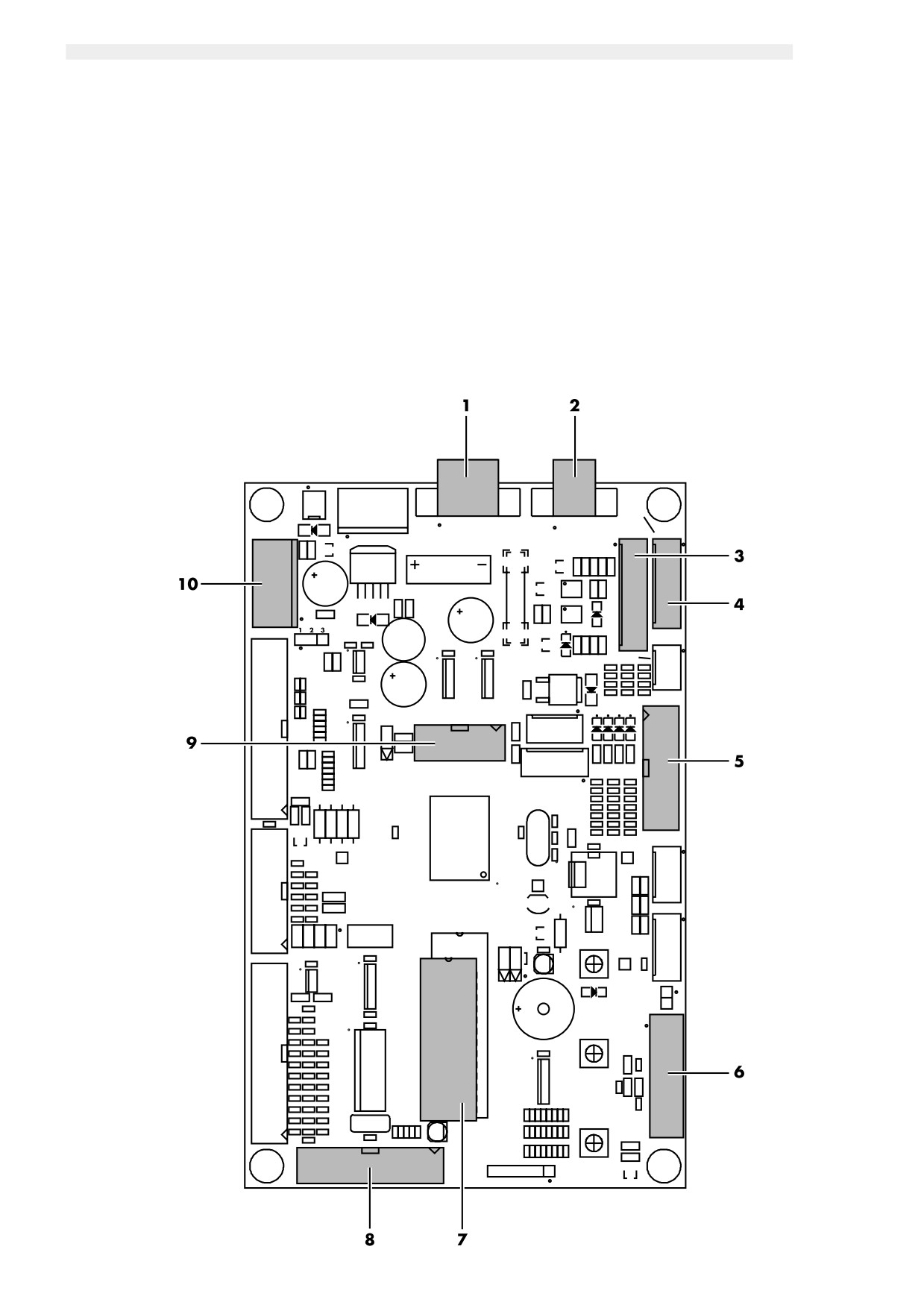

The mains voltage values provided by this feeder can also be

found on CN6 (ref. 3, fig. 1) and CN9 (ref. 8, fig. 1) connectors

of CPU card.

Connector

Description

Voltage

CN6

connector for parallel banknote readers

+12Vdc

CN9

connector for saeco card universal module

+5Vdc or +6Vdc

12,13,14

(see table below)

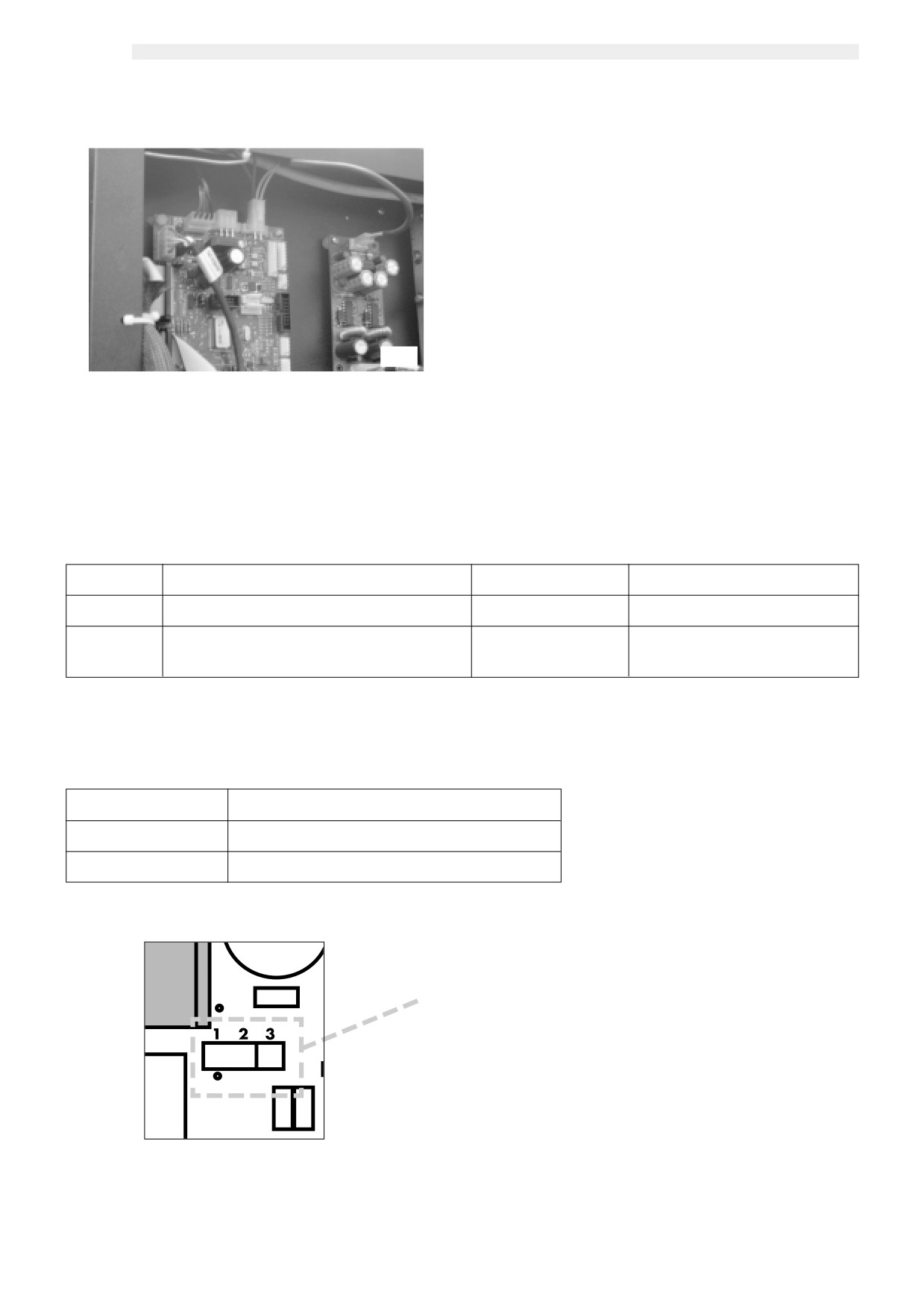

Pin 12, 13, 14 voltage of CN6 is set according to JP8 jumper

position.

JP8 jumper position

Voltage on CN6 12, 13, 14 pins

1-2

+6Vdc

2-3

+5Vdc

JP8 jumper

position

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

Open the upper door and take out the retaining spring from

4 - INDEPENDENT TANK KIT

the left hand pipe (fig. 11).

This kit allows the vending machine to be supplied by means of

an internal tank instead of by the water network. To do this, it is

necessary to use the tank inside the machine as drinking water

hopper. If the machine has not been started for the first time, and

the tank has already been used as discharge fluid tank, it shall be

replaced with a new one.

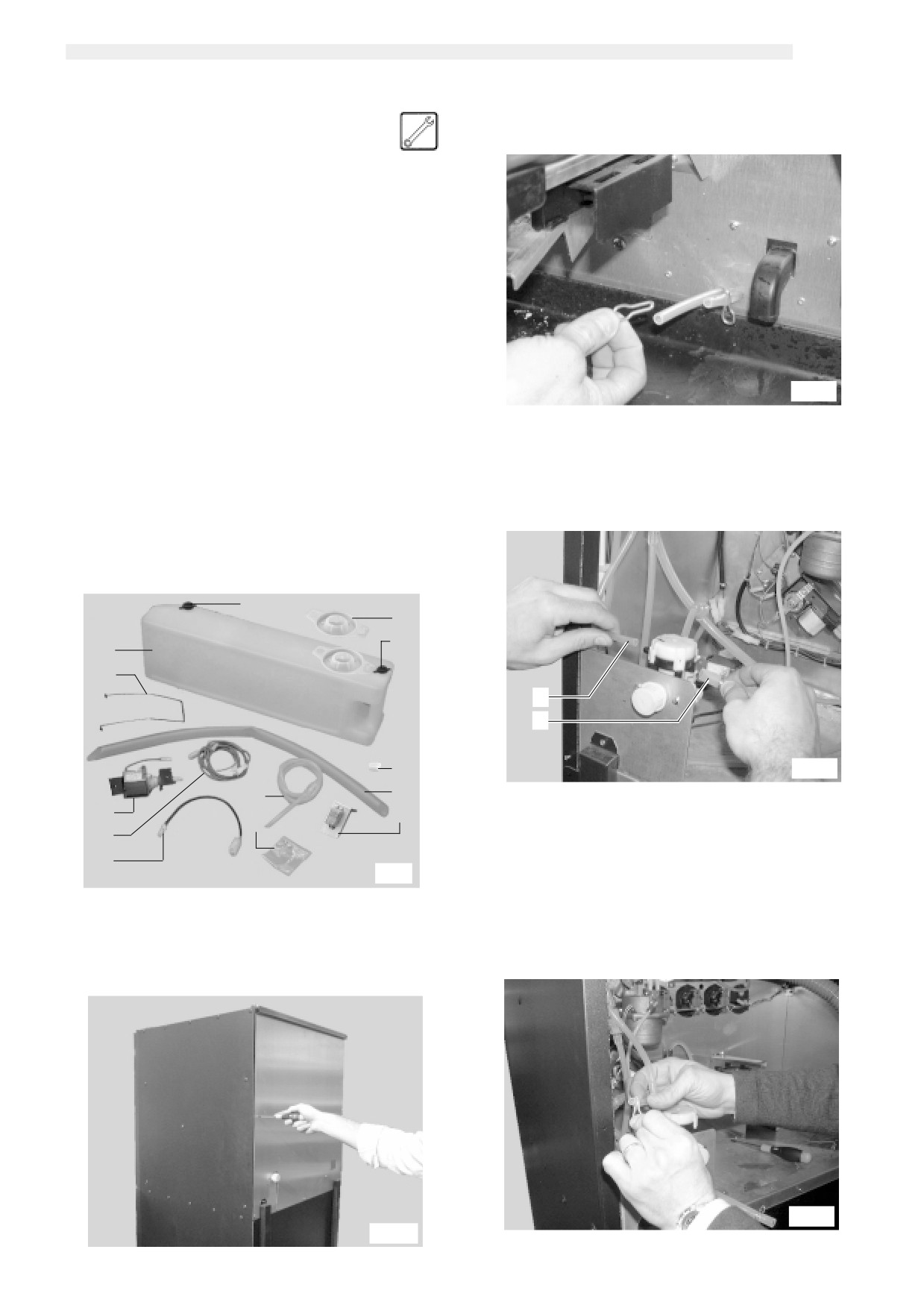

Assembly kit (fig. 9)

a. 1 discharge fluid tank with cap

b. 1 spring for tank

1 pump with supports and pipe fitting

d. 1 pump wiring harness

fig. 11

e. 1 pump feeding wiring

1 cap for spout

g. 1 water inlet pipe

h. 4 screws and washers (two of them measure 4,3x12 and the

other two 4,3x16)

1 perforated cap

Disconnect the two pipes from the water inlet solenoid valve

m. 1 cap for spout

(fig. 12)

n. 1 KAPSTO GPN 350 dia 30 cap

p. 1 PVC drain tube

1 relay with support plate

fig. 12

fig. 9

Installation

Apply the pipe retaining spring (see fig. 11) on the silicone

Remove the machine rear panel (fig. 10) by untightening the

pipe (ref. t, fig. 12) fitted on “T” and previously removed from

screws and disconnecting the ground wiring placed on the

the inlet solenoid valve (fig. 13).

machine.

fig. 13

fig. 10

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

Disconnect the two power supply wirings from the water inlet

Tighten the pump by means of the two screws and two washers

solenoid valve (fig. 14).

4,3x16 (ref. h, fig. 9) to the bottom (fig. 17).

fig. 14

fig. 17

Connect the pipe (ref. s, fig. 12), previously extracted from

the water inlet solenoid valve, to the fitting located on the

pump (fig. 18).

Remove the water inlet solenoid valve (fig. 15).

Withdraw the cap (ref. u, fig. 15). Connect the water inlet

pipe to the pump. Move the other end of the pipe to the

lower part of the vending machine passing through the hole

(ref. u, fig. 15)

fig. 15

fig. 18

Tighten the relay and support plate (ref. r, fig. 9) by using the

screws previously taken from the inlet solenoid valve (fig. 16)

Carry out all the electric connections as indicated by the

diagram below.

fig. 16

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

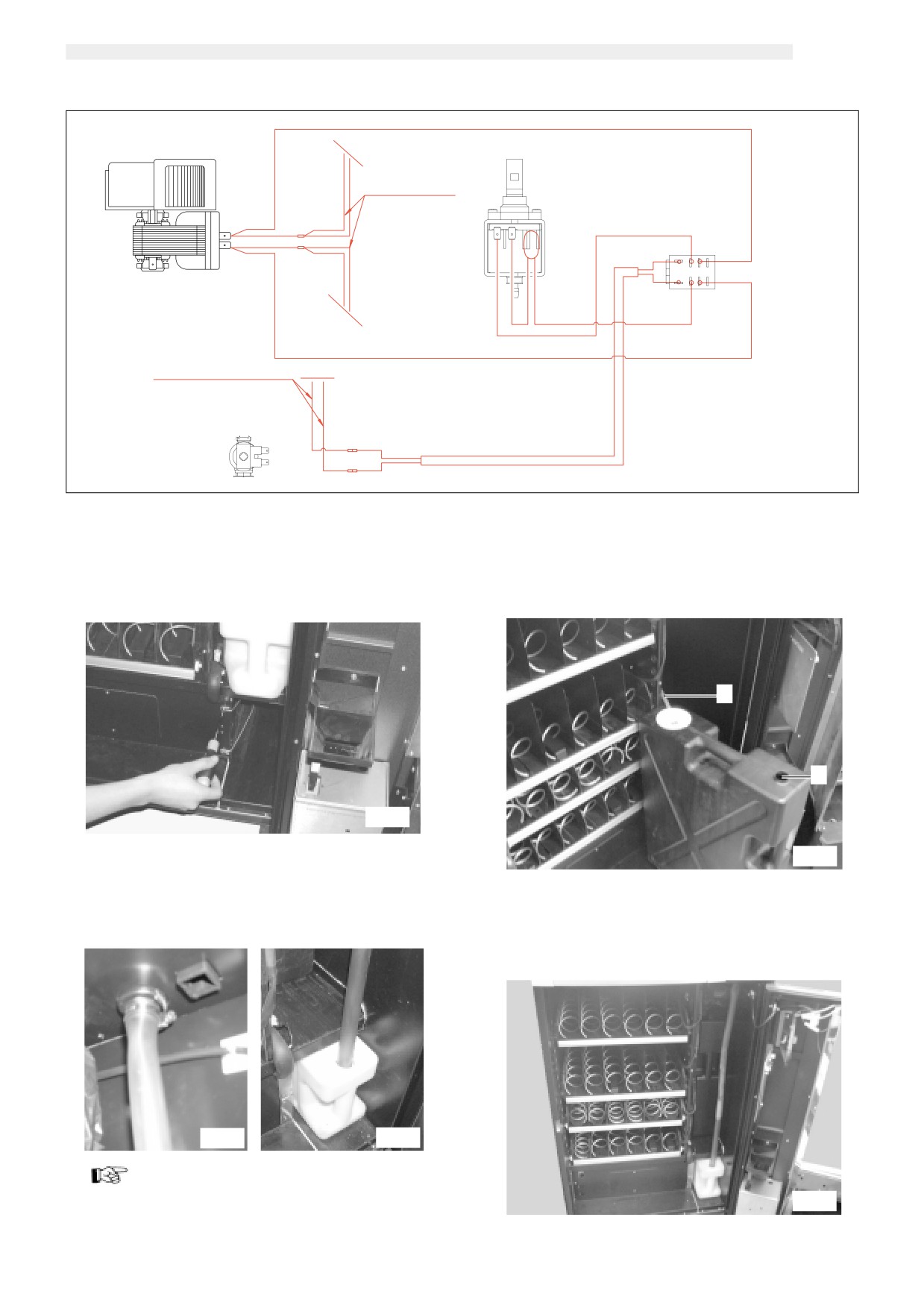

PINK

230V 50Hz

FAN

Power supply wirings

fan motor

PINK

RELAY

PUMP 1

RED

DARK BLUE

PINK

DARK BLUE

BLUE

DARK BLUE

Power supply wirings

inlet solenoid valve

INLET SOLENOID VALVE

DARK BLUE BLUE

24 V D.C.

RED

fig. 19

Reassemble the machine rear panel taking care to reconnect

the earth cable.

Insert the pipe (ref. g, fig. 23) in the perforated cap of the

Open the V.M. lower door.

drinking water tank.

Tighten the spring (ref. b, fig. 9) in the position shown in fig. 29

Fill the drinking water tank.

by using the two screws and two washers 4,3x12 (ref. h, fig. 9).

fig. 20

Replace the pipe fastened to the drain channel (fig. 21) with

fig. 23

the drain tube (ref. p, fig.9). Remove the cap (ref. m, fig. 9)

from the tank. Insert the other end of the pipe in the discharge

Fit the cap on the tank. Place the tank inside the V.M. (fig. 24)

fluid tank (fig. 22). Make sure that the other tank holes are

by sliding the pipe inside the tank itself. Close the hole (ref. v,

properly capped.

fig. 23) by means of the cap (ref. n, fig. 9).

fig. 21

fig. 22

Important

Before removing the tank to empty it, close the pipe hole

fig. 24

using the relevant cap (ref. m, fig. 9). This will help preventing

any liquid spillage due to the surge effect.

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

5 - FLOAT KIT

Slide the other end of the reed

wiring inside the hole (ref. d,

It allows the display to read the discharge fluid maximum level. In

fig. 26) and couple it to the

this condition, no hot beverage is available and the display will

connector (ref. f, fig. 27).

read “ERROR 09”.

The float can be installed in different positions according to whether

the machine is connected to a water network (22 L tank) or uses

an independent tank (7L tank).

fig. 27

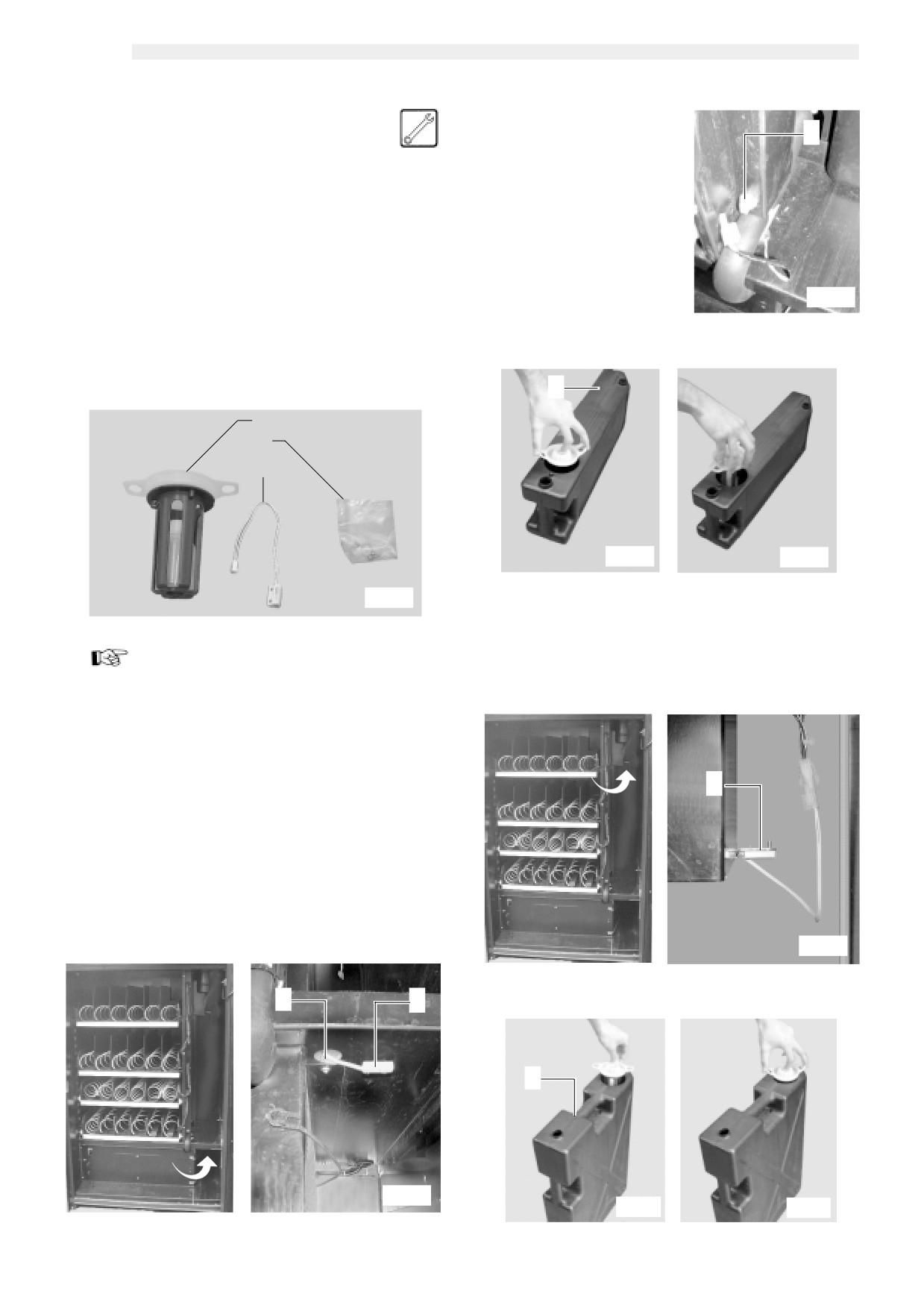

Assembly kit (fig. 25)

Remove the tank cap (fig. 28) and replace it with the discharge

1 basket set for discharge fluid level

level basket set (fig. 29).

2 screws

1 reed wiring

fig. 28

fig. 29

Reinstall the tank.

fig. 25

If it is applied to the water network version, it is necessary to

remove the 22L tank (ref. i, fig. 31) and to fit the reed wiring

Important

(ref. c, fig. 25) by means of the two screws (ref. b, fig. 25)

When assembling the lower level sensor (fig. 26) disconnect

on the square (ref. h, fig. 30). Then, couple the other end to

the higher sensor (fig. 30). The drain level control system

the connector (fig. 30).

doesn’t work if two sensors are connected.

Installation

Open the front lower door.

If it is applied on the independent tank version, it is necessary

to remove the 7 L tank (ref. g, fig. 28) and to assemble the

reed wiring (ref. c, fig. 25) by means of the two screws (ref.

b, fig. 25) according to the position shown in the figure (ref.

e, fig. 26).

fig. 30

Remove the tank cap (fig. 31) and replace it with the discharge

level basket set (fig. 32).

fig. 26

fig. 31

fig. 32

Espresso Italia PTY LTD

Reinstall the tank.

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

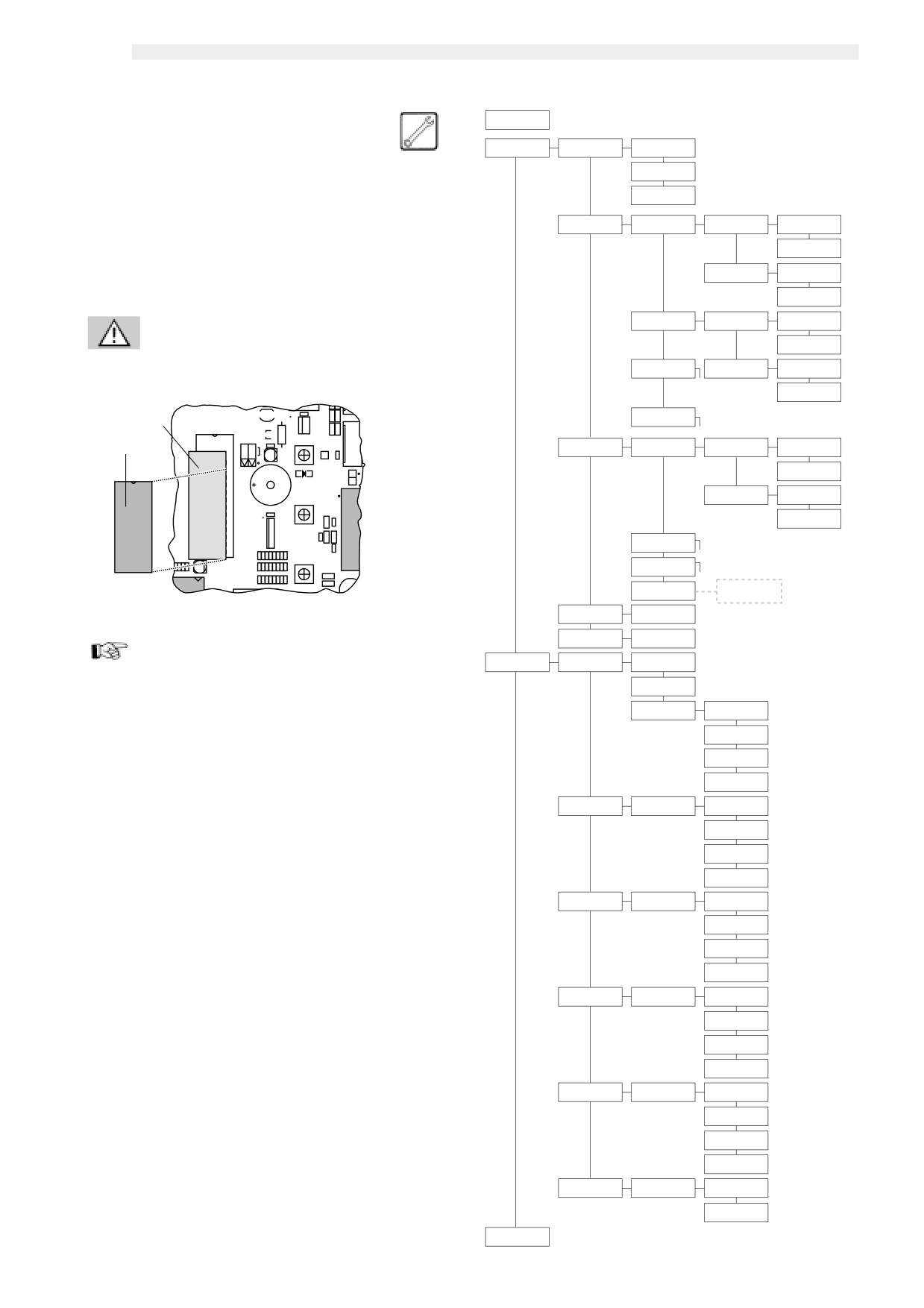

Access the machine programming menu and set “YES” in the

Important

“TANK” menu (fig. 34) to enable the display reading of the

When the tank maximum level is reached, the display will

discharge fluid maximum level.

read “HOT BEVERAGES NOT AVAILABLE” (ERROR 09 code).

In this condition, the V.M. cannot brew hot beverages. It is

In order to properly carry out this operation, disable the safety

therefore necessary to empty the tank. After emptying the

device and press key 1 (fig. 33) to access the programming

tank, the error message will automatically disappear at the

menu.

machine switching on.

If no password has been assigned you enter the programming

menu directly.

Important

If vending machine was assigned a password to enable the

programming menu, “PASSWORD 0000” will appear on

display with a flashing cursor on the first digit.

Now digit the password using UP and DOWN keys. Confirm

the entered digit by means of ENTER key.

To exit the programming menu and return to the normal operation

of the vending machine:

press key 1 again;

remove the key from the safety switch to turn off the vending

machine;

close the door and wait for the self-configuration process to

end.

fig. 33

SISTEM MANAGEMENT

VM CODE

0000

STOP

MIN. TEMPERATURE

098

Entries selectable

MAX. TEMPERATURE

108

only with complete

menus

COLD TEMPERATURE

COMPRESSOR

YES

DRAINAGE TANK

>Y<

fig. 34

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

To enable the counting of coffees or beverages brewed, access

6 - PULSE COUNTER KIT

the machine programming menu and set “COFFEE” or

“BEVERAGES” in the “PULSE COUNTER” menu (fig. 38).

The vending machine can be fitted with an electromechanical

pulse counter (24V DC) which will count the number of coffees or

In order to properly carry out this operation, disable the safety

the total beverages brewed by the machine.

device and press key 1 (fig. 33) to access the programming

menu.

Assembly kit (fig. 35)

a. 1 pulse counter with support

If no password has been assigned you enter the programming

b. 2 screws

menu directly.

Important

If vending machine was assigned a password to enable the

programming menu, “PASSWORD 0000” will appear on

display with a flashing cursor on the first digit.

Now digit the password using UP and DOWN keys. Confirm

the entered digit by means of ENTER key.

To exit the programming menu and return to the normal operation

of the vending machine:

press key 1 again;

fig. 35

remove the key from the safety switch to turn off the vending

machine;

close the door and wait for the self-configuration process to

end.

Installation

Open the upper door and fasten the pulse counter (ref. a, fig.

35) to it (fig. 36) by means of the two screws (ref. b, fig. 35).

SISTEM MANAGEMENT

VM CODE

0000

STOP

MIN. TEMPERATURE

098

Entries selectable

fig. 36

MAX. TEMPERATURE

108

only with complete

menus

Couple the pulse counter wiring with the “CN14” connector

COLD TEMPERATURE

of the board (fig. 37).

COMPRESSOR

YES

DRAINAGE TANK

MECH. COUNTER

COFFEE

MECH. COUNTER

BEVERAGES

fig. 37

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

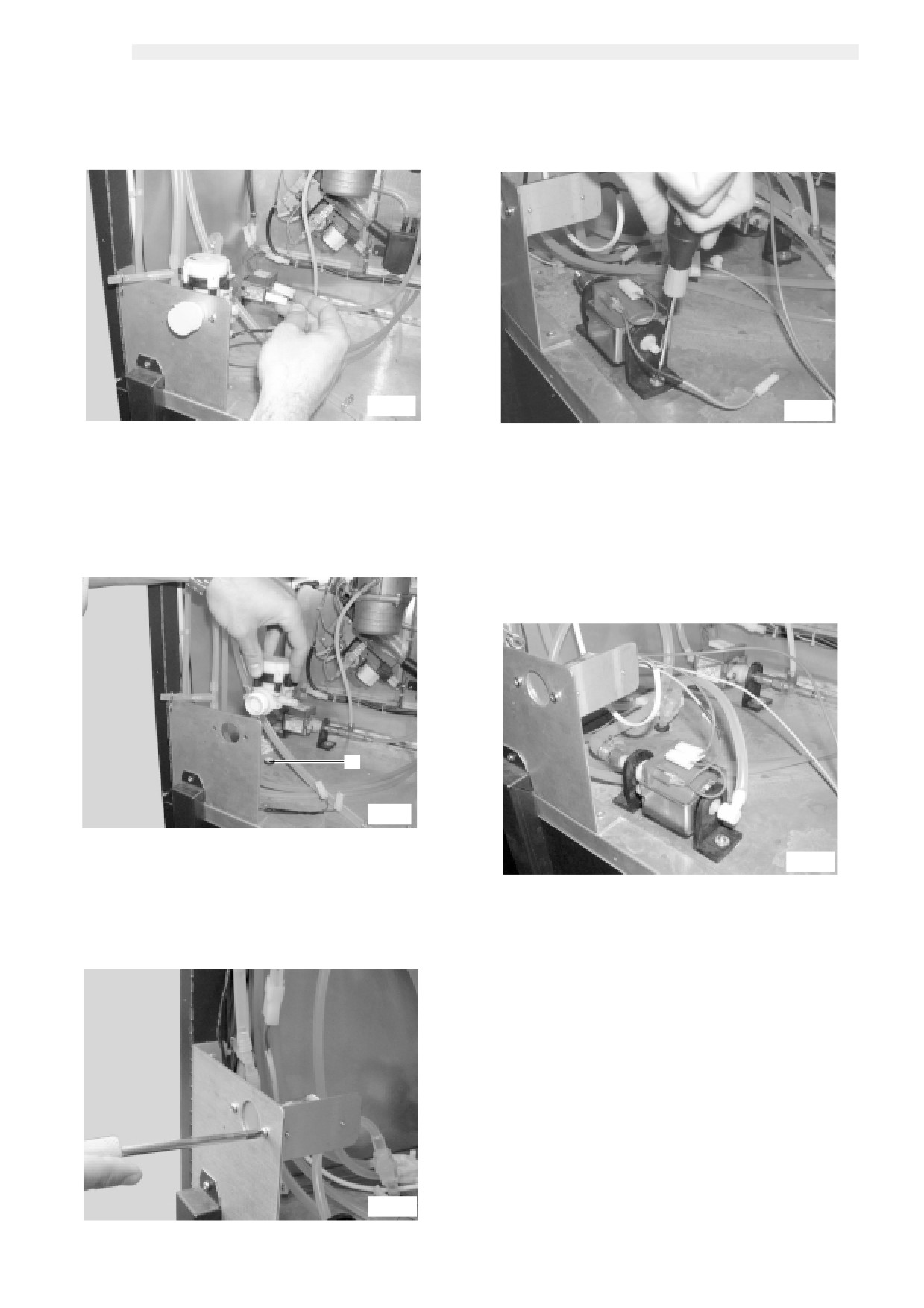

Open the upper door and loosen the screw (fig. 42) fixing

7 - WATER SOLENOID

the block support plate.

VALVE KIT

It is possible to brew hot water alone by installing the required kit

Assembly kit (fig. 39)

a. 1 water pipe set

b. 1 OR, pipe clamp and 1/8" H4,5 nut

1 two-way solenoid valve

fig. 42

fig. 39

Remove the hopper (Fig. 43).

Installation

Remove the machine rear panel (fig. 40) by untightening the

screws and disconnecting the ground wiring placed on the

machine.

fig. 43

fig. 40

Loosen the two screws fixing the block support plate (fig. 44).

Unscrew the cap inserted on the solenoid valve block (fig.

41) and hold the latter to avoid any excessive stress to the

block support plate.

fig. 44

fig. 41

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

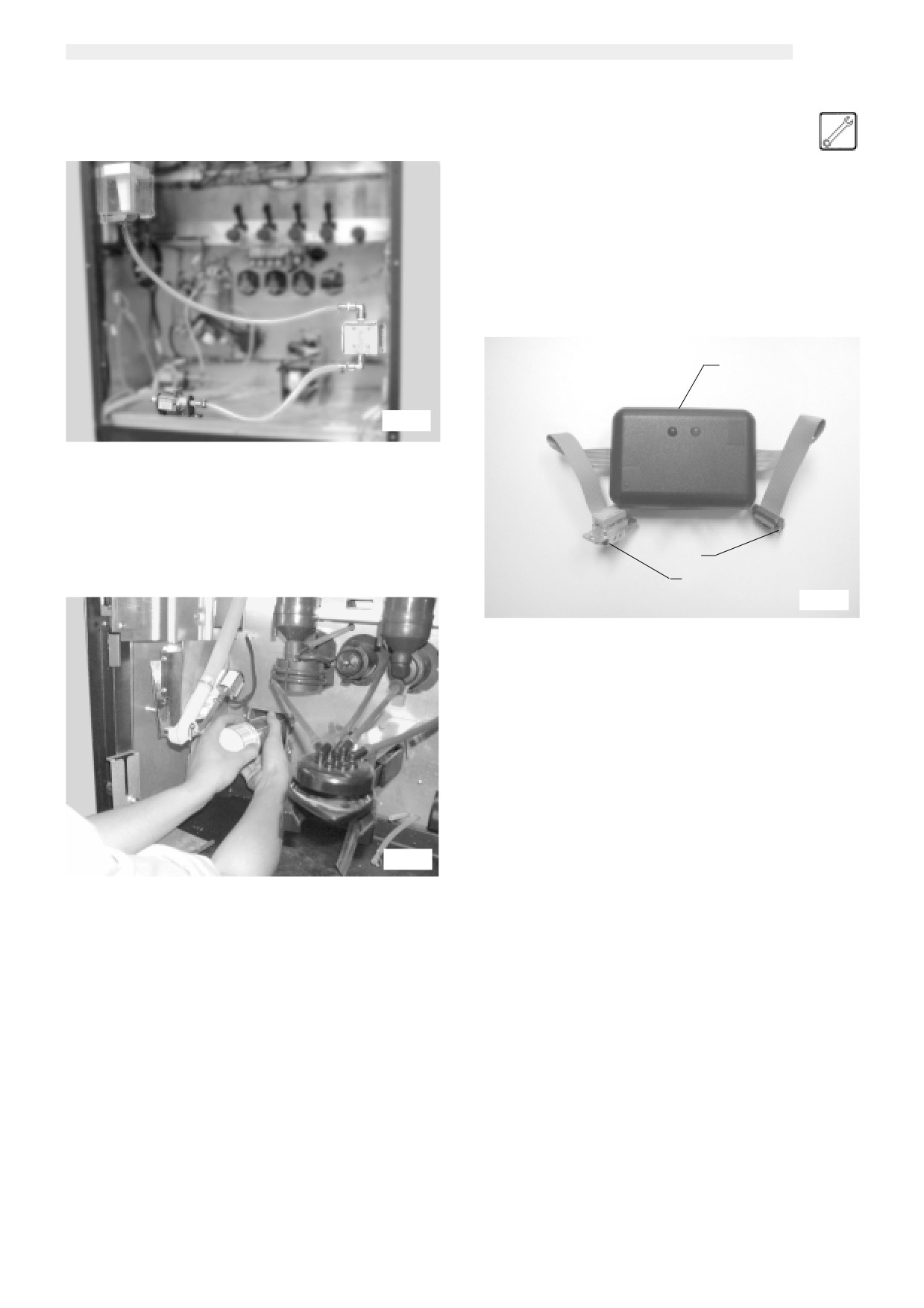

Screw the nut and fix the OR (ref. b, fig. 39) on the 2-way

Insert the pipe clamp (ref. b, fig. 39) on pipe (ref. a, fig. 39).

solenoid valve (ref. c, fig. 39). Remove the block support

Then, fasten the pipe (fig. 48) at the solenoid valve outlet and

from its seat and screw the solenoid valve in the hole (fig. 45)

position the pipe retaining spring.

previously cleared from its cap (fig. 41). The solenoid valve

Slide the other end of the pipe inside the assembly plate

must be placed with fastons upwards

passage hole (ref. d, fig. 48).

Reinstall the block support in their seat and tighten the screws.

Reassemble the machine rear panel.

fig. 45

fig. 48

Fasten the pipe end with fitting to the spout (fig. 49).

Remove the clamp (fig. 46) that fastens the two unused cables.

fig. 46

fig. 49

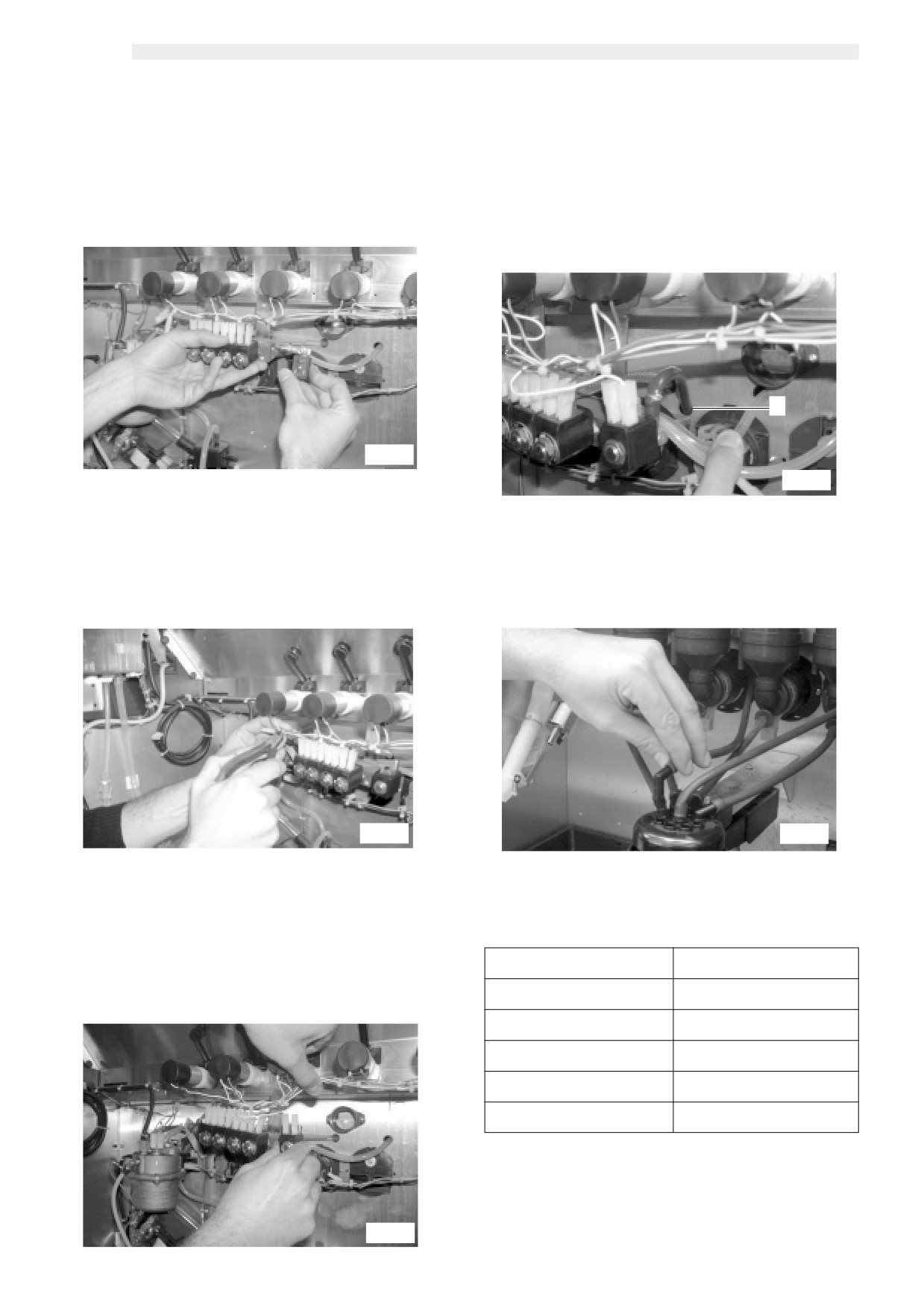

To brew hot water alone, it is necessary to set the beverage

associated with the required key according to the following

parameters:

Connect the 2 free cables to the solenoid valve taking care to

Parameter

Value

insert the red cable on the left and the white cable on the

Sequence

0001

right.

Soluble product quantity 1

H2O soluble product quantity 1

Set the required water quantity

% soluble 1

100

sugar

Close the vending machine upper door.

fig. 47

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

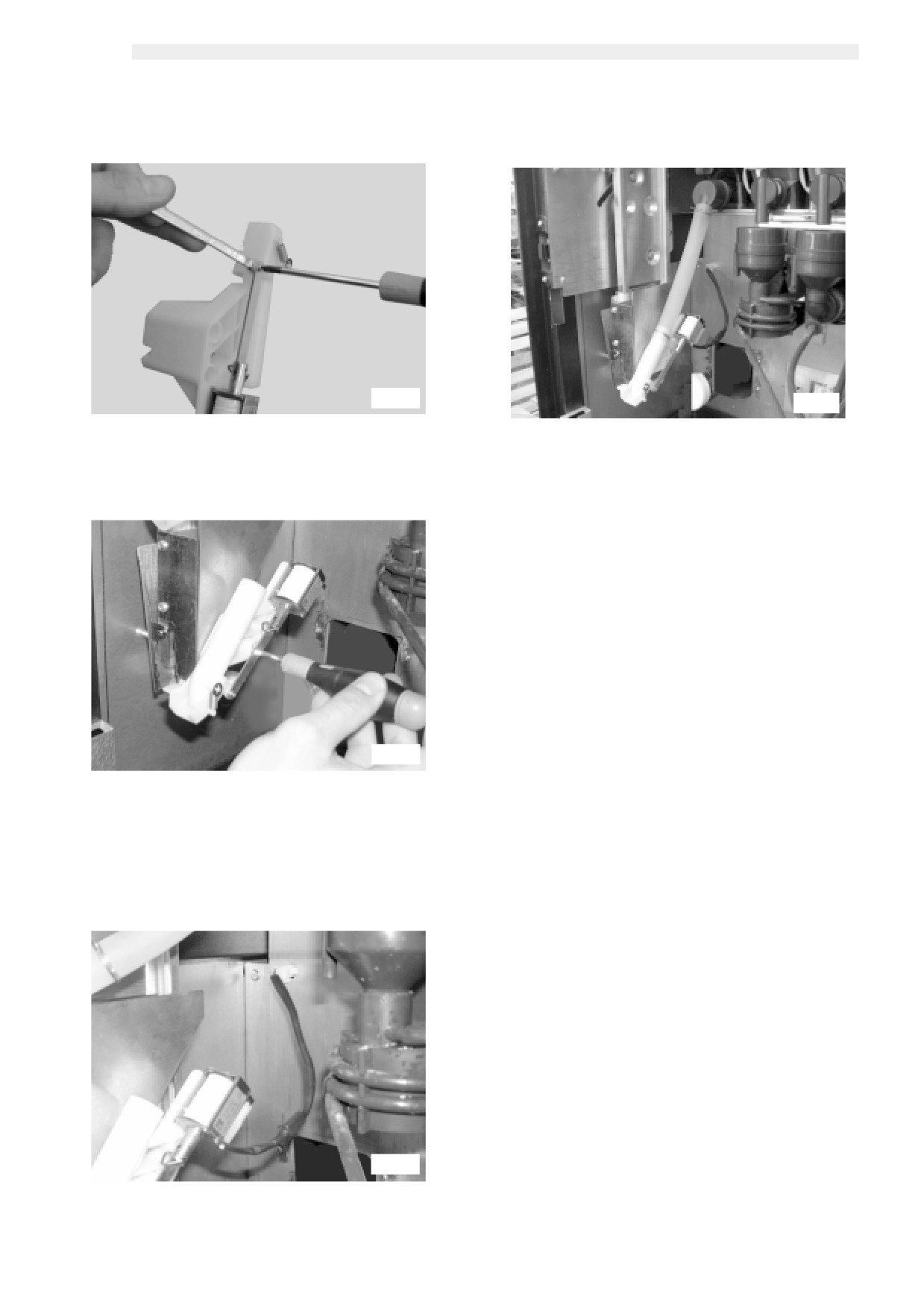

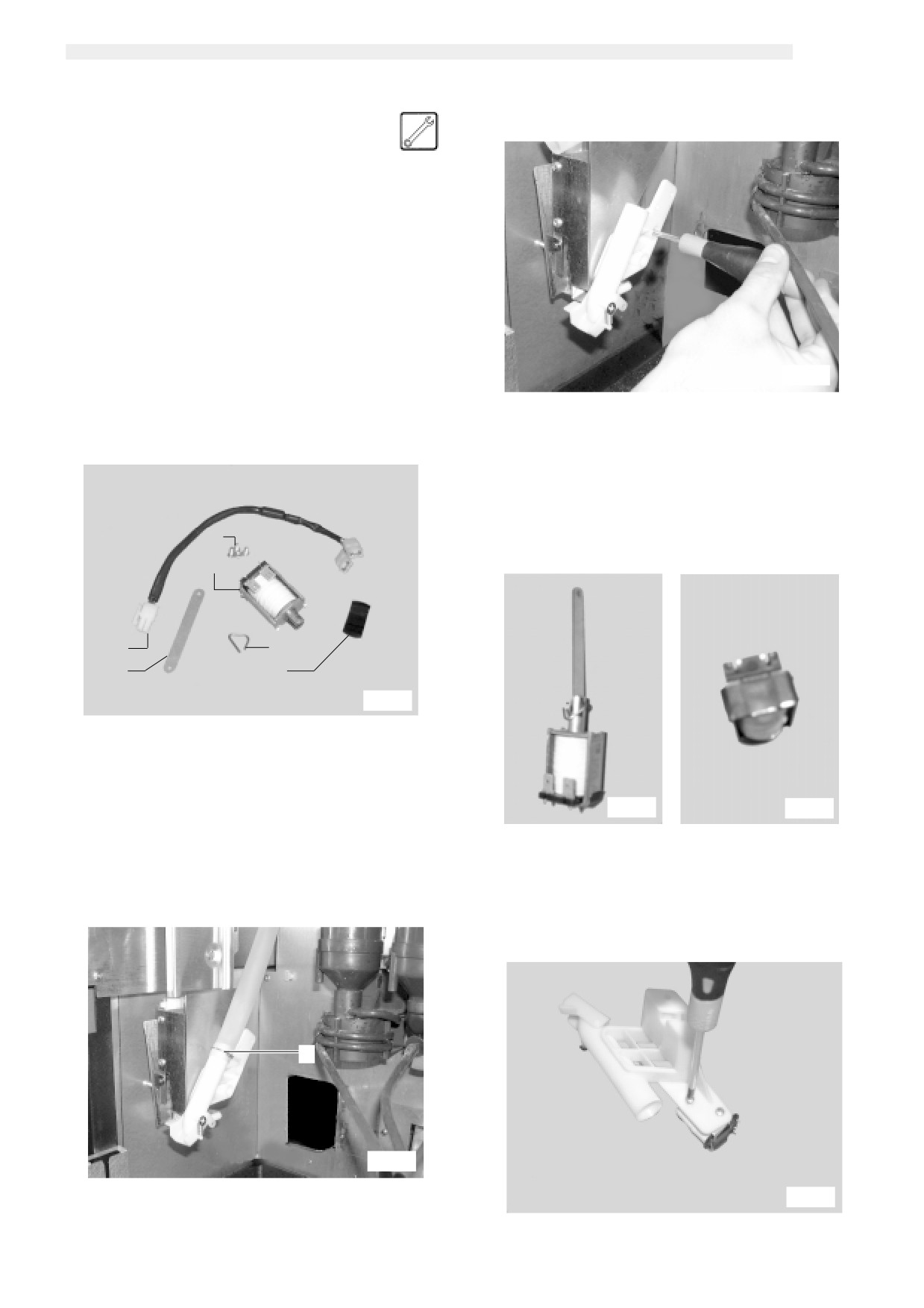

Disassemble the sugar-dispensing channel (Fig. 52).

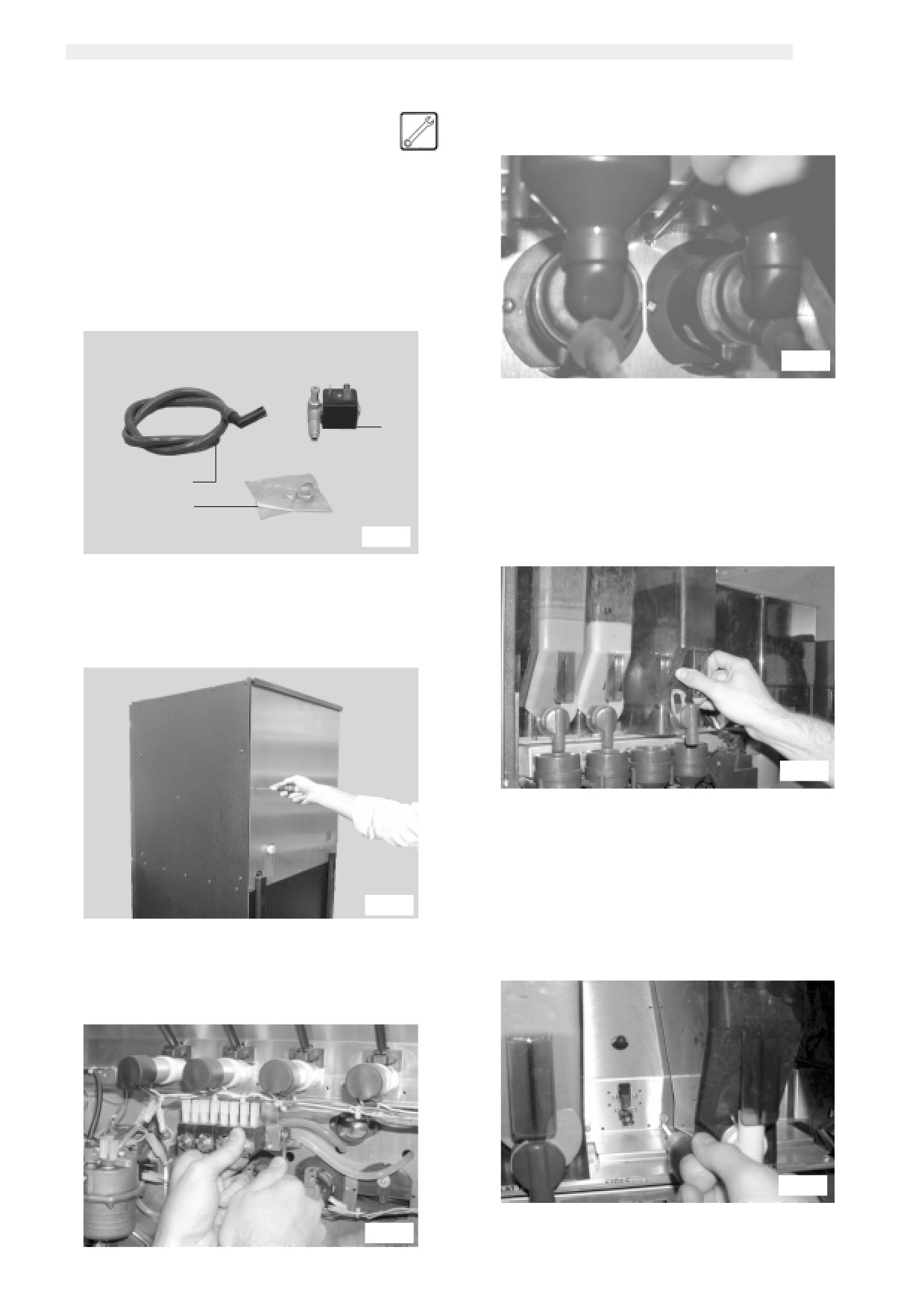

8 - SUGAR COIL KIT

This kit allows the sugar door opening only when required, since

an electromagnet controls it. This prevents any sugar grain from

accidentally falling when the “without sugar” option has been

selected.

Assembly kit (fig. 50)

a. 1 two-pin connector

b. 1 connecting rod

2 M3x6 screws, 1 M3x8 screw and 1 M3 nut

d. 1 relay electromagnet

e. 1 spring

1 sticker

fig. 52

Install the connecting rod (ref. b, fig. 50) on the electromagnet

piston (ref. d, fig. 50) by means of the spring (ref. e, fig. 50)

to obtain the unit shown in fig. 53.

Apply the sticker (ref. f, fig. 50) to the electromagnet (fig. 54)

in order to seal the hole located on the machine housing.

fig. 50

fig. 53

fig. 54

Installation

Open the upper front door.

Remove the sugar-dispensing channel by opening the screw

(ref. g, fig. 51).

Assemble this unit (see fig. 54) on the sugar channel (fig. 55)

by means of two M3x6 screws (ref. c, fig. 50).

fig. 51

fig. 55

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

Open the upper front door.

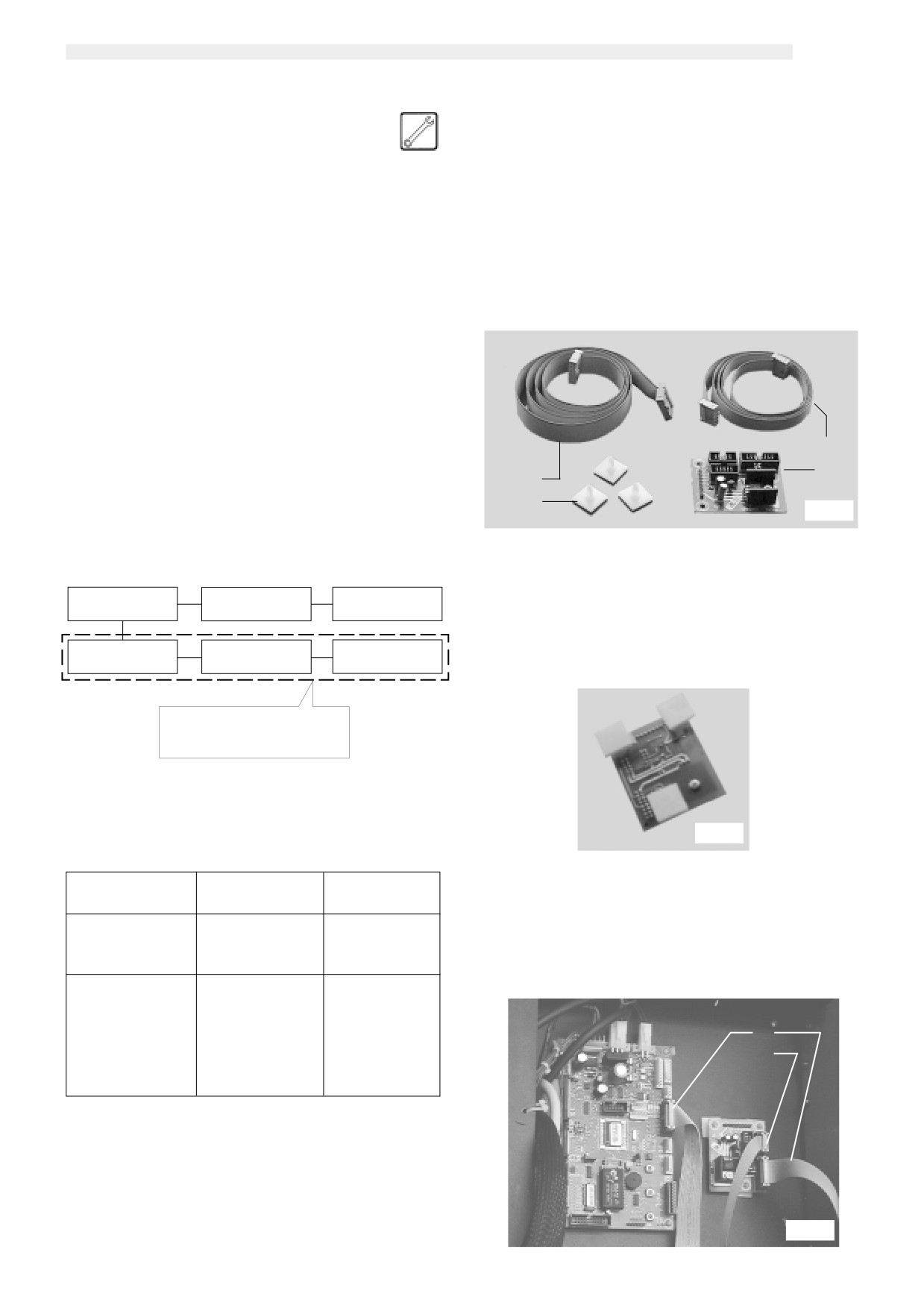

9 - SAECO CARD ASSEMBLY

Loosen the guard fastening screws and remove it (fig. 62).

KIT

Assembly kit (fig. 60)

a. 1 adhesive sheet for drilling

b. 1 guard for universal module

1 flat cable

d. 4 screws and 4 spacers for card

e. 1 Saeco card external antenna

fig. 62

Remove the two screws (fig. 63) of the external antenna; they

will be subsequently used to fasten the antenna to the tile.

fig. 60

Important

To use the Saeco card, the machine must be equipped with a

Time keeper.

Important

If the universal module to be mounted has a 1432.0xx or

1471.0xx code, it will be necessary to use a payment system

feeder kit.

fig. 63

Installation

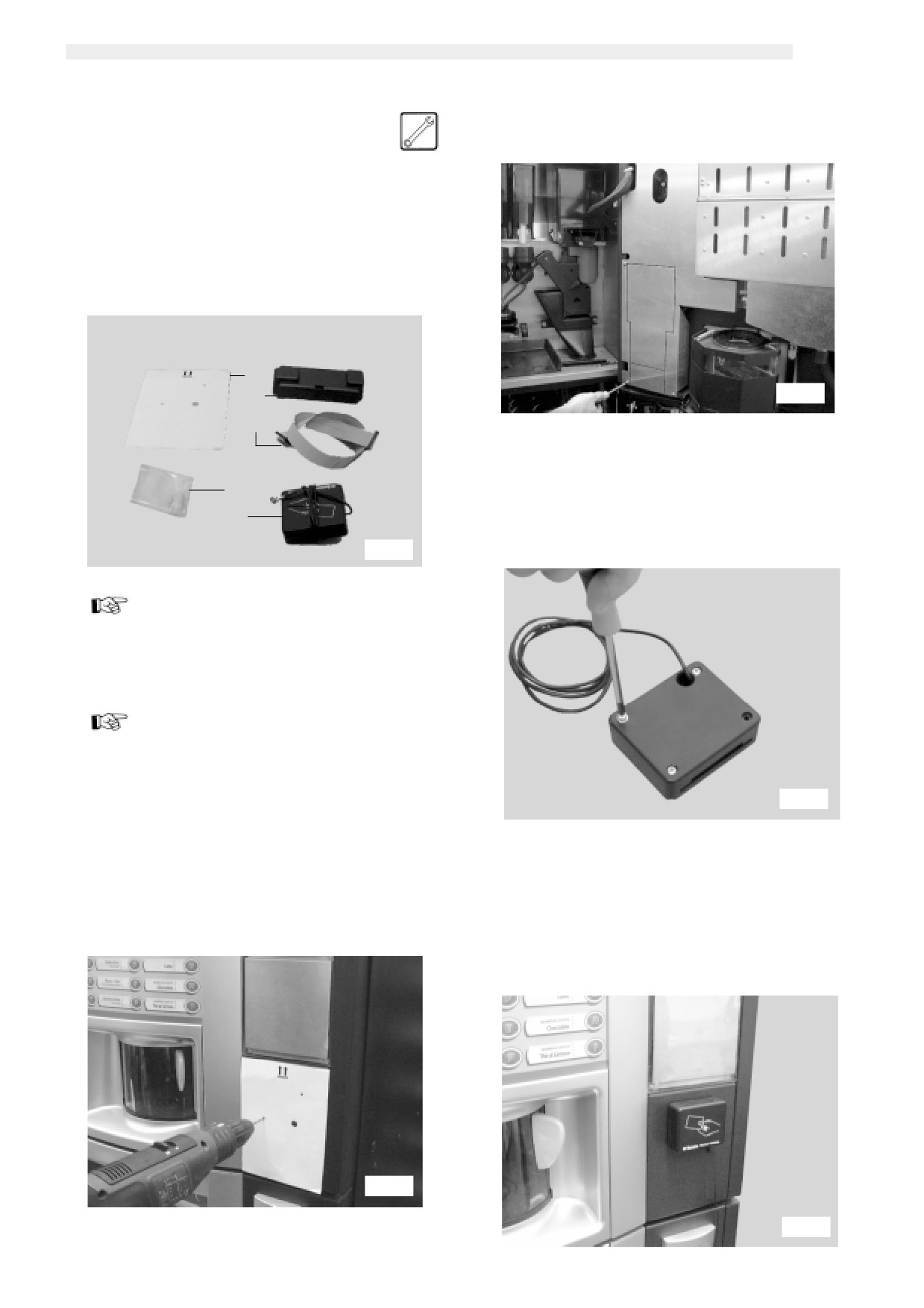

Place the adhesive sheet (ref. a, fig. 60) on the lower tile (fig.

61). Drill according to the diagram on sheet using a 3 dia.

point for the two small holes and a 10 dia. point for the other

hole.

Fasten the antenna on the tile (fig. 64) by sliding the cable

through the 3 dia. hole.

fig. 61

fig. 64

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

9.1 - Saeco card programming

Card maximum recharge

This function allows setting the credit maximum level, beyond

which all recharge operation (if enabled) is ineffective.

The Saeco card module presence (automatically detected by the

By setting MAX CARD LOAD = 20.00, the credit on the V.M.

V.M.) adds the following entries to the PAYMENT SYSTEM

will pass to the card if their sum does not exceed 20.00.

programming menu

Reject card

This function allows setting the credit maximum level, beyond

which the card is rejected by the system.

By setting MAX VALUE ACCEPTED = 25.00, the V.M. will

SAECO CARD

RECHARGE

YES

>Y<

reject all cards having a credit exceeding this amount. In

case this card is detected, the display will not read the credit

PRICE DIFFERENTIAL

but an

“

----------

“ message and will not carry

YES

>Y<

out any dispensing.

MAX CARD LOAD

Free Card

60000

65000

It allows enabling or disabling the use of free service cards.

By setting FREE CARD = NO, no free service card will be

MAX VALUE ACCEPTED

accepted by the vending machine.

70000

65000

FREE CARD

YES

>Y<

Entry description:

Recharge

It allows disabling or enabling any saeco card recharge

operations.

By setting RECHARGE = NO the V.M. will only deduct the

cost from saeco cards

Card prices

This function allows applying differentiated prices in case of

card use for the beverage payment.

By setting PRICE DIFFERENTIAL = YES a new menu entry will

appear in PRICE MANAGEMENT, which will allow setting

the price level to be applied to the product (beverage or

snack) in case of saeco card use.

BEVERAGE PRICES

NORMAL

BEVERAGE PRICES

DIFF. 1

PREZZI BEVANDE

DIFF. 2

BEVERAGE PRICES

CARD

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

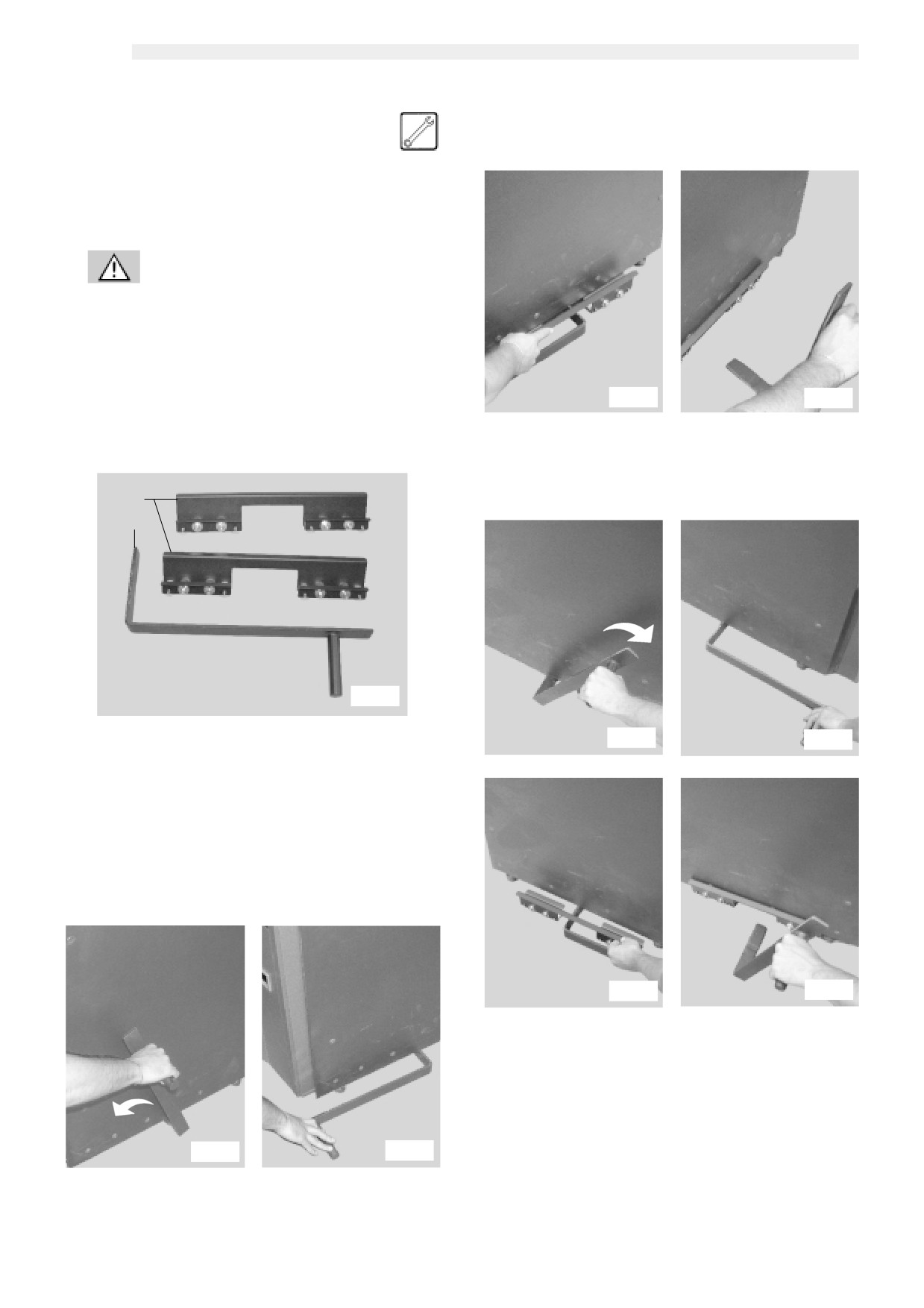

Insert the carriage set under the V.M. (fig. 73), move the lever

10 - HANDLING KIT

back to its initial position, then remove it from under the

machine (fig. 74).

This kit allows easy handling of the vending machine in order to

carry out any maintenance operations and to place it in narrow

spaces.

Warning

During handling operations be extremely careful in order to

avoid any limb crushing. The handling operations can

exclusively be carried out by skilled personnel.

Assembly kit (fig. 70)

a. 2 carriage sets

fig. 73

fig. 74

b. 1 lever

Repeat the same operations for the other side of the vending

machine (fig. 75, 76, 77, 78). By inserting the second

carriage, it is possible to handle the machine.

fig. 70

fig. 75

fig. 76

Installation

Insert the lever under the vending machine. Rotate the lever to

lift the machine (fig. 71 and 72). The lever position shall

allow the carriage set to be subsequently inserted.

fig. 77

fig. 78

fig. 71

fig. 72

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

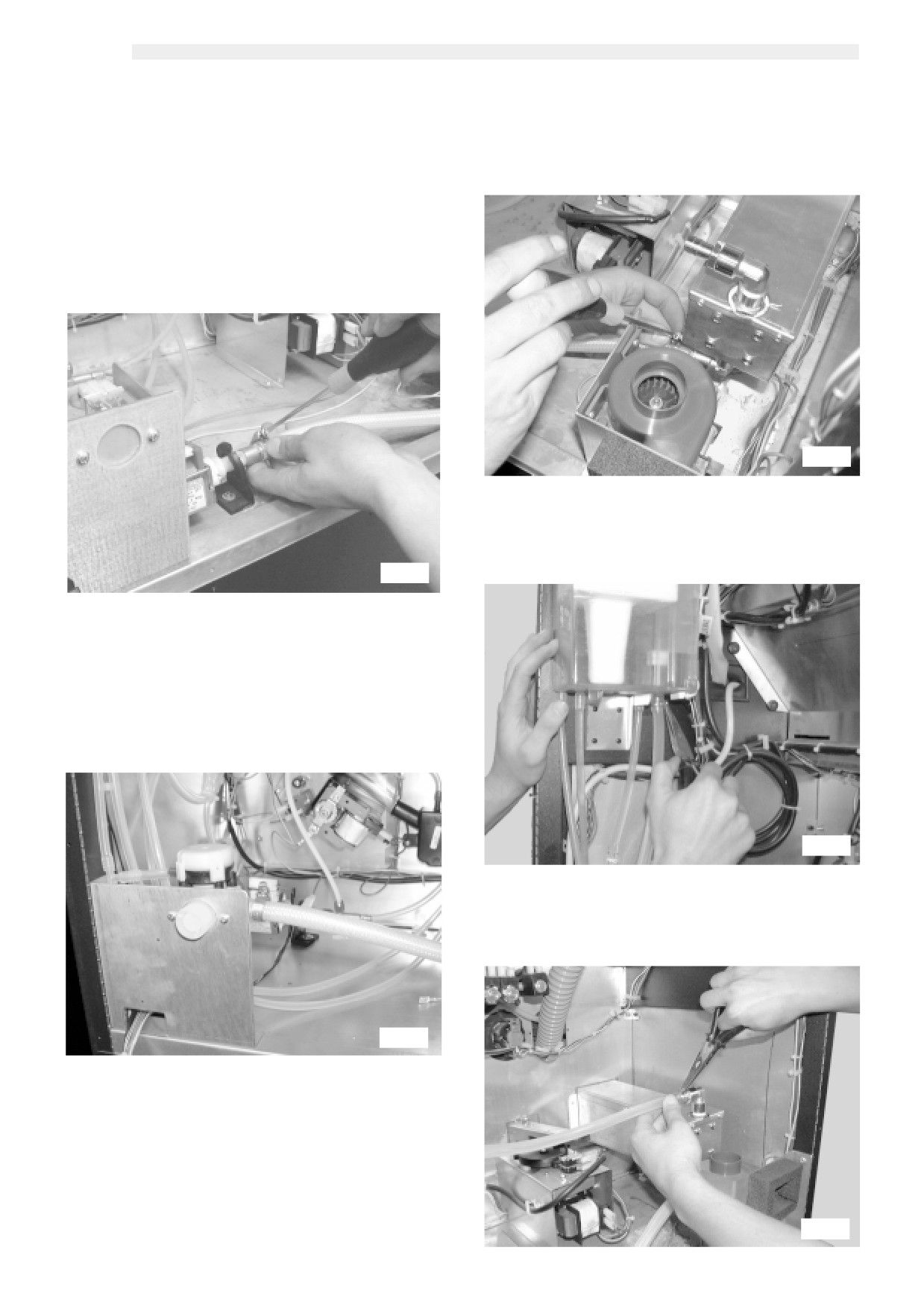

Assemble the cover (ref. b, fig. 79) on the support (ref. c, fig.

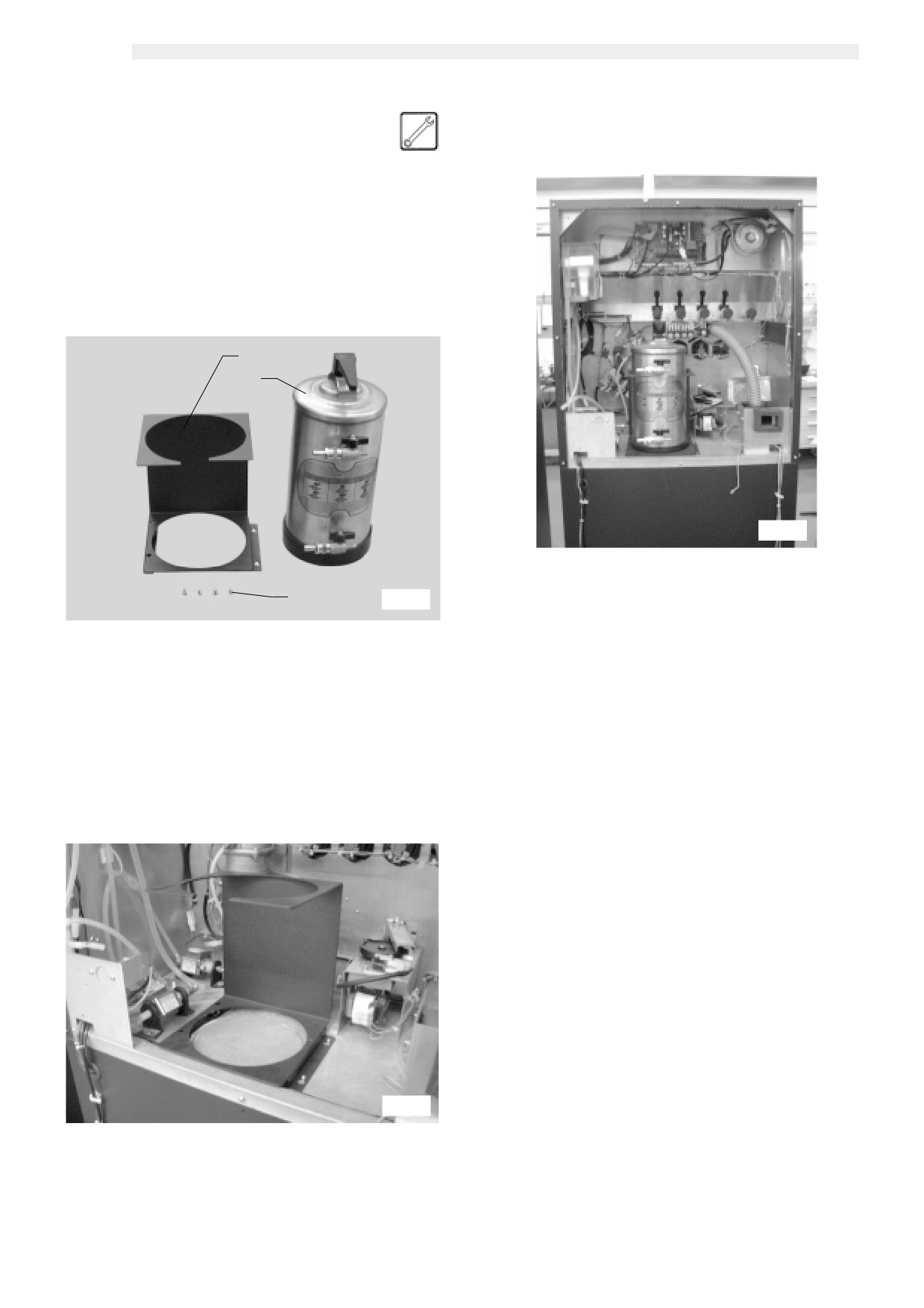

11 - BRITA PURIFIER KIT

79) and tighten it by using the 4 screws (ref. d, fig. 79). Then

screw the 2 fittings (ref. a, fig. 79) inside the holes following

It is possible to install a filter, manufactured by Brita Company, on

the right orientation, as shown in fig. 81.

the vending machine, in order to decalcify water and eliminate

all unpleasant smells.

Assembly kit (fig. 79)

a. 2 fittings

b. 1 cover for filter cartridge support

1 filter cartridge support

d. 4 screws for filter cartridge support cover

e. 4 screws for cartridge head

f. cartridge head (not supplied)

g. Brita Aquaquell cartridge (not supplied)

h. 1 air break pipe

2 pipe clamps

2 pipe retaining springs

m. 1 pump pipe

fig. 81

Remove the machine rear panel and open the upper front

door.

Remove the hole-closing panel.

Assemble the cartridge support set (fig. 81) and fasten it by

means of the 4 screws (fig. 82 e 83)

fig. 79

Installation

Insert the head (ref. f, fig. 79) into the support (ref. c, fig. 79)

fig. 82

carefully following the required sense (fig. 80). Fasten the

head to the support by means of the 4 screws (ref. e, fig.

79).

fig. 80

fig. 83

Espresso Italia PTY

LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

The following operation differs according to whether the machine

Insert the other clamp (ref. i, fig. 79) into the pipe free end

is connected to a water network or if it uses an independent tank

(ref. m, fig. 79) and the latter into the lower fitting of the

cartridge support set (ref. a, fig. 79). Tighten the clamp screw

(fig. 86).

- Independent tank

Insert the clamp (ref. i, fig. 79) into the pipe (ref. m, fig. 79)

and the latter into the pump fitting. Tighten the clamp screw

(fig. 84).

INDEPENDENT TANK

fig. 86

Insert the spring (ref. i, fig. 79) into the pipe (ref. m, fig. 79)

and the latter into the air break fitting (fig. 87).

fig. 84

- Water network

Insert the clamp (ref. i, fig. 79) into the pipe (ref. m, fig. 79)

and the latter into the water inlet solenoid valve fitting. Tighten

the clamp screw (fig. 85).

WATER NETWORK

fig. 87

Insert the other spring (ref. l, fig. 79) into the pipe free end

(ref. h, fig. 79) and the latter (fig. 88) into the upper fitting of

the cartridge support set (ref. a, fig. 79).

fig. 85

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

The pipe connection logic is clearer in fig. 89, since some

12 - RS 232 INTERFACE BOX

plates have been removed.

The RS232 interface box allows connecting the automatic vending

machine to a PC, in order to transfer statistic data.

Assembly kit (fig. 91)

a. 1 TTL-RS232 level adapter

fig. 89

Insert the cartridge and tighten it (ref. g, fig. 79) clockwise

(fig. 90).

fig. 91

Installation

Insert the flat cable (ref. b., fig. 91) on the machine CPU

relevant connector to carry out the connection. Then insert the

other flat cable (ref. c, fig. 91) into the PC serial cable.

The interface box is supplied with 2 LEDs. When they

alternatively blink, this means that the V.M. and the P.C. are

communicating.

It is advisable to carry out all the electrical connections while

the V.M. and the PC are both switched off.

fig. 90

Reassemble the rear panel and close the upper front door.

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

14 - PROGRAMMING KEY

15 - 12V PARALLEL COINER KIT

The programming key allows the set data transfer in the following

Allows to use 12Vdc parallel coin selectors.

programming menu entries:

PRICE MANAGEMENT. All data can be transferred;

Assembly kit (fig. 95)

a. 16-pole flat cable

TIME MANAGEMENT. All data can be transferred;

b. 3 adhesive spacers

10-pole flat cable

PAYMENT SYSTEMS. All data can be transferred;

d. Interface card

SYSTEM MANAGEMENT. All data can be transferred,

expect the PASSWORD.

To properly use the programming key, do as follows:

open the vending machine front door;

insert the programming key into the connector (ref. 6, fig. 1).

switch on the vending machine.

fig. 95

The copy key presence enables the following menu display:

Installation

Open the upper door and slide the keypad carter up. Insert

DATA TRANSFER

the 3 adhesive spacers (fig. 95, b) into the special holes of the

COPY VMC - > KEY

0..50..99%

DATA TRANSFERRED

interface card (fig. 95, d) and remove their protective paper

(fig. 96). Fasten the card in the most convenient position for

DATA TRANSFER

COPY KEY - > VMC

0..50..99%

DATA TRANSFERRED

the user.

This is only displayed if the data on

the key comes from a vending

machine of the same type.

fig.96

The allowable operations are the following:

Display message

Operation

Notes

Insert the 16-pole flat cable (fig. 95, a) into the special seats

of the CPU card and interface card (see fig. 97, e).

DATA TRANSFER

copy of vending

This operation is

Insert the 10-pole flat cable (fig. 95, c) into the interface card

COPY VMC ==> KEY

machine data on the

always possible.

seat (see fig. 97, f), then connect the other end of the 10-pole

key

flat cable to the 12V parallel selector.

DATA TRANSFER

copy of key data on

This operation is

COPY KEY ==> VMC

the vending machine

only possible if the

data on the key

comes from a

vending machine

of the same type.

Any possible data transfer error is shown on the display through

the “TRANSFER KEY - ERROR IN KEY DATA” message. Should

this message appear, repeat the transfer procedure, and if the

error is not removed, please contact the AUTHORIZED

CUSTOMER SERVICE CENTER.

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

PASSWORD

16 - CLOCK MODULE

PRICE MANAGEMENT

PRICE VALUE

INSERTION

PREZZO 001: 50

PRICE VALUE

(TIME KEEPER)

PRICE 002: 250

PRICE VALUE

PRICE n: 550

BEVERAGE PRICES

SET

GLOBAL

To insert the clock module, do as follows:

NORMAL

GLOBAL

001:200 ABCDEFGHI

open the vending machine front door;

GLOBAL

nnn:500 ABCDEFGHI

insert the clock module into the CPU card connector (7 - Fig.

SET

SINGLE

001:200 ABCDefghi

1).

SINGLE

nnn:500 abcdEFGHI

BEVERAGE PRICES

SET

GLOBAL

DIFF 1

GLOBAL

001:200 ABCDEFGHI

GLOBAL

Warning

nnn:500 ABCDEFGHI

BEVERAGE PRICES

SET

SINGLE

Insert the clock module A from the lower part of connector B.

DIFF 2

SINGLE

001:200 ABCDefghi

SINGLE

nnn:500 abcdEFGHI

BEVERAGE PRICES

CARD

SNACK PRICES

SET

GLOBAL

NORMAL

GLOBAL

001:200

GLOBAL

nnn:500

SET

SINGLE

S11

001:200

SINGLE

Smm

nnn:1200

SNACK PRICES

DIFF 1

SNACK PRICES

DIFF 2

fig. 98

SNACK PRICES

only with Card

CARD

Prices enabled

CUP PRICE

001:

200

DISCOUNTS/SURCHARGES

Important

TIME MANAGEMENT

FREE

NEVER

The functions managed by the TIME KEEPER are described

FREE

ALWAYS

later on at 16.1 and 16.2 manual sections.

FREE

TIME RANGE

ON1:LMMgvsd

00:15

FREE

OFF1:LMMgvsd

07:15

FREE

ON2:lmmGVsd

19:15

16.1 - TIME KEEPER functions in the

FREE

OFF2:lmmGVsd

20:15

programming menus

ON/OFF TIME

YES

>Y< N

ON1:LMMgvsd

00:15

ON/OFF TIME

OFF1:LMMgvsd

07:15

Price management

ON/OFF TIME

ON2:lmmGVsd 19:15

This menu allows setting 2 different differentiated prices

ON/OFF TIME

(DIFFERENTIATED PRICES 1, DIFFERENTIATED PRICES 2), which

OFF2:lmmGVsd 20:15

DIFF 1

are only enabled at a certain time.

>Y< N

ON1:LMMgvsd

00:15

DIFF 1

OFF1:LMMgvsd

07:15

Timetable management

DIFF 1

ON2:lmmGVsd

19:15

Besides the ALWAYS FREE and NEVER FREE functions, this menu

DIFF 1

allows setting the time for FREE beverages/selections (i.e. FREE -

OFF2:lmmGVsd

20:15

DIFF 2

Monday - ON=20,00 - OFF=24,00. The beverages/selections

>Y< N

ON1:LMMgvsd

00:15

will be free each Monday from 8 to 12 pm).

DIFF 2

OFF1:LMMgvsd 07:15

The DIFFERENTIATED PRICES 1 and 2 associated to any beverage

DIFF 2

ON2:lmmGVsd

19:15

or selection can be equally set.

DIFF 2

It is also possible to set:

OFF2:lmmGVsd

20:15

the time for the machine switching on and off;

PREGRINDING

>Y< N

ON1:LMMgvsd

00:15

the time for the pregrinding enabling;

PREGRINDING

OFF1:LMMgvsd 07:15

the rinsing time.

PREGRINDING

ON2:lmmGVsd

19:15

PREGRINDING

System management

OFF2:lmmGVsd 20:15

This menu allows accessing the CLOCK function in order to set

RINSING TIME

>Y< N

ON1:LMMgvsd

00:15

hour, minutes, month and year.

RINSING TIME

ON2:lmmGVsd

19:15

SYSTEM MANAGEMENT

Espresso Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976

-------------------------------------------------------------------------------------------------------------------------------------------------------------

English

STATISTICS

CODE D.A.

16.2 - TIME KEEPER functions in the

12345

TOTAL COINS

maintenance menus

TOTAL BANKNOTES

BANKNOTE 01

35000

STATISTIC

CARD IN

TOTAL BANKNOTES

BANKNOTE 02

90000

With this function you can display all sales statistics accounted

CARD OUT

TOTAL BANKNOTES

by the vending machine.

BANKNOTE 02

90000

OVERPAY

15980

VM CODE

FREE

assigned by the operator.

BEVERAGE

0013

TEST

BEVERAGE

0067

COINS TOTAL

FREE

SNACK

0005

the total value of the inserted coins is displayed.

TOTAL SALES

BEVERAGE

PRICE

00023

BANKNOTE TOTAL

PRICE

0015

the total value of the inserted banknotes is displayed.

PRICE

By pressing [ENTER] it is possible to display the number of inserted

0005

banknotes according to their denomination.

SNACK

PRICE

00023

PRICE

CARD IN

0015

the amount of credit collected from cards is displayed

PRICE nn

0005

CUP COUNTER

CARD OUT

0000

the amount of credit charged on cards is displayed

DISCOUNTS/SURCHARGES

0000

COUNTER

COFFEE COUNTER

TT:008000 PP:005000

OVERPAY:

BEVERAGE COUNTER

BEVERAGE

NORMAL

the amount of credit kept at the OVERPAY time elapsing.

TT:004500 PP:002500

TT:000800 PP:000500

TT:000300 PP:000200

BEVERAGE

NORMAL

TT:000800 PP:000500

TT:000300 PP:000200

FREE BEVERAGES

DIFF. 1

the total number of free selections dispensed is displayed.

TT:000050 PP:000050

DIFF. 2

TT:000000 PP:000000

BEVERAGE TEST

Saeco Card

CARD

TT:000450 PP:000250

the total number of test beverages brewed is displayed.

FREE

TT:000015 PP:000002

FREE SELECTIONS

TEST

TT:000005 PP:000005

TT:00015 PP:000005

the total number of free selections dispensed is displayed.

BEVERAGE

TT:000800 PP:000500

TOTAL SALES:

SOLUBLE COUNTER

SOLUBLE COUNTER 1

TT:000800 PP:000800

TT:000175 PP:000175

the total gain from the sales of all selection and beverage is

SOLUBLE COUNTER 2

displayed

TT:000270 PP:000270

By pressing [ENTER] it is possible to get detailed information of

SOLUBLE COUNTER 3

TT:000225 PP:000225

this gain for:

SOLUBLE COUNTER 4

beverages (further divided according to price level, if required),

TT:000130 PP:000130

snack selections (also divided according to price level)

SNACK COUNT

SNACK

NORMAL

TT:004500 PP:002500

TT:000300 PP:000200

cups sold

SNACK

NORMAL

discounts granted

TT:000800 PP:000500

TT:000300 PP:000200

DIFF. 1

TT:000050 PP:000050

COUNTERS

DIFF. 2

TT:000000 PP:000000

The presence of the Time keeper in this menu allows the displayed

only with

CARD

information extension.

Saeco Card

TT:000450 PP:000250

Therefore, it is possible to display the total and partial number of

FREE

TT:000015 PP:000012

TT:000025 PP:000015

beverages and snack selections divided by price brackets.

SNACK

TT:000800 PP:000500

WATER LEVEL COUNT

TT:000500 PP:000500

CUP COUNTER

TT:000500 PP:000500

SUGAR COUNT

TT:000500 PP:000500

Appears only where reset

is enabled in SYSTEM

RESET

>Y< N

MANAGEMENT. It resets

Espress

counters

o Italia PTY LTD

www.espressoitalia.com.au

Freecall 1300 660 976
