Can-Am Maverick Sport Series / Maverick Trail Series. OPERATOR’S GUIDE (2024)

OPERATOR’S GUIDE

Covered Models

Maverick Trail 700

Maverick Trail DPS 700

Maverick Trail DPS 1000

Maverick Sport DPS 1000R

Maverick Sport X rc 1000R

In Canada, products are distributed and serviced by Bombardier Recreational

Products Inc. (BRP).

In the USA, products are distributed and serviced by BRP US Inc.

In the European Economic Area (which is comprised of the member states of the

European Union plus the United Kingdom, Norway, Iceland and Liechtenstein),

the Commonwealth of the Independent States (including Ukraine and Turkmeni-

stan) and Turkey, products are distributed and serviced by BRP European Distri-

bution S.A. and other affiliates or subsidiaries of BRP.

For all other countries, products are distributed and serviced by Bombardier Rec-

reational Products Inc. (BRP) or its affiliates.

TABLE OF CONTENTS

GENERAL INFORMATION

Know Before you Go

Safety Messages

About this Operator’s Guide

SAFETY INFORMATION

GENERAL PRECAUTIONS

Avoid Carbon Monoxide Poisoning

Avoid Gasoline Fires and Other Hazards

Avoid Burns from Hot Parts

Accessories and Modifications

SAFE OPERATION - RESPONSIBILITIES

Owner - Be Responsible

Operator - Be Qualified and Responsible

Riding Carefully

Occupant Restraint System

Terrain Condition

PRE-RIDE INSPECTION

Pre-Ride Inspection Check List

PREPARE TO RIDE

Before you Ride

Riding Gear

AVOID ACCIDENTS

Avoid Rollovers and Tipovers

Avoid Collisions

RIDING YOUR VEHICLE

Practice Exercises

Off-Road Operation

General Riding Techniques

MOVING LOADS AND DOING WORK

Working with Your Vehicle

Carrying Loads

Hauling a Load

Pulling a Trailer

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Safety Hang Tag

Safety Labels

Compliance HangTag

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA

AND UNITED STATES)

Safety Pictogram

REPORTING SAFETY DEFECTS

VEHICLE INFORMATION

PRIMARY CONTROL

Steering Wheel

Accelerator Pedal

TABLE OF CONTENTS

Brake Pedal

Shift Lever

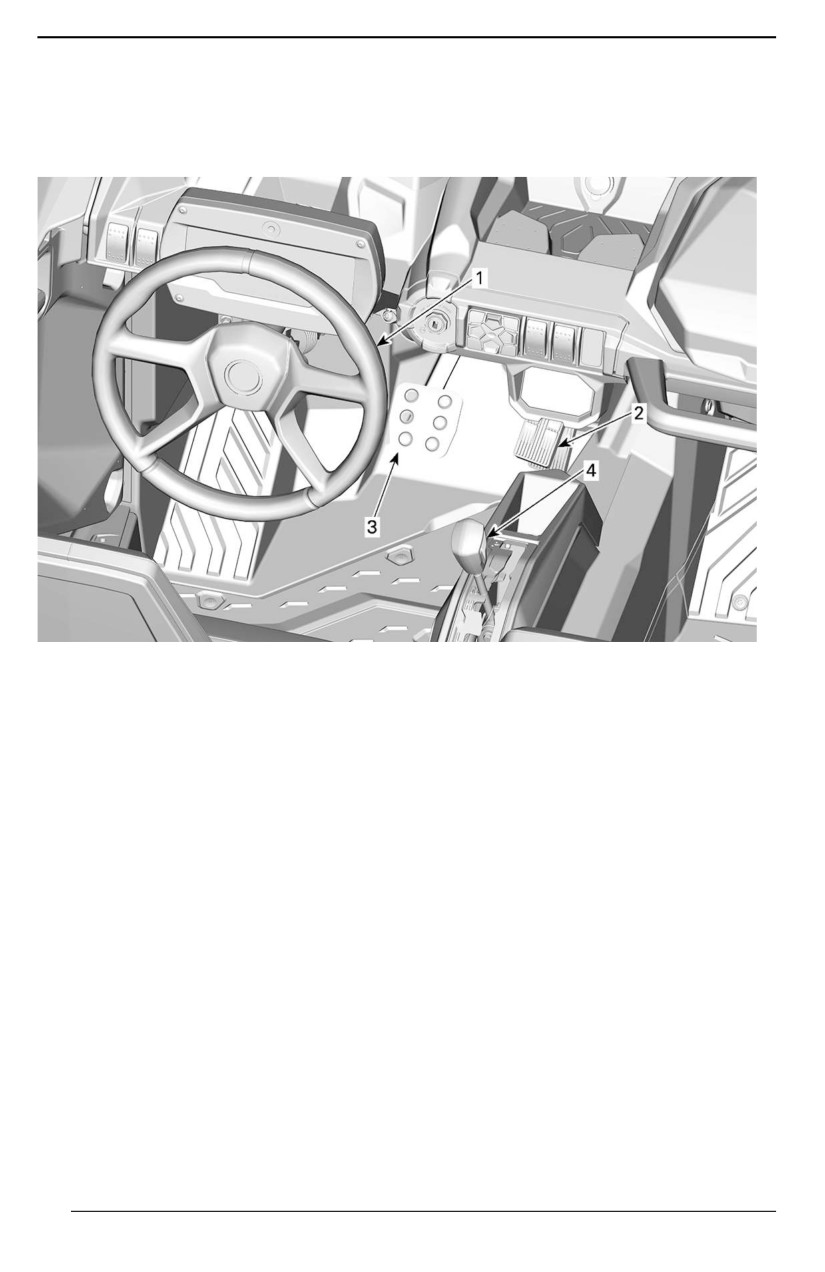

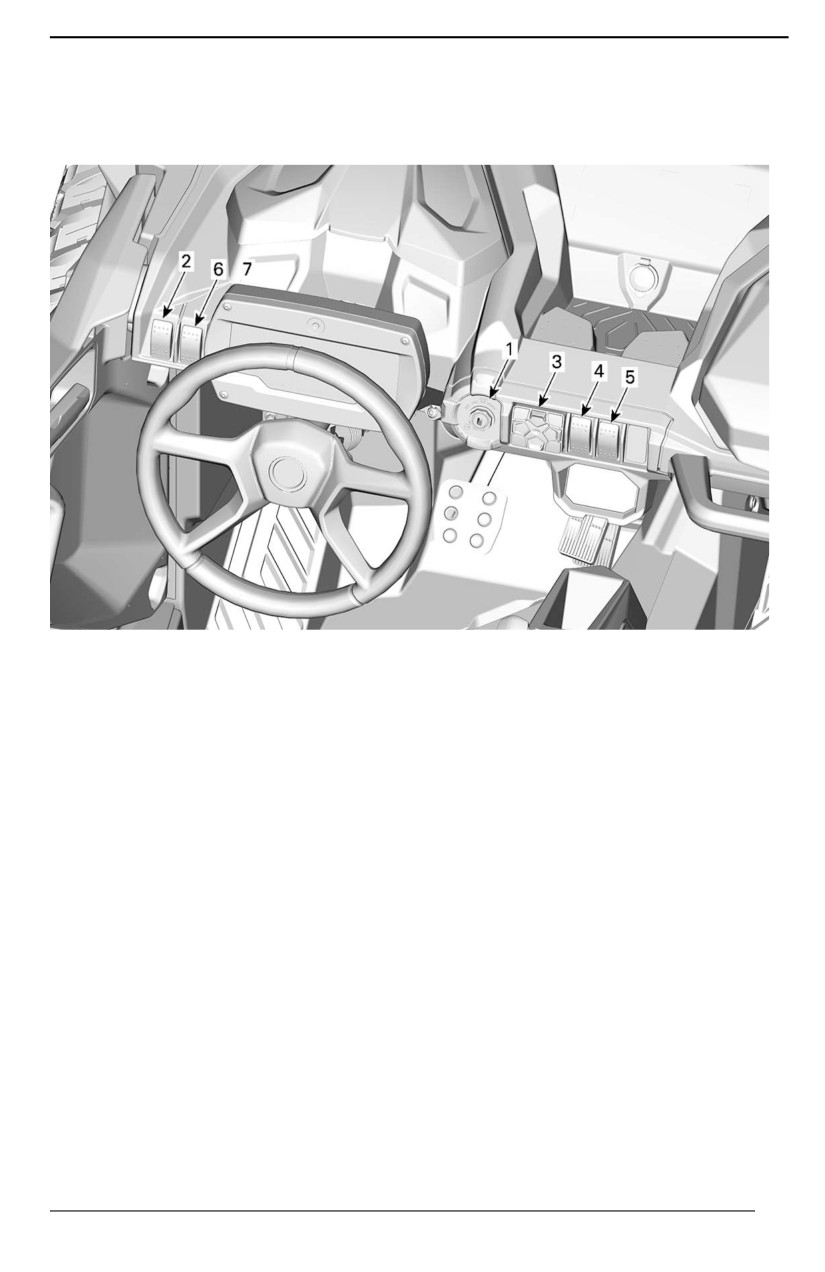

SECONDARY CONTROLS

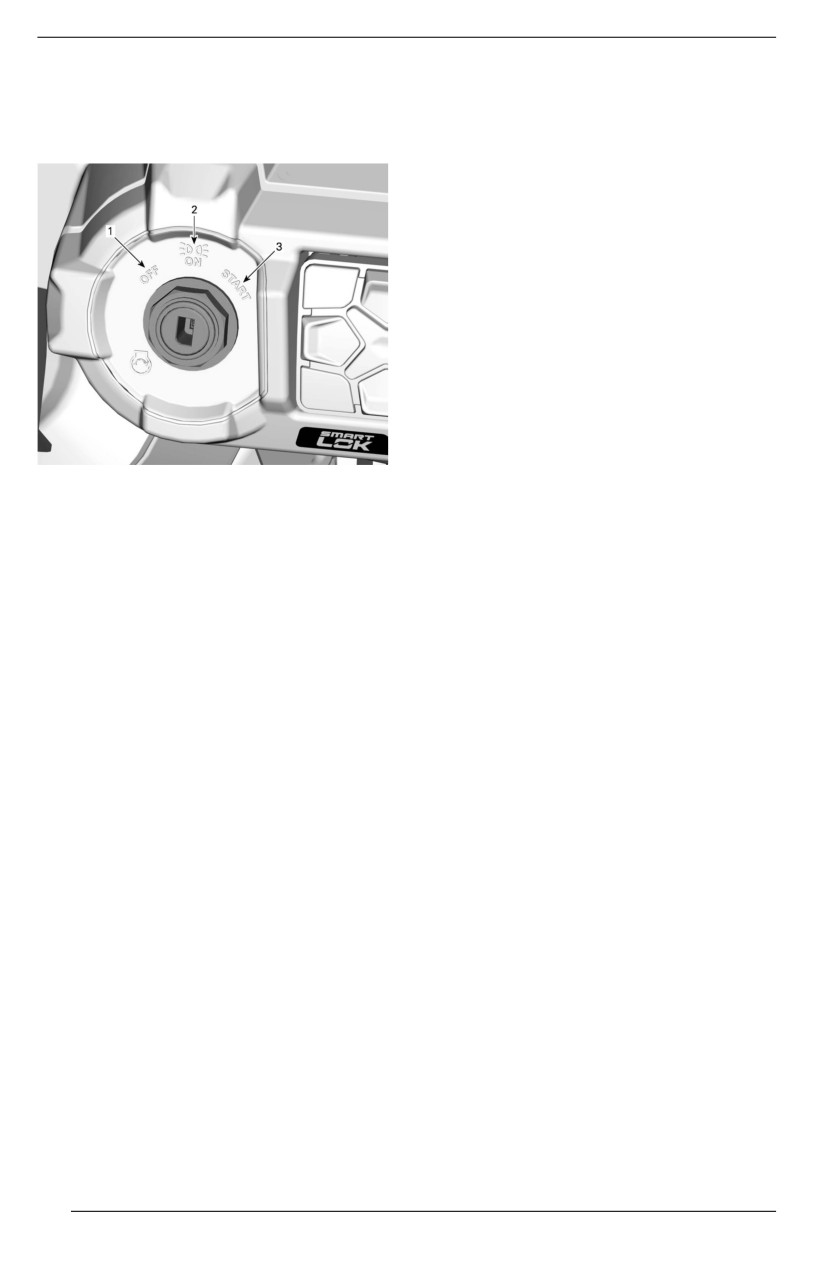

Ignition Switch and Keys

Headlight Dimmer Switch

Keypad

2WD/4WD Switch

2WD/4WD/Front Diff Lock Switch

Front Differential Mode Switch

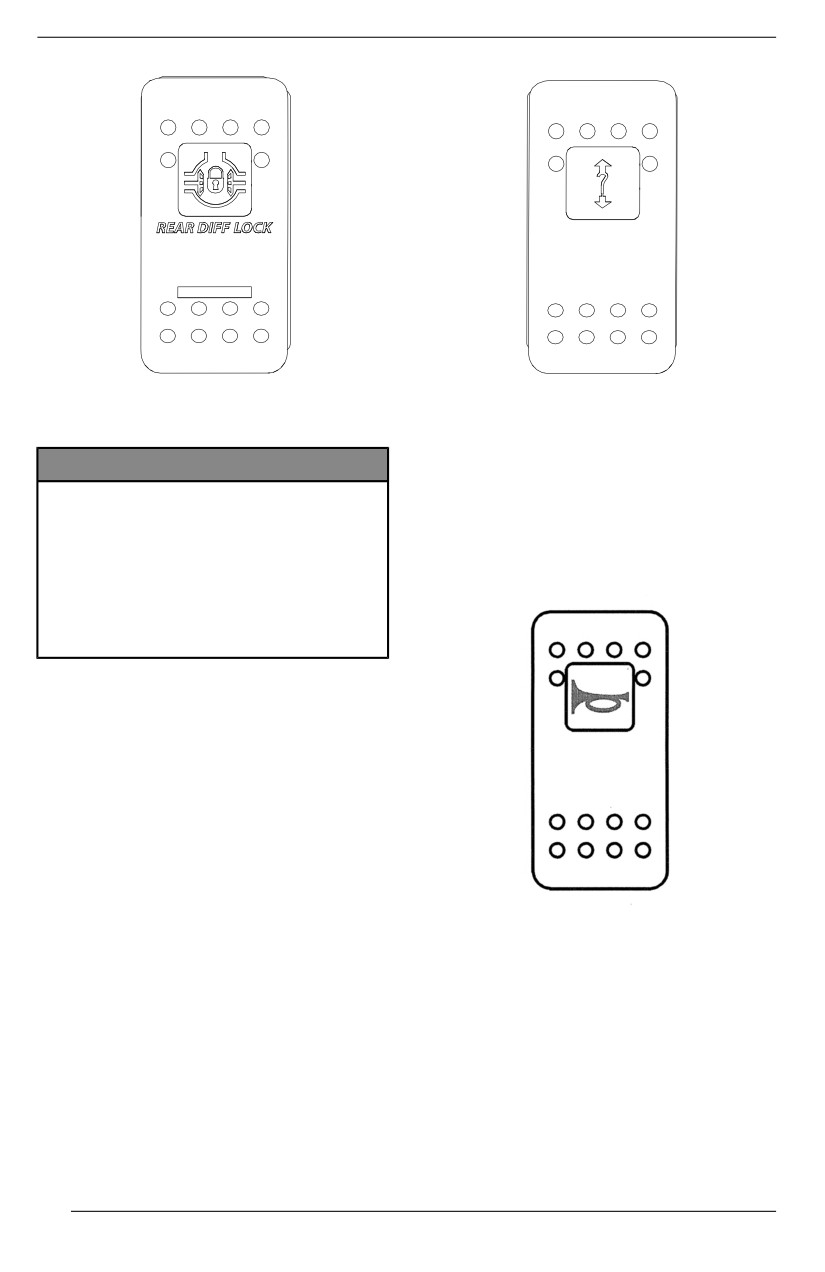

Rear Differential Lock Switch

Winch Switch

Horn Switch (On applicable models)

EQUIPMENT

Tilt Steering

Cup Holders

Passenger’s Handhold

Storage Compartments

Tool Kit

Footrests

Half Doors

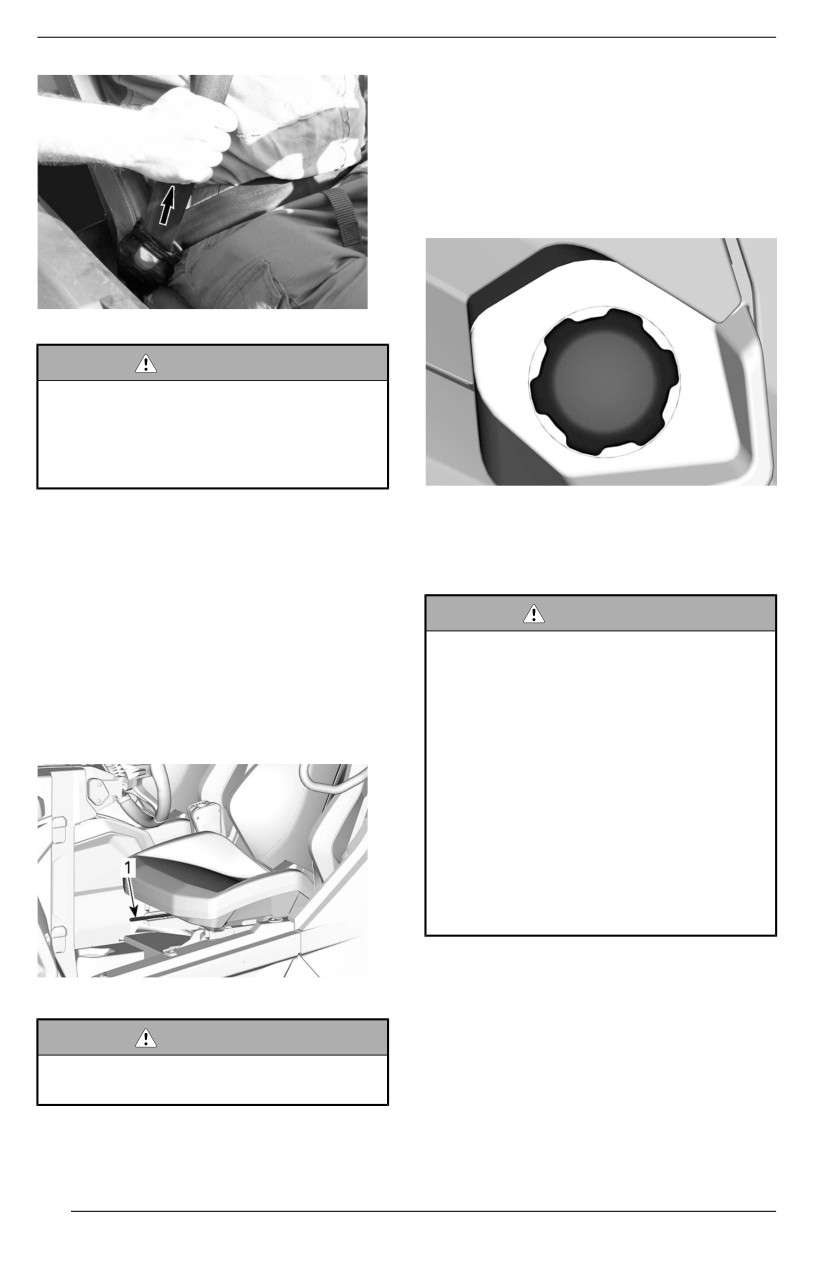

Seat Belts

Driver’s Seat

Passenger’s Seat

Fuel Reservoir Cap

Winch

Cargo Box

Anchoring Hooks

Trailer Hitch

12-Volt Power Outlet

Full Underbody Skid Plate

Rock Sliders and Suspension Arm Protectors

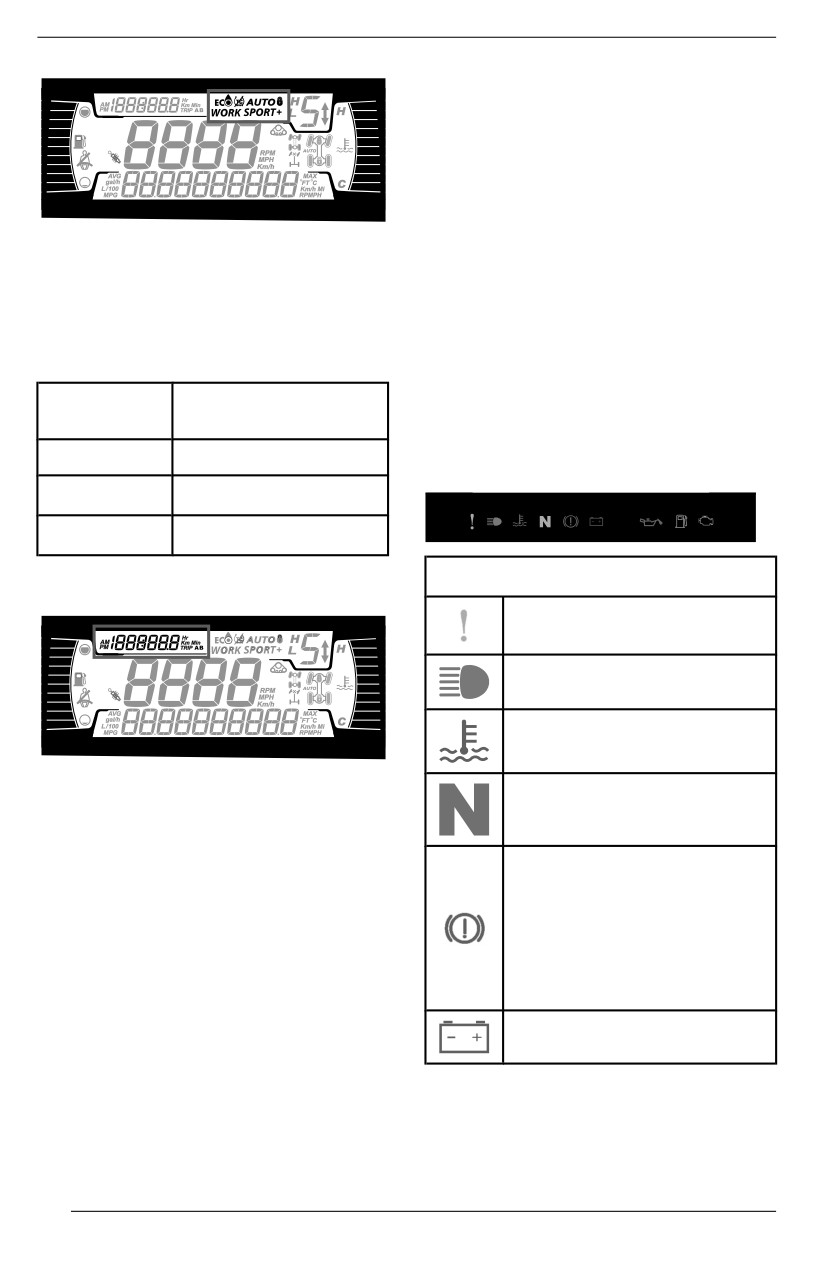

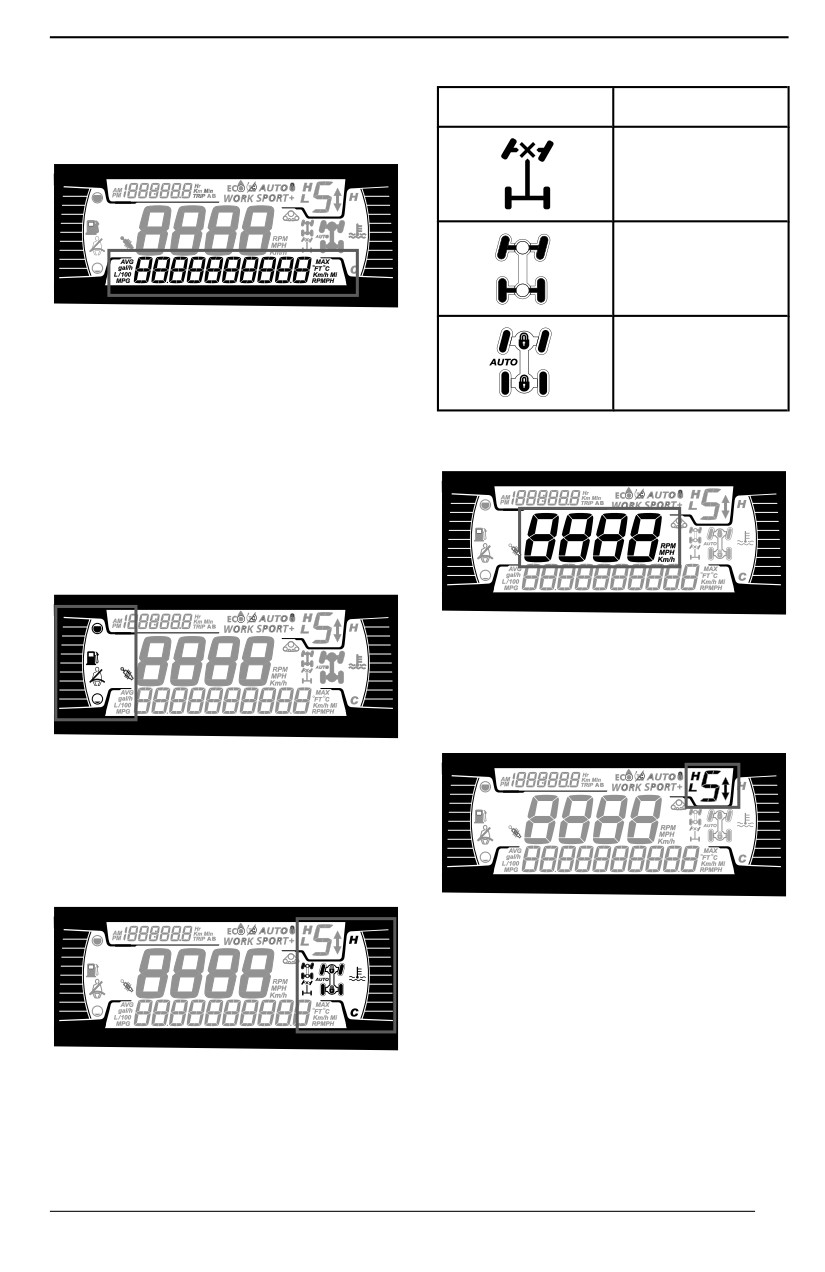

4.5” DIGITAL DISPLAY

Multifunction Display

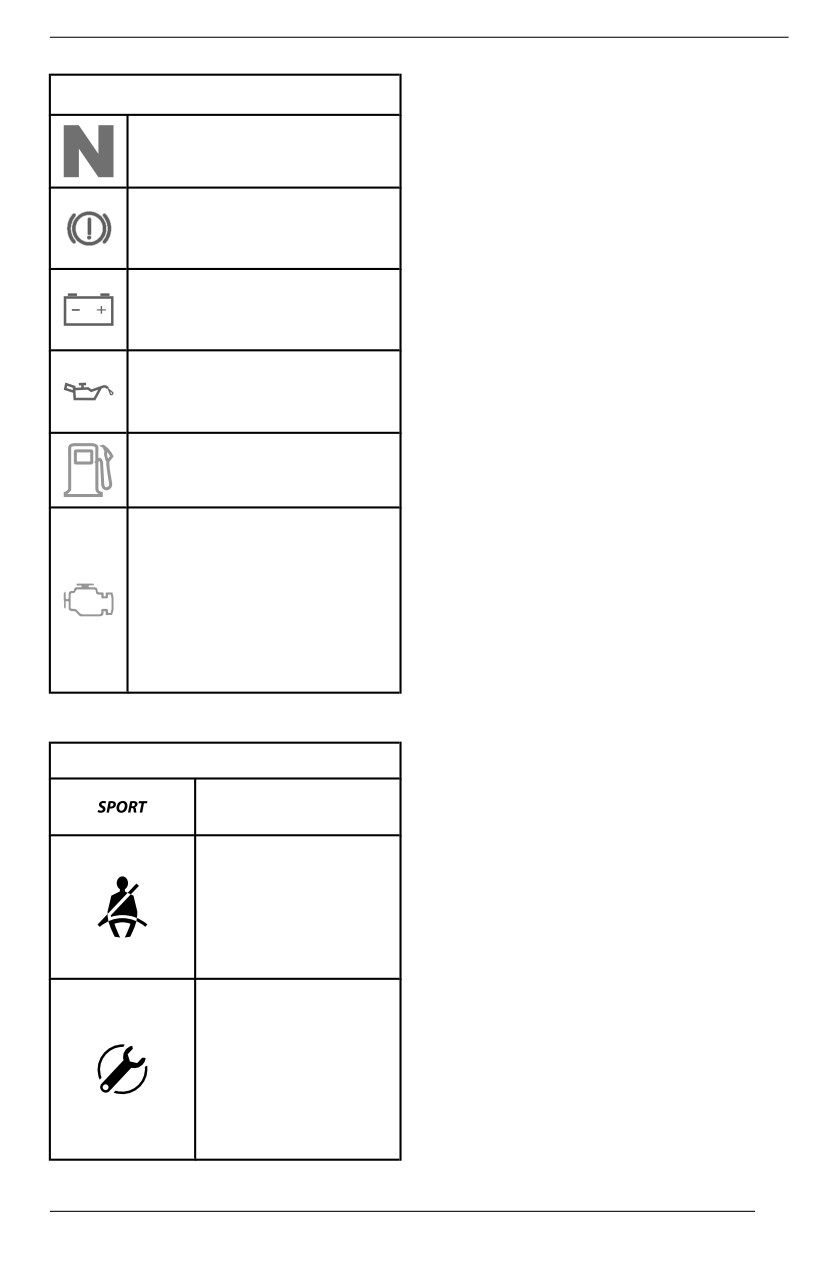

Warning Lamps and Indicators

Settings

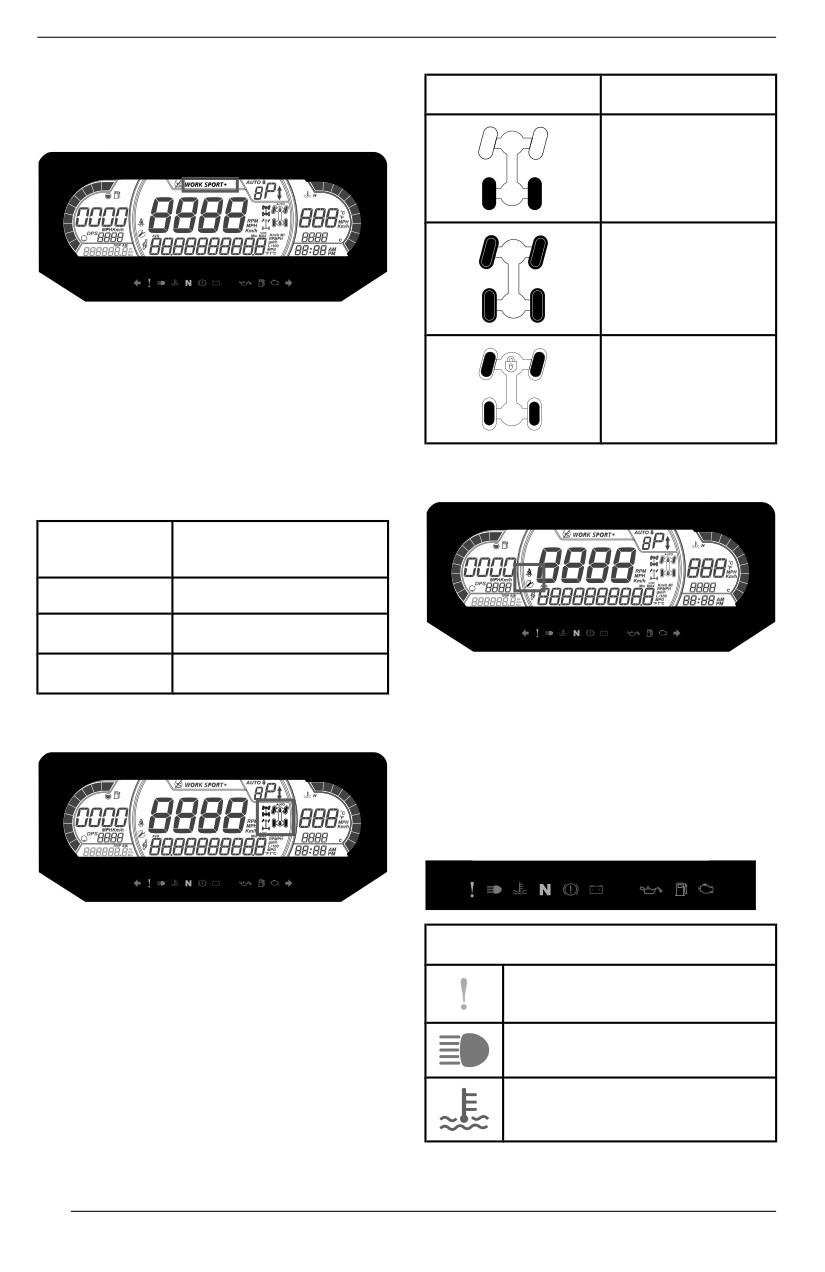

7.6" DIGITAL DISPLAY

Multifunction Display

Indicator Lamps

Settings

FUEL

Fuel Requirements

Vehicle Fueling Procedure

BREAK-IN PERIOD

Operation During Break-In

BASIC PROCEDURES

Starting the Engine

Operating the Shiift Lever

Choosing the Correct Range (Low or High)

Stoppiing the Engine and Parkiing the Vehicle

100

Tips for Maximizing Drive Belt Durability

100

SPECIAL PROCEDURES

101

Fuel Flooded Engine

101

TABLE OF CONTENTS

What to do if Water is Suspected to be in the CVT

101

What to do if Battery is Drained Out

101

What to Do if Vehicle Rolled Over

101

What to do if Vehicle is Submerged

102

TUNE YOUR RIDE

103

Suspension Adjustment Guidelines

103

Suspension Factory Settings

103

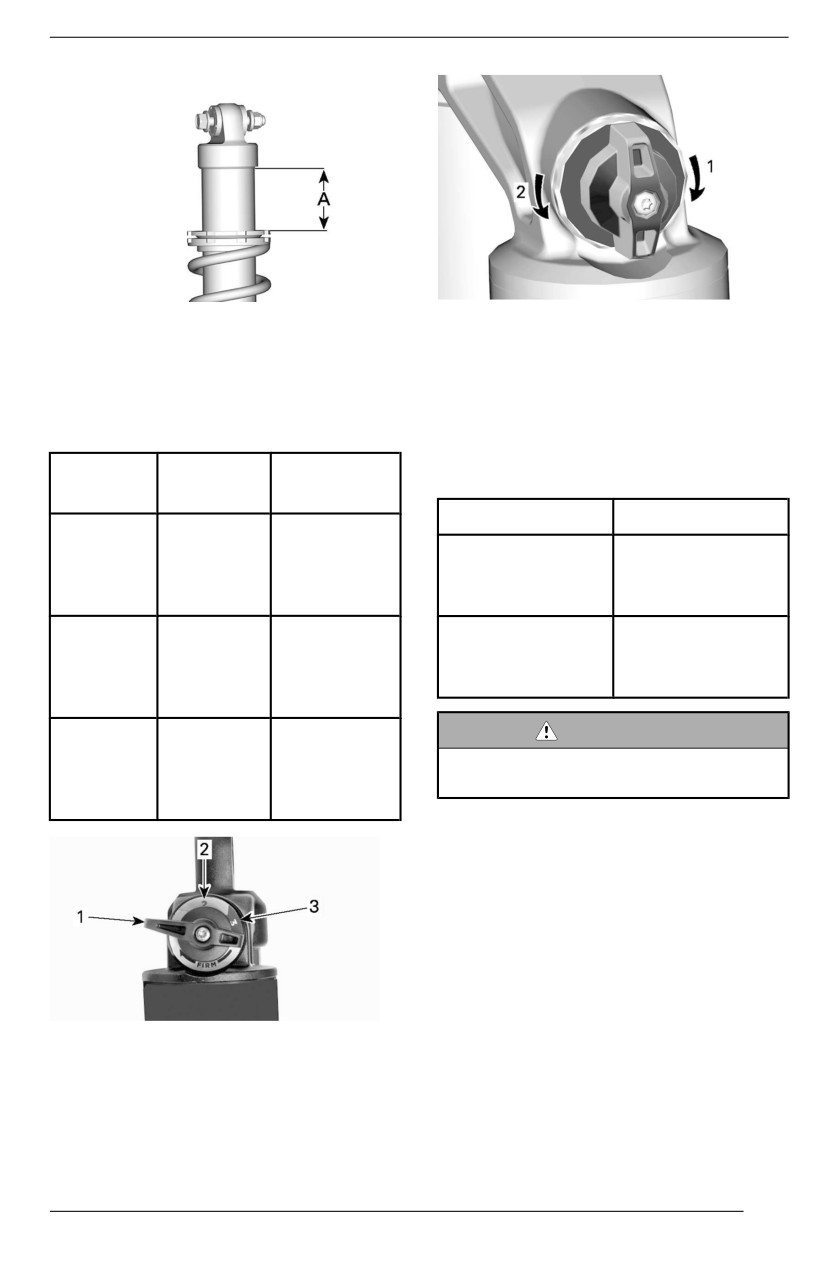

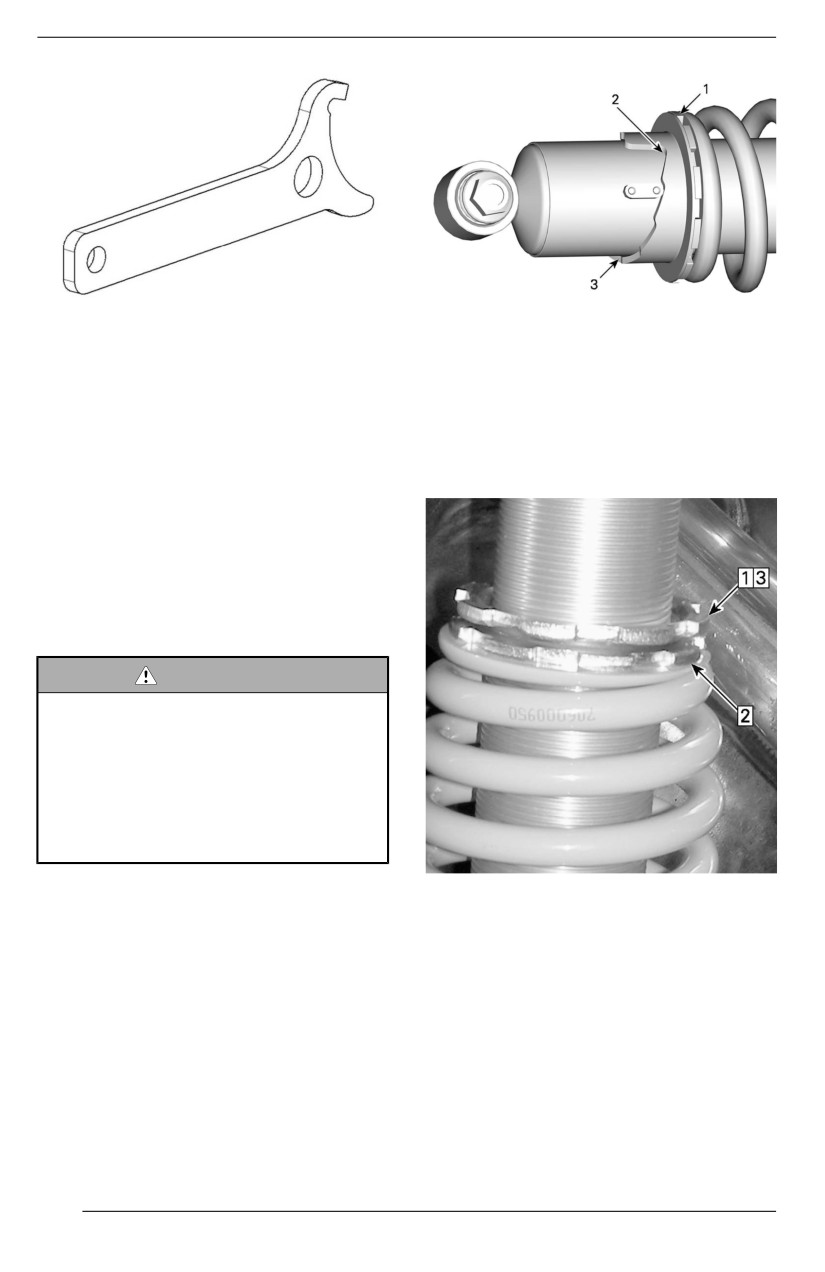

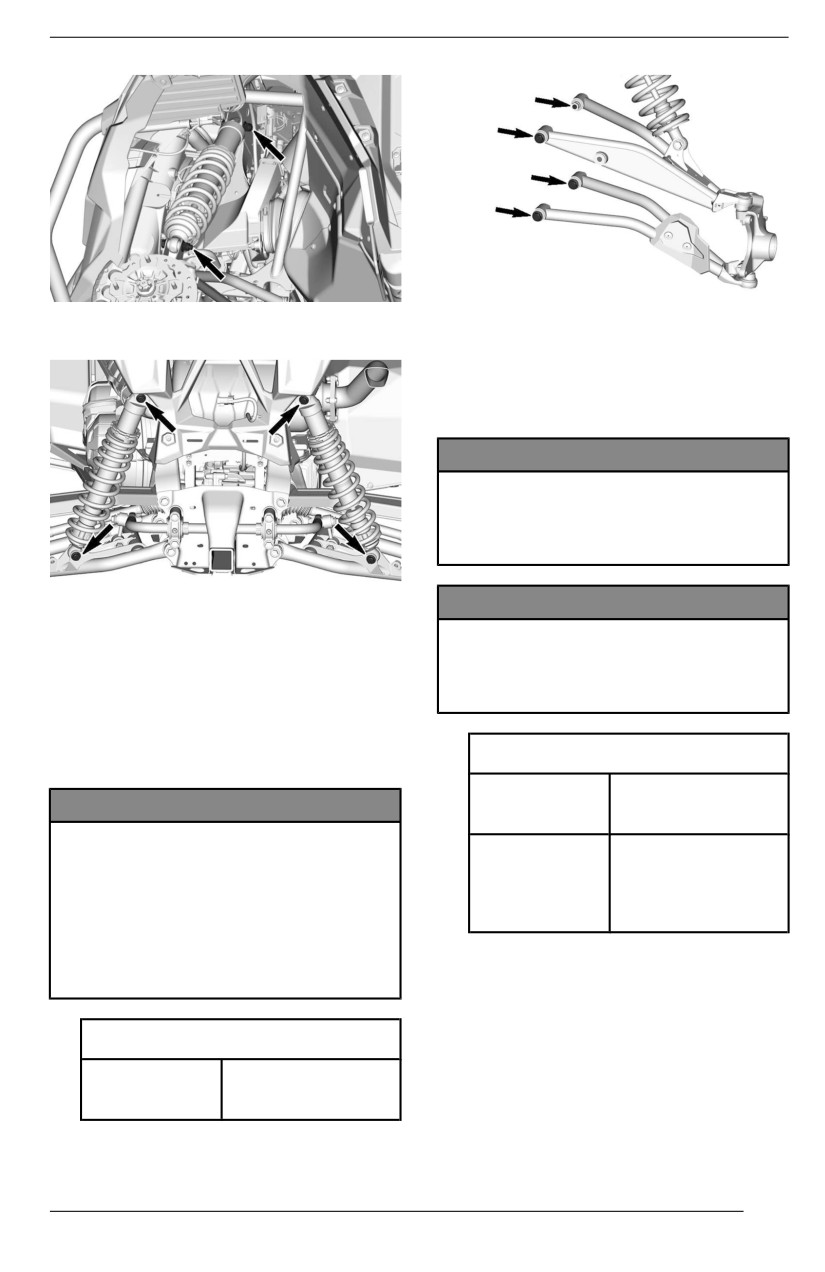

Suspension Adjustments

103

DPS Function

105

TRANSPORTING THE VEHICLE

106

Using Vehicle Power to Climb Onto Trailering Equipment

107

Using a Winch to Pull Vehicle Onto Trailering Equipment

107

Securing Vehicle for Transport

108

Getting Vehicle Out of Trailer

109

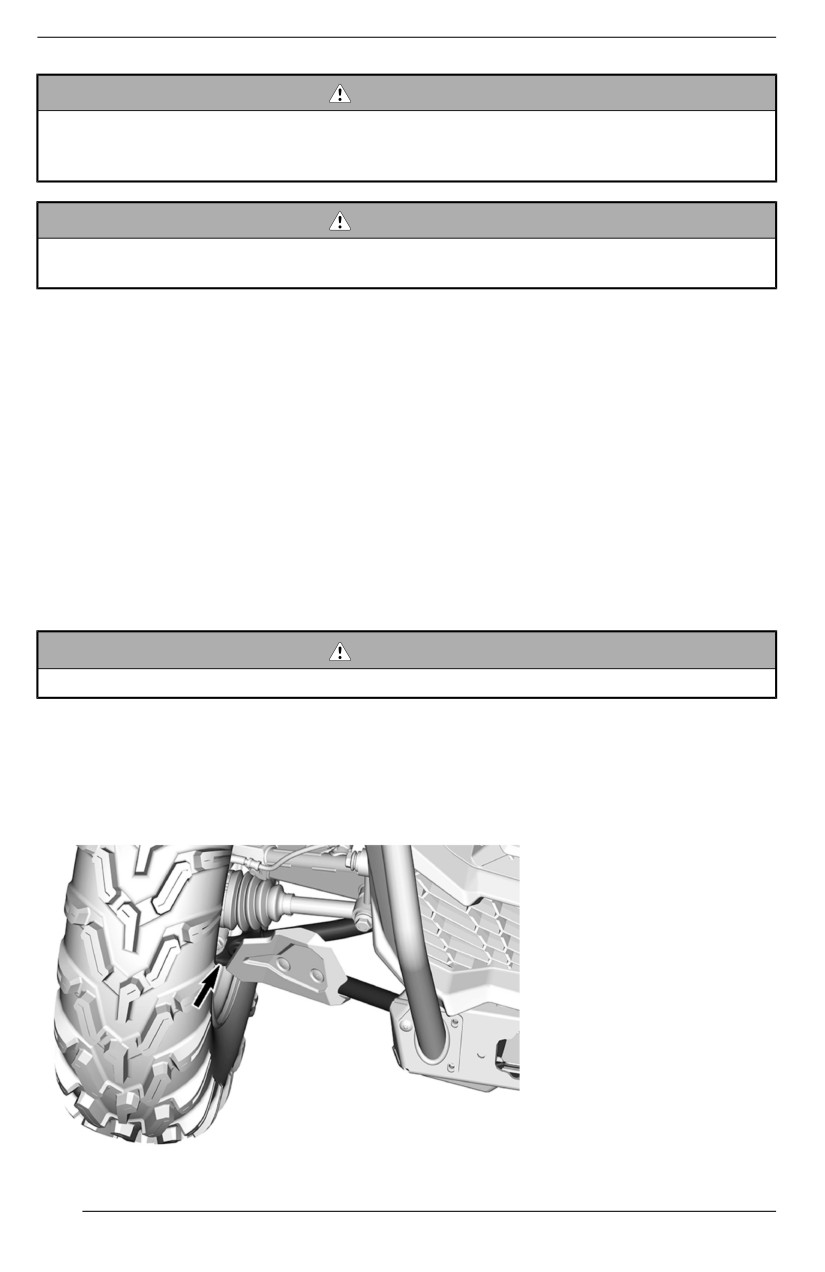

LIFTING AND SUPPORTING THE VEHICLE

110

Front of Vehicle

110

Rear of Vehicle

110

MAINTENANCE

MAINTENANCE SCHEDULE

112

EPA Regulation - Canadian and USA Vehicles

112

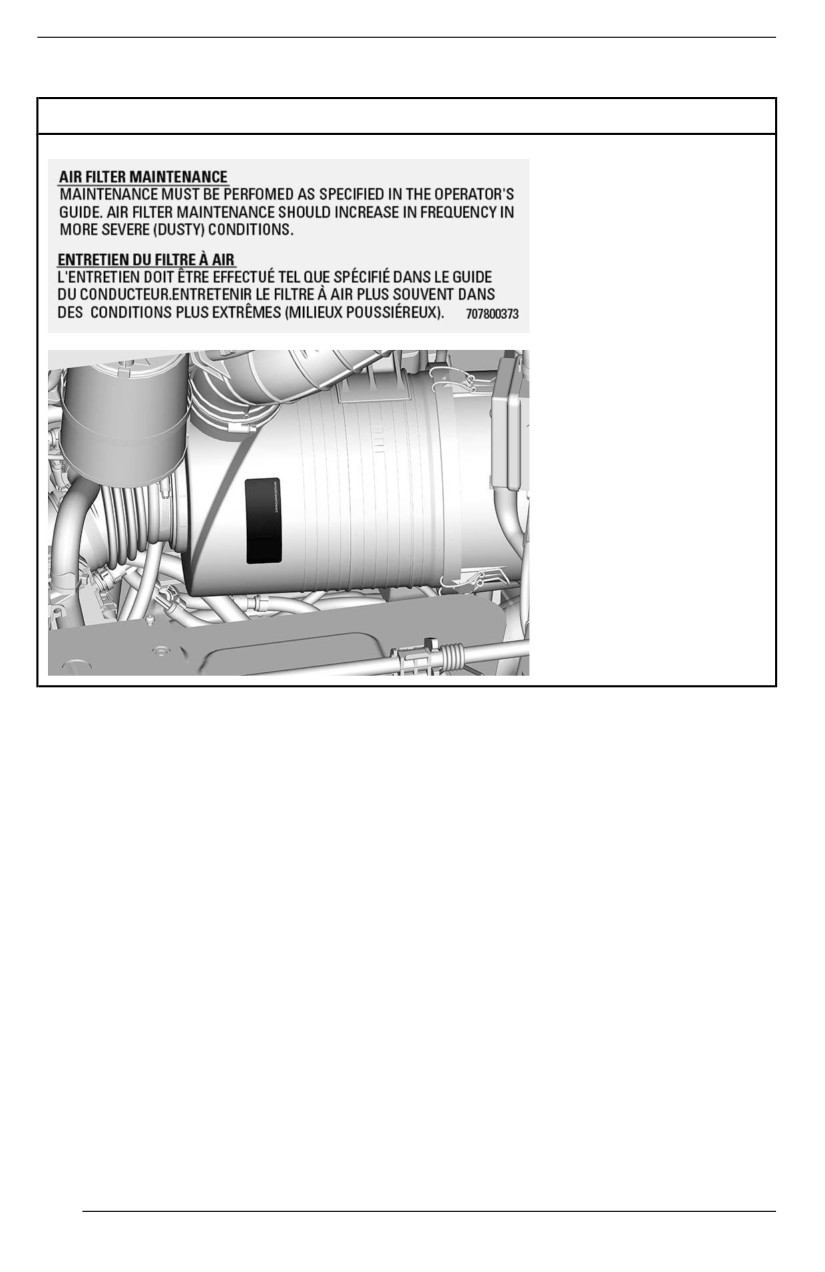

Air Filter Maintenance Guideline

112

Severe Duty Use

113

Deep Mud / Water Use

113

Maintenance Schedule

114

Maintenance Records

125

MAINTENANCE PROCEDURES

130

Accessing Maintenance Components

130

ENGINE AIR FILTER

133

CVT Air Filter

134

Evaporative Emission System Pre-Filter (If Equipped)

135

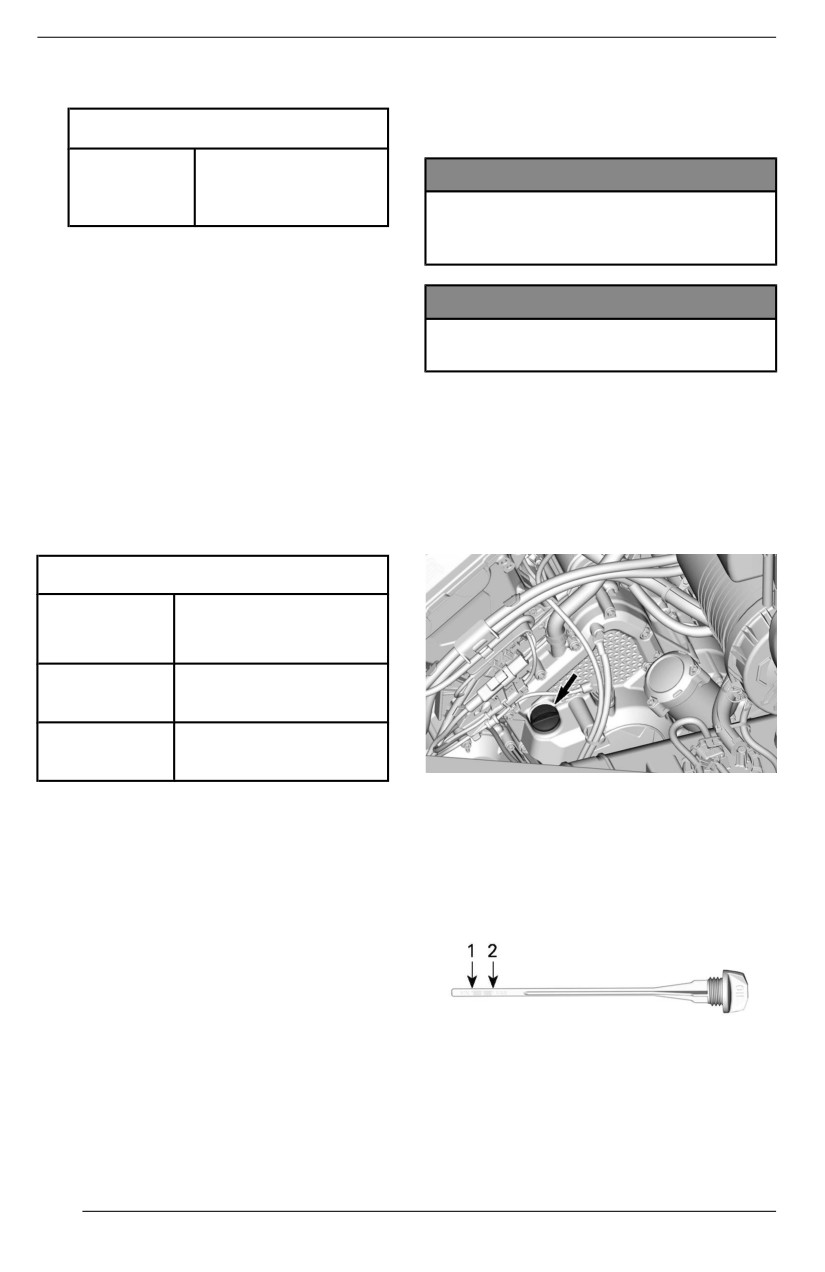

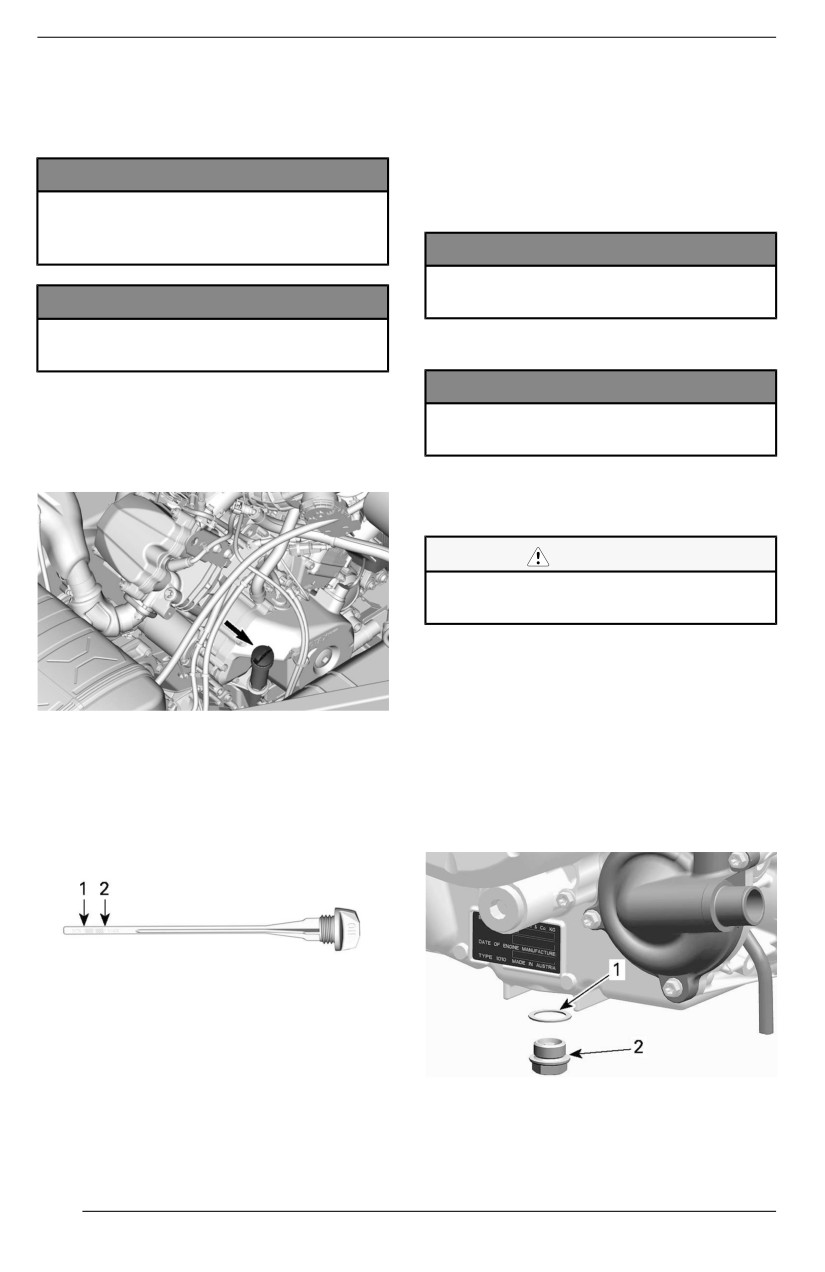

ENGINE OIL

136

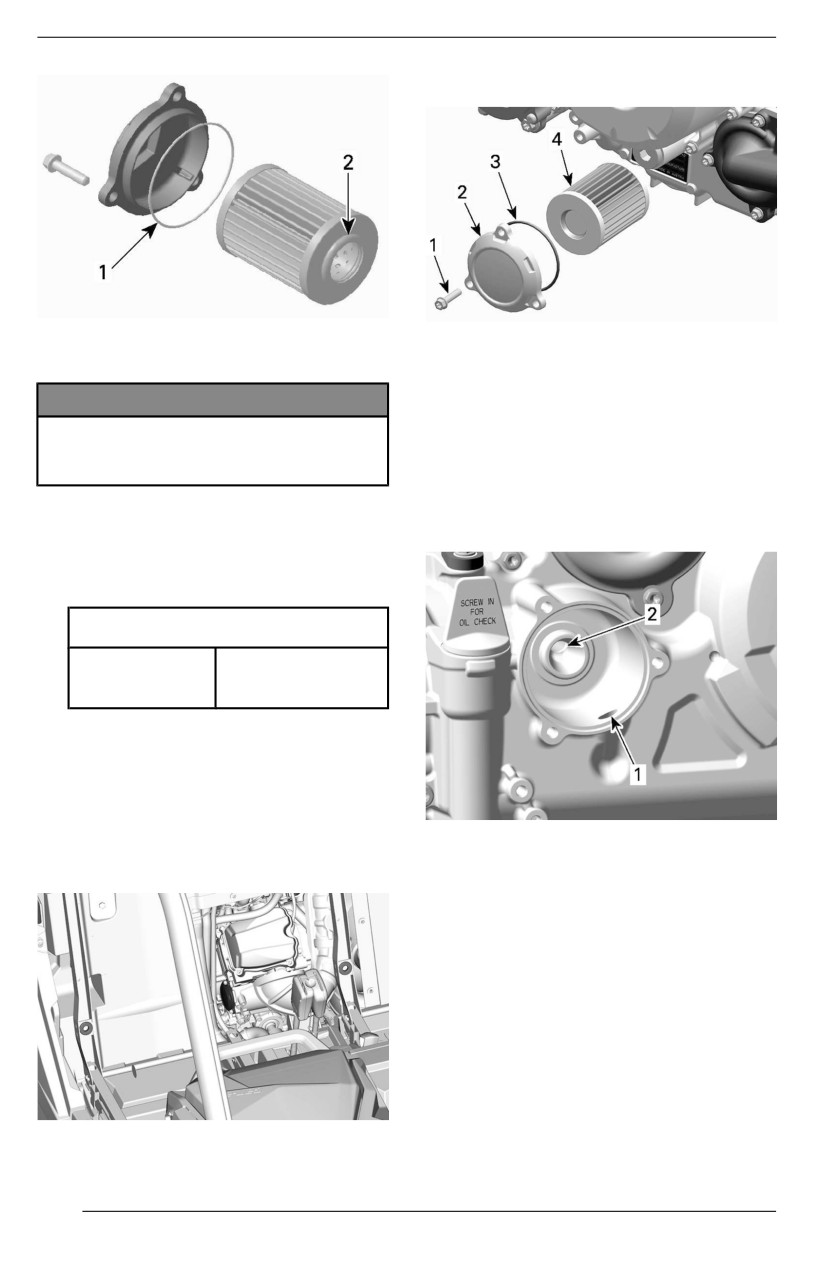

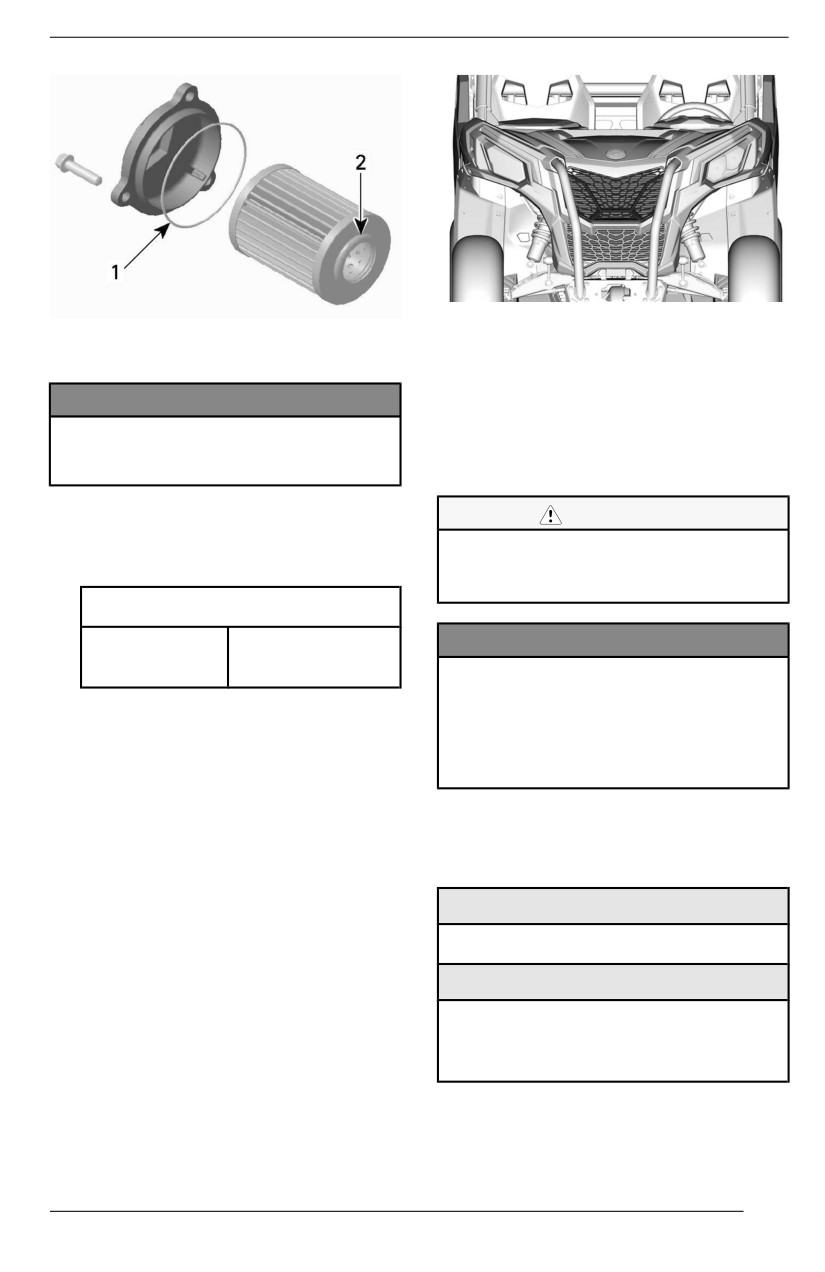

Oil Filter

139

RADIATOR

141

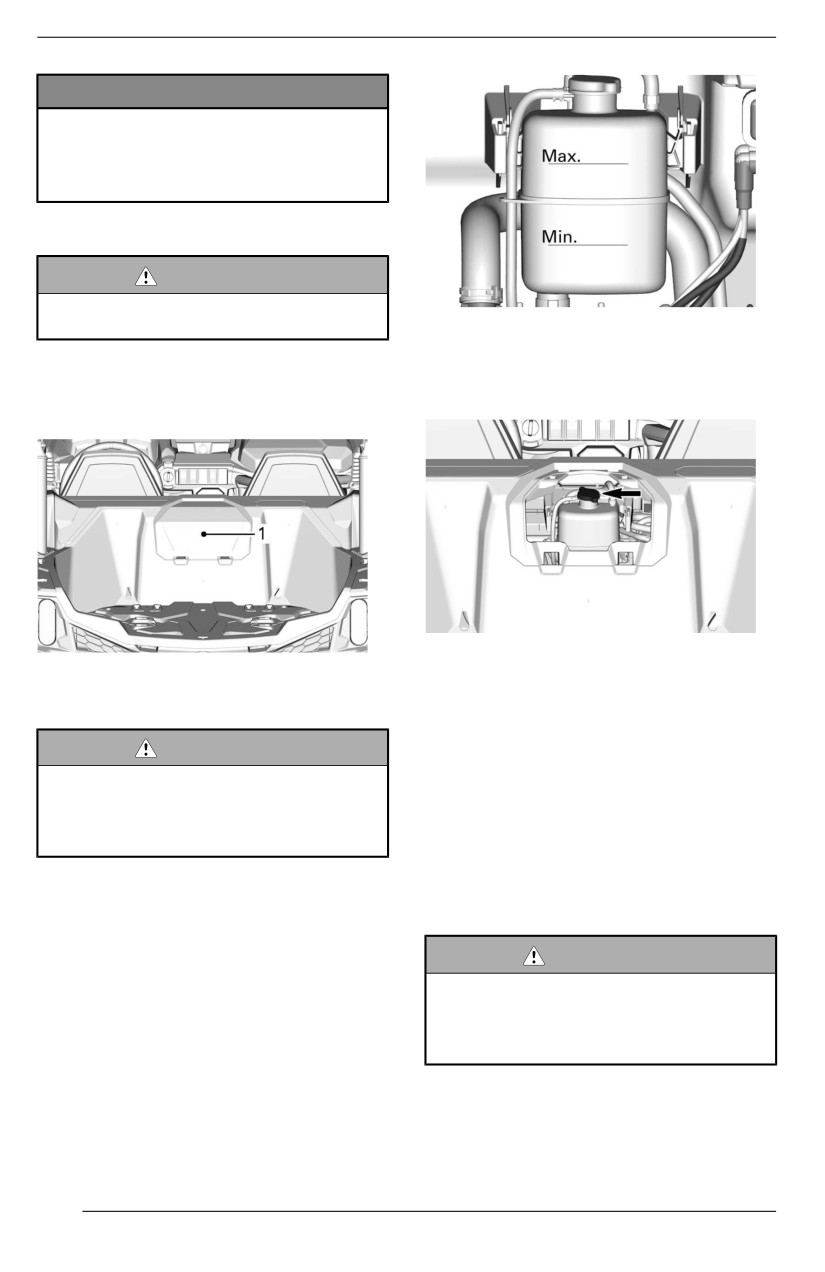

ENGINE COOLANT

141

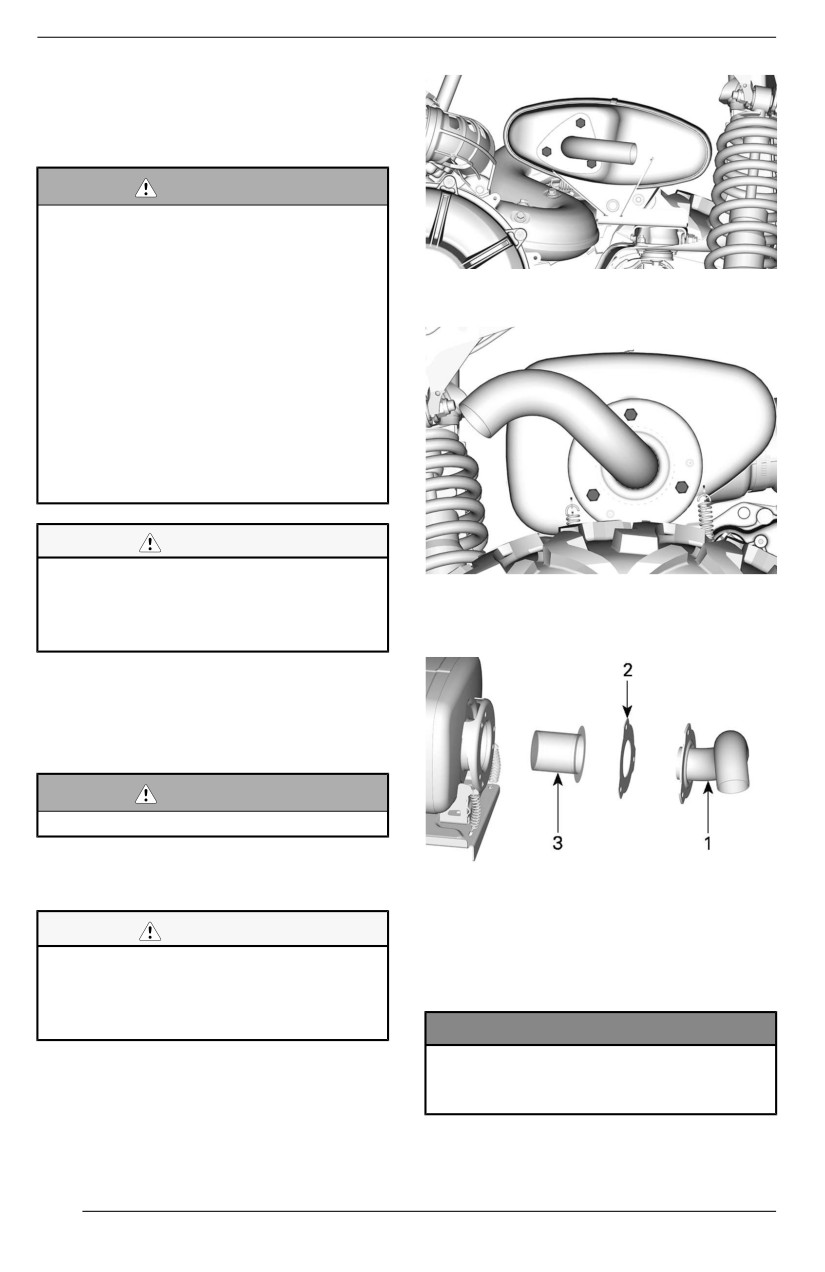

EXHAUST SYSTEM

144

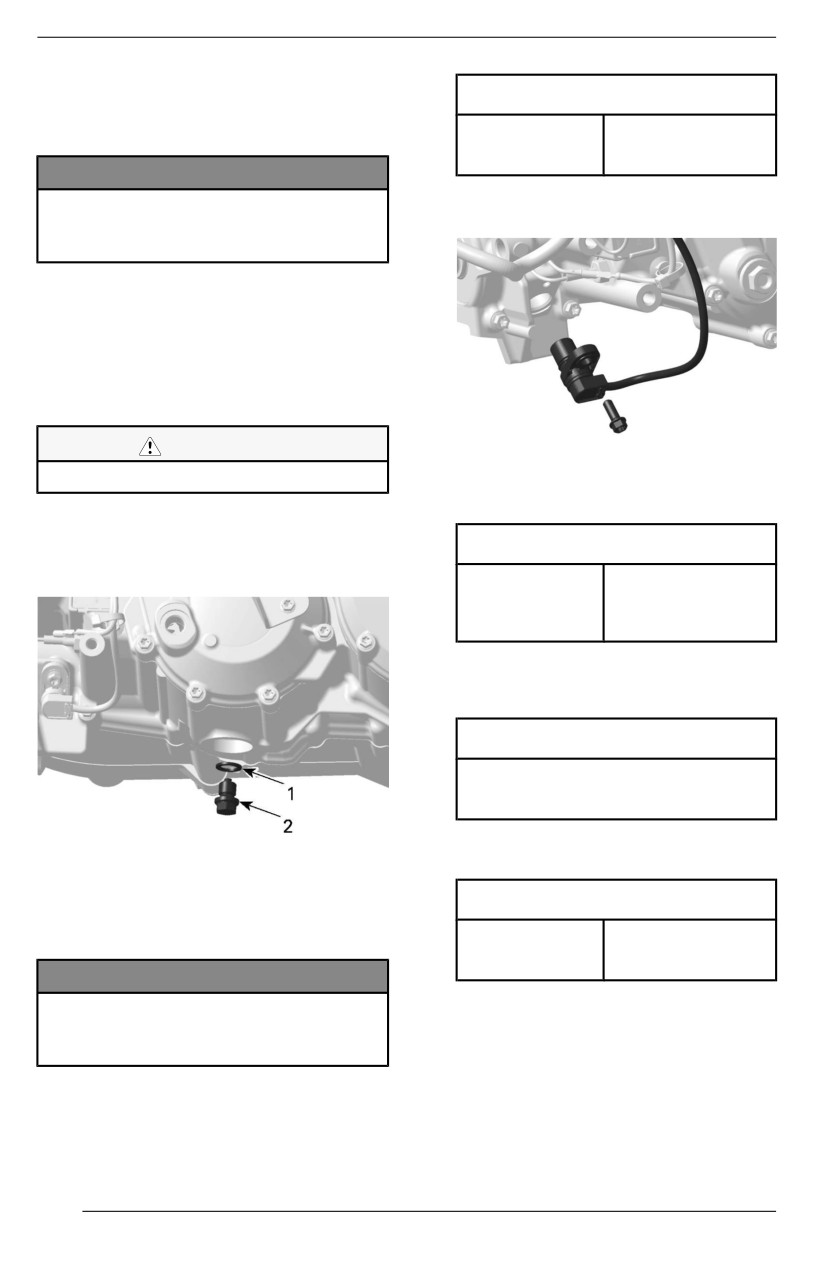

GEARBOX

145

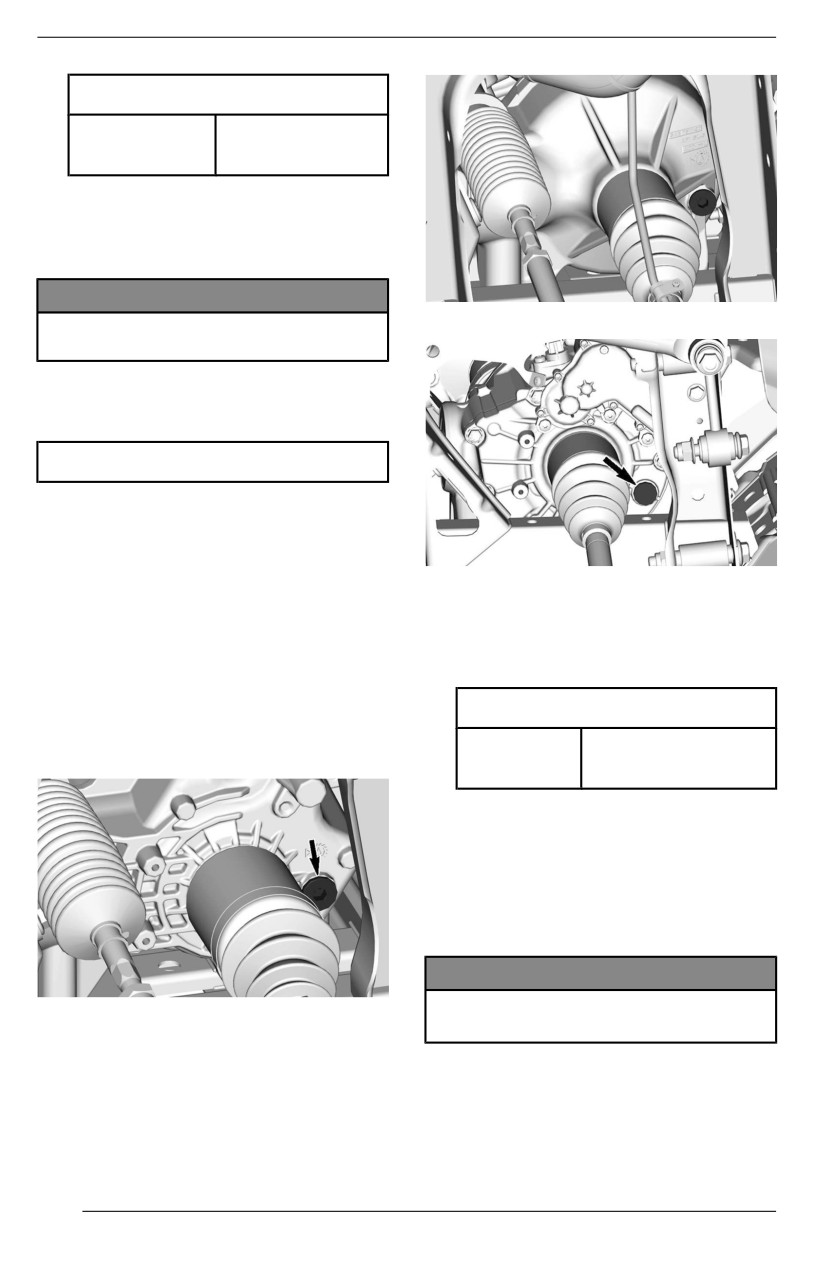

FRONT DIFFERENTIAL

148

Rear Final Drive (Mono Cylinder Models Only)

149

SPARK PLUGS

150

CVT COVER

151

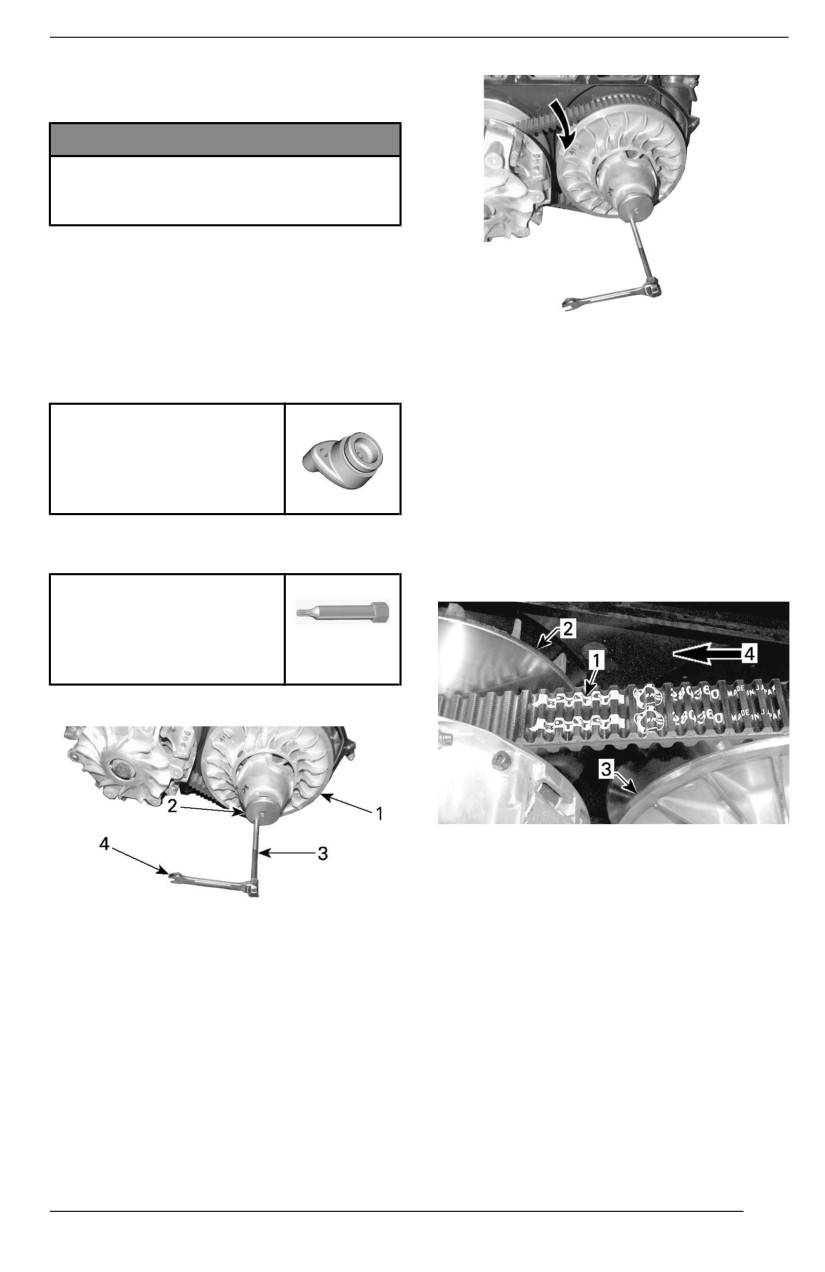

Drive Belt

152

Drive and Driven Pulleys

154

BATTERY

154

Fuses and Fusible Links

155

Lights

157

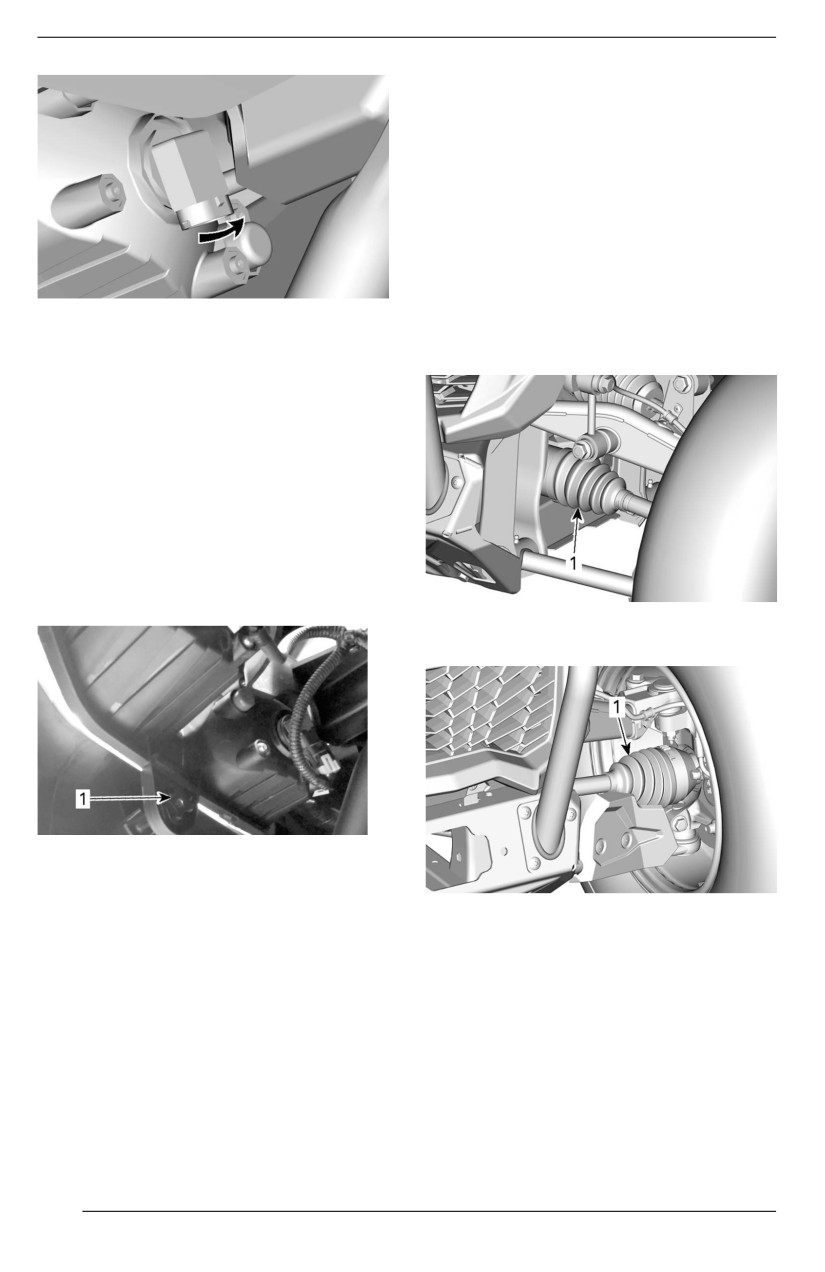

Drive Shaft Bellow and Protector

158

Wheel Bearing

159

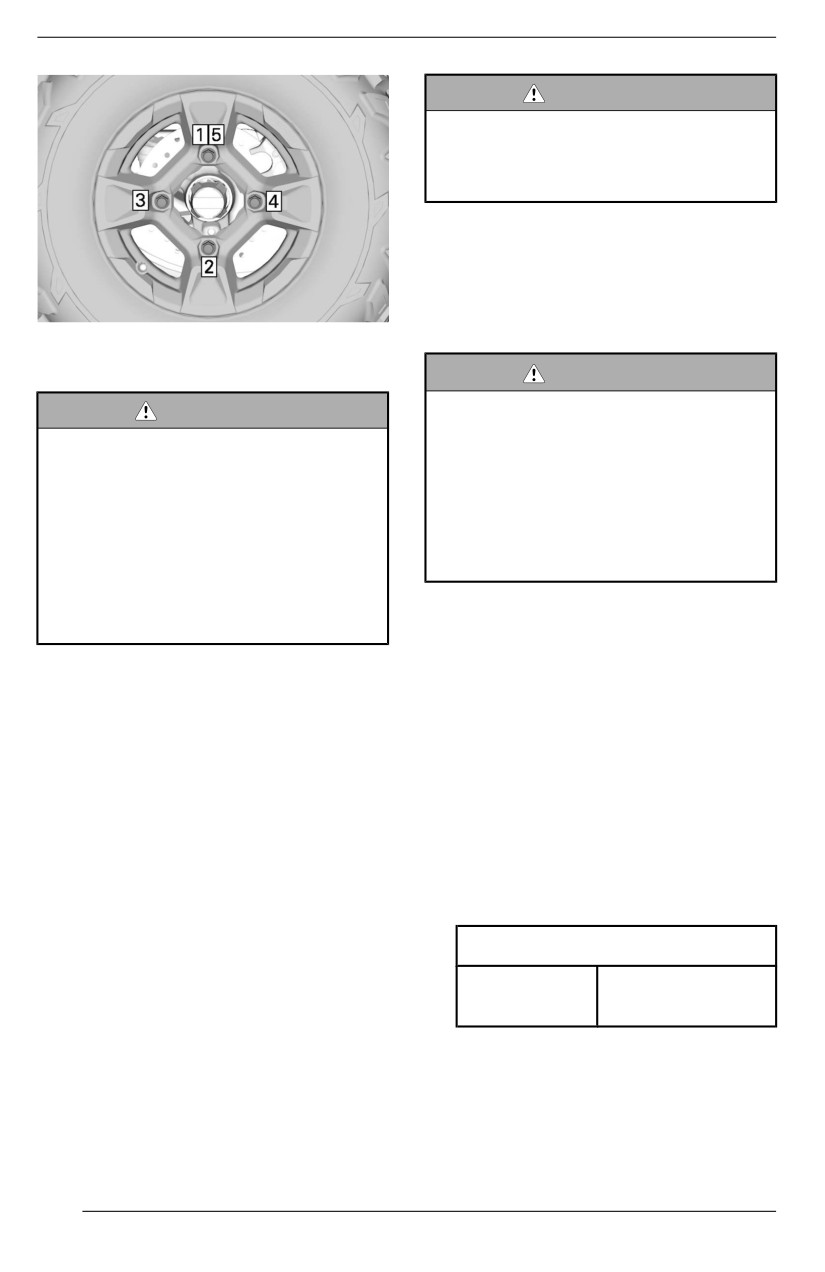

Wheels and Tires

159

SUSPENSION

160

BRAKES

162

TABLE OF CONTENTS

SEAT BELTS

163

Doors

163

VEHICLE CARE

164

Vehicle Cleaning and Protection

164

STORAGE AND PRESEASON PREPARATION

165

TECHNICAL INFORMATION

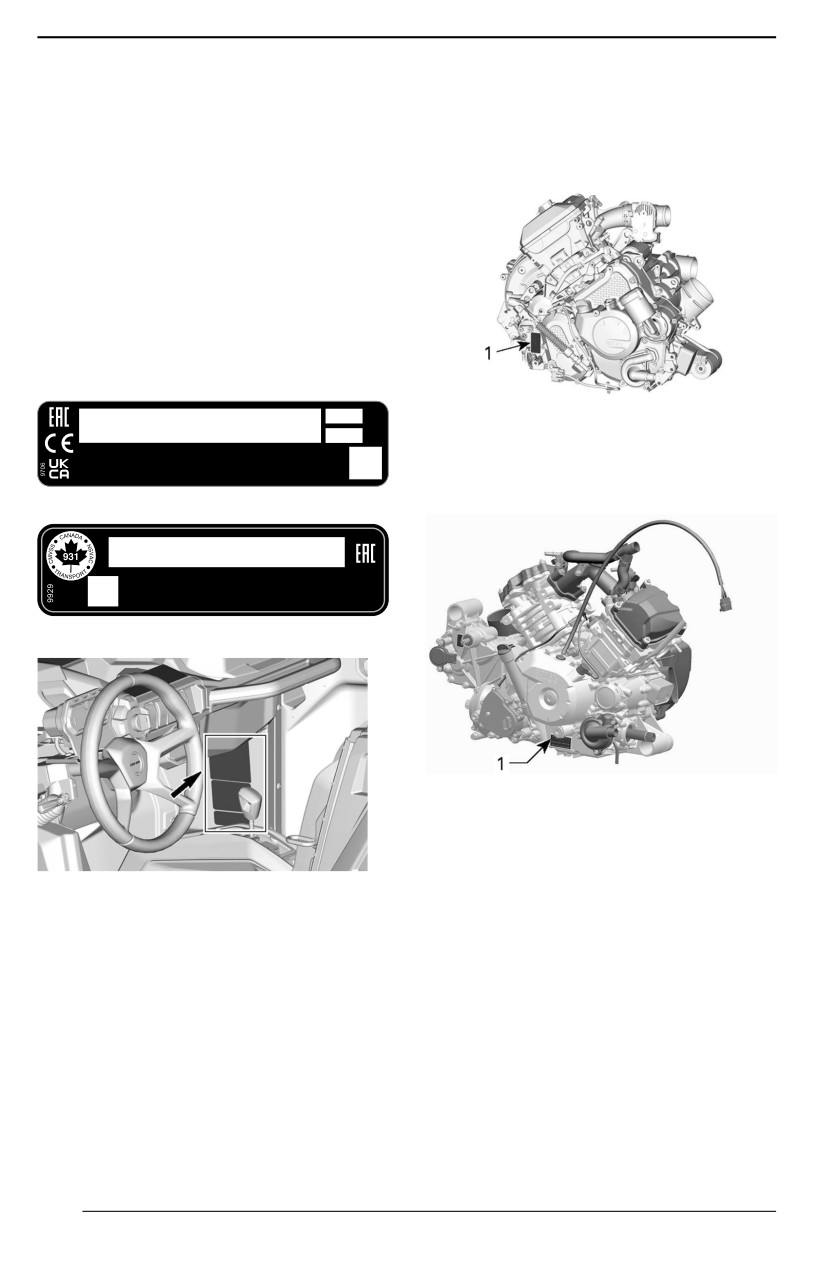

VEHICLE IDENTIFICATION

168

Vehicle Identification Number

168

Engine Identification Number (EIN)

168

Compliance Label

169

Technical Information Label

170

RADIO FREQUENCY DIGITALLY ENCODED SECURITY SYSTEM (RF D.

E.S.S. KEY)

174

EVAPORATIVE EMISSION CONTROL SYSTEM

175

NOISE EMISSION CONTROL SYSTEM REGULATION

176

NOISE EMISSION AND VIBRATION VALUES

177

Machinery Directive 2006/42/EC Compliant Models

177

DECLARATION OF CONFORMITY

178

EU Declaration of Conformity

178

UK Declaration of Conformity

179

EAC DECLARATION OF CONFORMITY

180

TECHNICAL SPECIFICATIONS

182

TROUBLESHOOTING

TROUBLESHOOTING GUIDELINES

196

CVT Belt Is Slipping

196

“-” Is Displayed On the Gearbox Position Display

196

Engine Does Not Turn

196

Engine Turns Over But Fails To Start

197

Engine Lacks Acceleration or Power

197

Engine Overheats

198

Engine Misfire

198

The RPM Increases But the Vehicle Does Not Move

198

Partial or No Response From the Accelerator Pedal - Check Engine Is ON

and PPS Fault Message Is Displayed

199

DIGITAL DISPLAY MESSAGES

200

WARRANTY

BRP LIMITED WARRANTY FOR CANADA AND USA: 2024 CAN-AM^®

SSV

202

1) Scope of the Limited Warranty

202

2) Limitations of Liability

202

3) EXCLUSIONS - Are Not Warranted

202

TABLE OF CONTENTS

4) Warranty Coverage Period

203

5) Conditions to Have Warranty Coverage

203

6) What to Do to Obtain Warranty Coverage

204

7) What BRP Will Do

204

8) Transfer

204

9) Consumer Assistance

204

US EPA EMISSION - RELATED WARRANTY

205

Emission-Related Warranty Period

205

Components Covered

205

Limited Applicability

206

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY

STATEMENT

208

Your Warranty Rights And Obligations

209

OHRV Manufacturer’s Warranty Coverage

209

Owner’s Warranty Responsibilities

210

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^®

SSV

211

1) Scope of the Limited Warranty

211

2) Limitation of Liability

211

3) EXCLUSIONS - Are Not Warranted

212

4) Warranty Coverage Period

212

5) For Products Sold In Australia Only

213

6) Conditions to Have Warranty Coverage

213

7) What to Do to Obtain Warranty Coverage

214

8) What BRP Will Do

214

9) Transfer

214

10) Consumer Assistance

214

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA,

THE COMMONWEALTH OF THE INDEPENDENT STATES AND TURKEY:

2024 CAN-AM^® SSV

216

1) Scope of the Limited Warranty

216

2) Limitations of Liability

216

3) EXCLUSIONS - Are Not Warranted

217

4) Warranty Coverage Period

218

5) For Products Sold In France Only

218

6) Conditions to Have Warranty Coverage

218

7) What to Do to Obtain Warranty Coverage

219

8) What BRP Will Do

219

9) Transfer

220

10) Consumer Assistance

220

CUSTOMER INFORMATION

DATA PRIVACY INFORMATION

222

224

Asia Pacific

224

Europe, Middle East and Africa

224

Latin America

225

North America

225

CHANGE OF ADDRESS AND OWNERSHIP

226

GENERAL INFORMATION

Congratulations on your purchase of a new Can-Am^® side-by-side vehicle. It's

backed by the BRP limited warranty and a network of authorized Can-Am Off--

road dealers ready to provide the parts, accessories or service you may require.

At delivery, you were informed of the warranty coverage and signed the Pre-de-

livery Check List to ensure your new vehicle was prepared to your entire

satisfaction.

Your dealer is committed to your satisfaction. If you need more information,

please ask your dealer.

Know Before you Go

To learn how to reduce the risk of accident for you or bystanders, read this Oper-

ator's Guide before you operate the vehicle.

Also, read all safety labels on your vehicle and watch the Safety Video located

at:

https://can-am.brp.com/off road/safety

Or use the following QR code.

This vehicle is for off-road use only. It is mainly for general recreational use but it

may also be used for utility purposes.

Failure to follow the warnings contained in this Operator's Guide can result in

SERIOUS INJURY or DEATH.

Safety Messages

The types of safety messages, what they look like and how they are used in this

guide are explained as follows:

The safety alert symbol

indicates a potential injury hazard.

WARNING

Indicates a potential hazard which, if not avoiided, coulld result iin seriious

injury or death.

CAUTION

Indicates a hazardous situatiion which, if not avoided, could resullt iin mi-

nor or moderate injjury.

GENERAL INFORMATION

NOTICE

Indiicates an iinstructiion which, iif not folllowed, could resullt in severely

damaged vehiicle components or other property.

About this Operator’s Guide

This Operator's Guide has been prepared to acquaint the owner/operator of a

new vehicle with the various vehicle controls, maintenance and safe operating in-

structions. It is indispensable for the proper use of the product.

Keep this Operator's Guide in the vehicle as you can refer to it for things such as

maintenance, troubleshooting and instructing others.

Note that this guide is available in several languages. In the event of any discrep-

ancy, the English version shall prevail.

If you want to view and/or print an extra copy of your Operator's Guide, simply

visit the following website:

www.operatorsguiides.brp.com

The information contained in this document is correct at the time of publication.

BRP, however, maintains a policy of continuous improvement of its products

without imposing upon itself any obligation to install them on products previously

manufactured. Due to late changes, some differences between the manufactured

product and the descriptions and/or specifications in this guide may occur. BRP

reserves the right at any time to discontinue or change specifications, designs,

features, models or equipment without incurring any obligation upon itself.

This Operator's Guide should remain with the vehicle when it is sold.

GENERAL PRECAUTIONS

Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon

monoxide can cause headaches, dizziness, drowsiness, nausea, confusion and

eventually death.

Carbon monoxide is a colorless, odorless, tasteless gas that may be present

even if you do not see or smell any engine exhaust. Deadly levels of carbon mon-

oxide can collect rapidly, and you can quickly be overcome and unable to save

yourself. Also, deadly levels of carbon monoxide can linger for hours or days in

enclosed or poorly ventilated areas. If you experience any symptoms of carbon

monoxide poisoning, leave the area immediately, get fresh air and seek medical

treatment.

To prevent serious injury or death from carbon monoxide:

- Never run the vehicle in poorly ventilated or partially enclosed areas such as

garages, carports or barns. Even if you try to ventilate engine exhaust with

fans or open windows and doors, carbon monoxide can rapidly reach danger-

ous levels.

- Never run the vehicle outdoors where engine exhaust can be drawn into a

building through openings such as windows and doors.

Avoid Gasoline Fires and Other Hazards

Gasoline is extremely flammable and highly explosive. Fuel vapors can spread

and be ignited by a spark or flame many feet away from the engine. To reduce

the risk of fire or explosion, follow these instructions:

- Use only an approved gasoline container to store fuel.

- Never fill the gasoline container in the vehicle cargo box or on the vehicle - an

electrical static discharge may ignite the fuel.

- Strictly adhere to instructions in Vehicle fueling procedure.

- Never start or operate the engine if the fuel cap is not properly installed.

Gasoline is poisonous and can cause injury or death.

- Never siphon gasoline by mouth.

- If you swallow gasoline, get any in your eye(s), or inhale gasoline vapor, see

a doctor immediately.

If gasoline spills on you, wash with soap and water and change your clothes.

Avoid Burns from Hot Parts

Certain components like brake rotors and exhaust components become hot dur-

ing operation. Avoid contact with those parts during and shortly after operation to

avoid burn wounds.

Accessories and Modifications

Any modifications or addition of accessories approved by BRP may affect the

handling of your vehicle. It is important to take the time to get familiar with the ve-

hicle once modifications are made to understand how to adapt your driving be-

havior accordingly.

SAFETY INFORMATION

GENERAL PRECAUTIONS

Avoid installing equipment not specifically approved by BRP for the vehicle and

avoid unauthorized modifications. These modifications and equipment have not

been tested by BRP and may create hazards. For example, they could:

- Create a loss of control and increase risk of crash

- Cause overheating or short circuits increasing the risk of fire or burn injuries

- Affect the protection features provided by the vehicle.

- Affect the behavior of the trailer when the vehicle is transported

- Cause a risk of losing objects on the road when transported.

Your vehicle may also become illegal to ride.

Ask your authoriized BRP dealler for suiitablle avaiilablle accessoriies for your

vehiiclle.

SAFETY INFORMATION

SAFE OPERATION - RESPONSIBILITIES

This is a high performance off-road vehicle. Operators must be responsible and

use care to avoid rollovers, tipovers, collisions, and other accidents. Even with

vehicle safety features (such as protective structure, seat belts, side nets, doors)

and protective gear (such as a helmet), there is always a risk of injury or death in

these accidents. To reduce the risk of serious injury or death, follow the rules in

this section.

Owner - Be Responsible

Read this Operator's Guide and watch the Safety Video. Refer to the link at the

beginning of the Operator's Guide.

Always inspect and confirm the safe operating condition of your vehicle prior to

ride. Always follow the maintenance schedule described in this Operator's Guide.

Never allow anyone to operate your vehicle unless they are responsible and can

be trusted with a high performance vehicle. Consider supervising new or young

operators and setting rules and limits (e.g., whether they can carry passengers,

what they may do with the vehicle, where they may ride, etc.) for anyone using

your vehicle.

If equipped wiith optional D.E.S.S. keys, select the appropriate key (see Igni-

tion Switch and Keys) based on the operator's experience, vehicle use and

environment.

Discuss the safety information with anyone who will be using the vehicle. Be sure

that all operators and passengers meet the qualifications below and agree to fol-

low the safety information. Help users become familiar with the vehicle.

We encourage you to have an Annual Safety Inspection of your vehicle. Please

contact an authorized BRP dealer for further details. Though not required, it is

recommended that an authorized BRP dealer performs the preseason prepara-

tion of your vehicle. Each visit to your authorized BRP dealer is a great opportu-

nity for your dealer to verify if your vehicle is included in any safety campaign.

We also urge you to visit your authorized BRP dealer in a timely manner if you

become aware of any safety related campaigns.

See an authorized BRP dealer for available accessories you may require.

Operator - Be Qualified and Responsible

Read this Operator's Guide and watch the SAFETY video. Refer to the link at the

beginning of the Operator's Guide.

Become completely familiar with the operational controls and the general opera-

tion of the vehicle.

Take a training course if available (contact an authorized Can-Am dealer to find

out about training course availability as well as on the internet at http://www.roh-

va.org/), and perform the practice exercises in Practice Exercises section. Prac-

tice driving in a suitable area free of hazards and feel the response of each

control. Drive at low speeds. Higher speeds require greater experience, knowl-

edge and suitable riding conditions.

Be at least 16 years of age.

SAFETY INFORMATION

SAFE OPERATION - RESPONSIBILITIES

Be tall enough to be properly seated: back against the backrest with the seat belt

fastened, to hold the steering wheel with both hands and still be able to reach the

full stroke of brake and accelerator pedals with the right foot and to firmly plant

left foot on the footrest.

Have a proper driver's license in accordance with local laws.

Never use this vehicle with drugs or alcohol, or if tired or ill. These slow reaction

time and impair judgment.

Carrying Passengers

Only carry a maximum of two (2) passengers. The passengers must be properly

seated in the cockpit.

The passengers must be tall enough to always be properly seated: back against

the backrest with seat belt fastened, holding the handhold, and feet firmly planted

- for the RH passenger, with right foot on the footrest and the left foot on the ve-

hicle floor and for the central passenger, with both feet firmly planted on the floor.

Never carry passengers who have used drugs or alcohol, or are tired or ill. These

slow reaction time and impair judgment.

Instruct the passengers to read the vehicle’s safety labels.

Never carry passengers if you judge their ability or judgement insufficient to con-

centrate on the terrain conditions and adapt accordingly. More specifically for

side-by-side vehicles, the passenger must also pay constant attention to the ter-

rain ahead and be able to brace for bumps.

Riding Carefully

- This vehicle handles differently from other vehicles. A collision or rollover can

occur quickly, during abrupt maneuvers such as doing sharp turns, accelera-

tion or deceleration and driving on hills or over obstacles, if you fail to take

proper precautions.

- Never operate at excessive speeds. Always go at a speed that is proper for

the terrain, visibility, and operating conditions, and your experience.

- Never attempt jumps, side slides, donuts or any other stunts.

- Never attempt rapid acceleration or deceleration when performing a sharp

turn. This may result in a roll over.

- Never attempt skidding or sliding. If vehicle starts to skid or slide, counter

steer in the direction of skidding or sliding. On extremely slippery surfaces,

such as ice, go slowly and be very cautious in order to reduce the chance of

skidding out of control.

- Always be sure there are no obstacles or people behind the vehicle when you

operate in reverse. Pay attention to blind spots. When it is safe to proceed in

reverse, go slowly.

- Never exceed the stated load limits for this vehicle. Cargo must be properly

secured. Reduce speed, allow for greater braking distance and follow other

instructions in Moving Loads and Doing Work.

- Always remember that this vehicle is heavy! Its pure weight alone may entrap

you should it tip or rollover.

SAFETY INFORMATION

SAFE OPERATION - RESPONSIBILITIES

Occupant Restraint System

- This vehicle is designed to carry one driver and a passenger, all wearing

proper protective gears (refer to Riding Gear in this section).

- All occupants must latch the doors or the side nets and wear the seat belts at

all times when riding.

Terrain Condition

This vehicle is not designed to ride on paved surfaces; if you must shortly use

the vehicle on such surfaces, avoid abrupt inputs to steering wheel, accelera-

tor and brake pedals.

Always go slowly and be extra careful when operating on unfamiliar terrain.

Always be alert to changing terrain conditions when operating this vehicle.

Take the time to learn how the vehicle performs in different environments.

Never operate on excessively rough, slippery or loose terrain until you have

learned and practiced the skills necessary to control this vehicle on such ter-

rain. Always be especially cautious on these kinds of terrain.

Never operate this vehicle on hills too steep for the vehicle or your abilities.

Practice on small inclines.

Always follow proper procedures for climbing or going down hills as described

in Riding Your Vehicle. Check the terrain carefully before you start up or down

any hill. Never climb or descend hills with excessively slippery or loose surfa-

ces. Never go over the top of any hill at high speed.

Never attempt steep hills or side hilling when pulling a trailer.

–

Always check for obstacles before operating in a new area. Always follow

proper procedures when operating over obstacles as described in Riding

Your Vehicle.

Never operate this vehicle in fast flowing water or in water deeper than speci-

fied in Riding Your Vehicle. Remember that wet brakes may have reduced

stopping ability. Test your brakes after leaving water. If necessary, apply them

several times to let friction dry out the brakes.

Always ensure to properly park the vehicle on the flattest terrain section avail-

able. Put shift lever in PARK, stop engine and remove key before leaving the

vehicle.

If parking on a slope is inevitable, Placing a large rock or similar object behind

a wheel to block it from moving is recommended.

Never assume that the vehicle will go everywhere safely. Sudden changes in

terrain caused by holes, depressions, banks, softer or harder “ground” or oth-

er irregularities may cause the vehicle to topple or become unstable. To avoid

this, slow down and always observe the terrain ahead. If the vehicle does be-

gin to topple or rollover, the best advice is to immediately steer in the direction

of the rollover! Never attempt to prevent a rollover with your arms or legs. You

should keep your limbs inside the cage or ROPS (rollover protective

structure).

SAFETY INFORMATION

PRE-RIDE INSPECTION

Always inspect and confirm the safe operating condition of your vehicle prior to

ride. Always follow the maintenance schedule described in this Operator's Guide.

WARNING

Perform a pre-riide inspection before each ride to detect any potentiiall

probllem that coulld occur duriing operatiion. The pre-ride inspection can

help you moniitor component wear and deterioratiion before they become

a probllem. Correct any probllem that you discover to reduce the risk of a

breakdown or crash.

Before using this vehicle, the operator should always perform the following pre--

ride inspection check list.

Refer to maintenance procedures for details.

Pre-Ride Inspection Check List

What to Do Before Starting the Engiine (Key OFF)

Items to Be

Inspection to Perform

Inspected

Engine oil

Check engine oil level.

(V-Twin engines)

Coolant

Check coolant level.

Brake fluid

Check brake fluid level.

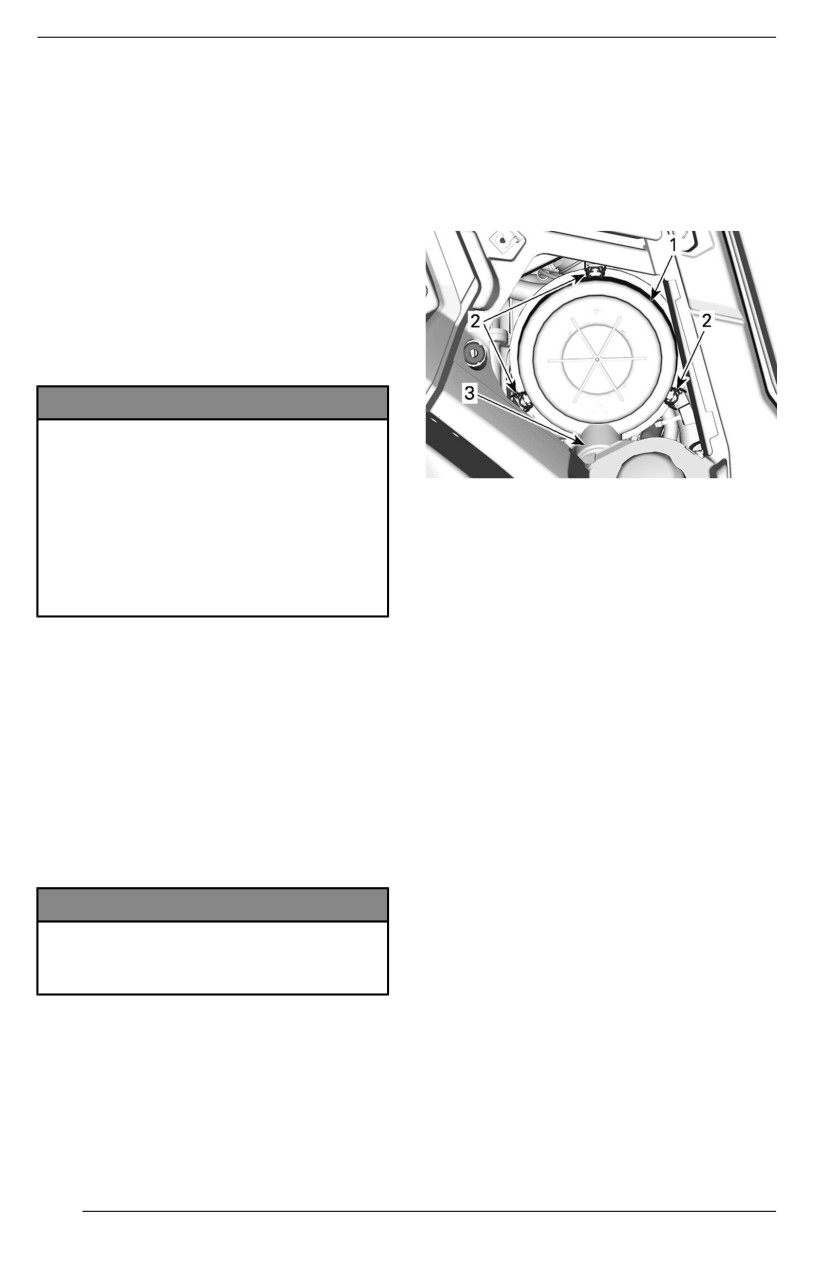

Inspect the engine air filter, clean or replace if

Engine air filter

needed (service more often when riding in dusty

conditions).

Inspect and clean the CVT air filter (when riding in

CVT air filter

dusty conditions).

Radiator

Check cleanliness of the radiator.

Front grille

Inspect front grille for cleanliness.

If not already done, clean the area surrounding the

exhaust system, especially if during the last ride, the

Exhaust system

vehicle was used in a swamp, bog, hay or dead

leaves.

Drive shaft

Check drive shaft bellows and protectors condition.

bellows

Check tire pressure and condition. Refer to the Tire

Tires

Pressure Label and adjust according to load.

Check wheels for damage and for abnormal play.

Wheels

Make sure that lug nuts are tightened. Refer to

SAFETY INFORMATION

PRE-RIDE INSPECTION

Items to Be

Inspectiion to Perform

Inspected

Wheels and Tires in Maintenance Procedures for

torque specification.

Cargo Load: If you transport a cargo, respect the

maximum loading capacity. Refer to Loading the

Cargo Box. Ensure cargo is properly secured to the

rear cargo box.

Cargo and load

Vehicle Load: Ensure that total load on the vehicle

(including operator, passengers, cargo, tongue

weight and added accessories) does not exceed

specifications. Refer to Carrying Loads.

If you are pulling a trailer or another equipment:

- Check hitch and trailer ball condition.

- Respect the tongue capacity and towing capacity

Hitch

as indicated on the label affixed to the hitch or

refer to Technical Specifications.

- Ensure trailer is properly secured to hitch.

Check for debris on or in the vicinity of the exhaust

system, remove if any and clean properly.

Chassis and

Check underneath vehicle for any debris on chassis

suspension

or suspension components (upper and lower arms,

wheels, shock absorber, springs) and clean them

properly

Check doors for any damage. Have the doors

replaced if any damage is found.

Doors

Close both doors and confirm that they latch

securely.

What to Do Before Startiing the Engine (Key ON)

ITEMS TO BE

INSPECTION TO PERFORM

üü

INSPECTED

Check operation of indicator lamps in digital

display(during first few seconds of key ON).

Digital display

Check for messages in gauge.

Check operation and cleanliness of:

- Headlights (High and Low)

Lights

- Taillights

- Brake lights.

Seats and seat

Check if seats are properly latched.

belts

SAFETY INFORMATION

PRE-RIDE INSPECTION

ITEMS TO BE

INSPECTION TO PERFORM

üü

INSPECTED

Check seat belts for any damage. Fasten seat belts

and confirm that they latch securely.

Press on the accelerator pedal a few times to ensure

Accelerator pedal

it operates freely and it returns to the rest position

when released.

Press down on the brake pedal and make sure you

Brake pedal

feel firm resistance and that it fully returns to position

when released.

Fuel level

Check the fuel level.

What to Do After the Engine is Started

ITEMS TO BE

INSPECTION TO PERFORM

üü

INSPECTED

Check if steering wheel operates freely by

Steering

completely turning it from side to side.

RF D.E.S.S. post

Remove the DESS key to verify if engine will shut

(If equipped)

down. Restart engine.

Shift lever

Check operation of shift lever (P, R, N, H and L).

2WD/4WD

Check operation of 2WD/4WD selector.

selector

Drive forward slowly a few feet and apply brakes.

The brake pedal must feel firm when applied. The

Brakes

pedal must return to rest position when released.

The brakes must respond adequately to the driver's

input.

Winch

Check operation of winch.

(If equipped)

Engine oil

(Mono-Cylinder

Check engine oil level.

Engines)

SAFETY INFORMATION

PREPARE TO RIDE

Before you Ride

Perform pre-ride inspection to confirm the safe operating condition of your ve-

hicle. Refer to Pre-Ride Inspection.

Driver and passengers must:

- Be properly seated.

- Latch nets or doors.

- Fasten seat belt.

- Wear appropriate riding gear. Refer to Riding Gear.

Riding Gear

It is important that the operator and passengers always wears appropriate pro-

tective clothing and apparel, including:

- An approved helmet

- Eye protection

- Boots

- Gloves

- A long sleeved shirt or jacket

- Long pants.

Depending on conditions, anti-fogging goggles may be required.

RIDING GEAR

1. Approved helmet

2. Eye and face protection

3. Long sleeves shirt or jacket

4. Gloves

5. Long pants

6. Boots (over-the-ankle footwear)

Weather conditions should help you decide how to dress. To maximize comfort

and avoid frostbites in winter, dress for the coldest weather expected. Thermal

underwear next to the skin also provides good insulation.

Never wear any loose clothing that may get entangled in the vehicle or on tree

branches and shrubs.

SAFETY INFORMATION

PREPARE TO RIDE

Hellmets and Eye Protectiion

Helmets protect the head and brain from injury. Even with the vehicle's cage and

side nets, objects can enter the cockpit and strike the head, or the head can

strike the cage itself or objects outside the vehicle. Even the best helmet is no

guarantee against injury, but statistics indicate that helmet use significantly re-

duces the risk of brain injury. So, be safe and always wear a helmet while riding.

Choosiing a Helmet

Helmets should be manufactured to meet the appropriate standard in your state,

province or country and should fit properly.

A helmet with face protection is a better choice as it protects also against frontal

impacts. It can also protect against debris, stones, insects, the elements, etc.

An open-face helmet does not offer the same protection for the face and chin. If

you wear an open-face helmet, you should use a snap-on face shield and/or a

pair of goggles. Ordinary glasses or sunglasses are not sufficient eye protection

for riders. They can shatter or fly off, and they allow wind and airborne objects to

reach the eyes.

For winter riding conditions, a stocking type cap, balaclava and face mask should

always be carried or worn.

Use tinted face shields or goggles in the daytime only; do not use them at night

or in poor illumination. Do not use them if they impair your ability to discern color.

Other Riding Gear

Footwear

Always wear closed toe footwear. Sturdy over-the-ankle boots with non-slip soles

offer more protection and allow you to plant your foot properly on footrest.

Avoid long shoelaces that can be tangled in the accelerator or brake pedals.

For winter riding conditions, rubber soled boots with either a nylon or leather

uppers, with removable felt liners are best suited.

Avoid rubber boots. Rubber boots may get trapped behind or between pedals,

impairing the proper operation of brake and accelerator pedals.

Gloves

Full-fingered gloves protect hands from the wind, sun, heat, cold and flying ob-

jects. Gloves that fit snugly will improve grip on the steering wheel and help re-

duce hand fatigue. Sturdy, reinforced motorcycle or ATV gloves help protect

hands better in the event of an accident or a rollover. If gloves are too bulky, it

may be difficult to operate the controls.

For winter riding conditions, hands should be protected by a pair of snowmobile

gloves which have sufficient insulation and allow use of thumbs and fingers for

operation of controls.

Jackets, Pants and Ridiing Suits

Wear a jacket or a long sleeved shirt and long pants, or a full riding suit. Quality

ATV-type protective gear will provide comfort, and it can help you avoid being

SAFETY INFORMATION

PREPARE TO RIDE

distracted by adverse environmental elements. In case of a crash, good quality

protective gear made of sturdy material may prevent or reduce injury.

In cool-weather riding, protect yourself against hypothermia. Hypothermia, a con-

dition of low body temperature, can cause loss of concentration, slowed reac-

tions and loss of smooth, precise muscle movement. In cool conditions, proper

protective gear like a windproof jacket and insulated layers of clothing are essen-

tial. Even while riding at moderate temperatures, you can feel very cold due to

the wind.

Protective gear that is appropriate for cold-weather riding may be too hot when

stopped. Dress in layers so that clothing can be removed as desired. Topping the

protective gear with a windproof outer layer can prevent cold air from reaching

the skin.

Rain Gear

If you must ride in wet weather, a rain suit or a waterproof riding suit is recom-

mended. On long rides, it is a good idea to carry rain gear. A dry rider will be

much more comfortable and alert.

Heariing Protection

Long-term exposure to wind and engine noise when riding can cause permanent

hearing loss. Properly worn hearing protective devices such as earplugs can help

prevent hearing loss. Check local laws before using any hearing protective

devices.

SAFETY INFORMATION

AVOID ACCIDENTS

Avoid Rollovers and Tipovers

Side-by-side vehicles handle differently from other vehicles. Side-by-side ve-

hicles are designed to handle off-road terrain (for example, their wheel base and

track width, ground clearance, suspension, drivetrain, tires, etc.), and, as a result,

can overturn in situations where vehicles designed for use primarily on paved or

smooth terrain may not.

A rollover or other accident can occur quickly during abrupt maneuvers such as

sharp turns or hard acceleration or deceleration when turning, or when driving on

hills or over obstacles. Abrupt maneuvers or aggressive driving can cause roll-

overs or loss of control even in flat open areas. If the vehicle rolls over, any part

of your body (such as arms, legs, or head) outside of the cockpit can be crushed

and trapped by the cage or ROPS or other parts of the vehicle. You can also be

injured by impact with the ground, cockpit or other objects.

To reduce the risk of rollovers:

- Use care when turning.

- Do not turn the steering wheel too far or too fast for your speed and envi-

ronment. Adjust steering inputs according to your speed and environment.

- Slow down before entering a turn. Avoid hard braking during a turn.

- Avoid sudden or hard acceleration when turning, even from a stop or low

speed.

- Never attempt donuts, skids, slides, fishtails, jumps, or other stunts. If vehicle

starts to skid or slide, steer in the direction of the skid or slide. Never slam the

brakes and lock the wheels.

- Avoid paved surfaces. This vehicle is not designed to operate on paved surfa-

ces and is more likely to roll over. If you must drive on pavement, turn gradu-

ally, go slowly, and avoid abrupt acceleration and braking.

This vehicle can roll over sideways or tip over forward or backwards on slopes or

uneven terrain.

- Avoid side hilling (driving along the slope rather than up or down a hill). When

possible, drive straight up and down inclines rather than across them. If you

must side hill, use extreme caution and avoid slippery surfaces, objects, or

depressions. If you feel the vehicle start to rollover or slide sideways, steer

downhill if possible.

- Avoid steep hills and follow procedures in this guide for climbing and de-

scending hills.

- Sudden changes in terrain such as holes, depressions, banks, softer or hard-

er ground or other irregularities may cause the vehicle to tip or become unsta-

ble. Observe the terrain ahead and slow down in areas of uneven terrain.

This vehicle will handle differently when carrying or pulling a load.

- Reduce speed and follow instructions in this manual for carrying cargo or pull-

ing a trailer.

- Avoid hills and rough terrain.

- Allow more distance to stop.

Be Prepared iin Case of Rolllover

- Fasten side nets and fasten seat belt to help you avoid sticking out arms or

legs.

SAFETY INFORMATION

AVOID ACCIDENTS

- Never grab the cage or ROPS while riding. Hands can be crushed between

the cage or ROPS and the ground in a rollover. Keep hands on the steering

wheel or handholds.

- Never try to stop a rollover using your arms or legs. If you think that the ve-

hicle may tip or roll, the driver should keep both hands on the steering wheel

and the left foot firmly planted on the footrest. The passengers should keep

both hands on the handhold and both feet firmly planted on the floor.

Avoid Collisions

This vehicle can reach high speeds. At higher speeds, there is an increased risk

of losing control, particularly in challenging off-road conditions, and the risk of in-

jury in a collision is greater. Never operate at excessive speeds. Always go at a

speed that is proper for the terrain, visibility, and operating conditions, and your

experience. Consider reserving use of the performance key for situations in

which full speed and acceleration capability are appropriate.

Never operate this vehicle on any public street, road or highway, even dirt or

gravel ones. Riding your vehicle on roads or highways could result in a collision

with another vehicle. This vehicle is not designed for operation on roads. For ex-

ample, it does not meet motor vehicle safety standards that apply to automobiles.

In many jurisdictions it is not legal to operate this vehicle on public roads.

This vehicle does not have the same kind of protection for collisions as a car; for

example, there are no air bags, the cockpit is not fully enclosed, and it is not de-

signed for collisions with other vehicles. Therefore, it is particularly important to

fasten seat belts and side nets and wear an approved helmet.

SAFETY INFORMATION

RIDING YOUR VEHICLE

Practice Exercises

Before you go out for a ride, it is very important to familiarize yourself with the

handling of your vehicle by practicing in a controlled environment. If possible, it is

also a very good idea to take a more formal training course to sharpen your skills

and increase your knowledge of the vehicle.

Find a suitable area to practice and perform the following exercises. It should be

at least 45 m (150 ft) by 45 m (150 ft) free of obstacles like trees and rocks. Once

you’ve selected a suitable permitted location, proceed with the following

exercises.

Turning Exerciises

Turning is one of the most frequent causes of accidents. It is easier for the ve-

hicle to lose traction or rollover if you turn too sharply, or go too fast. Slow down

when you approach a turn.

- First learn how to perform slight right turns at very low speeds. Release the

throttle before turning and slowly reapply the throttle when turning.

- Repeat turning exercise but this time maintain the throttle at the level while

turning.

- Finally, repeat turning exercise while accelerating slowly.

- Practice exercises turning on the other side.

Note how your vehicle reacts in these different exercises. We recommend releas-

ing the throttle before entering a turn to help initiate directional change. You will

feel the lateral force increasing with the speed and with your steering input. The

lateral force should be maintained as low as possible to make sure it does not

cause the vehicle to roll over.

U Turn Exercises

Practice doing U turns.

- Accelerate slowly and while remaining at low speed, then gradually turn the

steering wheel to the right until you have completed the U turn.

- Repeat U turn exercise with different steering inputs and always at a very low

speed.

- Repeat U turn exercise on the other side.

As mentioned before in this guide, do not ride on paved surfaces as the vehicle

behavior will not be the same, increasing the risk of rollover.

Braking Exerciises

Practice braking to get familiar with the brake response.

- Do it at low speed first, then increase the speed.

- Practice braking in straight line at different speeds and different braking force.

- Practice emergency braking; optimal braking is obtained in straight line, with

high force applied, without locking the wheels.

Remember, braking distance depends on vehicle speed, load and the type of

surface. Also, the tires and brakes conditions play a major role.

Reverse Exercises

The next step involves using the reverse.

SAFETY INFORMATION

RIDING YOUR VEHICLE

- Install 1 cone marker on both sides of the vehicle beside each rear wheel.

Move the vehicle forward until you can see the cone markers, then stop the

vehicle. Acknowledge the distance required to see obstacles behind you.

- Learn how the vehicle handles itself in reverse and reacts with steering

inputs.

- Always perform this reverse exercise at slow speeds.

Emergency Engiine Stopping Exerciise

Learn how to stop your engine quickly in an emergency situation.

- While running at low speed, simply turn the key to the off position.

This is to familiarize you with the vehicle’s reaction when the engine is turned off

while driving and to develop this reflex.

It is also important to be able to stop and exit the vehicle quickly.

- Immobilize the vehicle.

- Detach the seat belt and the net to exit the vehicle.

Off-Road Operation

The very nature of off-road operation is dangerous. Any terrain, which has not

been specially prepared to carry vehicles, presents an inherent danger where

terrain substance, shape and steepness are unpredictable. The terrain itself

presents a continual element of danger, which must be knowingly accepted by

anyone venturing over it.

An operator who takes a vehicle off-road should always exercise the utmost care

in selecting the safest path and keeping close watch on the terrain ahead of him.

The vehicle should never be operated by anyone who is not completely familiar

with the driving instructions applicable to the vehicle, nor should it be operated

on steep or treacherous terrain.

General Riding Techniques

Generall Driiving Tips

Care, caution, experience and driving skill are the best precautions against the

hazards of vehicle operation.

Whenever there is the slightest doubt that the vehicle can safely negotiate an ob-

stacle or a particular piece of terrain, always choose an alternate route.

In off-road operation, power and traction, not speed, are important. Never drive

faster than visibility and your own ability to select a safe route permit. Always go

slowly and be extra careful when operating on unfamiliar terrain. Always be alert

to changing terrain conditions when operating this vehicle. Be especially cautious

on excessively rough, slippery, icy or loose terrain.

Constantly watch the terrain ahead for sudden changes in slopes or obstacles,

such as rocks or stumps, that may cause loss of stability, resulting in tip over or

rollover.

Never operate the vehicle if the controls do not function normally. See an author-

ized Can-Am Off-road dealer.

SAFETY INFORMATION

RIDING YOUR VEHICLE

To maintain proper control it is strongly advised that you keep your hands on the

steering wheel and within easy reach of all controls. The same holds true for your

feet. To minimize the possibility of any leg or foot injury, keep your left foot on the

footrest and right foot on the floor at all times. Staying completely within the cock-

pit will also help keep you from striking objects outside the vehicle.

Watch for and avoid branches and other objects that could enter the passenger

compartment and strike you or your passengers.

Operating in Reverse

When operating in reverse, check that the path behind the vehicle is free of peo-

ple or obstacles. Pay attention to blind spots. When it is safe to proceed in re-

verse, go slowly and avoid sharp turns.

WARNING

Steering inputs iin reverse operatiion increase the risk of rolllover.

NOTE:

In reverse operation, the engine RPM is limited thus limiting the vehicle reverse

speed.

WARNING

When driviing downhiilll in reverse, gravity can iincrease the vehiclle speed

above safe reverse speed.

Crossing Roads

If you have to cross a road, ensure to have complete visibility on both sides for in-

coming traffic and decide on exit point on other side of road. Drive in a straight

line toward that point. Do not make sharp direction changes or abrupt accelera-

tions as it may result in a rollover situation. Do not travel on sidewalks or bicycle

trails as they are designated specifically for those uses.

Riiding on Paved Surfaces

Avoid paved surfaces. This vehicle is not designed to operate on paved surfaces

and is more likely to roll over. If you must drive on pavement, turn gradually, go

slowly, and avoid abrupt acceleration and braking.

Shalllow Water Crossiing

Water can be a unique hazard. If it is too deep the vehicle may “float” and topple.

Check the water depth and current before you attempt to cross any water. Water

depth should not exceed the center of the wheels for vehicle to safely cross the

obstacle. Beware of slippery surfaces such as rocks, grass, logs, etc., both in the

water and on its banks. A loss of traction may occur. Do not attempt to enter the

water at high speed.

Water will affect the braking ability of your vehicle. Make sure you dry the brakes

by applying them several times after the vehicle leaves the water.

SAFETY INFORMATION

RIDING YOUR VEHICLE

Mud or marsh lands may be encountered near water. Be prepared for sudden

“holes” or changes in depth. Similarly so, be watchful of hazards such as rocks,

logs, etc., partially covered by vegetation.

Ridiing on Snow or Ice

When performing pre-ride inspection, pay special attention to locations on the ve-

hicle where snow and/or ice accumulations may obstruct visibility of the tail lamp,

clog ventilation openings, block the radiator and fan, and interfere with the move-

ment of controls. Before starting with your vehicle, check the steering, accelera-

tor and brake pedals for interference free operation.

Whenever this vehicle is ridden on a snow covered drive path, the tire grip is gen-

erally reduced causing the vehicle to react differently to control inputs from the

operator. On low grip surfaces, the steering responses are not as crisp and pre-

cise, stopping distances are lengthened and acceleration is also affected. Slow

down and be gentle on the accelerator. This will only result in spinning of the tires

and possibly in an over steering slide of the vehicle. Avoid hard braking. This will

possibly result in a straight line slide of the vehicle. Again, the best advice is to

safely reduce speed in anticipation of a maneuver to give yourself time and dis-

tance in order to keep control of the vehicle.

As you drive your vehicle over a loose snow covered surface, snow dust will be

picked up in the wake turbulence of the moving vehicle and transported to con-

tact and accumulate or melt on some exposed components including rotating

parts like brake discs. Water, snow or ice may affect the response time of the

brake system of your vehicle. Even when not required to reduce vehicle speed

apply brakes frequently to prevent ice or snow accumulation and to dry brake

pads and discs. While doing so in low risk driving situations you will test for grip

level and keep yourself alerted to how the vehicle reacts to your control inputs.

Always keep brake and accelerator pedals and floor boards free of snow and ice.

Frequently wipe snow off seat, steering wheel, headlights and tail lamps.

The depth of the snow cover may hide rocks, tree stumps or other objects and if

it is wet may totally impede the drivability as the vehicle becomes bogged down

or completely looses traction in slushy snow. Look far ahead and always be

watchful of any visible clues that might indicate the presence of such obstacles.

In doubt steer clear. Avoid driving on any frozen waterways before checking that

the ice will safely support the vehicle, its riders and its load of cargo.

At the end of each ride it is a good practice to clean the vehicle and all moving

components (brakes, steering components, drivelines, controls, radiator fan etc.)

from any snow or ice accumulations. Wet snow will turn to ice during the shut

down period and become more difficult to remove at the next pre-ride inspection.

Ridiing on Sand

Sand and riding on sand dunes is another unique experience but there are some

basic precautions that should be observed. Wet, deep or fine sand may create a

loss of traction and cause the vehicle to slide, drop off or become “bogged” down.

If this occurs look for a firmer base. Again, the best advice is to slow down and

be watchful of the conditions.

SAFETY INFORMATION

RIDING YOUR VEHICLE

When riding in sand dunes it is advisable to equip the vehicle with an antenna

type safety flag. This will help make your location more visible to others over the

next sand dune. Proceed carefully should you see another safety flag ahead.

Riiding on Gravel, Loose Stones or Other Slippery Surfaces

Riding on loose stones or gravel is very similar to riding on ice. They will affect

the steering of vehicle, possibly causing it to slide and tip over especially at high

speeds. In addition, braking distance may be affected. Remember that “gunning”

the throttle or sliding may cause loose stones to be ejected rearwards into the

path of another rider's way. Never do it deliberately.

If you do get into a slide or skid, it may help to turn the steering wheel into the di-

rection of the skid until you regain control. Never jam the brakes and lock the

wheels.

Crossing Obstaclles

Use the low range (L) for crossing obstacles.

Obstacles on the “trail” should be traversed with caution. This includes rocks, fall-

en trees, and depressions. You should avoid them whenever possible. Remem-

ber that some obstacles are too large or dangerous to cross and should be

avoided. As a guideline, never attempt to cross an obstacle higher than the

ground clearance of the vehicle. Small rocks or small fallen trees may be safely

crossed - approach obstacle at low speed and as much as possible at a right an-

gle. Adjust speed without losing momentum and do not accelerate abruptly. Pas-

sengers must grasp handhold firmly and brace feet on the floor. Hold steering

firmly without closing your fists around it and proceed. Be aware that the obstacle

may be slippery or may move while crossing.

Hiilll Driving Conditiions

When driving on hills or slopes, two things are highly important: be prepared for

slippery surfaces or terrain variations and obstacles and brace yourself properly

inside vehicle. If you climb or descend a hill that is too slippery or has too loose a

surface, you can lose control. If you go over the top of a hill at high speed, you

may not have time to prepare for the terrain on the other side. Avoid parking on a

slope. Always put the shift lever in PARK when stopped or parked, especially on

an incline, to avoid rolling. If you must park on a steep incline, block the wheels

using rocks or bricks.

Uphill Driiviing

Use the low range (L) for uphill driving.

Due to its configuration, this vehicle has very good traction even while climbing,

so much so that tip over is possible before traction is lost. For example, it is com-

mon to encounter terrain situations where the top of the hill has eroded to a point

that the hill peak rises very sharply. This vehicle is not designed to negotiate such

a condition. Take an alternate route.

It is also wise to know the terrain condition on the other side of the hill or bank. All

too often there exists a sharp drop-off that is impossible to negotiate or descend.

SAFETY INFORMATION

RIDING YOUR VEHICLE

If you feel that the slope is getting too steep to climb, apply brakes to immobilize

vehicle. Put shift lever in reverse (R), and back down the hill, barely releasing

brakes to remain at low speed. Do not attempt to turn around. Never coast down

hill while vehicle is in neutral. Do not perform hard braking as it increases the risk

of tipover.

Downhilll Driiviing

This vehicle can climb steeper slopes than it can descend safely. Therefore, it is

essential to assure that a safe route exists to descend a slope before you climb

it.

Decelerating while negotiating a slippery downhill slope could “toboggan” the ve-

hicle, causing it to slide. Maintain steady speed and/or accelerate slightly to re-

gain control. Never slam brakes and lock the wheels.

Side Hiillling

Whenever possible, side hilling (driving across a slope rather than up or down it)

should be avoided. If necessary, do so with extreme caution. Side hilling on steep

inclines could result in rollover. In addition, slippery or unfirm surfaces could re-

sult in uncontrollable side sliding. Avoid all objects or depressions that will inten-

sify the raising of one side of the vehicle higher than the other, thus causing

rollover. If you feel the vehicle start to rollover or slide sideways, steer downhill if

possible.

WARNING

Be carefull when lloadiing and transporting lliquid reservoirs. They can af-

fect vehicle stabiiliity when side hillliing by pullling downhilll and increasing

the risk of a rolllover.

Drop-Offs

This vehicle is not designed to negotiate drop-offs. It will “bottom-out” and usually

stop if either the front or rear wheels are driven over a drop-off. If the drop is

sharp or deep, the vehicle will nose dive and tip over.

Avoid negotiating drop-offs. Reverse and select an alternate route.

Recreational, Group and Diistance Ridiing

Respect the rights and limitations of others. Stay away from areas designated for

other types of off road use. This includes snowmobile trails, equestrian trails,

cross country ski trails, mountain bike trails, etc. Never assume there are no oth-

er users on the trail. Always stay to the right of the trail and do not zig zag to one

side of the trail then the other. Be prepared to stop or pull off to the side if another

trail user appears in front of you.

Join a local side-by-side vehicle club. It will provide you with a map and advice or

inform you where you can ride. If a club does not exist in your area, help to start

one. Group riding and club activities provide a pleasurable, social experience.

Never use this vehicle with drugs or alcohol, or tired or ill.

Always keep a safe distance from other riders. Your judgment of speed, terrain

conditions, weather, mechanical condition of your vehicle and the

“trust in

SAFETY INFORMATION

RIDING YOUR VEHICLE

judgment” you have in others around you will help you make a better choice of

appropriate safe distance. This vehicle, like any other motorized vehicle, cannot

stop “on a dime”.

Before you ride, tell someone where you are planning to travel and your expected

time of return.

Depending on the length of your ride, carry additional tools or emergency equip-

ment. Find out where you can get additional gasoline. Be prepared for the possi-

ble conditions you may encounter. An emergency first aid kit should always be a

consideration.

Environment

One of the benefits of this vehicle is that it can take you off the beaten path away

from most communities. However, you should always respect nature and the

rights of others to enjoy it. Do not ride in environmentally sensitive areas. Do not

drive over forest crops or shrubs, nor cut down trees or take down fencing, nor

spin your wheels and destroy the terrain. “Tread Lightly”.

This vehicle can cause OHV wildfires if debris builds up near the exhaust or other

engine hot spots and ignites then falls off into dry grass. Avoid riding in wet

areas, through muskeg or tall grass, where debris can build up. Should you ride

in those areas, inspect and remove all debris from your engine and hot spots. Re-

fer to Vehicle Care for details.

Chasing wildlife is in many areas illegal. Wildlife can die of exhaustion after being

chased by a motorized vehicle. If you encounter animals on the trail, stop and ob-

serve quietly and with caution. It will be one of the better memories of your life.

Observe the rule “what you take in, carry out”. Do not litter. Do not start campfires

unless you have permission to do so, and then only away from dry areas. The

hazards you may create on the trail may cause injury to others or yourself, even

at a later date.

Respect farm lands. Always obtain the permission of the landowner before riding

on private land. Respect crops, farm animals and property lines.

Finally, do not pollute streams, lakes or rivers and do not modify the engine or ex-

haust system, or remove any of its components as it will alter the vehicle

emissions.

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

Working with Your Vehicle

Your vehicle can help you perform a number of different LIGHT tasks ranging

from snow removal to pulling wood or carrying cargo. A variety of accessories

are available from your authorized Can-Am Off-road dealer. To prevent possible

injury, follow the instructions and warnings that accompany the accessory. Al-

ways respect the load limits of the vehicle. Overloading the vehicle can over-

stress the components and cause failure. Avoid overexerting yourself if you lift or

pull heavy loads or manually push the vehicle.

WARNING

Mounted machinery must be lowered on the ground before lleaviing the

vehicle.

Carrying Loads

WARNING

Make sure alll accessoriies, cargo and loose objects iinsiide the vehiiclle are

properly secured, or remove iit to prevent from faiiliing on the road and cre-

ating a hazard for folllowing vehiclles.

Any load carried on the vehicle will affect the handling, stability and braking dis-

tance of the vehicle. Do not exceed the payload limits of the vehicle, including

the weight of operator, passengers, cargo, accessories and trailer tongue weight.

Always be aware that the cargo may slide or fall off and cause an accident.

Maximum Payload Limit of the Vehicle

Includes occupants, cargo, tongue

331 kg (730 lb)

weight and added accessories

The following is an example of suitable total vehicle payload distribution:

Example of Suitable Payloads

(adjust according to your model load limit)

Operator and

Cargo box

Tongue

Total vehicle

Accessories

passenger

load

weight

load

163 kg

60 kg

40 kg

68 kg

331 kg

(359 lb)

(132 lb)

(88 lb)

(150 lb)

(730 lb)

To reduce the risk to lose control or the load carried, follow these

recommendations.

Vehiiclle Settiings When Carryiing Load

When carrying heavy loads or passengers, readjust suspension accordingly.

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

When carrying heavy loads in cargo box or pulling a loaded trailer, operate with

the shift lever in L (low range).

WARNING

Must use LOW GEAR iif total payload iis greater than 226 kg (500 llb).

Loading the Cargo Box

NOTICE

When lloadiing or unloading, do not exceed the maxiimum cargo capacity.

Load cargo as low as possible - a higher load can raise the vehicle’s center of

gravity, which can reduce stability. Position cargo toward the front and center of

the cargo box and as evenly distributed as possible.

Secure the load to the tie down hooks inside cargo box. Use only the tie down

hooks on the bottom of the cargo box; do not secure cargo to the cage or other

part of the vehicle. If it is not properly secured, a load may slide or fall off, possi-

bly striking occupants or bystanders; or it may shift during riding, affecting the

handling of the vehicle.

Objects that are higher than the walls of the cargo bed may affect visibility for the

driver and may act as projectiles in case of an accident. Loads that protrude side-

ways can get snagged or caught in bush, branches or other obstacles. Avoid cov-

ering and obstructing the brake lights with the cargo. Ensure no cargo protrudes

outside the box and that cargo will not interfere with your visibility or control of the

vehicle.

Do not overload cargo box.

Maximum Cargo Box Load

Evenly distributed and safely secured.

136 kg (300 lb)

Loaded as low as possible to reduce

height of center of gravity.

Operating Whiile Carryiing a Load

Reduce your speed when carrying cargo and turn gradually. Avoid hills and

rough terrain. Allow more distance for braking. This vehicle may require addition-

al stopping distance if carrying heavy loads, especially on inclined surfaces.

Hauling a Load

NOTICE

A BRP approved rear hitch must be properly iinstallled on the vehicle for

haulling traillers.

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

Never pull a load by attaching it to the cage or any other accessories; this can

cause the vehicle to tip over. Use only the trailer hitch (if installed) or winch (if in-

stalled) to pull a load.

In an emergency situation, use the recovery hook to recover a stuck vehicle.

When pulling loads with a chain or cable, ensure that there is no slack before

starting and maintain tension while pulling.

When pulling loads with a chain or cable, be sure to brake progressively. The in-

ertia of the load could lead to an impact.

When hauling a load, respect the maximum hauling capacity. See Pulling a

Trailer below.

WARNING

A slack iin the chaiin or cable can cause iit to break and snap back.

When pulling another vehicle, be sure that someone is controlling the pulled ve-

hicle. They must brake and steer to prevent the vehicle from going out of control.

Before pulling loads with a winch, refer to the winch manufacturer’s instructions.

Reduce your speed when hauling a load and turn gradually. Avoid hills and rough

terrain. Never attempt steep hills. Allow more distance for braking, especially on

inclined surfaces and when a passenger is on board. Be careful not to skid or

slide.

Pulling a Trailer

NOTICE

A BRP approved rear hiitch must be properlly installled on the vehiclle for

hauliing traiilers.

Riding this vehicle with a trailer substantially increases the risk of toppling, espe-

cially on inclined slopes. If a trailer is used behind the vehicle make sure that its

hitch is compatible with the one on the vehicle. Make sure the trailer is horizontal

with the vehicle. (In some instances a special extension may have to be installed

on the vehicle hitch). Use security chains or cables to secure the trailer with the

vehicle.

Reduce your speed when pulling a trailer and turn gradually. Avoid hills and

rough terrain. Never attempt steep hills. Allow more distance for braking, espe-

cially on inclined surfaces and when a passenger is on board. Be careful not to

skid or slide.

Improperly loading a trailer may cause loss of control.

Always make sure load is evenly distributed and safely secured on the trailer; an

evenly balanced trailer is easier to control.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS

(CANADA/UNITED STATES)

Safety Hang Tag

This vehicle comes with a hang tag and labels containing important safety

information.

Any person who rides this vehicle should read and understand this information

before riding.

THIS VEHICLE IS INTENDED FOR RECREATIONAL USE

AND SECONDARY GENERAL UTILITY APPLICATIONS

Tilt Table

NO OPERATOR UNDER AGE 16

TRAINING COURSES TO TEACH ROV DRIVING

Test Result

ARE AVAILABLE. FOR INFORMATION CONTACT

YOUR DEALER.

Read the Operator's Guide and Safety Labels

and Watch the Safety Video.

Follow All Instructions and Warnings.

BOMBARDIER RECREATIONAL PRODUCTS INC.

VEHICLE MODEL

CHECK WITH YOUR DEALER TO FIND OUT ABOUT

TILT TABLE RESULT

STATE OR LOCAL LAWS REGARDING ROV OPERATION.

Cause Severe Injury or Death

Be Prepared

Measurement of lateral stability, in degrees, of a

• Fasten seat belts and make sure nets or doors

sample, standard condition vehicle (with an

are securely latched in place.

operator and a passenger load - 430 pounds) as

measured by the manufacturer in accordance with

the tilt table lateral stability test in the ANSI/ROHVA

standard for Recreational Off-Highway Vehicles.

completely inside the vehicle.

Vehicle modification, accessories, and loading can

Drive Responsibly

affect lateral stability.

Avoid loss of control and rollovers:

Training courses to teach ROV driving are available.

never do donuts.

For information contact your dealer and/or

rohva.org.

terrain. Avoid paved surfaces.

Check with your dealer to find out about state or

local laws regarding ROV operation.

Rollovers have caused severe injuries and death,

THIS HANG TAG IS NOT TO BE REMOVED BEFORE SALE.

Be Sure Riders Pay Attention and Plan Ahead

If you think or feel the vehicle may tip or roll,

reduce your risk of injury :

VEHICLE MODEL NAME:

and brace yourself.

ENGINE DESCRIPTION:

vehicle for any reason.

Require Proper Use of Your Vehicle

EPA CERTIFIED

- Do your part to prevent injuries:

NER (NORMALIZED EMISSION RATE) =

ON 0 TO 10 SCALE, 0 BEING THE CLEANEST.

BOMBARDIER RECREATIONAL PRODUCTS INC

*NO TO BE REMOVED PRIOR SALE.

card

Vehicle seating capacity:

Occupants

THIS HANG TAG CAN’T BE REMOVED BEFORE SALE.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

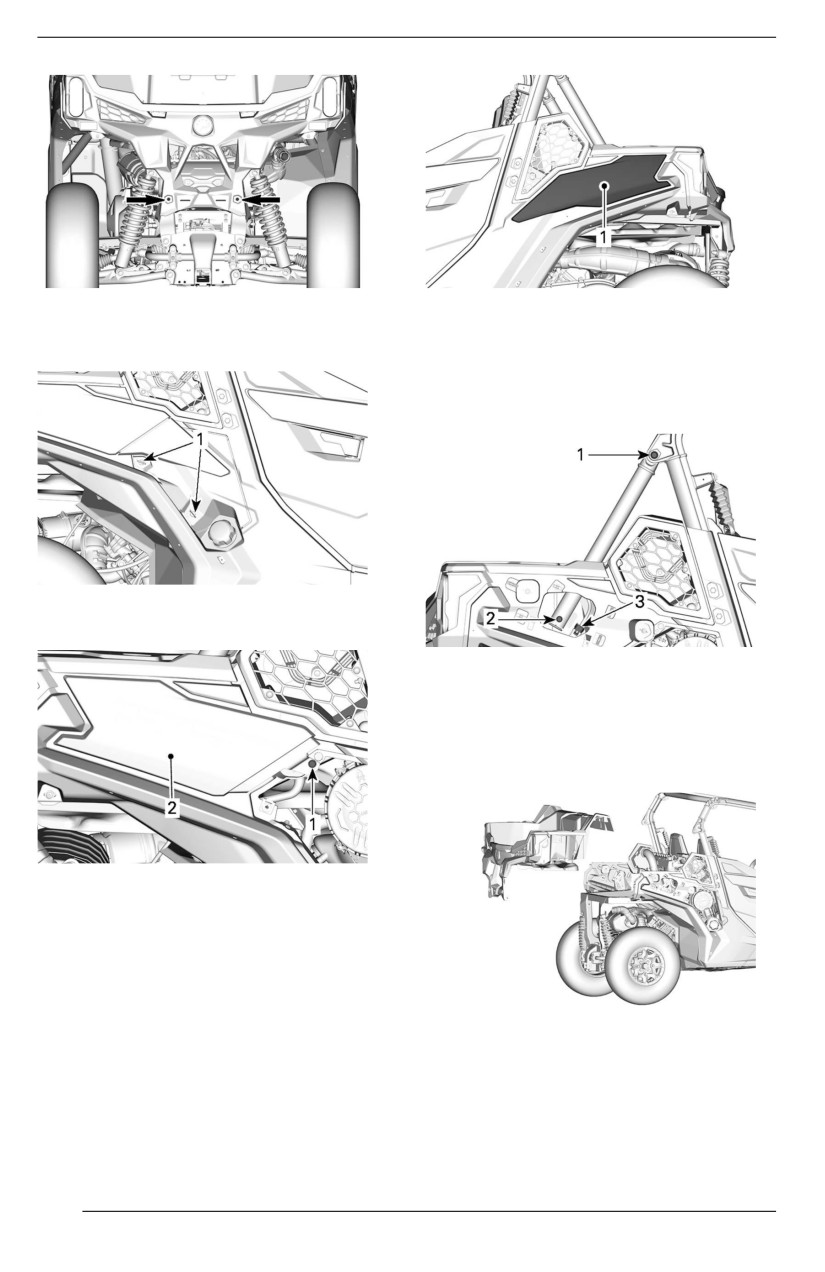

Safety Labels

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passengers

or bystanders.

The following labels are on your vehicle, and they should be considered perma-

nent parts of the vehicle. They need to be clean and visible at all times. If missing

or damaged, they need to be replaced. Safety labels are free of charge. See an

authorized Can-Am Off-road dealer.

Upon replacement of parts that have warnings on them, make sure to order (free

of charge) the applicable safety warnings if not already installed on the replace-

ment part.

NOTE:

In the event of any discrepancy between this guide and the vehicle, the safety la-

bels on the vehicle have precedence over the labels in this guide.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

General Warning Label

Improper Use of Off-Highway Vehicles Can Cause

Rollovers Have Caused Severe Injuries and

Severe Injury or Death

Death, Even on Flat, Open Areas.

Be Prepared

Be Sure Riders Pay Attention and Plan Ahead

• Fasten seat belts and make sure nets or doors are securely latched in place.

If you think or feel the vehicle may tip or roll, reduce your risk of injury :

• Wear an approved helmet and protective gear.

• Keep a firm grip on the steering wheel or handholds and brace yourself.

• Each rider must be able to sit with back against seat, foot flat on the

• Do not put any part of your body outside of the vehicle for any reason.

floor or on footrest, and hands on steering wheel or handholds.

Stay completely inside the vehicle.

Require Proper Use of Your Vehicle - Do your part to prevent

Drive Responsibly

injuries:

Avoid loss of control and rollovers:

• Do not allow careless or reckless driving.

• Avoid abrupt maneuvers, sideways sliding, skidding

• Make sure operators are 16 or older with a valid driver's license.

or fishtailing, and never do donuts.

• Do not let people drive or ride after using alcohol or drugs.

• Avoid hard acceleration when turning, even from a stop.

• Do not allow operation on public roads (unless designated

• Slow down before entering a turn.

for off-highway vehicle access) - collisions with cars and

• Plan for hills, rough terrain, ruts, and other changes

trucks can occur.

in traction and terrain. Avoid paved surfaces.

• Do not exceed seating capacity: 2 occupants.

• Avoid side hilling (riding across slopes).

Read and understand all safety labels,

locate and read operator's guide.

Watch the safety video using the QR

code link or visit Can-am web site

before operation.

8029

Patent : www.brp.com/en/about-brp/patents.html

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Passenger Warning Label

Be Sure Riders Pay Attention and Plan Ahead

PASSENGER(S)

Improper Use of this Vehicle Can Cause Severe Injury or Death

If you think or feel the vehicle may tip or roll, reduce your risk of injury:

• Keep a firm grip on handholds and brace yourself.

Be Prepared

• Do not put any part of your body outside of the vehicle for any reason.

• Fasten seat belt and make sure nets or doors are securely latched in place.

• Wear an approved helmet and protective gear.

You must be able to sit with back against seat, foot flat on the

floor or on footrest, and hands on handholds. Stay completely

inside the vehicle.

• Do not ride after using drugs or alcohol.

PASSENGER QUALIFICATIONS AND

• Ask the operator to slow down or stop if

RESPONSIBILITIES

you feel uncomfortable when riding.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Tire Pressure and Maximum Load — Warning Label

Improper tire pressure or overloading can cause loss of control.

Loss of control can result in severe injury or death.

• An underinflated tire cans come off the rim

2 OCCUPANTS

4 OCCUPANTS

MODEL

TRAIL

SPORT

XMR / XRC

XXC

Front

Minimum:

kPa (psi)

76 (11)

97 (14)

83 (12)

97 (14)

165 (24)

COLD TIRE

Maximum:

83 (12)

103 (15)

90 (13)

110 (16)

179 (26)

PRESSURE

Rear

Minimum:

97 (14)

103 (15)

110 (16)

165 (24)

Maximum:

kPa (psi)

138 (20)

152 (22)

159 (23)

152 (22)

234 (34)

VEHICLE LOAD CAPACITY: kg (lb)

331 (730)

481 (1060)

REAR LOAD CAPACITY: kg (lb)

136 (300)

91 (200)

•Use Max pressure if total load exceeds 195 kg (430 lb).

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Overload – Warning Label

Overloading can cause loss of control. Loss of control can result in severe injury or death.

ALWAYS secure the load.

NEVER carry passenger in cargo box.

NEVER place gasoline, !ammable or dangerous liquids

NEVER exceed the VEHICLE LOAD CAPACITY (Refer to label below),

including

container on carrier. This can lead to an explosion.

weight of operator, passenger, accessories and

NEVER exceed REAR LOAD CAPACITY (Refer to label below),

trailer tongue weight.

evenly distributed (includes trailer tongue weight

NEVER attach to cargo area to pull a load. this can cause

if applicable).

the vehicle to tip over. use only the trailer hitch

or recovery hook to pull a load.

To reduce the risk of loss of control or loss of load

When loading cargo: • Position cargo towards front and center and

When carrying a load: • Reduce your speed and turn gradually.

as low as possible.

• Avoid hills and rough terrain

• Allow more distance to stop.

704906712

Refer to your Operator ‘s Guide for more information about cargo box use.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Rollover — Warning Labels

LH side

RH Side

Be prepared in case of

rollover

If the vehicle rolls over,

any part of your body

(such as arms, legs, or

head) outside of the

cockpit can be crushed

by the cage or other

parts of the vehicle.

Fasten seat belt and

make sure net and/or

door is securely latched

in place to help you

avoid sticking out arms

or legs.

hold the

cage while riding.

try to stop

a rollover using

your arm or leg.

9028

9030

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Compliance HangTag

Caliifornia Proposition 65 Warniing - Hang Tag

. Operating, servicing and

WARNING

maintaining an off-road vehicle can expose

you to chemicals including engine exhaust,

carbon monoxide, phthalates, and lead,

which are known to the State of California

to cause cancer and birth defects or other

reproductive harm.

To minimize exposure, avoid breathing

exhaust, do not idle the engine except as

necessary, service your vehicle in a

well-ventilated area and wear gloves or wash

your hands frequently when servicing your

vehicle.

For more information go to

www.P65Warnings.ca.gov/products/

passenger-vehicle

704906872

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES

OUTSIDE CANADA AND UNITED STATES)

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passengers

or bystanders.

The following labels are on your vehicle, and they should be considered perma-

nent parts of the vehicle. They need to be clean and visible at all times. If missing

or damaged, they need to be replaced. Safety labels are free of charge. See an

authorized Can-Am Off-road dealer.

Upon replacement of parts that have warnings on them, make sure to order (free

of charge) the applicable safety warnings if not already installed on the replace-

ment part.

NOTE:

In the event of any discrepancy between this guide and the vehicle, the safety la-

bels on the vehicle have precedence over the labels in this guide.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Safety Pictogram

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passengers

or bystanders.

Any person who rides this vehicle should read and understand this information

before riding.

The following labels are on your vehicle, and they should be considered perma-

nent parts of the vehicle. They need to be clean and visible at all times. If missing

or damaged, they need to be replaced. Safety labels are free of charge. See an

authorized Can-Am Off-road dealer.

Upon replacement of parts that have warnings on them, make sure to order (free

of charge) the applicable safety warnings if not already installed on the replace-

ment part.

NOTE:

In the event of any discrepancy between this guide and the vehicle, the safety la-

bels on the vehicle have precedence over the labels in this guide.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

General Warning Pictogram

WARNING

–

Read and understand alll safety labells, llocate and read operator''s

guiide. Watch the safety viideo using the QR code liink or viisiit Can-am

web site before operation.

–

Always wear an approved hellmet and protective gear.

–

Always wear ear protection.

–

Fasten seat bellts and nets.

–

Make sure operators are 16 or older with a vallid driver''s liicense.

–

Do not alllow operation on publiic roads (unlless desiignated for off--

hiighway vehiclle access) – colllisiions with cars and trucks can occur.

–

Avoiid loss of control and rolllovers:

– Avoid abrupt maneuvers, siideways sliiding, skidding or fishtaiil-

ing, and never do donuts.

– Avoid hard acceleratiion when turning, even from a stop.

– Sllow down before entering a turn.

– Pllan for hillls, rough terraiin, ruts, and other changes in traction

and terrain.

– Avoid paved surfaces.

– Avoid side hillliing (riiding across sllopes).

–

Rollovers have caused severe injuriies and death, even on flat, open

areas.

–

Do not exceed seatiing capacity: 2 occupants.

–

Each riider must be ablle to sit with back agaiinst seat, feet fllat on the

flloor or on footrest, and hands on steeriing wheell or handholds.

–

If you think or feell the vehiicle may tiip or rolll, reduce your riisk of in-

jury : Keep a firm griip on the steering wheel or handhollds and brace

yoursellf. Do not put any part of your body outsiide of the vehicle for

any reason.

–

Always stay completelly inside the vehiicle.

–

Do not llet people drive or ride after using alcoholl or drugs.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Passenger Warning Label

WARNING

– Always wear an approved hellmet and protective gear.

– Always wear ear protection.

– Fasten seat bellts.

– Always llatch nets or doors.

– Each riider must be ablle to sit with back agaiinst seat, feet fllat on the

flloor or on footrest, and hands on handholds.

– If you think or feell the vehiicle may tiip or rolll, reduce your riisk of in-

jury. Keep a firm griip on handhollds and brace yourself. Do not put

any part of your body outsiide of the vehicle for any reason.

– Always stay completelly inside the vehiicle.

– Do not riide after usiing allcohol or drugs.

7648

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Tire Pressure and Maximum Load - Warning Label

WARNING

– Locate and read operator''s guide. Improper tiire pressure or over-

loading can cause lloss of controll, resultiing iin SEVERE INJURY or

DEATH.

– Allways maintaiin proper tire pressure as shown.

– NEVER exceed the vehicle lload capacity, iinclluding weiight of opera-

tor, passenger(s), cargo, accessories and trailler tongue weiight if

appllicable.

– Do not overlload cargo box.

– NEVER carry passenger in cargo box or on taillgate.

– NEVER pllace gasolline, fllammablle or dangerous liiquids contaiiner

on the carrier. This can llead to an explosion.

< kg (lb)

kPa (psi)

< kg (lb)

Trail

97 (14)

159 (23)

331 (730)

136 (300)

Sport

83 (12)

159 (23)

Sport

110 (16)

193 (28)

481 (1060)

91 (200)

SAFETY INFORMATION

REPORTING SAFETY DEFECTS

In Canada, if you believe that your vehicle has a defect which could cause a

crash or could cause injury or death, you should immediately inform Transport

Canada in addition to notifying Bombardier Recreational Products Inc.

If Transport Canada receives similar complaints, it may open an investigation,

and if it finds that a safety defect exists in a group of vehicles, it may order a re-

call and remedy campaign. However, Transport Canada cannot become involved

in any individual problems between you, your dealer or Bombardier Recreational

Products Inc.

To contact Transport Canada:

819-994-3328 (Gatineau-Ottawa area or internationally)

Toll free : 1 800-333-0510 (in Canada)

Transport Canada - ASFAD

330 Sparks Street

Ottawa, ON

K1A 0N5

https://www.tc.gc.ca/recallls

SAFETY INFORMATION

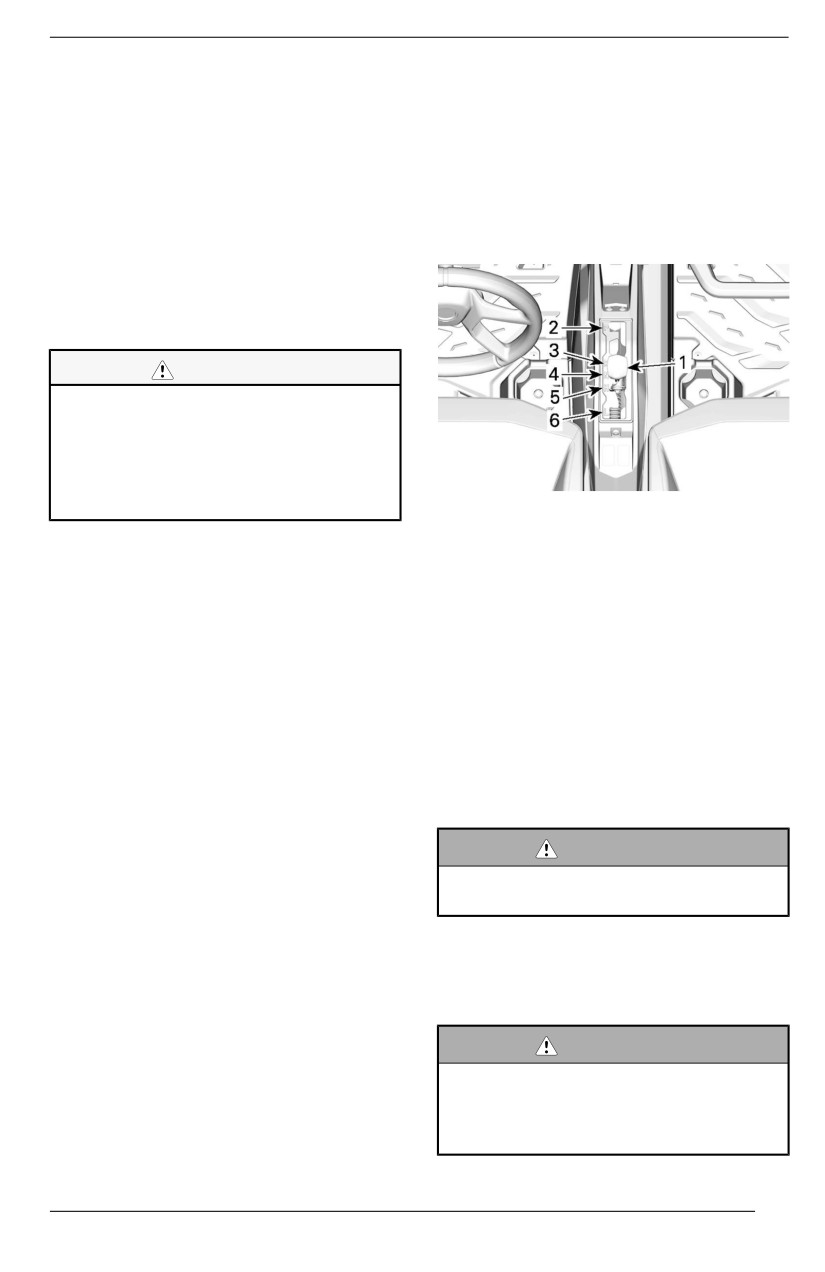

PRIMARY CONTROL

Steering Wheel

To decrease vehicle speed or to stop

vehicle, press down the brake pedal

The steering wheel is located in front

with your right foot.

of the driver's seat.

The brake pedal is spring loaded and

The steering wheel steers the vehicle

should return to rest position when not

to the left or right.

pressed.

Turn the steering wheel in the direc-

tion you want to go.

Shift Lever

Grip the steering wheel with both

hands, without having thumbs rolled

around the steering wheel.

CAUTION

Under rough traill condiitiions or

when crossing an obstaclle, the

steeriing wheell coulld suddenlly

jerk on one side, causing hand or

wrist injuriies iif the thumbs are

rollled around the steering wheell.

1. Shift lever

2. Park

3. Reverse

A dynamic power steering (DPS) re-

4. Neutral

duces the effort to turn the steering

5. High range (forward)

wheel.

6. Low range (forward)

Accelerator Pedal

The shift lever is located on the lower

The accelerator pedal is located on

console, between the seats.

the right side of the brake pedal.

The shift lever is used to change the

The accelerator pedal controls the en-

gearbox position.

gine speed.

The vehicle must be stopped and

To increase or maintain vehicle

brakes applied prior to selecting any

speed, press on the accelerator pedal

gear.

with your right foot.

WARNING

To decrease vehicle speed, release

the accelerator pedal.

Thiis gearbox iis not desiigned to

shift whiile vehiicle is moving.

The accelerator pedal is spring loaded

and should return to rest position (idle)

Park

when not pressed.

The park position locks the gearbox to

Brake Pedal

help prevent vehicle movement.

The brake pedal is located on the left

WARNING

side of the accelerator pedal.

Always use the PARK (P) posiitiion

The brake pedal function is to slow

when the vehiiclle is not iin opera-

down or stop the vehicle.

tiion. The vehiiclle can rolll if the

shift lever is not set to P (PARK).

PRIMARY CONTROL

Reverse

The reverse position allows the ve-

hicle to go backwards.

NOTE:

In reverse operation, the engine RPM

is limited thus limiting the vehicle re-

verse speed.

WARNING

When driiving downhilll iin reverse,

gravity can iincrease the vehicle

speed above safe reverse speed.

Neutral

The neutral position disengages the

gearbox.

High Range (Forward)

This position selects the high speed

range of the gearbox. It is the normal

driving speed range. It allows the ve-

hicle to reach its maximum speed.

Low Range (Forward)

This position selects the low speed

range of the gearbox. It allows the ve-

hicle to move slowly with maximum

torque at the wheels.

NOTICE

Use the llow speed range to pulll a

trailer, carry heavy cargo, go over

obstacles or drive uphiilll and

downhiilll.

SECONDARY CONTROLS

Ignition Switch and Keys

NOTE:

If the ignition switch is left ON for more

The ignition switch is located on

the

than 30 minutes, engine will not start

upper console area.

unless ignition switch is turned OFF,

then ON again.

Keys

Basiic Key

The vehicle is delivered with 2 basic

key.

Those 2 mechanical keys do not have

speed or torque restrictions.

D.E.S.S. Key (Availlablle as an

option)

For all D.E.S.S. related option, see an

authorized Can-Am Off-road dealer

TYPICAL

for information.

1. OFF

Diigitally Encoded Security System

2. ON

(D.E.S.S.)

3. START

The ignition keys contain an electronic

OFF

circuit that gives it a unique electronic

The key can be inserted or removed in

serial number.

this position only.

The D. E. S. S. system reads the key

In OFF position, the electrical system

code and allows engine starting for

of the vehicle is disabled.

keys it recognizes.

The engine is shut down by turning

This vehicle can be operated using 3

the ignition switch to OFF position.

different types of key programming:

- Work

- Normal

- Performance

When the key is turned in this position,

the electrical system of the vehicle is

Refer to your dealer for complete

activated.

information.

The gauge should wake-up.

NOTE:

The vehicle lights are turned on.

Additional keys are available from

your dealer as an accessory.

The engine can be started.

START

This position starts the engine.

SECONDARY CONTROLS

D.E.S.S. Flexibiiliity

WARNING

The D. E. S. S. of your vehicle can be

Rolllovers, tipovers, collliisions and

programmed by your authorized Can--

loss of controll resultiing iin seriious

Am Off-road dealer to accept up to 8

injjury or death are possiblle wiith

different keys.

the performance or normall key.

Usiing the normall key iis not a sub-

If you have more than one D. E. S. S.

stiitute for the operator beiing pre-

equipped your vehicle, each can be

pared, quallifiied, and operatiing

programmed by your authorized Can--

with care.

Am Off-road dealer to accept the other

vehicle D.E.S.S. keys.

Performance Key

Headlight Dimmer Switch

The performance key allows the user

The headlight dimmer switch is lo-

to access the full torque of the engine

cated on the upper console.

as well as the top speed of the

vehicle.

This may be useful for riders who pre-

fer crisper throttle response, and for

environments where higher speeds

and greater acceleration are appropri-

ate. For example, in wide-open

straight trails, operators may prefer

the performance key.

Normall Key

The normal key limits the vehicle

speed to 70 km/h (43 MPH) and ap-

plies a torque reduction.

Work key

This switch is used to select either the

The work key allows for usage of

headlights OFF position, low or high

100% of maximum engine torque but

beams.

limits vehicle speed to 40 km/h (25

MPH).

Keypad

WARNING

The keypad is used to navigate

through various menus and options

On steep downhiillls, the engiine

when the

7.6" Digital Display is

speed liimiiter may not prevent the

installed.

vehiiclle from acceleratiing beyond

this speed.

The keypad is located on the upper

console.

This key may be useful for riders who

prefer more gradual acceleration, or

for riding in environments where full

speed and high acceleration are not

desirable. For example, in narrow,

winding trails, operators may prefer a

normal key.

SECONDARY CONTROLS

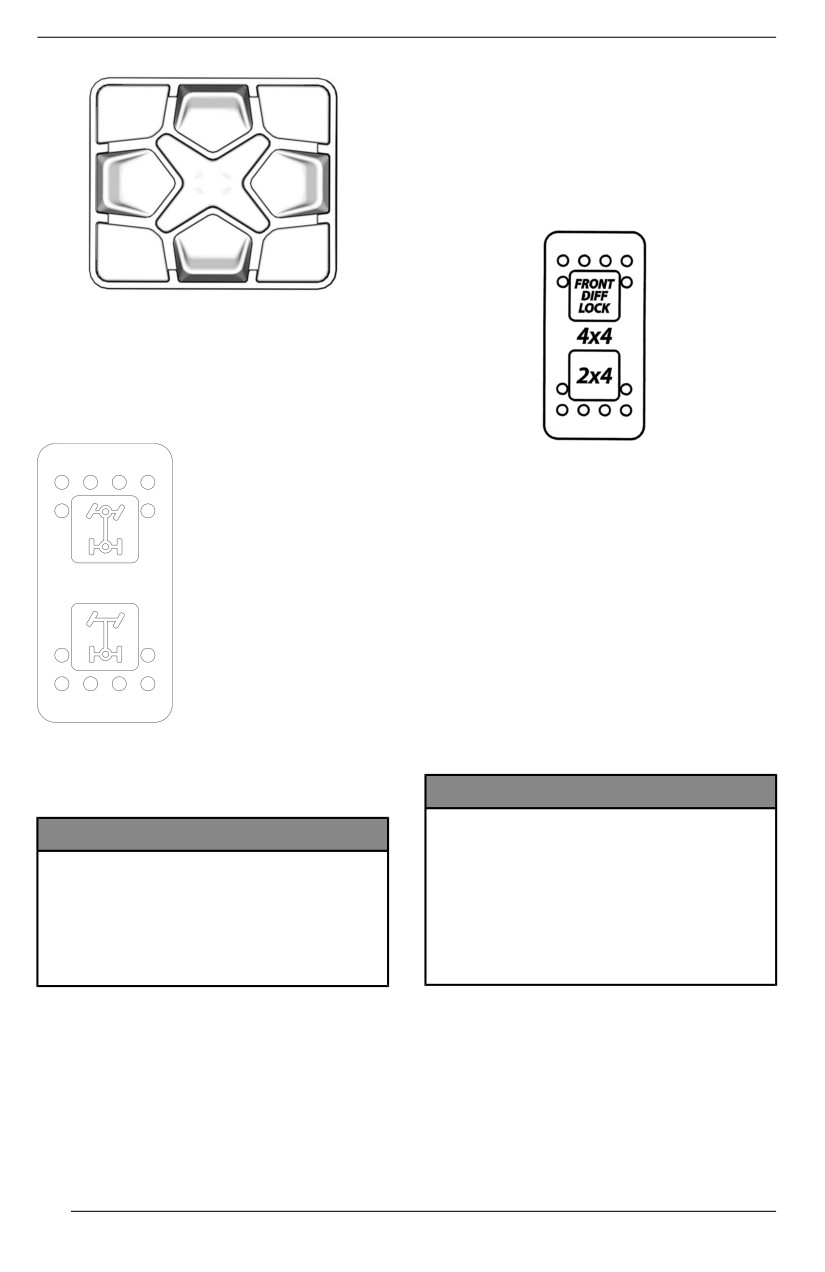

2WD/4WD/Front Diff Lock

Switch

Modells with Smart-Lok

The 2WD/4WD/Front Diff Lock switch

is located on the upper console.

2WD/4WD Switch

Models without Smart-Lok

The 2WD/4WD switch is located on

the upper console.

This switch selects 2 wheel drive or 4

wheel drive mode when the vehicle is

stopped.

Once the vehicle 4WD mode is en-

gaged, the front diff lock can be acti-

vated when the switch is pushed

upwards.

The front diff. lock can be activated on

the fly, no need to stop the vehicle to

engage. To deactivate, push again on

the switch. When the engine is

stopped, the front diff. lock will be

This switch selects 2 wheel drive, or 4

deactivated.

wheel drive mode when the vehicle is

stopped.

NOTICE

The vehiclle must be stopped to

NOTICE

engage or diisengage the 2WD/

The vehicle must be stopped to

4WD swiitch.

engage or diisengage 2WD/4WD

Mechanical damage may occur iif

switch.

swiitch is engaged or disengaged

Mechanicall damage may occur if

whiile driviing.

switch is engaged or diisengaged

Allways unllock the front diiff. be-

whille driving.

fore diisengagiing 4WD.

The 4WD mode is engaged when the

The front differential is fully locked

switch is pushed upwards.

when the switch is pushed upward. It's

a momentary position. When the front

The 2WD mode is engaged when the

diff. is locked, the switch light will illu-

switch is pushed downwards. The ve-

minate and a message will appear in

hicle is then rear wheel drive only.

the cluster for 2 seconds to say "DIFF

LOCK". A padlock pictogram will

SECONDARY CONTROLS

appear inside the 4x4 logo. The light

will turn off when the differential is un-

locked and a message in the cluster

will appear and show "SMART-LOK",

meaning that you are back in the auto-

matic mode. For all models with Smar-

t-Locker, the AUTO pictogram will lit

above the 4x4 logo in the cluster.

When the front differential is locked,

the effort to turn the steering wheel

might be higher and the response

might be slower.

WARNING

Abruptly changing directiion can

TRAIL

cause loss of control or iinjury.

This mode must be used during all

Never engage Front Diiff Lock be-

normal riding.

fore entering a turn or when

turniing.

The front differential will automatically

synchronize the front wheels as

The front differential is locked and the

needed.

4WD mode is engaged when the

ROCK

switch is pushed upwards.

This mode must be used when riding

The 4WD mode is engaged when the

in rocky conditions to optimize traction

switch is in the middle.

and maneuverability.

The 2WD mode is engaged when the

The front differential will prevent the

switch is pushed downwards. The ve-

wheels to slip by pre-charging the

hicle is then rear wheel drive only.

clutches. It will not wait to detect a slip.

Based on the driver's demand (engine

Front Differential Mode

torque), the module will adjust the

Switch

clutches to optimize traction while

maintaining the ease of manoeuvrabil-

The front differential mode switch is

located on the console.

ity. This function is active up to 20 km/

h (12 MPH).

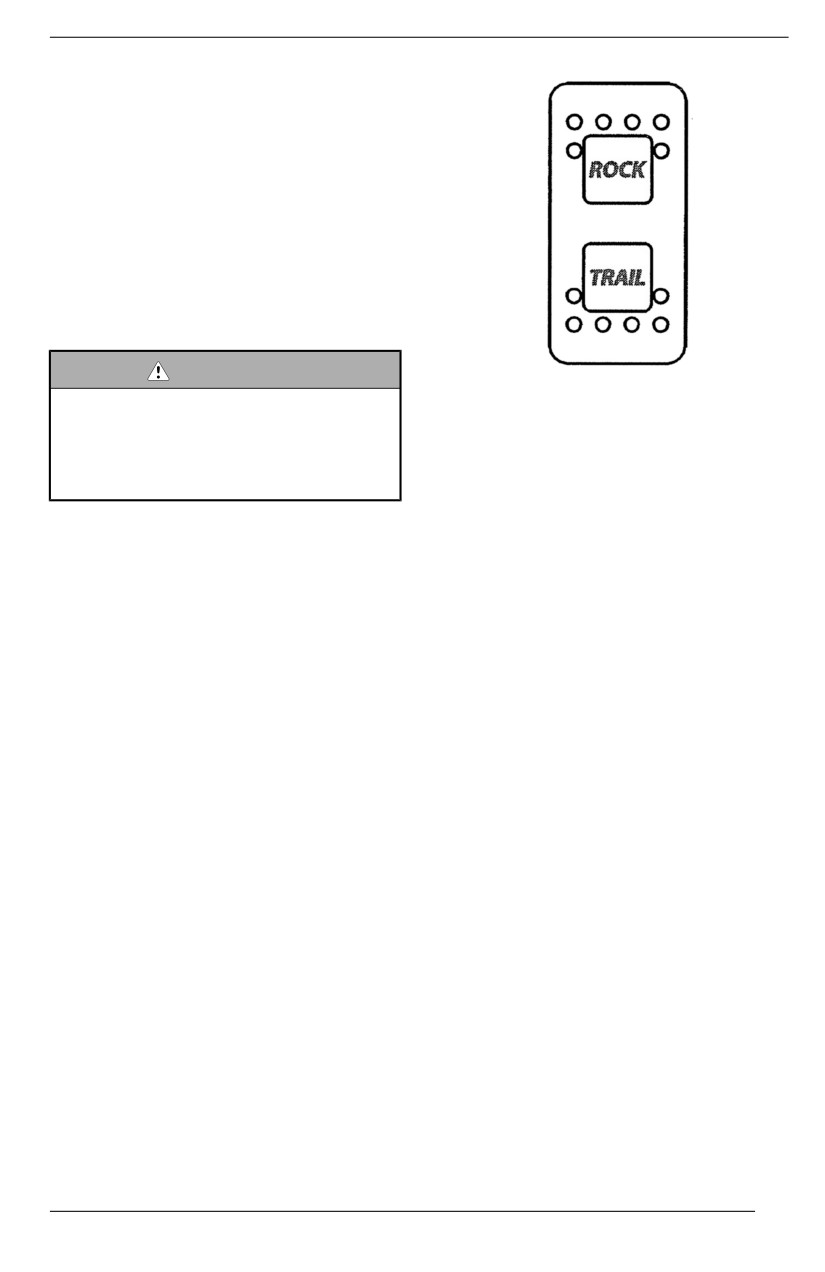

ROCK/TRAIL Switch

Above 20 km/h (12 MPH), it will moni-

X rc Modells

tor for wheel slippage and synchron-

ize as needed.

This switch is used to choose between

the ROCK or TRAIL mode.

Rear Differential Lock Switch

The rear differential lock switch is lo-

cated on the upper console.

SECONDARY CONTROLS

This switch enables locking of rear

Refer to your Winch Guide included

differential.

with your vehicle for proper winch

operation.

NOTICE

The vehicle must be stopped to

Horn Switch (On applicable

engage or diisengage the diifferen-

models)

tiial swiitch.

To activate

the

horn,

push

the

The vehicle must be iin gear (not

switch.

in Park) to proceed

Mechanicall damage may occur if

switch is engaged or diisengaged

whille driving.

The rear differential is locked when

the switch is pushed upwards and un-

locked when the switch is pushed

downwards.

If the vehicle is in Park and the switch

is pushed downwards, the rear differ-

ential will stay locked.

Winch Switch

The winch can be controlled from in-

side and outside the vehicle with the

winch control switch located in the

upper console.

EQUIPMENT

Some features may not apply to your

model or could be optional.

Some on-product labels are not

shown on illustrations.

For information concerning the safety

labels, refer to Important On-Product

Labels.

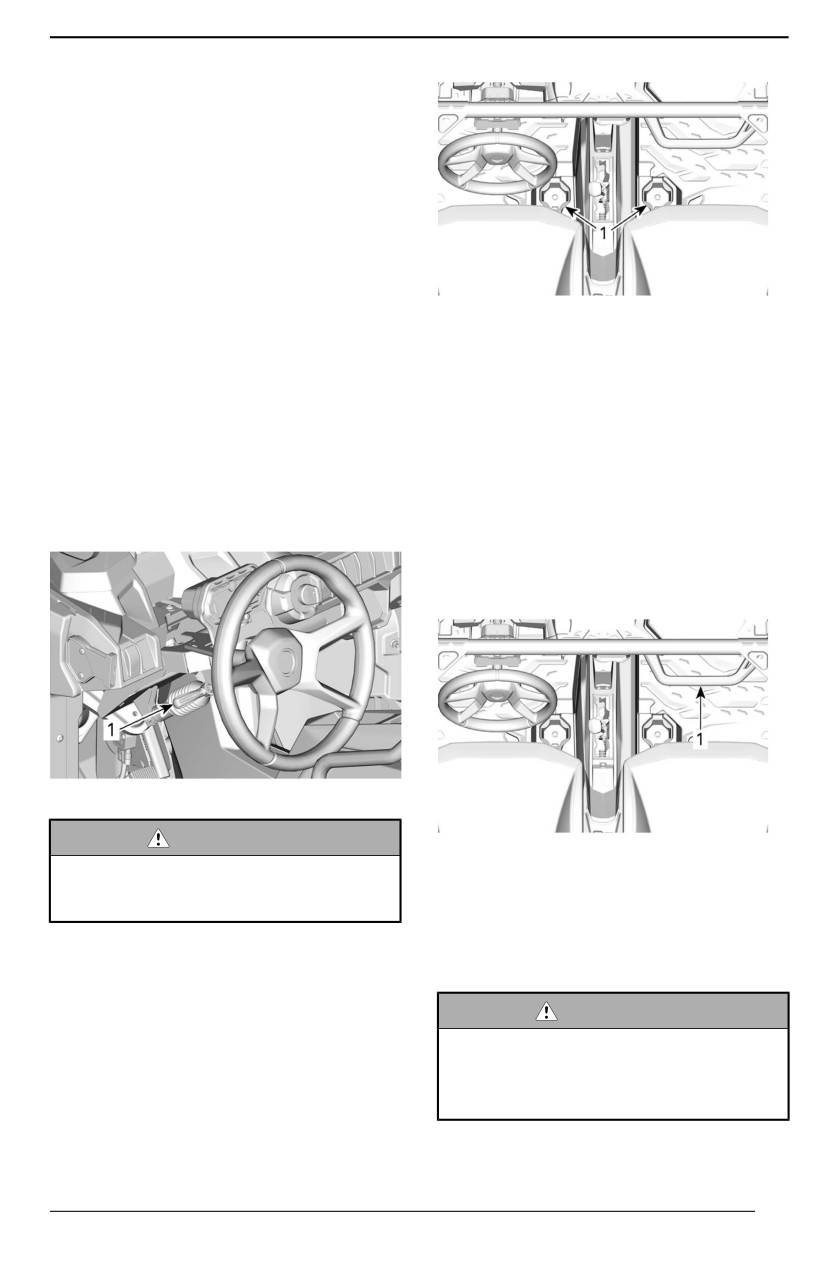

Tilt Steering

1. Cup holders

The steering wheel height is

adjustable.

Adjust the steering wheel height to

NOTE:

face your chest, not your head.

Use only tight fitting containers, a

loose container can tip over and inter-

To adjust steering wheel height:

fere with feet movements. Do not use

cup holders while riding in rough

1. Pull the tilt lever toward you.

conditions.

2. Move steering wheel to the desired

position.

Passenger’s Handhold

3. Release the tilt lever.

The passenger’s handhold is located

on the console directly in front of the

passenger’s seat.

1. Tilt lever

WARNING

1. Passenger handhold

Never adjust the steering wheel

height whille ridiing. You may lose

Holding the handhold helps the pas-

control.

senger brace against the movement

of the vehicle and helps keep hands

and body inside the cockpit in the

Cup Holders

event of a rollover.

Two cup holders are located on each

side of the console.

WARNING

Never use any part of vehiicle

cage as handholds. Hands can be

struck by objjects outside the

cockpiit or crushed in a rolllover.

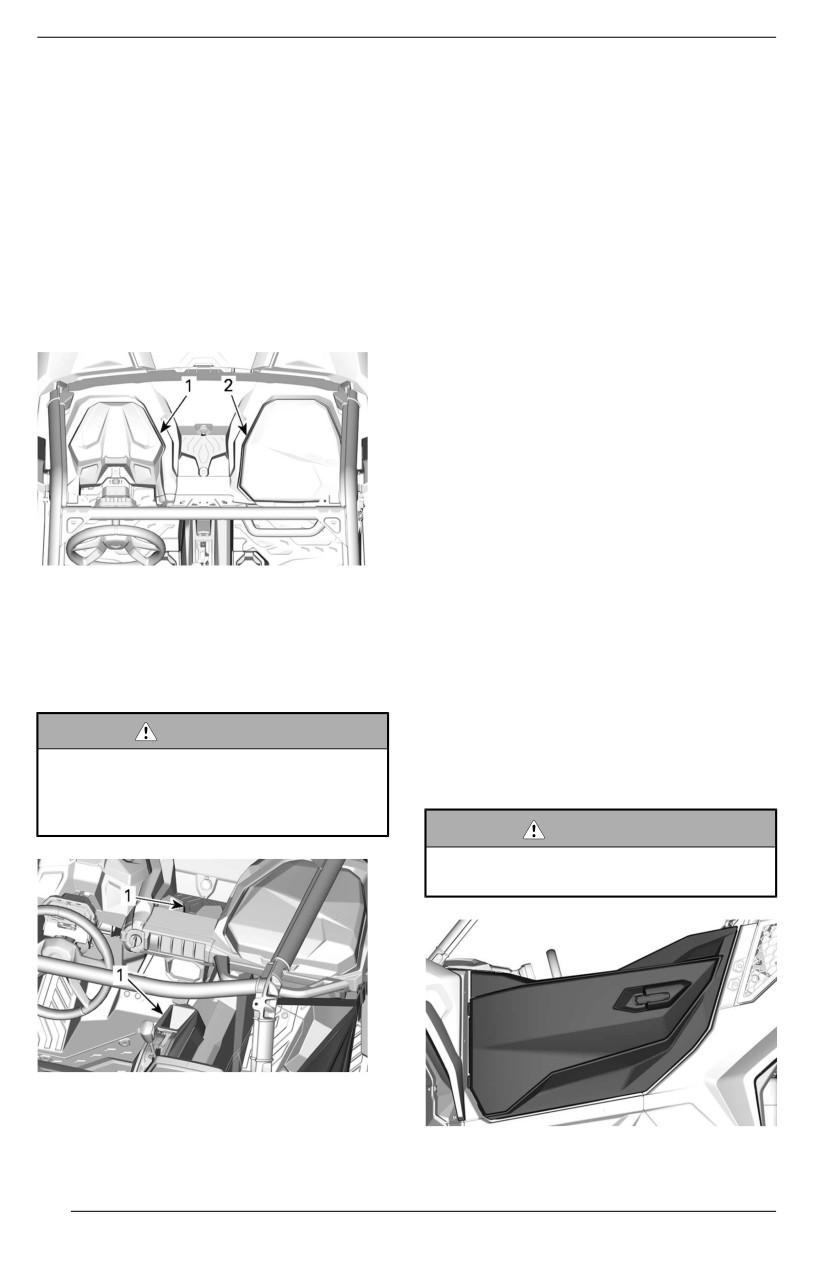

EQUIPMENT

Storage Compartments

Tool Kit

The vehicle is equipped with different

A tool kit with basic tools is provided

types of storage compartments de-

with this vehicle.

signed to carry light objects.

It is located inside the glove box.

Closed Storage Compartment

This tool kit includes:

A storage compartment is available

- Pliers

behind the multifunction gauge on the

- Socket wrench 14 and 16 mm

driver side.

- Open wrench 15 and 17 mm

- Open wrench 10 and 13 mm

A glove box is available on the pas-

- Screwdriver (flat and Phillips)

senger side.

- Torx key T30

- Suspension adjustment tool

Footrests

The vehicle is equipped with driver

and passenger footrests to allow

firmly planting feet on vehicle floor,

which helps to maintain proper body

position while riding.

The footrests help minimize the risk of

leg or foot injury.

1. Storage compartment

2. Glove box

Always wear appropriate footwear.

See Riding Gear.

Opened Storage Compartments

Multiple opened storage compart-

Half Doors

ments are available in the console.

Half doors on each side of the cockpit

to help arms, legs or shoulders stay

WARNING

inside the vehicle, thus reducing the

When riding vehiicle, make sure

risk of injuries. Half doors may also

no object stored iin opened stor-

keep bushes or debris out of cockpit.

age compartments coulld cause

harm iin the event of a rolll over.

WARNING

Never operate the vehiiclle whiile

the doors are removed or opened.

1. Opened storage compartment

LH DOOR

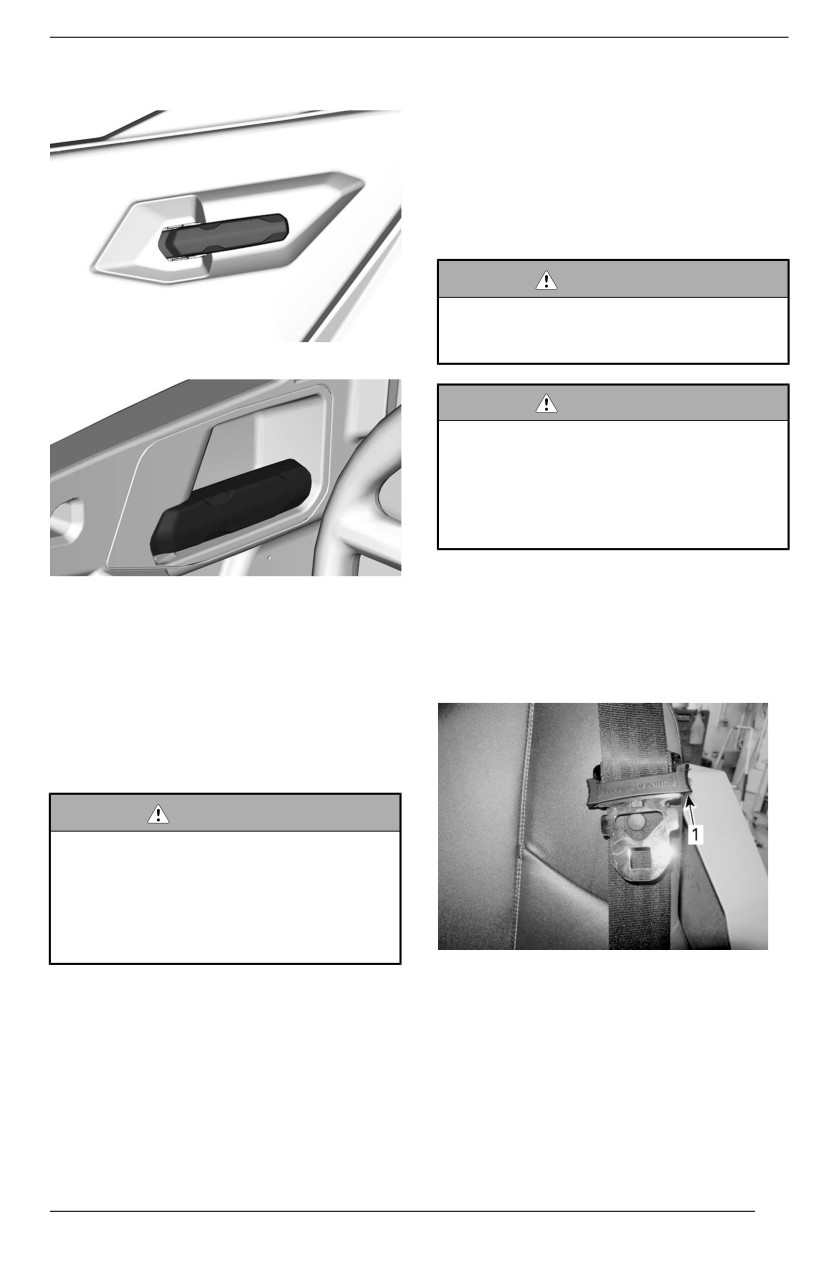

EQUIPMENT

To open door, pull on handle.

- The multifunction gauge will

display the message: SEAT

BELT.

- The engine is started and shift lev-

er is moved out of PARK, vehicle

speed will be limited to a maximum

of approximately 20 km/h (12

MPH) on flat ground.

WARNING

The vehicle may reach higher or

lower speed depending on

iincllines.

LH EXTERIOR HANDLE

WARNING

There iis no indiicator liight or mes-

sage for the passengers seat bellt.

The driiver iis responsiblle for the

passenger safety and should en-

sure the passengers buckle their

seat bellt.

Fasteniing and Adjusting the Seat

LH INTERIOR HANDLE

Bellt

Seat Belts

The seat belt is equipped with a semi--

cinching tab that locks the lap belt

This vehicle is equipped with

points

when the webbing is under tension.

seat belts to help protect driver and

passenger in the event of a collision,

rollover, or tipover. The seat belts can

help keep occupants stay in the pas-

senger compartment.

WARNING

Wear seat bellts properlly at alll

times.

Seat bellts reduce the risk of iinjjury

in case of a crash and help to

keep llimbs inside the cockpit dur-

ing a rolllover or any accidents.

TYPICAL

1. Semi-cinching tab

If driver's seat belt is not fastened

when:

To fasten the seat belt, insert the latch

- The ignition is turned ON

plate into the buckle, then pull the belt

to ensure it is properly fastened.

- The seat belt indicator lamp will

be turned ON.

Adjust the seat belt tightly against

your body by pulling the shoulder belt

upwards.

EQUIPMENT

Passenger’s Seat

The passenger seat is not adjustable.

Fuel Reservoir Cap

The fuel reservoir cap is located on

the right hand side of the vehicle.

TYPICAL

WARNING

Wear seat belt properly. Make

sure it remains securely fastened

and tightened agaiinst the body.

Make sure iit is not twisted or

defective.

Refer to Fuel for information on fueling

To release the seat belt, push on the

procedure and fuel requirements.

red button on the seat belt buckle.

Winch

Driver’s Seat

The driver's seat can be adjusted for-

WARNING

ward and backward.

To avoiid severe iinjury or death or

important components damages.

To adjust seat, move the seat lever

aside to unlock the seat. Release the

– Never use the winch cable/

lever to lock the seat into desired

rope to retain a vehiiclle duriing

position.

traillering.

– Never riide wiith the wiinch ca-

blle/rope attached to a lload or

another vehiicle.

– Only use the winch to help a

stuck vehiiclle (snow, mud,

etc.).

– Always refer to the winch man-

ufacturer''s iinstructiion before

pullling loads.

Refer to your winch guide included

1. Seat lever

with your vehicle for proper winch

operation.

WARNING

The winch can be actuated inside the

Never adjjust the seat position

whille driving.

EQUIPMENT

vehicle using the winch control switch

on the upper console.

NOTICE

Usiing the winch iintensively over a

long period of tiime may diischarge

the battery.

Intensive use of the winch may cause

the built-in circuit breakers to momen-

tarily turn OFF. In such a case, wait a

moment, then continue winching. The

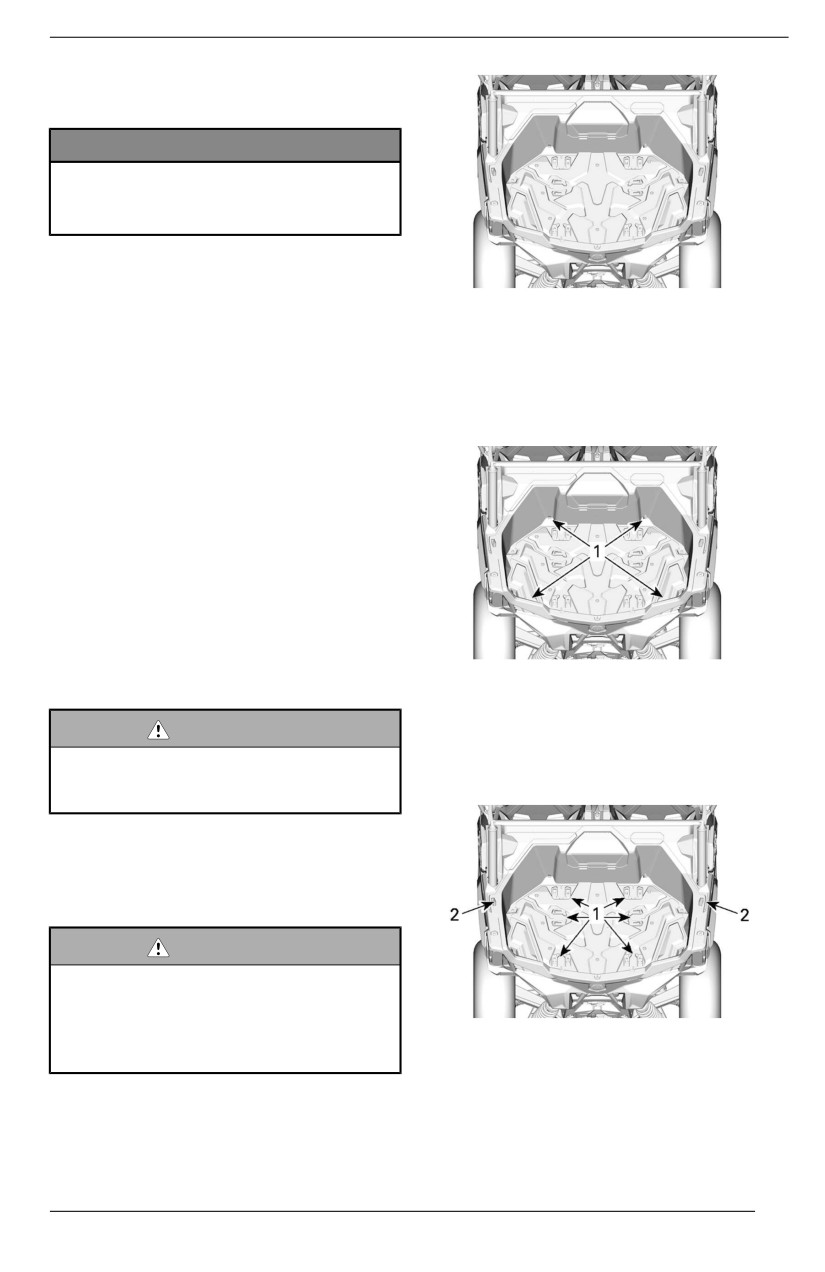

Anchoring Hooks

breakers automatically turn ON once

To provide anchoring point in order to

they have cooled down.

secure cargo inside the cargo box, 4

anchoring hooks are located inside

The following tips will help to reduce

the cargo area.

the risk of discharging the battery:

- Always unreel manually: Unlock

the cable using the handle then

pull on the hook strap to unreel.

- Let the vehicle run while winching.

Do not stop vehicle immediately

after winching to let battery

recharge.

- Also, when winching for more than

30 seconds, it is recommended to

increase engine RPM in the range

of 3000 RPM to increase charging

TYPICAL

power to the battery.

1. Anchoring Hooks

WARNING

There are 6 anchoring points inside

Make sure vehiiclle is in NEUTRAL

the cargo box to install LinQ attach-

(N) before increasiing engine

ments and 2 on top of the sides.

RPM.

Cargo Box

The cargo box may be used for vari-

ous types of cargo.

WARNING

To reduce the riisk of loss of con-

trol or lloss of lload, use the cargo

box only iin accordance wiith Car-

TYPICAL

rying Loads in the Safety Informa-

1. LinQ mounting point in cargo box

tion section.

2. LinQ mounting point on cargo box sides

4.5” DIGITAL DISPLAY

Multifunction Display

Icon

Description

Lower Display

2x4 icon

4X4 icon

May display the following:

Front differential

- RPM

lock

- Speed statistics

- Engine Temperature

- Battery Voltage

Central Display

- Settings

- Messages

Use LOWER button to change the dis-

played information.

Left Lateral Display

Display the vehicle speed in km/h or

MPH or RPM.

Transmission

Position

Display

The left lateral display includes:

- Fuel level indicator

- Seat belt icon

- Smart-Shox suspension icon

Right Lateral Display

This display shows gear position of

gearbox:

- P (Park)

- R (Reverse)

- N (Neutral)

- H (High Range)

- L (Low Range)

The right lateral display includes:

- Gear 1 to 7

- (Invalid Range)

- Engine Temperature

–

2WD/4WD/Diff lock

Engine Mode Display

4.5” DIGITAL DISPLAY

Warning Lamps and

Indicators

The following indicator lamps will alert

you to a vehicle condition that may be-

come serious. Some lamps will illumi-

nate when starting the vehicle to

make sure they work. If any lamps re-

main on after starting the vehicle, refer

The MODE display indicates the se-

to the respective system warning lamp

lected mode of operation:

for further information.

- AUTO mode

- NORMAL

NOTE:

- SPORT

Some warning indicators appear in

- SPORT+

the display of the multifunction gauge

and function the same as an indicator

Message at

Drive Mode

lamp but do not display when starting

Activation

the vehicle.

Normal

NORMAL MODE

Tellltalle Liights - Lower Bar

Sport

SPORT MODE

Sport+

SPORT+ MODE

Warniing and Tellltale Lights

Trip Display

ORANGE - Vehicle

Malfunction

BLUE - High Beam

RED - The engine

temperature is too high.

This display shows trip information:

GREEN - Neutral

- Cumulative distance odometer

- Trip A

- Trip B

RED - (Blinking)

- Vehicle hour meter

Accelerator pedal and the

- Clock

brake are activated

simultaneously for a certain

time

(a torque limitation is

Use UPPER button to change the dis-

active)

played information.

Hold UPPER button to reset Trip A/B

RED - Low battery.

meters.

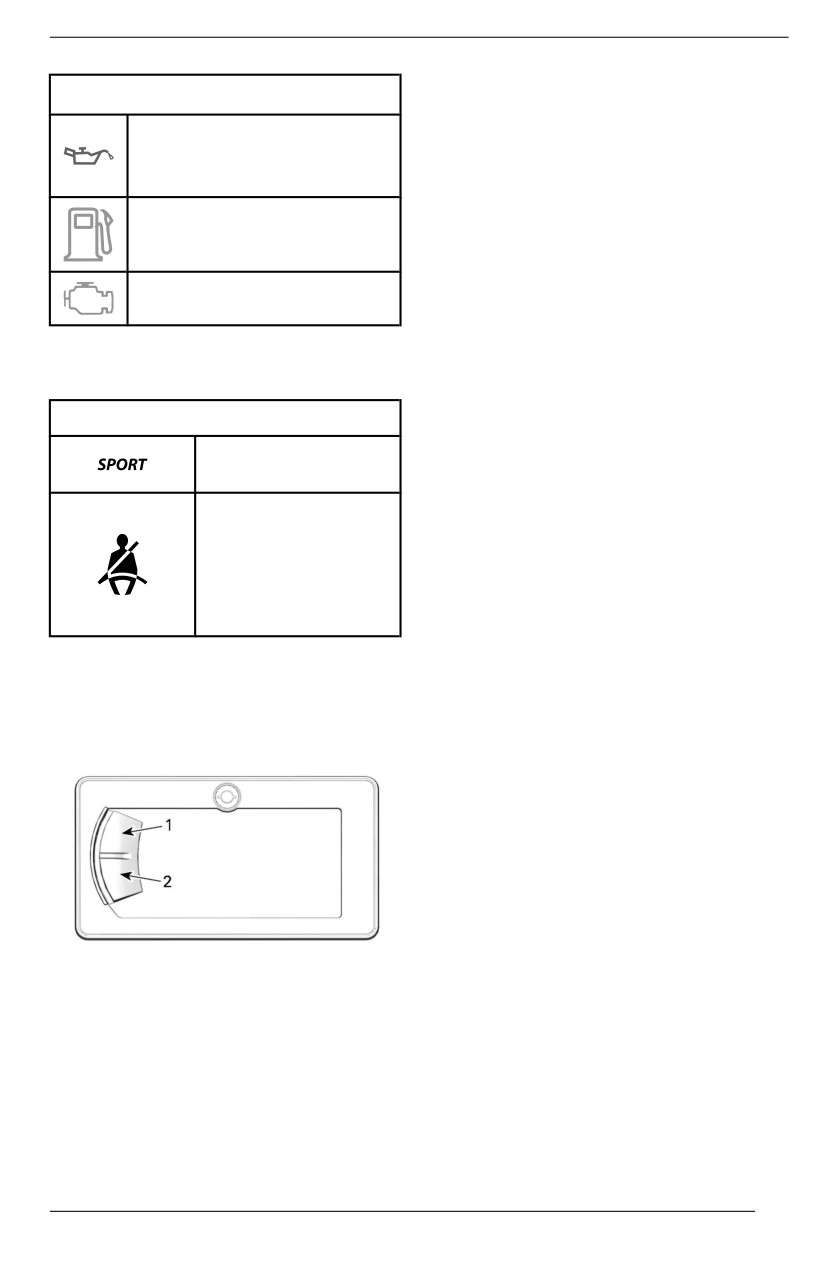

4.5” DIGITAL DISPLAY

Maiintenance Reset

Warning and Tellltale Lights

NOTE:

RED - Low oil pressure

Only when the maintenance icon is

(Normally ON at engine

displayed.

OFF)

Using LOWER button, select RES

MAINT and hold to reset

ORANGE - Low fuel level

maintenance.

Fault Codes

ORANGE - Check engine

Available only when at least one code

is activated.

Icons and Indiicators - Multifunction

Using LOWER button, select CODES

Diispllay

and hold to see actives fault codes.

Icons and Indicators

Fault codes will be scrolled on the

Denotes SPORT

Lower Display.

mode is selected.

Reset Stats

When lit, seat belt

Using LOWER button, select RESET

not buckled with

STAT and hold to reset.

vehicle

immobilized.

Unit Selection

Flashing when

vehicle is moving.

This multifunction gauge is factory

preset in Imperial units but it is possi-

ble to change it to Metric units.

Settings

Using LOWER button, select UNITS

The buttons to navigate through me-

and hold button to change units.

nus are located on the left side of the

LCD display.

Setting Cllock

All of the following action must be per-

formed using the LOWER button.

1. Select CLOCK and hold to adjust

clock.

2. Press the button to select clock

display.

3. Push and hold the button for

second.

1. Upper button

4. Press the button to select 12:00

2. Lower button

AM PM or 24:00 time base.

5. Push and hold the button to ac-

Setup

knowledge selection.

Using LOWER button, select SET-

6. Press the button to change hours

TINGS and hold to enter setting

(hours flash).

menu.

7. Push and hold the button to ac-

knowledge hour selection.

8. Press the button to switch to mi-

nutes (minutes flash).

7.6" DIGITAL DISPLAY

Multifunction Display

WARNING

Do not adjust the diispllay whille

riidiing, you could llose control.

Lower Display

The right lateral display includes:

- Engine Temperature

- Clock

- Speed indicator

The speed indicator in this display is

activated when the central display

shows information other than the

speed. Otherwise it is blank.

May display the following:

- RPM

Central Display

- Speed statistics

- Engine Temperature

- Battery Voltage

- Settings

- Messages

- Active DPS mode

The SPEED STAT display shows the

maximum and the average speed.

Hold MENU or OK button for 1 second

May display the following:

to reset.

- RPM

Left Lateral Display

- Vehicle speed

Transmission

Position

Display

The left lateral display includes:

- Fuel level indicator

- Tripmeter (A - B)

This display shows gears position of

- Odometer

gearbox:

- Vehicle Hour meter

- DPS indicator

- AUTO (Automatic)

- P (Park)

Right Lateral Display

- R (Reverse)

- N (Neutral)

- H (High range)

- L(Lowrange)

7.6" DIGITAL DISPLAY

- (Invalid gear)

Icon

Descriiptiion

Engine Mode Display

2x4 icon

4X4 icon

The engine mode display indicates

the selected mode of operation:

- NORMAL

Front differential

- SPORT

lock

- SPORT+

A message of the selected mode will

Middle Left Display

be displayed on the lower display at

activation and deactivation as follow:

Message at

Drive Mode

Activation

Normal

NORMAL MODE

Sport

SPORT MODE

Sport+

SPORT+ MODE

The middle left lateral

display

includes:

Middle Right Display

- Seat belt reminder

- Maintenance reminder

Indicator Lamps

Warning and Telltale Liights

The middle right display indicates the

WARNING and Tellltalle Liights

selected mode of operation:

2X4

ORANGE - Vehicle

–

4X4

Malfunction

–

Front differential lock (Smart-Lok)

BLUE - High Beam

RED - The engine

temperature is too high.

7.6" DIGITAL DISPLAY

Settings

WARNING and Tellltalle Liights

Setup

GREEN - Neutral

Using the MENU button on the key-

pad, select SETTINGS and hold to

enter setting menu.

RED - Brake lock lever is

engaged or malfunction of

OK button can be pressed instead of

the brake system

holding MENU button.

RED - The battery voltage

Maiintenance Reset

too low or problem with the

electrical system

NOTE:

Only when the maintenance icon is

RED - Low oil pressure

displayed.

Normally ON when engine

is OFF

Using MENU button, select RES

MAINT and hold to reset

maintenance.

ORANGE - Low fuel level

Fault Codes

ORANGE

Available only when at least one code

Turn on: Malfunction of the

is activated.

vehicle emissions control

system

Using MENU button, select CODES

Bliink: Engine problems,

and hold to see active fault codes.

the limp home mode is

Fault codes will be scrolled on the

activated. Have the vehicle

Lower Display.

serviced immediately.

Reset Stats

Icons and Indiicators

Using MENU button, select RESET

STAT and hold to reset.

Icons and Indicators

Denotes SPORT

Unit Selection

mode is selected.

This multifunction gauge is factory

preset in Imperial units but it is possi-

When lit, seat belt

ble to change it to Metric units.

not buckled with

vehicle

Using MENU button, select UNITS

immobilized.

and hold button to change units.

Flashing when

vehicle is moving.

Speed/RPM

When lit, indicates

The speed and RPM display can be

that a maintenance

swapped.

is required. See

Using MENU button, select SPEED/

your authorized

RPM and hold button to invert speed

Can-Am dealer or

and RPM display.

person of your own

choosing for the

maintenance.

7.6" DIGITAL DISPLAY

Setting Clock

All of the following action must be per-

formed using the MENU button.

1. Select CLOCK and hold to change

time.

2. Press the button to select clock

display.

3. Push and hold the button for

second.

4. Press the button to select 12:00

AM PM or 24:00 time base.

5. Push and hold the button or OK

button to acknowledge selection.

6. Press the button to change hours

(hours flash).

7. Push and hold the button or OK

button to acknowledge hour

selection

8. Push the button to switch to mi-

nutes (minutes flash).

9. Push and hold the button to ac-

knowledge minutes selection.

Setting Briightness

The brightness of the LCD display can

be adjusted.

Using MENU button, select BRIGHT-

NESS and hold MENU button to se-

lect the brightness setting.

Using MENU button, adjust brightness

then push and hold MENU button to

acknowledge selection.

Setting Language

The gauge display language can be

changed.

Refer to an authorized Can-Am Off--

road dealer for language availability

and to setup the gauge to your

preference.

DPS Modes

The lower display can show which

DPS mode is active. Refer to Tune

Your ride.

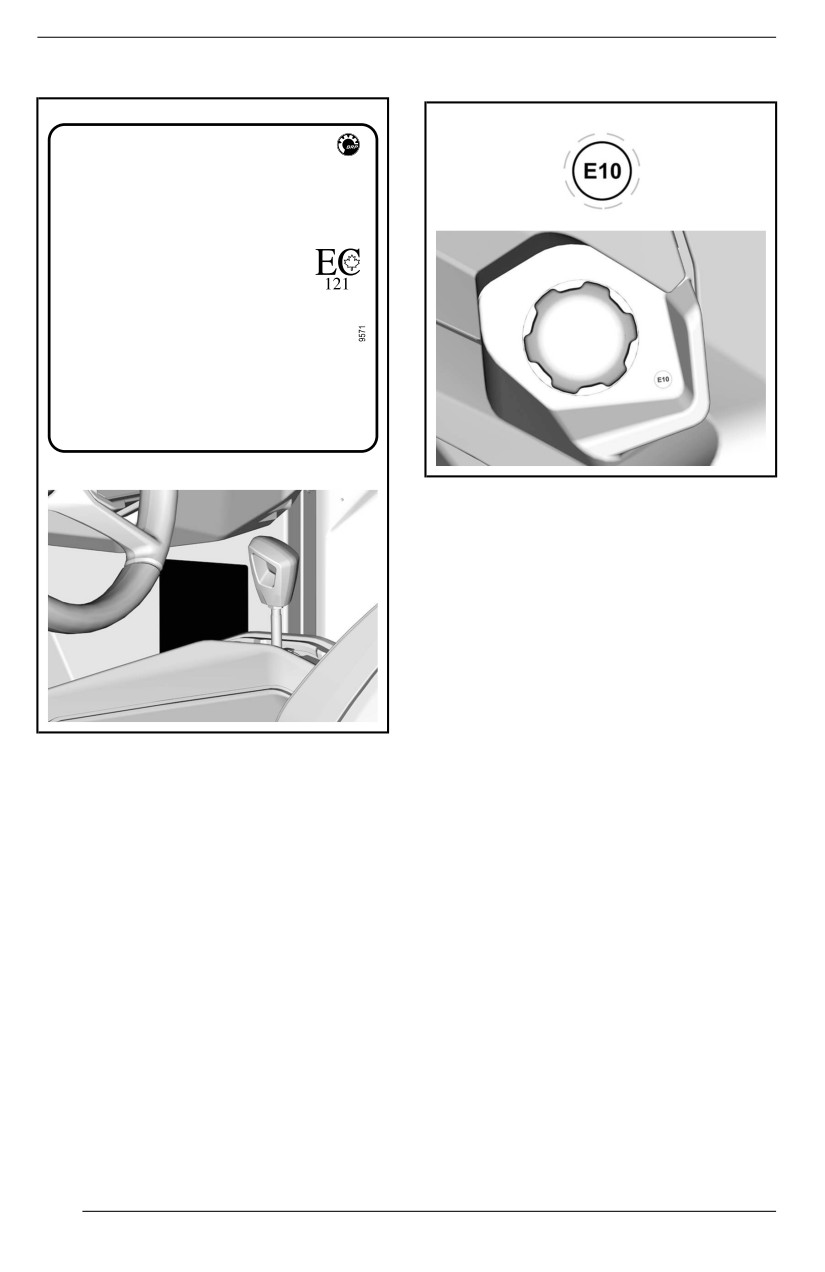

FUEL

Fuel Requirements

Premium

unleaded

NOTICE

gasoline with an

Allways use fresh gasolline. Gaso-

AKI (R+M)/2

1000R Engines

line wiilll oxiidize; the resullt iis loss

octane rating of

of octane, vollatiile compounds,

91, or a RON

and the production of gum and

octane rating of

varniish deposiits which can dam-

age the fuell system.

Regular

unleaded

Alcohol fuel blending varies by coun-

gasoline with an

try and region. Your vehicle has been

All Other

AKI (R+M)/2

designed to operate using the recom-

Engines

octane rating of

mended fuels, however, be aware of

87, or a RON

the following:

octane rating of

Use of fuel containing alcohol

above the percentage specified by

government regulations is not rec-

Premium unleaded gasoline with an

ommended and can result in the

AKI (R+M)/2 octane rating of 91, or

following problems in the fuel sys-

a RON octane rating of 95

tem components:

- Starting and operating

Use unleaded gasoline containing

difficulties.

MAXIMUM 10% ethanol.

- Deterioration of rubber or plas-

tic parts.

- Corrosion of metal parts.

- Damage to internal engine

parts.

Inspect frequently for the presence

NOTICE

of fuel leaks or other fuel system

abnormalities if you suspect the

Never experiment wiith other

presence of alcohol in gasoline ex-

fuels. Engine or fuel system dam-

ceeds the current government

ages may occur with the use of an

regulations.

iinadequate fuell.

Alcohol blended fuels attract and

hold moisture which may lead to

fuel phase separation and can re-

NOTICE

sult in engine performance prob-

Do NOT use fuell from fuel pumps

lems or engine damage.

llabelled E85.

Recommended Fuel

Use of fuel labeled E15 is prohibited

The gasoline must have the following

by U.S. EPA Regulations.

minimum octane requirements:

FUEL

Vehicle Fueling Procedure

8. Stop filling when the fuel reaches

the bottom of filler neck. Do not

WARNING

overfilll.

– Fuel iis fllammablle and explo-

WARNING

sive under certain condiitions.

– Never use an open flame to

Never top up the fuel tank before

check fuel llevell.

placing the vehiicle in a warm

– Never smoke or alllow flame or

area. As temperature increases,

spark in viciiniity.

fuell expands and may overfllow.

– Allways work in a welll-ventii-

lated area.

9. Fully tighten fuel reservoir cap

– Vehicle must be on a level sur-

clockwise until you hear a clicking

face to perform fuelling.

noise.

1. Place vehicle on a level surface.

NOTICE

2. Move the shift lever into PARK

Allways wiipe off any fuell spiilllage

position.

from the vehiiclle.

3. Stop engine.

WARNING

Always stop engine before

refueliing.

4. Have occupants get out of vehicle.

WARNING

Do not alllow anyone to remain iin

the vehiiclle whiile fuelling. If there

is a fiire or explosion during fuell-

ing, a vehicle occupant coulld be

unable to quiicklly lleave the area.

5. Slowly unscrew the fuel reservoir

cap counterclockwise to remove it.

WARNING

If a differential pressure condiitiion

is notiiced (whiistlling sound heard

when loosening fuell reservoir

cap) have vehiiclle inspected and/

or repaired before further

operatiion.

6. Insert the spout into the filler neck.

7. Pour fuel slowly so that air can es-

cape from the tank and prevent

fuel flow back. Be careful not to

spill fuel.

BREAK-IN PERIOD

Operation During Break-In

A break-in period of

operating

hours or 300 km (200 mi) is required

for the vehicle.

Engine

During the break-in period:

- Avoid full throttle operation.

- Avoid pressing accelerator pedal

more than 3/4 of the stroke.

- Avoid sustained accelerations.

- Avoid prolonged cruising speeds.

- Avoid engine overheating.

However, brief accelerations and

speed variations contribute to a good

break-in.

Brakes

WARNING

New brakes willl not operate at

theiir maximum effiiciency untiil

theiir break-iin iis complleted. Brak-

ing performance may be reduced,

so use extra caution.

Apply moderate brakiing force for

the 40 to 50 fiirst brakiing events.

Belt

A new belt requires a break in period

of 50 km (30 mi).

During the break-in period:

- Avoid strong acceleration and

deceleration.

- Avoid pulling a load.

- Avoid high speed cruising.

BASIC PROCEDURES

While reading this Operator’s Guide, remember that:

WARNING

Indicates a potential hazard which, if not avoided, could result

in serious injury or death.

Starting the Engine

Insert key in ignition switch and turn to the ON position.

Press the brake pedal.

NOTE: If shift lever is not set to PARK (P), the brake pedal must be pressed to

allow engine starting.

Turn the key to the start position and hold until the engine starts.

NOTE:

Do not press the accelerator pedal. If the accelerator pedal is pressed at least

50%, the engine will not start.

Release the engine start position immediately when the engine has started.

NOTICE

If engiine does not start after a few seconds, do not hold the start positiion

more than 10 seconds.

Refer to Troubleshooting.

Operating the Shift Lever

1. Apply the brakes and select the desired shift lever position while the engine is

at idle.

2. Release the brakes.

NOTICE

When changing gear selectiion, always completely stop the vehiicle and

apply the brakes priior to shiftiing. Damage to the gearbox may occur.

Choosing the Correct Range (Low or High)

It is important to avoid situations known to make the drive belt slip excessively.

The main reason the drive belt will slip is if the gearbox is in high range when it

should be in low range.

Pay attention to the following:

Low Range

Low range should be used whenever:

- Pulling

BASIC PROCEDURES

- Pushing

- Hauling a load

4x4 applications

–

Mud holes

–

Water holes

–

Crossing obstacles

–

Climbing onto trailer

–

Hill climbing

It is also recommended to use low range if driving for prolonged periods at

speeds under 24 km/h (15 MPH).

Please refer to Break-In Period for drive belt break-in information.

Hiigh Range

High is the default riding range.

Ellectroniic Driive Bellt Protection (if avaiilablle and actiivated on your model)

Some vehicles have the electronic drive belt protection function activated.

Refer to your authorized Can-Am dealer for availability and possible activation.

This function is activated when riding at too slow speed for the Hiigh Range,

such as in the following situations:

- Pulling

- Pushing

- Hauling a load

4x4 applications

–

Mud holes

–

Water holes

–

Crossing obstacles

–

Climbing onto trailer

–

Hill climbing

In the above mentioned situations the electronic drive belt protection will help

protect the CVT drive belt from being damaged by activating the engine torque

limiter. The gauge will also scroll a LOW GEAR message, suggesting the opera-

tor to immobilize the vehicle and shift to LOW GEAR.

NOTICE

Whenever the electronic drive belt protectiion is activated, you MUST shiift

in LOW range. Refer to Operatiing the Shiift Lever.

WARNING

Apply brakes to immobilize vehiiclle. Put shift lever in reverse (R), and

back down the hiilll, barely relleasing brakes to remaiin at llow speed. Do not

attempt to turn around. Never coast down hiilll whiile vehiiclle is iin neutrall.

Do not perform hard brakiing as it iincreases the riisk of tiipover.

BASIC PROCEDURES

Stopping the Engine and Parking the Vehicle

WARNING

Avoiid parking on steep sllope as the vehiicle may rolll away.

WARNING

Always put the vehiiclle in PARK when stopped or parked to prevent

rollliing.

WARNING

Avoiid parking iin pllaces where hot parts can start a fiire.

1. Select the flattest terrain available for parking.

2. Release accelerator pedal and use brakes to completely stop the vehicle.

3. Set shift lever in PARK position.

4. Remove the D. E.S. S. key from the D. E.S. S. post or turn the ignition key in

OFF position.

NOTE: If you must park on a steep incline or if the vehicle is carrying cargo,

block the wheels using rocks or bricks.

Tips for Maximizing Drive Belt Durability

Riding style and conditions have a direct impact on drive belt durability.

Your vehicle features a CVT system design that is optimized to offer the best

performance.

The CVT and drive belt have successfully endured thousands of miles of durabil-

ity tests.

However, to maximize drive belt durability and to prevent premature failures, it is

important that the operator understands the limits of a belt driven CVT system

and adapts their riding style and speed accordingly.

If riding in any of the conditions listed below, BRP highly recommends not to con-

stantly hold the throttle wide open (WOT) for more than five (5) minutes.

- High ambient temperatures (above 30 °C (86 °F)

- Heavy loads: Passengers / Heavy cargo

- Heavy drag: Soft sand / Hill climbing / Mud / Using a track kit.

After a few minutes at WOT, partially release the accelerator and allow the CVT

to cool down.

For more tips for maximizing the drive belt durability, refer to Choosing the Cor-

rect Range (Low or High).

100

SPECIAL PROCEDURES

NOTE:

NOTICE

Component failures resulting from

these events are not covered by

Stop the engine and draiin the

warranty.

water to avoiid damage to the

CVT.

Fuel Flooded Engine

If the engine does not start and it is

fuel-flooded, the drowned mode can

be activated to prevent fuel injection

and to cut ignition while cranking. Pro-

ceed as follows:

1. Move shift lever in park position.

2. Turn the ignition key in ON

position.

3. Press completely and HOLD ac-

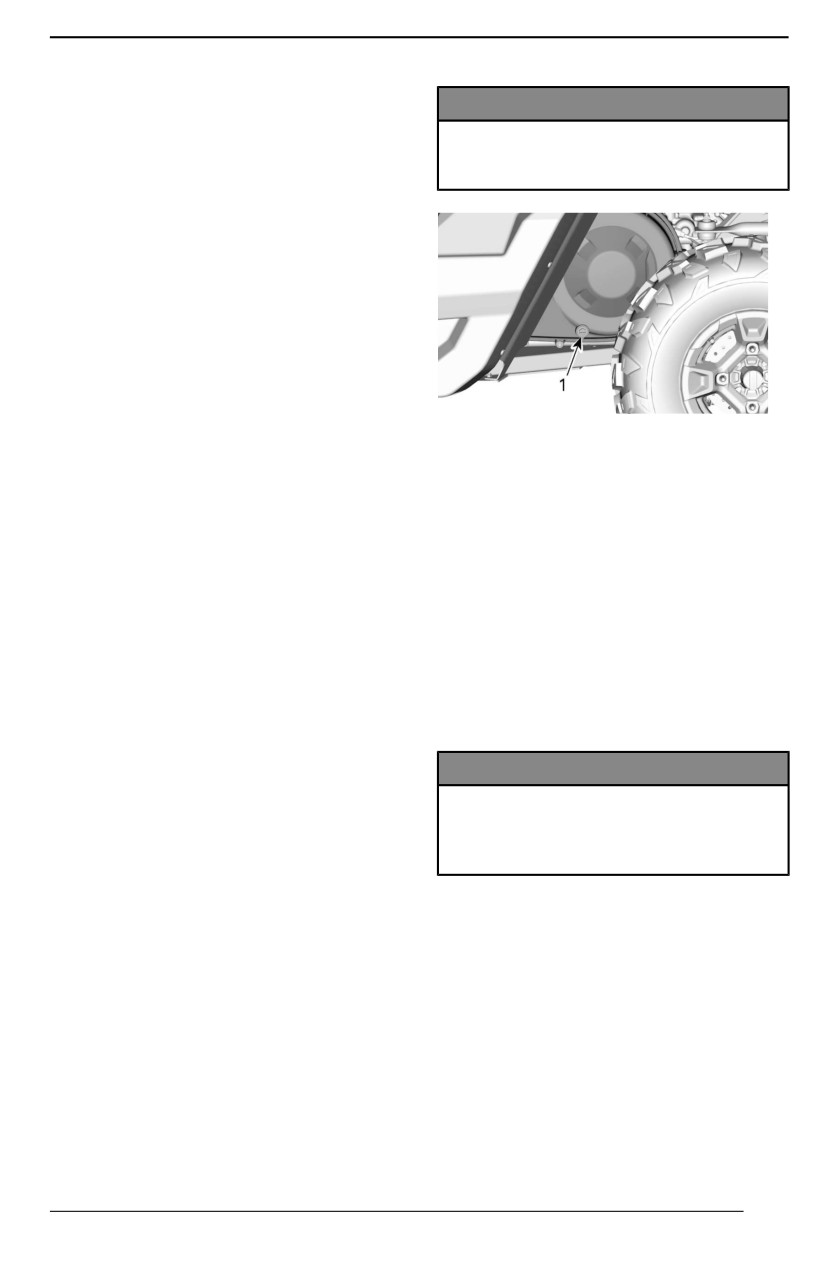

TYPICAL

- LEFT SIDE OF VEHICLE

celerator pedal.

UNDER CARGO BOX

4. Turn ignition key in START posi-

1. CVT drain

tion during 10 seconds.

5. Release the ignition key.

See an authorized Can-Am dealer , a

6. Release

accelerator

pedal

repair shop or person of your choos-

completely.

ing to have the CVT inspected and

7. Turn the ignition key to START po-

cleaned.

sition again to allow starting.

If it does not work:

What to do if Battery is

Drained Out

1. Remove the spark plugs. Refer to

Spark Plugs in Maintenance Pro-

The vehicle can be jump started by

cedures section.

using the RED (+) cable to the battery

2. Crank engine several times.

positive pole and the BLACK (-) cable

3. Install new spark plugs if possible

to the vehicle chassis.

or clean and dry spark plugs.

NOTICE

If engine does not start, see an au-

Do not connect any electriicall

thorized Can-Am Off-road dealer, a

source to the steeriing column or

repair shop, or a person of your own

components which are in contact

choosing for maintenance, repair, or

wiith DPS.

replacement.

Please refer to the US EPA Emis-

What to Do if Vehicle Rolled

sion-Related Warranty contained

Over

herein for information about warranty

claims.

Abrupt maneuvers, sharp turns, side

hilling or accident may cause vehicle

What to do if Water is

to rollover.

Suspected to be in the CVT

Should the vehicle be rolled over, it

If water is present in the CVT, the en-

will be necessary to have it trans-

gine will accelerate but the vehicle will

ported to an authorized Can-Am Off--

remain still.

road dealer for inspection as soon as

possible. NEVER START THE

ENGINE!

101

TUNE YOUR RIDE

Suspension Adjustment

Spriing Preload

Guidelines

Model

Factory settiing

Your vehicle handling and comfort de-

pend upon suspension adjustments.

Cam position 1

Trail Series

(soft)

WARNING

Suspension adjustment coulld af-

60 mm

Sport DPS

fect vehiiclle handling. Always take

(2.36 in)

time to familiarize yourself with

the vehicle''s behavior after any

104.9 mm

X rc

suspensiion adjjustment has been

(4.13 in)

made.

Compression Dampiing

Choice of suspension adjustments

vary with vehicle load, personal pref-

Model

Factory settiing

erence, riding speed and terrain

condition.

X rc

Position 2

The best way to set up the suspen-

Rear Suspension

sion, is to start from factory settings,

then customize each adjustment one

Spriing Preload

at a time.

Front and rear adjustments are inter-

Model

Factory settiing

related. It may be necessary to read-

just the rear shock absorbers after

Cam position 1

Trail Series

adjusting front shock absorbers for

(soft)

instance.

63 mm

Sport DPS

Test run the vehicle under the same

(2.48 in)

conditions; trail, speed, load, etc.

Change one adjustment and retest.

49.6 mm

X rc

Proceed methodically until you are

(1.95 in)

satisfied.

Compression Dampiing

Suspension Factory Settings

Factory settings are suitable for al-

Model

Factory settiing

most all conditions.

X rc

Position 2

Take into consideration that an in-

crease in ground clearance can affect

the handling of the vehicle.

Suspension Adjustments

Front Suspension

Spriing Preload Adjustment

Following are guidelines to fine-tune

suspension. Use suspension adjust-

ment tool provided in the tool kit.

103

TUNE YOUR RIDE

1. Turn adjusting cam

The spring preload affects the ground

2. Soft adjustment

clearance of the vehicle.

3. Firm adjustment

Shorten the spring for a firmer ride

Shock Absorber with Adjjusting

and rough riding condition or when

Riings

pulling a trailer.

Adjust spring preload by

turning

the

Lengthen the spring for a softer ride

adjusting rings.

and smooth riding condition.

NOTE:

Factory settings are suitable for al-

most all conditions. Take into consid-

eration that an increase in ground

clearance can affect the handling of

the vehicle.

WARNING

The lleft and right shock adjust-

ment on front or rear suspension

must always be set to the same

position.

Never adjjust one shock only.

Uneven adjustment can cause

poor handlling and lloss of stabillity,

which coulld lead to an accident.

Loosen top locking ring

Lift the vehicle to adjust spring

Turn adjusting ring accordingly

preload.

Tighten top locking ring

Shock Absorber wiith Adjustiing

Cam

Adjust by turning adjusting cam.

104

TUNE YOUR RIDE

1. Distance to measure

COMPRESSION DAMPING

1. Increases damping (stiffer)

Shock Dampiing Adjustments (X rc)

2. Decreases damping (softer)

Compression damping

controls how

Turn adjuster clockwise to iincrease

the shock

absorber

reacts when

shock damping action (stiffer).

riding.

Turn adjuster counterclockwise to de-

Result on

crease shock damping action (softer).

Position

Setting

big bumps

Actiion

Result

Softer

compres

Increasing

Firmer

Soft

sion

compression

damping

damping force

damping

Medium

Decreasing

Softer

Medium

compres

compression

(Factory)

sion

damping force

damping

Firmer

WARNING

compres

Make sure compression damping

Hard

sion

settiing iis the same on both siides.

damping

DPS Function

The Dynamic Power Steering (DPS)

provides a computer controlled, varia-

ble power assist, achieved by an elec-

tric motor to optimize the amount of

steering input required by the rider.

1. Position 1

2. Position 2

3. Position 3

105

TRANSPORTING THE VEHICLE

When contacting a towing or transporting service, be sure to ask if they have a

flatbed trailer, loading ramp or power ramp to safely lift the vehicle and tie-down

straps. Ensure the vehicle is properly transported as specified in this section.

NOTICE

Do not tow thiis vehicle — towiing can seriiously damage the vehiclle''s drive

system.

NOTICE

Avoiid usiing chains to tie the vehiclle — they may damage the surface fin-

ish or pllastic components.

WARNING

To avoid severe injjury or death or iimportant components damages.

– Never use the wiinch cablle/rope to retain a vehiiclle duriing traiilering.

– Never ride with the winch cable/rope attached to a load or another

vehiiclle.

– Only use the wiinch to hellp a stuck vehiiclle (snow, mud, etc.).

– Allways refer to the winch manufacturer''s iinstructiion before pullling

loads.

WARNING

Make sure alll accessoriies, cargo and loose objects iinsiide the vehiiclle are

properly secured, or remove iit to prevent from faiiliing on the road and cre-

ating a hazard for folllowing vehiclles.

WARNING

Always transport the vehiiclle facing forward to avoid damagiing the wind-

shielld or other components. Parts may detach during transport.

WARNING

Before attempting to mount vehiiclle onto a pllatform or a traiiler, make sure

to respect the following safety precautiions.

Safety Precautions

The carrying item (platform or trailer or flat bed)

must be of appropriate dimensions and

Carrying equipment

capacity to safely support and transport the

vehicle.

Do not exceed vehicle hauling capacity and

Hauling vehicle

specifications. Ensure the trailer or platform is

properly secured to the hauling vehicle hitch.

106

TRANSPORTING THE VEHICLE

Safety Precautiions

Ensure you have a good visibility during the

Visibility

entire maneuver.

The hauling vehicle and trailer must be on a

Terrain

leveled surface. Use wheel chocks on trailer

and hauling vehicle to avoid any movement.

Use ramps with proper rating and secure ramps

Ramps

to the trailer or platform. Avoid steep ramps.

Always make sure bystanders are not close to

Bystanders

the vehicle or the trailering equipment while

climbing up.

Make sure all accessories, cargo and loose

objects inside the vehicle are properly secured,

Accessories and cargo

or remove it to prevent from failing on the road

and creating a hazard for following vehicles.

Using Vehicle Power to Climb Onto Trailering Equipment

When vehiiclle can cliimb on iits own power, proceed as folllows;

1. Wear protective gear.

2. Fasten seat belt.

3. Use low gear only (if equipped).

4. If vehicle has 4WD option, use it.

5. When driving remain seated at all times.

6. Ensure proper alignment on rails or platform.

7. Start from a sufficient distance from the trailer to align the vehicle in a straight

line with the ramps. Never attempt to turn while getting closer to the ramp.

Rear wheels might not be aligned once you get to the ramp and vehicle may

fall off.

8. Slowly climb the front wheels onto the ramp to verify alignment.

9. Back off the vehicle, verify ramps are still secure, then proceed at proper

speed.

10. Carefully drive vehicle onto platform or trailer. Use sufficient speed to climb

without spinning or abruptly accelerating. Avoid acceleration while on ramps

to prevent ramps movement.

11. If trailer is inclined towards front, simply let vehicle roll in without acceleration.

12. Once vehicle is climbed, put shift lever to Park. Apply brake locking mecha-

nism (if equipped).

When vehiclle cannot move on its own power, or in case overshooting iis

a risk or if any dangerous condiition prevents for embarking on iits own

power, proceed usiing a winch;

Using a Winch to Pull Vehicle Onto Trailering Equipment

When vehiiclle cannot cllimb on its own power, proceed as folllows;

107

TRANSPORTING THE VEHICLE

WARNING

Have the hellp of an assiistant. One person should be in vehiicle to have

access to vehicle steeriing, brakes and winch swiitch, whiile the other per-

son controls the environment and safety of the maneuver.

WARNING

Ensure the winch hook can be safely attached to a proper anchoring

poiint. Use proper riiggiing.

NOTE:

If vehicle can be started safely, let engine idle during winching to avoid draining

the battery.

1. Place shift lever to NEUTRAL (N).

2. If the vehicle is equipped with a winch, use the winch to roll the vehicle on the

platform.

3. If the vehicle is not equipped with a winch, proceed as follows:

1. Attach strap to lower front bumper anchor.

2. Attach the strap to the winch cable of the towing vehicle.

3. Pull the vehicle on the flatbed trailer with the winch.

4. Put shift lever to Park. Apply brake locking mechanism (if equipped).

Securing Vehicle for Transport

WARNING

Never use the winch to secure the vehicle during transport.

1. Remove the key from the vehicle.

2. At rear, secure the vehicle on both sides using a strap around the suspension

arm as close to the wheel as possible.

3. At front, secure the vehicle on both sides using a strap around the lower sus-

pension arm as close to the wheel as possible.

108

LIFTING AND SUPPORTING THE VEHICLE

Front of Vehicle

1. Place vehicle on a flat non slippery

ground.

2. Ensure vehicle shift lever is set to

PARK.

3. Install an hydraulic jack under the

front skid plate.

4. Lift front of vehicle and install a

jack stand on each side under

frame section.

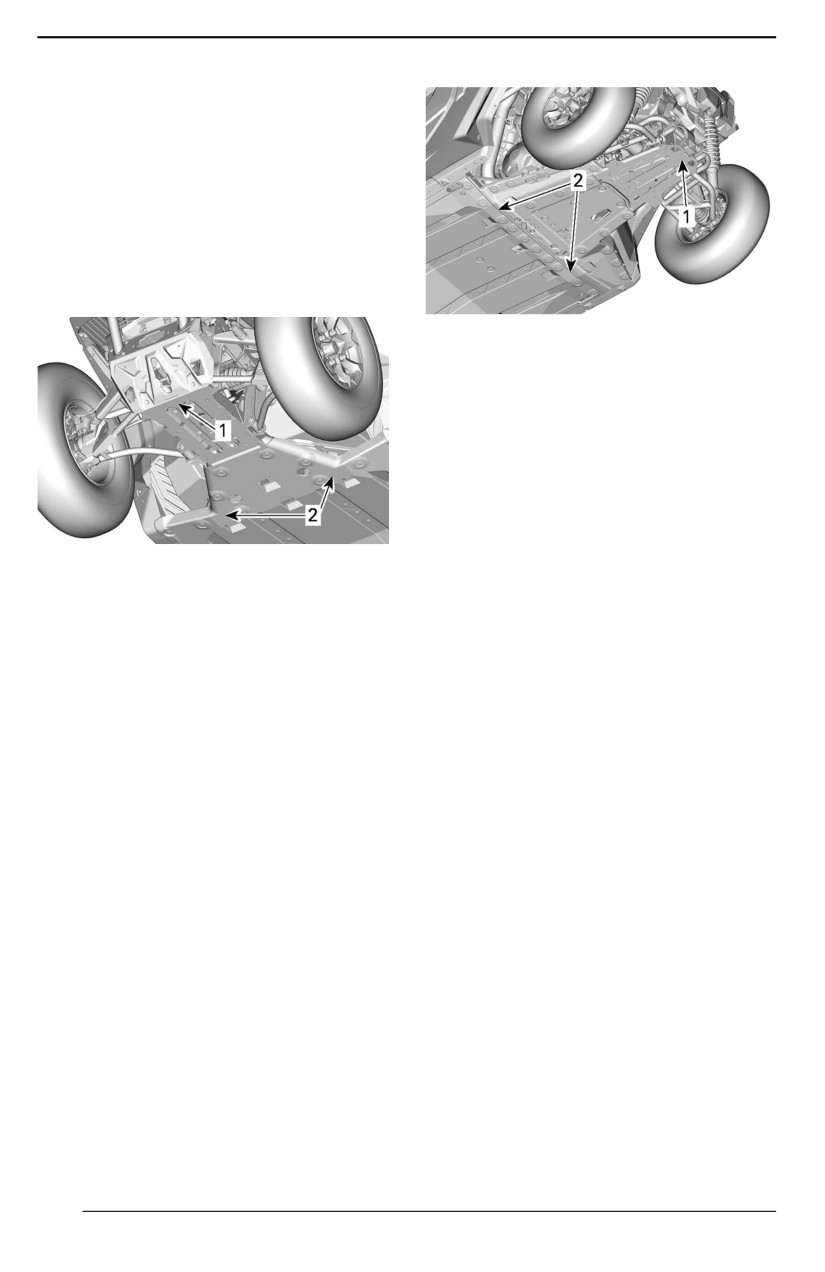

1. Lifting location under skid plate

2. Frame section to install jack stands

6. Lower hydraulic lift and ensure ve-

hicle is supported safely onto both

jack stands.

1. Front of vehicle

2. Frame section

5. Lower hydraulic lift and ensure ve-

hicle is supported safely onto both

jack stands.

Rear of Vehicle

1. Place vehicle on a flat non slippery

ground.

2. Activate 4WD mode.

3. Ensure vehicle shift lever is set to

PARK.

4. Install an hydraulic jack under the

skid plate.

5. Lift rear of vehicle and install a jack

stand on each side under frame

section in front of rear wheel.

110

MAINTENANCE SCHEDULE

Maintenance is very important to keep your vehicle in safe operating condition.

The vehicle should be serviced as per the maintenance schedule.

Proper maintenance is the owner’s responsibility. A warranty claim may be de-

nied if, among other things, the owner or operator caused the problem through

improper maintenance or use.

Perform periodic checks and follow the maintenance schedule. The maiinte-

nance schedule does not exempt the pre-ride inspection.

WARNING

Faiilure to properly maiintain the vehiclle accordiing to the maiintenance

schedulle and procedures can make it unsafe to operate.

EPA Regulation - Canadian and USA Vehicles

A repair shop or person of the owner''s choosing may maiintaiin, replace, or

repair emission control devices and systems. These instructions do not require

components or service by BRP or authorized Can-Am Off-road dealers.

Although an authorized Can-Am Off-road dealer has an in-depth technical knowl-

edge and tools to service your vehicle, the emission-related warranty is not con-

ditioned on the use of an authorized Can-Am Offroad dealer or any other

establishment with which BRP has a commercial relationship.

Proper maintenance is the owner’s responsibility. A warranty claim may be de-

nied if, among other things, the owner or operator caused the problem through

improper maintenance or use.

For emission-related warranty claims, BRP is limiting the diagnosis and repair of

emission-related parts to the authorized Can-Am Offroad dealers. For more infor-

mation, please refer to the US EPA Emission-Related Warranty contained in the

Warranty section.

You must follow the instructions for fuel requirements in the fueling section of this

manual. Even if gasoline containing greater than ten volume percent ethanol is

readily available, the US EPA issued a prohibition against the use of gasoline

containing greater than 10 vol% ethanol that applies to this vehicle. The use of

gasoline containing greater than 10 vol% ethanol with this engine may harm the

emission control system.

Air Filter Maintenance Guideline

Air filter maintenance should be adjusted according to riding conditions.

Air filter maintenance must be increased in frequency when riding on snow, dry

sand, dirt, gravel or similar conditions which have a high dust or particle

dispersion.

Riding in a group in these conditions will require increasing the air filter mainte-

nance frequency further.

NOTE:

Accessory filters and pre-filter are available for such conditions. Contact an au-

thorized Can-Am off-road dealer for details.

112

MAINTENANCE SCHEDULE

Severe Duty Use

If your vehicle is used in the following conditions, refer to the Severe Duty section

of the maintenance schedule.

- Repeated hauling of loads at more than 75% the maximum capacity.

- The increase workload applied to the drive system accelerates the differ-

entials, gearbox/transmission, and engine oil life. This reduces internal

component longevity if not replaced more frequently.

- Driving at excessive speeds for prolonged amount of time.

Higher than the average utility or commercial use requires more frequent fluid

and wear component replacement than trail, recreational, or occasional utility

purposes.

Extreme Cold Condiitiion

An engine that is frequently operated at or below an ambient temperature of -25 °

C (-13 °F) will require an increase in service and maintenance schedule.

Any combustion engine operated at these low ambient temperature will collect

an increased amount of condensation at every startup/warm-up.

Since the engine is not reaching operating temperatures for extended periods of

time, the oil is starting to be strongly diluted with water and gas residue (more

water content).

An engine needs to reach operating temperature, in order to be able to evaporate

condensate out of the oil.

If daily usage (work or leisure driving cycle) is similar to those mentioned below,

BRP strongly recommends changing the oil at least once a month.

Parameters of an increase in service and maintenance schedule:

- Engine not reaching the proper operating temperature during normal daily

usage

- Multiple starts and stops without reaching operating temperature

- Short idle periods

- Low RPM driving cycle in short distances without reaching operating

temperature.

NOTE:

BRP strongly recommends the installation of a block heater to help warm up the

liquids, this will also help to extend the oil lifetime.

Deep Mud / Water Use

Whether your vehicle is a X mr model or was accessorized for deep mud / water

use, this type of usage requires more frequent maintenance and inspections to

ensure debris has not infiltrated mechanical components.

If you regularly ride in deep mud or water, refer to the Deep Mud / Water section

of the maintenance schedule.

113

MAINTENANCE SCHEDULE

After every ride, be sure to perform the Post Operation Care for Deep Mud /

Water Environment .

Post Operation Care for Deep Mud / Water Enviironment

- Rinse the vehicle and its components with fresh water.

- Clean the CVT air filters.

- Drain the CVT compartment and clean if any water or mud is found.

- Inspect and clean engine air filters and engine air filter housing.

- Clean radiator.

- Visually inspect for any water accumulation in the vent hoses (fuel tank, gear-

box, front differential and rear final drive). If there is water, bring the vehicle to

your nearest authorized Can-Am off-road dealer for inspection and servicing

of main components related to the vents.

- Clean front and rear shock absorbers to prevent seal from damage by dust or

dirt.

- Clean drive shaft bellows and the propeller shaft yokes or boots.

Maintenance Schedule

Make sure to perform proper maintenance at recommended intervals as indi-

cated in the tables.

The maintenance chart intervals are based on 3 factors:

- Calendar time

- Vehicle hours

- Odometer reading.

Take in account whichever comes first to determine the maintenance threshold.

Your driving habits determines the factors you shall adhere too. For example:

- Someone who uses their vehicle every other weekend trail riding with friends

would most likely follow the odometer readiing to determine the maintenance

interval.

- Someone who uses their vehicle seldomly over the year or only on a few oc-

casions (hunting, camping) would most likely follow the callendar time to de-

termine the maintenance interval.

- Someone who uses their vehicle daily / weekly for long periods of time such

as agricultural / work would most likely follow the vehiicle hours to determine

the maintenance interval.

IMPORTANT: The following tables show the appropriate maintenance appli-

cation for the first

3 years. For subsequent years, repeat the same pattern

alternatively.

114

MAINTENANCE SCHEDULE

REGULAR DUTY

A=Adjust

Every year

Every 2 years

C=Clean

I=Inspect

200 hours

400 hours

L=Lubricate

R=Replace

3000 km

6000 km

T=Torque

(1900 mi)

(3700 mi)

Air and Fuel Delivery

Engine air filter

I, C or R

Air delivery components and function (airbox,

I, C

throttle body, ducts, clamps)*

Fuel components and function (Fuel tank cap,

fuel tank, hoses, clamps, leaks)*

Fuel pump pressure

Body; Chassis and Accessory

Cage fasteners

Seat belts retractors, buckles and

I, C

semi-cinching

Winch

I, C

Door latches, hinges and key barrels

L, T

Engine and Cooling

Engine oil and filter

I, A

Valve clearance (Regardless of calendar

I, A

(Mono cyl.

time)

(V-twin engines)

engines)

Spark plugs (Regardless of calendar time)

Engine seals and gaskets

Engine cooling components (Concentration,

I, A

level, hoses condition, clamps, leaks)*

Engine Coolant

Every 5 years or 12 000 km (7500 mi)

Radiator

Exhaust and Emissions

Fuel tank vent breather filter (Non EVAP

models)

Canister vent pre-filter (CARB and EVAP

models)

Exhaust components (gaskets, pipes, muffler

I, C

condition, leaks)

Muffler spark arrester

I, C

116

MAINTENANCE SCHEDULE

REGULAR DUTY

A=Adjust

Every year

Every 2 years

C=Clean

I=Inspect

200 hours

400 hours

L=Lubricate

R=Replace

3000 km

6000 km

T=Torque

(1900 mi)

(3700 mi)

Debris around exhaust pipe and muffler area

Brake

Brake components and function (Fluid level,

brake pads, brake discs, calipers, lines and

I, C, L, A

master cylinder*)

Brake fluid

Every 2 years

Drive

Replace at first 3000 km (1900 mi) and

Gearbox oil

6000 km (3700 mi), then follow the

regular schedule

Gearbox oil

I, A

Front differential oil

I, A

Rear final drive oil (Mono-cyl. engine)

I, A

Tires (Wear, pressure)

I, A

Wheel lug nuts

Beadlock screws (if equipped)

Drive components and function*

Controls

Gearbox lever operation

I, A

Throttle operation

Continuously Variable Transmission (CVT)

CVT components and function*

I, C, L

Slide shoes in driven pulley (Mono cyl.

engines)

Electrical

Battery connections and condition

I, C

Modules fault codes and applicable software

updates

Operation of controls switches and lighting*

Vehicle speed sensor (VSS) (Mono cyl.

engines)

Steering

117

MAINTENANCE SCHEDULE

SEVERE DUTY

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Air and Fuel Delivery

Engine air filter

I, C

Air delivery components and

function (airbox, throttle body, ducts,

I, C

clamps)*

Fuel components and function (Fuel

tank cap, fuel tank, hoses, clamps,

leaks)*

Fuel pump pressure

Body, Chassis and Accessory

Cage fasteners

Seat belts retractors, buckles and

I, C

semi-cinching

Winch

I, C

Door latches, hinges and key barrels

L, T

Engine and Cooling

Engine oil and filter

I, A

Valve clearance (Regardless of

(V-twin

(Mono cyl.

calendar time)

engines)

Spark plugs (Regardless of calendar

time)

Engine seals and gaskets

Engine cooling components

(Concentration, level, hoses

I, A

condition, clamps, leaks)*

Engine coolant

Every 5

years or 12 000 km (7500 mi)

Radiator

Exhaust and Emissions

Fuel tank vent breather filter (Non

EVAP models)

Canister vent pre-filter (CARB and

EVAP models)

119

MAINTENANCE SCHEDULE

SEVERE DUTY

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Exhaust components (gasket, pipes,

I, C

muffler condition, leaks)*

Muffler spark arrester

Debris around exhaust pipe and

muffler area

Brake

Brake components and function

(Fluid level, brake pads, brake discs,

I, C, L, A

calipers, lines and master cylinder)*

Brake fluid

Every 2 years

Drive

Replace at first

1500 km (900 mi) and at 3000

Gearbox oil and filter

km (1900 mi), then follow the regular schedule

Gearbox oil and filter

I, A

Front differential oil

I, A

Rear final drive oil (Mono-cyl.

I, A

engine)

Tires (Wear, pressure)

I, A

Wheel lug nuts

Beadlock screws (if equipped)

Drive components and function*

Controls

Gearbox lever operation

I, A

Throttle operation

Continuously Variable Transmission (CVT)

CVT components and function*

I, C, L

Slide shoes in driven pulley (Mono

cyl. engines)

Electrical

Battery connections and condition

I, C,

Modules fault codes and applicable

software updates

120

MAINTENANCE SCHEDULE

DEEP MUD / WATER

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Air and Fuel Delivery

Engine air filter

Air delivery components and

function (airbox, throttle body, ducts,

clamps)*

Fuel components and function (Fuel

tank cap, fuel tank, hoses, clamps,

leaks)*

Fuel pump pressure

Body and Chassis

Cage fasteners

Seat belts retractors, buckles and

I, C

semi-cinching

Winch

Door latches, hinges and key barrels

L, T

Engine and Cooling

Engine oil and filter

I, A

Valve clearance (Regardless of

(V-twin

(Mono cyl.

calendar time)

engines)

Spark plugs (Regardless of calendar

time)

Engine seals and gaskets

Engine cooling components

(Concentration, level, hoses

I, A

condition, clamps, leaks)*

Coolant

Every 5

years or 12 000 km (7500 mi)

Radiator

Exhaust and Emissions

Fuel tank vent breather filter (Non

EVAP models)

Canister vent pre-filter (CARB and

EVAP models)

122

MAINTENANCE SCHEDULE

DEEP MUD / WATER

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Exhaust components (gasket, pipes,

I, C

muffler condition, leaks)*

Muffler spark arrester

Debris around exhaust pipe and

muffler area

Brake

Brake components and function

(Fluid level, brake pads, brake discs,

I, C, L, A

calipers, lines and master cylinder)*

Brake fluid

Every 2 years

Drive

Replace at first

1500 km (900 mi) and at 3000

Gearbox oil and filter

km (1900 mi), then follow the regular schedule

Gearbox oil and filter

I, A

Front differential oil

I, A

Rear final drive oil (Mono-cyl.

I, A

engine)

Tires (Wear, pressure)

I, A

Wheel lug nuts

Beadlock screws (if equipped)

Drive components and function*

Controls

Gearbox lever operation

I, A

Throttle operation

Continuously Variable Transmission (CVT)

CVT components and function*

I, C, L

Slide shoes in driven pulley (Mono

cyl. engines)

Electrical

Battery connections and condition

I, C

Modules fault codes and applicable

software updates

123

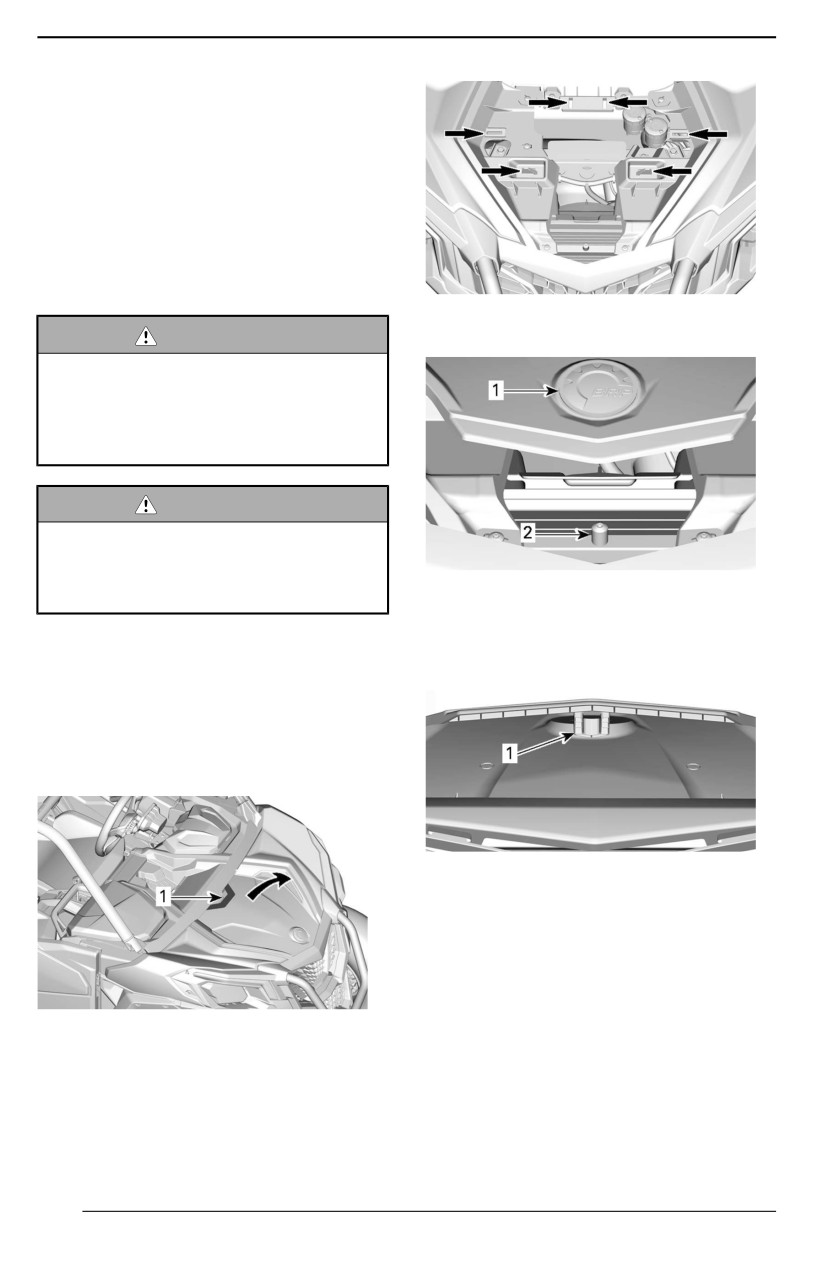

MAINTENANCE PROCEDURES

This section includes instructions for

basic maintenance procedures.

Due to the complexity of some of the

maintenance procedures, good me-

chanical skills are required. If you are

not comfortable with these proce-

dures, do not hesitate to contact an

authorized Can-Am off-road dealer,

repair shop or person of your own

choosing.

Align the BRP logo with the locat-

ing dowel.

WARNING

Unless otherwiise iindicated, all-

ways turn ignition swiitch to the

OFF posiitiion before performing

any maintenance and remove

key.

WARNING

Shoulld removal of a lockiing de-

viice be requiired (e.g. lock tab,

self-llocking fastener, etc.) , al-

BRP logo

ways replace it with a new one.

Locating dowel pin

Accessing Maintenance

Components

Front Service Cover

To open the front service cover, pull

up on handle toward the front.

1. Locating slot on underside of service cover

3. Slide the front edge of the service

cover under the front fascia.

4. Push down cover making sure all

the tabs are fully seated.

Engine Serviice Cover

1. Handle

The engine service cover gives an ac-

It is very important to follow the steps

cess to the following components:

shown to close the front service cover.

- Engine oil filter

- Engine front spark plug.

1. Locate the trim clips under the

service cover.

1. Remove the seats.

130

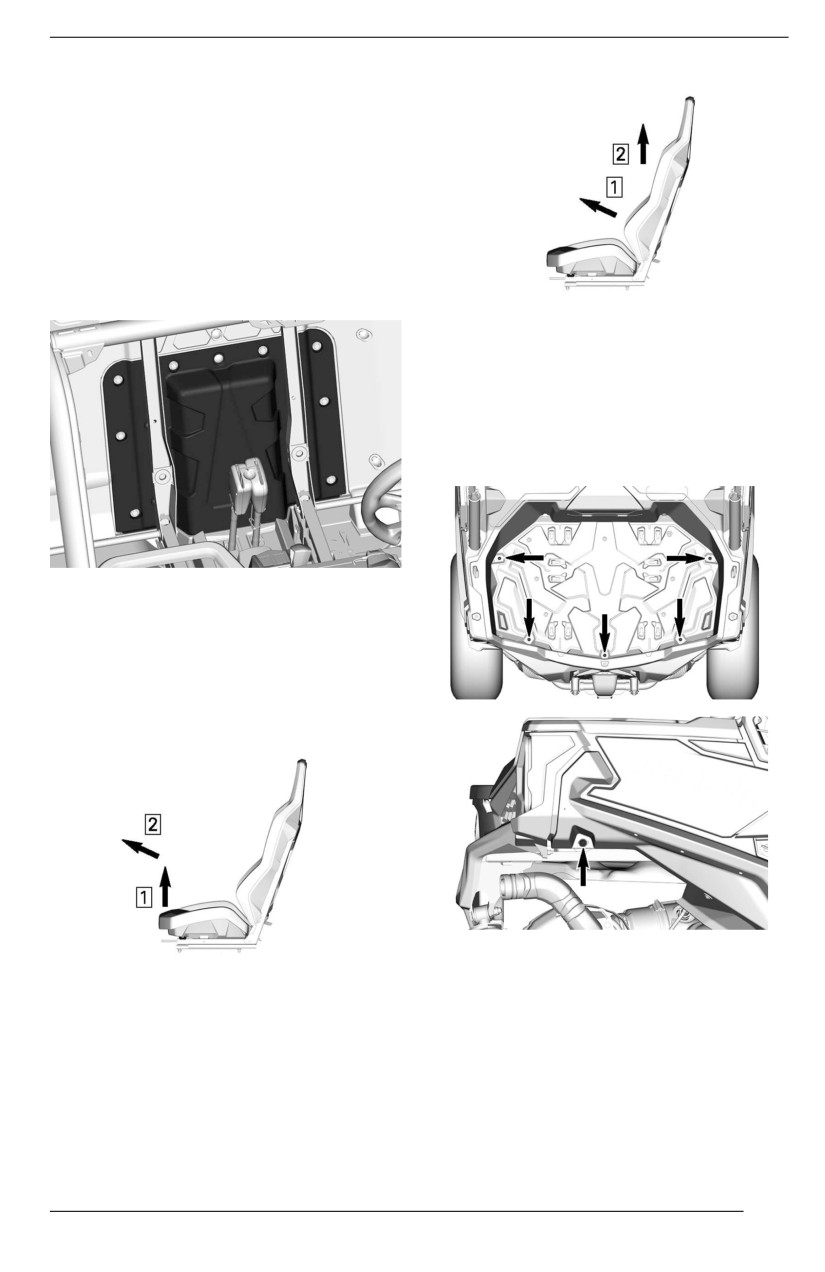

MAINTENANCE PROCEDURES

NOTE: On MAX models, remove the

rear passenger seats.

2. Remove the plastic rivets and the

dart.

3. Remove the engine service cover.

NOTE:

If installed, no need to remove the

acoustic panel from the engine serv-

ice cover.

1. Pull toward the front

2. Lift

Rear Body Module

To remove the rear body module;

1. Remove cargo box retaining

screws.

4. The installation is the reverse of

the removal procedure.

Seat Cushiion and Backrest

1. Remove the seat cushion by lifting

the front up and pulling toward the

front.

RH SIDE SHOWN, REPEAT ON LH SIDE

1. Lift front of seat

2. Pull toward the front

2. Remove the backrest by pulling

the lower part toward the front and

lifting up.

131

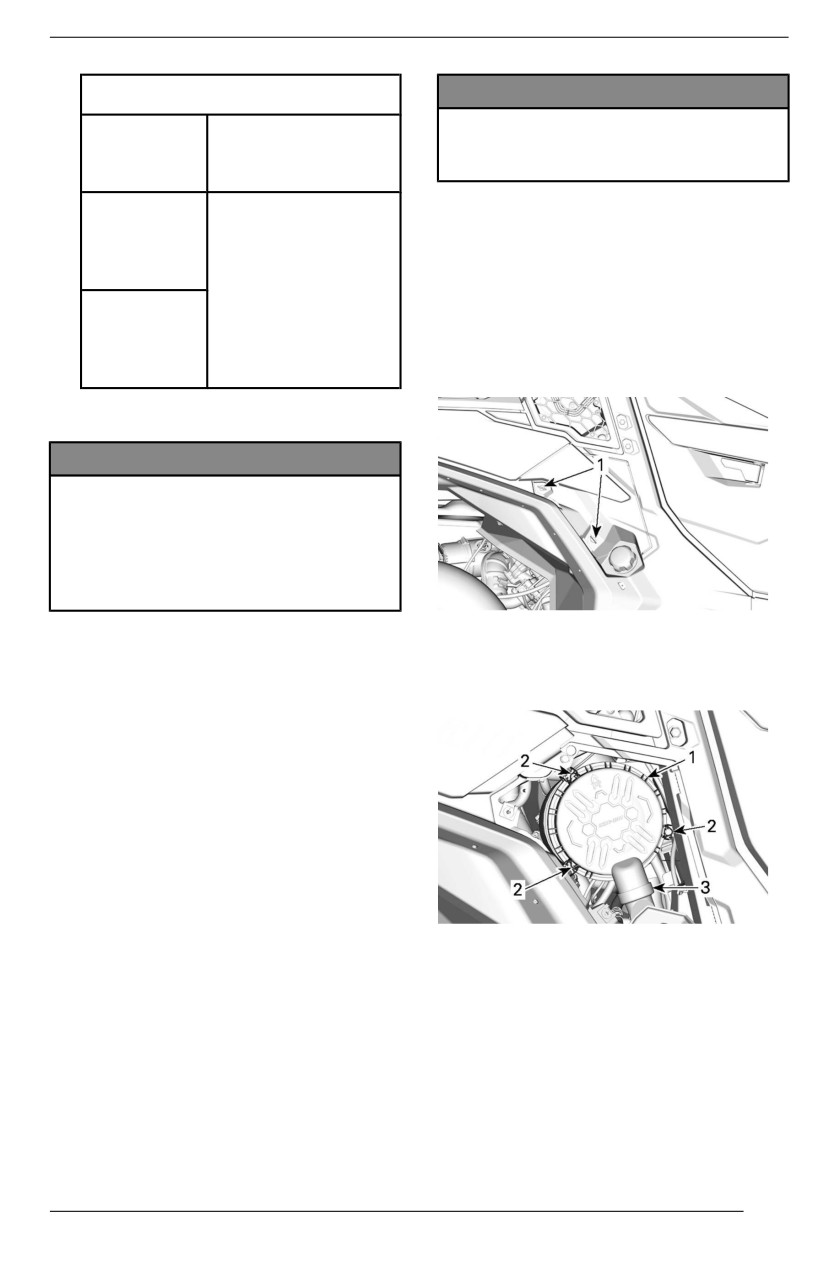

MAINTENANCE PROCEDURES

Tiightening Torque

NOTICE

When riding iin dusty condiitiions or

Cargo box

2.5 ± 0.5 Nm

sand, the aiir box needs to be

retaining

(22 ± 4 lbf-in)

clleaned before every ride.

screw

Upper

NOTE:

cage

Riding in a group, under these condi-

extension

tions, increases the frequency of the

screw

24.5 ± 3.5 Nm

air filter maintenance.

(18 ± 3 lbf-ft)

Lower

Removiing the Engine Aiir Fillter

cage

extension

Remove side access cover by un-

screw

screwing the quarter turn fasteners.

ENGINE AIR FILTER

NOTICE

Never modify the air intake sys-

tem. Otherwiise, engiine perform-

ance degradation or damage can

occur. The engiine iis caliibrated to

operate specificallly wiith these

components.

1. Quarter turn fasteners

Engine Aiir Fillter Replacement

Guiideline

Unlatch air filter cover and remove air

filter.

Engine air filter inspection and re-

placement frequency should be ad-

justed according to riding conditions

as it is critical to ensure proper engine

performance and life span.

Engine air filter inspection and re-

placement frequency must be in-

creased for the following severe riding

conditions:

- Riding on dry sand.

- Riding on dry dirt covered

TYPICAL - RH SIDE OF VEHICLE, UNDER

surfaces.

CARGO BOX

- Riding on dry gravel trails or simi-

1. Air filter cover

lar conditions.

2. Latches

- Riding in areas with high concen-

3. Duck bill valve

tration of seeds or crop husks.

– Riding in severe snow conditions.

The filter fits tightly over the outlet

tube and there will be some initial re-

sistance. Gently move the end of the

filter back and forth to break the seal,

then rotate while pulling straight out.

133

MAINTENANCE PROCEDURES

Avoid knocking the filter against the

2. Apply pressure by hand on the

housing.

outer rim of the filter, not the

flexible center.

Cleaning the Engiine Air Fiilter

Inspect and carefully clean gasket

in the groove of the cover. Replace

1. Inspect the filter for any signs of

if damaged.

leaks. A streak of dust on the clean

Secure air filter cover with latches.

side of the filter is a telltale sign.

Replace filter if there is any dam-

ages. Eliminate any source of air

leaks before installing a new filter.

2. Clean engine air filter by tapping

out heavy dust from paper ele-

ment, this will allow dirt and dust to

get out of the paper filter.

NOTICE

It is not recommended to blow

compressed air on the paper elle-

ment; thiis could damage the pa-

per fibers and reduce iits filltratiion

Air filter cover

abiiliity when used iin dusty envi-

Latches

ronments. If engine air fiilter is too

Duckbill valve

diirty and cannot be cleaned fol-

Reinstall the air filter access door

lowiing the recommended proce-

and secure it with the quarter-turn

dure, it shoulld be replaced.

screw.

3. Inspect air filter housing for cleanli-

CVT Air Filter

ness. Clean if necessary.

4. Use a clean damp cloth to wipe

CVT Aiir Fillter Replacement

both the filter sealing surface and

Guiidelline

the inside of the inlet tube. Ensure

CVT air filter inspection and replace-

that the inlet tube sealing area is

ment frequency should be adjusted

undamaged.

according to riding conditions as it is

critical to ensure proper engine per-

Duckbilll Vallve Clleaning

formance and life span.

Visually check and physically squeeze

Under the following severe riding con-

the duckbill valve.

ditions, the inspection and replace-

ment frequency must be increased:

NOTICE

- Riding on dry sand.

Make sure the duckbiilll vallve is

- Riding on dry dirt covered

fllexiiblle and not inverted, dam-

surfaces.

aged or pllugged.

- Riding on dry gravel trails or simi-

lar conditions.

Installling the Engiine Air Fillter

- Riding in muddy conditions.

- Riding in areas with high concen-

1. Insert the filter carefully.

tration of seeds or crop husks.

1. Seat the filter by hand, making

certain it is inserted completely

into the air cleaner housing.

134

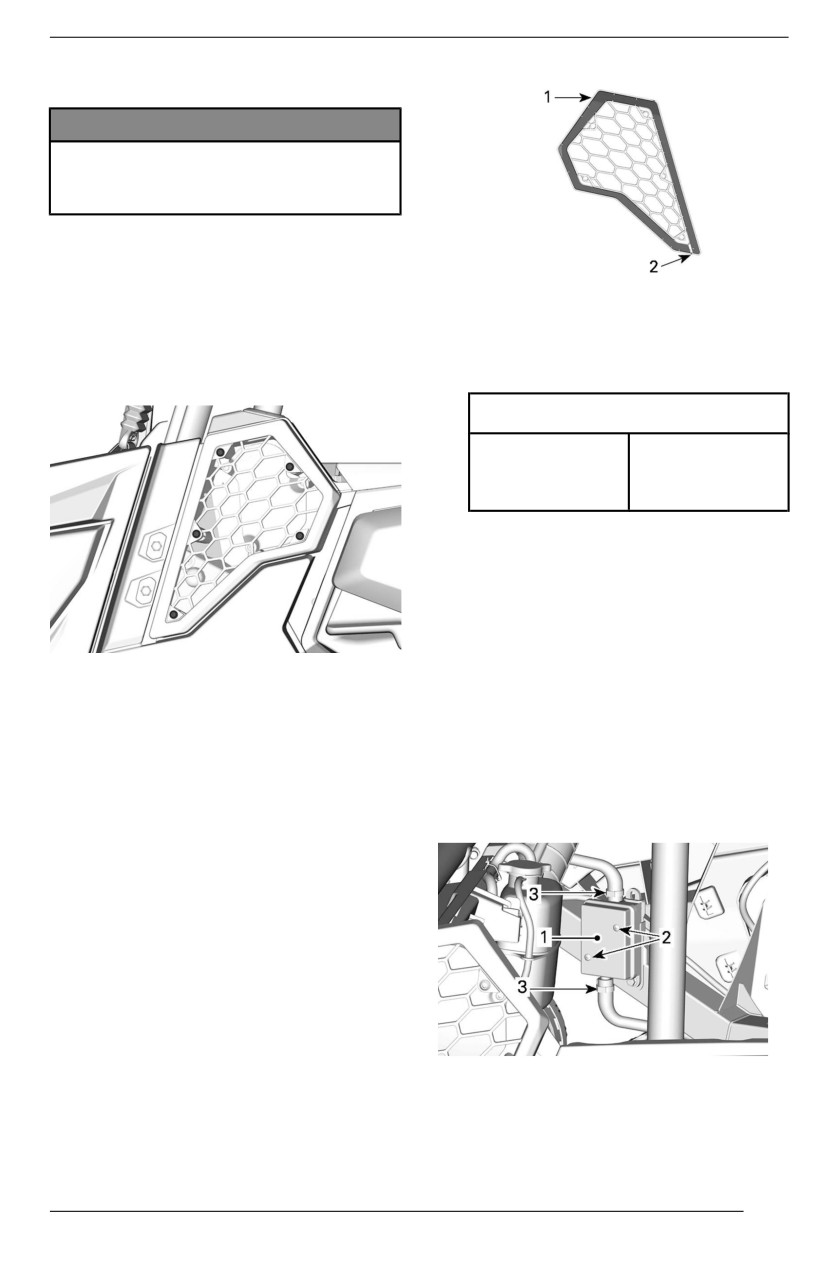

MAINTENANCE PROCEDURES

- Riding in severe snow conditions.

NOTICE

When riiding in dusty conditiions or

sand, the aiir fiilter needs to be

cleaned before every riide.

NOTE:

Riding in a group, under these condi-

tions, increases the frequency of the

air filter maintenance.

1. Seal touching

2. Gap

Removing the CVT Air Fillter

2. Reinstall CVT air filter.

3. Reinstall fasteners.

1. Remove fasteners

Tightening Torque

CVT air filter

3.5 ± 0.5 Nm

retaining

(31 ± 4 lbf-in)

screw

Evaporative Emission

System Pre-Filter (If

Equipped)

Evaporatiive Emissiion System

2. Remove the CVT air filter.

Pre-Filter Repllacement

1. Remove rear body module, refer to

Inspecting and Clleaniing the CVT

Accessing

Maintenance

Aiir Fillter

Components.

1. Inspect filter and replace

2. On LH side, remove side panel.

damaged.

3. Remove the hose clamps.

2. Remove the seals.

4. Remove the retaining screws.

3. Clean filter and seals using a solu-

5. Remove the pre-filter assembly.

tion of soft soap and water, then

rinse.

4. Gently shake off excess water and

allow filter and seals to dry at room

temperature.

5. Clean inside the CVT air inlet with

a vacuum cleaner.

Installliing the CVT Air Fiilter

1. Install seals in CVT filter. Make

sure the upper ends of the seals

1. Pre-Filter

touch and there is a gap at the bot-

2. Retaining screw

tom to allow water to drain.

3. Clamps

135

MAINTENANCE PROCEDURES

6. Install a new pre-filter assembly.

Mono Cylinder Engines

Verifying the Engiine Oiil Levell

Tighteniing Torque

(Mono Cylinder)

Pre-filter

2.5 ± 0.5 Nm

NOTICE

retaining

(22 ± 4 lbf-in)

screw

Operating the engine with an iim-

proper llevel may severely dam-

7. Secure hoses with clamps.

age engine.

8. Install all other removed parts.

ENGINE OIL

NOTICE

Check the oill level when the en-

Recommended Engiine Oiil

gine is WARM.

Rotax^® engines were developed and

validated using the XPS^® oil.

Start and let the engine run at idle

for 60 seconds.

BRP recommends the use of its XPS

Stop engine.

engine oil or an equivalent at all time.

Place vehicle on a level surface.

Damage caused by the use of an oil

Clean around dipstick to avoid for-

not suitable for the engine may not be

eign particles falling down the

covered by the BRP Limited Warranty.

tube.

XPS Recommended Engine Oil

General

5W40 synthetic blend

purpose

oil

Cold

temperature

0W40 synthetic oil

Warm

temperature

10W50 synthetic oil

Unscrew dipstick then remove it

If the recommended XPS engine oil is

and wipe clean.

not available:

Reinstall dipstick, screw in it

completely.

- Use a 4-stroke SAE engine syn-

Remove dipstick and check oil lev-

thetic or synthetic blend oil meet-

el. It should be near or equal to the

ing or exceeding the following

upper mark.

lubricant industry specifications.

- Always check the API service label

certification on the oil container, it

must contain at least one of the in-

dicated standards.

- API service cllassifiication

SN, or

MIN

– JASO MA2

MAX

If the level is between marks, rein-

stall the dipstick.

136

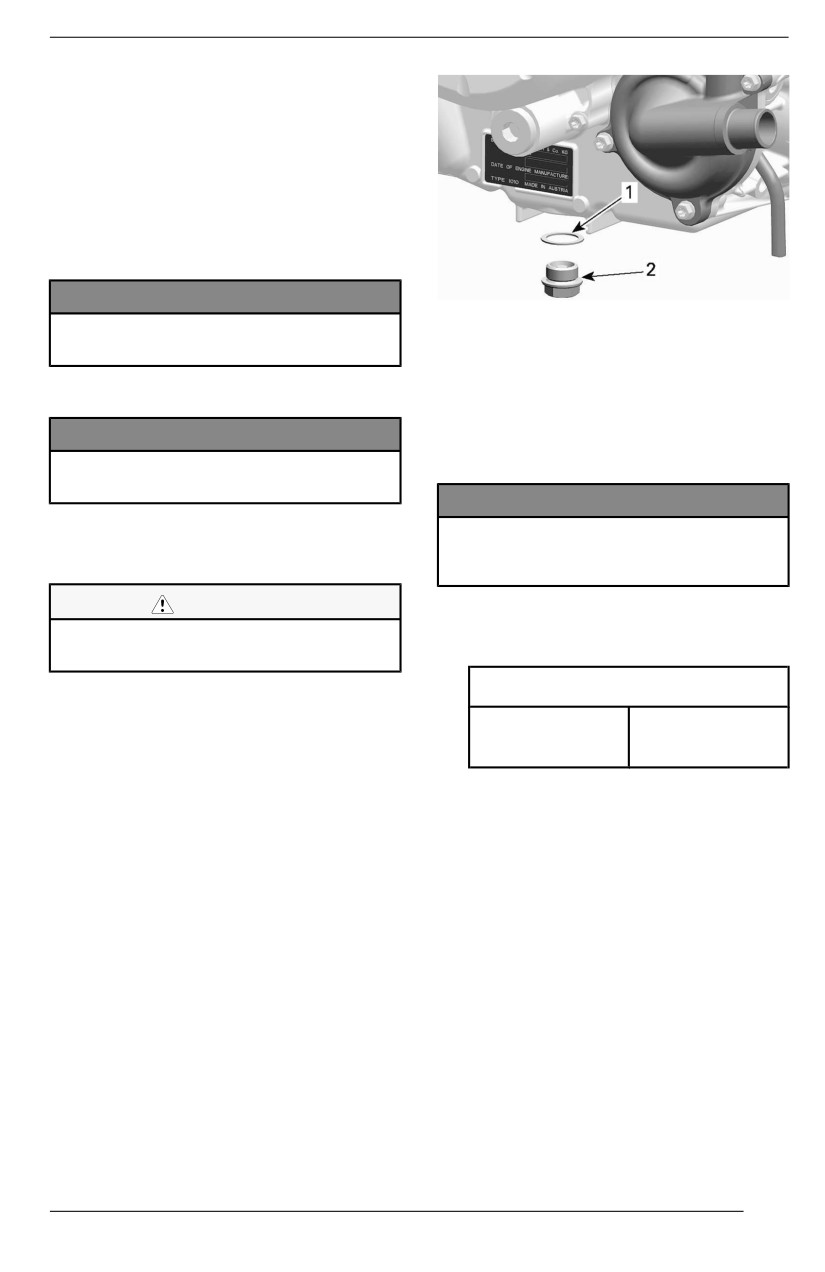

MAINTENANCE PROCEDURES

If the level is below the lower mark,

add oil as follow:

- Place a funnel into the dipstick

hole.

- Add a small amount of recom-

mended oil and recheck oil

level.

- Continue to add oil until the lev-

el reaches the upper mark.

NOTICE

1. Gasket ring (discard)

Do not overfilll. Wipe off any

2. Drain plug

spillage.

7. Allow oil to drain completely from

Changing the Engiine Oiil

the crankcase.

8. Clean the drain plug.

NOTICE

9. Install a NEW gasket ring on the

drain plug.

Engine oill and oiil fiilter must be re-

placed at the same time.

NOTICE

Never use the gasket ring a sec-

Oil change and oil filter replacement

ond time. Allways repllace with a

should be done with a warm engine.

new one.

CAUTION

10. Install and tighten drain plug to the

The engiine oiil can be very hot.

recommended specification.

Wait untiil engine oill is warm.

Tightening Torque

Place the vehicle on a level

surface.

30 ± 2 Nm

Drain plug

Clean the dipstick area.

(22 ± 1 lbf-ft)

Remove the dipstick.

11. Replace oil filter, refer to Oil Filter.

Place a drain pan under the engine

12. Refill engine, refer to Recom-

drain plug area.

mended Engine Oil.

Clean the drain plug area.

Unscrew drain plug and discard

NOTE: For engine oil capacity, refer

the gasket ring.

to Technical Specifications.

13. Start engine and let it idle for a 60

seconds.

14. Stop engine.

15. Check the oil level immediately, re-

fer to Verifying the Engine Oil

Level.

16. Refill as necessary.

17. Ensure oil filter and drain plug

areas are not leaking.

18. Dispose oil and filter as per your

local environmental regulations.

137

MAINTENANCE PROCEDURES

Twiin Cyliinders Engines

- Place a funnel into the dipstick

hole.

Veriifyiing the Engine Oill Level

- Add a small amount of recom-

(V-Twiin)

mended oil and recheck oil

level.

NOTICE

- Continue to add oil until the lev-

Operatiing the engiine wiith an im-

el reaches the upper mark.

proper level may severely dam-

age engiine.

NOTICE

Do not overfilll. Wipe off any

NOTICE

spiilllage.

Check the oiil llevell when the en-

giine iis COLD.

Changiing the Engine Oill

NOTICE

Place vehicle on a level surface.

Engine oill and oiil fillter must be re-

Clean around dipstick to avoid for-

placed at the same tiime.

eign particles falling down the

tube.

Oil change and oil filter replacement

should be done with a warm engine.

CAUTION

The engiine oiil can be very hot.

Waiit untill engiine oiil iis warm.

1. Place the vehicle on a level

surface.

2. Clean the dipstick area.

Unscrew dipstick then remove it

3. Remove the dipstick.

and wipe clean.

4. Place a drain pan under the engine

Reinstall dipstick, screw in it

drain plug area.

completely.

5. Clean the drain plug area.

Remove dipstick and check oil lev-

6. Unscrew drain plug and discard

el. It should be near or equal to the

the gasket ring.

upper mark.

1. MIN

2. MAX

If the level is between marks, rein-

stall the dipstick.

If the level is below the lower mark,

1. Gasket ring (discard)

add oil as follow:

2. Drain plug

138

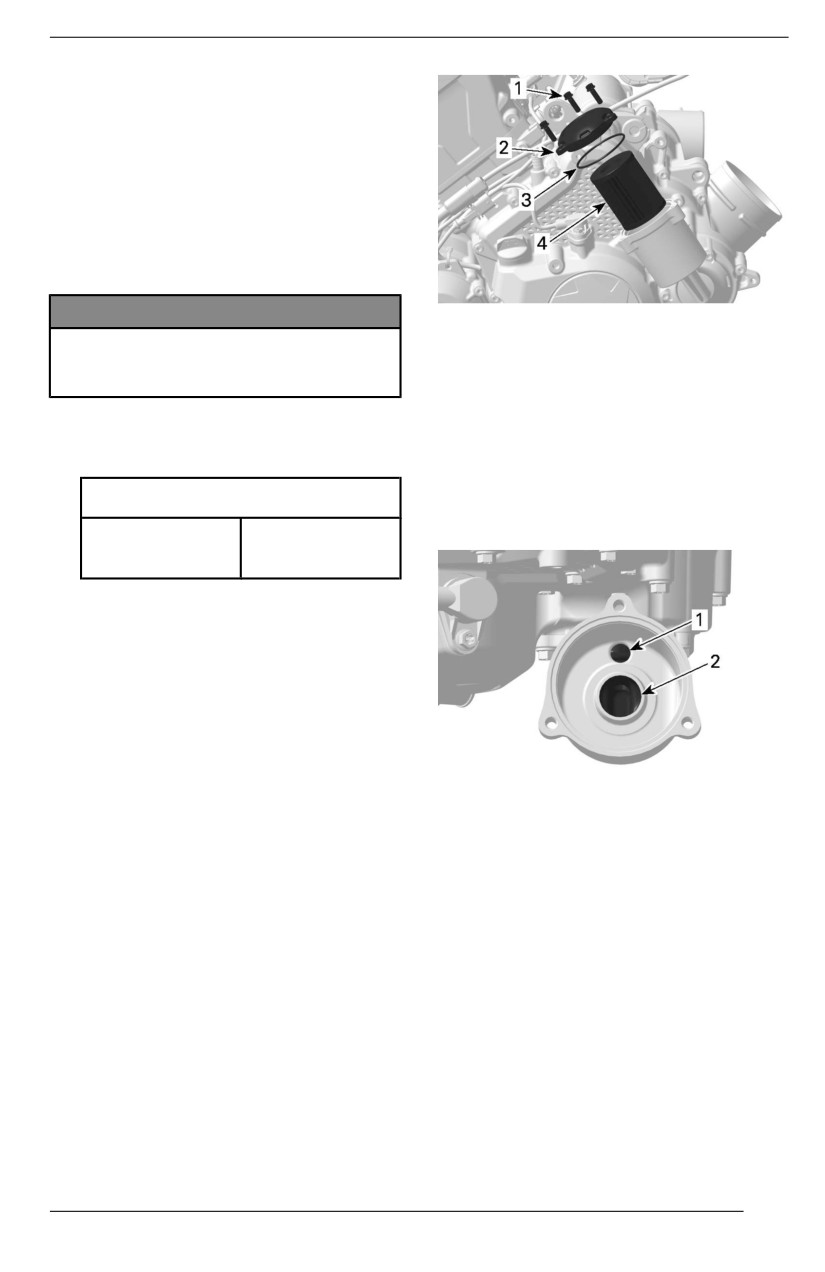

MAINTENANCE PROCEDURES

7. Allow oil to drain completely from

the crankcase.

8. Clean the magnetic drain plug

from metal shavings and residue.

NOTE: Presence of debris gives an

indication of internal engine damage.

9. Install a NEW gasket ring on the

drain plug.

NOTICE

1. Oil filter screw

Never use the gasket riing a sec-

2. Oil filter cover

ond tiime. Always replace wiith a

3. O-ring

new one.

4. Oil filter

3. Remove and discard oil filter.

10. Install and tighten drain plug to the

recommended specification.

Installling the Oiil Fiilter

Check and clean the oil filter inlet

Tiightening Torque

and outlet area for dirt and other

contaminations.

30 ± 2 Nm

Drain plug

(22 ± 1 lbf-ft)

11. Replace oil filter, refer to Oil Filter.

12. Refill engine, refer to Recom-

mended Engine Oil.

NOTE: For engine oil capacity, refer

to Technical Specifications.

13. Start engine and let it idle for a 60

seconds.

14. Stop engine.

Inlet bore from the oil pump to the oil filter

15. Check the oil level immediately, re-

Outlet bore to the engine oil providing

fer to Verifying the Engine Oil

system

Level.

16. Refill as necessary.

Wet a NEW O-ring with engine oil

17. Ensure oil filter and drain plug

and slip onto oil filter cover.

areas are not leaking.

Install the new filter into the cover.

18. Dispose oil and filter as per your

Apply engine oil to the seal on the

local environmental regulations.

open end of the oil filter.

Oil Filter

Mono Cyliinder Engiines

Removing the Oiil Fiilter

1. Clean oil filter area.

2. Remove the oil filter cover and the

O-ring.

139

MAINTENANCE PROCEDURES

4. Remove and discard oil filter.

1. Slightly oil

TYPICAL

2. Slightly oil

1. Oil filter screw

2. Oil filter cover

3. O-ring

NOTICE

4. Oil filter

Pay attention to avoid piinching

the O-ring during fiilter and cover

Installliing the Oill Fillter

iinstalllatiion.

1. Check and clean the oil filter inlet

and outlet area for dirt and other

5. Install the cover on the oil filter

contaminations.

housing.

6. Tighten oil filter cover screws to

specification.

Tighteniing Torque

Oil filter cover

10 ± 1 Nm

screws

(89 ± 9 lbf-in)

7. Wipe off any oil spillage on engine.

Twiin Cyliinders Engines

Removiing the Oill Fillter

1. If not already done, remove the en-

1. Inlet bore from the oil pump to the oil filter

gine service cover.

2. Outlet bore to the engine oil providing

2. Clean oil filter area.

system

2. Wet a NEW O-ring with engine oil

and slip onto oil filter cover.

3. Install the new filter into the cover.

4. Apply engine oil to the seal on the

open end of the oil filter.

3. Remove oil filter cover.

140

MAINTENANCE PROCEDURES

2. Inspect radiator and hoses for

1. Slightly oil

leaks or any damage.

2. Slightly oil

3. Inspect radiator fins. They must be

clean, free of mud, dirt, leaves and

any other deposit that would pre-

NOTICE

vent the radiator to cool properly.

Pay attentiion to avoiid pinchiing

the O-riing duriing fillter and cover

If available, use a garden hose to

iinstallatiion.

rinse the radiator fins.

5. Install the cover on the engine.

CAUTION

6. Tighten oil filter cover screws to

Never cllean radiator wiith your

recommended specification.

hands when it iis hot. Let the radia-

tor cooll down before cleaning.

Tiightening Torque

Oil filter cover

10 ± 1 Nm

NOTICE

screws

(89 ± 9 lbf-in)

Be carefull not to damage the radii-

ator fins when clleaniing. Do not

7. Wipe off any oil spillage on engine.

use any object/tooll that coulld

damage the fins. When hosing,

RADIATOR

use low pressure only. Never use

a HIGH PRESSURE washer.

Inspecting and Clleaniing the

Radiator

ENGINE COOLANT

Periodically check the radiator area

for cleanliness.

Recommended Engiine Coolant

1. To access radiator, pull lower part

XPS Recommended Coollant

of front grille and slide it down.

Extended life pre-mixed coolant

If XPS iis not avaiilable

Distilled water and antifreeze

solution (50% distilled water, 50%

antifreeze)

141

MAINTENANCE PROCEDURES

NOTICE

Always use ethyllene-gllycol anti-

freeze contaiiniing corrosion inhibii-

tors specificallly for iinternal

combustiion alluminum engiines.

Veriifyiing the Engine Coollant Levell

WARNING

Check coollant llevell wiith engine

cold.

Adding Coolant

1. Place vehicle on a level surface.

1. Remove the coolant tank pressure

2. Remove the coolant tank access

cap.

cover.

2. Add coolant in system as neces-

1. Coolant tank access cover

sary. Use a funnel to avoid spill-

age. Do not overfilll.

3. Properly reinstall pressure cap on

cooling tank.

WARNING

4. Reinstall cooling tank access

In order to avoiid potentiial burns,

cover.

do not remove the pressure cap or

loosen the coolant draiin pllug iif

NOTE:

A cooling system that frequently re-

the engiine iis hot.

quires addition of coolant is an indica-

tion of leaks or engine problems.

3. Ensure cooling system is full up to

the Max line.

Replacing the Engiine Coolant

WARNING

In order to avoid potentiall burns,

do not remove the pressure cap or

loosen the coolant draiin plug if

the engine is hot.

1. Remove the cooling system pres-

sure cap.

142

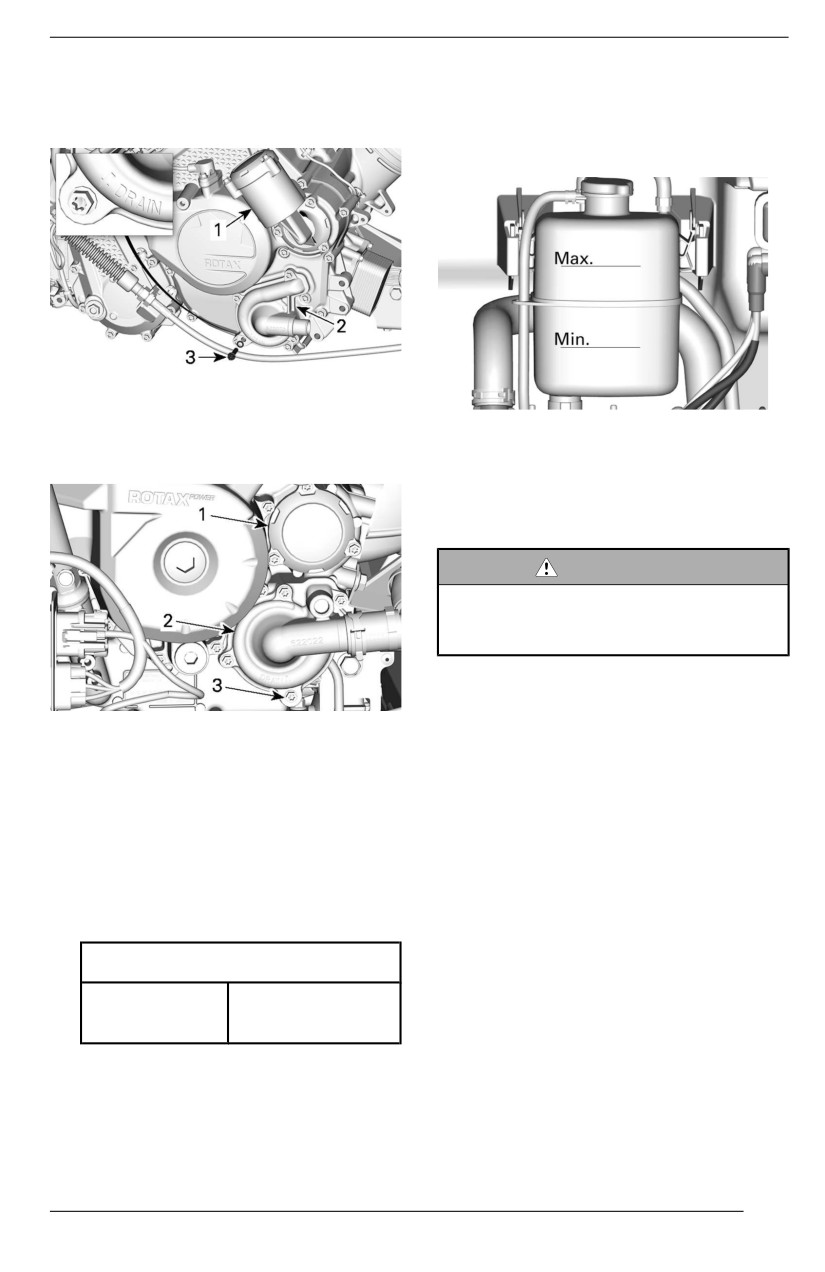

MAINTENANCE PROCEDURES

2. Unscrew coolant drain plug parti-

Blleediing the Coolling System

ally to drain the coolant into a suit-

1. Remove the pressure cap.

able container.

2. Fill coolant system until it is full up

to the Max line on the coolant tank.

MONO CYLINDER ENGINE

1. Oil filter housing

3. Install pressure cap.

2. Water pump cover

4. Run engine at idle with the pres-

3. Coolant drain plug

sure cap ON until the cooling fan

cycles on for a second time.

5. Stop the engine and let it cool

down.

WARNING

In order to avoiid potentiial burns,

do not remove the pressure cap iif

the engiine iis hot.

6. When the engine is cool, remove

pressure cap and add coolant if

V-TWIN ENGINE

required.

1. Oil filter cover

7. Install pressure cap.

2. Water pump cover

8. After the next ride, following this

3. Coolant drain plug

procedure, check coolant level.

3. Disconnect the lower radiator hose

Add coolant as required. Refer to

from the water pump cover and

Verifying the Engine Coolant Level

drain the remaining coolant into a

in this section.

suitable container.

4. Tighten the coolant drain plug to

specification.

Tiightening Torque

Coolant drain

10 ± 1 Nm

plug

(89 ± 9 lbf-in)

5. Reinstall radiator hose.

6. Fill cooling system with coolant, re-

fer to Bleeding the Cooling System

procedure.

143

MAINTENANCE PROCEDURES

EXHAUST SYSTEM

Cleaning the Area Surrounding the

Exhaust System

WARNING

Debris accumulation coulld lead to

a vehicle fire when the exhaust

system iis hot and the debriis are

driied.

MONO

CYLINDER

ENGINE

In some cases, that coulld result iin

CONFIGURATION

serious properlly damages, injju-

ries or even death.

Cllean often and regularlly the area

surroundiing the exhaust system

when riding iin swamp, bog, hay or

dead leaves.

In other situatiions, clean as per

maiintenance schedule

requirement.

CAUTION

Never perform thiis operation im-

V-TWIN ENGINE CONFIGURATION

mediiatelly after the engiine has

2. Remove exhaust tail pipe, gasket

been runniing because exhaust

(discard) and spark arrester.

system iis very hot.

1. From the rear of the vehicle, clean

the areas around the muffler.

2. Clean the areas around the ex-

haust pipe.

WARNING

Cllean also under the heat shiields.

Inspectiing and Cleaning the

TYPICAL

Muffler Spark Arrester

1. Tail pipe

2. Gasket (discard)

CAUTION

3. Spark arrester

Never perform thiis operation im-

3. Remove carbon deposits from the

mediiatelly after the engiine has

spark arrester using a brush.

been runniing as exhaust system

iis very hot.

NOTICE

Use a metallliic soft brush and be

1. Remove and discard the tail pipe

careful to avoiid damaging spark

retaining screws.

arrester mesh.

144

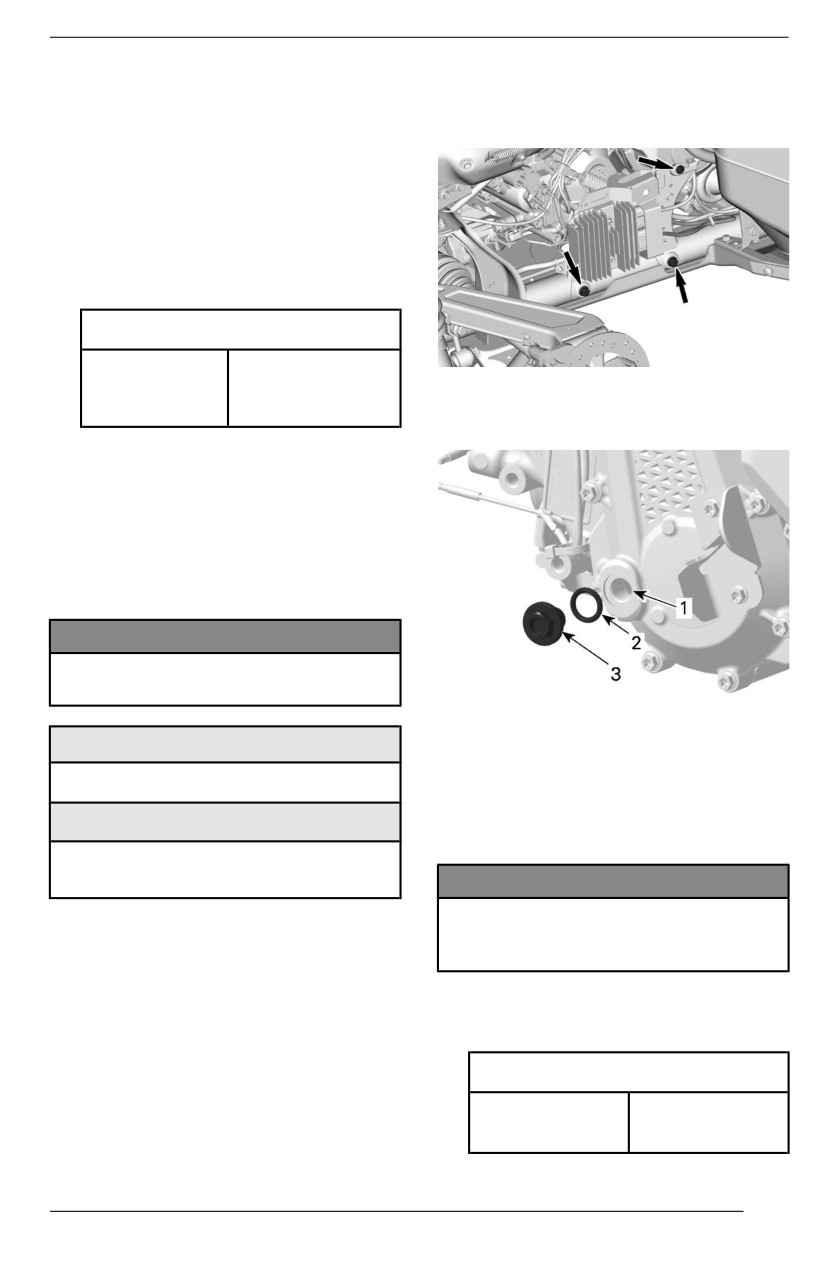

MAINTENANCE PROCEDURES

4. Inspect mesh of spark arrester for

The removal of the wheel is not

any damage. Replace as required.

necessary but its removal will cre-

5. Inspect spark arrester chamber in

ate more room to work.

muffler. Remove any debris as

required.

6. Reinstall the muffler spark arrester

in the reverse of the removal pro-

cedure. However pay attention to

the following.

Tighten to specification.

Tiightening Torque

Tail pipe

32 ± 2 Nm

VOLTAGE/REGULATOR

SUPPORT

retaining

(24 ± 1 lbf-ft)

SCREWS

screw

2. Remove the gearbox oil level plug.

GEARBOX

Recommended Gearbox Oill

The XPS oil is specially formulated to

meet the lubrication requirements of

this gearbox. BRP strongly recom-

mends the use of its XPS oil.

NOTICE

Do not use another type of oil

when serviiciing.

1. Oil level hole

XPS Recommended Gearbox Oill

2. O-ring

3. Oil level plug

75W140 Synthetic gear oil

3. Check oil level.

Alternative, or if not availlablle

The oil should be level with the

bottom of the oil level hole.

75W 140 API GL-5 Synthetic gear

oil

NOTICE

Operatiing the gearbox wiith an iim-

Mono Cyliinder Engiines

proper oill level may severely dam-

age gearbox.

Verifying the Gearbox Oill Levell

(Mono Cyliinder)

4. Install the oil level plug with O-ring.

1. Through the right rear wheel arch.,

Tighten plug as per specification.

remove the voltage/regulator sup-

port from the frame and move it

Tightening Torque

aside to create room.

5 ± 0.6 Nm

Oil level plug

(44 ± 5lbf-in)

145

MAINTENANCE PROCEDURES

Changiing the Gearbox Oiil

Tighteniing Torque

1. Start engine and operate vehicle to

warm-up the gearbox oil.

20 ± 2 Nm

Drain plug

(15 ± 1 lbf-ft)

NOTICE

9. Remove the vehicle speed sensor

Running engiine at idlle iis not suffi-

(VSS).

ciient, vehiclle transmission must

be operated.

2. Position vehicle on a level surface.

3. Place a drain pan under the gear-

box drain plug area.

4. Clean drain plug area.

5. Remove drain plug and sealing

washer. Discard sealing washer.

CAUTION

10. Clean VSS using a clean rag.

The gearbox oill can be very hot.

11. Install the VSS and tighten screw

to specification.

Remove oil level plug and O-ring

and allow oil to completely flow out

Tighteniing Torque

of gearbox.

VSS

10 ± 1 Nm

retaining

(89 ± 9 lbf-in)

screw

12. Fill the gearbox through the oil lev-

el hole until the oil reaches the bot-

tom of the oil level hole.

Capacity

0.5 l

(0.53 qt (liq.,US))

13. Install the oil level plug with its

O-ring. Tighten to specification.

Drain plug

Seal ring

Tighteniing Torque

Clean drain plug, pay attention to

any debris present on drain plug.

5 ± 0.6 Nm

Oil level plug

(44 ± 5 lbf-in)

NOTICE

14. Wipe off any spillage.

Presence of excessiive debris pro-

15. Dispose gearbox oil as per your lo-

viides an indicatiion of a gearbox

cal environmental regulations.

problem.

8. Reinstall drain plug with a NEW

sealing washer.

146

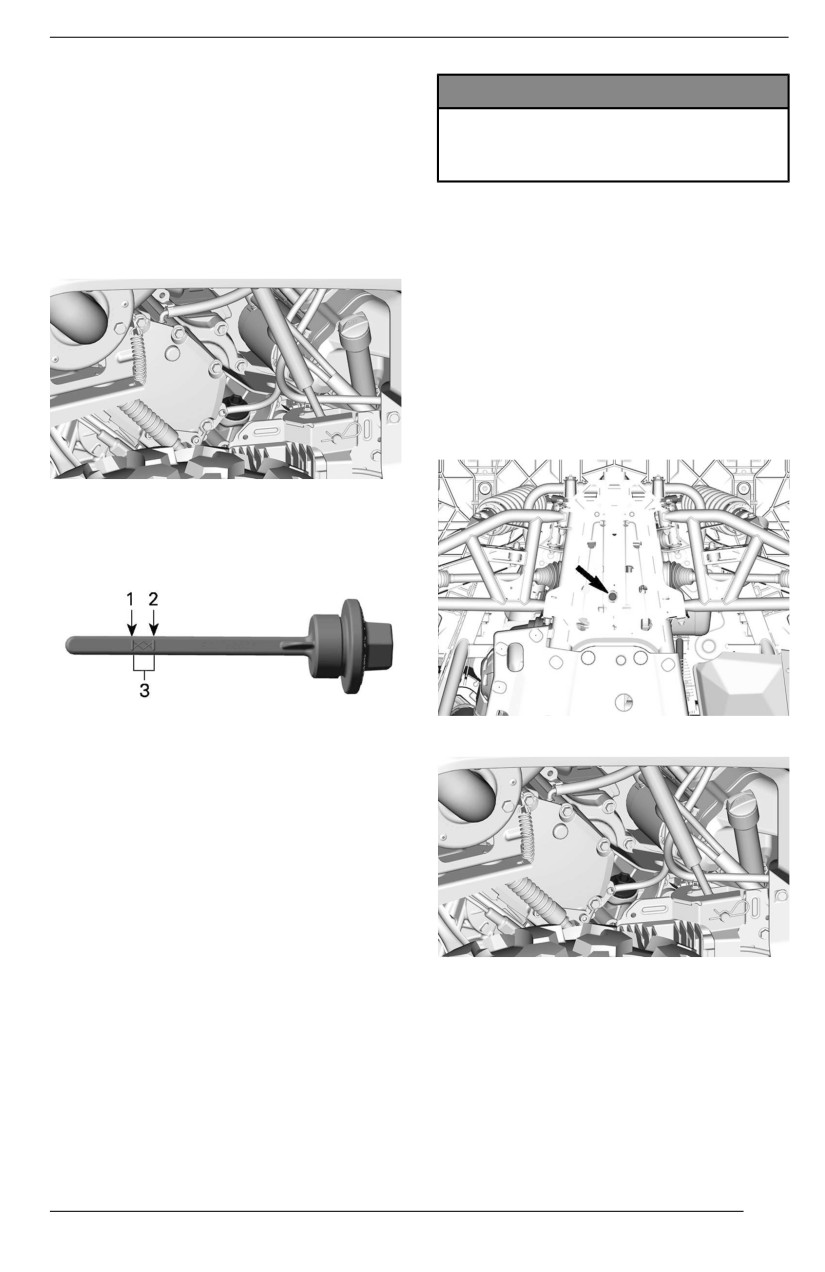

MAINTENANCE PROCEDURES

Twin Cyllinders Engiines

NOTICE

Verifying the Gearbox Oill Levell

Operatiing the gearbox wiith an iim-

(V-Twin)

proper oill level may severely dam-

1. Place the vehicle on a level

age gearbox.

surface.

2. Select PARK position.

NOTE:

3. Clean dipstick area.

Do not overfiilll. Wiipe off any

4. Remove the gearbox oil dipstick.

spilllage.

8. Properly tighten oil dipstick.

Changing the Gearbox Oiil

1. Place the vehicle on a level

surface.

2. Clean the following areas.

- Drain plug area.

5. Wipe and reinstall the dipstick.

6. Remove dipstick again and check

oil level. It should be near or equal

to the upper mark.

1. MIN.

- Dipstick area.

2. MAX.

3. Operating range

7. Add oil (if required):

1. Place a funnel into the dipstick

hole.

2. Add a small amount of recom-

mended oil.

3. Recheck oil level often.

4. Repeat the above procedures

until oil level reaches the dip-

3. Place a drain pan underneath the

stick's upper mark.

oil drain plug area.

4. Remove the dipstick.

5. Remove the drain plug.

6. Let oil completely drain from

gearbox.

7. Clean drain plug from any metallic

particles.

8. Install the drain plug.

147

MAINTENANCE PROCEDURES

Tighteniing Torque

20 ± 2 Nm

Drain plug

(15 ± 1 lbf-ft)

9. Refill gearbox.

NOTE: The oil should be level with

the bottom of the oil level orifice.

NOTICE

WITHOUT INTEGRATED 4WD ACTUATOR

Use ONLY the recommended type

of oill.

10. Reinstall dipstick.

11. Lubricate the VSS O-ring.

Super Lube Grease

12. Wipe off any spillage.

FRONT DIFFERENTIAL

Veriifyiing the Front Differentiall Oill

SMART-LOK

Levell

3. Remove the filler plug.

4. Check oil level. The oil should

1. Place the vehicle on a level

reach the lower edge.

surface.

5. Reinstall the filler plug.

2. Clean filler plug area prior to

checking oil level.

Tighteniing Torque

The drain plug is located on the

right side of the front differential.

16.5 ± 2.5 Nm

Filler plug

(146 ± 22 lbf-in)

Recommended Front Diifferentiiall

Oiil

The XPS oil is specially formulated to

meet the lubrication requirements of

this differential. BRP strongly recom-

mends the use of its XPS oil.

NOTICE

Do not use another type of oiil

WITH INTEGRATED 4WD ACTUATOR

when serviiciing.

148

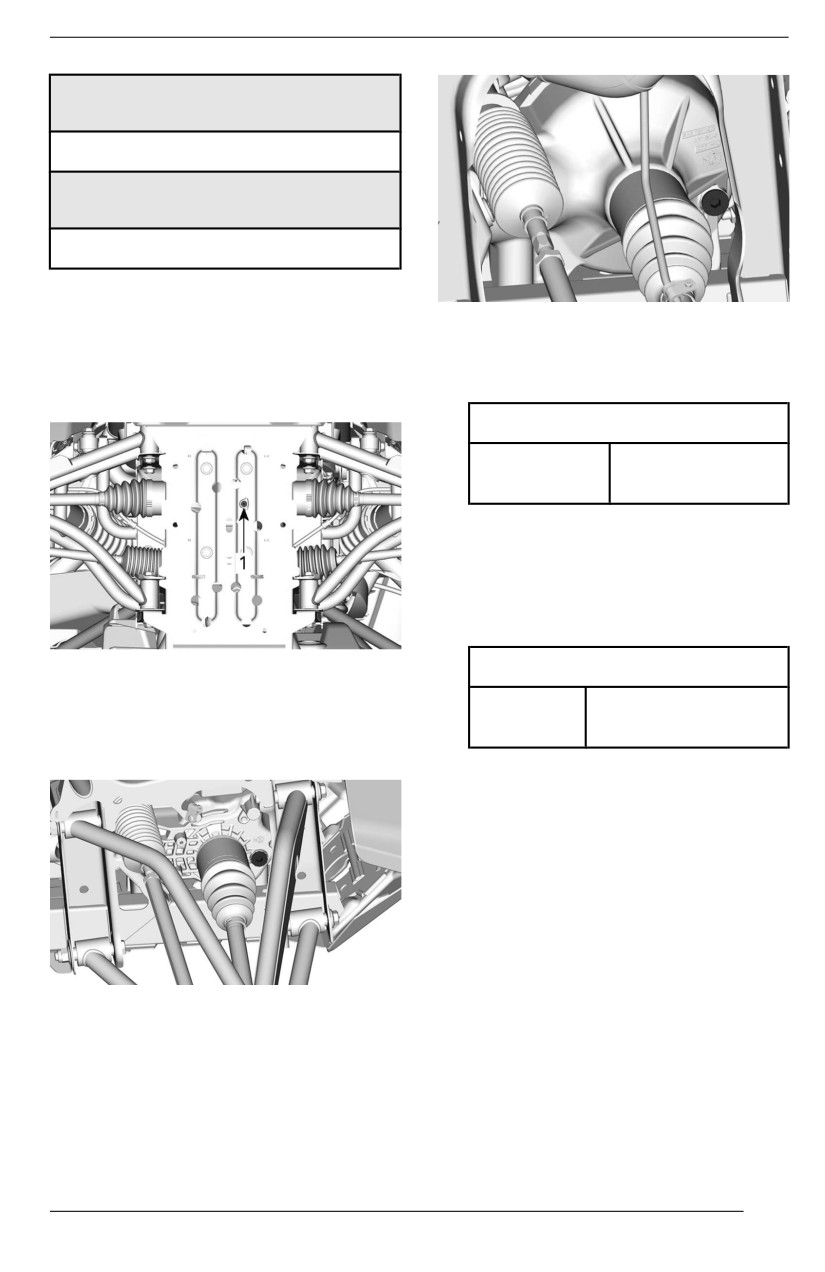

MAINTENANCE PROCEDURES

XPS Recommended Front

Diifferentiial Oiil

75W90 Synthetic gear oil

Allternative if XPS Product iis not

Avaiilable

75W90 (API GL-5) synthetic gear oil

Changing the Front Diifferentiial Oiil

VISCO-LOK

DIFFERENTIAL

(NO

Place vehicle on a level surface.

ACTUATOR)

Set gearbox in park position.

7. Let oil drip completely.

From underneath the

vehicle,

8. Install drain plug.

clean the drain plug area.

Tightening Torque

2.5 ± 0.5 Nm

Drain plug

(24 ± 4 lbf-in)

9. Refill differential with recom-

mended

oil

for

optimal

performance.

10. For the differential oil capacity, re-

fer to Technical Specifications.

11. Reinstall filler plug.

Drain plug

Tightening Torque

Place a drain pan under the rear

differential.

16.5 ± 2.5 Nm

Filler plug

Remove drain plug.

(146 ± 22 lbf-in)

Unscrew filler plug.

Rear Final Drive (Mono

Cylinder Models Only)

Veriifyiing the Rear Fiinall Drive Oiil

Levell

1. Place the vehicle on a level

surface.

2. Clean filler plug area prior to

checking oil level.

WITH INTEGRATED 4WD ACTUATOR

149

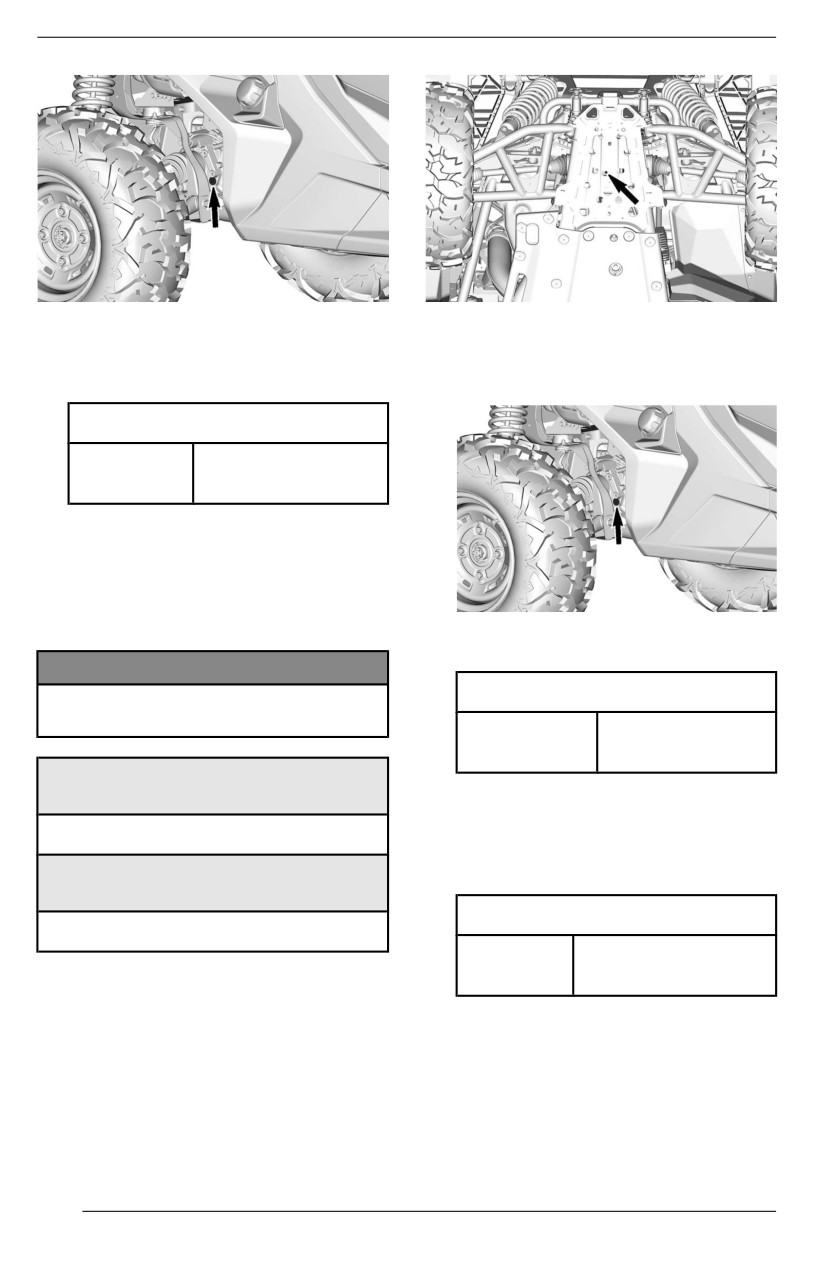

MAINTENANCE PROCEDURES

3. Remove the filler plug.

Place a drain pan under the rear fi-

4. Check oil level. The oil should

nal drive.

reach the lower edge.

Remove drain plug.

5. Reinstall the filler plug.

Unscrew filler plug.

Tighteniing Torque

16.5 ± 2.5 Nm

Filler plug

(146 ± 22 lbf-in)

Recommended Rear Finall Driive Oiil

The XPS oil is specially formulated to

meet the lubrication requirements of

this final drive unit. BRP strongly rec-

ommends the use of its XPS oil.

Let oil drip completely.

Install drain plug.

NOTICE

Tighteniing Torque

Do not use another type of oill

when servicing.

2.5 ± 0.5 Nm

Drain plug

(24 ± 4 lbf-in)

XPS Recommended Finall Driive

Refill final drive with recommended

Oiil

oil for optimal performance.

75W90 Synthetic gear oil

10. For the oil capacity, refer to Tech-

nical Specifications.

Alternatiive iif XPS Product is not

11. Reinstall filler plug.

Availlablle

Tighteniing Torque

75W90 (API GL-5) synthetic gear oil

16.5 ± 2.5 Nm

Filler plug

(146 ± 22 lbf-in)

Changiing the Rear Fiinall Driive Oiil

1. Place vehicle on a level surface.

2. Set gearbox in park position.

SPARK PLUGS

3. From underneath the vehicle,

clean the drain plug area.

Accessiing the Spark Plug(s)

Mono Cylinder Engine

150

MAINTENANCE PROCEDURES

The cylinder is located under the rear

NOTICE

cargo module.

Do not overtiighten spark plugs,

The spark plug can be reached

engine damage can occur.

through the right rear wheel arch.

Twin Cylinders Engines

Tightening Torque

The front spark plug can be reached

11 Nm

by removing the engine service cover.

Spark plug

(97 lbf-in)

Refer to Accessing the Maintenance

Components for the procedure.

CVT COVER

The rear spark plug can be reached

through the right rear wheel arch.

For a better understanding, some il-

lustrations are taken with engine out

Removing the Spark Pllug

of vehicle. To perform the following in-

structions, it is not necessary to re-

1. Unplug spark plug cable.

move engine.

2. Clean spark plug area with pres-

surized air before removing spark

WARNING

plug.

3. Unscrew spark plug completely us-

Never touch CVT whille engiine iis

ing a spark plug socket, then re-

running.

move it.

Never driive vehicle when CVT

cover iis removed.

Installliing the Spark Plugs

1. Prior to installation make sure that

CAUTION

the contact surface of cylinder

Engiine must be cool before cover

head and spark plug is free of

iis removed.

grime.

2. Using a feeler gauge, set the spark

plug gap.

NOTICE

Thiis CVT is llubriication free.

Spark Plug Gap

Never llubricate any components

except drive pullley beariing.

Mono

0.7 to 0.8 mm

cylinder

(.028 to .031 in)

Accessing the CVT Cover

Twin

0.8 to 0.9 mm

The CVT cover is accessible by the

cylinders

(.031 to .035 in)

rear LH wheel well.

3. Coat spark plug threads with the

following anti-seize lubricant.

Removiing the CVT Cover

1. Place the vehicle on a level

surface.

Copper-based anti-seize

2. If equipped, remove the CVT air in-

lubricant

take hose.

4. Screw spark plug into cylinder

3. Manually, remove all CVT cover

heads by hand and tighten with a

retaining screws.

torque wrench and a spark plug

socket.

151

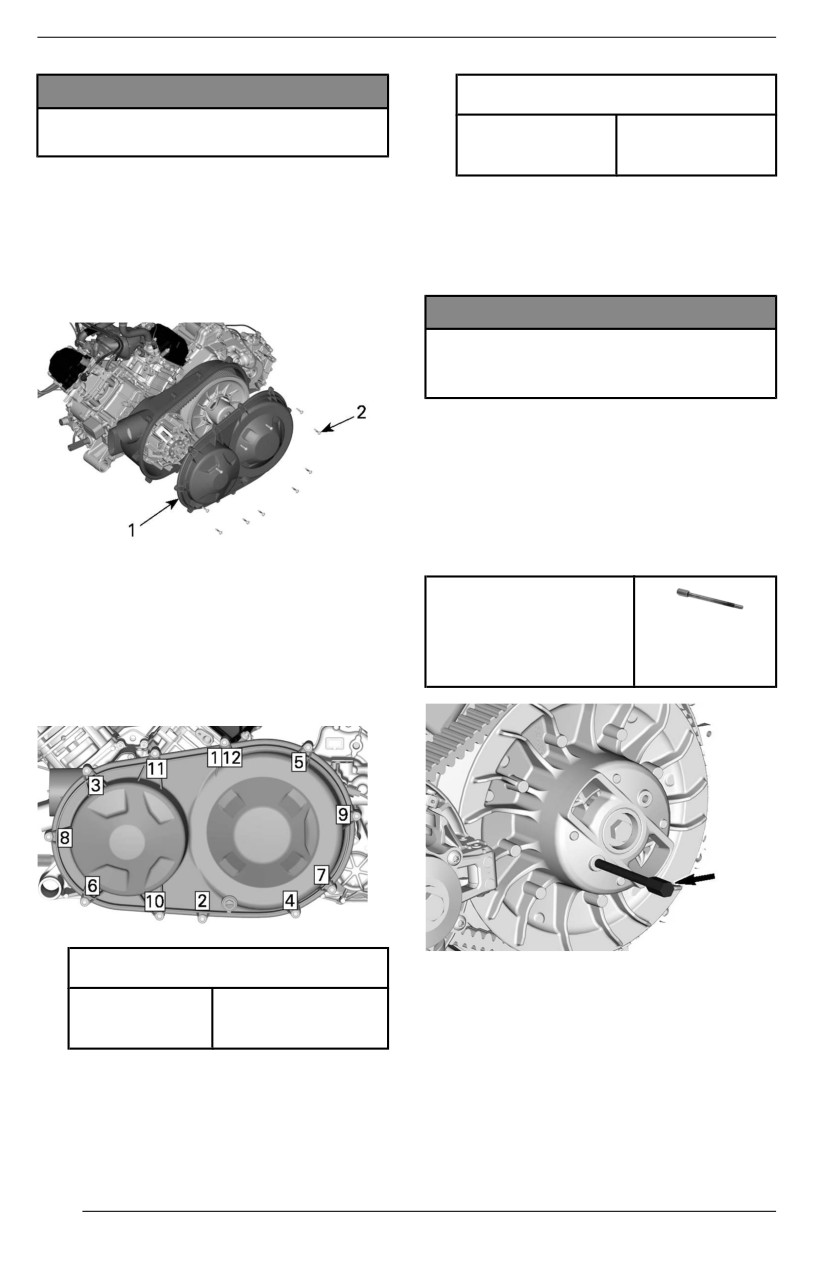

MAINTENANCE PROCEDURES

NOTICE

Tighteniing Torque

Do not use an iimpact tooll to re-

Clamp worm

2 ± 0.3 Nm

move CVT cover screws.

gear

(18 ± 2 lbf-in)

NOTE:

Remove the center top screw last to

Drive Belt

support the cover during removal.

Removing the Drive Belt (Mono

4. Remove the CVT cover and

its

Cyliinder Engiine)

gasket.

NOTICE

In case of a drive bellt faiilure, the

CVT, cover and aiir outlet must be

cleaned.

Please refer to Tips for Maximizing

Drive Belt Durability in Basic Proce-

dures for some important information.

1. Remove the CVT Cover.

2. Install the puller/locking tool in the

threaded hole of the driven pulley.

1. CVT cover

2. CVT cover screws

Pulller/llocking tooll

Installling the CVT Cover

1. Install the center top screw of first.

(P/N 529036098)

2. Tighten the CVT cover screws as

per following sequence.

Tighteniing Torque

3. Tighten to open the pulley.

4. To remove belt, slip the belt over

CVT cover

7 ± 0.8 Nm

the top edge of fixed sheave.

screws

(62 ± 7 lbf-in)

3. If equipped, install CVT air intake

hose.

152

MAINTENANCE PROCEDURES

Removing the Drive Bellt (Twiin

Cyllinder Engiine)

NOTICE

In case of a drive belt faiilure, the

CVT, cover and aiir outllet must be

cleaned.

Please refer to Tips for Maximizing

Drive Belt Durability in Basic Proce-

dures for some important information.

1. Remove the CVT Cover.

Installling the Drive Bellt

2. Install the adaptor in the threaded

hole of the driven pulley.

For installation, reverse the removal

procedure. Pay attention to following

details.

Driven pullley adapter

The maximum drive belt life span is

obtained when the drive belt has the

(P/N 708200720)

proper rotation direction.

3. Screw the puller/locking tool in the

1. Install it so that the arrow printed

threaded hole of the adaptor.

on belt is pointing towards front of

the vehicle, viewed from top.

Pulller/lockiing tool

(P/N 529000088)

4. Tighten to open the pulley.

1. Arrow printed on belt

2. Drive pulley (front)

3. Driven pulley (rear)

4. Rotation direction

1. Fixed sheave of driven pulley

2. Adaptor

2. Turn the driven pulley until the low-

3. Puller/locking tool

est portion of the cogs on the ex-

4. Wrench

ternal surface of the drive belt is

even with the driven pulley edge.

5. To remove belt, slip the belt over

the top edge of fixed sheave, as

shown.

153

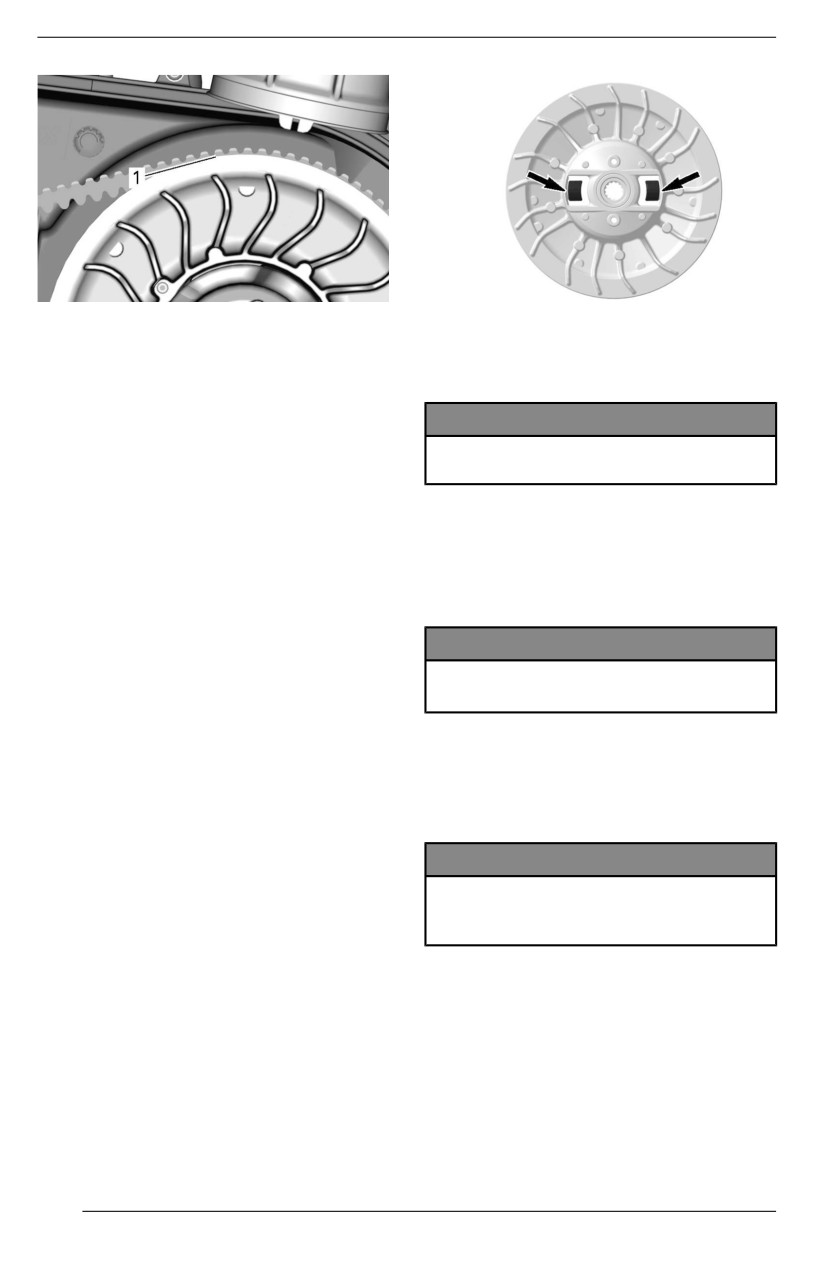

MAINTENANCE PROCEDURES

1. Lowest portion of cogs even with driven pul-

ley edge

BATTERY

Drive and Driven Pulleys

Battery Maintenance

Inspectiing Driive and Driiven

NOTICE

Pullleys

Never charge a battery whille in-

This inspection must be performed by

stallled in vehiicle.

an authorized Can-Am Off-road deal-

er, repair shop, or person of your own

These vehicles are equipped with a

choosing for maintenance, repair, or

VRLA battery (Valve Regulated Lead

replacement.

Acid). It is a maintenance-free type

battery, there is no need to add water

Drive Pulley

to adjust electrolyte level.

Inspect the bushings and rollers of the

sliding sheave of the drive pulley, re-

NOTICE

place worn parts.

Never remove the battery sealling

Driven Pullley

cap.

Inspect the bushings of the cam and

of the sliding sheave of the driven pul-

Removing the Battery

ley, replace worn parts.

1. Remove the driver’s seat cushion.

V-Twiin onlly

2. Disconnect BLACK (-) cable first

then RED (+) cable.

Inspect rollers on fixed sheave.

NOTICE

Mono cyll. onlly

Allways respect this order for dis-

Inspect sliders on fixed sheave.

assembly; disconnect BLACK (-)

cablle fiirst.

3. Remove battery holder retaining

screw(s).

154

MAINTENANCE PROCEDURES

Fuse Boxes Location

The vehicle is equipped with two fuse

boxes.

The front fuse box is located under the

LH dashboard and the rear fuse box is

located behind the driver’s seat back-

rest, near the ECM.

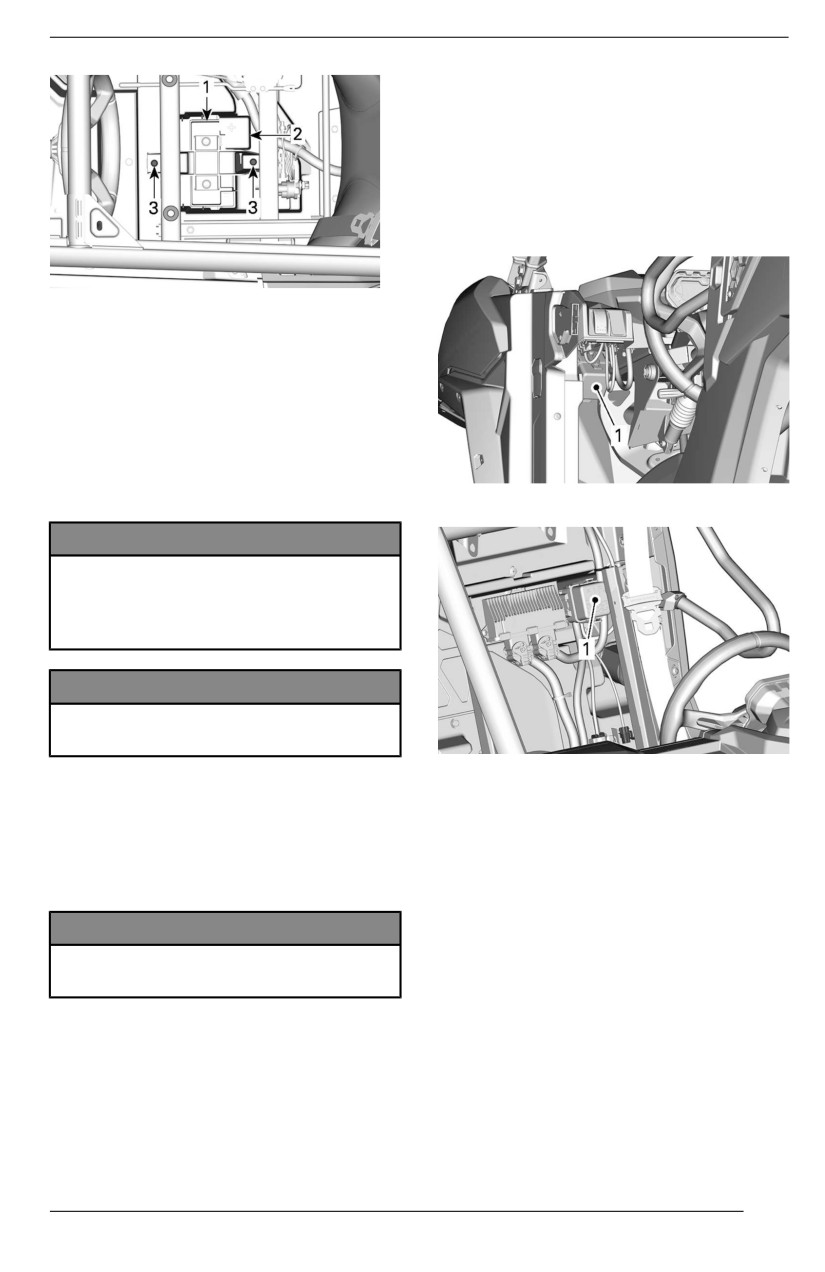

1. Battery holder

2. Battery

3. Battery holder retaining screw(s)

4. Remove battery holder.

5. Remove battery.

Installliing the Battery

Battery installation is the reverse of

the removal procedure.

1. Front fuse box

NOTICE

Improper oriientatiion of the battery

cablles (reverse polariity) willl re-

sult in damage to the voltage

regullator.

NOTICE

Allways connect RED (+) cable

first then BLACK (-) cable.

1. Rear fuse box

Fuses and Fusible Links

Fuse Liinks and Indiviidual Fuse

Replacing a Fuse

The vehicle is equipped with 2 fuse

links and an individual fuse.

If a fuse is burnt, replace it by one of

the same rating.

The fuse link 1 is connected to battery

positive post.

NOTICE

The fuse link 2 is located between the

Do not use a higher rated fuse as

fuse box #1 and the accessory post

this can cause severe damage.

(located under the dash).

The regulator fuse holder is also lo-

cated near the battery.

155

MAINTENANCE PROCEDURES

Fuse Boxes Description

Indiviiduall Fuse Holders

Description

Ratiing

DPS

PF3

40 A

(Under the dash, near DPS)

Accessory post

PF4

30 A

(Under dash terminal block)

Smart Lok

PF8

(Under dash, near front diff module)

20 A

(if equipped)

Regulator

PF10

50 A

(Near the battery)

Fuse Box #1 (Under the Dash)

(Fuses are identiified on the fuse box cover)

Descriiptiion

Ratiing

F11

Headlamps

20 A

DC3

F12

10 A

Winch

F14

12 V accessory outlet 1

10 A

F16

Tail lamps

10 A

Fuses PF1/F14 (DC outlet)

N/A

PF4 Accessory post

ECM accessory 12V

N/A

Brake lights

N/A

Spare1

Spare

20 A

Fuse Box #2 (Behind driver’s Seat)

(Fuses are identiified on the fuse box cover)

Descriiptiion

Rating

Cluster/relays

10 A

Ignition/injection/fuel pump

10 A

Engine Control Module (ECM)

10 A

156

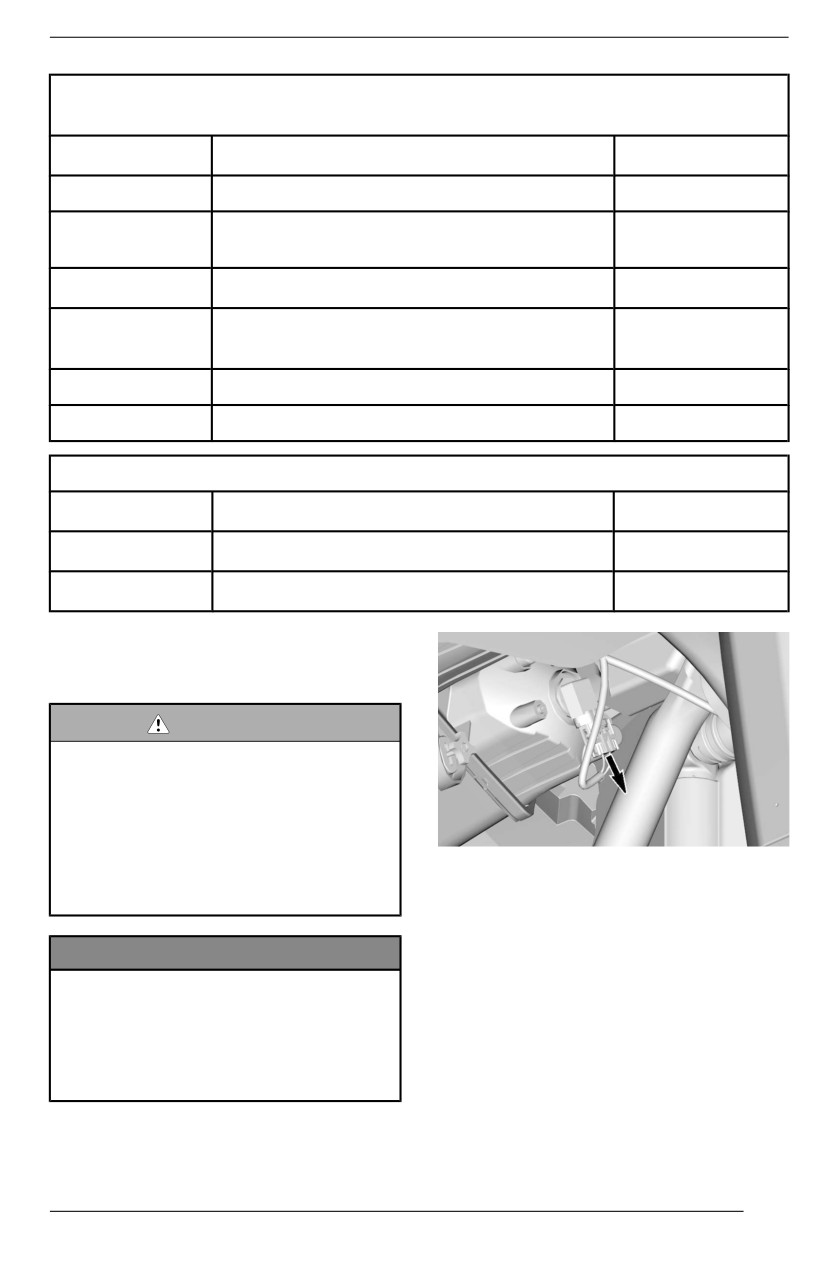

MAINTENANCE PROCEDURES

Fuse Box #2 (Behiind driiver’’s Seat)

(Fuses are iidentifiied on the fuse box cover)

Description

Ratiing

4WD actuator

10 A

Ignition switch

10 A

Clock

Cooling fan

25 A

Oxygen sensor

F18

10 A

Evap purge valve

Fan

N/A

Main

N/A

Fuse Links

Fuse Link

Description

Rating

Main

18 awg

Accessory post

14 awg

Lights

Replacing a Headllight Bulb

WARNING

Improper bulb iinstalllatiion, may

cause its dislodgement from the

headllight housing.

In thiis situatiion, the bulb coulld en-

ter into contact wiith the headllight

housiing, lens or any other parts

TYPICAL

located iin thiis area, resulting iin

parts melltiing and/or fiire hazard.

Rotate bulb.

NOTICE

Never touch glass portion of a hal-

ogen bulb with bare fiingers, it

shortens iits operatiing llife. If glass

is touched, cllean iit with iisopropyll

alcoholl whiich wiilll not leave a fiilm

on the bulb.

Unplug connector from bulb.

157

MAINTENANCE PROCEDURES

Drive Shaft Bellow and

Protector

Inspecting Drive Shaft Belllows and

Protector

1. Visually inspect drive shaft protec-

tors and bellows condition.

2. Check protectors for damage or

rubbing against shafts.

3. Check bellows for cracks, tears,

leaking grease, etc.

TYPICAL

4. Repair or replace damaged parts

Pull out bulb.

as necessary.

Properly reinstall removed parts in the

reverse order of their removal.

Validate headlights operation.

Headllight Beam Aiiming

Turn adjustment screw to adjust beam

height to your convenience.

NOTE:

Adjust headlights evenly.

TYPICAL — FRONT DIFFERENTIAL SIDE

1. Inner drive shaft bellows

1. Adjustment screw

Taiilllight

TYPICAL — FRONT WHEEL SIDE

The taillights are built with LEDs (light

1. Outer drive shaft bellows

emitting diode) and this technology

proved to be reliable. In the unlikely

event they do not work, have them

checked by an authorized Can-Am

dealer, a repair shop or person of your

choosing.

158

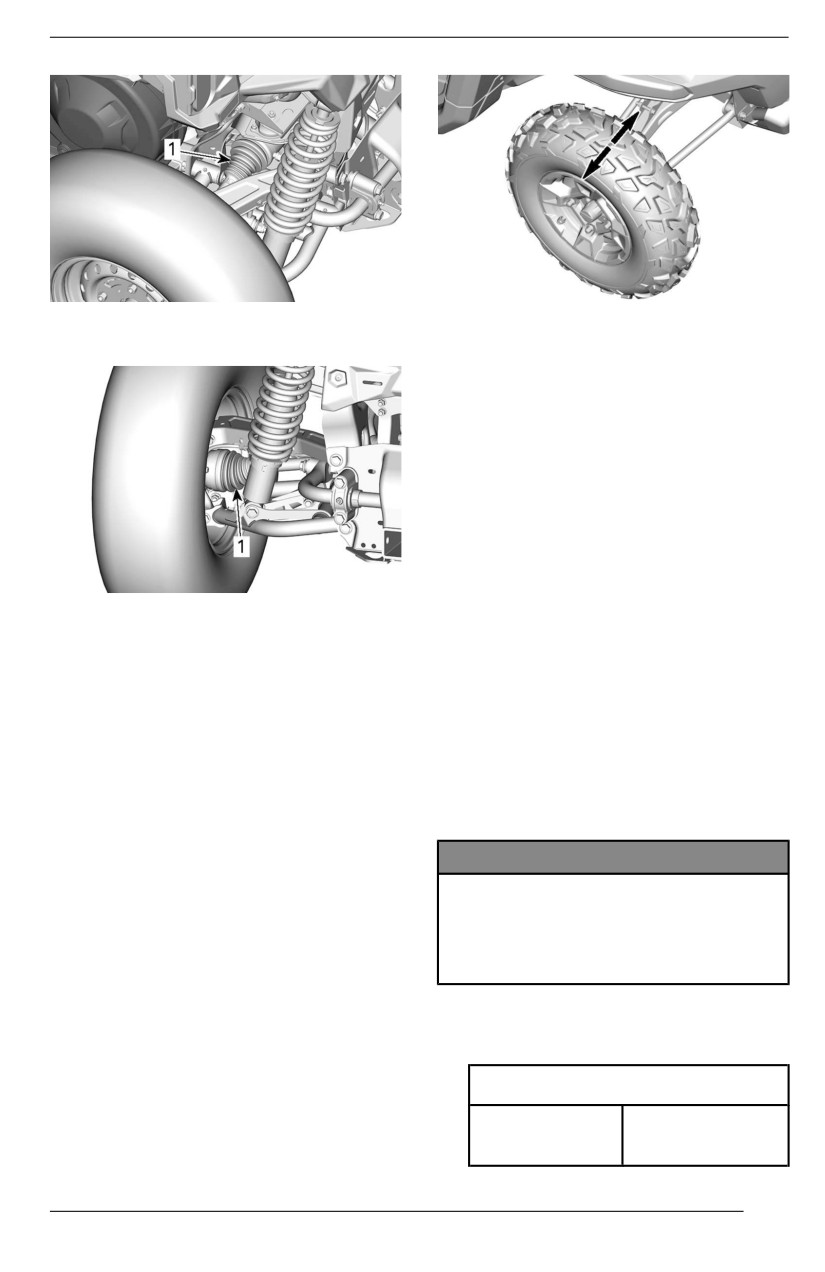

MAINTENANCE PROCEDURES

TYPICAL — REAR GEARBOX SIDE

TYPICAL

1. Inner drive shaft bellows

Wheels and Tires

Removiing a Wheell

1. Place the vehicle on a level

surface.

2. Place shift lever on PARK position.

3. Loosen the wheel lug nuts.

4. Lift and support vehicle. Refer to

Lifting and Supporting Vehicle

section

5. Remove lug nuts and wheel.

TYPICAL — REAR WHEEL SIDE

Installling a Wheel

1. Outer drive shaft bellows

1. Inspect studs threads and lug nuts.

Wheel Bearing

Replace if needed.

2. Install the wheel.

Inspecting a Wheell Bearing

NOTE: The tires are unidirectional

1. Lift and support vehicle. Refer to

and their rotation must be kept in a

Lifting and Supporting the Vehicle.

specific direction for proper operation.

2. Push and pull the wheels from the

upper edge to feel the play.

3. Install all lug nuts by hand.

3. See an authorized Can-Am Off--

road dealer, a repair shop or a per-

NOTICE

son of your choosing if there is

excessive play.

Always use the recommended

wheell lug nuts for the type of

wheell. Usiing a different lug nut

could cause damages to the rim

or studs.

4. Tighten wheel lug nuts in accord-

ance with the following illustration.

Tightening Torque

Wheel lug

100 ± 10 Nm

nuts

(74 ± 7 lbf-ft)

159

MAINTENANCE PROCEDURES

WARNING

Do not rotate tiires. The front and

rear tiires have a diifferent size.

The left and right tires have differ-

ent unidiirectional tread patterns.

Tire Repllacement

Tire replacement should be performed

by an authorized Can-Am Off-road

dealer, a repair shop or a person of

your choosing.

TIGHTENING SEQUENCE

Tiire Pressure

WARNING

Repllace tires onlly wiith the same

WARNING

type and siize as oriiginal tiires.

Tire pressure greatly affects ve-

For unidirectionall tread pattern,

hiiclle handling and stabiiliity.

ensure that the tires are installled

Insufficiient pressure may cause

in the correct diirection of rotation.

tiire to defllate and rotate on wheell.

Tiires shoulld be replaced, by an

Overpressure may burst the tiire.

experienced person, iin accord-

Always folllow recommended

ance with tiire industry standards

pressure.

and tools.

NEVER set tire pressure bellow

minimum. It coulld cause the tiire to

SUSPENSION

diisllodge from the riim.

Inspecting the Suspensiion

Check pressure when tires are colld

See an authorized Can-Am Off-road

before using the vehicle. Tire pressure

dealer, a repair shop or a person of

changes with temperature and alti-

your choosing if any problem is

tude. Recheck pressure if one of

detected.

these conditions has changed.

Shock Absorbers

Refer to the Tires Pressure and Maxi-

mum Load Label on your vehicle for

1. Inspect shock absorber for leaks,

applicable pressure.

bump stop wear out or other

damages.

NOTE:

2. Verify if fasteners are still well

Although the tires are specifically de-

tightened.

signed for off-road use, a flat may still

occur. Therefore, it is recommended

Tighteniing Torque

to carry a tire gauge, tire pump and a

repair kit.

74.5 ± 4.5 Nm

M12 bolt

(55 ± 3 lbf-ft)

Tiire Inspection

Check tire for damage and wear. Re-

place if necessary.

160

MAINTENANCE PROCEDURES

TYPICAL — FRONT SHOCK ABSORBER

Rear Suspensiion Arms

FASTENERS

1. Check suspension arms for distor-

tion, cracks or bending.

2. Re-tighten suspension arm to

specifications at ride height.

NOTICE

To avoid suspensiion bushings

damages, never llift the vehiiclle

from the ground to re-tighten sus-

pension arm fasteners.

TYPICAL

— REAR SHOCK ABSORBER

NOTICE

FASTENERS

The suspension arms must be

Front Suspensiion Arms

tiightened on the M12 bolt head

and not on the nut (when possi-

1. Check suspension arms for

blle) to iinsure optiimal clampiing.

cracks, bending or other damages.

2. Re-tighten the suspension arm

bolts to specifications at ride

Tightening Torque

height.

130 ± 10 Nm

NOTICE

M12 bolt

(96 ± 7 lbf-ft)

To avoiid suspension bushiings

damages, never liift the vehiclle

Hexagonal

flanged

90 ± 10 Nm

from the ground to re-tiighten sus-

elastic nut

(66 ± 7 lbf-ft)

pensiion arm fasteners.

When possiiblle, allways applly the

M10

tighteniing torque by the bolt head

and not by using the nut to ensure

optiimal cllampiing.

Tiightening Torque

112.5 ± 7.5 Nm

M12 bolt

(83 ± 6 lbf-ft)

161

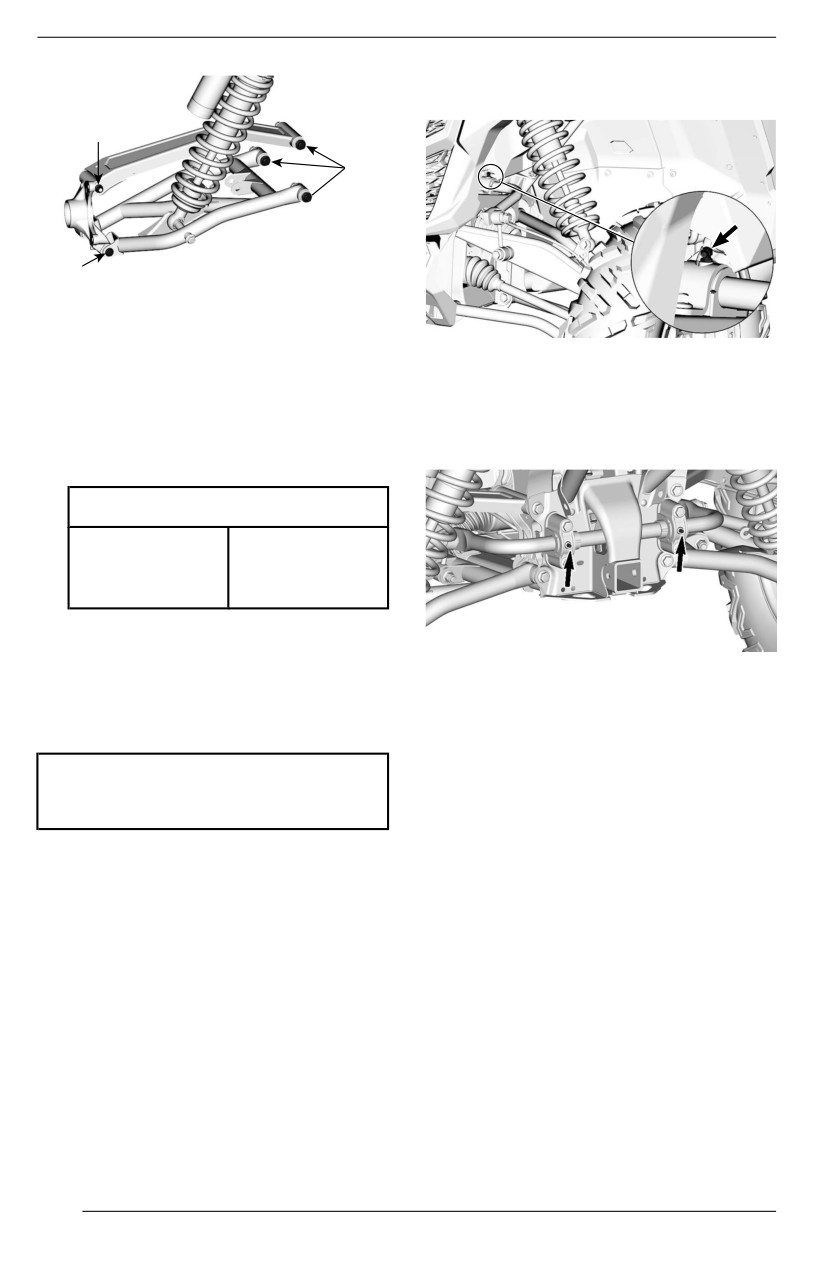

MAINTENANCE PROCEDURES

Stabiiliizer Bars Grease Fiittiings

Locatiion

1. M12 fasteners

2. M10 fasteners

TYPICAL — FRONT STABILIZER BAR

Stabillizer Bar

NOTE: There is one grease fitting on

1. Check stabilizer bars for cracks,

the top of each stabilizer bar pivot

bending or, other damaged.

bushing.

2. Tighten

bracket screws to

specification.

Tightening Torque

95 ± 5 Nm

Stabilizer bar

(70.1 ± 3.7

bracket screws

lbf-ft)

Lubricatiing the Suspension

TYPICAL — REAR STABILIZER BAR

Stabillizer Bar

1. Lubricate stabilizer bars using the

BRAKES

following product.

Verifying Brake Fluid Levell

XPS synthetic suspension

The brake fluid reservoirs are located

grease

under the front service cover. Refer to

Accessing Maintenance Components

section.

1. Place the vehicle on a level

surface.

2. Check brake fluid in each reservoir

for proper level. The level should

be between MIN and MAX marks.

162

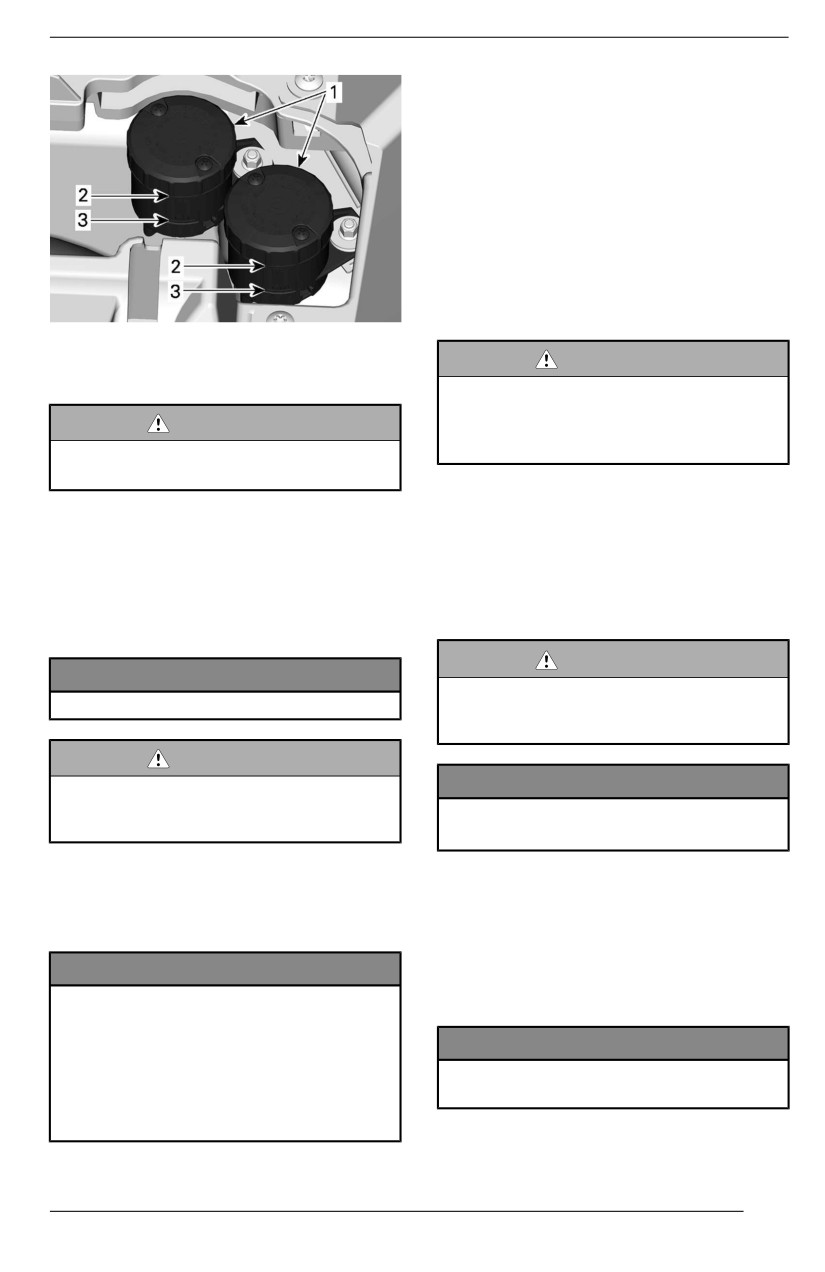

MAINTENANCE PROCEDURES

Inspectiing Brake System

The brake inspection, maintenance

and repair should be performed by an

authorized Can-Am dealer, a repair

shop or person of your choosing.

However, verify the following between

visits to your dealer:

- Brake fluid level

- Brake system for fluid leaks

- Brake pad wear

- Brake cleanliness

1. Brake fluid reservoirs

2. MAX

WARNING

3. MIN

The brake flluiid repllacement or

brake system maiintenance and

WARNING

repairs shoulld be performed by an

A llow llevell may iindicate lleaks or

authoriized Can-Am dealler.

worn brake pads.

SEAT BELTS

Adding Brake Fluiid

Cleaning Seat Belt

1. Clean both reservoir covers and

the surrounding area.

To clean dirt and debris from the seat

2. Add enough new brake fluid to in-

belts, sponge the straps with mild

crease the level near the MAX

soap and water.

mark.

WARNING

NOTICE

To avoid damagiing the seat belt

Do not overfilll.

components, never use a pres-

sure washer to clean them.

WARNING

Ensure diiaphragm iis pushed back

NOTICE

inside the cover before installliing

Do not use blleach, dye, or house-

it.

holld detergents.

Recommended Brake Fluiid

Doors

Always use brake fluid meeting the

specification DOT 4 only.

Lubricatiing Door Latch Mechanism

1. Lubricate door latch mechanisms

NOTICE

(lock and hinges) periodically us-

To avoiid seriious damage to the

ing a silicone based lubricant.

brakiing system, do not use flluiids

other than the recommended one,

NOTICE

nor mix different fluiids for topping

Never apply any type of grease on

up.

door lock mechanism.

Do not use brake flluiid taken from

old or already opened contaiiners.

163

VEHICLE CARE

Vehicle Cleaning and

fresh water is necessary to preserve

vehicle and its components after each

Protection

operating day.

NOTICE

Metallic parts lubrication is highly

Never use a hiigh pressure washer

recommended.

to clean the vehiicle. USE LOW

PRESSURE ONLY (liike a garden

Use anti-corrosive lubricant or an

hose).

equivalent.

Hiigh pressure can cause damage

to electrical or mechanical

XPS Lubricant and anti-corrosive

components.

Painted parts which are damaged

Pay attention to certain areas where

should be properly repainted to pre-

salt-water, mud or debris can accumu-

vent rust.

late and potentially cause:

When required, wash the body with

- Fire

warm water and soap (only use mild

- Wear

detergent). Apply non-abrasive wax.

- Interference

- Corrosion.

NOTICE

This list includes but is not limited to:

Never clean pllastic parts with

- Around exhaust system and be-

strong detergent, degreasiing

tween muffler and muffler cover

agent, paiint thinner, acetone, etc.

- Under and around the fuel tank

- Radiator

Protect the vehicle with a cover to pre-

- Shock absorbers

vent dust accumulation during

- Around front and rear differentials

storage.

- Around and underneath engine

and gearbox

NOTICE

- Inside wheels

- On top of skid plates.

The vehiclle has to be stored in a

cooll and dry place and covered

with an opaque tarpaullin. This wiilll

WARNING

prevent sun rays and griime from

Debris accumulation coulld lead to

affectiing pllastic components and

a vehicle fire when the exhaust

vehiiclle fiinish.

system iis hot and the debriis are

driied.

In some cases, that coulld result iin

serious properlly damages, injju-

ries or even death.

Cllean often and regularlly the area

surroundiing the exhaust system

when riding iin swamp, bog, hay or

dead leaves.

In other situatiions, clean as per

maiintenance schedule

requirement.

When vehicle is used in salt-water en-

vironment rinsing the vehicle with

164

VEHICLE IDENTIFICATION

The main components of your vehicle

Engine Identification Number

(engine and frame) are identified by

(EIN)

different serial numbers. It may some-

times become necessary to locate

Mono Cylinder Engine

these numbers for warranty purposes

or to trace your vehicle in the event of

loss. These numbers are required by

the authorized Can-Am Off-road deal-

er to complete warranty claims prop-

erly. We strongly recommend that you

take note of all the serial numbers on

your vehicle and supply them to your

insurance company.

Vehicle Identification Number

TYPICAL

1. EIN (Engine Identification Number)

Bombardier Recreational Products Inc.

TYPE: SbS Made in Mexico

565 de la Montagne, Valcourt, QC

BRP-Rotax GmbH Co. KG

Canada, J0E 2L0

Rotaxstrasse 1

Gunskirchen, A-4623, Austria

Twin Cylinder Engine

VIN LABEL - EUROPEAN COUNTRIES

Bombardier Recreational Products Inc.

TYPE: ATV / VTT

565 de la Montagne, Valcourt, QC CAN ICES-002 / NMB-002

Canada, J0E 2L0

Made in Mexico / Fabriqué au Mexique

VIN LABEL - OTHER COUNTRIES

TYPICAL

1. EIN (Engine Identification Number)

TYPICAL - VIN LABEL LOCATION

168

VEHICLE IDENTIFICATION

Compliance Label

ROHVA Compliiance Labell

BRP certifies that this ROV complies with the American National Standard for

Recreational Off-Highway Vehicles, ANSI / ROHVA 1 - 2016 Standard.

BRP certifie que ce véhicule récréatif hors-route est conforme à la norme "American

National Standard for Recreational Off-Highway Vehicles", ANSI / ROHVA 1 - 2016.

This roll over protective structure meets the performance requirements of ISO 3471:

2008 .

Cette structure de protection contre le retournement respecte les requis de

performance de la norme ISO 3471: 2008 .

704906982

Regulation (EU) 2016/1628

Appliicable for Non-Road Mobile

Machiineriies

Vehicles who comply to Regulation

(EU) 2016/1628 (NRMM) are identi-

fied on the engine valve cover as well

as on the vehicle, near the VIN label.

TYPICAL

Rotax

NRSC G1 CO2 g/kWh:

XXXX

MXXXXXXX

Production date:

MM-YYYY

Family type:

XXXXXX

e13

AT1/P V-####

TYPICAL - NRMM IDENTIFICATION LABEL

TYPICAL

NOTE:

Tampering with the engine or its com-

ponents voids the EU type-approval of

that particular engine.

169

VEHICLE IDENTIFICATION

Emission Controll Information

Ethanol Compliiance Piictogram

VEHICLE EMISSIONS CONTROL INFORMATION

BOMBARDIER RECREATIONAL PRODUCTS INC.

THIS VEHICLE IS CERTIFIED TO OPERATE ON UNLEADED

GASOLINE AND CONFORMS TO

U.S. EPA EMISSION /

EVAP REGULATIONS FOR ATV CERTIFIED FOR SALE IN ALL

U.S. STATES EXCEPT CALIFORNIA.

RENSEIGNEMENT SUR LE DISPOSITIF ANTIPOLLUTION

CE VÉHICULE EST CERTIFIÉ POUR FONCTIONNER À L’ESSENCE

SANS PLOMB ET EST CONFORME AUX NORMES

DE L’EPA

AU NIVEAU DES REGLÉMENTATIONS DE L’ÉCHAPPEMENT ET DE

L’ÉVAPORATION POUR LES VTT.

Engine Family / Famille de moteur

Permeation Family / Famille de perméation

Certification standards (FEL) / Normes de certification (LEF)

Displacement / Cylindrée

Emission control system / Système de contôle des émissions

SEE OPERATOR’S GUIDE FOR MAINTENANCE SCHEDULE AND FUEL,

OIL AND SPARK PLUG SPECIFICATIONS. VOIR LE CALENDRIER

D’ENTRETIEN ET LES SPÉCIFICATIONS D’ESSENCE, D’HUILE ET DE

BOUGIE D’ALLUMAGE DANS LE GUIDE DE L’OPÉRATEUR.

WHEN APPLICABLE

Technical Information Label

170

RADIO FREQUENCY DIGITALLY ENCODED

SECURITY SYSTEM (RF D.E.S.S. KEY)

This device complies with FCC Part 15 and Industry Canada license exempt

RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interfer-

ence that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

IC Registration Number: 12006A-1001317030

FCC ID: 2ACER-1001317030

We, the party responsible for compliance, declare under our sole responsibility

that the device is in conformity with the provisions of the following Council Direc-

tive: 2014/53/EU. To which this declaration relates is in conformity with the es-

sential requirements and other relevant requirements. The product is in

conformity with the following directives, harmonized standards and regulations:

Radio Equipment Directive (RED) 2014/53/EU and Harmonized Standards:

- IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300 330

V2.1.1:2017

Radio Equipment Statutory Instrument 2017/1206 and Designated Standards:

- IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300 330

V2.1.1:2017

174

EVAPORATIVE EMISSION CONTROL SYSTEM

Callifornia Modells wiith Evaporatiive Emission Control System

Beginning with the 2018 model-year vehicles, some California models are certi-

fied to meet the CARB (California Air Resources Board) TP-933. These models

are equipped with an evaporative emission control system consisting of a low

permeation fuel tank (LPFT), low permeation fuel lines (LPFL) and an actively

purged carbon canister.

The following statement is required by the CCR (California Code of Regulation):

An add-on or modified part must be compliant with applicable ARB evaporative

emission control standards. A violation of this requirement is punishable by civil

and/or criminal punishment.

175

NOISE EMISSION CONTROL SYSTEM

REGULATION

USA and Canada Onlly

Tampering with Noiise Controll System Is Prohiibited!

U.S. Federal law and Canadian provincial laws may prohibit the following acts or

the causing there of:

1. The removal or rendering inoperative by any person other than for purposes

of maintenance, repair or replacement of any device or element of design in-

corporated into any new vehicle for the purpose of noise control prior to its

sale or delivery to the ultimate purchaser or while it is in use or

2. The use of the vehicle after such device or element of design has been re-

moved or rendered inoperative by any person.

Among those Acts Presumed to Constitute Tampering Are the Acts Liisted

Bellow:

1. Removal or alteration or the puncturing of the muffler or any engine compo-

nent which conducts removal of engine exhaust gases.

2. Removal or alteration or the puncturing of any part of the intake system.

3. Replacing any moving parts of the vehicle or parts of the exhaust or intake

system, with parts other than those specified by the manufacturer.

4. Lack of proper maintenance.

176

TECHNICAL SPECIFICATIONS

Engiine

ROTAX^® Mono cylinder.

4-stroke, Double Over

700

Head Camshaft

(DOHC), liquid cooled

Engine type

ROTAX Twin cylinder.

1000

4-stroke, Single Over

1000R

Head Camshaft

(SOHC), liquid cooled

700

Number of cylinders

1000

1000R

4 valves (mechanical

700

adjustment)

Number of valves

1000

8 valves (mechanical

1000R

adjustment)

0.11 mm to 0.19 mm

700

(.0043 in to .0074 in)

Intake valve clearance

1000

0.06 to 0.14 mm

1000R

(.0024 to .0055 in)

0.31 mm to 0.39 mm

700

(.0122 in to .0153 in)

Exhaust valve clearance

1000

0.11 to 0.19 mm

1000R

(.0043 to .0075 in)

97 mm

700

(3.82 in)

Bore

1000

91 mm

1000R

(3.58 in)

88 mm

700

(3.46 in)

Stroke

1000

75 mm

1000R

(2.95 in)

650 cm³

700

(39.7 in³)

Displacement

1000

976 cm³

1000R

(59.56 in³)

182

TECHNICAL SPECIFICATIONS

Cooliing System

Recommended XPS

XPS Extended life

coolant

pre-mixed coolant

Ethyl glycol / water mix

(50%/50%).

Alternate oil if XPS

or coolant specifically

products is not available

Coolant

designed for aluminum

engines

700

6.7 l (1.77 gal (liq.,US))

Capacity

1000

6 l (1.59 gal (liq.,US))

1000R

Transmission

CVT (Continuously

Type

Variable Transmission)

700

1950 RPM

1000

Engagement

1000R

1850 RPM

Gearbox

Dual range (HI-LO) with

Type

PARK, neutral and

reverse

700

0.5 l (0.53 qt (liq.,US))

Capacity

1000R

2 l (2.1 qt (liq.,US))

Gearbox oil

Recommended XPS

XPS 75W140 Synthetic

gearbox oil

gear oil

Alternate oil if XPS

75W 140 API GL-5

products is not available

Rear Final Driive (Mono–cyliinder engines onlly)

Spiral bevel gear final

Type

drive

500 ml

Capacity

(16.9 fl oz (US))

Gearbox oil

Recommended XPS

XPS 75W90 Synthetic

gearbox oil

gear oil

184

TECHNICAL SPECIFICATIONS

Rear Fiinal Drive (Mono–cyllinder engiines only)

Alternate oil if XPS

75W 90 API GL-5

products is not available

Ellectrical System

Magneto generator output

650 W @ 5000 RPM

IDI (Inductive Discharge

Ignition system type

Ignition)

700

Quantity

1000

1000R

700

NGK LMAR8AI-8

Make and

1000

NGK DCPR8E

Spark plug

type

1000R

NGK LMAR8C-9

0.7 to 0.8 mm

700

(.028 to .031 in)

Gap

1000

0.8 to 0.9 mm

1000R

(.031 to .035 in)

Maintenance free —SLA

Type

(Sealed Lead Acid)

Voltage

12 volts

Battery

Nominal rating

20 A•h

700

1 kW

Power

starter

1000

output

0.7 kW

1000R

Headlight

4x 55W H11

Taillight

2.3/3.5 W

Refer to Fuses in the

Fuses

Maintenance section

185

TECHNICAL SPECIFICATIONS

Fuell System

Electronic fuel injection

Fuel delivery

(EFI) with iTC

700

46 mm with ETA

Throttle body

1000

54 mm with ETA

1000R

Fuel pump

Electric (in fuel tank)

ECO mode

1350 ± 100 RPM

Idle speed

SPORT mode

1500 ± 100 RPM

700

Regular unleaded

1000

gasoline

Type

1000R

Premium unleaded

gasoline

Fuel

700

87 AKI (R+M)/2

Minimum

1000

91 RON

Octane

rating

91 AKI (R+M)/2

1000R

95 RON

± 38 l

Fuel tank capacity

(10 gal (liq.,US))

± 8.5 l

Fuel remaining when low fuel light turns ON

(2.2 gal (liq.,US))

Drive System

Drive system type

Selectable 2WD/4WD

CV joint grease

XPS CV joint grease

Spline's propeller shaft grease (grease applied to

XPS Propeller shaft

spline connections)

grease or equivalent

Front Differential

Spiral bevel gear

Smart-Lok electronic

X rc

control locking front

Front drive

differential

Other

Selectable 2WD / 4WD

models

with Visco-Lok

186

TECHNICAL SPECIFICATIONS

Front Diifferentiiall

auto-locking front

differential, spiral gears

Front drive ratio

3.6:1

X rc

350 ml

Mono cyl.

(23.7 fl oz(US))

engine

Capacity

Other

400 ml

models

(14 fl oz (US))

Front differential oil

Recommended XPS

XPS 75W90 Synthetic

differential oil

gear oil

Alternate oil if XPS

Synthetic gear oil

products is not available

75W90 API GL-5

Rear Differentiall

Trail base

Angle drive (spool gear)

Rear drive

Other

Lockable differential

models

700

3.6:1

Rear drive ratio

1000

3.43:1

1000R

No ABS

575 ml (19.5 fl oz(US))

Capacity

ABS

500 ml (17 fl oz(US))

Rear differential oil

Recommended XPS

XPS 75W90 Synthetic

differential oil

gear oil

Alternate oil if XPS

Synthetic gear oil

products is not available

75W90 API GL-5

Steering

Type

Rack and pinion

Steering wheel

Adjustable tilt steering

187

TECHNICAL SPECIFICATIONS

Front Suspension

Arched double

X rc

suspension arms with

Suspension type

stabilizer bar

All other

Double suspension

models

arms with stabilizer bar

X rc

376 mm (14.8 in)

Trail Series

254 mm (10 in)

Suspension travel

All other

292 mm (11.5 in)

models

Quantity

Trail Series

Gas charged

Sport DPS

HPG

Shock absorber

Type

HPG shocks with

piggyback reservoir.

X rc

QS3† compression

adjustments

Trail Series

5 positions cam

Preload adjustment

Sport Series

Threaded

Rear Suspension

Arched double

X rc

suspension arms with

stabilizer bar

Suspension type

All other

Double suspension

models

arms with stabilizer bar

267 mm

Trail Series

(10.5 in)

305 mm

Suspension travel

Sport DPS

(12 in)

376 mm

X rc

(14.8 in)

Quantity

Shock absorber

Type

Trail Series

Gas charged

188

TECHNICAL SPECIFICATIONS

Rear Suspensiion

Sport DPS

HPG

HPG shocks with

piggyback reservoir.

X rc

QS3† compression

adjustments

Trail Series

5 positions cam

Preload adjustment

Sport Series

Threaded

Brakes

Qty

220 mm (8.7 in)

Front brake

ventilated brake disc

Type

with hydraulic

twin-pistons calipers of

32 mm (1.26 in)

Qty

220 mm (8.7 in)

Rear brake

ventilated brake disc

Type

with hydraulic

twin-pistons calipers of

28 mm (1.1 in)

Type

DOT 4

Brake fluid

Approximately 295 ml

Capacity

(10 fl oz (US))

Caliper

Floating

Brake pad material

Metallic

0.5 mm

Minimum brake pad thickness

(.02 in)

4 mm

Minimum brake disc thickness

(.157 in)

0.2 mm

Maximum brake disc warpage

(.01 in)

189

TECHNICAL SPECIFICATIONS

Tires

Recommended tire

inflation pressure is

found on the Tire Label.

Pressure

Refer to appropriate

Important On-Product

Labels section for its

location.

660 x 203 x 305 mm

Trail Series

(26 x 8 x 12 in)

686 x 229 x 305 mm

Front

Sport DPS

(27 x 9 x 12 in)

762 x 254 x 356 mm

X rc

(30 x 10 x 14 in)

Tire size

660 x 229 x 305 mm

Trail Series

(26 x 9 x 12 in)

686 x 279 x 305 mm

Rear

Sport DPS

(27 x 11 x 12 in)

762 x 254 x 356 mm

X rc

(30 x 10 x 14 in)

3 mm

Minimum tire thread depth

(.118 in)

Wheells

Trail base

Steel

Type

All other

Cast aluminum

models

35.6 x 18 cm

X rc

(14 x 7 in)

Front

All other

30.5 x 15.24 cm

models

(12 x 6 in)

Rim size

35.6 x 17.78 cm

X rc

(14 x 7.0 in)

Rear

All other

30.5 x 19.05 cm

models

(12 x 7.5 in)

100 ± 10 Nm

Wheel lug nuts torque

(74 ± 7 lbf-ft)

190

TECHNICAL SPECIFICATIONS

Dimensions

138.3 cm

X rc

(54.4 in)

108.5 cm

Trail

(42.7 in)

123 cm

Rear

Sport

(48.5 in)

135 cm

X rc

(53 in)

25.4 cm

Trail Series

(10 in)

30.5 cm

Ground clearance

Sport DPS

(12 in)

38.1 cm

X rc

(15 in)

Loading Capaciity and Weiight

Trail Base

570 kg

700

(1,256 lb)

Trail DPS

576.5 kg

700

(1,271 lb)

Trail DPS

619 kg

Dry weight

1000

(1,364 lb)

637.3 kg

Sport DPS

(1,405 lb)

722.6 kg

X rc

(1,593 lb)

X rc

44/56

Weight distribution (front/rear)

All other

42/58

136 kg

Cargo box capacity

(300 lb)

Total vehicle load allowed (including driver,

331 kg

passengers, all other loads and added

(730 lb)

accessories)

962 kg

Gross vehicle weight rating

Trail 700

(2,121 lb)

192

TROUBLESHOOTING GUIDELINES

CVT Belt Is Slipping

1. Water has entered in the CVT.

- Refer to Special Procedures.

“–” Is Displayed On the Gearbox Position Display

1. Shift lever is between 2 positions.

- Properly position the shift lever in the desired position.

2. Shift lever is not properly adjusted.

- Contact an authorized Can-Am Off-road dealer.

3. Electrical communication error.

- Contact an authorized Can-Am Off-road dealer.

Engine Does Not Turn

1. Starting procedure not performed correctly.

Refer to Starting the Engine.

2. Shift lever is not set on PARK.

Set shift lever to either in PARK or press the brake pedal.

3. Burnt fuse.

Check fuses.

4. Weak battery or loose connections.

Check charging system fuse.

–

Check fault message in cluster.

–

Check battery connections and terminals condition.

–

Have the battery checked by an authorized Can-Am Off-road dealer.

5. Defective starter solenoid.

Contact an authorized Can-Am Off-road dealer.

6. D. E. S. S. key is not installed on D. E. S. S. post.

(if

equipped)

Securely install key to D.E.S.S. post.

7. D.E.S.S. key not recognized is displayed in the multifunc-

tion gauge. (If equipped)

Clean D.E.S.S. key. If message still displayed after cleaning, see an author-

ized Can-Am Off-road dealer.

196

TROUBLESHOOTING GUIDELINES

Engine Turns Over But Fails To Start

1. Flooded engine

Active the drowned mode to start the engine. Refer to Flooded Engine in Spe-

cial Procedures section.

2. No fuel to the engine (spark plug dry when removed).

Check fuel tank level.

–

Check fuel pump fuse.

–

Obstructed fuel pump pre-filter or fuel pump failure.

See an authorized Can-Am Off-road dealer, a repair shop, or a person of your

own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained herein for

information about warranty claims.

3. Spark plug/ignition (no spark).

Check ignition fuse.

–

Remove spark plug then reconnect to ignition coil.

–

Start engine with spark plug grounded to the engine away from spark plug

hole. If no spark appears, replace spark plug.

If trouble persists, see an authorized Can-Am Off-road dealer, a repair shop,

or a person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained herein for

information about warranty claims.

Engine Lacks Acceleration or Power

1. Seat belt not buckled properly. Check cluster message.

- Buckle up seat belt.

2. Fouled or damaged spark plug.

- Replace spark plugs.

3. Engine air filter plugged or dirty.

- Check air filter and replace if necessary.

- Check deposits in engine air filter housing.

4. Water in CVT

- Drain water from CVT. Refer to Special Procedures section.

5. CVT dirty or worn-out.

- Contact an authorized Can-Am Off-road dealer.

6. Lack of fuel

197

TROUBLESHOOTING GUIDELINES

- Dirty or clogged fuel pump pre-filter. See an authorized Can-Am Off-road

dealer, a repair shop, or a person of your own choosing for maintenance, re-

pair, or replacement. Please refer to the US EPA Emission-Related Warranty

contained herein for information about warranty claims.

7. Engine is in Torque Limitation mode (if equipped).

- Engine torque is gradually limited for protection when coolant temperature is

too high. Check multifunction gauge display for engine temperature.

- Let engine cool down.

8. Engine is in limp home mode.

- Multifunction gauge CHECK ENGINE indicator lamp is on and display shows

LIMP HOME. See an authorized Can-Am Off-road dealer, a repair shop, or a

person of your own choosing for maintenance, repair, or replacement. Please

refer to the US EPA Emission-Related Warranty contained herein for informa-

tion about warranty claims.

Engine Overheats

1. Low coolant level in cooling system.

- Check coolant level and refill. See Maintenance Procedures. Seek service

from an authorized Can-Am Off-road dealer, a repair shop, or a person of

your own choosing for maintenance, repair, or replacement. Please refer to

the US EPA Emission-related warranty contained herein for information about

warranty claims.

2. Cooling fan is not working.

- Ensure cooling fan is not jammed and working properly.

- Check fan fuse. See Fuses and Fusible Links in the Maintenance

Procedures.

3. Dirty radiators fins.

- Check and clean radiator fins. See Maintenance Procedures.

Engine Misfire

1. Fouled/damaged/worn spark plug.

- Replace spark plugs as required.

2. Water in fuel.

- Drain fuel system and refill with fresh fuel.

The RPM Increases But the Vehicle Does Not Move

1. Water in the CVT.

- Drain water from CVT. See Special Procedures section.

2. CVT dirty or worn-out or belt failure.

198

DIGITAL DISPLAY MESSAGES

If an abnormal engine condition occurs, the following messages can be com-

bined with a pilot lamp.

Message

Description

D.E.S.S. KEY

NOT

D.E.S.S. key requires cleaning. If message still displayed

after cleaning, See an authorized Can-Am Off-road dealer.

RECOGNIZED

Indicates that you have used the wrong D.E.S.S. key, use

BAD KEY

the proper key for this vehicle.

All active or previously activated faults that require

CHECK ENGINE

attention.

No engine limitation engaged.

Critical faults requiring diagnostic as soon as possible.

LIMP HOME

An engine limitation is engaged and/or the engine behavior

is modified.

TPS FAULT

Throttle body fault, generally followed by a Limp Home

message.

BRAKE SWITCH

FAULT

Brake signal fault.

Check engine pilot light on. Indicates that the DPS

CHECK DPS

(Dynamic Power Steering) does not work properly. See an

authorized Can-Am Off-road dealer.

PPS FAULT

Faulty Pedal Position Sensor(s) (PPS). See an authorized

Can-Am Off-road dealer.

When the fuel sender resistor value is out of range the

FUEL SENSOR

digital display module will detect it and display the

FAULT

message.

CHECK

Check engine pilot light on. Indicates that the Smart-Lok

SMART-LOK

does not work properly. See an authorized Can-Am

Off-road dealer.

200

BRP LIMITED WARRANTY FOR CANADA AND USA:

2024 CAN-AM® SSV

1) Scope of the Limited Warranty

Bombardier Recreational Products Inc. ("BRP") warrants its 2024 Can-Am SSV

(“Product (s)”) sold by authorized BRP Dealers (as hereinafter defined) in the

United States of America ("USA") and in Canada from defects in material or

workmanship for the period and under the conditions described below.

This limited warranty will become null and void if:

1. the Product was used for racing or any other competitive activity, at any point,

even by a previous owner; or

2. the Product has been altered or modified in such a way so as to adversely af-

fect its operation, performance or durability, or has been altered or modified

to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

2) Limitations of Liability

TO THE EXTEND PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR

THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED

ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-

RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE

OTHER LEGAL RIGHTS WHICH MAY VARY FROM STATE TO STATE,

OR PROVINCE TO PROVINCE.

Neither the distributor, any BRP dealer nor any other person has been authorized

to make any affirmation, representation or warranty regarding the product, other

than those contained in this limited warranty, and if made, shall not be enforce-

able against BRP.

BRP reserves the right to modify this limited warranty at any time, being under-

stood that such modification will not alter the warranty conditions applicable to

the Products sold while this warranty is in effect.

3) EXCLUSIONS – Are Not Warranted

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the Operator's Guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

202

BRP LIMITED WARRANTY FOR CANADA AND USA: 2024 CAN-AM^® SSV

resulting from repairs done by a person that is not an authorized servicing

BRP dealer;

- Damage caused by abuse, abnormal use, neglect or operation of the product

in a manner inconsistent with the recommended operation described in the

Product’s Operator’s Guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

Product (see the Operator’s Guide);

- Damages from rust, corrosion or exposure to the elements;

- Damage resulting from water or snow ingestion;

- Incidental or consequential damages, or damages of any kind including with-

out limitation transportation expenses, towing, storage, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

4) Warranty Coverage Period

This limited warranty will be in effect from (1) the date of delivery to the first retail

consumer, or (2) the date the product is first put into use, whichever occurs first

and for the applicable period below:

1. SIX (6) consecutive months, for private use or commercial use owners

2. For emiission-related components, please also refer to the US EPA Emis-

sion-Related Warranty.

3. For evaporative emission-rellated components of Callifornia models

equipped wiith evaporatiive emission control system produced by BRP

for sale in the State of California that are originally sold to a resident or

subsequently warranty registered to a resident in the State of California, also

refer to the California Evaporative Emissions Control Warranty Statement.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this limited warranty beyond its original expiration

date.

5) Conditions to Have Warranty Coverage

This warranty coverage is available only if each of the following conditions has

been fulfilled:

1. The Product must be purchased as new and unused by its first owner from a

Dealer authorized to sell the Products in the country in which the sale oc-

curred (“Dealer”);

2. The BRP specified pre-delivery inspection process must be completed, docu-

mented and signed by the purchaser;

3. The Product must have undergone proper registration by an authorized

Dealer;

4. The Product must be purchased in the country in which the purchaser

resides;

5. Routine maintenance outlined in the Operator’s Guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

203

BRP LIMITED WARRANTY FOR CANADA AND USA: 2024 CAN-AM^® SSV

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

6) What to Do to Obtain Warranty Coverage

The customer must cease using the Product upon the appearance of an anom-

aly, notify a servicing BRP dealer within three (3) days of the appearance of the

anomaly and provide the Dealer with reasonable access to the Product and rea-

sonable opportunity to repair it.

The customer must also present to the Dealer, proof of purchase of the Product

and must sign the repair/work order prior to starting the repair in order to validate

the warranty repair.

All parts replaced under this limited warranty become the property of BRP.

7) What BRP Will Do

BRP’s obligations under this warranty are limited to, at its sole discretion, repair-

ing or replacing parts found defective under normal use, maintenance and serv-

ice without charge for parts and labor, at any authorized BRP dealer during the

warranty coverage period under the conditions described herein. No claim of

breach of warranty shall be cause for cancellation or rescission of the sale of the

Product to the owner.

In the event that service is required outside of the country of original sale, the

owner will bear responsibility for any additional charges due to local practices

and conditions, such as, but not limited to, freight, insurance, taxes, license fees,

import duties, and any and all other financial charges, including those levied by

governments, states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

8) Transfer

If the ownership of a Product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Product Distributor/Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

9) Consumer Assistance

In the event of a controversy or a dispute in connection with this limited warranty,

BRP suggests that you try to resolve the issue at the dealership level. We recom-

mend discussing the issue with the authorized dealer's service manager or

owner.

If the matter still remains unresolved, contact BRP by filling out the customer con-

tact form at www.brp.com or contact BRP by mail at one of the addresses listed

under the Contact Us section of this guide.

204

US EPA EMISSION - RELATED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants to the ultimate purchas-

er and each subsequent purchaser that this new vehicle, including all parts of its

exhaust emission control system and its evaporative emission control system,

meets two conditions:

1. It is designed, built, and equipped so it conforms at the time of sale to the ulti-

mate purchaser with the requirements of 40 CFR 1051 and 40 CFR 1060.

2. It is free from defects in materials and workmanship that may keep it from

meeting the requirements of 40 CFR 1051 and 40 CFR 1060.

Where a warrantable condition exists, BRP will repair or replace, as it elects, any

part or component with a defect in materials or workmanship that would increase

the engine’s emissions of any regulated pollutant within the stated warranty peri-

od at no cost to the owner, including expenses related to diagnosing and repair-

ing or replacing emission-related parts. All defective parts replaced under this

warranty become the property of BRP.

For all emission-related warranty claims, BRP is limiting the diagnosis and repair

of emission-related parts to the authorized Can-Am dealers, unless for emer-

gency repairs as required by item 2 of the following list.

As a certifying manufacturer, BRP will not deny emission-related warranty claims

based on any of the following:

1. Maintenance or other service BRP or BRP's authorized facilities performed.

2. Engine/equipment repair work that an operator performed to correct an un-

safe, emergency condition attributable to BRP as long as the operator tries to

restore the engine/equipment to its proper configuration as soon as possible.

3. Any action or inaction by the operator unrelated to the warranty claim.

4. Maintenance that was performed more frequently than BRP specify.

5. Anything that is BRP fault or responsibility.

6. The use of any fuel that is commonly available where the equipment operates

unless BRP written maintenance instructions state that this fuel would harm

the equipment’s emission control system and operators can readily find the

proper fuel. See maintenance information section and fuel requirements of fu-

eling section.

Emission-Related Warranty Period

The emission-related warranty is valid for the following period whichever comes

first.

HOURS

MONTHS

KILOMETERS

Exhaust emission-related

500

5000

components

Evaporative emission-related

N/A

components

Components Covered

The emission-related warranty covers all components whose failure would in-

crease an engine’s emissions of any regulated pollutant, including the following

listed components:

205

US EPA EMISSION - RELATED WARRANTY

For exhaust emissions, emission-related components include any engine

parts related to the following systems:

- Air-induction system

- Fuel system

- Ignition system

- Exhaust gas recirculation systems.

The following parts are also considered emission-related components for ex-

haust emissions:

- After treatment devices

- Crankcase ventilation valves

- Sensors

- Electronic control units.

The following parts are considered emission-related components for evapora-

tive emissions:

- Fuel tank

- Fuel cap

- Fuel line

- Fuel line fittings

- Clamps*

- Pressure relief valves*

- Control valves*

- Control solenoids*

- Electronic controls*

- Vacuum control diaphragms*

- Control cables*

- Control linkages*

- Purge valves

- Vapor hoses

- Liquid/vapor separator

- Carbon canister

- Canister mounting brackets

- Carburetor purge port connector.

NOTE: *As related to the evaporative emission control system.

4. Emission-related components also include any other part whose only purpose

is to reduce emissions or whose failure will increase emissions without signifi-

cantly degrading engine/equipment performance.

Limited Applicability

As a certifying manufacturer, BRP may deny emission-related warranty claims

for failures that have been caused by the owner’s or operator’s improper mainte-

nance or use, by accidents for which the manufacturer has no responsibility, or

by acts of God. For example, an emission-related warranty claim need not be

honored for failures that have been directly caused by the operator’s abuse of

the engine/equipment or the operator’s use of the engine/equipment in a manner

for which it was not designed and are not attributable to the manufacturer in

anyway.

206

CALIFORNIA EVAPORATIVE EMISSIONS

CONTROL WARRANTY STATEMENT

The warranty periods begin on the date the new Off-Highway Recreational Ve-

hicle (“OHRV”) is delivered to an ultimate purchaser.

Bombardier Recreational Products Inc. (“BRP”) warrants to the ultimate purchas-

er and each subsequent purchaser that the OHRV is:

1. Designed, built, and equipped so as to conform, at the time of sale, with all

applicable laws, rules and regulations; and

2. Free from defects in materials and workmanship that may cause the failure of

a warranted part. All replacement parts must be identical in all material re-

spects to that part as described in BRP’s Executive Order of Certification

application.

The warranty on emissions-related parts function as follows:

Repair or replacement of any warranted part must be performed at no charge

to the OHRV owner, at a warranty station, except in the case of a temporary

repair when a warranted part or a warranty station is not reasonably available

to the OHRV owner. In the event a temporary repair is permitted, repairs may

be performed at any available service establishment, or by the owner, using

any replacement part. BRP must reimburse the owner for his or her expenses

including diagnostic charges for such temporary repair or replacement, not to

exceed BRP's suggested retail price for all warranted parts replaced and la-

bor charges based on BRP's recommended time allowance for the warranty

repair and the geographically appropriate hourly labor rate.

The lack of availability of warranted parts or the incompleteness of repairs

within a reasonable time period, not to exceed 30 days from the time the

OHRV is initially presented to the warranty station for repair, will qualify the

need for a temporary repair.

Any warranted part which is not scheduled for replacement as part of mainte-

nance in the written instructions must be warranted for the warranty period

defined below. If any such part fails during the warranty period, it must be re-

paired or replaced by BRP. Any such part repaired or replaced under war-

ranty must be fully warranted.

Any warranted part which is scheduled only for regular inspection in the writ-

ten instructions must be warranted for the warranty period defined below. A

statement in such written instructions to the effect of “repair or replace as nec-

essary” does not reduce the period of warranty coverage. Any such part re-

paired or replaced under warranty is warranted for the remaining warranty

period.

Any warranted part which is scheduled for replacement as part of mainte-

nance in the written instructions is warranted for the period of time prior to the

first scheduled replacement point for that part. If the part fails before the first

scheduled replacement point, the part will be repaired or replaced by BRP.

Any such part repaired or replaced under warranty is warranted for the re-

mainder of the period prior to the first scheduled replacement point for the

part.

Warranty services or repairs are provided at all manufacturer dealerships that

are owned by the manufacturer or franchised to service the subject OHRVs.

The OHRV owner will not be charged for diagnostic labor which leads to the

determination that a warranted part is, in fact, defective, provided that such di-

agnostic work is performed at a warranty station.

208

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT

8. BRP is liable for damages to other vehicle components proximately caused

by a failure, under warranty, of any warranted part.

9. Any replacement part designated by BRP may be used in warranty repairs

provided without charge to the OHRV owner. Such use will not reduce the

warranty obligations of BRP, except that BRP will not be liable for repair or re-

placement of any replacement part which is not a warranted part.

10. Any add-on or modified part exempted by the Air Resources Board from the

prohibitions of section 27156 of the California Vehicle Code may be used on

an OHRV. Such use, in and of itself, will not be grounds for disallowing a war-

ranty claim. BRP is not liable to warrant failures of warranted parts caused by

the use of an add-on or modified part (s) unless such part (s) are also

warranted.

Conditions and exclusions:

- BRP may deny you warranty coverage if your OHRV or a part has failed di-

rectly due to abuse, neglect, improper maintenance or unapproved

modifications.

Your Warranty Rights And Obligations

The California Air Resources Board is pleased to explain the evaporative emis-

sions control system warranty on your 2024 Off-Road Sport Vehicle. In Califor-

nia, new off-highway recreational vehicles must be designed, built, and equipped

to meet the State’s stringent anti-smog standards. BRP must warrant the evapo-

rative emissions control system on your Off-Road Sport Vehicle for the periods of

time listed below provided there has been no abuse, neglect, improper mainte-

nance, or unapproved modification of your Off-Road Sport Vehicle.

Your evaporative emissions control system may include parts such as the carbu-

retor or fuel-injection system, fuel tank, fuel hoses, carbon canister, and engine

computer. Also included may be hoses, belts, connectors and other evaporative

emissions-related assemblies. Where a warrantable condition exists, Bombardier

Recreational Products Inc. will repair your Off-Road Sport Vehicle at no cost to

you including diagnosis, parts and labor.

OHRV Manufacturer’s Warranty Coverage

The warranty period for this OHRV is 60 months, or 5000 miles, or 500 hours,

whichever comes first.

Parts covered:

1. Canister Mounting Bracket(s)

2. Carbon Canister

3. Purge Port Connector

4. Clamp(s)*

5. Electronic Control*

6. Fuel Cap

7. Filler Neck

8. Filler Neck Hose

9. Fuel Line(s)

10. Fuel Line Fitting(s)

11. Fuel Tank

12. Pressure Relief Valve(s)*

209

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT

13. Purge Valve(s)

14. Check Valve(s)*

15. Vapor Hose(s)

16. Flow Reducer

17. Filter(s)*

18. Fuel pump

19. All other parts not listed that may affect the evaporative emissions control

system

NOTE: *As related to the evaporative emission control system.

If any evaporative emissions-related part on your Off-Road Sport Vehicle is de-

fective the part will be repaired or replaced by Bombardier Recreational Products

Inc.

Owner’s Warranty Responsibilities

As the Off-Road Sport Vehicle owner you are responsible for the performance of

the required maintenance listed in your owner’s manual. Bombardier Recreation-

al Products Inc. recommends that you retain all receipts covering maintenance

on your Off-Road Sport Vehicle, but Bombardier Recreational Products Inc. can-

not deny warranty solely for the lack of receipts or for failure to ensure the per-

formance of a scheduled maintenance.

As an owner you are responsible for presenting your Off-Road Sport Vehicle to a

Bombardier Recreational Products Inc. dealer as soon as a problem exists. The

warranty repairs should be completed in a reasonable time, not to exceed 30

days.

As an Off-Road Sport Vehicle owner, you should also be aware that Bombardier

Recreational Products Inc. may deny you warranty coverage if your Off-Road

Sport Vehicle or a part has failed due to abuse, neglect, improper maintenance

or unapproved modifications.

If you have any questions regarding your warranty rights and responsibilities, you

should contact:

- Bombardier Recreational Products Inc. at 1-888-272-9222, or

- The California Air Resources Board at 4001 Iowa Avenue, Riverside, CA

92507.

210

BRP LIMITED WARRANTY FOR INTERNATIONAL:

2024 CAN-AM® SSV

1) Scope of the Limited Warranty

Bombardier Recreational Products Inc. ("BRP") warrants its 2024 Can-Am SSV

(“Product(s)”) sold by distributors or dealers authorized by BRP to distribute the

Products outside of the United States of America ("USA"), Canada, member

states of the European Economic Area (which is comprised of the states of the

European Union plus the United Kingdom, Norway, Iceland and Liechtenstein)

("EEA"), Turkey, member states of the Commonwealth of the Independent States

(including Ukraine and Turkmenistan) ("CIS") from defects in material or work-

manship for the period and under the conditions described below.

This limited warranty will become null and void if:

1. the Product was used for racing or any other competitive activity, at any

point, even by a previous owner; or

2. the Product has been altered or modified in such a way so as to adversely af-

fect its operation, performance or durability, or has been altered or modified

to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

2) Limitation of Liability

TO THE EXTEND PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR

THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED

ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-

RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE

OTHER LEGAL RIGHTS WHICH MAY VARY FROM COUNTRY TO COUN-

TRY. BRP SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY

PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR REASONS

OUTSIDE OF BRP’S CONTROL.

For Products purchased in Australia, refer to the Australia-specific section below.

Neither the distributor, any BRP Distributor/Dealer nor any other person has

been authorized to make any affirmation, representation or warranty regarding

the product, other than those contained in this limited warranty, and if made, shall

not be enforceable against BRP.

BRP reserves the right to modify this limited warranty at any time, being under-

stood that such modification will not alter the warranty conditions applicable to

the Products sold while this warranty is in effect.

211

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^® SSV

3) EXCLUSIONS – Are Not Warranted

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the Operator's Guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

resulting from repairs done by a person that is not an authorized servicing

BRP Distributor/Dealer;

- Damage caused by abuse, abnormal use, neglect or operation of the product

in a manner inconsistent with the recommended operation described in the

Product’s Operator’s Guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

Product (see the Operator’s Guide);

- Damages from rust, corrosion or exposure to the elements;

- Damage resulting from water or snow ingestion;

- Incidental or consequential damages, or damages of any kind including with-

out limitation transportation expenses, towing, storage, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

The following list includes, without limitation, items that are considered wear

items and that are not covered under BRP's limited warranty unless failure is a di-

rect result of a defect in material or workmanship:

- Batteries

- Brake pads

- Brake disks and drums

- Clutch plates / pads

- Clutch sliders

- Clutch springs

- Clutch replaceable bushings

- Drive belts

- Filters

- Finished and unfinished surfaces

- Fuses

- Light bulbs / sealed

- Lubricants

- Spark plugs

- Suspension bushings

- Suspension slider shoes

- Suspension springs

- Tires

4) Warranty Coverage Period

This limited warranty will be in effect from (1) the date of delivery to the first retail

consumer, or (2) the date the product is first put into use, whichever occurs first

and for the applicable period below:

212

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^® SSV

1. SIX (6) consecutive months, for private use or commercial use owners

In AUSTRALIA and NEW ZEALAND only, this warranty will be in effect from (1)

the date of delivery to the first retail consumer or (2) the date the product is first

put into use, whichever occurs first, and for a period of TWELVE (12) CONSEC-

UTIVE MONTHS and THIRTY SIX (36) CONSECUTIVE MONTHS for Power-

train Engine and Transmission systems only, for private use or commercial use.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this warranty beyond its original expiration date.

The warranty coverage period identified above are a minimal limited warranty pe-

riod which can be extended by any applicable warranty promotional program, as

the case may be.

Note that the duration and any other modalities of the warranty coverage are sub-

ject to the applicable national or local legislation in the customer's country.

5) For Products Sold In Australia Only

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law.

You are entitled to a replacement or refund for a major failure and for compensa-

tion for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to

be of acceptable quality and the failure does not amount to a major failure.

Nothing in these Warranty terms and conditions should be taken to exclude, re-

strict or modify the application of any condition, warranty, guarantee, right or rem-

edy conferred or implied under the Competition and Consumer Act 2010 (Cth),

including the Australian Consumer Law or any other law, where to do so would

contravene that law, or cause any part of these terms and conditions to be void.

The benefits given to you under this limited warranty are in addition to other rights

and remedies that you have under Australian law.

6) Conditions to Have Warranty Coverage

This warranty coverage is available only if each of the following conditions has

been fulfilled:

1. The Product must be purchased as new and unused by its first owner from a

Distributor/Dealer authorized to distribute Products in the country in which the

sale occurred (“Distributor/Dealer”);

2. The BRP specified pre-delivery inspection process must be completed, docu-

mented and signed by the purchaser;

3. The Product must have undergone proper registration by an authorized Dis-

tributor/Dealer;

4. The Product must be purchased in the country in which the purchaser

resides;

5. Routine maintenance outlined in the Operator’s Guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

213

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^® SSV

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

7) What to Do to Obtain Warranty Coverage

The customer must cease using the Product upon the appearance of an anom-

aly, notify a servicing BRP Distributor/Dealer within two (2) months of the appear-

ance of the anomaly and provide the Distributor/Dealer with reasonable access

to the Product and reasonable opportunity to repair it.

The notification period is subject to the applicable national or local legislation in

customer's country.

The customer must also present to the Distributor/Dealer, proof of purchase of

the Product and must sign the repair/work order prior to starting the repair in or-

der to validate the warranty repair.

All parts replaced under this limited warranty become the property of BRP.

8) What BRP Will Do

To the extent permitted by law, BRP’s obligations under this warranty are limited

to, at its sole discretion, repairing or replacing parts found defective under normal

use, maintenance and service without charge for parts and labor, at any author-

ized BRP Distributor/Dealer during the warranty coverage period under the con-

ditions described herein. No claim of breach of warranty shall be cause for

cancellation or rescission of the sale of the Product to the owner. You may have

other legal rights which may vary from country to country.

In the event that service is required outside of the country of original sale, the

owner will bear responsibility for any additional charges due to local practices

and conditions, such as, but not limited to, freight, insurance, taxes, license fees,

import duties, and any and all other financial charges, including those levied by

governments, states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

9) Transfer

If the ownership of a Product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Product Distributor/Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

10) Consumer Assistance

In the event of a controversy or a dispute in connection with this limited warranty,

BRP suggests that you try to resolve the issue at the dealership level. We recom-

mend discussing the issue with the authorized Distributor/Dealer's service man-

ager or owner.

214

BRP LIMITED WARRANTY FOR THE EUROPEAN

ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024

CAN-AM® SSV

1) Scope of the Limited Warranty

Bombardier Recreational Products Inc. ("BRP") warrants its 2024 Can-Am SSV

(“Product(s)”) sold by distributors or dealers authorized by BRP to distribute the

Products in member states of the European Economic Area (which is comprised

of the states of the European Union plus the United Kingdom, Norway, Iceland

and Liechtenstein) ("EEA"), Turkey, member states of the Commonwealth of the

Independent States (including Ukraine and Turkmenistan) ("CIS") (“Distributor/

Dealer”) from defects in material or workmanship for the period and under the

conditions described below.

This limited warranty will become null and void if:

1. the Product was used for racing or any other competitive activity, at any point,

even by a previous owner; or

2. the Product has been altered or modified in such a way so as to adversely af-

fect its operation, performance or durability, or has been altered or modified

to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

2) Limitations of Liability

TO THE EXTEND PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR

THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED

ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-

RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE

OTHER LEGAL RIGHTS WHICH MAY VARY FROM STATE TO STATE,

OR PROVINCE TO PROVINCE. BRP SHALL NOT BE HELD LIABLE IF

PRODUCTS OR WARRANTY PARTS ARE NOT AVAILABLE IN CERTAIN

COUNTRIES FOR REASONS OUTSIDE OF BRP’S CONTROL.

For Products purchased in France, refer to the France-specific section below.

Neither the distributor, any BRP Distributor/Dealer nor any other person has

been authorized to make any affirmation, representation or warranty regarding

the product, other than those contained in this limited warranty, and if made, shall

not be enforceable against BRP.

216

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

BRP reserves the right to modify this limited warranty at any time, being under-

stood that such modification will not alter the warranty conditions applicable to

the Products sold while this warranty is in effect.

3) EXCLUSIONS – Are Not Warranted

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the Operator's Guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

resulting from repairs done by a person that is not an authorized servicing

BRP Distributor/Dealer;

- Damage caused by abuse, abnormal use, neglect or operation of the product

in a manner inconsistent with the recommended operation described in the

Product’s Operator’s Guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

Product (see the Operator’s Guide);

- Damages from rust, corrosion or exposure to the elements;

- Damage resulting from water or snow ingestion;

- Incidental or consequential damages, or damages of any kind including with-

out limitation transportation expenses, towing, storage, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

The following list includes, without limitation, items that are considered wear

items and that are not covered under BRP's limited warranty unless failure is a di-

rect result of a defect in material or workmanship:

- Batteries

- Brake pads

- Brake disks and drums

- Clutch plates / pads

- Clutch sliders

- Clutch springs

- Clutch replaceable bushings

- Drive belts

- Filters

- Finished and unfinished surfaces

- Fuses

- Light bulbs / sealed

- Lubricants

- Spark plugs

- Suspension bushings

- Suspension slider shoes

- Suspension springs

- Tires

217

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

4) Warranty Coverage Period

This limited warranty will be in effect from (1) the date of delivery to the first retail

consumer, or (2) the date the product is first put into use, whichever occurs first

and for the applicable period below:

1. TWENTY-FOUR (24) consecutive months, for private use owners.

2. SIX (6) consecutive months, for commercial use owners.

A Product is used commercially when it is used in connection with any work or

employment that generates income during any part of the warranty period. A

Product is also used commercially when, at any point during the warranty period,

it is licensed for commercial use.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this warranty beyond its original expiration date.

The warranty coverage period identified above are a minimal limited warranty pe-

riod which can be extended by any applicable warranty promotional program, as

the case may be.

Note that the duration and any other modalities of the warranty coverage are sub-

ject to the applicable national or local legislation in the customer's country.

5) For Products Sold In France Only

The seller shall deliver goods that are complying with the contract and shall be

responsible for defects existing upon delivery. The seller shall also be responsi-

ble for defects resulting from packaging, assembling instructions or the installa-

tion when it is its responsibility per the contract or if accomplished under its

responsibility. To be compliant with the contract, the good shall:

1. Be fit for normal use for goods similar thereto and, if applicable:

- Correspond to the description provided by the seller and have the qualities

presented to the buyer though sample or model;

- Have the qualities that a buyer may legitimately expect considering the

public declarations of the seller, the manufacturer of its representative, in-

cluding in advertising or labeling; or

2. Have the characteristics mutually agreed upon as between the parties or be

fit for the specific use intended by the buyer and brought to the attention of

the seller and which accepted.

The action for failure to comply is prescribed after two years after delivery of the

goods. The seller is responsible for the warranty for hidden defects of the good

sold if such hidden defects are rendering the good unfit for the intended use, or if

they diminish its use in such a way that the buyer would not have acquired the

good or would have given a lesser price, had he known. The action for such hid-

den defects shall be taken by the buyer within 2 years of the discovery of the

defect.

6) Conditions to Have Warranty Coverage

This warranty coverage is available onlly if each of the following conditions has

been fulfilled:

218

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

1. The Product must be purchased as new and unused by its first owner from a

Distributor/Dealer authorized to distribute Products in the country (or in the

case of the EEA, union of countries) in which the sale occurred (“Distributor/

Dealer”);

2. The BRP specified pre-delivery inspection process must be completed, docu-

mented and signed by the purchaser;

3. The Product must have undergone proper registration by an authorized Dis-

tributor/Dealer;

4. The Product must be purchased in the country (or in the case of the EEA,

union of countries) in which the purchaser resides;

5. Routine maintenance outlined in the Operator’s Guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

7) What to Do to Obtain Warranty Coverage

The customer must cease using the Product upon the appearance of an anom-

aly, notify a servicing BRP Distributor/Dealer within two (2) months of the appear-

ance of the anomaly and provide the Distributor/Dealer with reasonable access

to the Product and reasonable opportunity to repair it.

The notification period is subject to the applicable national or local legislation in

customer's country.

The customer must also present to the Distributor/Dealer, proof of purchase of

the Product and must sign the repair/work order prior to starting the repair in or-

der to validate the warranty repair.

All parts replaced under this limited warranty become the property of BRP.

8) What BRP Will Do

To the extent permitted by law, BRP’s obligations under this warranty are limited

to, at its sole discretion, repairing or replacing parts found defective under normal

use, maintenance and service without charge for parts and labor, at any author-

ized BRP Distributor/Dealer during the warranty coverage period under the con-

ditions described herein. No claim of breach of warranty shall be cause for

cancellation or rescission of the sale of the Product to the owner. You may have

other legal rights which may vary from country to country.

In the event that service is required outside of the country of original sale, or for

EEA residents, if service is required outside of the EEA, the owner will bear re-

sponsibility for any additional charges due to local practices and conditions, such

as, but not limited to, freight, insurance, taxes, license fees, import duties, and

any and all other financial charges, including those levied by governments,

states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

219

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

9) Transfer

If the ownership of a Product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Product Distributor/Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

10) Consumer Assistance

In the event of a controversy or a dispute in connection with this limited warranty,

BRP suggests that you try to resolve the issue at the dealership level. We recom-

mend discussing the issue with the authorized Distributor/Dealer's service man-

ager or owner.

If the matter still remains unresolved, contact BRP by filling out the customer con-

tact form at www.brp.com or contact BRP by mail at one of the addresses listed

under the Contact Us section of this guide.

220

DATA PRIVACY INFORMATION

Bombardier Recreational Products inc., its affiliates and subsidiaries (“BRP”) is

committed to protecting your privacy and support a general policy of openness

about how we collect, use and disclose your personal information in the course

of managing our relationship with you. More detaiils can be found by visiting

BRP’’s Priivacy Poliicy at:

https://brp.com/en/privacy-poliicy.htmll or by scanniing the QR Code below.

Please be assured that we have appropriate security measures in place to en-

sure that your personal information is protected against loss and unauthorized

access.

Your personal information that may be collected by BRP, directly from you or

from authorized dealers or authorized third parties, includes:

- Contact, Demographiic & Registratiion Informatiion (e.g., name, full ad-

dress, phone number, email, gender, ownership history, language of

communication)

- Vehicle Information (e.g., serial number, purchase and delivery date, unit

usage, vehicle location and movements)

- Third Party Informatiion (e.g., information received from BRP partners, join-

t-marketing activities information, social media)

- Technological Information (e.g., IP address, type of device, operating sys-

tem, browser type, webpages you view, cookies and similar technologies

when you use BRP or dealers’ websites or mobile application)

- Interaction with BRP Information (e.g., information collected when you call

BRP’s in-house sales representatives, buy items on a BRP web Site, sign up

for BRP emails, participate in BRP-sponsored contests and sweepstakes or

attend BRP-sponsored events)

- Transactiionall Informatiion (e.g., information necessary to handle returns,

payment information when you purchase our products or services through

our websites or mobile applications and other issues related to your purchase

of BRP products)

This information may be used and processed for the following purposes:

- Safety & Security

- Customer Support for Sales & After Sales (e.g., complete or follow up with

you about your purchase or maintenance)

- Registration & Warranty

- Communication (e.g., sending you a BRP satisfaction survey)

- Online Behavioural Advertising, Profiling and Location-Based Services

(e.g., offer customized experience)

- Compliance & Dispute Resolution

- Marketing & Advertising

- Assistance (e.g., help with any delivery issues, handle returns, and other is-

sues related to your purchase of BRP products).

We also may use personal information to generate aggregated or statistical data

that no longer identifies you personally.

Your personal informatiion may be disclosed to the folllowiing: BRP, BRP’s

authoriized deallerships, diistriibutors, serviice proviiders, advertising & mar-

ket research partners and other authoriized third partiies.

We may receive information about you from diverse sources, including third par-

ties, such as BRP’s authorized dealerships and partners, with whom we offer

222

DATA PRIVACY INFORMATION

services or engage in joint-marketing activities. We may also receive information

about you from social media platforms such as Facebook and Twitter, when you

interact with us on those platforms.

Depending on the circumstances, your personal information may be communi-

cated outside the region where you reside. Your personal information is retained

only for as long as necessary for the purpose for which we obtained it and ac-

cording to our retention policies.

To exercise your data privacy rights (e.g. right of access, right of rectification), to

withdraw your consent in order to be removed from the address list for marketing

purposes or for the satisfaction survey or for general data privacy questions,

please contact BRP’s Data Protection Officer at or by mail at privacyoffii-

cer@brp.com or by mail at:

BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E 2L0.

When BRP processes your personall iinformation, they do so in complliance

wiith its Privacy Pollicy avaiilable at: https://www.brp.com/en/privacy-poliicy.

htmll or by using the folllowiing

QR Code.

223

www.brp.com

Asia Pacific

Australia

Level 26

477 Pitt Street

Sydney, NSW 2020

China

上海市徐汇区衡山路10号6号楼301

Rm 301, Building 6,

No.10 Heng Shan Rd,

Shanghai, China

Japan

21F Shinagawa East One Tower

2-16-1 Konan, Minato-ku-ku,

Tokyo 108-0075

New Zealland

Suite 1.6, 2-8 Osborne Street,

Newmarket, Auckland 2013

Europe, Middle East and Africa

Bellgium

Oktrooiplein 1

9000 Gent

Czech Republiic

Stefanikova 43a

Prague 5

150 00

Germany

Itterpark 11

40724 Hilden

Fiinland

Isoaavantie 7

PL 8040

96101 Rovaniemi

France

Arteparc Bâtiment B

Route de la côte d'Azur,

13 590 Meyreuil

Norway

Ingvald Ystgaardsvei 15

N-7484 Trondheim

224

CHANGE OF ADDRESS AND OWNERSHIP

If your address has changed or if you are the new owner of the vehicle, be sure

to notify BRP by either:

- Notifying an authorized Can-Am dealer.

- North America Only: calling at 1 888 272-9222.

- Mailing one of the change of address cards on the following pages at one of

the BRP addresses indicated in the Contact Us section of this guide.

In case of change of ownership, please join a proof that the former owner agreed

to the transfer.

Notifying BRP, even after the expiration of the limited warranty, is very important

as it enables BRP to reach the vehicle owner if necessary, like when safety re-

calls are initiated. It is the owner’s responsibility to notify BRP.

STOLEN UNITS: If your personal vehicle is stolen, you should notify BRP or an

authorized Can-Am dealer. We will ask you to provide your name, address,

phone number, the vehicle identification number and the date it was stolen.

226
