Can-Am COMMANDER MAX SERIES. OPERATOR’S GUIDE (2024)

OPERATOR’S GUIDE

Covered Models

Commander MAX DPS 700

Commander MAX DPS 1000R

Commander MAX XT 700

Commander MAX XT 1000R

Commander MAX XT-P 1000R

In Canada, products are distributed and serviced by Bombardier Recreational

Products Inc. (BRP).

In the USA, products are distributed and serviced by BRPUS Inc.

In the European Economic Area (which is comprised of the member states of the

European Union plus the United Kingdom, Norway, Iceland and Liechtenstein),

the Commonwealth of the Independent States (including Ukraine and Turkmeni-

stan) and Turkey, products are distributed and serviced by BRP European Distri-

bution S.A. and other affiliates or subsidiaries of BRP.

For all other countries, products are distributed and serviced by Bombardier Rec-

reational Products Inc. (BRP) or its affiliates.

TABLE OF CONTENTS

GENERAL INFORMATION

Know Before you Go

Safety Messages

About this Operator’s Guide

SAFETY INFORMATION

GENERAL PRECAUTIONS

Avoid Carbon Monoxide Poisoning

Avoid Gasoline Fires and Other Hazards

Avoid Burns from Hot Parts

Accessories and Modifications

SAFE OPERATION - RESPONSIBILITIES

Owner - Be Responsible

Operator - Be Qualified and Responsible

Riding Carefully

Occupant Restraint System

Terrain Condition

PRE-RIDE INSPECTION

Pre-Ride Inspection Check List

PREPARE TO RIDE

Before you Ride

Riding Gear

Helmets and Eye Protection

Other Riding Gear

AVOID ACCIDENTS

Avoid Rollovers and Tipovers

Avoid Collisions

RIDING YOUR VEHICLE

Practice Exercises

Off-Road Operation

General Riding Techniques

Environment

MOVING LOADS AND DOING WORK

Working with Your Vehicle

Carrying Loads

Vehicle Settings When Carrying Load

Loading the Cargo Box

Operating While Carrying a Load

Tilting the Cargo Box

Hauling a Load

Pulling a Trailer

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Safety Hang Tag

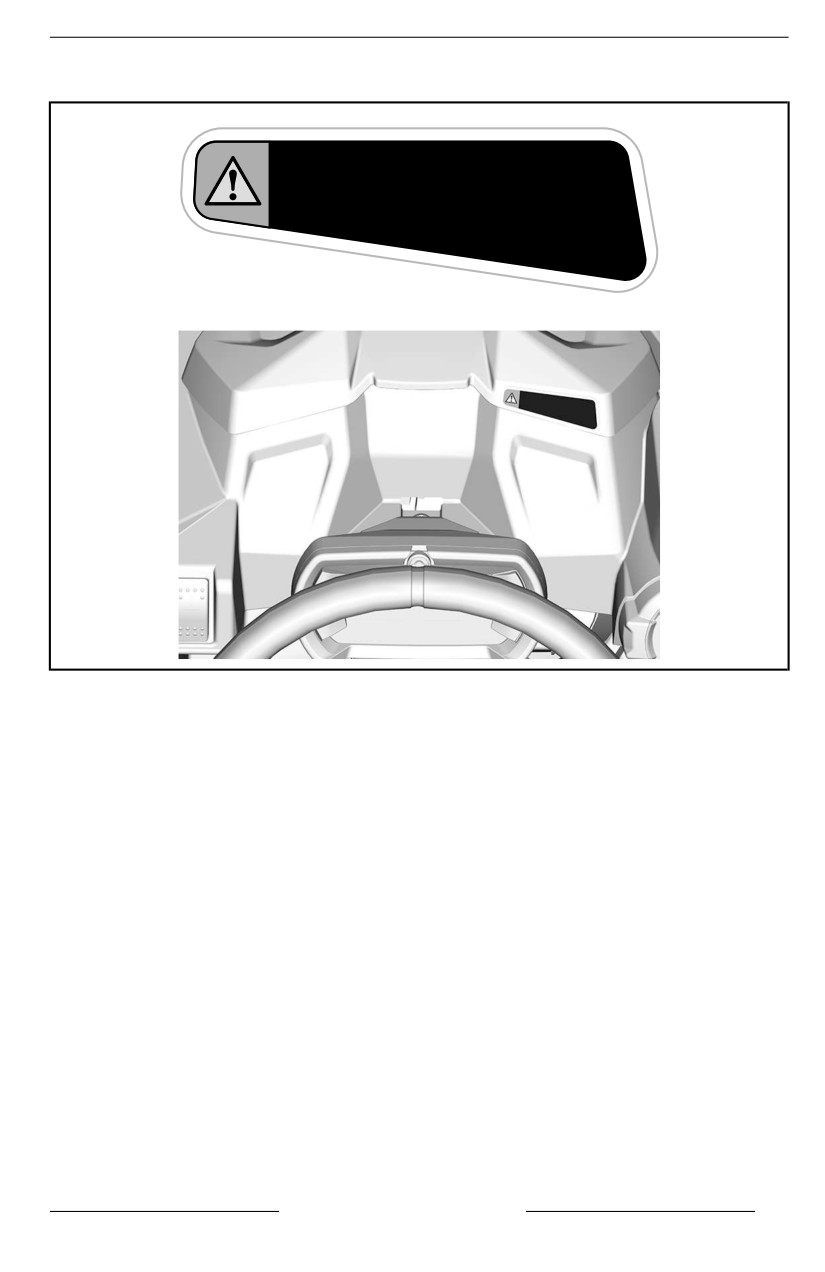

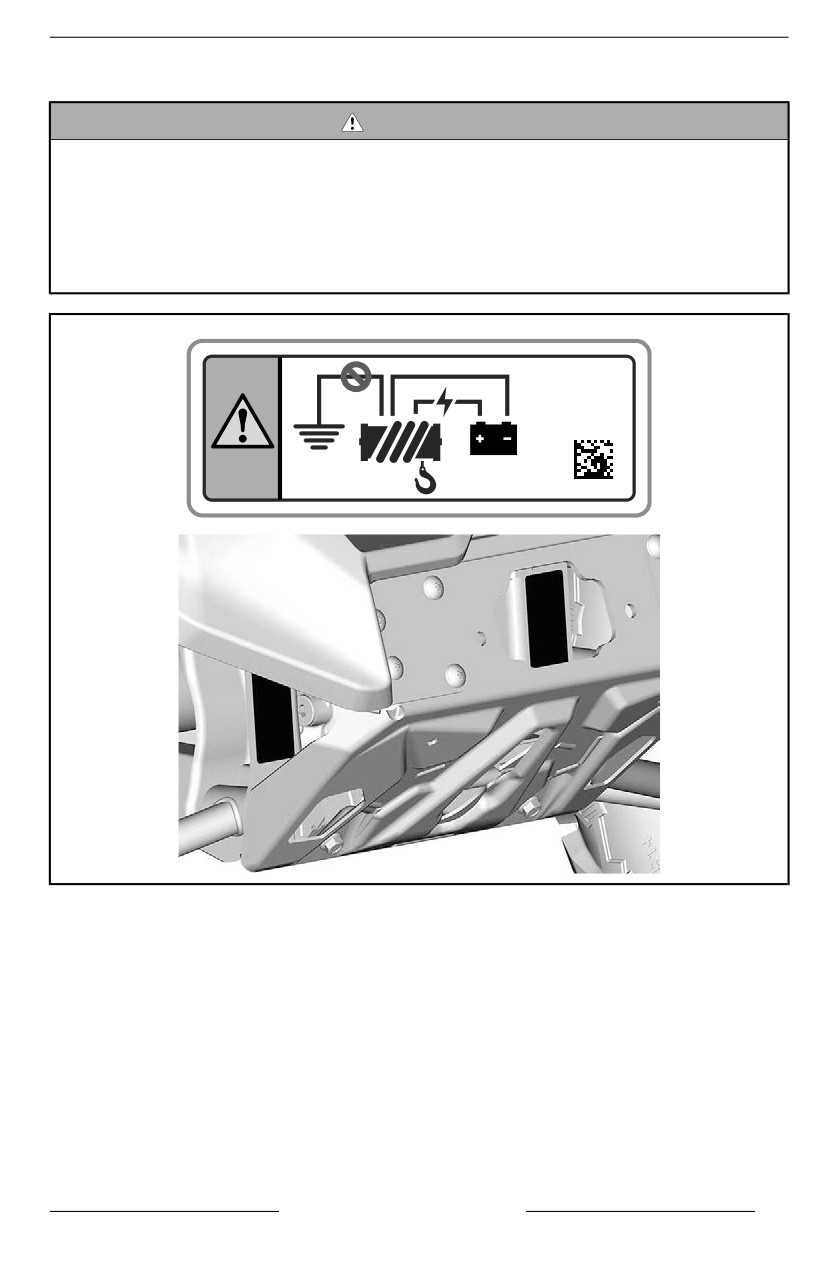

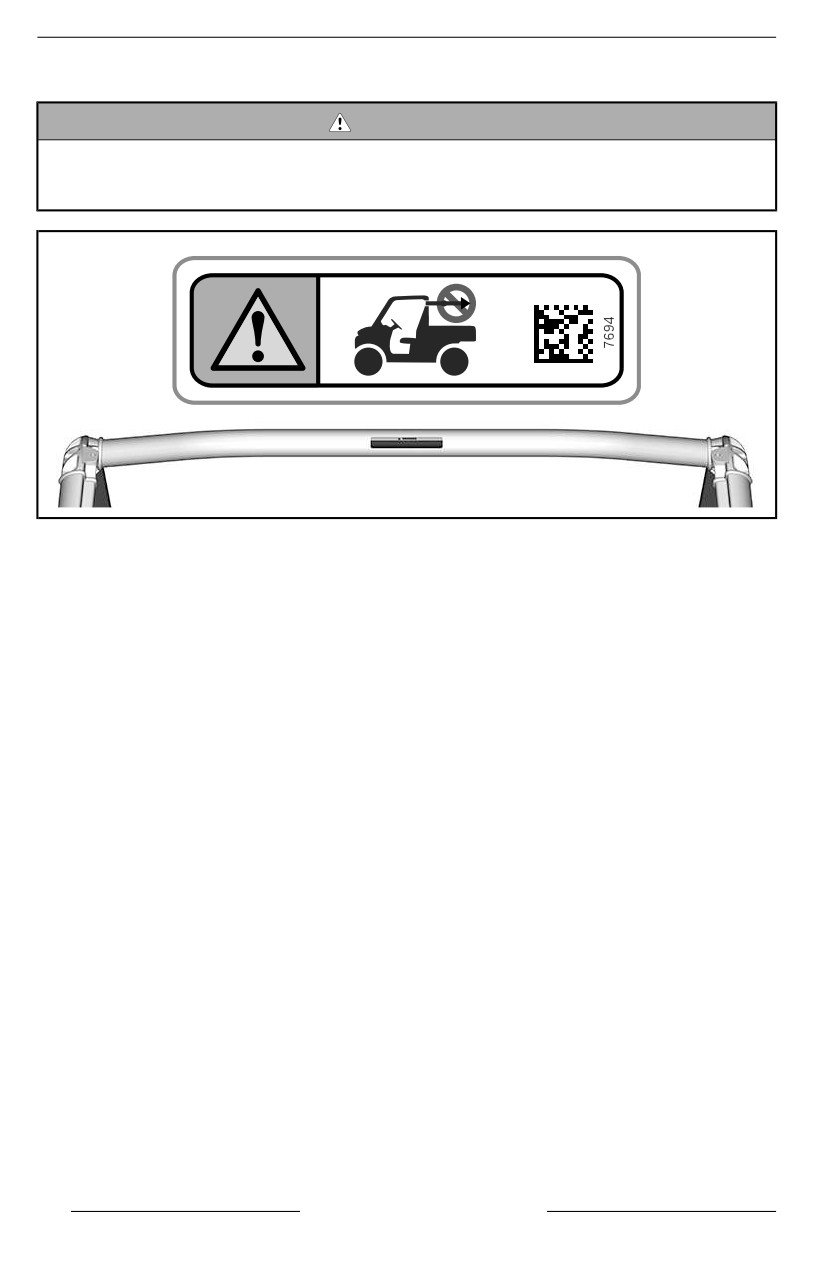

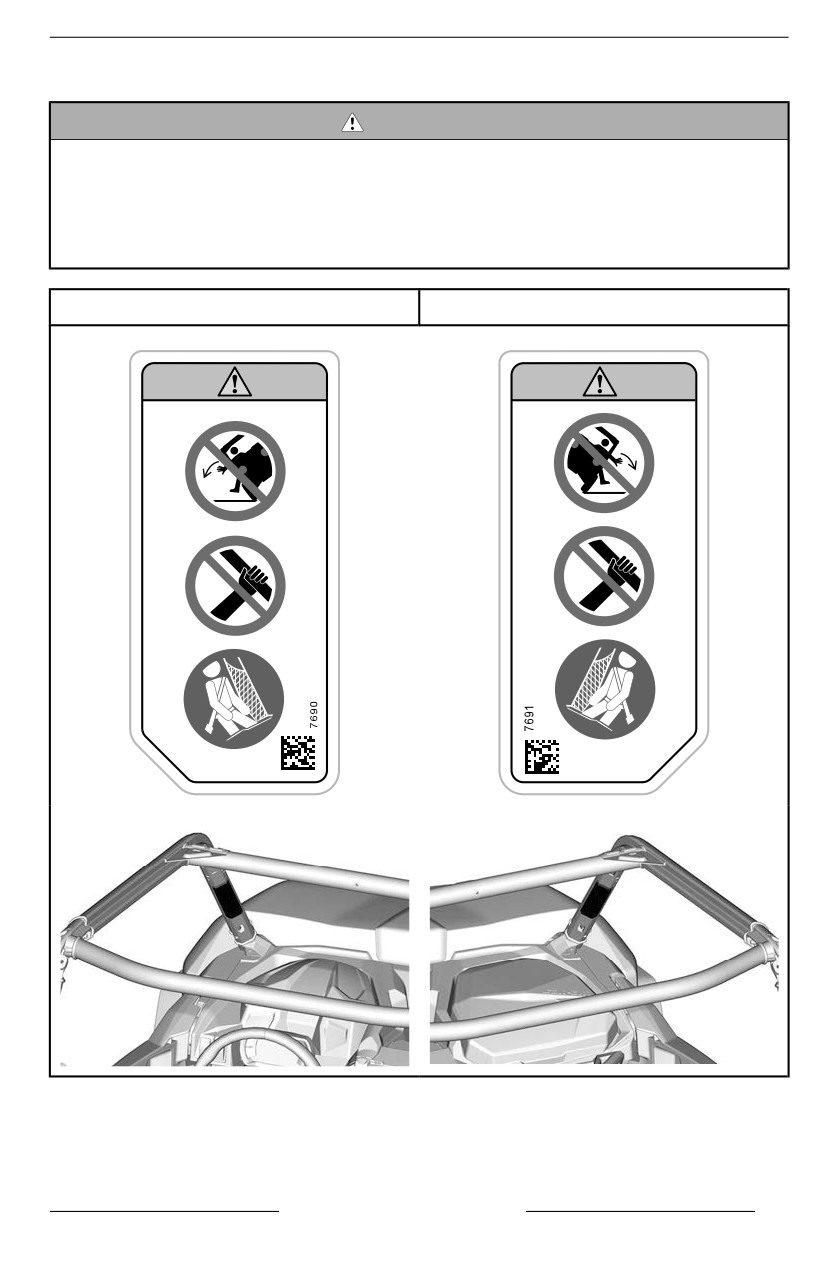

Safety Labels

Compliance HangTag

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA

AND UNITED STATES)

Safety Labels

TABLE OF CONTENTS

REPORTING SAFETY DEFECTS

VEHICLE INFORMATION

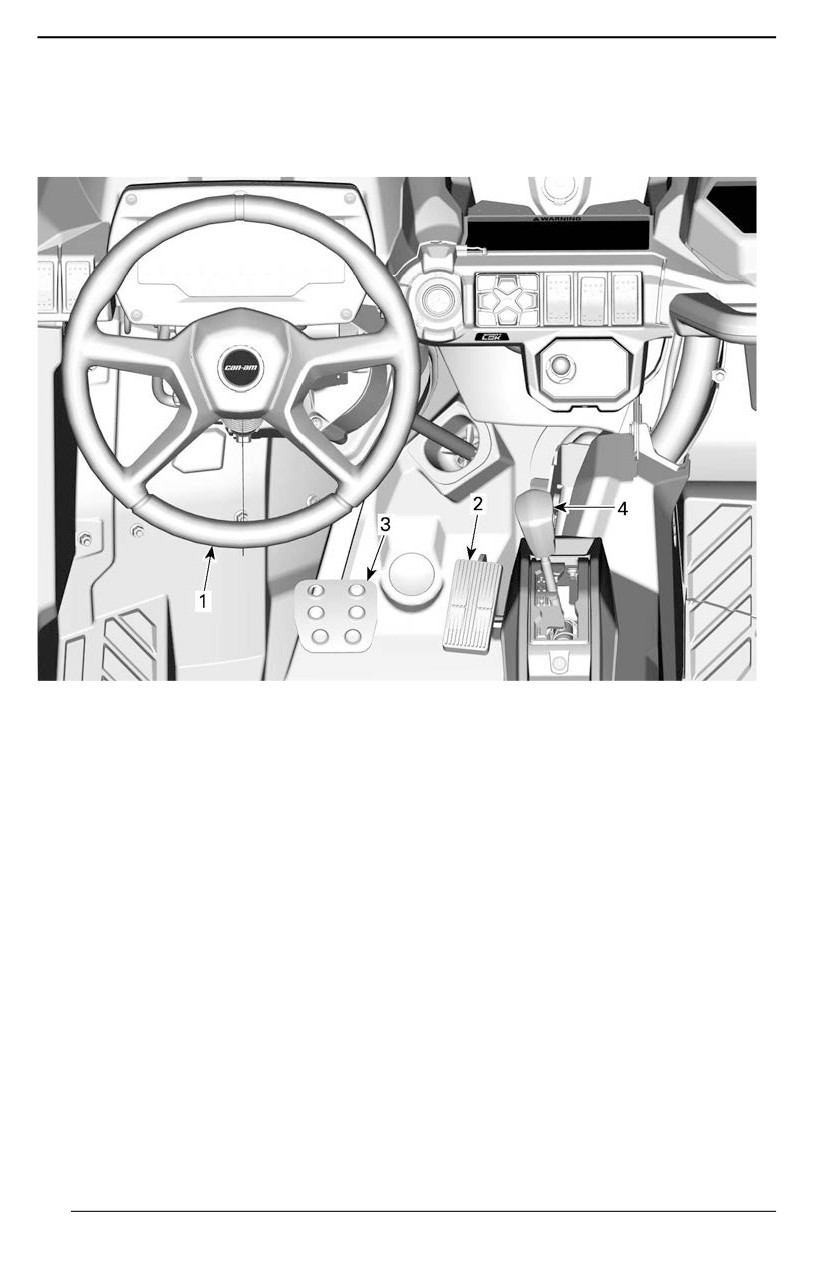

PRIMARY CONTROLS

Steering Wheel

Accelerator Pedal

Brake Pedal

Shift Lever

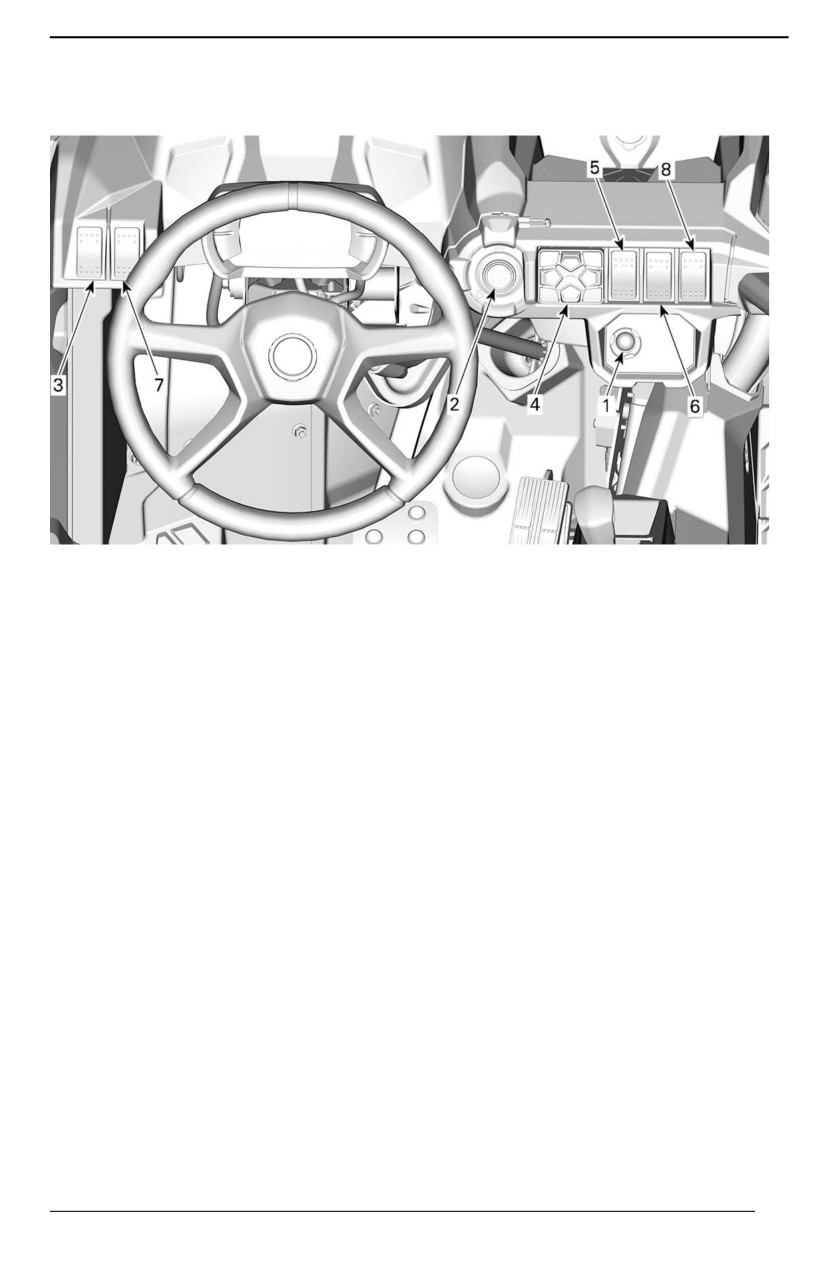

SECONDARY CONTROLS

RF D.E.S.S Key and RF D.E.S.S. Post

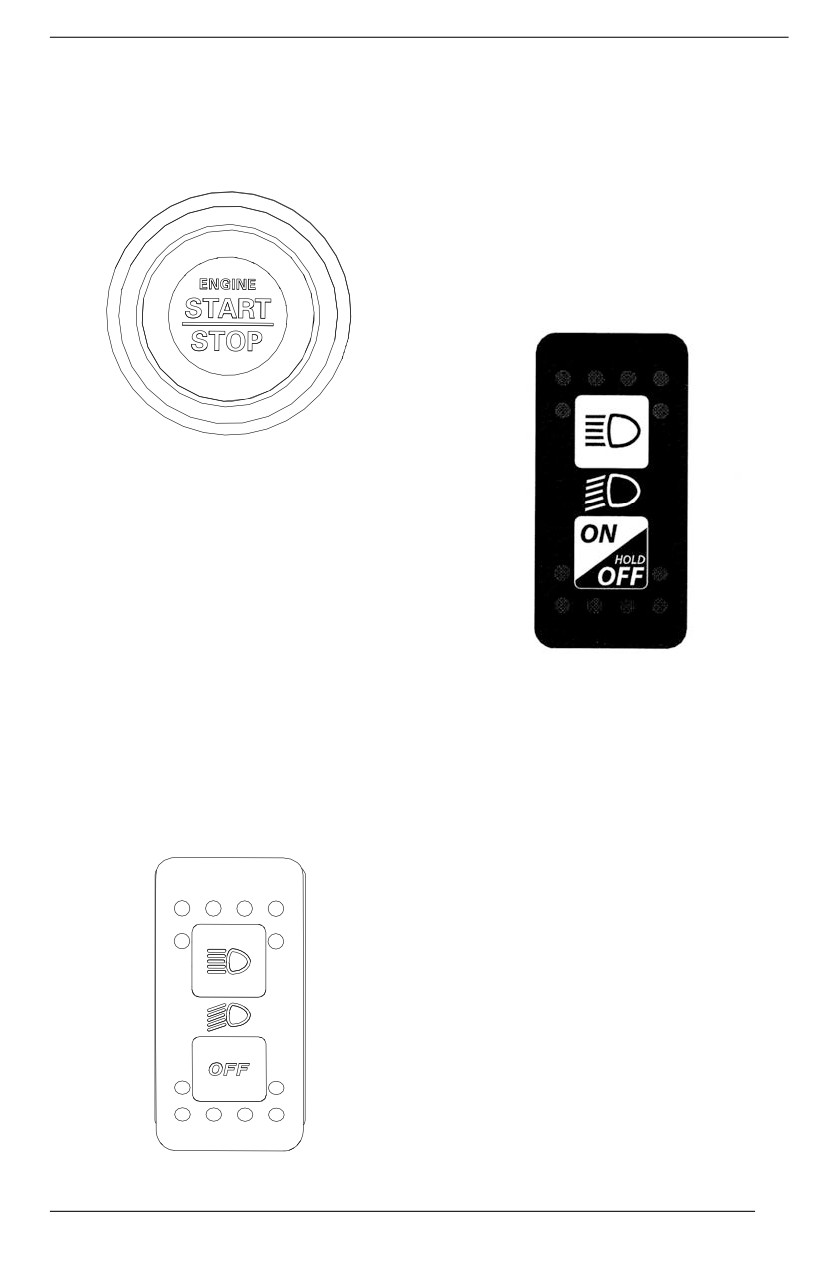

Engine Start/Stop Button

Headlight Dimmer Switch

Headlight Dimmer Switch (700 Engine)

Winch Switch

Keypad

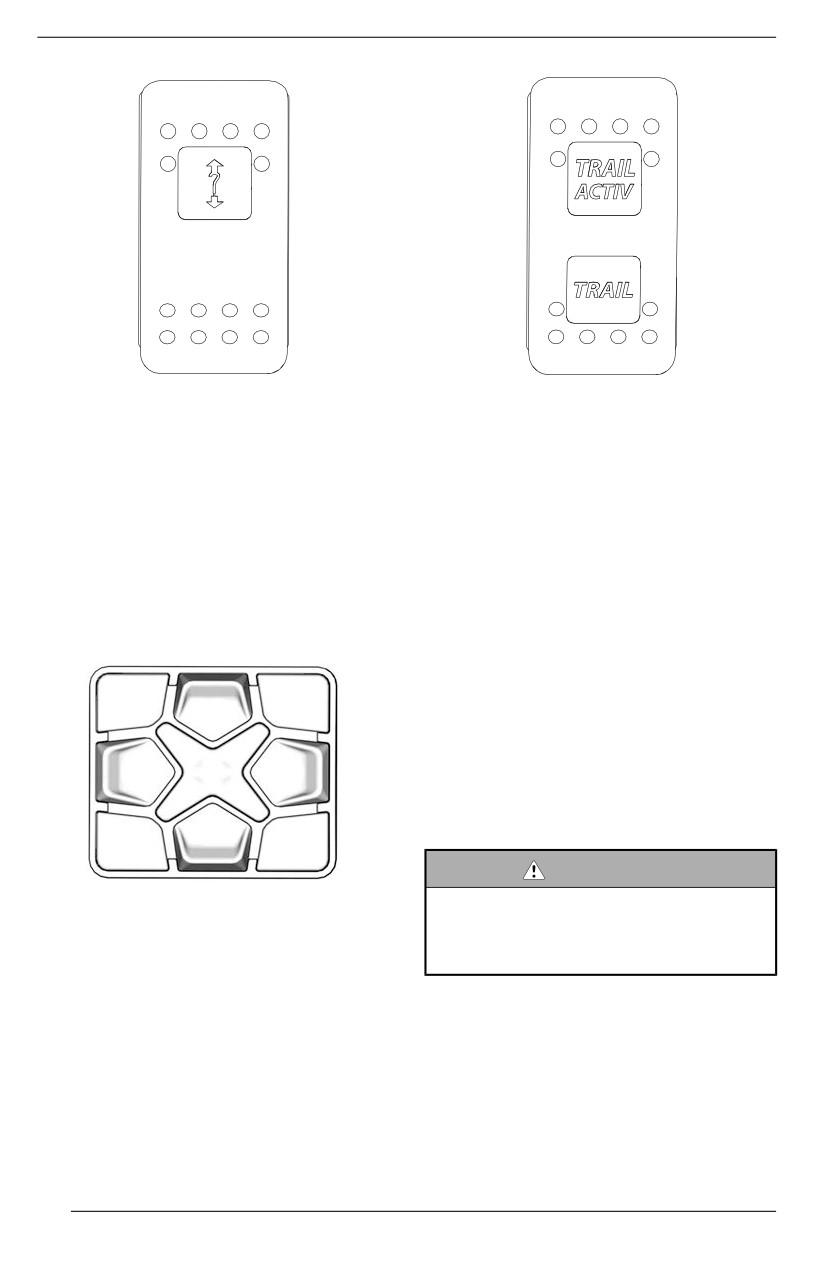

Riding Mode Switch

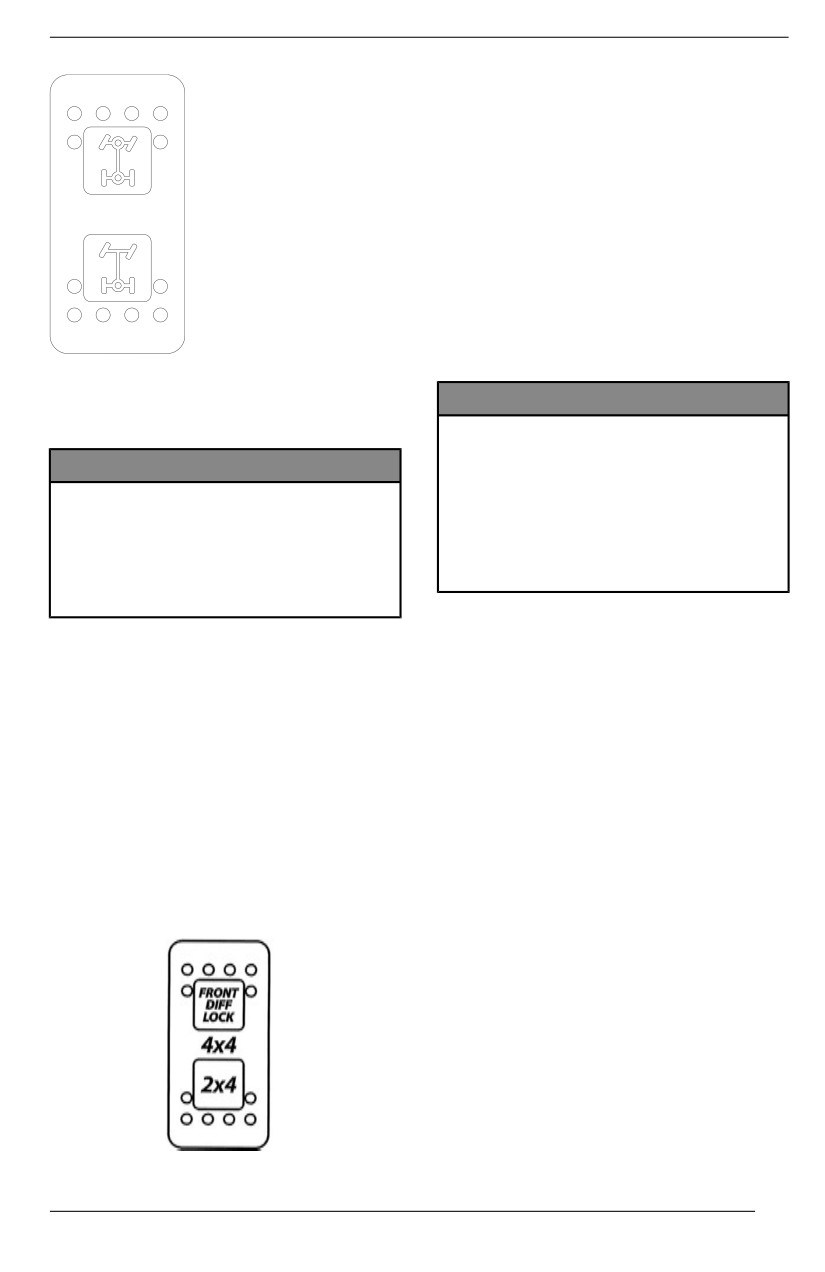

2WD/4WD Switch

2WD/4WD/Front Diff Lock Switch

Rear Differential Lock Switch

EQUIPMENT

Tilt Steering

Cup Holders

Passenger’s Handholds

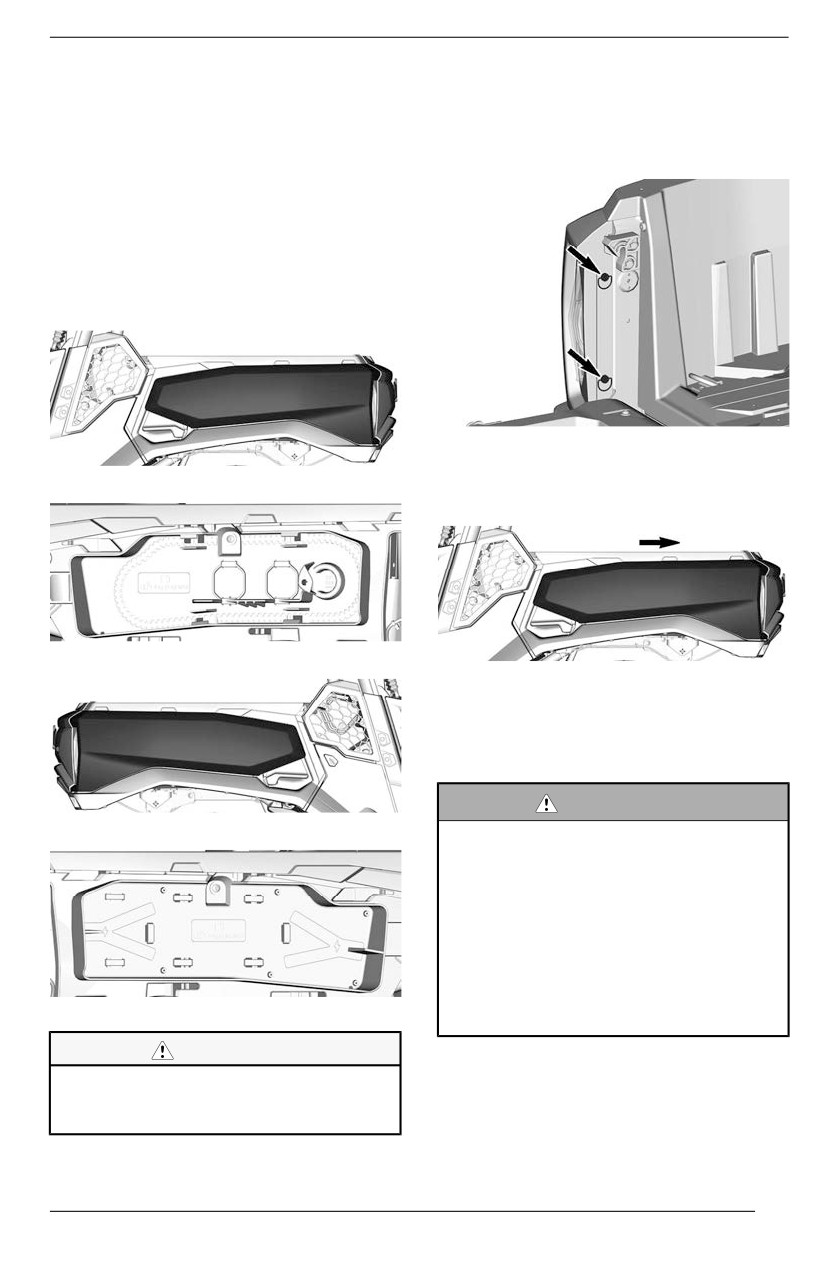

Storage Compartments

Tool Kit

Footrests

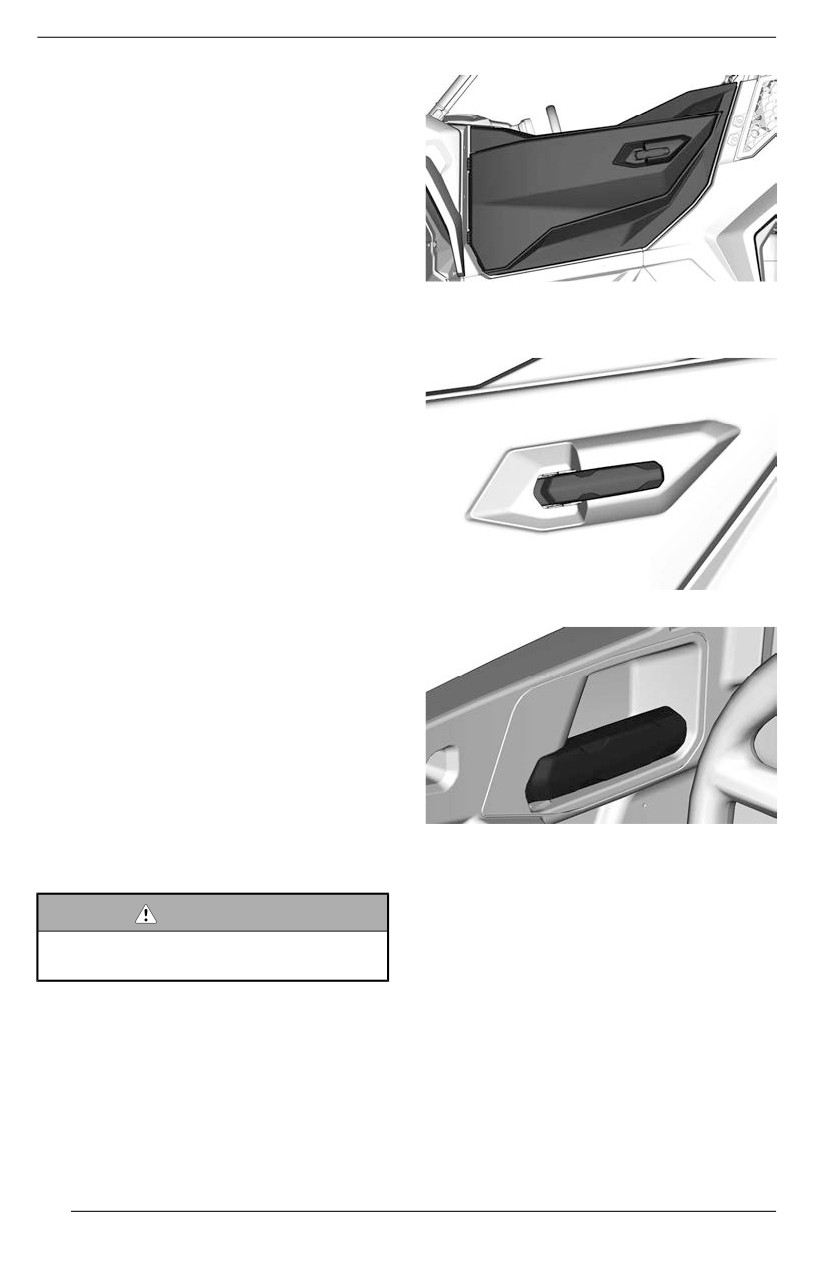

Half Doors

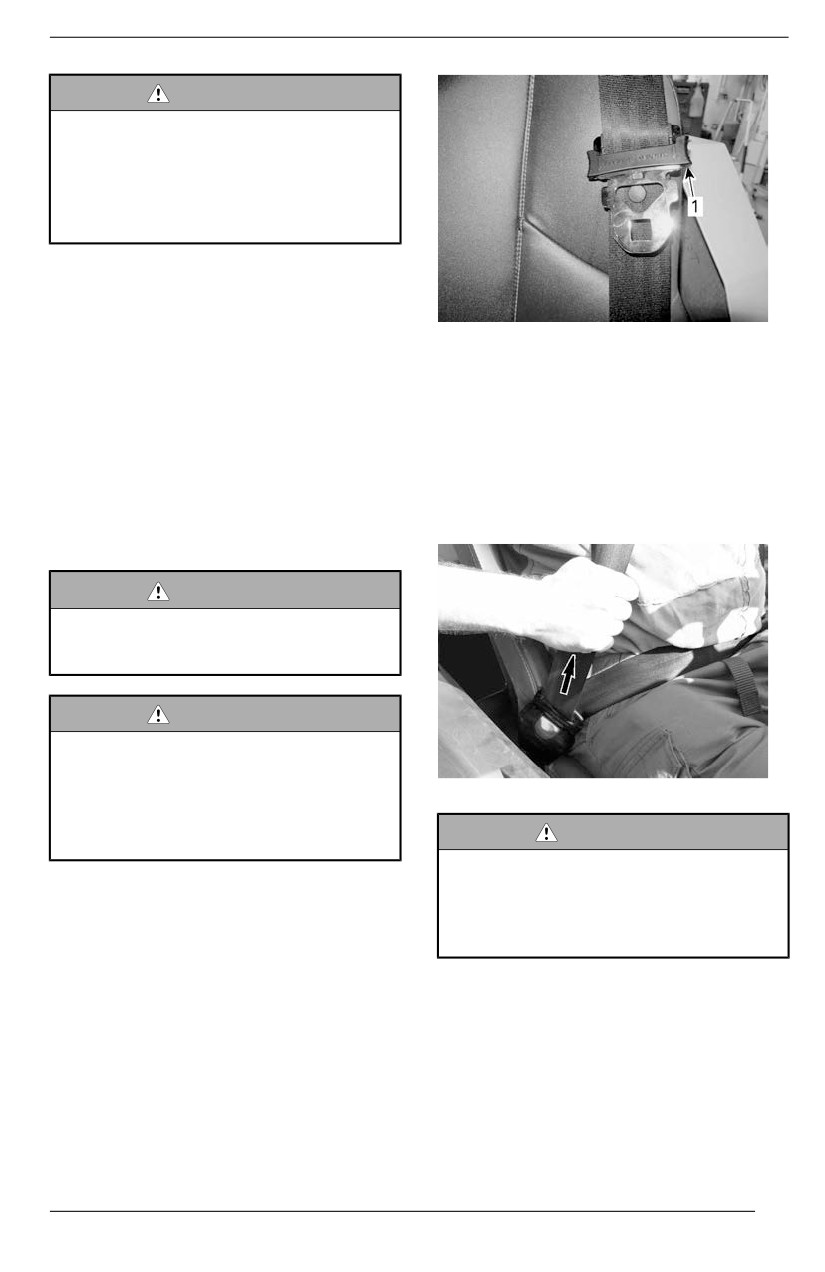

Seat Belts

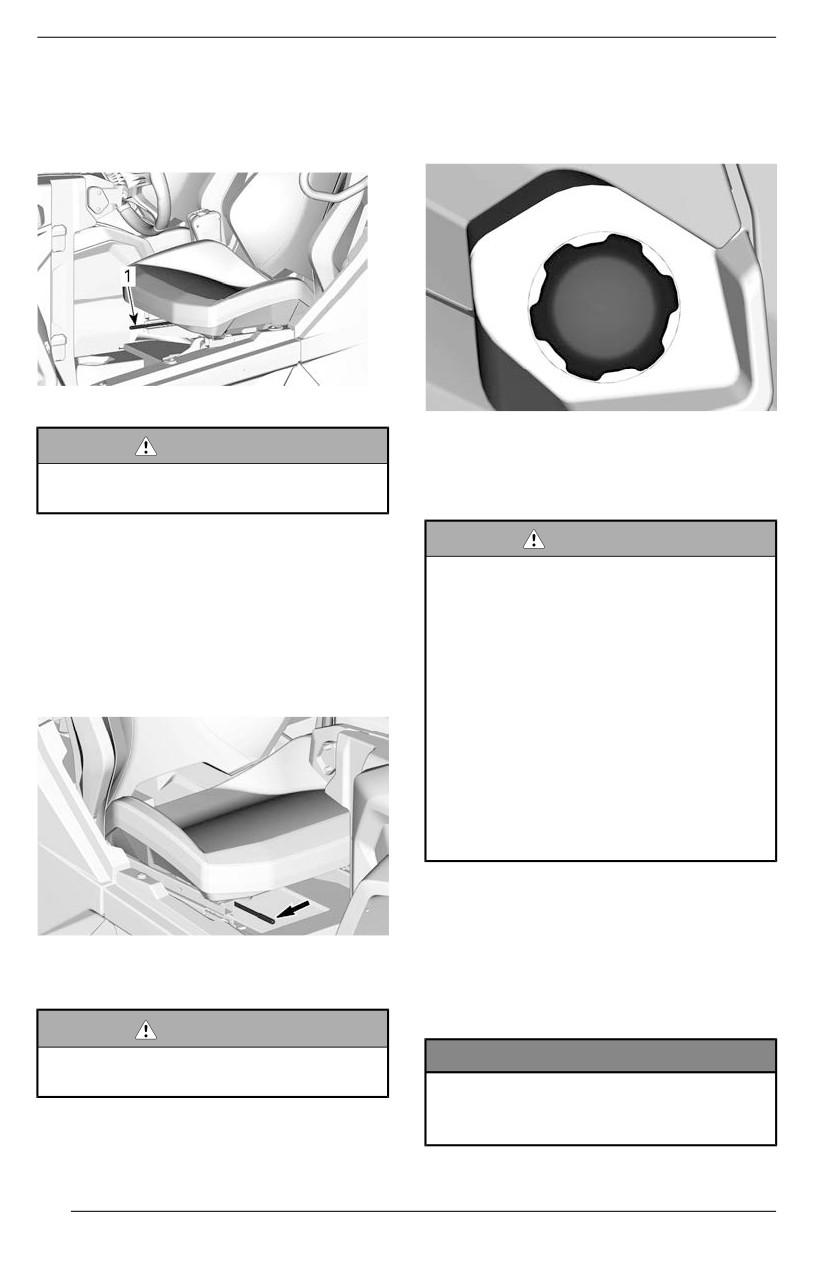

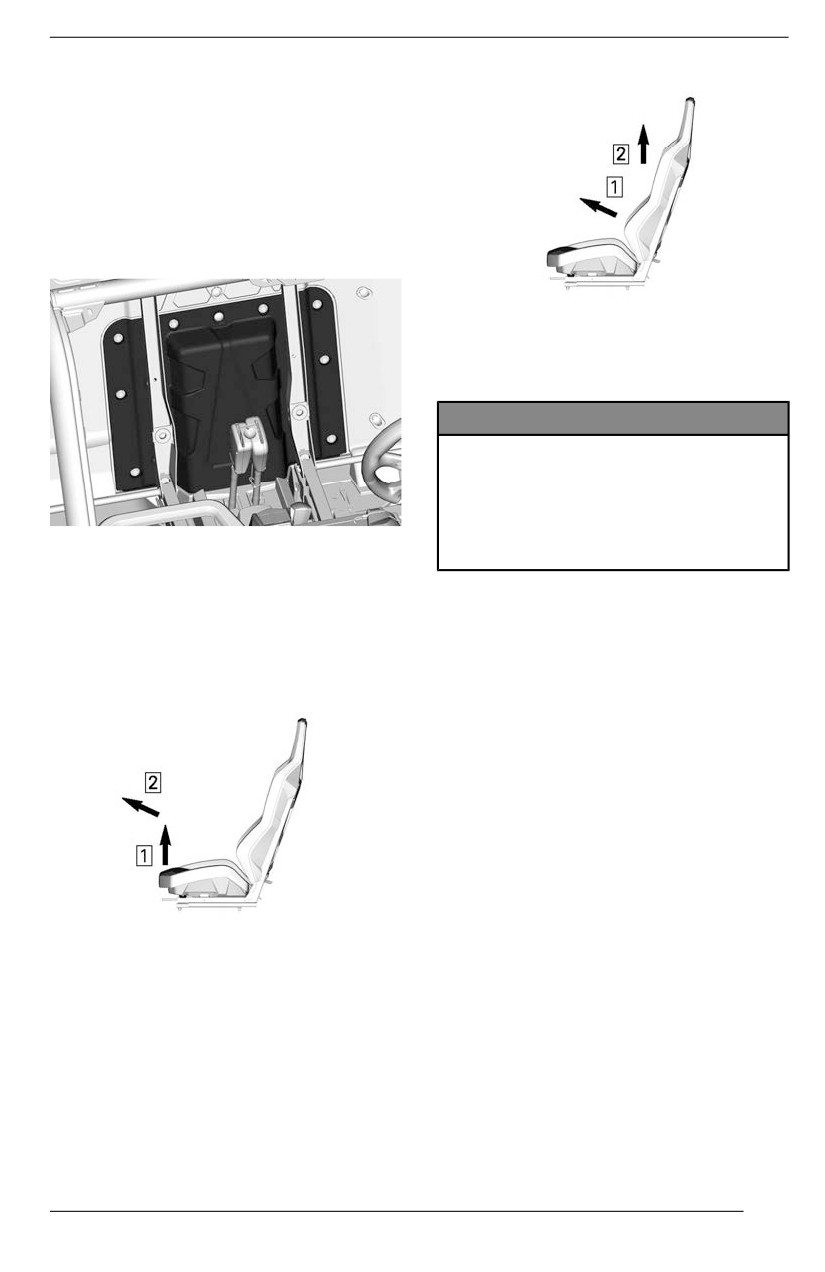

Driver’s Seat

Passenger’s Seats

Fuel Reservoir Cap

Winch

Cargo Box

Trailer Hitch

12-Volt Power Outlet

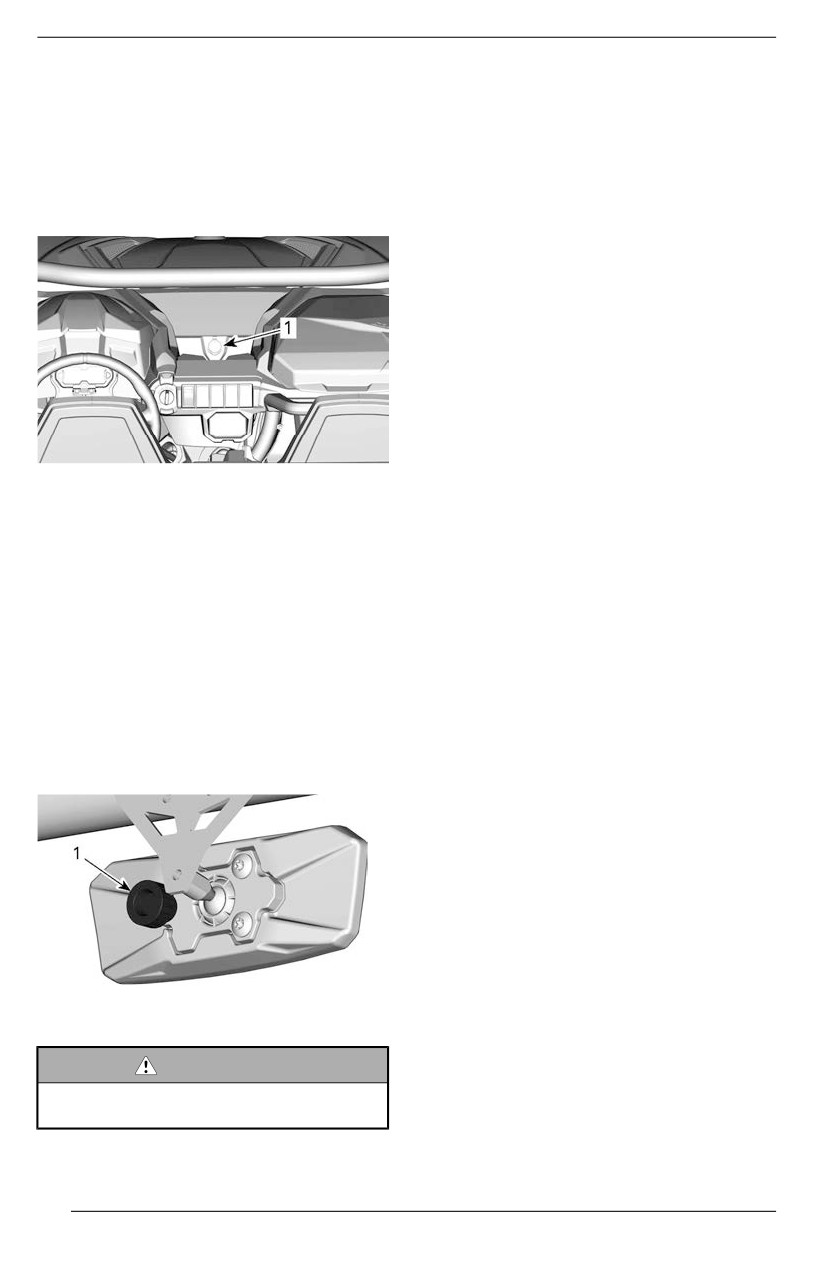

Central Rearview Mirror

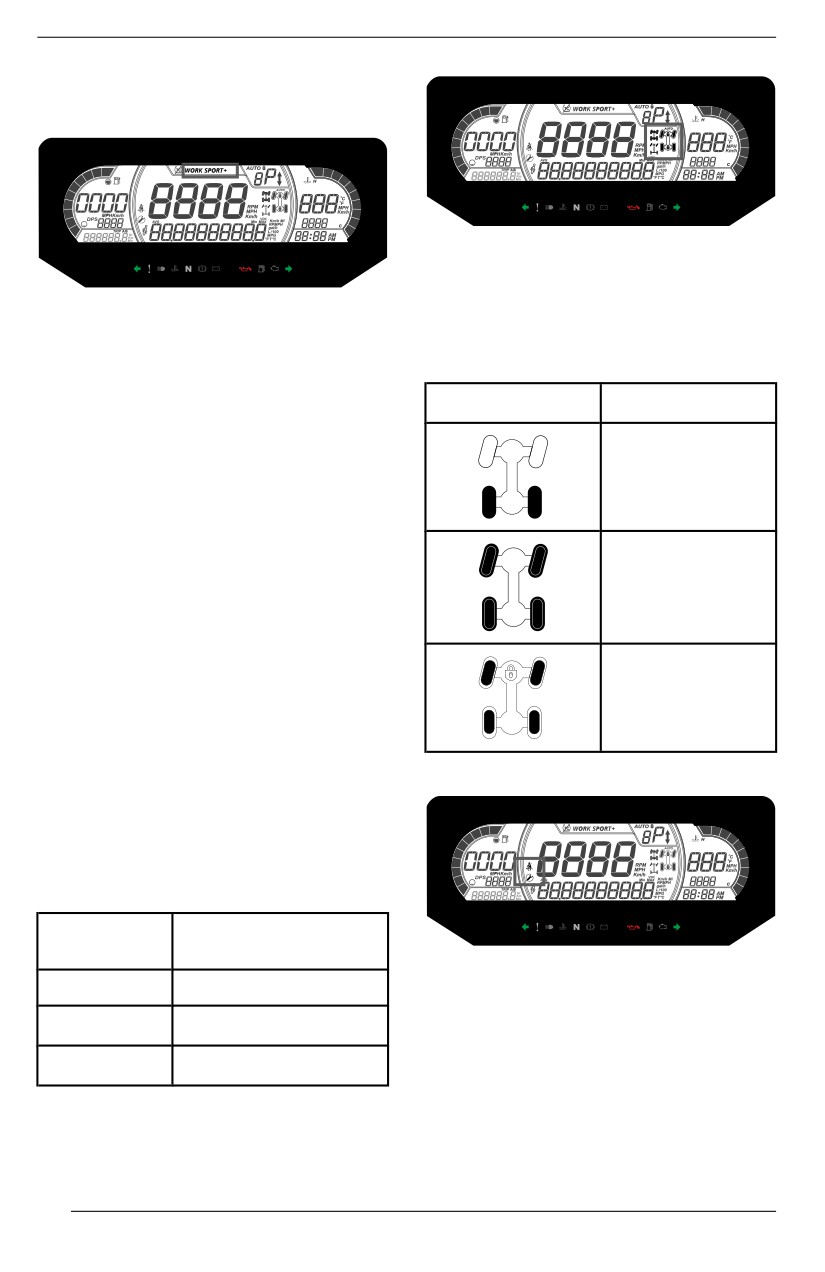

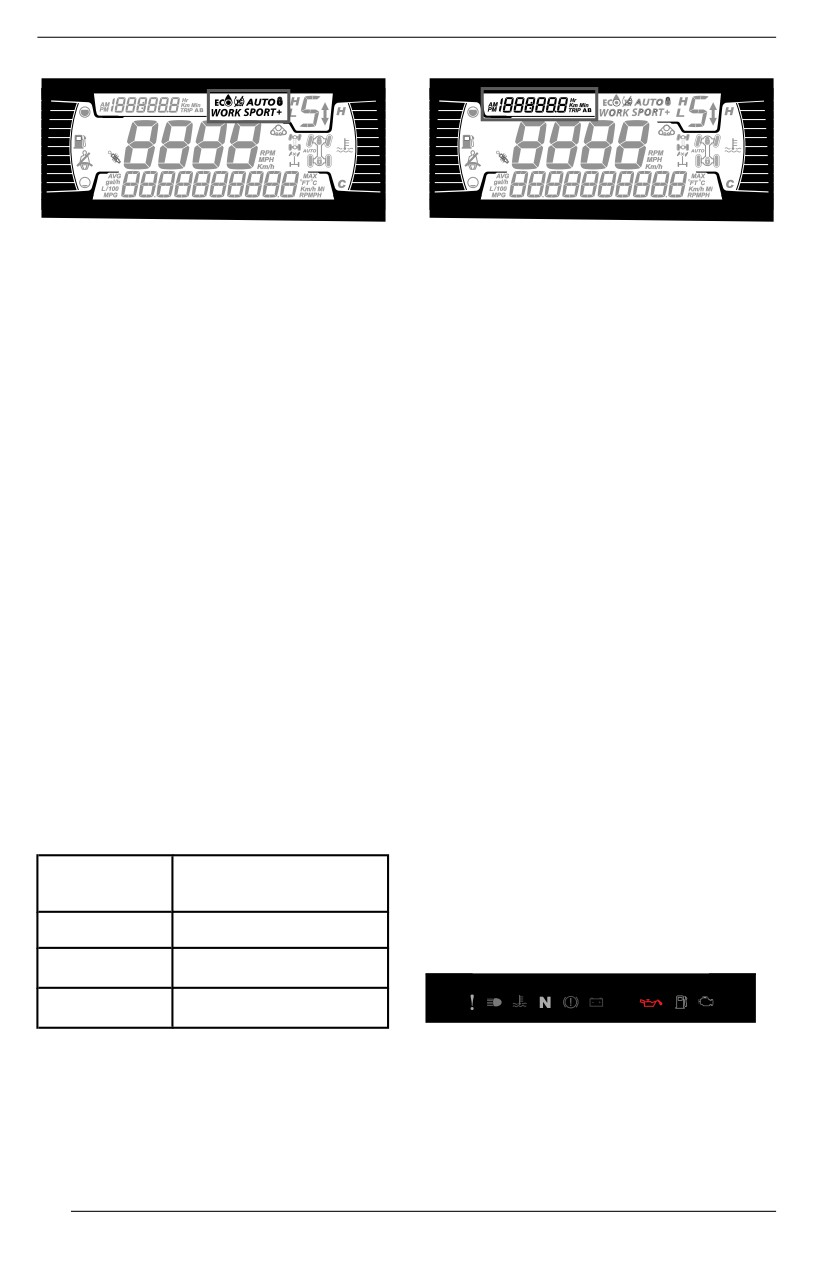

4.5” DIGITAL DISPLAY

Multifunction Display

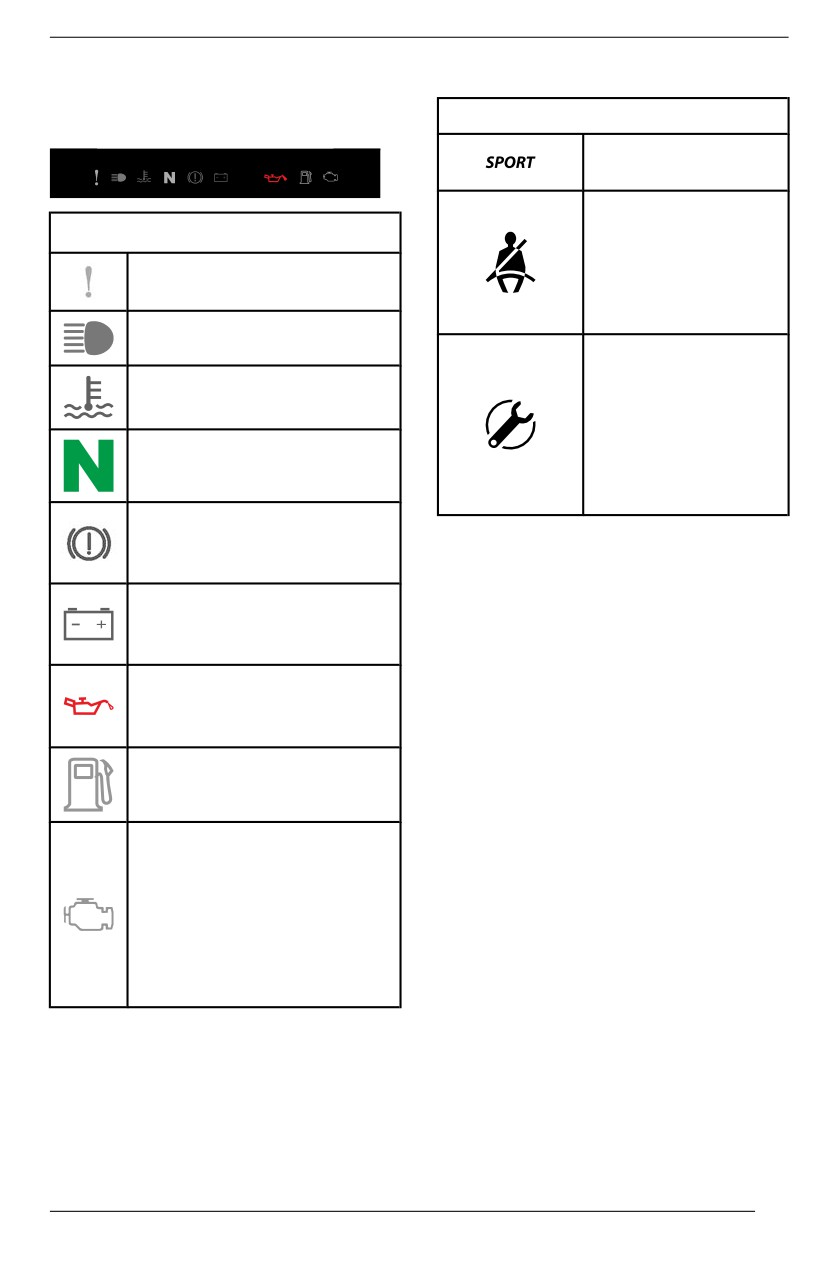

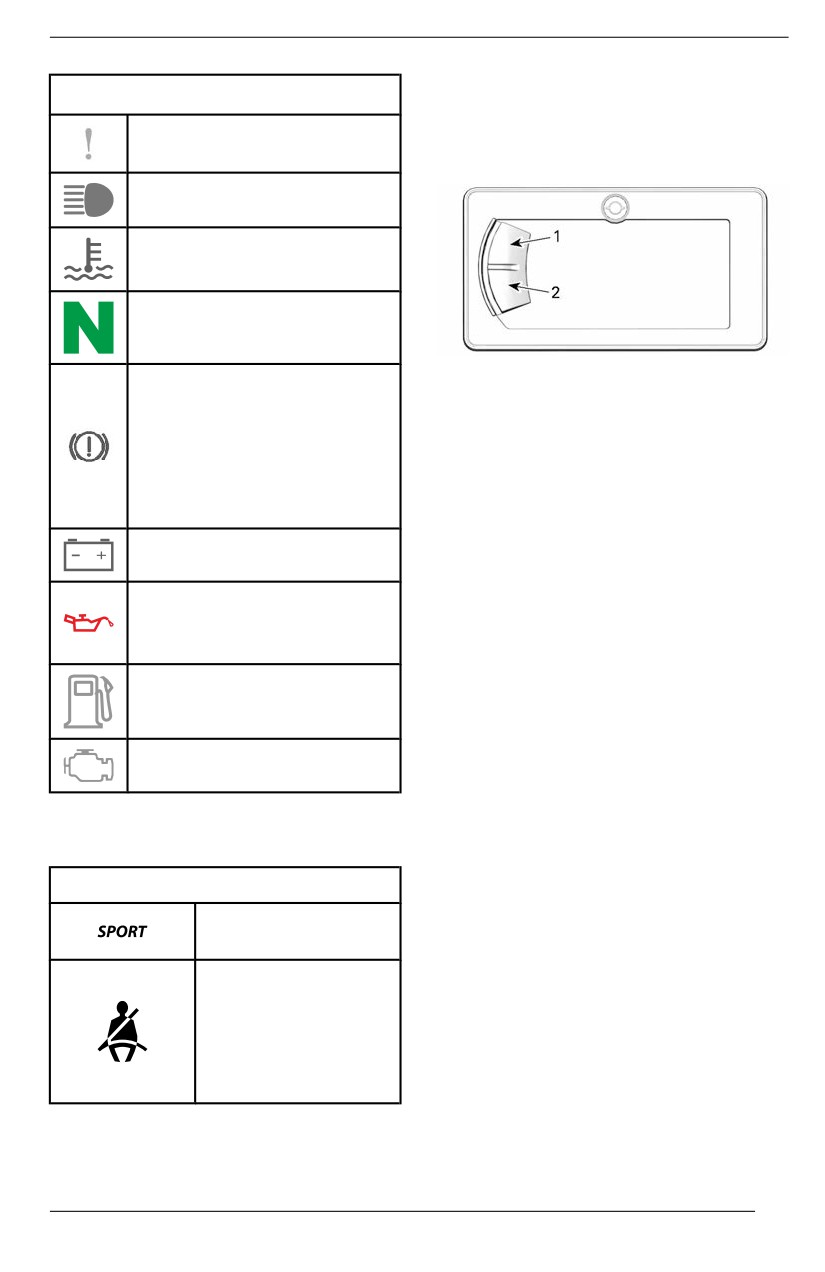

Warning Lamps and Indicators

Settings

7.6" DIGITAL DISPLAY

Multifunction Display

Indicator Lamps

Settings

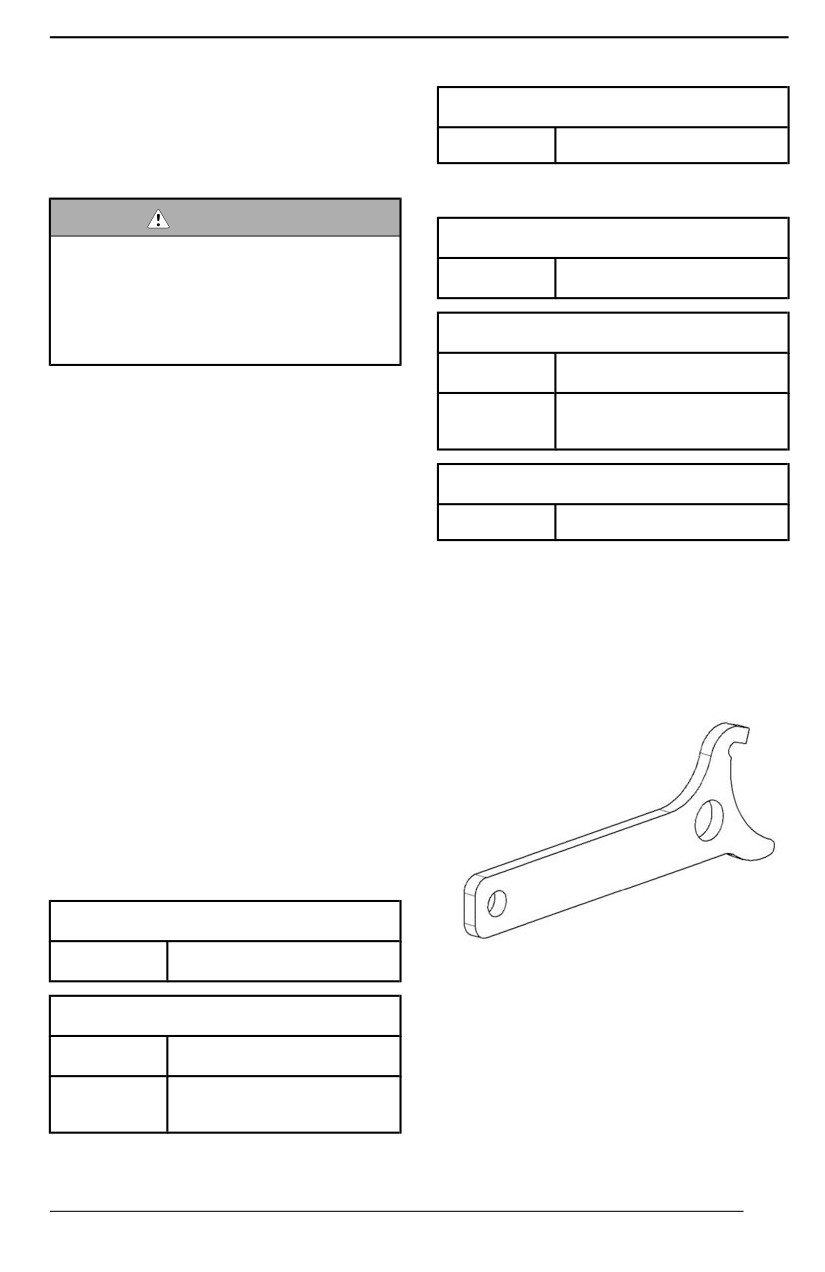

TUNE YOUR RIDE

101

Suspension Adjustment Guidelines

101

Suspension Factory Settings

101

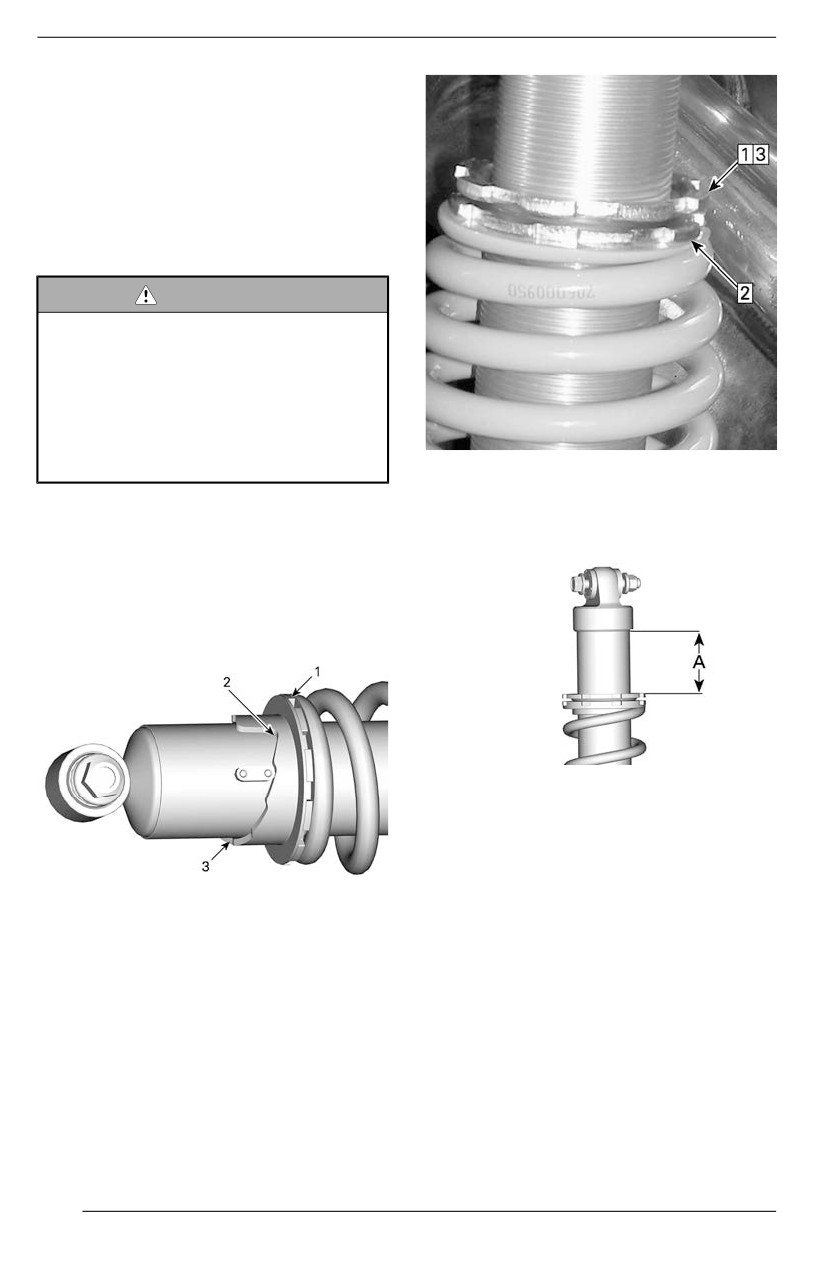

Suspension Adjustments

101

FUEL

103

Fuel Requirements

103

Vehicle Fueling Procedure

104

TABLE OF CONTENTS

BREAK-IN PERIOD

105

Operation During Break-In

105

BASIC PROCEDURES

106

Starting the Engiine

106

Waking Up the Electrical System

106

Operatiing the Shift Lever

106

Choosing the Correct Range (Low or High)

106

Stopping the Engiine and Parking the Vehiiclle

107

Tips for Maximizing Drive Belt Durability

107

SPECIAL PROCEDURES

109

Fuel Flooded Engine

109

What to do if Water is Suspected to be in the CVT

109

What to do if Battery is Drained Out

109

What to Do if Vehicle Rolled Over

109

What to do if Vehicle is Submerged

110

TRANSPORTING THE VEHICLE

111

Using Vehicle Power to Climb Onto Trailering Equipment

112

Using a Winch to Pull Vehicle Onto Trailering Equipment

112

Securing Vehicle for Transport

113

Getting Vehicle Out of Trailer

114

LIFTING AND SUPPORTING THE VEHICLE

115

Front of Vehicle

115

Rear of Vehicle

115

MAINTENANCE

MAINTENANCE SCHEDULE

118

EPA Regulation - Canadian and USA Vehicles

118

Air Filter Maintenance Guideline

118

Severe Duty Use

119

Deep Mud / Water Use

119

Maintenance Schedule

120

Maintenance Records

131

MAINTENANCE PROCEDURES

136

Accessing the Maintenance Components

136

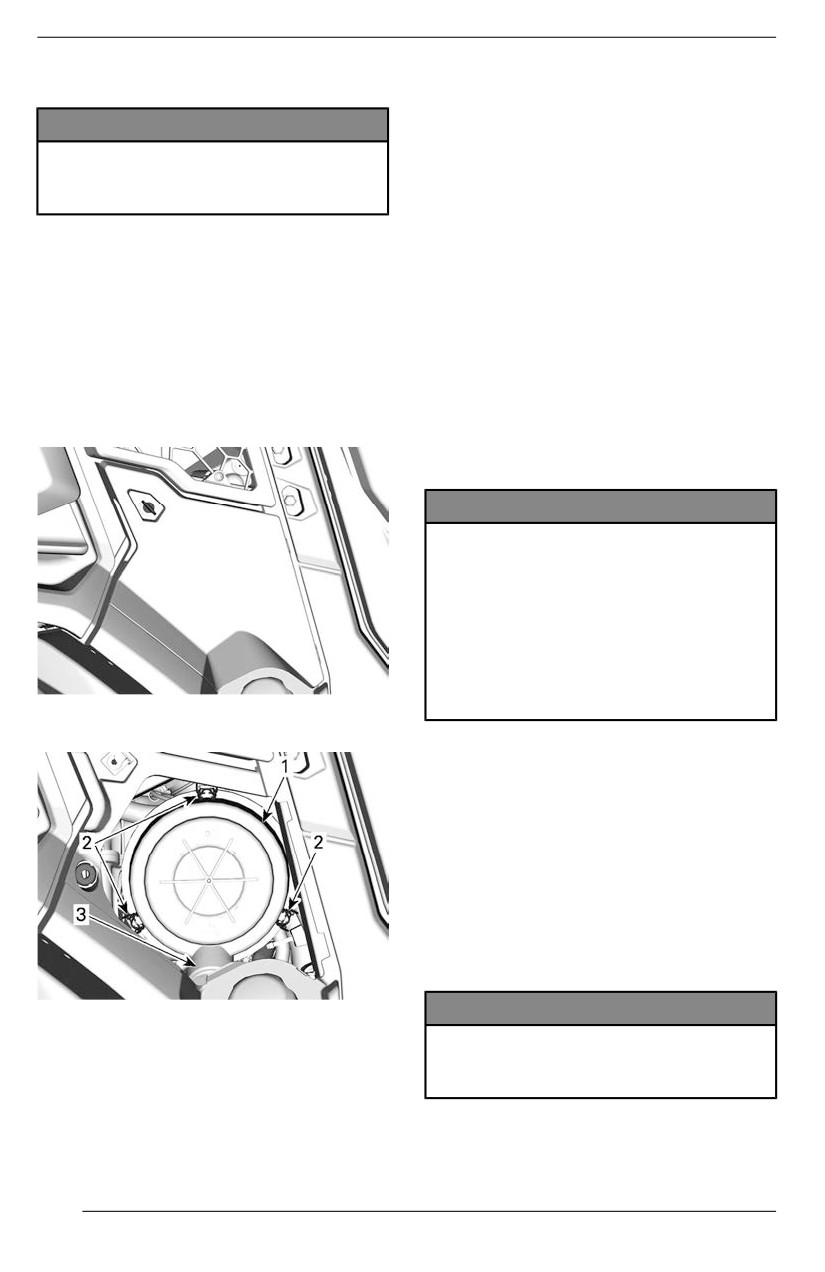

Engine Air Filter

137

CVT Air Filter

139

Evaporative Emission System Pre-Filter (if Equipped)

140

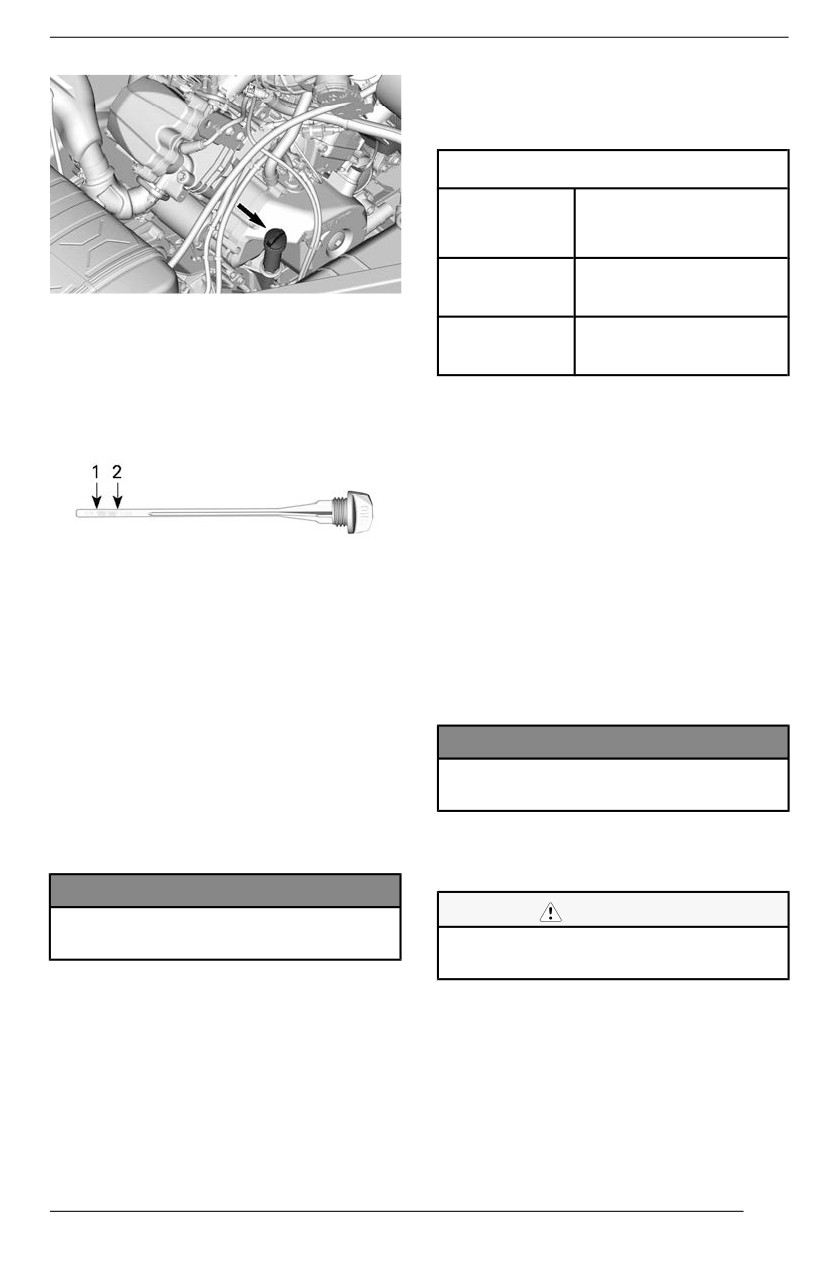

Engine Oil

140

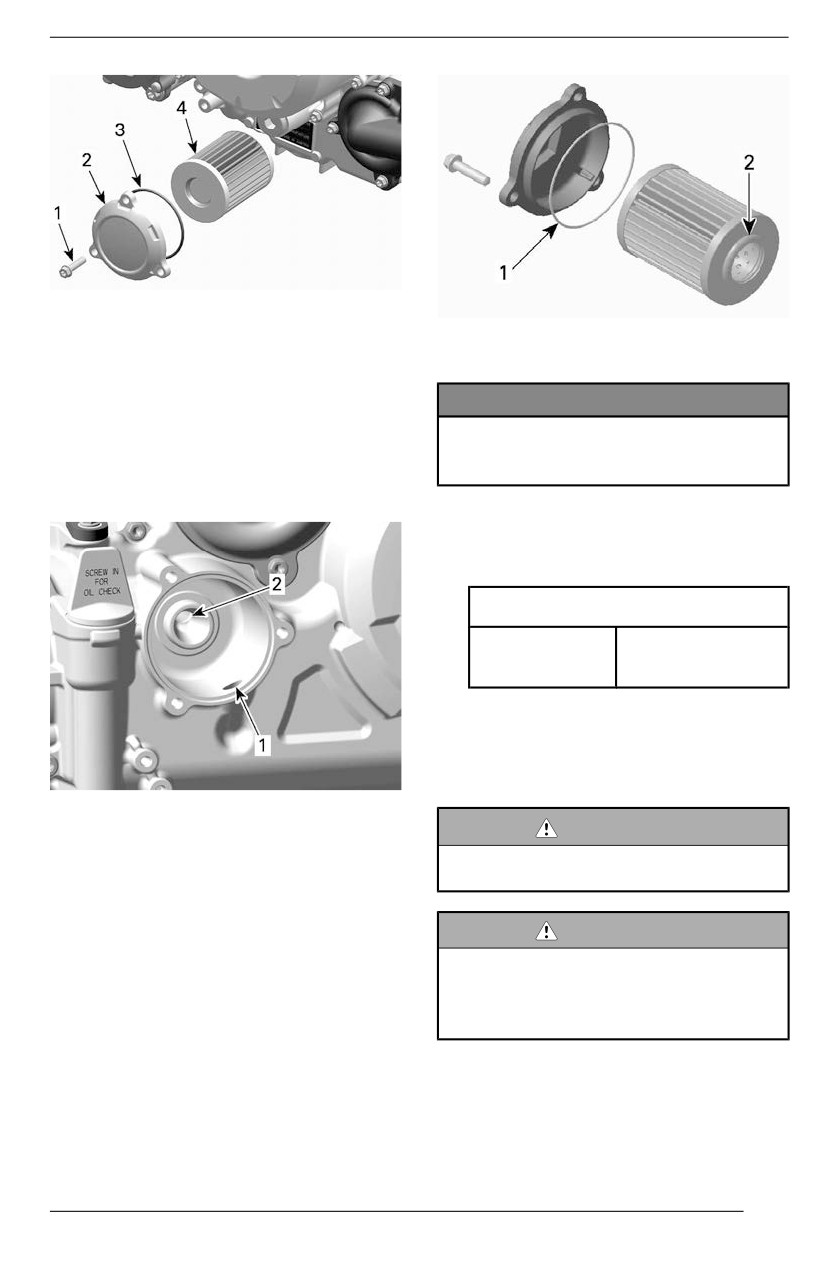

Engine Oil Filter (V-Twin Engines)

142

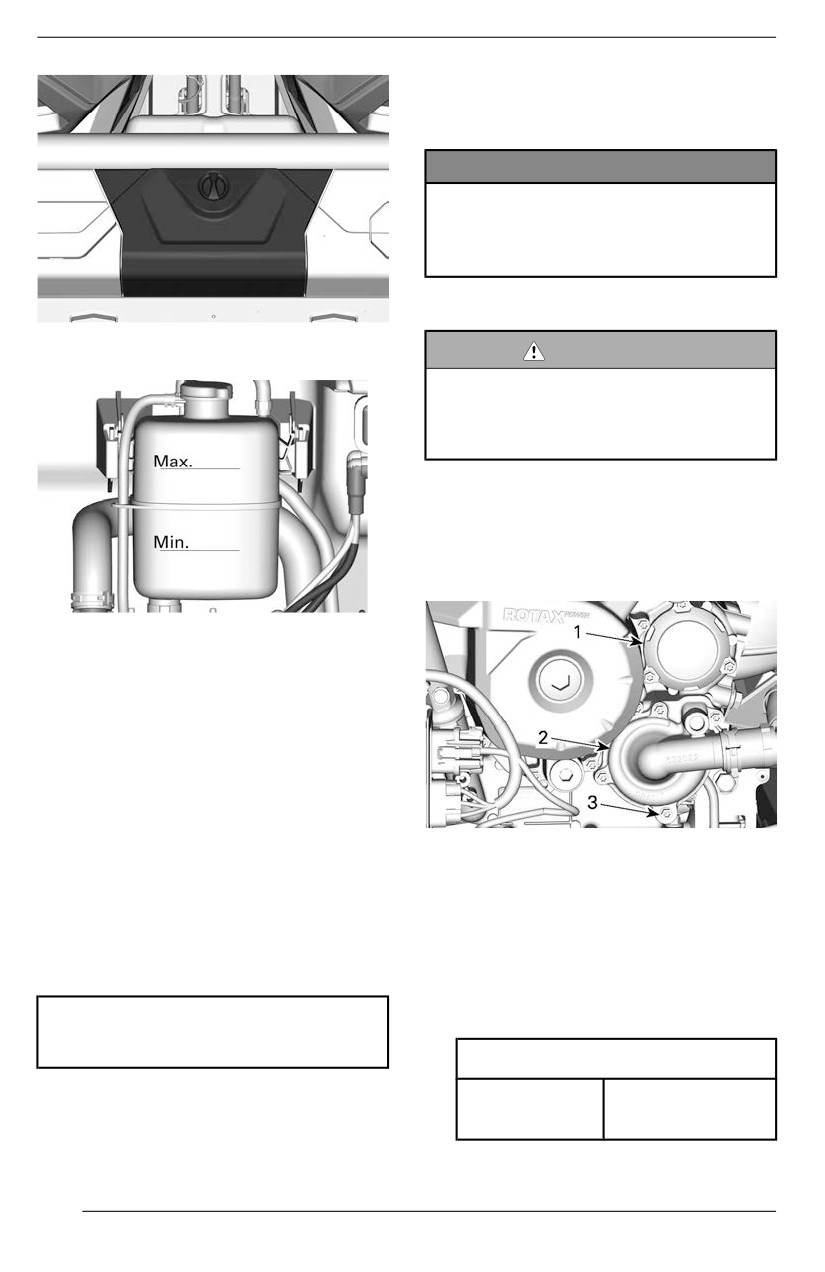

Engine Coolant

143

Radiator

145

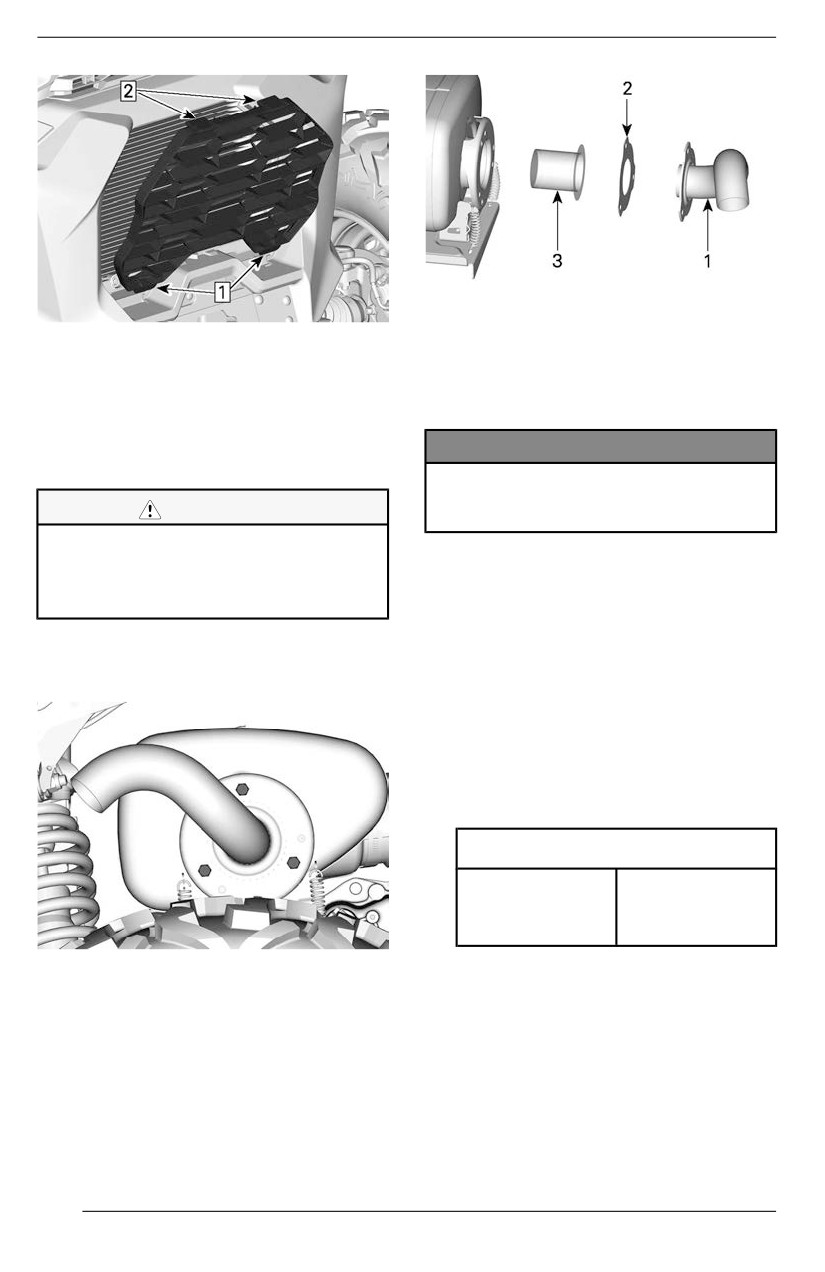

Muffler and Spark Arrester

146

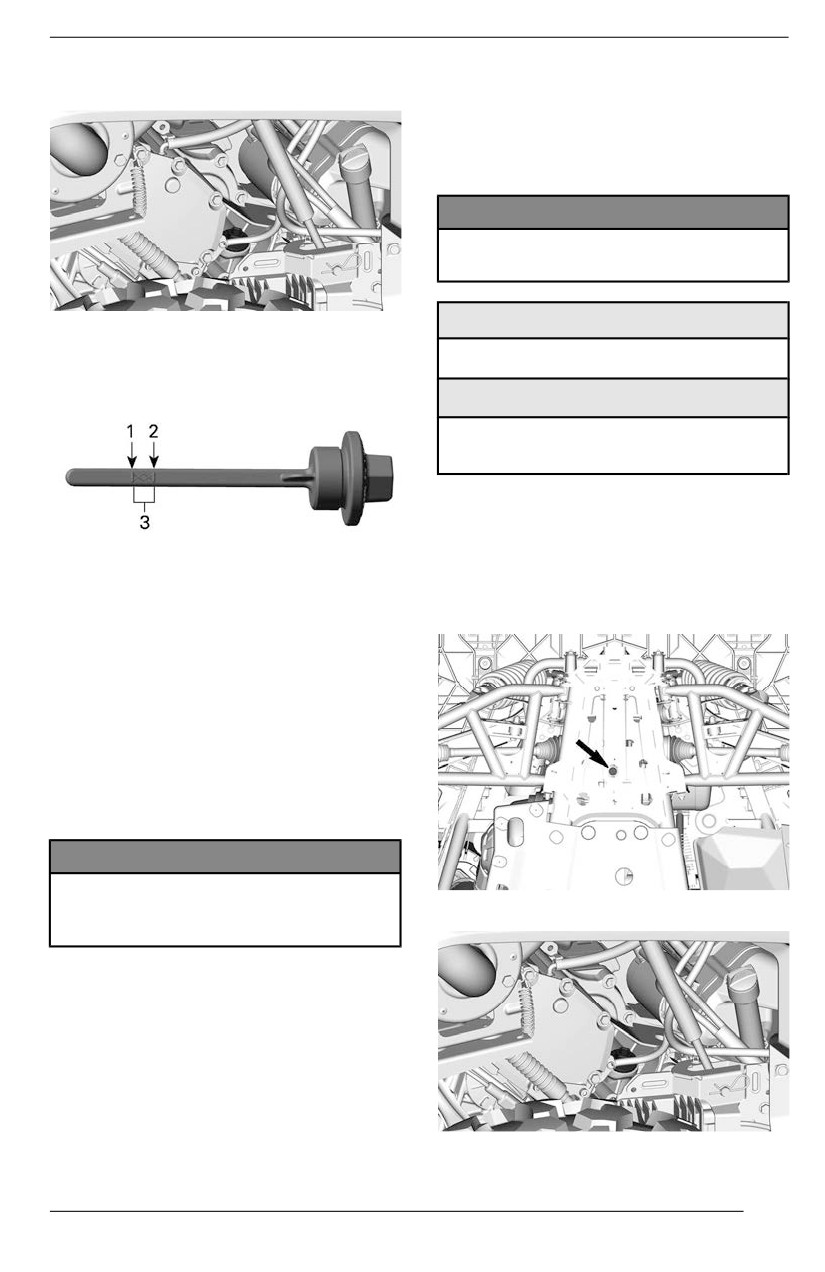

GEARBOX

146

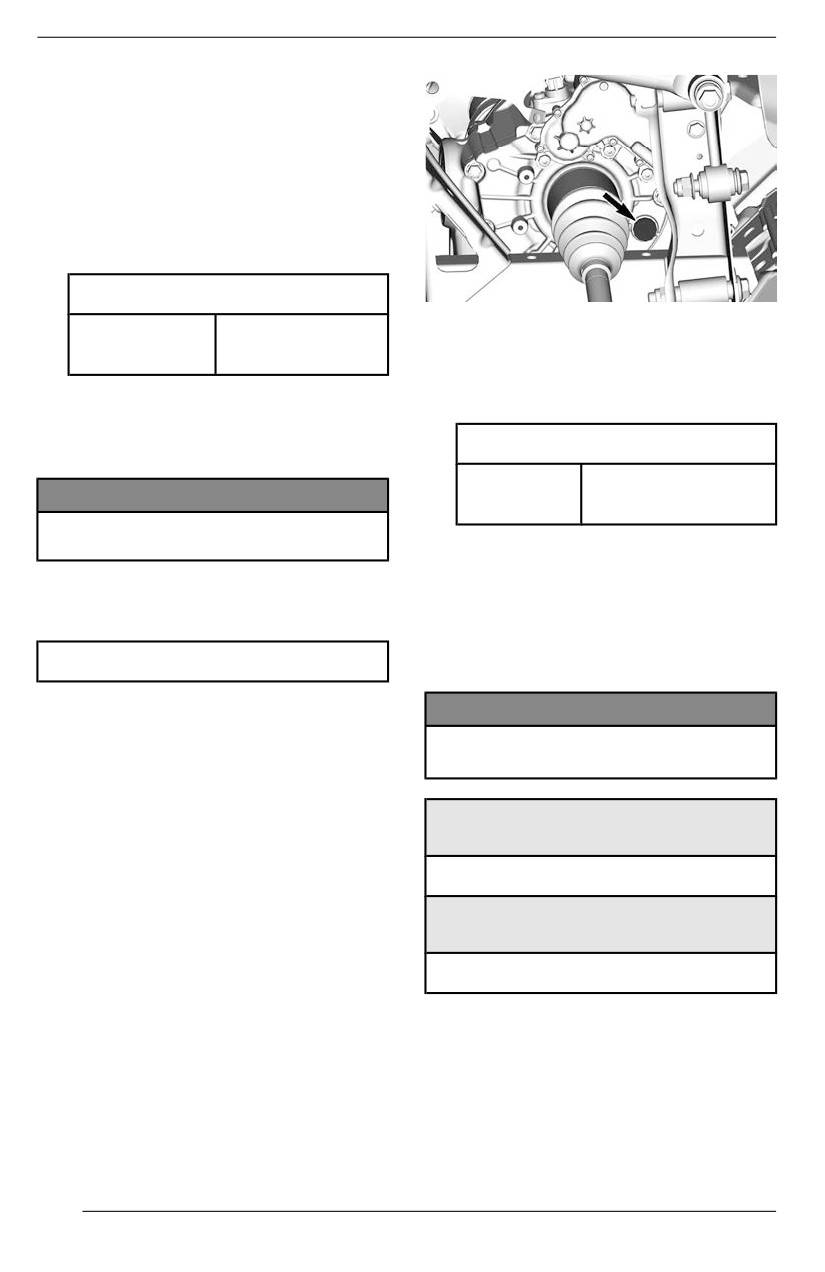

FRONT DIFFERENTIAL

148

SPARK PLUGS

149

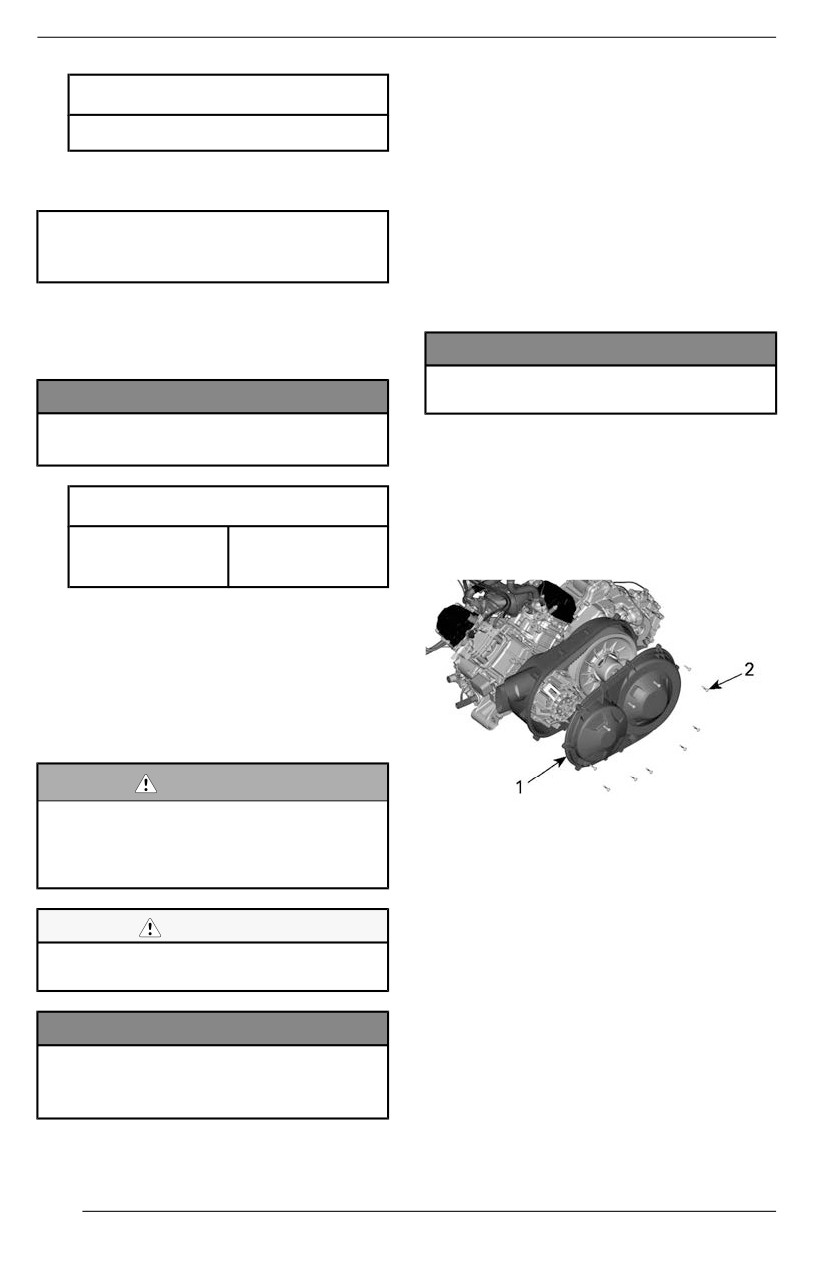

CVT COVER

150

Drive Belt

151

Drive and Driven Pulleys

152

BATTERY

153

Fuses and Fusible Links

154

Lights

156

TABLE OF CONTENTS

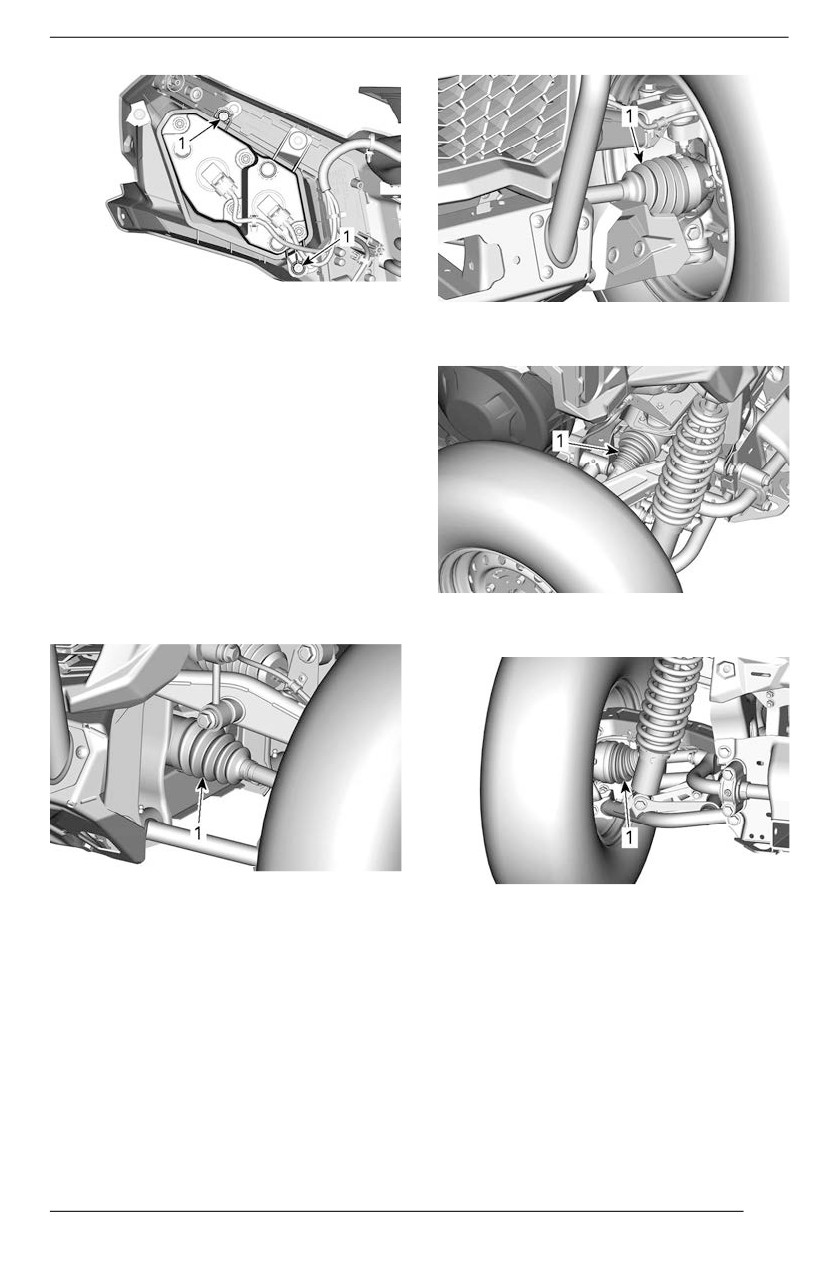

Drive Shaft Bellows and Protectors

157

Wheel Bearing

157

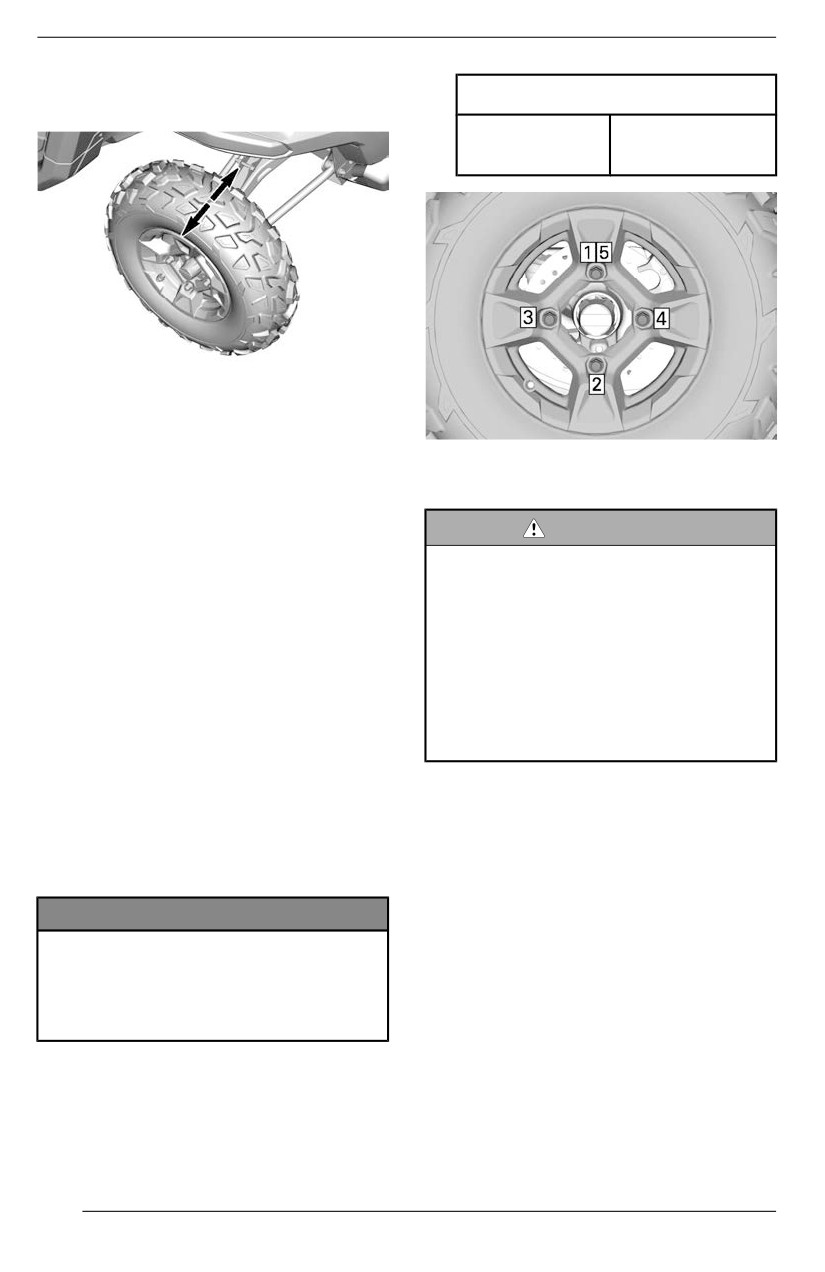

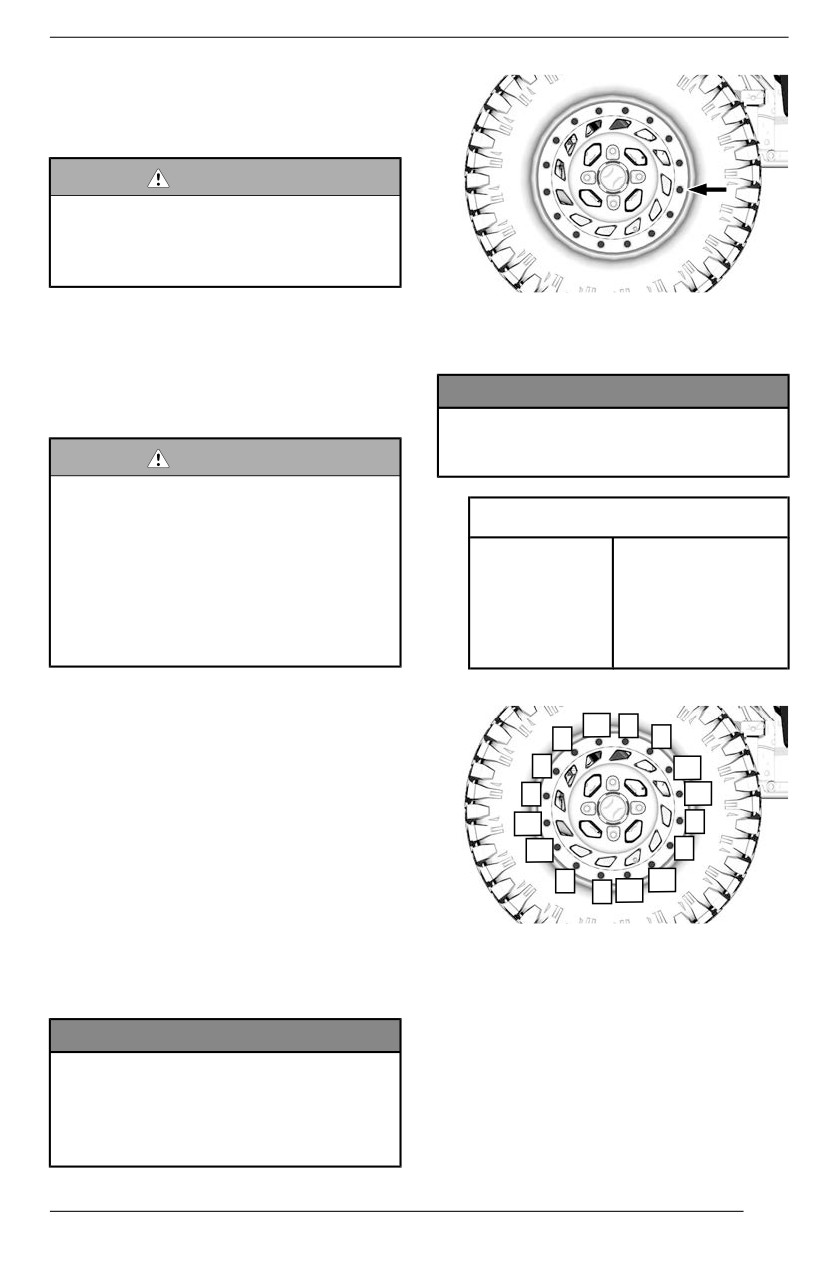

Wheels and Tires

158

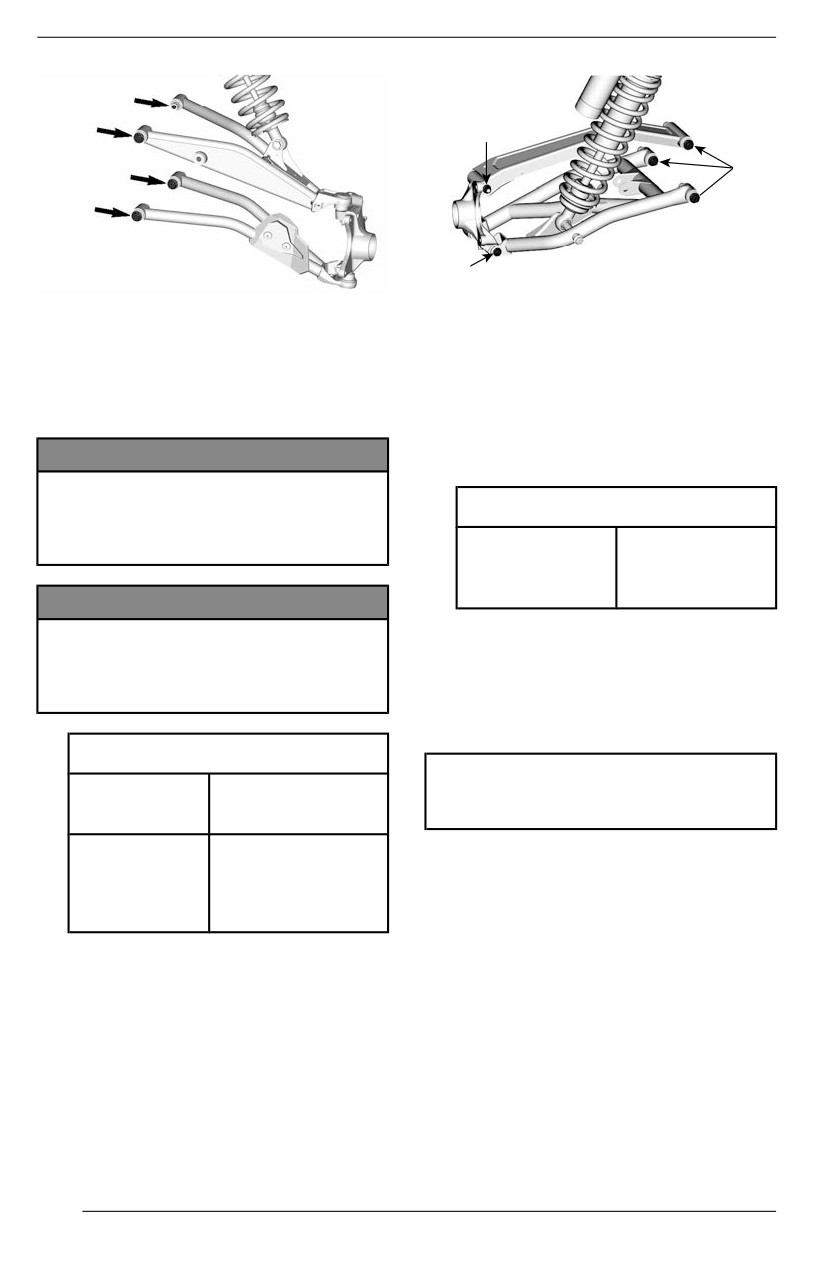

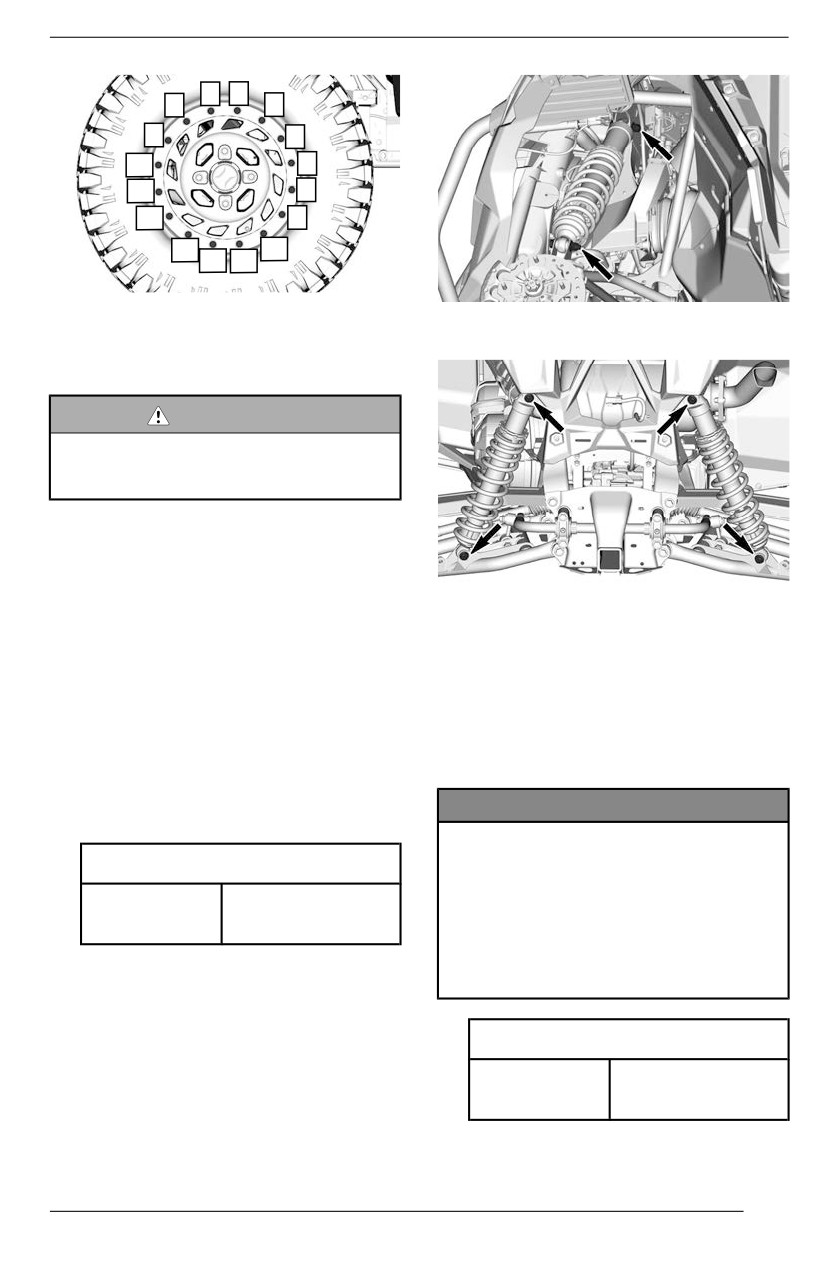

SUSPENSION

161

BRAKES

163

SEAT BELTS

164

Doors

164

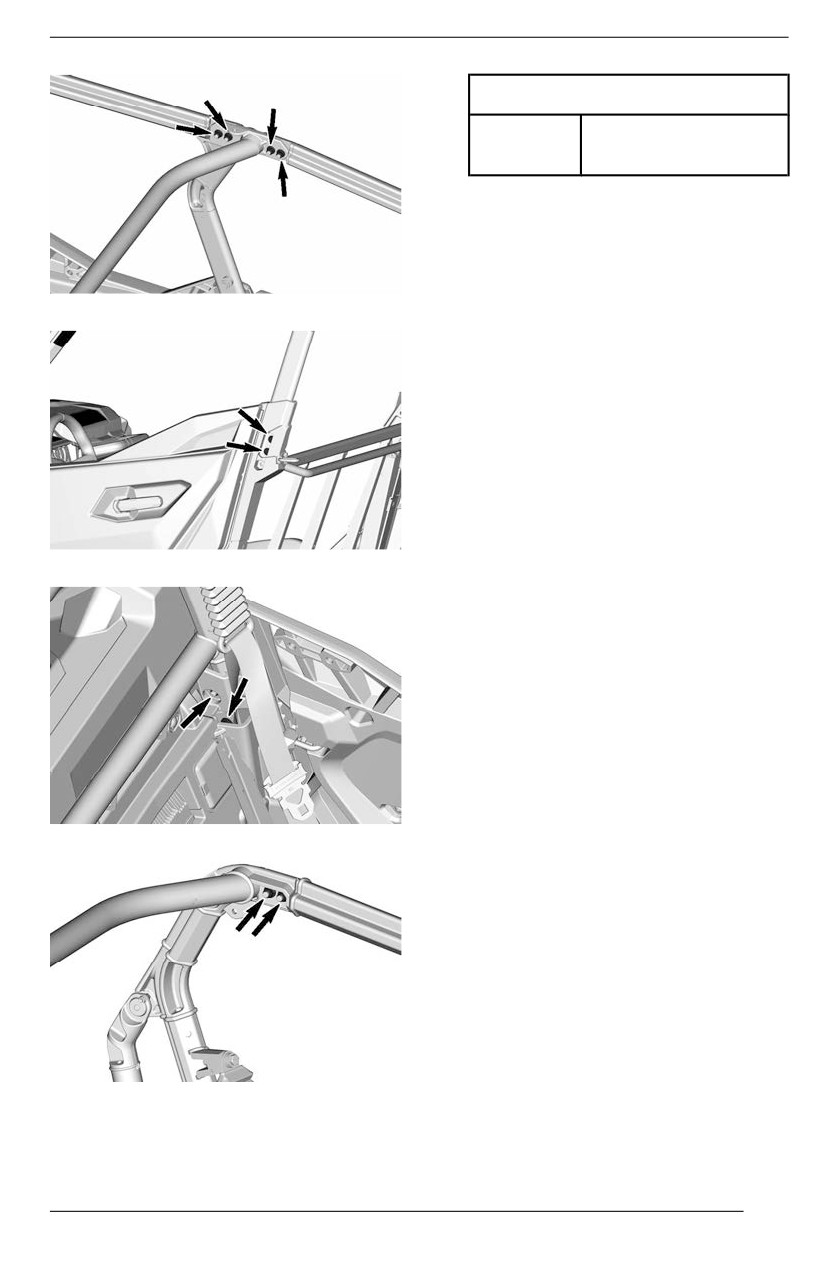

CAGE

164

VEHICLE CARE

166

Vehicle Cleaning and Protection

166

STORAGE AND PRESEASON PREPARATION

167

TECHNICAL INFORMATION

VEHICLE IDENTIFICATION

170

Vehicle Identification Number

170

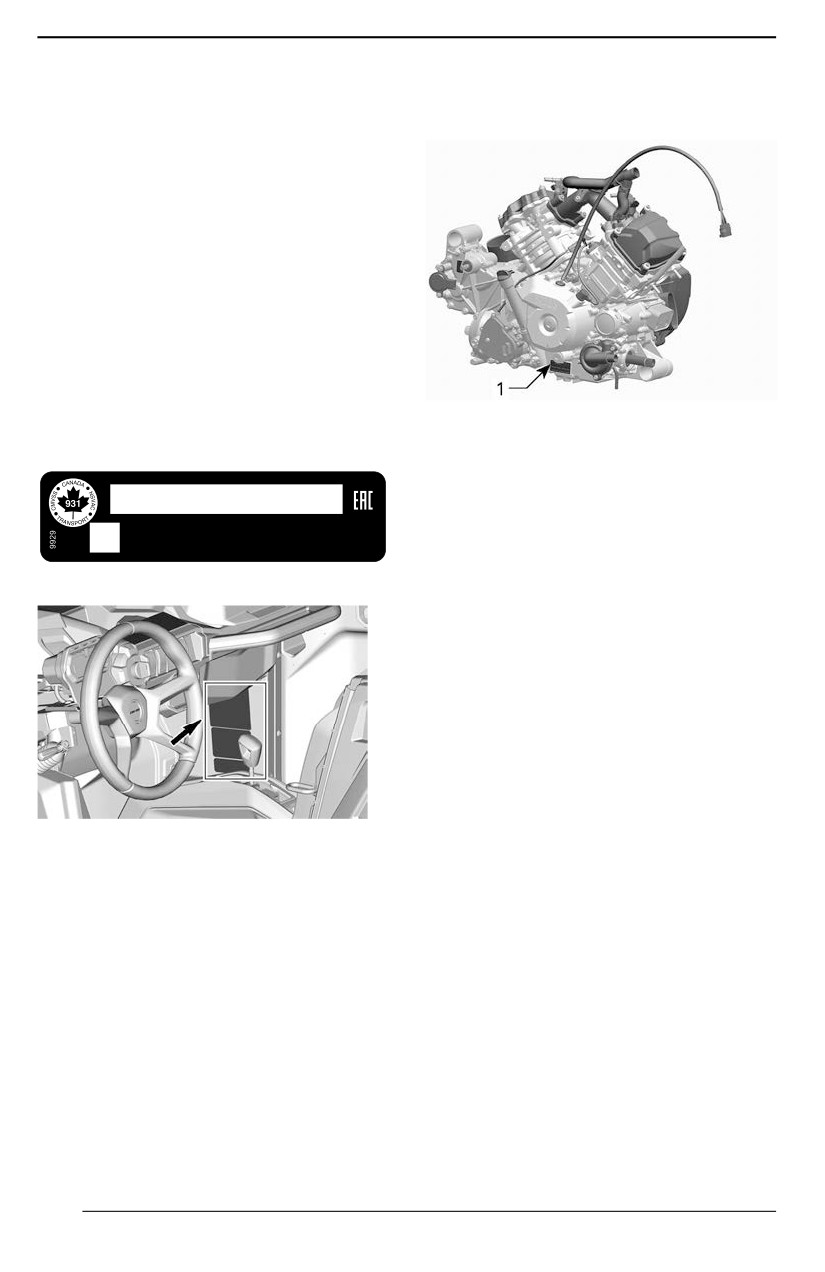

Engine Identification Number (EIN)

170

COMPLIANCE LABELS

171

ROHVA Compliance Label

171

Emission Control Information

171

Ethanol Compliance Pictogram

171

TECHNICAL INFORMATION LABEL

172

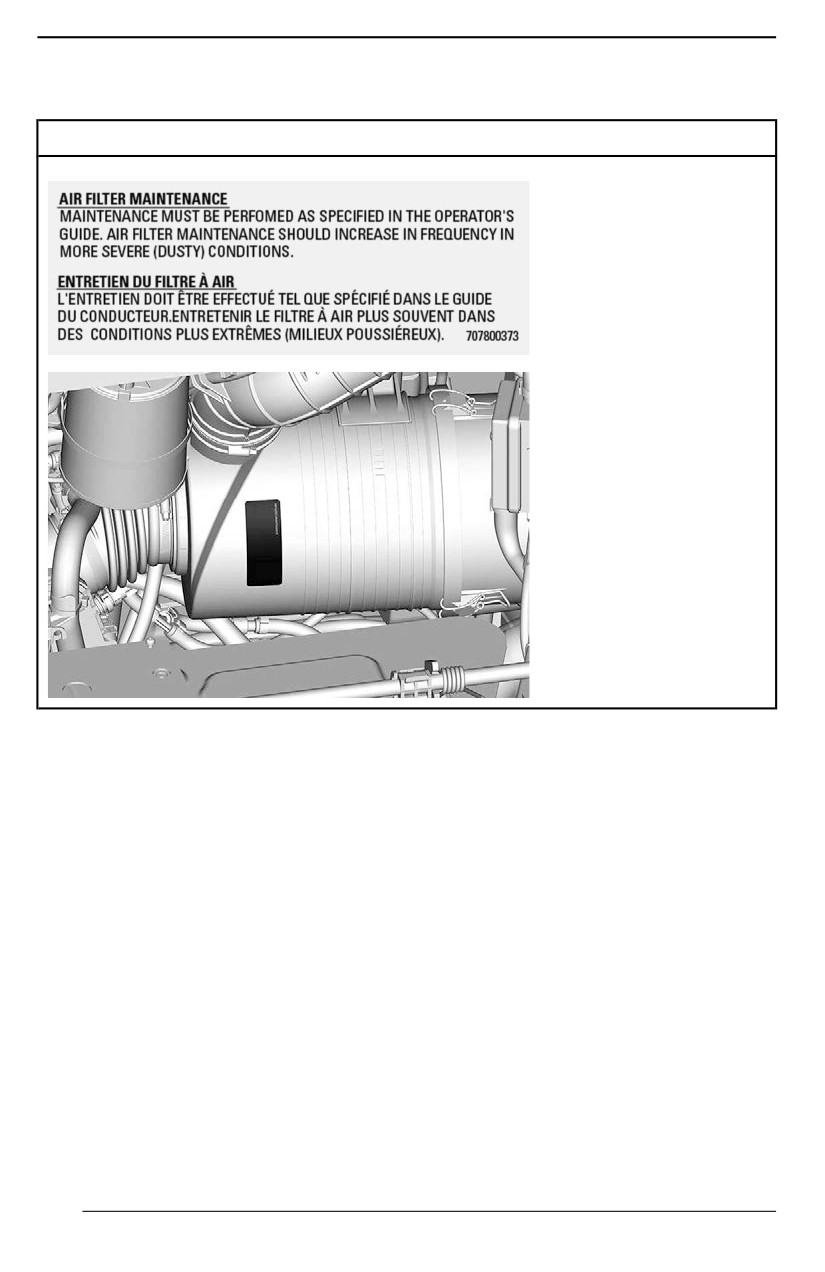

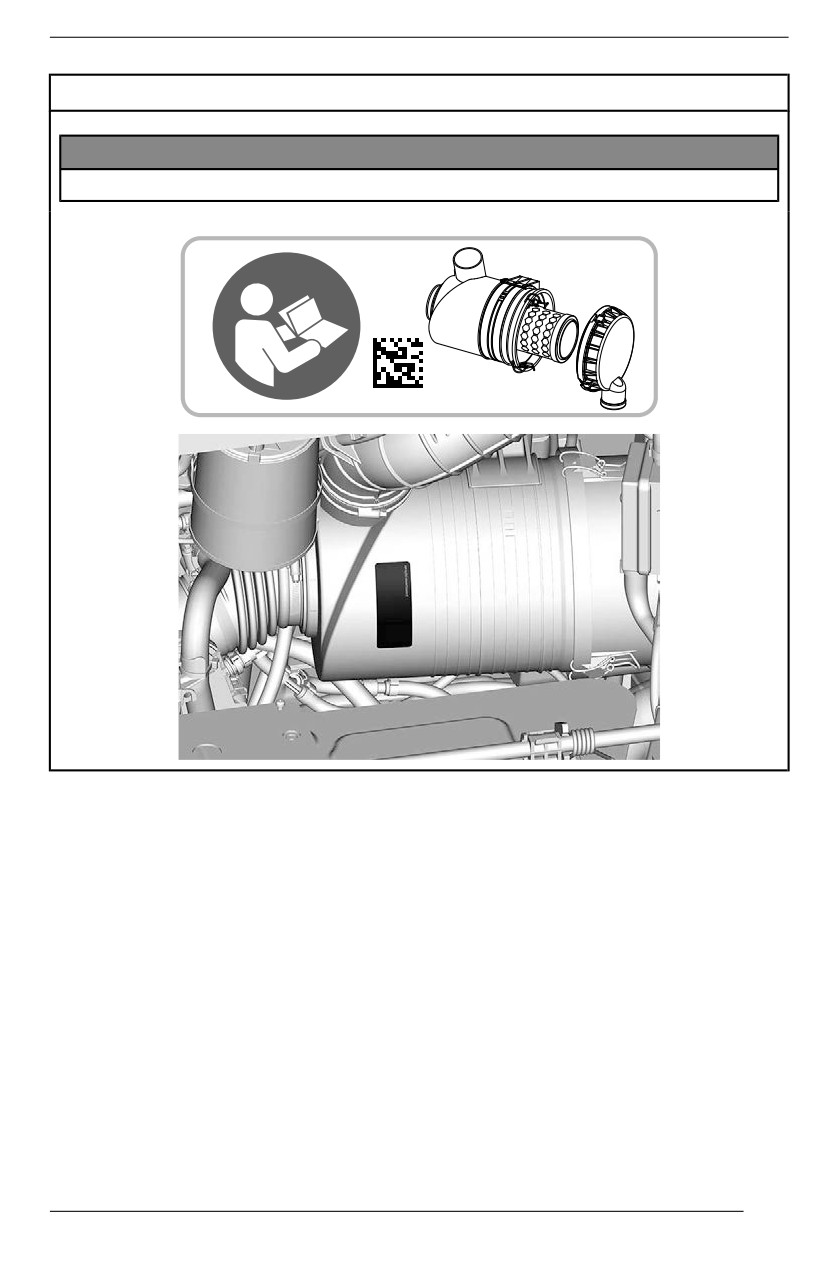

Air Filter Maintenance Label

172

RADIO FREQUENCY DIGITALLY ENCODED SECURITY SYSTEM (RF D.

E.S.S. KEY)

174

EVAPORATIVE EMISSION CONTROL SYSTEM

175

NOISE EMISSION CONTROL SYSTEM REGULATION

176

DECLARATION OF CONFORMITY

177

EU Declaration of Conformity

177

UK Declaration of Conformity

178

EAC DECLARATION OF CONFORMITY

179

TECHNICAL SPECIFICATIONS

182

TROUBLESHOOTING

TROUBLESHOOTING GUIDELINES

196

CVT Belt Is Slipping

196

“-” Is Displayed On the Gearbox Position Display

196

Engine Does Not Turn

196

Engine Turns Over But Fails To Start

196

Engine Lacks Acceleration or Power

197

Engine Overheats

198

Engine Misfire

198

The RPM Increases But the Vehicle Does Not Move

198

Partial or No Response From the Accelerator Pedal - Check Engine Is ON

and PPS Fault Message Is Displayed

199

TABLE OF CONTENTS

DIGITAL DISPLAY MESSAGES

200

WARRANTY

BRP LIMITED WARRANTY FOR CANADA AND USA: 2024 CAN-AM^®

SSV

202

1) Scope of the Limited Warranty

202

2) Limitations of Liability

202

3) EXCLUSIONS - Are Not Warranted

202

4) Warranty Coverage Period

203

5) Conditions to Have Warranty Coverage

203

6) What to Do to Obtain Warranty Coverage

204

7) What BRP Will Do

204

8) Transfer

204

9) Consumer Assistance

204

US EPA EMISSION - RELATED WARRANTY

205

Emission-Related Warranty Period

205

Components Covered

205

Limited Applicability

206

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY

STATEMENT

208

Your Warranty Rights And Obligations

209

OHRV Manufacturer’s Warranty Coverage

209

Owner’s Warranty Responsibilities

210

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^®

SSV

211

1) Scope of the Limited Warranty

211

2) Limitation of Liability

211

3) EXCLUSIONS - Are Not Warranted

212

4) Warranty Coverage Period

212

5) For Products Sold In Australia Only

213

6) Conditions to Have Warranty Coverage

213

7) What to Do to Obtain Warranty Coverage

214

8) What BRP Will Do

214

9) Transfer

214

10) Consumer Assistance

214

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA,

THE COMMONWEALTH OF THE INDEPENDENT STATES AND TURKEY:

2024 CAN-AM^® SSV

216

1) Scope of the Limited Warranty

216

2) Limitations of Liability

216

3) EXCLUSIONS - Are Not Warranted

217

4) Warranty Coverage Period

218

5) For Products Sold In France Only

218

6) Conditions to Have Warranty Coverage

218

7) What to Do to Obtain Warranty Coverage

219

8) What BRP Will Do

219

9) Transfer

220

10 Consumer Assistance

220

GENERAL INFORMATION

Congratulations on your purchase of a new Can-Am^® side-by-side vehicle. It's

backed by the BRP limited warranty and a network of authorized Can-Am Off--

road dealers ready to provide the parts, accessories or service you may require.

At delivery, you were informed of the warranty coverage and signed the Pre-de-

livery Check List to ensure your new vehicle was prepared to your entire

satisfaction.

Your dealer is committed to your satisfaction. If you need more information,

please ask your dealer.

Know Before you Go

To learn how to reduce the risk of accident for you or bystanders, read this Oper-

ator's Guide before you operate the vehicle.

Also, read all safety labels on your vehicle and watch the Safety Video located

at:

https://can-am.brp.com/off road/safety

Or use the following QR code.

This vehicle is for off-road use only. It is mainly for general recreational use but it

may also be used for utility purposes.

Failure to follow the warnings contained in this Operator's Guide can result in

SERIOUS INJURY or DEATH.

Safety Messages

The types of safety messages, what they look like and how they are used in this

guide are explained as follows:

The safety alert symbol

indicates a potential injury hazard.

WARNING

Indicates a potential hazard which, if not avoiided, coulld result iin seriious

injury or death.

CAUTION

Indicates a hazardous situatiion which, if not avoided, could resullt iin mi-

nor or moderate injjury.

GENERAL INFORMATION

NOTICE

Indiicates an iinstructiion which, iif not folllowed, could resullt in severely

damaged vehiicle components or other property.

About this Operator’s Guide

This Operator's Guide has been prepared to acquaint the owner/operator of a

new vehicle with the various vehicle controls, maintenance and safe operating in-

structions. It is indispensable for the proper use of the product.

Keep this Operator's Guide in the vehicle as you can refer to it for things such as

maintenance, troubleshooting and instructing others.

Note that this guide is available in several languages. In the event of any discrep-

ancy, the English version shall prevail.

If you want to view and/or print an extra copy of your Operator's Guide, simply

visit the following website:

www.operatorsguiides.brp.com

The information contained in this document is correct at the time of publication.

BRP, however, maintains a policy of continuous improvement of its products

without imposing upon itself any obligation to install them on products previously

manufactured. Due to late changes, some differences between the manufactured

product and the descriptions and/or specifications in this guide may occur. BRP

reserves the right at any time to discontinue or change specifications, designs,

features, models or equipment without incurring any obligation upon itself.

This Operator's Guide should remain with the vehicle when it is sold.

GENERAL PRECAUTIONS

Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon

monoxide can cause headaches, dizziness, drowsiness, nausea, confusion and

eventually death.

Carbon monoxide is a colorless, odorless, tasteless gas that may be present

even if you do not see or smell any engine exhaust. Deadly levels of carbon mon-

oxide can collect rapidly, and you can quickly be overcome and unable to save

yourself. Also, deadly levels of carbon monoxide can linger for hours or days in

enclosed or poorly ventilated areas. If you experience any symptoms of carbon

monoxide poisoning, leave the area immediately, get fresh air and seek medical

treatment.

To prevent serious injury or death from carbon monoxide:

- Never run the vehicle in poorly ventilated or partially enclosed areas such as

garages, carports or barns. Even if you try to ventilate engine exhaust with

fans or open windows and doors, carbon monoxide can rapidly reach danger-

ous levels.

- Never run the vehicle outdoors where engine exhaust can be drawn into a

building through openings such as windows and doors.

Avoid Gasoline Fires and Other Hazards

Gasoline is extremely flammable and highly explosive. Fuel vapors can spread

and be ignited by a spark or flame many feet away from the engine. To reduce

the risk of fire or explosion, follow these instructions:

- Use only an approved gasoline container to store fuel.

- Never fill the gasoline container in the vehicle cargo box or on the vehicle - an

electrical static discharge may ignite the fuel.

- Strictly adhere to instructions in Vehicle fueling procedure.

- Never start or operate the engine if the fuel cap is not properly installed.

Gasoline is poisonous and can cause injury or death.

- Never siphon gasoline by mouth.

- If you swallow gasoline, get any in your eye(s), or inhale gasoline vapor, see

a doctor immediately.

If gasoline spills on you, wash with soap and water and change your clothes.

Avoid Burns from Hot Parts

Certain components like brake rotors and exhaust components become hot dur-

ing operation. Avoid contact with those parts during and shortly after operation to

avoid burn wounds.

Accessories and Modifications

Any modifications or addition of accessories approved by BRP may affect the

handling of your vehicle. It is important to take the time to get familiar with the ve-

hicle once modifications are made to understand how to adapt your driving be-

havior accordingly.

SAFETY INFORMATION

GENERAL PRECAUTIONS

Avoid installing equipment not specifically approved by BRP for the vehicle and

avoid unauthorized modifications. These modifications and equipment have not

been tested by BRP and may create hazards. For example, they could:

- Create a loss of control and increase risk of crash

- Cause overheating or short circuits increasing the risk of fire or burn injuries

- Affect the protection features provided by the vehicle.

- Affect the behavior of the trailer when the vehicle is transported

- Cause a risk of losing objects on the road when transported.

Your vehicle may also become illegal to ride.

Ask your authoriized BRP dealler for suiitablle avaiilablle accessoriies for your

vehiiclle.

SAFETY INFORMATION

SAFE OPERATION - RESPONSIBILITIES

This is a high performance off-road vehicle. Operators must be responsible and

use care to avoid rollovers, tipovers, collisions, and other accidents. Even with

vehicle safety features (such as protective structure, seat belts, side nets, doors)

and protective gear (such as a helmet), there is always a risk of injury or death in

these accidents. To reduce the risk of serious injury or death, follow the rules in

this section.

Owner - Be Responsible

Read this Operator's Guide and watch the Safety Video. Refer to the link at the

beginning of the Operator's Guide.

Always inspect and confirm the safe operating condition of your vehicle prior to

ride. Always follow the maintenance schedule described in this Operator's Guide.

Never allow anyone to operate your vehicle unless they are responsible and can

be trusted with a high performance vehicle. Consider supervising new or young

operators and setting rules and limits (e.g., whether they can carry passengers,

what they may do with the vehicle, where they may ride, etc.) for anyone using

your vehicle.

If equipped wiith optional D.E.S.S. keys, select the appropriate key (see Igni-

tion Switch and Keys) based on the operator's experience, vehicle use and

environment.

Discuss the safety information with anyone who will be using the vehicle. Be sure

that all operators and passengers meet the qualifications below and agree to fol-

low the safety information. Help users become familiar with the vehicle.

We encourage you to have an Annual Safety Inspection of your vehicle. Please

contact an authorized BRP dealer for further details. Though not required, it is

recommended that an authorized BRP dealer performs the preseason prepara-

tion of your vehicle. Each visit to your authorized BRP dealer is a great opportu-

nity for your dealer to verify if your vehicle is included in any safety campaign.

We also urge you to visit your authorized BRP dealer in a timely manner if you

become aware of any safety related campaigns.

See an authorized BRP dealer for available accessories you may require.

Operator - Be Qualified and Responsible

Read this Operator's Guide and watch the safety video. Refer to the link at the

beginning of the Operator's Guide.

Become completely familiar with the operational controls and the general opera-

tion of the vehicle.

Get familiar with this Off-Highway Vehicle (OHV); it may exceed the performance

of other OHV you may have ridden. This is a high performance vehicle. Inexper-

ienced riders may overlook risks and be surprised by the specific behavior of this

vehicle in any terrain condition.

Take a training course if available (contact an authorized Can-Am Off-road deal-

er to find out about training course availability as well as on the internet at http://

www.rohva.org/), and perform the practice exercises in Practice Exercises. Prac-

tice driving in a suitable area free of hazards and feel the response of each

SAFETY INFORMATION

SAFE OPERATION - RESPONSIBILITIES

control. Drive at low speeds. Higher speeds require greater experience, knowl-

edge and suitable riding conditions.

Be at least 16 years of age.

Be tall enough to be properly seated: back against the backrest with the seat belt

fastened, to hold the steering wheel with both hands and still be able to reach the

full stroke of brake and accelerator pedals with the right foot and to firmly plant

left foot on the footrest.

Have a proper driver's license in accordance with local laws.

Never use this vehicle with drugs or alcohol, or if tired or ill. These slow reaction

time and impair judgment.

Carrying Passengers

Only carry one passenger per available seat. All passengers must be properly

seated in the cockpit.

The passengers must be tall enough to always be properly seated: back against

the backrest with seat belt fastened, holding both handholds, and feet firmly

planted on the footrests.

Never carry passengers who has used drugs or alcohol, or is tired or ill. These

slow reaction time and impair judgment.

Instruct the passengers to read the vehicle’s safety labels.

Never carry passengers if you judge his ability or judgement insufficient to con-

centrate on the terrain conditions and adapt accordingly. More specifically for

side-by-side vehicles, the passengers must also pay constant attention to the ter-

rain ahead and be able to brace for bumps.

Riding Carefully

- This vehicle handles differently from other vehicles. A collision or rollover can

occur quickly, during abrupt maneuvers such as doing sharp turns, accelera-

tion or deceleration and driving on hills or over obstacles, if you fail to take

proper precautions.

- Never operate at excessive speeds. Always go at a speed that is proper for

the terrain, visibility, and operating conditions, and your experience.

- Never attempt jumps, side slides, donuts or any other stunts.

- Never attempt rapid acceleration or deceleration when performing a sharp

turn. This may result in a roll over.

- Never attempt skidding or sliding. If vehicle starts to skid or slide, counter

steer in the direction of skidding or sliding. On extremely slippery surfaces,

such as ice, go slowly and be very cautious in order to reduce the chance of

skidding out of control.

- Always be sure there are no obstacles or people behind the vehicle when you

operate in reverse. Pay attention to blind spots. When it is safe to proceed in

reverse, go slowly.

- Never exceed the stated load limits for this vehicle. Cargo must be properly

secured. Reduce speed, allow for greater braking distance and follow other

instructions in Moving Loads and Doing Work.

SAFETY INFORMATION

SAFE OPERATION - RESPONSIBILITIES

- Always remember that this vehicle is heavy! Its pure weight alone may entrap

you should it tip or rollover.

Occupant Restraint System

- This vehicle is designed to carry one driver and up to three passengers, all

wearing proper protective gears (refer to Riding Gear in this section).

- The driver and passengers must latch the doors or the side nets and wear the

seat belts at all times when riding.

Terrain Condition

This vehicle is not designed to ride on paved surfaces; if you must shortly use

the vehicle on such surfaces, avoid abrupt inputs to steering wheel, accelera-

tor and brake pedals.

Always go slowly and be extra careful when operating on unfamiliar terrain.

Always be alert to changing terrain conditions when operating this vehicle.

Take the time to learn how the vehicle performs in different environments.

Never operate on excessively rough, slippery or loose terrain until you have

learned and practiced the skills necessary to control this vehicle on such ter-

rain. Always be especially cautious on these kinds of terrain.

Never operate this vehicle on hills too steep for the vehicle or your abilities.

Practice on small inclines.

Always follow proper procedures for climbing or going down hills as described

in Riding Your Vehicle. Check the terrain carefully before you start up or down

any hill. Never climb or descend hills with excessively slippery or loose surfa-

ces. Never go over the top of any hill at high speed.

Never attempt steep hills or side hilling when pulling a trailer.

–

Always check for obstacles before operating in a new area. Always follow

proper procedures when operating over obstacles as described in Riding

Your Vehicle.

Never operate this vehicle in fast flowing water or in water deeper than speci-

fied in Riding Your Vehicle. Remember that wet brakes may have reduced

stopping ability. Test your brakes after leaving water. If necessary, apply them

several times to let friction dry out the brakes.

Always ensure to properly park the vehicle on the flattest terrain section avail-

able. Put shift lever in PARK, stop engine and remove key before leaving the

vehicle.

If parking on a slope is inevitable, Placing a large rock or similar object behind

a wheel to block it from moving is recommended.

Never assume that the vehicle will go everywhere safely. Sudden changes in

terrain caused by holes, depressions, banks, softer or harder “ground” or oth-

er irregularities may cause the vehicle to topple or become unstable. To avoid

this, slow down and always observe the terrain ahead. If the vehicle does be-

gin to topple or rollover, the best advice is to immediately steer in the direction

of the rollover! Never attempt to prevent a rollover with your arms or legs. You

should keep your limbs inside the cage or ROPS (rollover protective

structure).

SAFETY INFORMATION

PRE-RIDE INSPECTION

WARNING

Perform a pre-riide inspection before each ride to detect any potentiiall

probllem that coulld occur duriing operatiion. The pre-ride inspection can

help you moniitor component wear and deterioratiion before they become

a probllem. Correct any probllem that you discover to reduce the risk of a

breakdown or crash.

Before using this vehicle, the operator should always perform the following pre--

ride inspection check list:

Pre-Ride Inspection Check List

What to Do Before Starting the Engiine (Wiithout DESS Key)

Items to Be

Inspection to Perform

Inspected

Engine oil

Check engine oil level.

(V-Twin engines)

Coolant

Check coolant level.

Brake fluid

Check brake fluid level.

Inspect the engine air filter, clean or replace if

Engine air filter

needed (service more often when riding in dusty

conditions).

Inspect and clean the CVT air filter (when riding in

CVT air filter

dusty conditions).

Radiator

Check cleanliness of the radiator.

Front grille

Inspect front grille for cleanliness.

If not already done, clean the area surrounding the

exhaust system, especially if during the last ride, the

Exhaust system

vehicle was used in a swamp, bog, hay or dead

leaves.

Drive shaft

Check drive shaft bellows and protectors condition.

bellows

Check tire pressure and condition. Refer to the Tire

Tires

Pressure Label and adjust according to load.

Check wheels for damage and for abnormal play.

Make sure that lug nuts are tightened. Refer to

Wheels

Wheels and Tires in Maintenance Procedures for

torque specification.

Cargo Load: If you transport a cargo, respect the

Cargo and load

maximum loading capacity. Refer to Loading the

SAFETY INFORMATION

PRE-RIDE INSPECTION

Items to Be

Inspectiion to Perform

Inspected

Cargo Box. Ensure cargo is properly secured to the

rear cargo box.

Vehicle Load: Ensure that total load on the vehicle

(including operator, passengers, cargo, tongue

weight and added accessories) does not exceed

specifications. Refer to Carrying Loads.

If you are pulling a trailer or another equipment:

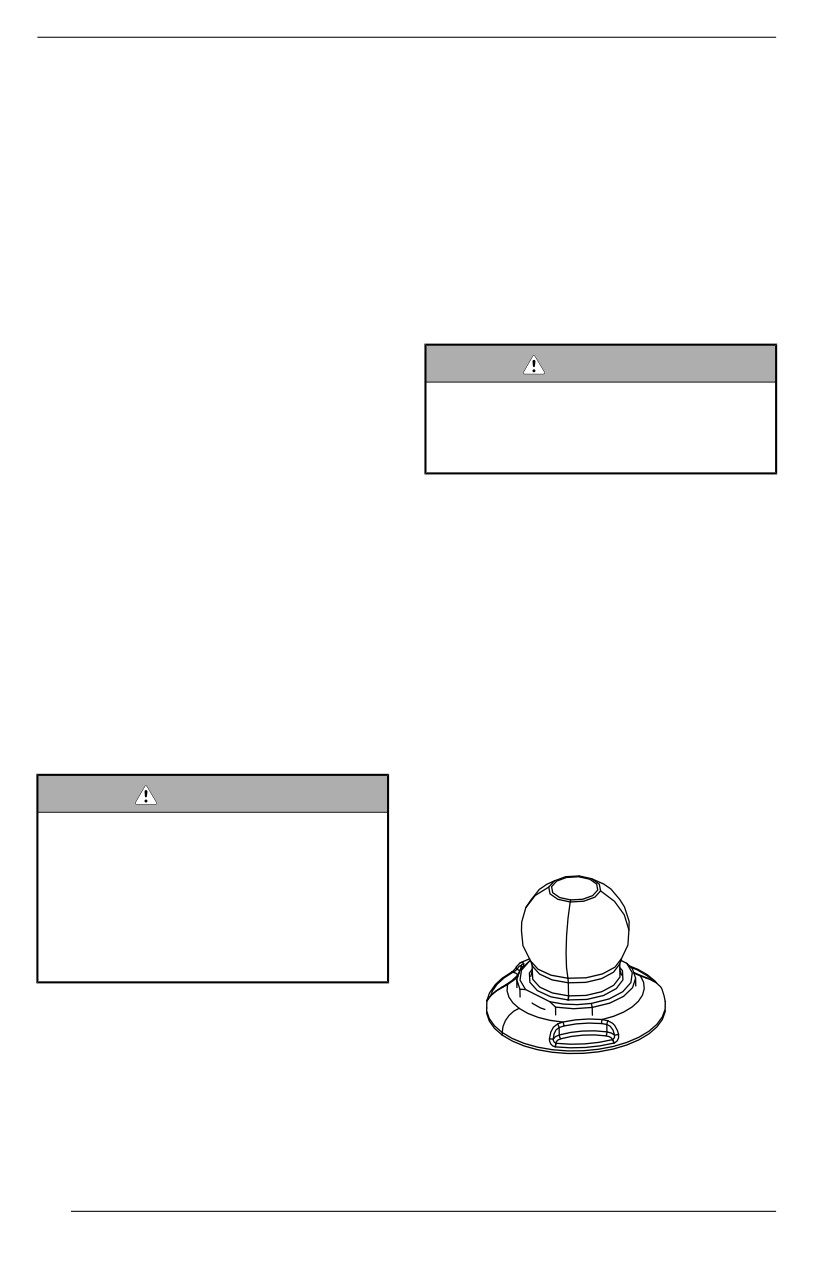

- Check hitch and trailer ball condition.

- Respect the tongue capacity and towing capacity

Hitch

as indicated on the label affixed to the hitch or

refer to SPECIFICATIONS.

- Ensure trailer is properly secured to hitch.

Check for debris on or in the vicinity of the exhaust

system, remove if any and clean properly.

Chassis and

Check underneath vehicle for any debris on chassis

suspension

or suspension components (upper and lower arms,

wheels, shock absorber, springs) and clean them

properly

Check doors for any damage. Have the doors

replaced if any damage is found.

Doors

Close both doors and confirm that they latch

securely.

What to Do Before Startiing the Engine (With DESS Key)

ITEMS TO BE

INSPECTION TO PERFORM

üü

INSPECTED

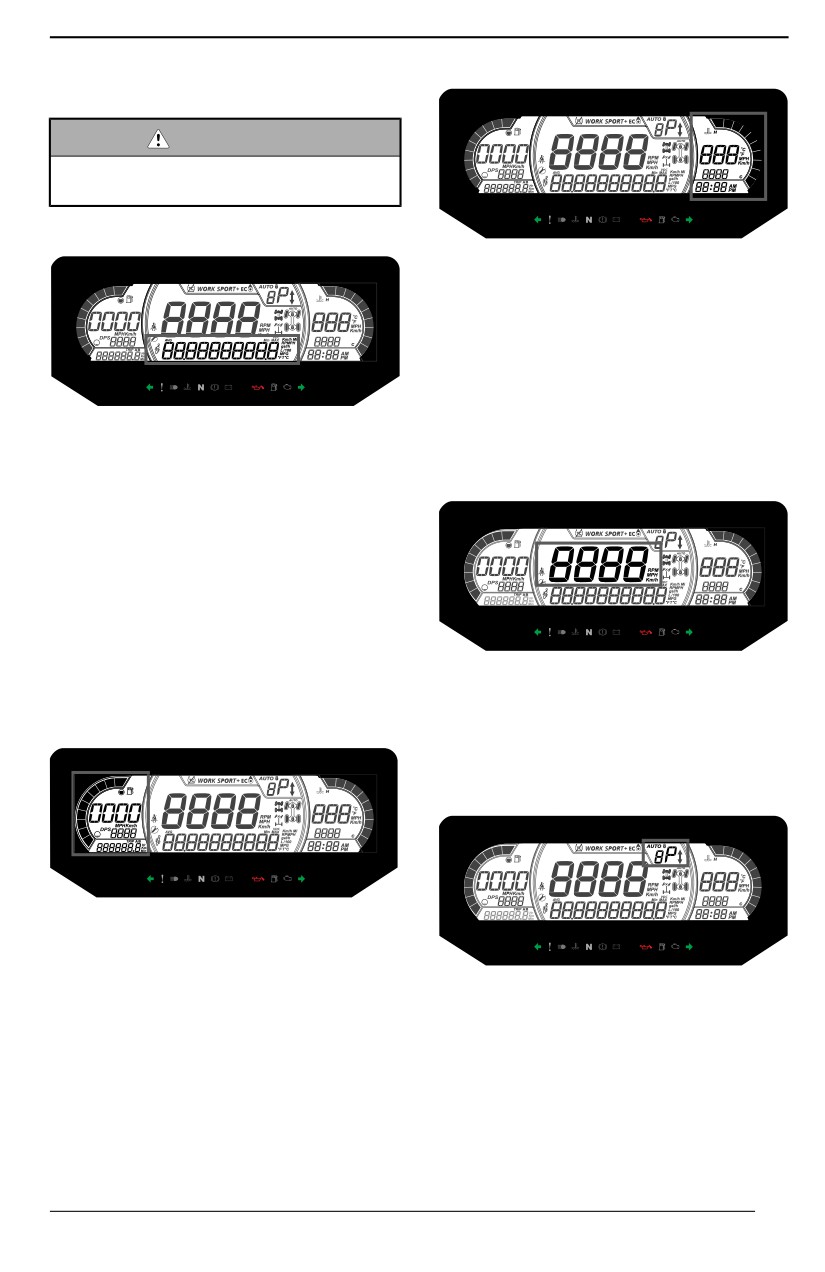

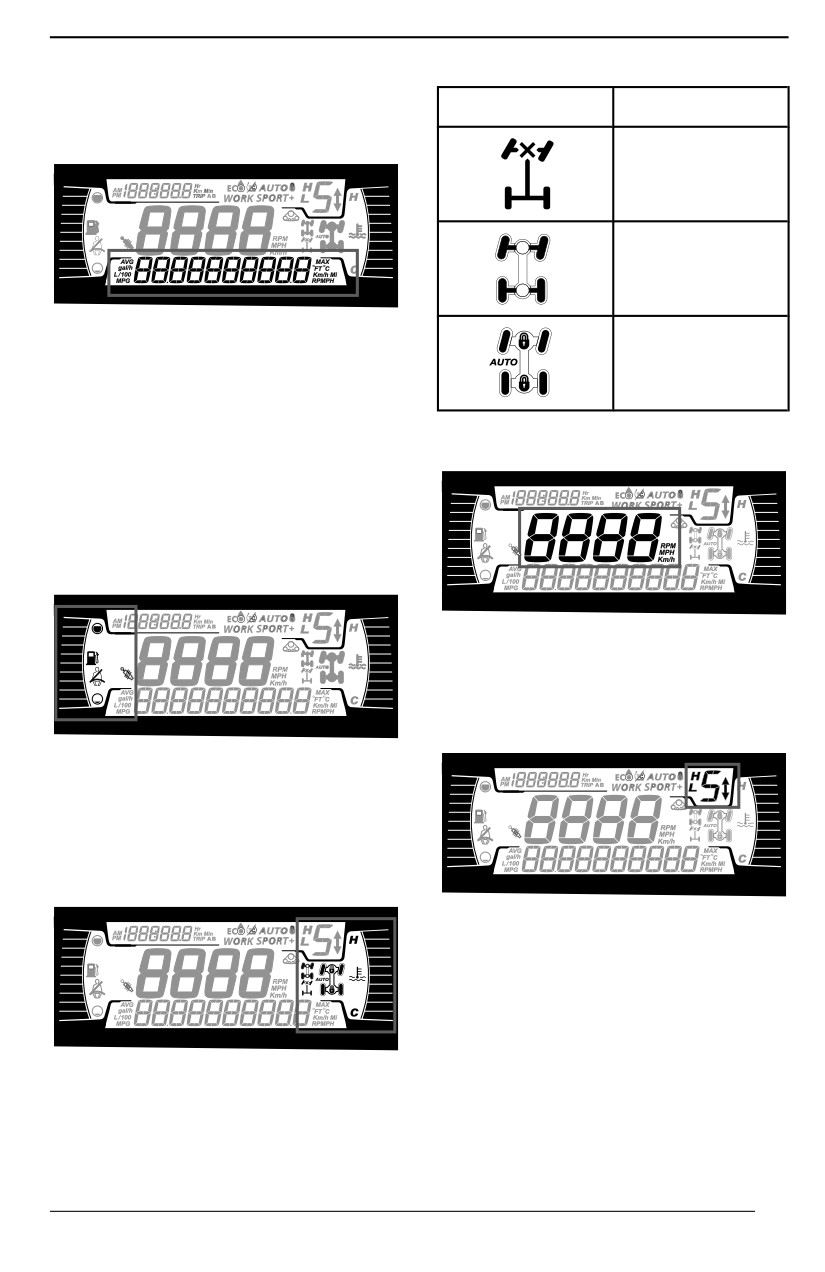

Check operation of indicator lamps in digital

display(during first few seconds of key ON).

Digital display

Check for messages in gauge.

Check operation and cleanliness of:

- Headlights (High and Low)

Lights

- Taillights

- Brake lights.

Check if seats are properly latched.

Seats and seat

belts

Check seat belts for any damage. Fasten seat belts

and confirm that they latch securely.

SAFETY INFORMATION

PRE-RIDE INSPECTION

ITEMS TO BE

INSPECTION TO PERFORM

üü

INSPECTED

Press on the accelerator pedal a few times to ensure

Accelerator pedal

it operates freely and it returns to the rest position

when released.

Press down on the brake pedal and make sure you

Brake pedal

feel firm resistance and that it fully returns to position

when released.

Fuel level

Check the fuel level.

If not already done, clean the area surrounding the

exhaust system especially if during the last ride, the

Exhaust system

vehicle was used in a swamp, bog, hay or dead

leaves.

What to Do After the Engine is Started

Items to Be

Inspection to Perform

Inspected

Check if steering wheel operates freely by

Steering

completely turning it from side to side.

Remove the DESS key to verify if engine will shut

DESS Key

down. Restart engine.

Shift lever

Check operation of shift lever (P, R, N, H and L).

2WD/4WD

Check operation of 2WD/4WD selector.

selector

Drive forward slowly a small distance and apply

brakes. The brake pedal must feel firm when

Brakes

applied. The pedal must return to rest position when

released. The brakes must respond adequately to

the driver's input.

Winch

Check operation of winch.

Engine oil level

(Mono-Cylinder

Check the engine oil level.

Engines)

SAFETY INFORMATION

PREPARE TO RIDE

Before you Ride

Perform pre-ride inspection to confirm the safe operating condition of your ve-

hicle. Refer to Pre-Ride Inspection.

Driver and passengers must:

- Be properly seated.

- Latch nets or doors.

- Fasten seat belt.

- Wear appropriate riding gear. Refer to Riding Gear.

Riding Gear

It is important that the operator and passengers always wears appropriate pro-

tective clothing and apparel, including:

1. Approved helmet

2. Eye and face protection

3. Long sleeves shirt or jacket

4. Gloves

5. Long pants

6. Boots (over-the-ankle footwear)

Depending on conditions, anti-fogging goggles may be required.

Weather conditions should help you decide how to dress. To maximize comfort

and avoid frostbites in winter, dress for the coldest weather expected. Thermal

underwear next to the skin also provides good insulation.

Never wear any loose clothing that may get entangled in the vehicle or on tree

branches and shrubs.

Helmets and Eye Protection

Helmets protect the head and brain from injury. Even with the vehicle's cage and

side nets, objects can enter the cockpit and strike the head, or the head can

SAFETY INFORMATION

PREPARE TO RIDE

strike the cage itself or objects outside the vehicle. Even the best helmet is no

guarantee against injury, but statistics indicate that helmet use significantly re-

duces the risk of brain injury. So, be safe and always wear a helmet while riding.

Choosiing a Helmet

Helmets should be manufactured to meet the appropriate standard in your state,

province or country and should fit properly.

A helmet with face protection is a better choice as it protects also against frontal

impacts. It can also protect against debris, stones, insects, the elements, etc.

An open-face helmet does not offer the same protection for the face and chin. If

you wear an open-face helmet, you should use a snap-on face shield and/or a

pair of goggles. Ordinary glasses or sunglasses are not sufficient eye protection

for riders. They can shatter or fly off, and they allow wind and airborne objects to

reach the eyes.

For winter riding conditions, a stocking type cap, balaclava and face mask should

always be carried or worn.

Use tinted face shields or goggles in the daytime only; do not use them at night

or in poor illumination. Do not use them if they impair your ability to discern color.

Other Riding Gear

Footwear

Always wear closed toe footwear. Sturdy over-the-ankle boots with non-slip soles

offer more protection and allow you to plant your foot properly on footrest.

Avoid long shoelaces that can be tangled in the accelerator or brake pedals.

For winter riding conditions, rubber soled boots with either a nylon or leather

uppers, with removable felt liners are best suited.

Avoid rubber boots. Rubber boots may get trapped behind or between pedals,

impairing the proper operation of brake and accelerator pedals.

Gloves

Full-fingered gloves protect hands from the wind, sun, heat, cold and flying ob-

jects. Gloves that fit snugly will improve grip on the steering wheel and help re-

duce hand fatigue. Sturdy, reinforced motorcycle or ATV gloves help protect

hands better in the event of an accident or a rollover. If gloves are too bulky, it

may be difficult to operate the controls.

For winter riding conditions, hands should be protected by a pair of snowmobile

gloves which have sufficient insulation and allow use of thumbs and fingers for

operation of controls.

Jackets, Pants and Ridiing Suits

Wear a jacket or a long sleeved shirt and long pants, or a full riding suit. Quality

ATV-type protective gear will provide comfort, and it can help you avoid being

distracted by adverse environmental elements. In case of a crash, good quality

protective gear made of sturdy material may prevent or reduce injury.

SAFETY INFORMATION

PREPARE TO RIDE

In cool-weather riding, protect yourself against hypothermia. Hypothermia, a con-

dition of low body temperature, can cause loss of concentration, slowed reac-

tions and loss of smooth, precise muscle movement. In cool conditions, proper

protective gear like a windproof jacket and insulated layers of clothing are essen-

tial. Even while riding at moderate temperatures, you can feel very cold due to

the wind.

Protective gear that is appropriate for cold-weather riding may be too hot when

stopped. Dress in layers so that clothing can be removed as desired. Topping the

protective gear with a windproof outer layer can prevent cold air from reaching

the skin.

Rain Gear

If you must ride in wet weather, a rain suit or a waterproof riding suit is recom-

mended. On long rides, it is a good idea to carry rain gear. A dry rider will be

much more comfortable and alert.

Heariing Protection

Long-term exposure to wind and engine noise when riding can cause permanent

hearing loss. Properly worn hearing protective devices such as earplugs can help

prevent hearing loss. Check local laws before using any hearing protective

devices.

SAFETY INFORMATION

AVOID ACCIDENTS

Avoid Rollovers and Tipovers

Side-by-side vehicles handle differently from other vehicles. Side-by-side ve-

hicles are designed to handle off-road terrain (for example, their wheel base and

track width, ground clearance, suspension, drivetrain, tires, etc.), and, as a result,

can overturn in situations where vehicles designed for use primarily on paved or

smooth terrain may not.

A rollover or other accident can occur quickly during abrupt maneuvers such as

sharp turns or hard acceleration or deceleration when turning, or when driving on

hills or over obstacles. Abrupt maneuvers or aggressive driving can cause roll-

overs or loss of control even in flat open areas. If the vehicle rolls over, any part

of your body (such as arms, legs, or head) outside of the cockpit can be crushed

and trapped by the cage or other parts of the vehicle. You can also be injured by

impact with the ground, cockpit or other objects.

To reduce the risk of rollovers:

- Use care when turning.

- Do not turn the steering wheel too far or too fast for your speed and envi-

ronment. Adjust steering inputs according to your speed and environment.

- Slow down before entering a turn. Avoid hard braking during a turn.

- Avoid sudden or hard acceleration when turning, even from a stop or low

speed.

- Never attempt donuts, skids, slides, fishtails, jumps, or other stunts. If vehicle

starts to skid or slide, steer in the direction of the skid or slide. Never slam the

brakes and lock the wheels.

- Avoid paved surfaces. This vehicle is not designed to operate on paved surfa-

ces and is more likely to roll over. If you must drive on pavement, turn gradu-

ally, go slowly, and avoid abrupt acceleration and braking.

This vehicle can roll over sideways or tip over forward or backwards on slopes or

uneven terrain.

- Avoid side hilling (driving along the slope rather than up or down a hill). When

possible, drive straight up and down inclines rather than across them. If you

must side hill, use extreme caution and avoid slippery surfaces, objects, or

depressions. If you feel the vehicle start to rollover or slide sideways, steer

downhill if possible.

- Avoid steep hills and follow procedures in this guide for climbing and de-

scending hills.

- Sudden changes in terrain such as holes, depressions, banks, softer or hard-

er ground or other irregularities may cause the vehicle to tip or become unsta-

ble. Observe the terrain ahead and slow down in areas of uneven terrain.

This vehicle will handle differently when carrying or pulling a load.

- Reduce speed and follow instructions in this manual for carrying cargo or pull-

ing a trailer.

- Avoid hills and rough terrain.

- Allow more distance to stop.

Be Prepared iin Case of Rolllover

- Fasten side nets and fasten seat belt to help you avoid sticking out arms or

legs.

SAFETY INFORMATION

AVOID ACCIDENTS

- Close both doors and fasten seat belt to help you avoid sticking out arms or

legs.

- Never grab the cage while riding. Hands can be crushed between the cage

and the ground in a rollover. Keep hands on the steering wheel or handholds.

- Never try to stop a rollover using your arms or legs. If you think that the ve-

hicle may tip or roll, the driver should keep both hands on the steering wheel

and the left foot firmly planted on the footrest. The passenger should keep

both hands on the handholds and both feet firmly planted on the floor.

Avoid Collisions

This vehicle can reach high speeds. At higher speeds, there is an increased risk

of losing control, particularly in challenging off-road conditions, and the risk of in-

jury in a collision is greater. Never operate at excessive speeds. Always go at a

speed that is proper for the terrain, visibility, and operating conditions, and your

experience. Consider reserving use of the performance key for situations in

which full speed and acceleration capability are appropriate.

Driving on public street, road or highway, even dirt or gravel ones poses risks

such as collisions and may be illegal in your jurisdiction. Only proceed with cau-

tion on roads and road segments where the usage of your vehicle is permitted.

This vehicle is not designed for operation on roads. For example, it does not

meet motor vehicle safety standards that apply to automobiles. In many jurisdic-

tions it is not legal to operate this vehicle on public roads.

This vehicle does not have the same kind of protection for collisions as a car; for

example, there are no air bags, the cockpit is not fully enclosed, and it is not de-

signed for collisions with other vehicles. Therefore, it is particularly important to

fasten seat belts and close doors and wear an approved helmet.

SAFETY INFORMATION

RIDING YOUR VEHICLE

Practice Exercises

Before you go out for a ride, it is very important to familiarize yourself with the

handling of your vehicle by practicing in a controlled environment. If possible, it is

also a very good idea to take a more formal training course to sharpen your skills

and increase your knowledge of the vehicle.

Find a suitable area to practice and perform the following exercises. It should be

at least 45 m (150 ft) by 45 m (150 ft) free of obstacles like trees and rocks. Once

you’ve selected a suitable permitted location, proceed with the following

exercises.

Turning Exerciises

Turning is one of the most frequent causes of accidents. It is easier for the ve-

hicle to lose traction or rollover if you turn too sharply, or go too fast. Slow down

when you approach a turn.

- First learn how to perform slight right turns at very low speeds. Release the

throttle before turning and slowly reapply the throttle when turning.

- Repeat turning exercise but this time maintain the throttle at the level while

turning.

- Finally, repeat turning exercise while accelerating slowly.

- Practice exercises turning on the other side.

Note how your vehicle reacts in these different exercises. We recommend releas-

ing the throttle before entering a turn to help initiate directional change. You will

feel the lateral force increasing with the speed and with your steering input. The

lateral force should be maintained as low as possible to make sure it does not

cause the vehicle to roll over.

U Turn Exercises

Practice doing U turns.

- Accelerate slowly and while remaining at low speed, then gradually turn the

steering wheel to the right until you have completed the U turn.

- Repeat U turn exercise with different steering inputs and always at a very low

speed.

- Repeat U turn exercise on the other side.

As mentioned before in this guide, do not ride on paved surfaces as the vehicle

behavior will not be the same, increasing the risk of rollover.

Braking Exerciises

Practice braking to get familiar with the brake response.

- Do it at low speed first, then increase the speed.

- Practice braking in straight line at different speeds and different braking force.

- Practice emergency braking; optimal braking is obtained in straight line, with

high force applied, without locking the wheels.

Remember, braking distance depends on vehicle speed, load and the type of

surface. Also, the tires and brakes conditions play a major role.

Reverse Exercises

The next step involves using the reverse.

SAFETY INFORMATION

RIDING YOUR VEHICLE

- Install 1 cone marker on both sides of the vehicle beside each rear wheel.

Move the vehicle forward until you can see the cone markers, then stop the

vehicle. Acknowledge the distance required to see obstacles behind you.

- Learn how the vehicle handles itself in reverse and reacts with steering

inputs.

- Always perform this reverse exercise at slow speeds.

- Become familiar with the usage of the override function. Do not steer while

using the override as it increases the risks of rollover.

Emergency Engiine Stopping Exerciise

Learn how to stop your engine quickly in an emergency situation.

- While running at low speed, simply remove the RF D.E.S.S. key from the D.E.

S.S. post.

This is to familiarize you with the vehicle’s reaction when the engine is turned off

while driving and to develop this reflex.

Off-Road Operation

The very nature of off-road operation is dangerous. Any terrain, which has not

been specially prepared to carry vehicles, presents an inherent danger where

terrain substance, shape and steepness are unpredictable. The terrain itself

presents a continual element of danger, which must be knowingly accepted by

anyone venturing over it.

An operator who takes a vehicle off-road should always exercise the utmost care

in selecting the safest path and keeping close watch on the terrain ahead of him.

The vehicle should never be operated by anyone who is not completely familiar

with the driving instructions applicable to the vehicle, nor should it be operated

on steep or treacherous terrain.

General Riding Techniques

Generall Driiving Tips

Care, caution, experience and driving skill are the best precautions against the

hazards of vehicle operation.

Whenever there is the slightest doubt that the vehicle can safely negotiate an ob-

stacle or a particular piece of terrain, always choose an alternate route.

In off-road operation, power and traction, not speed, are important. Never drive

faster than visibility and your own ability to select a safe route permit. Always go

slowly and be extra careful when operating on unfamiliar terrain. Always be alert

to changing terrain conditions when operating this vehicle. Be especially cautious

on excessively rough, slippery, icy or loose terrain.

Constantly watch the terrain ahead for sudden changes in slopes or obstacles,

such as rocks or stumps, that may cause loss of stability, resulting in tip over or

rollover.

Never operate the vehicle if the controls do not function normally. See an author-

ized Can-Am Off-road dealer.

SAFETY INFORMATION

RIDING YOUR VEHICLE

To maintain proper control it is strongly advised that you keep your hands on the

steering wheel and within easy reach of all controls. The same holds true for your

feet. To minimize the possibility of any leg or foot injury, keep your left foot on the

footrest and right foot on the floor at all times. Staying completely within the cock-

pit will also help keep you from striking objects outside the vehicle.

Watch for and avoid branches and other objects that could enter the passenger

compartment and strike you or your passengers.

Operating in Reverse

When operating in reverse, check that the path behind the vehicle is free of peo-

ple or obstacles. Pay attention to blind spots. When it is safe to proceed in re-

verse, go slowly and avoid sharp turns.

WARNING

Steering inputs iin reverse operatiion increase the risk of rolllover.

NOTE:

In reverse operation, the engine RPM is limited thus limiting the vehicle reverse

speed.

WARNING

When driviing downhiilll in reverse, gravity can iincrease the vehiclle speed

above safe reverse speed.

Crossing Roads

If you have to cross a road, ensure to have complete visibility on both sides for in-

coming traffic and decide on exit point on other side of road. Drive in a straight

line toward that point. Do not make sharp direction changes or abrupt accelera-

tions as it may result in a rollover situation. Do not travel on sidewalks or bicycle

trails as they are designated specifically for those uses.

Riiding on Paved Surfaces

Avoid paved surfaces. This vehicle is not designed to operate on paved surfaces

and is more likely to roll over. If you must drive on pavement, turn gradually, go

slowly, and avoid abrupt acceleration and braking.

Shalllow Water Crossiing

Water can be a unique hazard. If it is too deep the vehicle may “float” and topple.

Check the water depth and current before you attempt to cross any water. Water

depth should not exceed the center of the wheel for vehicle to safely cross the

obstacle. Beware of slippery surfaces such as rocks, grass, logs, etc., both in the

water and on its banks. A loss of traction may occur. Do not attempt to enter the

water at high speed.

Water will affect the braking ability of your vehicle. Make sure you dry the brakes

by applying them several times after the vehicle leaves the water.

SAFETY INFORMATION

RIDING YOUR VEHICLE

Mud or marsh lands may be encountered near water. Be prepared for sudden

“holes” or changes in depth. Similarly so, be watchful of hazards such as rocks,

logs, etc., partially covered by vegetation.

Ridiing on Snow or Ice

When performing pre-ride inspection, pay special attention to locations on the ve-

hicle where snow and/or ice accumulations may obstruct visibility of the tail lamp,

clog ventilation openings, block the radiator, fan, engine air intake and CVT air in-

take, and interfere with the movement of controls. Before starting with your ve-

hicle, check the steering, accelerator and brake pedals for interference free

operation.

Whenever this vehicle is ridden on a snow covered drive path, the tire grip is gen-

erally reduced causing the vehicle to react differently to control inputs from the

operator. On low grip surfaces, the steering responses are not as crisp and pre-

cise, stopping distances are lengthened and acceleration is also affected. Slow

down and do not "gun" the accelerator. This will only result in spinning of the tires

and possibly in an over steering slide of the vehicle. Avoid hard braking. This will

possibly result in a straight line slide of the vehicle. Again, the best advice is to

safely reduce speed in anticipation of a maneuver to give yourself time and dis-

tance in order to keep control of the vehicle.

As you drive your vehicle over a loose snow covered surface, snow dust will be

picked up in the wake turbulence of the moving vehicle and transported to con-

tact and accumulate or melt on some exposed components including rotating

parts like brake discs. Water, snow or ice may affect the response time of the

brake system of your vehicle. Even when not required to reduce vehicle speed

apply brakes frequently to prevent ice or snow accumulation and to dry brake

pads and discs. While doing so in low risk driving situations you will test for grip

level and keep yourself alerted to how the vehicle reacts to your control inputs.

Always keep brake and accelerator pedals and floor boards free of snow and ice.

Frequently wipe snow off seat, steering wheel, headlights and tail lamps.

The depth of the snow cover may hide rocks, tree stumps or other objects and if

it is wet may totally impede the drivability as the vehicle becomes bogged down

or completely looses traction in slushy snow. Look far ahead and always be

watchful of any visible clues that might indicate the presence of such obstacles.

In doubt steer clear. Avoid driving on any frozen waterways before checking that

the ice will safely support the vehicle, its riders and its load of cargo.

At the end of each ride it is a good practice to clean the vehicle and all moving

components (brakes, steering components, drivelines, controls, radiator fan etc.)

from any snow or ice accumulations. Wet snow will turn to ice during the shut

down period and become more difficult to remove at the next pre-ride inspection.

Ridiing on Sand

Riding on sand or sand dunes is another unique experience, but there are some

basic precautions that should be observed. Wet, deep or fine sand may create a

loss of traction and cause the vehicle to slide, drop off or become “bogged” down.

If this occurs look for a firmer base. Again, the best advice is to slow down and

be watchful of the conditions. Slow down even more when riding with a

passenger.

SAFETY INFORMATION

RIDING YOUR VEHICLE

When riding in sand dunes it is advisable to equip the vehicle with an antenna--

type safety flag. This will help make your location more visible to others over the

next sand dune. Proceed carefully should you see another safety flag ahead.

Since the antenna type safety flag can snag and rebound on your body if caught,

do not use it in areas where there are low hanging branches or obstacles. Always

remember when riding that the vehicle handling and stability may be affected

when riding with a passenger.

Riiding on Gravel, Loose Stones or Other Slippery Surfaces

Riding on loose stones or gravel is very similar to riding on ice. They will affect

the steering of vehicle, possibly causing it to slide and tip over especially at high

speeds. In addition, braking distance may be affected. Remember that “gunning”

the throttle or sliding may cause loose stones to be ejected rearwards into the

path of another rider's way. Never do it deliberately.

If you do get into a slide or skid, it may help to turn the steering wheel into the di-

rection of the skid until you regain control. Never jam the brakes and lock the

wheels.

Crossing Obstaclles

Use the low range (L) for crossing obstacles.

Obstacles on the “trail” should be traversed with caution. This includes rocks, fall-

en trees, and depressions. You should avoid them whenever possible. Remem-

ber that some obstacles are too large or dangerous to cross and should be

avoided. As a guideline, never attempt to cross an obstacle higher than the

ground clearance of the vehicle. Small rocks or small fallen trees may be safely

crossed - approach obstacle at low speed and as much as possible at a right an-

gle. Adjust speed without losing momentum and do not accelerate abruptly. Pas-

senger must grasp both handholds firmly and brace feet on the floor. Hold

steering firmly without closing your fists around it and proceed. Be aware that the

obstacle may be slippery or may move while crossing.

Hiilll Driving Conditiions

When driving on hills or slopes, two things are highly important: be prepared for

slippery surfaces or terrain variations and obstacles and brace yourself properly

inside vehicle. If you climb or descend a hill that is too slippery or has too loose a

surface, you can lose control. If you go over the top of a hill at high speed, you

may not have time to prepare for the terrain on the other side. Avoid parking on a

slope. Always put the shift lever in PARK when stopped or parked, especially on

an incline, to avoid rolling. If you must park on a steep incline, block the wheels

using rocks or bricks.

Uphill Driiviing

Use the low range (L) for uphill driving.

Due to its configuration, this vehicle has very good traction even while climbing,

so much so that tip over is possible before traction is lost. For example, it is com-

mon to encounter terrain situations where the top of the hill has eroded to a point

that the hill peak rises very sharply. This vehicle is not designed to negotiate such

a condition. Take an alternate route.

SAFETY INFORMATION

RIDING YOUR VEHICLE

It is also wise to know the terrain condition on the other side of the hill or bank. All

too often there exists a sharp drop-off that is impossible to negotiate or descend.

If you feel that the slope is getting too steep to climb, apply brakes to immobilize

vehicle. Put shift lever in reverse (R), and back down the hill, barely releasing

brakes to remain at low speed. Do not attempt to turn around. Never coast down

hill while vehicle is in neutral. Do not perform hard braking as it increases the risk

of tipover.

Downhilll Driiviing

This vehicle can climb steeper slopes than it can descend safely. Therefore, it is

essential to assure that a safe route exists to descend a slope before you climb

it.

Decelerating while negotiating a slippery downhill slope could “toboggan” the ve-

hicle, causing it to slide. Maintain steady speed and/or accelerate slightly to re-

gain control. Never slam brakes and lock the wheels.

Side Hiillling

This is one of the most riisky types of riding since it may drastically change the

balance of the vehicle. It should be avoided whenever possible. However, if it is

necessary to do so , it is important that you ALWAYS keep your body weight on

the upside of the slope and be prepared to dismount on that side should the ve-

hicle begin to topple. Do not try to stop or save the vehiicle from damage.

Avoid all objects or depressions that will intensify the raising of one side of the

vehicle higher than the other, thus causing rollover.

WARNING

Be carefull when lloadiing and transporting lliquid reservoirs. They can af-

fect vehicle stabiiliity when side hillliing by pullling downhilll and increasing

the risk of a rolll over.

Drop-Offs

This vehicle is not designed to negotiate drop-offs. It will “bottom-out” and usually

stop if either the front or rear wheels are driven over a drop-off. If the drop is

sharp or deep, the vehicle will nose dive and tip over.

Avoid negotiating drop-offs. Reverse and select an alternate route.

Recreational, Group and Diistance Ridiing

Respect the rights and limitations of others. Stay away from areas designated for

other types of off road use. This includes snowmobile trails, equestrian trails,

cross country ski trails, mountain bike trails, etc. Never assume there are no oth-

er users on the trail. Always stay to the right of the trail and do not zig zag to one

side of the trail then the other. Be prepared to stop or pull off to the side if another

trail user appears in front of you.

Join a local side-by-side vehicle club. It will provide you with a map and advice or

inform you where you can ride. If a club does not exist in your area, help to start

one. Group riding and club activities provide a pleasurable, social experience.

Never use this vehicle with drugs or alcohol, or tired or ill.

SAFETY INFORMATION

RIDING YOUR VEHICLE

Always keep a safe distance from other riders. Your judgment of speed, terrain

conditions, weather, mechanical condition of your vehicle and the “trust in judg-

ment” you have in others around you will help you make a better choice of appro-

priate safe distance. This vehicle, like any other motorized vehicle, cannot stop

“on a dime”.

Before you ride, tell someone where you are planning to travel and your expected

time of return.

Depending on the length of your ride, carry additional tools or emergency equip-

ment. Find out where you can get additional gasoline. Be prepared for the possi-

ble conditions you may encounter. An emergency first aid kit should always be a

consideration.

Environment

One of the benefits of this vehicle is that it can take you off the beaten path away

from most communities. However, you should always respect nature and the

rights of others to enjoy it. Do not ride in environmentally sensitive areas. Do not

drive over forest crops or shrubs, nor cut down trees or take down fencing, nor

spin your wheels and destroy the terrain. “Tread Lightly”.

This vehicle can cause OHV wildfires if debris builds up near the exhaust or other

engine hot spots and ignites then falls off into dry grass. Avoid riding in wet

areas, through muskeg or tall grass, where debris can build up. Should you ride

in those areas, inspect and remove all debris from your engine and hot spots. Re-

fer to Vehicle Care for details.

Chasing wildlife is in many areas illegal. Wildlife can die of exhaustion after being

chased by a motorized vehicle. If you encounter animals on the trail, stop and ob-

serve quietly and with caution. It will be one of the better memories of your life.

Observe the rule “what you take in, carry out”. Do not litter. Do not start campfires

unless you have permission to do so, and then only away from dry areas. The

hazards you may create on the trail may cause injury to others or yourself, even

at a later date.

Respect farmlands. Always obtain the permission of the landowner before riding

on private land. Respect crops, farm animals and property lines.

Finally, do not pollute streams, lakes or rivers and do not modify the engine or ex-

haust system, or remove any of its components as it will alter the vehicle

emissions.

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

Working with Your Vehicle

Your vehicle can help you perform a number of different LIGHT tasks ranging

from snow removal to pulling wood or carrying cargo. A variety of accessories

are available from your authorized Can-Am Off-road dealer. To prevent possible

injury, follow the instructions and warnings that accompany the accessory. Al-

ways respect the load limits of the vehicle. Overloading the vehicle can over-

stress the components and cause failure. Avoid overexerting yourself if you lift or

pull heavy loads or manually push the vehicle.

WARNING

Mounted machinery must be lowered on the ground before lleaviing the

vehicle.

Carrying Loads

Any load carried on the vehicle will affect the handling, stability and braking dis-

tance of the vehicle. Do not exceed the load limits of the vehicle, including the

weight of operator, passengers, cargo, accessories and trailer tongue weight.

Always be aware that the cargo may slide or fall off and cause an accident.

Maximum Load Vehicle Capacity

Includes occupants, cargo, tongue weight

581 kg (1281 lb)

and added accessories

The following is an example of suitable total vehicle load distribution:

Example of Suitable Loads

(Must Be Adjjusted Accordinglly to the Model Load Limiit)

Operator

Total

Cargo Box

Tongue

and

Accessoriies

Vehiicle

Load

Weight

Passenger

Load

294 kg (648

150 kg (331

581 kg (1281

57 kg (126 lb)

80 kg (176 lb)

lb)

To reduce the risk to lose control or the load carried, follow these

recommendations.

Vehicle Settings When Carrying Load

When carrying heavy loads or passenger(s), readjust suspension accordingly.

When carrying heavy loads in cargo box or pulling a loaded trailer, operate with

the shift lever in L (low range).

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

Loading the Cargo Box

WARNING

Never operate the vehiicle with the taillgate open. Except when a taiilgate

extender is installled.

NOTICE

Be carefull to not exceed the weight liimit on the taillgate when lloading or

unloading the cargo box.

Ensure no cargo protrudes outside the box and that cargo will not interfere with

your visibility or control of the vehicle. Loads that protrude sideways can get

snagged or caught in bush, branches or other obstacles.

Avoid covering and obstructing the brake lights with the cargo.

Load cargo as low as possible - a higher load can raise the vehicle’s center of

gravity, which can reduce stability.

Objects that are higher than the walls of the cargo box may affect visibility for the

driver and may act as projectiles in case of an accident.

Position cargo toward the front and center of the cargo box and as evenly distrib-

uted as possible.

Secure the load to the tie down hooks inside cargo box. Use only the tie down

hooks on the bottom of the cargo box; do not secure cargo to the cage or other

part of the vehicle.

If it is not properly secured, a load may slide or fall off, possibly striking occupants

or bystanders; or it may shift during riding, affecting the handling of the vehicle.

Maximum Cargo Box Loads

Evenly distributed and

safely secured. Loaded

Cargo box

272 kg (600 lb)

as low as possible to

reduce height of center

of gravity.

Only while loading cargo

into cargo box. Never

Tailgate

113 kg (250 lb)

operate with an open

tailgate.

Operating While Carrying a Load

Reduce your speed when carrying cargo and turn gradually. Avoid hills and

rough terrain. Allow more distance for braking. This vehicle may require addition-

al stopping distance if carrying heavy loads, especially on inclined surfaces.

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

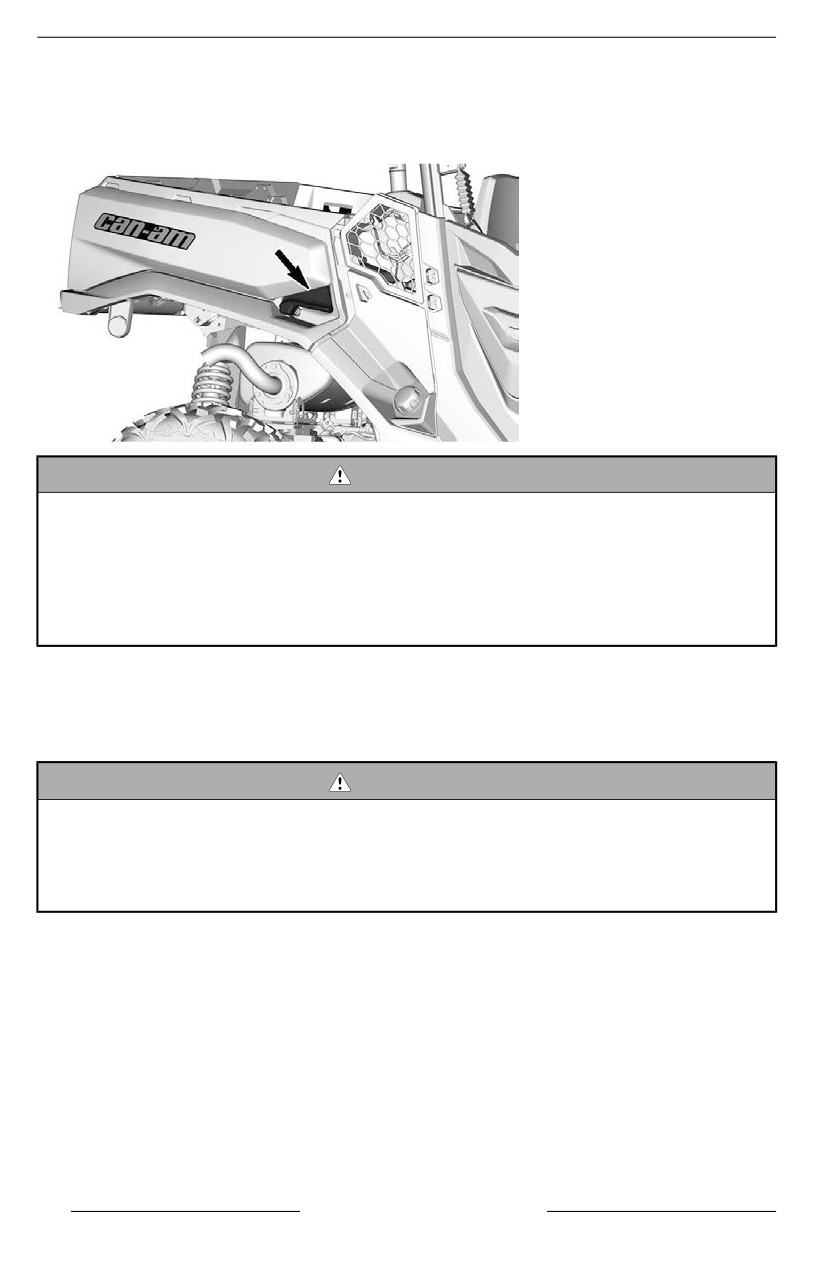

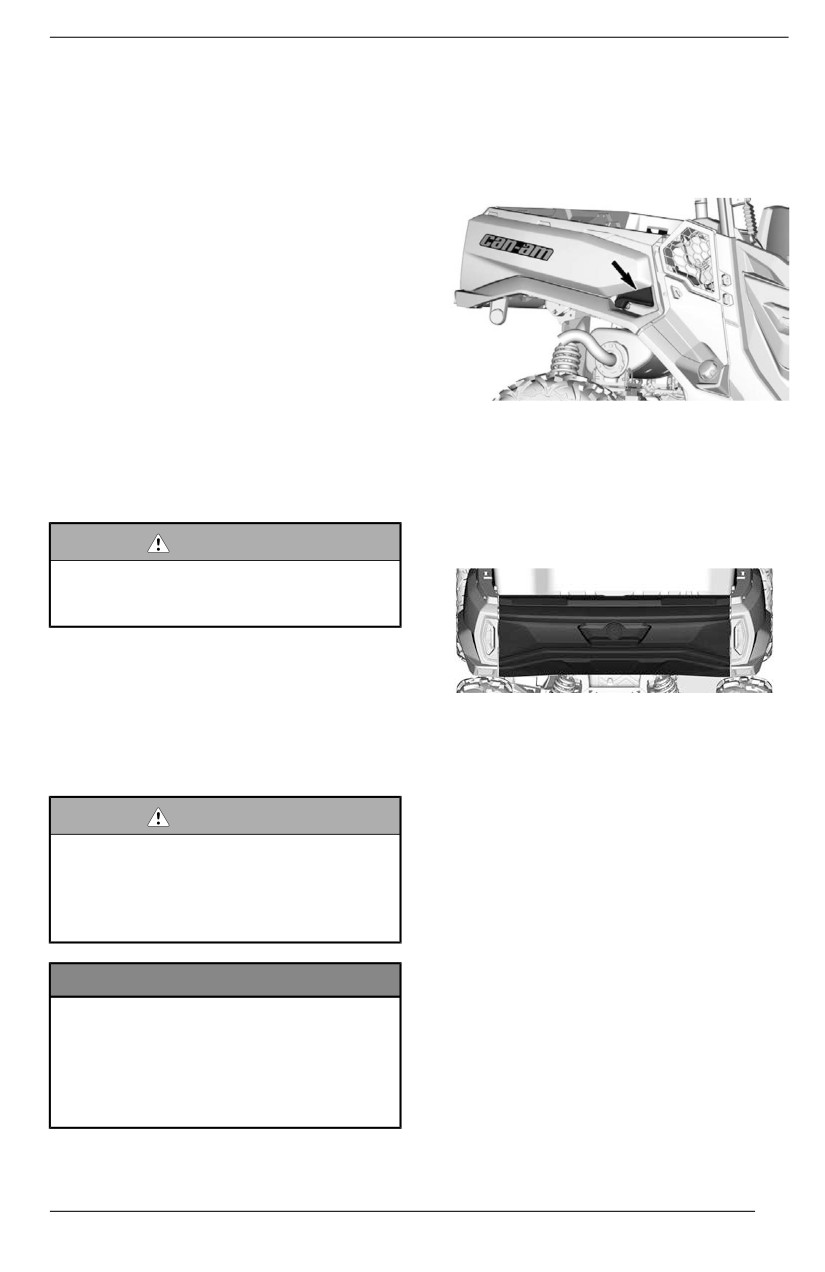

Tilting the Cargo Box

The cargo box can be tilted to ease unloading. Use release handles on either

side of cargo box.

WARNING

Always ensure no one iis standiing behind the cargo box before you ac-

tuate the release handlle.

The lload weight may affect the operatiion of the cargo box tiiltiing feature

(tiilting or lowering).

Some accessories assembled on the cargo box may affect hiis behaviior

duriing the opening and cllosure. Always keep attention during thiis

operatiion.

Be very careful with the operation of the tailgate and the cargo box as the load

may have moved during transport.

To lower the cargo box, simply push it down into place.

WARNING

Keep yoursellf and others cllear of the cargo box and vehicle frame junc-

tiion when lloweriing cargo box.

Ensure to properly latch the cargo box and the taillgate before ridiing.

Make sure you do not leave objects between liifted cargo box and vehiiclle

frame to ensure proper latchiing of the cargo box when llowered.

Hauling a Load

Never pull a load by attaching it to the cage or other accessories; this can cause

the vehicle to tip over. Use only the trailer hitch or winch (if installed) to pull a

load.

When pulling loads with a chain or cable, ensure that there is no slack before

starting and maintain tension while pulling.

When pulling loads with a chain or cable, be sure to brake progressively. The in-

ertia of the load could lead to an impact.

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

When hauling a load, respect the maximum hauling capacity. Refer to Pulling a

Trailer.

WARNING

A sllack can cause the chain or cablle to break and snap back.

When pulling another vehicle, be sure that someone is controlling the pulled ve-

hicle. They must brake and steer to prevent the vehicle from going out of control.

Before pulling loads with a winch, refer to the winch manufacturer’s instructions.

Reduce your speed when hauling a load and turn gradually. Avoid hills and rough

terrain. Never attempt steep hills. Allow more distance for braking, especially on

inclined surfaces and when passengers are on board. Be careful not to skid or

slide.

Pulling a Trailer

Riding this vehicle with a trailer substantially increases the risk of toppling, espe-

cially on inclined slopes. If a trailer is used behind the vehicle make sure that its

hitch is compatible with the one on the vehicle. Make sure the trailer is horizontal

with the vehicle. (In some instances a special extension may have to be installed

on the vehicle hitch). Use security chains or cables to secure the trailer to the

vehicle.

Reduce your speed when pulling a trailer and turn gradually. Avoid hills and

rough terrain. Never attempt steep hills. Allow more distance for braking, espe-

cially on inclined surfaces and when passengers are on board. Be careful not to

skid or slide.

Improperly loading a trailer may cause loss of control.

Always make sure load is evenly distributed and safely secured on the trailer; an

evenly balanced trailer is easier to control.

Always put the shift lever to L (low range) for hauling a trailer - in addition to pro-

viding more torque, operating in low range helps account for the increased load

on the rear tires.

When stopped or parked, block the vehicle and trailer wheels from possible

movement.

Use caution when disconnecting a loaded trailer; it or its load may topple on you

or others.

When hauling a trailer, respect the maximum tongue weight and towing capacity

indicated on the label affixed to the hitch.

Make sure there is at least some weight on the tongue.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS

(CANADA/UNITED STATES)

Safety Hang Tag

This vehicle comes with a hang tag and labels containing important safety

information.

Any person who rides this vehicle should read and understand this information

before riding.

THIS VEHICLE IS INTENDED FOR RECREATIONAL USE

AND SECONDARY GENERAL UTILITY APPLICATIONS

Tilt Table

NO OPERATOR UNDER AGE 16

TRAINING COURSES TO TEACH ROV DRIVING

Test Result

ARE AVAILABLE. FOR INFORMATION CONTACT

YOUR DEALER.

Read the Operator's Guide and Safety Labels

and Watch the Safety Video.

Follow All Instructions and Warnings.

BOMBARDIER RECREATIONAL PRODUCTS INC.

VEHICLE MODEL

CHECK WITH YOUR DEALER TO FIND OUT ABOUT

TILT TABLE RESULT

STATE OR LOCAL LAWS REGARDING ROV OPERATION.

Cause Severe Injury or Death

Be Prepared

Measurement of lateral stability, in degrees, of a

• Fasten seat belts and make sure nets or doors

sample, standard condition vehicle (with an

are securely latched in place.

operator and a passenger load - 430 pounds) as

measured by the manufacturer in accordance with

the tilt table lateral stability test in the ANSI/ROHVA

standard for Recreational Off-Highway Vehicles.

completely inside the vehicle.

Vehicle modification, accessories, and loading can

Drive Responsibly

affect lateral stability.

Avoid loss of control and rollovers:

Training courses to teach ROV driving are available.

never do donuts.

For information contact your dealer and/or

rohva.org.

terrain. Avoid paved surfaces.

Check with your dealer to find out about state or

local laws regarding ROV operation.

Rollovers have caused severe injuries and death,

THIS HANG TAG IS NOT TO BE REMOVED BEFORE SALE.

Be Sure Riders Pay Attention and Plan Ahead

If you think or feel the vehicle may tip or roll,

reduce your risk of injury :

VEHICLE MODEL NAME:

and brace yourself.

ENGINE DESCRIPTION:

vehicle for any reason.

Require Proper Use of Your Vehicle

EPA CERTIFIED

- Do your part to prevent injuries:

NER (NORMALIZED EMISSION RATE) =

ON 0 TO 10 SCALE, 0 BEING THE CLEANEST.

BOMBARDIER RECREATIONAL PRODUCTS INC

*NO TO BE REMOVED PRIOR SALE.

card

Vehicle seating capacity:

Occupants

THIS HANG TAG CAN’T BE REMOVED BEFORE SALE.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Safety Labels

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passengers

or bystanders.

The following labels are on your vehicle, and they should be considered perma-

nent parts of the vehicle. They need to be clean and visible at all times. If missing

or damaged, they need to be replaced. Safety labels are free of charge. See an

authorized Can-Am Off-road dealer.

Upon replacement of parts that have warnings on them, make sure to order (free

of charge) the applicable safety warnings if not already installed on the replace-

ment part.

NOTE:

In the event of any discrepancy between this guide and the vehicle, the safety la-

bels on the vehicle have precedence over the labels in this guide.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Generall Warniing Labell

Imp

Rollovers Have Caused Severe Injuries and

Severe Injury or Death

Death, Even on Flat, Open Areas.

Be Prepared

Be Sure Riders Pay Attention and Plan Ahead

• Fasten seat belts and make sure nets or doors are securely latched in place.

If you think or feel the vehicle may tip or roll, reduce your risk of injury :

Stay completely inside the vehicle.

Require Proper Use of Your Vehicle - Do your part to prevent

Drive Responsibly

injuries:

Avoid loss of control and rollovers:

•

trucks can occur.

in traction and terrain. Avoid paved surfaces.

occupants.

•Avoid side hilling (riding across slopes).

Read and understand all safety labels,

locate and read operator's guide.

Watch the safety video using the QR

code link or visit Can-am web site

before operation.

8030

Patent : www.brp.com/en/about-brp/patents.html

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Passenger Warning Labell

Be Sure Riders Pay Attention and Plan Ahead

PASSENGER(S)

Improper Use of this Vehicle Can Cause Severe Injury or Death

If you think or feel the vehicle may tip or roll, reduce your risk of injury:

• Keep a firm grip on handholds and brace yourself.

Be Prepared

• Do not put any part of your body outside of the vehicle for any reason.

• Fasten seat belt and make sure nets or doors are securely latched in place.

• Wear an approved helmet and protective gear.

You must be able to sit with back against seat, foot flat on the

floor or on footrest, and hands on handholds. Stay completely

inside the vehicle.

• Do not ride after using drugs or alcohol.

PASSENGER QUALIFICATIONS AND

• Ask the operator to slow down or stop if

RESPONSIBILITIES

you feel uncomfortable when riding.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Rear Left Passenger Warning Label

Located on the back of the driver seat headrest

PASSENGER(S)

Improper Use of this Vehicle Can Cause

Severe Injury or Death

Be prepared

• Fasten seat belt and make sure net and/or door is

securely latched in place.

• Wear an approved helmet and protective gear.

Be prepared in case of rollover

If the vehicle rolls over, any part of your body (such

You must be able to sit with back against seat, foot flat on

as arms, legs, or head) outside of the cockpit can be

the floor or on footrest, and hands on handholds. Stay

crushed by the cage or other parts of the vehicle.

completely inside the vehicle.

Fasten seat belt and make sure net and/or door is

securely latched in place to help you avoid sticking out

Be sure riders pay attention and plan ahead

arms or legs.

If you think or feel the vehicle may tip or roll, reduce your risk of

hold the cage while riding.

injury:

try to stop a rollover using your arm or leg.

• Keep a firm grip on handholds and brace yourself.

• Do not put any part of your body outside of the vehicle for any

reason.

PASSENGER QUALIFICATIONS AND RESPONSIBILITIES

• Do not ride after using drugs or alcohol.

• Ask the operator to slow down or stop if you feel uncomfortable when

riding.

704907341

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Rear Right Passenger Warning Label

Located on the back of the front passenger seat headrest

PASSENGER(S)

Improper Use of this Vehicle Can Cause

Severe Injury or Death

Be prepared

• Fasten seat belt and make sure net and/or door is

securely latched in place.

• Wear an approved helmet and protective gear.

Be prepared in case of rollover

You must be able to sit with back against seat, foot flat on

If the vehicle rolls over, any part of your body (such as arms,

the floor or on footrest, and hands on handholds. Stay

legs, or head) outside of the cockpit can be crushed by the

completely inside the vehicle.

cage or other parts of the vehicle.

Fasten seat belt and make sure net and/or door is securely

Be sure riders pay attention and plan ahead

latched in place to help you avoid sticking out arms or legs.

If you think or feel the vehicle may tip or roll, reduce your risk of

hold the cage while riding.

injury:

try to stop a rollover using your arm or leg.

• Keep a firm grip on handholds and brace yourself.

• Do not put any part of your body outside of the vehicle for any

reason.

PASSENGER QUALIFICATIONS AND RESPONSIBILITIES

• Do not ride after using drugs or alcohol.

• Ask the operator to slow down or stop if you feel uncomfortable when

riding.

704907343

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Tiire Pressure and Maxiimum Load — Warniing Label

WARNING

carry passenger in cargo box or on gate.

To reduce the risk of loss of control or loss of load:

When carrying a load:

When loading cargo:

• Reduce your speed and turn gradually

place gasoline container inside cargo box

• Position cargo towards front and center and as low as possible

• Avoid hills and rough terrain.

when filling it. This can lead to an explosion

• Latch tail gate.

• Allow more distance to stop.

exceed the vehicle load capacity (refer table),

Improper tire pressure or overloading

including weight of operator, passenger,

can cause loss of control.

cargo, accessories and trailer tongue weight if

applicable.

Loss of control can result in severe injury or death.

• An underinflated tire can come off the rim

exceed CARGO LOAD CAPACITY (Refer to label below),

evenly distributed (includes trailer tongue weight if applicable).

2 OCCUPANTS

4 OCCUPANTS

secure the load.

MODEL

XTP

XMR

OTHERS

XTP

XMR

OTHERS

Front

Minimum:

97 ( 14 )

76 ( 11 )

103 ( 15 )

131 ( 19 )

103 ( 15 )

131 ( 19 )

138 ( 20 )

COLD TIRE

Maximum:

kPa (psi)

103 ( 15 )

83 ( 12 )

103 ( 15 )

110 ( 16 )

165 ( 24 )

124 ( 18 )

159 ( 23 )

179 ( 26 )

PRESSURE

Rear

Minimum:

kPa (psi)

138 ( 20 )

145 ( 21 )

152 ( 22 )

165 ( 24 )

145 ( 21 )

152 ( 22 )

179 ( 26 )

Maximum:

221 ( 32 )

214 ( 31 )

221 ( 32 )

241 ( 35 )

262 ( 38 )

248 ( 36 )

262 ( 38 )

290 ( 42 )

MAX. VEHICLE LOAD CAPACITY: kg (lb)

467 ( 1030 )

581 ( 1280 )

MAX. CARGO LOAD CAPACITY: kg (lb)

272 (600)

• Use Max pressure if total vehicle load exceeds 195 kg (430 lb).

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

2WD/4WD Selection – Warning Labell

Models with Visco-Lok differential

Models with Smart-Lok differential

Put the Shift Lever to PARK (P) before

This vehicle is an off road

Put the Shift Lever to PARK (P) before exiting

vehicle not intended for use

exiting vehicle. The vehicle can roll if

vehicle not intended for use

on public roads

vehicle. The vehicle can roll if not in PARK.

not in PARK.

Stop the vehicle and apply the Brake before

Stop the vehicle and apply the Brake

using the Shift Lever, the 2WD/4WD Switch and

Ce véhicule est conçu

before using the Shift Lever, the

Ce véhicule est conçu

the Rear Diff Lock Switch.

pour un usage hors route

Turning in 4WD - Lock (Front Diff. Lock )

et n'est pas destiné aux

Lock Switch.

et n'est pas destiné aux

requires more steering effort. Allow more

voies publiques

704908295

voies publiques

room to turn.

8980

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

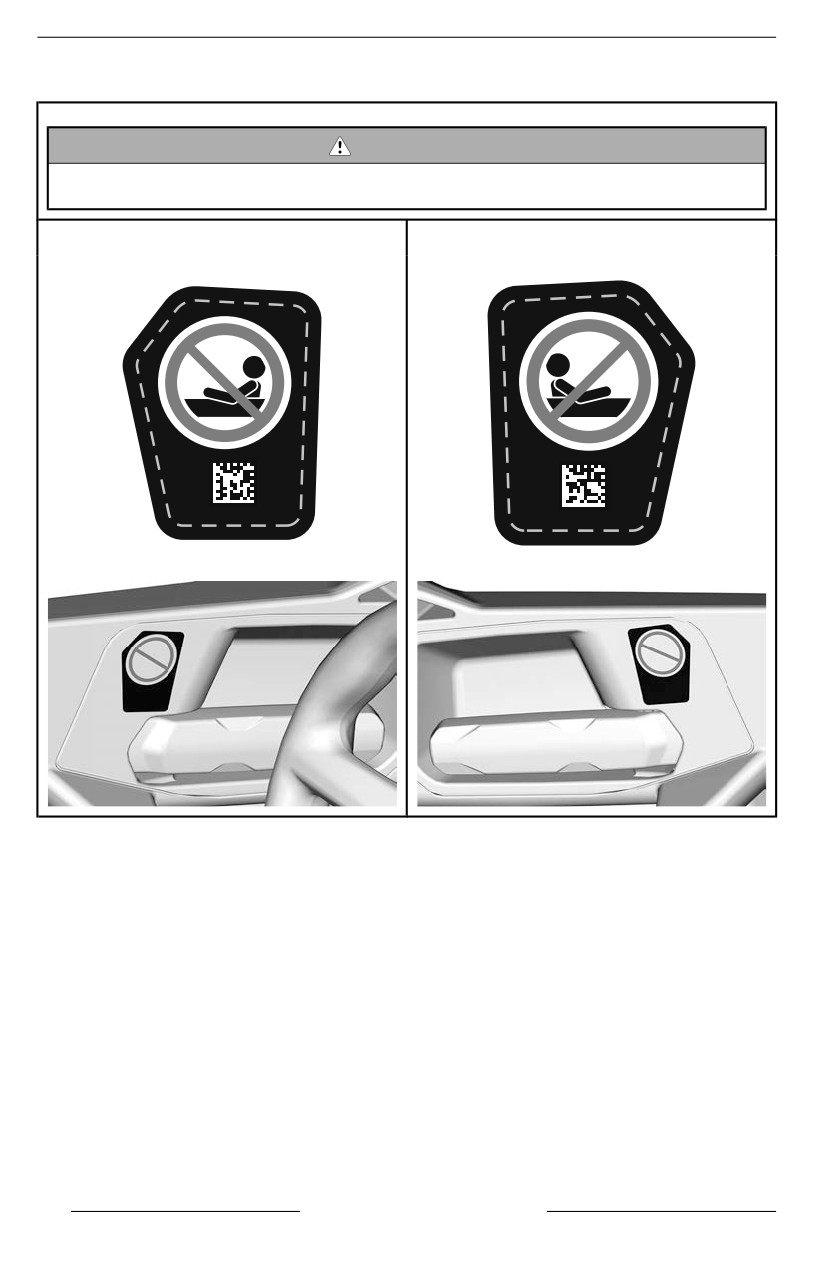

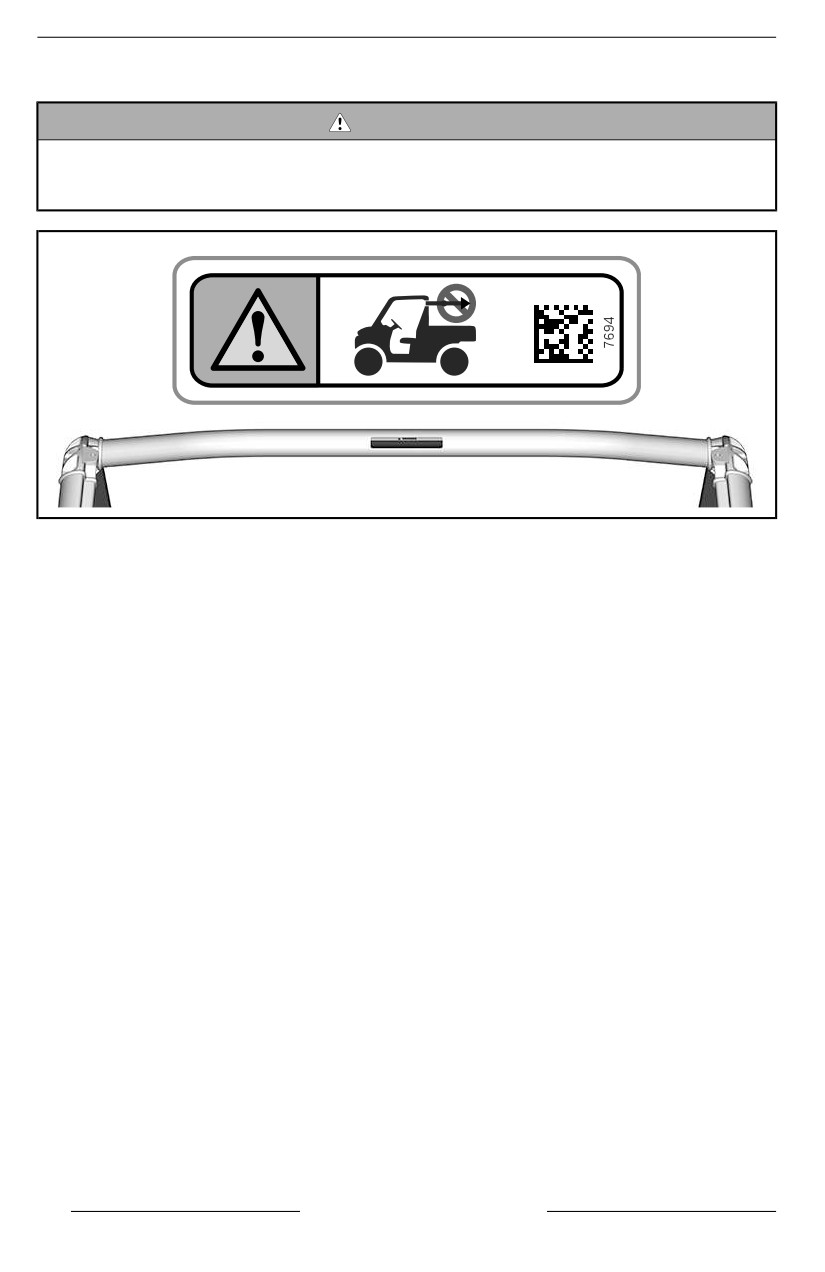

Rolllover — Warning Labells

LH side

RH Side

Be prepared in case of

rollover

If the vehicle rolls over,

any part of your body

(such as arms, legs, or

head) outside of the

cockpit can be crushed

by the cage or other

parts of the vehicle.

Fasten seat belt and

make sure net and/or

door is securely latched

in place to help you

avoid sticking out arms

or legs.

hold the

cage while riding.

try to stop

a rollover using

your arm or leg.

9028

9030

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

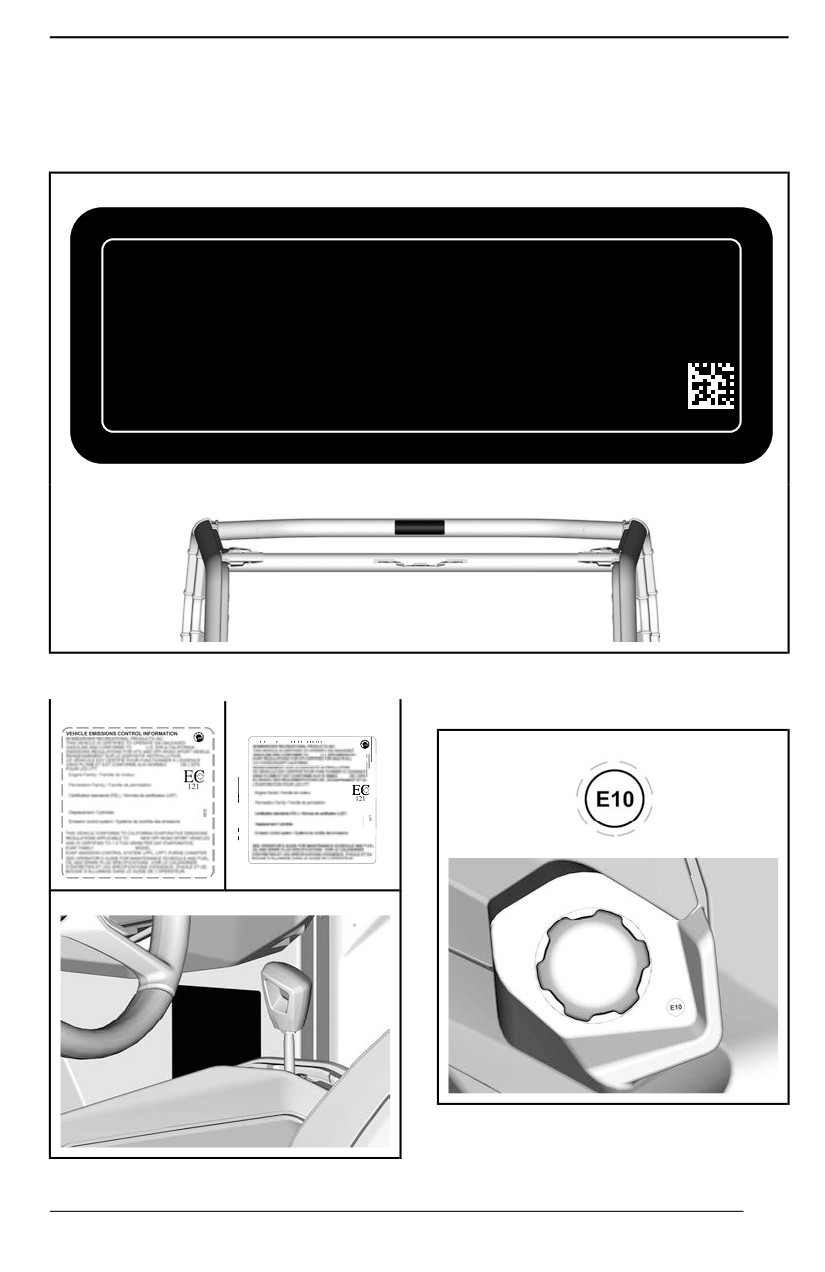

Compliance HangTag

Caliifornia Proposition 65 Warniing - Hang Tag

Applicable for all models in Canada and United States of America or everywhere

except Canada and United States of America when equivalent to a model certi-

fied to US EPA Standards.

. Operating, servicing and

WARNING

maintaining an off-road vehicle can expose

you to chemicals including engine exhaust,

carbon monoxide, phthalates, and lead,

which are known to the State of California

to cause cancer and birth defects or other

reproductive harm.

To minimize exposure, avoid breathing

exhaust, do not idle the engine except as

necessary, service your vehicle in a

well-ventilated area and wear gloves or wash

your hands frequently when servicing your

vehicle.

For more information go to

www.P65Warnings.ca.gov/products/

passenger-vehicle

704906872

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES

OUTSIDE CANADA AND UNITED STATES)

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passengers

or bystanders.

The following labels are on your vehicle, and they should be considered perma-

nent parts of the vehicle. They need to be clean and visible at all times. If missing

or damaged, they need to be replaced. Safety labels are free of charge. See an

authorized Can-Am Off-road dealer.

Upon replacement of parts that have warnings on them, make sure to order (free

of charge) the applicable safety warnings if not already installed on the replace-

ment part.

NOTE:

In the event of any discrepancy between this guide and the vehicle, the safety la-

bels on the vehicle have precedence over the labels in this guide.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

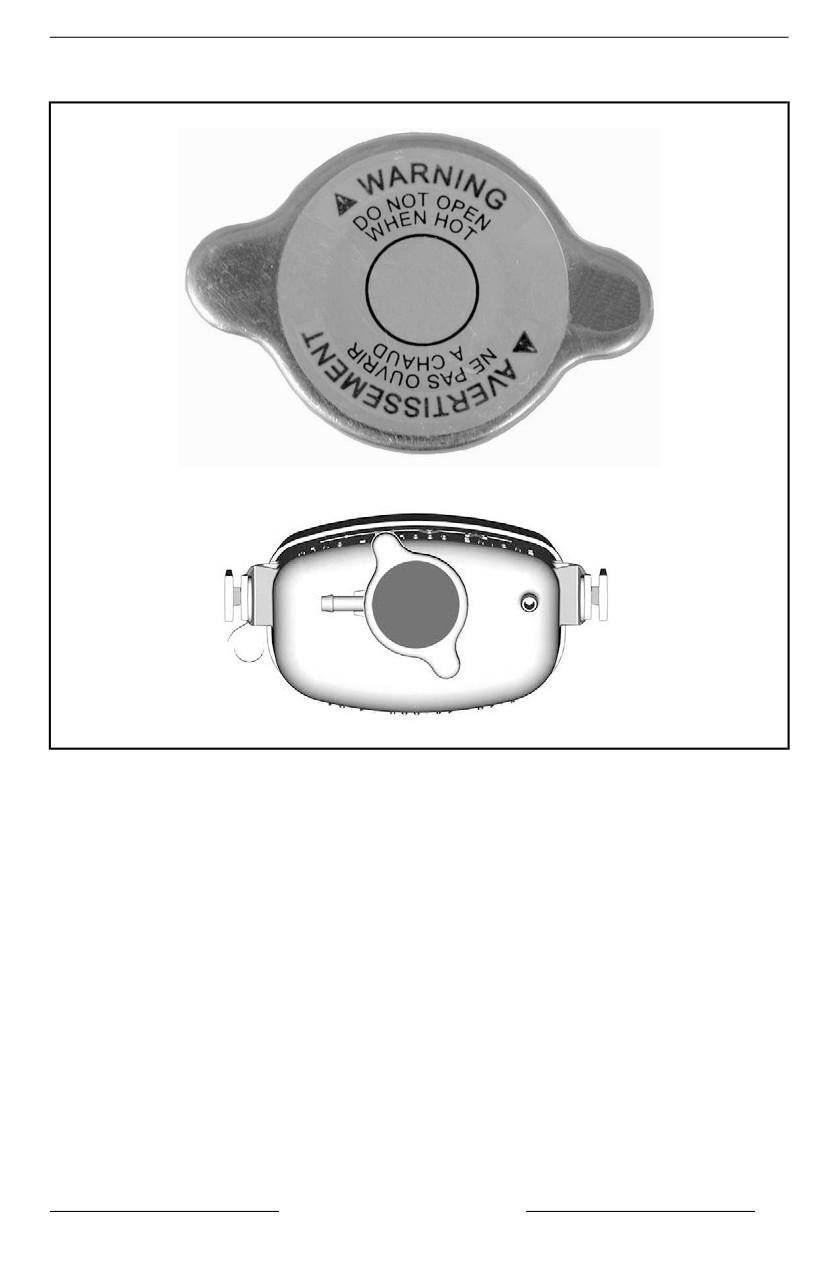

Safety Labels

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passengers

or bystanders.

Any person who rides this vehicle should read and understand this information

before riding.

The following labels are on your vehicle, and they should be considered perma-

nent parts of the vehicle. They need to be clean and visible at all times. If missing

or damaged, they need to be replaced. Safety labels are free of charge. See an

authorized Can-Am Off-road dealer.

Upon replacement of parts that have warnings on them, make sure to order (free

of charge) the applicable safety warnings if not already installed on the replace-

ment part.

NOTE:

In the event of any discrepancy between this guide and the vehicle, the safety la-

bels on the vehicle have precedence over the labels in this guide.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

General Warning Piictogram

WARNING

–

Read and understand alll safety llabells, llocate and read operator''s

guiide. Watch the safety viideo using the QR code liink or visiit Can-am

web siite before operatiion.

–

Always wear an approved hellmet and protectiive gear.

–

Always wear ear protection.

–

Always llatch nets or doors.

–

Fasten seat bellts.

–

Make sure operators are 16 or older with a vallid driver''s llicense.

–

Do not alllow operation on publiic roads (unlless desiignated for off-hiigh-

way vehiclle access) – collisiions with cars and trucks can occur.

–

Avoiid loss of control and rolllovers:

– Avoid abrupt maneuvers, sideways sliidiing, skidding or fiishtailling,

and never do donuts.

– Avoid hard accelleratiion when turning, even from a stop.

– Sllow down before enteriing a turn.

– Pllan for hillls, rough terraiin, ruts, and other changes iin traction and

terraiin.

– Avoid paved surfaces.

– Avoid side hillliing (riiding across sllopes).

–

Rolllovers have caused severe iinjuriies and death, even on flat, open

areas.

–

Do not exceed seating capacity: 4 occupants.

–

Each riider must be able to sit with back against seat, feet fllat on the

flloor or on footrest, and hands on steering wheell or handhollds.

–

If you think or feell the vehiiclle may tiip or rolll, reduce your riisk of injjury :

Keep a firm griip on the steering wheel or handhollds and brace your-

self. Do not put any part of your body outside of the vehiicle for any

reason.

–

Always stay complletelly insiide the vehiiclle.

–

Do not llet people drive or ride after usiing allcohol or drugs.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Passenger Warning Labell

WARNING

– Always wear an approved hellmet and protectiive gear.

– Always wear ear protection.

– Fasten seat bellts.

– Always llatch nets or doors.

– Each riider must be able to sit with back against seat, feet fllat on the

flloor or on footrest, and hands on handholds.

– If you think or feell the vehiiclle may tiip or rolll, reduce your riisk of injjury.

Keep a firm griip on handhollds and brace yourself. Do not put any part

of your body outside of the vehiclle for any reason.

– Always stay complletelly insiide the vehiiclle.

– Do not riide after usiing allcohol or drugs.

7648

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Rear Left Passenger Warning Piictogram

WARNING

– Allways wear an approved helmet and protectiive gear.

– Allways wear ear protectiion.

– Fasten seat belts.

– Allways latch nets or doors.

– Never hold the cage whille ridiing.

– Never put your arm outside of the vehiiclle.

– Each rider must be able to siit wiith back against seat, feet flat on the

floor or on footrest, and hands on handhollds.

– If you thiink or feel the vehicle may tip or rolll, reduce your risk of iin-

jury : Keep a fiirm grip on handholds and brace yoursellf. Do not put

any part of your body outside of the vehiiclle for any reason.

– Allways stay complletely iinsiide the vehicle.

– Do not ride after using alcoholl or drugs.

7692

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Rear Right Passenger Warning Piictogram

WARNING

– Always wear an approved hellmet and protective gear.

– Always wear ear protection.

– Fasten seat bellts.

– Always llatch nets or doors.

– Never holld the cage while riiding.

– Never put your arm outsiide of the vehicle.

– Each riider must be ablle to sit with back agaiinst seat, feet fllat on the

flloor or on footrest, and hands on handholds.

– If you think or feell the vehiicle may tiip or rolll, reduce your riisk of in-

jury : Keep a firm griip on handhollds and brace yourself. Do not put

any part of your body outsiide of the vehicle for any reason.

– Always stay completelly inside the vehiicle.

– Do not riide after usiing allcohol or drugs.

7693

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Tiire Pressure and Maxiimum Load - Warniing Label

WARNING

– Locate and read operator''s guide. Improper tiire pressure or overload-

ing can cause lloss of controll, resultiing iin SEVERE INJURY or DEATH.

– Allways maintaiin proper tire pressure as shown.

– NEVER exceed the vehiicle load capacity, iinclludiing weight of operator,

passenger(s), cargo, accessoriies and trailer tongue weight iif

appllicable.

– Do not overlload cargo box.

– NEVER carry passenger in cargo box or on taillgate.

– NEVER place gasoliine, flammablle or dangerous liiquiids contaiiner on

the carrier. This can llead to an explosion.

195 (430)

kg (lb)

kPa (psi)

< kg (lb)

97 ( 14 )

138 ( 20 )

103 ( 15 )

221 ( 32 )

XTP

76 ( 11 )

138 ( 20 )

83 ( 12 )

214 (31 )

467 ( 1030 )

OTHERS

103 ( 15 )

152 ( 22 )

110 ( 16 )

241 ( 35 )

272 ( 600 )

131 ( 19 )

165 ( 24 )

262 ( 38 )

XTP

103 ( 15 )

145 ( 21 )

124 ( 18 )

248 (36 )

581 ( 1280 )

OTHERS

138 ( 20 )

179 ( 26 )

290 ( 42 )

SAFETY INFORMATION

REPORTING SAFETY DEFECTS

In Canada, if you believe that your vehicle has a defect which could cause a

crash or could cause injury or death, you should immediately inform Transport

Canada in addition to notifying Bombardier Recreational Products Inc.

If Transport Canada receives similar complaints, it may open an investigation,

and if it finds that a safety defect exists in a group of vehicles, it may order a re-

call and remedy campaign. However, Transport Canada cannot become involved

in any individual problems between you, your dealer or Bombardier Recreational

Products Inc.

To contact Transport Canada:

819-994-3328 (Gatineau-Ottawa area or internationally)

Toll free : 1 800-333-0510 (in Canada)

Transport Canada - ASFAD

330 Sparks Street

Ottawa, ON

K1A 0N5

https://www.tc.gc.ca/recallls

SAFETY INFORMATION

PRIMARY CONTROLS

Steering Wheel

To decrease vehicle speed or to stop

vehicle, press down the brake pedal

The steering wheel is located in front

with your right foot.

of the driver's seat.

The brake pedal is spring loaded and

The steering wheel steers the vehicle

should return to rest position when not

to the left or right.

pressed.

Turn the steering wheel in the direc-

tion you want to go.

Shift Lever

Grip the steering wheel with both

hands, without having thumbs rolled

around the steering wheel.

CAUTION

Under rough traill condiitiions or

when crossing an obstaclle, the

steeriing wheell coulld suddenlly

jerk on one side, causing hand or

wrist injuriies iif the thumbs are

rollled around the steering wheell.

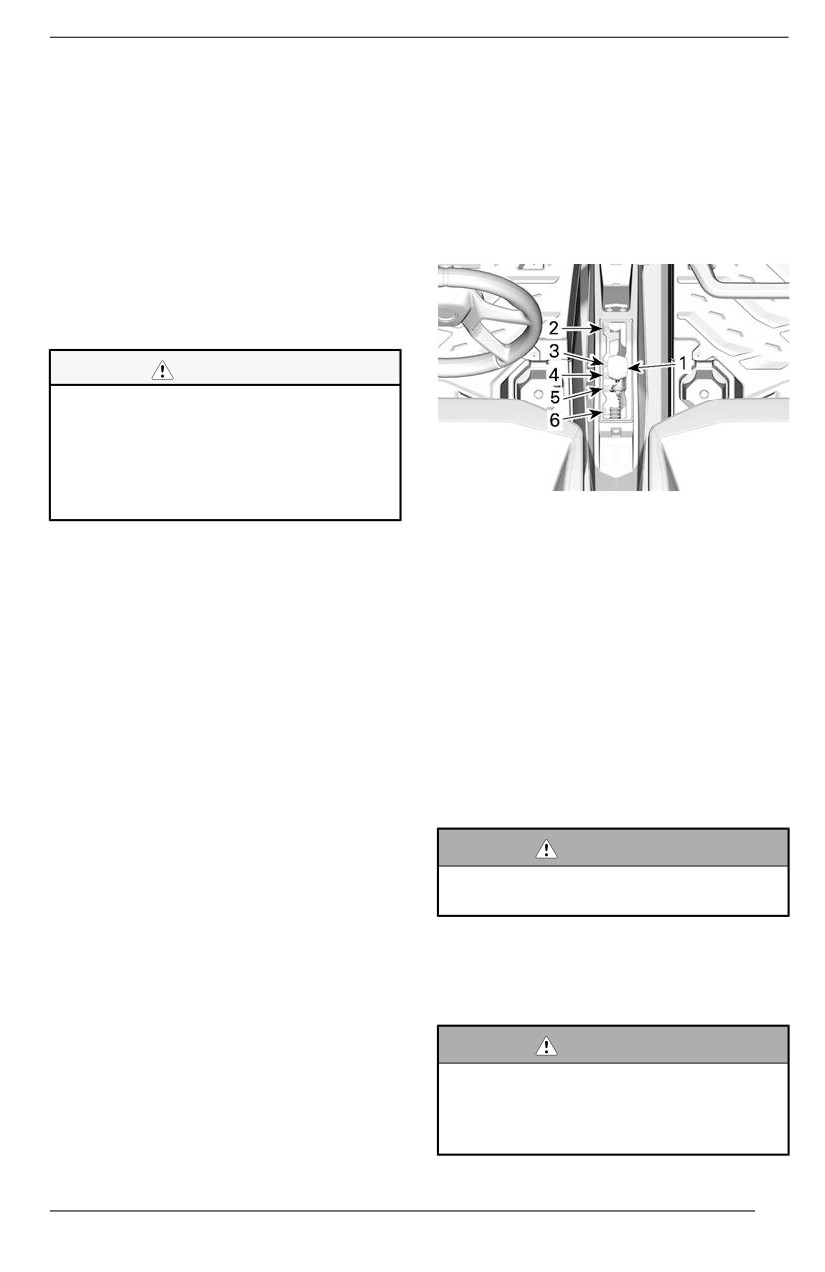

1. Shift lever

2. Park

3. Reverse

A dynamic power steering (DPS) re-

4. Neutral

duces the effort to turn the steering

5. High range (forward)

wheel.

6. Low range (forward)

Accelerator Pedal

The shift lever is located on the lower

The accelerator pedal is located on

console, between the seats.

the right side of the brake pedal.

The shift lever is used to change the

The accelerator pedal controls the en-

gearbox position.

gine speed.

The vehicle must be stopped and

To increase or maintain vehicle

brakes applied prior to selecting any

speed, press on the accelerator pedal

gear.

with your right foot.

WARNING

To decrease vehicle speed, release

the accelerator pedal.

Thiis gearbox iis not desiigned to

shift whiile vehiicle is moving.

The accelerator pedal is spring loaded

and should return to rest position (idle)

Park

when not pressed.

The park position locks the gearbox to

Brake Pedal

help prevent vehicle movement.

The brake pedal is located on the left

WARNING

side of the accelerator pedal.

Always use the PARK (P) posiitiion

The brake pedal function is to slow

when the vehiiclle is not iin opera-

down or stop the vehicle.

tiion. The vehiiclle can rolll if the

shift lever is not set to P (PARK).

PRIMARY CONTROLS

Reverse

The reverse position allows the ve-

hicle to go backwards.

NOTE:

In reverse operation, the engine RPM

is limited thus limiting the vehicle re-

verse speed.

WARNING

When driiving downhilll iin reverse,

gravity can iincrease the vehicle

speed above safe reverse speed.

Neutral

The neutral position disengages the

gearbox.

High Range (Forward)

This position selects the high speed

range of the gearbox. It is the normal

driving speed range. It allows the ve-

hicle to reach its maximum speed.

Low Range (Forward)

This position selects the low speed

range of the gearbox. It allows the ve-

hicle to move slowly with maximum

torque at the wheels.

NOTICE

Use the llow speed range to pulll a

trailer, carry heavy cargo, go over

obstacles or drive uphiilll and

downhiilll.

SECONDARY CONTROLS

RF D.E.S.S Key and RF D.E.

This may be useful for riders who pre-

fer crisper throttle response, and for

S.S. Post

environments where higher speeds

and greater acceleration are appropri-

RF D.E.S.S. Key

ate. For example, in wide-open

For all D.E.S.S. related option, see an

straight trails, operators may prefer

authorized Can-Am dealer for

the performance key.

information.

Normal Key

Digiitallly Encoded Securiity System

(D.E.S.S.)

The normal key limits the vehicle

speed to 70 km/h (43 MPH) and 50%

This vehicle is delivered with 1 D.E.S.

torque reduction.

S. key.

The ignition keys contain an electronic

WARNING

circuit that gives it a unique electronic

On steep downhiillls, the engine

serial number.

speed liimiter may not prevent the

vehiiclle from accelleratiing beyond

The D. E. S. S. system reads the key

thiis speed.

code and allows engine starting for

keys it recognizes.

This key may be useful for riders who

This vehicle can be operated using

prefer more gradual acceleration, or

different types of key programming:

for riding in environments where full

- Performance

speed and high acceleration are not

- Normal

desirable. For example, in narrow,

- Work (if applicable)

winding trails, operators may prefer a

normal key.

Refer to your dealer for complete

information.

Work Key (if appllicable)

NOTE:

The work key allows for usage of

Additional keys are available from

100% of maximum engine torque but

your dealer as an accessory.

limits vehicle speed to 40 km/h (25

MPH).

WARNING

RF D.E.S.S. Post

Rolllovers, tiipovers, colllisions and

The D. E. S. S. post is located on the

loss of control resullting in serious

upper console.

injury or death are possiible with

the performance or normal key.

Using the normal key is not a sub-

stitute for the operator being pre-

pared, qualiified, and operating

wiith care.

Performance Key

The performance key allows the user

to access the full torque of the engine

as well as the top speed of the

vehicle.

SECONDARY CONTROLS

Engine Start/Stop Button

This switch is used to select either the

headlights OFF position, low or high

The engine start / stop button is lo-

beams.

cated on the upper console, at the

right of the steering wheel.

Headlight Dimmer Switch

(700 Engine)

The headlight dimmer switch is lo-

cated on the upper console.

This switch is used to select either the

headlights low or high beams.

When pressed and held, it starts the

engine.

the engine is running, when

pressed, it stops the engine.

NOTE:

The RF D.E.S.S. key must be installed

on the RF D. E. S. S. post to allow en-

gine start.

Press and hold to turn on or off the

To power up the electrical system

headlights.

without starting the engine, refer to

Waking Up the Electrical System.

Winch Switch

Headlight Dimmer Switch

The winch can be controlled from in-

side and outside the vehicle with the

The headlight dimmer switch is lo-

winch control switch located in the

cated on the upper console.

upper console.

SECONDARY CONTROLS

Refer to your Winch Guide included

TRAIL

with your vehicle for proper winch

This mode must be used during all

operation.

normal riding.

Keypad

The front differential will automatically

The keypad is used to navigate

synchronize the front wheels as

through various menus and options

needed.

when the

7.6" Digital Display is

TRAIL ACTIV

installed.

This mode is used to increase traction

The keypad is located on the upper

on the front drive train.

console.

This will optimize traction while going

out of a corner and/or while doing hard

acceleration by the detection of the

engine torque required by the driver.

When using this mode, you need to

adjust of your driving style as the front

drivetrain is going to pull more than

usually.

WARNING

The fullly locked option of the front

Riding Mode Switch

differential reduces the maneu-

verabillity of the vehiiclle in certain

On Some Models Only

conditiions.

This switch is used to choose between

the TRAIL or TRAIL ACTIV mode.

2WD/4WD Switch

Modells without Smart-Lok

The 2WD/4WD switch is located on

the upper console.

SECONDARY CONTROLS

This switch selects 2 wheel drive or 4

wheel drive mode when the vehicle is

stopped.

Once the vehicle 4WD mode is en-

gaged, the front diff lock can be acti-

vated when the switch is pushed

upwards.

The front diff. lock can be activated on

the fly, no need to stop the vehicle to

engage. To deactivate, push again on

the switch. When the engine is

stopped, the front diff. lock will be

deactivated.

This switch selects 2 wheel drive, or 4

wheel drive mode when the vehicle is

NOTICE

stopped.

The vehicle must be stopped to

engage or disengage the 2WD/

NOTICE

4WD switch.

The vehiiclle must be stopped to

Mechaniicall damage may occur if

engage or disengage 2WD/4WD

switch iis engaged or diisengaged

swiitch.

whille driving.

Mechaniicall damage may occur if

Always unlock the front diff. be-

swiitch iis engaged or disengaged

fore disengaging 4WD.

whiile driiviing.

The front differential is fully locked

The 4WD mode is engaged when the

when the switch is pushed upward. It's

switch is pushed upwards.

a momentary position. When the front

diff. is locked, the switch light will illu-

The 2WD mode is engaged when the

minate and a message will appear in

switch is pushed downwards. The ve-

the cluster for 2 seconds to say "DIFF

hicle is then rear wheel drive only.

LOCK". A padlock pictogram will ap-

pear inside the 4x4 logo. The light will

2WD/4WD/Front Diff Lock

turn off when the differential is un-

locked and a message in the cluster

Switch

will appear and show "SMART-LOK",

Modells wiith Smart-Lok

meaning that you are back in the auto-

matic mode. For all models with Smar-

The 2WD/4WD/Front Diff Lock switch

t-Locker, the AUTO pictogram will lit

is located on the upper console.

above the 4x4 logo in the cluster.

When the front differential is locked,

the effort to turn the steering wheel

SECONDARY CONTROLS

might be higher and the response

This switch enables locking of rear

might be slower.

differential.

WARNING

NOTICE

The vehiclle must be stopped to

Abruptly changiing direction can

cause lloss of controll or injjury.

engage or diisengage the differen-

Never engage Front Diff Lock be-

tial switch.

fore entering a turn or when

The vehiclle must be in gear (not

turning.

in Park) to proceed

Mechanical damage may occur iif

swiitch is engaged or disengaged

The front differential is locked and the

whiile driviing.

4WD mode is engaged when the

switch is pushed upwards.

The rear differential is locked when

The 4WD mode is engaged when the

the switch is pushed upwards and un-

switch is in the middle.

locked when the switch is pushed

downwards.

The 2WD mode is engaged when the

switch is pushed downwards. The ve-

If the vehicle is in Park and the switch

hicle is then rear wheel drive only.

is pushed downwards, the rear differ-

ential will stay locked.

Rear Differential Lock Switch

The rear differential lock switch is lo-

cated on the upper console.

EQUIPMENT

Some features may not apply to your

model or could be optional.

Some on-product labels are not

shown on illustrations.

For information concerning the safety

labels, refer to Important On-Product

Labels.

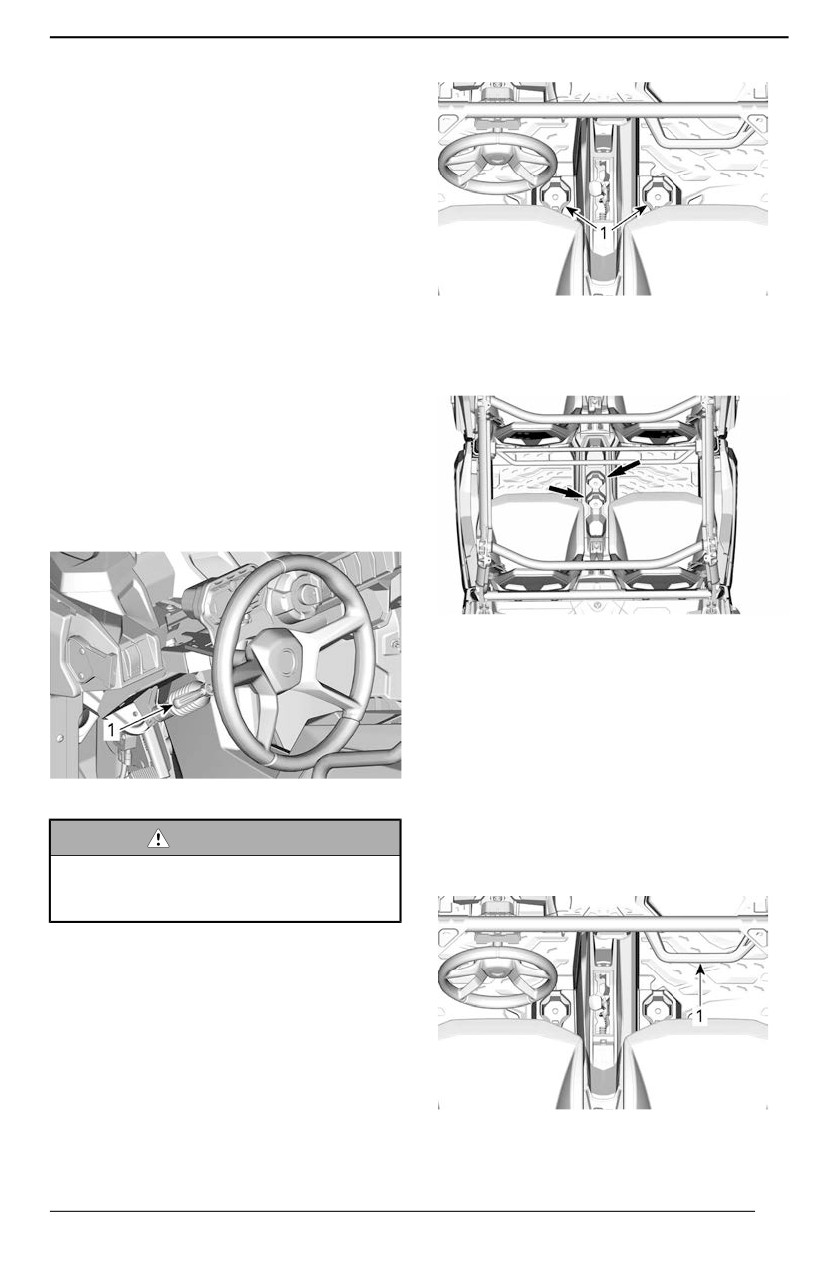

Tilt Steering

1. Front cup holders

The steering wheel height is

adjustable.

Two other cup holders are located in

Adjust the steering wheel height to

the rear console.

face your chest, not your head.

To adjust steering wheel height:

1. Pull the tilt lever toward you.

2. Move steering wheel to the desired

position.

3. Release the tilt lever.

NOTE:

Use only tight fitting containers, a

loose container can tip over and inter-

fere with feet movements. Do not use

cup holders while riding in rough

conditions.

1. Tilt lever

Passenger’s Handholds

The front passenger’s handhold is lo-

WARNING

cated on the console directly in front

Never adjust the steering wheel

of the passenger’s seat.

height whille ridiing. You may lose

control.

Cup Holders

Two cup holders are located on each

side of the front console.

1. Front passenger handhold

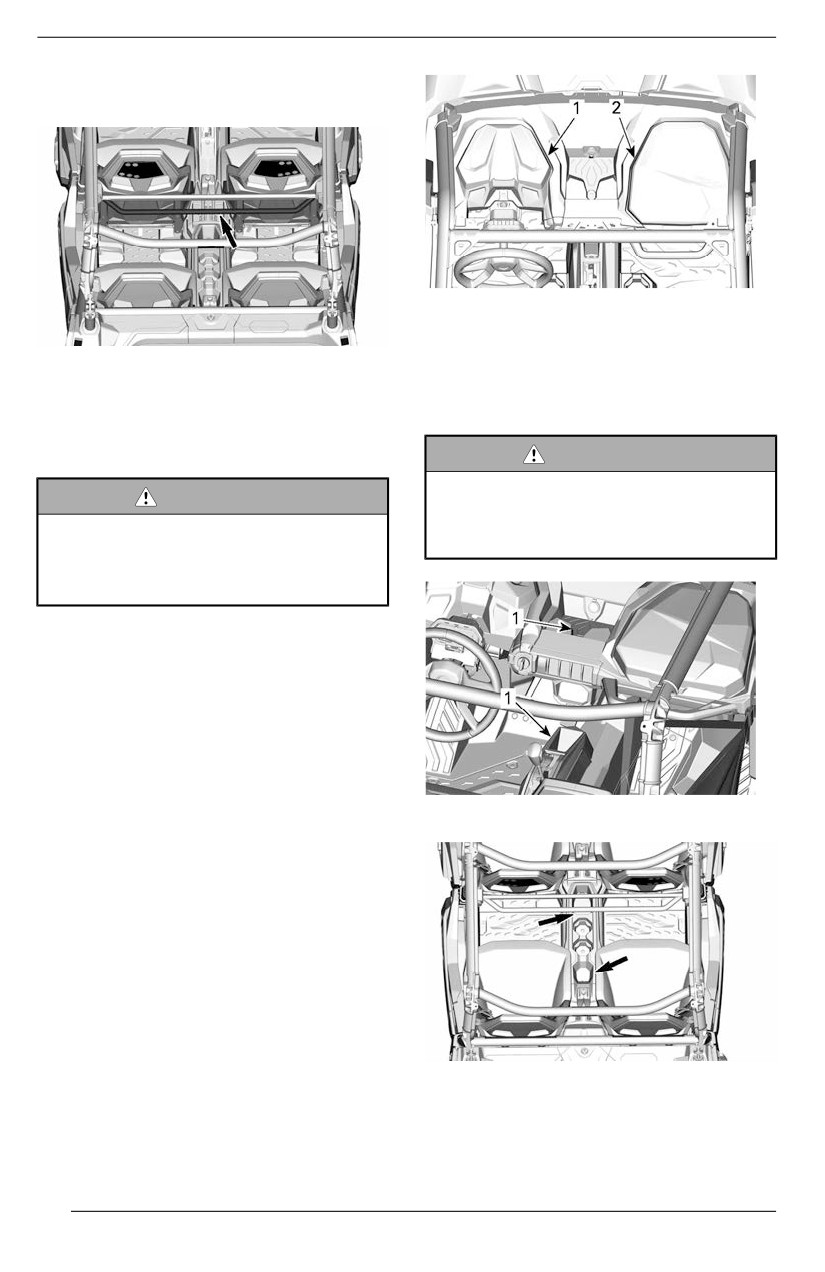

EQUIPMENT

The rear passenger’s handhold is lo-

cated in front of both rear seats.

1. Storage compartment

2. Glove box

Opened Storage Compartments

Holding the handhold helps the pas-

sengers brace against the movement

Multiple opened storage compart-

of the vehicle and helps keep hands

ments are available in the console.

and body inside the cockpit in the

event of a rollover.

WARNING

When ridiing vehicle, make sure

WARNING

no objject stored in opened stor-

Never use any part of vehiicle

age compartments could cause

cage as handholds. Hands can be

harm in the event of a rolll over.

struck by objjects outside the

cockpiit or crushed in a rolllover.

Storage Compartments

The vehicle is equipped with different

types of storage compartments de-

signed to carry light objects.

Closed Storage Compartment

A storage compartment is available

behind the multifunction gauge on the

1. Front opened storage compartment

driver side.

A glove box is available on the pas-

senger side.

REAR

OPENED

STORAGE

COMPARTMENTS

EQUIPMENT

Cargo Box Storage Compartment

Openiing the Cargo Box Storage

Compartment

The vehicle is equipped with storage

compartments located on each side of

1. Open the tailgate.

the cargo box.

2. Remove the quarter-turn screws.

The LH storage compartment is to

store the spare drive belt and tools to

open the clutch.

The RH storage compartment is to in-

stall the optional tool kit or other small

items.

LH SIDE SHOWN

3. Slide the storage compartment

LH SIDE EXTERIOR

cover towards the rear of the ve-

hicle and remove it.

LH SIDE INTERIOR

LH SIDE SHOWN

4. The installation procedure is the

reverse of the removal procedure.

However, pay attention to the

following.

WARNING

RH SIDE EXTERIOR

Make sure to correctly secure

every iitem inside so they do not

sllip or move.

Correctlly sliide the storage com-

partment cover iin pllace before iin-

stallling the quarter-turn screws.

Otherwiise, the storage compart-

ment cover and the items inside

could become a road hazard for

RH SIDE INTERIOR

the persons behind.

CAUTION

1. Secure all items inside

Storage Compartment Maxiimum

compartment.

Load: 1.4 kg (3 lb)

2. Push on the front of the cover

when installing it.

EQUIPMENT

3. Lock the cover using the quar-

ter-turn screws.

4. Close tailgate.

Tool Kit

A tool kit with basic tools is provided

with this vehicle.

It is located inside the glove box.

This tool kit includes:

LH DOOR

- Pliers

To open door, pull on handle.

- Socket wrench 14 and 16 mm

- Open wrench 15 and 17 mm

- Open wrench 10 and 13 mm

- Screwdriver (flat and Phillips)

- Torx key T30

- Suspension adjustment tool

Footrests

The vehicle is equipped with driver

and passenger footrests to allow

firmly planting feet on vehicle floor,

which helps to maintain proper body

position while riding.

LH EXTERIOR HANDLE

The footrests help minimize the risk of

leg or foot injury.

Always wear appropriate footwear.

See Riding Gear.

Half Doors

Half doors on each side of the cockpit

to help arms, legs or shoulders stay

inside the vehicle, thus reducing the

LH INTERIOR HANDLE

risk of injuries. Half doors may also

keep bushes or debris out of cockpit.

Seat Belts

WARNING

This vehicle is equipped with

points

seat belts to help protect driver and

Never operate the vehiclle whille

passenger in the event of a collision,

the doors are removed or opened.

rollover, or tipover. The seat belts can

help keep occupants stay in the pas-

senger compartment.

EQUIPMENT

WARNING

Wear seat bellts properlly at alll

times.

Seat bellts reduce the risk of iinjjury

in case of a crash and help to

keep llimbs inside the cockpit dur-

ing a rolllover or any accidents.

If driver's seat belt is not fastened

when:

- The ignition is turned ON

TYPICAL

- The seat belt indicator lamp will

1. Semi-cinching tab

be turned ON.

- The multifunction gauge will

To fasten the seat belt, insert the latch

display the message: SEAT

plate into the buckle, then pull the belt

BELT.

to ensure it is properly fastened.

- The engine is started and shift lev-

Adjust the seat belt tightly against

er is moved out of PARK, vehicle

your body by pulling the shoulder belt

speed will be limited to a maximum

upwards.

of approximately 20 km/h (12

MPH) on flat ground.

WARNING

The vehiiclle may reach hiigher or

lower speed depending on

iinclines.

WARNING

There is no indicator llight or mes-

sage for the passengers seat belt.

The driver is responsible for the

TYPICAL

passenger safety and shoulld en-

sure the passengers buckle theiir

WARNING

seat belt.

Wear seat bellt properly. Make

sure it remains securely fastened

Fastening and Adjustiing the Seat

and tightened agaiinst the body.

Belt

Make sure iit is not twisted or

The seat belt is equipped with a semi--

defective.

cinching tab that locks the lap belt

when the webbing is under tension.

To release the seat belt, push on the

red button on the seat belt buckle.

Driver’s Seat

The driver's seat can be adjusted for-

ward and backward.

EQUIPMENT

To adjust seat, move the seat lever

Fuel Reservoir Cap

aside to unlock the seat. Release the

The fuel reservoir cap is located on

lever to lock the seat into desired

the right hand side of the vehicle.

position.

1. Seat lever

Refer to Fuel for information on fueling

WARNING

procedure and fuel requirements.

Never adjjust the seat position

whille driving.

Winch

WARNING

Passenger’s Seats

To avoiid severe iinjury or death or

The front passenger’s seat can be ad-

important components damages.

justed forward and backward.

– Never use the winch cable/

The rear seats are not adjustable.

rope to retain a vehiiclle duriing

traillering.

To adjust the seat, move the seat lev-

– Never riide wiith the wiinch ca-

er aside to unlock the mechanism.

blle/rope attached to a lload or

another vehiicle.

– Only use the winch to help a

stuck vehiiclle (snow, mud,

etc.).

– Always refer to the winch man-

ufacturer''s iinstructiion before

pullling loads.

Refer to your winch guide included

with your vehicle for proper winch

operation.

Release the lever to lock the seat into

The winch can be actuated inside the

position.

vehicle using the winch control switch

on the upper console.

WARNING

Never adjjust the seat position

NOTICE

whille the vehiicle is moving.

Usiing the wiinch iintensiivelly over a

long periiod of time may discharge

the battery.

EQUIPMENT

Intensive use of the winch may cause

Tiilt Release Handlles

the built-in circuit breakers to momen-

The latching mechanism of the cargo

tarily turn OFF. In such a case, wait a

box can be actuated from either side

moment, then continue winching. The

of the vehicle through a release

breakers automatically turn ON once

handle.

they have cooled down.

The following tips will help to reduce

the risk of discharging the battery:

- Always unreel manually: Unlock

the cable using the handle then

pull on the hook strap to unreel.

- Let the vehicle run while winching.

Do not stop vehicle immediately

after winching to let battery

recharge.

- Also, when winching for more than

30 seconds, it is recommended to

Anchoring Hooks

increase engine RPM in the range

To help to secure cargo inside the car-

of 3000 RPM to increase charging

go box, 4 anchoring hooks are in-

power to the battery.

stalled on the floor of the cargo box.

WARNING

Taiilgate

Make sure vehiiclle is in NEUTRAL

(N) before increasiing engine

RPM.

Cargo Box

The vehicle is equipped with a tilting

cargo box.

Openiing the Taillgate

The cargo box may be used to trans-

1. Hold the top of the tailgate with

port various types of cargo.

one hand.

2. Pull up on the tailgate handle to re-

lease the tailgate.

WARNING

3. Lower tailgate slowly.

To reduce the riisk of loss of con-

trol or lloss of lload, use the cargo

Removiing the Taillgate

box only iin accordance wiith Car-

1. Lower the tailgate.

rying Loads in the Safety Informa-

2. Disconnect retaining cables.

tion section.

3. Position tailgate so as to remove it

from pivot points.

NOTICE

Reverse the steps to reinstall the

Do not drilll the cargo box

tailgate.

unnecessarilly.

Drilll only to installl a LinQ acces-

Trailer Hitch

sory and at llocation requiired.

When removing the accessory, re-

The vehicle comes equipped with a

install bollts and T-nuts.

50.8 x 50.8 mm (2 x 2 in) standard re-

ceiver hitch.

4.5” DIGITAL DISPLAY

Multifunction Display

Icon

Description

Lower Display

2x4 icon

4X4 icon

May display the following:

- RPM

Differential lock

- Speed statistics

- Engine Temperature

- Battery Voltage

Central Display

- Settings

- Messages

Use LOWER button to change the dis-

played information.

Left Lateral Display

Display the vehicle speed in km/h or

MPH or RPM.

Transmission

Position

Display

The left lateral display includes:

- Fuel level indicator

- Seat belt icon

- Smart-Shox suspension icon

Right Lateral Display

This display shows

gear

position of

gearbox:

- P (Park)

- R (Reverse)

- N (Neutral)

- H (High Range)

- L (Low Range)

The right lateral display includes:

- Gear 1 to 7

- (Invalid Range)

- Engine Temperature

–

2WD/4WD/Diff lock

MODE Display

4.5” DIGITAL DISPLAY

The MODE display indicates the se-

This display shows trip information:

lected mode of operation:

- Cumulative distance odometer

- AUTO mode

- Trip A

- NORMAL

- Trip B

- SPORT

- Vehicle hour meter

- SPORT+

- Clock

The NORMAL setting reduces the fuel

consumption by limiting throttle re-

sponse and selecting a higher gear to

Use UPPER button to change the dis-

maintain an optimal cruising setting.

played information.

NOTE:

Hold UPPER button to reset Trip A/B

Use the NORMAL mode on bumpy

meters.

trails to provide smoother ride

conditions.

Warning Lamps and

Indicators

The Sport mode provides a crisper

throttle response.

The following indicator lamps will alert

you to a vehicle condition that may be-

The Sport + mode provides a crisper

come serious. Some lamps will illumi-

throttle response without booster lag.

nate when starting the vehicle to

make sure they work. If any lamps re-

To change between modes, press

main on after starting the vehicle, refer

DRIVE MODE button on keypad to

to the respective system warning lamp

cycle through available modes.

for further information.

A message of the selected mode will

NOTE:

be displayed on the lower display at

Some warning indicators appear in

activation and deactivation as follow:

the display of the multifunction gauge

Message at

and function the same as an indicator

Drive Mode

Activation

lamp but do not display when starting

the vehicle.

Normal

NORMAL MODE

Tellltalle Liights - Lower Bar

Sport

SPORT MODE

Sport+

SPORT+ MODE

Trip Display

4.5” DIGITAL DISPLAY

Settings

Warning and Tellltale Lights

The buttons to navigate through me-

ORANGE - Vehicle

nus are located on the left side of the

Malfunction

LCD display.

BLUE - High Beam

RED - The engine

temperature is too high.

GREEN - Neutral

1. Upper button

RED - (Blinking)

2. Lower button

Accelerator pedal and the

brake are activated

Setup

simultaneously for a certain

Using LOWER button, select SET-

time

TINGS and hold to enter setting

(a torque limitation is

menu.

active)

Maiintenance Reset

RED - Low battery.

NOTE:

RED - Low oil pressure

Only when the maintenance icon is

(Normally ON at engine

displayed.

OFF)

Using LOWER button, select RES

MAINT and hold to reset

ORANGE - Low fuel level

maintenance.

Fault Codes

ORANGE - Check engine

Available only when at least one code

is activated.

Icons and Indiicators - Multifunction

Using LOWER button, select CODES

Diispllay

and hold to see actives fault codes.

Icons and Indicators

Fault codes will be scrolled on the

Lower Display.

Denotes SPORT

mode is selected.

Reset Stats

When lit, seat belt

Using LOWER button, select RESET

not buckled with

STAT and hold to reset.

vehicle

immobilized.

Unit Selection

Flashing when

This multifunction gauge is factory

vehicle is moving.

preset in Imperial units but it is possi-

ble to change it to Metric units.

4.5” DIGITAL DISPLAY

Using LOWER button, select UNITS

and hold button to change units.

Setting Clock

All of the following action must be per-

formed using the LOWER button.

1. Select CLOCK and hold to adjust

clock.

2. Press the button to select clock

display.

3. Push and hold the button for

second.

4. Press the button to select 12:00

AM PM or 24:00 time base.

5. Push and hold the button to ac-

knowledge selection.

6. Press the button to change hours

(hours flash).

7. Push and hold the button to ac-

knowledge hour selection.

8. Press the button to switch to mi-

nutes (minutes flash).

9. Push and hold the button to ac-

knowledge minutes selection.

Setting Language

The gauge display language can be

changed.

Refer to an authorized Can-Am Off--

road dealer for language availability

and to setup the gauge to your

preference.

Setting Briightness

The brightness of the LCD display can

be adjusted.

Using LOWER button, select

BRIGHTNESS and hold button to

change brightness.

Using LOWER button, adjust bright-

ness then push and hold the button to

acknowledge selection.

7.6" DIGITAL DISPLAY

Multifunction Display

WARNING

Do not adjust the diispllay whille

riidiing, you could llose control.

Lower Display

RIGHT LATERAL DISPLAY

The right lateral display includes:

- Engine Temperature

- Clock

- Speed indicator

The speed indicator in this display is

activated when the central display

LOWER DISPLAY

shows information other than the

May display the following:

speed. Otherwise it is blank.

- RPM

Central Display

- Speed statistics

- Engine Temperature

- Battery Voltage

- Settings

- Messages

- Active DPS mode

The SPEED STAT display shows the

maximum and the average speed.

CENTRAL DISPLAY

Hold MENU or OK button for 1 second

to reset.

May display the following:

- RPM

Left Lateral Display

- Vehicle speed

Transmission

Position

Display

LEFT LATERAL DISPLAY

The left lateral display includes:

- Fuel level indicator

TRANSMISSION

POSITION

- Tripmeter (A - B)

- Odometer

DISPLAY

- Vehicle Hour meter

This display shows gears position of

- DPS indicator

gearbox:

- P (Park)

Right Lateral Display

- R (Reverse)

- N (Neutral)

- H (High range)

- L(Lowrange)

7.6" DIGITAL DISPLAY

- (Invalid gear)

MODE Display

MIDDLE RIGHT DISPLAY

The middle right display indicates the

selected mode of operation:

MODE DISPLAY

2X4

The MODE display indicates the se-

–

4X4

lected mode of operation:

–

Front differential lock (Visco-4Lok)

- NORMAL

- SPORT

Icon

Descriiptiion

- SPORT+

The NORMAL setting reduces the fuel

consumption by limiting throttle re-

2x4 icon

sponse and selecting a higher gear to

maintain an optimal cruising setting.

NOTE:

Use the NORMAL mode on bumpy

4X4 icon

trails to provide smoother ride

conditions.

The Sport mode provides a crisper

throttle response.

Front differential

lock

The Sport + mode provides a crisper

throttle response without booster lag.

To change between modes, press

Middle Left Display

DRIVE MODE button on keypad to

cycle through available modes.

A message of the selected mode will

be displayed on the lower display at

activation and deactivation as follow:

Message at

Drive Mode

Activation

MIDDLE LEFT DISPLAY

Normal

NORMAL MODE

The middle left lateral display

includes:

Sport

SPORT MODE

- Seat belt reminder

- Maintenance reminder

Sport+

SPORT+ MODE

Middle Right Display

7.6" DIGITAL DISPLAY

Indicator Lamps

Icons and Indicators

Warniing and Tellltalle Liights

Denotes SPORT

mode is selected.

When lit, seat belt

WARNING and Tellltalle Liights

not buckled with

vehicle

ORANGE - Vehicle

immobilized.

Malfunction

Flashing when

vehicle is moving.

BLUE - High Beam

When lit, indicates

that a maintenance

RED - The engine

is required. See

temperature is too high.

your authorized

Can-Am dealer or

person of your own

GREEN - Neutral

choosing for the

maintenance.

RED - Brake lock lever is

engaged or malfunction of

Settings

the brake system

Setup

RED - The battery voltage

too low or problem with the

Using the MENU button on the key-

electrical system

pad, select SETTINGS and hold to

enter setting menu.

RED - Low oil pressure

Normally ON when engine

OK button can be pressed instead of

is OFF

holding MENU button.

Maiintenance Reset

ORANGE - Low fuel level

NOTE:

Only when the maintenance icon is

ORANGE

displayed.

Turn on: Malfunction of the

vehicle emissions control

Using MENU button, select RES

system

MAINT and hold to reset

Bliink: Engine problems,

maintenance.

the limp home mode is

activated. Have the vehicle

Fault Codes

serviced immediately.

Available only when at least one code

is activated.

Using MENU button, select CODES

and hold to see active fault codes.

Fault codes will be scrolled on the

Lower Display.

7.6" DIGITAL DISPLAY

Reset Stats

Using MENU button, adjust brightness

then push and hold MENU button to

Using MENU button, select RESET

acknowledge selection.

STAT and hold to reset.

Settiing Language

Unit Sellection

The gauge display language can be

This multifunction gauge is factory

changed.

preset in Imperial units but it is possi-

ble to change it to Metric units.

Refer to an authorized Can-Am Off--

road dealer for language availability

Using MENU button, select UNITS

and to setup the gauge to your

and hold button to change units.

preference.

Speed/RPM

DPS Modes

The speed and RPM display can be

The

lower display can show which

swapped.

DPS mode is active. Refer

Tune

Using MENU button, select SPEED/

Your ride.

RPM and hold button to invert speed

and RPM display.

Setting Clock

All of the following action must be per-

formed using the MENU button.

1. Select CLOCK and hold to change

time.

2. Press the button to select clock

display.

3. Push and hold the button for

second.

4. Press the button to select 12:00

AM PM or 24:00 time base.

5. Push and hold the button or OK

button to acknowledge selection.

6. Press the button to change hours

(hours flash).

7. Push and hold the button or OK

button to acknowledge hour

selection

8. Push the button to switch to mi-

nutes (minutes flash).

9. Push and hold the button to ac-

knowledge minutes selection.

Setting Briightness

The brightness of the LCD display can

be adjusted.

Using MENU button, select BRIGHT-

NESS and hold MENU button to se-

lect the brightness setting.

100

TUNE YOUR RIDE

Suspension Adjustment

Compression Damping

Guidelines

XT-P

Position 2

Your vehicle handling and comfort de-

pend upon suspension adjustments.

Rear Suspension

WARNING

Spring Preload

Suspension adjustment coulld af-

fect vehiiclle handling. Always take

X mr

Cam position 1 (soft)

time to familiarize yourself with

the vehicle''s behavior after any

suspensiion adjjustment has been

Spring Preload

made.

XT-P

51.6 mm (2 in)

Choice of suspension adjustments

All other

vary with vehicle load, personal pref-

Cam position 1 (soft)

models

erence, riding speed and terrain

condition.

Compression Damping

The best way to set up the suspen-

sion, is to start from factory settings,

XT-P

Position 2

then customize each adjustment one

at a time.

Suspension Adjustments

Front and rear adjustments are inter-

related. It may be necessary to read-

Spriing Preload Adjustment

just the rear shock absorbers after

Following are guidelines to fine-tune

adjusting front shock absorbers for

suspension. Use suspension adjust-

instance.

ment tool provided in the tool kit.

Test run the vehicle under the same

conditions; trail, speed, load, etc.

Change one adjustment and retest.

Proceed methodically until you are

satisfied.

Suspension Factory Settings

Front Suspension

Spring Preload

X mr

Cam position 1 (soft)

The spring preload affects the ground

clearance of the vehicle.

Spring Preload

Shorten the spring for a firmer ride

XT-P

103.2 mm (4.1 in)

and rough riding condition or when

pulling a trailer.

All other

Cam position 1 (soft)

models

101

TUNE YOUR RIDE

Lengthen the spring for a softer ride

and smooth riding condition.

NOTE:

Factory settings are suitable for al-

most all conditions. Take into consid-

eration that an increase in ground

clearance can affect the handling of

the vehicle.

WARNING

The lleft and right shock adjust-

ment on front or rear suspension

must always be set to the same

position.

Never adjjust one shock only.

Uneven adjustment can cause

poor handlling and lloss of stabillity,

Loosen top locking ring

which coulld lead to an accident.

Turn adjusting ring accordingly

Tighten top locking ring

Lift the vehicle to adjust spring

preload.

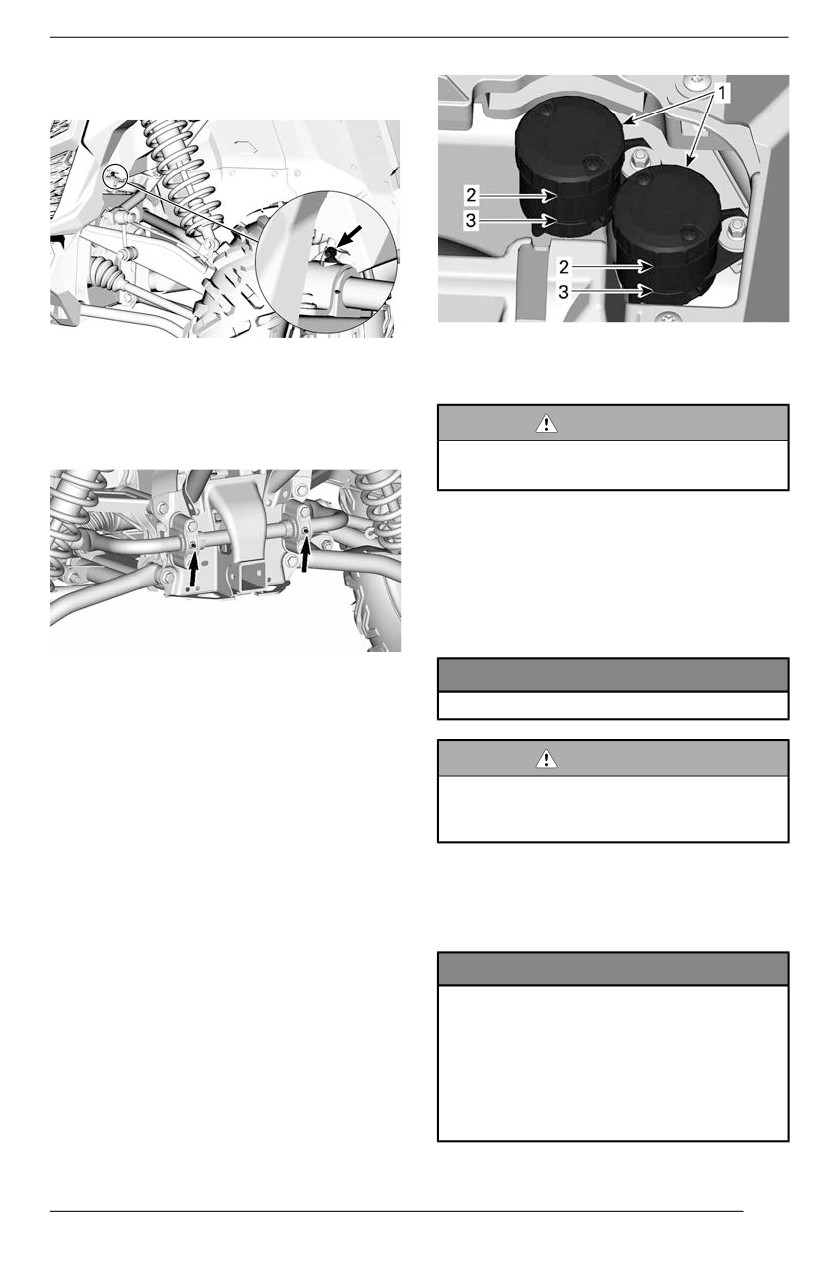

Shock Absorber wiith Adjustiing

Cam

Adjust by turning adjusting cam.

1. Distance to measure

DPS Functiion

The Dynamic Power Steering (DPS)

provides a computer controlled, varia-

1. Turn adjusting cam

ble power assist, achieved by an elec-

2. Soft adjustment

tric motor to optimize the amount of

3. Firm adjustment

steering input required by the rider.

Shock Absorber wiith Adjustiing

Rings

Adjust spring preload by turning the

adjusting rings.

102

FUEL

Fuel Requirements

Premium

unleaded

NOTICE

gasoline with an

Allways use fresh gasolline. Gaso-

AKI (R+M)/2

1000R Engines

line wiilll oxiidize; the resullt iis loss

octane rating of

of octane, vollatiile compounds,

91, or a RON

and the production of gum and

octane rating of

varniish deposiits which can dam-

age the fuell system.

Common

unleaded

Alcohol fuel blending varies by coun-

gasoline with an

try and region. Your vehicle has been

All Other

AKI (R+M)/2

designed to operate using the recom-

Engines

octane rating of

mended fuels, however, be aware of

87, or a RON

the following:

octane rating of

Use of fuel containing alcohol

above the percentage specified by

government regulations is not rec-

Use unleaded gasoline containing

ommended and can result in the

MAXIMUM 10% ethanol.

following problems in the fuel sys-

tem components:

- Starting and operating

difficulties.

- Deterioration of rubber or plas-

tic parts.

NOTICE

- Corrosion of metal parts.

Never experiment wiith other

- Damage to internal engine

fuels. Engine or fuel system dam-

parts.

ages may occur with the use of an

Inspect frequently for the presence

iinadequate fuell.

of fuel leaks or other fuel system

abnormalities if you suspect the

presence of alcohol in gasoline ex-

NOTICE

ceeds the current government

Do NOT use fuell from fuel pumps

regulations.

llabelled E85.

Alcohol blended fuels attract and

hold moisture which may lead to

fuel phase separation and can re-

Use of fuel labeled E15 is prohibited

sult in engine performance prob-

by U.S. EPA Regulations.

lems or engine damage.

Recommended Fuel

The gasoline must have the following

minimum octane requirements:

103

FUEL

Vehicle Fueling Procedure

8. Stop filling when the fuel reaches

the bottom of filler neck. Do not

WARNING

overfilll.

– Fuel iis fllammablle and explo-

WARNING

sive under certain condiitions.

– Never use an open flame to

Never top up the fuel tank before

check fuel llevell.

placing the vehiicle in a warm

– Never smoke or alllow flame or

area. As temperature increases,

spark in viciiniity.

fuell expands and may overfllow.

– Allways work in a welll-ventii-

lated area.

9. Fully tighten fuel reservoir cap

– Vehicle must be on a level sur-

clockwise until you hear a clicking

face to perform fuelling.

noise.

1. Place vehicle on a level surface.

NOTICE

2. Move the shift lever into PARK

Allways wiipe off any fuell spiilllage

position.

from the vehiiclle.

3. Stop engine.

WARNING

Always stop engine before

refueliing.

4. Have occupants get out of vehicle.

WARNING

Do not alllow anyone to remain iin

the vehiiclle whiile fuelling. If there

is a fiire or explosion during fuell-

ing, a vehicle occupant coulld be

unable to quiicklly lleave the area.

5. Slowly unscrew the fuel reservoir

cap counterclockwise to remove it.

WARNING

If a differential pressure condiitiion

is notiiced (whiistlling sound heard

when loosening fuell reservoir

cap) have vehiiclle inspected and/

or repaired before further

operatiion.

6. Insert the spout into the filler neck.

7. Pour fuel slowly so that air can es-

cape from the tank and prevent

fuel flow back. Be careful not to

spill fuel.

104

BREAK-IN PERIOD

Operation During Break-In

A break-in period of

operating

hours or 300 km (200 mi) is required

for the vehicle.

Engine

During the break-in period:

- Avoid full throttle operation.

- Avoid pressing accelerator pedal

more than 3/4 of the stroke.

- Avoid sustained accelerations.

- Avoid prolonged cruising speeds.

- Avoid engine overheating.

However, brief accelerations and

speed variations contribute to a good

break-in.

Brakes

WARNING

New brakes willl not operate at

theiir maximum effiiciency untiil

theiir break-iin iis complleted. Brak-

ing performance may be reduced,

so use extra caution.

Apply moderate brakiing force for

the 40 to 50 fiirst brakiing events.

Belt

A new belt requires a break in period

of 50 km (30 mi).

During the break-in period:

- Avoid strong acceleration and

deceleration.

- Avoid pulling a load.

- Avoid high speed cruising.

105

BASIC PROCEDURES

Starting the Engine

Operating the Shift Lever

1. Insert D. E. S. S. key on D. E. S. S.

1. Apply the brakes and select the

post.

desired shift lever position while

2. Press the brake pedal.

the engine is at idle.

2. Release the brakes.

NOTE: If shift lever is not set to

PARK (P), the brake pedal must be

NOTICE

pressed to allow engine starting.

When changing gear selection, all-

ways complletely stop the vehiclle

3. Press the engine start button and

and apply the brakes prior to shiift-

hold it until the engine starts.

ing. Damage to the gearbox may

occur.

NOTE: Do not press the accelerator

pedal. If the accelerator pedal is

pressed at least 50%, the engine will

Choosing the Correct Range

not start.

(Low or High)

It is important to avoid situations

4. Release the engine start button

known to make the drive belt slip ex-

immediately when the engine has

cessively. The main reason the drive

started.

belt will slip is if the gearbox is in high

range when it should be in low range.

NOTICE

If engiine does not start after a few

Pay attention to the following:

seconds, do not holld the engiine

start button more than 10 sec-

Low Range

onds. Refer to Troubleshooting

Low range should be used whenever:

sectiion.

- Pulling

- Pushing

Waking Up the Electrical

- Hauling a load

4x4 applications

System

–

Mud holes

Press and release the START button

–

Water holes

for less than half a second and the

–

Crossing obstacles

electrical system will turn ON:

–

Climbing onto trailer

- For 20 seconds, without powering

–

Hill climbing

any equipment, if the D.E.S.S. key

is NOT installed on the D.E.S.S.

It is also recommended to use low

post.

range if driving for prolonged periods

- For 10 minutes, powering equip-

at speeds under 24 km/h (15 MPH).

ment, if the D.E.S.S. key is in-

Please refer to Break-In Period for

stalled on the D.E.S.S. post. The

drive belt break-in information.

electrical system will shutdown

after 20 seconds if the D.E.S.S.

Hiigh Range

key is removed.

High is the default riding range.

NOTICE

Waking up the electriicall system

repeatedly or using electriicall

equipment wiilll discharge the bat-

tery and you may not be able to

start the engiine.

106

BASIC PROCEDURES

Ellectroniic Driive Bellt Protection (if

Stopping the Engine and

avaiilable and activated on your

Parking the Vehicle

modell)

Some vehicles have the electronic

WARNING

drive

belt

protection

function

Avoiid parking on steep sllope as

activated.

the vehiiclle may rolll away.

Refer to your authorized Can-Am

dealer for availability and possible

WARNING

activation.

Always put the vehiiclle in PARK

This function is activated when riding

when stopped or parked to pre-

at too slow speed for the High Range,

vent rollliing.

such as in the following situations:

- Pulling

WARNING

- Pushing

- Hauling a load

Avoiid parking iin pllaces where hot

4x4 applications

parts can start a fiire.

–

Mud holes

–

Water holes

1. Select the flattest terrain available

–

Crossing obstacles

for parking.

–

Climbing onto trailer

2. Release accelerator pedal and use

–

Hill climbing

brakes to completely stop the

vehicle.

In the above mentioned situations the

3. Set shift lever in PARK position.

electronic drive belt protection will

4. Remove the D.E.S.S. key from the

help protect the CVT drive belt from

D. E. S. S. post or turn the ignition

being damaged by activating the en-

key in OFF position.

gine torque limiter. The gauge will also

scroll a LOW GEAR message, sug-

NOTE: If you must park on a steep

gesting the operator to immobilize the

incline or if the vehicle is carrying car-

vehicle and shift to LOW GEAR.

go, block the wheels using rocks or

bricks.

NOTICE

Whenever the electronic drive belt

Tips for Maximizing Drive

protection is actiivated, you MUST

Belt Durability

shift in LOW range. Refer to Oper-

ating the Shiift Lever.

Riding style and conditions have a di-

rect impact on drive belt durability.

WARNING

Your vehicle features a CVT system

design that is optimized to offer the

Apply brakes to immobilize ve-

best performance.

hicle. Put shiift llever iin reverse

(R), and back down the hiilll, barely

The CVT and drive belt have success-

releasing brakes to remain at low

fully endured thousands of miles of

speed. Do not attempt to turn

durability tests.

around. Never coast down hiilll

whiile vehicle iis iin neutral. Do not

However, to maximize drive belt dura-

perform hard brakiing as it iin-

bility and to prevent premature fail-

creases the risk of tiipover.

ures, it is important that the operator

understands the limits of a belt driven

107

SPECIAL PROCEDURES

NOTE:

Component failures resulting from

these events are not covered by

warranty.

Fuel Flooded Engine

If the engine does not start and it is

fuel-flooded, the drowned mode can

be activated to prevent fuel injection

and to cut ignition while cranking. Pro-

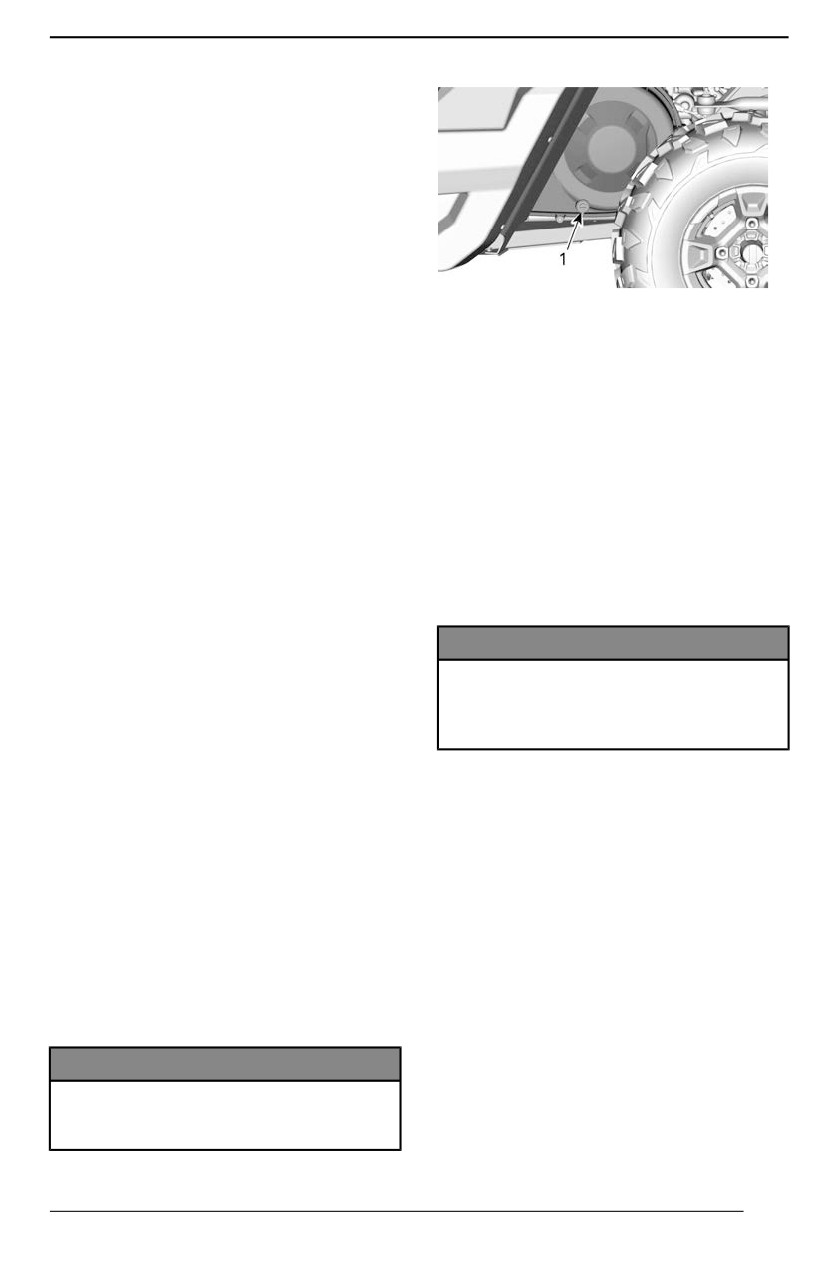

TYPICAL

- LEFT SIDE OF VEHICLE

ceed as follows:

UNDER CARGO BOX

1. CVT drain

1. Install key on D.E.S.S. post.

2. Press completely and HOLD ac-

See an authorized Can-Am dealer , a

celerator pedal.

repair shop or person of your choos-

3. Press the engine START button

ing to have the CVT inspected and

during 10 seconds.

cleaned.

4. Release engine START button.

5. Release

accelerator

pedal

What to do if Battery is

completely.

6. Press the engine START button

Drained Out

again to allow starting.

The vehicle can be jump started by

using the RED (+) cable to the battery

If it does not work:

positive pole and the BLACK (-) cable

1. Remove the spark plugs.

to the vehicle chassis.

2. Crank engine several times.

3. Install new spark plugs if possible

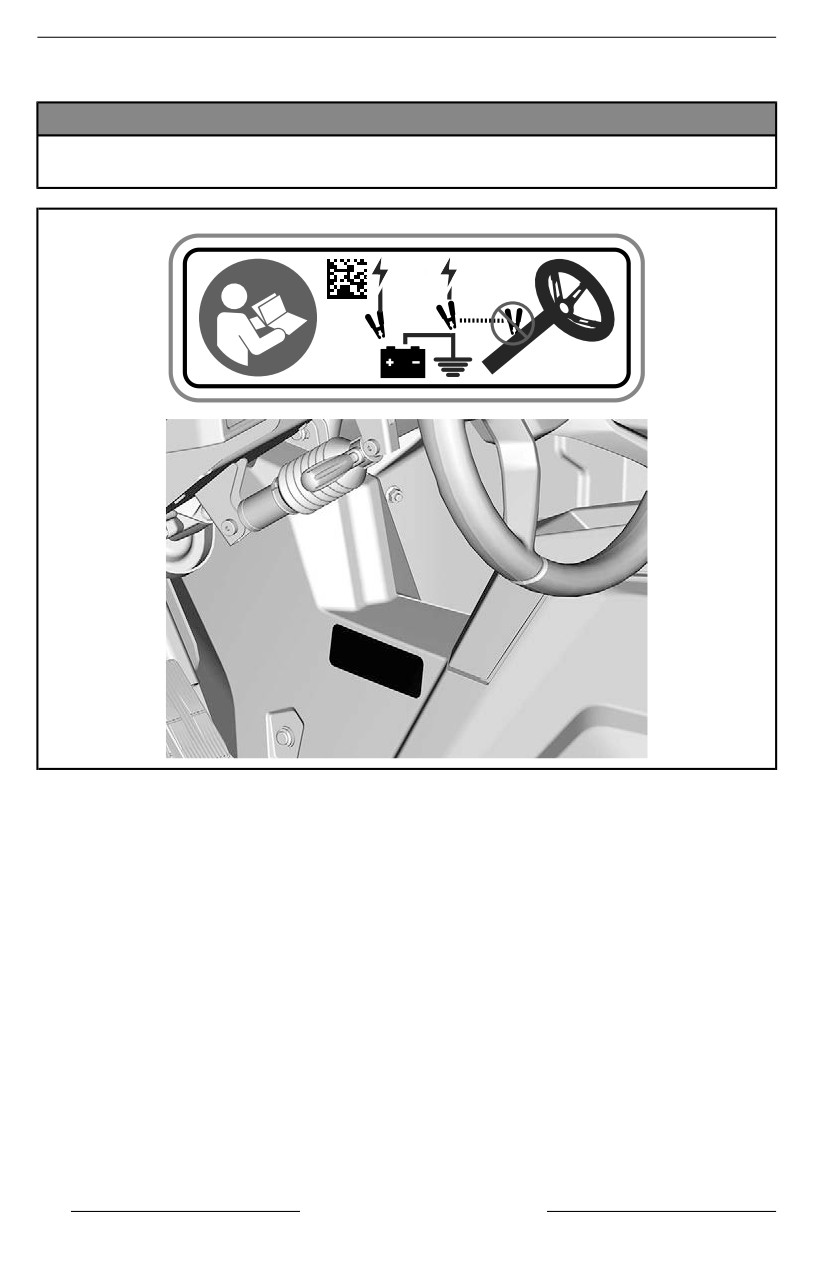

NOTICE

or clean and dry spark plugs.

Do not connect any electriicall

source to the steeriing column or

If engine does not start, see an au-

components which are in contact

thorized Can-Am Off-road dealer, a

wiith DPS.

repair shop, or a person of your own

choosing for maintenance, repair, or

replacement.

What to Do if Vehicle Rolled

Over

Please refer to the US EPA Emis-

sion-Related Warranty contained

Abrupt maneuvers, sharp turns, side

herein for information about warranty

hilling or accident may cause vehicle

claims.

to rollover.

Should the vehicle be rolled over, it

What to do if Water is

will be necessary to have it trans-

Suspected to be in the CVT

ported to an authorized Can-Am Off--

If water is present in the CVT, the en-

road dealer for inspection as soon as

gine will accelerate but the vehicle will

possible. NEVER START THE

remain still.

ENGINE!

Points to be verified, including but not

NOTICE

limited to:

Stop the engine and drain the

- All fluid levels

water to avoid damage to the

- Seat belts, including retractors,

CVT.

buckles and semi-cinching tabs

- Cage and its attachment points

109

TRANSPORTING THE VEHICLE

When contacting a towing or transporting service, be sure to ask if they have a

flatbed trailer, loading ramp or power ramp to safely lift the vehicle and tie-down

straps. Ensure the vehicle is properly transported as specified in this section.

NOTICE

Do not tow this vehiiclle — towing can seriouslly damage the vehicle''s drive

system.

NOTICE

Avoid using chaiins to tiie the vehiicle — they may damage the surface fiin-

ish or plastiic components.

WARNING

To avoiid severe injury or death or important components damages.

– Never use the winch cable/rope to retaiin a vehicle during trailleriing.

– Never riide wiith the wiinch cablle/rope attached to a load or another

vehicle.

– Onlly use the winch to help a stuck vehicle (snow, mud, etc.).

– Always refer to the wiinch manufacturer''s instruction before pullliing

loads.

WARNING

Make sure alll accessories, cargo and lloose objjects inside the vehicle are

properlly secured, or remove iit to prevent from failling on the road and cre-

ating a hazard for folllowiing vehicles.

WARNING

Allways transport the vehicle faciing forward to avoiid damagiing the wiind-

shield or other components. Parts may detach during transport.

WARNING

Before attemptiing to mount vehicle onto a platform or a trailer, make sure

to respect the folllowiing safety precautions.

Safety Precautiions

The carrying item (platform or trailer or flat bed)

must be of appropriate dimensions and

Carrying equipment

capacity to safely support and transport the

vehicle.

Do not exceed vehicle hauling capacity and

Hauling vehicle

specifications. Ensure the trailer or platform is

properly secured to the hauling vehicle hitch.

111

TRANSPORTING THE VEHICLE

Safety Precautions

Ensure you have a good visibility during the

Visibility

entire maneuver.

The hauling vehicle and trailer must be on a

Terrain

leveled surface. Use wheel chocks on trailer

and hauling vehicle to avoid any movement.

Use ramps with proper rating and secure ramps

Ramps

to the trailer or platform. Avoid steep ramps.

Always make sure bystanders are not close to

Bystanders

the vehicle or the trailering equipment while

climbing up.

Make sure all accessories, cargo and loose

objects inside the vehicle are properly secured,

Accessories and cargo

or remove it to prevent from failing on the road

and creating a hazard for following vehicles.

Using Vehicle Power to Climb Onto Trailering Equipment

When vehicle can cllimb on its own power, proceed as folllows;

1. Wear protective gear.

2. Fasten seat belt.

3. Use low gear only (if equipped).

4. If vehicle has 4WD option, use it.

5. When driving remain seated at all times.

6. Ensure proper alignment on rails or platform.

7. Start from a sufficient distance from the trailer to align the vehicle in a straight

line with the ramps. Never attempt to turn while getting closer to the ramp.

Rear wheels might not be aligned once you get to the ramp and vehicle may

fall off.

8. Slowly climb the front wheels onto the ramp to verify alignment.

9. Back off the vehicle, verify ramps are still secure, then proceed at proper

speed.

10. Carefully drive vehicle onto platform or trailer. Use sufficient speed to climb

without spinning or abruptly accelerating. Avoid acceleration while on ramps

to prevent ramps movement.

11. If trailer is inclined towards front, simply let vehicle roll in without acceleration.

12. Once vehicle is climbed, put shift lever to Park. Apply brake locking mecha-

nism (if equipped).

When vehiicle cannot move on its own power, or iin case overshootiing is

a riisk or iif any dangerous conditiion prevents for embarkiing on its own

power, proceed using a wiinch;

Using a Winch to Pull Vehicle Onto Trailering Equipment

When vehicle cannot cllimb on iits own power, proceed as folllows;

112

TRANSPORTING THE VEHICLE

WARNING

Have the help of an assistant. One person shoulld be iin vehiclle to have

access to vehiiclle steering, brakes and winch switch, whille the other per-

son controlls the enviironment and safety of the maneuver.

WARNING

Ensure the winch hook can be safely attached to a proper anchoring

point. Use proper rigging.

NOTE:

If vehicle can be started safely, let engine idle during winching to avoid draining

the battery.

1. Place shift lever to NEUTRAL (N).

2. If the vehicle is equipped with a winch, use the winch to roll the vehicle on the

platform.

3. If the vehicle is not equipped with a winch, proceed as follows:

1. Attach strap to lower front bumper anchor.

2. Attach the strap to the winch cable of the towing vehicle.

3. Pull the vehicle on the flatbed trailer with the winch.

4. Put shift lever to Park. Apply brake locking mechanism (if equipped).

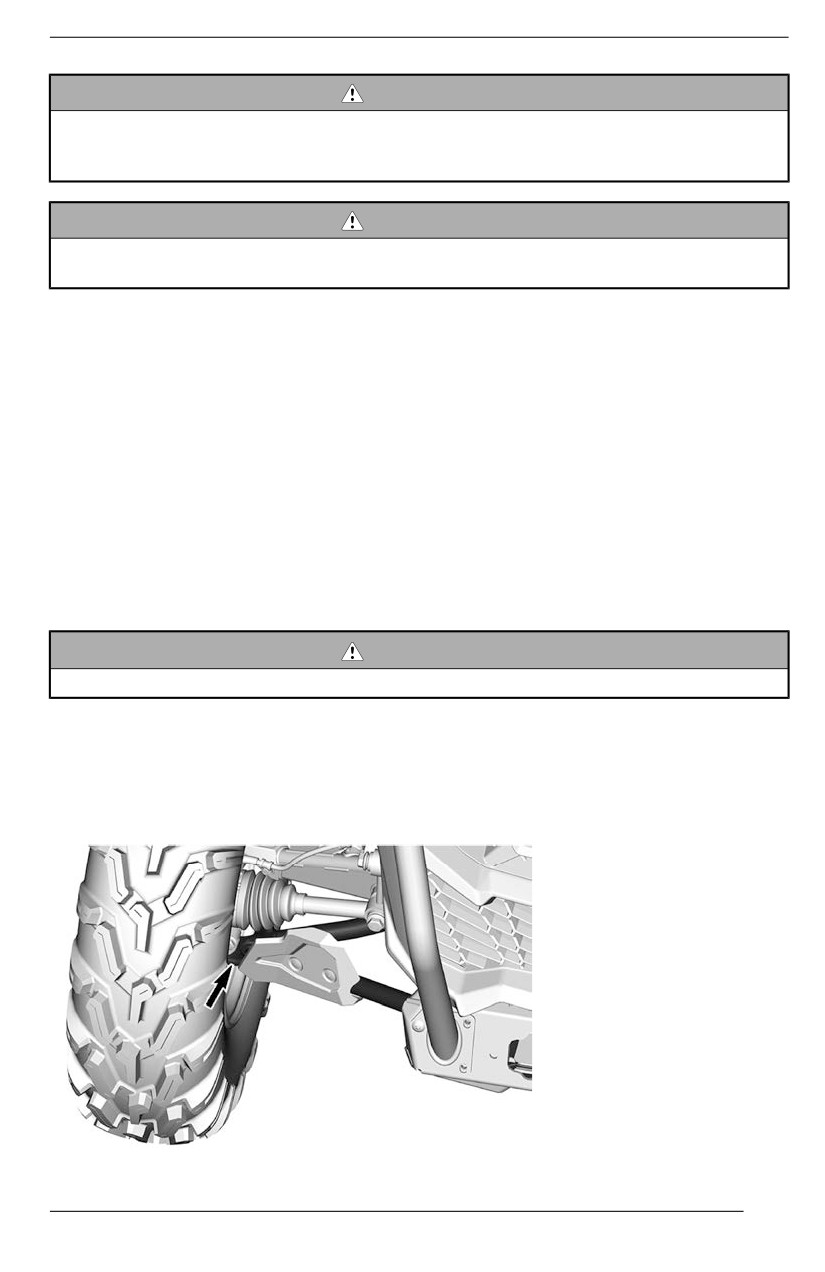

Securing Vehicle for Transport

WARNING

Never use the wiinch to secure the vehiiclle duriing transport.

1. Remove the key from the vehicle.

2. At rear, secure the vehicle on both sides using a strap around the suspension

arm as close to the wheel as possible.

3. At front, secure the vehicle on both sides using a strap around the lower sus-

pension arm as close to the wheel as possible.

113

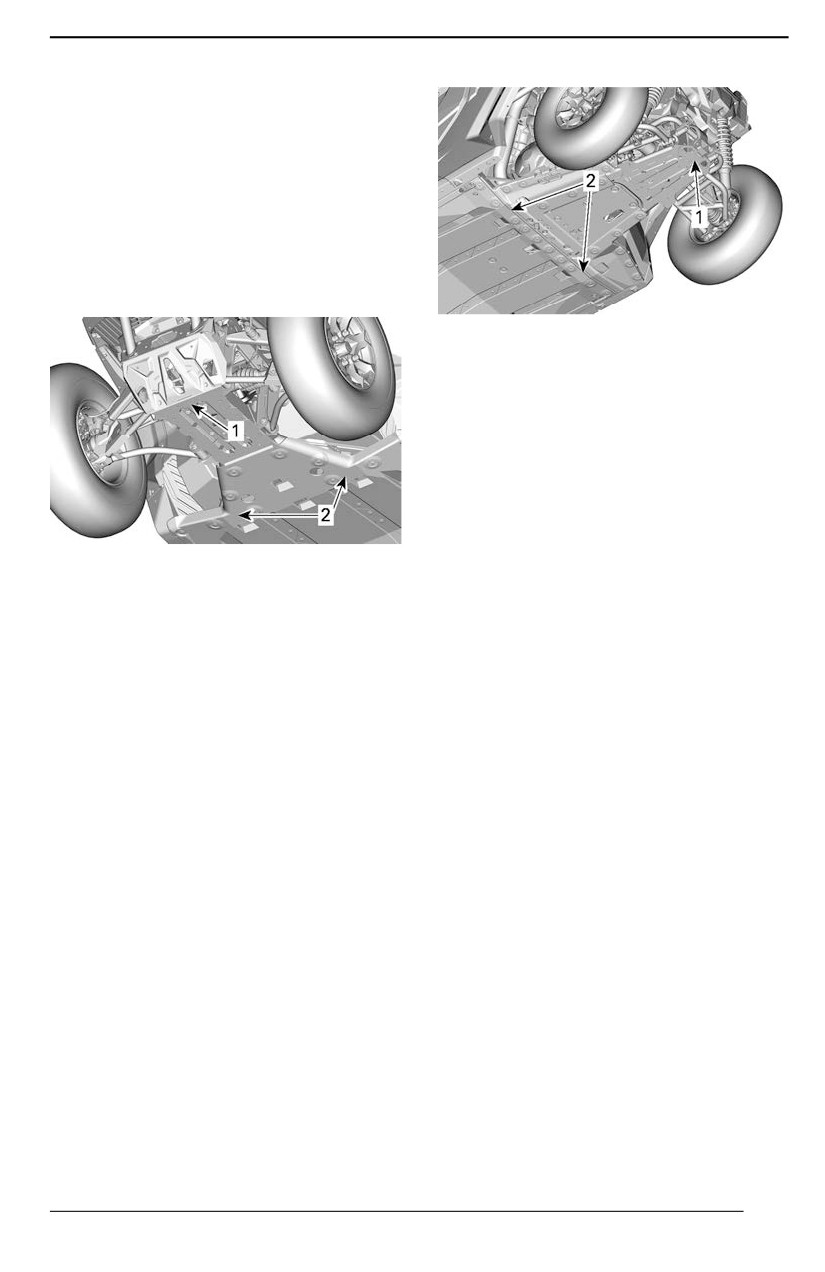

LIFTING AND SUPPORTING THE VEHICLE

Front of Vehicle

1. Place vehicle on a flat non slippery

ground.

2. Ensure vehicle shift lever is set to

PARK.

3. Install an hydraulic jack under the

front skid plate.

4. Lift front of vehicle and install a

jack stand on each side under

frame section.

1. Lifting location under skid plate

2. Frame section to install jack stands

6. Lower hydraulic lift and ensure ve-

hicle is supported safely onto both

jack stands.

1. Front of vehicle

2. Frame section

5. Lower hydraulic lift and ensure ve-

hicle is supported safely onto both

jack stands.

Rear of Vehicle

1. Place vehicle on a flat non slippery

ground.

2. Activate 4WD mode.

3. Ensure vehicle shift lever is set to

PARK.

4. Install an hydraulic jack under the

skid plate.

5. Lift rear of vehicle and install a jack

stand on each side under frame

section in front of rear wheel.

115

MAINTENANCE SCHEDULE

Maintenance is very important to keep your vehicle in safe operating condition.

The vehicle should be serviced as per the maintenance schedule.

Proper maintenance is the owner’s responsibility. A warranty claim may be de-

nied if, among other things, the owner or operator caused the problem through

improper maintenance or use.

Perform periodic checks and follow the maintenance schedule. The maiinte-

nance schedule does not exempt the pre-ride inspection.

WARNING

Faiilure to properly maiintain the vehiclle accordiing to the maiintenance

schedulle and procedures can make it unsafe to operate.

EPA Regulation - Canadian and USA Vehicles

A repair shop or person of the owner''s choosing may maiintaiin, replace, or

repair emission control devices and systems. These instructions do not require

components or service by BRP or authorized Can-Am Off-road dealers.

Although an authorized Can-Am Off-road dealer has an in-depth technical knowl-

edge and tools to service your vehicle, the emission-related warranty is not con-

ditioned on the use of an authorized Can-Am Offroad dealer or any other

establishment with which BRP has a commercial relationship.

Proper maintenance is the owner’s responsibility. A warranty claim may be de-

nied if, among other things, the owner or operator caused the problem through

improper maintenance or use.

For emission-related warranty claims, BRP is limiting the diagnosis and repair of

emission-related parts to the authorized Can-Am Offroad dealers. For more infor-

mation, please refer to the US EPA Emission-Related Warranty contained in the

Warranty section.

You must follow the instructions for fuel requirements in the fueling section of this

manual. Even if gasoline containing greater than ten volume percent ethanol is

readily available, the US EPA issued a prohibition against the use of gasoline

containing greater than 10 vol% ethanol that applies to this vehicle. The use of

gasoline containing greater than 10 vol% ethanol with this engine may harm the

emission control system.

Air Filter Maintenance Guideline

Air filter maintenance should be adjusted according to riding conditions.

Air filter maintenance must be increased in frequency when riding on snow, dry

sand, dirt, gravel or similar conditions which have a high dust or particle

dispersion.

Riding in a group in these conditions will require increasing the air filter mainte-

nance frequency further.

NOTE:

Accessory filters and pre-filter are available for such conditions. Contact an au-

thorized Can-Am off-road dealer for details.

118

MAINTENANCE SCHEDULE

Severe Duty Use

If your vehicle is used in the following conditions, refer to the Severe Duty section

of the maintenance schedule.

- Repeated hauling of loads at more than 75% the maximum capacity.

- The increase workload applied to the drive system accelerates the differ-

entials, gearbox/transmission, and engine oil life. This reduces internal

component longevity if not replaced more frequently.

- Driving at excessive speeds for prolonged amount of time.

Higher than the average utility or commercial use requires more frequent fluid

and wear component replacement than trail, recreational, or occasional utility

purposes.

Extreme Cold Condiitiion

An engine that is frequently operated at or below an ambient temperature of -25 °

C (-13 °F) will require an increase in service and maintenance schedule.

Any combustion engine operated at these low ambient temperature will collect

an increased amount of condensation at every startup/warm-up.

Since the engine is not reaching operating temperatures for extended periods of

time, the oil is starting to be strongly diluted with water and gas residue (more

water content).

An engine needs to reach operating temperature, in order to be able to evaporate

condensate out of the oil.

If daily usage (work or leisure driving cycle) is similar to those mentioned below,

BRP strongly recommends changing the oil at least once a month.

Parameters of an increase in service and maintenance schedule:

- Engine not reaching the proper operating temperature during normal daily

usage

- Multiple starts and stops without reaching operating temperature

- Short idle periods

- Low RPM driving cycle in short distances without reaching operating

temperature.

NOTE:

BRP strongly recommends the installation of a block heater to help warm up the

liquids, this will also help to extend the oil lifetime.

Deep Mud / Water Use

Whether your vehicle is a X mr model or was accessorized for deep mud / water

use, this type of usage requires more frequent maintenance and inspections to

ensure debris has not infiltrated mechanical components.

If you regularly ride in deep mud or water, refer to the Deep Mud / Water section

of the maintenance schedule.

119

MAINTENANCE SCHEDULE

After every ride, be sure to perform the Post Operation Care for Deep Mud /

Water Environment .

Post Operation Care for Deep Mud / Water Enviironment

- Rinse the vehicle and its components with fresh water.

- Clean the CVT air filters.

- Drain the CVT compartment and clean if any water or mud is found.

- Inspect and clean engine air filters and engine air filter housing.

- Clean radiator.

- Visually inspect for any water accumulation in the vent hoses (fuel tank, gear-

box, front differential and rear final drive). If there is water, bring the vehicle to

your nearest authorized Can-Am off-road dealer for inspection and servicing

of main components related to the vents.

- Clean front and rear shock absorbers to prevent seal from damage by dust or

dirt.

- Clean drive shaft bellows and the propeller shaft yokes or boots.

Maintenance Schedule

Make sure to perform proper maintenance at recommended intervals as indi-

cated in the tables.

The maintenance chart intervals are based on 3 factors:

- Calendar time

- Vehicle hours

- Odometer reading.

Take in account whichever comes first to determine the maintenance threshold.

Your driving habits determines the factors you shall adhere too. For example:

- Someone who uses their vehicle every other weekend trail riding with friends

would most likely follow the odometer readiing to determine the maintenance

interval.

- Someone who uses their vehicle seldomly over the year or only on a few oc-

casions (hunting, camping) would most likely follow the callendar time to de-

termine the maintenance interval.

- Someone who uses their vehicle daily / weekly for long periods of time such

as agricultural / work would most likely follow the vehiicle hours to determine

the maintenance interval.

IMPORTANT: The following tables show the appropriate maintenance appli-

cation for the first

3 years. For subsequent years, repeat the same pattern

alternatively.

120

MAINTENANCE SCHEDULE

REGULAR DUTY

A=Adjust

Every year

Every 2 years

C=Clean

I=Inspect

200 hours

400 hours

L=Lubricate

R=Replace

3000 km

6000 km

T=Torque

(1900 mi)

(3700 mi)

Air and Fuel Delivery

Engine air filter

I, C or R

Air delivery components and function (airbox,

I, C

throttle body, ducts, clamps)*

Fuel components and function (Fuel tank cap,

fuel tank, hoses, clamps, leaks)*

Fuel pump pressure

Body; Chassis and Accessory

Cage fasteners

Seat belts retractors, buckles and

I, C

semi-cinching

Winch

I, C

Door latches, hinges and key barrels

L, T

Engine and Cooling

Engine oil and filter

I, A

Valve clearance (Regardless of calendar

I, A

(Mono cyl.

time)

(V-twin engines)

engines)

Spark plugs (Regardless of calendar time)

Engine seals and gaskets

Engine cooling components (Concentration,

I, A

level, hoses condition, clamps, leaks)*

Engine Coolant

Every 5 years or 12 000 km (7500 mi)

Radiator

Exhaust and Emissions

Fuel tank vent breather filter (Non EVAP

models)

Canister vent pre-filter (CARB and EVAP

models)

Exhaust components (gaskets, pipes, muffler

I, C

condition, leaks)

Muffler spark arrester

I, C

122

MAINTENANCE SCHEDULE

REGULAR DUTY

A=Adjust

Every year

Every 2 years

C=Clean

I=Inspect

200 hours

400 hours

L=Lubricate

R=Replace

3000 km

6000 km

T=Torque

(1900 mi)

(3700 mi)

Debris around exhaust pipe and muffler area

Brake

Brake components and function (Fluid level,

brake pads, brake discs, calipers, lines and

I, C, L, A

master cylinder*)

Brake fluid

Every 2 years

Drive

Replace at first 3000 km (1900 mi) and

Gearbox oil

6000 km (3700 mi), then follow the

regular schedule

Gearbox oil

I, A

Front differential oil

I, A

Rear final drive oil (Mono-cyl. engine)

I, A

Tires (Wear, pressure)

I, A

Wheel lug nuts

Beadlock screws (if equipped)

Drive components and function*

Controls

Gearbox lever operation

I, A

Throttle operation

Continuously Variable Transmission (CVT)

CVT components and function*

I, C, L

Slide shoes in driven pulley (Mono cyl.

engines)

Electrical

Battery connections and condition

I, C

Modules fault codes and applicable software

updates

Operation of controls switches and lighting*

Vehicle speed sensor (VSS) (Mono cyl.

engines)

Steering

123

MAINTENANCE SCHEDULE

SEVERE DUTY

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Air and Fuel Delivery

Engine air filter

I, C

Air delivery components and

function (airbox, throttle body, ducts,

I, C

clamps)*

Fuel components and function (Fuel

tank cap, fuel tank, hoses, clamps,

leaks)*

Fuel pump pressure

Body, Chassis and Accessory

Cage fasteners

Seat belts retractors, buckles and

I, C

semi-cinching

Winch

I, C

Door latches, hinges and key barrels

L, T

Engine and Cooling

Engine oil and filter

I, A

Valve clearance (Regardless of

(V-twin

(Mono cyl.

calendar time)

engines)

Spark plugs (Regardless of calendar

time)

Engine seals and gaskets

Engine cooling components

(Concentration, level, hoses

I, A

condition, clamps, leaks)*

Engine coolant

Every 5

years or 12 000 km (7500 mi)

Radiator

Exhaust and Emissions

Fuel tank vent breather filter (Non

EVAP models)

Canister vent pre-filter (CARB and

EVAP models)

125

MAINTENANCE SCHEDULE

SEVERE DUTY

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Exhaust components (gasket, pipes,

I, C

muffler condition, leaks)*

Muffler spark arrester

Debris around exhaust pipe and

muffler area

Brake

Brake components and function

(Fluid level, brake pads, brake discs,

I, C, L, A

calipers, lines and master cylinder)*

Brake fluid

Every 2 years

Drive

Replace at first

1500 km (900 mi) and at 3000

Gearbox oil and filter

km (1900 mi), then follow the regular schedule

Gearbox oil and filter

I, A

Front differential oil

I, A

Rear final drive oil (Mono-cyl.

I, A

engine)

Tires (Wear, pressure)

I, A

Wheel lug nuts

Beadlock screws (if equipped)

Drive components and function*

Controls

Gearbox lever operation

I, A

Throttle operation

Continuously Variable Transmission (CVT)

CVT components and function*

I, C, L

Slide shoes in driven pulley (Mono

cyl. engines)

Electrical

Battery connections and condition

I, C,

Modules fault codes and applicable

software updates

126

MAINTENANCE SCHEDULE

DEEP MUD / WATER

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Air and Fuel Delivery

Engine air filter

Air delivery components and

function (airbox, throttle body, ducts,

clamps)*

Fuel components and function (Fuel

tank cap, fuel tank, hoses, clamps,

leaks)*

Fuel pump pressure

Body and Chassis

Cage fasteners

Seat belts retractors, buckles and

I, C

semi-cinching

Winch

Door latches, hinges and key barrels

L, T

Engine and Cooling

Engine oil and filter

I, A

Valve clearance (Regardless of

(V-twin

(Mono cyl.

calendar time)

engines)

Spark plugs (Regardless of calendar

time)

Engine seals and gaskets

Engine cooling components

(Concentration, level, hoses

I, A

condition, clamps, leaks)*

Coolant

Every 5

years or 12 000 km (7500 mi)

Radiator

Exhaust and Emissions

Fuel tank vent breather filter (Non

EVAP models)

Canister vent pre-filter (CARB and

EVAP models)

128

MAINTENANCE SCHEDULE

DEEP MUD / WATER

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Exhaust components (gasket, pipes,

I, C

muffler condition, leaks)*

Muffler spark arrester

Debris around exhaust pipe and

muffler area

Brake

Brake components and function

(Fluid level, brake pads, brake discs,

I, C, L, A

calipers, lines and master cylinder)*

Brake fluid

Every 2 years

Drive

Replace at first

1500 km (900 mi) and at 3000

Gearbox oil and filter

km (1900 mi), then follow the regular schedule

Gearbox oil and filter

I, A

Front differential oil

I, A

Rear final drive oil (Mono-cyl.

I, A

engine)

Tires (Wear, pressure)

I, A

Wheel lug nuts

Beadlock screws (if equipped)

Drive components and function*

Controls

Gearbox lever operation

I, A

Throttle operation

Continuously Variable Transmission (CVT)

CVT components and function*

I, C, L

Slide shoes in driven pulley (Mono

cyl. engines)

Electrical

Battery connections and condition

I, C

Modules fault codes and applicable

software updates

129

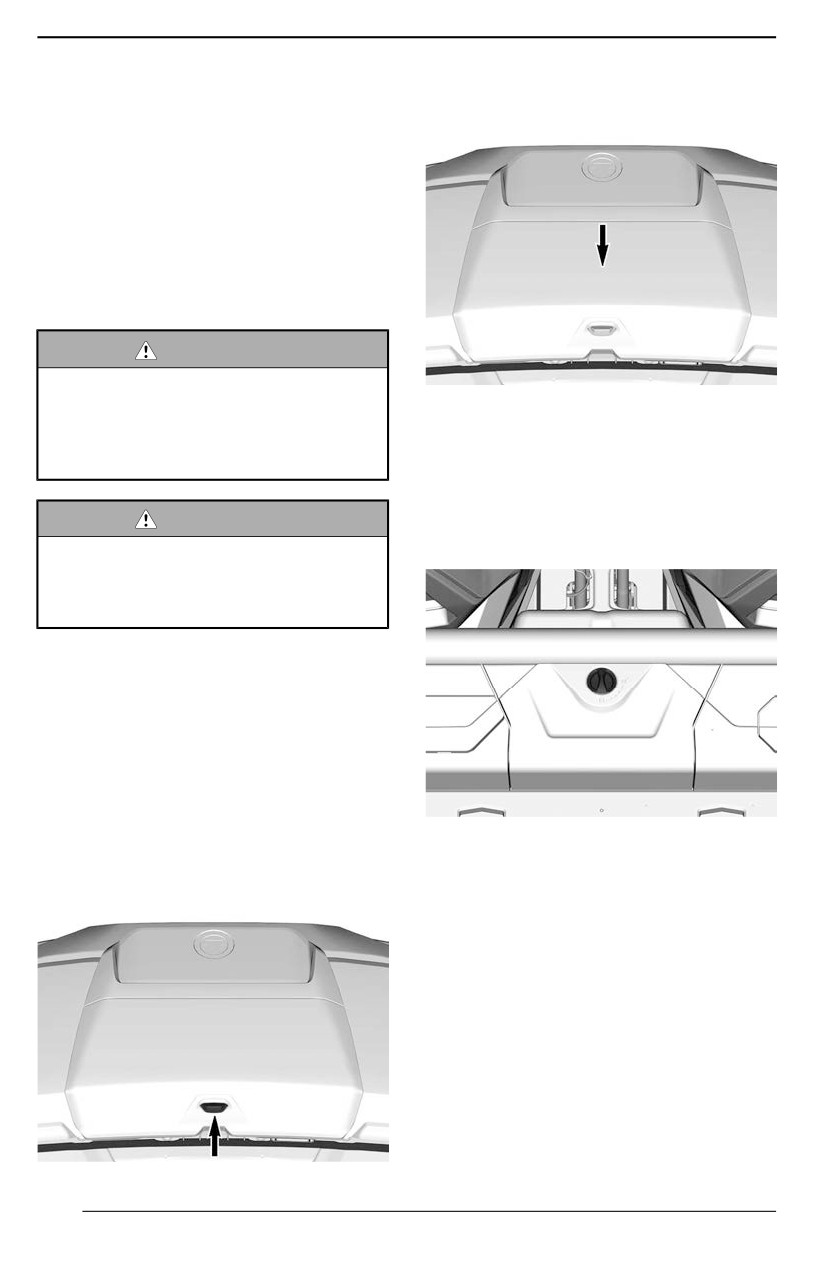

MAINTENANCE PROCEDURES

This section includes instructions for

2. To close the front service cover,

basic maintenance procedures.

push on it downwards until it clips

Due to the complexity of some of the

maintenance procedures, good me-

chanical skills are required.

If you are not comfortable with these

procedures, do not hesitate to contact

an authorized Can-Am Off-road deal-

er, a repair shop or a person of your

own choosing.

WARNING

Unless otherwiise iindicated, all-

ways turn ignition swiitch to the

OFF posiitiion before performing

Rear Service Cover

any maintenance and remove

The rear service cover gives an ac-

key.

cess to the coolant tank.

1. Turn the quarter-turn lock counter-

WARNING

clockwise and remove the rear

Shoulld removal of a lockiing de-

service cover.

viice be requiired (e.g. lock tab,

self-llocking fastener, etc.) , al-

ways replace it with a new one.

Accessing the Maintenance

Components

Front Service Cover

The front service cover gives an ac-

cess to the following components:

- Brake Reservoirs

- Front Headlights Connector

2. Install the rear service cover back

in place and turn the quarter-turn

1. To open the front service cover,

lock clockwise.

push on the button.

NOTE: Make sure the rear service

cover is correctly installed and locked.

Engine Serviice Cover

The engine service cover is located

on the rear firewall between seats and

engine compartment.

The engine service cover gives an ac-

cess to the following components:

- Engine oil filter

- Engine front spark plug.

136

MAINTENANCE PROCEDURES

1. Remove the seats.

2. Remove the plastic rivets and the

dart.

3. Remove the engine service cover.

NOTE:

If installed, no need to remove the

acoustic panel from the engine serv-

ice cover.

1. Pull toward the front

2. Lift

Engine Air Filter

NOTICE

Never modiify the aiir intake sys-

tem. Otherwise, engine perform-

ance degradatiion or damage can

occur. The engiine is callibrated to

operate speciifiicallly with these

4. The installation is the reverse of

components.

the removal procedure.

Seat Cushiion and Backrest

Engiine Air Fiilter Repllacement

1. Remove the seat cushion by lifting

Guideliine

the front up and pulling toward the

Engine air filter inspection and re-

front.

placement frequency should be ad-

justed according to riding conditions

as it is critical to ensure proper engine

performance and life span.

Under the following severe riding con-

ditions, the inspection and replace-

ment frequency must be increased:

- Riding on dry sand.

- Riding on dry dirt covered

surfaces.

- Riding on dry gravel trails or simi-

lar conditions.

1. Lift front of seat

- Riding in areas with high concen-

2. Pull toward the front

tration of seeds or crop husks.

2. Remove the backrest by pulling

the lower part toward the front and

lifting up.

137

MAINTENANCE PROCEDURES

- Riding in severe snow conditions.

1. Gently move the end of the fil-

ter back and forth to break the

NOTICE

seal.

2. Rotate while pulling straight

When riding iin dusty condiitiions or

out.

sand, the air box needs to be

3. Avoid knocking the filter

clleaned before every ride.

against the housing.

NOTE:

Clleaniing the Engine Aiir Fillter

Riding in a group, under these condi-

1. Inspect the filter for any signs of

tions, increases the frequency of the

leaks. A streak of dust on the clean

air filter maintenance.

side of the filter is a telltale sign.

Replace filter if there is any dam-

Removiing the Engine Aiir Fillter

ages. Eliminate any source of air

Remove the air filter access door

leaks before installing a new filter.

by unscrewing the quarter-turn

2. Clean engine air filter by tapping

fastener.

out heavy dust from paper ele-

ment, this will allow dirt and dust to

get out of the paper filter.

NOTICE

It iis not recommended to blow

compressed air on the paper ele-

ment; this coulld damage the pa-

per fiibers and reduce its fiiltratiion

abiiliity when used in dusty envi-

ronments. If engiine aiir fillter iis too

dirty and cannot be clleaned foll-

lowing the recommended proce-

Unlatch the air filter cover and re-

dure, iit shoulld be repllaced.

move the air filter.

3. Inspect air filter housing for cleanli-

ness. Clean if necessary.

4. Use a clean damp cloth to wipe

both the filter sealing surface and

the inside of the inlet tube. Ensure

that the inlet tube sealing area is

undamaged.

Duckbiilll Valve Cleaniing

Visually check and physically squeeze

the duckbill valve.

NOTICE

Air filter cover

Latches

Make sure the duckbilll valve is

Duckbill valve

flexible and not iinverted, dam-

The filter fits tightly over the outlet

aged or plugged.

tube and there will be some initial

resistance.

138

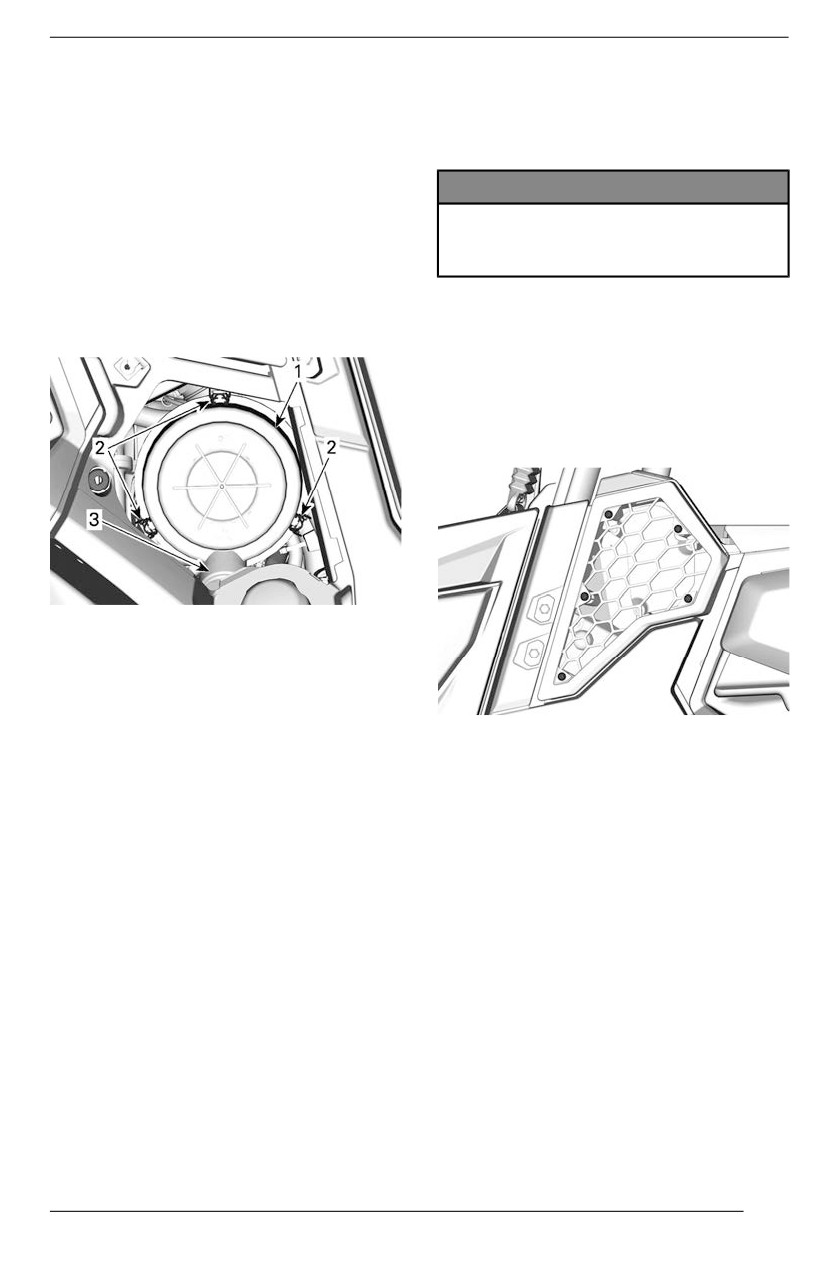

MAINTENANCE PROCEDURES

Installliing the Engine Aiir Fiilter

- Riding in muddy conditions.

- Riding in areas with high concen-

1. Insert the filter carefully.

tration of seeds or crop husks.

1. Seat the filter by hand, making

- Riding in severe snow conditions.

certain it is inserted completely

into the air cleaner housing.

NOTICE

2. Apply pressure by hand on the

When riding iin dusty condiitiions or

outer rim of the filter, not the

sand, the aiir fillter needs to be

flexible center.

clleaned before every ride.

2. Inspect and carefully clean gasket

in the groove of the cover. Replace

if damaged.

NOTE:

3. Secure air filter cover with latches.

Riding in a group, under these condi-

tions, increases the frequency of the

air filter maintenance.

Removiing the CVT Aiir Fiilter

1. Remove fasteners

1. Air filter cover

2. Latches

3. Duckbill valve

4. Reinstall the air filter access door

and secure it with the quarter-turn

screw.

2. Remove the CVT air filter.

CVT Air Filter

Inspectiing and Cleaniing the CVT

Aiir Fiilter

CVT Aiir Fiilter Replacement

1. Inspect filter and replace if

Guiideline

damaged.

CVT air filter inspection and replace-

2. Remove the seals.

ment frequency should be adjusted

3. Clean filter and seals using a solu-

according to riding conditions as it is

tion of soft soap and water, then

critical to ensure proper engine per-

rinse.

formance and life span.

4. Gently shake off excess water and

allow filter and seals to dry at room

Under the following severe riding con-

temperature.

ditions, the inspection and replace-

5. Clean inside the CVT air inlet with

ment frequency must be increased:

a vacuum cleaner.

- Riding on dry sand.

- Riding on dry dirt covered

Installling the CVT Air Fillter

surfaces.

1. Install seals in CVT filter. Make

- Riding on dry gravel trails or simi-

sure the upper ends of the seals

lar conditions.

139

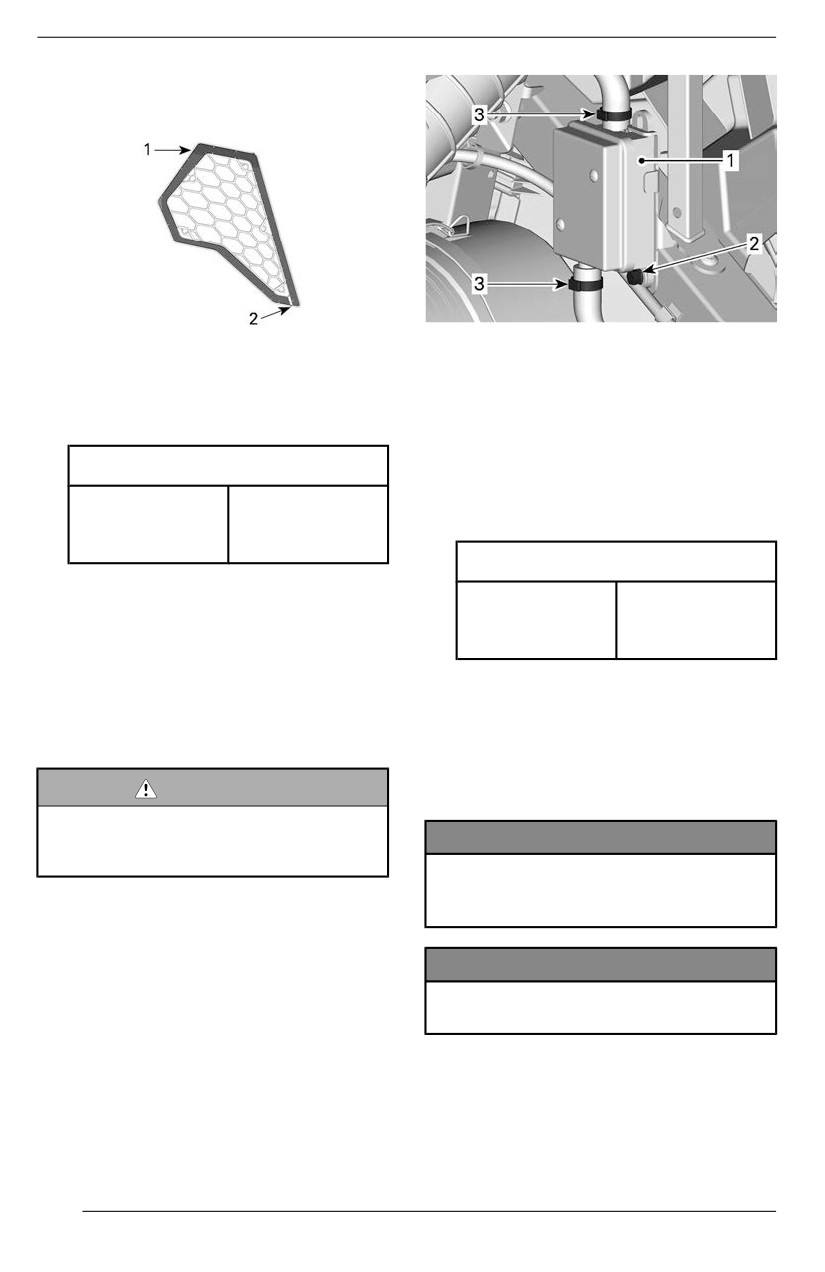

MAINTENANCE PROCEDURES

touch and there is a gap at the bot-

tom to allow water to drain.

1. Pre-Filter Assembly

1. Seal touching

2. Retaining Screw

2. Gap

3. Hose Clamps

2. Reinstall CVT air filter.

3. Reinstall fasteners.

Installliing the Evaporative Emiissiion

System Pre-Fiilter

Tighteniing Torque

1. Install a new pre-filter assembly

and secure it with retaining screw.

CVT air filter

3.5 ± 0.5 Nm

Tighten to specifications

retaining

(31 ± 4 lbf-in)

screw

Tighteniing Torque

Evaporative Emission

Pre-filter

6.5 ± 0.5 Nm

retaining

System Pre-Filter (if

(58 ± 4 lbf-in)

screw

Equipped)

2. Secure hoses with clamps.

Removiing the Evaporative

3. Close the cargo box.

Emission System Pre-Fiilter

1. Tilt the cargo box.

Engine Oil

Verifying the Engiine Oiil Levell

WARNING

(V-Twin)

Make sure to secure the cargo

box in place before doiing any-

NOTICE

thing under iit.

Operating the engine with an iim-

proper llevel may severely dam-

2. Remove the hose clamps.

age engine.

3. Remove the retaining screw.

4. Remove the pre-filter assembly.

NOTICE

Check the oill level when the en-

gine is COLD.

1. Place vehicle on a level surface.

2. Clean around dipstick to avoid for-

eign particles falling down the

tube.

140

MAINTENANCE PROCEDURES

Damage caused by the use of an oil

not suitable for the engine may not be

covered by the BRP Limited Warranty.

XPS Recommended Engine Oil

General

5W40 synthetic blend

purpose

oil

Cold

temperature

0W40 synthetic oil

Unscrew dipstick then remove it

and wipe clean.

Warm

Reinstall dipstick, screw in it

temperature

10W50 synthetic oil

completely.

Remove dipstick and check oil lev-

If the recommended XPS engine oil is

el. It should be near or equal to the

not available:

upper mark.

- Use a 4-stroke SAE engine syn-

thetic or synthetic blend oil meet-

ing or exceeding the following

lubricant industry specifications.

- Always check the API service label

certification on the oil container, it

MIN

must contain at least one of the in-

MAX

dicated standards.

If the level is between marks, rein-

- API service cllassifiication

stall the dipstick.

SN, or

- JASO MA2

If the level is below the lower mark,

add oil as follow:

Changing the Engiine Oiil

- Place a funnel into the dipstick

hole.

NOTICE

- Add a small amount of recom-

Engiine oiil and oill fiilter must be re-

mended oil and recheck oil

pllaced at the same time.

level.

- Continue to add oil until the lev-

el reaches the upper mark.

Oil change and oil filter replacement

should be done with a warm engine.

NOTICE

CAUTION

Do not overfilll. Wipe off any

spillage.

The engine oill can be very hot.

Wait untiil engine oill is warm.

Recommended Engine Oill

1. Place the vehicle on a level

Rotax^® engines were developed and

surface.

validated using the XPS^® oil.

2. Clean the dipstick area.

BRP recommends the use of its XPS

3. Remove the dipstick.

engine oil or an equivalent at all time.

4. Place a drain pan under the engine

drain plug area.

5. Clean the drain plug area.

141

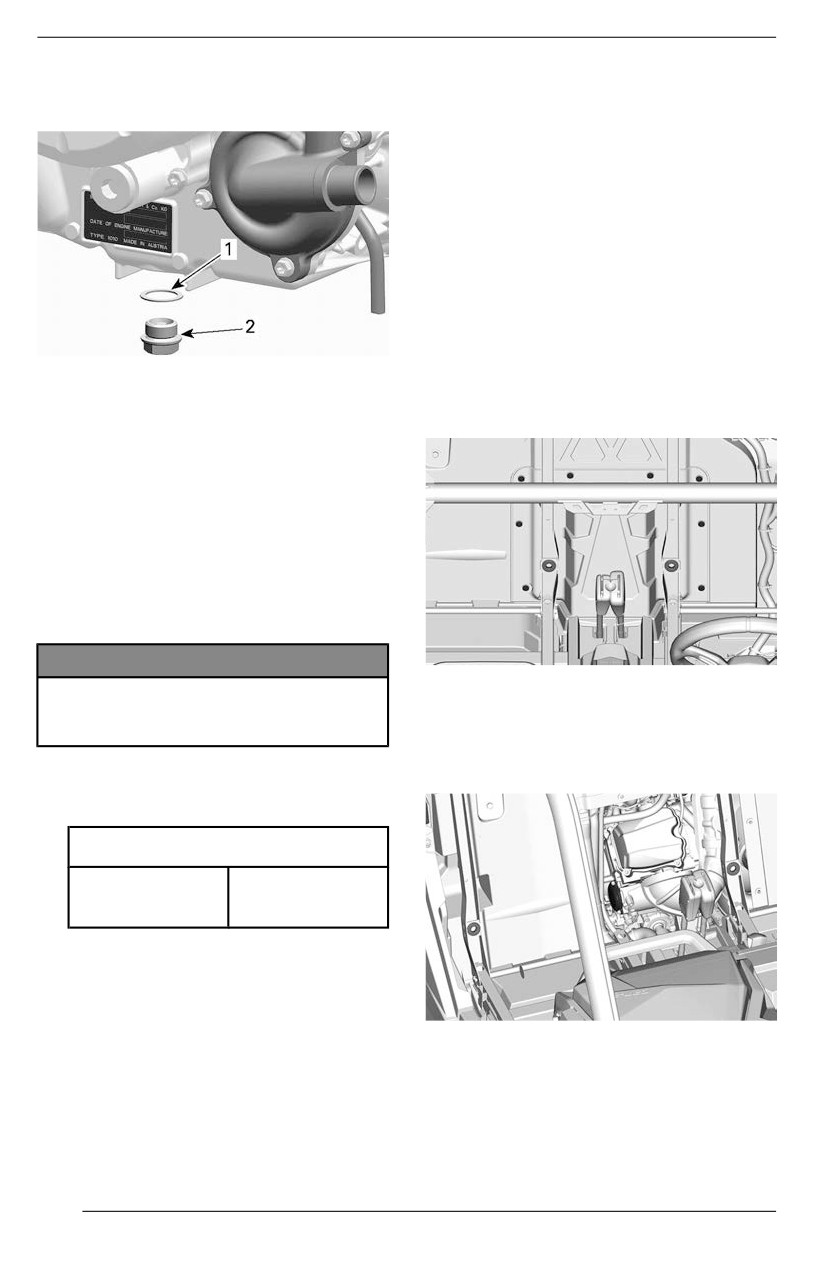

MAINTENANCE PROCEDURES

6. Unscrew drain plug and discard

15. Check the oil level immediately, re-

the gasket ring.

fer to Verifying the Engine Oil

Level.

16. Refill as necessary.

17. Ensure oil filter and drain plug

areas are not leaking.

18. Dispose oil and filter as per your

local environmental regulations.

Engine Oil Filter (V–Twin

Engines)

Oiil Fillter Access (V-Twiin)

1. Gasket ring (discard)

1. Remove the engine service cover,

2. Drain plug

refer to Accessing Maintenance

Components.

7. Allow oil to drain completely from

the crankcase.

8. Clean the magnetic drain plug

from metal shavings and residue.

NOTE: Presence of debris gives an

indication of internal engine damage.

9. Install a NEW gasket ring on the

drain plug.

NOTICE

Never use the gasket ring a sec-

Removing the Oil Fiilter

ond time. Allways repllace with a

new one.

1. If not already done, remove the en-

gine service cover.

2. Clean oil filter area.

10. Install and tighten drain plug to the

recommended specification.

Tighteniing Torque

30 ± 2 Nm

Drain plug

(22 ± 1 lbf-ft)

11. Replace oil filter, refer to Oil Filter.

12. Refill engine, refer to Recom-

mended Engine Oil.

NOTE: For engine oil capacity, refer

3. Remove oil filter cover.

to Technical Specifications.

4. Remove and discard oil filter.

13. Start engine and let it idle for a 60

seconds.

14. Stop engine.

142

MAINTENANCE PROCEDURES

TYPICAL

1. Oil filter screw

1. Slightly oil

2. Oil filter cover

2. Slightly oil

3. O-ring

4. Oil filter

NOTICE

Installliing the Oill Fiilter

Pay attention to avoid pinching

Check and clean the oil filter inlet

the O-ring duriing fiilter and cover

and outlet area for dirt and other

iinstalllatiion.

contaminations.

5. Install the cover on the engine.

6. Tighten oil filter cover screws to

recommended specification.

Tightening Torque

Oil filter cover

10 ± 1 Nm

screws

(89 ± 9 lbf-in)

7. Wipe off any oil spillage on engine.

Engine Coolant

Veriifyiing the Engine Coollant Level

Inlet bore from the oil pump to the oil filter

Outlet bore to the engine oil providing

WARNING

system

Check coollant llevel wiith engine

cold.

Wet a NEW O-ring with engine oil

and slip onto oil filter cover.

WARNING

Install the new filter into the cover.

In order to avoiid potentiial burns,

Apply engine oil to the seal on the

do not remove the pressure cap or

open end of the oil filter.

loosen the coolant drain pllug iif

the engiine iis hot.

1. Place vehicle on a level surface.

2. Remove the rear service cover.

143

MAINTENANCE PROCEDURES

- Distilled water and antifreeze

solution (50% distilled water,

50% antifreeze)

NOTICE

Allways use ethylene-glycoll antii-

freeze containing corrosion iinhiibi-

tors speciifiicallly for internal

combustiion alluminum engines.

Replacing the Engiine Coolant

Ensure cooling system is full up to

the Max line.

WARNING

In order to avoid potentiall burns,

do not remove the pressure cap or

loosen the coolant draiin plug if

the engine is hot.

1. Remove the cooling system pres-

sure cap.

2. Unscrew coolant drain plug parti-

ally to drain the coolant into a suit-

able container.

Addiing Coolant

1. Remove the coolant tank pressure

cap.

2. Add coolant in system as neces-

sary. Use a funnel to avoid spill-

age. Do not overfill.

3. Properly reinstall pressure cap on

cooling tank.

NOTE:

Oil filter cover

A cooling system that frequently re-

Water pump cover

quires addition of coolant is an indica-

Coolant drain plug

tion of leaks or engine problems.

Disconnect the lower radiator hose

from the water pump cover and

Recommended Engiine Coolant

drain the remaining coolant into a

1. XPS recommended coolant

suitable container.

Tighten the coolant drain plug to

specification.

XPS Extended llife pre-mixed

coolant

Tighteniing Torque

Alternative, or if the XPS product is

Coolant drain

10 ± 1 Nm

not available.

plug

(89 ± 9 lbf-in)

Reinstall radiator hose.

144

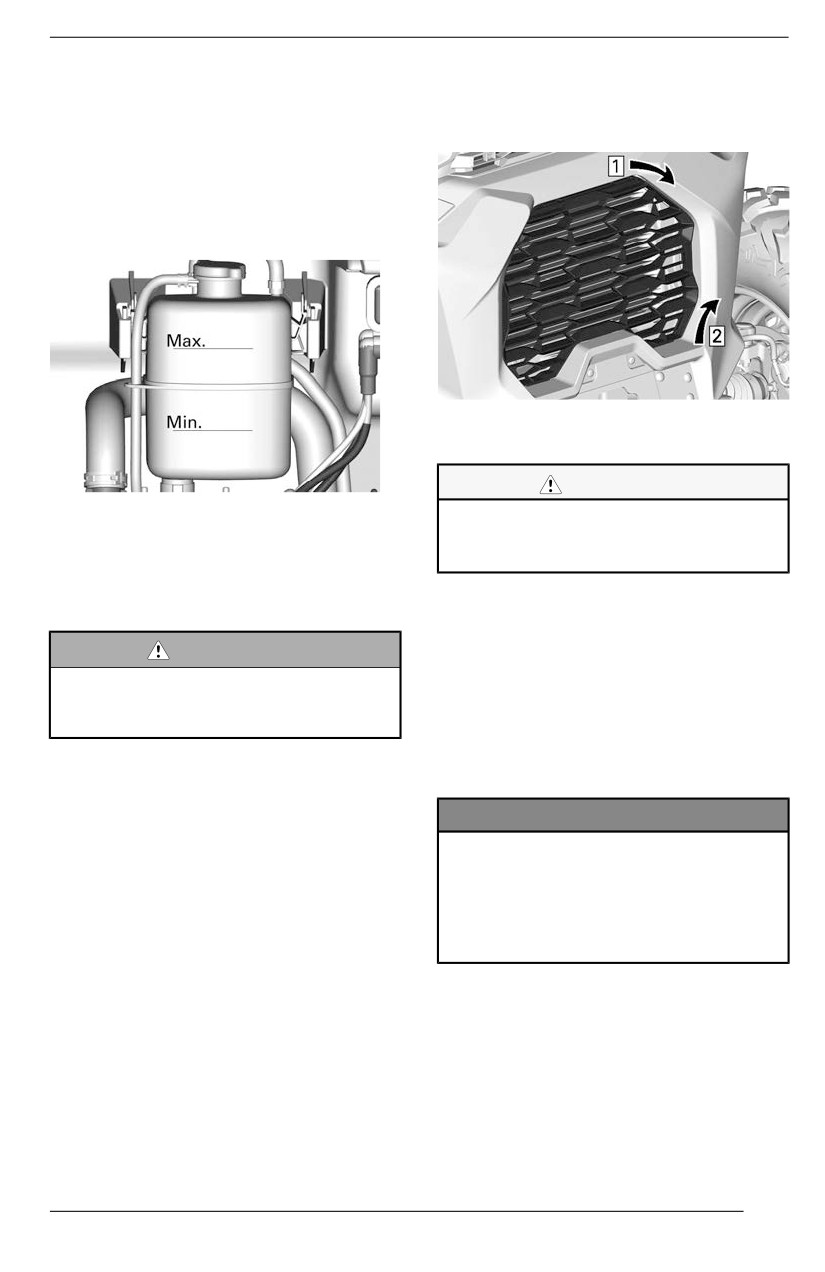

MAINTENANCE PROCEDURES

6. Fill cooling system with coolant, re-

2. To access the radiator, remove the

fer to Cooling System Bleeding

front grill by pulling the top then

procedure.

sliding it upwards.

Blleeding the Cooliing System

1. Remove the pressure cap.

2. Fill coolant system until it is full up

to the Max line on the coolant tank.

1. Pull the top

2. Slide upwards

CAUTION

3. Install pressure cap.

Never cllean radiator wiith your

4. Run engine at idle with the pres-

hands when it iis hot. Let the radia-

sure cap ON until the cooling fan

tor cooll down before cleaning.

cycles on for a second time.

5. Stop the engine and let it cool

down.

3. Inspect radiator and hoses for

leaks or any damage.

WARNING

4. Inspect radiating fins. They must

be clean, free of mud, dirt, leaves

In order to avoid potentiall burns,

and any other deposit that would

do not remove the pressure cap if

prevent the radiator to cool

the engine is hot.

properly.

5. If available, use a garden hose to

6. When the engine is cool, remove

rinse the radiating fins.

pressure cap and add coolant if

required.

NOTICE

7. Install pressure cap.

Be carefull not to damage the radii-

8. After the next ride, following this

ating fins when cleaning. Do not

procedure, check coolant level.

use any object/tooll that coulld

Add coolant as required. Refer to

damage the fins. When hosing,

Verifying the Engine Coolant Level

use low pressure only. Never use

in this section.

a HIGH PRESSURE washer.

Radiator

6. To install the front grill, insert lower

tabs first then push the top.

Inspecting and Clleaniing the

Radiator

1. Periodically check the radiator

area for cleanliness.

145

MAINTENANCE PROCEDURES

TYPICAL

1. Tail pipe

1. Insert the lower tabs

2. Gasket (discard)

2. Push the top

3. Spark arrester

3. Remove carbon deposits from the

Muffler and Spark Arrester

spark arrester using a brush.

Inspectiing and Cleaning the

NOTICE

Muffler Spark Arrester

Use a metallliic soft brush and be

careful to avoiid damaging spark

CAUTION

arrester mesh.

Never perform thiis operation im-

mediiatelly after the engiine has

4. Inspect mesh of spark arrester for

been runniing as exhaust system

any damage. Replace as required.

iis very hot.

5. Inspect spark arrester chamber in

muffler. Remove any debris as

1. Remove and discard the tail pipe

required.

retaining screws.

6. Reinstall the muffler spark arrester

in the reverse of the removal pro-

cedure. However pay attention to

the following.

Install new gasket and fasteners.

Tighten to specification.

Tighteniing Torque

Tail pipe

32 ± 2 Nm

retaining

(24 ± 1 lbf-ft)

screw

V-TWIN ENGINE CONFIGURATION

2. Remove exhaust tail pipe, gasket

GEARBOX

(discard) and spark arrester.

Verifying the Gearbox Oill Level

(V-Twin)

1. Place the vehicle on a level

surface.

2. Select PARK position.

3. Clean dipstick area.

146

MAINTENANCE PROCEDURES

Remove the gearbox oil dipstick.

Recommended Gearbox Oiil

The XPS oil is specially formulated to

meet the lubrication requirements of

this gearbox. BRP strongly recom-

mends the use of its XPS oil.

NOTICE

Do not use another type of oill

when servicing.

Wipe and reinstall the dipstick.

XPS Recommended Gearbox Oiil

Remove dipstick again and check

75W140 Synthetic gear oil

oil level. It should be near or equal

to the upper mark.

Allternatiive, or if not availlable

75W 140 API GL-5 Synthetic gear

oil

Changing the Gearbox Oiil

Place the vehicle on

level

MIN.

surface.

MAX.

Clean the following areas.

Operating range

Drain plug area.

Add oil (if required):

1. Place a funnel into the dipstick

hole.

2. Add a small amount of recom-

mended oil.

3. Recheck oil level often.

4. Repeat the above procedures

until oil level reaches the dip-

stick's upper mark.

NOTICE

Operating the gearbox with an im-

proper oiil levell may severely dam-

Dipstick area.

age gearbox.

NOTE:

Do not overfilll. Wiipe off any

spiilllage.

8. Properly tighten oil dipstick.

147

MAINTENANCE PROCEDURES

3. Place a drain pan underneath the

oil drain plug area.

4. Remove the dipstick.

5. Remove the drain plug.

6. Let oil completely drain from

gearbox.

7. Clean drain plug from any metallic

particles.

8. Install the drain plug.

Tighteniing Torque

SMART-LOK

20 ± 2 Nm

3. Remove the filler plug.

Drain plug

(15 ± 1 lbf-ft)

4. Check oil level. The oil should

reach the lower edge.

9. Refill gearbox.

5. Reinstall the filler plug.

NOTE: The oil should be level with

Tighteniing Torque

the bottom of the oil level orifice.

16.5 ± 2.5 Nm

Filler plug

NOTICE

(146 ± 22 lbf-in)

Use ONLY the recommended type

of oill.

Recommended Front Diifferentiiall

Oiil

10. Reinstall dipstick.

The XPS oil is specially formulated to

11. Lubricate the VSS O-ring.

meet the lubrication requirements of

this differential. BRP strongly recom-

Super Lube Grease

mends the use of its XPS oil.

12. Wipe off any spillage.

NOTICE

FRONT DIFFERENTIAL

Do not use another type of oiil

when serviiciing.

Veriifyiing the Front Differentiall Oill

Levell

XPS Recommended Front

1. Place the vehicle on a level

Diifferentiiall Oill

surface.

2. Clean filler plug area prior to

75W90 Synthetic gear oil

checking oil level.

Allternatiive if XPS Product is not

Avaiilable

75W90 (API GL-5) synthetic gear oil

Changiing the Front Diifferentiial Oill

1. Place vehicle on a level surface.

2. Set gearbox in park position.

3. From underneath the vehicle,

clean the drain plug area.

148

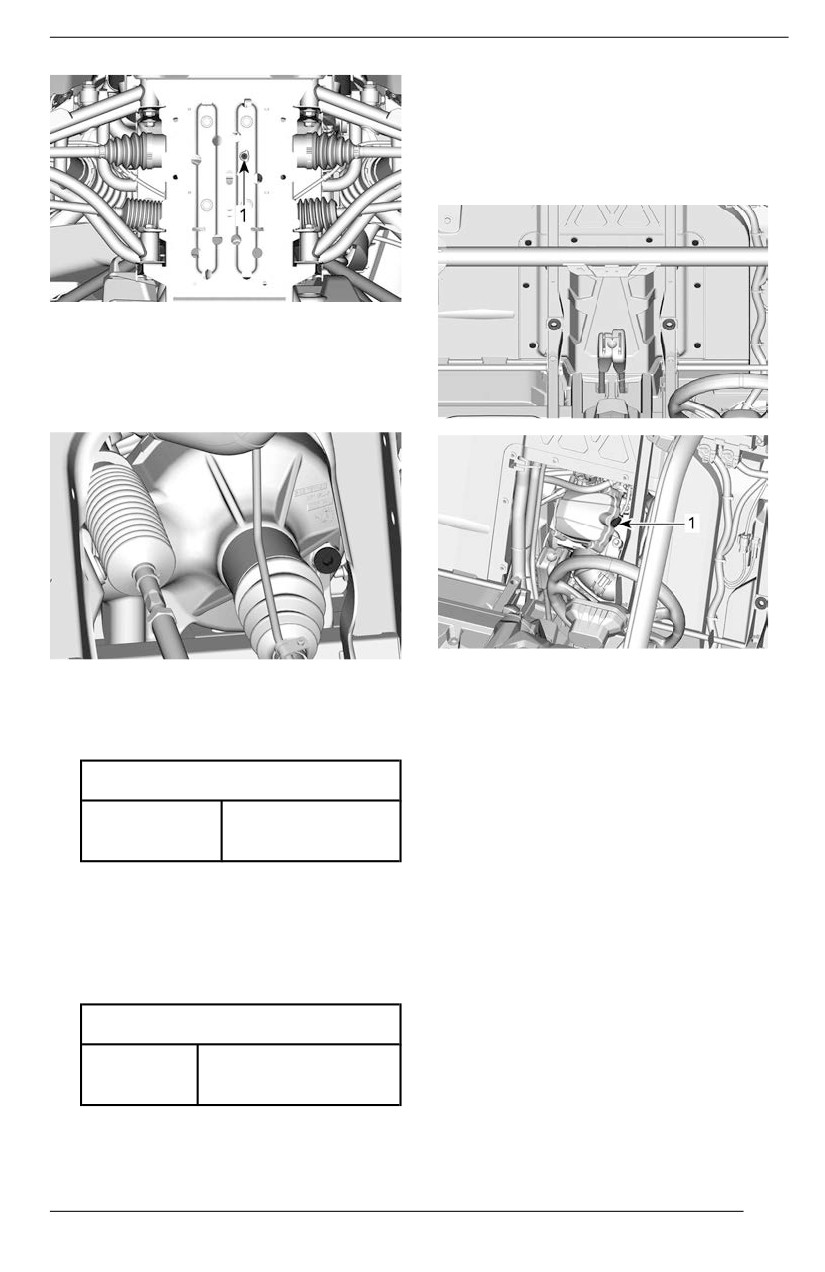

MAINTENANCE PROCEDURES

SPARK PLUGS

Accessing the Spark Plugs

1. Remove the engine service cover

to reach the front cylinder.

1. Drain plug

4. Place a drain pan under the rear

differential.

5. Remove drain plug.

6. Unscrew filler plug.

1. Front spark plug of V-twin engine

VISCO-LOK

DIFFERENTIAL

(NO

ACTUATOR)

2. Open the cargo box to reach the

7. Let oil drip completely.

rear cylinder.

8. Install drain plug.

Removiing the Spark Plug

Tiightening Torque

1. Unplug spark plug cable.

2.5 ± 0.5 Nm

2. Clean spark plug area with pres-

Drain plug

(24 ± 4 lbf-in)

surized air before removing spark

plug.

9. Refill differential with recom-

3. Unscrew spark plug completely us-

mended

oil

for

optimal

ing a spark plug socket, then re-

performance.

move it.

10. For the differential oil capacity, re-

fer to Technical Specifications.

Installling the Spark Pllugs

11. Reinstall filler plug.

1. Prior to installation make sure that

the contact surface of cylinder

Tiightening Torque

head and spark plug is free of

grime.

16.5 ± 2.5 Nm

Filler plug

2. Using a feeler gauge, set the spark

(146 ± 22 lbf-in)

plug gap.

149

MAINTENANCE PROCEDURES

Accessiing the CVT Cover

Spark Pllug Gap

The CVT cover is accessible by the

0.8 to 0.9 mm.031 to .035 in

rear LH wheel well.

3. Coat spark plug threads with the

Removing the CVT Cover

following anti-seize lubricant.

1. Place the vehicle on a level

surface.

Copper-based antii-seiize

2. If equipped, remove the CVT air in-

llubriicant

take hose.

3. Manually, remove all CVT cover

4. Screw spark plug into cylinder

retaining screws.

heads by hand and tighten with a

torque wrench and a proper

NOTICE

socket.

Do not use an impact tool to re-

NOTICE

move CVT cover screws.

Do not overtiighten spark plugs,

engine damage can occur.

NOTE:

Remove the center top screw last to

support the cover during removal.

Tighteniing Torque

4. Remove the CVT cover and

its

11 Nm (97

Spark plug

gasket.

lbf-in)

CVT COVER

For a better understanding, some il-

lustrations are taken with engine out

of vehicle. To perform the following in-

structions, it is not necessary to re-

move engine.

WARNING

Never touch CVT whille engiine iis

1. CVT cover

running.

2. CVT cover screws

Never driive vehicle when CVT

cover is removed.

Installliing the CVT Cover

1. Install the center top screw of first.

CAUTION

2. Tighten the CVT cover screws as

Engiine must be cool before cover

per following sequence.

is removed.

NOTICE

Thiis CVT is llubriication free.

Never llubricate any components

except drive pullley beariing.

150

MAINTENANCE PROCEDURES

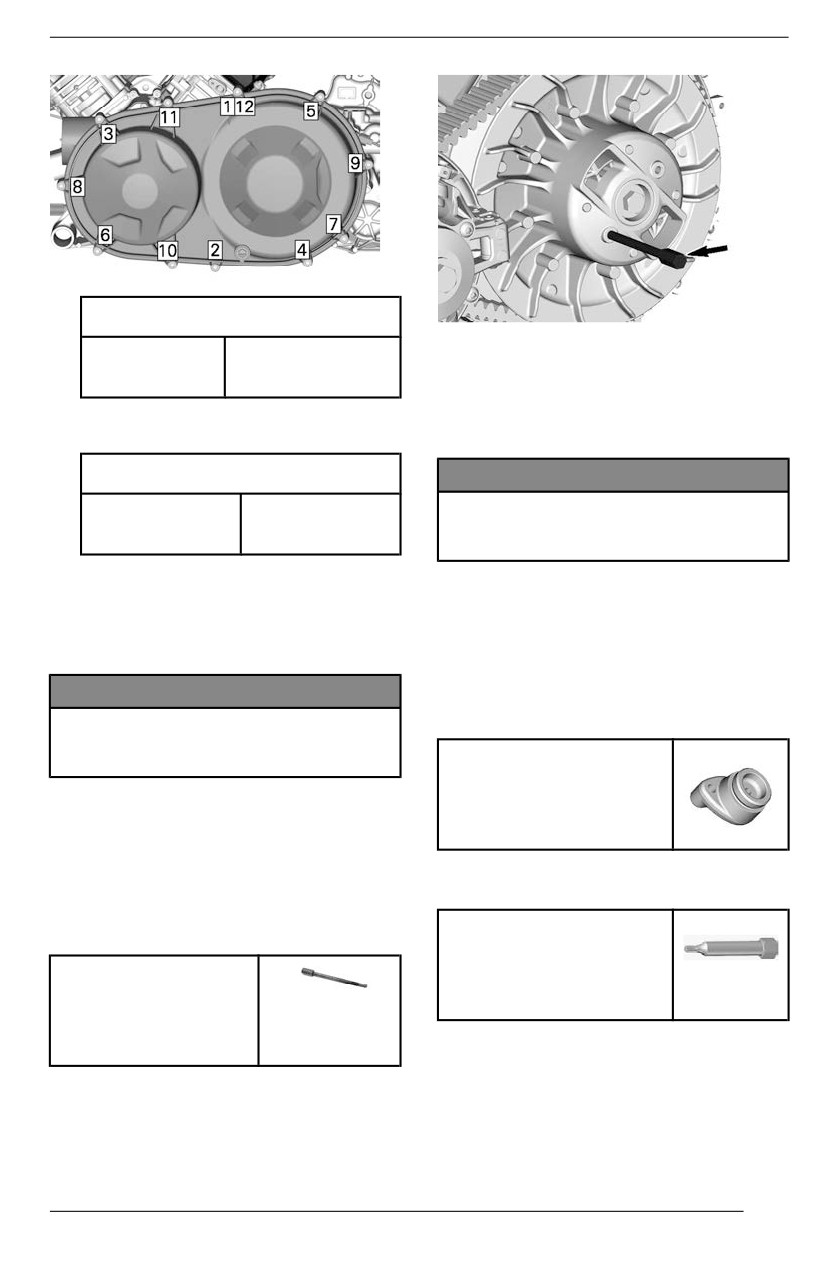

Tiightening Torque

3. Tighten to open the pulley.

CVT cover

7 ± 0.8 Nm

4. To remove belt, slip the belt over

screws

(62 ± 7 lbf-in)

the top edge of fixed sheave.

3. If equipped, install CVT air intake

Removiing the Driive Belt (Twin

hose.

Cyllinder Engine)

Tiightening Torque

NOTICE

In case of a driive belt faillure, the

Clamp worm

2 ± 0.3 Nm

CVT, cover and air outlet must be

gear

(18 ± 2 lbf-in)

clleaned.

Drive Belt

Please refer to Tips for Maximizing

Drive Belt Durability in Basic Proce-

Removing the Drive Bellt (Mono

dures for some important information.

Cyllinder Engiine)

1. Remove the CVT Cover.

NOTICE

2. Install the adaptor in the threaded

hole of the driven pulley.

In case of a drive belt faiilure, the

CVT, cover and aiir outllet must be

cleaned.

Driven pullley adapter

Please refer to Tips for Maximizing

Drive Belt Durability in Basic Proce-

(P/N 708200720)

dures for some important information.

3. Screw the puller/locking tool in the

1. Remove the CVT Cover.

threaded hole of the adaptor.

2. Install the puller/locking tool in the

threaded hole of the driven pulley.

Pulller/locking tooll

Pulller/lockiing tool

(P/N 529000088)

4. Tighten to open the pulley.

(P/N 529036098)

151

MAINTENANCE PROCEDURES

1. Fixed sheave of driven pulley

2. Adaptor

1. Arrow printed on belt

3. Puller/locking tool

2. Drive pulley (front)

4. Wrench

3. Driven pulley (rear)

4. Rotation direction

5. To remove belt, slip the belt over

the top edge of fixed sheave, as

2. Turn the driven pulley until the low-

shown.

est portion of the cogs on the ex-

ternal surface of the drive belt is

even with the driven pulley edge.

Installling the Driive Bellt

1. Lowest portion of cogs even with driven pul-

For installation, reverse the removal

ley edge

procedure. Pay attention to following

details.

Drive and Driven Pulleys

The maximum drive belt life span is

Inspecting Drive and Driven

obtained when the drive belt has the

Pullleys

proper rotation direction.

This inspection must be performed by

1. Install it so that the arrow printed

an authorized Can-Am Off-road deal-

on belt is pointing towards front of

er, repair shop, or person of your own

the vehicle, viewed from top.

choosing for maintenance, repair, or

replacement.

Driive Pullley

Inspect the bushings and rollers of the

sliding sheave of the drive pulley, re-

place worn parts.

152

MAINTENANCE PROCEDURES

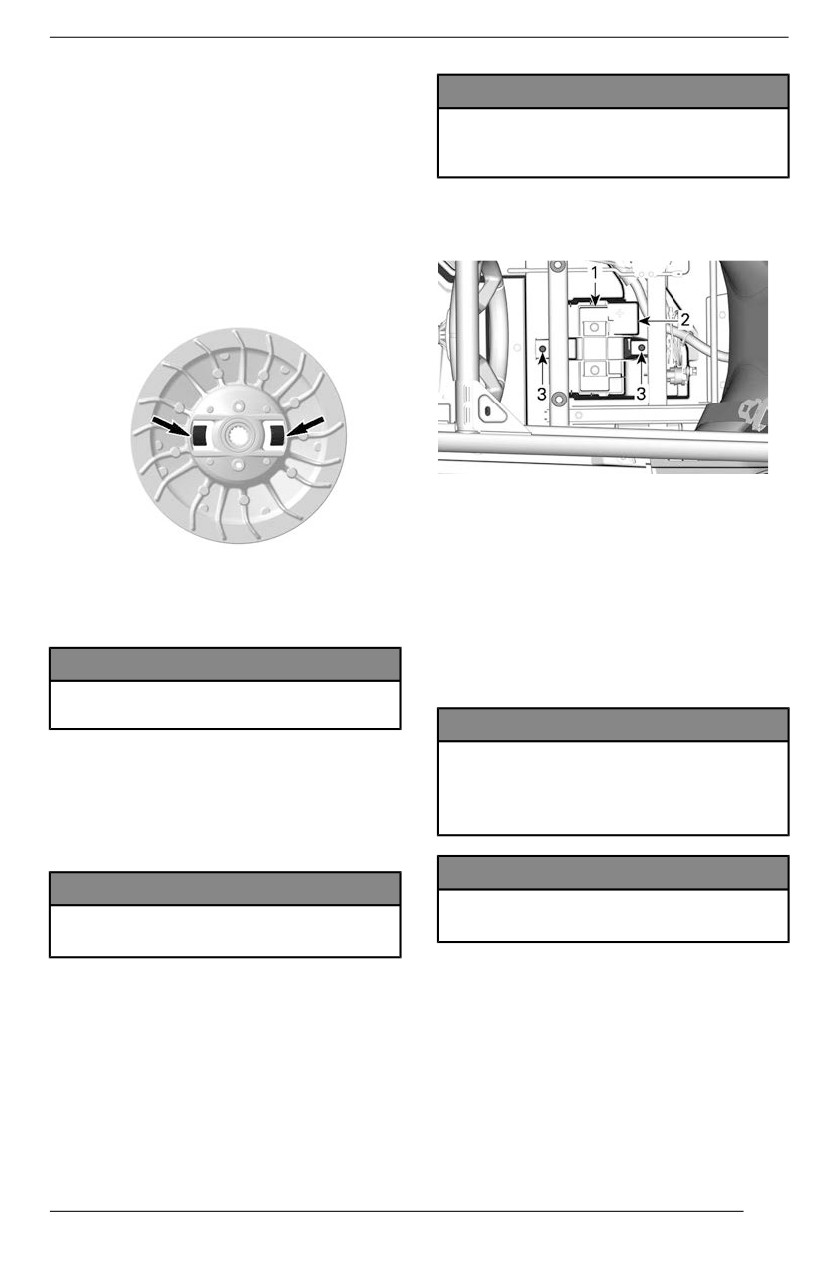

Driiven Pullley

NOTICE

Inspect the bushings of the cam and

Always respect thiis order for diis-

of the sliding sheave of the driven pul-

assemblly; diisconnect BLACK (-)

ley, replace worn parts.

cable first.

V-Twin only

3. Remove battery holder retaining

Inspect rollers on fixed sheave.

screw(s).

Mono cyl. only

Inspect sliders on fixed sheave.

1. Battery holder

2. Battery

3. Battery holder retaining screw(s)

4. Remove battery holder.

BATTERY

5. Remove battery.

Battery Maintenance

Installling the Battery

Battery installation is the reverse of

NOTICE

the removal procedure.

Never charge a battery whille in-

stallled in vehicle.

NOTICE

Improper oriientation of the battery

These vehicles are equipped with a

cables (reverse pollarity) wiilll re-

VRLA battery (Valve Regulated Lead

sult iin damage to the volltage

Acid). It is a maintenance-free type

regulator.

battery, there is no need to add water

to adjust electrolyte level.

NOTICE

Always connect RED (+) cablle

Never remove the battery sealiing

fiirst then BLACK (-) cablle.

cap.

Removing the Battery

1. Remove the driver’s seat cushion.

2. Disconnect BLACK (-) cable first

then RED (+) cable.

153

MAINTENANCE PROCEDURES

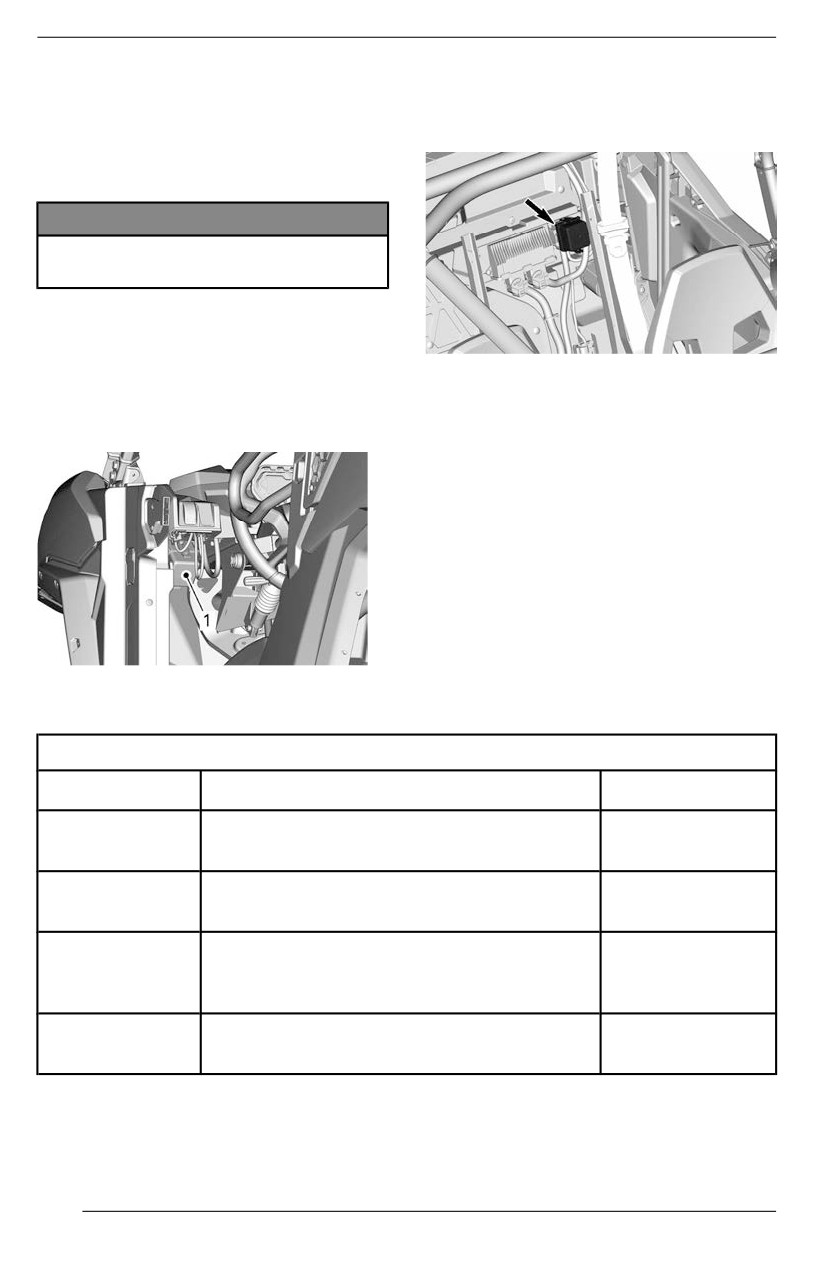

Fuses and Fusible Links

The rear fuse box is located behind

the rear left passenger’s seat back-

Repllaciing a Fuse

rest, underneath the acoustic panel.

If a fuse is burnt, replace it by one of

the same rating.

NOTICE

Do not use a hiigher rated fuse as

this can cause severe damage.

Fuse Boxes Location

The vehicle is equipped with two fuse

boxes.

Fuse Links and Indiividuall Fuse

The front fuse box is located under the

The vehicle is equipped with 2 fuse

LH dashboard.

links and an individual fuse.

The fuse link 1 is connected to battery

positive post.

The fuse link 2 is located between the

fuse box #1 and the accessory post

(located under the dash).

The regulator fuse holder is also

lo-

cated near the battery.

1. Front fuse box

Fuse Boxes Description

Indiviiduall Fuse Holders

Description

Ratiing

DPS

PF3

40 A

(Under the dash, near DPS)

Accessory post

PF4

30 A

(Under dash terminal block)

Smart Lok

PF8

(Under dash, near front diff module)

20 A

(if equipped)

Regulator

PF10

50 A

(Near the battery)

154

MAINTENANCE PROCEDURES

Fuse Box #1 (Under the Dash)

(Fuses are iidentifiied on the fuse box cover)

Description

Rating

F11

Headlamps

20 A

DC3

F12

10 A

Winch

F14

12 V accessory outlet 1

10 A

F16

Tail lamps

10 A

Fuses PF1/F14 (DC outlet)

N/A

PF4 Accessory post

ECM accessory 12V

N/A

Brake lights

N/A

Spare1

Spare

20 A

Fuse Box #2 (Behiind driiver’’s Seat)

(Fuses are iidentifiied on the fuse box cover)

Description

Ratiing

Cluster/relays

10 A

Ignition/injection/fuel pump

10 A

Engine Control Module (ECM)

10 A

4WD actuator

10 A

Ignition switch

10 A

Clock

Cooling fan

25 A

Oxygen sensor

F18

10 A

Evap purge valve

Fan

N/A

Main

N/A

155

MAINTENANCE PROCEDURES

Fuse Liinks

Fuse Link

Descriiptiion

Ratiing

Main

18 awg

Accessory post

14 awg

Lights

Replacing Hallogen Bullb

Lights

Model

Type

WARNING

Improper bulb installlation, may

DPS

Halogen

cause its diislodgement from the

Headlamp

55W H11

headllight housing.

In thiis siituation, the bullb coulld en-

XT-P

LED

ter iinto contact wiith the headliight

DPS

housing, lens or any other parts

Taillights

LED

located in this area, resulting in

XT-P

parts meltiing and/or fire hazard.

Signature

LED

lights

XT-P

NOTICE

Never touch glass portion of a hal-

ogen bulb with bare fingers, iit

LED Lights

shortens iits operatiing llife. If glass

In the unlike event they do not work,

is touched, clean it with isopropyl

have them checked by an authorized

alcoholl whiich willl not leave a fiilm

Can-Am Off-road dealer, repair shop

on the bulb.

or person of your choosing.

1. Unplug the connector from the

LED lights can not be replaced. In

headlight bulb socket.

case of a malfunction, the headlamp

2. Rotate the headlight bulb socket to

or the tail light unit must be replaced.

unlock it.

3. Pull out the headlight bulb socket.

Halogen Bulb

4. Properly reinstall all removed parts

Halogen Bulb Access

by reversing the order of their

removal.

The headlight bulbs are accessible by

5. Validate headlights operation.

the front wheel wells.

Headliight Beam Aiimiing

1. Turn adjustment screws to adjust

beam height to your convenience.

NOTE:

Adjust headlights evenly.

156

MAINTENANCE PROCEDURES

1. Adjustment screws

TYPICAL — FRONT WHEEL SIDE

1. Outer drive shaft bellows

Drive Shaft Bellows and

Protectors

Inspecting Drive Shaft Belllows and

Protector

1. Visually inspect drive shaft protec-

tors and bellows condition.

2. Check protectors for damage or

rubbing against shafts.

3. Check bellows for cracks, tears,

leaking grease, etc.

4. Repair or replace damaged parts

TYPICAL — REAR GEARBOX SIDE

as necessary.

1. Inner drive shaft bellows

TYPICAL — FRONT DIFFERENTIAL SIDE

TYPICAL — REAR WHEEL SIDE

1. Inner drive shaft bellows

1. Outer drive shaft bellows

Wheel Bearing

Inspectiing a Wheell Bearing

1. Lift and support vehicle. Refer to

Lifting and Supporting the Vehicle.

2. Push and pull the wheels from the

upper edge to feel the play.

3. See an authorized Can-Am Off--

road dealer, a repair shop or a

157

MAINTENANCE PROCEDURES

person of your choosing if there is

Tighteniing Torque

excessive play.

Wheel lug

100 ± 10 Nm

nuts

(74 ± 7 lbf-ft)

TYPICAL

Wheels and Tires

TIGHTENING SEQUENCE

Removiing a Wheell

1. Place the vehicle on a level

Tire Pressure

surface.

2. Place shift lever on PARK position.

WARNING

3. Loosen the wheel lug nuts.

Tiire pressure greatlly affects ve-

4. Lift and support vehicle. Refer to

hicle handlling and stability.

Lifting and Supporting Vehicle

Insuffiiciient pressure may cause

section

tire to deflate and rotate on wheel.

5. Remove lug nuts and wheel.

Overpressure may burst the tire.

Allways folllow recommended

Installling a Wheel

pressure.

1. Inspect studs threads and lug nuts.

NEVER set tiire pressure below

Replace if needed.

miniimum. It coulld cause the tire to

2. Install the wheel.

dislodge from the rim.

NOTE: The tires are unidirectional

Check pressure when tires are cold

and their rotation must be kept in a

before using the vehicle. Tire pressure

specific direction for proper operation.

changes with temperature and alti-

tude. Recheck pressure if one of

3. Install all lug nuts by hand.

these conditions has changed.

NOTICE

Refer to the Tires Pressure and Maxi-

mum Load Label on your vehicle for

Always use the recommended

applicable pressure.

wheel llug nuts for the type of

wheel. Usiing a different llug nut

NOTE:

could cause damages to the rim

Although the tires are specifically de-

or studs.

signed for off-road use, a flat may still

occur. Therefore, it is recommended

4. Tighten wheel lug nuts in accord-

to carry a tire gauge, tire pump and a

ance with the following illustration.

repair kit.

158

MAINTENANCE PROCEDURES

Tire Inspection

Check tire for damage and wear. Re-

place if necessary.

WARNING

Do not rotate tires. The front and

rear tiires have a diifferent siize.

The left and riight tires have differ-

ent uniidiirectional tread patterns.

Tire Replacement

3. Apply the FIRST tightening torque

Tire replacement should be performed

using the following sequence.

by an authorized Can-Am Off-road

dealer, a repair shop or a person of

NOTICE

your choosing.

To ensure even pressure on the

beadlock clamp riing, tighten

WARNING

screws a few turns at a tiime.

Repllace tires onlly wiith the same

type and siize as original tiires.

Tightening Torque

For unidirectional tread pattern,

ensure that the tiires are installled

in the correct diirectiion of rotation.

Beadlock

Tiires shoulld be replaced, by an

screws

4 ± 1 Nm

experiienced person, iin accord-

(35 ± 9 lbf-in)

(FIRST

ance with tire industry standards

TORQUE)

and tools.

Tire Mounting on Beadllock Wheels

1. Mount the tire on wheel.

1. On the opposite side of bead-

lock, apply tire mounting lube

on inner bead of tire and wheel

to ensure proper seat when

inflating.

2. Mount the inner bead over the

wheel.

3. Seat tire outer bead in the

shoulder of the beadlock inner

FIRST SEQUENCE

ring and center the tire.

2. Install all beadlock screws by hand

4. At this time check if the tire is still

to avoid cross threading.

centered on wheel. Reposition it if

necessary.

NOTICE

5. Apply the SECOND tightening tor-

Do not use an impact wrench for

que using the same sequence.

installing beadlock screws. The

riisk of screw breaking or screw

striipping is high when usiing an

impact wrench.

159

MAINTENANCE PROCEDURES

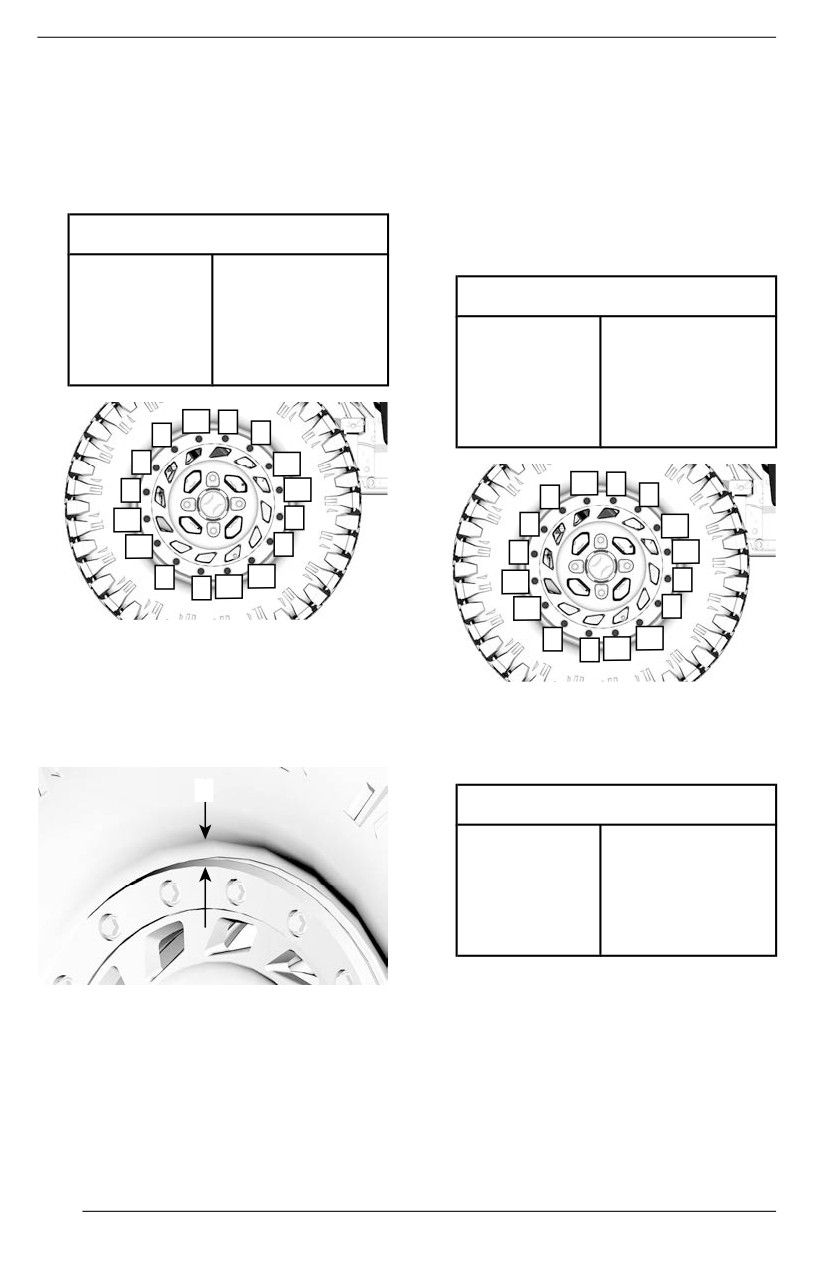

NOTE:

7. Apply the THIRD tightening torque

The beadlock clamp ring should be in

using the same sequence.

contact with the beadlock inner ring.

The beadlock clamp ring can flex

NOTE:

slightly to match the tire bead. IT IS

The beadlock clamp ring should be in

NORMAL.

contact with the beadlock inner ring.

The beadlock clamp ring can flex

slightly to match the tire bead. IT

Tighteniing Torque

NORMAL.

Beadlock

Tighteniing Torque

screws

14 ± 1 Nm

(124 ± 9 lbf-in)

(SECOND

Beadlock

TORQUE)

screws

29 ± 1 Nm

(21 ± 1 lbf-ft)

(THIRD

TORQUE)

SECOND SEQUENCE

6. Verify the gap between tire and

beadlock clamp ring, it should be

THIRD SEQUENCE

practically equal all around the

ring.

8. Apply the FINAL tightening torque

using the following sequence.

Tighteniing Torque

Beadlock

screws

29 ± 1 Nm

(21 ± 1 lbf-ft)

(FINAL

TORQUE)

1. Gap equal all around beadlock clamp ring

If the gap is not acceptable,

- Loosen all screws.

- Check tire position on wheel

and reposition it if necessary.

- Restart the torquing sequence

as detailed.

160

MAINTENANCE PROCEDURES

TYPICAL — FRONT SHOCK ABSORBER

9. Inflate tire to seat the inner bead

FASTENERS

on wheel. Always use safe practi-

ces, such as a tire safety cage.

WARNING

Never exceed tiire''s recommended

maximum pressure for seating

beads.

SUSPENSION

Inspecting the Suspensiion

TYPICAL

— REAR

SHOCK

ABSORBER

See an authorized Can-Am Off-road

FASTENERS

dealer, a repair shop or a person of

your choosing if any problem is

Front Suspension Arms

detected.

1. Check suspension

arms for

cracks, bending or other damages.

Shock Absorbers

2. Re-tighten the suspension arm

1. Inspect shock absorber for leaks,

bolts to specifications at ride

bump stop wear out or other

height.

damages.

2. Verify if fasteners are still well

NOTICE

tightened.

To avoid suspensiion bushings

Tiightening Torque

damages, never llift the vehiiclle

from the ground to re-tighten sus-

74.5 ± 4.5 Nm

pension arm fasteners.

M12 bolt

(55 ± 3 lbf-ft)

When possible, always applly the

tiightening torque by the bollt head

and not by usiing the nut to ensure

optimall cllamping.

Tightening Torque

112.5 ± 7.5 Nm

M12 bolt

(83 ± 6 lbf-ft)

161

MAINTENANCE PROCEDURES

1. M12 fasteners

Rear Suspensiion Arms

2. M10 fasteners

1. Check suspension arms for distor-

tion, cracks or bending.

Stabiiliizer Bar

2. Re-tighten suspension arm to

1. Check stabilizer bars for cracks,

specifications at ride height.

bending or, other damaged.

2. Tighten

bracket screws to

NOTICE

specification.

To avoid suspensiion bushings

damages, never llift the vehiicle

Tightening Torque

from the ground to re-tighten sus-

pension arm fasteners.

95 ± 5 Nm

Stabilizer bar

(70.1 ± 3.7

bracket screws

lbf-ft)

NOTICE

The suspension arms must be

Lubricating the Suspensiion

tiightened on the M12 bolt head

and not on the nut (when possi-

Stabiiliizer Bar

blle) to iinsure optiimal clampiing.

1. Lubricate stabilizer bars using the

following product.

Tighteniing Torque

XPS synthetic suspensiion

130 ± 10 Nm

M12 bolt

grease

(96 ± 7 lbf-ft)

Hexagonal

flanged

90 ± 10 Nm

elastic nut

(66 ± 7 lbf-ft)

M10

162

MAINTENANCE PROCEDURES

Stabiiliizer Bars Grease Fittiings

Location

1. Brake fluid reservoirs

TYPICAL — FRONT STABILIZER BAR

2. MAX

3. MIN

NOTE: There is one grease fitting on

the top of each stabilizer bar pivot

WARNING

bushing.

A low level may indicate lleaks or

worn brake pads.

Addiing Brake Flluiid

1. Clean both reservoir covers and

the surrounding area.

2. Add enough new brake fluid to in-

crease the level near the MAX

mark.

TYPICAL — REAR STABILIZER BAR

NOTICE

Do not overfiilll.

BRAKES

Verifying Brake Fluiid Level

WARNING

The brake fluid reservoirs are located

Ensure diaphragm iis pushed back

under the front service cover. Refer to

insiide the cover before installliing

Accessing Maintenance Components

iit.

section.

1. Place the vehicle on a level

Recommended Brake Flluid

surface.

Always use brake fluid meeting the

2. Check brake fluid in each reservoir

specification DOT 4 only.

for proper level. The level should

be between MIN and MAX marks.

NOTICE

To avoid serious damage to the

braking system, do not use flluids

other than the recommended one,

nor miix diifferent flluiids for toppiing

up.

Do not use brake fluid taken from

olld or allready opened containers.

163

MAINTENANCE PROCEDURES

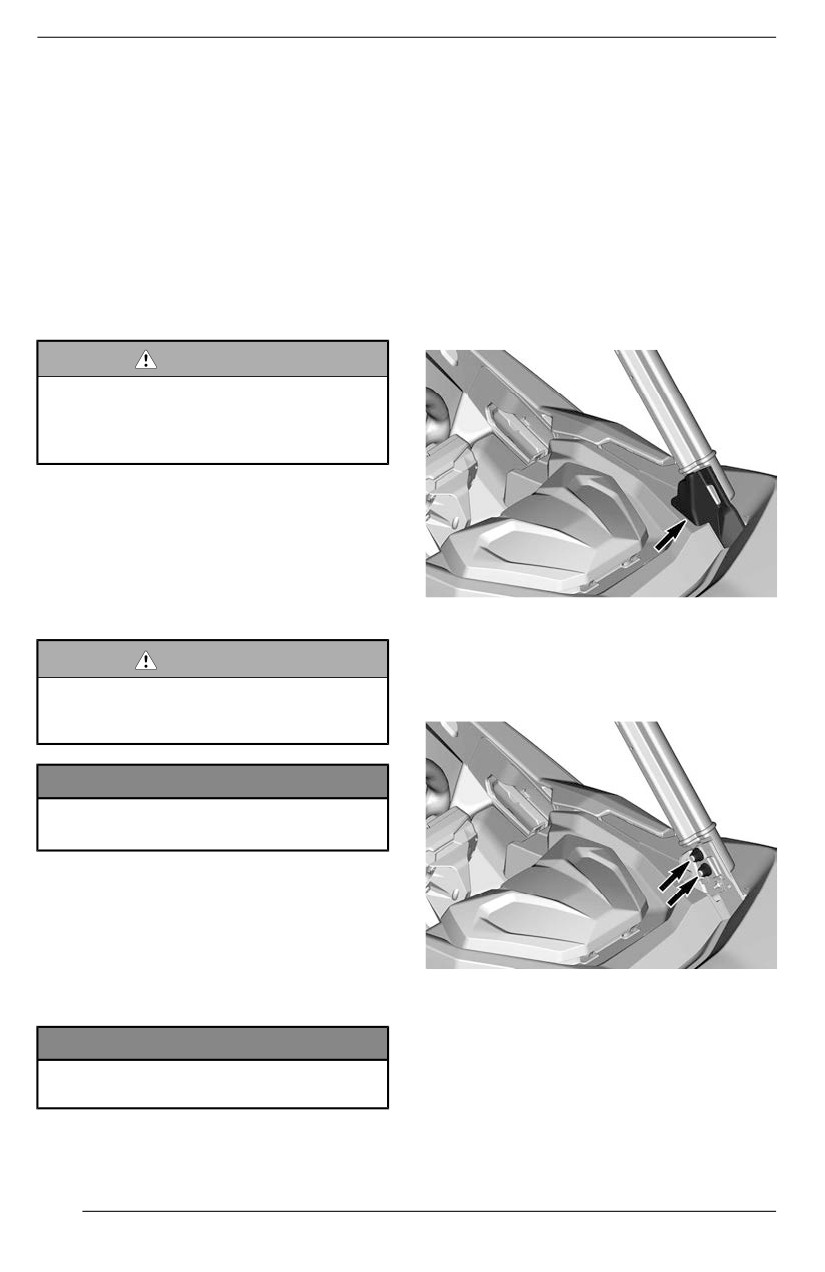

Inspectiing Brake System

CAGE

The brake inspection, maintenance

Verifying Cage Fasteners

and repair should be performed by an

authorized Can-Am dealer, a repair

Check tightening torque of all cage

shop or person of your choosing.

fasteners as per maintenance

schedule.

However, verify the following between

visits to your dealer:

NOTE: LH side shown, repeat on RH

- Brake fluid level

side.

- Brake system for fluid leaks

- Brake pad wear

Remove the lower trims from the

- Brake cleanliness

front pillars.

WARNING

The brake flluid repllacement or

brake system maiintenance and

repairs shoulld be performed by an

authoriized Can-Am dealler.

SEAT BELTS

Cleaning Seat Belt

To clean dirt and debris from the seat

belts, sponge the straps with mild

soap and water.

Remove all seat backrests, refer to

Accessing

Maintenance

Components.

WARNING

Let rear doors opened.

To avoid damaging the seat belt

Tighten all fasteners.

components, never use a pres-

sure washer to clean them.

NOTICE

Do not use bleach, dye, or house-

holld detergents.

Doors

Lubricatiing Door Latch Mechanism

1. Lubricate door latch mechanisms

(lock and hinges) periodically us-

BOTTOM OF FRONT PILLAR

ing a silicone based lubricant.

NOTICE

Never apply any type of grease on

door lock mechanism.

164

VEHICLE CARE

Vehicle Cleaning and

fresh water is necessary to preserve

vehicle and its components after each

Protection

operating day.

NOTICE

Metallic parts lubrication is highly

Never use a hiigh pressure washer

recommended.

to clean the vehiicle. USE LOW

PRESSURE ONLY (liike a garden

Use anti-corrosive lubricant or an

hose).

equivalent.

Hiigh pressure can cause damage

to electrical or mechanical

XPS Lubricant and anti-corrosive

components.

Painted parts which are damaged

Pay attention to certain areas where

should be properly repainted to pre-

salt-water, mud or debris can accumu-

vent rust.

late and potentially cause:

When required, wash the body with

- Fire

warm water and soap (only use mild

- Wear

detergent). Apply non-abrasive wax.

- Interference

- Corrosion.

NOTICE

This list includes but is not limited to:

Never clean pllastic parts with

- Around exhaust system and be-

strong detergent, degreasiing

tween muffler and muffler cover

agent, paiint thinner, acetone, etc.

- Under and around the fuel tank

- Radiator

Protect the vehicle with a cover to pre-

- Shock absorbers

vent dust accumulation during

- Around front and rear differentials

storage.

- Around and underneath engine

and gearbox

NOTICE

- Inside wheels

- On top of skid plates.

The vehiclle has to be stored in a

cooll and dry place and covered

with an opaque tarpaullin. This wiilll

WARNING

prevent sun rays and griime from

Debris accumulation coulld lead to

affectiing pllastic components and

a vehicle fire when the exhaust

vehiiclle fiinish.

system iis hot and the debriis are

driied.

In some cases, that coulld result iin

serious properlly damages, injju-

ries or even death.

Cllean often and regularlly the area

surroundiing the exhaust system

when riding iin swamp, bog, hay or

dead leaves.

In other situatiions, clean as per

maiintenance schedule

requirement.

When vehicle is used in salt-water en-

vironment rinsing the vehicle with

166

STORAGE AND PRESEASON PREPARATION

When a vehicle is not in use for more

Before using your vehicle after stor-

than 4 months, proper storage is a

age, a preparation is required.

necessity.

See an authorized Can-Am Off-road

If the vehicle is to be remain inactive

dealer, a repair shop, or a person of

for more than 21 days, disconnect the

your own choosing to have your ve-

BLACK (-) cable of the battery.

hicle prepared properly.

The use of a low amperage trickle

charger is recommended to keep bat-

tery fully charged.

While reading this Operator’s Guide, remember that:

WARNING

Indicates a potential hazard which, if not avoided, could result

in serious injury or death.

167

VEHICLE IDENTIFICATION

The main components of your vehicle

Engine Identification Number

(engine and frame) are identified by

(EIN)

different serial numbers.

It may sometimes become necessary

to locate these numbers for warranty

purposes or to trace your vehicle in

the event of loss.

These numbers are required by the

authorized Can-Am dealer to com-

plete warranty claims properly.

We strongly recommend that you take

note of all the serial numbers on your

vehicle and supply them to your insur-

ance company.

TYPICAL

1. EIN (Engine Identification Number)

Vehicle Identification Number

Bombardier Recreational Products Inc.

TYPE: ATV / VTT

565 de la Montagne, Valcourt, QC CAN ICES-002 / NMB-002

Canada, J0E 2L0

Made in Mexico / Fabriqué au Mexique

VIN LABEL - OTHER COUNTRIES

TYPICAL - VIN LABEL LOCATION

170

COMPLIANCE LABELS

These labels indicate vehicle's

compliance.

ROHVA Compliance Label

BRP certifies that this ROV complies with the American National Standard for

Recreational Off-Highway Vehicles, ANSI / ROHVA 1 - 2016 Standard.

BRP certifie que ce véhicule récréatif hors-route est conforme à la norme "American

National Standard for Recreational Off-Highway Vehicles", ANSI / ROHVA 1 - 2016.

This roll over protective structure meets the performance requirements of ISO 3471:

2008 .

Cette structure de protection contre le retournement respecte les requis de

performance de la norme ISO 3471: 2008 .

704906982

Emission Control Information

Ethanol Compliance

Pictogram

VEHICLE EMISSIONS CONTROL INFORMATIO

171

RADIO FREQUENCY DIGITALLY ENCODED

SECURITY SYSTEM (RF D.E.S.S. KEY)

This device complies with FCC Part 15 and Industry Canada license exempt

RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interfer-

ence that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

IC Registration Number: 12006A-1001317030

FCC ID: 2ACER-1001317030

We, the party responsible for compliance, declare under our sole responsibility

that the device is in conformity with the provisions of the following Council Direc-

tive: 2014/53/EU. To which this declaration relates is in conformity with the es-

sential requirements and other relevant requirements. The product is in

conformity with the following directives, harmonized standards and regulations:

Radio Equipment Directive (RED) 2014/53/EU and Harmonized Standards:

- IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300 330

V2.1.1:2017

Radio Equipment Statutory Instrument 2017/1206 and Designated Standards:

- IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300 330

V2.1.1:2017

174

EVAPORATIVE EMISSION CONTROL SYSTEM

Callifornia Modells wiith Evaporatiive Emission Control System

Beginning with the 2018 model-year vehicles, some California models are certi-

fied to meet the CARB (California Air Resources Board) TP-933. These models

are equipped with an evaporative emission control system consisting of a low

permeation fuel tank (LPFT), low permeation fuel lines (LPFL) and an actively

purged carbon canister.

The following statement is required by the CCR (California Code of Regulation):

An add-on or modified part must be compliant with applicable ARB evaporative

emission control standards. A violation of this requirement is punishable by civil

and/or criminal punishment.

175

NOISE EMISSION CONTROL SYSTEM

REGULATION

USA and Canada Onlly

Tampering with Noiise Controll System Is Prohiibited!

U.S. Federal law and Canadian provincial laws may prohibit the following acts or

the causing there of:

1. The removal or rendering inoperative by any person other than for purposes

of maintenance, repair or replacement of any device or element of design in-

corporated into any new vehicle for the purpose of noise control prior to its

sale or delivery to the ultimate purchaser or while it is in use or

2. The use of the vehicle after such device or element of design has been re-

moved or rendered inoperative by any person.

Among those Acts Presumed to Constitute Tampering Are the Acts Liisted

Bellow:

1. Removal or alteration or the puncturing of the muffler or any engine compo-

nent which conducts removal of engine exhaust gases.

2. Removal or alteration or the puncturing of any part of the intake system.

3. Replacing any moving parts of the vehicle or parts of the exhaust or intake

system, with parts other than those specified by the manufacturer.

4. Lack of proper maintenance.

176

TECHNICAL SPECIFICATIONS

Engiine 700

ROTAX^® Mono cylinder

Engine type

4-stroke, Double Over

Head Camshaft

(DOHC), liquid cooled

Number of cylinders

4 valves (mechanical

Number of valves

adjustment)

0.11 mm to 0.19 mm

Intake valve clearance

(.0043 in to .0074 in)

0.31 mm to 0.39 mm

Exhaust valve clearance

(.0122 in to .0153 in)

97 mm

Bore

(3.82 in)

88 mm

Stroke

(3.46 in)

650 cm³

Displacement

(39.7 in³)

Spark arrestor approved

Exhaust system

by USDA Forest Service

Air filter

Synthetic paper filter

Engiine 1000R

ROTAX^® 2 cylinders

(V-Twin)

Engine type

4-stroke, Single Over

Head Camshaft

(SOHC), liquid cooled

Number of cylinders

8 valves (mechanical

Number of valves

adjustment)

0.06 mm to 0.14 mm

Intake valve clearance

(.0024 in to .0055 in)

0.11 mm to 0.19 mm

Exhaust valve clearance

(.0043 in to .0075 in)

182

TECHNICAL SPECIFICATIONS

Lubricatiion System

Type

Wet sump

Replaceable cartridge

Oil filter

oil filter (paper type)

Capacity

(2.1 qt (liq.,US))

General

5W40 Synthetic blend

purpose

oil

Cold

Recom

XPS 4T 0W40 Synthetic

tempera

mended

oil

ture

XPS oil

Engine oil

Warm

XPS 4T 10W50

tempera

Synthetic oil

ture

If not available, use a

5W40 or 10W50 motor

Alternate oil if XPS

oil that meets the

products are not

requirements for API

available

service classification SN

or JASO MA2.

Cooliing System

Recommended XPS

Extended life pre-mixed

coolant

Ethyl glycol / water mix

(50%/50%).

Alternate oil if XPS

Coolant

or coolant specifically

products is not available

designed for aluminum

engines

6.7 L

Capacity

(1.77 gal (liq.,US))

Transmission

CVT (Continuously

Type

Variable Transmission)

Engagement

1950 RPM

184

TECHNICAL SPECIFICATIONS

Gearbox

Dual range (HI-LO) with

Type

PARK, neutral and

reverse

Capacity

(2.1 qt (liq.,US))

Recommended XPS

75W140 Synthetic gear

Gearbox oil

gearbox oil

oil

Alternate oil if XPS

75W 140 API GL-5

products is not available

Ellectrical System

Magneto generator output

650 W @ 5000 RPM

IDI (Inductive Discharge

Ignition system type

Ignition)

Quantity

Make and type

NGK LMAR8AI-8

700

0.7 to 0.8 mm

Gap

(.028 to .031 in)

Spark plug

Quantity

Make and type

NGK LMAR8C-9

1000R

0.8 to 0.9 mm

Gap

(.031 to .035 in)

Maintenance free —SLA

Type

(Sealed Lead Acid)

Voltage

12 volts

Battery

Nominal rating

20 A•h

Power starter output

0.7 kW

XT-P

2 x 20W LED

Headlight

All other models

4 x 55W H11

Taillight

2.3/3.5 W LED

185

TECHNICAL SPECIFICATIONS

Drive System

Drive system type

Selectable 2WD/4WD

350 ml

XT-P

(11.8 fl oz (US))

Capacity

All other

400 ml

models

(14 fl oz (US))

Front differential oil

Recommended XPS

75W90 Synthetic gear

differential oil

oil

Alternate oil if XPS

Synthetic gear oil

products is not available

75W90 API GL-5

Selectable 2WD / 4WD

with Smart-Lok

XT-P

electronic control locking

front differential, spiral

gears

Front drive

Selectable 2WD / 4WD

All other

with Visco-Lok

models

auto-locking front

differential, spiral gears

Front drive ratio

3.6:1

Rear drive

Lockable differential

Rear drive ratio

3.43:1

CV joint grease

Spline's propeller shaft grease (grease applied to

XPS Propeller shaft

spline connections)

grease or equivalent

Steering

Type

Rack and pinion

Steering wheel

Adjustable tilt steering

187

TECHNICAL SPECIFICATIONS

Front Suspension

DPS

Double suspension arm

XT 700

with stabilizer bar

Suspension type

Arched double

XT 1000R

suspension arm with

XT-P

stabilizer bar

DPS

318 mm

XT 700

(12.5 in)

381 mm

Suspension travel

XT 1000R

(15 in)

356 mm

XT-P

(14 in)

Quantity

DPS

Gas charged / 5 spring

preload settings

Shock absorber

Type

HPG shocks with

piggyback reservoir.

XT-P

QS3 compression

adjustments

Rear Suspension

Double suspension arm

DPS

with stabilizer bar

Suspension type

Arched double

suspension arm with

XT-P

stabilizer bar

DPS

330 mm

XT 700

(13 in)

381 mm

Suspension travel

XT 1000R

(15 in)

356 mm

XT-P

(14 in)

Quantity

Shock absorber

DPS

Gas charged / 5 spring

Type

preload settings

188

TROUBLESHOOTING GUIDELINES

CVT Belt Is Slipping

1. Water has entered in the CVT.

- Refer to Special Procedures.

“–” Is Displayed On the Gearbox Position Display

1. Shift lever is between 2 positions.

- Properly position the shift lever in the desired position.

2. Shift lever is not properly adjusted.

- Contact an authorized Can-Am Off-road dealer.

3. Electrical communication error.

- Contact an authorized Can-Am Off-road dealer.

Engine Does Not Turn

1. D.E.S.S. key is not installed on D.E.S.S. post.

Securely install key to D.E.S.S. post.

2. D.E.S.S. key not recognized is displayed in the multifunc-

tion gauge.

Clean D.E.S.S. key. If message still displayed after cleaning, see an author-

ized Can-Am Off-road dealer.

3. Shift lever is not set on PARK.

Set shift lever to either in PARK or press the brake pedal.

4. Burnt fuse.

Check fuses.

5. Weak battery or loose connections.

Check charging system fuse.

–

Check fault message in cluster.

–

Check battery connections and terminals condition.

–

Have the battery checked by an authorized Can-Am Off-road dealer.

6. Defective engine start button.

Contact an authorized Can-Am Off-road dealer.

7. Defective starter solenoid.

Contact an authorized Can-Am Off-road dealer.

Engine Turns Over But Fails To Start

1. Flooded engine

196

TROUBLESHOOTING GUIDELINES

Active the drowned mode to start the engine. Refer to Flooded Engine in Spe-

cial Procedures section.

2. No fuel to the engine (spark plug dry when removed).

Check fuel tank level.

–

Check fuel pump fuse.

–

Obstructed fuel pump pre-filter or fuel pump failure.

See an authorized Can-Am Off-road dealer, a repair shop, or a person of your

own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained herein for

information about warranty claims.

3. Spark plug/ignition (no spark).

Check ignition fuse.

–

Remove spark plug then reconnect to ignition coil.

–

Start engine with spark plug grounded to the engine away from spark plug

hole. If no spark appears, replace spark plug.

If trouble persists, see an authorized Can-Am Off-road dealer, a repair shop,

or a person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained herein for

information about warranty claims.

Engine Lacks Acceleration or Power

1. Seat belt not buckled properly. Check cluster message.

Buckle up seat belt.

2. Fouled or damaged spark plug.

Replace spark plugs.

3. Engine air filter plugged or dirty.

Check air filter and replace if necessary.

–

Check deposits in engine air filter housing.

4. Water in CVT

Drain water from CVT. Refer to Special Procedures section.

5. CVT dirty or worn-out.

Contact an authorized Can-Am Off-road dealer.

6. Lack of fuel

Dirty or clogged fuel pump pre-filter. See an authorized Can-Am Off-road

dealer, a repair shop, or a person of your own choosing for maintenance, re-

pair, or replacement. Please refer to the US EPA Emission-Related Warranty

contained herein for information about warranty claims.

197

TROUBLESHOOTING GUIDELINES

7. Engine is in Torque Limitation mode (if equipped).

- Engine torque is gradually limited for protection when coolant temperature is

too high. Check multifunction gauge display for engine temperature.

- Let engine cool down.

8. Engine is in limp home mode.

- Multifunction gauge CHECK ENGINE indicator lamp is on and display shows

LIMP HOME. See an authorized Can-Am Off-road dealer, a repair shop, or a

person of your own choosing for maintenance, repair, or replacement. Please

refer to the US EPA Emission-Related Warranty contained herein for informa-

tion about warranty claims.

Engine Overheats

1. Low coolant level in cooling system.

- Check coolant level and refill. See Maintenance Procedures. Seek service

from an authorized Can-Am Off-road dealer, a repair shop, or a person of

your own choosing for maintenance, repair, or replacement. Please refer to

the US EPA Emission-related warranty contained herein for information about

warranty claims.

2. Cooling fan is not working.

- Ensure cooling fan is not jammed and working properly.

- Check fan fuse. See Fuses and Fusible Links in the Maintenance

Procedures.

3. Dirty radiators fins.

- Check and clean radiator fins. See Maintenance Procedures.

Engine Misfire

1. Fouled/damaged/worn spark plug.

- Replace spark plugs as required.

2. Water in fuel.

- Drain fuel system and refill with fresh fuel.

The RPM Increases But the Vehicle Does Not Move

1. Water in the CVT.

- Drain water from CVT. See Special Procedures section.

2. CVT dirty or worn-out or belt failure.

- Contact an authorized Can-Am Off-road dealer.

198

DIGITAL DISPLAY MESSAGES

If an abnormal engine condition occurs, the following messages can be com-

bined with a pilot lamp.

Message

Description

D.E.S.S. KEY

NOT

D.E.S.S. key requires cleaning. If message still displayed

after cleaning, See an authorized Can-Am Off-road dealer.

RECOGNIZED

Indicates that you have used the wrong D.E.S.S. key, use

BAD KEY

the proper key for this vehicle.

All active or previously activated faults that require

CHECK ENGINE

attention.

No engine limitation engaged.

Critical faults requiring diagnostic as soon as possible.

LIMP HOME

An engine limitation is engaged and/or the engine behavior

is modified.

TPS FAULT

Throttle body fault, generally followed by a Limp Home

message.

BRAKE SWITCH

FAULT

Brake signal fault.

Check engine pilot light on. Indicates that the DPS

CHECK DPS

(Dynamic Power Steering) does not work properly. See an

authorized Can-Am Off-road dealer.

PPS FAULT

Faulty Pedal Position Sensor(s) (PPS). See an authorized

Can-Am Off-road dealer.

When the fuel sender resistor value is out of range the

FUEL SENSOR

digital display module will detect it and display the

FAULT

message.

CHECK

Check engine pilot light on. Indicates that the Smart-Lok

SMART-LOK

does not work properly. See an authorized Can-Am

Off-road dealer.

200

BRP LIMITED WARRANTY FOR CANADA AND USA:

2024 CAN-AM® SSV

1) Scope of the Limited Warranty

Bombardier Recreational Products Inc. ("BRP") warrants its 2024 Can-Am SSV

(“Product (s)”) sold by authorized BRP Dealers (as hereinafter defined) in the

United States of America ("USA") and in Canada from defects in material or

workmanship for the period and under the conditions described below.

This limited warranty will become null and void if:

1. the Product was used for racing or any other competitive activity, at any point,

even by a previous owner; or

2. the Product has been altered or modified in such a way so as to adversely af-

fect its operation, performance or durability, or has been altered or modified

to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

2) Limitations of Liability

TO THE EXTEND PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR

THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED

ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-

RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE

OTHER LEGAL RIGHTS WHICH MAY VARY FROM STATE TO STATE,

OR PROVINCE TO PROVINCE.

Neither the distributor, any BRP dealer nor any other person has been authorized

to make any affirmation, representation or warranty regarding the product, other

than those contained in this limited warranty, and if made, shall not be enforce-

able against BRP.

BRP reserves the right to modify this limited warranty at any time, being under-

stood that such modification will not alter the warranty conditions applicable to

the Products sold while this warranty is in effect.

3) EXCLUSIONS – Are Not Warranted

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the Operator's Guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

202

BRP LIMITED WARRANTY FOR CANADA AND USA: 2024 CAN-AM^® SSV

resulting from repairs done by a person that is not an authorized servicing

BRP dealer;

- Damage caused by abuse, abnormal use, neglect or operation of the product

in a manner inconsistent with the recommended operation described in the

Product’s Operator’s Guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

Product (see the Operator’s Guide);

- Damages from rust, corrosion or exposure to the elements;

- Damage resulting from water or snow ingestion;

- Incidental or consequential damages, or damages of any kind including with-

out limitation transportation expenses, towing, storage, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

4) Warranty Coverage Period

This limited warranty will be in effect from (1) the date of delivery to the first retail

consumer, or (2) the date the product is first put into use, whichever occurs first

and for the applicable period below:

1. SIX (6) consecutive months, for private use or commercial use owners

2. For emiission-related components, please also refer to the US EPA Emis-

sion-Related Warranty.

3. For evaporative emission-rellated components of Callifornia models

equipped wiith evaporatiive emission control system produced by BRP

for sale in the State of California that are originally sold to a resident or

subsequently warranty registered to a resident in the State of California, also

refer to the California Evaporative Emissions Control Warranty Statement.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this limited warranty beyond its original expiration

date.

5) Conditions to Have Warranty Coverage

This warranty coverage is available only if each of the following conditions has

been fulfilled:

1. The Product must be purchased as new and unused by its first owner from a

Dealer authorized to sell the Products in the country in which the sale oc-

curred (“Dealer”);

2. The BRP specified pre-delivery inspection process must be completed, docu-

mented and signed by the purchaser;

3. The Product must have undergone proper registration by an authorized

Dealer;

4. The Product must be purchased in the country in which the purchaser

resides;

5. Routine maintenance outlined in the Operator’s Guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

203

BRP LIMITED WARRANTY FOR CANADA AND USA: 2024 CAN-AM^® SSV

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

6) What to Do to Obtain Warranty Coverage

The customer must cease using the Product upon the appearance of an anom-

aly, notify a servicing BRP dealer within three (3) days of the appearance of the

anomaly and provide the Dealer with reasonable access to the Product and rea-

sonable opportunity to repair it.

The customer must also present to the Dealer, proof of purchase of the Product

and must sign the repair/work order prior to starting the repair in order to validate

the warranty repair.

All parts replaced under this limited warranty become the property of BRP.

7) What BRP Will Do

BRP’s obligations under this warranty are limited to, at its sole discretion, repair-

ing or replacing parts found defective under normal use, maintenance and serv-

ice without charge for parts and labor, at any authorized BRP dealer during the

warranty coverage period under the conditions described herein. No claim of

breach of warranty shall be cause for cancellation or rescission of the sale of the

Product to the owner.

In the event that service is required outside of the country of original sale, the

owner will bear responsibility for any additional charges due to local practices

and conditions, such as, but not limited to, freight, insurance, taxes, license fees,

import duties, and any and all other financial charges, including those levied by

governments, states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

8) Transfer

If the ownership of a Product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Product Distributor/Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

9) Consumer Assistance

In the event of a controversy or a dispute in connection with this limited warranty,

BRP suggests that you try to resolve the issue at the dealership level. We recom-

mend discussing the issue with the authorized dealer's service manager or

owner.

If the matter still remains unresolved, contact BRP by filling out the customer con-

tact form at www.brp.com or contact BRP by mail at one of the addresses listed

under the Contact Us section of this guide.

204

US EPA EMISSION - RELATED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants to the ultimate purchas-

er and each subsequent purchaser that this new vehicle, including all parts of its

exhaust emission control system and its evaporative emission control system,

meets two conditions:

1. It is designed, built, and equipped so it conforms at the time of sale to the ulti-

mate purchaser with the requirements of 40 CFR 1051 and 40 CFR 1060.

2. It is free from defects in materials and workmanship that may keep it from

meeting the requirements of 40 CFR 1051 and 40 CFR 1060.

Where a warrantable condition exists, BRP will repair or replace, as it elects, any

part or component with a defect in materials or workmanship that would increase

the engine’s emissions of any regulated pollutant within the stated warranty peri-

od at no cost to the owner, including expenses related to diagnosing and repair-

ing or replacing emission-related parts. All defective parts replaced under this

warranty become the property of BRP.

For all emission-related warranty claims, BRP is limiting the diagnosis and repair

of emission-related parts to the authorized Can-Am dealers, unless for emer-

gency repairs as required by item 2 of the following list.

As a certifying manufacturer, BRP will not deny emission-related warranty claims

based on any of the following:

1. Maintenance or other service BRP or BRP's authorized facilities performed.

2. Engine/equipment repair work that an operator performed to correct an un-

safe, emergency condition attributable to BRP as long as the operator tries to

restore the engine/equipment to its proper configuration as soon as possible.

3. Any action or inaction by the operator unrelated to the warranty claim.

4. Maintenance that was performed more frequently than BRP specify.

5. Anything that is BRP fault or responsibility.

6. The use of any fuel that is commonly available where the equipment operates

unless BRP written maintenance instructions state that this fuel would harm

the equipment’s emission control system and operators can readily find the

proper fuel. See maintenance information section and fuel requirements of fu-

eling section.

Emission-Related Warranty Period

The emission-related warranty is valid for the following period whichever comes

first.

HOURS

MONTHS

KILOMETERS

Exhaust emission-related

500

5000

components

Evaporative emission-related

N/A

components

Components Covered

The emission-related warranty covers all components whose failure would in-

crease an engine’s emissions of any regulated pollutant, including the following

listed components:

205

US EPA EMISSION - RELATED WARRANTY

For exhaust emissions, emission-related components include any engine

parts related to the following systems:

- Air-induction system

- Fuel system

- Ignition system

- Exhaust gas recirculation systems.

The following parts are also considered emission-related components for ex-

haust emissions:

- After treatment devices

- Crankcase ventilation valves

- Sensors

- Electronic control units.

The following parts are considered emission-related components for evapora-

tive emissions:

- Fuel tank

- Fuel cap

- Fuel line

- Fuel line fittings

- Clamps*

- Pressure relief valves*

- Control valves*

- Control solenoids*

- Electronic controls*

- Vacuum control diaphragms*

- Control cables*

- Control linkages*

- Purge valves

- Vapor hoses

- Liquid/vapor separator

- Carbon canister

- Canister mounting brackets

- Carburetor purge port connector.

NOTE: *As related to the evaporative emission control system.

4. Emission-related components also include any other part whose only purpose

is to reduce emissions or whose failure will increase emissions without signifi-

cantly degrading engine/equipment performance.

Limited Applicability

As a certifying manufacturer, BRP may deny emission-related warranty claims

for failures that have been caused by the owner’s or operator’s improper mainte-

nance or use, by accidents for which the manufacturer has no responsibility, or

by acts of God. For example, an emission-related warranty claim need not be

honored for failures that have been directly caused by the operator’s abuse of

the engine/equipment or the operator’s use of the engine/equipment in a manner

for which it was not designed and are not attributable to the manufacturer in

anyway.

206

CALIFORNIA EVAPORATIVE EMISSIONS

CONTROL WARRANTY STATEMENT

The warranty periods begin on the date the new Off-Highway Recreational Ve-

hicle (“OHRV”) is delivered to an ultimate purchaser.

Bombardier Recreational Products Inc. (“BRP”) warrants to the ultimate purchas-

er and each subsequent purchaser that the OHRV is:

1. Designed, built, and equipped so as to conform, at the time of sale, with all

applicable laws, rules and regulations; and

2. Free from defects in materials and workmanship that may cause the failure of

a warranted part. All replacement parts must be identical in all material re-

spects to that part as described in BRP’s Executive Order of Certification

application.

The warranty on emissions-related parts function as follows:

Repair or replacement of any warranted part must be performed at no charge

to the OHRV owner, at a warranty station, except in the case of a temporary

repair when a warranted part or a warranty station is not reasonably available

to the OHRV owner. In the event a temporary repair is permitted, repairs may

be performed at any available service establishment, or by the owner, using

any replacement part. BRP must reimburse the owner for his or her expenses

including diagnostic charges for such temporary repair or replacement, not to

exceed BRP's suggested retail price for all warranted parts replaced and la-

bor charges based on BRP's recommended time allowance for the warranty

repair and the geographically appropriate hourly labor rate.

The lack of availability of warranted parts or the incompleteness of repairs

within a reasonable time period, not to exceed 30 days from the time the

OHRV is initially presented to the warranty station for repair, will qualify the

need for a temporary repair.

Any warranted part which is not scheduled for replacement as part of mainte-

nance in the written instructions must be warranted for the warranty period

defined below. If any such part fails during the warranty period, it must be re-

paired or replaced by BRP. Any such part repaired or replaced under war-

ranty must be fully warranted.

Any warranted part which is scheduled only for regular inspection in the writ-

ten instructions must be warranted for the warranty period defined below. A

statement in such written instructions to the effect of “repair or replace as nec-

essary” does not reduce the period of warranty coverage. Any such part re-

paired or replaced under warranty is warranted for the remaining warranty

period.

Any warranted part which is scheduled for replacement as part of mainte-

nance in the written instructions is warranted for the period of time prior to the

first scheduled replacement point for that part. If the part fails before the first

scheduled replacement point, the part will be repaired or replaced by BRP.

Any such part repaired or replaced under warranty is warranted for the re-

mainder of the period prior to the first scheduled replacement point for the

part.

Warranty services or repairs are provided at all manufacturer dealerships that

are owned by the manufacturer or franchised to service the subject OHRVs.

The OHRV owner will not be charged for diagnostic labor which leads to the

determination that a warranted part is, in fact, defective, provided that such di-

agnostic work is performed at a warranty station.

208

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT

8. BRP is liable for damages to other vehicle components proximately caused

by a failure, under warranty, of any warranted part.

9. Any replacement part designated by BRP may be used in warranty repairs

provided without charge to the OHRV owner. Such use will not reduce the

warranty obligations of BRP, except that BRP will not be liable for repair or re-

placement of any replacement part which is not a warranted part.

10. Any add-on or modified part exempted by the Air Resources Board from the

prohibitions of section 27156 of the California Vehicle Code may be used on

an OHRV. Such use, in and of itself, will not be grounds for disallowing a war-

ranty claim. BRP is not liable to warrant failures of warranted parts caused by

the use of an add-on or modified part (s) unless such part (s) are also

warranted.

Conditions and exclusions:

- BRP may deny you warranty coverage if your OHRV or a part has failed di-

rectly due to abuse, neglect, improper maintenance or unapproved

modifications.

Your Warranty Rights And Obligations

The California Air Resources Board is pleased to explain the evaporative emis-

sions control system warranty on your 2024 Off-Road Sport Vehicle. In Califor-

nia, new off-highway recreational vehicles must be designed, built, and equipped

to meet the State’s stringent anti-smog standards. BRP must warrant the evapo-

rative emissions control system on your Off-Road Sport Vehicle for the periods of

time listed below provided there has been no abuse, neglect, improper mainte-

nance, or unapproved modification of your Off-Road Sport Vehicle.

Your evaporative emissions control system may include parts such as the carbu-

retor or fuel-injection system, fuel tank, fuel hoses, carbon canister, and engine

computer. Also included may be hoses, belts, connectors and other evaporative

emissions-related assemblies. Where a warrantable condition exists, Bombardier

Recreational Products Inc. will repair your Off-Road Sport Vehicle at no cost to

you including diagnosis, parts and labor.

OHRV Manufacturer’s Warranty Coverage

The warranty period for this OHRV is 60 months, or 5000 miles, or 500 hours,

whichever comes first.

Parts covered:

1. Canister Mounting Bracket(s)

2. Carbon Canister

3. Purge Port Connector

4. Clamp(s)*

5. Electronic Control*

6. Fuel Cap

7. Filler Neck

8. Filler Neck Hose

9. Fuel Line(s)

10. Fuel Line Fitting(s)

11. Fuel Tank

12. Pressure Relief Valve(s)*

209

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT

13. Purge Valve(s)

14. Check Valve(s)*

15. Vapor Hose(s)

16. Flow Reducer

17. Filter(s)*

18. Fuel pump

19. All other parts not listed that may affect the evaporative emissions control

system

NOTE: *As related to the evaporative emission control system.

If any evaporative emissions-related part on your Off-Road Sport Vehicle is de-

fective the part will be repaired or replaced by Bombardier Recreational Products

Inc.

Owner’s Warranty Responsibilities

As the Off-Road Sport Vehicle owner you are responsible for the performance of

the required maintenance listed in your owner’s manual. Bombardier Recreation-

al Products Inc. recommends that you retain all receipts covering maintenance

on your Off-Road Sport Vehicle, but Bombardier Recreational Products Inc. can-

not deny warranty solely for the lack of receipts or for failure to ensure the per-

formance of a scheduled maintenance.

As an owner you are responsible for presenting your Off-Road Sport Vehicle to a

Bombardier Recreational Products Inc. dealer as soon as a problem exists. The

warranty repairs should be completed in a reasonable time, not to exceed 30

days.

As an Off-Road Sport Vehicle owner, you should also be aware that Bombardier

Recreational Products Inc. may deny you warranty coverage if your Off-Road

Sport Vehicle or a part has failed due to abuse, neglect, improper maintenance

or unapproved modifications.

If you have any questions regarding your warranty rights and responsibilities, you

should contact:

- Bombardier Recreational Products Inc. at 1-888-272-9222, or

- The California Air Resources Board at 4001 Iowa Avenue, Riverside, CA

92507.

210

BRP LIMITED WARRANTY FOR INTERNATIONAL:

2024 CAN-AM® SSV

1) Scope of the Limited Warranty

Bombardier Recreational Products Inc. ("BRP") warrants its 2024 Can-Am SSV

(“Product(s)”) sold by distributors or dealers authorized by BRP to distribute the

Products outside of the United States of America ("USA"), Canada, member

states of the European Economic Area (which is comprised of the states of the

European Union plus the United Kingdom, Norway, Iceland and Liechtenstein)

("EEA"), Turkey, member states of the Commonwealth of the Independent States

(including Ukraine and Turkmenistan) ("CIS") from defects in material or work-

manship for the period and under the conditions described below.

This limited warranty will become null and void if:

1. the Product was used for racing or any other competitive activity, at any

point, even by a previous owner; or

2. the Product has been altered or modified in such a way so as to adversely af-

fect its operation, performance or durability, or has been altered or modified

to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

2) Limitation of Liability

TO THE EXTEND PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR

THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED

ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-

RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE

OTHER LEGAL RIGHTS WHICH MAY VARY FROM COUNTRY TO COUN-

TRY. BRP SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY

PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR REASONS

OUTSIDE OF BRP’S CONTROL.

For Products purchased in Australia, refer to the Australia-specific section below.

Neither the distributor, any BRP Distributor/Dealer nor any other person has

been authorized to make any affirmation, representation or warranty regarding

the product, other than those contained in this limited warranty, and if made, shall

not be enforceable against BRP.

BRP reserves the right to modify this limited warranty at any time, being under-

stood that such modification will not alter the warranty conditions applicable to

the Products sold while this warranty is in effect.

211

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^® SSV

3) EXCLUSIONS – Are Not Warranted

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the Operator's Guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

resulting from repairs done by a person that is not an authorized servicing

BRP Distributor/Dealer;

- Damage caused by abuse, abnormal use, neglect or operation of the product

in a manner inconsistent with the recommended operation described in the

Product’s Operator’s Guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

Product (see the Operator’s Guide);

- Damages from rust, corrosion or exposure to the elements;

- Damage resulting from water or snow ingestion;

- Incidental or consequential damages, or damages of any kind including with-

out limitation transportation expenses, towing, storage, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

The following list includes, without limitation, items that are considered wear

items and that are not covered under BRP's limited warranty unless failure is a di-

rect result of a defect in material or workmanship:

- Batteries

- Brake pads

- Brake disks and drums

- Clutch plates / pads

- Clutch sliders

- Clutch springs

- Clutch replaceable bushings

- Drive belts

- Filters

- Finished and unfinished surfaces

- Fuses

- Light bulbs / sealed

- Lubricants

- Spark plugs

- Suspension bushings

- Suspension slider shoes

- Suspension springs

- Tires

4) Warranty Coverage Period

This limited warranty will be in effect from (1) the date of delivery to the first retail

consumer, or (2) the date the product is first put into use, whichever occurs first

and for the applicable period below:

212

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^® SSV

1. SIX (6) consecutive months, for private use or commercial use owners

In AUSTRALIA and NEW ZEALAND only, this warranty will be in effect from (1)

the date of delivery to the first retail consumer or (2) the date the product is first

put into use, whichever occurs first, and for a period of TWELVE (12) CONSEC-

UTIVE MONTHS and THIRTY SIX (36) CONSECUTIVE MONTHS for Power-

train Engine and Transmission systems only, for private use or commercial use.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this warranty beyond its original expiration date.

The warranty coverage period identified above are a minimal limited warranty pe-

riod which can be extended by any applicable warranty promotional program, as

the case may be.

Note that the duration and any other modalities of the warranty coverage are sub-

ject to the applicable national or local legislation in the customer's country.

5) For Products Sold In Australia Only

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law.

You are entitled to a replacement or refund for a major failure and for compensa-

tion for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to

be of acceptable quality and the failure does not amount to a major failure.

Nothing in these Warranty terms and conditions should be taken to exclude, re-

strict or modify the application of any condition, warranty, guarantee, right or rem-

edy conferred or implied under the Competition and Consumer Act 2010 (Cth),

including the Australian Consumer Law or any other law, where to do so would

contravene that law, or cause any part of these terms and conditions to be void.

The benefits given to you under this limited warranty are in addition to other rights

and remedies that you have under Australian law.

6) Conditions to Have Warranty Coverage

This warranty coverage is available only if each of the following conditions has

been fulfilled:

1. The Product must be purchased as new and unused by its first owner from a

Distributor/Dealer authorized to distribute Products in the country in which the

sale occurred (“Distributor/Dealer”);

2. The BRP specified pre-delivery inspection process must be completed, docu-

mented and signed by the purchaser;

3. The Product must have undergone proper registration by an authorized Dis-

tributor/Dealer;

4. The Product must be purchased in the country in which the purchaser

resides;

5. Routine maintenance outlined in the Operator’s Guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

213

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^® SSV

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

7) What to Do to Obtain Warranty Coverage

The customer must cease using the Product upon the appearance of an anom-

aly, notify a servicing BRP Distributor/Dealer within two (2) months of the appear-

ance of the anomaly and provide the Distributor/Dealer with reasonable access

to the Product and reasonable opportunity to repair it.

The notification period is subject to the applicable national or local legislation in

customer's country.

The customer must also present to the Distributor/Dealer, proof of purchase of

the Product and must sign the repair/work order prior to starting the repair in or-

der to validate the warranty repair.

All parts replaced under this limited warranty become the property of BRP.

8) What BRP Will Do

To the extent permitted by law, BRP’s obligations under this warranty are limited

to, at its sole discretion, repairing or replacing parts found defective under normal

use, maintenance and service without charge for parts and labor, at any author-

ized BRP Distributor/Dealer during the warranty coverage period under the con-

ditions described herein. No claim of breach of warranty shall be cause for

cancellation or rescission of the sale of the Product to the owner. You may have

other legal rights which may vary from country to country.

In the event that service is required outside of the country of original sale, the

owner will bear responsibility for any additional charges due to local practices

and conditions, such as, but not limited to, freight, insurance, taxes, license fees,

import duties, and any and all other financial charges, including those levied by

governments, states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

9) Transfer

If the ownership of a Product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Product Distributor/Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

10) Consumer Assistance

In the event of a controversy or a dispute in connection with this limited warranty,

BRP suggests that you try to resolve the issue at the dealership level. We recom-

mend discussing the issue with the authorized Distributor/Dealer's service man-

ager or owner.

214

BRP LIMITED WARRANTY FOR THE EUROPEAN

ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024

CAN-AM® SSV

1) Scope of the Limited Warranty

Bombardier Recreational Products Inc. ("BRP") warrants its 2024 Can-Am SSV

(“Product(s)”) sold by distributors or dealers authorized by BRP to distribute the

Products in member states of the European Economic Area (which is comprised

of the states of the European Union plus the United Kingdom, Norway, Iceland

and Liechtenstein) ("EEA"), Turkey, member states of the Commonwealth of the

Independent States (including Ukraine and Turkmenistan) ("CIS") (“Distributor/

Dealer”) from defects in material or workmanship for the period and under the

conditions described below.

This limited warranty will become null and void if:

1. the Product was used for racing or any other competitive activity, at any point,

even by a previous owner; or

2. the Product has been altered or modified in such a way so as to adversely af-

fect its operation, performance or durability, or has been altered or modified

to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

2) Limitations of Liability

TO THE EXTEND PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR

THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED

ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-

RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE

OTHER LEGAL RIGHTS WHICH MAY VARY FROM STATE TO STATE,

OR PROVINCE TO PROVINCE. BRP SHALL NOT BE HELD LIABLE IF

PRODUCTS OR WARRANTY PARTS ARE NOT AVAILABLE IN CERTAIN

COUNTRIES FOR REASONS OUTSIDE OF BRP’S CONTROL.

For Products purchased in France, refer to the France-specific section below.

Neither the distributor, any BRP Distributor/Dealer nor any other person has

been authorized to make any affirmation, representation or warranty regarding

the product, other than those contained in this limited warranty, and if made, shall

not be enforceable against BRP.

216

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

BRP reserves the right to modify this limited warranty at any time, being under-

stood that such modification will not alter the warranty conditions applicable to

the Products sold while this warranty is in effect.

3) EXCLUSIONS – Are Not Warranted

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the Operator's Guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

resulting from repairs done by a person that is not an authorized servicing

BRP Distributor/Dealer;

- Damage caused by abuse, abnormal use, neglect or operation of the product

in a manner inconsistent with the recommended operation described in the

Product’s Operator’s Guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

Product (see the Operator’s Guide);

- Damages from rust, corrosion or exposure to the elements;

- Damage resulting from water or snow ingestion;

- Incidental or consequential damages, or damages of any kind including with-

out limitation transportation expenses, towing, storage, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

The following list includes, without limitation, items that are considered wear

items and that are not covered under BRP's limited warranty unless failure is a di-

rect result of a defect in material or workmanship:

- Batteries

- Brake pads

- Brake disks and drums

- Clutch plates / pads

- Clutch sliders

- Clutch springs

- Clutch replaceable bushings

- Drive belts

- Filters

- Finished and unfinished surfaces

- Fuses

- Light bulbs / sealed

- Lubricants

- Spark plugs

- Suspension bushings

- Suspension slider shoes

- Suspension springs

- Tires

217

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

4) Warranty Coverage Period

This limited warranty will be in effect from (1) the date of delivery to the first retail

consumer, or (2) the date the product is first put into use, whichever occurs first

and for the applicable period below:

1. TWENTY-FOUR (24) consecutive months, for private use owners.

2. SIX (6) consecutive months, for commercial use owners.

A Product is used commercially when it is used in connection with any work or

employment that generates income during any part of the warranty period. A

Product is also used commercially when, at any point during the warranty period,

it is licensed for commercial use.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this warranty beyond its original expiration date.

The warranty coverage period identified above are a minimal limited warranty pe-

riod which can be extended by any applicable warranty promotional program, as

the case may be.

Note that the duration and any other modalities of the warranty coverage are sub-

ject to the applicable national or local legislation in the customer's country.

5) For Products Sold In France Only

The seller shall deliver goods that are complying with the contract and shall be

responsible for defects existing upon delivery. The seller shall also be responsi-

ble for defects resulting from packaging, assembling instructions or the installa-

tion when it is its responsibility per the contract or if accomplished under its

responsibility. To be compliant with the contract, the good shall:

1. Be fit for normal use for goods similar thereto and, if applicable:

- Correspond to the description provided by the seller and have the qualities

presented to the buyer though sample or model;

- Have the qualities that a buyer may legitimately expect considering the

public declarations of the seller, the manufacturer of its representative, in-

cluding in advertising or labeling; or

2. Have the characteristics mutually agreed upon as between the parties or be

fit for the specific use intended by the buyer and brought to the attention of

the seller and which accepted.

The action for failure to comply is prescribed after two years after delivery of the

goods. The seller is responsible for the warranty for hidden defects of the good

sold if such hidden defects are rendering the good unfit for the intended use, or if

they diminish its use in such a way that the buyer would not have acquired the

good or would have given a lesser price, had he known. The action for such hid-

den defects shall be taken by the buyer within 2 years of the discovery of the

defect.

6) Conditions to Have Warranty Coverage

This warranty coverage is available onlly if each of the following conditions has

been fulfilled:

218

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

1. The Product must be purchased as new and unused by its first owner from a

Distributor/Dealer authorized to distribute Products in the country (or in the

case of the EEA, union of countries) in which the sale occurred (“Distributor/

Dealer”);

2. The BRP specified pre-delivery inspection process must be completed, docu-

mented and signed by the purchaser;

3. The Product must have undergone proper registration by an authorized Dis-

tributor/Dealer;

4. The Product must be purchased in the country (or in the case of the EEA,

union of countries) in which the purchaser resides;

5. Routine maintenance outlined in the Operator’s Guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

7) What to Do to Obtain Warranty Coverage

The customer must cease using the Product upon the appearance of an anom-

aly, notify a servicing BRP Distributor/Dealer within two (2) months of the appear-

ance of the anomaly and provide the Distributor/Dealer with reasonable access

to the Product and reasonable opportunity to repair it.

The notification period is subject to the applicable national or local legislation in

customer's country.

The customer must also present to the Distributor/Dealer, proof of purchase of

the Product and must sign the repair/work order prior to starting the repair in or-

der to validate the warranty repair.

All parts replaced under this limited warranty become the property of BRP.

8) What BRP Will Do

To the extent permitted by law, BRP’s obligations under this warranty are limited

to, at its sole discretion, repairing or replacing parts found defective under normal

use, maintenance and service without charge for parts and labor, at any author-

ized BRP Distributor/Dealer during the warranty coverage period under the con-

ditions described herein. No claim of breach of warranty shall be cause for

cancellation or rescission of the sale of the Product to the owner. You may have

other legal rights which may vary from country to country.

In the event that service is required outside of the country of original sale, or for

EEA residents, if service is required outside of the EEA, the owner will bear re-

sponsibility for any additional charges due to local practices and conditions, such

as, but not limited to, freight, insurance, taxes, license fees, import duties, and

any and all other financial charges, including those levied by governments,

states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

219

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

9) Transfer

If the ownership of a Product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Product Distributor/Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

10 Consumer Assistance

In the event of a controversy or a dispute in connection with this limited warranty,

BRP suggests that you try to resolve the issue at the dealership level. We recom-

mend discussing the issue with the authorized Distributor/Dealer's service man-

ager or owner.

If the matter still remains unresolved, contact BRP by filling out the customer con-

tact form at www.brp.com or contact BRP by mail at one of the addresses listed

under the Contact Us section of this guide.

220

DATA PRIVACY INFORMATION

Bombardier Recreational Products inc., its affiliates and subsidiaries (“BRP”) is

committed to protecting your privacy and support a general policy of openness

about how we collect, use and disclose your personal information in the course

of managing our relationship with you. More detaiils can be found by visiting

BRP’’s Priivacy Poliicy at:

https://brp.com/en/privacy-poliicy.htmll or by scanniing the QR Code below.

Please be assured that we have appropriate security measures in place to en-

sure that your personal information is protected against loss and unauthorized

access.

Your personal information that may be collected by BRP, directly from you or

from authorized dealers or authorized third parties, includes:

- Contact, Demographiic & Registratiion Informatiion (e.g., name, full ad-

dress, phone number, email, gender, ownership history, language of

communication)

- Vehicle Information (e.g., serial number, purchase and delivery date, unit

usage, vehicle location and movements)

- Third Party Informatiion (e.g., information received from BRP partners, join-

t-marketing activities information, social media)

- Technological Information (e.g., IP address, type of device, operating sys-

tem, browser type, webpages you view, cookies and similar technologies

when you use BRP or dealers’ websites or mobile application)

- Interaction with BRP Information (e.g., information collected when you call

BRP’s in-house sales representatives, buy items on a BRP web Site, sign up

for BRP emails, participate in BRP-sponsored contests and sweepstakes or

attend BRP-sponsored events)

- Transactiionall Informatiion (e.g., information necessary to handle returns,

payment information when you purchase our products or services through

our websites or mobile applications and other issues related to your purchase

of BRP products)

This information may be used and processed for the following purposes:

- Safety & Security

- Customer Support for Sales & After Sales (e.g., complete or follow up with

you about your purchase or maintenance)

- Registration & Warranty

- Communication (e.g., sending you a BRP satisfaction survey)

- Online Behavioural Advertising, Profiling and Location-Based Services

(e.g., offer customized experience)

- Compliance & Dispute Resolution

- Marketing & Advertising

- Assistance (e.g., help with any delivery issues, handle returns, and other is-

sues related to your purchase of BRP products).

We also may use personal information to generate aggregated or statistical data

that no longer identifies you personally.

Your personal informatiion may be disclosed to the folllowiing: BRP, BRP’s

authoriized deallerships, diistriibutors, serviice proviiders, advertising & mar-

ket research partners and other authoriized third partiies.

We may receive information about you from diverse sources, including third par-

ties, such as BRP’s authorized dealerships and partners, with whom we offer

222

DATA PRIVACY INFORMATION

services or engage in joint-marketing activities. We may also receive information

about you from social media platforms such as Facebook and Twitter, when you

interact with us on those platforms.

Depending on the circumstances, your personal information may be communi-

cated outside the region where you reside. Your personal information is retained

only for as long as necessary for the purpose for which we obtained it and ac-

cording to our retention policies.

To exercise your data privacy rights (e.g. right of access, right of rectification), to

withdraw your consent in order to be removed from the address list for marketing

purposes or for the satisfaction survey or for general data privacy questions,

please contact BRP’s Data Protection Officer at or by mail at privacyoffii-

cer@brp.com or by mail at:

BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E 2L0.

When BRP processes your personall iinformation, they do so in complliance

wiith its Privacy Pollicy avaiilable at: https://www.brp.com/en/privacy-poliicy.

htmll or by using the folllowiing

QR Code.

223

www.brp.com

Asia Pacific

Australia

Level 26

477 Pitt Street

Sydney, NSW 2020

China

上海市徐汇区衡山路10号6号楼301

Rm 301, Building 6,

No.10 Heng Shan Rd,

Shanghai, China

Japan

21F Shinagawa East One Tower

2-16-1 Konan, Minato-ku-ku,

Tokyo 108-0075

New Zealland

Suite 1.6, 2-8 Osborne Street,

Newmarket, Auckland 2013

Europe, Middle East and Africa

Bellgium

Oktrooiplein 1

9000 Gent

Czech Republiic

Stefanikova 43a

Prague 5

150 00

Germany

Itterpark 11

40724 Hilden

Fiinland

Isoaavantie 7

PL 8040

96101 Rovaniemi

France

Arteparc Bâtiment B

Route de la côte d'Azur,

13 590 Meyreuil

Norway

Ingvald Ystgaardsvei 15

N-7484 Trondheim

224

CHANGE OF ADDRESS AND OWNERSHIP

If your address has changed or if you are the new owner of the vehicle, be sure

to notify BRP by either:

- Notifying an authorized Can-Am dealer.

- North America Only: calling at 1 888 272-9222.

- Mailing one of the change of address cards on the following pages at one of

the BRP addresses indicated in the Contact Us section of this guide.

In case of change of ownership, please join a proof that the former owner agreed

to the transfer.

Notifying BRP, even after the expiration of the limited warranty, is very important

as it enables BRP to reach the vehicle owner if necessary, like when safety re-

calls are initiated. It is the owner’s responsibility to notify BRP.

STOLEN UNITS: If your personal vehicle is stolen, you should notify BRP or an

authorized Can-Am dealer. We will ask you to provide your name, address,

phone number, the vehicle identification number and the date it was stolen.

226
