Can-Am MAVERICK SPORT MAX SERIES. OPERATOR’S GUIDE (2024)

OPERATOR’S GUIDE

Covered Models

Maverick Sport MAX DPS 1000R

In Canada, products are distributed and serviced by Bombardier Recreational

Products Inc. (BRP).

In the USA, products are distributed and serviced by BRP US Inc.

In the European Economic Area (which is comprised of the member states of the

European Union plus the United Kingdom, Norway, Iceland and Liechtenstein),

the Commonwealth of the Independent States (including Ukraine and Turkmeni-

stan) and Turkey, products are distributed and serviced by BRP European Distri-

bution S.A. and other affiliates or subsidiaries of BRP.

For all other countries, products are distributed and serviced by Bombardier Rec-

reational Products Inc. (BRP) or its affiliates.

TABLE OF CONTENTS

GENERAL INFORMATION

Know Before you Go

Safety Messages

About this Operator’s Guide

SAFETY INFORMATION

GENERAL PRECAUTIONS

Avoid Carbon Monoxide Poisoning

Avoid Gasoline Fires and Other Hazards

Avoid Burns from Hot Parts

Accessories and Modifications

SAFE OPERATION - RESPONSIBILITIES

Owner - Be Responsible

Operator - Be Qualified and Responsible

Riding Carefully

Occupant Restraint System

Terrain Condition

PRE-RIDE INSPECTION

Pre-Ride Inspection Check List

PREPARE TO RIDE

Before you Ride

Riding Gear

AVOID ACCIDENTS

Avoid Rollovers and Tipovers

Avoid Collisions

RIDING YOUR VEHICLE

Practice Exercises

Off-Road Operation

General Riding Techniques

MOVING LOADS AND DOING WORK

Working with Your Vehicle

Carrying Loads

Hauling a Load

Pulling a Trailer

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Safety Hang Tag

Safety Labels

Compliance HangTag

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA

AND UNITED STATES)

Safety Pictogram

REPORTING SAFETY DEFECTS

VEHICLE INFORMATION

PRIMARY CONTROL

Steering Wheel

Accelerator Pedal

TABLE OF CONTENTS

Brake Pedal

Shift Lever

SECONDARY CONTROLS

Ignition Switch and Keys

Headlight Dimmer Switch

2WD/4WD Switch

Horn Switch (On applicable models)

EQUIPMENT

Tilt Steering

Cup Holders

Passenger’s Handhold

Storage Compartments

Tool Kit

Footrests

Half Doors

Seat Belts

Driver’s Seat

Passenger’s Seat

Fuel Reservoir Cap

Winch

Cargo Box

Anchoring Hooks

Trailer Hitch

12-Volt Power Outlet

Full Underbody Skid Plate

FUEL

Fuel Requirements

Vehicle Fueling Procedure

BREAK-IN PERIOD

Operation During Break-In

BASIC PROCEDURES

Starting the Engine

Operating the Shiift Lever

Choosing the Correct Range (Low or High)

Stoppiing the Engine and Parkiing the Vehicle

Tips for Maximizing Drive Belt Durability

SPECIAL PROCEDURES

Fuel Flooded Engine

What to do if Water is Suspected to be in the CVT

What to do if Battery is Drained Out

What to Do if Vehicle Rolled Over

What to do if Vehicle is Submerged

TUNE YOUR RIDE

Suspension Adjustment Guidelines

Suspension Factory Settings

Suspension Adjustments

DPS Function

TRANSPORTING THE VEHICLE

Using Vehicle Power to Climb Onto Trailering Equipment

100

Using a Winch to Pull Vehicle Onto Trailering Equipment

100

Securing Vehicle for Transport

101

Getting Vehicle Out of Trailer

102

TABLE OF CONTENTS

LIFTING AND SUPPORTING THE VEHICLE

103

Front of Vehicle

103

Rear of Vehicle

103

MAINTENANCE

MAINTENANCE SCHEDULE

106

Air Filter Maintenance Guideline

106

Severe Duty Use

106

Deep Mud / Water Use

107

Maintenance Schedule

107

Maintenance Records

118

MAINTENANCE PROCEDURES

123

Accessing Maintenance Components

123

ENGINE AIR FILTER

126

CVT Air Filter

127

Evaporative Emission System Pre-Filter (If Equipped)

128

ENGINE OIL

129

Oil Filter

130

RADIATOR

131

ENGINE COOLANT

132

EXHAUST SYSTEM

134

GEARBOX

135

FRONT DIFFERENTIAL

136

SPARK PLUGS

137

CVT COVER

138

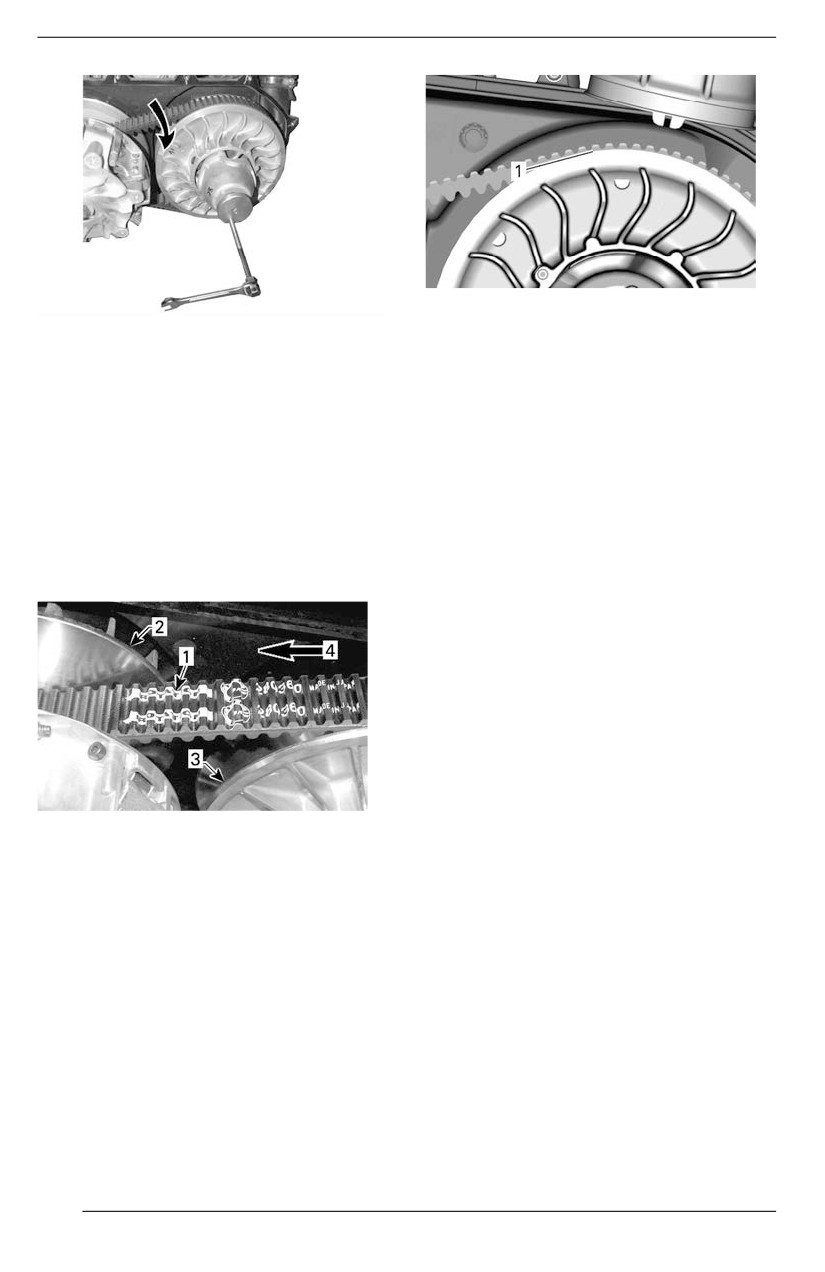

Drive Belt

139

Drive and Driven Pulleys

140

BATTERY

141

Fuses and Fusible Links

141

Lights

144

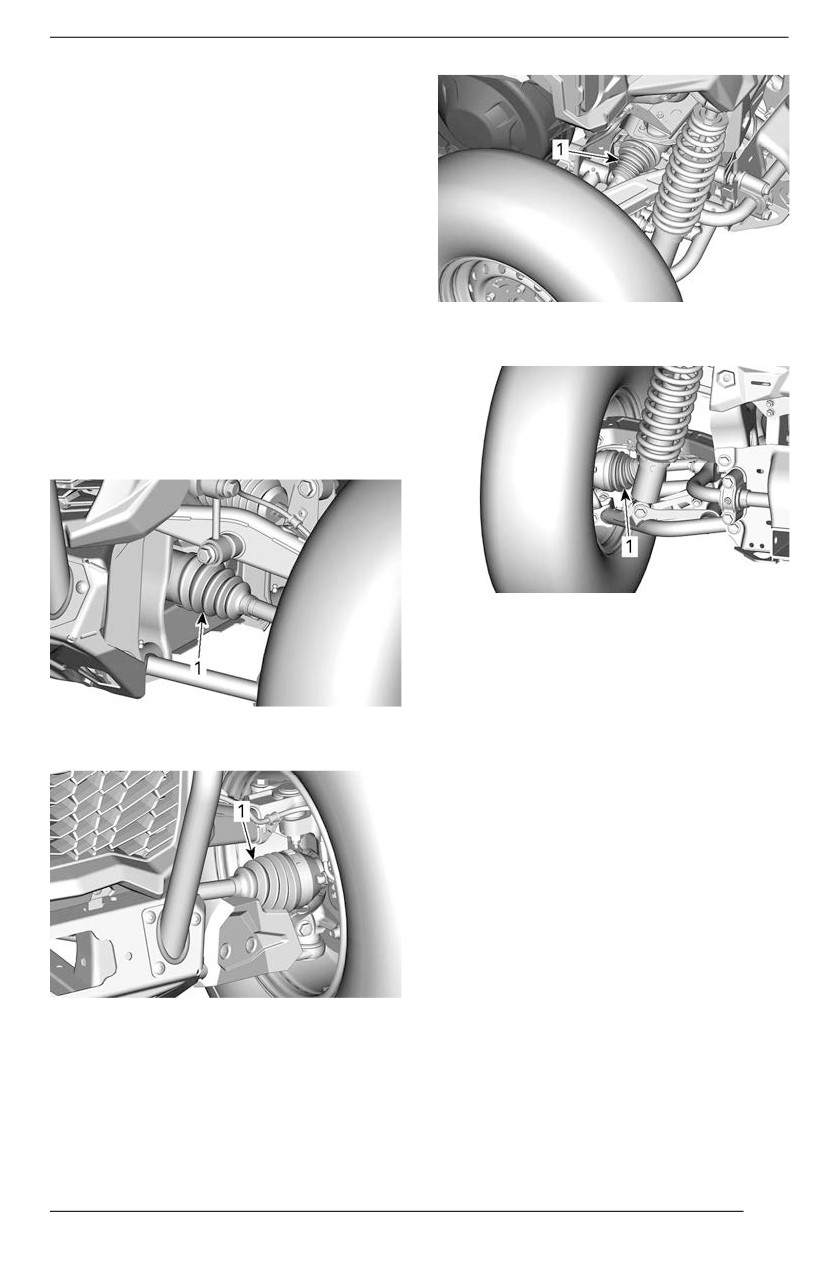

Drive Shaft Bellow and Protector

145

Wheel Bearing

145

Wheels and Tires

146

SUSPENSION

147

BRAKES

149

SEAT BELTS

150

Doors

150

VEHICLE CARE

151

Vehicle Cleaning and Protection

151

STORAGE AND PRESEASON PREPARATION

152

TECHNICAL INFORMATION

VEHICLE IDENTIFICATION

154

Vehicle Identification Number

154

Engine Identification Number (EIN)

154

Compliance Label

155

Technical Information Label

156

TABLE OF CONTENTS

RADIO FREQUENCY DIGITALLY ENCODED SECURITY SYSTEM (RF D.

E.S.S. KEY)

160

EVAPORATIVE EMISSION CONTROL SYSTEM

161

NOISE EMISSION CONTROL SYSTEM REGULATION

162

NOISE EMISSION AND VIBRATION VALUES

163

Machinery Directive 2006/42/EC Compliant Models

163

DECLARATION OF CONFORMITY

164

EU Declaration of Conformity

164

UK Declaration of Conformity

165

EAC DECLARATION OF CONFORMITY

166

TECHNICAL SPECIFICATIONS

168

TROUBLESHOOTING

TROUBLESHOOTING GUIDELINES

176

CVT Belt Is Slipping

176

“-” Is Displayed On the Gearbox Position Display

176

Engine Does Not Turn

176

Engine Turns Over But Fails To Start

177

Engine Lacks Acceleration or Power

177

Engine Overheats

178

Engine Misfire

178

The RPM Increases But the Vehicle Does Not Move

178

Partial or No Response From the Accelerator Pedal - Check Engine Is ON

and PPS Fault Message Is Displayed

179

DIGITAL DISPLAY MESSAGES

180

WARRANTY

BRP LIMITED WARRANTY FOR CANADA AND USA: 2024 CAN-AM^®

SSV

182

1) Scope of the Limited Warranty

182

2) Limitations of Liability

182

3) EXCLUSIONS - Are Not Warranted

182

4) Warranty Coverage Period

183

5) Conditions to Have Warranty Coverage

183

6) What to Do to Obtain Warranty Coverage

184

7) What BRP Will Do

184

8) Transfer

184

9) Consumer Assistance

184

US EPA EMISSION - RELATED WARRANTY

185

Emission-Related Warranty Period

185

Components Covered

185

Limited Applicability

186

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY

STATEMENT

188

Your Warranty Rights And Obligations

189

OHRV Manufacturer’s Warranty Coverage

189

TABLE OF CONTENTS

Owner’s Warranty Responsibilities

190

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^®

SSV

191

1) Scope of the Limited Warranty

191

2) Limitation of Liability

191

3) EXCLUSIONS - Are Not Warranted

192

4) Warranty Coverage Period

192

5) For Products Sold In Australia Only

193

6) Conditions to Have Warranty Coverage

193

7) What to Do to Obtain Warranty Coverage

194

8) What BRP Will Do

194

9) Transfer

194

10) Consumer Assistance

194

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA,

THE COMMONWEALTH OF THE INDEPENDENT STATES AND TURKEY:

2024 CAN-AM^® SSV

196

1) Scope of the Limited Warranty

196

2) Limitations of Liability

196

3) EXCLUSIONS - Are Not Warranted

197

4) Warranty Coverage Period

198

5) For Products Sold In France Only

198

6) Conditions to Have Warranty Coverage

198

7) What to Do to Obtain Warranty Coverage

199

8) What BRP Will Do

199

9) Transfer

200

10 Consumer Assistance

200

CUSTOMER INFORMATION

DATA PRIVACY INFORMATION

202

204

Asia Pacific

204

Europe, Middle East and Africa

204

Latin America

205

North America

205

CHANGE OF ADDRESS AND OWNERSHIP

206

GENERAL INFORMATION

Congratulations on your purchase of a new Can-Am^® side-by-side vehicle. It's

backed by the BRP limited warranty and a network of authorized Can-Am Off--

road dealers ready to provide the parts, accessories or service you may require.

At delivery, you were informed of the warranty coverage and signed the Pre-de-

livery Check List to ensure your new vehicle was prepared to your entire

satisfaction.

Your dealer is committed to your satisfaction. If you need more information,

please ask your dealer.

Know Before you Go

To learn how to reduce the risk of accident for you or bystanders, read this Oper-

ator's Guide before you operate the vehicle.

Also, read all safety labels on your vehicle and watch the Safety Video located

at:

https://can-am.brp.com/off road/safety

Or use the following QR code.

This vehicle is for off-road use only. It is mainly for general recreational use but it

may also be used for utility purposes.

Failure to follow the warnings contained in this Operator's Guide can result in

SERIOUS INJURY or DEATH.

Safety Messages

The types of safety messages, what they look like and how they are used in this

guide are explained as follows:

The safety alert symbol

indicates a potential injury hazard.

WARNING

Indicates a potential hazard which, if not avoiided, coulld result iin seriious

injury or death.

CAUTION

Indicates a hazardous situatiion which, if not avoided, could resullt iin mi-

nor or moderate injjury.

GENERAL INFORMATION

NOTICE

Indiicates an iinstructiion which, iif not folllowed, could resullt in severely

damaged vehiicle components or other property.

About this Operator’s Guide

This Operator's Guide has been prepared to acquaint the owner/operator of a

new vehicle with the various vehicle controls, maintenance and safe operating in-

structions. It is indispensable for the proper use of the product.

Keep this Operator's Guide in the vehicle as you can refer to it for things such as

maintenance, troubleshooting and instructing others.

Note that this guide is available in several languages. In the event of any discrep-

ancy, the English version shall prevail.

If you want to view and/or print an extra copy of your Operator's Guide, simply

visit the following website:

www.operatorsguiides.brp.com

The information contained in this document is correct at the time of publication.

BRP, however, maintains a policy of continuous improvement of its products

without imposing upon itself any obligation to install them on products previously

manufactured. Due to late changes, some differences between the manufactured

product and the descriptions and/or specifications in this guide may occur. BRP

reserves the right at any time to discontinue or change specifications, designs,

features, models or equipment without incurring any obligation upon itself.

This Operator's Guide should remain with the vehicle when it is sold.

GENERAL PRECAUTIONS

Avoid Carbon Monoxide Poisoning

All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon

monoxide can cause headaches, dizziness, drowsiness, nausea, confusion and

eventually death.

Carbon monoxide is a colorless, odorless, tasteless gas that may be present

even if you do not see or smell any engine exhaust. Deadly levels of carbon mon-

oxide can collect rapidly, and you can quickly be overcome and unable to save

yourself. Also, deadly levels of carbon monoxide can linger for hours or days in

enclosed or poorly ventilated areas. If you experience any symptoms of carbon

monoxide poisoning, leave the area immediately, get fresh air and seek medical

treatment.

To prevent serious injury or death from carbon monoxide:

- Never run the vehicle in poorly ventilated or partially enclosed areas such as

garages, carports or barns. Even if you try to ventilate engine exhaust with

fans or open windows and doors, carbon monoxide can rapidly reach danger-

ous levels.

- Never run the vehicle outdoors where engine exhaust can be drawn into a

building through openings such as windows and doors.

Avoid Gasoline Fires and Other Hazards

Gasoline is extremely flammable and highly explosive. Fuel vapors can spread

and be ignited by a spark or flame many feet away from the engine. To reduce

the risk of fire or explosion, follow these instructions:

- Use only an approved gasoline container to store fuel.

- Never fill the gasoline container in the vehicle cargo box or on the vehicle - an

electrical static discharge may ignite the fuel.

- Strictly adhere to instructions in Vehicle fueling procedure.

- Never start or operate the engine if the fuel cap is not properly installed.

Gasoline is poisonous and can cause injury or death.

- Never siphon gasoline by mouth.

- If you swallow gasoline, get any in your eye(s), or inhale gasoline vapor, see

a doctor immediately.

If gasoline spills on you, wash with soap and water and change your clothes.

Avoid Burns from Hot Parts

Certain components like brake rotors and exhaust components become hot dur-

ing operation. Avoid contact with those parts during and shortly after operation to

avoid burn wounds.

Accessories and Modifications

Any modifications or addition of accessories approved by BRP may affect the

handling of your vehicle. It is important to take the time to get familiar with the ve-

hicle once modifications are made to understand how to adapt your driving be-

havior accordingly.

SAFETY INFORMATION

GENERAL PRECAUTIONS

Avoid installing equipment not specifically approved by BRP for the vehicle and

avoid unauthorized modifications. These modifications and equipment have not

been tested by BRP and may create hazards. For example, they could:

- Create a loss of control and increase risk of crash

- Cause overheating or short circuits increasing the risk of fire or burn injuries

- Affect the protection features provided by the vehicle.

- Affect the behavior of the trailer when the vehicle is transported

- Cause a risk of losing objects on the road when transported.

Your vehicle may also become illegal to ride.

Ask your authoriized BRP dealler for suiitablle avaiilablle accessoriies for your

vehiiclle.

SAFETY INFORMATION

SAFE OPERATION - RESPONSIBILITIES

This is a high performance off-road vehicle. Operators must be responsible and

use care to avoid rollovers, tipovers, collisions, and other accidents. Even with

vehicle safety features (such as protective structure, seat belts, side nets, doors)

and protective gear (such as a helmet), there is always a risk of injury or death in

these accidents. To reduce the risk of serious injury or death, follow the rules in

this section.

Owner - Be Responsible

Read this Operator's Guide and watch the Safety Video. Refer to the link at the

beginning of the Operator's Guide.

Always inspect and confirm the safe operating condition of your vehicle prior to

ride. Always follow the maintenance schedule described in this Operator's Guide.

Never allow anyone to operate your vehicle unless they are responsible and can

be trusted with a high performance vehicle. Consider supervising new or young

operators and setting rules and limits (e.g., whether they can carry passengers,

what they may do with the vehicle, where they may ride, etc.) for anyone using

your vehicle.

If equipped wiith optional D.E.S.S. keys, select the appropriate key (see Igni-

tion Switch and Keys) based on the operator's experience, vehicle use and

environment.

Discuss the safety information with anyone who will be using the vehicle. Be sure

that all operators and passengers meet the qualifications below and agree to fol-

low the safety information. Help users become familiar with the vehicle.

We encourage you to have an Annual Safety Inspection of your vehicle. Please

contact an authorized BRP dealer for further details. Though not required, it is

recommended that an authorized BRP dealer performs the preseason prepara-

tion of your vehicle. Each visit to your authorized BRP dealer is a great opportu-

nity for your dealer to verify if your vehicle is included in any safety campaign.

We also urge you to visit your authorized BRP dealer in a timely manner if you

become aware of any safety related campaigns.

See an authorized BRP dealer for available accessories you may require.

Operator - Be Qualified and Responsible

Read this Operator's Guide and watch the SAFETY video. Refer to the link at the

beginning of the Operator's Guide.

Become completely familiar with the operational controls and the general opera-

tion of the vehicle.

Take a training course if available (contact an authorized Can-Am dealer to find

out about training course availability as well as on the internet at http://www.roh-

va.org/), and perform the practice exercises in Practice Exercises section. Prac-

tice driving in a suitable area free of hazards and feel the response of each

control. Drive at low speeds. Higher speeds require greater experience, knowl-

edge and suitable riding conditions.

Be at least 16 years of age.

SAFETY INFORMATION

SAFE OPERATION - RESPONSIBILITIES

Be tall enough to be properly seated: back against the backrest with the seat belt

fastened, to hold the steering wheel with both hands and still be able to reach the

full stroke of brake and accelerator pedals with the right foot and to firmly plant

left foot on the footrest.

Have a proper driver's license in accordance with local laws.

Never use this vehicle with drugs or alcohol, or if tired or ill. These slow reaction

time and impair judgment.

Carrying Passengers

Only carry one passenger per available seat. All passengers must be properly

seated in the cockpit.

The passengers must be tall enough to always be properly seated: back against

the backrest with seat belt fastened, holding both handholds, and feet firmly

planted on the footrests.

Never carry passengers who has used drugs or alcohol, or is tired or ill. These

slow reaction time and impair judgment.

Instruct the passengers to read the vehicle’s safety labels.

Never carry passengers if you judge his ability or judgement insufficient to con-

centrate on the terrain conditions and adapt accordingly. More specifically for

side-by-side vehicles, the passengers must also pay constant attention to the ter-

rain ahead and be able to brace for bumps.

Riding Carefully

- This vehicle handles differently from other vehicles. A collision or rollover can

occur quickly, during abrupt maneuvers such as doing sharp turns, accelera-

tion or deceleration and driving on hills or over obstacles, if you fail to take

proper precautions.

- Never operate at excessive speeds. Always go at a speed that is proper for

the terrain, visibility, and operating conditions, and your experience.

- Never attempt jumps, side slides, donuts or any other stunts.

- Never attempt rapid acceleration or deceleration when performing a sharp

turn. This may result in a roll over.

- Never attempt skidding or sliding. If vehicle starts to skid or slide, counter

steer in the direction of skidding or sliding. On extremely slippery surfaces,

such as ice, go slowly and be very cautious in order to reduce the chance of

skidding out of control.

- Always be sure there are no obstacles or people behind the vehicle when you

operate in reverse. Pay attention to blind spots. When it is safe to proceed in

reverse, go slowly.

- Never exceed the stated load limits for this vehicle. Cargo must be properly

secured. Reduce speed, allow for greater braking distance and follow other

instructions in Moving Loads and Doing Work.

- Always remember that this vehicle is heavy! Its pure weight alone may entrap

you should it tip or rollover.

SAFETY INFORMATION

SAFE OPERATION - RESPONSIBILITIES

Occupant Restraint System

- This vehicle is designed to carry one driver and a passenger, all wearing

proper protective gears (refer to Riding Gear in this section).

- All occupants must latch the doors or the side nets and wear the seat belts at

all times when riding.

Terrain Condition

This vehicle is not designed to ride on paved surfaces; if you must shortly use

the vehicle on such surfaces, avoid abrupt inputs to steering wheel, accelera-

tor and brake pedals.

Always go slowly and be extra careful when operating on unfamiliar terrain.

Always be alert to changing terrain conditions when operating this vehicle.

Take the time to learn how the vehicle performs in different environments.

Never operate on excessively rough, slippery or loose terrain until you have

learned and practiced the skills necessary to control this vehicle on such ter-

rain. Always be especially cautious on these kinds of terrain.

Never operate this vehicle on hills too steep for the vehicle or your abilities.

Practice on small inclines.

Always follow proper procedures for climbing or going down hills as described

in Riding Your Vehicle. Check the terrain carefully before you start up or down

any hill. Never climb or descend hills with excessively slippery or loose surfa-

ces. Never go over the top of any hill at high speed.

Never attempt steep hills or side hilling when pulling a trailer.

–

Always check for obstacles before operating in a new area. Always follow

proper procedures when operating over obstacles as described in Riding

Your Vehicle.

Never operate this vehicle in fast flowing water or in water deeper than speci-

fied in Riding Your Vehicle. Remember that wet brakes may have reduced

stopping ability. Test your brakes after leaving water. If necessary, apply them

several times to let friction dry out the brakes.

Always ensure to properly park the vehicle on the flattest terrain section avail-

able. Put shift lever in PARK, stop engine and remove key before leaving the

vehicle.

If parking on a slope is inevitable, Placing a large rock or similar object behind

a wheel to block it from moving is recommended.

Never assume that the vehicle will go everywhere safely. Sudden changes in

terrain caused by holes, depressions, banks, softer or harder “ground” or oth-

er irregularities may cause the vehicle to topple or become unstable. To avoid

this, slow down and always observe the terrain ahead. If the vehicle does be-

gin to topple or rollover, the best advice is to immediately steer in the direction

of the rollover! Never attempt to prevent a rollover with your arms or legs. You

should keep your limbs inside the cage or ROPS (rollover protective

structure).

SAFETY INFORMATION

PRE-RIDE INSPECTION

Always inspect and confirm the safe operating condition of your vehicle prior to

ride. Always follow the maintenance schedule described in this Operator's Guide.

WARNING

Perform a pre-riide inspection before each ride to detect any potentiiall

probllem that coulld occur duriing operatiion. The pre-ride inspection can

help you moniitor component wear and deterioratiion before they become

a probllem. Correct any probllem that you discover to reduce the risk of a

breakdown or crash.

Before using this vehicle, the operator should always perform the following pre--

ride inspection check list.

Refer to maintenance procedures for details.

Pre-Ride Inspection Check List

What to Do Before Starting the Engiine (Key OFF)

Items to Be

Inspection to Perform

Inspected

Engine oil

Check engine oil level.

(V-Twin engines)

Coolant

Check coolant level.

Brake fluid

Check brake fluid level.

Inspect the engine air filter, clean or replace if

Engine air filter

needed (service more often when riding in dusty

conditions).

Inspect and clean the CVT air filter (when riding in

CVT air filter

dusty conditions).

Radiator

Check cleanliness of the radiator.

Front grille

Inspect front grille for cleanliness.

If not already done, clean the area surrounding the

exhaust system, especially if during the last ride, the

Exhaust system

vehicle was used in a swamp, bog, hay or dead

leaves.

Drive shaft

Check drive shaft bellows and protectors condition.

bellows

Check tire pressure and condition. Refer to the Tire

Tires

Pressure Label and adjust according to load.

Check wheels for damage and for abnormal play.

Wheels

Make sure that lug nuts are tightened. Refer to

SAFETY INFORMATION

PRE-RIDE INSPECTION

Items to Be

Inspectiion to Perform

Inspected

Wheels and Tires in Maintenance Procedures for

torque specification.

Cargo Load: If you transport a cargo, respect the

maximum loading capacity. Refer to Loading the

Cargo Box. Ensure cargo is properly secured to the

rear cargo box.

Cargo and load

Vehicle Load: Ensure that total load on the vehicle

(including operator, passengers, cargo, tongue

weight and added accessories) does not exceed

specifications. Refer to Carrying Loads.

If you are pulling a trailer or another equipment:

- Check hitch and trailer ball condition.

- Respect the tongue capacity and towing capacity

Hitch

as indicated on the label affixed to the hitch or

refer to Technical Specifications.

- Ensure trailer is properly secured to hitch.

Check for debris on or in the vicinity of the exhaust

system, remove if any and clean properly.

Chassis and

Check underneath vehicle for any debris on chassis

suspension

or suspension components (upper and lower arms,

wheels, shock absorber, springs) and clean them

properly

Check doors for any damage. Have the doors

replaced if any damage is found.

Doors

Close both doors and confirm that they latch

securely.

What to Do Before Startiing the Engine (Key ON)

ITEMS TO BE

INSPECTION TO PERFORM

üü

INSPECTED

Check operation of indicator lamps in digital

display(during first few seconds of key ON).

Digital display

Check for messages in gauge.

Check operation and cleanliness of:

- Headlights (High and Low)

Lights

- Taillights

- Brake lights.

Seats and seat

Check if seats are properly latched.

belts

SAFETY INFORMATION

PRE-RIDE INSPECTION

ITEMS TO BE

INSPECTION TO PERFORM

üü

INSPECTED

Check seat belts for any damage. Fasten seat belts

and confirm that they latch securely.

Press on the accelerator pedal a few times to ensure

Accelerator pedal

it operates freely and it returns to the rest position

when released.

Press down on the brake pedal and make sure you

Brake pedal

feel firm resistance and that it fully returns to position

when released.

Fuel level

Check the fuel level.

What to Do After the Engine is Started

ITEMS TO BE

INSPECTION TO PERFORM

üü

INSPECTED

Check if steering operates freely by completely

Steering

turning it from side to side.

Check if switch operates correctly by turning the key

Ignition switch

to OFF position. The engine should shut down.

Shift lever

Check operation of shift lever (P, R, N, H and L).

2WD/4WD/Front

Check operation of 2WD/4WD/Front Diff Lock

Diff Lock selector

selector.

Drive forward slowly a few feet and apply brakes.

The brake pedal must feel firm when applied. The

Brakes

pedal must return to rest position when released.

The brakes must respond adequately to the driver's

input.

Winch

Check operation of winch.

SAFETY INFORMATION

PREPARE TO RIDE

Before you Ride

Perform pre-ride inspection to confirm the safe operating condition of your ve-

hicle. Refer to Pre-Ride Inspection.

Driver and passengers must:

- Be properly seated.

- Latch nets or doors.

- Fasten seat belt.

- Wear appropriate riding gear. Refer to Riding Gear.

Riding Gear

It is important that the operator and passengers always wears appropriate pro-

tective clothing and apparel, including:

- An approved helmet

- Eye protection

- Boots

- Gloves

- A long sleeved shirt or jacket

- Long pants.

Depending on conditions, anti-fogging goggles may be required.

RIDING GEAR

1. Approved helmet

2. Eye and face protection

3. Long sleeves shirt or jacket

4. Gloves

5. Long pants

6. Boots (over-the-ankle footwear)

Weather conditions should help you decide how to dress. To maximize comfort

and avoid frostbites in winter, dress for the coldest weather expected. Thermal

underwear next to the skin also provides good insulation.

Never wear any loose clothing that may get entangled in the vehicle or on tree

branches and shrubs.

SAFETY INFORMATION

PREPARE TO RIDE

Hellmets and Eye Protectiion

Helmets protect the head and brain from injury. Even with the vehicle's cage and

side nets, objects can enter the cockpit and strike the head, or the head can

strike the cage itself or objects outside the vehicle. Even the best helmet is no

guarantee against injury, but statistics indicate that helmet use significantly re-

duces the risk of brain injury. So, be safe and always wear a helmet while riding.

Choosiing a Helmet

Helmets should be manufactured to meet the appropriate standard in your state,

province or country and should fit properly.

A helmet with face protection is a better choice as it protects also against frontal

impacts. It can also protect against debris, stones, insects, the elements, etc.

An open-face helmet does not offer the same protection for the face and chin. If

you wear an open-face helmet, you should use a snap-on face shield and/or a

pair of goggles. Ordinary glasses or sunglasses are not sufficient eye protection

for riders. They can shatter or fly off, and they allow wind and airborne objects to

reach the eyes.

For winter riding conditions, a stocking type cap, balaclava and face mask should

always be carried or worn.

Use tinted face shields or goggles in the daytime only; do not use them at night

or in poor illumination. Do not use them if they impair your ability to discern color.

Other Riding Gear

Footwear

Always wear closed toe footwear. Sturdy over-the-ankle boots with non-slip soles

offer more protection and allow you to plant your foot properly on footrest.

Avoid long shoelaces that can be tangled in the accelerator or brake pedals.

For winter riding conditions, rubber soled boots with either a nylon or leather

uppers, with removable felt liners are best suited.

Avoid rubber boots. Rubber boots may get trapped behind or between pedals,

impairing the proper operation of brake and accelerator pedals.

Gloves

Full-fingered gloves protect hands from the wind, sun, heat, cold and flying ob-

jects. Gloves that fit snugly will improve grip on the steering wheel and help re-

duce hand fatigue. Sturdy, reinforced motorcycle or ATV gloves help protect

hands better in the event of an accident or a rollover. If gloves are too bulky, it

may be difficult to operate the controls.

For winter riding conditions, hands should be protected by a pair of snowmobile

gloves which have sufficient insulation and allow use of thumbs and fingers for

operation of controls.

Jackets, Pants and Ridiing Suits

Wear a jacket or a long sleeved shirt and long pants, or a full riding suit. Quality

ATV-type protective gear will provide comfort, and it can help you avoid being

SAFETY INFORMATION

PREPARE TO RIDE

distracted by adverse environmental elements. In case of a crash, good quality

protective gear made of sturdy material may prevent or reduce injury.

In cool-weather riding, protect yourself against hypothermia. Hypothermia, a con-

dition of low body temperature, can cause loss of concentration, slowed reac-

tions and loss of smooth, precise muscle movement. In cool conditions, proper

protective gear like a windproof jacket and insulated layers of clothing are essen-

tial. Even while riding at moderate temperatures, you can feel very cold due to

the wind.

Protective gear that is appropriate for cold-weather riding may be too hot when

stopped. Dress in layers so that clothing can be removed as desired. Topping the

protective gear with a windproof outer layer can prevent cold air from reaching

the skin.

Rain Gear

If you must ride in wet weather, a rain suit or a waterproof riding suit is recom-

mended. On long rides, it is a good idea to carry rain gear. A dry rider will be

much more comfortable and alert.

Heariing Protection

Long-term exposure to wind and engine noise when riding can cause permanent

hearing loss. Properly worn hearing protective devices such as earplugs can help

prevent hearing loss. Check local laws before using any hearing protective

devices.

SAFETY INFORMATION

AVOID ACCIDENTS

Avoid Rollovers and Tipovers

Side-by-side vehicles handle differently from other vehicles. Side-by-side ve-

hicles are designed to handle off-road terrain (for example, their wheel base and

track width, ground clearance, suspension, drivetrain, tires, etc.), and, as a result,

can overturn in situations where vehicles designed for use primarily on paved or

smooth terrain may not.

A rollover or other accident can occur quickly during abrupt maneuvers such as

sharp turns or hard acceleration or deceleration when turning, or when driving on

hills or over obstacles. Abrupt maneuvers or aggressive driving can cause roll-

overs or loss of control even in flat open areas. If the vehicle rolls over, any part

of your body (such as arms, legs, or head) outside of the cockpit can be crushed

and trapped by the cage or ROPS or other parts of the vehicle. You can also be

injured by impact with the ground, cockpit or other objects.

To reduce the risk of rollovers:

- Use care when turning.

- Do not turn the steering wheel too far or too fast for your speed and envi-

ronment. Adjust steering inputs according to your speed and environment.

- Slow down before entering a turn. Avoid hard braking during a turn.

- Avoid sudden or hard acceleration when turning, even from a stop or low

speed.

- Never attempt donuts, skids, slides, fishtails, jumps, or other stunts. If vehicle

starts to skid or slide, steer in the direction of the skid or slide. Never slam the

brakes and lock the wheels.

- Avoid paved surfaces. This vehicle is not designed to operate on paved surfa-

ces and is more likely to roll over. If you must drive on pavement, turn gradu-

ally, go slowly, and avoid abrupt acceleration and braking.

This vehicle can roll over sideways or tip over forward or backwards on slopes or

uneven terrain.

- Avoid side hilling (driving along the slope rather than up or down a hill). When

possible, drive straight up and down inclines rather than across them. If you

must side hill, use extreme caution and avoid slippery surfaces, objects, or

depressions. If you feel the vehicle start to rollover or slide sideways, steer

downhill if possible.

- Avoid steep hills and follow procedures in this guide for climbing and de-

scending hills.

- Sudden changes in terrain such as holes, depressions, banks, softer or hard-

er ground or other irregularities may cause the vehicle to tip or become unsta-

ble. Observe the terrain ahead and slow down in areas of uneven terrain.

This vehicle will handle differently when carrying or pulling a load.

- Reduce speed and follow instructions in this manual for carrying cargo or pull-

ing a trailer.

- Avoid hills and rough terrain.

- Allow more distance to stop.

Be Prepared iin Case of Rolllover

- Fasten side nets and fasten seat belt to help you avoid sticking out arms or

legs.

SAFETY INFORMATION

AVOID ACCIDENTS

- Never grab the cage or ROPS while riding. Hands can be crushed between

the cage or ROPS and the ground in a rollover. Keep hands on the steering

wheel or handholds.

- Never try to stop a rollover using your arms or legs. If you think that the ve-

hicle may tip or roll, the driver should keep both hands on the steering wheel

and the left foot firmly planted on the footrest. The passengers should keep

both hands on the handhold and both feet firmly planted on the floor.

Avoid Collisions

This vehicle can reach high speeds. At higher speeds, there is an increased risk

of losing control, particularly in challenging off-road conditions, and the risk of in-

jury in a collision is greater. Never operate at excessive speeds. Always go at a

speed that is proper for the terrain, visibility, and operating conditions, and your

experience. Consider reserving use of the performance key for situations in

which full speed and acceleration capability are appropriate.

Never operate this vehicle on any public street, road or highway, even dirt or

gravel ones. Riding your vehicle on roads or highways could result in a collision

with another vehicle. This vehicle is not designed for operation on roads. For ex-

ample, it does not meet motor vehicle safety standards that apply to automobiles.

In many jurisdictions it is not legal to operate this vehicle on public roads.

This vehicle does not have the same kind of protection for collisions as a car; for

example, there are no air bags, the cockpit is not fully enclosed, and it is not de-

signed for collisions with other vehicles. Therefore, it is particularly important to

fasten seat belts and side nets and wear an approved helmet.

SAFETY INFORMATION

RIDING YOUR VEHICLE

Practice Exercises

Before you go out for a ride, it is very important to familiarize yourself with the

handling of your vehicle by practicing in a controlled environment. If possible, it is

also a very good idea to take a more formal training course to sharpen your skills

and increase your knowledge of the vehicle.

Find a suitable area to practice and perform the following exercises. It should be

at least 45 m (150 ft) by 45 m (150 ft) free of obstacles like trees and rocks. Once

you’ve selected a suitable permitted location, proceed with the following

exercises.

Turning Exerciises

Turning is one of the most frequent causes of accidents. It is easier for the ve-

hicle to lose traction or rollover if you turn too sharply, or go too fast. Slow down

when you approach a turn.

- First learn how to perform slight right turns at very low speeds. Release the

throttle before turning and slowly reapply the throttle when turning.

- Repeat turning exercise but this time maintain the throttle at the level while

turning.

- Finally, repeat turning exercise while accelerating slowly.

- Practice exercises turning on the other side.

Note how your vehicle reacts in these different exercises. We recommend releas-

ing the throttle before entering a turn to help initiate directional change. You will

feel the lateral force increasing with the speed and with your steering input. The

lateral force should be maintained as low as possible to make sure it does not

cause the vehicle to roll over.

U Turn Exercises

Practice doing U turns.

- Accelerate slowly and while remaining at low speed, then gradually turn the

steering wheel to the right until you have completed the U turn.

- Repeat U turn exercise with different steering inputs and always at a very low

speed.

- Repeat U turn exercise on the other side.

As mentioned before in this guide, do not ride on paved surfaces as the vehicle

behavior will not be the same, increasing the risk of rollover.

Braking Exerciises

Practice braking to get familiar with the brake response.

- Do it at low speed first, then increase the speed.

- Practice braking in straight line at different speeds and different braking force.

- Practice emergency braking; optimal braking is obtained in straight line, with

high force applied, without locking the wheels.

Remember, braking distance depends on vehicle speed, load and the type of

surface. Also, the tires and brakes conditions play a major role.

Reverse Exercises

The next step involves using the reverse.

SAFETY INFORMATION

RIDING YOUR VEHICLE

- Install 1 cone marker on both sides of the vehicle beside each rear wheel.

Move the vehicle forward until you can see the cone markers, then stop the

vehicle. Acknowledge the distance required to see obstacles behind you.

- Learn how the vehicle handles itself in reverse and reacts with steering

inputs.

- Always perform this reverse exercise at slow speeds.

Emergency Engiine Stopping Exerciise

Learn how to stop your engine quickly in an emergency situation.

- While running at low speed, simply turn the key to the off position.

This is to familiarize you with the vehicle’s reaction when the engine is turned off

while driving and to develop this reflex.

It is also important to be able to stop and exit the vehicle quickly.

- Immobilize the vehicle.

- Detach the seat belt and the net to exit the vehicle.

Off-Road Operation

The very nature of off-road operation is dangerous. Any terrain, which has not

been specially prepared to carry vehicles, presents an inherent danger where

terrain substance, shape and steepness are unpredictable. The terrain itself

presents a continual element of danger, which must be knowingly accepted by

anyone venturing over it.

An operator who takes a vehicle off-road should always exercise the utmost care

in selecting the safest path and keeping close watch on the terrain ahead of him.

The vehicle should never be operated by anyone who is not completely familiar

with the driving instructions applicable to the vehicle, nor should it be operated

on steep or treacherous terrain.

General Riding Techniques

Generall Driiving Tips

Care, caution, experience and driving skill are the best precautions against the

hazards of vehicle operation.

Whenever there is the slightest doubt that the vehicle can safely negotiate an ob-

stacle or a particular piece of terrain, always choose an alternate route.

In off-road operation, power and traction, not speed, are important. Never drive

faster than visibility and your own ability to select a safe route permit. Always go

slowly and be extra careful when operating on unfamiliar terrain. Always be alert

to changing terrain conditions when operating this vehicle. Be especially cautious

on excessively rough, slippery, icy or loose terrain.

Constantly watch the terrain ahead for sudden changes in slopes or obstacles,

such as rocks or stumps, that may cause loss of stability, resulting in tip over or

rollover.

Never operate the vehicle if the controls do not function normally. See an author-

ized Can-Am Off-road dealer.

SAFETY INFORMATION

RIDING YOUR VEHICLE

To maintain proper control it is strongly advised that you keep your hands on the

steering wheel and within easy reach of all controls. The same holds true for your

feet. To minimize the possibility of any leg or foot injury, keep your left foot on the

footrest and right foot on the floor at all times. Staying completely within the cock-

pit will also help keep you from striking objects outside the vehicle.

Watch for and avoid branches and other objects that could enter the passenger

compartment and strike you or your passengers.

Operating in Reverse

When operating in reverse, check that the path behind the vehicle is free of peo-

ple or obstacles. Pay attention to blind spots. When it is safe to proceed in re-

verse, go slowly and avoid sharp turns.

WARNING

Steering inputs iin reverse operatiion increase the risk of rolllover.

NOTE:

In reverse operation, the engine RPM is limited thus limiting the vehicle reverse

speed.

WARNING

When driviing downhiilll in reverse, gravity can iincrease the vehiclle speed

above safe reverse speed.

Crossing Roads

If you have to cross a road, ensure to have complete visibility on both sides for in-

coming traffic and decide on exit point on other side of road. Drive in a straight

line toward that point. Do not make sharp direction changes or abrupt accelera-

tions as it may result in a rollover situation. Do not travel on sidewalks or bicycle

trails as they are designated specifically for those uses.

Riiding on Paved Surfaces

Avoid paved surfaces. This vehicle is not designed to operate on paved surfaces

and is more likely to roll over. If you must drive on pavement, turn gradually, go

slowly, and avoid abrupt acceleration and braking.

Shalllow Water Crossiing

Water can be a unique hazard. If it is too deep the vehicle may “float” and topple.

Check the water depth and current before you attempt to cross any water. Water

depth should not exceed the center of the wheels for vehicle to safely cross the

obstacle. Beware of slippery surfaces such as rocks, grass, logs, etc., both in the

water and on its banks. A loss of traction may occur. Do not attempt to enter the

water at high speed.

Water will affect the braking ability of your vehicle. Make sure you dry the brakes

by applying them several times after the vehicle leaves the water.

SAFETY INFORMATION

RIDING YOUR VEHICLE

Mud or marsh lands may be encountered near water. Be prepared for sudden

“holes” or changes in depth. Similarly so, be watchful of hazards such as rocks,

logs, etc., partially covered by vegetation.

Ridiing on Snow or Ice

When performing pre-ride inspection, pay special attention to locations on the ve-

hicle where snow and/or ice accumulations may obstruct visibility of the tail lamp,

clog ventilation openings, block the radiator and fan, and interfere with the move-

ment of controls. Before starting with your vehicle, check the steering, accelera-

tor and brake pedals for interference free operation.

Whenever this vehicle is ridden on a snow covered drive path, the tire grip is gen-

erally reduced causing the vehicle to react differently to control inputs from the

operator. On low grip surfaces, the steering responses are not as crisp and pre-

cise, stopping distances are lengthened and acceleration is also affected. Slow

down and be gentle on the accelerator. This will only result in spinning of the tires

and possibly in an over steering slide of the vehicle. Avoid hard braking. This will

possibly result in a straight line slide of the vehicle. Again, the best advice is to

safely reduce speed in anticipation of a maneuver to give yourself time and dis-

tance in order to keep control of the vehicle.

As you drive your vehicle over a loose snow covered surface, snow dust will be

picked up in the wake turbulence of the moving vehicle and transported to con-

tact and accumulate or melt on some exposed components including rotating

parts like brake discs. Water, snow or ice may affect the response time of the

brake system of your vehicle. Even when not required to reduce vehicle speed

apply brakes frequently to prevent ice or snow accumulation and to dry brake

pads and discs. While doing so in low risk driving situations you will test for grip

level and keep yourself alerted to how the vehicle reacts to your control inputs.

Always keep brake and accelerator pedals and floor boards free of snow and ice.

Frequently wipe snow off seat, steering wheel, headlights and tail lamps.

The depth of the snow cover may hide rocks, tree stumps or other objects and if

it is wet may totally impede the drivability as the vehicle becomes bogged down

or completely looses traction in slushy snow. Look far ahead and always be

watchful of any visible clues that might indicate the presence of such obstacles.

In doubt steer clear. Avoid driving on any frozen waterways before checking that

the ice will safely support the vehicle, its riders and its load of cargo.

At the end of each ride it is a good practice to clean the vehicle and all moving

components (brakes, steering components, drivelines, controls, radiator fan etc.)

from any snow or ice accumulations. Wet snow will turn to ice during the shut

down period and become more difficult to remove at the next pre-ride inspection.

Ridiing on Sand

Sand and riding on sand dunes is another unique experience but there are some

basic precautions that should be observed. Wet, deep or fine sand may create a

loss of traction and cause the vehicle to slide, drop off or become “bogged” down.

If this occurs look for a firmer base. Again, the best advice is to slow down and

be watchful of the conditions.

SAFETY INFORMATION

RIDING YOUR VEHICLE

When riding in sand dunes it is advisable to equip the vehicle with an antenna

type safety flag. This will help make your location more visible to others over the

next sand dune. Proceed carefully should you see another safety flag ahead.

Riiding on Gravel, Loose Stones or Other Slippery Surfaces

Riding on loose stones or gravel is very similar to riding on ice. They will affect

the steering of vehicle, possibly causing it to slide and tip over especially at high

speeds. In addition, braking distance may be affected. Remember that “gunning”

the throttle or sliding may cause loose stones to be ejected rearwards into the

path of another rider's way. Never do it deliberately.

If you do get into a slide or skid, it may help to turn the steering wheel into the di-

rection of the skid until you regain control. Never jam the brakes and lock the

wheels.

Crossing Obstaclles

Use the low range (L) for crossing obstacles.

Obstacles on the “trail” should be traversed with caution. This includes rocks, fall-

en trees, and depressions. You should avoid them whenever possible. Remem-

ber that some obstacles are too large or dangerous to cross and should be

avoided. As a guideline, never attempt to cross an obstacle higher than the

ground clearance of the vehicle. Small rocks or small fallen trees may be safely

crossed - approach obstacle at low speed and as much as possible at a right an-

gle. Adjust speed without losing momentum and do not accelerate abruptly. Pas-

sengers must grasp handhold firmly and brace feet on the floor. Hold steering

firmly without closing your fists around it and proceed. Be aware that the obstacle

may be slippery or may move while crossing.

Hiilll Driving Conditiions

When driving on hills or slopes, two things are highly important: be prepared for

slippery surfaces or terrain variations and obstacles and brace yourself properly

inside vehicle. If you climb or descend a hill that is too slippery or has too loose a

surface, you can lose control. If you go over the top of a hill at high speed, you

may not have time to prepare for the terrain on the other side. Avoid parking on a

slope. Always put the shift lever in PARK when stopped or parked, especially on

an incline, to avoid rolling. If you must park on a steep incline, block the wheels

using rocks or bricks.

Uphill Driiviing

Use the low range (L) for uphill driving.

Due to its configuration, this vehicle has very good traction even while climbing,

so much so that tip over is possible before traction is lost. For example, it is com-

mon to encounter terrain situations where the top of the hill has eroded to a point

that the hill peak rises very sharply. This vehicle is not designed to negotiate such

a condition. Take an alternate route.

It is also wise to know the terrain condition on the other side of the hill or bank. All

too often there exists a sharp drop-off that is impossible to negotiate or descend.

SAFETY INFORMATION

RIDING YOUR VEHICLE

If you feel that the slope is getting too steep to climb, apply brakes to immobilize

vehicle. Put shift lever in reverse (R), and back down the hill, barely releasing

brakes to remain at low speed. Do not attempt to turn around. Never coast down

hill while vehicle is in neutral. Do not perform hard braking as it increases the risk

of tipover.

Downhilll Driiviing

This vehicle can climb steeper slopes than it can descend safely. Therefore, it is

essential to assure that a safe route exists to descend a slope before you climb

it.

Decelerating while negotiating a slippery downhill slope could “toboggan” the ve-

hicle, causing it to slide. Maintain steady speed and/or accelerate slightly to re-

gain control. Never slam brakes and lock the wheels.

Side Hiillling

Whenever possible, side hilling (driving across a slope rather than up or down it)

should be avoided. If necessary, do so with extreme caution. Side hilling on steep

inclines could result in rollover. In addition, slippery or unfirm surfaces could re-

sult in uncontrollable side sliding. Avoid all objects or depressions that will inten-

sify the raising of one side of the vehicle higher than the other, thus causing

rollover. If you feel the vehicle start to rollover or slide sideways, steer downhill if

possible.

WARNING

Be carefull when lloadiing and transporting lliquid reservoirs. They can af-

fect vehicle stabiiliity when side hillliing by pullling downhilll and increasing

the risk of a rolllover.

Drop-Offs

This vehicle is not designed to negotiate drop-offs. It will “bottom-out” and usually

stop if either the front or rear wheels are driven over a drop-off. If the drop is

sharp or deep, the vehicle will nose dive and tip over.

Avoid negotiating drop-offs. Reverse and select an alternate route.

Recreational, Group and Diistance Ridiing

Respect the rights and limitations of others. Stay away from areas designated for

other types of off road use. This includes snowmobile trails, equestrian trails,

cross country ski trails, mountain bike trails, etc. Never assume there are no oth-

er users on the trail. Always stay to the right of the trail and do not zig zag to one

side of the trail then the other. Be prepared to stop or pull off to the side if another

trail user appears in front of you.

Join a local side-by-side vehicle club. It will provide you with a map and advice or

inform you where you can ride. If a club does not exist in your area, help to start

one. Group riding and club activities provide a pleasurable, social experience.

Never use this vehicle with drugs or alcohol, or tired or ill.

Always keep a safe distance from other riders. Your judgment of speed, terrain

conditions, weather, mechanical condition of your vehicle and the

“trust in

SAFETY INFORMATION

RIDING YOUR VEHICLE

judgment” you have in others around you will help you make a better choice of

appropriate safe distance. This vehicle, like any other motorized vehicle, cannot

stop “on a dime”.

Before you ride, tell someone where you are planning to travel and your expected

time of return.

Depending on the length of your ride, carry additional tools or emergency equip-

ment. Find out where you can get additional gasoline. Be prepared for the possi-

ble conditions you may encounter. An emergency first aid kit should always be a

consideration.

Environment

One of the benefits of this vehicle is that it can take you off the beaten path away

from most communities. However, you should always respect nature and the

rights of others to enjoy it. Do not ride in environmentally sensitive areas. Do not

drive over forest crops or shrubs, nor cut down trees or take down fencing, nor

spin your wheels and destroy the terrain. “Tread Lightly”.

This vehicle can cause OHV wildfires if debris builds up near the exhaust or other

engine hot spots and ignites then falls off into dry grass. Avoid riding in wet

areas, through muskeg or tall grass, where debris can build up. Should you ride

in those areas, inspect and remove all debris from your engine and hot spots. Re-

fer to Vehicle Care for details.

Chasing wildlife is in many areas illegal. Wildlife can die of exhaustion after being

chased by a motorized vehicle. If you encounter animals on the trail, stop and ob-

serve quietly and with caution. It will be one of the better memories of your life.

Observe the rule “what you take in, carry out”. Do not litter. Do not start campfires

unless you have permission to do so, and then only away from dry areas. The

hazards you may create on the trail may cause injury to others or yourself, even

at a later date.

Respect farm lands. Always obtain the permission of the landowner before riding

on private land. Respect crops, farm animals and property lines.

Finally, do not pollute streams, lakes or rivers and do not modify the engine or ex-

haust system, or remove any of its components as it will alter the vehicle

emissions.

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

Working with Your Vehicle

Your vehicle can help you perform a number of different LIGHT tasks ranging

from snow removal to pulling wood or carrying cargo. A variety of accessories

are available from your authorized Can-Am Off-road dealer. To prevent possible

injury, follow the instructions and warnings that accompany the accessory. Al-

ways respect the load limits of the vehicle. Overloading the vehicle can over-

stress the components and cause failure. Avoid overexerting yourself if you lift or

pull heavy loads or manually push the vehicle.

WARNING

Mounted machinery must be lowered on the ground before lleaviing the

vehicle.

Carrying Loads

WARNING

Make sure alll accessoriies, cargo and loose objects iinsiide the vehiiclle are

properly secured, or remove iit to prevent from faiiliing on the road and cre-

ating a hazard for folllowing vehiclles.

Any load carried on the vehicle will affect the handling, stability and braking dis-

tance of the vehicle. Do not exceed the payload limits of the vehicle, including

the weight of operator, passengers, cargo, accessories and trailer tongue weight.

Always be aware that the cargo may slide or fall off and cause an accident.

Maximum Payload Limit of the Vehicle

481 kg

Includes occupants, cargo, tongue

(1,060 lb)

weight and added accessories

The following is an example of suitable total vehicle payload distribution:

Example of Suitable Payloads

(adjust according to your model load limit)

Operator and

Cargo box

Tongue

Total vehicle

Accessories

passenger

load

weight

payload

350 kg

23 kg

40 kg

68 kg

481 kg

(772 lb)

(50 lb)

(88 lb)

(150 lb)

(1,060 lb)

To reduce the risk to lose control or the load carried, follow these

recommendations.

Vehiiclle Settiings When Carryiing Load

When carrying heavy loads or passengers, readjust suspension accordingly.

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

When carrying heavy loads in cargo box or pulling a loaded trailer, operate with

the shift lever in L (low range).

WARNING

Must use LOW GEAR iif total payload iis greater than 226 kg (500 llb).

Loading the Cargo Box

Ensure no cargo protrudes outside the box and that cargo will not interfere with

your visibility or control of the vehicle. Loads that protrude sideways can get

snagged or caught in bush, branches or other obstacles.

Avoid covering and obstructing the brake lights with the cargo.

Load cargo as low as possible - a higher load can raise the vehicle’s center of

gravity, which can reduce stability.

Objects that are higher than the walls of the cargo box may affect visibility for the

driver and may act as projectiles in case of an accident.

Position cargo toward the front and center of the cargo box and as evenly distrib-

uted as possible.

Secure the load to the tie down hooks inside cargo box. Use only the tie down

hooks on the bottom of the cargo box; do not secure cargo to the cage or other

part of the vehicle.

If it is not properly secured, a load may slide or fall off, possibly striking occupants

or bystanders; or it may shift during riding, affecting the handling of the vehicle.

Maximum Cargo Box Loads

Evenly distributed and safely secured.

91 kg

Cargo box

Loaded as low as possible to reduce height

(200 lb)

of center of gravity.

Operating Whiile Carryiing a Load

Reduce your speed when carrying cargo and turn gradually. Avoid hills and

rough terrain. Allow more distance for braking. This vehicle may require addition-

al stopping distance if carrying heavy loads, especially on inclined surfaces.

Hauling a Load

NOTICE

A BRP approved rear hitch must be properly iinstallled on the vehicle for

haulling traillers.

Never pull a load by attaching it to the cage or any other accessories; this can

cause the vehicle to tip over. Use only the trailer hitch (if installed) or winch (if in-

stalled) to pull a load.

SAFETY INFORMATION

MOVING LOADS AND DOING WORK

In an emergency situation, use the recovery hook to recover a stuck vehicle.

When pulling loads with a chain or cable, ensure that there is no slack before

starting and maintain tension while pulling.

When pulling loads with a chain or cable, be sure to brake progressively. The in-

ertia of the load could lead to an impact.

When hauling a load, respect the maximum hauling capacity. See Pulling a

Trailer below.

WARNING

A slack iin the chaiin or cable can cause iit to break and snap back.

When pulling another vehicle, be sure that someone is controlling the pulled ve-

hicle. They must brake and steer to prevent the vehicle from going out of control.

Before pulling loads with a winch, refer to the winch manufacturer’s instructions.

Reduce your speed when hauling a load and turn gradually. Avoid hills and rough

terrain. Never attempt steep hills. Allow more distance for braking, especially on

inclined surfaces and when a passenger is on board. Be careful not to skid or

slide.

Pulling a Trailer

NOTICE

A BRP approved rear hiitch must be properlly installled on the vehiclle for

hauliing traiilers.

Riding this vehicle with a trailer substantially increases the risk of toppling, espe-

cially on inclined slopes. If a trailer is used behind the vehicle make sure that its

hitch is compatible with the one on the vehicle. Make sure the trailer is horizontal

with the vehicle. (In some instances a special extension may have to be installed

on the vehicle hitch). Use security chains or cables to secure the trailer with the

vehicle.

Reduce your speed when pulling a trailer and turn gradually. Avoid hills and

rough terrain. Never attempt steep hills. Allow more distance for braking, espe-

cially on inclined surfaces and when a passenger is on board. Be careful not to

skid or slide.

Improperly loading a trailer may cause loss of control.

Always make sure load is evenly distributed and safely secured on the trailer; an

evenly balanced trailer is easier to control.

Always put the shift lever to L (low range) for hauling a trailer - in addition to pro-

viding more torque, operating in low range helps account for the increased load

on the rear tires.

When stopped or parked, block the vehicle and trailer wheels from possible

movement.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS

(CANADA/UNITED STATES)

Safety Hang Tag

This vehicle comes with a hang tag and labels containing important safety

information.

Any person who rides this vehicle should read and understand this information

before riding.

THIS VEHICLE IS INTENDED FOR RECREATIONAL USE

AND SECONDARY GENERAL UTILITY APPLICATIONS

Tilt Table

NO OPERATOR UNDER AGE 16

TRAINING COURSES TO TEACH ROV DRIVING

Test Result

ARE AVAILABLE. FOR INFORMATION CONTACT

YOUR DEALER.

Read the Operator's Guide and Safety Labels

and Watch the Safety Video.

Follow All Instructions and Warnings.

BOMBARDIER RECREATIONAL PRODUCTS INC.

VEHICLE MODEL

CHECK WITH YOUR DEALER TO FIND OUT ABOUT

TILT TABLE RESULT

STATE OR LOCAL LAWS REGARDING ROV OPERATION.

Cause Severe Injury or Death

Be Prepared

Measurement of lateral stability, in degrees, of a

• Fasten seat belts and make sure nets or doors

sample, standard condition vehicle (with an

are securely latched in place.

operator and a passenger load - 430 pounds) as

measured by the manufacturer in accordance with

the tilt table lateral stability test in the ANSI/ROHVA

standard for Recreational Off-Highway Vehicles.

completely inside the vehicle.

Vehicle modification, accessories, and loading can

Drive Responsibly

affect lateral stability.

Avoid loss of control and rollovers:

Training courses to teach ROV driving are available.

never do donuts.

For information contact your dealer and/or

rohva.org.

terrain. Avoid paved surfaces.

Check with your dealer to find out about state or

local laws regarding ROV operation.

Rollovers have caused severe injuries and death,

THIS HANG TAG IS NOT TO BE REMOVED BEFORE SALE.

Be Sure Riders Pay Attention and Plan Ahead

If you think or feel the vehicle may tip or roll,

reduce your risk of injury :

VEHICLE MODEL NAME:

and brace yourself.

ENGINE DESCRIPTION:

vehicle for any reason.

Require Proper Use of Your Vehicle

EPA CERTIFIED

- Do your part to prevent injuries:

NER (NORMALIZED EMISSION RATE) =

ON 0 TO 10 SCALE, 0 BEING THE CLEANEST.

BOMBARDIER RECREATIONAL PRODUCTS INC

*NO TO BE REMOVED PRIOR SALE.

card

Vehicle seating capacity:

Occupants

THIS HANG TAG CAN’T BE REMOVED BEFORE SALE.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Safety Labels

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passengers

or bystanders.

The following labels are on your vehicle, and they should be considered perma-

nent parts of the vehicle. They need to be clean and visible at all times. If missing

or damaged, they need to be replaced. Safety labels are free of charge. See an

authorized Can-Am Off-road dealer.

Upon replacement of parts that have warnings on them, make sure to order (free

of charge) the applicable safety warnings if not already installed on the replace-

ment part.

NOTE:

In the event of any discrepancy between this guide and the vehicle, the safety la-

bels on the vehicle have precedence over the labels in this guide.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

General Warning Label

Imp

Rollovers Have Caused Severe Injuries and

Severe Injury or Death

Death, Even on Flat, Open Areas.

Be Prepared

Be Sure Riders Pay Attention and Plan Ahead

• Fasten seat belts and make sure nets or doors are securely latched in place.

If you think or feel the vehicle may tip or roll, reduce your risk of injury :

Stay completely inside the vehicle.

Require Proper Use of Your Vehicle - Do your part to prevent

Drive Responsibly

injuries:

Avoid loss of control and rollovers:

•

trucks can occur.

in traction and terrain. Avoid paved surfaces.

occupants.

•Avoid side hilling (riding across slopes).

Read and understand all safety labels,

locate and read operator's guide.

Watch the safety video using the QR

code link or visit Can-am web site

before operation.

8030

Patent : www.brp.com/en/about-brp/patents.html

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Passenger Warning Label

Be Sure Riders Pay Attention and Plan Ahead

PASSENGER(S)

Improper Use of this Vehicle Can Cause Severe Injury or Death

If you think or feel the vehicle may tip or roll, reduce your risk of injury:

• Keep a firm grip on handholds and brace yourself.

Be Prepared

• Do not put any part of your body outside of the vehicle for any reason.

• Fasten seat belt and make sure nets or doors are securely latched in place.

• Wear an approved helmet and protective gear.

You must be able to sit with back against seat, foot flat on the

floor or on footrest, and hands on handholds. Stay completely

inside the vehicle.

• Do not ride after using drugs or alcohol.

PASSENGER QUALIFICATIONS AND

• Ask the operator to slow down or stop if

RESPONSIBILITIES

you feel uncomfortable when riding.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Rear Left Passenger Warning Label

PASSENGER(S)

Improper Use of this Vehicle Can Cause

Severe Injury or Death

Be prepared

• Fasten seat belt and make sure net and/or door is

securely latched in place.

• Wear an approved helmet and protective gear.

Be prepared in case of rollover

You must be able to sit with back against seat, foot flat on

If the vehicle rolls over, any part of your body (such

as arms, legs, or head) outside of the cockpit can be

the floor or on footrest, and hands on handholds. Stay

crushed by the cage or other parts of the vehicle.

completely inside the vehicle.

Fasten seat belt and make sure net and/or door is

securely latched in place to help you avoid sticking out

Be sure riders pay attention and plan ahead

arms or legs.

If you think or feel the vehicle may tip or roll, reduce your risk of

hold the cage while riding.

injury:

try to stop a rollover using your arm or leg.

• Keep a firm grip on handholds and brace yourself.

• Do not put any part of your body outside of the vehicle for any

reason.

PASSENGER QUALIFICATIONS AND RESPONSIBILITIES

• Do not ride after using drugs or alcohol.

• Ask the operator to slow down or stop if you feel uncomfortable when

riding.

704907341

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Rear Right Passenger Warning Label

PASSENGER(S)

Improper Use of this Vehicle Can Cause

Severe Injury or Death

Be prepared

• Fasten seat belt and make sure net and/or door is

securely latched in place.

• Wear an approved helmet and protective gear.

Be prepared in case of rollover

You must be able to sit with back against seat, foot flat on

If the vehicle rolls over, any part of your body (such as arms,

the floor or on footrest, and hands on handholds. Stay

legs, or head) outside of the cockpit can be crushed by the

completely inside the vehicle.

cage or other parts of the vehicle.

Fasten seat belt and make sure net and/or door is securely

Be sure riders pay attention and plan ahead

latched in place to help you avoid sticking out arms or legs.

If you think or feel the vehicle may tip or roll, reduce your risk of

hold the cage while riding.

injury:

try to stop a rollover using your arm or leg.

• Keep a firm grip on handholds and brace yourself.

• Do not put any part of your body outside of the vehicle for any

reason.

PASSENGER QUALIFICATIONS AND RESPONSIBILITIES

• Do not ride after using drugs or alcohol.

• Ask the operator to slow down or stop if you feel uncomfortable when

riding.

704907343

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Tire Pressure and Maximum Load — Warning Label

Improper tire pressure or overloading can cause loss of control.

Loss of control can result in severe injury or death.

• An underinflated tire cans come off the rim

2 OCCUPANTS

4 OCCUPANTS

MODEL

TRAIL

SPORT

XMR / XRC

XXC

Front

Minimum:

kPa (psi)

76 (11)

97 (14)

83 (12)

97 (14)

165 (24)

COLD TIRE

Maximum:

83 (12)

103 (15)

90 (13)

110 (16)

179 (26)

PRESSURE

Rear

Minimum:

97 (14)

103 (15)

110 (16)

165 (24)

Maximum:

kPa (psi)

138 (20)

152 (22)

159 (23)

152 (22)

234 (34)

VEHICLE LOAD CAPACITY: kg (lb)

331 (730)

481 (1060)

REAR LOAD CAPACITY: kg (lb)

136 (300)

91 (200)

•Use Max pressure if total load exceeds 195 kg (430 lb).

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Overload – Warning Label

Overloading can cause loss of control. Loss of control can result in severe injury or death.

ALWAYS secure the load.

NEVER carry passenger in cargo box.

NEVER place gasoline, !ammable or dangerous liquids

NEVER exceed the VEHICLE LOAD CAPACITY (Refer to label below),

including

container on carrier. This can lead to an explosion.

weight of operator, passenger, accessories and

NEVER exceed REAR LOAD CAPACITY (Refer to label below),

trailer tongue weight.

evenly distributed (includes trailer tongue weight

NEVER attach to cargo area to pull a load. this can cause

if applicable).

the vehicle to tip over. use only the trailer hitch

or recovery hook to pull a load.

To reduce the risk of loss of control or loss of load

When loading cargo: • Position cargo towards front and center and

When carrying a load: • Reduce your speed and turn gradually.

as low as possible.

• Avoid hills and rough terrain

• Allow more distance to stop.

704906712

Refer to your Operator ‘s Guide for more information about cargo box use.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Rollover — Warning Labels

LH side

RH Side

Be prepared in case of

rollover

If the vehicle rolls over,

any part of your body

(such as arms, legs, or

head) outside of the

cockpit can be crushed

by the cage or other

parts of the vehicle.

Fasten seat belt and

make sure net and/or

door is securely latched

in place to help you

avoid sticking out arms

or legs.

hold the

cage while riding.

try to stop

a rollover using

your arm or leg.

9028

9030

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS(CANADA/UNITED STATES)

Compliance HangTag

Callifornia Proposiition 65 Warning - Hang Tag

. Operating, servicing and

WARNING

maintaining an off-road vehicle can expose

you to chemicals including engine exhaust,

carbon monoxide, phthalates, and lead,

which are known to the State of California

to cause cancer and birth defects or other

reproductive harm.

To minimize exposure, avoid breathing

exhaust, do not idle the engine except as

necessary, service your vehicle in a

well-ventilated area and wear gloves or wash

your hands frequently when servicing your

vehicle.

For more information go to

www.P65Warnings.ca.gov/products/

passenger-vehicle

704906872

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES

OUTSIDE CANADA AND UNITED STATES)

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passengers

or bystanders.

The following labels are on your vehicle, and they should be considered perma-

nent parts of the vehicle. They need to be clean and visible at all times. If missing

or damaged, they need to be replaced. Safety labels are free of charge. See an

authorized Can-Am Off-road dealer.

Upon replacement of parts that have warnings on them, make sure to order (free

of charge) the applicable safety warnings if not already installed on the replace-

ment part.

NOTE:

In the event of any discrepancy between this guide and the vehicle, the safety la-

bels on the vehicle have precedence over the labels in this guide.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Safety Pictogram

Read and understand all the safety labels on your vehicle.

These labels are affixed to the vehicle for the safety of the operator, passengers

or bystanders.

The following labels are on your vehicle, and they should be considered perma-

nent parts of the vehicle. They need to be clean and visible at all times. If missing

or damaged, they need to be replaced. Safety labels are free of charge. See an

authorized Can-Am Off-road dealer.

Upon replacement of parts that have warnings on them, make sure to order (free

of charge) the applicable safety warnings if not already installed on the replace-

ment part.

NOTE:

In the event of any discrepancy between this guide and the vehicle, the safety la-

bels on the vehicle have precedence over the labels in this guide.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

General Warning Pictogram

WARNING

–

Read and understand alll safety labels, locate and read operator''s

guide. Watch the safety viideo usiing the QR code llink or visit Can-am

web site before operation.

–

Rolllovers have caused severe iinjjuries and death, even on fllat, open

areas.

–

Do not alllow operatiion on publlic roads (unless designated for off--

highway vehiicle access) – collliisions wiith cars and trucks can occur.

–

Allways wear an approved helmet and protectiive gear.

–

Allways wear ear protectiion.

–

Fasten seat belts and nets.

–

Make sure operators are 16 or ollder wiith a valiid driiver''s license.

–

Avoid lloss of controll and rolllovers:

– Avoiid abrupt maneuvers, sideways slliding, skiiddiing or fishtaiil-

iing, and never do donuts.

– Avoiid hard acceleration when turniing, even from a stop.

– Slow down before entering a turn.

– Plan for hiillls, rough terrain, ruts, and other changes in tractiion

and terraiin.

– Avoiid paved surfaces.

– Avoiid siide hiillling (ridiing across slopes).

–

Do not exceed seating capaciity: 4 occupants.

–

Each rider must be able to siit wiith back against seat, feet flat on the

floor or on footrest, and hands on steering wheel or handholds.

–

If you thiink or feel the vehicle may tip or rolll, reduce your risk of iin-

jury : Keep a fiirm grip on the steeriing wheell or handholds and brace

yourself. Do not put any part of your body outside of the vehiiclle for

any reason.

–

Allways stay complletely iinsiide the vehicle.

–

Do not let peoplle driive or riide after usiing alcohol or drugs.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Passenger Warning Label

WARNING

– Allways wear an approved helmet and protectiive gear.

– Allways wear ear protectiion.

– Fasten seat belts.

– Allways latch nets or doors.

– Each rider must be able to siit wiith back against seat, feet flat on the

floor or on footrest, and hands on handhollds.

– If you thiink or feel the vehicle may tip or rolll, reduce your risk of iin-

jury. Keep a fiirm grip on handholds and brace yourself. Do not put

any part of your body outside of the vehiiclle for any reason.

– Allways stay complletely iinsiide the vehicle.

– Do not ride after using alcoholl or drugs.

7648

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Rear Left Passenger Warning Pictogram

WARNING

– Always wear an approved hellmet and protective gear.

– Always wear ear protection.

– Always llatch nets or doors.

– Fasten seat bellts.

– Never holld the cage while riiding.

– Never put your arm outsiide of the vehicle.

– Each riider must be ablle to sit with back agaiinst seat, feet fllat on the

flloor or on footrest, and hands on handholds.

– If you think or feell the vehiicle may tiip or rolll, reduce your riisk of in-

jury : Keep a firm griip on handhollds and brace yourself. Do not put

any part of your body outsiide of the vehicle for any reason.

– Always stay completelly inside the vehiicle.

– Do not riide after usiing allcohol or drugs.

7692

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Rear Right Passenger Warning Pictogram

WARNING

– Allways wear an approved helmet and protectiive gear.

– Allways wear ear protectiion.

– Allways latch nets or doors.

– Fasten seat belts.

– Never hold the cage whille ridiing.

– Never put your arm outside of the vehiiclle.

– Each rider must be able to siit wiith back against seat, feet flat on the

floor or on footrest, and hands on handhollds.

– If you thiink or feel the vehicle may tip or rolll, reduce your risk of iin-

jury : Keep a fiirm grip on handholds and brace yoursellf. Do not put

any part of your body outside of the vehiiclle for any reason.

– Allways stay complletely iinsiide the vehicle.

– Do not ride after using alcoholl or drugs.

7693

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS (COUNTRIES OUTSIDE CANADA AND UNITED STATES)

Tire Pressure and Maximum Load - Warning Label

WARNING

– Locate and read operator''s guiide. Improper tire pressure or over-

loadiing can cause loss of control, resullting in SEVERE INJURY or

DEATH.

– Always maiintain proper tiire pressure as shown.

– NEVER exceed the vehiiclle load capaciity, iincludiing weight of opera-

tor, passenger(s), cargo, accessories and trailer tongue weight iif

appliicablle.

– Do not overload cargo box.

– NEVER carry passenger iin cargo box or on taiilgate.

– NEVER place gasoliine, flammable or dangerous lliquiids container

on the carriier. Thiis can lead to an expllosiion.

< kg (lb)

kPa (psi)

< kg (lb)

Trail

97 (14)

159 (23)

331 (730)

136 (300)

Sport

83 (12)

159 (23)

Sport

110 (16)

193 (28)

481 (1060)

91 (200)

SAFETY INFORMATION

REPORTING SAFETY DEFECTS

In Canada, if you believe that your vehicle has a defect which could cause a

crash or could cause injury or death, you should immediately inform Transport

Canada in addition to notifying Bombardier Recreational Products Inc.

If Transport Canada receives similar complaints, it may open an investigation,

and if it finds that a safety defect exists in a group of vehicles, it may order a re-

call and remedy campaign. However, Transport Canada cannot become involved

in any individual problems between you, your dealer or Bombardier Recreational

Products Inc.

To contact Transport Canada:

819-994-3328 (Gatineau-Ottawa area or internationally)

Toll free : 1 800-333-0510 (in Canada)

Transport Canada - ASFAD

330 Sparks Street

Ottawa, ON

K1A 0N5

https://www.tc.gc.ca/recallls

SAFETY INFORMATION

PRIMARY CONTROL

Steering Wheel

To decrease vehicle speed or to stop

vehicle, press down the brake pedal

The steering wheel is located in front

with your right foot.

of the driver's seat.

The brake pedal is spring loaded and

The steering wheel steers the vehicle

should return to rest position when not

to the left or right.

pressed.

Turn the steering wheel in the direc-

tion you want to go.

Shift Lever

Grip the steering wheel with both

hands, without having thumbs rolled

around the steering wheel.

CAUTION

Under rough traill condiitiions or

when crossing an obstaclle, the

steeriing wheell coulld suddenlly

jerk on one side, causing hand or

wrist injuriies iif the thumbs are

rollled around the steering wheell.

1. Shift lever

2. Park

3. Reverse

A dynamic power steering (DPS) re-

4. Neutral

duces the effort to turn the steering

5. High range (forward)

wheel.

6. Low range (forward)

Accelerator Pedal

The shift lever is located on the lower

The accelerator pedal is located on

console, between the seats.

the right side of the brake pedal.

The shift lever is used to change the

The accelerator pedal controls the en-

gearbox position.

gine speed.

The vehicle must be stopped and

To increase or maintain vehicle

brakes applied prior to selecting any

speed, press on the accelerator pedal

gear.

with your right foot.

WARNING

To decrease vehicle speed, release

the accelerator pedal.

Thiis gearbox iis not desiigned to

shift whiile vehiicle is moving.

The accelerator pedal is spring loaded

and should return to rest position (idle)

Park

when not pressed.

The park position locks the gearbox to

Brake Pedal

help prevent vehicle movement.

The brake pedal is located on the left

WARNING

side of the accelerator pedal.

Always use the PARK (P) posiitiion

The brake pedal function is to slow

when the vehiiclle is not iin opera-

down or stop the vehicle.

tiion. The vehiiclle can rolll if the

shift lever is not set to P (PARK).

PRIMARY CONTROL

Reverse

The reverse position allows the ve-

hicle to go backwards.

NOTE:

In reverse operation, the engine RPM

is limited thus limiting the vehicle re-

verse speed.

WARNING

When driiving downhilll iin reverse,

gravity can iincrease the vehicle

speed above safe reverse speed.

Neutral

The neutral position disengages the

gearbox.

High Range (Forward)

This position selects the high speed

range of the gearbox. It is the normal

driving speed range. It allows the ve-

hicle to reach its maximum speed.

Low Range (Forward)

This position selects the low speed

range of the gearbox. It allows the ve-

hicle to move slowly with maximum

torque at the wheels.

NOTICE

Use the llow speed range to pulll a

trailer, carry heavy cargo, go over

obstacles or drive uphiilll and

downhiilll.

SECONDARY CONTROLS

Ignition Switch and Keys

NOTE:

If the ignition switch is left ON for more

The ignition switch is located on

the

than 30 minutes, engine will not start

upper console area.

unless ignition switch is turned OFF,

then ON again.

Keys

Basiic Key

The vehicle is delivered with 2 basic

key.

Those 2 mechanical keys do not have

speed or torque restrictions.

D.E.S.S. Key (Availlablle as an

option)

For all D.E.S.S. related option, see an

authorized Can-Am Off-road dealer

TYPICAL

for information.

1. OFF

Diigitally Encoded Security System

2. ON

(D.E.S.S.)

3. START

The ignition keys contain an electronic

OFF

circuit that gives it a unique electronic

The key can be inserted or removed in

serial number.

this position only.

The D. E. S. S. system reads the key

In OFF position, the electrical system

code and allows engine starting for

of the vehicle is disabled.

keys it recognizes.

The engine is shut down by turning

This vehicle can be operated using 3

the ignition switch to OFF position.

different types of key programming:

- Work

- Normal

- Performance

When the key is turned in this position,

the electrical system of the vehicle is

Refer to your dealer for complete

activated.

information.

The gauge should wake-up.

NOTE:

The vehicle lights are turned on.

Additional keys are available from

your dealer as an accessory.

The engine can be started.

START

This position starts the engine.

SECONDARY CONTROLS

D.E.S.S. Flexibiiliity

WARNING

The D. E. S. S. of your vehicle can be

Rolllovers, tipovers, collliisions and

programmed by your authorized Can--

loss of controll resultiing iin seriious

Am Off-road dealer to accept up to 8

injjury or death are possiblle wiith

different keys.

the performance or normall key.

Usiing the normall key iis not a sub-

If you have more than one D. E. S. S.

stiitute for the operator beiing pre-

equipped your vehicle, each can be

pared, quallifiied, and operatiing

programmed by your authorized Can--

with care.

Am Off-road dealer to accept the other

vehicle D.E.S.S. keys.

Performance Key

Headlight Dimmer Switch

The performance key allows the user

The headlight dimmer switch is lo-

to access the full torque of the engine

cated on the upper console.

as well as the top speed of the

vehicle.

This may be useful for riders who pre-

fer crisper throttle response, and for

environments where higher speeds

and greater acceleration are appropri-

ate. For example, in wide-open

straight trails, operators may prefer

the performance key.

Normall Key

The normal key limits the vehicle

speed to 70 km/h (43 MPH) and ap-

plies a torque reduction.

Work key

This switch is used to select either the

The work key allows for usage of

headlights OFF position, low or high

100% of maximum engine torque but

beams.

limits vehicle speed to 40 km/h (25

MPH).

2WD/4WD Switch

WARNING

The 2WD/4WD switch is located on

the upper console.

On steep downhiillls, the engiine

speed liimiiter may not prevent the

vehiiclle from acceleratiing beyond

this speed.

This key may be useful for riders who

prefer more gradual acceleration, or

for riding in environments where full

speed and high acceleration are not

desirable. For example, in narrow,

winding trails, operators may prefer a

normal key.

EQUIPMENT

Some features may not apply to your

model or could be optional.

Some on-product labels are not

shown on illustrations.

For information concerning the safety

labels, refer to Important On-Product

Labels.

Tilt Steering

The steering wheel height is

1. Cup holders

adjustable.

Adjust the steering wheel height to

NOTE:

face your chest, not your head.

Use only tight fitting containers, a

To adjust steering wheel height:

loose container can tip over and inter-

fere with feet movements. Do not use

1. Pull the tilt lever toward you.

cup holders while riding in rough

2. Move steering wheel to the desired

conditions.

position.

3. Release the tilt lever.

Passenger’s Handhold

The passenger’s handhold are located

directly in front of the passenger’s

seats.

1. Tilt lever

WARNING

Never adjust the steering wheel

1. Passenger handhold

height whille ridiing. You may lose

control.

Holding the handhold helps the pas-

senger brace against the movement

of the vehicle and helps keep hands

Cup Holders

and body inside the cockpit in the

Two cup holders are located on each

event of a rollover.

side of the console.

WARNING

Never use any part of vehiicle

cage as handholds. Hands can be

struck by objjects outside the

cockpiit or crushed in a rolllover.

EQUIPMENT

Storage Compartments

Tool Kit

The vehicle is equipped with different

A tool kit with basic tools is provided

types of storage compartments de-

with this vehicle.

signed to carry light objects.

It is located inside the glove box.

Closed Storage Compartment

This tool kit includes:

A storage compartment is available

- Pliers

behind the multifunction gauge on the

- Socket wrench 14 and 16 mm

driver side.

- Open wrench 15 and 17 mm

- Open wrench 10 and 13 mm

A glove box is available on the pas-

- Screwdriver (flat and Phillips)

senger side.

- Torx key T30

- Suspension adjustment tool

Footrests

The vehicle is equipped with driver

and passenger footrests to allow

firmly planting feet on vehicle floor,

which helps to maintain proper body

position while riding.

The footrests help minimize the risk of

leg or foot injury.

1. Storage compartment

2. Glove box

Always wear appropriate footwear.

See Riding Gear.

Opened Storage Compartments

Multiple opened storage compart-

Half Doors

ments are available in the console.

Half doors on each side of the cockpit

to help arms, legs or shoulders stay

WARNING

inside the vehicle, thus reducing the

When riding vehiicle, make sure

risk of injuries. Half doors may also

no object stored iin opened stor-

keep bushes or debris out of cockpit.

age compartments coulld cause

harm iin the event of a rolll over.

WARNING

Never operate the vehiiclle whiile

the doors are removed or opened.

1. Opened storage compartment

LH DOOR

EQUIPMENT

To open door, pull on handle.

- The multifunction gauge will

display the message: SEAT

BELT.

- The engine is started and shift lev-

er is moved out of PARK, vehicle

speed will be limited to a maximum

of approximately 20 km/h (12

MPH) on flat ground.

WARNING

The vehicle may reach higher or

lower speed depending on

iincllines.

LH EXTERIOR HANDLE

WARNING

There iis no indiicator liight or mes-

sage for the passengers seat bellt.

The driiver iis responsiblle for the

passenger safety and should en-

sure the passengers buckle their

seat bellt.

Fasteniing and Adjusting the Seat

LH INTERIOR HANDLE

Bellt

Seat Belts

The seat belt is equipped with a semi--

cinching tab that locks the lap belt

This vehicle is equipped with

points

when the webbing is under tension.

seat belts to help protect driver and

passenger in the event of a collision,

rollover, or tipover. The seat belts can

help keep occupants stay in the pas-

senger compartment.

WARNING

Wear seat bellts properlly at alll

times.

Seat bellts reduce the risk of iinjjury

in case of a crash and help to

keep llimbs inside the cockpit dur-

ing a rolllover or any accidents.

TYPICAL

1. Semi-cinching tab

If driver's seat belt is not fastened

when:

To fasten the seat belt, insert the latch

- The ignition is turned ON

plate into the buckle, then pull the belt

to ensure it is properly fastened.

- The seat belt indicator lamp will

be turned ON.

Adjust the seat belt tightly against

your body by pulling the shoulder belt

upwards.

EQUIPMENT

Passenger’s Seat

The front passenger’s seat can be ad-

justed forward and backward.

To adjust seat, move the seat lever

aside to unlock the seat.

Release the lever to lock the seat into

desired position.

TYPICAL

WARNING

Wear seat belt properly. Make

sure it remains securely fastened

and tightened agaiinst the body.

Make sure iit is not twisted or

defective.

To release the seat belt, push on the

WARNING

red button on the seat belt buckle.

Never adjjust the seat positiion

whiile vehiicle moving.

Driver’s Seat

The driver's seat can be adjusted for-

Fuel Reservoir Cap

ward and backward.

The fuel reservoir cap is located on

To adjust seat, move the seat lever

the right hand side of the vehicle.

aside to unlock the seat. Release the

lever to lock the seat into desired

position.

1. Seat lever

Refer to Fuel for information on fueling

procedure and fuel requirements.

WARNING

Never adjjust the seat position

whille driving.

EQUIPMENT

Winch

of 3000 RPM to increase charging

power to the battery.

WARNING

To avoiid severe injury or death or

WARNING

important components damages.

Make sure vehicle iis iin NEUTRAL

– Never use the winch cable/

(N) before iincreasiing engine

rope to retain a vehiicle during

RPM.

traillering.

– Never riide wiith the wiinch ca-

Cargo Box

blle/rope attached to a lload or

another vehicle.

The cargo box may be used for vari-

– Onlly use the winch to help a

ous types of cargo.

stuck vehiiclle (snow, mud,

etc.).

WARNING

– Always refer to the wiinch man-

To reduce the risk of lloss of con-

ufacturer''s instructiion before

trol or lloss of load, use the cargo

pullliing lloads.

box onlly in accordance with Car-

ryiing Loads iin the Safety Informa-

Refer to your winch guide included

tiion sectiion.

with your vehicle for proper winch

operation.

The winch can be actuated inside the

vehicle using the winch control switch

on the upper console.

NOTICE

Usiing the winch iintensively over a

long period of tiime may diischarge

the battery.

Intensive use of the winch may cause

Anchoring Hooks

the built-in circuit breakers to momen-

tarily turn OFF. In such a case, wait a

To provide anchoring point in order to

moment, then continue winching. The

secure cargo inside the cargo box, 4

breakers automatically turn ON once

anchoring hooks are located inside

they have cooled down.

the cargo area.

The following tips will help to reduce

the risk of discharging the battery:

- Always unreel manually: Unlock

the cable using the handle then

pull on the hook strap to unreel.

- Let the vehicle run while winching.

Do not stop vehicle immediately

after winching to let battery

recharge.

- Also, when winching for more than

30 seconds, it is recommended to

TYPICAL

increase engine RPM in the range

1. Anchoring Hooks

FUEL

Fuel Requirements

Premium

unleaded

NOTICE

gasoline with an

Allways use fresh gasolline. Gaso-

AKI (R+M)/2

1000R Engines

line wiilll oxiidize; the resullt iis loss

octane rating of

of octane, vollatiile compounds,

91, or a RON

and the production of gum and

octane rating of

varniish deposiits which can dam-

age the fuell system.

Regular

unleaded

Alcohol fuel blending varies by coun-

gasoline with an

try and region. Your vehicle has been

All Other

AKI (R+M)/2

designed to operate using the recom-

Engines

octane rating of

mended fuels, however, be aware of

87, or a RON

the following:

octane rating of

Use of fuel containing alcohol

above the percentage specified by

government regulations is not rec-

Use unleaded gasoline containing

ommended and can result in the

MAXIMUM 10% ethanol.

following problems in the fuel sys-

tem components:

- Starting and operating

difficulties.

- Deterioration of rubber or plas-

tic parts.

NOTICE

- Corrosion of metal parts.

Never experiment wiith other

- Damage to internal engine

fuels. Engine or fuel system dam-

parts.

ages may occur with the use of an

Inspect frequently for the presence

iinadequate fuell.

of fuel leaks or other fuel system

abnormalities if you suspect the

presence of alcohol in gasoline ex-

NOTICE

ceeds the current government

Do NOT use fuell from fuel pumps

regulations.

llabelled E85.

Alcohol blended fuels attract and

hold moisture which may lead to

fuel phase separation and can re-

Use of fuel labeled E15 is prohibited

sult in engine performance prob-

by U.S. EPA Regulations.

lems or engine damage.

Recommended Fuel

The gasoline must have the following

minimum octane requirements:

FUEL

Vehicle Fueling Procedure

8. Stop filling when the fuel reaches

the bottom of filler neck. Do not

WARNING

overfilll.

– Fuel iis fllammablle and explo-

WARNING

sive under certain condiitions.

– Never use an open flame to

Never top up the fuel tank before

check fuel llevell.

placing the vehiicle in a warm

– Never smoke or alllow flame or

area. As temperature increases,

spark in viciiniity.

fuell expands and may overfllow.

– Allways work in a welll-ventii-

lated area.

9. Fully tighten fuel reservoir cap

– Vehicle must be on a level sur-

clockwise until you hear a clicking

face to perform fuelling.

noise.

1. Place vehicle on a level surface.

NOTICE

2. Move the shift lever into PARK

Allways wiipe off any fuell spiilllage

position.

from the vehiiclle.

3. Stop engine.

WARNING

Always stop engine before

refueliing.

4. Have occupants get out of vehicle.

WARNING

Do not alllow anyone to remain iin

the vehiiclle whiile fuelling. If there

is a fiire or explosion during fuell-

ing, a vehicle occupant coulld be

unable to quiicklly lleave the area.

5. Slowly unscrew the fuel reservoir

cap counterclockwise to remove it.

WARNING

If a differential pressure condiitiion

is notiiced (whiistlling sound heard

when loosening fuell reservoir

cap) have vehiiclle inspected and/

or repaired before further

operatiion.

6. Insert the spout into the filler neck.

7. Pour fuel slowly so that air can es-

cape from the tank and prevent

fuel flow back. Be careful not to

spill fuel.

BREAK-IN PERIOD

Operation During Break-In

A break-in period of

operating

hours or 300 km (200 mi) is required

for the vehicle.

Engine

During the break-in period:

- Avoid full throttle operation.

- Avoid pressing accelerator pedal

more than 3/4 of the stroke.

- Avoid sustained accelerations.

- Avoid prolonged cruising speeds.

- Avoid engine overheating.

However, brief accelerations and

speed variations contribute to a good

break-in.

Brakes

WARNING

New brakes willl not operate at

theiir maximum effiiciency untiil

theiir break-iin iis complleted. Brak-

ing performance may be reduced,

so use extra caution.

Apply moderate brakiing force for

the 40 to 50 fiirst brakiing events.

Belt

A new belt requires a break in period

of 50 km (30 mi).

During the break-in period:

- Avoid strong acceleration and

deceleration.

- Avoid pulling a load.

- Avoid high speed cruising.

BASIC PROCEDURES

While reading this Operator’s Guide, remember that:

WARNING

Indicates a potential hazard which, if not avoided, could result

in serious injury or death.

Starting the Engine

Insert key in ignition switch and turn to the ON position.

Press the brake pedal.

NOTE: If shift lever is not set to PARK (P), the brake pedal must be pressed to

allow engine starting.

Turn the key to the start position and hold until the engine starts.

NOTE:

Do not press the accelerator pedal. If the accelerator pedal is pressed at least

50%, the engine will not start.

Release the engine start position immediately when the engine has started.

NOTICE

If engiine does not start after a few seconds, do not hold the start positiion

more than 10 seconds.

Refer to Troubleshooting.

Operating the Shift Lever

1. Apply the brakes and select the desired shift lever position while the engine is

at idle.

2. Release the brakes.

NOTICE

When changing gear selectiion, always completely stop the vehiicle and

apply the brakes priior to shiftiing. Damage to the gearbox may occur.

Choosing the Correct Range (Low or High)

It is important to avoid situations known to make the drive belt slip excessively.

The main reason the drive belt will slip is if the gearbox is in high range when it

should be in low range.

Pay attention to the following:

Low Range

Low range should be used whenever:

- Pulling

BASIC PROCEDURES

- Pushing

- Hauling a load

4x4 applications

–

Mud holes

–

Water holes

–

Crossing obstacles

–

Climbing onto trailer

–

Hill climbing

It is also recommended to use low range if driving for prolonged periods at

speeds under 24 km/h (15 MPH).

Please refer to Break-In Period for drive belt break-in information.

Hiigh Range

High is the default riding range.

Ellectroniic Driive Bellt Protection (if avaiilablle and actiivated on your model)

Some vehicles have the electronic drive belt protection function activated.

Refer to your authorized Can-Am dealer for availability and possible activation.

This function is activated when riding at too slow speed for the Hiigh Range,

such as in the following situations:

- Pulling

- Pushing

- Hauling a load

4x4 applications

–

Mud holes

–

Water holes

–

Crossing obstacles

–

Climbing onto trailer

–

Hill climbing

In the above mentioned situations the electronic drive belt protection will help

protect the CVT drive belt from being damaged by activating the engine torque

limiter. The gauge will also scroll a LOW GEAR message, suggesting the opera-

tor to immobilize the vehicle and shift to LOW GEAR.

NOTICE

Whenever the electronic drive belt protectiion is activated, you MUST shiift

in LOW range. Refer to Operatiing the Shiift Lever.

WARNING

Apply brakes to immobilize vehiiclle. Put shift lever in reverse (R), and

back down the hiilll, barely relleasing brakes to remaiin at llow speed. Do not

attempt to turn around. Never coast down hiilll whiile vehiiclle is iin neutrall.

Do not perform hard brakiing as it iincreases the riisk of tiipover.

BASIC PROCEDURES

Stopping the Engine and Parking the Vehicle

WARNING

Avoiid parking on steep sllope as the vehiicle may rolll away.

WARNING

Always put the vehiiclle in PARK when stopped or parked to prevent

rollliing.

WARNING

Avoiid parking iin pllaces where hot parts can start a fiire.

1. Select the flattest terrain available for parking.

2. Release accelerator pedal and use brakes to completely stop the vehicle.

3. Set shift lever in PARK position.

4. Remove the D. E.S. S. key from the D. E.S. S. post or turn the ignition key in

OFF position.

NOTE: If you must park on a steep incline or if the vehicle is carrying cargo,

block the wheels using rocks or bricks.

Tips for Maximizing Drive Belt Durability

Riding style and conditions have a direct impact on drive belt durability.

Your vehicle features a CVT system design that is optimized to offer the best

performance.

The CVT and drive belt have successfully endured thousands of miles of durabil-

ity tests.

However, to maximize drive belt durability and to prevent premature failures, it is

important that the operator understands the limits of a belt driven CVT system

and adapts their riding style and speed accordingly.

If riding in any of the conditions listed below, BRP highly recommends not to con-

stantly hold the throttle wide open (WOT) for more than five (5) minutes.

- High ambient temperatures (above 30 °C (86 °F)

- Heavy loads: Passengers / Heavy cargo

- Heavy drag: Soft sand / Hill climbing / Mud / Using a track kit.

After a few minutes at WOT, partially release the accelerator and allow the CVT

to cool down.

For more tips for maximizing the drive belt durability, refer to Choosing the Cor-

rect Range (Low or High).

SPECIAL PROCEDURES

NOTE:

NOTICE

Component failures resulting from

these events are not covered by

Stop the engine and draiin the

warranty.

water to avoiid damage to the

CVT.

Fuel Flooded Engine

If the engine does not start and it is

fuel-flooded, the drowned mode can

be activated to prevent fuel injection

and to cut ignition while cranking. Pro-

ceed as follows:

1. Move shift lever in park position.

2. Turn the ignition key in ON

position.

3. Press completely and HOLD ac-

TYPICAL

- LEFT SIDE OF VEHICLE

celerator pedal.

UNDER CARGO BOX

4. Turn ignition key in START posi-

1. CVT drain

tion during 10 seconds.

5. Release the ignition key.

See an authorized Can-Am dealer , a

6. Release

accelerator

pedal

repair shop or person of your choos-

completely.

ing to have the CVT inspected and

7. Turn the ignition key to START po-

cleaned.

sition again to allow starting.

If it does not work:

What to do if Battery is

Drained Out

1. Remove the spark plugs. Refer to

Spark Plugs in Maintenance Pro-

The vehicle can be jump started by

cedures section.

using the RED (+) cable to the battery

2. Crank engine several times.

positive pole and the BLACK (-) cable

3. Install new spark plugs if possible

to the vehicle chassis.

or clean and dry spark plugs.

NOTICE

If engine does not start, see an au-

Do not connect any electriicall

thorized Can-Am Off-road dealer, a

source to the steeriing column or

repair shop, or a person of your own

components which are in contact

choosing for maintenance, repair, or

wiith DPS.

replacement.

Please refer to the US EPA Emis-

What to Do if Vehicle Rolled

sion-Related Warranty contained

Over

herein for information about warranty

claims.

Abrupt maneuvers, sharp turns, side

hilling or accident may cause vehicle

What to do if Water is

to rollover.

Suspected to be in the CVT

Should the vehicle be rolled over, it

If water is present in the CVT, the en-

will be necessary to have it trans-

gine will accelerate but the vehicle will

ported to an authorized Can-Am Off--

remain still.

road dealer for inspection as soon as

possible. NEVER START THE

ENGINE!

TUNE YOUR RIDE

Suspension Adjustment

Spring Preload

Guidelines

36 mm

Your vehicle handling and comfort de-

(1.42 in)

pend upon suspension adjustments.

WARNING

Suspension Adjustments

Suspension adjustment coulld af-

fect vehiiclle handling. Always take

Spriing Preload Adjustment

time to familiarize yourself with

the vehicle''s behavior after any

WARNING

suspensiion adjjustment has been

The lleft and right shock adjust-

made.

ment on front or rear suspension

must always be set to the same

Choice of suspension adjustments

position.

vary with vehicle load, personal pref-

Never adjust one shock only.

erence, riding speed and terrain

Uneven adjustment can cause

condition.

poor handlling and lloss of stability,

which coulld lead to an accident.

The best way to set up the suspen-

sion, is to start from factory settings,

Following are guidelines to fine-tune

then customize each adjustment one

suspension. Use suspension adjust-

at a time.

ment tool provided in the tool kit.

Front and rear adjustments are inter-

related. It may be necessary to read-

just the rear shock absorbers after

adjusting front shock absorbers for

instance.

Test run the vehicle under the same

conditions; trail, speed, load, etc.

Change one adjustment and retest.

Proceed methodically until you are

satisfied.

Suspension Factory Settings

The spring preload affects the ground

Factory settings are suitable for al-

clearance of the vehicle.

most all conditions.

Shorten the springs for a firmer ride

Take into consideration that an in-

and rough conditions.

crease in ground clearance can affect

the handling of the vehicle.

Lengthen the springs for a softer ride

and smooth conditions.

Front Suspension

Adjust spring preload by turning the

adjuster ring.

Spring Preload

45 mm

(1.77 in)

Rear Suspension

TRANSPORTING THE VEHICLE

When contacting a towing or transporting service, be sure to ask if they have a

flatbed trailer, loading ramp or power ramp to safely lift the vehicle and tie-down

straps. Ensure the vehicle is properly transported as specified in this section.

NOTICE

Do not tow this vehiiclle — towing can seriouslly damage the vehicle''s drive

system.

NOTICE

Avoid using chaiins to tiie the vehiicle — they may damage the surface fiin-

ish or plastiic components.

WARNING

To avoiid severe injury or death or important components damages.

– Never use the winch cable/rope to retaiin a vehicle during trailleriing.

– Never riide wiith the wiinch cablle/rope attached to a load or another

vehicle.

– Onlly use the winch to help a stuck vehicle (snow, mud, etc.).

– Always refer to the wiinch manufacturer''s instruction before pullliing

loads.

WARNING

Make sure alll accessories, cargo and lloose objjects inside the vehicle are

properlly secured, or remove iit to prevent from failling on the road and cre-

ating a hazard for folllowiing vehicles.

WARNING

Allways transport the vehicle faciing forward to avoiid damagiing the wiind-

shield or other components. Parts may detach during transport.

WARNING

Before attemptiing to mount vehicle onto a platform or a trailer, make sure

to respect the folllowiing safety precautions.

Safety Precautiions

The carrying item (platform or trailer or flat bed)

must be of appropriate dimensions and

Carrying equipment

capacity to safely support and transport the

vehicle.

Do not exceed vehicle hauling capacity and

Hauling vehicle

specifications. Ensure the trailer or platform is

properly secured to the hauling vehicle hitch.

TRANSPORTING THE VEHICLE

Safety Precautions

Ensure you have a good visibility during the

Visibility

entire maneuver.

The hauling vehicle and trailer must be on a

Terrain

leveled surface. Use wheel chocks on trailer

and hauling vehicle to avoid any movement.

Use ramps with proper rating and secure ramps

Ramps

to the trailer or platform. Avoid steep ramps.

Always make sure bystanders are not close to

Bystanders

the vehicle or the trailering equipment while

climbing up.

Make sure all accessories, cargo and loose

objects inside the vehicle are properly secured,

Accessories and cargo

or remove it to prevent from failing on the road

and creating a hazard for following vehicles.

Using Vehicle Power to Climb Onto Trailering Equipment

When vehicle can cllimb on its own power, proceed as folllows;

1. Wear protective gear.

2. Fasten seat belt.

3. Use low gear only (if equipped).

4. If vehicle has 4WD option, use it.

5. When driving remain seated at all times.

6. Ensure proper alignment on rails or platform.

7. Start from a sufficient distance from the trailer to align the vehicle in a straight

line with the ramps. Never attempt to turn while getting closer to the ramp.

Rear wheels might not be aligned once you get to the ramp and vehicle may

fall off.

8. Slowly climb the front wheels onto the ramp to verify alignment.

9. Back off the vehicle, verify ramps are still secure, then proceed at proper

speed.

10. Carefully drive vehicle onto platform or trailer. Use sufficient speed to climb

without spinning or abruptly accelerating. Avoid acceleration while on ramps

to prevent ramps movement.

11. If trailer is inclined towards front, simply let vehicle roll in without acceleration.

12. Once vehicle is climbed, put shift lever to Park. Apply brake locking mecha-

nism (if equipped).

When vehiicle cannot move on its own power, or iin case overshootiing is

a riisk or iif any dangerous conditiion prevents for embarkiing on its own

power, proceed using a wiinch;

Using a Winch to Pull Vehicle Onto Trailering Equipment

When vehicle cannot cllimb on iits own power, proceed as folllows;

100

TRANSPORTING THE VEHICLE

WARNING

Have the help of an assistant. One person shoulld be iin vehiclle to have

access to vehiiclle steering, brakes and winch switch, whille the other per-

son controlls the enviironment and safety of the maneuver.

WARNING

Ensure the winch hook can be safely attached to a proper anchoring

point. Use proper rigging.

NOTE:

If vehicle can be started safely, let engine idle during winching to avoid draining

the battery.

1. Place shift lever to NEUTRAL (N).

2. If the vehicle is equipped with a winch, use the winch to roll the vehicle on the

platform.

3. If the vehicle is not equipped with a winch, proceed as follows:

1. Attach strap to lower front bumper anchor.

2. Attach the strap to the winch cable of the towing vehicle.

3. Pull the vehicle on the flatbed trailer with the winch.

4. Put shift lever to Park. Apply brake locking mechanism (if equipped).

Securing Vehicle for Transport

WARNING

Never use the wiinch to secure the vehiiclle duriing transport.

1. Remove the key from the vehicle.

2. At rear, secure the vehicle on both sides using a strap around the suspension

arm as close to the wheel as possible.

3. At front, secure the vehicle on both sides using a strap around the lower sus-

pension arm as close to the wheel as possible.

101

LIFTING AND SUPPORTING THE VEHICLE

Front of Vehicle

1. Place vehicle on a flat non slippery

ground.

2. Ensure vehicle shift lever is set to

PARK.

3. Install an hydraulic jack under the

front skid plate.

4. Lift front of vehicle and install a

jack stand on each side under

frame section.

1. Lifting location under skid plate

2. Frame section to install jack stands

6. Lower hydraulic lift and ensure ve-

hicle is supported safely onto both

jack stands.

1. Front of vehicle

2. Frame section

5. Lower hydraulic lift and ensure ve-

hicle is supported safely onto both

jack stands.

Rear of Vehicle

1. Place vehicle on a flat non slippery

ground.

2. Activate 4WD mode.

3. Ensure vehicle shift lever is set to

PARK.

4. Install an hydraulic jack under the

skid plate.

5. Lift rear of vehicle and install a jack

stand on each side under frame

section in front of rear wheel.

103

MAINTENANCE SCHEDULE

Maintenance is very important to keep your vehicle in safe operating condition.

The vehicle should be serviced as per the maintenance schedule.

Proper maintenance is the owner’s responsibility. A warranty claim may be de-

nied if, among other things, the owner or operator caused the problem through

improper maintenance or use.

Perform periodic checks and follow the maintenance schedule. The maiinte-

nance schedule does not exempt the pre-ride inspection.

WARNING

Faiilure to properly maiintain the vehiclle accordiing to the maiintenance

schedulle and procedures can make it unsafe to operate.

Air Filter Maintenance Guideline

Air filter maintenance should be adjusted according to riding conditions.

Air filter maintenance must be increased in frequency when riding on snow, dry

sand, dirt, gravel or similar conditions which have a high dust or particle

dispersion.

Riding in a group in these conditions will require increasing the air filter mainte-

nance frequency further.

NOTE:

Accessory filters and pre-filter are available for such conditions. Contact an au-

thorized Can-Am off-road dealer for details.

Severe Duty Use

If your vehicle is used in the following conditions, refer to the Severe Duty section

of the maintenance schedule.

- Repeated hauling of loads at more than 75% the maximum capacity.

- The increase workload applied to the drive system accelerates the differ-

entials, gearbox/transmission, and engine oil life. This reduces internal

component longevity if not replaced more frequently.

- Driving at excessive speeds for prolonged amount of time.

Higher than the average utility or commercial use requires more frequent fluid

and wear component replacement than trail, recreational, or occasional utility

purposes.

Extreme Colld Condition

An engine that is frequently operated at or below an ambient temperature of -25 °

C (-13 °F) will require an increase in service and maintenance schedule.

Any combustion engine operated at these low ambient temperature will collect

an increased amount of condensation at every startup/warm-up.

Since the engine is not reaching operating temperatures for extended periods of

time, the oil is starting to be strongly diluted with water and gas residue (more

water content).

106

MAINTENANCE SCHEDULE

An engine needs to reach operating temperature, in order to be able to evaporate

condensate out of the oil.

If daily usage (work or leisure driving cycle) is similar to those mentioned below,

BRP strongly recommends changing the oil at least once a month.

Parameters of an increase in service and maintenance schedule:

- Engine not reaching the proper operating temperature during normal daily

usage

- Multiple starts and stops without reaching operating temperature

- Short idle periods

- Low RPM driving cycle in short distances without reaching operating

temperature.

NOTE:

BRP strongly recommends the installation of a block heater to help warm up the

liquids, this will also help to extend the oil lifetime.

Deep Mud / Water Use

Whether your vehicle is a X mr model or was accessorized for deep mud / water

use, this type of usage requires more frequent maintenance and inspections to

ensure debris has not infiltrated mechanical components.

If you regularly ride in deep mud or water, refer to the Deep Mud / Water section

of the maintenance schedule.

After every ride, be sure to perform the Post Operation Care for Deep Mud /

Water Environment .

Post Operatiion Care for Deep Mud / Water Environment

- Rinse the vehicle and its components with fresh water.

- Clean the CVT air filters.

- Drain the CVT compartment and clean if any water or mud is found.

- Inspect and clean engine air filters and engine air filter housing.

- Clean radiator.

- Visually inspect for any water accumulation in the vent hoses (fuel tank, gear-

box, front differential and rear final drive). If there is water, bring the vehicle to

your nearest authorized Can-Am off-road dealer for inspection and servicing

of main components related to the vents.

- Clean front and rear shock absorbers to prevent seal from damage by dust or

dirt.

- Clean drive shaft bellows and the propeller shaft yokes or boots.

Maintenance Schedule

Make sure to perform proper maintenance at recommended intervals as indi-

cated in the tables.

The maintenance chart intervals are based on 3 factors:

- Calendar time

107

MAINTENANCE SCHEDULE

- Vehicle hours

- Odometer reading.

Take in account whichever comes first to determine the maintenance threshold.

Your driving habits determines the factors you shall adhere too. For example:

- Someone who uses their vehicle every other weekend trail riding with friends

would most likely follow the odometer readiing to determine the maintenance

interval.

- Someone who uses their vehicle seldomly over the year or only on a few oc-

casions (hunting, camping) would most likely follow the callendar time to de-

termine the maintenance interval.

- Someone who uses their vehicle daily / weekly for long periods of time such

as agricultural / work would most likely follow the vehiicle hours to determine

the maintenance interval.

IMPORTANT: The following tables show the appropriate maintenance appli-

cation for the first

3 years. For subsequent years, repeat the same pattern

alternatively.

Regular Maintenance Overview

Callendar

Vehicle Hours

Odometer

Regullar Duty

Years

200

3000 km (1900 mi)

400

6000 km (3700 mi)

A and B

600

9000 km (5600 mi)

Severe Duty and Mud/Water Maiintenance Overview

Severe Duty

Callendar

Vehicle Hours

Odometer

and Deep Mud /

Years

Water

0.5

100

1500 km (900 mi)

A+

200

3000 km (1900 mi)

A+ and A

1.5

300

4500 km (2800 mi)

A+

400

6000 km (3700 mi)

A+ and A and B

2.5

500

7500 km (4700 mi)

A+

600

9000 km (5600 mi)

A+ and A

108

MAINTENANCE SCHEDULE

REGULAR DUTY

A=Adjust

Every year

Every 2 years

C=Clean

I=Inspect

200 hours

400 hours

L=Lubricate

R=Replace

3000 km

6000 km

T=Torque

(1900 mi)

(3700 mi)

Air and Fuel Delivery

Engine air filter

I, C or R

Air delivery components and function (airbox,

I, C

throttle body, ducts, clamps)*

Fuel components and function (Fuel tank cap,

fuel tank, hoses, clamps, leaks)*

Fuel pump pressure

Body; Chassis and Accessory

Cage fasteners

Seat belts retractors, buckles and

I, C

semi-cinching

Winch

I, C

Door latches, hinges and key barrels

L, T

Engine and Cooling

Engine oil and filter

I, A

Valve clearance (Regardless of calendar

I, A

(Mono cyl.

time)

(V-twin engines)

engines)

Spark plugs (Regardless of calendar time)

Engine seals and gaskets

Engine cooling components (Concentration,

I, A

level, hoses condition, clamps, leaks)*

Engine Coolant

Every 5 years or 12 000 km (7500 mi)

Radiator

Exhaust and Emissions

Fuel tank vent breather filter (Non EVAP

models)

Canister vent pre-filter (CARB and EVAP

models)

Exhaust components (gaskets, pipes, muffler

I, C

condition, leaks)

Muffler spark arrester

I, C

109

MAINTENANCE SCHEDULE

REGULAR DUTY

A=Adjust

Every year

Every 2 years

C=Clean

I=Inspect

200 hours

400 hours

L=Lubricate

R=Replace

3000 km

6000 km

T=Torque

(1900 mi)

(3700 mi)

Debris around exhaust pipe and muffler area

Brake

Brake components and function (Fluid level,

brake pads, brake discs, calipers, lines and

I, C, L, A

master cylinder*)

Brake fluid

Every 2 years

Drive

Replace at first 3000 km (1900 mi) and

Gearbox oil

6000 km (3700 mi), then follow the

regular schedule

Gearbox oil

I, A

Front differential oil

I, A

Rear final drive oil (Mono-cyl. engine)

I, A

Tires (Wear, pressure)

I, A

Wheel lug nuts

Beadlock screws (if equipped)

Drive components and function*

Controls

Gearbox lever operation

I, A

Throttle operation

Continuously Variable Transmission (CVT)

CVT components and function*

I, C, L

Slide shoes in driven pulley (Mono cyl.

engines)

Electrical

Battery connections and condition

I, C

Modules fault codes and applicable software

updates

Operation of controls switches and lighting*

Vehicle speed sensor (VSS) (Mono cyl.

engines)

Steering

110

MAINTENANCE SCHEDULE

SEVERE DUTY

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Air and Fuel Delivery

Engine air filter

I, C

Air delivery components and

function (airbox, throttle body, ducts,

I, C

clamps)*

Fuel components and function (Fuel

tank cap, fuel tank, hoses, clamps,

leaks)*

Fuel pump pressure

Body, Chassis and Accessory

Cage fasteners

Seat belts retractors, buckles and

I, C

semi-cinching

Winch

I, C

Door latches, hinges and key barrels

L, T

Engine and Cooling

Engine oil and filter

I, A

Valve clearance (Regardless of

(V-twin

(Mono cyl.

calendar time)

engines)

Spark plugs (Regardless of calendar

time)

Engine seals and gaskets

Engine cooling components

(Concentration, level, hoses

I, A

condition, clamps, leaks)*

Engine coolant

Every 5 years or 12 000 km (7500 mi)

Radiator

Exhaust and Emissions

Fuel tank vent breather filter (Non

EVAP models)

Canister vent pre-filter (CARB and

EVAP models)

112

MAINTENANCE SCHEDULE

SEVERE DUTY

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Exhaust components (gasket, pipes,

I, C

muffler condition, leaks)*

Muffler spark arrester

Debris around exhaust pipe and

muffler area

Brake

Brake components and function

(Fluid level, brake pads, brake discs,

I, C, L, A

calipers, lines and master cylinder)*

Brake fluid

Every 2 years

Drive

Replace at first

1500 km (900 mi) and at 3000

Gearbox oil and filter

km (1900 mi), then follow the regular schedule

Gearbox oil and filter

I, A

Front differential oil

I, A

Rear final drive oil (Mono-cyl.

I, A

engine)

Tires (Wear, pressure)

I, A

Wheel lug nuts

Beadlock screws (if equipped)

Drive components and function*

Controls

Gearbox lever operation

I, A

Throttle operation

Continuously Variable Transmission (CVT)

CVT components and function*

I, C, L

Slide shoes in driven pulley (Mono

cyl. engines)

Electrical

Battery connections and condition

I, C,

Modules fault codes and applicable

software updates

113

MAINTENANCE SCHEDULE

DEEP MUD / WATER

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Air and Fuel Delivery

Engine air filter

Air delivery components and

function (airbox, throttle body, ducts,

clamps)*

Fuel components and function (Fuel

tank cap, fuel tank, hoses, clamps,

leaks)*

Fuel pump pressure

Body and Chassis

Cage fasteners

Seat belts retractors, buckles and

I, C

semi-cinching

Winch

Door latches, hinges and key barrels

L, T

Engine and Cooling

Engine oil and filter

I, A

Valve clearance (Regardless of

(V-twin

(Mono cyl.

calendar time)

engines)

Spark plugs (Regardless of calendar

time)

Engine seals and gaskets

Engine cooling components

(Concentration, level, hoses

I, A

condition, clamps, leaks)*

Coolant

Every 5

years or 12 000 km (7500 mi)

Radiator

Exhaust and Emissions

Fuel tank vent breather filter (Non

EVAP models)

Canister vent pre-filter (CARB and

EVAP models)

115

MAINTENANCE SCHEDULE

DEEP MUD / WATER

A+

Every 6

Every 2

A=Adjust

Every year

months

years

C=Clean

I=Inspect

200 hours

100 hours

400 hours

L=Lubricate

R=Replace

3000 km

1500 km

6000 km

T=Torque

(1900 mi)

(900 mi)

(3700 mi)

Exhaust components (gasket, pipes,

I, C

muffler condition, leaks)*

Muffler spark arrester

Debris around exhaust pipe and

muffler area

Brake

Brake components and function

(Fluid level, brake pads, brake discs,

I, C, L, A

calipers, lines and master cylinder)*

Brake fluid

Every 2 years

Drive

Replace at first

1500 km (900 mi) and at 3000

Gearbox oil and filter

km (1900 mi), then follow the regular schedule

Gearbox oil and filter

I, A

Front differential oil

I, A

Rear final drive oil (Mono-cyl.

I, A

engine)

Tires (Wear, pressure)

I, A

Wheel lug nuts

Beadlock screws (if equipped)

Drive components and function*

Controls

Gearbox lever operation

I, A

Throttle operation

Continuously Variable Transmission (CVT)

CVT components and function*

I, C, L

Slide shoes in driven pulley (Mono

cyl. engines)

Electrical

Battery connections and condition

I, C

Modules fault codes and applicable

software updates

116

MAINTENANCE PROCEDURES

This section includes instructions for

basic maintenance procedures.

Due to the complexity of some of the

maintenance procedures, good me-

chanical skills are required. If you are

not comfortable with these proce-

dures, do not hesitate to contact an

authorized Can-Am off-road dealer,

repair shop or person of your own

choosing.

Align the BRP logo with the locat-

ing dowel.

WARNING

Unlless otherwise indiicated, al-

ways turn iigniition swiitch to the

OFF position before performiing

any maiintenance and remove

key.

WARNING

Should removall of a llockiing de-

vice be required (e.g. llock tab,

self-lockiing fastener, etc.) , all-

BRP logo

ways replace iit wiith a new one.

Locating dowel pin

Accessing Maintenance

Components

Front Serviice Cover

To open the front service cover, pull

up on handle toward the front.

1. Locating slot on underside of service cover

3. Slide the front edge of the service

cover under the front fascia.

4. Push down cover making sure all

the tabs are fully seated.

Engiine Serviice Cover

1. Handle

The engine service cover gives an ac-

It is very important to follow the steps

cess to the following components:

shown to close the front service cover.

- Engine oil filter

- Engine front spark plug.

1. Locate the trim clips under the

service cover.

1. Remove the seats.

123

MAINTENANCE PROCEDURES

NOTE: On MAX models, remove the

rear passenger seats.

2. Remove the plastic rivets and the

dart.

3. Remove the engine service cover.

NOTE:

If installed, no need to remove the

acoustic panel from the engine serv-

ice cover.

1. Pull toward the front

2. Lift

Rear Body Modulle

To remove the rear body module;

1. Remove cargo box retaining

screws.

4. The installation is the reverse of

the removal procedure.

Seat Cushion and Backrest

1. Remove the seat cushion by lifting

the front up and pulling toward the

front.

RH SIDE SHOWN, REPEAT ON LH SIDE

1. Lift front of seat

2. Pull toward the front

2. Remove the backrest by pulling

the lower part toward the front and

lifting up.

124

MAINTENANCE PROCEDURES

Tighteniing Torque

NOTICE

When ridiing iin dusty conditions or

Cargo box

2.5 ± 0.5 Nm

sand, the air box needs to be

retaining

(22 ± 4 lbf-in)

cleaned before every riide.

screw

Upper

NOTE:

cage

Riding in a group, under these condi-

extension

tions, increases the frequency of the

screw

24.5 ± 3.5 Nm

air filter maintenance.

(18 ± 3 lbf-ft)

Lower

Removing the Engiine Air Fiilter

cage

extension

Remove side access cover by un-

screw

screwing the quarter turn fasteners.

ENGINE AIR FILTER

NOTICE

Never modiify the aiir intake sys-

tem. Otherwise, engine perform-

ance degradatiion or damage can

occur. The engiine is callibrated to

operate speciifiicallly with these

components.

1. Quarter turn fasteners

Engiine Air Fiilter Repllacement

Guideliine

Unlatch air filter cover and remove air

filter.

Engine air filter inspection and re-

placement frequency should be ad-

justed according to riding conditions

as it is critical to ensure proper engine

performance and life span.

Engine air filter inspection and re-

placement frequency must be in-

creased for the following severe riding

conditions:

- Riding on dry sand.

- Riding on dry dirt covered

TYPICAL - RH SIDE OF VEHICLE, UNDER

surfaces.

CARGO BOX

- Riding on dry gravel trails or simi-

1. Air filter cover

lar conditions.

2. Latches

- Riding in areas with high concen-

3. Duck bill valve

tration of seeds or crop husks.

– Riding in severe snow conditions.

The filter fits tightly over the outlet

tube and there will be some initial re-

sistance. Gently move the end of the

filter back and forth to break the seal,

then rotate while pulling straight out.

126

MAINTENANCE PROCEDURES

Avoid knocking the filter against the

2. Apply pressure by hand on the

housing.

outer rim of the filter, not the

flexible center.

Clleaniing the Engine Aiir Fiilter

Inspect and carefully clean gasket

in the groove of the cover. Replace

1. Inspect the filter for any signs of

if damaged.

leaks. A streak of dust on the clean

Secure air filter cover with latches.

side of the filter is a telltale sign.

Replace filter if there is any dam-

ages. Eliminate any source of air

leaks before installing a new filter.

2. Clean engine air filter by tapping

out heavy dust from paper ele-

ment, this will allow dirt and dust to

get out of the paper filter.

NOTICE

It is not recommended to bllow

compressed aiir on the paper ele-

ment; this coulld damage the pa-

per fiibers and reduce its fiiltration

Air filter cover

abillity when used in dusty envii-

Latches

ronments. If engiine aiir fillter iis too

Duckbill valve

dirty and cannot be clleaned foll-

Reinstall the air filter access door

lowing the recommended proce-

and secure it with the quarter-turn

dure, iit should be repllaced.

screw.

3. Inspect air filter housing for cleanli-

CVT Air Filter

ness. Clean if necessary.

4. Use a clean damp cloth to wipe

CVT Air Fiilter Repllacement

both the filter sealing surface and

Guideliine

the inside of the inlet tube. Ensure

CVT air filter inspection and replace-

that the inlet tube sealing area is

ment frequency should be adjusted

undamaged.

according to riding conditions as it is

critical to ensure proper engine per-

Duckbiilll Valve Cleaning

formance and life span.

Visually check and physically squeeze

Under the following severe riding con-

the duckbill valve.

ditions, the inspection and replace-

ment frequency must be increased:

NOTICE

- Riding on dry sand.

Make sure the duckbill vallve iis

- Riding on dry dirt covered

flexible and not iinverted, dam-

surfaces.

aged or plugged.

- Riding on dry gravel trails or simi-

lar conditions.

Installliing the Engine Aiir Fiilter

- Riding in muddy conditions.

- Riding in areas with high concen-

1. Insert the filter carefully.

tration of seeds or crop husks.

1. Seat the filter by hand, making

certain it is inserted completely

into the air cleaner housing.

127

MAINTENANCE PROCEDURES

- Riding in severe snow conditions.

NOTICE

When riding iin dusty condiitiions or

sand, the air fillter needs to be

clleaned before every ride.

NOTE:

Riding in a group, under these condi-

tions, increases the frequency of the

air filter maintenance.

1. Seal touching

2. Gap

Removiing the CVT Aiir Fiilter

2. Reinstall CVT air filter.

3. Reinstall fasteners.

1. Remove fasteners

Tighteniing Torque

CVT air filter

3.5 ± 0.5 Nm

retaining

(31 ± 4 lbf-in)

screw

Evaporative Emission

System Pre-Filter (If

Equipped)

Evaporative Emission System

2. Remove the CVT air filter.

Pre-Fillter Replacement

1. Remove rear body module, refer to

Inspectiing and Cleaning the CVT

Accessing

Maintenance

Air Fiilter

Components.

1. Inspect filter and replace

2. On LH side, remove side panel.

damaged.

3. Remove the hose clamps.

2. Remove the seals.

4. Remove the retaining screws.

3. Clean filter and seals using a solu-

5. Remove the pre-filter assembly.

tion of soft soap and water, then

rinse.

4. Gently shake off excess water and

allow filter and seals to dry at room

temperature.

5. Clean inside the CVT air inlet with

a vacuum cleaner.

Installling the CVT Air Fillter

1. Install seals in CVT filter. Make

sure the upper ends of the seals

1. Pre-Filter

touch and there is a gap at the bot-

2. Retaining screw

tom to allow water to drain.

3. Clamps

128

MAINTENANCE PROCEDURES

6. Install a new pre-filter assembly.

Veriifyiing the Engine Oill Level

(V-Twiin)

Tiightening Torque

NOTICE

Pre-filter

Operatiing the engiine wiith an im-

2.5 ± 0.5 Nm

retaining

proper level may severely dam-

(22 ± 4 lbf-in)

screw

age engiine.

7. Secure hoses with clamps.

8. Install all other removed parts.

NOTICE

Check the oiil llevell when the en-

ENGINE OIL

giine iis COLD.

Recommended Engine Oill

Place vehicle on a level surface.

Rotax^® engines were developed and

Clean around dipstick to avoid for-

validated using the XPS^® oil.

eign particles falling down the

BRP recommends the use of its XPS

tube.

engine oil or an equivalent at all time.

Damage caused by the use of an oil

not suitable for the engine may not be

covered by the BRP Limited Warranty.

XPS Recommended Engine Oil

General

5W40 synthetic blend

purpose

oil

Cold

Unscrew dipstick then remove it

temperature

0W40 synthetic oil

and wipe clean.

Reinstall dipstick, screw in it

Warm

completely.

temperature

10W50 synthetic oil

Remove dipstick and check oil lev-

el. It should be near or equal to the

If the recommended XPS engine oil is

upper mark.

not available:

- Use a 4-stroke SAE engine syn-

thetic or synthetic blend oil meet-

ing or exceeding the following

lubricant industry specifications.

- Always check the API service label

MIN

certification on the oil container, it

MAX

must contain at least one of the in-

dicated standards.

If the level is between marks, rein-

- API serviice classificatiion

stall the dipstick.

SN, or

If the level is below the lower mark,

– JASO MA2

add oil as follow:

- Place a funnel into the dipstick

hole.

129

MAINTENANCE PROCEDURES

- Add a small amount of recom-

8. Clean the magnetic drain plug

mended oil and recheck oil

from metal shavings and residue.

level.

- Continue to add oil until the lev-

NOTE: Presence of debris gives an

el reaches the upper mark.

indication of internal engine damage.

NOTICE

9. Install a NEW gasket ring on the

drain plug.

Do not overfiilll. Wiipe off any

spilllage.

NOTICE

Never use the gasket riing a sec-

Changiing the Engine Oil

ond tiime. Always replace with a

new one.

NOTICE

Engiine oiil and oill fiilter must be re-

10. Install and tighten drain plug to the

pllaced at the same tiime.

recommended specification.

Oil change and oil filter replacement

Tighteniing Torque

should be done with a warm engine.

30 ± 2 Nm

Drain plug

CAUTION

(22 ± 1 lbf-ft)

The engine oill can be very hot.

11. Replace oil filter, refer to Oil Filter.

Wait untill engine oill iis warm.

12. Refill engine, refer to Recom-

mended Engine Oil.

Place the vehicle on a level

surface.

NOTE: For engine oil capacity, refer

to Technical Specifications.

Clean the dipstick area.

Remove the dipstick.

13. Start engine and let it idle for a 60

Place a drain pan under the engine

seconds.

drain plug area.

14. Stop engine.

Clean the drain plug area.

15. Check the oil level immediately, re-

Unscrew drain plug and discard

fer to Verifying the Engine Oil

the gasket ring.

Level.

16. Refill as necessary.

17. Ensure oil filter and drain plug

areas are not leaking.

18. Dispose oil and filter as per your

local environmental regulations.

Oil Filter

Removing the Oil Fiilter

1. If not already done, remove the en-

gine service cover.

Gasket ring (discard)

2. Clean oil filter area.

Drain plug

Allow oil to drain completely from

the crankcase.

130

MAINTENANCE PROCEDURES

2. Wet a NEW O-ring with engine oil

and slip onto oil filter cover.

3. Install the new filter into the cover.

4. Apply engine oil to the seal on the

open end of the oil filter.

3. Remove oil filter cover.

4. Remove and discard oil filter.

1. Slightly oil

2. Slightly oil

NOTICE

Pay attention to avoid pinching

TYPICAL

the O-ring duriing fiilter and cover

1. Oil filter screw

iinstalllatiion.

2. Oil filter cover

3. O-ring

5. Install the cover on the engine.

4. Oil filter

6. Tighten oil filter cover screws to

recommended specification.

Installliing the Oill Fiilter

1. Check and clean the oil filter inlet

Tightening Torque

and outlet area for dirt and other

contaminations.

Oil filter cover

10 ± 1 Nm

screws

(89 ± 9 lbf-in)

7. Wipe off any oil spillage on engine.

RADIATOR

Inspectiing and Cleaniing the

Radiiator

Periodically check the radiator area

for cleanliness.

1. To access radiator, pull lower part

of front grille and slide it down.

1. Inlet bore from the oil pump to the oil filter

2. Outlet bore to the engine oil providing

system

131

MAINTENANCE PROCEDURES

solution (50% distilled water,

50% antifreeze)

NOTICE

Allways use ethylene-glycoll antii-

freeze containing corrosion iinhiibi-

tors speciifiicallly for internal

combustiion alluminum engines.

Verifying the Engiine Coollant Levell

2. Inspect radiator and hoses for

leaks or any damage.

WARNING

3. Inspect radiator fins. They must be

Check coolant levell with engiine

clean, free of mud, dirt, leaves and

colld.

any other deposit that would pre-

vent the radiator to cool properly.

1. Place vehicle on a level surface.

If available, use a garden hose to

2. Remove the coolant tank access

rinse the radiator fins.

cover.

CAUTION

Never cllean radiator wiith your

hands when it iis hot. Let the radia-

tor cooll down before cleaning.

NOTICE

Be carefull not to damage the radii-

ator fins when clleaniing. Do not

use any object/tooll that coulld

1. Coolant tank access cover

damage the fins. When hosing,

use low pressure onlly. Never use

a HIGH PRESSURE washer.

WARNING

ENGINE COOLANT

In order to avoid potentiall burns,

do not remove the pressure cap or

Recommended Engiine Coolant

loosen the coolant draiin plug if

1. XPS recommended coolant

the engine is hot.

3. Ensure cooling system is full up to

XPS Extended llife pre-mixed

the Max line.

coolant

Alternative, or if the XPS product is

not available.

- Distilled water and antifreeze

132

MAINTENANCE PROCEDURES

2. Unscrew coolant drain plug parti-

ally to drain the coolant into a suit-

able container.

Adding Coollant

1. Remove the coolant tank pressure

cap.

V-TWIN ENGINE

1. Oil filter cover

2. Water pump cover

3. Coolant drain plug

3. Disconnect the lower radiator hose

from the water pump cover and

drain the remaining coolant into a

suitable container.

4. Tighten the coolant drain plug to

specification.

Tightening Torque

2. Add coolant in system as neces-

sary. Use a funnel to avoid spill-

Coolant drain

10 ± 1 Nm

age. Do not overfiilll.

plug

(89 ± 9 lbf-in)

3. Properly reinstall pressure cap on

5. Reinstall radiator hose.

cooling tank.

6. Fill cooling system with coolant, re-

4. Reinstall cooling tank access

fer to Bleeding the Cooling System

cover.

procedure.

NOTE:

Blleediing the Coolling System

A cooling system that frequently re-

quires addition of coolant is an indica-

1. Remove the pressure cap.

tion of leaks or engine problems.

2. Fill coolant system until it is full up

to the Max line on the coolant tank.

Replacing the Engiine Coolant

WARNING

In order to avoid potentiall burns,

do not remove the pressure cap or

loosen the coollant drain plug if

the engine is hot.

1. Remove the cooling system pres-

sure cap.

133

MAINTENANCE PROCEDURES

3. Install pressure cap.

1. From the rear of the vehicle, clean

4. Run engine at idle with the pres-

the areas around the muffler.

sure cap ON until the cooling fan

2. Clean the areas around the ex-

cycles on for a second time.

haust pipe.

5. Stop the engine and let it cool

down.

WARNING

Clean allso under the heat shields.

WARNING

In order to avoiid potentiial burns,

Inspecting and Cleaning the

do not remove the pressure cap iif

Muffler Spark Arrester

the engiine iis hot.

CAUTION

6. When the engine is cool, remove

Never perform this operation iim-

pressure cap and add coolant if

mediatelly after the engine has

required.

been running as exhaust system

7. Install pressure cap.

is very hot.

8. After the next ride, following this

procedure, check coolant level.

Add coolant as required. Refer to

1. Remove and discard the tail pipe

Verifying the Engine Coolant Level

retaining screws.

in this section.

EXHAUST SYSTEM

Cleaning the Area Surrounding the

Exhaust System

WARNING

Debris accumulation coulld lead to

a vehicle fire when the exhaust

system iis hot and the debriis are

driied.

In some cases, that coulld result iin

V-TWIN ENGINE CONFIGURATION

serious properlly damages, injju-

2. Remove exhaust tail pipe, gasket

ries or even death.

(discard) and spark arrester.

Cllean often and regularlly the area

surroundiing the exhaust system

when riding iin swamp, bog, hay or

dead leaves.

In other situatiions, clean as per

maiintenance schedule

requirement.

CAUTION

Never perform thiis operation im-

mediiatelly after the engiine has

TYPICAL

been runniing because exhaust

1. Tail pipe

system iis very hot.

2. Gasket (discard)

3. Spark arrester

134

MAINTENANCE PROCEDURES

3. Remove carbon deposits from the

Veriifyiing the Gearbox Oiil Levell

spark arrester using a brush.

(V-Twiin)

Place the vehicle on a level

NOTICE

surface.

Use a metalllic soft brush and be

Select PARK position.

careful to avoiid damaging spark

Clean dipstick area.

arrester mesh.

Remove the gearbox oil dipstick.

4. Inspect mesh of spark arrester for

any damage. Replace as required.

5. Inspect spark arrester chamber in

muffler. Remove any debris as

required.

6. Reinstall the muffler spark arrester

in the reverse of the removal pro-

cedure. However pay attention to

the following.

Wipe and reinstall the dipstick.

Tighten to specification.

Remove dipstick again and check

oil level. It should be near or equal

Tiightening Torque

to the upper mark.

Tail pipe

32 ± 2 Nm

retaining

(24 ± 1 lbf-ft)

screw

GEARBOX

MIN.

Recommended Gearbox Oill

MAX.

The XPS oil is specially formulated to

Operating range

meet the lubrication requirements of

this gearbox. BRP strongly recom-

Add oil (if required):

mends the use of its XPS oil.

1. Place a funnel into the dipstick

NOTICE

hole.

2. Add a small amount of recom-

Do not use another type of oil

mended oil.

when serviiciing.

3. Recheck oil level often.

4. Repeat the above procedures

XPS Recommended Gearbox Oill

until oil level reaches the dip-

stick's upper mark.

75W140 Synthetic gear oil

Alternative, or if not availlablle

75W 140 API GL-5 Synthetic gear

oil

135

MAINTENANCE PROCEDURES

NOTICE

Tighteniing Torque

Operatiing the gearbox wiith an iim-

20 ± 2 Nm

proper oill level may severely dam-

Drain plug

(15 ± 1 lbf-ft)

age gearbox.

9. Refill gearbox.

NOTE:

NOTE: The oil should be level with

Do not overfiilll. Wipe off

any

the bottom of the oil level orifice.

spilllage.

8. Properly tighten oil dipstick.

NOTICE

Use ONLY the recommended type

Changiing the Gearbox Oiil

of oiil.

Place the vehicle on

level

surface.

10. Reinstall dipstick.

Clean the following areas.

11. Lubricate the VSS O-ring.

Drain plug area.

Super Lube Grease

12. Wipe off any spillage.

FRONT DIFFERENTIAL

Recommended Front Diifferentiiall

Oiil

The XPS oil is specially formulated to

meet the lubrication requirements of

this differential. BRP strongly recom-

mends the use of its XPS oil.

Dipstick area.

NOTICE

Do not use another type of oiil

when serviiciing.

XPS Recommended Front

Diifferentiiall Oill

75W90 Synthetic gear oil

Allternatiive if XPS Product is not

Avaiilable

Place a drain pan underneath the

75W90 (API GL-5) synthetic gear oil

oil drain plug area.

Remove the dipstick.

Remove the drain plug.

Verifying the Front Diifferentiial Oiil

Let oil completely drain from

Level

gearbox.

1. Place the vehicle on a level

Clean drain plug from any metallic

surface.

particles.

Install the drain plug.

136

MAINTENANCE PROCEDURES

2. Clean filler plug area prior to

checking oil level.

VISCO-LOK

DIFFERENTIAL

(NO

ACTUATOR)

7. Let oil drip completely.

3. Remove the filler plug.

8. Install drain plug.

4. Check oil level. The oil should

reach the lower edge.

Tightening Torque

5. Reinstall the filler plug.

2.5 ± 0.5 Nm

Drain plug

Tiightening Torque

(24 ± 4 lbf-in)

16.5 ± 2.5 Nm

9. Refill differential with recom-

Filler plug

(146 ± 22 lbf-in)

mended

oil

for

optimal

performance.

10. For the differential oil capacity, re-

Changing the Front Diifferentiial Oiil

fer to Technical Specifications.

Place vehicle on a level surface.

11. Reinstall filler plug.

Set gearbox in park position.

From underneath the vehicle,

Tightening Torque

clean the drain plug area.

16.5 ± 2.5 Nm

Filler plug

(146 ± 22 lbf-in)

SPARK PLUGS

Accessing the Spark Plug(s)

The front spark plug can be reached

by removing the engine service cover.

Refer to Accessing the Maintenance

Components for the procedure.

The rear spark plug can be reached

Drain plug

through the right rear wheel arch.

Place a drain pan under the rear

differential.

Removiing the Spark Plug

Remove drain plug.

Unscrew filler plug.

1. Unplug spark plug cable.

2. Clean spark plug area with pres-

surized air before removing spark

plug.

137

MAINTENANCE PROCEDURES

3. Unscrew spark plug completely us-

WARNING

ing a spark plug socket, then re-

move it.

Never touch CVT whiile engine is

runniing.

Installling the Spark Pllugs

Never drive vehiclle when CVT

cover is removed.

Prior to installation make sure that

the contact surface of cylinder

head and spark plug is free of

CAUTION

grime.

Engine must be cooll before cover

Using a feeler gauge, set the spark

is removed.

plug gap.

Spark Pllug Gap

NOTICE

This CVT iis lubricatiion free.

0.8 to 0.9 mm

Never lubricate any components

(.031 to .035 in)

except driive pullley bearing.

Coat spark plug threads with the

following anti-seize lubricant.

Accessiing the CVT Cover

The CVT cover is accessible by the

Service Product

rear LH wheel well.

Copper-based anti-seize

Removing the CVT Cover

lubricant

1. Place the vehicle on a level

Screw spark plug into cylinder

surface.

heads by hand and tighten with a

2. If equipped, remove the CVT air in-

torque wrench and a proper

take hose.

socket.

3. Manually, remove all CVT cover

retaining screws.

NOTICE

Do not overtiighten spark plugs,

NOTICE

engine damage can occur.

Do not use an impact tool to re-

move CVT cover screws.

Tighteniing Torque

NOTE:

11 Nm

Spark plug

Remove the center top screw last to

(97 lbf-in)

support the cover during removal.

4. Remove the CVT cover and its

CVT COVER

gasket.

For a better understanding, some il-

lustrations are taken with engine out

of vehicle. To perform the following in-

structions, it is not necessary to re-

move engine.

138

MAINTENANCE PROCEDURES

Drive Belt

Removiing the Driive Belt (Twin

Cyllinder Engine)

NOTICE

In case of a driive belt faillure, the

CVT, cover and air outlet must be

clleaned.

Please refer to Tips for Maximizing

1. CVT cover

Drive Belt Durability in Basic Proce-

2. CVT cover screws

dures for some important information.

Installliing the CVT Cover

1. Remove the CVT Cover.

2. Install the adaptor in the threaded

Install the center top screw of first.

hole of the driven pulley.

Tighten the CVT cover screws as

per following sequence.

Driven pullley adapter

(P/N 708200720)

3. Screw the puller/locking tool in the

threaded hole of the adaptor.

Pulller/locking tooll

(P/N 529000088)

Tiightening Torque

4. Tighten to open the pulley.

CVT cover

7 ± 0.8 Nm

screws

(62 ± 7 lbf-in)

If equipped, install CVT air intake

hose.

Tiightening Torque

Clamp worm

2 ± 0.3 Nm

gear

(18 ± 2 lbf-in)

1. Fixed sheave of driven pulley

2. Adaptor

3. Puller/locking tool

4. Wrench

5. To remove belt, slip the belt over

the top edge of fixed sheave, as

shown.

139

MAINTENANCE PROCEDURES

1. Lowest portion of cogs even with driven pul-

ley edge

Installling the Driive Bellt

Drive and Driven Pulleys

For installation, reverse the removal

procedure. Pay attention to following

Inspecting Drive and Driven

details.

Pullleys

The maximum drive belt life span is

This inspection must be performed by

obtained when the drive belt has the

an authorized Can-Am Off-road deal-

proper rotation direction.

er, repair shop, or person of your own

choosing for maintenance, repair, or

Install it so that the arrow printed

replacement.

on belt is pointing towards front of

the vehicle, viewed from top.

Driive Pullley

Inspect the bushings and rollers of the

sliding sheave of the drive pulley, re-

place worn parts.

Driiven Pullley

Inspect the bushings of the cam and

of the sliding sheave of the driven pul-

ley, replace worn parts.

V-Twin only

Arrow printed on belt

Inspect rollers on fixed sheave.

Drive pulley (front)

Mono cyl. onlly

Driven pulley (rear)

Rotation direction

Inspect sliders on fixed sheave.

Turn the driven pulley until the low-

est portion of the cogs on the ex-

ternal surface of the drive belt is

even with the driven pulley edge.

140

MAINTENANCE PROCEDURES

1. Battery holder

2. Battery

BATTERY

3. Battery holder retaining screw(s)

Battery Maintenance

4. Remove battery holder.

5. Remove battery.

NOTICE

Never charge a battery whille in-

Installling the Battery

stallled in vehicle.

Battery installation is the reverse of

the removal procedure.

These vehicles are equipped with a

VRLA battery (Valve Regulated Lead

NOTICE

Acid). It is a maintenance-free type

Improper oriientation of the battery

battery, there is no need to add water

cables (reverse pollarity) wiilll re-

to adjust electrolyte level.

sult iin damage to the volltage

regulator.

NOTICE

Never remove the battery sealiing

cap.

NOTICE

Always connect RED (+) cablle

fiirst then BLACK (-) cablle.

Removing the Battery

1. Remove the driver’s seat cushion.

2. Disconnect BLACK (-) cable first

Fuses and Fusible Links

then RED (+) cable.

Repllaciing a Fuse

NOTICE

If a fuse is burnt, replace it by one of

Allways respect this order for dis-

the same rating.

assembly; disconnect BLACK (-)

cablle fiirst.

NOTICE

Do not use a hiigher rated fuse as

3. Remove battery holder retaining

this can cause severe damage.

screw(s).

Fuse Boxes Location

The vehicle is equipped with two fuse

boxes.

The front fuse box is located under the

LH dashboard.

141

MAINTENANCE PROCEDURES

Fuse Links and Indiividuall Fuse

The vehicle is equipped with 2 fuse

links and an individual fuse.

The fuse link 1 is connected to battery

positive post.

The fuse link 2 is located between the

fuse box #1 and the accessory post

(located under the dash).

1. Front fuse box

The regulator fuse holder is also lo-

cated near the battery.

The rear fuse box is located behind

the rear left passenger’s seat back-

rest, underneath the acoustic panel.

Fuse Boxes Description

Indiviiduall Fuse Holders

Description

Ratiing

DPS

PF3

40 A

(Under the dash, near DPS)

Accessory post

PF4

30 A

(Under dash terminal block)

Smart Lok

PF8

(Under dash, near front diff module)

20 A

(if equipped)

Regulator

PF10

50 A

(Near the battery)

142

MAINTENANCE PROCEDURES

Fuse Box #1 (Under the Dash)

(Fuses are iidentifiied on the fuse box cover)

Description

Rating

F11

Headlamps

20 A

DC3

F12

10 A

Winch

F14

12 V accessory outlet 1

10 A

F16

Tail lamps

10 A

Fuses PF1/F14 (DC outlet)

N/A

PF4 Accessory post

ECM accessory 12V

N/A

Brake lights

N/A

Spare1

Spare

20 A

Fuse Box #2 (Behiind driiver’’s Seat)

(Fuses are iidentifiied on the fuse box cover)

Description

Ratiing

Cluster/relays

10 A

Ignition/injection/fuel pump

10 A

Engine Control Module (ECM)

10 A

4WD actuator

10 A

Ignition switch

10 A

Clock

Cooling fan

25 A

Oxygen sensor

F18

10 A

Evap purge valve

Fan

N/A

Main

N/A

143

MAINTENANCE PROCEDURES

Fuse Liinks

Fuse Link

Descriiptiion

Ratiing

Main

18 awg

Accessory post

14 awg

Lights

Repllaciing a Headllight Bulb

WARNING

Improper bullb installlation, may

cause iits diisllodgement from the

headliight housiing.

In this siituation, the bulb could en-

ter iinto contact with the headllight

housing, llens or any other parts

TYPICAL

located in this area, resulltiing in

parts melting and/or fire hazard.

Pull out bulb.

Properly reinstall removed parts in the

NOTICE

reverse order of their removal.

Never touch gllass portiion of a hall-

Validate headlights operation.

ogen bullb wiith bare fingers, it

shortens its operating liife. If gllass

Headliight Beam Aiimiing

is touched, clean it wiith isopropyl

allcohol which will not lleave a fillm

Turn adjustment screw to adjust beam

on the bullb.

height to your convenience.

NOTE:

Unplug connector from bulb.

Adjust headlights evenly.

TYPICAL

1. Adjustment screw

Rotate bulb.

Taillliight

The taillights are built with LEDs (light

emitting diode) and this technology

proved to be reliable. In the unlikely

144

MAINTENANCE PROCEDURES

event they do not work, have them

checked by an authorized Can-Am

dealer, a repair shop or person of your

choosing.

Drive Shaft Bellow and

Protector

Inspecting Drive Shaft Belllows and

Protector

1. Visually inspect drive shaft protec-

TYPICAL — REAR GEARBOX SIDE

tors and bellows condition.

1. Inner drive shaft bellows

2. Check protectors for damage or

rubbing against shafts.

3. Check bellows for cracks, tears,

leaking grease, etc.

4. Repair or replace damaged parts

as necessary.

TYPICAL — REAR WHEEL SIDE

1. Outer drive shaft bellows

Wheel Bearing

TYPICAL — FRONT DIFFERENTIAL SIDE

Inspectiing a Wheell Bearing

1. Inner drive shaft bellows

1. Lift and support vehicle. Refer to

Lifting and Supporting the Vehicle.

2. Push and pull the wheels from the

upper edge to feel the play.

3. See an authorized Can-Am Off--

road dealer, a repair shop or a per-

son of your choosing if there is

excessive play.

TYPICAL — FRONT WHEEL SIDE

1. Outer drive shaft bellows

145

MAINTENANCE PROCEDURES

TYPICAL

TIGHTENING SEQUENCE

Wheels and Tires

Tire Pressure

Removiing a Wheell

WARNING

1. Place the vehicle on a level

Tiire pressure greatlly affects ve-

surface.

hicle handlling and stability.

2. Place shift lever on PARK position.

Insuffiiciient pressure may cause

3. Loosen the wheel lug nuts.

tire to deflate and rotate on wheel.

4. Lift and support vehicle. Refer to

Overpressure may burst the tire.

Lifting and Supporting Vehicle

Allways folllow recommended

section

pressure.

5. Remove lug nuts and wheel.

NEVER set tiire pressure below

miniimum. It coulld cause the tire to

Installling a Wheel

dislodge from the rim.

1. Inspect studs threads and lug nuts.

Replace if needed.

Check pressure when tires are cold

2. Install the wheel.

before using the vehicle. Tire pressure

changes with temperature and alti-

NOTE: The tires are unidirectional

tude. Recheck pressure if one of

and their rotation must be kept in a

these conditions has changed.

specific direction for proper operation.

Refer to the Tires Pressure and Maxi-

3. Install all lug nuts by hand.

mum Load Label on your vehicle for

applicable pressure.

NOTICE

NOTE:

Always use the recommended

Although the tires are specifically de-

wheel llug nuts for the type of

signed for off-road use, a flat may still

wheel. Usiing a different llug nut

occur. Therefore, it is recommended

could cause damages to the rim

to carry a tire gauge, tire pump and a

or studs.

repair kit.

4. Tighten wheel lug nuts in accord-

Tire Inspectiion

ance with the following illustration.

Check tire for damage and wear. Re-

place if necessary.

Tighteniing Torque

Wheel lug

100 ± 10 Nm

nuts

(74 ± 7 lbf-ft)

146

MAINTENANCE PROCEDURES

WARNING

Do not rotate tires. The front and

rear tiires have a diifferent siize.

The left and riight tires have differ-

ent uniidiirectional tread patterns.

Tire Replacement

Tire replacement should be performed

by an authorized Can-Am Off-road

dealer, a repair shop or a person of

TYPICAL — FRONT SHOCK ABSORBER

your choosing.

FASTENERS

WARNING

Repllace tires onlly wiith the same

type and siize as original tiires.

For unidirectional tread pattern,

ensure that the tiires are installled

in the correct diirectiion of rotation.

Tiires shoulld be replaced, by an

experiienced person, iin accord-

ance with tire industry standards

and tools.

TYPICAL

— REAR

SHOCK

ABSORBER

SUSPENSION

FASTENERS

Front Suspension Arms

Inspecting the Suspensiion

1. Check suspension

arms for

See an authorized Can-Am Off-road

cracks, bending or other damages.

dealer, a repair shop or a person of

2. Re-tighten the suspension arm

your choosing if any problem is

bolts to specifications at ride

detected.

height.

Shock Absorbers

NOTICE

1. Inspect shock absorber for leaks,

bump stop wear out or other

To avoid suspensiion bushings

damages.

damages, never llift the vehiiclle

2. Verify if fasteners are still well

from the ground to re-tighten sus-

tightened.

pension arm fasteners.

When possible, always applly the

Tiightening Torque

tiightening torque by the bollt head

and not by usiing the nut to ensure

74.5 ± 4.5 Nm

optimall cllamping.

M12 bolt

(55 ± 3 lbf-ft)

Tightening Torque

112.5 ± 7.5 Nm

M12 bolt

(83 ± 6 lbf-ft)

147

MAINTENANCE PROCEDURES

1. M12 fasteners

Rear Suspensiion Arms

2. M10 fasteners

1. Check suspension arms for distor-

tion, cracks or bending.

Stabiiliizer Bar

2. Re-tighten suspension arm to

1. Check stabilizer bars for cracks,

specifications at ride height.

bending or, other damaged.

2. Tighten

bracket screws to

NOTICE

specification.

To avoid suspensiion bushings

damages, never llift the vehiicle

Tightening Torque

from the ground to re-tighten sus-

pension arm fasteners.

95 ± 5 Nm

Stabilizer bar

(70.1 ± 3.7

bracket screws

lbf-ft)

NOTICE

The suspension arms must be

Lubricating the Suspensiion

tiightened on the M12 bolt head

and not on the nut (when possi-

Stabiiliizer Bar

blle) to iinsure optiimal clampiing.

1. Lubricate stabilizer bars using the

following product.

Tighteniing Torque

XPS synthetic suspensiion

130 ± 10 Nm

M12 bolt

grease

(96 ± 7 lbf-ft)

Hexagonal

flanged

90 ± 10 Nm

elastic nut

(66 ± 7 lbf-ft)

M10

148

MAINTENANCE PROCEDURES

Stabiiliizer Bars Grease Fittiings

Location

1. Brake fluid reservoirs

TYPICAL — FRONT STABILIZER BAR

2. MAX

3. MIN

NOTE: There is one grease fitting on

the top of each stabilizer bar pivot

WARNING

bushing.

A low level may indicate lleaks or

worn brake pads.

Addiing Brake Flluiid

1. Clean both reservoir covers and

the surrounding area.

2. Add enough new brake fluid to in-

crease the level near the MAX

mark.

TYPICAL — REAR STABILIZER BAR

NOTICE

Do not overfiilll.

BRAKES

Verifying Brake Fluiid Level

WARNING

The brake fluid reservoirs are located

Ensure diaphragm iis pushed back

under the front service cover. Refer to

insiide the cover before installliing

Accessing Maintenance Components

iit.

section.

1. Place the vehicle on a level

Recommended Brake Flluid

surface.

Always use brake fluid meeting the

2. Check brake fluid in each reservoir

specification DOT 4 only.

for proper level. The level should

be between MIN and MAX marks.

NOTICE

To avoid serious damage to the

braking system, do not use flluids

other than the recommended one,

nor miix diifferent flluiids for toppiing

up.

Do not use brake fluid taken from

olld or allready opened containers.

149

MAINTENANCE PROCEDURES

Inspectiing Brake System

The brake inspection, maintenance

and repair should be performed by an

authorized Can-Am dealer, a repair

shop or person of your choosing.

However, verify the following between

visits to your dealer:

- Brake fluid level

- Brake system for fluid leaks

- Brake pad wear

- Brake cleanliness

WARNING

The brake flluid repllacement or

brake system maiintenance and

repairs shoulld be performed by an

authoriized Can-Am dealler.

SEAT BELTS

Cleaning Seat Belt

To clean dirt and debris from the seat

belts, sponge the straps with mild

soap and water.

WARNING

To avoid damaging the seat belt

components, never use a pres-

sure washer to clean them.

NOTICE

Do not use bleach, dye, or house-

holld detergents.

Doors

Lubricatiing Door Latch Mechanism

1. Lubricate door latch mechanisms

(lock and hinges) periodically us-

ing a silicone based lubricant.

NOTICE

Never apply any type of grease on

door lock mechanism.

150

VEHICLE CARE

Vehicle Cleaning and

fresh water is necessary to preserve

vehicle and its components after each

Protection

operating day.

NOTICE

Metallic parts lubrication is highly

Never use a hiigh pressure washer

recommended.

to cllean the vehiclle. USE LOW

PRESSURE ONLY (llike a garden

Use anti-corrosive lubricant or an

hose).

equivalent.

High pressure can cause damage

to ellectriicall or mechanical

XPS Lubricant and anti-corrosive

components.

Painted parts which are damaged

Pay attention to certain areas where

should be properly repainted to pre-

salt-water, mud or debris can accumu-

vent rust.

late and potentially cause:

When required, wash the body with

- Fire

warm water and soap (only use mild

- Wear

detergent). Apply non-abrasive wax.

- Interference

- Corrosion.

NOTICE

This list includes but is not limited to:

Never cllean plastic parts wiith

- Around exhaust system and be-

strong detergent, degreasing

tween muffler and muffler cover

agent, paint thiinner, acetone, etc.

- Under and around the fuel tank

- Radiator

Protect the vehicle with a cover to pre-

- Shock absorbers

vent dust accumulation during

- Around front and rear differentials

storage.

- Around and underneath engine

and gearbox

NOTICE

- Inside wheels

- On top of skid plates.

The vehicle has to be stored in a

cool and dry pllace and covered

wiith an opaque tarpauliin. Thiis will

WARNING

prevent sun rays and grime from

Debriis accumullatiion could llead to

affecting plastiic components and

a vehiiclle fiire when the exhaust

vehicle finiish.

system is hot and the debris are

dried.

In some cases, that could result in

serious properly damages, iinju-

riies or even death.

Clean often and regullarly the area

surrounding the exhaust system

when riidiing in swamp, bog, hay or

dead lleaves.

In other situations, cllean as per

maintenance schedulle

requiirement.

When vehicle is used in salt-water en-

vironment rinsing the vehicle with

151

VEHICLE IDENTIFICATION

The main components of your vehicle

Engine Identification Number

(engine and frame) are identified by

(EIN)

different serial numbers. It may some-

times become necessary to locate

these numbers for warranty purposes

or to trace your vehicle in the event of

loss. These numbers are required by

the authorized Can-Am Off-road deal-

er to complete warranty claims prop-

erly. We strongly recommend that you

take note of all the serial numbers on

your vehicle and supply them to your

insurance company.

Vehicle Identification Number

TYPICAL

1. EIN (Engine Identification Number)

Bombardier Recreational Products Inc.

TYPE: ATV

Made in Mexico

565 de la Montagne, Valcourt, QC

BRP Europe N.V.

Canada, J0E 2L0

Skaldenstraat 125, Gent Belgium, 9042

8762

VIN LABEL - EUROPEAN COUNTRIES

Bombardier Recreational Products Inc.

TYPE: ATV / VTT

565 de la Montagne, Valcourt, QC CAN ICES-002 / NMB-002

Canada, J0E 2L0

Made in Mexico / Fabriqué au Mexique

VIN LABEL - OTHER COUNTRIES

TYPICAL - VIN LABEL LOCATION

154

VEHICLE IDENTIFICATION

Compliance Label

ROHVA Compliiance Labell

BRP certifies that this ROV complies with the American National Standard for

Recreational Off-Highway Vehicles, ANSI / ROHVA 1 - 2016 Standard.

BRP certifie que ce véhicule récréatif hors-route est conforme à la norme "American

National Standard for Recreational Off-Highway Vehicles", ANSI / ROHVA 1 - 2016.

This roll over protective structure meets the performance requirements of ISO 3471:

2008 .

Cette structure de protection contre le retournement respecte les requis de

performance de la norme ISO 3471: 2008 .

704906982

Regulation (EU) 2016/1628

Appliicable for Non-Road Mobile

Machiineriies

Vehicles who comply to Regulation

(EU) 2016/1628 (NRMM) are identi-

fied on the engine valve cover as well

as on the vehicle, near the VIN label.

TYPICAL

Rotax

NRSC G1 CO2 g/kWh:

XXXX

MXXXXXXX

Production date:

MM-YYYY

Family type:

XXXXXX

e13

AT1/P V-####

TYPICAL - NRMM IDENTIFICATION LABEL

TYPICAL

NOTE:

Tampering with the engine or its com-

ponents voids the EU type-approval of

that particular engine.

155

RADIO FREQUENCY DIGITALLY ENCODED

SECURITY SYSTEM (RF D.E.S.S. KEY)

This device complies with FCC Part 15 and Industry Canada license exempt

RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interfer-

ence that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

IC Registration Number: 12006A-1001317030

FCC ID: 2ACER-1001317030

We, the party responsible for compliance, declare under our sole responsibility

that the device is in conformity with the provisions of the following Council Direc-

tive: 2014/53/EU. To which this declaration relates is in conformity with the es-

sential requirements and other relevant requirements. The product is in

conformity with the following directives, harmonized standards and regulations:

Radio Equipment Directive (RED) 2014/53/EU and Harmonized Standards:

- IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300 330

V2.1.1:2017

Radio Equipment Statutory Instrument 2017/1206 and Designated Standards:

- IEC 62368-1:2014, CISPR 25:2016, ISO 11452-2:2004, ETSI EN 300 330

V2.1.1:2017

160

EVAPORATIVE EMISSION CONTROL SYSTEM

Callifornia Modells wiith Evaporatiive Emission Control System

Beginning with the 2018 model-year vehicles, some California models are certi-

fied to meet the CARB (California Air Resources Board) TP-933. These models

are equipped with an evaporative emission control system consisting of a low

permeation fuel tank (LPFT), low permeation fuel lines (LPFL) and an actively

purged carbon canister.

The following statement is required by the CCR (California Code of Regulation):

An add-on or modified part must be compliant with applicable ARB evaporative

emission control standards. A violation of this requirement is punishable by civil

and/or criminal punishment.

161

NOISE EMISSION CONTROL SYSTEM

REGULATION

USA and Canada Onlly

Tampering with Noiise Controll System Is Prohiibited!

U.S. Federal law and Canadian provincial laws may prohibit the following acts or

the causing there of:

1. The removal or rendering inoperative by any person other than for purposes

of maintenance, repair or replacement of any device or element of design in-

corporated into any new vehicle for the purpose of noise control prior to its

sale or delivery to the ultimate purchaser or while it is in use or

2. The use of the vehicle after such device or element of design has been re-

moved or rendered inoperative by any person.

Among those Acts Presumed to Constitute Tampering Are the Acts Liisted

Bellow:

1. Removal or alteration or the puncturing of the muffler or any engine compo-

nent which conducts removal of engine exhaust gases.

2. Removal or alteration or the puncturing of any part of the intake system.

3. Replacing any moving parts of the vehicle or parts of the exhaust or intake

system, with parts other than those specified by the manufacturer.

4. Lack of proper maintenance.

162

TECHNICAL SPECIFICATIONS

Engiine

ROTAX 1000R

Engine type

Twin cylinder. 4-stroke,

Single Over Head Camshaft

(SOHC), liquid cooled

Number of cylinders

8 valves (mechanical

Number of valves

adjustment)

0.06 to 0.14 mm

Intake valve clearance

(.0024 to .0055 in)

0.11 to 0.19 mm

Exhaust valve clearance

(.0043 to .0075 in)

91 mm

Bore

(3.58 in)

75 mm

Stroke

(2.95 in)

976 cm³

Displacement

(59.56 in³)

NRMM

Catalyst

models

Exhaust system

Spark arrestor approved by

Other models

USDA Forest Service

Air filter

Synthetic paper filter

Lubricatiion System

Type

Wet sump

Replaceable cartridge oil

Oil filter

filter (paper type)

Capacity

(2.1 qt (liq.,US))

General

Engine oil

5W40 Synthetic blend oil

Recom

purpose

mended

XPS oil

Cold

0W40 Synthetic oil

temperature

168

TECHNICAL SPECIFICATIONS

Lubriication System

Warm

10W50 Synthetic oil

temperature

Use a 5W40 or 10W50

motor oil that meets the

Alternate oil if XPS products

requirements for API service

are not available

classification SN or JASO

MA2.

Coolling System

XPS extended life pre-mixed

Recommended XPS coolant

coolant

Ethyl glycol / water mix

(50%/50%).

Alternate oil if XPS products

Coolant

or coolant specifically

is not available

designed for aluminum

engines

6.7 l

Capacity

(1.77 gal (liq.,US))

Transmissiion

CVT (Continuously Variable

Type

Transmission)

Engagement

1850 ± 100 RPM

Gearbox

Dual range (HI-LO) with

Type

PARK, neutral and reverse

Capacity

(2.1 qt (liq.,US))

Recommended XPS

XPS 75W140 Synthetic gear

Gearbox oil

gearbox oil

oil

Alternate oil if XPS products

75W 140 API GL-5

is not available

169

TECHNICAL SPECIFICATIONS

Electriicall System

Magneto generator output

650 W @ 5000 RPM

IDI (Inductive Discharge

Ignition system type

Ignition)

Quantity

Make and type

NGK LMAR8C-9

Spark plug

0.8 to 0.9 mm

Gap

(.031 to .035 in)

Maintenance free - SLA

Type

(Sealed Lead Acid)

Voltage

12 volts

Battery

Nominal rating

20 A•h

Power starter output

0.7 kW

Headlight

2x 55W (H11)

Taillight

LED

Refer to Fuses in the

Fuses

Maintenance section

Fuell System

Electronic fuel injection (EFI)

Fuel delivery

with iTC

Throttle body

54 mm with ETA

Fuel pump

Electric (in fuel tank)

ECO mode

1350 ± 100 RPM

Idle speed

SPORT mode

1500 ± 100 RPM

Type

Premium unleaded gasoline

Fuel

91 AKI (R+M)/2

Minimum Octane rating

95 RON

± 38 l

Fuel tank capacity

(10 gal (liq.,US))

± 8.5 l

Fuel remaining when low fuel light turns ON

(2.2 gal (liq.,US))

170

TECHNICAL SPECIFICATIONS

Drive System

Drive system type

Selectable 2WD/4WD

400 ml

Capacity

(14 fl oz (US))

Front differential

Recommended XPS

XPS 75W90 Synthetic gear

oil

differential oil

oil

Alternate oil if XPS products

Synthetic gear oil 75W90

is not available

API GL-5

Selectable 2WD / 4WD with

Front drive

Visco-Lok auto-locking front

differential, spiral gears

Front drive ratio

3.6:1

Rear drive

Lockable differential

Rear drive ratio

3.43:1

CV joint grease

XPS CV joint grease

Spline's propeller shaft grease (grease applied

XPS Propeller shaft grease

to spline connections)

or equivalent

Steering

Type

Rack and pinion

Steering wheel

Adjustable tilt steering

Front Suspensiion

Double suspension arms

Suspension type

with stabilizer bar

292 mm

Suspension travel

(11.5 in)

Quantity

Shock absorber

Type

HPG

Preload adjustment

Threaded

171

TECHNICAL SPECIFICATIONS

Rear Suspension

Double suspension arms

Suspension type

with stabilizer bar

305 mm

Suspension travel

(12 in)

Quantity

Shock absorber

Type

HPG

Preload adjustment

Threaded

Brakes

Qty

220 mm (8.7 in) ventilated

Front brake

brake disc with hydraulic

Type

twin-pistons calipers of 32

mm (1.26 in)

Qty

220 mm (8.7 in) ventilated

Rear brake

brake disc with hydraulic

Type

twin-pistons calipers of 28

mm (1.1 in)

Type

DOT 4

Brake fluid

Approximately 295 ml

Capacity

(10 fl oz (US))

Caliper

Floating

Brake pad material

Metallic

0.5 mm

Minimum brake pad thickness

(.02 in)

4 mm

Minimum brake disc thickness

(.157 in)

0.2 mm

Maximum brake disc warpage

(.01 in)

172

TECHNICAL SPECIFICATIONS

Tiires

Recommended tire inflation

pressure is found on the Tire

Pressure

Label. Refer to appropriate

Important On-Product Labels

section for its location.

686 x 229 x 305 mm

Front

(27 x 9 x 12 in)

Tire size

686 x 279 x 305 mm

Rear

(27 x 11 x 12 in)

3 mm

Minimum tire thread depth

(.118 in)

Wheels

Type

Cast aluminum wheels

30.5 x 15.24 cm

Front

(12 x 6 in)

Rim size

30.5 x 19.05 cm

Rear

(12 x 7.5 in)

100 ± 10 Nm

Wheel lug nuts torque

(74 ± 7 lbf-ft)

41.2 mm

Front

(1.6 in)

Wheel Offset

51 mm

Rear

(2 in)

Chassiis

Profiled tube section, high

Cage type

strength steel, ISO 3471

certified

Dimensiions

378.4 cm

Overall length

(149 in)

152.47 cm

Overall width

(60 in)

173

TROUBLESHOOTING GUIDELINES

CVT Belt Is Slipping

1. Water has entered in the CVT.

- Refer to Special Procedures.

“–” Is Displayed On the Gearbox Position Display

1. Shift lever is between 2 positions.

- Properly position the shift lever in the desired position.

2. Shift lever is not properly adjusted.

- Contact an authorized Can-Am Off-road dealer.

3. Electrical communication error.

- Contact an authorized Can-Am Off-road dealer.

Engine Does Not Turn

1. Starting procedure not performed correctly.

Refer to Starting the Engine.

2. Shift lever is not set on PARK.

Set shift lever to either in PARK or press the brake pedal.

3. Burnt fuse.

Check fuses.

4. Weak battery or loose connections.

Check charging system fuse.

–

Check fault message in cluster.

–

Check battery connections and terminals condition.

–

Have the battery checked by an authorized Can-Am Off-road dealer.

5. Defective starter solenoid.

Contact an authorized Can-Am Off-road dealer.

6. D. E. S. S. key is not installed on D. E. S. S. post.

(if

equipped)

Securely install key to D.E.S.S. post.

7. D.E.S.S. key not recognized is displayed in the multifunc-

tion gauge. (If equipped)

Clean D.E.S.S. key. If message still displayed after cleaning, see an author-

ized Can-Am Off-road dealer.

176

TROUBLESHOOTING GUIDELINES

Engine Turns Over But Fails To Start

1. Flooded engine

Active the drowned mode to start the engine. Refer to Flooded Engine in Spe-

cial Procedures section.

2. No fuel to the engine (spark plug dry when removed).

Check fuel tank level.

–

Check fuel pump fuse.

–

Obstructed fuel pump pre-filter or fuel pump failure.

See an authorized Can-Am Off-road dealer, a repair shop, or a person of your

own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained herein for

information about warranty claims.

3. Spark plug/ignition (no spark).

Check ignition fuse.

–

Remove spark plug then reconnect to ignition coil.

–

Start engine with spark plug grounded to the engine away from spark plug

hole. If no spark appears, replace spark plug.

If trouble persists, see an authorized Can-Am Off-road dealer, a repair shop,

or a person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained herein for

information about warranty claims.

Engine Lacks Acceleration or Power

1. Seat belt not buckled properly. Check cluster message.

- Buckle up seat belt.

2. Fouled or damaged spark plug.

- Replace spark plugs.

3. Engine air filter plugged or dirty.

- Check air filter and replace if necessary.

- Check deposits in engine air filter housing.

4. Water in CVT

- Drain water from CVT. Refer to Special Procedures section.

5. CVT dirty or worn-out.

- Contact an authorized Can-Am Off-road dealer.

6. Lack of fuel

177

TROUBLESHOOTING GUIDELINES

- Dirty or clogged fuel pump pre-filter. See an authorized Can-Am Off-road

dealer, a repair shop, or a person of your own choosing for maintenance, re-

pair, or replacement. Please refer to the US EPA Emission-Related Warranty

contained herein for information about warranty claims.

7. Engine is in Torque Limitation mode (if equipped).

- Engine torque is gradually limited for protection when coolant temperature is

too high. Check multifunction gauge display for engine temperature.

- Let engine cool down.

8. Engine is in limp home mode.

- Multifunction gauge CHECK ENGINE indicator lamp is on and display shows

LIMP HOME. See an authorized Can-Am Off-road dealer, a repair shop, or a

person of your own choosing for maintenance, repair, or replacement. Please

refer to the US EPA Emission-Related Warranty contained herein for informa-

tion about warranty claims.

Engine Overheats

1. Low coolant level in cooling system.

- Check coolant level and refill. See Maintenance Procedures. Seek service

from an authorized Can-Am Off-road dealer, a repair shop, or a person of

your own choosing for maintenance, repair, or replacement. Please refer to

the US EPA Emission-related warranty contained herein for information about

warranty claims.

2. Cooling fan is not working.

- Ensure cooling fan is not jammed and working properly.

- Check fan fuse. See Fuses and Fusible Links in the Maintenance

Procedures.

3. Dirty radiators fins.

- Check and clean radiator fins. See Maintenance Procedures.

Engine Misfire

1. Fouled/damaged/worn spark plug.

- Replace spark plugs as required.

2. Water in fuel.

- Drain fuel system and refill with fresh fuel.

The RPM Increases But the Vehicle Does Not Move

1. Water in the CVT.

- Drain water from CVT. See Special Procedures section.

2. CVT dirty or worn-out or belt failure.

178

DIGITAL DISPLAY MESSAGES

If an abnormal engine condition occurs, the following messages can be com-

bined with a pilot lamp.

Message

Description

D.E.S.S. KEY

NOT

D.E.S.S. key requires cleaning. If message still displayed

after cleaning, See an authorized Can-Am Off-road dealer.

RECOGNIZED

Indicates that you have used the wrong D.E.S.S. key, use

BAD KEY

the proper key for this vehicle.

All active or previously activated faults that require

CHECK ENGINE

attention.

No engine limitation engaged.

Critical faults requiring diagnostic as soon as possible.

LIMP HOME

An engine limitation is engaged and/or the engine behavior

is modified.

TPS FAULT

Throttle body fault, generally followed by a Limp Home

message.

BRAKE SWITCH

FAULT

Brake signal fault.

Check engine pilot light on. Indicates that the DPS

CHECK DPS

(Dynamic Power Steering) does not work properly. See an

authorized Can-Am Off-road dealer.

PPS FAULT

Faulty Pedal Position Sensor(s) (PPS). See an authorized

Can-Am Off-road dealer.

When the fuel sender resistor value is out of range the

FUEL SENSOR

digital display module will detect it and display the

FAULT

message.

CHECK

Check engine pilot light on. Indicates that the Smart-Lok

SMART-LOK

does not work properly. See an authorized Can-Am

Off-road dealer.

180

BRP LIMITED WARRANTY FOR CANADA AND USA:

2024 CAN-AM® SSV

1) Scope of the Limited Warranty

Bombardier Recreational Products Inc. ("BRP") warrants its 2024 Can-Am SSV

(“Product (s)”) sold by authorized BRP Dealers (as hereinafter defined) in the

United States of America ("USA") and in Canada from defects in material or

workmanship for the period and under the conditions described below.

This limited warranty will become null and void if:

1. the Product was used for racing or any other competitive activity, at any point,

even by a previous owner; or

2. the Product has been altered or modified in such a way so as to adversely af-

fect its operation, performance or durability, or has been altered or modified

to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

2) Limitations of Liability

TO THE EXTEND PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR

THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED

ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-

RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE

OTHER LEGAL RIGHTS WHICH MAY VARY FROM STATE TO STATE,

OR PROVINCE TO PROVINCE.

Neither the distributor, any BRP dealer nor any other person has been authorized

to make any affirmation, representation or warranty regarding the product, other

than those contained in this limited warranty, and if made, shall not be enforce-

able against BRP.

BRP reserves the right to modify this limited warranty at any time, being under-

stood that such modification will not alter the warranty conditions applicable to

the Products sold while this warranty is in effect.

3) EXCLUSIONS – Are Not Warranted

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the Operator's Guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

182

BRP LIMITED WARRANTY FOR CANADA AND USA: 2024 CAN-AM^® SSV

resulting from repairs done by a person that is not an authorized servicing

BRP dealer;

- Damage caused by abuse, abnormal use, neglect or operation of the product

in a manner inconsistent with the recommended operation described in the

Product’s Operator’s Guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

Product (see the Operator’s Guide);

- Damages from rust, corrosion or exposure to the elements;

- Damage resulting from water or snow ingestion;

- Incidental or consequential damages, or damages of any kind including with-

out limitation transportation expenses, towing, storage, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

4) Warranty Coverage Period

This limited warranty will be in effect from (1) the date of delivery to the first retail

consumer, or (2) the date the product is first put into use, whichever occurs first

and for the applicable period below:

1. SIX (6) consecutive months, for private use or commercial use owners

2. For emiission-related components, please also refer to the US EPA Emis-

sion-Related Warranty.

3. For evaporative emission-rellated components of Callifornia models

equipped wiith evaporatiive emission control system produced by BRP

for sale in the State of California that are originally sold to a resident or

subsequently warranty registered to a resident in the State of California, also

refer to the California Evaporative Emissions Control Warranty Statement.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this limited warranty beyond its original expiration

date.

5) Conditions to Have Warranty Coverage

This warranty coverage is available only if each of the following conditions has

been fulfilled:

1. The Product must be purchased as new and unused by its first owner from a

Dealer authorized to sell the Products in the country in which the sale oc-

curred (“Dealer”);

2. The BRP specified pre-delivery inspection process must be completed, docu-

mented and signed by the purchaser;

3. The Product must have undergone proper registration by an authorized

Dealer;

4. The Product must be purchased in the country in which the purchaser

resides;

5. Routine maintenance outlined in the Operator’s Guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

183

BRP LIMITED WARRANTY FOR CANADA AND USA: 2024 CAN-AM^® SSV

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

6) What to Do to Obtain Warranty Coverage

The customer must cease using the Product upon the appearance of an anom-

aly, notify a servicing BRP dealer within three (3) days of the appearance of the

anomaly and provide the Dealer with reasonable access to the Product and rea-

sonable opportunity to repair it.

The customer must also present to the Dealer, proof of purchase of the Product

and must sign the repair/work order prior to starting the repair in order to validate

the warranty repair.

All parts replaced under this limited warranty become the property of BRP.

7) What BRP Will Do

BRP’s obligations under this warranty are limited to, at its sole discretion, repair-

ing or replacing parts found defective under normal use, maintenance and serv-

ice without charge for parts and labor, at any authorized BRP dealer during the

warranty coverage period under the conditions described herein. No claim of

breach of warranty shall be cause for cancellation or rescission of the sale of the

Product to the owner.

In the event that service is required outside of the country of original sale, the

owner will bear responsibility for any additional charges due to local practices

and conditions, such as, but not limited to, freight, insurance, taxes, license fees,

import duties, and any and all other financial charges, including those levied by

governments, states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

8) Transfer

If the ownership of a Product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Product Distributor/Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

9) Consumer Assistance

In the event of a controversy or a dispute in connection with this limited warranty,

BRP suggests that you try to resolve the issue at the dealership level. We recom-

mend discussing the issue with the authorized dealer's service manager or

owner.

If the matter still remains unresolved, contact BRP by filling out the customer con-

tact form at www.brp.com or contact BRP by mail at one of the addresses listed

under the Contact Us section of this guide.

184

US EPA EMISSION - RELATED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants to the ultimate purchas-

er and each subsequent purchaser that this new vehicle, including all parts of its

exhaust emission control system and its evaporative emission control system,

meets two conditions:

1. It is designed, built, and equipped so it conforms at the time of sale to the ulti-

mate purchaser with the requirements of 40 CFR 1051 and 40 CFR 1060.

2. It is free from defects in materials and workmanship that may keep it from

meeting the requirements of 40 CFR 1051 and 40 CFR 1060.

Where a warrantable condition exists, BRP will repair or replace, as it elects, any

part or component with a defect in materials or workmanship that would increase

the engine’s emissions of any regulated pollutant within the stated warranty peri-

od at no cost to the owner, including expenses related to diagnosing and repair-

ing or replacing emission-related parts. All defective parts replaced under this

warranty become the property of BRP.

For all emission-related warranty claims, BRP is limiting the diagnosis and repair

of emission-related parts to the authorized Can-Am dealers, unless for emer-

gency repairs as required by item 2 of the following list.

As a certifying manufacturer, BRP will not deny emission-related warranty claims

based on any of the following:

1. Maintenance or other service BRP or BRP's authorized facilities performed.

2. Engine/equipment repair work that an operator performed to correct an un-

safe, emergency condition attributable to BRP as long as the operator tries to

restore the engine/equipment to its proper configuration as soon as possible.

3. Any action or inaction by the operator unrelated to the warranty claim.

4. Maintenance that was performed more frequently than BRP specify.

5. Anything that is BRP fault or responsibility.

6. The use of any fuel that is commonly available where the equipment operates

unless BRP written maintenance instructions state that this fuel would harm

the equipment’s emission control system and operators can readily find the

proper fuel. See maintenance information section and fuel requirements of fu-

eling section.

Emission-Related Warranty Period

The emission-related warranty is valid for the following period whichever comes

first.

HOURS

MONTHS

KILOMETERS

Exhaust emission-related

500

5000

components

Evaporative emission-related

N/A

components

Components Covered

The emission-related warranty covers all components whose failure would in-

crease an engine’s emissions of any regulated pollutant, including the following

listed components:

185

US EPA EMISSION - RELATED WARRANTY

For exhaust emissions, emission-related components include any engine

parts related to the following systems:

- Air-induction system

- Fuel system

- Ignition system

- Exhaust gas recirculation systems.

The following parts are also considered emission-related components for ex-

haust emissions:

- After treatment devices

- Crankcase ventilation valves

- Sensors

- Electronic control units.

The following parts are considered emission-related components for evapora-

tive emissions:

- Fuel tank

- Fuel cap

- Fuel line

- Fuel line fittings

- Clamps*

- Pressure relief valves*

- Control valves*

- Control solenoids*

- Electronic controls*

- Vacuum control diaphragms*

- Control cables*

- Control linkages*

- Purge valves

- Vapor hoses

- Liquid/vapor separator

- Carbon canister

- Canister mounting brackets

- Carburetor purge port connector.

NOTE: *As related to the evaporative emission control system.

4. Emission-related components also include any other part whose only purpose

is to reduce emissions or whose failure will increase emissions without signifi-

cantly degrading engine/equipment performance.

Limited Applicability

As a certifying manufacturer, BRP may deny emission-related warranty claims

for failures that have been caused by the owner’s or operator’s improper mainte-

nance or use, by accidents for which the manufacturer has no responsibility, or

by acts of God. For example, an emission-related warranty claim need not be

honored for failures that have been directly caused by the operator’s abuse of

the engine/equipment or the operator’s use of the engine/equipment in a manner

for which it was not designed and are not attributable to the manufacturer in

anyway.

186

CALIFORNIA EVAPORATIVE EMISSIONS

CONTROL WARRANTY STATEMENT

The warranty periods begin on the date the new Off-Highway Recreational Ve-

hicle (“OHRV”) is delivered to an ultimate purchaser.

Bombardier Recreational Products Inc. (“BRP”) warrants to the ultimate purchas-

er and each subsequent purchaser that the OHRV is:

1. Designed, built, and equipped so as to conform, at the time of sale, with all

applicable laws, rules and regulations; and

2. Free from defects in materials and workmanship that may cause the failure of

a warranted part. All replacement parts must be identical in all material re-

spects to that part as described in BRP’s Executive Order of Certification

application.

The warranty on emissions-related parts function as follows:

Repair or replacement of any warranted part must be performed at no charge

to the OHRV owner, at a warranty station, except in the case of a temporary

repair when a warranted part or a warranty station is not reasonably available

to the OHRV owner. In the event a temporary repair is permitted, repairs may

be performed at any available service establishment, or by the owner, using

any replacement part. BRP must reimburse the owner for his or her expenses

including diagnostic charges for such temporary repair or replacement, not to

exceed BRP's suggested retail price for all warranted parts replaced and la-

bor charges based on BRP's recommended time allowance for the warranty

repair and the geographically appropriate hourly labor rate.

The lack of availability of warranted parts or the incompleteness of repairs

within a reasonable time period, not to exceed 30 days from the time the

OHRV is initially presented to the warranty station for repair, will qualify the

need for a temporary repair.

Any warranted part which is not scheduled for replacement as part of mainte-

nance in the written instructions must be warranted for the warranty period

defined below. If any such part fails during the warranty period, it must be re-

paired or replaced by BRP. Any such part repaired or replaced under war-

ranty must be fully warranted.

Any warranted part which is scheduled only for regular inspection in the writ-

ten instructions must be warranted for the warranty period defined below. A

statement in such written instructions to the effect of “repair or replace as nec-

essary” does not reduce the period of warranty coverage. Any such part re-

paired or replaced under warranty is warranted for the remaining warranty

period.

Any warranted part which is scheduled for replacement as part of mainte-

nance in the written instructions is warranted for the period of time prior to the

first scheduled replacement point for that part. If the part fails before the first

scheduled replacement point, the part will be repaired or replaced by BRP.

Any such part repaired or replaced under warranty is warranted for the re-

mainder of the period prior to the first scheduled replacement point for the

part.

Warranty services or repairs are provided at all manufacturer dealerships that

are owned by the manufacturer or franchised to service the subject OHRVs.

The OHRV owner will not be charged for diagnostic labor which leads to the

determination that a warranted part is, in fact, defective, provided that such di-

agnostic work is performed at a warranty station.

188

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT

8. BRP is liable for damages to other vehicle components proximately caused

by a failure, under warranty, of any warranted part.

9. Any replacement part designated by BRP may be used in warranty repairs

provided without charge to the OHRV owner. Such use will not reduce the

warranty obligations of BRP, except that BRP will not be liable for repair or re-

placement of any replacement part which is not a warranted part.

10. Any add-on or modified part exempted by the Air Resources Board from the

prohibitions of section 27156 of the California Vehicle Code may be used on

an OHRV. Such use, in and of itself, will not be grounds for disallowing a war-

ranty claim. BRP is not liable to warrant failures of warranted parts caused by

the use of an add-on or modified part (s) unless such part (s) are also

warranted.

Conditions and exclusions:

- BRP may deny you warranty coverage if your OHRV or a part has failed di-

rectly due to abuse, neglect, improper maintenance or unapproved

modifications.

Your Warranty Rights And Obligations

The California Air Resources Board is pleased to explain the evaporative emis-

sions control system warranty on your 2024 Off-Road Sport Vehicle. In Califor-

nia, new off-highway recreational vehicles must be designed, built, and equipped

to meet the State’s stringent anti-smog standards. BRP must warrant the evapo-

rative emissions control system on your Off-Road Sport Vehicle for the periods of

time listed below provided there has been no abuse, neglect, improper mainte-

nance, or unapproved modification of your Off-Road Sport Vehicle.

Your evaporative emissions control system may include parts such as the carbu-

retor or fuel-injection system, fuel tank, fuel hoses, carbon canister, and engine

computer. Also included may be hoses, belts, connectors and other evaporative

emissions-related assemblies. Where a warrantable condition exists, Bombardier

Recreational Products Inc. will repair your Off-Road Sport Vehicle at no cost to

you including diagnosis, parts and labor.

OHRV Manufacturer’s Warranty Coverage

The warranty period for this OHRV is 60 months, or 5000 miles, or 500 hours,

whichever comes first.

Parts covered:

1. Canister Mounting Bracket(s)

2. Carbon Canister

3. Purge Port Connector

4. Clamp(s)*

5. Electronic Control*

6. Fuel Cap

7. Filler Neck

8. Filler Neck Hose

9. Fuel Line(s)

10. Fuel Line Fitting(s)

11. Fuel Tank

12. Pressure Relief Valve(s)*

189

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL WARRANTY STATEMENT

13. Purge Valve(s)

14. Check Valve(s)*

15. Vapor Hose(s)

16. Flow Reducer

17. Filter(s)*

18. Fuel pump

19. All other parts not listed that may affect the evaporative emissions control

system

NOTE: *As related to the evaporative emission control system.

If any evaporative emissions-related part on your Off-Road Sport Vehicle is de-

fective the part will be repaired or replaced by Bombardier Recreational Products

Inc.

Owner’s Warranty Responsibilities

As the Off-Road Sport Vehicle owner you are responsible for the performance of

the required maintenance listed in your owner’s manual. Bombardier Recreation-

al Products Inc. recommends that you retain all receipts covering maintenance

on your Off-Road Sport Vehicle, but Bombardier Recreational Products Inc. can-

not deny warranty solely for the lack of receipts or for failure to ensure the per-

formance of a scheduled maintenance.

As an owner you are responsible for presenting your Off-Road Sport Vehicle to a

Bombardier Recreational Products Inc. dealer as soon as a problem exists. The

warranty repairs should be completed in a reasonable time, not to exceed 30

days.

As an Off-Road Sport Vehicle owner, you should also be aware that Bombardier

Recreational Products Inc. may deny you warranty coverage if your Off-Road

Sport Vehicle or a part has failed due to abuse, neglect, improper maintenance

or unapproved modifications.

If you have any questions regarding your warranty rights and responsibilities, you

should contact:

- Bombardier Recreational Products Inc. at 1-888-272-9222, or

- The California Air Resources Board at 4001 Iowa Avenue, Riverside, CA

92507.

190

BRP LIMITED WARRANTY FOR INTERNATIONAL:

2024 CAN-AM® SSV

1) Scope of the Limited Warranty

Bombardier Recreational Products Inc. ("BRP") warrants its 2024 Can-Am SSV

(“Product(s)”) sold by distributors or dealers authorized by BRP to distribute the

Products outside of the United States of America ("USA"), Canada, member

states of the European Economic Area (which is comprised of the states of the

European Union plus the United Kingdom, Norway, Iceland and Liechtenstein)

("EEA"), Turkey, member states of the Commonwealth of the Independent States

(including Ukraine and Turkmenistan) ("CIS") from defects in material or work-

manship for the period and under the conditions described below.

This limited warranty will become null and void if:

1. the Product was used for racing or any other competitive activity, at any

point, even by a previous owner; or

2. the Product has been altered or modified in such a way so as to adversely af-

fect its operation, performance or durability, or has been altered or modified

to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

2) Limitation of Liability

TO THE EXTEND PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR

THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED

ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-

RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE

OTHER LEGAL RIGHTS WHICH MAY VARY FROM COUNTRY TO COUN-

TRY. BRP SHALL NOT BE HELD LIABLE IF PRODUCTS OR WARRANTY

PARTS ARE NOT AVAILABLE IN CERTAIN COUNTRIES FOR REASONS

OUTSIDE OF BRP’S CONTROL.

For Products purchased in Australia, refer to the Australia-specific section below.

Neither the distributor, any BRP Distributor/Dealer nor any other person has

been authorized to make any affirmation, representation or warranty regarding

the product, other than those contained in this limited warranty, and if made, shall

not be enforceable against BRP.

BRP reserves the right to modify this limited warranty at any time, being under-

stood that such modification will not alter the warranty conditions applicable to

the Products sold while this warranty is in effect.

191

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^® SSV

3) EXCLUSIONS – Are Not Warranted

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the Operator's Guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

resulting from repairs done by a person that is not an authorized servicing

BRP Distributor/Dealer;

- Damage caused by abuse, abnormal use, neglect or operation of the product

in a manner inconsistent with the recommended operation described in the

Product’s Operator’s Guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

Product (see the Operator’s Guide);

- Damages from rust, corrosion or exposure to the elements;

- Damage resulting from water or snow ingestion;

- Incidental or consequential damages, or damages of any kind including with-

out limitation transportation expenses, towing, storage, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

The following list includes, without limitation, items that are considered wear

items and that are not covered under BRP's limited warranty unless failure is a di-

rect result of a defect in material or workmanship:

- Batteries

- Brake pads

- Brake disks and drums

- Clutch plates / pads

- Clutch sliders

- Clutch springs

- Clutch replaceable bushings

- Drive belts

- Filters

- Finished and unfinished surfaces

- Fuses

- Light bulbs / sealed

- Lubricants

- Spark plugs

- Suspension bushings

- Suspension slider shoes

- Suspension springs

- Tires

4) Warranty Coverage Period

This limited warranty will be in effect from (1) the date of delivery to the first retail

consumer, or (2) the date the product is first put into use, whichever occurs first

and for the applicable period below:

192

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^® SSV

1. SIX (6) consecutive months, for private use or commercial use owners

In AUSTRALIA and NEW ZEALAND only, this warranty will be in effect from (1)

the date of delivery to the first retail consumer or (2) the date the product is first

put into use, whichever occurs first, and for a period of TWELVE (12) CONSEC-

UTIVE MONTHS and THIRTY SIX (36) CONSECUTIVE MONTHS for Power-

train Engine and Transmission systems only, for private use or commercial use.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this warranty beyond its original expiration date.

The warranty coverage period identified above are a minimal limited warranty pe-

riod which can be extended by any applicable warranty promotional program, as

the case may be.

Note that the duration and any other modalities of the warranty coverage are sub-

ject to the applicable national or local legislation in the customer's country.

5) For Products Sold In Australia Only

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law.

You are entitled to a replacement or refund for a major failure and for compensa-

tion for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to

be of acceptable quality and the failure does not amount to a major failure.

Nothing in these Warranty terms and conditions should be taken to exclude, re-

strict or modify the application of any condition, warranty, guarantee, right or rem-

edy conferred or implied under the Competition and Consumer Act 2010 (Cth),

including the Australian Consumer Law or any other law, where to do so would

contravene that law, or cause any part of these terms and conditions to be void.

The benefits given to you under this limited warranty are in addition to other rights

and remedies that you have under Australian law.

6) Conditions to Have Warranty Coverage

This warranty coverage is available only if each of the following conditions has

been fulfilled:

1. The Product must be purchased as new and unused by its first owner from a

Distributor/Dealer authorized to distribute Products in the country in which the

sale occurred (“Distributor/Dealer”);

2. The BRP specified pre-delivery inspection process must be completed, docu-

mented and signed by the purchaser;

3. The Product must have undergone proper registration by an authorized Dis-

tributor/Dealer;

4. The Product must be purchased in the country in which the purchaser

resides;

5. Routine maintenance outlined in the Operator’s Guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

193

BRP LIMITED WARRANTY FOR INTERNATIONAL: 2024 CAN-AM^® SSV

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

7) What to Do to Obtain Warranty Coverage

The customer must cease using the Product upon the appearance of an anom-

aly, notify a servicing BRP Distributor/Dealer within two (2) months of the appear-

ance of the anomaly and provide the Distributor/Dealer with reasonable access

to the Product and reasonable opportunity to repair it.

The notification period is subject to the applicable national or local legislation in

customer's country.

The customer must also present to the Distributor/Dealer, proof of purchase of

the Product and must sign the repair/work order prior to starting the repair in or-

der to validate the warranty repair.

All parts replaced under this limited warranty become the property of BRP.

8) What BRP Will Do

To the extent permitted by law, BRP’s obligations under this warranty are limited

to, at its sole discretion, repairing or replacing parts found defective under normal

use, maintenance and service without charge for parts and labor, at any author-

ized BRP Distributor/Dealer during the warranty coverage period under the con-

ditions described herein. No claim of breach of warranty shall be cause for

cancellation or rescission of the sale of the Product to the owner. You may have

other legal rights which may vary from country to country.

In the event that service is required outside of the country of original sale, the

owner will bear responsibility for any additional charges due to local practices

and conditions, such as, but not limited to, freight, insurance, taxes, license fees,

import duties, and any and all other financial charges, including those levied by

governments, states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

9) Transfer

If the ownership of a Product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Product Distributor/Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

10) Consumer Assistance

In the event of a controversy or a dispute in connection with this limited warranty,

BRP suggests that you try to resolve the issue at the dealership level. We recom-

mend discussing the issue with the authorized Distributor/Dealer's service man-

ager or owner.

194

BRP LIMITED WARRANTY FOR THE EUROPEAN

ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024

CAN-AM® SSV

1) Scope of the Limited Warranty

Bombardier Recreational Products Inc. ("BRP") warrants its 2024 Can-Am SSV

(“Product(s)”) sold by distributors or dealers authorized by BRP to distribute the

Products in member states of the European Economic Area (which is comprised

of the states of the European Union plus the United Kingdom, Norway, Iceland

and Liechtenstein) ("EEA"), Turkey, member states of the Commonwealth of the

Independent States (including Ukraine and Turkmenistan) ("CIS") (“Distributor/

Dealer”) from defects in material or workmanship for the period and under the

conditions described below.

This limited warranty will become null and void if:

1. the Product was used for racing or any other competitive activity, at any point,

even by a previous owner; or

2. the Product has been altered or modified in such a way so as to adversely af-

fect its operation, performance or durability, or has been altered or modified

to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

2) Limitations of Liability

TO THE EXTEND PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW FOR

THE DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED

ABOVE. AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WAR-

RANTY GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE

OTHER LEGAL RIGHTS WHICH MAY VARY FROM STATE TO STATE,

OR PROVINCE TO PROVINCE. BRP SHALL NOT BE HELD LIABLE IF

PRODUCTS OR WARRANTY PARTS ARE NOT AVAILABLE IN CERTAIN

COUNTRIES FOR REASONS OUTSIDE OF BRP’S CONTROL.

For Products purchased in France, refer to the France-specific section below.

Neither the distributor, any BRP Distributor/Dealer nor any other person has

been authorized to make any affirmation, representation or warranty regarding

the product, other than those contained in this limited warranty, and if made, shall

not be enforceable against BRP.

196

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

BRP reserves the right to modify this limited warranty at any time, being under-

stood that such modification will not alter the warranty conditions applicable to

the Products sold while this warranty is in effect.

3) EXCLUSIONS – Are Not Warranted

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the Operator's Guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

resulting from repairs done by a person that is not an authorized servicing

BRP Distributor/Dealer;

- Damage caused by abuse, abnormal use, neglect or operation of the product

in a manner inconsistent with the recommended operation described in the

Product’s Operator’s Guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

Product (see the Operator’s Guide);

- Damages from rust, corrosion or exposure to the elements;

- Damage resulting from water or snow ingestion;

- Incidental or consequential damages, or damages of any kind including with-

out limitation transportation expenses, towing, storage, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

The following list includes, without limitation, items that are considered wear

items and that are not covered under BRP's limited warranty unless failure is a di-

rect result of a defect in material or workmanship:

- Batteries

- Brake pads

- Brake disks and drums

- Clutch plates / pads

- Clutch sliders

- Clutch springs

- Clutch replaceable bushings

- Drive belts

- Filters

- Finished and unfinished surfaces

- Fuses

- Light bulbs / sealed

- Lubricants

- Spark plugs

- Suspension bushings

- Suspension slider shoes

- Suspension springs

- Tires

197

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

4) Warranty Coverage Period

This limited warranty will be in effect from (1) the date of delivery to the first retail

consumer, or (2) the date the product is first put into use, whichever occurs first

and for the applicable period below:

1. TWENTY-FOUR (24) consecutive months, for private use owners.

2. SIX (6) consecutive months, for commercial use owners.

A Product is used commercially when it is used in connection with any work or

employment that generates income during any part of the warranty period. A

Product is also used commercially when, at any point during the warranty period,

it is licensed for commercial use.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this warranty beyond its original expiration date.

The warranty coverage period identified above are a minimal limited warranty pe-

riod which can be extended by any applicable warranty promotional program, as

the case may be.

Note that the duration and any other modalities of the warranty coverage are sub-

ject to the applicable national or local legislation in the customer's country.

5) For Products Sold In France Only

The seller shall deliver goods that are complying with the contract and shall be

responsible for defects existing upon delivery. The seller shall also be responsi-

ble for defects resulting from packaging, assembling instructions or the installa-

tion when it is its responsibility per the contract or if accomplished under its

responsibility. To be compliant with the contract, the good shall:

1. Be fit for normal use for goods similar thereto and, if applicable:

- Correspond to the description provided by the seller and have the qualities

presented to the buyer though sample or model;

- Have the qualities that a buyer may legitimately expect considering the

public declarations of the seller, the manufacturer of its representative, in-

cluding in advertising or labeling; or

2. Have the characteristics mutually agreed upon as between the parties or be

fit for the specific use intended by the buyer and brought to the attention of

the seller and which accepted.

The action for failure to comply is prescribed after two years after delivery of the

goods. The seller is responsible for the warranty for hidden defects of the good

sold if such hidden defects are rendering the good unfit for the intended use, or if

they diminish its use in such a way that the buyer would not have acquired the

good or would have given a lesser price, had he known. The action for such hid-

den defects shall be taken by the buyer within 2 years of the discovery of the

defect.

6) Conditions to Have Warranty Coverage

This warranty coverage is available onlly if each of the following conditions has

been fulfilled:

198

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

1. The Product must be purchased as new and unused by its first owner from a

Distributor/Dealer authorized to distribute Products in the country (or in the

case of the EEA, union of countries) in which the sale occurred (“Distributor/

Dealer”);

2. The BRP specified pre-delivery inspection process must be completed, docu-

mented and signed by the purchaser;

3. The Product must have undergone proper registration by an authorized Dis-

tributor/Dealer;

4. The Product must be purchased in the country (or in the case of the EEA,

union of countries) in which the purchaser resides;

5. Routine maintenance outlined in the Operator’s Guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

7) What to Do to Obtain Warranty Coverage

The customer must cease using the Product upon the appearance of an anom-

aly, notify a servicing BRP Distributor/Dealer within two (2) months of the appear-

ance of the anomaly and provide the Distributor/Dealer with reasonable access

to the Product and reasonable opportunity to repair it.

The notification period is subject to the applicable national or local legislation in

customer's country.

The customer must also present to the Distributor/Dealer, proof of purchase of

the Product and must sign the repair/work order prior to starting the repair in or-

der to validate the warranty repair.

All parts replaced under this limited warranty become the property of BRP.

8) What BRP Will Do

To the extent permitted by law, BRP’s obligations under this warranty are limited

to, at its sole discretion, repairing or replacing parts found defective under normal

use, maintenance and service without charge for parts and labor, at any author-

ized BRP Distributor/Dealer during the warranty coverage period under the con-

ditions described herein. No claim of breach of warranty shall be cause for

cancellation or rescission of the sale of the Product to the owner. You may have

other legal rights which may vary from country to country.

In the event that service is required outside of the country of original sale, or for

EEA residents, if service is required outside of the EEA, the owner will bear re-

sponsibility for any additional charges due to local practices and conditions, such

as, but not limited to, freight, insurance, taxes, license fees, import duties, and

any and all other financial charges, including those levied by governments,

states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

199

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2024 CAN-AM^® SSV

9) Transfer

If the ownership of a Product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Product Distributor/Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

10 Consumer Assistance

In the event of a controversy or a dispute in connection with this limited warranty,

BRP suggests that you try to resolve the issue at the dealership level. We recom-

mend discussing the issue with the authorized Distributor/Dealer's service man-

ager or owner.

If the matter still remains unresolved, contact BRP by filling out the customer con-

tact form at www.brp.com or contact BRP by mail at one of the addresses listed

under the Contact Us section of this guide.

200

DATA PRIVACY INFORMATION

Bombardier Recreational Products inc., its affiliates and subsidiaries (“BRP”) is

committed to protecting your privacy and support a general policy of openness

about how we collect, use and disclose your personal information in the course

of managing our relationship with you. More detaiils can be found by visiting

BRP’’s Priivacy Poliicy at:

https://brp.com/en/privacy-poliicy.htmll or by scanniing the QR Code below.

Please be assured that we have appropriate security measures in place to en-

sure that your personal information is protected against loss and unauthorized

access.

Your personal information that may be collected by BRP, directly from you or

from authorized dealers or authorized third parties, includes:

- Contact, Demographiic & Registratiion Informatiion (e.g., name, full ad-

dress, phone number, email, gender, ownership history, language of

communication)

- Vehicle Information (e.g., serial number, purchase and delivery date, unit

usage, vehicle location and movements)

- Third Party Informatiion (e.g., information received from BRP partners, join-

t-marketing activities information, social media)

- Technological Information (e.g., IP address, type of device, operating sys-

tem, browser type, webpages you view, cookies and similar technologies

when you use BRP or dealers’ websites or mobile application)

- Interaction with BRP Information (e.g., information collected when you call

BRP’s in-house sales representatives, buy items on a BRP web Site, sign up

for BRP emails, participate in BRP-sponsored contests and sweepstakes or

attend BRP-sponsored events)

- Transactiionall Informatiion (e.g., information necessary to handle returns,

payment information when you purchase our products or services through

our websites or mobile applications and other issues related to your purchase

of BRP products)

This information may be used and processed for the following purposes:

- Safety & Security

- Customer Support for Sales & After Sales (e.g., complete or follow up with

you about your purchase or maintenance)

- Registration & Warranty

- Communication (e.g., sending you a BRP satisfaction survey)

- Online Behavioural Advertising, Profiling and Location-Based Services

(e.g., offer customized experience)

- Compliance & Dispute Resolution

- Marketing & Advertising

- Assistance (e.g., help with any delivery issues, handle returns, and other is-

sues related to your purchase of BRP products).

We also may use personal information to generate aggregated or statistical data

that no longer identifies you personally.

Your personal informatiion may be disclosed to the folllowiing: BRP, BRP’s

authoriized deallerships, diistriibutors, serviice proviiders, advertising & mar-

ket research partners and other authoriized third partiies.

We may receive information about you from diverse sources, including third par-

ties, such as BRP’s authorized dealerships and partners, with whom we offer

202

DATA PRIVACY INFORMATION

services or engage in joint-marketing activities. We may also receive information

about you from social media platforms such as Facebook and Twitter, when you

interact with us on those platforms.

Depending on the circumstances, your personal information may be communi-

cated outside the region where you reside. Your personal information is retained

only for as long as necessary for the purpose for which we obtained it and ac-

cording to our retention policies.

To exercise your data privacy rights (e.g. right of access, right of rectification), to

withdraw your consent in order to be removed from the address list for marketing

purposes or for the satisfaction survey or for general data privacy questions,

please contact BRP’s Data Protection Officer at or by mail at privacyoffii-

cer@brp.com or by mail at:

BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E 2L0.

When BRP processes your personall iinformation, they do so in complliance

wiith its Privacy Pollicy avaiilable at: https://www.brp.com/en/privacy-poliicy.

htmll or by using the folllowiing

QR Code.

203

www.brp.com

Asia Pacific

Australia

Level 26

477 Pitt Street

Sydney, NSW 2020

China

上海市徐汇区衡山路10号6号楼301

Rm 301, Building 6,

No.10 Heng Shan Rd,

Shanghai, China

Japan

21F Shinagawa East One Tower

2-16-1 Konan, Minato-ku-ku,

Tokyo 108-0075

New Zealland

Suite 1.6, 2-8 Osborne Street,

Newmarket, Auckland 2013

Europe, Middle East and Africa

Bellgium

Oktrooiplein 1

9000 Gent

Czech Republiic

Stefanikova 43a

Prague 5

150 00

Germany

Itterpark 11

40724 Hilden

Fiinland

Isoaavantie 7

PL 8040

96101 Rovaniemi

France

Arteparc Bâtiment B

Route de la côte d'Azur,

13 590 Meyreuil

Norway

Ingvald Ystgaardsvei 15

N-7484 Trondheim

204

CHANGE OF ADDRESS AND OWNERSHIP

If your address has changed or if you are the new owner of the vehicle, be sure

to notify BRP by either:

- Notifying an authorized Can-Am dealer.

- North America Only: calling at 1 888 272-9222.

- Mailing one of the change of address cards on the following pages at one of

the BRP addresses indicated in the Contact Us section of this guide.

In case of change of ownership, please join a proof that the former owner agreed

to the transfer.

Notifying BRP, even after the expiration of the limited warranty, is very important

as it enables BRP to reach the vehicle owner if necessary, like when safety re-

calls are initiated. It is the owner’s responsibility to notify BRP.

STOLEN UNITS: If your personal vehicle is stolen, you should notify BRP or an

authorized Can-Am dealer. We will ask you to provide your name, address,

phone number, the vehicle identification number and the date it was stolen.

206
