BRP Sea-Doo EXPLORER PRO 170. OPERATOR’S GUIDE (2023)

KNOW BEFORE YOU GO

Available Languages

Dieses Handbuch ist möglicherweise in Ihrer Landessprache

Deutsch

verfügbar. Bitte wenden Sie sich an Ihren Händler oder besuchen Sie:

www.operatorsguides.brp.com

This guide may be available in your language. Check with your dealer or

English

go to: www.operatorsguides.brp.com

Es posible que este manual esté disponible en su idioma. Consulte a su

Español

distribuidor o visite: www.operatorsguides.brp.com

Ce guide peut être disponible dans votre langue. Vérifier avec votre

Français

concessionnaire ou aller à: www.operatorsguides.brp.com

Questa guida potrebbe essere disponibile nella propria lingua. Contattare

Italiano

il concessionario o consultare:

www.operatorsguides.brp.com

Deze handleiding kan beschikbaar zijn in uw taal. Vraag het aan uw dealer

Nederlands

of ga naar: www.operatorsguides.brp.com

Denne boken kan finnes tilgjengelig på ditt eget språk. Kontakt din

Norsk

forhandler eller gå til: www.operatorsguides.brp.com

Este manual pode estar disponível em seu idioma. Fale com sua

Português

concessionária ou visite o site: www.operatorsguides.brp.com

Воспользуйтесь руководством на вашем языке. Узнайте

Русский

о его наличии у дилера или на странице по адресу

www.operatorsguides.brp.com

Käyttöohjekirja voi olla saatavissa omalla kielelläsi. Tarkista jälleenmyyjältä

Suomi

tai käy osoitteessa: www.operatorsguides.brp.com

Denna bok kan finnas tillgänglig på ditt språk. Kontakta din återförsäljare

Svenska

eller gå till: www.operatorsguides.brp.com

Covered Models

EXPLORER PRO 170

EXPLORER PRO 170 AUDIO

TABLE OF CONTENTS

KNOW BEFORE YOU GO

GENERAL INFORMATION

FOREWORD

Know Before You Go

Safety Messages

About this Operator’s Guide

SAFETY INFORMATION

BEFORE YOU GO

Operating Age and Ability

Drugs and Alcohol

Safe Boating Courses

Applicable Boating Laws

Protective Gear

Helmets: Weighing the Risks vs Benefits

Required Equipment

GET FAMILIAR WITH THE WATERCRAFT

Jet Thrust

Steering

Tether Cord (Safety Lanyard)

Braking

Learning Key (if Equipped)

Cargo and Storage

Accessories and Modifications

RIDE SAFELY

Riding with Passenger(s)

Avoiding Collisions

Riding Behaviors

Speeding

Reboarding

Moving Parts

Know the Waters

Navigation Rules

Night-Time Operation

Carbon Monoxide (CO) Poisoning

Gasoline Fires and Other Hazards

Burns From Hot Parts

Watersports (Towing with the Watercraft)

PRACTICE EXERCISES

Where to Practice Exercises

Practice Exercises

FUELING

Fueling Procedure

Fuel Requirements

Recommended Fuel

TRANSPORTING THE WATERCRAFT

IMPORTANT ON-PRODUCT LABELS

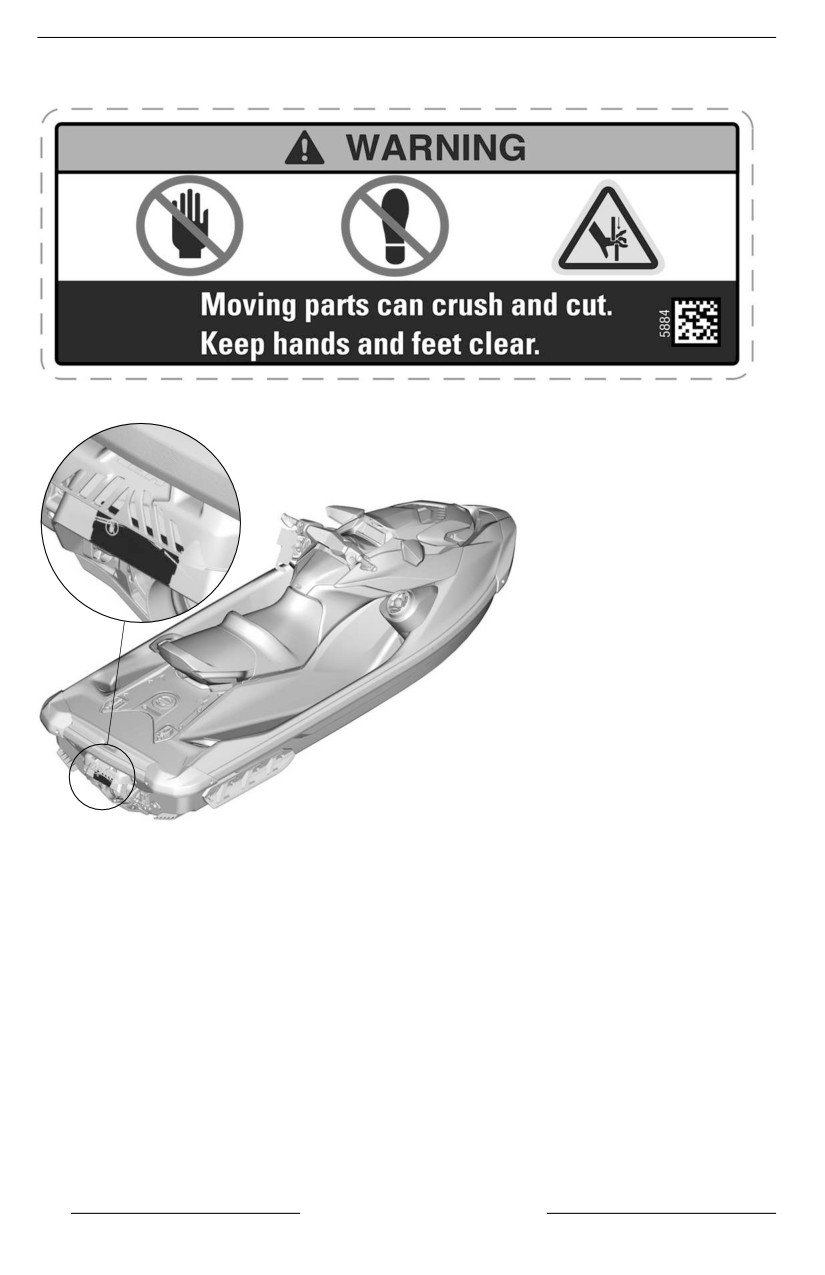

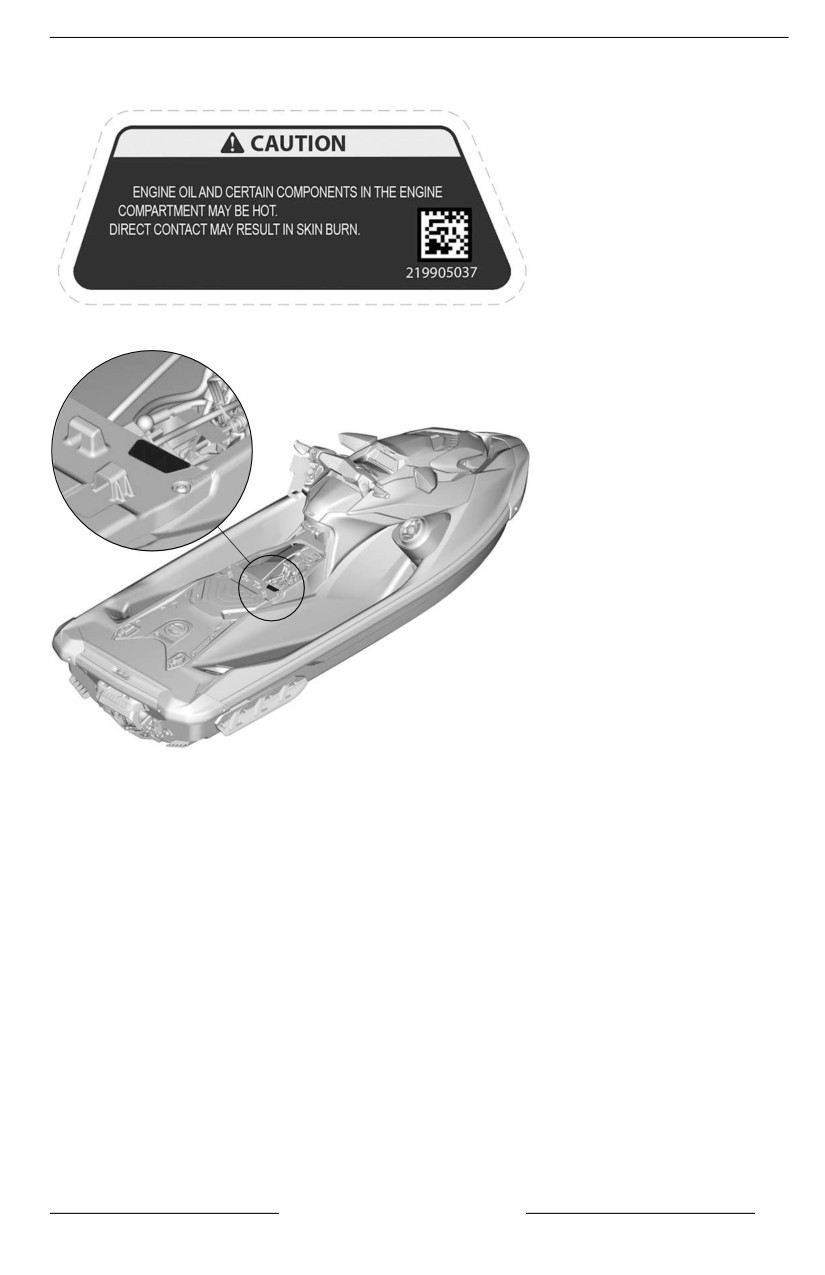

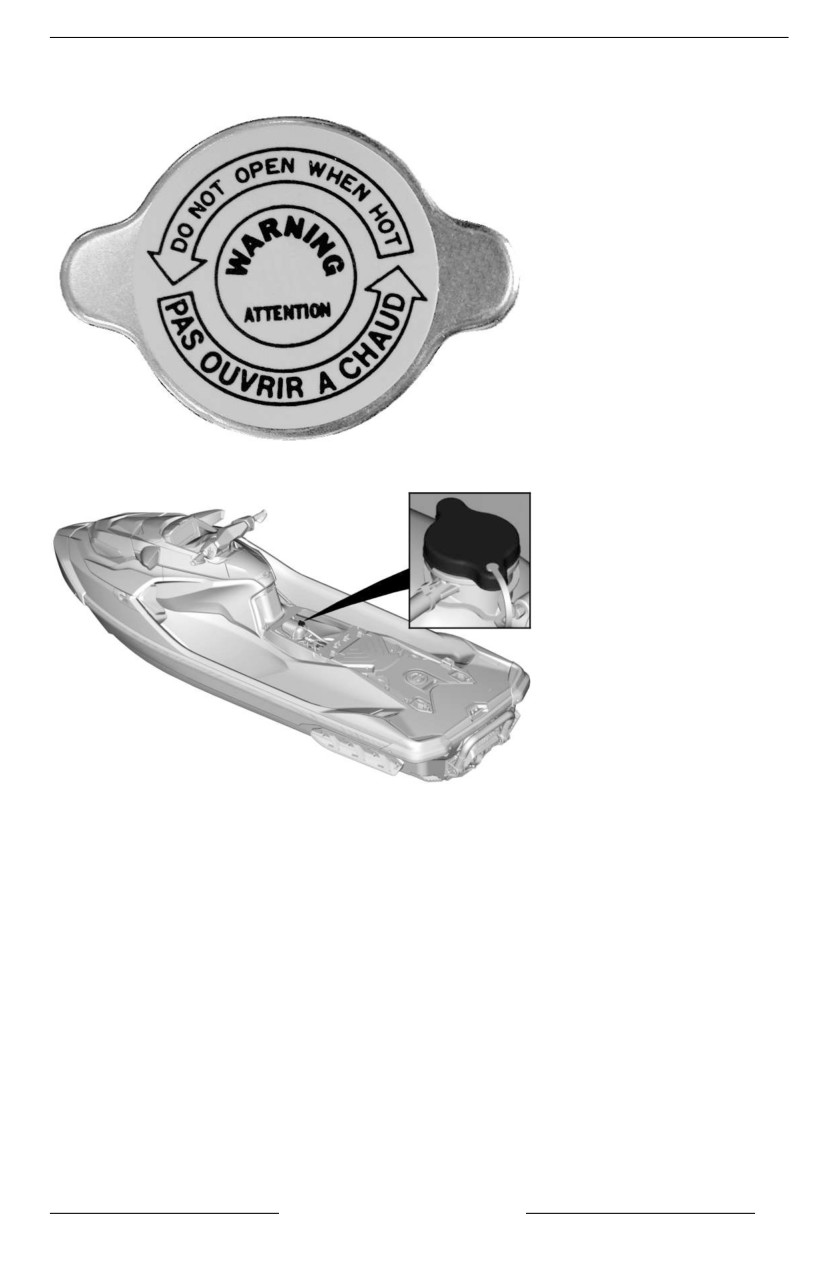

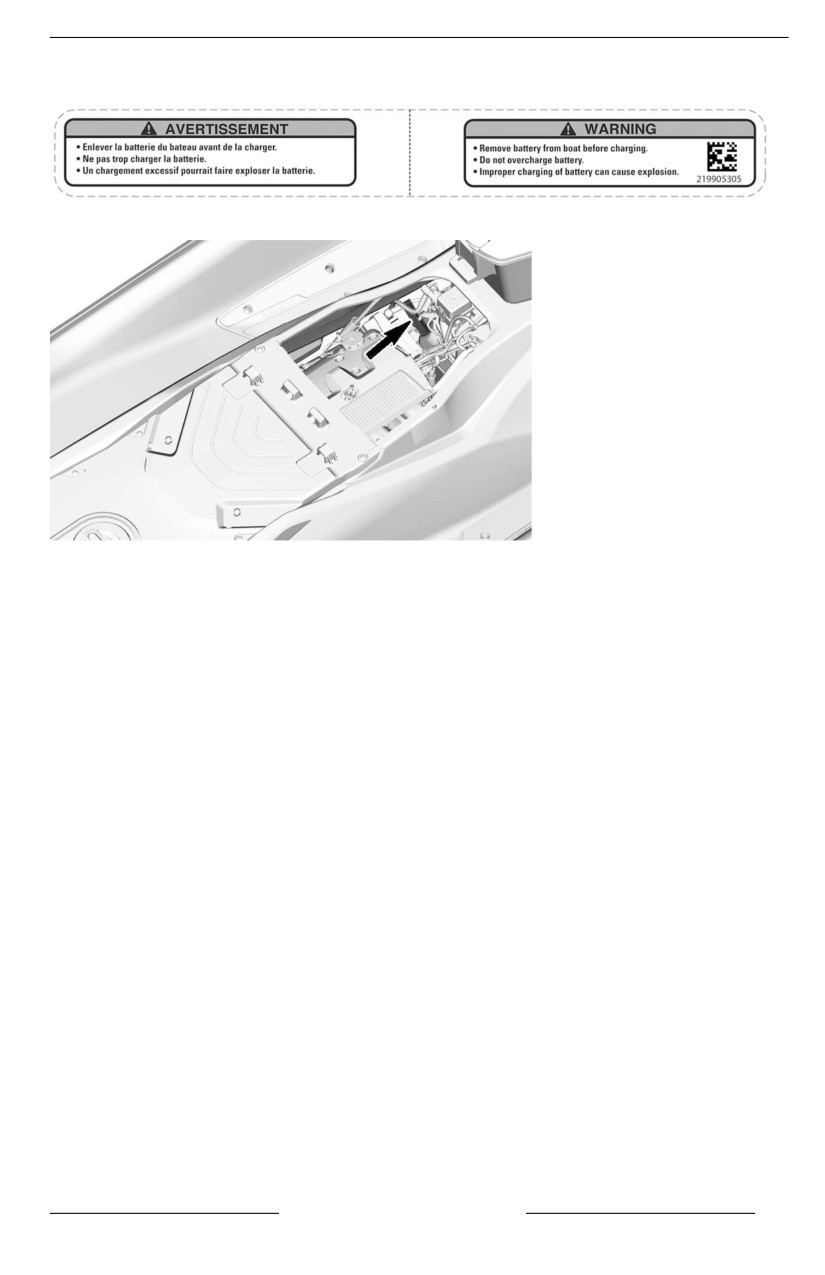

Watercraft Safety Labels

TABLE OF CONTENTS

Hang Tag

PRE-RIDE INSPECTION

What to Do Before Launching the Watercraft

What to Do After Launching the Watercraft

What to Do After Leaving the Water

REGULAR MAINTENANCE

WATERCRAFT INFORMATION

CONTROLS

Handlebar

Throttle Lever

Right Controller

BRP Connect Button (if equipped)

Engine Cut-Off Switch

Left Controller

Engine START/STOP Button

intelligent Brake and Reverse (iBR) Lever

EQUIPMENT

Front Tubular Bumper

Windshield

Front Storage Compartment

Fire Extinguisher Holder

Safety Kit Holder

Adjustable Handlebar Riser

Steering Tilt Handle

Glove Box

Fish Finder Sonar and Mount

Cup Holder

BRP Audio Premium System

Seat

Boarding Platform

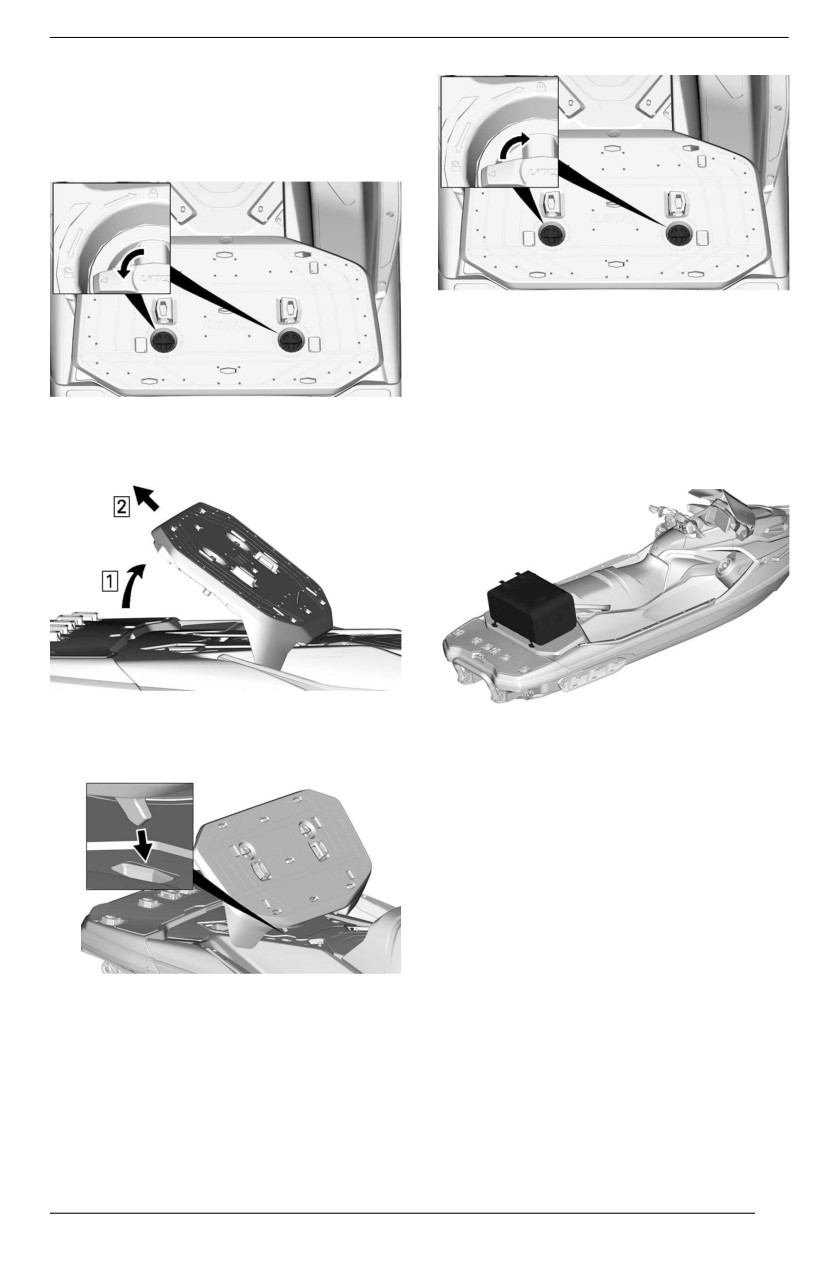

Cargo LinQ Platform

Dry Bag

Mooring Cleats

Front and Rear Eyelets

Bilge Drain Plugs

Boarding Ladder (If Equipped)

7.6" DIGITAL DISPLAY

Multifunction Display

Indicator Lamps

Settings

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Basic Functions

Settings

Pairing Your Smartphone Via Bluetooth

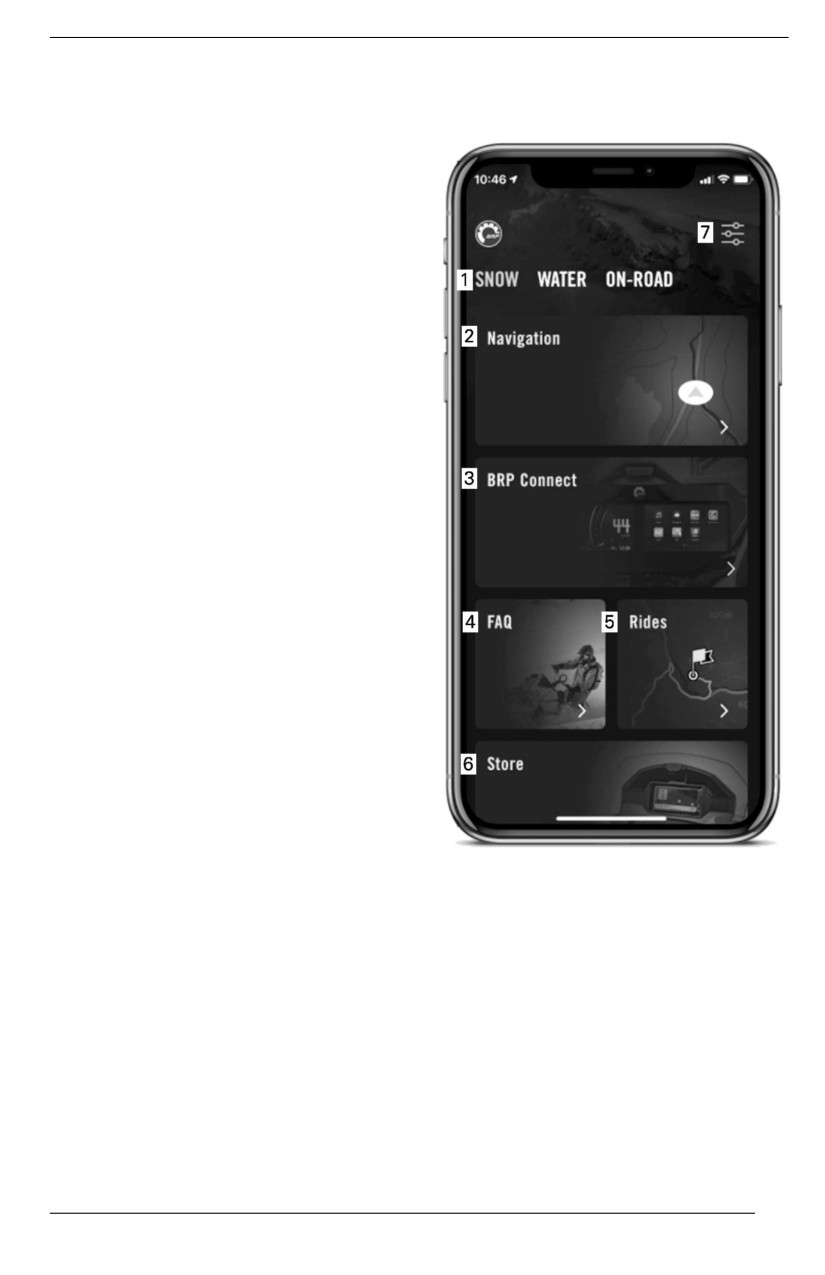

BRP GO! App

Quick Tour of the BRP GO! App

Messages in Multifunction Gauge

BREAK-IN PERIOD

Operation During Break-In Period

TABLE OF CONTENTS

OPERATING INSTRUCTIONS

100

Boarding the Watercraft

100

Starting the Engine

103

Shutting Off the Engine

104

Steering the Watercraft

104

Shifting into Neutral

105

Shifting into Forward

106

Shifting into Reverse

106

Braking

107

Variable Trim System (VTS)

108

Activating the Intelligent Debris Free Pump System (iDF System) (if

equipped)

111

General Operating Recommendations

111

OPERATING MODES

114

Touring Mode

114

Sport Mode

114

ECO Mode (Fuel Economy Mode)

114

Speed Control Modes

114

SPECIAL PROCEDURES

117

Jet Pump Water Intake and Impeller Cleaning

117

Capsized Watercraft

119

Submerged Watercraft

120

Water-Flooded Engine

120

Towing the Watercraft in Water

120

MAINTENANCE

MAINTENANCE SCHEDULE

124

EPA Regulation - Canadian and USA Watercrafts

124

Salt Water/ Dirty Water Usage

125

Maintenance Schedule

125

MAINTENANCE PROCEDURES

130

Engine Service Cover

130

Engine Oil

131

Engine Coolant

133

Ignition Coils

134

Spark Plugs

135

Exhaust System

135

Ride Plate and Water Intake Grate

137

Sacrificial Anodes

137

Fuses

137

WATERCRAFT CARE

140

Post-Operation Care

140

Seat Cleaning

140

Body and Hull

140

STORAGE AND PRESEASON PREPARATION

142

Storage

142

Preseason Preparation

145

TABLE OF CONTENTS

MAINTENANCE RECORDS

146

TECHNICAL INFORMATION

IDENTIFICATION NUMBERS

156

Hull Identification Number

156

Engine Identification Number

156

Engine Manufacturer Identification

156

COMPLIANCE

157

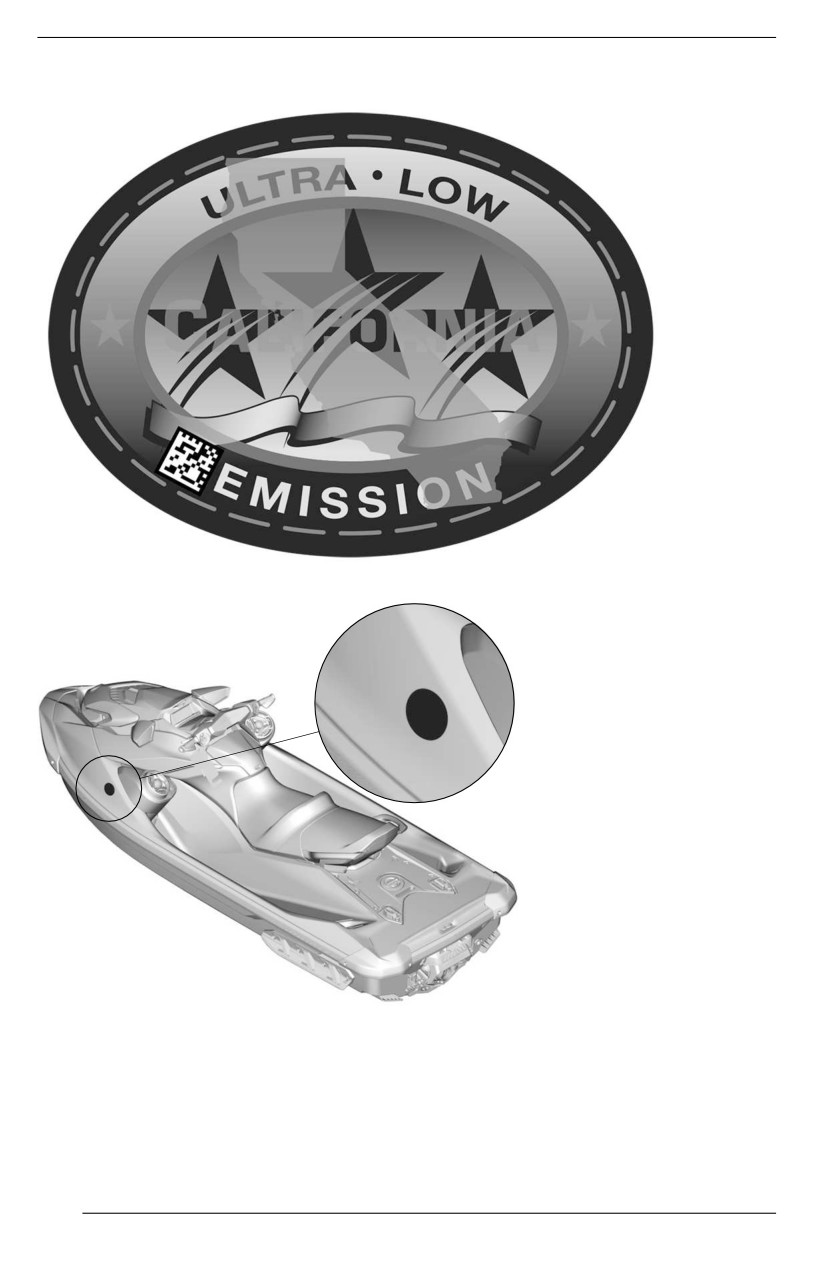

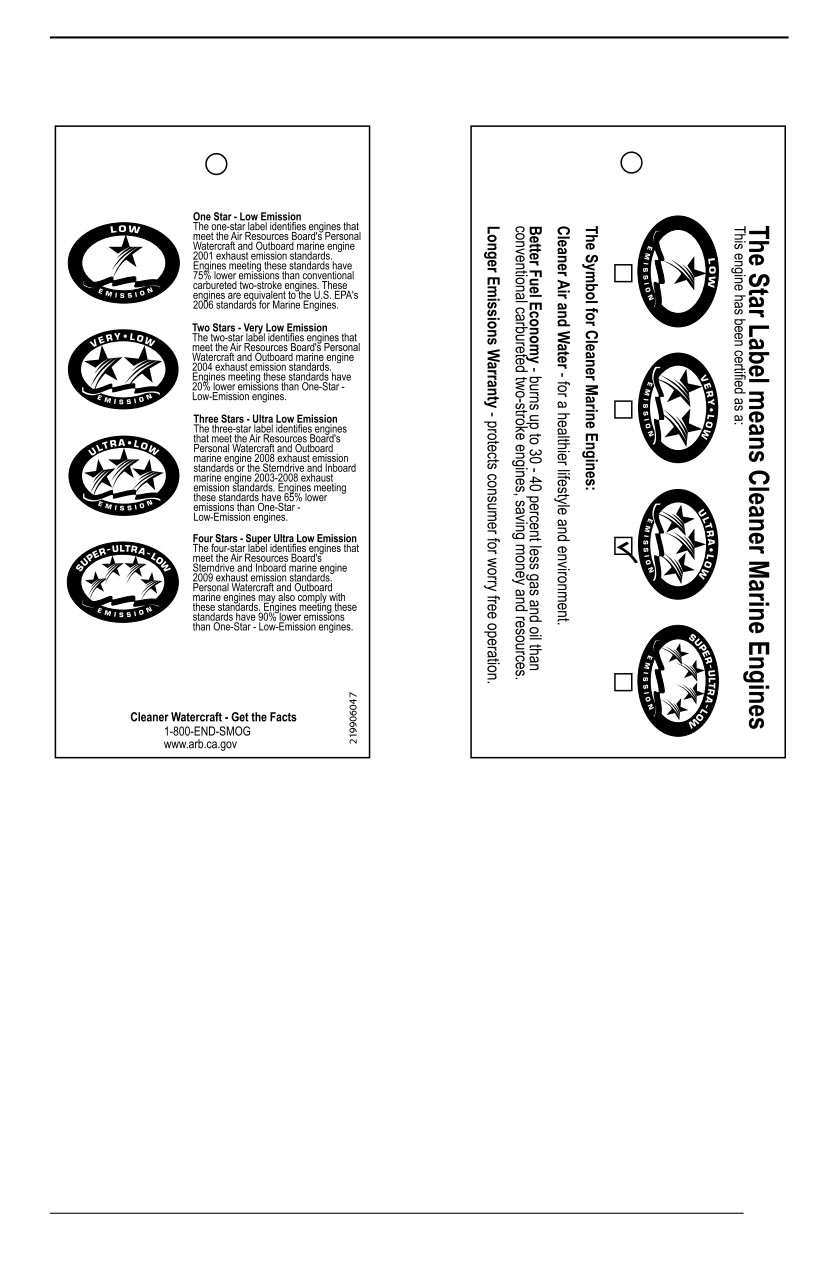

Emission Control Hang Tag - 3 Stars

157

Emission Control Label - 3 Stars

158

EPA Compliance Label

159

Regulation Exemption Label

160

BRP European Distribution SA

161

RF D.E.S.S. KEY

162

MULTIFUNCTION GAUGE REGULATORY INFORMATION

164

BRP AUDIO SYSTEM

168

ENGINE EMISSIONS INFORMATION

169

Manufacturer's Responsibility

169

Dealer's Responsibility

169

Owner’s Responsibility

169

EPA Emission Regulations

169

Evaporative Emission Control System

169

EU DECLARATION OF CONFORMITY

170

UK DECLARATION OF CONFORMITY

171

EAC DECLARATION OF CONFORMITY

172

TECHNICAL SPECIFICATIONS

ENGINE

174

Rotax 1630 ACE - 170

174

VEHICLE

176

EXPLORER PRO 170

176

TROUBLESHOOTING

TROUBLESHOOTING GUIDELINES

180

MONITORING SYSTEM

186

Fault Codes

186

Indicator Lights and Message Display Information

187

Beeper Code Information

189

WARRANTY

BRP LIMITED WARRANTY – USA AND CANADA: 2023 SEA-DOO PER-

SONAL WATERCRAFT

192

SCOPE OF THE LIMITED WARRANTY

192

LIMITATIONS OF LIABILITY

192

EXCLUSIONS - ARE NOT WARRANTED

192

WARRANTY COVERAGE PERIOD

193

CONDITIONS REQUIRED FOR WARRANTY COVERAGE

193

TABLE OF CONTENTS

WHAT TO DO TO OBTAIN WARRANTY COVERAGE

194

WHAT BRP WILL DO

194

TRANSFER

194

CONSUMER ASSISTANCE

195

US EPA EMISSION-RELATED WARRANTY

196

Emission-Related Warranty Period

196

Components Covered

196

Limited Applicability

197

CALIFORNIA EVAPORATIVE EMISSIONS CONTROL SYSTEM WAR-

RANTY STATEMENT

199

Your Warranty Rights and Obligations

199

Manufacturer’s Warranty Coverage

199

Owner’s Warranty Responsibilities

199

CALIFORNIA AND NEW YORK EMISSION CONTROL WARRANTY

STATEMENT FOR MODEL YEAR 2023 SEA-DOO PERSONAL

WATERCRAFT

201

Your Warranty Rights and Obligations

201

Star Rating System

202

BRP INTERNATIONAL LIMITED WARRANTY: 2023 SEA-DOO PERSON-

AL WATERCRAFT

205

SCOPE OF THE LIMITED WARRANTY

205

LIMITATIONS OF LIABILITY

205

EXCLUSIONS - ARE NOT WARRANTED

206

WARRANTY COVERAGE PERIOD

206

CONDITIONS TO HAVE WARRANTY COVERAGE

207

WHAT TO DO TO OBTAIN WARRANTY COVERAGE

207

WHAT BRP WILL DO

208

TRANSFER

208

CONSUMER ASSISTANCE

208

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA,

THE COMMONWEALTH OF THE INDEPENDENT STATES AND TURKEY:

2023 SEA-DOO PERSONAL WATERCRAFT

209

SCOPE OF THE LIMITED WARRANTY

209

LIMITATIONS OF LIABILITY

209

EXCLUSIONS - ARE NOT WARRANTED

210

WARRANTY COVERAGE PERIOD

210

CONDITIONS TO HAVE WARRANTY COVERAGE

211

WHAT TO DO TO OBTAIN WARRANTY COVERAGE

211

WHAT BRP WILL DO

211

TRANSFER

212

CONSUMER ASSISTANCE

212

ADDITIONAL TERMS AND CONDITIONS FOR FRANCE

212

CUSTOMER INFORMATION

DATA PRIVACY INFORMATION

214

216

Asia Pacific

216

Europe, Middle East and Africa

216

Latin America

216

North America

216

CHANGE OF ADDRESS/OWNERSHIP

217

FOREWORD

Congratulations on your purchase of a

The safety alert symbol

indicates

new Sea-Doo^® personal watercraft

a potential injury hazard.

(PWC)

(hereinafter referred to as

“watercraft”). It is backed by the BRP

warranty and a network of authorized

DANGER

Sea-Doo watercraft dealers ready to

Indiicates a potentiall hazard

provide the parts, service or accesso-

whiich, iif not avoided, wiilll resullt iin

ries you may require.

seriious iinjjury or death.

Your dealer is committed to your satis-

faction. He has taken training to per-

WARNING

form the initial setup and inspection of

Indiicates a potentiall hazard

your watercraft as well as completed

whiich, iif not avoided, could result

the final adjustment before you took

in serious injury or death.

possession. If you need more com-

plete servicing information, please ask

your dealer.

CAUTION

At delivery, you were also informed of

Indiicates a potentiallly hazardous

the warranty coverage and signed the

situatiion which, iif not avoiided,

Pre-Delivery Check List to ensure

coulld result iin minor or moderate

your new watercraft was prepared to

injjury.

your entire satisfaction.

NOTICE

Know Before You Go

Indiicates an iinstruction which, iif

To learn how to reduce the risk for you

not folllowed, could severely dam-

or other persons being injured or

age watercraft components or

killed, read the following sections be-

other property.

fore you operate the watercraft:

- Safety Information

- Watercraft Information.

About this Operator’s Guide

Read and understand all safety labels

This operator's guide has been pre-

on your watercraft and watch atten-

pared to acquaint the owner / operator

tively the Safety Video located at:

or passenger with this watercraft and

its various controls, maintenance and

https://www.sea-doo.com/safety

safe riding instructions.

Or, use the following QR code.

Keep this Operator’s Guide in the

watercraft as you can refer to it for the

operation, instructing others, mainte-

nance and troubleshooting. This oper-

ator's guide needs to remain with the

watercraft at all time.

This guide is available in several lan-

guages. In the event of any discrep-

ancy, the English version shall prevail.

Safety Messages

If you want to view and/or print an ex-

tra copy of your operator's guide, sim-

This operator’s guide utilizes the fol-

ply visit the following website:

lowing symbols and words to empha-

size particular information:

www.operatorsguiides.brp.com

BEFORE YOU GO

WARNING

Diisregarding any of the safety precautions and iinstructiions included in

this sectiion could cause injury iincludiing the possibillity of death. Any po-

tential operator shoulld read and understand thiis guide before operatiing

the watercraft.

Operating Age and Ability

Operators must be qualified. Make sure the operator is 16 or older and has taken

a boater safety course. Your state (or province) may have additional require-

ments. Laws regarding the minimum age and licensing requirements vary from

one jurisdiction to another. Be sure to contact the local boating authorities for in-

formation regarding the legal operation of a watercraft in the intended jurisdiction

of use.

Operation of this watercraft with a disability that impairs vision, reaction time,

judgment, or operation of the controls is not recommended.

Remember that sun, wind, fatigue or illness may impair your judgment and reac-

tion time.

Each passenger must be able to simultaneously place both feet firmly flat against

each footwell when properly seated.

Drugs and Alcohol

Never ride after consuming alcohol or drugs. Riding on a watercraft requires the

operator and passenger(s) to be sober, attentive and alert. The use of drugs and

alcohol, singly or in combination, decreases reaction time, impedes judgment,

impairs vision, and inhibits your ability to safely ride on a watercraft.

Safe Boating Courses

Many countries recommend or require a boating safety course. Check with your

local competent authorities.

Applicable Boating Laws

Check boating laws applicable to the waterways where you intend to use your

watercraft. Learn the local navigation rules.

Protective Gear

All riders MUST wear:

1. An approved Personall Fllotation Deviice (PFD) meeting your country regu-

lations. The size of the PFD shall be appropriate for the wearer.

2. Shorts wiith neoprene (wetsuit material) to keep water from being forcefully

injected into rectum or vagina during a fall backward. Riders not wearing neo-

prene shorts have received severe rectal, vaginal, and internal injuries result-

ing in permanent damage. Normal swimwear does not adequately protect

against forceful entry of water into the lower male or female body opening(s).

Footwear, gloves, safety goggles or glasses can be worn. Wind, water spray,

bugs and speed may cause a person’s eyes to water and create blurred vision.

SAFETY INFORMATION

BEFORE YOU GO

If you are planning a ride in cold weather or water, consider adding appropriate

warm clothing such as a complete wet suit or dry suit. Not only will it make your

ride more comfortable, but it may delay or protect you from hypothermia if you fall

into cold water. Be prepared for changing conditions.

Helmets: Weighing the Risks vs Benefits

Since each option minimizes some risks, but increases others, before each ride

you must decide whether to wear or not wear a helmet based on your particular

situation. If you decide to wear a helmet, look for helmets that meet DOT or Snell

standards, and if possible, choose one designed for motorized watersports.

Helmets are designed to offer some degree of protection in case of impacts to

the head. In most motorized sports, the benefits of wearing a helmet clearly out-

weigh the drawbacks. However, in the case of motorized watersports such as rid-

ing personal watercraft, this is not necessarily true as there are some particular

risks associated with the water.

Benefiits

A helmet helps to reduce the risk of injury in case of a head impact against a hard

surface such as another craft in the case of a collision. Similarly, a helmet with a

chin guard might help prevent injuries to the face, jaw or teeth.

Riisks

On the other hand, in some situations when falling off the watercraft, helmets

have a tendency to catch the water, like a “bucket”, and put severe stresses on

the neck or spine. This could result in choking, severe or permanent neck or

spine injury or death. Helmets may also interfere with peripheral vision and hear-

ing, or increase fatigue which could contribute to increase the risk of a collision.

Required Equipment

As the owner of the watercraft, you are responsible for ensuring that all required

safety equipment is aboard. Check your local regulations about requirements.

This could include:

SAFETY INFORMATION

GET FAMILIAR WITH THE WATERCRAFT

The performance of this watercraft may exceed the performance of other water-

crafts you may have operated. Do not assume that all watercrafts handle

identically.

Make sure you read and understand the content of this operator’s guide to be-

come completely familiar with the controls and operation of the watercraft before

embarking on your first trip, or taking on a passenger(s). If you have not had the

opportunity to do so, practice in a suitable traffic-free area to become accus-

tomed to the feel and response of each control. Be fully familiar with all controls

before accelerating above idle speed.

Jet Thrust

Your watercraft features a jet drive propulsion system. The water is drawn up

from underneath the watercraft from the intake grate and is accelerated by the

venturi to produce thrust. This accelerated water is going out at the rear of the

craft.

All riders must wear shorts with neoprene (wetsuit material) to keep water from

being forcefully injected into rectum or vagina during a fall backward. Riders not

wearing neoprene shorts have received severe rectal, vaginal, and internal inju-

ries resulting in permanent damage. Normal swimwear does not adequately pro-

tect against forceful entry of water into the lower male or female body opening(s).

The jet pump may pick up debris and throw it rearward causing a risk of injuring

people, damaging the jet pump, or other property.

Do not start the engine or operate the watercraft if anyone is in the water nearby,

or near the rear of the watercraft.

Steering

Your watercraft has a steerable nozzle at the rear of the boat controlled by the

handlebars which direct the stream of water from left to right. To turn the water-

craft, both steering and throttle are necessary.

Do not release throttle when trying to steer away from objects — as with other

powerboats, you need throttle to steer.

If the engine is shut off, steering is lost.

Tether Cord (Safety Lanyard)

Keep the tether cord clip attached to the operator’s PFD or wrist (wrist strap re-

quired) at all times and keep it free from snagging on the handlebars to help en-

sure the engine stops should the operator fall off.

If the operator falls off the watercraft and the tether cord is not attached as rec-

ommended, the engine will not stop and the watercraft will keep running without

a driver. The operator may not be able to swim back to it.

After riding, always remove the tether cord from the engine cut-off switch to avoid

unauthorized use by children or others and to prevent starting in a closed envi-

ronment (e.g.: garage).

SAFETY INFORMATION

GET FAMILIAR WITH THE WATERCRAFT

To prevent accidental starting, always detach the tether cord from the engine

cut-off switch when swimmers are boarding, nearby, or during removal of any

weeds or debris from the intake grate.

Braking

Most watercrafts have no means of braking.

On some models, advancement in technologies now permits us to offer a braking

system called the iBR (intelligent Brake and Reverse). Practice braking maneu-

vers in a safe traffic-free area to become familiar with handling under braking and

with stopping distances under various operating conditions.

Stopping distance will vary depending on initial speed, load, wind, number of

riders and water conditions. The amount of braking power commanded by the

operator using the iBR lever will also affect stopping distance.

When braking, riders must brace themselves against the deceleration force to

prevent from moving forward on the watercraft and losing balance.

When operating an iBR equipped watercraft, be aware that other boats following

or operating in close proximity may not be able to stop as quickly. Inform the op-

erator of a watercraft who intends to follow you in a convoy formation of the brak-

ing capability of your watercraft and the need of keeping a greater distance

between watercraft.

The brake feature of the iBR system cannot prevent your watercraft from drifting

due to current or wind. It has no braking effect on the rearward velocity. Also note

that your engine must be running to be able to use the brake.

Learning Key (if Equipped)

The Sea-Doo LK™ learning key limits the speed of the watercraft. It could be an

option for first time users and less experienced operators to learn how to operate

the watercraft.

Visit your BRP authorized Sea-Doo dealer to see if this accessory is available for

your model.

Cargo and Storage

Do not store any objects in areas that are not designed specifically for storage.

Do not transport cargo on the rear platform unless it is properly secured with a

BRP LinQ™ certified accessory. Compatible accessories which are not BRP cer-

tified may not be considered as fit for this purpose.

When carrying loads on the rear platform or onto cargo accessories, reduce your

speed and adapt your driving behavior to reduce the risk of ejection from the

watercraft or contact with cargo possibly leading to injuries.

Do not exceed the payload or passenger capacities for your watercraft. Over-

loading can affect manoeuvrability, stability and performance. Also, heavy seas

reduce capacity.

SAFETY INFORMATION

GET FAMILIAR WITH THE WATERCRAFT

Never carry loads on the rear platform when practicing watersports. The cargo

may interfere with the rope and get unlatched, becoming an obstacle to the per-

son being towed.

Refer to Technical Specifications for the maximum loading capacity.

Accessories and Modifications

Any modifications or addition of accessories approved by BRP may affect the

handling of your vehicle. It is important to take the time to get familiar with the ve-

hicle once modifications are made to understand how to adapt your driving be-

havior accordingly.

Avoid installing equipment not specifically approved by BRP for the vehicle and

avoid unauthorized modifications. These modifications and equipment have not

been tested by BRP and may create hazards. For example, they could:

- Create a loss of control and increase risk of crash

- Cause overheating or short circuits increasing the risk of fire or burn injuries

- Affect the protection features provided by the vehicle.

Your vehicle may also become illegal to ride.

As an example, installing an additional GPS or cell phone support may prevent

the driving capabilities of the vehicle and increase the risk of a loss of control.

Ask your authoriized BRP dealler for suiitablle avaiilablle accessoriies for your

vehiiclle.

SAFETY INFORMATION

RIDE SAFELY

Riding with Passenger(s)

The operator is responsible to inform and protect the passenger(s) invited to ride.

Instruct all passenger (s) to use the handholds, seat strap, or to hold on to the

waist of the person in front of them. Each passenger must be able to simultane-

ously place both feet firmly flat against each footwell when properly seated.

Be sure riders are properly seated and holding on. Riders can be thrown off

watercraft during unexpected acceleration or aggressive operation. Avoid ag-

gressive operation, sharp turns, and unexpected acceleration.

Falls can result in severe injury or death.

All riders must wear shorts with neoprene (wet suit material) to keep water from

being forcefully injected into rectum or vagina during a fall backward. Riders not

wearing neoprene shorts have received severe rectal, vaginal, and internal inju-

ries resulting in permanent damage.

When going over waves, riders(s) may raise their body slightly off the seat to ab-

sorb the shocks with their legs.

When braking or decelerating, riders must brace themselves against the deceler-

ation force to prevent from moving forward on the watercraft and losing balance.

Riding with passenger (s) makes the watercraft handle differently and requires

greater skill.

Avoiding Collisions

Scan your surroundings constantly for people, objects and other watercraft.

Stay far enough away from others so you can always safely coast to a stop. Do

not release throttle when trying to steer away from objects - as with other power-

boats, you need throttle to steer.

Be alert for conditions that may limit your visibility or block your vision of others.

Do not go near others to spray or splash them with water, go too close to other

boats, or go too fast for traffic conditions. You may misjudge the ability of the

watercraft or your own riding skills and strike a boat or person.

If your watercraft is equipped with a braking system, be aware that other boats

following or operating in close proximity may not be able to stop as quickly.

Stopping distance will vary depending on initial speed, load, wind and water con-

ditions. The amount of braking power commanded by the operator using the iBR

lever will also affect stopping distance.

Although the preferable manoeuvre to avoid an obstacle is to steer away while

applying throttle, the iBR can also be used by fully braking and turning in the di-

rection to avoid the obstacle.

Riding Behaviors

Ride within your limits and level of riding ability.

SAFETY INFORMATION

RIDE SAFELY

Scan constantly for people, objects and other watercraft. Stay far enough away

from others so you can always safely coast to a stop.

Avoid aggressive operation, sharp turns, and unexpected acceleration that can

cause riders to be thrown off.

Avoid riding in very rough waters or practicing extreme manoeuvres like jumping

wakes or waves - jumping can cause injuries such as back or spinal injuries

(paralysis).

Speeding

While your watercraft has the capacity of operating at high speeds, it is strongly

recommended that high-speed operation only be applied when ideal conditions

exist and are permitted. Higher speed operation requires a higher degree of skill

and increases the risk of severe injuries.

The forces generated on the body of riders while turning, negotiating waves or

wakes, operating in choppy waters, or falling off the watercraft, especially at high-

er speeds, may cause injury including the possibility of broken bones or more

serious bodily injuries.

Reboarding

Operator and passenger (s) need to know how to swim and how to reboard the

watercraft from the water. Boarding in deep water can be strenuous.

Also, make sure you and all passengers know how to reboard when accessories

are installed at the rear. Board the watercraft from the rear and carefully get

around the accessories. If you have difficulties, you should know how to remove

the accessories and move them towards the front to provide better access to the

boarding platform.

If the accessories are too heavy, swim toward the side, use passenger handhold

and/or seat strap to lift yourself aboard.

Ask inexperienced riders to practice how to board the watercraft close to shore

(all methods explained here) before venturing into deep water, especially when

cargo is installed aboard on the rear platform.

To prevent accidental starting, always detach the tether cord from the engine

cut-off switch when passenger(s) swimmers are boarding.

Moving Parts

Never turn handlebar while someone is near the rear of watercraft. Keep away

from steering moving parts (nozzle, iBR gate, linkages, etc.).

Keep away from the intake grate while the engine is running. Items such as long

hair, loose clothing, or PFD straps can become entangled in moving parts.

Be aware of the iBR gate movement when starting the engine, shutting down the

engine or using the iBR lever. Automatic movement of the gate may squeeze fin-

gers or toes of people taking a hold on the back or your watercraft.

SAFETY INFORMATION

RIDE SAFELY

Know the Waters

Know the waters in which the watercraft is to be operated.

Plan your route and avoid shallow waters or hidden rocks, rapids, as well as oth-

er possible risks. When leaving dock always inform someone you trust on land of

your planned route, and estimated time of arrival. They can then contact rescue if

you are late and did not reach them.

Current, tides, rapids, hidden obstacles, wakes and waves, etc., can affect safe

operation. It is not advisable to operate the watercraft in rough waters or inclem-

ent weather. Keep an eye on the weather. Check local weather broadcasts be-

fore departure. Be alert to changing conditions.

Keep accurate and up-to-date charts of the boating area on board. Before getting

underway, check water conditions in the planned boating area.

Ensure there is enough fuel on board for the planned trip. Always verify fuel level

before use and during the ride. Apply the principle of 1/3 of the fuel to reach your

destination, 1/3 to return, and keep 1/3 in reserve. Allow for changes due to ad-

verse weather or other delays.

In shallow water, proceed with caution and at very low speeds. Grounding or

abrupt stops may result in injury and watercraft damage. Always be alert for de-

bris and objects in the water. They could be picked up and thrown rearward by

the jet pump onto people.

Navigation Rules

Always ride responsibly and safely. Use common sense and courtesy.

Operating a watercraft can be compared with driving on unmarked highways and

roads. To prevent collisions or avoid other boaters, a system of operating rules

must be followed. Generally keep to your right and safely avoid collisions by

keeping a safe distance from other watercrafts, boats, people and objects.

Make sure you know and understand the navigation system applicable to the

waterways where you intend to use the watercraft.

Navigational aids on shore or on waters, such as signs or buoys, can assist you

in identifying safe waters. They can indicate:

- whether you should keep to the right (starboard) or to the left (port) of the

buoy

- which channel you can continue

- whether you are entering a restricted or controlled area such as a no wake or

low speed zone

- hazards

- speed limits, no power craft or boating, anchorage and other useful

information.

Respect no wake zones, the environment, and the rights of other users of the

waterways.

Night-Time Operation

This watercraft is not designed for night-time operation.

SAFETY INFORMATION

RIDE SAFELY

Carbon Monoxide (CO) Poisoning

All engine exhaust contains carbon monoxide (CO), a deadly gas. Breathing CO

can cause headaches, dizziness, drowsiness, nausea, confusion and eventually

death.

Carbon monoxide is a colorless, odorless, tasteless gas that may be present

even if you do not see or smell any engine exhaust. Deadly levels of CO can col-

lect rapidly, and you can quickly be overcome and unable to save yourself. Also,

deadly levels of CO can linger for hours or days in enclosed or poorly ventilated

areas. If you experience any symptoms of CO poisoning, leave the area immedi-

ately, get fresh air and seek medical treatment.

To prevent serious injury or death from CO:

- Never run the watercraft in poorly ventilated or partially enclosed areas such

as boat houses, garage, seawalls or other watercrafts in close proximity.

Even if you try to ventilate engine exhaust, CO can rapidly reach dangerous

levels.

- Never run the watercraft outdoors where engine exhaust can be drawn into a

building through openings such as windows and doors.

- Never stand behind the watercraft while the engine is running. A person

standing behind a running engine may inhale high concentrations of exhaust

fumes.

After riding, always remove the tether cord from the engine cut-off switch to avoid

unauthorized use by children or others and to prevent starting in a closed envi-

ronment (ex: garage).

Gasoline Fires and Other Hazards

Gasoline is extremely flammable and highly explosive. Fuel vapors can spread

and be ignited by a spark or flame many feet away from the engine. To reduce

the risk of fire or explosion, follow these instructions:

- Use only an approved red gasoline container to store fuel.

- Strictly adhere to the instructions in Fueling section.

- Never start watercraft if gasoline or gasoline vapor odors is present in the en-

gine compartment.

- Never start or operate the engine if the fuel cap is not properly secured.

- Do not carry gasoline containers in ANY of the storage compartments.

- Use only a BRP approved LinQ fuel caddy, which shall be properly installed

and secured.

- Never refill the fuel caddy on the watercraft, refill on the dock or shore.

- Never tow a skier or a wakeboarder while having a fuel caddy installed on the

swim platform.

Gasoline is poisonous and can cause injury or death.

- Never siphon gasoline with your mouth.

- If you swallow gasoline, get any in your eyes, or inhale gasoline vapors, see a

doctor immediately.

If gasoline is spilled on you, wash thoroughly with soap and water and change

your clothes.

SAFETY INFORMATION

RIDE SAFELY

Burns From Hot Parts

Certain components may become hot during operation. Avoid contact during and

shortly after operation to avoid burns.

Watersports (Towing with the Watercraft)

Models with a Seatiing Capaciity of 3 or More Only

Attachment and Towing Deviices

Certain watercraft models come equipped with tow eyelets or a ski pylon.

Use the ski pylon, if equipped, to attach a tow rope for a skier or wake boarder.

Use the rear tow eyelet to attach a tow rope for a tube.

Do not use these attachment points or any other portion of the watercraft to tow a

parasail, kites, gliders or any devices which can become airborne or for pulling

any other craft. Personal injury or severe damage may occur.

Never carry loads on the rear platform when practicing watersports. The cargo

may interfere with the rope and unsecure it, becoming an obstacle to the person

being towed.

Watercraft Capacity When Towing

Always carry an observer to observe the person being towed and inform the op-

erator about the participant’s hand signals. The operator must focus his attention

on operating the watercraft and the waters ahead.

You need to have seats for everyone: operator, observer, towed person. There-

fore, if you are the only vessel, your watercraft must have a seating capacity of 3

or more and you can tow only one person.

Towing and Observiing

If you have never towed someone behind your watercraft before, it is a good idea

to spend some hours as an observer, working with and learning from an experi-

enced operator. It is also important to be aware of the skill and experience of the

person being towed.

Pulling a tube, skier or wakeboarder makes the watercraft handle differently and

requires greater skill.

Always respect the safety and comfort of the person being towed.

Proceed with only as much speed as required and follow the observers’

instructions.

Never make sharp turns while towing skier or rider(s). Sharp turns may result in

sudden acceleration or the skier's/ rider's speed. Do not use the braking system

unless absolutely necessary. Remember that although this watercraft is manoeu-

vrable and has stopping capabilities, the person in tow may not be able to avoid

an obstacle, or your watercraft.

The driver, the observer and the person being towed, skier or rider (s), need to

learn the hand signals before departure.

SAFETY INFORMATION

RIDE SAFELY

Hand Siignalls

5. Cut motor

1. Speed up

Slashing hand across

Thumbs up

throat

6. OK after falll

2. Slow down

Hands clasped over the

Thumbs down

head

3. Turn

7. Stop

Circling motion above

head followed by

Hand raised with fingers

pointing in the direction

outstretched

of the turn

8. Alll OK

4. Back to shore

An "0" made with the

Pat top of head

thumb and index finger

Falllen Skiier or Riider

Any fall may result in injury: Give immediate attention to a person who has fallen.

He or she is vulnerable in the water alone and may not be seen by other boaters.

Always keep the fallen skier or rider in view and on the driver's side of the water-

craft. Circle fallen skier or rider slowly to return the tow rope handle or pick up the

fallen skier/ rider. Always turn engine OFF when a skier/ rider is getting into or

out of the watercraft or is near the watercraft.

Participate in watersports only in safe areas. Stay away from other watercrafts,

channels, beaches, restricted areas, swimmers, and heavily travelled waterways

and underwater obstructions.

Tow Rope

Never wrap the tow rope around your wrist, hand, or any body part. The rope

may suddenly lose its slack and cause serious injuries, such as amputation.

Both the operator and observer shall monitor the location of the tow rope when

participating in water sports. A slack tow rope can become entangled with a per-

son (s) or objects on the watercraft or in the water, particularly when making a

tight turn or circling, and cause serious personal injury.

Do not pull the tow rope in front of other boats and be careful not to run over the

rope with the watercraft because it could get trapped in the jet pump.

Do not tow a person in any water sport on a short tow rope such that the person

inhales exhaust fumes in concentration. Inhalation of concentrated exhaust

SAFETY INFORMATION

PRACTICE EXERCISES

It is always a good idea to practice and get familiar with all controls, functions

and handling characteristics of your watercraft before venturing on the water.

Where to Practice Exercises

Find a suitable area to practice the exercises. Ensure that the area meets the fol-

lowing requirements:

- No traffic

- No obstacles

- No swimmers

- No current

- Ample space to maneuver

- Adequate water depth

Practice Exercises

Practice the following exercises.

Turning

Practice turning in circles in both directions at slow speed.

When comfortable with the exercise, increase difficulty by making some figure 8.

When this is mastered, repeat the above exercises but at increased speed.

Stoppiing Distances

Practice stopping the watercraft in a straight line at various speeds and braking

force. Remember that watercraft speed, load, water conditions, current and wind

also affect stopping distances.

Practice releasing the throttle while going at speed and feel the deceleration rate

with different speed.

Repeat exercise, but this time while applying iBR lever (if equipped). Note that

the iBR system takes control of the throttle.

Steeriing and Avoidiing an Obstaclle

Practice obstacle avoidance (choose a virtual point on the water) by steering

watercraft and maintaining throttle.

Repeat exercise, but this time release throttle while turning.

Repeat exercise, but this time while applying iBR lever (If equipped). Note that

the iBR system takes control of the throttle.

NOTE:

With this exercise, you will learn that you need throttle to steer the watercraft in a

different direction.

Reverse

Practice reverse operation to learn how the watercraft operates in reverse and

reacts with steering inputs.

SAFETY INFORMATION

FUELING

Fueling Procedure

WARNING

Gasolline is extremely flammablle and highly expllosiive under certain con-

ditiions. Folllow the instructions iin this section expliiciitly. Improper handlling

of fuel could resullt in property damage, seriious injjury or death. Leaking

fuell is a fire and explosion hazard. Inspect system for lleaks frequentlly.

Fuel is flammable and explosive under certain conditions. Do not smoke or allow

open flames or sparks in the vicinity.

1. Stop engine.

2. Have the operator and passenger(s) get out of watercraft.

3. If on the water, moor the watercraft securely to the dock.

4. Unscrew slowly the fuel cap counterclockwise to stabilize pressure before re-

moving it.

NOTE:

A short whistling sound is normal.

5. Insert the spout into the filler neck.

NOTE:

Be certain that you are putting fuel in the right location and not using a ventilation

hole or ski pylon hole by mistake.

6. Pour fuel slowly so the air can escape from the tank and prevent fuel flow

back. Be careful not to spill fuel.

7. Stop filling after the release of the gas pump nozzle handle and wait a mo-

ment before removing the spout. Do not retract the gas pump nozzle to put

more fuel into the fuel tank. Do not overfill.

8. Reinstall the fuel cap and fully tighten it.

9. Always wipe off any fuel spillage from the watercraft.

10. After refueling, always open or remove the seat or the lateral panel (depend-

ing on models) and ensure there is no gasoline odor inside the engine com-

partment. Do not start watercraft if you smell gasoline odor.

Fuel Requirements

NOTICE

Allways use fresh gasolline.

Gasoline will oxidize; the result is loss of octane, volatile compounds, and the

production of gum and varnish deposits which can damage the fuel system.

Alcohol fuel blending varies by country and region. Your vehicle has been de-

signed to operate using the recommended fuels, however, be aware of the

following:

SAFETY INFORMATION

FUELING

- Use of fuel containing alcohol above the percentage specified by government

regulations is not recommended and can result in the following problems in

the fuel system components:

- Starting and operating difficulties.

- Deterioration of rubber or plastic parts.

- Corrosion of metal parts.

- Damage to internal engine parts.

- Inspect frequently for the presence of fuel leaks or other fuel system abnor-

malities if you suspect the presence of alcohol in gasoline exceeds the cur-

rent government regulations.

- Alcohol blended fuels attract and hold moisture which may lead to fuel phase

separation and can result in engine performance problems or engine

damage.

Recommended Fuel

The gasoline must have the following minimum octane requirements:

Engiine

Recommended Fuel

Use Premium gasoline with an AKI

300

(RON+MON)/2 octane rating of 92 or an RON

octane rating of 95.

Use common gasoline with an AKI (RON+MON)/

All other

2 octane rating of 87 or an RON octane rating of

91.

Use unleaded gasoline containing MAXIMUM 10% ethanol.

NOTICE

Never experiment wiith other fuels. Engine or fuel system damages may

occur wiith the use of an iinadequate fuell.

NOTICE

Do NOT use fuell from fuel pumps labeled E85.

Use of fuel labeled E15 is prohibited by U.S. EPA Regulations.

SAFETY INFORMATION

TRANSPORTING THE WATERCRAFT

NOTICE

The span of the trailler bunks iinclludiing bunk wiidth shoulld be adjusted to

proviide support throughout the fulll llength of the hulll. The ends of both

trailler bunks shoulld not exceed the llength of the watercraft.

Ensure the trailer wheels are positioned so that the center of gravity of the water-

craft is slightly ahead of the wheels to properly support the weight of the

watercraft.

Carry the watercraft in its normal operating position.

Check the applicable laws and regulations in your area concerning towing a

trailer, especially for the following items:

- Brake system

- Tow vehicle weight

- Mirrors.

Respect tow vehicle maximum weight capacity and the tongue weight capacity

as recommended by the manufacturer.

Tie the watercraft to both front and rear (bow/stern) eyelets so that it is firmly se-

cured on the trailer. Use additional tie-downs if necessary.

Ensure fuel tank cap, front storage compartment cover, glove box cover, board-

ing platform and seat are properly latched.

Make sure all accessories and cargo are properly secured.

Observe trailering safety precautions.

Do not route ropes or tie-downs over the seat or attach them to the grab handle

to avoid these parts permanently damaged. Wrap ropes or tie-downs with rags or

similar protectors where they can come into contact with the watercraft body.

A Sea-Doo cover can protect the watercraft, particularly when driving on dirt

roads, to prevent dirt entry through the air inlet openings.

When transporting 2 watercrafts, it may be necessary to remove the inner wake-

board rack, if equipped.

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS

Generall Information – Warning Labell

Require Proper Operation of the Boat

Improper operation can result in severe injury or death.

Operators Must Be Qualified

Make sure operator is 16 or older and has taken a boater safety course.

Your state (or province) may have additional requirements.

Operators Must Avoid Collisions

Scan constantly for people, objects and other watercraft.

Stay far enough away from others so you can always safely coast to a stop.

Do not release throttle when trying to steer away from objects-as with other

powerboats, you need throttle to steer.

Watch safety video.

Read Operator’s Guide

(https://www.sea-doo.com/owners/safety/safety-video.html)

Protect All Riders

Wear shorts with neoprene (wet suit material) and an approved PFD (personal flotation device)

- see Rider Safety section of this label.

Tell riders to read the Rider Safety section and make sure they are dressed appropriately.

Do not apply throttle when anyone is boarding or at rear of PWC.

Be sure riders are properly seated and holding on.

Avoid aggressive operation, sharp turns, and unexpected acceleration that can cause riders to be thrown off.

Do not jump waves or wakes - jumping can cause injuries such as back or spinal injuries (paralysis).

Do Not Permit Reckless Operation:

Do not go near others to spray or splash them with water, go too close to other boats, or go too fast

for traffic conditions.

Never ride after consuming alcohol or drugs.

RIDER SAFETY

Falls Can Result in Severe Injury or Death

You must wear shorts with neoprene (wet suit material) to keep water from being

forcefully injected into rectum or vagina during a fall backward.

Riders not wearing neoprene shorts have received severe rectal,

vaginal, and internal injuries resulting in permanent damage.

You must wear an approved PFD (personal flotation device).

Be sure you are properly seated and holding on.

Riders can be thrown off PWC during unexpected acceleration or

aggressive operation.

Never ride after consuming alcohol or drugs.

Do not ride if you are not dressed

appropriately.

5632

Patents :

www.brp.com/en/

Wear PFD

about-brp/patents

.html

Wear Neoprene

See Operator’s Guide

GENERAL INFORMATION – WARNING LABEL

TYPICAL – LABEL LOCATION

SAFETY INFORMATION

IMPORTANT ON-PRODUCT LABELS

iBR Hang Tag

STOP

INSTRUCTIONS

How to brake

• Squeeze brake lever.

INTELLIGENT BRAKE AND REVERSE

How to reverse

• Maintain brake lever engaged.

THIRD GENERATION

How to go forward

• Tap throttle lever to engage forward

• Allows you to stop sooner for greater

movement from neutral position.

peace of mind .

• Squeeze throttle lever to accelerate.

• Recognized by the U.S. Coast Guard for

improving boating safety since 2009.

How to get to neutral

• Tap brake lever.

• The Third Generation provides more

precise and responsive control when

braking and docking.

Refer to the operator’s guide for more information.

SAFETY INFORMATION

PRE-RIDE INSPECTION

Always inspect and confirm the safe operating condition of your vehicle prior to

ride.

Always follow the maintenance schedule described in this Operator's Guide.

WARNING

Perform a pre-riide inspection before each ride to detect potentiall prob-

lems during operation. The pre-riide iinspectiion can help you monitor wear

and deterioratiion before they become a probllem. Correct any problems

that you diiscover to reduce the riisk of a breakdown or crash.

Before using this vehicle, the operator should always perform the following pre--

ride inspection check list.

Refer to Maintenance Procedures for details.

What to Do Before Launching the Watercraft

WARNING

Engine shoulld be off and the tether cord cap shoulld allways be removed

from the engine cut-off switch priior to verifyiing any of the folllowing points.

Only start watercraft once alll items have been checked and operate

properlly.

NOTE: Before starting the engine and taking off, it is recommended to shake

vertically the rear of the watercraft to shake away any sand that may have accu-

mulated near the propulsion and reverse systems.

Check the items listed in the following table before launching the watercraft.

ITEM

OPERATION

Inspect hull, ride plate and

water inlet grate for damages.

Properly clean the hull before

Hull

launching the watercraft when

moving to a different water plan

to prevent from spreading

aquatic invasive species (AIS)

Jet pump water intake

Inspect/clean

Drain plugs

Tighten

Fuel tank

Refill

Check for any visible fluid leaks

Engine compartment

and gasoline vapor odor

Engine oil level

Check/refill

SAFETY INFORMATION

PRE-RIDE INSPECTION

Engine coolant level

Check/refill

Steering system

Check operation

Check operation. (Depress and

release the lever to check for

freedom of movement. If any

iTC lever

friction is felt in the throttle

lever, refer to an authorized

Sea-Doo dealer.)

Check operation. (Depress and

release the lever to check for

freedom of movement. If any

iBR lever (if equipped)

friction is felt in the iBR lever,

refer to an authorized Sea-Doo

dealer.)

Front storage compartment cover, glove

Ensure they are closed and

box and seat

latched.

Engine START/STOP button

Check operation

Engine cut-off switch and the monitoring

Check operation

beeper

Battery condition and connections

Check every month

Inspect every month (more

Sacrificial anodes

often in saltwater use) and

change if necessary

Hulll

Inspect hull for cracks and other damages.

Properly clean the hull before launching the watercraft when moving to a different

water plan to prevent from spreading aquatic invasive species. Refer to What to

Do After Leaving the Water at the end of this section.

Jet Pump Water Intake

Remove weeds, shells, debris or anything else that could restrict the flow of

water and damage the propulsion unit. Clean as necessary. If any obstruction

cannot be removed, refer to an authorized Sea-Doo dealer for servicing.

SAFETY INFORMATION

PRE-RIDE INSPECTION

Engiine Compartment

Inspect the engine compartment for fuel vapor odor.

WARNING

Shoulld any leak or gasoliine odor be present, do not applly ellectriicall

power or start the engiine. You shoulld seek service from an authoriized

Sea-Doo dealler, repair shop, or person of your own choosing for mainte-

nance, repair, or repllacement. Please refer to the US EPA Emiissiions-re-

lated warranty contaiined herein for informatiion about warranty claims.

To access the engine compartment, remove the seats. Refer to Removing the

Seat.

Engiine Oiil

Ensure oil level is within specification as described in Maintenance Procedures

section.

Engiine Coolant

Ensure coolant level is within specification as described in Maintenance Proce-

dures section.

Check for coolant leaks on engine, in bilge and from ride plate.

CAUTION

When operating the engine wiith the watercraft out of the water, the en-

giine and heat exchanger iin the riide pllate may become very hot. Avoid

any contact with hot engine parts and the ride plate as burns may occur.

Steering System

Assisted by another person, check steering operation for free movement.

When the handlebar is horizontal, the jet pump nozzle should be in the straight

ahead position. Ensure the jet pump nozzle pivots easily and in the same direc-

tion as the handlebar (e.g.: when handlebar is turned to the left, the nozzle open-

ing must point towards the LH side of watercraft).

WARNING

Check handllebar and corresponding steeriing nozzlle operation before

startiing. Never turn handlebar whiile someone is near the rear of the

watercraft. Keep away from steering moviing parts (nozzle, iBR gate, llink-

ages etc.).

iTC Lever (throttle control)

SAFETY INFORMATION

PRE-RIDE INSPECTION

Check the iTC lever for free and smooth operation. It should return to its initial po-

sition immediately after it is released.

WARNING

Check the iiTC llever operatiion before startiing the engiine. If any friction is

felt in the iTC lever, refer to an authoriized Sea-Doo dealer.

iBR Lever

Check the iBR lever for free and smooth operation. It should return to its initial

position immediately after it is released.

WARNING

Check iBR llever operation before startiing the engine. If any friictiion iis fellt

in the iBR llever, refer to an authoriized Sea-Doo dealer.

Storage Compartments, Boarding Pllatform and Seat

Ensure the glove box, boarding platform, access panels, and seat are closed and

latched.

WARNING

Ensure the seat, boarding platform, access panels, and alll storage com-

partment covers are securelly llatched.

Engine Cut-Off Swiitch and Engiine START/STOP Button

Press the start button once without installing the tether cordon the engine cut-off

switch.

Install the tether cord cap on the engine cut-off switch.

Press the START/STOP button to start the engine, then stop it by pressing the

START/STOP button a second time.

Restart the engine, then stop it by removing the tether cord from the engine cut--

off switch.

WARNING

Should the tether cord cap be loose or faill to remaiin on the engiine cut-off

swiitch, repllace the tether cord immediiatelly iin order to avoiid unsafe use.

If removing the tether cord cap from the engine cut-off switch or pressiing

the START/STOP button does not stop the engine, do not use the water-

craft. See your authorized Sea-Doo dealler.

SAFETY INFORMATION

PRE-RIDE INSPECTION

What to Do After Launching the Watercraft

Check the items listed in the following table after launching the watercraft and be-

fore going for a ride.

WARNING

Engiine should be off and the tether cord cap should always be removed

from the engine cut-off switch prior to verifying any of the folllowiing points.

Onlly start watercraft once alll iitems have been checked and operate

properly.

NOTE: Before starting the engine and taking off, it is recommended to shake

vertically the rear of the watercraft to shake away any sand that may have accu-

mulated near the propulsion and reverse systems.

Check the items listed in the following table before launching the watercraft.

ITEM

OPERATION

Information Center

Check operation.

Intelligent Brake and Reverse System (iBR)

Check operation.

Variable Trim System (VTS)

Check operation.

Information Center (Gauge)

1. Press START/STOP button and install tether cord on the engine cut-off

switch.

2. As the information center cycles through its self-test function, ensure all indi-

cations come on.

WARNING

Always attach the tether cord clip to your PFD or to the wrist (wriist strap

required).

iBR System

NOTICE

Ensure there iis suffiiciient space ahead and behiind watercraft to safely

carry out the iiBR system test to avoid a collliisiion. Watercraft willl move

duriing test.

1. Remove the moorings lines securing the watercraft to the dock.

2. Start the engine and ensure the watercraft does not move.

3. On the left handlebar, depress the iBR lever completely in, the watercraft

should move slowly backwards.

SAFETY INFORMATION

PRE-RIDE INSPECTION

4. Release the iBR lever, there should not be any reverse thrust.

WARNING

Allways ensure proper iBR system operatiion before taking the watercraft

out for a ride.

Variable Trim System (VTS) (if equiipped)

With the engine running in forward thrust, use the VTS to move the jet pump noz-

zle up, and then down alternately to check VTS operation. Confirm the VTS posi-

tion indicator movement in the information center.

Also test the VTS preset trim positions by double clicking the VTS UP/DOWN

button (as applicable to model).

Refer to Operating Instructions for detailed instructions.

What to Do After Leaving the Water

Aquatic Invasive Species (AIS) are non-native plant or animal species that threat-

en the diversity or abundance of the native species. They also threaten the natu-

ral ecology of the body of water they infest. AIS almost always has a negative

impact on the waterway, it’s native species, and recreational or commercial

activities.

Common examples of AIS are:

•Eurasian Watermilfoil

•Hydrilla

•Sea Lampreys

•Zebra Mussels

•Asian Carp

•Gobies

Many other examples of AIS exist throughout the world’s waterways.

A typical factor in AIS infestations is that the non-native species are introduced

by human activity. Some AIS are introduced by commercial operations; however,

AIS can be introduced through recreational boating activities. The transportation

of recreational watercraft and water sports equipment between waterways can

be a major factor in the spread of AIS.

As responsible watercraft owners, we MUST do our part to prevent the spread of

these aquatic hitchhikers. Check your watercraft each time you leave the water!

In many cases it is required by law, be sure to check the local regulations for the

waterways you visit.

Clean, Drain and Dry - Everything, Every Time!

After each boating trip, before you leave the water access, follow these three

simple steps to stop the spread of AIS. This is the boater’s way to help protect

the environment from the damage that AIS can cause.

Clean

SAFETY INFORMATION

PRE-RIDE INSPECTION

Inspect and remove any visible plants, fish, animals, mud, or other debris from

the watercraft (including hull, intake grate, and jet pump nozzle), trailer, and any

water sports equipment, gears and accessories before leaving the water body.

Clean all parts, equipment, and gear that came in contact with the water.

Drain

Drain and flush all water from the watercraft, exhaust system, bilge, pontoon

floats, and every conceivable space or item that can hold water.

Dispose of unwanted live bait in the trash.

Dry

Allow everything to dry completely (for 5 days or more, refer to local laws) before

visiting any other bodies of water.

SAFETY INFORMATION

CONTROLS

Some vehicle safety labels are not

To increase or maintain watercraft

shown on illustrations. For information

speed, pull the throttle lever with your

on vehicle safety labels, refer to Im-

finger.

portant On-Product Labels.

To decrease watercraft speed, re-

Some indications, functions and fea-

lease the throttle lever.

tures described in this section may not

apply to every PWC model, or may be

available as an option.

1. Handlebar

The throttle lever is spring loaded and

2. Throttle lever

should return to rest position

(idle)

3. BRP Connect Button (if equipped)

when not pressed.

4. Right Controller

5. Engine Cut-Off Switch

Right Controller

6. Left Controller

7. iBR lever

The right controller is located on the

8. Engine START/STOP Button

RH side of the handlebar.

Handlebar

The handlebar controls the direction

of the watercraft. During forward oper-

ation, turning the handlebar to the

right steers the watercraft to the right

and inversely.

WARNING

Check handllebar and correspond-

TYPICAL

ing steering nozzle operatiion be-

fore starting. Never turn

The right controller includes controls

handlebar whiile someone is near

to navigate in the multifunction gauge.

the rear of the watercraft. Keep

- Arrow UP

away from propullsion system.

- Arrow RH

- Arrow Down

When operating in reverse, steering

- Arrow LH

direction is reversed. Turning the han-

- OK button.

dlebar to the right while backing up

steers the watercraft to the left.

BRP Connect Button (if

equipped)

Throttle Lever

The BRP Connect button is located

The throttle lever on the RH handlebar

above the right controller.

controls electronically the engine

speed.

CONTROLS

This button allows a quick access to

BRP Connect. Each click will swap

TYPICAL

between apps view and functions view

1. Tether cord cap on the engine cut-off switch

of the multifunction gauge.

2. Tether cord secured to operator's PFD

Engine Cut-Off Switch

To stop engine, pull the tether cord

cap from the engine cut-off switch.

The engine cut-off switch is located on

the left side of the steering column.

WARNING

Shoulld the engiine be stopped, the

brake functiion and alll watercraft

diirectional controll is lost.

WARNING

Always disconnect tether cord

when watercraft iis not iin opera-

tiion iin order to prevent accidental

engine starting or to avoid unau-

thorized use by others, children,

To allow engine starting, the tether

and to prevent theft.

cord cap must be securely snapped to

the engine cut-off switch.

Radiio Frequency Digiitallly Encoded

Security System (RF D.E.S.S.)

WARNING

The tether cord cap contains an elec-

Allways attach the tether cord cliip

tronic circuit (D. E. S. S.™ key) that is

to the operator''s personall fllota-

programmed to give it a unique elec-

tion deviice (PFD) or wrist (wrist

tronic serial number. This is the equiv-

strap required).

alent of a conventional key.

The D.E.S.S. system reads the key in-

stalled on the engine cut-off switch

and only allows engine starting for

keys it recognizes.

The D.E.S.S. system brings great flex-

ibility. You can buy additional tether

cords and have the D.E.S.S. keys pro-

grammed for your watercraft.

CONTROLS

A total of ten D. E. S. S. keys can be

programmed.

To have a key programmed to your

watercraft, see your authorized BRP

Sea-Doo dealer.

Left Controller

The left controller is located on the LH

side of the handlebar.

1. Bow up

2. Bow down

Speed Control Button

Variiablle Trim System (VTS) Button

It provides watercraft pitch trim adjust-

ments by adjusting the vertical posi-

tion of the jet nozzle.

TYPICAL

The VTS can be electrically trimmed

Allow to set and control the speed re-

to desired attitude, or to one of tree

lated functions.

preset trim positions (full up, middle

- Speed limiter

and full down).

- Slow speed mode.

Refer to Operating Instructions for

Mode Button

details.

NOTE:

The VTS button is used for Neutral ad-

justment. This is to adjust the neutral

position of the watercraft. Refer to Op-

erating Modes for details

TYPICAL

It is used to choose between Normal,

Sport or Eco mode.

Refer to Operating Modes for details.

CONTROLS

intellligent Debriis Free Pump (iDF)

This will power up the electrical sys-

Button (if equipped)

tem; the information center will cycle

through a self-test function.

Located in the center of the left

controller.

The electrical system will stay pow-

ered up for approximately 75 seconds

after the START/STOP button was

depressed.

When the tether cord is installed on

the engine cut-off switch, the system

will be powered for 60 minutes.

Every time the START/STOP button is

pressed, the countdown restarts.

When the battery voltage drops below

12.3V, the LOW BATTERY indicator

It allows to activate the iDF system.

lamp will light up and the electrical

Refer to Activating the intelligent De-

system will shut down after

bris Free Pump System in Operating

seconds.

Instructions section.

Post-Driive Battery Management

Engine START/STOP Button

This feature allows keeping the elec-

The engine START/STOP button is lo-

trical system awake to allow using ac-

cated on the LH handlebar.

cessories when the engine is turned

off. It also prevents draining the bat-

tery too much when using accesso-

ries. When the battery voltage

reaches 12.3V or less, the system will

automatically shut down to ensure

being able to start the engine.

When the electrical system is acti-

vated by pressing start-stop briefly

while the engine is shutdown the

wake-up time will be managed as

follows:

- Key off: System will shut down

TYPICAL

–

ENGINE START/STOP

after 75 seconds.

BUTTON

- Key on: System will shut down

after 60 minutes or if the voltage

Engine Startiing and Stopping

threshold is reached.

Refer to Operating Instructions for

complete procedures on how to start

intelligent Brake and Reverse

and stop the engine.

(iBR) Lever

The iBR lever on the LH handlebar

Waking Up the Ellectrical System

can electronically command:

Press the START/STOP button once

- Brake

without installing the tether cord on

- Reverse

the engine cut-off switch.

- Neutral.

CONTROLS

NOTE:

A minimum of 25% of iBR lever stroke

is required to activate iBR functions.

TYPICAL

1. Lever rest position

25% stroke required to activate iBR

functions

At speed above 14 km/h (9 MPH),

pulling the iBR lever will engage the

brake.

NOTE:

If water current is 14 km/h (9 MPH) or

above, the reverse can not be en-

gaged as the speed threshold for the

reverse is exceeded.

At speed below 14 km/h (9 MPH), pull-

ing the iBR lever will engage reverse.

When the iBR lever is released after

braking or reverse operation, the neu-

tral is engaged.

WARNING

If throttle llever is stilll pullled iin

when relleasiing the iBR llever, for-

ward movement wiilll be initiiated

after a short dellay. If forward ac-

celeration is not desired, release

the throttle lever.

NOTE:

The neutral position can be fine tuned

by trimming the iBR system.

Refer to Operating Instructions for de-

tailed instructions.

EQUIPMENT

Illustrations may not be accurate for every model and are only provided as a visu-

al guide.

Some vehicle safety labels are not shown on illustrations. For information on ve-

hicle safety labels, refer to Watercraft Safety Labels.

1. Front Tubular Bumper

2. Front Storage Compartment

3. Fire Extinguisher Holder

4. Safety Kit Holder

5. Windshield

6. Fish Finder Sonar and Mount

7. Adjustable Handlebar Riser

8. Steering Tilt Handle

9. Glove Box

10. Seat

11. Passenger Handholds

12. Cargo LinQ Platform

13. Dry Bag

14. Boarding Platform

15. Mooring Cleats

16. Boarding Ladder

17. Front and Rear Eyelets

18. Bilge Drain Plugs

19. BRP Audio Premium System

20. Cup Holder

Front Tubular Bumper

The front tubular bumper protects the

front end of the watercraft.

EQUIPMENT

Windshield

articles is located under the front

cover.

The windshield is equipped with a flap

FRONT STORAGE COMPARTMENT

that allows air to pass through.

Front Storage Compartment

Organizer Bag (If Equiipped)

It is mounted on a quick release sys-

tem and will tilt frontwards if there is

1. Front Storage Compartment Organizer Bag

an impact with the operator.

Opening the Front Storage

To put the windshield back in place

Compartment Cover

after it popped out, make sure to en-

gage the tabs in their rubber stopper

Stop engine.

and snap the shock absorber head in

the windshield support

WARNING

When the front storage compart-

ment cover iis opened, the con-

trolls are not accessiblle to the

driver.

Open the storage bin by pressing on

the two release buttons and lifting the

handlebar.

Front Storage Compartment

The front storage compartment that

can be used to carry larger personal

EQUIPMENT

1. Release buttons

1. Fire extinguisher

Safety Kit Holder

NOTICE

NOTE:

The maximum lload alllowable for

Safety kit is sold separately.

the front storage compartment is

13 kg (30 lb) evenlly diistriibuted.

The safety kit support is located under

the front storage bin cover.

Use the rubber tie-downs to properly

secure the safety kit.

WARNING

Never lleave any heavy or break-

able objects lloose in the front

storage compartment. Do not

overlload.Never store or transport

fuell or any other fllammablle prod-

ucts in this storage compartment.

Never operate the watercraft with

the storage compartment cover

open or with improperly secured

cargo.

1. Safety Kit

Fire Extinguisher Holder

Adjustable Handlebar Riser

NOTE:

The handlebar height can be set to

Fire extinguisher is sold separately.

suit the operator's preference.

1. Pull the cam lever frontward to un-

The fire extinguisher support is lo-

lock the mechanism.

cated under the front storage bin

cover.

Use the rubber tie-downs to properly

secure the fire extinguisher.

EQUIPMENT

When the handlebars are at the de-

sired position, release the latch han-

dle and ensure the latch pawl properly

engages a groove in the steering sup-

port. Also ensure the latch handle is in

the forward position.

WARNING

To prevent sudden movement of

the steeriing column, always en-

2. Adjust the handlebar to the desired

sure the pawl on the steeriing coll-

height.

umn latch iis properly engaged in

3. Push the cam lever back to lock

one of the grooves on the steering

the riser height.

support.

Steering Tilt Handle

TYPICAL – STEERING COLUMN ADJUST-

MENT LATCH SECURED

The handlebar position can be ad-

1. Steering support grooves

justed to suit rider preferences.

2. Release handle locked

To perform this adjustment, pull on

the release handle at the base of the

Glove Box

steering column just ahead of the

A small, storage compartment for per-

glove box, and tilt the handlebars to

sonal articles.

the desired position.

Push on cover latch to open glove

box.

TYPICAL

1. Release handle

EQUIPMENT

Watertiight Compartment

NOTE:

For optimum performance, always

Inside the glove box is located a small

use OEM USB cables. Low cost after-

watertight storage compartment for

market cables may not have data lines

personal articles. Pull backwards on

and/or higher impedance which may

the two latches to open.

result in poor charging performance or

overheating.

Many models of smartphones have a

brittle female connector so extra care

should be taken when inserting in the

watertight compartment. BRP recom-

mends to use a short cable (no more

than 25 cm (10 in)) so there is less ex-

tra cable length to stow.

The models not equipped with USB

TYPICAL

charging port are instead equipped

with a rubber seal to ensure water-

There is a protective foam located in-

tightness. There is a ventilation mem-

side the watertight compartment to

brane that balance pressure inside

protect a phone from damages. Make

and outside the compartment to en-

sure the smartphone is held in place

sure it can be opened without suction-

by the foam and not the edges of the

ing water droplets inside. The

receptacle and that you can close the

membrane itself is watertight. Water-

lid. Always make sure the foam is

tightness of the compartment is finally

completely dry before using.

ensured by pressing the compart-

ment’s door on the surrounding seal,

Refer to Maximum Phone Size chart.

using the two latches.

Maxiimum Phone Size

To ensure that articles inside the com-

partment are protected from the envi-

Length

160 mm (6.3 in)

ronment,

the

following

recommendations should be followed:

Width

85 mm (3.3 in)

Before and during use:

NOTE:

- Make sure the seal is intact,

Due to variation in smartphone sizes

cleared and properly positioned.

and cases styles, ensure there is no

- Make sure the ventilation mem-

pressure on connector and/or phone

brane is intact and properly

when closing the lid.

positioned.

- Make sure the seal around the

Some models are equipped with a

USB charging port (or rubber seal)

USB port used for charging. When us-

is intact and properly positioned.

ing the USB port to charge a smart-

- Completely dry the compartment

phone, always make sure to route the

and its contents before closing.

cable such that there is no pressure

- Make sure nothing gets pinched

on either ends of the cable to prevent

between cover and box when clos-

damage to cable or smartphone

ing compartment.

connectors.

- Always close the compartment

completely using the 2 latches.

After use:

EQUIPMENT

- Remove smartphone from

To adjust the angle of the sonar, sim-

compartment.

ply loosen the screws on the sides,

- The USB charging port’s inte-

place sonar at appropriate angle and

grated rubber cap should be in-

retighten the screws.

stalled to cover the connector.

- Always close the compartment

completely using the 2 latches.

NOTE:

Use of desiccant in the watertight

compartment is recommended to

eliminate condensation. Replace des-

iccant frequently.

Fish Finder Sonar and Mount

1. Angle screws

Cup Holder

To remove the sonar, lift the tab and

disconnect the electrical connectors.

For your convenience, a cup holder

can be added on the left or right fish-

ing rod holder support.

The size of the container (bottle, cup,

etc.) is important. A container with a

large diameter will be retained more

effectivelythan a small one.

It is therefore advisable to choose a

container with the larger diameter as

1. Lift tab to remove

possible.

When removed from the watercraft, in-

CAUTION

stall the protective cover on the fish

To avoiid injjury, remove any object

finder screen.

from the cup holder when choppy

Make sure there is always a thin coat

water conditiions occurs.

of dielectric grease on the connectors.

To remove the cup holder, press the

Refer to the included manufacturer

tab and lift.

guide for complete instructions.

EQUIPMENT

Blluetooth Pairiing Mode

–

7.8”

Large Panoramiic Display

The pairing is done with the display.

Refer to

7.8” Large Panoramic

Display.

NOTE:

All previously paired devices nearby

must be turned OFF.

Place the cup holder on left or right

When paired, select a playlist or other

fishing rod holder support.

source of music from your

smartphone.

BRP Audio Premium System

Never pair a smartphone or change

The BRP Audio Premium sound sys-

the playlist or music source on the de-

tem is composed of two waterproof

vice while driving or operating the

speaker enclosures that connect to a

vehicle.

smartphone via Bluetooth.

WARNING

When the START/STOP button is

pressed, the system will be powered

Using a smartphone or tryiing to

for 75 seconds. When the tether cord

paiir a device whiile driviing can

is installed on the engine cut-off

diistract the driver from operatiing

switch and the START/STOP switch is

the watercraft. Always use but-

depressed, the system will be pow-

tons wiith cautiion and always stay

ered for 60 minutes. This will permit

allert on the water, keepiing eye

listening to the BRP Audio Premium

contact wiith your environment at

system for an extended period. When

alll times.

the battery drops below

12.3V, the

LOW BATTERY indicator lamp will

light up and the electrical system will

shut down after 10 seconds to allow

enough power in the battery to start

the engine.

Blluetooth Pairiing Mode

– Except

7.8” Large Panoramiic Display

When the unit is powered On, the re-

mote will automatically try to pair with

TYPICAL

the last connected device or will go in

pairing mode if no paired devices are

1. Speakers

detected. When the system is in pair-

2. Keypad

ing mode, the Play/Pause/Power (1)

light will blink. To manually enter the

The keypad is

used

control

the

pairing mode, hold down the Pllay/

sound system.

Pause/Power button for 1 second.

The unit will emit 2 small beeps and

the Play/Pause/Power button will start

blinking to indicate it's in pairing mode.

Search for BRP REMOTE from your

device's Bluetooth menu.

EQUIPMENT

TYPICAL

CAUTION

Prolonged exposiition to lloud mu-

sic can damage your heariing.

1. Play/Pause/Power

Therefore, we suggest a 10 mii-

2. Volume UP

nutes break time every 45 mi-

3. Volume DOWN

nutes of llisteniing.

4. Previous track

5. Next track

Seat

Play/Pause/Power

- This button

This model comes equipped with an

gives you the ability to play or to

ergonomic seat narrowing towards the

pause the current track with a single

front with knee grab design allowing

press. Pressing the button will turn the

you to position your legs towards the

unit On if currently Off or holding the

inside of the footwells, minimizing

button for 3 seconds will turn the unit

upper body fatigue and granting you

Off if currently On. The unit will emit 4

more control when cornering.

small beeps to indicate when power is

turned Off. Note that all the buttons

will illuminate when the unit is pow-

ered On.

Vollume Up and Volume Down

These buttons will turn up or turn

down the output of the volume. When

the unit has reached the minimum or

maximum output level, the unit will

beep to indicate that no further adjust-

ment is possible.

On all vehicles except the ones

equipped with the Large Panoramic

ERGONOMIC SEAT

7.8” Wide LCD Display, the USB port

located inside the glove box watertight

Removing the Seat

compartment is only used to charge

1. Push on the two release buttons

the smartphone, not to transfer the

and lift the back end of the rear

music.

seat.

EQUIPMENT

SEAT RETAINERS

2. Then pull the latch handle up and

5. Align the seat latches with the

remove the front seat from the

latch pins and firmly press down

watercraft.

on the rear portion of the seat to

lock it in place.

Installliing the Seat

LATCH PINS

6. Pull up on the rear portion of the

1. To install the seat, insert the for-

seat to ensure it is properly

ward end of the front seat in its

latched.

retainer.

CAUTION

Ensure the llatch is properlly

locked onto the piin.

Passenger Handholds

The seat strap provides a handhold

for a passenger to hold on to when

riding.

The sides of the molded grab handle

SEAT RETAINER

at the rear of the seat also provide a

2. Push the rear end of the front seat

handhold for a passenger. The rear

down to lock it.

portion of the molded grab handle pro-

3. Pull upwards on the front seat to

vides a handhold for the skier/wake-

make sure it is locked in place.

boarder

(if applicable) spotter or

4. Insert the forward part of the rear

seat into the retainers.

EQUIPMENT

boarding the watercraft from the

water.

NOTICE

Never use the mollded grab han-

dlle to tow anythiing or to liift the

watercraft.

1. Boarding platform

2. Spotter foot rests

3. LinQ attachments

4. Ski pylon hole cover

Cargo LinQ Platform

WARNING

TYPICAL

Allways observe the total cargo

1. Seat strap

area lload capaciity when adding

2. Molded grab handle

accessories and equipment. The

Cargo LinQ platform does not add

Boarding Platform

cargo load capacity. Never ex-

ceed the watercraft passenger

A boarding platform covers the rear

and lload llimiits.

deck area.

The multiple LinQ attachments offer

The Cargo LinQ platform is a supple-

different accessory layout.

mentary cargo space equipped with

LinQ anchor points to install additional

CAUTION

accessories.

The LiinQ attachment points are

used to carry accessories and

should always be retracted when

not in use.

Two indentations in the platform are

used as foot rests for the rear facing

spotter when towing a skier, wake-

boarder or tuber.

A ski pylon can be installed by remov-

ing the ski pylon hole cover in the mid-

CAUTION

dle of the platform. The ski pylon hole

cover is not the fuel cap.

To reduce the riisk of injjury, al-

ways lower the LinQ attachments

when not iin use.

CAUTION

Always iinstalll ski pyllon hole cover

when ski pylon iis not installled.

EQUIPMENT

Removing the Cargo LiinQ Platform

1. Remove the passenger seat. Refer

to Seat.

2. Unlock the platform.

4. Make sure the platform is correctly

installed.

Dry Bag

The dry bag is designed to prevent its

3. Tilt the platform frontwards and

contents from getting soaked with

pull backwards to disengage the

water. The dry bag is installed with

toe-in tabs.

straps on the LinQ platform.

Installliing the Cargo LinQ Pllatform

To remove the dry bag from the ve-

1. Insert the toe-in tabs first.

hicle, loosen the straps and turn the

LinQ anchors counterclockwise.

Mooring Cleats

These cleats can be used for docking.

The rear cleat can be used to tow an

inflatable tube.

2. Lower the platform back in place.

3. Lock it.

EQUIPMENT

TYPICAL

REAR EYELETS

1. Mooring cleats

WARNING

– The front and rear eyelets are

rated at a breaking strength in

the horiizontal direction equiiva-

lent to the mass of the water-

craft iin the fully lloaded

ready-for-use condiition.

– Do not use these eyelets to liift

the watercraft, they are meant

for pullliing and towiing. Doing

1. Mooring cleat

so coulld result in serious

injury.

WARNING

Never use mooring clleats to pulll

or llift the watercraft.

NOTE:

- Responsiibiiliity: It is the owner’s/

Front and Rear Eyelets

operator's responsibility to ensure

Eyelets can be used for mooring, tow-

that mooring lines, towing lines,

ing and as tie-down points when trai-

anchor chain(s), anchor lines and

lering your watercraft.

anchor(s) are adequate for the

vessel’s intended use, i.e. the lines

or chains do not exceed 80 % of

the breaking strength of the re-

spective strong point. Owners

should also consider what action

will be necessary when securing a

tow line on board.

- Non-metalllic strong poiints:

Where non-metallic strong points

are installed, their limited life time

shall be taken into consideration.

They shall be replaced once they

TYPICAL – FRONT EYELET

show any signs of deterioration,

visible surface cracks or perma-

nent deformation.

EQUIPMENT

Bilge Drain Plugs

Unscrew drain plugs whenever water-

WARNING

craft is on the trailer. This will allow

Do not apply throttle when anyone

water accumulated in the bilge to be

is boarding or at rear of water-

evacuated and helps to reduce

craft. Shut down the engine

condensation.

Pull down the ladder with your hand

and hold until a foot or a knee is put

on the ladder.

TYPICAL

1. Drain plugs

2. Tighten

3. Loosen

TYPICAL

NOTICE

1. Boarding ladder in lowered position

Ensure draiin pllugs are properlly

secured prior to llaunching the

watercraft in water.

NOTICE

– Never use the ladder for

Boarding Ladder (If

boardiing a watercraft that iis

Equipped)

out of water.

– Never use the ladder for pull-

A convenient ladder used for boarding

ing, towing, diving or jumping,

the watercraft from the water.

or any other purpose other

than as a boarding ladder.

– Stay on center of the ladder.

– Onlly one person at a tiime on

the lladder.

TYPICAL

1. Boarding ladder

7.6" DIGITAL DISPLAY

Multifunction Display

Central Diispllay

iVTS

IVTS

The central display shows the Vehicle

Left Lateral Display

speed.

Right Lateral Display

IVTS

The left lateral display includes:

- Fuel level indicator

- Compass

The right lateral display include:

- Distance to empty

- VTS position

- Time to empty

- Target Speed indicator

- Tripmeter

- Time

User can decide to display one the fol-

The speed indicator in this display is

lowing on the tripmeter, located on the

only activated when a target speed is

lower left display:

set.

- Vehicle hours : Displays the total

vehicle hours

NOTE:

- Trip KM : Displays the distance

Clock is shown only if the integrated

since the last reset.

GPS receives a signal from the satel-

- Trip HR : Displays the time since

lites. This may take several seconds

the last reset.

after waking up the system.

NOTE:

Lower Display

The compass will be visible only when

the PWC is moving and if the GPS re-

ceives a signal.

IVTS

WARNING

Use the compass as a guiide only.

Not to be used for precision navii-

gatiion purposes.

User can decide to display one the

following:

- RPM : Displays the RPM of the

engine

- Water temp (if equipped) : Dis-

plays the temperature of the water

- Depth (if equipped) : Displays the

depth of the water

7.6" DIGITAL DISPLAY

- Settings

Indicator Lamps

- Messages

- Speed Stat (if equipped) : Displays

Warning and Telltale Liights

the average and maximum speeds

reached in the current riding cycle

iBR Position Displlay

Lights

Description

ORANGE - Vehicle

IVTS

malfunction

RED - The engine

temperature is too high.

This display shows gears position of

GREEN - The neutral

the iBR:

gear is selected

- N (neutral)

- F (forward)

RED - If illuminate while

- R (reverse)

driving, it indicates a

malfunction.

It can also display the selected speed

Turn off all unnecessary

level

(1 to 9) when the slow speed

electrical equipment and

mode is selected.

have the electrical and

charging systems

MODE Display

checked.

RED - If illuminate while

the engine running or

IVTS

while driving, this

indicates a malfunction.

Stop the vehicle as soon

as it is safe to do so and

turn the engine off.

The MODE display indicate the se-

Check the engine oil

lected alternative mode of operation:

level.

- SPORT

Have the lubrication

- ECO

system checked a soon

- SKI (if equipped)

as possible, even if the

level being correct.

To cycle through the MODES;

- Press MODE button,

- Acknowledge the safety message

by pressing and holding MODE

button will get the SPORT mode,

- Pressing MODE button again will

activate the SKI mode (if

equipped),

- Pressing MODE button again will

activate the ECO mode.

7.6" DIGITAL DISPLAY

Lights

Description

Icons and Indicators

ORANGE - Illuminate

When lit, indicates a

when the fuel level is low

failure of the iBR

or when the fuel tank is

system. See your

near empty.

authorized Sea-Doo

Refuel as soon as

dealer or person of

possible.

your own choosing for

repairing.

ORANGE

Turned on: Malfunction

Denotes WATER

of the vehicle emissions

DEPTH is equipped

control system

Bliink: Engine limitation,

Settings

the limp home mode is

activated. Have the

Use the RIGHT arrow button or LEFT

vehicle serviced

arrow button to navigate through set-

immediately.

ting menus. Use OK button to enter

setting menu, to confirm selection or

reset some values. Use UP arrow or

Icons and Indiicators

DOWN arrow to change selected

value.

Icons and Indicators

Denotes SPORT

Settings Menu

mode is selected.

Using the RIGHT or LEFT arrow but-

ton, select SETTINGS and press OK

Denotes ECO mode is

button to enter setting menus.

selected.

Maiintenance Reset

Indicates the direction

of the vehicle. Not to

Select RES MAINT and hold OK but-

be used for preciisiion

ton to reset maintenance.

navigatiion purposes.

NOTE:

Steady ON: indicates

The maintenance reset can only be

IVTS

that the VTS is

done within the first

15 seconds of

activated.

ECM wake-up when a maintenance is

required.

When lit, indicates that

a maintenance is

Display Codes

required. See your

Refer to DISPLAYING FAULT CO-

authorized

DES

(PAGE

186) DISPLAYING

Sea-Doodealer or

FAULT CODES.

person of your own

choosing for the

Accessories Mode

maintenance

When this mode is activated (ON), the

Denotes Speed

accessory system stay powered dur-

Limiteror Slow Speed

ing 1 hour even if the D.E.S.S. key is

mode

removed.

7.6" DIGITAL DISPLAY

Without this mode, the electrical sys-

Settiing Learning Key

tem will shut down few minutes after

Connect a normal key to the vehicle.

the D.E.S.S. key removal.

Select L-KEY

# and press UP or

DOWN arrow button to set the desired

This will allow listening to the BRP

learning key level between 1 and 5.

audio premium system or use of any

other accessories.

Press and hold OK button to confirm.

NOTE:

Remember when the battery voltage

The default learning key level is

drops below 12.3V, the LOW BAT-

(lowest performance).

TERY indicator lamp will light up and

the electrical system will shut down

Unit Sellectiion

after 75 seconds. At this point, the bat-

Select UNITS and press UP or

tery still have plenty of energy to crank

DOWN arrow button to change units.

engine. Running the battery down to

12.3 volts repeatedly will not damage

NOTE:

the battery.

Changing units will apply to all the dis-

played units.

Running accessories while engine is

turned off will drain the battery slowly

Settiing Brightness

or quickly depending on which acces-

sory is running. To lengthen the time

Select BRIGHTNESS and press Up

before reaching the 12.3 volts thresh-

or Down arrow button to adjust bright-

old,

turn off all

unnecessary

ness level (from -4 to 4).

accessories.

Settiing Clock

Here are some tips to minimize bat-

Select CLOCK.

tery usage:

1. Press OK button to select clock

- Use live well with TIMER function

display.

- Lower the sound system volume

2. Press UP or DOWN arrow button

- Turn off heated grips (if equipped).

to select 12:00 AM PM or 24:00

Setting Triipmeter

time base.

3. Press OK button to confirm.

Select TRIP and press UP or DOWN

4. Press UP or DOWN arrow button

arrow button to cycle through Vehiiclle

to change hours.

Hours, Trip KM and Trip HR.

5. Press OK button to confirm.

Press and hold OK button to reset se-

lected trip info.

NOTE:

Menu available only if GPS is

Setting Range

synchronized.

Select RANGE and press UP or

DOWN arrow button to cycle through

To exit SETTINGS, select EXIT and

Distance to empty, Time to empty

press OK button.

or no display.

Resetting speed statistics (if

equipped)

NOTE:

Only use the range options as an esti-

Select SPEED STAT and press and

mation when preparing a trip. The dis-

played value may not be accurate.

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Basic Functions

To adjust the VTS, press the VTS UP

or VTS DOWN button.

LCD Display

Riight Lateral Diispllay

Default Display

The right lateral display includes:

- Tachometer

- Audio volume

- Menu

- Phone

- Statistics

- Audio

- Settings

Mulltiifunction Diispllay

Left Laterall Diispllay

The left lateral display includes:

Navigatiing in the Diigiitall Displlay

- Fuel level indicator

The multifunction gauge includes ana-

- Speedometer

log gauges (speedometer and tach-

- Tripmeter

ometer), indicator lamps and an

infotainment center with a digital

- Speed limiter

screen.

- Clock

- Driving modes

We recommend you practice selecting

- Warning pop-up

some functions on the infotainment

- Distance or time to empty

center before leaving the dock. You

- Water temperature

will get used to them and they will be

- Compass

easier to use once you leave the dock.

- VTS position

Pressing the OK button will get the

Menu selection in the right screen, in

this order:

- Phone

- Statistics

- Audio

- Settings

When an icon is selected, its related

screen will appear.

To select the value to be displayed in

the tripmeter;

1. Access the Stats/Trip screen

2. Select the desired set of statistic to

be shown (Total, A or B)

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Liights

Descriiptiion

RED - If illuminate while

the engine running or

while driving, this

indicates a malfunction.

Stop the vehicle as soon

as it is safe to do so and

turn the engine off.

Check the engine oil

When an item is selected, this sets the

level.

item to the current value.

Have the lubrication

system checked a soon

Indiicator Lamps

as possible, even if the

level being correct.

Warniing and Tellltalle Liights

ORANGE - Illuminate

when the fuel level is low

or when the fuel tank is

near empty.

Lights

Description

Refuel as soon as

possible.

ORANGE - Vehicle

malfunction

ORANGE

RED - The engine

Turned on: Malfunction

temperature is too high.

of the vehicle emissions

control system

Bllink: Engine limitation,

GREEN - The neutral

the limp home mode is

gear is selected

activated. Have the

vehicle serviced

RED - If illuminate while

immediately.

driving, it indicates a

malfunction.

Turn off all unnecessary

Icons and Indicators

electrical equipment and

Icons

Description

have the electrical and

charging systems

Denote SPORT mode

checked.

is selected.

Denote ECO mode is

selected.

Denote SKI mode is

selected (If equipped)

Indicate the direction

of the vehicle.

Not to be used for

precision naviigatiion

purposes.

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Icons

Description

Icons

Descriiptiion

Flashing: indicate that

Temperature indicator

the Launch Control is

ready.

IVTS

Steady ON: indicate

Speakers audio output

that the VTS is

activated.

When lit, indicates that

Settings

a maintenance is

required.

Menu Swiitches

See your authorized

Sea-Doo dealer or

person of your own

choosing for the

maintenance

Denote Speed Limiter,

Slow Speed or Ski

mode is selected. (If

equipped)

When lit, indicates a

failure of the iBR

RIGHT SIDE OF HANDLEBAR

system.

1. UP button

See your authorized

2. RIGHT button

Sea-Doo dealer or

3. DOWN button

person of your own

4. LEFT button

choosing for repairing.

5. OK button

6. BRP CONNECT button

Denote WATER

DEPTH mode is

Use the directional buttons to control

selected (If equipped)

numerous functions of the multifunc-

tion gauge.

Smartphone Network

connection

Use the BRP Connect button for quick

access to BRP connect. Each click will

swap between apps view and func-

Bluetooth device

tions view of the multifunction gauge.

Smartphone battery

level indicator

Fuel indicator

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Statistics

BRP Connect

The Statistics menu is used to get :

- Trip distance information

Before using BRP Connect, the app

- Trip elapsed time information

must be downloaded to the phone.

- Instant fuel consumption

The app can be downloaded from the

- Average fuel consumption

Apple App Store or Google Play Store

- Maximum speed

via a simple search. Not all phones

- Average speed

are compatible.

3 sets of statistics are kept in memory.

Visit our website for more details:

Each set of statistics can be reset

independently.

www.brpconnecttutoriial.com

The LEFT button and RIGHT button

NOTE:

will navigate between the 3 sets of

The smartphone must be connected

statistics.

via Bluetooth and with a USB cable to

the USB port located in the glove box.

Holding the DOWN button when

showing a stored value will reset it.

User's personal data will be deleted

from the cluster when phone pairing is

Audiio

deleted.

User agree that personal data (con-

tact list and call history) be transferred

to the cluster when smartphone is

connected.

Contact list and call history are stored

in cluster permanently. To delete

these information you must un-pair

your smartphone or overwrite using

The phone Audio menu is to:

another smartphone.

- Adjust the configuration of:

- Auto volume control

- Equalizer

- Fade/Balance

- Access Bluetooth Audio Player

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Audiio Controll

The Settings menu is to:

- Adjust clock

NOTE:

- Pair Bluetooth devices

The directional buttons controls the

- Adjust the display brightness

audio commands when in the Home

- Adjust the units (Imperial/Metric)

screen.

- Personalization distance or time to

empty

Use the directional buttons to control

- Set the language

the audio volume. UP buttons for

- Get the version

louder.

- Show vehicle fault codes

To mute the audio, push the DOWN

button and hold it for more than one

Pairing Your Smartphone Via

second. From the Mute setting, push-

Bluetooth

ing UP button will reset the audio vol-

1. On the vehicle

ume to its previous level.

Bluetooth is now visible.

A separate volume level is used for

announcement (i. e.: Voice command

1. Short press the directional but-

from the BRP Connect Navigation

tons to access menu.

App). During an announcement, the

2. Go down and select “Settings”

volume bar will display the announce-

and press RIGHT.

ment volume level. The volume bar

3. Select

“Bluetooth” and press

will be yellow and the audio source will

RIGHT.

show ANNOUNCEMENT. It is possi-

4. Select

“Phone” and press

ble to adjust the announcement vol-

RIGHT.

ume level during the announcement.

5. Select “Add Phone” and press

RIGHT.

When Bluetooth audio source is se-

2. On the phone

lected, the left and right functions will

be as follows:

1. Activate your phone's Blue-

- Left: Previous song

tooth function.

- Right: Next song

NOTE:

Audiio Confiiguratiion

Refer to your manufacturer's user

guide for detailed procedure.

The Audio Configuration menu is as

follows:

2. Choose "BRP Connect".

- Automatic volume control

3. A confirmation number will ap-

- Equalizer

pear on your phone screen and

- Fade / Balance

the vehicle gauge screen.

Make sure these numbers

Settings

match.

4. Press “Pair” on your phone and

select the green check mark on

the vehicle gauge.

5. Allow Contacts and Favorite

Sync on your phone.

BRP GO! App

Follow these steps to setup your

smartphone with BRP Connect.

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Download the BRP GO!

Quick Tour of the BRP GO!

Smartphone App

App

Download the BRP GO! app via the

App Store for Apple™ or the Google™

Play Store for Android.

Download Apps Compatiiblle Wiith

BRP Connect

Visit our website to know more about

the compatible apps:

These apps will improve your riding

experience. Some apps may require

additional purchase to be compatible

with the system or may require addi-

tional devices to be used.

www.brpconnecttutoriial.com

Connect Your Smartphone Usiing

Your Charging / Data Transfer

Cable

It is recommended to use an original

charging cable from the smartphone

OEM to optimize transfer between the

phone and the vehicle. Use the front

USB port.

1. Unlock your phone screen

2. Connect your phone charging

cable

3. A checkmark will appear on your

phone screen once the connection

is done.

Access Your Apps

Quick press the OK button to access

Menu.

Playground:

Select

your

play-

Push UP to select “Launch BRP Con-

ground to see content related to

nect” and push RIGHT.

your vehicle. For Ski-Doo snow-

mobiles,

select

the

Snow

Select the app you would like to use

playground.

and press OK.

Navigation: Access all the naviga-

- To leave the app, long press OK.

tion features of the app such as

- To return to the Main Menu, press

route planning, turn-by-turn navi-

the BRP Connect Button.

gation, friends location, offline nav-

igation, and more. You can access

thousands of snowmobile trails

across North America and Europe

on the map.

LARGE PANORAMIC 7.8" WIDE LCD DISPLAY

Messages in Multifunction Gauge

Important information about vehicle condition is displayed on the multifunction

gauge. When starting the engine, always look at the gauge for any indicator

lamps or special messages.

Indicator Lamps (Malfunctions)

Indicator

Message /

Cause

What to Do

Lamp

Warniing

Contact an

BAD KEY

Defective key

authorized Sea-Doo

dealer.

No indicator

Use the right key for

lamp

the vehicle or

WRONG KEY

Wrong key

contact an

authorized Sea-Doo

dealer.

- Stop and wait for

engine

to cool off.

HIGH ENGINE

- Check for leaks.

Engine is

TEMPERA

- Check coolant

overheating

TURE

level and

adjust (see

Maintenance

Procedures).

Have the vehicle

transported to the

nearest authorized

Sea-Doo dealer.

If you operate the

Important engine

LIMP HOME

vehicle in LIMP

management

MODE

HOME, avoid abrupt

component

maneuvers.

In LIMP HOME, the

engine RPM is

limited and therefore

the vehicle speed.

- Check for oil

leaks.

LOW OIL -

- Check oil level

STOP

Low oil pressure

and adjust

ENGINE

(see

Maintenance

Procedures.

Important information messages can also be displayed temporarily to assist indi-

cator lamps.

BREAK-IN PERIOD

Operation During Break-In

Period

A break-in period of 5 operating hours

is recommended before running the

watercraft at sustained full throttle.

During this period, maximum throttle

should not exceed 1/2 to 3/4 opening.

However, brief full acceleration and

speed variations contribute to a good

break-in.

NOTICE

Continued wiide open throttle ac-

celeratiions or operation, pro-

longed cruiisiing speeds are

detriimentall duriing the break-in

period.

NOTE:

During the first 3 hours of operation,

the engine management limits the en-

gine maximum speed for engine pro-

tection. The engine performance will

progressively increase during this

period.

OPERATING INSTRUCTIONS

3. Push the watercraft away from the

WARNING

dock.

Always perform the Pre-Ride In-

spectiion before operatiing this

watercraft. Be sure to read the

Safety Informatiion and the Water-

craft Informatiion sectiions and be

thoroughly familliar with the iiCon-

trol technollogy.

Should any control or instruction not

be fully understood, refer to an author-

ized Sea-Doo dealer.

Boarding the Watercraft

Boardiing from Shalllow Water

As with any watercraft, boarding

should be done carefully and engine

WARNING

must not be running.

Keep liimbs away from propullsiion

Make sure to practice each boarding

system or iintake grate.Never use

methods until fully able to safely board

propullsiion systems a supportiing

in any potential condition.

poiint to board the watercraft.

WARNING

1. Board the watercraft from either

Engiine must be OFF when board-

the side or the rear.

ing the watercraft or when usiing

2. Ensure there is at least 90 cm (3 ft)

the boardiing lladder.

of water underneath the lowest

rear portion of the hull.

WARNING

NOTE:

Be aware of the iBR gate move-

Before starting the engine and when

ment when starting the engine,

the engine is already running, take in-

shuttiing down the engiine or using

to account that the hull will be lower in

the iBR llever. Automatiic move-

the water when all passengers are

ment of the gate may squeeze fin-

aboard. Be certain to maintain the

gers or toes of people takiing a

specified depth so sand, pebbles and

holld on the back or your water-

rocks will not be drawn up in the jet

craft.Never use iiBR gate as a sup-

pump.

porting point to board the

watercraft.

Boarding from a Dock

1. Slowly place one foot on the water-

craft footboard nearest the dock

while holding the handlebar, and at

the same time, transfer the body

weight to the other side in order to

balance the watercraft.

2. Then bring the other foot over the

seat and place it on the other

footboard.

100

OPERATING INSTRUCTIONS

TYPICAL

3. Using the other hand, take hold of

the edge of the boarding platform,

A. Maintain at least 90 cm (3 ft) underneath the

then pull yourself up so that you

lowest rear portion of the hull when all pas-

can knee onto the boarding ladder.

sengers are aboard

NOTICE

Starting the engine or riding the

watercraft in shalllower water may

damage the impelller or other jet

pump components.Stay on center

of the step.Onlly one person at a

time on the lladder.

TYPICAL

Boarding in Deep Water

NOTICE

WARNING

Keep liimbs away from propullsion

– Stay on center of the ladder.

system or intake grate.Never use

– Onlly one person at a tiime on

propullsiion systems a supportiing

the lladder.

point to board the watercraft.

Reach forward with one hand and

take hold of the molded handles

WARNING

on the sides of the back seat or the

Ask inexperiienced riders to prac-

rear handle, then stand on the

tice how to board the watercraft

boarding ladder.

close to shore (alll methods ex-

plaiined here) before venturiing in-

to deep water, especiiallly when

cargo iis iinstallled aboard on the

rear platform.

Operator Alone With a Boardiing

Ladder

1. Swim to the rear of the watercraft.

2. Using one hand, lower the board-

ing ladder.

Rear handle

101

OPERATING INSTRUCTIONS

TYPICAL

7. Sit astride the seat.

NOTE:

Boardiing from Water with LinQ

If cargo is properly secured on the

Accessory Installled

boarding platform, it can be used as a

Board the watercraft using the board-

handle or removed and set aside in

ing ladder and carefully get around

the footwell to get access to the han-

the accessory. Refer to Boarding in

dle. Always properly secure the cargo

Deep Water.

before riding.

If you have difficulties, swim toward

5. With both hands on the handle be-

side, use the passenger handhold

hind the seat, step up onto the

and/ or the seat strap to lift yourself

boarding platform.

aboard.

TYPICAL

1. Passenger handhold

2. Seat strap

Operator wiith a Passenger

1. The operator climbs on the water-

craft in the same way as explained

previously.

In choppy water, while in the

TYPICAL

water, the passenger may hold the

6. Take hold of the seat strap to help

watercraft steady to help the oper-

maintain your balance and step

ator climb aboard.

forward onto the footboards on ei-

ther side of the seat.

102

OPERATING INSTRUCTIONS

TYPICAL

3. The passenger must sit astride the

seat and maintain a firm grip of a

NOTICE

handhold or the waist of the per-

son in front of them.

Stay on center of the step.Onlly

one person at a time on the step.

2. The passenger then climbs onto

the watercraft while the operator

maintains balance by sitting as

close as possible to the console.

TYPICAL

Starting the Engine

WARNING

Before starting the engine, the op-

erator and passenger(s) shoulld

TYPICAL - MODEL WITH BOARDING LAD-

allways:

DER SHOWN

– Be properlly seated on the

watercraft.

– Have a fiirm grip on a handhold

or holld on to the waist of the

person in front of them.

– Wear appropriiate protective

clothiing iinclluding a PFD ap-

proved by llocall authorities and

a wet suiit bottom.

TYPICAL

NOTICE

Ensure there iis at least 90 cm (3

ft) of water under the llowest rear

portion of the hulll when alll pas-

sengers are aboard prior to start-

ing the engiine. Otherwiise damage

to the propulsion system compo-

nents may occur.

103

OPERATING INSTRUCTIONS

1. Attach the tether cord clip to your

2. Pull off the tether cord cap from

PFD or to the wrist (wrist strap

the engine cut-off switch.

required).

WARNING

Never leave the tether cord on the

The tether cord shalll always be

engiine cut-off swiitch when disem-

attached to the operators person-

barkiing watercraft to prevent

all flotatiion device or to the wriist

theft, accidental engine starting,

(wriist strap required) when start-

and to avoiid unauthoriized use by

ing or operatiing the watercraft.

chiildren or others.

2. Firmly grip handlebar with your left

If the engine is shut off using the

hand and place both feet on the

START/STOP button and the teth-

footboards.

er cord is left on the engine cut-off

3. Press the engine START/STOP

switch, the electrical power will

button to wake up the electrical

shut off after approximately 60 mi-

system.

nutes to prevent battery discharge.

4. As the information center cycles

through its self test function, install

Steering the Watercraft

the tether cord on the engine cut--

off switch.

5. Depress the START/STOP button

to start the engine.

NOTICE

In the event the engiine does not

start riight away, do not hold

START/STOP button more than

10 seconds to avoiid starter over-

heating. A rest period should be

observed between the cranking

cycles to alllow the starter to cooll

down. Refer to Troubleshooting

sectiion.

Turning the handlebar pivots the jet

pump nozzle which controls the water-

6. Release engine START/STOP

craft direction. Turning the handlebar

button after engine is started.

to the right will turn the watercraft to

the right and inversely. You need to

Shutting Off the Engine

apply throttle to steer.

WARNING

To maintaiin watercraft diirectiional

controll, the engiine shalll be run-

niing untill the watercraft iis

stopped.

1. Press the engine START/STOP

button, or

104

OPERATING INSTRUCTIONS

WARNING

NOTICE

Throttlle must be appllied and han-

If the aiir inlet openiings are kept

dlebar turned to change the diirec-

under water, such as turniing con-

tion of the watercraft. Steeriing

stantlly iin tiight circlles, plunging

effiiciiency willl differ depending on

the bow through waves, or capsiiz-

the amount of throttle appliied, the

ing the watercraft, water may

number of passengers, the lload,

seep into the billge, whiich may

the water conditions and the envi-

cause severe damage to internall

ronmental factors such as the

parts of the engine. Refer to the

wind.

Warranty section contained in this

guiide.

Unlike a car, a watercraft needs some

throttle to turn. Practice in a safe area

Shifting into Neutral

applying the throttle and turning away

from an imaginary object. This is a

WARNING

good collision avoidance technique.

The driive shaft and iimpelller are

allways turning when the engine iis

WARNING

running, even when the iiBR gate

Directiionall control iis reduced

is set to the neutral position. Keep

when the throttlle is released and

away from the propulsion system

lost when the engine is off.

of the watercraft.

The watercraft behaves differently

When the watercraft is first started,

with a passenger and requires greater

the iBR system automatically sets the

skill. The passenger (s) shall grip the

iBR gate to the neutral position by

seat strap, the molded grab handle, or

default.

the waist of the person ahead of them.

From forward thrust position, tap the

Reduce speed and avoid sharp turns.

iBR lever. The gate will move to

Avoid choppy water conditions when

neutral.

carrying a passenger.

If braking or reverse is used, the iBR

Tight Turns and Other Special

gate will move to the neutral position

Maneuvers

when the iBR lever is released, if

Any tight turns or special maneuvers

throttle is not applied.

that will cause the air inlet openings to

be kept under water for a prolonged

NOTE:

time, water will seep into the bilge.

The throttle lever must be fully re-

leased for the iBR gate to move to the

Combustion engines need air to oper-

neutral position when the iBR lever is

ate; consequently this watercraft can-

released.

not be totally watertight.

If the engine is stopped in forward or

reverse, the iBR gate will move to the

neutral position on engine shutdown.

105

OPERATING INSTRUCTIONS

Adjjusting the Neutrall Position of

From braking, simultaneously pull in

the iBR

the throttle lever while releasing the

iBR lever. The watercraft will acceler-

When in NEUTRAL, if the watercraft

ate forward after a short delay.

creeps forward or backward, the iBR

system may be trimmed.

Shifting into Reverse

NOTE:

Reverse can only be engaged be-

Movement of the watercraft when op-

tween idle speed and the threshold

erating in neutral may be due to wind

forward speed of 14 km/h (9 MPH).

or water current.

1. Pull in the iBR lever at least 25%

Hold down the VTS up or down

of the lever travel.

button for

0.5

Sec to enter the

2. Release the iBR lever to end re-

Neutrall Adjjust mode.

verse operation.

3. Apply enough throttle to stop rear-

The message Neutral Adjust will

ward movement.

be displayed.

Adjust the Neutral position:

WARNING

- Watercraft is moving forwards -

The brake function has no effect

press the VTS DOWN button.

when travellling iin reverse.

- Watercraft is reversing - press

the VTS UP button.

When operating the iBR lever in re-

Adjust to achieve no movement

verse mode, the throttle lever can be

when the engine is at idle.

used to control engine RPM, and thus

the amount of reverse thrust

produced.

By modulating both the iBR and throt-

tle levers simultaneously, reverse

thrust can be more precisely con-

trolled. Too much RPM will create

water turbulence and reduce reverse

efficiency.

NOTE:

Engine power will be reduced to idle

Bow up

whenever the iBR lever position is

Bow down

changed.

Press OK button or wait 25 sec to

Available engine power is limited in re-

exit the Neutral Adjjust mode.

verse mode, which limits reverse

speed. However, speeds above 14

Shifting into Forward

km/h (9 MPH) may be obtained in re-

From neutral, tap on the throttle lever

verse depending on conditions.

to shift into forward. The gate will

move to forward thrust position and

WARNING

the watercraft will accelerate forward.

Only use reverse at sllow speed

and for the shortest tiime possible.

From reverse, release the iBR lever

Allways ensure the path behiind is

while applying throttle moderately.

clear of objects, obstaclles and

peoplle.

106

OPERATING INSTRUCTIONS

When operating in reverse, turn the

Braking

handlebar in the opposite direction

that you want to move the rear of the

WARNING

watercraft.

The engine must be runniing to be

For example, to steer the rear of the

ablle to use the brake.The brake is

watercraft to port (left), turn the han-

onlly appliicable when operatiing iin

dlebar to starboard (right).

forward movement, it has no ef-

fect on rearward vellociity.The

brake cannot prevent your water-

craft from drifting due to current or

wiind.

The braking function can only be en-

gaged during forward operation at or

above the threshold speed of 14 km/h

(9 MPH).

Braking is engaged and controlled

when the iBR lever on the LH handle-

bar is pulled in at least

25% of its

travel.

WARNING

Brakiing shoulld be practiced iin

open waters and at graduallly iin-

creasiing speeds iin order to be-

come fullly familliar with the

controlls and watercraft handlling

TYPICAL

- STEERING DIRECTION

RE-

characteristics.

VERSED WHEN BACKING

When iBR lever is applied, the throttle

lever command is overridden and en-

CAUTION

gine throttle control is now dependant

Steering directiion in reverse

on the iBR lever position. Braking can

thrust is opposite of forward

thus be modulated by using only the

thrust. To steer the stern to port

iBR lever.

(lleft) in reverse, turn the handle-

bar to starboard (right). To steer

Watercraft deceleration is proportional

the stern to starboard (right), turn

to the braking force. The more the iBR

the handlebar to port (left). Re-

lever is pulled in, the greater the brak-

verse thrust operation should be

ing force applied. The deceleration is

practiiced in open waters iin order

also related to the total weight on the

to become fullly familliar with the

watercraft. A fully loaded watercraft

controls and watercraft handliing

(cargo and passengers) will not decel-

characteriistiics before operatiing iin

erate as fast as it could without this

close quarters.

load.

107

OPERATING INSTRUCTIONS

proportional to the throttle lever

position.

NOTE:

Be careful to gradually actuate the

WARNING

iBR lever to adjust intensity of the

braking force and simultaneously re-

If forward accelleration iis not de-

lease the throttle lever.

sired when the brake llever iis re-

leased, release the throttle lever.

CAUTION

When braking, riders must brace

WARNING

themsellves against the decelera-

It iis important to inform other op-

tiion force to prevent from moviing

erators who iintend to folllow iin a

forward on the watercraft and los-

convoy formation of the braking

iing ballance. The operator shoulld

and maneuveriing capabiiliity of

allways keep both hands on the

your vehiicle and that a greater

handlebars, and alll passengers

distance should be maintained.

should maintain a firm griip on

their seat and/or the hand raill.

Brakiing in a Turn

Throttle must be applied for turning to

WARNING

ensure directional control. However

Stopping distance willl vary de-

braking can be initiated during a turn

pending on initiall speed, load,

using the iBR lever as previously de-

wiind, number of riders, water con-

scribed. Get ready to maintain your

diitions, and the amount of braking

balance while the wake is crossing

power commanded by the opera-

your watercraft.

tor. Allways adjjust your riidiing style

accordiinglly.

CAUTION

As the watercraft slows to a stop

When the watercraft slows to less

whiile brakiing in a turn, the wake

than 14 km/h (9 MPH), braking mode

created by the watercraft will

ends and reverse mode is engaged.

catch up and tend to push the

Release the iBR lever once the water-

watercraft siideways. Be prepared

craft is stopped. Otherwise, a rear-

to maiintaiin ballance as the wake

ward movement will be initiated.

crossed the watercraft.

CAUTION

Variable Trim System (VTS)

As the watercraft slows to a stop,

the wake created by the water-

The variable trim system

(VTS)

craft wiilll catch up and tend to

changes the vertical position of the jet

pump nozzle to provide the operator

push the watercraft forward. En-

with a fast, effective system to com-

sure there are no obstacles or

pensate for load, thrust, riding position

bathers iin the directiion of travell.

and water conditions. Correctly ad-

justed, it can improve handling, re-

If the throttle lever is still pulled in

duce porpoising, and position the

when releasing the iBR lever, the

watercraft at its best riding attitude to

watercraft will accelerate forward after

attain maximum performance.

a short delay. Acceleration will be

When first using the watercraft, the

operator should become familiar with

108

OPERATING INSTRUCTIONS

the use of the variable trim system

VTS Triimmiing Methods

(VTS) at varying speeds and water

conditions. A mid-range trim is gener-

AVAILABLE VTS

EXPLORER

ally used when cruising. Experience

TRIMMING

PRO

alone will dictate the best trim for the

METHODS

conditions. During the watercraft

VTS trim button

break-in period, when lower speeds

are recommended, it is an excellent

VTS "double

opportunity to become familiar with

cliick" triimmiing

trim adjustment and its effects.

Extended VTS

When the nozzle is positioned in an

upward angle, the water thrust directs

X = Indicates a standard feature

the bow of the watercraft upward. This

- = See a Sea-Doo dealer for

position is used to optimize high

availability.

speed.

When the nozzle is directed down-

Adjjusting the VTS

ward, the bow is forced downward

Nine trim positions are available.

and increases the watercraft turning

capabilities. As with any watercraft,

With the watercraft operating in for-

speed and operator body position and

ward thrust, proceed as follows.

movement (body English), will deter-

mine the degree and sharpness of the

NOTE:

watercraft turn. Porpoising can be re-

Pressing the VTS trim button without

duced or eliminated if the nozzle is

the engine in forward thrust will only

downward and speed is adjusted

change the indication. The nozzle will

proportionately.

move to the selected VTS trim posi-

tion when forward thrust is engaged.

NOTE:

VTS position is indicated on a bar

1. Press the VTS UP button once to

gauge in the right lateral display of the

trim the bow of the watercraft up to

information center.

the next up trim position.

2. Press the VTS DOWN button once

to trim the bow of the watercraft

down to the next down trim

iVTS

position.

INFORMATION CENTER — VTS POSITION

INDICATOR

1. Bow up

2. Bow down

The VTS system allows for manually

adjusting the trim position of the

nozzle.

1. Bow up

2. Bow down

109

OPERATING INSTRUCTIONS

iVTS

INFORMATION CENTER — VTS POSITION

INDICATOR

1. Bow up

2. Bow down

NOTE:

If the VTS UP or DOWN button is

pressed and held, the pump nozzle

will keep moving until the button is re-

leased at the desired trim attitude or

the maximum trim position

(up or

down) is reached.

Using Preset Triim Positions

To select the mid trim position, it de-

Three preset trim positions can be

pends on the actual trim position.

selected.

Double-click on the VTS UP button if it

is positioned below mid trim or dou-

To select the highest trim position re-

ble-click on the VTS DOWN button if it

corded, double-click on the VTS UP

is positioned above mid trim.

button (bow up).

NOTE:

To select the lowest trim position re-

These preset trim positions are not

corded, double-click on the VTS

adjustable.

DOWN button (bow down).

110

OPERATING INSTRUCTIONS

Activating the Intelligent

Start engine when the message

Press start to go is displayed.

Debris Free Pump System

(iDF System) (if equipped)

When the sequence is completed,

The iDF system is designed to allow

the message Ready to start will

removing small debris or a cord

be displayed.

caught in the jet pump by turning the

Start the engine and try the water-

propeller in reverse during a few

craft when the message Ready to

seconds.

start will be displayed.

If the propulsion system has not

To activate the system, do the

returned to

100% of its original

following:

performance due to any remaining

debris, stop engine and perform

Stop the engine.

these steps again.

Press and hold the iDF button.

A moderate clog of weeds may re-

The following messages can ap-

quire multiple cycles before they

pear in the digital display during

can be entirely cleared out.

this step.

- Between cycles, it is more effi-

- Engagiing + R icon bliinkiing -

cient to try to drive the water-

The request is accepted and

craft to permit to it to plane in

the sequence begins.

order to help dislodge any re-

- Stop engine then hold iDF -

maining weeds before reat-

Engine is still running and must

tempting the iDF cycle.

be stopped before pressing the

iDF button again.

If the problem persists after sev-

- Hiigh exhaust temperature -

eral tries, try the On-Beach Water

Exhaust temperature is too

Cleaning procedure, refer to Jet

high and needs to cool down

pump Water Intake and Impeller

before activating the sequence.

Cleaning in Special Procedures

- Disable - The iDF system is not

section.

enabled on your watercraft,

see an authorized Sea-Doo

General Operating

dealer to enable it.

Recommendations

Start engine when the message

Press start to go is displayed.

NOTICE

Combustion engines need aiir to

When the sequence is completed,

operate; consequently thiis water-

the message Ready to start will

craft cannot be totallly watertiight.

be displayed.

Any maneuvers such as turning

Apply throttle when requested.

constantlly in tight ciirclles, plung-

If the message Impelller blocked

ing the bow through waves, or

is displayed - this indicates that the

capsiizing the watercraft, that

blocking is too important and the

cause the aiir inllet openings to be

system cannot turn the propeller in

under water may cause severe

the opposite direction. Have the

engine probllems due to water in-

watercraft servicing by an author-

gestiion. Refer to How to Steer the

ized Sea-Doo dealer.

Watercraft iin the Operatiing In-

After a few seconds, the engine

structions section and the War-

will shut down automatically. En-

ranty sectiion contaiined iin thiis

gaging

+ R icon bliinking will

Operator’’s Guiide.

appear.

111

OPERATING INSTRUCTIONS

Rough Water or Poor Viisibillity

distances under different conditions.

Operatiion

Stopping using the iBR system in a

straight line and in a turn should be

Avoid operation in these conditions. If

practiced extensively to become famil-

you must do so, proceed with caution

iar with the handling characteristics of

using minimum speed.

the watercraft under partial or full

braking conditions.

Crossing Wakes or Waves

1. The operator must grip the handle-

bar firmly and keep both feet on

WARNING

the footboards.

Allways practice braking in open

2. The passenger must grip the

waters ensuring there are no

handholds with both hands and

watercrafts or boats iin your imme-

keep both feet on the footboards.

diate viiciinity, especiiallly astern.

3. Reduce speed.

Other users of the waterways may

4. Always be prepared to steer and

not be able to maneuver or stop iin

maintain

your balance as

time to avoid you should you un-

necessary.

expectedly come to a fulll stop in

5. When going over waves, raise

front of them.

your body slightly off the seat to

absorb the shocks with your legs.

6. When crossing wakes, always

keep a safe distance from water-

craft ahead.

WARNING

It iis important to inform other op-

WARNING

erators who iintend to folllow iin a

When crossiing wakes or waves,

convoy formation of the braking

sllow down. Operator and passen-

and maneuveriing capabiiliity of

ger(s) should brace themsellves

your vehiicle and that a greater

and adopt a semii-standing posii-

distance should be maintained.

tiion to help absorb the bumps.Do

not jump wakes or waves - jjump-

The operator should also practice

ing can cause injjuriies such as

docking with an imaginary dock using

back or spinal injury (parallysiis).

the various controls available (iBR lev-

er and throttle lever).

Stopping/Dockiing

Release the throttle at a sufficient dis-

When the throttle is released, the

tance before the expected landing

watercraft is slowed by water drag

area.

against the hull. The stopping dis-

Reduce speed to idle.

tance will vary depending on the

watercraft size, weight, speed, water

Maneuver using a combination of the

surface condition, presence and direc-

iBR lever and throttle lever, shifting to

tion of wind and current.

neutral, reverse, or forward as

required.

The iBR system can also be used for

slowing down or for stopping more

Remember that when operating in re-

quickly, and for increasing maneuver-

verse, steering direction is reversed.

ability especially when docking.

Turning the handlebars to the left will

The operator should practice in open

waters at various speeds to become

familiarized

with

the stopping

112

OPERATING INSTRUCTIONS

move the stern to the right when back-

ing up, and vice-versa.

WARNING

Directiionall control iis reduced

when the throttlle is released and

lost when engiine iis off. Steeriing

direction is reversed when operat-

ing the watercraft in reverse.

Beachiing

NOTICE

It is not recommended to run the

watercraft to the beach.

Drive slowly towards the beach and

shut off the engine before the water is

less than 90 cm (3 ft) deep under the

lowest rear portion of the hull. Then

pull the watercraft to the beach.

NOTICE

Riding the watercraft iin shalllow

water may resullt iin damage to the

impelller, iBR components, or oth-

er jet pump components. Always

shut off the engiine before water iis

less than 90 cm (3 ft) deep and

never use reverse or braking.

113

OPERATING MODES

It is also called Normal riding mode.

Operating mode

EXPLORER

availablle

PRO

The icon ECO +OFF appears in the

display when this mode is selected.

Touring mode

Sport Mode

Sport mode

SPORT MODE provides for instant

ECO mode

throttle response and more rapid ac-

celerations than DEFAULT riding

Speed limiter

MODE.

mode

Once activated, SPORT MODE will

Slow speed

remain active until it is deactivated by

mode (Trolling

the operator, or the engine is shut

mode)

down whereby it defaults back to DE-

FAULT riding MODE.

Ski mode

Launch control

Actiivating Sport Mode

To activate the Sport mode, press

Learning key

once on the MODE button while in

mode

DEFAULT riding mode. The sport icon

will start to flash and a safety mes-

X = Indicates a standard feature

sage will scroll. For safety reason, fol-

- = See a Sea-Doo dealer for

low the instruction in the safety

availability.

message to activate the sport mode.

Once activated, the SPORT icon will

To change the operating mode;

turn ON.

1. Press MODE button,

Deactiivating Sport Mode

2. Acknowledge the safety message

by pressing and holding MODE

A single press on MODE button will

button will get the SPORT mode,

take you to the ECO mode.

3. Pressing MODE button again will

activate the ECO mode.

ECO Mode

(Fuel Economy Mode)

ECO mode provides a smoother throt-

tle application and increased fuel

economy.

Speed Control Modes

To enter one of the speed control

modes, press SPEED CTRL button.

Depending of the speed of the water-

craft, only one of the following modes

TYPICAL

will be activated.

Once the desired mode is activated,

Touring Mode

press the SPEED CTRL button then

By default, the watercraft is set to this

change the value with the UP or

riding mode of operation when

DOWN arrow button while the SET

started.

LEVEL message is active.

114

OPERATING MODES

To exit the selected speed control

Activating Speed Liimiter Mode

mode, press MODE button or long

1. Maintain a constant speed.

press SPEED CTRL button.

2. Press the Speed Control button on

the left keypad.

Speed Liimiter Mode

Speed limiter mode is a function of

iTC (intelligent Throttle Control) sys-

tem that allows the operator to set the

desired maximum watercraft speed.

This is useful when cruising for long

distances, operating in limited speed

zones, or towing a tuber, skier or wake

boarder.

The operator must keep the throttle

TYPICAL

depressed to maintain forward speed.

You will hear a beep indicating that

Once the maximum speed is set, the

you are now in speed limiter mode,

operator can vary the watercraft

and a speed limiter MODE indicator

speed from idle speed up to the set

will be lit.

speed using the throttle lever. The set

speed will not be exceeded even if the

throttle lever is fully depressed.

iVTS

As you proceed under a constant

speed setting, keep your attention lev-

el up to maintain good situational

awareness.

TYPICAL

Slowing down is a matter of releasing

1. Speed

limiter/Slow

Speed MODE

the throttle lever further than the set

INDICATOR

point, or by pulling the iBR lever in.

If the iBR lever is pulled in for braking,

Speed Limiter mode is overridden but

NOTE:

not deactivated.

Activating speed limiter mode of oper-

ation only limits the maximum speed

Once the iBR lever is released and

available when depressing the throttle

the throttle is pulled in to engage for-

lever. The throttle lever must be held

ward thrust, the speed limiter function

in to maintain forward speed. Water-

will reengage to limit the watercraft

craft speed can be varied from idle up

speed as it was set before.

to the set cruise speed using the throt-

tle lever once the speed limiter func-

Prerequiisite for Speed Limiiter

tion is activated. Watercraft speed

Mode Actiivation

may vary depending on water condi-

Speed limiter MODE can be activated

tions during use.

when the watercraft is going at more

then 15 km/h (9 mi/h).

Deactivatiing Speed Limiter Mode

To deactivate speed limiter mode:

NOTE:

Speed limiter mode is not available if

1. Release the throttle lever.

slow speed mode is engaged.

2. Press and hold the speed limiter

button.

115

SPECIAL PROCEDURES

Jet Pump Water Intake and

Models equipped with the iiDF

system

Impeller Cleaning

If the watercraft is equipped with the

WARNING

iDF system, use it now. Refer to How

Keep away from intake grate

to Use the intelligent Debris Free

whiile engine is running. Items

Pump System in Operating Instruc-

such as long haiir, lloose clothing

tions section.

or personal flotatiion device straps

Models without iDF system

can become entanglled iin moviing

parts.

1. Rock the watercraft several times.

Most of the time, this will remove

Weeds, shells or debris can get

the blockage.

caught on the intake grate, drive shaft

2. Start engine and make sure water-

and/or impeller. A clogged water in-

craft operates properly.

take may cause troubles such as:

If the aforementioned method does

- Caviitation: Engine speed is high

not work:

but watercraft moves slowly due to

3. With engine running and before

reduced jet thrust, jet pump com-

applying throttle, pull the iBR lever

ponents may be damaged.

in to select reverse operation.

- Overheating: Since the jet pump

4. Vary throttle quickly several times.

operation controls the flow of water

5. Repeat procedure if necessary.

to cool the exhaust system, a

clogged intake will cause the en-

If system is still blocked, move the

gine to overheat and damage en-

watercraft out of the water for

gine internal components.

cleaning. Refer to On-Beach

Water Cleaning.

A weed clogged area can be cleaned

as follows:

On-Beach Water Cleaning

WARNING

If it is necessary to reach in to re-

The tether cord MUST BE RE-

move any foreiign object caught iin

MOVED from the engiine cut-off

the propulsion system, the tether

switch to prevent accidentall en-

cord MUST BE REMOVED from

giine startiing before clleaning the

the engine cut-off switch.

jjet pump area.

In-Water Cleaning

1. Place a cardboard or a carpet be-

side the watercraft to prevent

NOTICE

scratching when turning the water-

Ensure there is at least 90 cm (3

craft for cleaning.

ft) of water under the lowest rear

2. Rotate the watercraft to any side

portiion of the hulll when alll pas-

for cleaning.

sengers are aboard priior to start-

ing the engine. Otherwise damage

to the propullsiion system compo-

nents may occur.

117

SPECIAL PROCEDURES

NOTICE

An object or tool caught in the iBR

system when usiing the iBR over-

ride function may cause damage

to the iBR components. Remove

alll rigiid foreign objjects that may

obstruct the iiBR gate travell before

moviing it.

WARNING

TYPICAL

If iit is necessary to reach in to re-

3. If equipped, move the iBR to the

move any foreign object caught iin

forward position. Refer to iBR

the propullsion system, strictly ob-

Override Function for detailed

serve the folllowiing before

instructions.

proceeding:

4. Clean the water intake area.

– Remove tether cord from the

engine cut-off switch.

If the system is still clogged, refer

– Wait at least 5 miinutes.

to an authorized Sea-Doo dealer

– Do not press on START/STOP

for servicing.

button. Shoulld the START /

STOP button be pressed, waiit

NOTICE

another 5 miinutes.

Inspect water intake grate for

damage. Refer to an authorized

Actiivating iiBR Override Functiion

Sea-Doo dealler for repair as

1. Power up the electrical system by

necessary.

pressing the START/STOP button.

2. Install the tether cord on the en-

iiBR Overriide Functiion

gine cut-off switch.

When the iBR override function is acti-

NOTE: The tether cord must be in-

vated, it allows the user to electrically

stalled to ensure the information cen-

move the iBR gate and nozzle through

ter will not shut off all indications after

its full range of motion using the VTS

its self test function. Electrical power

control button.

will stay on for approximately 1 hour.

NOTE:

3. Pull in and hold the iBR lever for

The iBR override function is only avail-

the entire procedure.

able when the engine is not running.

WARNING

When moviing the iBR gate using

the iBR override function, ensure

no one is near the rear of the

watercraft. Movement of the gate

may squeeze fiingers.

118

SPECIAL PROCEDURES

Capsized Watercraft

The watercraft is designed so that it

should not turn over easily. Two spon-

sons mounted on the side of the hull

assist watercraft stability. If it turns

over, it will remain capsized.

To turn the watercraft upright, ensure

the engine is off and the D.E.S.S. key

is NOT on its post, then grab the inlet

grate, step on a side bumper rail and

use your weight to rotate the water-

iBR lever pulled and held

craft towards you.

When the IBR OVERRIDE

NOTE:

PRESS MODE BUTTON mes-

A label on the stern near the flushing

sage appears in the multifunction

connector provides instructions on

gauge, press the MODE button.

how to turn the watercraft right side

up. The label is upside down so that it

When the function is activated, a

can be read when the watercraft is

ON message will be shown.

overturned.

While still holding the iBR lever in,

press the VTS UP/DOWN button

to move the iBR gate to the de-

sired position. Ensure the VTS in-

dication in the multifunction gauge

changes with the iBR gate move-

ment. If the iBR gate moves up-

wards, the indication moves

upwards.

Release the iBR lever.

Remove the tether cord from the

engine cut-off switch.

WARNING

TYPICAL

If it is necessary to reach in to re-

The engine features a Tip-Over Pro-

move any foreiign object caught iin

tection System (T. O. P. S.™). When

the propulsion system, strictly ob-

the watercraft tips over, the engine is

serve the folllowiing before

automatically stopped.

proceeding:

– Remove tether cord from the

When the watercraft is returned to its

engine cut-off switch.

normal operating position, the engine

– Wait at least 5 miinutes.

can be started normally.

– Do not press on START/STOP

button. Should the START /

STOP button be pressed, waiit

another 5 miinutes.

119

SPECIAL PROCEDURES

Water-Flooded Engine

NOTICE

When the watercraft has been

NOTICE

turned over 5 minutes, do not at-

Never try to crank or start the en-

tempt to crank the engiine to avoiid

gine. Water trapped iin intake

water ingestion that woulld dam-

manifold woulld fllow towards the

age the engine. See an author-

engiine and possiblly cause severe

ized Sea-Doo dealer as soon as

engiine damage.

possiible.

Bring the watercraft to an authorized

NOTICE

Sea-Doo dealer as soon as possible

If the engine does not crank, do

to have it serviced.

not attempt to start iit anymore.

Otherwiise, the engine coulld be

NOTICE

damaged. See an authorized

Faillure to have the engiine prop-

Sea-Doo dealler as soon as

erly serviiced may cause severe

possiible.

engiine damage.

As soon as possible, check for pres-

Towing the Watercraft in

ence of water in the bilge. Drain as

Water

necessary when back to the shore.

Special precautions should be taken

Submerged Watercraft

when towing a Sea-Doo watercraft in

water.

To limit damages to the engine, per-

form the following procedure as soon

The maximum recommended towing

as possible.

speed is 8 km/h (5 MPH).

1. Drain bilge.

This will prevent the exhaust system

2. If it was submerged in salt water,

from filling with water, which may lead

spray bilge and all components

to water being injected into and filling

with fresh water using a garden

the engine. Without the engine run-

hose to stop the salt corroding

ning, there isn't any exhaust pressure

effect.

to push the water out the exhaust

outlet.

NOTICE

Never try to crank or start the en-

giine. Water trapped iin iintake

NOTICE

maniifolld would flow towards the

Faillure to folllow these instructions

engine and possiibly cause severe

may result iin damage to the en-

engine damage.

gine. If you must tow a stranded

watercraft in water, be sure not to

exceed the maxiimum towiing

3. Bring the watercraft to an author-

speed of 8 km/h (5 MPH).

ized Sea-Doo dealer as soon as

possible to have it serviced.

NOTICE

Faiilure to have the engine prop-

erlly serviced may cause severe

engine damage.

120

MAINTENANCE SCHEDULE

Maintenance is very important to keep your watercraft in safe operating condi-

tion. The vehicle should be serviced as per the maintenance schedule.

Proper maintenance is the owner’s responsibility. A warranty claim may be de-

nied if, among other things, the owner or operator caused the problem through

improper maintenance or use.

Perform periodic checks and follow the maintenance schedule. The maiinte-

nance schedule does not exempt the pre-ride inspection.

WARNING

Faiilure to properly maiintain the watercraft accordiing to the maiintenance

schedulle and procedures can make it unsafe to operate.

EPA Regulation - Canadian and USA Watercrafts

A repair shop or person of the owner''s choosing may maiintaiin, replace, or

repair emission control devices and systems. These instructions do not require

components or service by BRP or authorized Sea-Doo dealers.

Although an authorized Sea-Doo dealer has an in-depth technical knowledge

and tools to service your vehicle, the emission-related warranty is not conditioned

on the use of an authorized Sea-Doo dealer or any other establishment with

which BRP has a commercial relationship.

Proper maintenance is the owner’s responsibility. A warranty claim may be de-

nied if, among other things, the owner or operator caused the problem through

improper maintenance or use.

For emission-related warranty claims, BRP is limiting the diagnosis and repair of

emission-related parts to the authorized Sea-Doo dealers. For more information,

please refer to the US EPA Emissions Warranty contained in the warranty

section.

You must follow the instructions for fuel requirements in the fueling section of this

manual. Even if gasoline containing greater than ten volume percent ethanol is

readily available, the US EPA issued a prohibition against the use of gasoline

containing greater than 10 vol% ethanol that applies to this vehicle. The use of

gasoline containing greater than 10 vol% ethanol with this engine may harm the

emission control system.

124

MAINTENANCE SCHEDULE

Salt Water/ Dirty Water Usage

Whenever your watercraft is used in salt or dirty water, this type of usage re-

quires maintenance tasks to be performed between the regular yearly intervals.

These are identified as A+ in the chart below.

If you regularly ride in sallt or diirty water, follow the A+ interval and perform the

tasks outlined in the chart below.

Maintenance Schedule

Make sure to perform proper maintenance at recommended intervals as indi-

cated in the tables.

The maintenance chart indicates the items needing to be addressed based on 2

criteria, whichever happens first:

- Calendar time

- Watercraft hours.

Your driving habits determines the factors you shall adhere to. For example:

- Someone who uses their vehicle every weekend would follow the hours

reading to determine the frequency of his maintenance.

- Someone who uses their vehicle seldomly over the year or only on a few oc-

casions would follow the callendar time to determine the frequency of his

maintenance.

IMPORTANT: The following tables show the appropriate maintenance appli-

cation for the first

3 years. For subsequent years, repeat the same pattern

alternatively.

Maintenance Overview

Regular/ Salt/ Dirty

Calendar Time

Hour meter

water

Every Month

A+

1 Year

100 Hours

Every Month

A+

2 Years

200 Hours

A and B

Every Month

A+

3 Years

300 Hours

125

MAINTENANCE SCHEDULE

Rotax 1630 ACE Engiines

Regullar

A=Adjust

C=Clean

F=Flush

Every year

Every 2 years

I=Inspect

L=Lubricate

100 Hours

200

Hours

R=Replace

T=Torque

Air and Fuel Delivery

Air delivery components and function (ducts,

I, C

hoses, clamps)

Fuel components and function (Fuel tank cap,

fuel tank fixation, hose condition, leaks)*

Supercharger

Deck and Hull

Sacrificial anode(s)

Body panels and hardware

I, T

Hull

Engine and Cooling

Engine cooling components (coolant

concentration, coolant level, hose condition,

I, A

clamps, leaks)

Engine oil and oil filter

Ignition components and function

Engine rubber mounts

Spark plugs

Engine coolant

Every 5 years

or 300 hour

Exhaust and Emissions

Exhaust components (gaskets, pipes, muffler

condition, leaks)*

Exhaust

iBR

iBR components and function*

Propulsion

Propulsion components and function*

I, L

Electrical

Battery connections and condition*

126

MAINTENANCE SCHEDULE

SALT/ DIRTY

A+

WATER

After each

ride in salt

A=Adjust

C=Clean

dirty water

Every 2

F=Flush

Every year

years

I=Inspect

monthlly

L=Lubricate

100 Hours

when used in

200 Hours

R=Replace

salt

T=Torque

dirty water

Air and Fuel Delivery

Air delivery components and

I, C

function (ducts, hoses, clamps)

Fuel components and function (Fuel

tank cap, fuel tank fixation, hose

condition, leaks)*

Supercharger

Deck and Hull

Sacrificial anode(s)

Every month

Body panels and hardware

I, T

Hull

Engine and Cooling

Engine compartment

After each

ride

Engine compartment metallic

components

Each month

Engine cooling components (coolant

concentration, coolant level, hose

I, A

condition, clamps, leaks)

Engine oil and oil filter

Ignition components and function

Engine rubber mounts

Spark plugs

Engine coolant

Every 5 years

or 300 hour

Exhaust and Emissions

Exhaust components (gaskets,

pipes, muffler condition, leaks)*

128

MAINTENANCE SCHEDULE

SALT/ DIRTY

A+

WATER

After each

ride in salt

A=Adjust

C=Clean

dirty water

Every 2

F=Flush

Every year

years

I=Inspect

monthly

L=Lubricate

100 Hours

when used in

200 Hours

R=Replace

salt

T=Torque

dirty water

Exhaust

After each

ride

iBR

iBR components and function*

Propulsion

Propulsion components and

function*

Electrical

Battery connections and condition*

Electrical harness routing

Modules and applicable software

updates

Operation of control switches and

lighting

Steering and Controls

Steering components and function*

Throttle operation

Steering and Controls

Steering components and function*

Throttle operation

Feature

Fish finder transducer support

I, A

*For an extensive list of maintenance actions to be performed, refer to the Main-

tenance Checklist.

129

MAINTENANCE PROCEDURES

This section includes instructions for

basic maintenance procedures.

WARNING

Turn off the engiine and folllow

these maiintenance procedures

when performing maintenance. If

you do not folllow proper maiinte-

nance procedures you can be in-

jured by hot parts, moving parts,

ellectriciity, chemiicalls or other

hazards.

WARNING

Shoulld removal of a lockiing de-

TYPICAL

viice (e.g. llock tabs, sellf-llockiing

3. Remove the screws.

fasteners, etc.) be requiired, al-

ways replace wiith a new one.

NOTICE

Never lleave any objject, rag, tooll,

etc., iin the engiine compartment or

in the biilge.

Engine Service Cover

TYPICAL

4. Remove the cover.

Installliing the Engine Service Cover

1. The installation is the reverse of

the removal procedure. However,

pay attention to the following.

2. Install all screws.

3. Tighten screws to specification.

Tighteniing Torque

Removiing the Engine Service

Cover

Engine service

2.8 ± 0.2 Nm

cover screw

(25 ± 2 lbf-in)

1. Remove the seats.

2. Remove the ski/ wake pylon cover.

130

MAINTENANCE PROCEDURES

Engine Oil

not add any additives to the recom-

mended engine oil. Damages caused

Recommended Engine Oill

by the use of an oil not suitable for the

engine or by adding of an additives

Rotax^® engines were developed and

may not be covered by the BRP Lim-

validated using the XPS™ oil. BRP

ited Warranty.

recommends the use of its XPS en-

gine oil or an equivalent at all time. Do

XPS Recommended Engiine Oiil

4T 5W40 Synthetic blend oil

If the Recommended XPS Engine Oil is Not Available

Use a 5W40 4-stroke SAE synthetic

engine oil meeting or exceeding the

following lubricant industry

specifications.

Always check the API service label

Engine Without Supercharger

certification on the oil container, it

must contain at least one of the

indicated standards.

API serviice classiificatiion SN or

JASO-MA2

Use a 5W40 4-stroke SAE motorcycle

engine oil compatible with wet

clutches meeting or exceeding the

following lubricant industry

specifications.

Engine Wiith Supercharger

Always check the API service label

certification on the oil container, it

must contain at least one of the

indicated standards.

API serviice classiificatiion SN or

JASO-MA2

Do not add any oil additives to the rec-

CAUTION

ommended engine oil. Damages

caused by the use of an oil not suit-

Many components in the engiine

able for the engine or by adding of an

compartment may be very hot. Dii-

oil additives may not be covered by

rect contact may result iin skin

the BRP Limited Warranty.

burn.

Verifying the Engiine Oiil Levell

If Watercraft is Out of the Water

NOTICE

Operating the engine with an im-

Watercraft must be llevell.

proper llevell may severelly dam-

age engine.

131

MAINTENANCE PROCEDURES

CAUTION

When operating the engine whiile

the watercraft is out of water, the

heat exchanger in the ride plate

may become very hot. Avoiid any

contact wiith the ride plate as

burns may occur.

1. Raise trailer tow pole, then block in

position when bumper rail is level.

2. Install a garden hose on the ex-

TYPICAL

haust system flushing connector.

1. Oil dipstick

Refer to Exhaust System in this

2. Oil filler cap

section and follow the procedure.

11. Reinstall

dipstick,

push in

NOTICE

completely.

12. Remove dipstick again and read

Never run engine wiithout supply-

oil level. It should be between the

ing water to the exhaust system.

FULL and ADD marks.

Faiilure to cool exhaust system

may severely damage iit.Never run

engine llonger than 2 miinutes.

Driive lline seall has no cooliing

when watercraft is out of water.

3. Remove the seat(s).

TYPICAL

4. Start the engine.

1. Full

5. Open the water tap.

2. Add

6. Run the COLD engine at iidle for

3. Operating range

30 seconds.

7. Close water tap.

13. Add oil to ensure the level is be-

8. Bring engine RPM to 4000-4500

tween marks as required.

RPM for 15 seconds.

1. Remove oil cap.

9. Stop the engine abruptly by press-

2. Place a funnel in valve cover

ing the start/stop button or remov-

opening.

ing the tether cord.

3. Add a small amount of the rec-

10. Wait at least 30 seconds for the oil

ommended oil to reach the

to settle in the engine, then pull

proper level.

dipstick out and wipe clean.

NOTICE

Do not overfilll.

132

MAINTENANCE PROCEDURES

Engine Coolant

Recommended Engiine Coolant

XPS Recommended Coollant

Extended life pre-mixed coolant

If the Recommended XPS Coolant

is Not Available

Use a low silicate, extended life

TYPICAL

ethylene-glycol premixed coolant

1. Oil dipstick

(50%-50%) specifically formulated

2. Oil filler cap

for internal combustion aluminum

engines.

NOTE:

NOTICE

Every time oil is added in the engine,

the complete procedure explained in

Always use ethyllene-gllycol anti-

this section must be carried out again.

freeze contaiiniing corrosion inhibii-

Otherwise, you will obtain a false oil

tors specificallly for iinternal

level reading.

combustiion alumiinum engiines.

14. Properly reinstall oil cap and

To prevent antifreeze deterioration, al-

dipstick.

ways use the same brand and grade.

Never mix different brands or grades

NOTICE

unless cooling system is completely

Ensure that oiil fiilller cap is tighten

flushed and refilled.

properlly. Otherwiise engiine oiil can

spill out.

Engiine Coollant Levell

WARNING

Engine Oill Change and Oill Fiilter

Replacement

Check coollant llevel wiith engine

cold. Never add coolant when en-

The oil change and filter replacement

giine iis hot.

may be performed by an authorized

Sea-Doo dealer, repair shop, or per-

son of your own choosing.

CAUTION

Many components in the engiine

compartment may be very hot. Dii-

rect contact may result iin skin

burn.

1. Remove seats.

2. Locate the expansion tank cap.

133

MAINTENANCE PROCEDURES

Engine Coolant Replacement

Coolant replacement should be per-

formed by an authorized Sea-Doo

dealer.

Ignition Coils

Ignitiion Coill Access

1. Remove tether cord from the en-

gine cut-off switch.

2. Remove seat(s).

TYPICAL

3. Remove engine service cover by

removing the retaining screws.

With watercraft on a level surface,

coolant level should be between

MIN. and MAX. marks on coolant

reservoir when engine is cold.

COOLANT EXPANSION TANK

1. Level between marks when engine is cold

Removing the Igniition Coiil

1. Disconnect ignition coil connector.

NOTE:

NOTICE

The watercraft is level when it is in

water. When on a trailer, raise trailer

Do not pry on igniitiion coill usiing

tow pole and block in this position

any tool.

when bumper rail is level.

2. Remove ignition coil retaining

Add coolant, see Recommended

screw.

Engine Coolant for specification, to

3. Remove ignition coil from spark

adjust coolant level between

plug by rotating coil side to side as

marks as required. Use a funnel to

you pull up.

avoid spillage. Do not overfill.

3. Properly tighten the expansion

Installliing the Igniitiion Coill

tank cap. Reinstall seats.

1. Align the retaining screw hole of

NOTE:

the ignition coil with the threaded

A cooling system that frequently re-

hole on the valve cover.

quires coolant is an indication of leaks

2. Install the ignition coil on the spark

or engine problems. See an author-

plug and push it all the way down

ized Sea-Doo dealer.

until it rests on the valve cover.

134

MAINTENANCE PROCEDURES

3. Install the retaining screw and

NOTICE

tighten to specification below.

Do not adjust gap on thiis type of

Tiightening Torque

spark pllug. The adjustment coulld

weaken negative electrodes

Ignition coil

which may lead to electrode

9 ± 1 Nm

retaining

breaking and severe engiine

(80 ± 9 lbf-in)

screw

damage.

4. Connect ignition coil connector.

2. Apply anti-seize lubricant on the

spark plug threads to prevent pos-

Spark Plugs

sible seizure.

3. Hand screw spark plug into cylin-

Removing the Spark Pllug

der head. Then, tighten the spark

Remove the ignition coils. Refer to

plug to specification with a spark

Removing the Ignition Coil.

plug socket.

Clean the spark plug and cylinder

head with compressed air.

Tightening Torque

Unscrew the spark plug completely

using a spark plug socket.

18 ± 2 Nm

Spark plug

(159 ± 18 lbf-in)

4. Install the ignition coils. Refer to

Ignition Coil.

Exhaust System

DANGER

DO NOT run the engiine iindoors or

wiithout adequate ventillatiion or

permiit exhaust fumes to accumu-

late iin confined areas. Engiine ex-

Approved socket

haust contaiins carbon monoxiide

Improper socket

(CO) whiich, iif iinhalled, can cause

serious braiin damage or death.

Use the ignition coil to take spark

plug out of its hole.

Fllushiing the Exhaust System

Installliing the Spark Plug

Flushing the exhaust system with

Prior to installation, ensure the contact

fresh water is essential to neutralize

surfaces of the cylinder head and

corroding effects of salt or other

spark plug are free of grime.

chemical products present in water. It

will help to remove sand, salt, shells

1. Using a wire feeler gauge, check

or other particles in water jackets and/

electrode gap as specified in Tech-

or hoses.

nical Specifications. Replace the

spark plug if not to specification.

Exhaust system flushing should be

performed when the watercraft is not

expected to be used further the same

day or when the watercraft is stored

for any extended time.

135

MAINTENANCE PROCEDURES

NOTICE

Recommended Tooll

Faiilure to fllush the system, when

Flushing connector

necessary, willl severelly damage

adapter

exhaust system. Make sure en-

295 500 473

giine operates during entire

procedure.

WARNING

Perform these operatiions in a welll

ventiilated area. Certain compo-

nents iin the engiine compartment

may be very hot. Direct contact

1. Quick connect adapter

may resullt in skiin burn. Do not

2. Flushing connector adapter

touch any ellectriicall part or jet

pump area when engiine iis

2. Start the engine then immediately

running.

open the water tap.

NOTICE

WARNING

Allways start the engiine before

When operating the engine whiile

openiing the water tap. Open

the watercraft is out of the water,

water tap iimmediatelly after en-

the heat exchanger iin the riide

gine is started to prevent over-

pllate may become very hot. Avoiid

heating. Never run engine without

any contact with ride plate as

supplyiing water to the exhaust

burns may occur.

system when watercraft is out of

water.

1. Connect a garden hose to connec-

tor located at the rear of watercraft.

3. Run the engine 90 seconds at idle.

Do not open water tap yet.

NOTICE

Never run engine llonger than 2

minutes. Drive liine seal has no

coolling when watercraft is out of

water.

4. Ensure water flows out of jet pump

while flushing.

5. Close the water tap, run the engine

at 5000 RPM for 5 seconds and

then stop the engine.

1. Water inlet connector

NOTICE

Allways cllose the water tap before

NOTE:

stopping the engine.

The following tool is recommended

when a quick connect adapter is used

to ease garden hose installation.

136

MAINTENANCE PROCEDURES

6. Disconnect the garden hose and

the flushing connector adapter (if

used).

Ride Plate and Water Intake

Grate

Inspecting the Riide Plate and the

Water Intake Grate

Inspect ride plate and jet pump water

intake grate for damage. Visit your

1. Sacrificial anodes

Sea-Doo dealer to have any damaged

part repaired or replaced.

Check sacrificial anodes for wear. If

worn more than half, replace them.

WARNING

The tether cord must allways be

Removiing the Sacrificiall Anode

removed from the engine cut-off

Unscrew sacrificial anode retaining

swiitch prior to inspecting the iin-

nut and remove anode.

take grate.

Installling the Sacriifiicial Anode

Installation is the reverse of the re-

moval procedure.

Tiightening Torque

9 ± 1 Nm (80 ± 9 lbf-in)

Fuses

INSPECT THESE AREAS

Fuse Locatiion

1. Water intake

All fuses are located inside a single

2. Ride plate

fuse box.

Sacrificial Anodes

To access the fuse box:

Remove seat(s).

Inspecting the Sacriificial Anodes

Sacrificial anodes are located on:

- Pump

– Ride plate.

137

MAINTENANCE PROCEDURES

TYPICAL

1. Fuse box

TYPICAL

To remove a fuse box cover, squeeze

1. Fuse

locking tabs together, hold and pull

2. Check if melted

fuse box cover to open.

3. Ampere rating

NOTE:

WARNING

Fuse ratings and positions are illus-

trated on the fuse box cover.

If fuse burns out repeatedlly,

source of mallfunctiion should be

Use the fuse remover/installer in-

determiined and corrected before

cluded in the fuse box to ease fuse

restarting. Visit an authorized

removal.

Sea-Doo dealer for servicing.

Inspectiing a Fuse

Fuse Description

Check fuse condition and replace it if

necessary.

Fuse

Rating

Descriiptiion

Not used

WARNING

Never use a hiigher rated fuse

Fuel Inj., Ign.

than specified.

15 A

Coils and Fuel

Pump

To remove fuse from holder, pull fuse

Bilge Pump (if

out. Check if filament is melted.

equipped)

Not used

30 A

Charge

Cluster

Not used

30 A

iBR

Start/Stop

138

WATERCRAFT CARE

Remove the watercraft from the water

Many marks, as shoes marks, can be

every day.

removed easily with this method.

Post-Operation Care

Body and Hull

Fllushiing the Exhaust System

Repair

The exhaust system should be

If any repairs are needed to body

flushed daily when watercraft is used

components or to the hull, contact

in salt or foul water.

your authorized Sea-Doo dealer.

Refer to Maintenance Procedures.

Clleaniing

Wash the body and the hull with a

Addiitiionall Care for Foul Water or

soap and water solution (use only mild

Sallt Water Operation

detergent). Rinse thoroughly with

When the watercraft is operated in

fresh water.

foul water and particularly in salt

water, additional care should be taken

Remove marine organisms from the

to protect the watercraft and its

inside and outside of the hull.

components.

NOTICE

Rinse watercraft bilge area with fresh

Never clean using the followiing

water.

products:

Never use a high pressure washer to

– XPS S4 Heavy Duty Cleaner

clean the bilge. USE LOW PRES-

– Strong detergent

SURE ONLY (such as a garden

– Degreasing agent

hose).

– Ammonia

– Acetone or other ketones

High pressure can cause damages to

– Alcoholl

electrical or mechanical systems.

– Tolluene or other aromatiic

solvents

CAUTION

– Chlorinated solvents

Alllow engine to cool before per-

– Miinerall spiirits

formiing any maintenance.

– Paiint thinners

– Petroleum based products.

NOTICE

Stains may be removed from the seat

Faiilure to perform proper care

and fiberglass using the XPS All Pur-

such as: watercraft rinsing, ex-

pose Cleaner and Degreaser or the

haust system flushing and anti-

equivalent.

corrosiion treatment, when

watercraft iis used in salt water,

To clean the carpets, use 3M™ Citrus

wiilll result iin damage to the water-

Base Cleaner (24 oz spray can) or an

craft and its components. Never

equivalent.

leave the watercraft stored iin dii-

rect sunlight.

WARNING

Never applly pllastic or vinyl pro-

Seat Cleaning

tector on the carpets or seat as

the surface wiilll become sliippery

Before applying a cleaning product on

and the occupants may sliip off the

the seat, try removing marks with a

watercraft.

white eraser.

140

STORAGE AND PRESEASON PREPARATION

Storage

Inspecting the Jet Pump

Visit your authorized Sea-Doo dealer.

WARNING

Fuell System

Because fuel and oill are flamma-

blle, you should have an author-

Protecting the Fuel System

ized Sea-Doo dealer, repaiir shop,

or person of your own choosiing to

A fuel stabilizer should be added in

inspect the fuell system integriity

the fuel tank to prevent fuel deteriora-

as specifiied iin the periodic iin-

tion and fuel system gumming. Follow

spectiion chart.

stabilizer manufacturers' instructions

for proper use.

It is recommended that the watercraft

Service Product

be serviced by an authorized Sea-Doo

dealer, repair shop, or person of your

Fuel stabilizer

own choosing for storage, however

the following operations can be per-

formed by you with a minimum of

NOTICE

tools.

Fuel stabiiliizer shoulld be added

prior to engiine llubriication to pre-

NOTE:

vent the lloss of the chemiicall prop-

Carry out the following tasks in the

ertiies of fuell and protect the fuel

same order as detailed in this section.

system against varniish deposits.

NOTICE

Fill up fuel tank completely. Make sure

Do not run the engine during the

there is no water inside fuel tank.

storage period.

NOTICE

Propulsiion System

Should any water be trapped in-

side fuel tank, severe iinternal

Cleaning the Jet Pump

damage may occur to the fuell in-

jection system.

WARNING

Always remove tether cord from

Engine and Exhaust

the engiine cut-off swiitch to pre-

vent unexpected engine starting

Flushing the Exhaust System

before clleaniing the jet pump area.

Perform procedure as described in

Engiine must not be runniing for

Maintenance Procedures section.

this operatiion.

Replacing the Engiine Oiil and Oill

Fillter

Rinse the jet pump by spraying water

through its inlet and outlet openings.

The oil change and filter replacement

may be performed by an authorized

Spray an anti-corrosive product on the

Sea-Doo dealer, repair shop, or per-

propulsion system parts.

son of your own choosing.

Service Product

Draiiniing the Exhaust System

In areas where temperature may

XPS Anti-Corrosive Lubricant or

freeze, water trapped in the exhaust

equivalent

system and intercooler must be

removed.

142

STORAGE AND PRESEASON PREPARATION

Using the flushing connector, inject

prevent fuel from being injected

pressurized air at 379 kPa (55 lbf/in²)

and disable the ignition during en-

into system until there is no more

gine cranking.

water flowing from jet pump.

4. Press the START/STOP button to

crank the engine a few turns. This

will distribute the oil on the cylinder

walls.

5. Apply anti-seize lubricant on spark

plug threads, then reinstall them in

the engine. Refer to Maintenance

Procedures section.

6. Install the ignition coils. Refer to

Maintenance Procedures section.

Testing the Engine Coollant Densiity

If antifreeze is not replaced, test its

density.

1. Flushing connector

The antifreeze replacement and a

The following hose can be fabricated

density test should be performed by

to ease draining procedure.

an authorized Sea-Doo dealer, repair

shop or person of your own choosing.

Refer to Maintenance Schedule.

NOTICE

Improper antifreeze densiity may

TYPICAL

result in freeziing of the lliquiid iin

1. Flushing connector adapter

the coolling system iif the water-

2. Hose 12.7 mm (1/2 in)

craft iis stored in an area where

3. Air hose male adapter

the freezing point is attained. This

would seriouslly damage the

NOTICE

engine.

Faiilure to drain the exhaust sys-

tem may cause severe damage to

Ellectriicall System

the exhaust manifold.

Battery

Remove special tools.

Battery Maiintenance

Lubriicating the Engiine Cyliinders

When storing the watercraft, the bat-

tery should always be stored in a

1. Remove spark plugs. Refer to

warm, dry place.

Maintenance Procedures section.

2. Spray lubricant in each cylinder

WARNING

through spark plug holes.

Never charge or boost the battery

Serviice Product

whille installled in the watercraft.

XPS Anti-Corrosive Lubricant or

This vehicle is equipped with a main-

equivalent

tenance-free type battery, there is no

3. Fully depress the throttle lever. De-

pressing the throttle lever will

143

STORAGE AND PRESEASON PREPARATION

need to add water to adjust electrolyte

NOTE: Remove any water or debris

level.

if present in the compartment before

installing the battery.

NOTICE

Never remove the battery striip

NOTICE

from caps or add ellectrolyte for

Reversed battery pollarity wiilll

the liife of the battery.

damage the voltage regulator.

Removiing the Battery

NOTICE

1. Remove the seat.

2. Disconnect the battery cables.

Allways connect the RED (+) cablle

first, then the BLACK (-) cable.

NOTICE

Always disconnect the BLACK (-)

2. Tighten the battery cable screws to

cable first, then the RED (+)

specification.

cable.

Tighteniing Torque

Battery

4 ± 0.5 Nm

cable screw

(35 ± 4 lbf-in)

3. Apply dielectric grease on battery

posts.

4. Cover positive battery post with

rubber boot.

5. Verify

cable

routing

and

attachments.

1. Battery post

Engine Compartment

2. Strap

3. Remove the retaining strap.

Clleaniing the Engine Compartment

1. Clean the bilge with hot water and

Chargiing the Battery

detergent or with bilge cleaner.

Use any automotive type battery

2. Rinse thoroughly.

charger. Always refer to the battery

3. Lift front end of watercraft to com-

charger manufacturer’s instructions.

pletely drain bilge through the bilge

drain plugs.

Cleaning the Battery

Clean battery casing and battery

Antiicorrosion Treatment

posts using a soft brush and a solution

1. Wipe off any residual water in the

of baking soda and water.

engine compartment.

2. Lubricate all metallic components

Remove corrosion from battery cable

in engine compartment.

terminals and battery posts using a

firm wire brush.

Rinse with clear water then dry well.

Installling the Battery

1. Connect the battery cables.

144

IDENTIFICATION NUMBERS

The main components of the watercraft (engine and hull) are identified by differ-

ent serial numbers. It may sometimes become necessary to locate these num-

bers for warranty purposes or to trace the watercraft in the event of theft.

Hull Identification Number

The Hull Identification Number (HIN)

is located on footboard at the rear of

watercraft.

TYPICAL

1. Engine Identification Number (EIN)

Engine Manufacturer

Identification

TYPICAL

1. Hull Identification Number (HIN)

It is composed of 12 digits:

ENGINE MANUFACTURER IDENTIFICA-

TION LABEL

YDV

12345

L 8

Model year

Year of production

Month of production

Serial number

(a letter may also be used as a

digit)

Manufacturer

Engine Identification Number

The Engine Identification Number

(EIN) is located on the front end of the

LABEL LOCATION

engine.

156

COMPLIANCE

EPA Compliance Label

EMISSION CONTROL SYSTEM INFORMATION

BOMBARDIER RECREATIONAL PRODUCTS INC.

THIS ENGINE CONFORMS TO

U.S. EPA & CALIFORNIA

EMISSIONS REGULATIONS FOR MARINE SI ENGINES.

RENSEIGNEMENT SUR LE DISPOSITIF ANTIPOLLUTION

CE MOTEUR EST CONFORME AUX NORMES

DE L’EPA

DES É.-U. POUR LES MOTEURS MARINS À ALLUMAGE COMMANDÉ.

ENGINE FAMILY / FAMILLE DE MOTEUR

( EPA

FEL)

CERTIFICATION STANDARDS

NORMES DE CERTIFICATION

(

FEL

)

EMISSION CONTROL SYSTEM

SYSTÈME DE CONTRÔLE DES ÉMISSIONS

MEETS

CALIFORNIA EVAP EMISSIONS REGULATIONS FOR SPARK

IGNITION MARINE WATERCRAFT. EVAP FAMILY

EVAPORATIVE EMISSION CONTROL SYSTEM: SO

SEE OPERATOR’S GUIDE FOR MAINTENANCE SCHEDULE AND FUEL,

OIL AND SPARK PLUG SPECIFICATIONS. VOIR LE CALENDRIER

D’ENTRETIEN ET LES SPÉCIFICATIONS D’ESSENCE, D’HUILE ET DE

BOUGIE D’ALLUMAGE DANS LE GUIDE DE L’OPÉRATEUR.

219905703

EPA COMPLIANCE LABEL

TYPICAL – LABEL LOCATION

159

RF D.E.S.S. KEY

This device complies with FCC Part 15 and Industry Canada license exempt

RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interfer-

ence that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

IC Registration Number: 12006A-1001301698

FCC ID: 2ACER-1001301698

We, the party responsible for compliance, declare under our sole responsibility

that the device is in conformity with the provisions of the following Council Direc-

tive: 2014/53/EU. To which this declaration relates is in conformity with the es-

sential requirements and other relevant requirements. The product is in

conformity with the following directives, harmonized standards and regulations:

Radio Equipment Directive (RED) 2014/53/EU and Harmonized Standards:

EN 300 330-2, EN 60950-1

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

This device contains licence-exempt transmitter (s)/receiver (s) that comply with

Innovation, Science and Economic Development Canada’s licence-exempt RSS

(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may

cause undesired operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est

conforme aux CNR d’Innovation, Sciences et Développement économique Can-

ada applicables aux appareils radio exempts de licence. L’exploitation est autori-

sée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage;

(2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouil-

lage est susceptible d'en compromettre le fonctionnement.

162

MULTIFUNCTION GAUGE REGULATORY

INFORMATION

Techniicall Information

Changes or modifications not ex-

pressly approved by the party respon-

Transmitter:

sible for compliance could void the

- BT operating frequency range:

user's authority to operate the

2402 - 2480 MHz

equipment.

- BT version: 4.2 (no BTLE)

- BT output power: < 8.5 dBm

IC: 22868 - VDIBRHS01

FCC ID: 2AMJS - VDIBRHS01

Receiver:

- FM operating range: 76 - 108 MHz

RF exposure:

Manufacturer and Address

1. The equipment complies with FCC

RF exposure limits set forth for an

Manufacturer:

uncontrolled environment.

- Robert Bosch LLC

2. This equipment must be installed

and operated with a separation

Address:

distance of at least 20 cm from all

38000 Hills Tech Drive,

persons.

Farmington Hills, MI 48331,

3. The antenna(s) used for this trans-

USA

mitter must not be co-located or

operating in conjunction with any

To display the regulatory information

other antenna or transmitter.

on the vehicle digital display: From the

home screen, access the main menu

Mexiico

and keep the joystick pressed down

for more than 10 seconds.

IFETEL

USA and Canada

Marca: Robert Bosch LLC

This device complies with FCC Part

Modelo(s): VIPHI2BT

and Industry Canada license

Número: RCPBOVI18-0967

exempt RSS standard(s). Operation is

subject to the following two conditions:

NOM-121-SCT1-2009

(1) this device may not cause interfer-

ence, and

La operación de este equipo está su-

(2) this device must accept any inter-

jeta a las siguientes dos condiciones:

ference, including interference that

(1) es posible que este equipo o dis-

may cause undesired operation of the

positivo no cause interferencia perju-

device.

dicial y (2) este equipo o dispositivo

debe aceptar cualquier interferencia,

Le présent appareil est conforme aux

incluyendo la que pueda causar su

CNR d'Industrie Canada applicables

operación no deseada.

aux appareils radio exempts de li-

cence. L'exploitation est autorisée aux

Braziil

deux conditions suivantes:

(1) l'appareil ne doit pas produire de

brouillage, et

(2) l'utilisateur de l'appareil doit ac-

cepter tout brouillage radioélectrique

subi, même si le brouillage est sus-

ceptible

d'en compromettre le

03473-18-04473

fonctionnement.

164

MULTIFUNCTION GAUGE REGULATORY INFORMATION

Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eu-doc.

bosch.com

Le soussigné, Robert Bosch LLC, déclare que l'équipement radioélectrique du type VIPHI2BT est conforme à la

directive 2014/53/UE.

Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante:eu-doc.

bosch.com

Robert Bosch LLC

VIPHI2BT

2014/53/.

: eu-doc.

bosch.com

Με την παρούσα ο/η Robert Bosch LLC, δηλώνει ότι ο ραδιοεξοπλισ×όØ VIPHI2BT πληροί την οδηγία 2014/53/EE.

Το πλήρεØ κεί×ενο τηØ δήλωσηØ συ××όρφωσηØ ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: eu-doc.

bosch.com

Tímto Robert Bosch LLC prohlašuje, že typ rádiového zařízení VIPHI2BT je v souladu se směrnicí 2014/53/EU.

Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: eu-doc.bosch.com

Hermed erklærer Robert Bosch LLC, at radioudstyrstypen VIPHI2BT er i overensstemmelse med direktiv

2014/53/EU.

EU-overensstemmelseserklæringens fulde tekst kan ðndes på følgende internetadresse: eu-doc.bosch.com

Käesolevaga deklareerib Robert Bosch LLC, et käesolev raadioseadme tüüp VIPHI2BT vastab direktiivi

2014/53/EL nõuetele.

ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: eu-doc.bosch.com

Por la presente, Robert Bosch LLC declara que el tipo de equipo radioeléctrico VIPHI2BT es conforme con la

Directiva 2014/53/UE.

El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: eu-doc.

bosch.com

Robert Bosch LLC vakuuttaa, että radiolaitetyyppi VIPHI2BT on direktiivin 2014/53/EU mukainen.

EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: eu-doc.

bosch.com

Hereby, Robert Bosch LLC declares that the radio equipment type VIPHI2BT is in compliance with Directive

2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: eu-doc.bosch.com

Robert Bosch LLC ovime izjavljuje da je radijska oprema tipa VIPHI2BT u skladu s Direktivom 2014/53/EU.

Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: eu-doc.bosch.com

Robert Bosch LLC igazolja, hogy a VIPHI2BT típusú rádióberendezés megfelel a 2014/53/EU irányelvnek.

Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: eu-doc.bosch.com

Il fabbricante, Robert Bosch LLC, dichiara che il tipo di apparecchiatura radio VIPHI2BT è conforme alla direttiva

2014/53/UE.

Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: eu-doc.

bosch.com

166

MULTIFUNCTION GAUGE REGULATORY INFORMATION

Aš, Robert Bosch LLC, patvirtinu, kad radijo įrenginių tipas VIPHI2BT atitinka Direktyvą 2014/53/ES.

Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: eu-doc.bosch.com

Ar šo Robert Bosch LLC deklarē, ka radioiekārta VIPHI2BT atbilst Direktīvai 2014/53/ES.

Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: eu-doc.bosch.com

B'dan, Robert Bosch LLC, niddikjara li dan it-tip ta' tagħmir tar-radju VIPHI2BT huwa konformi mad-Direttiva

2014/53/UE.

It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej: eu-doc.

bosch.com

Hierbij verklaar ik, Robert Bosch LLC, dat het type radioapparatuur VIPHI2BT conform is met Richtlijn

2014/53/EU.

De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: eu-doc.

bosch.com

Robert Bosch LLC niniejszym oświadcza, że typ urządzenia radiowego VIPHI2BT jest zgodny z dyrektywą

2014/53/UE.

Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: eu-doc.bosch.com

O(a) abaixo assinado(a) Robert Bosch LLC declara que o presente tipo de equipamento de rádio VIPHI2BT está

em conformidade com a Diretiva 2014/53/UE.

O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: eu-doc.

bosch.com

Prin prezenta, Robert Bosch LLC declară că tipul de echipamente radio VIPHI2BT este în conformitate cu

Directiva 2014/53/UE.

Textul integral al declaraFiei UE de conformitate este disponibil la următoarea adresă internet: eu-doc.bosch.com

Härmed försäkrar Robert Bosch LLC att denna typ av radioutrustning VIPHI2BT överensstämmer med direktiv

2014/53/EU.

Den fullständiga texten till EU-försäkran om överensstämmelse Knns på följande webbadress: eu-doc.bosch.com

Robert Bosch LLC potrjuje, da je tip radijske opreme VIPHI2BT skladen z Direktivo 2014/53/EU.

Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: eu-doc.bosch.com

Robert Bosch LLC týmto vyhlasuje, že rádiové zariadenie typu VIPHI2BT je v súlade so smernicou 2014/53/EÚ.

Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: eu-doc.bosch.com

Robert Bosch LLC lýsir því hér með yKr að þráðlausi _arskiptabúnaðurinn VIPHI2BT er í samræmi við tilskipun

2014/53/ESB.

Óstyttan texta ESB-samræmisyKrlýsingarinnar er að Knna á ve{anginu: eu-doc.bosch.com

Liechtenstein

Hiermit erklärt Robert Bosch LLC, dass der Funkanlagentyp VIPHI2BT der Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: eu-doc.

bosch.com

Hermed erklærer Robert Bosch LLC at radioutstyrstypen VIPHI2BT er i samsvar med direktiv 2014/53/EU.

Hele teksten i EU-samsvarserklæringen Knnes på følgende internettadresse: eu-doc.bosch.com

~ Robert Bosch LLC ,

VIPHI2BT

2014/53/EU.

eu-doc.bosch.com.

167

BRP AUDIO SYSTEM

This equipment has been tested and

FCC ID: 2AAOY - 278003465

found to comply with the limits for a

Class B digital device, pursuant to

L’émetteur/ récepteur exempt de li-

Part 15 of the FCC rules. These limits

cence contenu dans le présent appa-

are designed to provide reasonable

reil

est

conforme aux CNR

protection against harmful interfer-

d’Innovation, Sciences et Développe-

ment économique Canada applica-

ence in a residential installation.

bles aux appareils radio exempts de

This equipment generates, uses, and

licence. L’exploitation est autorisée

can radiate radio frequency energy

aux deux conditions suivantes :

and, if not installed and used in ac-

(1) l'appareil ne doit pas produire de

cordance with the instructions, may

brouillage;

cause harmful interference to radio

communications. However, this is no

(2) l'appareil doit accepter tout brouil-

guaranty that interference will occur in

lage radioélectrique subi, même si le

a particular installation.

brouillage est susceptible d'en com-

promettre le fonctionnement.

If this equipment does cause harmful

interference to radio or television re-

Radio Equipment Directive

(RED)

ception, which can be determined by

2014/53/EU

and

Harmonized

turning the equipment off or on, you

Standards:

are encouraged to try to correct the in-

ETSI EN 300 328 V2.1.1

terference by one or more of the fol-

(2016-11)

lowing measure:

ETSI EN301 489-1 V2.1.1

- Reorient or relocate the receiving

(2017-02)

antenna.

ETSI EN301 489-17 V3.1.1

- Increase the separation between

(2017-02)

the equipment and receiver.

62479:2010

- Connect the equipment to an out-

let on a different circuit than the

one to which the receiver is

connected.

- Consult the dealer or an experi-

enced radio/TV technician for help.

Changes or modifications not ex-

pressly approved by Mitek Corpora-

tion could void the user's authority to

operate this equipment. This device

complies with Part

15 of the FCC

rules.

Operation is subject to the following

two conditions:

(1) This device may not cause

harmful interference, and

(2) This device must accept any in-

terference received, including in-

terference that may cause

undesired operation.

Registration

Number:

22793-278003465

168

ENGINE EMISSIONS INFORMATION

Manufacturer''s

EPA Emission Regulations

Responsibility

Sea-Doo SIPME manufactured by

Manufacturers of marine engines

BRP are certified to the EPA as con-

must determine the exhaust emission

forming to the requirements of the reg-

levels for each engine horsepower

ulations for the control of air pollution

family and certify these engines with

from new SIPME. This certification is

the United States of America Environ-

contingent on certain adjustments

mental Protection Agency (EPA). An

being set to factory standards. For this

emissions control information label,

reason, the factory procedure for serv-

showing emission levels and engine

icing the product must be strictly fol-

specifications, must be placed on

lowed and, whenever practicable,

each Spark-Ignition Propulsion Marine

returned to the original intent of the

Engines

(SIPME) at the time of

design.

manufacture.

The responsibilities listed above are

general and in no way a complete list-

Dealer''s Responsibility

ing of the rules and regulations per-

When performing service on a Sea--

taining to the EPA requirements on

Doo SIPME that carry an emissions

exhaust emissions for marine prod-

control information label, adjustments

ucts. For more detailed information on

must be kept within published factory

this subject, you may contact:

specifications.

U. S. Environmental Protection

Replacement or repair of any emis-

Agency

sion related component must be exe-

Certification Division

cuted in a manner that maintains

Gasoline Engine Compliance Center

emission levels within the prescribed

2000 Traverwood Drive

certification standards.

Ann Arbor MI 48105

USA

Dealers are not to modify the engine

in any manner that would alter the

horsepower or allow emission levels

EPA INTERNET WEB SITE:

to exceed their predetermined factory

www.epa.gov/otaq

specifications.

Evaporative Emission

Exceptions include manufacturer's

Control System

prescribed changes, such as altitude

adjustments for example.

Spark-Ignition Marine Watercraft

(SIMW) sold in the State of California

Owner’s Responsibility

are certified to the California evapora-

tive emissions regulations for SIMW of

The owner/operator is required to

the California Air Resources Board

have engine maintenance performed

(13 CCR 2850 to 2869). These mod-

to maintain emission levels within pre-

els are equipped with an evaporative

scribed certification standards.

emission control system consisting of

Low Permeation Fuel Tank (LPFT),

The owner/operator is not to, and

Low Permeation Fuel Line (LPFL) and

should not allow anyone to modify the

a Pressure Relief Valve (PRV).

engine in any manner that would alter

the horsepower or allow emissions

levels to exceed their predetermined

factory specifications.

169

ENGINE

Rotax 1630 ACE -

170

ENGINE

Rotax 1630 ACE - 170

4-stroke, Single Over Head

Engine type

Camshaft (SOHC)

Declared Power⁽¹⁾

125 kW @ 8000 RPM

Induction

Naturally-Aspirated

Number of cylinders

12 valves with hydraulic

Number of valves

lifters (no adjustment)

Bore

100 mm (3.9 in)

Stroke

69.2 mm (2.7 in)

Displacement

1 630.5 cm³ (99.5 in³)

Compression ratio

11:1

FUEL SYSTEM

Multipoint fuel injection with

iTC (intelligent Throttle

Fuel injection type

Control).

Single throttle body (60 mm)

with an actuator

Idle speed (not adjustable)

1800 ± 50 RPM

ELECTRICAL SYSTEM

IDI (Inductive Discharge

Ignition system type

Ignition)

NGK, DCPR8E with solid

Type

post or equivalent

Spark plug⁽²⁾

0.80 to 0.90 mm

Gap

(.031 to .035 in)

LUBRICATION

Recommend

XPS 4T 5W40 Synthetic

ed oil

blend oil

Engine oil⁽³⁾

3 l (3.2 qt(liq.,US)) oil change

Capacity

w/filter

5l(5.3qt(liq.,US))total

174

VEHICLE

EXPLORER PRO

170

Cooliing System

Closed-loop cooling system

Type

(CLCS)

XPS Extended life pre-mixed

Recommended

coolant

Use a low silicate, extended

life ethylene-glycol premixed

Alternative, or if

coolant (50%-50%)

Coolant

not available

specifically formulated for

internal combustion

aluminum engines.

5.4 l

Capacity

(5.7 qt(liq.,US))

Fuell System

Fuel pump

In-tank electrical

Regular unleaded

Type

Refer to Fuel Requirements

Fuel

87 Pump Posted AKI

(RON+MON)/2

Octane rating

(RON) E10

Full

60 l (15.9 gal(liq. US))

Tank capacity

Reserve

(from low level

14 l (3.7 gal(liq. US))

signal - approx.)

Electriicall System

Battery

12 V, 18 Ah

Total system output

420 W @ 6000 RPM

Fuel Inj., Ign.

Coils and Fuel

15 A

Pump

Fuses

Bilge pump (if

equipped)

Charge

30 A

176

VEHICLE

Cluster

iBR

30 A

F10

Start/ Stop

F11

ECM

F12

Battery

30 A

Diagnostic

Connector (6),

F13

15 A

Accessory

connector (2)

Diagnostic

Connector (5),

F14

15 A

Accessory

connector (1)

Relay

RY1

Main

—

Propulsion

Propulsion system

Sea-Doo® jet pump

Axial flow, single stage.

Type

Large hub with double row

Jet pump

ball bearings

Material

Aluminum

Impeller

Stainless steel

Transmission

Type

Direct drive

Weiight and Loading Capacity

Dry weight

380 kg (837 lb)

Number of passenger (driver incl.)

Load limit (passenger(s) and luggage,

273 kg

including accessories)

(600 lb)

Storage capacity

198.9 l (52.3 gal(liq.,US))

177

TROUBLESHOOTING GUIDELINES

ENGINE WILL NOT START

1. Tether cord removed.

- Press START/STOP button.

- Install tether cord cap over engine cut-off switch within 5 seconds after

depressing the START/STOP button.

- Press START/STOP button.

2. ECM does not recogniize the D.E.S.S. key.

- Refer to an authorized Sea-Doo dealer.

3. Burnt fuse: maiin, ellectric starter or ECM.

- Check wiring then replace fuse(s).

4. Diischarged battery.

- Refer to an authorized Sea-Doo dealer.

WARNING

Do not charge or boost the battery whille iinstallled on the watercraft.

Electrollyte iis poisonous and dangerous. Avoiid contact with eyes, skin

and clothing.

5. Battery connectiions, corroded or lloose. Bad ground.

- Refer to an authorized Sea-Doo dealer.

6. Water-fllooded engiine.

- Refer to Water-Flooded Engine in Special Procedures.

7. Faulty sensor or ECM.

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

8. Seized jet pump.

- Try to clean. Otherwise, refer to an authorized Sea-Doo dealer.

ENGINE CRANKS SLOWLY

1. Loose battery cable connectiions.

- Check/clean/tighten.

2. Diischarged or weak battery.

- Refer to an authorized Sea-Doo dealer.

3. Worn starter.

- Refer to an authorized Sea-Doo dealer.

180

TROUBLESHOOTING GUIDELINES

ENGINE TURNS NORMALLY BUT WILL NOT START

1. Fuell tank empty or water-contaminated.

- Refill. Siphon and fill with fresh fuel.

2. Foulled/defectiive spark pllugs.

- Replace.

3. Blown fuse.

- Check wiring then replace fuse(s).

4. Water-fllooded engine.

- Refer to Water-Flooded Engine in Special Procedures.

5. Engiine management system faullt detected (check engine pillot llamp

is ON).

– Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

6. Faullty fuell pump.

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

ENGINE MISFIRES, RUNS IRREGULARLY

1. Foulled/defectiive/worn spark pllugs.

- Replace.

2. Fuell: Levell too llow, stalle or water-contamiinated.

- Siphon and/or refill.

3. Faullty iigniitiion coill(s).

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

4. Clogged injectors.

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

5. Engiine management system faullt detected (check engine pillot llamp

is ON).

– Refer to Monitoring System.

181

TROUBLESHOOTING GUIDELINES

ENGINE SMOKE

1. Oill levell too hiigh.

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

2. Water ingestiion, coollant lleak or damaged cyllinder head gasket.

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

3. Internall engiine damage.

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

ENGINE OVERHEATS

1. Cllogged exhaust system.

- Flush exhaust system.

2. Engine coollant level too low.

- Refer to Maintenance Procedures.

3. Quiick connect adapter lleft iin fllushiing connector.

- Remove adapter from flushing connector and retry watercraft. If

problem persists, seek service from an authorized Sea-Doo dealer,

repair shop, or person of your own choosing for maintenance, repair, or

replacement. Please refer to the US EPA Emission-Related Warranty

contained herein for information about warranty claims.

182

TROUBLESHOOTING GUIDELINES

ENGINE LACKS ACCELERATION OR POWER

Learning key used.

- Use a Normal key.

Not in Sport mode.

- Select Sport mode.

Jet pump water iintake cllogged.

- Clean. Refer to Jet Pump Water Intake and Impeller Cleaning in Special

Procedures section.

Damaged iimpelller or worn-out wear riing.

- Replace. Refer to an authorized Sea-Doo dealer.

Engiine oiil llevell too high.

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

Weak spark.

- Refer to ENGINE MISFIRES, RUNS IRREGULARLY.

Engiine management system faullt detected (check engine pillot llamp

is ON).

– Refer to Monitoring System.

Clogged injectors.

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

Low fuel pressure.

- Seek service from an authorized Sea-Doo dealer, repair shop, or

person of your own choosing for maintenance, repair, or replacement.

Please refer to the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

10. Water iin fuell.

- Siphon and replace.

11. Engiine damaged by water ingestiion.

- Refer to an authorized Sea-Doo dealer.

183

TROUBLESHOOTING GUIDELINES

WATERCRAFT CAN NOT REACH TOP SPEED

1. Jet pump water intake clogged.

- Clean. Refer to Jet Pump Water Intake and Impeller Cleaning in Special

Procedures section.

2. Damaged impelller or worn-out wear ring.

- Replace. Refer to an authorized Sea-Doo dealer.

3. Engine management system fault detected (check engiine piilot lamp

is ON).

- Refer to Monitoring System.

WATERCRAFT STAYS IN NEUTRAL AFTER OPERATING THE iBR

LEVER

1. The iBR gate stays in neutrall.

- Release the throttle to idle RPM.

iBR WILL NOT RETURN TO NEUTRAL POSITION (iiBR INDICATOR

LIGHT ON)

1. iBR jjammed wiith debris.

- Clean and check for damage in the iBR gate and nozzle area.

2. iBR system malfunctiion.

- Remove tether cord, wait four minutes, reinstall key and check iBR light

to ensure fault is cleared.

- Refer to an authorized Sea-Doo dealer if fault persists or reoccurs

frequently.

iBR WILL NOT RETURN TO NEUTRAL POSITION (IBR INDICATOR

LIGHT OFF)

1. Throttle llever not fullly released during operation.

- Release throttle lever fully to ensure iBR gate returns to neutral.

2. Throttle llever does not fullly return to nulll when relleased.

- Refer to an authorized Sea-Doo dealer.

184

TROUBLESHOOTING GUIDELINES

ABNORMAL NOISE FROM PROPULSION SYSTEM

1. Weeds or debriis jammed around impelller.

- Clean. Refer to Jet Pump Water Intake and Impeller Cleaning in Special

Procedures section.

- Check for damage.

2. Damaged iimpelller shaft or drive shaft.

- Refer to an authorized Sea-Doo dealer.

3. Water iintrusion iin jjet pump causiing bearing seiizure.

- Refer to an authorized Sea-Doo dealer.

WATER FOUND IN BILGE

1. Billge pump system malfunction.

- Have system inspected by an authorized Sea-Doo dealer.

2. Exhaust system leak.

- Refer to an authorized Sea-Doo dealer.

3. Carbon riing at drive shaft worn.

- Refer to an authorized Sea-Doo dealer.

4. Hulll and/or Deck seal diispllaced or fasteners loose.

- Refer to an authorized Sea-Doo dealer.

185

MONITORING SYSTEM

A system monitors the electronic com-

then choose to call his authorized

ponents of the EMS (engine manage-

Sea-Doo dealer to pass on the fault

ment system) iBR, and other

code. The dealer will then advise the

components of the electrical system.

operator on the steps to take to solve

When a fault occurs, it sends visual

the problem, or to stop using the

messages through the information

watercraft and to bring it in to the deal-

center and/or audible signals through

er for repairs.

a beeper to inform you of a particular

condition.

Diispllayiing Faullt Codes

Select CODES. If a fault code has oc-

A fault code may also be recorded.

curred during your riding cycle, a CO-

When a minor or transient fault oc-

DES menu will be available in the

curs, the fault message and beeper

settings menu. Press OK to see the

will cease automatically if the condi-

list of faults.

tion that caused the fault does not ex-

ist anymore.

NOTE:

During normal riding conditions some

Releasing the throttle and letting the

fault codes may occur. Before con-

engine return to idle speed may allow

tacting your local dealer, remove the

normal operation to come back. If this

key, make sure to wait 2 minutes until

does not work, try removing and rein-

the electrical system shuts down, then

stalling the tether cord on the engine

press start to wake up the electrical

cut-off switch.

system. This will ensure occurred fault

to disappear and only the active codes

The electronic system will react differ-

will remain ON in the CODES menu.

ently depending on the fault type. In

severe failure, the engine may not be

allowed to be started. In other cases,

the engine will operate in limp home

IVTS

mode (reduced speed).

When a fault occurs, please refer to

the US EPA Emission-Related War-

ranty contained herein for information

about warranty claims.

Fault Codes

When a fault occurs, a numerical fault

code may be recorded depending on

the fault type and system.

These fault codes are used by author-

ized Sea-Doo dealers for trouble-

shooting the watercraft systems when

comparing them to a fault list.

Fault codes can be viewed in the infor-

mation center multifunction display

however, this function is only available

if a fault is still active.

If there is an active fault code, it may

be viewed by the operator on the mul-

tifunction display. The operator may

186

MONITORING SYSTEM

Indicator Lights and Message Display Information

The indicator lights (pilot lamps) and messages displayed in the information cen-

ter will inform you of a particular condition or if an anomaly occurs.

For information on usual indicator lights, refer to appropriate digital display.

Indiicator

Liight / Icon

Message Display

Descriiptiion

(ON)

LOW or HIGH

BATTERY

Low/high battery voltage

VOLTAGE

HIGH

Engine or exhaust system overheating

TEMPERATURE

CHECK ENGINE

Check engine (minor fault req. maint.) or

or LIMP HOME

LIMP HOME MODE (major eng. fault)

MODE

LOW OIL

Low oil pressure

PRESSURE

Light is steady with a buzzer and a

IBR MODULE

check engine light: iBR system fault

ERROR

(refer to an authorized Sea-Doo dealer)

Light is flashing: iBR system fault (refer

to an authorized Sea-Doo dealer)

Light is steady with no buzzer:

iBR system still functional but needs to

be inspected by an authorized Sea-Doo

dealer

Message Display

Descriiptiion

HIGH EXHAUST TEMPERATURE

High exhaust temperature detected

HIGH ENGINE TEMPERATURE

High engine temperature detected

Engine system malfunction and/or

CHECK ENGINE

requiring maintenance

Major fault detected, engine power

LIMP HOME MODE

limited

FUEL SENSOR FAULT

Fuel level sensor fault

WATER TEMP SENSOR

Problem with water temperature sensor,

DEFECTIVE

not sending water temperature info.

187

MONITORING SYSTEM

Beeper Code Information

Beeper Codes

Description

Bad D.E.S.S. system connection.

Reinstall tether cord cap correctly on the engine

cut-off switch.

Wrong D.E.S.S. key.

Use a tether cord that has been programmed for the

watercraft.

Defective D.E.S.S. key.

1 long beep

Use another tether cord with programmed D.E.S.S.

(while installing tether

key.

cord on watercraft

engine cut-off switch)

Defective engiine cut-off swiitch.

Refer to an authorized Sea-Doo dealer.

Improper operatiion of ECM or defective wiriing

harness.Seek service from an authorized Sea-Doo

dealer, repair shop, or person of your own choosing

for maintenance, repair, or replacement. Please

refer to the US EPA Emission-Related Warranty

contained herein for information about warranty

claims.

Engine management system faullt.

Seek service from an authorized Sea-Doo dealer,

repair shop, or person of your own choosing for

A 2 seconds beep

maintenance, repair, or replacement. Please refer to

every 15 minutes

the US EPA Emission-Related Warranty contained

interval

herein for information about warranty claims.

iBR system faullt.

Refer to an authorized Sea-Doo dealer.

A 2 seconds beep

Low fuell level.

every 10 minutes

Refill fuel tank. If problem persists, refer to an

interval

authorized Sea-Doo dealer.

189

MONITORING SYSTEM

Beeper Codes

Descriiptiion

High engiine temperature coollant.

See Engine Overheating.

Low oiil pressure.

Turn off engine as soon as possible. Check oil level

2 second beeps

and refill. Seek service from an authorized Sea-Doo

dealer, repair shop, or person of your own choosing

for maintenance, repair, or replacement. Please

refer to the US EPA Emission-Related Warranty

contained herein for information about warranty

claims.

High exhaust temperature.

Seek service from an authorized Sea-Doo dealer,

Constant beep

repair shop, or person of your own choosing for

(Stops when vehicle is

maintenance, repair, or replacement. Please refer to

turned OFF)

the US EPA Emission-Related Warranty contained

herein for information about warranty claims.

NOTICE

If the moniitoriing beeper contiinuously sounds, stop engine as soon as

possiible.

190

BRP LIMITED WARRANTY – USA AND CANADA:

2023 SEA-DOO PERSONAL WATERCRAFT

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) * warrants its model-year 2023

Sea-Doo watercraft sold by authorized BRP Dealers (as defined below) in the

United States of America (“USA”) and in Canada from defects in material or

workmanship for the period and under the conditions described below. This lim-

ited warranty will become null and void if:

1. The Sea-Doo watercraft was used for racing or any other competitive activity,

at any point, even by a previous owner; or

2. The Sea-Doo watercraft has been altered or modified in such a way so as to

adversely affect its operation, performance or durability, or has been altered

or modified to change its intended use.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

* In the USA, products are distributed and serviced by BRP US Inc.

LIMITATIONS OF LIABILITY

THIS WARRANTY IS EXPRESSLY GIVEN AND ACCEPTED IN LIEU OF

ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, IN-

CLUDING WITHOUT LIMITATION ANY WARRANTY OF MERCHANT-

ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT

THAT THEY CANNOT BE DISCLAIMED, THE IMPLIED WARRANTIES

ARE LIMITED IN DURATION TO THE LIFE OF THE EXPRESS WAR-

RANTY. INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE EX-

CLUDED FROM COVERAGE UNDER THIS WARRANTY. SOME STATES/

PROVINCES DO NOT ALLOW FOR THE DISCLAIMERS, LIMITATIONS

AND EXCLUSIONS IDENTIFIED ABOVE, AS A RESULT, THEY MAY NOT

APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND

YOU MAY ALSO HAVE OTHER LEGAL RIGHTS WHICH MAY VARY

FROM STATE TO STATE, OR PROVINCE TO PROVINCE.

Neither the distributor, any BRP dealer nor any other person has been authorized

to make any affirmation, representation or warranty regarding the product, other

than those contained in this limited warranty, and if made, shall not be enforce-

able against BRP. BRP reserves the right to modify this limited warranty at any

time, being understood that such modification will not alter the warranty condi-

tions applicable to the products sold while this warranty is in effect.

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under any circumstances:

- Normal wear and tear;

- Routine maintenance items, tune ups, adjustments;

- Damage caused by failure to provide proper maintenance and/or storage, as

described in the operator’s guide;

- Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modifications or use of parts not manufactured or approved by BRP or

192

BRP LIMITED WARRANTY - USA AND CANADA: 2023 SEA-DOO PERSONAL WATERCRAFT

resulting from repairs done by a person that is not an authorized servicing

BRP dealer;

- Damage caused by abuse, abnormal use, neglect, or operation of the product

in a manner inconsistent with the recommended operation described in the

operator’s guide;

- Damage resulting from accident, submersion, fire, theft, vandalism or any act

of God;

- Operation with fuels, oils or lubricants which are not suitable for use with the

product (see the operator’s guide);

- Damage from rust, corrosion or exposure to the elements;

- Damage from cooling system or jet pump blockage by foreign material;

- Water damages caused by water ingestion;

- Damages related to gel coat finish including but not limited to cosmetic gel

coat finish, blisters or fiberglass delamination caused by blisters, crazing, spi-

der or hairline cracks; and

- Incidental or consequential damages, or damages of any kind including with-

out limitation towing, storage, telephone, rental, taxi, inconvenience, insur-

ance coverage, loan payments, loss of time, loss of income.

WARRANTY COVERAGE PERIOD

This limited warranty will be in effect from the date of delivery to the first retail

consumer or the date the product is first put into use, whichever occurs first and

for the applicable period below:

1. TWELVE (12) CONSECUTIVE MONTHS for private use owners.

2. FOUR (4) CONSECUTIVE MONTHS for commercial use owners. A personal

watercraft is used commercially when it is used in connection with generating

income or any work or employment during any part of the warranty period. A

personal watercraft is also used commercially when, at any point during the

warranty period, it has commercial tags or is licensed for commercial use.

This is a minimal warranty period which can be extended by any applicable

warranty promotional program, as the case may be.

3. For emission-related components; please also refer to the US EPA Emis-

sion-Related Warranty contained herein.

4. For Sea-Doo personal watercrafts produced by BRP for sale in the State of

California or New York that are originally sold to a resident or subsequently

warranty registered to a resident in the State of California or New York,

please also refer to the applicable California and New York Emissions Control

Warranty Statement contained herein.

5. For Sea-Doo personal watercrafts produced by BRP for sale in the State of

California that are originally sold to a resident or subsequently warranty regis-

tered to a resident in the State of California, please also refer to the California

Evaporative Emissions Control System Warranty Statement contained

herein.

The repair or replacement of parts or the performance of service under any appli-

cable warranty does not extend the life of such warranty beyond its original expi-

ration date.

CONDITIONS REQUIRED FOR WARRANTY COVERAGE

This limited warranty coverage is available only if each of the following condi-

tions has been fulfilled:

193

BRP LIMITED WARRANTY - USA AND CANADA: 2023 SEA-DOO PERSONAL WATERCRAFT

- The 2023 Sea-Doo watercraft must be purchased as new and unused by its

first owner from a BRP dealer authorized to distribute Sea-Doo watercraft in

the country in which the sale occurred;

- The BRP specified predelivery inspection process must be completed and

documented and signed by the purchaser;

- The 2023 Sea-Doo watercraft must have undergone proper registration by an

authorized BRP dealer;

- The 2023 Sea-Doo watercraft must be purchased in the country in which the

purchaser resides; and

- Routine maintenance outlined in the operator’s guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

BRP will not honour this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

WHAT TO DO TO OBTAIN WARRANTY COVERAGE

The customer must cease using the Sea-Doo watercraft upon the appearance of

an anomaly. The customer must notify an authorized servicing BRP dealer within

three (3) days of the appearance of a defect, and provide it with reasonable ac-

cess to the product and reasonable opportunity to repair it. The customer must

also present to the authorized BRP dealer, proof of purchase of the product and

must sign the repair/ work order prior to the start of the repair in order to validate

the warranty repair. All parts replaced under this limited warranty become the

property of BRP.

WHAT BRP WILL DO

BRP’s obligations under this warranty are limited to, at its sole discretion, repair-

ing parts found defective under normal use, maintenance and service, or replac-

ing such parts with new genuine BRP parts without charge for parts and labor, at

any authorized BRP dealer during the applicable warranty coverage period under

the conditions described herein. No claim of breach of warranty shall be the

cause for cancellation or rescission of the sale of the Sea-Doo watercraft to the

owner.

In the event that service is required outside of the country of original sale, the

owner will bear responsibility for any additional charges due to local practices

and conditions, such as, but not limited to freight, insurance, taxes, license fees,

import duties, and any and all other financial charges, including those levied by

governments, states, provinces, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

TRANSFER

If the ownership of a product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

194

BRP LIMITED WARRANTY - USA AND CANADA: 2023 SEA-DOO PERSONAL WATERCRAFT

Sea-Doo Distributor/ Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this BRP limited war-

ranty, BRP suggests that you try to resolve the issue at the dealership level. We

recommend discussing the issue with the authorized BRP dealer’s service man-

ager or owner.

If the matter still remains unresolved, contact BRP by filling out the customer con-

tact form at www.brp.com or contact BRP by mail at one of the addresses listed

under the Contact Us section of this guide.

195

US EPA EMISSION-RELATED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants to the ultimate purchas-

er and each subsequent purchaser that this new engine, including all parts of its

exhaust emission control system and its evaporative emission control system,

meets two conditions:

1. It is designed, built, and equipped so it conforms at the time of sale to the ulti-

mate purchaser with the requirements of 40 CFR 1045 and 40 CFR 1060.

2. It is free from defects in materials and workmanship that may keep it from

meeting the requirements of 40 CFR 1045 and 40 CFR 1060.

Where a warrantable condition exists, BRP will repair or replace, as it elects, any

part or component with a defect in materials or workmanship that would increase

the engine’s emissions of any regulated pollutant within the stated warranty peri-

od at no cost to the owner, including expenses related to diagnosing and repair-

ing or replacing emission-related parts. All defective parts replaced under this

warranty become the property of BRP.

For all emission-related warranty claims, BRP is limiting the diagnosis and repair

of emission-related parts to the authorized Sea-Doo dealers, unless for emer-

gency repairs as required by item 2 of the following list.

As a certifying manufacturer, BRP will not deny emission-related warranty claims

based on any of the following:

1. Maintenance or other service BRP or BRP's authorized facilities performed.

2. Engine/equipment repair work that an operator performed to correct an un-

safe, emergency condition attributable to BRP as long as the operator tries to

restore the engine/equipment to its proper configuration as soon as possible.

3. Any action or inaction by the operator unrelated to the warranty claim.

4. Maintenance that was performed more frequently than BRP specify.

5. Anything that is BRP fault or responsibility.

6. The use of any fuel that is commonly available where the equipment operates

unless BRP written maintenance instructions state that this fuel would harm

the equipment’s emission control system and operators can readily find the

proper fuel. See maintenance information section and fuel requirements of fu-

eling section.

Emission-Related Warranty Period

The emission-related warranty is valid for the following period whichever comes

first:

Hours

Months

Exhaust emission-related components

175

Evaporative emission-related components

N/A

Components Covered

The emission-related warranty covers all components whose failure would in-

crease an engine’s emissions of any regulated pollutant, including the following

listed components:

196

US EPA EMISSION-RELATED WARRANTY

For exhaust emissions, emission-related components include any engine parts

related to the following systems:

- Air-induction system

- Fuel system

- Ignition system

- Exhaust gas recirculation systems

The following parts are also considered emission-related components for ex-

haust emissions:

- Aftertreatment devices

- Crankcase ventilation valves

- Sensors

- Electronic control units

The following parts are considered emission-related components for evaporative

emissions:

- Fuel tank

- Fuel cap

- Fuel line

- Fuel line fittings

- Clamps*

- Pressure relief valves*

- Control valves*

- Control solenoids*

- Electronic controls*

- Vacuum control diaphragms*

- Control cables*

- Control linkages*

- Purge valves

- Vapor hoses

- Liquid/ vapor separator

- Carbon canister

- Canister mounting brackets

- Carburetor purge port connector

NOTE:

* As related to the evaporative emission control system.

Emission-related components also include any other part whose only purpose is

to reduce emissions or whose failure will increase emissions without significantly

degrading engine/ equipment performance.

Limited Applicability

As a certifying manufacturer, BRP may deny emission-related warranty claims

for failures that have been caused by the owner’s or operator’s improper mainte-

nance or use, by accidents for which the manufacturer has no responsibility, or

by acts of God. For example, an emission-related warranty claim need not be

honored for failures that have been directly caused by the operator’s abuse of

the engine/ equipment or the operator’s use of the engine/ equipment in a man-

ner for which it was not designed and are not attributable to the manufacturer in

any way.

197

CALIFORNIA EVAPORATIVE EMISSIONS

CONTROL SYSTEM WARRANTY STATEMENT

Your Warranty Rights and Obligations

The California Air Resources Board is pleased to explain the evaporative emis-

sions control system’s warranty on your 2023 spark-ignition marine watercraft

(SIMW). In California, new spark-ignition marine watercraft must be designed,

built, and equipped to meet the State’s stringent anti-smog standards. Bombar-

dier Recreational Products Inc. must warrant the evaporative emissions control

system on your spark-ignition marine watercraft for the period listed below, pro-

vided there has been no abuse, neglect or improper maintenance of your spar-

k-ignition marine watercraft.

Your evaporative emissions control system may include parts such as: canisters,

carburetors, clamps, connectors, filters, fuel caps, fuel lines, fuel tanks, valves,

vapor hoses, and other associated evaporative emissions control system

components.

Manufacturer’s Warranty Coverage

This evaporative emissions control system is warranted for two years. If any

evaporative emission-related part on your spark-ignition marine watercraft is de-

fective, the part will be repaired or replaced by Bombardier Recreational Prod-

ucts Inc.

Parts Covered:

- Clamp(s)*

- Fuel Cap

- Fuel Line

- Fuel Line Fitting(s)

- Fuel Tank

- Pressure Relief Valve(s)*

- Vapor Hose(s)

- All other parts not listed that may affect the evaporative emissions control

system.

NOTE:

* As related to the evaporative emission control system.

Owner’s Warranty Responsibilities

As the spark-ignition marine watercraft owner, you are responsible for perform-

ance of the required maintenance listed in your owner’s manual. Bombardier

Recreational Products Inc. recommends that you retain all receipts covering

maintenance on your spark-ignition marine watercraft, but Bombardier Recrea-

tional Products Inc. cannot deny warranty solely for the lack of receipts.

As the spark-ignition marine watercraft owner, you should however be aware that

Bombardier Recreational Products Inc. may deny you warranty coverage if your

spark-ignition marine watercraft or a part has failed due to abuse, neglect, im-

proper maintenance or unapproved modifications.

You are responsible for presenting your spark-ignition marine watercraft to a

Bombardier Recreational Products Inc. distribution center or service center as

soon as the problem exists. The warranty repairs should be completed in a

199

CALIFORNIA AND NEW YORK EMISSION

CONTROL WARRANTY STATEMENT FOR MODEL

YEAR 2023 SEA-DOO PERSONAL WATERCRAFT

Your Warranty Rights and Obligations

The California Air Resources Board, the New York State Department of Environ-

mental Conservation and Bombardier Recreational Products Inc. ("BRP") are

pleased to explain the emission control system warranty on your Model Year

2023 Sea-Doo personal watercraft. In California and New York, new personal

watercraft engines must be designed, built and equipped to meet the State’s

stringent anti-smog standards. BRP must warrant the emission control system

on your personal watercraft engine for the period of time listed below provided

there has been no abuse, neglect or improper maintenance of your watercraft

engine.

Your emission control system may include parts such as the fuel injection sys-

tem, the ignition system and catalytic converter. Also included may be hoses,

belts, connectors and other emission related assemblies.

Where a warrantable condition exists, BRP will repair your personal watercraft

engine at no cost to you including diagnosis, parts and labor provided that such

work is performed by an authorized BRP dealer.

Manufacturer’s Limited Warranty Coverage

This emission limited warranty covers Model Year 2023 Sea-Doo personal water-

crafts certified and produced by BRP for sale in California or New York, that are

originally sold in California or New York to a California or New York resident or

subsequently warranty registered to a California or New York resident. The BRP

limited warranty conditions for Sea-Doo personal watercrafts are still applicable

to these models with the necessary modifications. Select emission control parts

of your 2023 Sea-Doo personal watercraft are warranted from the date of deliv-

ery to the first retail consumer for a period of 4 years, or for 250 hours of use,

whichever occurs first. However, warranty coverage based on the hourly period

is only permitted for personal watercraft equipped with the appropriate hour me-

ters or their equivalent. If any emission-related part on your engine is defective

under warranty, the part will be repaired or replaced by BRP.

Parts Covered for a Model Year 2023 Sea-Doo Personall Watercraft

Air box

Intake and exhaust valve and seals

Air intake adapter

Intake manifold

Intake manifold air pressure and

Catalytic converter

temperature sensor (MAPTS)

Crankcase ventilation valve

Intake manifold seal

Engine coolant temperature sensor

Knock sensor (KS)

(CTS)

Engine control module (ECM)

Oxygen sensor (HO₂S)

Fuel filter

Spark plugs

201

CALIFORNIA AND NEW YORK EMISSION CONTROL WARRANTY STATEMENT FOR MODEL YEAR 2023

SEA-DOO PERSONAL WATERCRAFT

Fuel injectors

Supercharger

Fuel pressure regulator

Throttle body

Fuel pump

Throttle body seal

Fuel rail

Throttle position sensor (TPS)

Ignition coils

Wire harness and connectors

The emission warranty covers damage to other engine components that is

caused by the failure of a warranted part. The BRP operator’s guide provided

contains written instructions for the proper maintenance and use of your personal

watercraft. All emission warranty parts are warranted by BRP for the entire war-

ranty period of the personal watercraft, unless the part is scheduled for replace-

ment as required maintenance in the operator’s guide.

Emission warranty parts that are scheduled for replacement, as required mainte-

nance, are warranted by BRP for the period of time before the first scheduled re-

placement date for that part. Emission warranty parts that are scheduled for

regular inspection, but not regular replacement, are warranted by BRP for the en-

tire warranty period of the personal watercraft. Any emission warranty part re-

paired or replaced under the terms of this warranty statement is warranted by

BRP for the remainder of the warranty period of the original part. All parts re-

placed under this limited warranty become the property of BRP.

Maintenance receipts and records should be transferred to each subsequent

owner of the personal watercraft.

Owner’’s Warranty Responsiibillities

As the owner of a 2023 Sea-Doo personal watercraft, you are responsible for the

performance of the required maintenance listed in your operator’s guide. BRP

recommends that you retain all receipts covering maintenance of your personal

watercraft engine, but BRP cannot deny warranty solely for the lack of receipts or

your failure to ensure the performance of all scheduled maintenance.

As the owner of a Sea-Doo personal watercraft, you should however be aware

that BRP may deny your warranty coverage if your engine or a part has failed

due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your engine to an authorized BRP Sea-Doo

dealer as soon as a problem exists. The warranty repairs will be completed in a

reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities or

for the name and location of the nearest authorized BRP Sea-Doo dealer you

should contact the Customer Assistance Center at 1-888-272-9222.

Star Rating System

For California and New York, your 2023 Sea-Doo spark-ignition marine water-

craft (SIMW) has a special environmental label required by the California Air

202

CALIFORNIA AND NEW YORK EMISSION CONTROL WARRANTY STATEMENT FOR MODEL YEAR 2023

SEA-DOO PERSONAL WATERCRAFT

Resources Board. The label has 3 stars. A hangtag, provided with your spar-

k-ignition marine watercraft (SIMW), describes the meaning of the star rating

system.

The Star Label Means Clleaner Marine Engiines

The Symbol for Cleaner Marine Engines:

Clleaner Air and Water

For a healthier lifestyle and environment.

Better Fuel Economy

Burns up to 30 - 40 percent less gas and oil than conventional carbureted two-s-

troke engines saving money and resources.

Longer Emiissiion Warranty

Protects consumer for worry free operation.

One Star – Low Emission

The one-star label identifies personal watercraft, outboard, stern drive and in-

board engines that meet the Air Resources Board’s Personal Watercraft and Out-

board marine engine 2001 exhaust emission standards. Engines meeting these

standards have 75% lower emissions than conventional carbureted two-stroke

engines. These engines are equivalent to the U.S. EPA’s 2006 standards for ma-

rine engines.

Two Stars – Very Low Emiissiion

The two-star label identifies personal watercraft, outboard, stern drive and in-

board engines that meet the Air Resources Board’s Personal Watercraft and Out-

board marine engine 2004 exhaust emission standards. Engines meeting these

standards have 20% lower emissions than One Star - Low-Emission engines.

Three Stars – Ulltra Low Emiissiion

The three-star label identifies engines that meet the Air Resources Board’s Per-

sonal Watercraft and Outboard marine engine 2008 exhaust emission standards

or the Stern drive and Inboard marine engine 2003 exhaust emission standards.

Engines meeting these standards have 65% lower emissions than One Star -

Low Emission engines.

Four Stars – Super Ulltra Low Emiissiion

The four-star label identifies engines that meet the Air Resources Board’s Stern--

drive and Inboard marine engine 2012 exhaust emission standards. Personal

203

BRP INTERNATIONAL LIMITED WARRANTY: 2023

SEA-DOO PERSONAL WATERCRAFT

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2023 Sea-Doo per-

sonal watercraft ("personal watercraft") sold by distributors or dealers authorized

by BRP to distribute Sea-Doo personal watercrafts ("Sea-Doo Distributor/Deal-

er") outside of the fifty United States, Canada, member states of the European

Economic Area (which is comprised of the member states of the European Union

plus the United Kingdom, Norway, Iceland and Liechtenstein) ("EEA"), member

states of the Commonwealth of the Independent States (including Ukraine and

Turkmenistan) ("CIS") and Turkey, from defects in material or workmanship for

the period and under the conditions described below.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

This limited warranty will become null and void if:

1. The personal watercraft was used for racing or any other competitive activity,

at any point, even by a previous owner; or

2. The personal watercraft has been altered or modified in such a way so as to

adversely affect its operation, performance or durability or

3. The personal watercraft has been altered or modified to change its intended

use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME JURISDICTIONS DO NOT ALLOW FOR THE

DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED ABOVE,

AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WARRANTY

GIVES YOU SPECIFIC RIGHTS AND YOU MAY ALSO HAVE OTHER LE-

GAL RIGHTS WHICH MAY VARY FROM COUNTRY TO COUNTRY. (FOR

PRODUCTS PURCHASED IN AUSTRALIA, REFER TO FOR PRODUCTS

SOLD IN AUSTRALIA ONLY, BELOW).

Neither the Sea-Doo distributor/dealer nor any other person has been authorized

to make any affirmation, representation or warranty regarding the product, other

than those contained in this limited warranty, and if made, shall not be enforce-

able against BRP.

BRP reserves the right to modify this warranty at any time, being understood that

such modification will not alter the warranty conditions applicable to the products

sold while this warranty is in effect.

205

BRP INTERNATIONAL LIMITED WARRANTY: 2023 SEA-DOO PERSONAL WATERCRAFT

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Replacement of parts due to normal wear and tear;

–

Routine maintenance parts and services, including but not limited to tune ups,

adjustments, oil, lubricant and coolant changes, spark plug replacement,

water pumps and the like;

Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the operator’s guide;

Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modification or use of parts or accessories not manufactured or ap-

proved by BRP which in its reasonable judgment are either incompatible with

the product or adversely affect its operation, performance and durability, or

resulting from repairs done by a person that is not an authorized servicing

Sea-Doo Distributor/Dealer;

Damage caused by abuse, misuse, abnormal use, neglect, racing, improper

operation or operation of the product in a manner inconsistent with the recom-

mended operation described in the operator’s guide;

Damage resulting from external damage, accident, submersion, fire, foreign

object or water ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for use with the

product (refer to the operator’s guide);

Damage resulting from rust, corrosion or exposure to the elements;

–

Damages from cooling system or jet pump blockage by foreign material;

–

Damages to gel coat finish including but not limited to cosmetic gel coat finish

defects, blisters, starring, crazing and fiberglass delamination caused by blis-

ters, crazing, spider or hairline cracks; and

Incidental or consequential damages, or damages of any kind including with-

out limitation towing, storage, transportation expenses, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

WARRANTY COVERAGE PERIOD

This limited warranty will be in effect from the date of delivery to the first retail

consumer or the date the product is first put into use, whichever occurs first and

for a period of:

1. TWELVE (12) CONSECUTIVE MONTHS for private, recreational use. For

AUSTRALIA and NEW ZEALAND only, TWENTY-FOUR (24) CONSECU-

TIVE MONTHS for private, recreational use.

2. FOUR (4) CONSECUTIVE MONTHS for commercial use,

This is a minimal warranty period which can be extended by any applicable

warranty promotional program, as the case may be. A personal watercraft is

used commercially when it is used in connection with generating income or

any work or employment during any part of the warranty period. A personal

watercraft is also used commercially when, at any point during the warranty

period, it has commercial tags or is licensed for commercial use.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this warranty beyond its original expiration date.

206

BRP INTERNATIONAL LIMITED WARRANTY: 2023 SEA-DOO PERSONAL WATERCRAFT

Note that the duration and any other modalities of the warranty coverage are sub-

ject to the applicable national or local legislation in the customer's country.

FOR PRODUCTS SOLD IN AUSTRALIA ONLY

Nothing in these Warranty terms and conditions should be taken to exclude, re-

strict or modify the application of any condition, warranty, guarantee, right or rem-

edy conferred or implied under the Competition and Consumer Act 2010 (Cth),

including the Australian Consumer Law or any other law, where to do so would

contravene that law, or cause any part of these terms and conditions to be void.

The benefits given to you under this limited warranty are in addition to other rights

and remedies that you have under Australian law.

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major failure

and for compensation for any other reasonably foreseeable loss or damage. You

are also entitled to have the goods repaired or replaced if the goods fail to be of

acceptable quality and the failure does not amount to a major failure.

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following conditions has

been fulfilled:

- The 2023 Sea-Doo personal watercraft must be purchased as new and un-

used by its first owner from a Sea-Doo distributor/dealer authorized to distrib-

ute Sea-Doo personal watercrafts in the country in which the sale occurred;

- The BRP specified pre-delivery inspection process must be completed and

documented;

- The 2023 Sea-Doo personal watercraft must have undergone proper registra-

tion by an authorized Sea-Doo distributor/dealer;

- The 2023 Sea-Doo personal watercraft must have been purchased in the

country or union of countries in which the purchaser resides.

- Routine maintenance outlined in the operator’s guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

WHAT TO DO TO OBTAIN WARRANTY COVERAGE

The customer must cease using the Sea-Doo personal watercraft upon the ap-

pearance of an anomaly. The customer must notify a servicing Sea-Doo distribu-

tor/ dealer within two (2) days of the appearance of a defect, and provide it with

reasonable access to the product and reasonable opportunity to repair it. The

customer must also present to the authorized Sea-Doo distributor/ dealer, proof

of purchase of the product and must sign the repair/ work order prior to starting

the repair in order to validate the warranty repair. All parts replaced under this

limited warranty become the property of BRP.

Note that the notification period is subject to the applicable national or local legis-

lation in customer's country.

207

BRP INTERNATIONAL LIMITED WARRANTY: 2023 SEA-DOO PERSONAL WATERCRAFT

WHAT BRP WILL DO

To the extent permitted by law, BRP’s obligations under this warranty are limited

to, at its sole discretion, repairing parts found defective under normal use, main-

tenance and service, or replacing such parts with new genuine BRP parts without

charge for parts and labor, at any authorized Sea-Doo distributor/ dealer during

the warranty coverage period under the conditions described herein. BRP’s re-

sponsibility is limited to making the required repairs or replacements of parts. No

claim of breach of warranty shall be cause for cancellation or rescission of the

sale of the Sea-Doo personal watercraft to the owner. You may have other legal

rights which may vary from country to country.

In the event that service is required outside of the country of original sale, the

owner will bear responsibility for any additional charges due to local practices

and conditions, such as, but not limited to, freight, insurance, taxes, license fees,

import duties, and any and all other financial charges, including those levied by

governments, states, territories and their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

TRANSFER

If the ownership of a product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Sea-Doo Distributor/ Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this BRP limited war-

ranty, BRP suggests that you try to resolve the issue at the dealership level. We

recommend discussing the issue with the authorized BRP dealer’s service man-

ager or owner.

If the matter still remains unresolved, contact BRP by filling out the customer con-

tact form at www.brp.com or contact BRP by mail at one of the addresses listed

under the Contact Us section of this guide.

208

BRP LIMITED WARRANTY FOR THE EUROPEAN

ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2023

SEA-DOO PERSONAL WATERCRAFT

SCOPE OF THE LIMITED WARRANTY

Bombardier Recreational Products Inc. (“BRP”) warrants its 2023 Sea-Doo per-

sonal watercraft ("personal watercraft") sold by distributors or dealers authorized

by BRP to distribute Sea-Doo personal watercrafts ("Sea-Doo distributor/dealer")

in member states of the European Economic Area (which is comprised of the

member states of the European Union plus the United Kingdom, Norway, Iceland

and Liechtenstein) ("EEA"), in member states of the Commonwealth of the Inde-

pendent States (including Ukraine and Turkmenistan) ("CIS") and Turkey from

defects in material or workmanship for the period and under the conditions de-

scribed below.

Non-factory installed parts and accessories are not covered under this limited

warranty. Please refer to the applicable parts and accessories limited warranty

text.

This limited warranty will become null and void if:

1. The personal watercraft was used for racing or any other competitive activity,

at any point, even by a previous owner; or

2. The personal watercraft has been altered or modified in such a way so as to

adversely affect its operation, performance or durability, or

3. The personal watercraft has been altered or modified to change its intended

use.

LIMITATIONS OF LIABILITY

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS EX-

PRESSLY GIVEN AND ACCEPTED IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMI-

TATION ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. TO THE EXTENT THAT THEY CANNOT BE

DISCLAIMED, THE IMPLIED WARRANTIES ARE LIMITED IN DURATION

TO THE LIFE OF THE EXPRESS WARRANTY. INCIDENTAL AND CON-

SEQUENTIAL DAMAGES ARE EXCLUDED FROM COVERAGE UNDER

THIS WARRANTY. SOME JURISDICTIONS DO NOT ALLOW FOR THE

DISCLAIMERS, LIMITATIONS AND EXCLUSIONS IDENTIFIED ABOVE,

AS A RESULT, THEY MAY NOT APPLY TO YOU. THIS WARRANTY

GIVES YOU SPECIFIC RIGHTS, AND YOU MAY ALSO HAVE OTHER LE-

GAL RIGHTS WHICH MAY VARY FROM COUNTRY TO COUNTRY.

Neither the Sea-Doo distributor/dealer nor any other person has been authorized

to make any affirmation, representation or warranty regarding the product, other

than those contained in this limited warranty, and if made, shall not be enforce-

able against BRP.

BRP reserves the right to modify this warranty at any time, being understood that

such modification will not alter the warranty conditions applicable to the products

sold while this warranty is in effect.

209

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2023 SEA-DOO PERSONAL WATERCRAFT

EXCLUSIONS – ARE NOT WARRANTED

The following are not warranted under this limited warranty under any

circumstances:

Replacement of parts due to normal wear and tear;

–

Routine maintenance parts and services, including but not limited to tune ups,

adjustments, oil, lubricant and coolant changes, spark plug replacement,

water pumps and the like;

Damage caused by negligence or failure to provide proper maintenance and/

or storage, as described in the operator’s guide;

Damage resulting from removal of parts, improper repairs, service, mainte-

nance, modification or use of parts or accessories not manufactured or ap-

proved by BRP which in its reasonable judgment are either incompatible with

the product or adversely affect its operation, performance and durability, or

resulting from repairs done by a person that is not an authorized servicing

Sea-Doo Distributor/Dealer;

Damage caused by abuse, misuse, abnormal use, neglect, racing, improper

operation or operation of the product in a manner inconsistent with the recom-

mended operation described in the operator’s guide;

Damage resulting from external damage, accident, submersion, fire, foreign

object or water ingestion, theft, vandalism or any act of God;

Operation with fuels, oils or lubricants which are not suitable for use with the

product (refer to the operator’s guide);

Damage resulting from rust, corrosion or exposure to the elements;

–

Damages from cooling system or jet pump blockage by foreign material;

–

Damages to gel coat finish including but not limited to cosmetic gel coat finish

defects, blisters, starring, crazing and fiberglass delamination caused by blis-

ters, crazing, spider or hairline cracks; and

Incidental or consequential damages, or damages of any kind including with-

out limitation towing, storage, transportation expenses, telephone, rental, taxi,

inconvenience, insurance coverage, loan payments, loss of time, loss of in-

come or time missed for downtime experience due to service work.

WARRANTY COVERAGE PERIOD

This limited warranty will be in effect from the date of delivery to the first retail

consumer or the date the product is first put into use, whichever occurs first and

for a period of:

1. Twenty four (24) CONSECUTIVE MONTHS, for private, recreational use,

2. FOUR (4) CONSECUTIVE MONTHS for commercial use,

A personal watercraft is used commercially when it is used in connection with

generating income or any work or employment during any part of the warranty

period. A personal watercraft is also used commercially when, at any point

during the warranty period, it has commercial tags or is licensed for commer-

cial use.

The repair or replacement of parts or the performance of service under this war-

ranty does not extend the life of this warranty beyond its original expiration date.

Note that the duration and any other modalities of the warranty coverage are sub-

ject to the applicable national or local legislation in the customer's country.

210

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2023 SEA-DOO PERSONAL WATERCRAFT

CONDITIONS TO HAVE WARRANTY COVERAGE

This warranty coverage is available only if each of the following conditions has

been fulfilled:

- The 2023 Sea-Doo personal watercraft must be purchased as new and un-

used by its first owner from a Sea-Doo distributor/dealer authorized to distrib-

ute Sea-Doo personal watercrafts in the country in which the sale occurred;

- The BRP specified pre-delivery inspection process must be completed and

documented;

- The 2023 Sea-Doo personal watercraft must have undergone proper registra-

tion by an authorized Sea-Doo distributor/dealer;

- The 2023 Sea-Doo personal watercraft must be purchased within the EEA by

an EEA resident, in the CIS for residents of the countries comprised in such

area and in Turkey for residents of Turkey; and

- Routine maintenance outlined in the operator’s guide must be timely per-

formed in order to maintain warranty coverage. BRP reserves the right to

make warranty coverage contingent upon proof of proper maintenance.

BRP will not honor this limited warranty to any private use owner or commercial

use owner if one of the preceding conditions has not been met. Such limitations

are necessary in order to allow BRP to preserve both the safety of its products,

and also that of its consumers and the general public.

WHAT TO DO TO OBTAIN WARRANTY COVERAGE

The customer must cease using the Sea-Doo personal watercraft upon the ap-

pearance of an anomaly. The customer must notify a servicing Sea-Doo distribu-

tor/ dealer within two (2) days of the appearance of a defect, and provide it with

reasonable access to the product and reasonable opportunity to repair it. The

customer must also present to the authorized Sea-Doo distributor/ dealer, proof

of purchase of the product and must sign the repair/ work order prior to starting

the repair in order to validate the warranty repair. All parts replaced under this

limited warranty become the property of BRP.

Note that the notification period is subject to the applicable national or local legis-

lation in customer's country.

WHAT BRP WILL DO

To the extent permitted by law, BRP’s obligations under this warranty are limited

to, at its sole discretion, repairing parts found defective under normal use, main-

tenance and service, or replacing such parts with new genuine Sea-Doo parts

without charge for parts and labor, at any authorized Sea-Doo distributor/ dealer

during the warranty coverage period under the conditions described herein.

BRP’s responsibility is limited to making the required repairs or replacements of

parts. No claim of breach of warranty shall be cause for cancellation or rescission

of the sale of the Sea-Doo personal watercraft to the owner. You may have other

legal rights which may vary from country to country.

In the event that service is required outside of the country of original sale, or for

EEA residents, if service is required outside of the EEA, for CIS residents, if serv-

ice is required outside of the CIS, the owner will bear responsibility for any addi-

tional charges due to local practices and conditions, such as, but not limited to,

freight, insurance, taxes, license fees, import duties, and any and all other

211

BRP LIMITED WARRANTY FOR THE EUROPEAN ECONOMIC AREA, THE COMMONWEALTH OF THE

INDEPENDENT STATES AND TURKEY: 2023 SEA-DOO PERSONAL WATERCRAFT

financial charges, including those levied by governments, states, territories and

their respective agencies.

BRP reserves the right to improve or modify products from time to time without

assuming any obligation to modify products previously manufactured.

TRANSFER

If the ownership of a product is transferred during the warranty coverage period,

this limited warranty, subject to its terms and conditions, shall also be transferred

and be valid for the remaining coverage period provided BRP or an authorized

Sea-Doo Distributor/ Dealer receives a proof that the former owner agreed to the

transfer of ownership, in addition to the coordinates of the new owner.

CONSUMER ASSISTANCE

In the event of a controversy or a dispute in connection with this BRP limited war-

ranty, BRP suggests that you try to resolve the issue at the dealership level. We

recommend discussing the issue with the authorized BRP dealer’s service man-

ager or owner.

If the matter still remains unresolved, contact BRP by filling out the customer con-

tact form at www.brp.com or contact BRP by mail at one of the addresses listed

under the Contact Us section of this guide.

ADDITIONAL TERMS AND CONDITIONS FOR FRANCE

The following terms and conditions are applicable to products sold in France

only.

The seller shall deliver goods that are complying with the contract and shall be

responsible for defects existing upon delivery. The seller shall also be responsi-

ble for defects resulting from packaging, assembling instructions or the installa-

tion when it is its responsibility per the contract or if accomplished under its

responsibility. To be compliant with the contract, the good shall:

1. Be fit for normal use for goods similar thereto and, if applicable:

- Correspond to the description provided by the seller and have the qualities

presented to the buyer though sample or model;

- Have the qualities that a buyer may legitimately expect considering the

public declarations of the seller, the manufacturer of its representative, in-

cluding in advertising or labeling; or

2. Have the characteristics mutually agreed upon as between the parties or be

fit for the specific use intended by the buyer and brought to the attention of

the seller and which accepted by the seller.

The action for failure to comply is prescribed after two years after delivery of the

goods. The seller is responsible for the warranty for hidden defects of the good

sold if such hidden defects are rendering the good unfit for the intended use, or if

they diminish its use in such a way that the buyer would not have acquired the

good or would have given a lesser price, had he known. The action for such hid-

den defects shall be taken by the buyer within 2 years of the discovery of the

defect.

212

DATA PRIVACY INFORMATION

Bombardier Recreational Products inc., its affiliates and subsidiaries (“BRP”) is

committed to protecting your privacy and support a general policy of openness

about how we collect, use and disclose your personal information in the course

of managing our relationship with you. More detaiils can be found by visiting

BRP’’s Priivacy Poliicy at:

https://brp.com/en/privacy-poliicy.htmll or by scanniing the QR Code below.

Please be assured that we have appropriate security measures in place to en-

sure that your personal information is protected against loss and unauthorized

access.

Your personal information that may be collected by BRP, directly from you or

from authorized dealers or authorized third parties, includes:

- Contact, Demographiic & Registratiion Informatiion (e.g., name, full ad-

dress, phone number, email, gender, ownership history, language of

communication)

- Vehicle Information (e.g., serial number, purchase and delivery date, unit

usage, vehicle location and movements)

- Third Party Informatiion (e.g., information received from BRP partners, join-

t-marketing activities information, social media)

- Technological Information (e.g., IP address, type of device, operating sys-

tem, browser type, webpages you view, cookies and similar technologies

when you use BRP or dealers’ websites or mobile application)

- Interaction with BRP Information (e.g., information collected when you call

BRP’s in-house sales representatives, buy items on a BRP web Site, sign up

for BRP emails, participate in BRP-sponsored contests and sweepstakes or

attend BRP-sponsored events)

- Transactiionall Informatiion (e.g., information necessary to handle returns,

payment information when you purchase our products or services through

our websites or mobile applications and other issues related to your purchase

of BRP products)

This information may be used and processed for the following purposes:

- Safety & Security

- Customer Support for Sales & After Sales (e.g., complete or follow up with

you about your purchase or maintenance)

- Registration & Warranty

- Communication (e.g., sending you a BRP satisfaction survey)

- Online Behavioural Advertising, Profiling and Location-Based Services

(e.g., offer customized experience)

- Compliance & Dispute Resolution

- Marketing & Advertising

- Assistance (e.g., help with any delivery issues, handle returns, and other is-

sues related to your purchase of BRP products).

We also may use personal information to generate aggregated or statistical data

that no longer identifies you personally.

Your personal informatiion may be disclosed to the folllowiing: BRP, BRP’s

authoriized deallerships, diistriibutors, serviice proviiders, advertising & mar-

ket research partners and other authoriized third partiies.

We may receive information about you from diverse sources, including third par-

ties, such as BRP’s authorized dealerships and partners, with whom we offer

214

DATA PRIVACY INFORMATION

services or engage in joint-marketing activities. We may also receive information

about you from social media platforms such as Facebook and Twitter, when you

interact with us on those platforms.

Depending on the circumstances, your personal information may be communi-

cated outside the region where you reside. Your personal information is retained

only for as long as necessary for the purpose for which we obtained it and ac-

cording to our retention policies.

To exercise your data privacy rights (e.g. right of access, right of rectification), to

withdraw your consent in order to be removed from the address list for marketing

purposes or for the satisfaction survey or for general data privacy questions,

please contact BRP’s Data Protection Officer at or by mail at privacyoffii-

cer@brp.com or by mail at:

BRP Legal Service, 726 St-Joseph, Valcourt, Quebec, Canada, J0E 2L0.

When BRP processes your personall iinformation, they do so in complliance

wiith its Privacy Pollicy avaiilable at: https://www.brp.com/en/privacy-poliicy.

htmll or by using the folllowiing

QR Code.

215

www.brp.com

Sweden

Spinnvägen 15

Asia Pacific

903 61 Umeå

Sweden 90821

Australia

6 Lord Street

Switzerlland

Lakes Business Park

Avenue d’Ouchy 4-6

Botany, NSW 2019

1006 Lausanne

China

Latin America

Room 3703, Tower 2,

Grand Gateway

Braziil

3 Hong Qiao Road,

Av. James Clerck Maxwell, 230

Xuhui District,

Campinas, Sao Paulo

Shanghai 200030

CEP 13069-380

Japan

Mexiico

21F Shinagawa East One Tower

Av. Ferrocarril 202

2-16-1 Konan, Minato-ku-ku,

Parque Industrial Querétaro

Tokyo 108-0075

Santo Rosa Jauregui, Querétaro

C.P. 76220

New Zealland

Suite 1.6, 2-8 Osborne Street,

North America

Newmarket, Auckland 2013

Canada

3200A, rue King Ouest,

Europe, Middle East and

Suite 300

Africa

Sherbrooke (Québec) J1L 1C9

Bellgium

Oktrooiplein 1

United States of America

9000 Gent

10101 Science Drive

Sturtevant, Wisconsin

Czech Republiic

53177

Stefanikova 43a

Prague 5

150 00

Germany

Itterpark 11

40724 Hilden

Fiinland

Isoaavantie 7

PL 8040

96101 Rovaniemi

France

Arteparc Bâtiment B

Route de la côte d'Azur,

13 590 Meyreuil

Norway

Ingvald Ystgaardsvei 15

N-7484 Trondheim

Salg, marketing, ettermarked

216

CHANGE OF ADDRESS/OWNERSHIP

If your address has changed or if you are the new owner of the boat, be sure to

notify BRP by either:

- Notifying an authorized Sea-Doo dealer.

- North America Onlly: calling at 1 888 272-9222.

- Mailing one of the change of address cards on the following pages at one of

the BRP addresses indicated in the Contact Us section of this guide.

In case of change of ownership, please join a proof that the former owner agreed

to the transfer.

Notifying BRP, even after the expiration of the limited warranty, is very important

as it enables BRP to reach the boat owner if necessary, like when safety recalls

are initiated. It is the owner’s responsibility to notify BRP.

STOLEN UNITS: In the event that your boat is stolen, you should notify your

area’s distributor warranty department of such. We will ask you to provide your

name, address, phone number, Hull Identification Number and date it was stolen.

217
